Characteristics of the Global Radio Frequency Interference in the Protected Portion of L-Band
Abstract
:1. Introduction
- A short review of SMAP, its radiometer data, and the RFI presence in its radiometer measurements are given in Section 2.
- An RFI detection and characterization procedure, similar to the one discussed in [17,18] with some improvements, applied to SMAP Level 1A data measured between May 1 and 7, 2019 to extract RFI properties in the protected portion of L-band is presented in Section 3. The multi-domain procedure contains time and frequency domain pulse blanking, kurtosis, and skewness algorithms implemented simultaneously. Then, similar to the SMAP data processing, detection results from individual algorithms are combined with a logical “OR” operator.
- Based on detection results, geo-located characteristics of the L-band RFI environment such as the maximum and average RFI bandwidth and duration, average RFI-free bandwidth, and the variance in such properties between ascending and descending SMAP observations are discussed in Section 4. This section also mentions specific frequencies in the protected portion of L-band susceptible to RFI in different geographic regions.
- Finally, Section 5 discusses the results and provides insight for future L-band microwave radiometry missions regarding required RFI detection and mitigation capabilities.

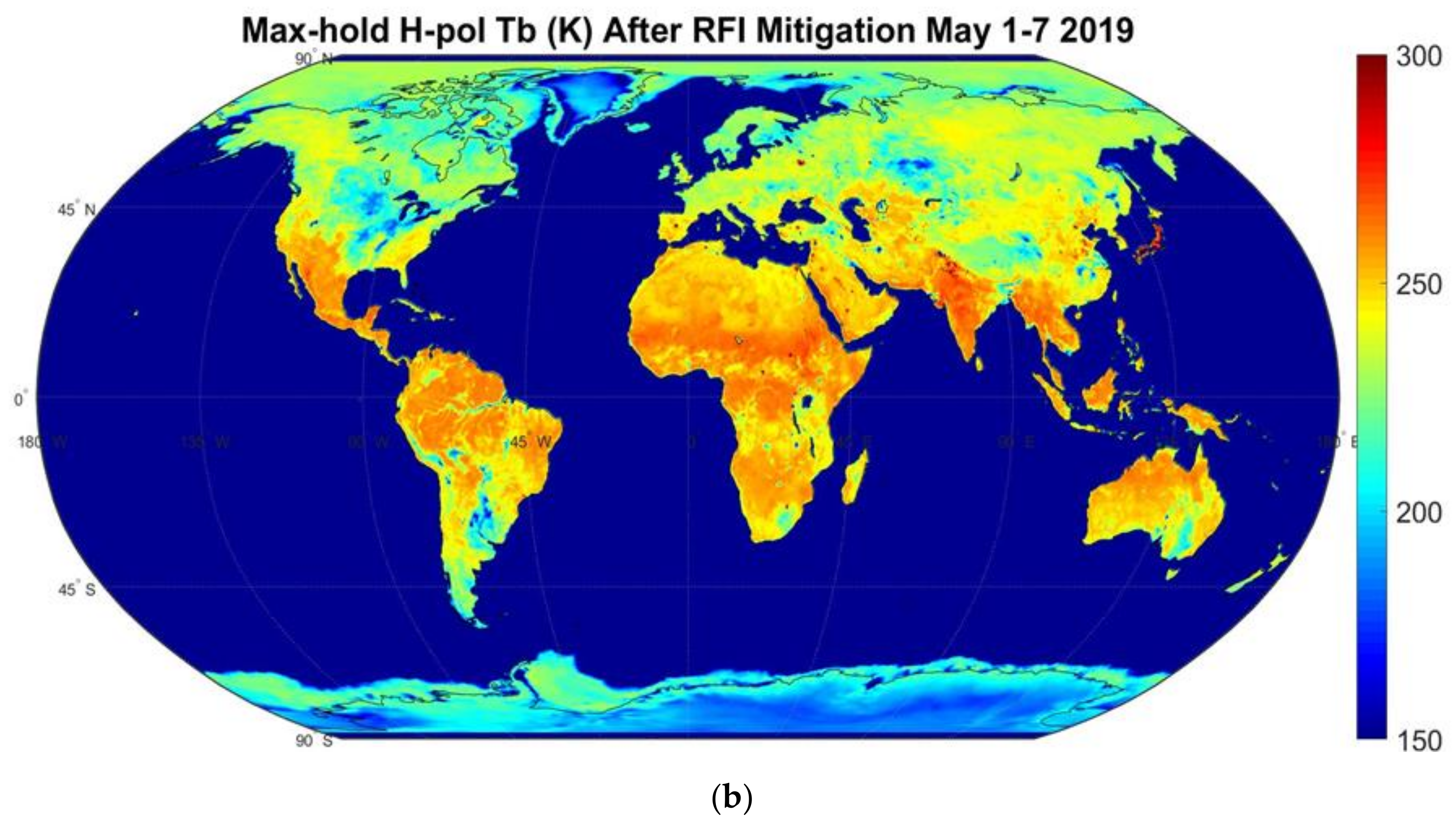

2. SMAP Data and RFI Presence in L-Band
3. Approach to Reveal L-Band RFI Characteristics
3.1. Step I: Statistics Calculations
3.2. Step II: Cross-Frequency Algorithm
3.3. Step III: Time Domain Pulse Blanking Algorithm
3.4. Step IV: Kurtosis Algorithm
3.5. Step V: Skewness Algorithm
3.6. Step VI: MPD Flags

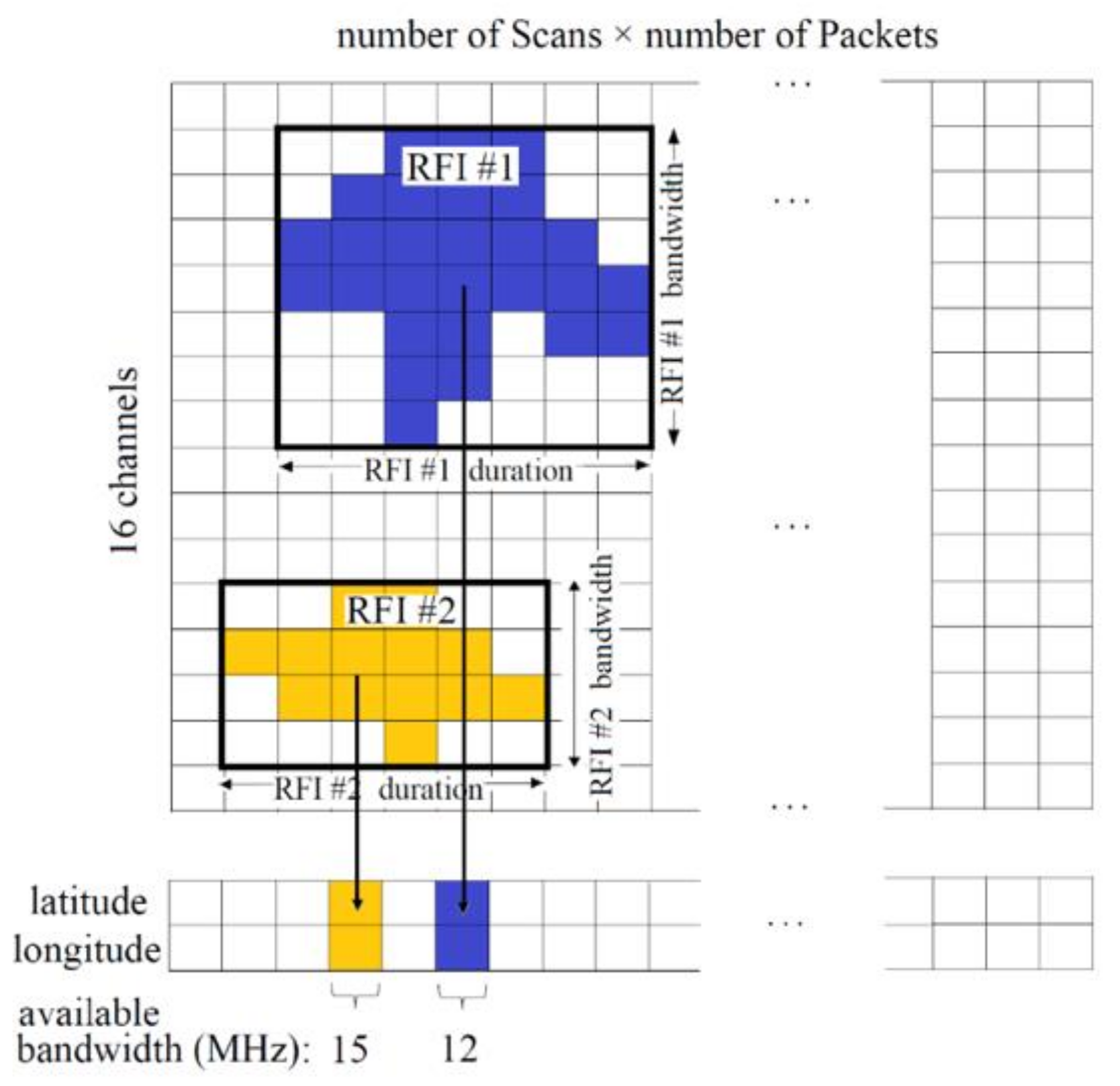

3.7. Step VII: Identifying Bandwidth and Duration of RFI
3.8. Step VIII: Geo-Locating RFI Signals
4. Results and Discussion
4.1. Spectral Properties of L-Band RFI
4.2. Temporal Properties of L-Band RFI
4.3. Spectral Distribution of L-Band RFI

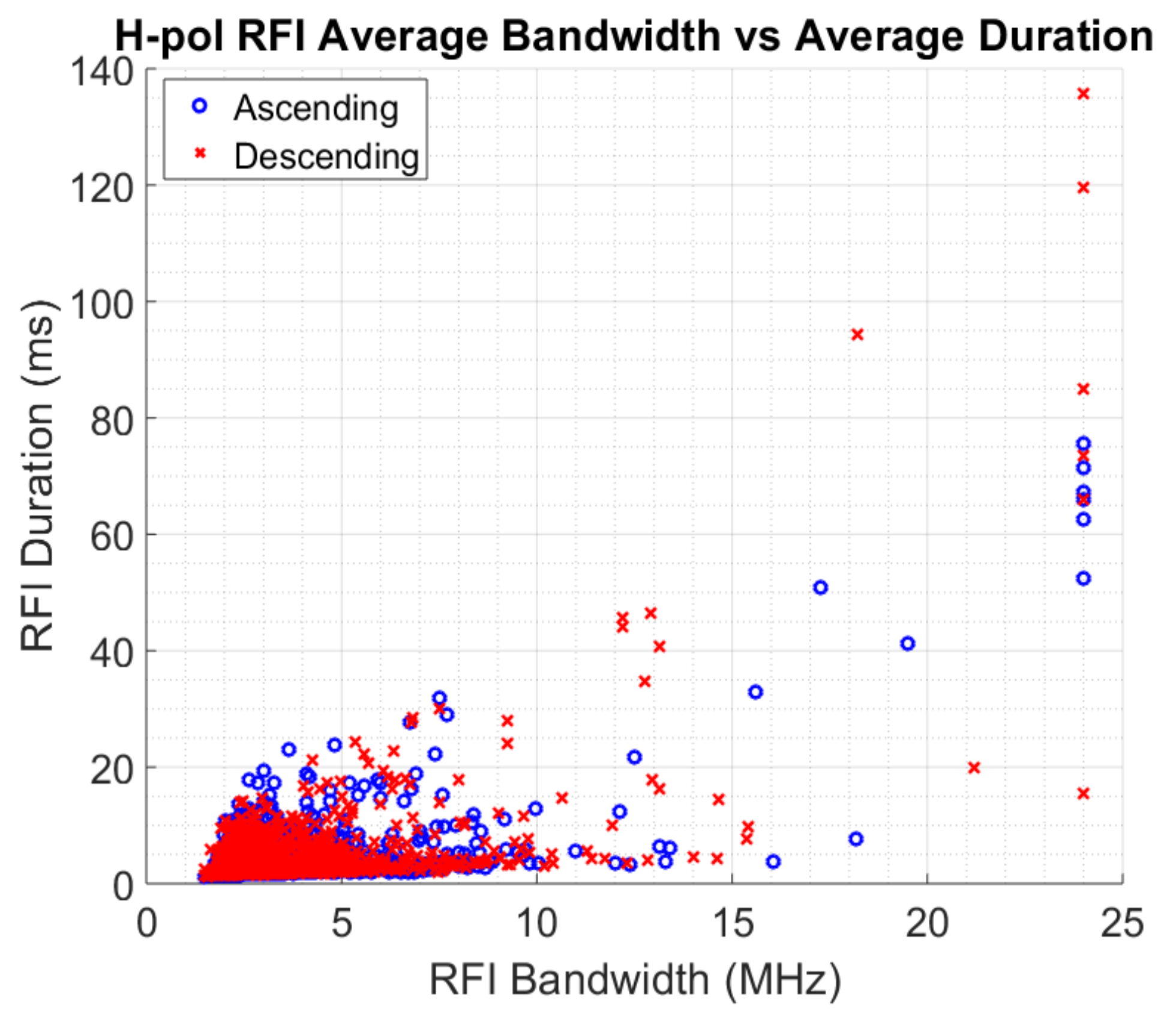

4.4. Overall Worldwide Spectro-Temporal RFI Properties
5. Conclusions and Discussion
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- National Research Council. Handbook of Frequency Allocations and Spectrum Protection for Scientific Uses; The National Academies Press: Washington, DC, USA, 2007.
- Aksoy, M.; Johnson, J.T. A Comparative Analysis of Low-Level Radio Frequency Interference in SMOS and Aquarius Microwave Radiometer Measurements. IEEE Trans. Geosci. Remote Sens. 2013, 51, 4983–4992. [Google Scholar] [CrossRef]
- Aksoy, M.; Johnson, J.T. A Study of SMOS RFI Over North America. IEEE Geosci. Remote Sens. Lett. 2013, 10, 515–519. [Google Scholar] [CrossRef]
- Lahtinen, J.; Uusitalo, J.; Ruokokoski, T.; Ruoskanen, J. Evaluation and comparison of RFI detection algorithms. In Proceedings of the 2016 14th Specialist Meeting on Microwave Radiometry and Remote Sensing of the Environment (MicroRad), Espoo, Finland, 11–14 April 2016; pp. 62–67. [Google Scholar]
- Niamsuwan, N.; Johnson, J.T.; Ellingson, S.W. Examination of a simple pulse-blanking technique for radio frequency interference mitigation. Radio Sci. 2005, 40, 1–11. [Google Scholar] [CrossRef] [Green Version]
- Güner, B.; Johnson, J.T.; Majurec, N. Performance analysis of a cross-frequency detector of pulsed sinusoidal RFI in Mi-crowave Radiometry. In Proceedings of the 2009 IEEE International Geoscience and Remote Sensing Symposium, Cape Town, South Africa, 12–17 July 2009. [Google Scholar]
- Tarongi, J.M.; Camps, A. Normality Analysis for RFI Detection in Microwave Radiometry. Remote Sens. 2009, 2, 191–210. [Google Scholar] [CrossRef] [Green Version]
- Güner, B.; Frankford, M.T.; Johnson, J.T. A Study of the Shapiro–Wilk Test for the Detection of Pulsed Sinusoidal Radio Frequency Interference. IEEE Trans. Geosci. Remote Sens. 2009, 47, 1745–1751. [Google Scholar] [CrossRef]
- Bradley, D.; Morris, J.M.; Adali, T.; Johnson, J.T.; Aksoy, M. On the detection of RFI using the complex signal kurtosis in microwave radiometry. In Proceedings of the 2014 13th Specialist Meeting on Microwave Radiometry and Remote Sensing of the Environment (MicroRad), Pasadena, CA, USA, 24–27 March 2014; pp. 33–38. [Google Scholar]
- De Roo, R.D. A Simplified Calculation of the Kurtosis for RFI Detection. In Proceedings of the IGARSS 2008–2008 IEEE International Geoscience and Remote Sensing Symposium, Boston, MA, USA, 9 October 2008; pp. 3755–3760. [Google Scholar]
- Kristensen, S.S.; Balling, J.; Skou, N.; Sobjoerg, S.S. RFI in SMOS data detected by polarimetry. In Proceedings of the 2012 IEEE International Geoscience and Remote Sensing Symposium, Munich, Germany, 22–27 July 2012; pp. 3320–3323. [Google Scholar]
- Soldo, Y.; Le Vine, D.M.; Bringer, A.; Mohammed, P.N.; De Matthaeis, P.; Piepmeier, J.R.; Johnson, J.T. Recent Advances in SMAP RFI Processing. In Proceedings of the IGARSS 2018–2018 IEEE International Geoscience and Remote Sensing Symposium, Valencia, Spain, 22–27 July 2018; pp. 313–315. [Google Scholar]
- Entekhabi, D.; Njoku, E.; O’Neill, P.; Spencer, M.; Jackson, T.; Entin, J.; Im, E.; Kellogg, K. The soil moisture active/passive mission (SMAP). In Proceedings of the IGARSS 2008–2008 IEEE International Geoscience and Remote Sensing Symposium, Boston, MA, USA, 7–11 July 2008. [Google Scholar]
- Entekhabi, D.; Njoku, E.; O’Neill, P. The soil moisture active and passive mission (SMAP): Science and applications. In Proceedings of the 2009 IEEE Radar Conference, Pasadena, CA, USA, 4–8 May 2009; pp. 1–3. [Google Scholar]
- Piepmeier, J.R.; Johnson, J.T.; Mohammed, P.N.; Bradley, D.; Ruf, C.; Aksoy, M.; Garcia, R.; Hudson, D.; Miles, L.; Wong, M. Radio-Frequency Interference Mitigation for the Soil Moisture Active Passive Microwave Radiometer. IEEE Trans. Geosci. Remote Sens. 2014, 52, 761–775. [Google Scholar] [CrossRef]
- Mohammed, P.N.; Aksoy, M.; Piepmeier, J.R.; Johnson, J.T.; Bringer, A. SMAP L-Band Microwave Radiometer: RFI Miti-gation Prelaunch Analysis and First Year On-Orbit Observations. IEEE Trans. Geosci. Remote Sens. 2016, 54, 6035–6047. [Google Scholar] [CrossRef]
- Rajabi, H.; Aksoy, M. Characteristics of the L-Band Radio Frequency Interference Environment Based on SMAP Radiom-eter Observations. IEEE Geosci. Remote Sens. Lett. 2019, 16, 1736–1740. [Google Scholar] [CrossRef]
- Aksoy, M.; Rajabi, H. Characteristics of radio frequency interference in the protected portion of L-Band. In Proceedings of the IGARSS 2019–2019 IEEE International Geoscience and Remote Sensing Symposium, Yokohama, Japan, 28 July–2 August 2019; pp. 4539–4542. [Google Scholar]
- SMAP L1A Radiometer Time-Ordered Parsed Telemetry, Version 2. National Snow and Ice Data Center. 2019. Available online: https://nsidc.org/data/SPL1AP/versions/2 (accessed on 1 June 2019).
- Piepmeier, J. SPL1AP/BTB Algorithm Theoretical Basis Document Version 2; NASA: Washington, DC, USA, 2016. [Google Scholar]
- SMAP L1B Radiometer Half-Orbit Time-Ordered Brightness Temperatures, Version 4\National Snow and Ice Data Center. Available online: https://nsidc.org/data/SPL1BTB/versions/4 (accessed on 1 June 2019).
- Aksoy, M. Radio Frequency Interference Characterization and Detection in L-Band Microwave Radiometry. Ph.D. Thesis, The Ohio State University, Columbus, OH, USA, 2015. [Google Scholar]
- De Roo, R.D.; Misra, S.; Ruf, C.S. Sensitivity of the Kurtosis Statistic as a Detector of Pulsed Sinusoidal RFI. IEEE Trans. Geosci. Remote Sens. 2007, 45, 1938–1946. [Google Scholar] [CrossRef] [Green Version]
- Mach, P.; Hochlova, H. Testing of normality of data files for application of SPC tools. In Proceedings of the 27th International Spring Seminar on Electronics Technology: Meeting the Challenges of Electronics Technology Progress, Bankya, Bulgaria, 13–16 May 2004; pp. 318–321. [Google Scholar]
- Kerr, Y.H.; Waldteufel, P.; Wigneron, J.-P.; Martinuzzi, J.; Font, J.; Berger, M. Soil moisture retrieval from space: The Soil Moisture and Ocean Salinity (SMOS) mission. IEEE Trans. Geosci. Remote Sens. 2001, 39, 1729–1735. [Google Scholar] [CrossRef]
- Bindlish, R.; Jackson, T.J.; Piepmeier, J.R.; Yueh, S.; Kerr, Y. Intercomparison of SMAP, SMOS and Aquarius L-band brightness temperature observations. In Proceedings of the 2016 IEEE International Geoscience and Remote Sensing Symposium (IGARSS), Beijing, China, 10–15 July 2016; pp. 2043–2046. [Google Scholar]
- Font, J.; Camps, A.; Borges, A.; Martín-Neira, M.; Boutin, J.; Reul, N.; Kerr, Y.H.; Hahne, A.; Mecklenburg, S. SMOS: The Challenging Sea Surface Salinity Measurement From Space. Proc. IEEE 2009, 98, 649–665. [Google Scholar] [CrossRef] [Green Version]
- Johnson, J.T.; Aksoy, M. Studies of radio frequency interference in SMOS observations. In Proceedings of the 2011 IEEE International Geoscience and Remote Sensing Symposium, Vancouver, BC, Canada, 24–29 July 2011; pp. 4210–4212. [Google Scholar]
- Ruf, C.; Chen, D.; Le Vine, D.M.; De Matthaeis, P.; Piepmeier, J. Aquarius radiometer RFI detection, mitigation and impact assessment. In Proceedings of the 2012 IEEE International Geoscience and Remote Sensing Symposium, Munich, Germany, 22–27 July 2012; pp. 3312–3315. [Google Scholar]
- Le Vine, D.; De Matthaeis, P.; Ruf, C.; Chen, D.; Dinnat, E. Aquarius RFI detection and mitigation. In Proceedings of the 2013 IEEE International Geoscience and Remote Sensing Symposium—IGARSS, Melbourne, Australia, 21–26 July 2013; pp. 1798–1800. [Google Scholar]
- Zerrouki, N.; Harrou, F.; Sun, Y.; Hocini, L. A Machine Learning-Based Approach for Land Cover Change Detection Using Remote Sensing and Radiometric Measurements. IEEE Sens. J. 2019, 19, 5843–5850. [Google Scholar] [CrossRef] [Green Version]
- Sun, C.; Neale, C.M.U.; McDonnell, J.J.; Cheng, H.-D. Snow classification from SSM/I data over varied terrain using an artificial neural network classifier. In Proceedings of the IGARSS ’96. 1996 International Geoscience and Remote Sensing Symposium, Lincoln, NE, USA, 31 May 1996; Volume 1, pp. 133–135. [Google Scholar]
- Chai, S.; Veenendaal, B.; West, G.; Walker, J.P. Explicit Inverse of Soil Moisture Retrieval with an Artificial Neural Net-work Using Passive Microwave Remote Sensing Data. In Proceedings of the IGARSS 2008–2008 IEEE International Geoscience and Remote Sensing Symposium, Boston, MA, USA, 7–11 July 2008. [Google Scholar]
- Soldo, Y.; De Matthaeis, P.; Le Vine, D. L-band RFI in Japan. In Proceedings of the 2016 Radio Frequency Interference (RFI), Socorro, NM, USA, 17–20 October 2016; pp. 111–114. [Google Scholar]
RFI Properties | Africa | Asia | Europe | Americas | Oceania |
---|---|---|---|---|---|

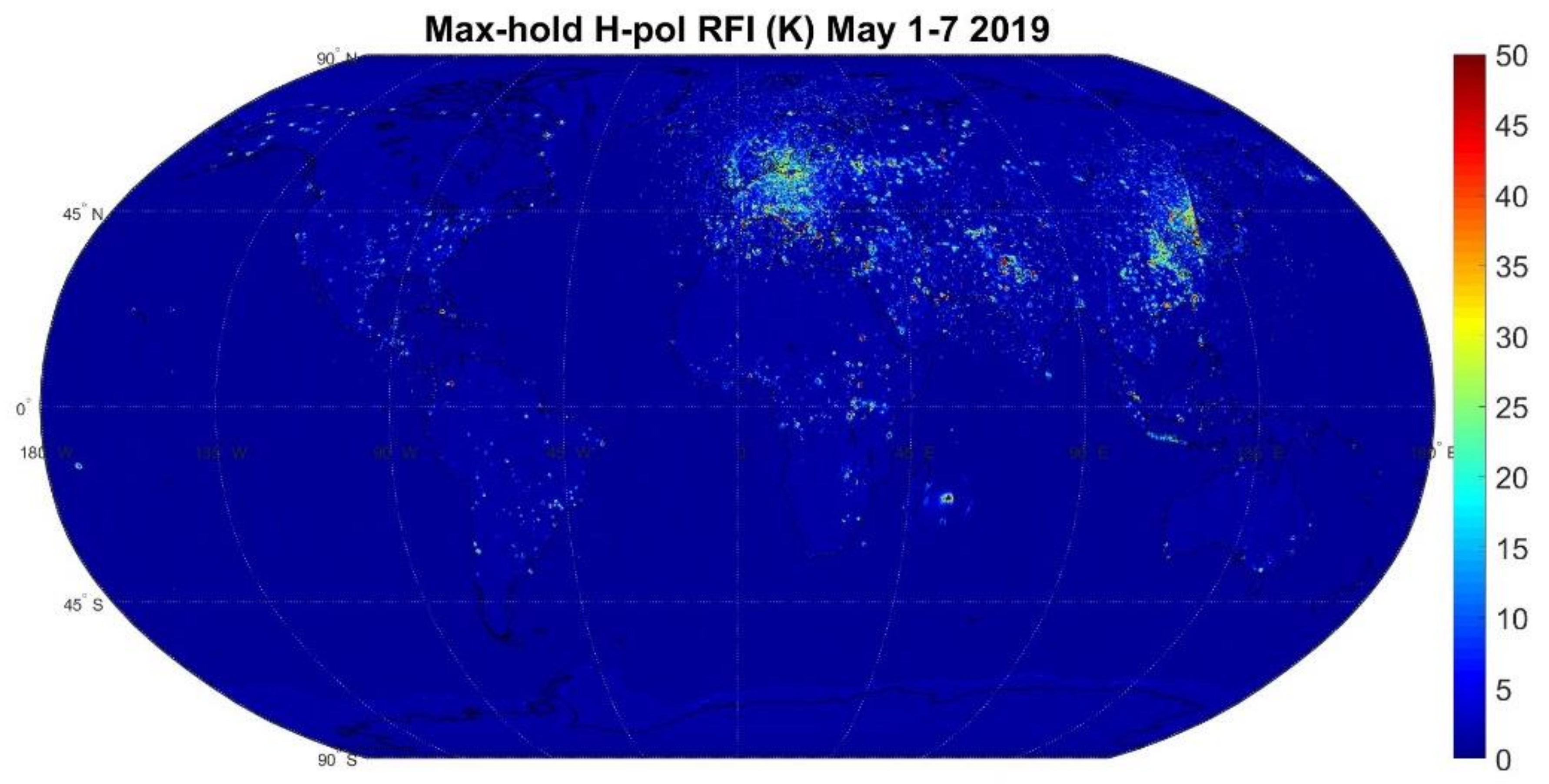

Amplitude | >50 K RFI over Reunion Island. Strong RFI, >50 K, over Sudan, South Sudan, DRC, Nigeria, and Algeria. | >50 K RFI mostly concentrated over discrete regions over Central Asia, the Middle East, and South-Eastern Asia. Widespread, >20K, RFI contamination over Eastern China. | Widespread, >20 K, RFI contamination over Northern Europe. Several discrete regions with >50 K RFI over Southern Europe. | Discrete >50 K RFI regions over Colombia and Cuba. Discrete locations in the U.S. and Brazil with 20–50 K RFI. | ~15–20 K RFI near Melbourne. |
Average Bandwidth | Discrete regions over Eastern Tanzania and Central African Rep. with >4.5 MHz bandwidth. | Wideband RFI over South Korea, Taipei, and Israel with >4.5 MHz bandwidth. 3–4.5 MHz bandwidth over Eastern China, Central Asia, and the Middle East. | Wideband RFI over UK and continental Europe with >4.5 MHz bandwidth. Widespread RFI over Northern Poland and Germany with 2.5–3.5 MHz bandwidth. | A few discrete locations in South America and Alaska with RFI bandwidth >4.5 MHz RFI. | RFI over Northern Australia with 2.5–3 MHz bandwidth. |

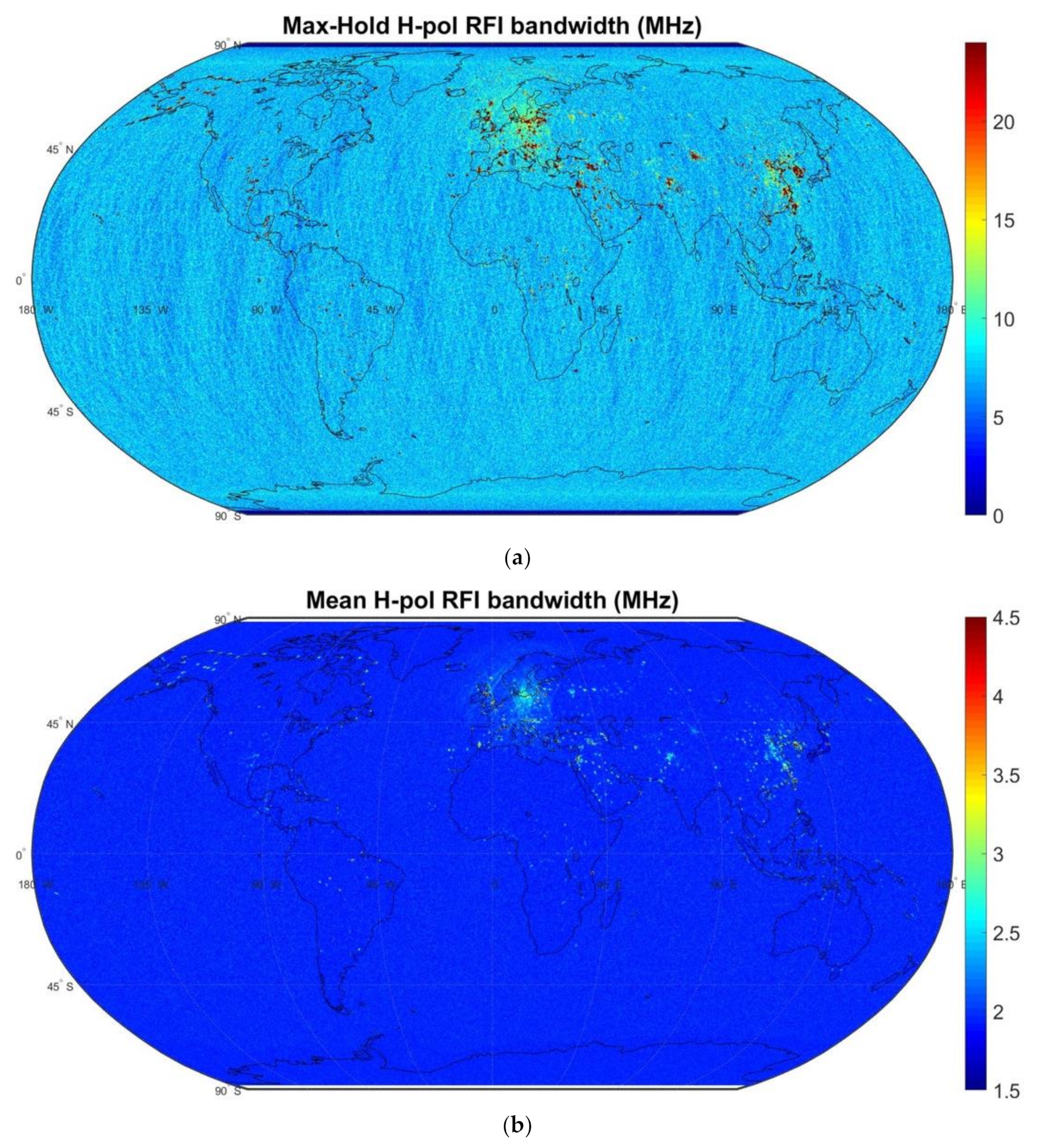

Maximum Bandwidth | Discrete regions in Central Africa with RFI bandwidth up to 24 MHz. | RFI with up to 24 MHz bandwidth over Eastern China, South Korea, Central Asia, and the Middle East. | Several regions all over the continent with RFI bandwidth up to 24 MHz. | Regions in South America, Mexico, and Central U.S. with RFI bandwidth up to 24 MHz. | RFI with 24 MHz bandwidth over two locations in Northern Australia. |

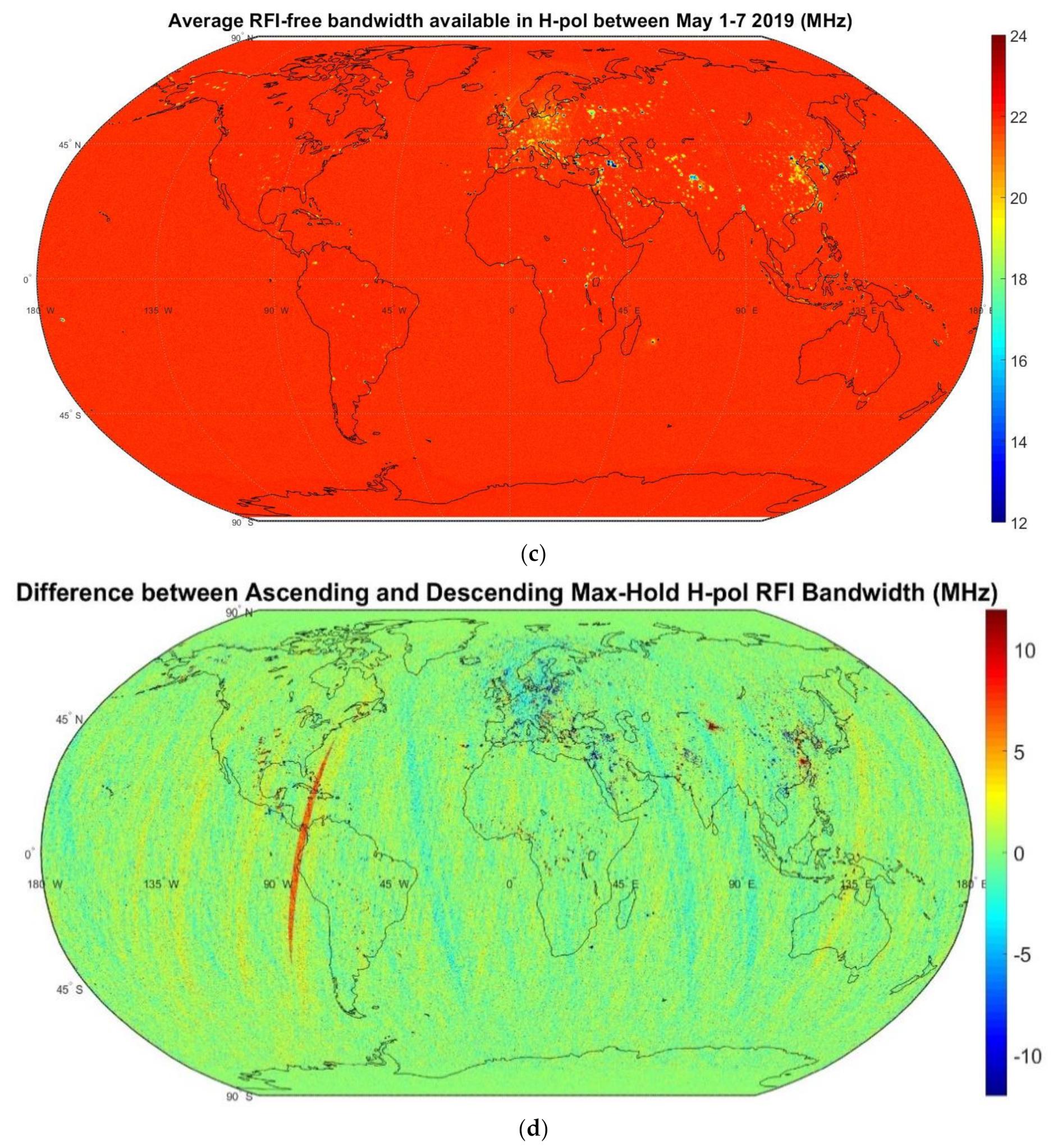

Average RFI-free Bandwidth | >20 MHz except few regions in Sudan, South Sudan, and DRC. <12 MHz over Reunion Island and regions in Eastern Tanzania and DRC. | >20 MHz except Eastern China, Central Asia, and the Middle East. Regions in South Korea, Northern China, and South-Eastern Turkey suffer from limited, <12 MHz, band availability. | Mostly >18 MHz all over the continent. | Mostly >20 MHz with discrete regions having 1–2 MHz-less RFI-free spectrum. | Mostly >20 MHz. |
Difference in Maximum Bandwidth between Ascending and Descending Orbits | Ascending bandwidths are larger up to 10 MHz over discrete regions in Central Africa. | >10 MHz wider bandwidth in ascending then descending over Eastern China and Central Asia. ~10 MHz wider bandwidth in descending orbits over discrete locations in China, Northern India, and the Middle East | Descending bandwidths are usually 5–10 MHz larger in Central and Eastern Europe. Over the Balkans and Italy, discrete regions with ~10 MHz larger ascending bandwidths. | ~10 MHz wider bandwidths in ascending orbits over certain locations Central and Southern U.S as well as Mexico. | No difference observed. |

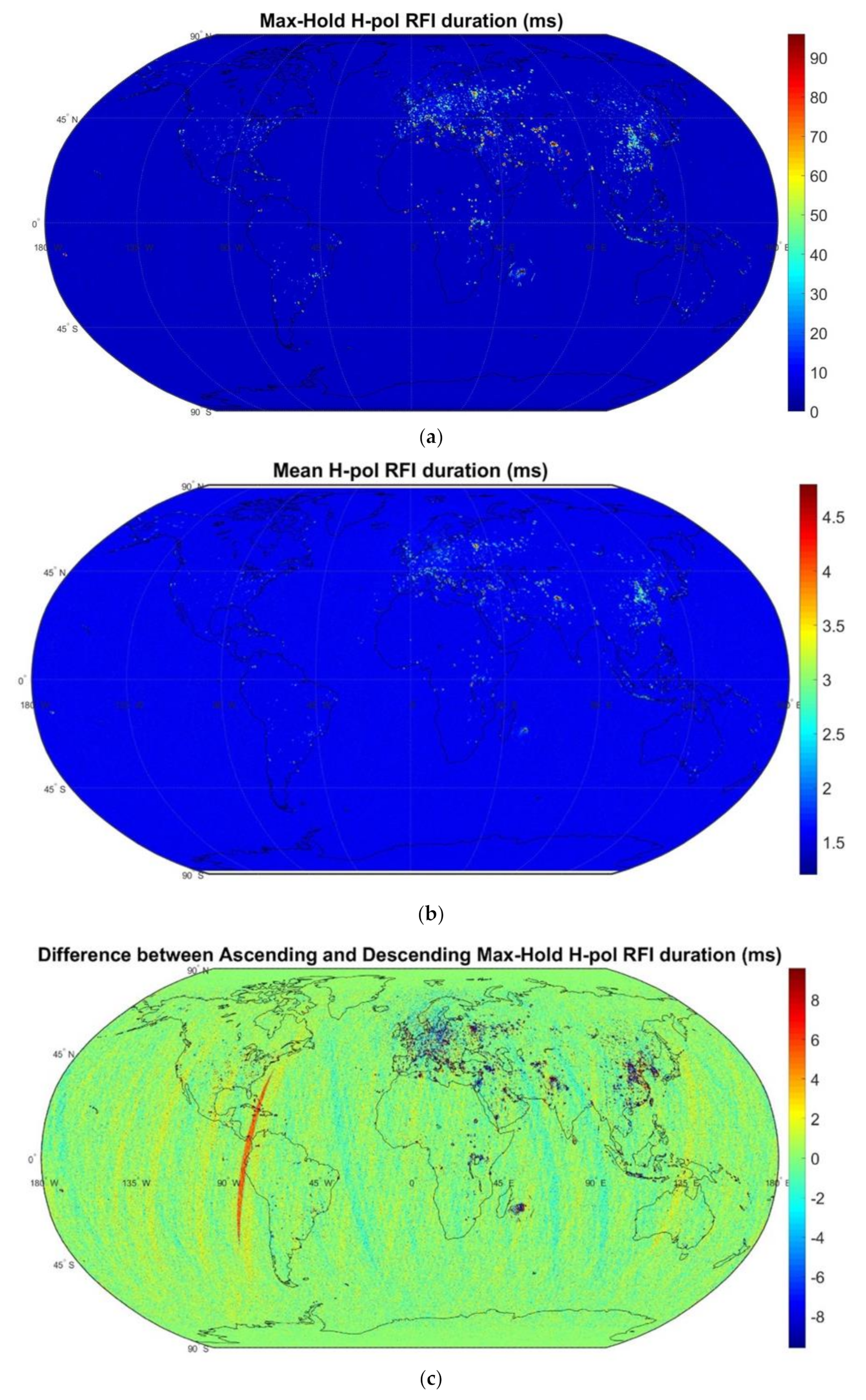

Average Duration | >4.5 ms over certain locations in Reunion Island, DRC, Sudan, South Sudan, and Algeria. | >4.5 ms over certain locations in South Korea, Central Asia, and the Middle East. Widespread RFI with ~2.5 ms duration over Northern China. | >4.5 ms over Moscow, Russia, and discrete locations in Southern Europe. | >4.5 ms over a location in Colombia. | RFI near Melbourne with ~2.5–3.5 ms duration. |
Maximum Duration | >80 ms over locations in Reunion Island, Sudan, Nigeria, Algeria, and DRC. | >90 ms over locations in South Korea, Central Asia, and the Middle East. Widespread RFI with durations 30–50 ms. | >90 ms over locations in Central Russia, the Balkans, and Italy. Many more locations with 30–50 ms durations all over the continent. | >90 ms over a few locations in Colombia, Chile, and Argentina. 30–50 ms RFI over regions in Eastern U.S., California, and Brazil. | 30–50 ms over discrete regions in South-Eastern Australia. |
Difference in RFI Duration between Ascending and Descending Orbits | >8 ms difference over locations in Reunion Island, Algeria, Nigeria, Sudan, DRC, Uganda, and Kenya. | >8 ms difference over several regions in Eastern China, South Korea, Central and South-Eastern Asia, and the Middle East. | Widespread difference up to >8 ms all over the continent. | Discrete locations in North and South America with differences up to >8 ms. | No significant differences observed. |
SMAP Channels | Africa | Asia | Europe | Americas | Oceania |
---|---|---|---|---|---|
1400/1424 MHz | >20 over certain regions in Sudan, South Sudan, Ethiopia, and Uganda. | >20 over regions in Central Asia, South-Eastern China, and the Middle East. ~10 over many other locations in Eastern China and the Middle East. | >20 over many regions in Italy, the Balkans, and Northern Spain. Widespread RFI with RFI percentage ~10 over Eastern Europe and Russia. | >20 over discrete regions in Colombia, Chile, and California. | No significant RFI observed. |
1401.5 MHz | >20 over certain regions in South Sudan and Uganda. | >20 over a few regions in Northern India and Eastern China. ~10 over several locations in the Middle East and Central Asia. | >20 over many regions in Italy, Ukraine, Russia, and the tU.K. Several locations with RFI percentage ~10 over Eastern Europe and Russia. | >20 over discrete regions in Mexico, Chile, and California. | No significant RFI observed. |
1403 MHz | >20 over locations in Algeria and Rwanda/Burundi. | >20 over regions in Central Asia, Turkey, and Eastern China. Widespread RFI with RFI percentage ~10 over Central Asia. | >20 over Albania and many locations in Russia. ~10 over several locations across the continent. | >20 over certain locations in Texas and California. ~12 over regions in Mexico and Chile. | No significant RFI observed. |
1404.5 MHz | >20 over locations in Algeria. | >20 over Southern Saudi Arabia and Northern Yemen. 8–15 over several regions in Central Asia, India, and Turkey. | 15–20 over several locations in Russia and Ukraine. | No significant RFI observed. | No significant RFI observed. |
1406 MHz | ~15 over a coastal region near Ghana. | >20 over certain locations in the Philippines and Pakistan. Widespread RFI with RFI percentage 8–16 over China and Korea. | 8–20 over discrete regions in Russia and the Balkans. | >20 over a region in Ecuador. | No significant RFI observed. |
1407.5 MHz | 12–20 over several locations in Ghana, Uganda, Rwanda/Burundi, and Congo. | >20 over many regions in Central Asia. 12–15 over several locations in China and Korea. ~12 over Sinai and Tajikistan. | >20 over regions in Southern Italy and Central Russia. 8–12 over many regions throughout the continent. | No significant RFI observed. | No significant RFI observed. |
1409 MHz | >20 over locations in Nigeria, Uganda and Congo. 10–15 over regions in Rwanda/Burundi and Ghana. | >20 over several locations in Central Asia, Korea, and the United Arab Emirates. 8–12 over several locations in China, Korea, and Sinai. | >20 over a few regions in Northern Italy, Southern France, and Spain. 8–14 over several locations in Russia and continental Europe. | ~20 over some locations in Brazil, Argentina, Cuba, and California. | No significant RFI observed. |
1410.5 MHz | >20 over locations in Libya, Nigeria, Uganda, and Congo. 10–14 over some locations in Ghana and Rwanda/Burundi. | >20 over regions in Bangladesh, Pakistan, Hong Kong, and Taiwan. 8–14 over several location in Central Asia, China, Korea, and Sinai. | >20 over a few regions in Northern Italy, Southern France, and near Moscow. Widespread RFI with RFI percentage 10–12 over Northern and Central Europe. | ~20 over some locations in Argentina. | No significant RFI observed. |
1412 MHz | >20 over regions near Congo and Libya. ~12 over a location near Ghana. | >20 over several locations in Kuwait, Central Asia, Bangladesh, North-Eastern China, Caucasus, and Siberia. 8–12 over a large region in Pakistan and Afghanistan. | Widespread RFI over almost the entire continent with >8 RFI percentage. >20 over discrete regions in Russia. | 15–20 over a few regions in Argentina and Brazil. | No significant RFI observed. |
1413.5 MHz | Widespread RFI with RFI percentage >20 over Reunion Island. >20 over a location near Congo. | >20 over a few locations in Bangladesh, Central Asia, and Northern China. 8–12 over a few regions in Pakistan, China, and Korea. | Widespread RFI over almost the entire continent with >8 RFI percentage. >20 over discrete regions in Russia, Germany, and Sweden. | >20 over a few locations in Brazil. | No significant RFI observed. |
1415 MHz | >20 over locations near Congo and Reunion Island. | ~14 over certain regions in Saudi Arabia, Pakistan, and Bangladesh. 8–12 over several locations in the Middle East, Pakistan, China, and Korea. | Widespread RFI with RFI percentage 10–12 over Northern Europe. ~15 over several locations in Portugal, Russia, and Central Europe. | 15–20 over several locations in New England, Chicago as well as in Argentina, Mexico, Peru, and Ecuador. | No significant RFI observed. |
1416.5 MHz | 10–12 over a few regions near Congo and Central African Republic. | 8–20 over many regions in China, Korea, Central Asia, Iran, Saudi Arabia, and Siberia. | 8–20 over several regions throughout the continent. | No significant RFI observed. | No significant RFI observed. |
1418 MHz | Large RFI with RFI percentage >20 over Algeria. 10–12 over some regions in Central Africa. | >20 over regions in Pakistan, Taiwan, Central Asia, Turkey, and Northern Japan. 8–14 over several regions in the Middle East, Siberia, China, and Central Asia. | >10 over many regions in Central and Eastern Europe, Greece, Southern Italy, Spain, and Portugal. | >20 over a few regions in New England, Northern U.S., and Canada. | >15 over a few discrete regions in Southern and Eastern Australia. |
1419.5 MHz | 10–14 over a few locations in Central Africa and South Sudan. | >12 over many regions in Turkey, the Middle East, Pakistan, Central Asia, and Siberia. | >8 over several discrete regions scattered over the continent. | No significant RFI observed. | ~15 over a region in Eastern Australia. |
1421 MHz | >20 over a few regions in Sudan, South Sudan, and near Libya. ~10 over a few regions in Central and Eastern Africa. | 10–16 over several regions in China, the Middle East, Central Asia, and Siberia. | >8 over several discrete regions scattered over the continent. | >12 over discrete regions in Cuba as well as Northern and Eastern U.S. | No significant RFI observed. |
1422.5 MHz | >20 over a few locations in Libya, Sudan, and South Sudan. | 12–14 over many locations in the Middle East. ~20 over several regions in Myanmar, Bangladesh, and China. ~8–10 over scattered discrete regions. | >20 over a large area in the Balkans. >20 over discrete regions over Spain and Northern Europe. Widespread RFI over Eastern Europe with RFI percentage 8–10. | >14 over a region near the Great Lakes. | No significant RFI observed. |
