On-Orbit Calibration of Installation Parameter of Multiple Star Sensors System for Optical Remote Sensing Satellite with Ground Control Points

The State Key Laboratory of Information Engineering in Surveying, Mapping, and Remote Sensing (LIESMARS), Wuhan University, Wuhan 430079, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(7), 1055; https://doi.org/10.3390/rs12071055
Received: 13 February 2020 / Revised: 19 March 2020 / Accepted: 21 March 2020 / Published: 25 March 2020

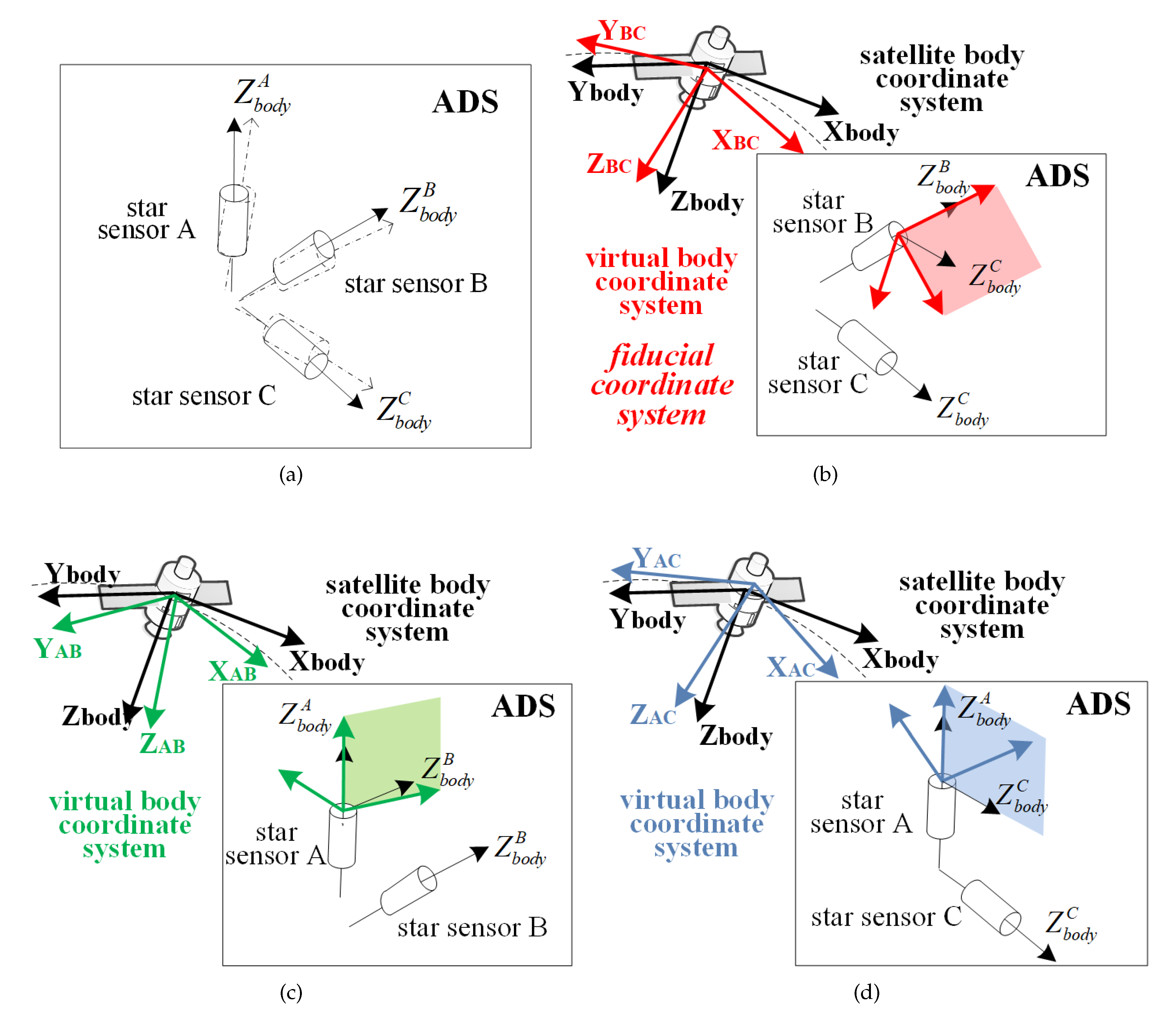

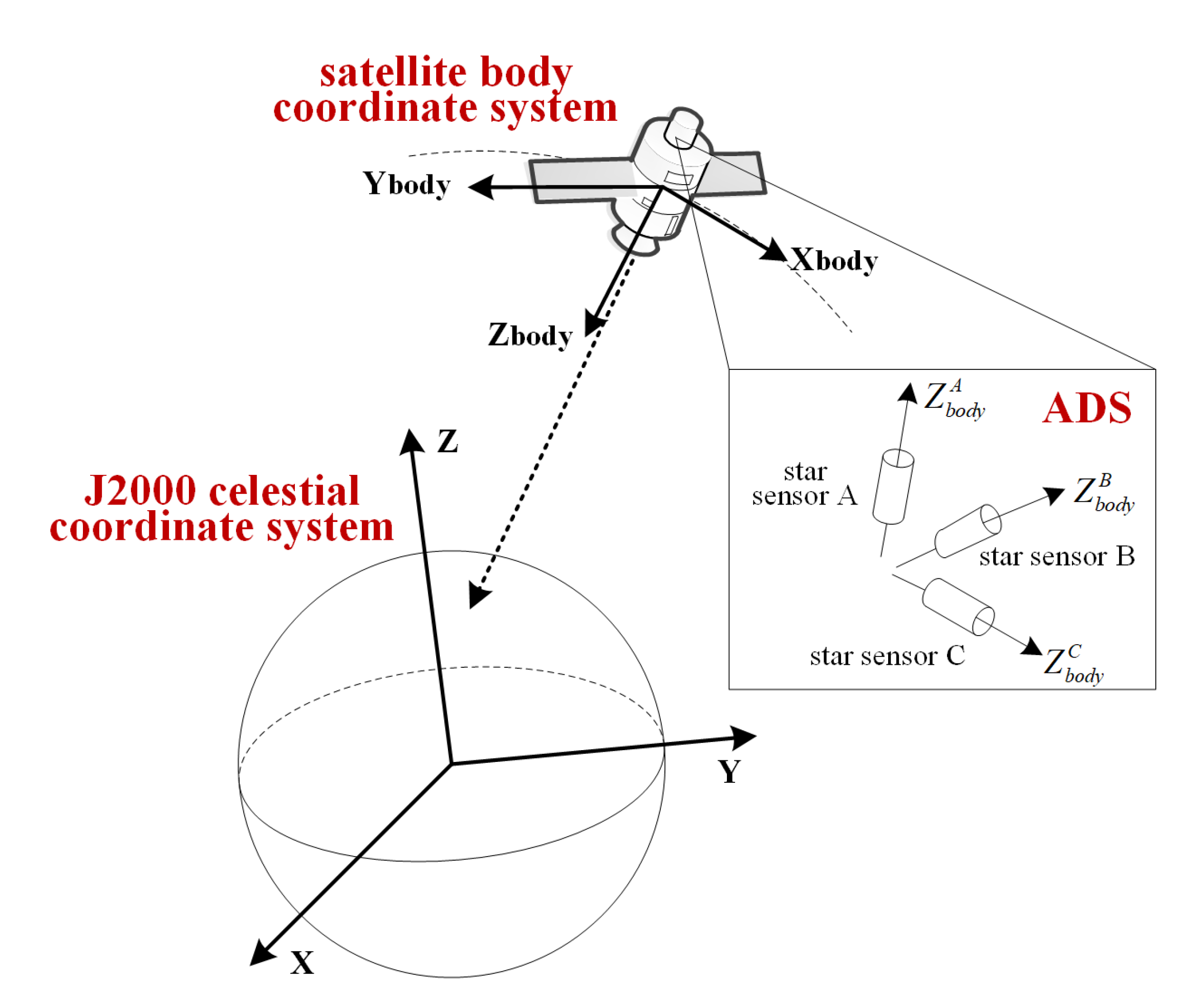

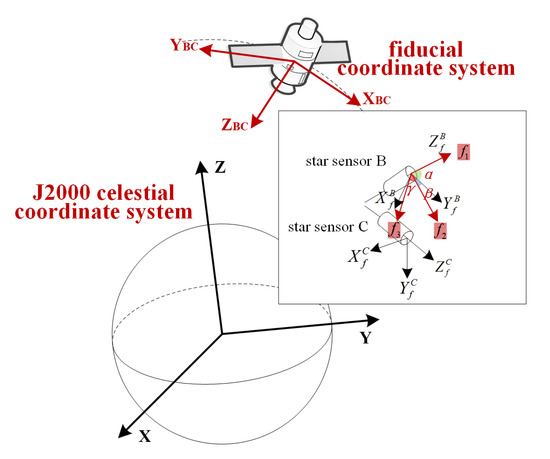

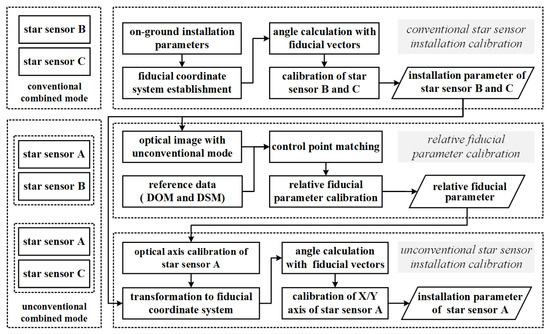

Owing to the vibrations and thermal shocks that arise during the launch and orbit penetration process, the on-orbit installation parameters of multiple star sensors are different from the on-ground measured parameters, causing inconsistencies in the attitude determinations from different combination modes and seriously affecting the geometric accuracy of high-resolution optical remote sensing images. This study presents an on-orbit calibration approach for the installation parameters of a multiple star sensors system using ground control points (GCPs). Based on the on-ground installation parameters of the optical axes of conventional star sensors, a fiducial coordinate system is proposed as the calibration coordinate system. The installation parameters of the conventional star sensors are calibrated using the statistical characteristics of angles between axes of the star sensor and three fiducial vectors in the J2000 celestial coordinate system. Based on the GCPs, the relative fiducial parameters are calculated, and the installation parameter of unconventional star sensor is then calibrated with the relative fiducial parameters and statistical characteristics of angles. It can be used for high-resolution optical remote sensing satellite measuring with only two star sensors to unify the fiducial coordinate system. The proposed method is tested using simulated data and on-orbit measurement data. The results demonstrate that the proposed method can calibrate the optical axis of the star sensor without the restriction of the accuracy of horizontal axis. Moreover, the star sensor with a large installation angle error can be calibrated well using the proposed approach. The results of attitude determinations from different star sensor combination modes are consistent, and the geometric accuracy of the remote sensing images is significantly improved. View Full-Text
Keywords: multiple star sensors system; on-orbit calibration; installation parameter; high-resolution optical remote sensing satellite; ground control points (GCPs) multiple star sensors system; on-orbit calibration; installation parameter; high-resolution optical remote sensing satellite; ground control points (GCPs)
Show Figures

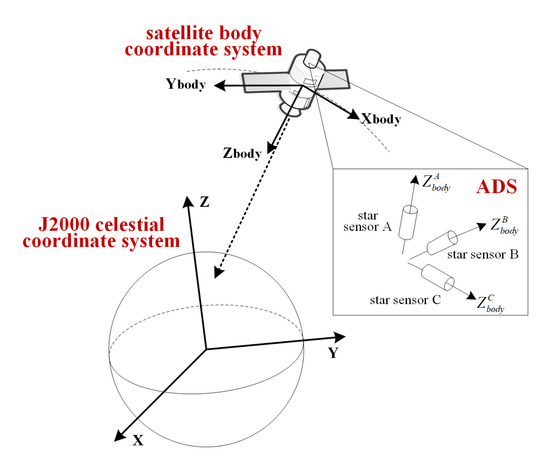

Graphical abstract

MDPI and ACS Style

Wang, Y.; Wang, M.; Zhu, Y. On-Orbit Calibration of Installation Parameter of Multiple Star Sensors System for Optical Remote Sensing Satellite with Ground Control Points. Remote Sens. 2020, 12, 1055.
