Article

Recent Accelerating Glacier Mass Loss of the Geladandong Mountain, Inner Tibetan Plateau, Estimated from ZiYuan-3 and TanDEM-X Measurements

1
State Key Laboratory of Geodesy and Earth’s Dynamics, Institute of Geodesy and Geophysics, Chinese Academy of Sciences, Wuhan 430077, China
2
Innovation Academy for Precision Measurement Science and Technology, Chinese Academy of Sciences, Wuhan 430071, China
3
Department of Land Surveying and Geo-informatics, The Hong Kong Polytechnic University, Hong Kong 999077, China
4
MOE Key Laboratory of Fundamental Physical Quantities Measurement, School of Physics, Huazhong University of Science and Technology, Wuhan 430074, China
5
University of Chinese Academy of Sciences, Beijing 100039, China
6
School of Surveying and Urban Spatial Information, Henan University of Urban Construction, Pingdingshan 467036, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(3), 472; https://doi.org/10.3390/rs12030472
Submission received: 25 December 2019 / Revised: 30 January 2020 / Accepted: 31 January 2020 / Published: 2 February 2020

Abstract

:
The headwaters of many Asian rivers are at mountain glaciers of the Tibetan Plateau. Glacier melt-water is a non-negligible contributor of river runoff, especially for a drought year. However, the observation of mass glacier changes was scarce in recent years. Here, we estimated the recent glacier mass change of the Geladandong mountain, by differencing the digital elevation models (DEMs) produced from ZiYuan-3 images and TanDEM-X data. Moreover, we compared the SRTM-C DEM with TanDEM-X DEMs to retrieve glacier mass balances since 2000. The annual mass loss rates of −0.11 ± 0.03 and −0.47 ± 0.09 m w.e. yr−1 were derived in 2000–2012 and 2012−2018, respectively. This result revealed an accelerating rate of negative glacier mass changes during recent years, which is mainly caused by the significant increase of mass loss over non-surge glaciers, rather than surge-type glaciers, which held a slight increase of mass loss. In addition, we found a pronounced discrepancy of glacier mass change between non-surge and surge-type glaciers during 2012−2018, and suggested that this difference may be caused by the heterogeneous responses of surge-type glaciers to climate variations, because of the different timing and type of surge events.

Graphical Abstract

1. Introduction

The Tibetan Plateau (TP), which is one of the most glacierized areas outside the Arctic and Antarctic, is the water tower of Asia [1]. In general, the headwaters of many great Asian rivers (e.g., Yangtze River) are located over mountain glaciers in the TP [2,3]. Glacier melt-water is a non-negligible contributor of these rivers’ runoff [4,5,6,7,8]. Particularly in a drought year, runoff is mainly originated from glacier melt-water, rather than precipitation, over some river basins [9]. Therefore, the observation of glacier mass balances is necessary in the TP for investigating the variations of regional water resources.
The measurements of glacier mass balances have been conducted in the TP for many years [10,11,12,13]. During the past few decades, serious glacier mass losses were observed for many glaciers in the southeast TP [14,15] and the Himalayan mountain range [16,17,18,19,20,21], whereas glaciers in the Pamir and Karakoram mountains experienced a balanced mass change or even slight mass gain [22,23,24,25,26]. In the same time period, a relatively stable glacier mass change was generally detected in the inner TP (ITP) [27,28,29], because of the domination of continental climatic conditions [13]. Geladandong mountain (GLDDM) is at the headwaters of the Yangtze River [30]. Similar to other glacierized regions in the ITP, a slight decrease of ice thickness (approximately −0.15 m yr−1) was measured in the first decade of the 21st century [31,32]. However, glacier mass balances in recent years remain poorly known for the GLDDM.
In general, three methods of in situ observation [13,28], gravimetric measurement [33,34] and geodetic method [35,36,37] have been used for estimating glacier mass balances in the TP. However, for high altitude and severe conditions, field measurement of glacier mass balance is scarce in the plateau [13]. Moreover, although satellite gravimetry (e.g., GRACE [38]) has proven itself as a powerful technique for detecting glacier mass changes in the Arctic and Antarctic [39,40], the glacier mass balances of the TP are still difficult to be accurately extracted from GRACE observations [41], because glaciers are sparsely distributed over the mountainous areas of the plateau [13]. The geodetic method, which estimates glacier elevation changes by comparing glacier surface digital elevation models (DEMs) at different times, is an effective alternative to observe glacier mass balances in the TP [36,42]. In particular, the glacier surface topographic data of high spatial resolution, high vertical accuracy, and global coverage can be reconstructed with the satellite observations from new remote sensing platforms (e.g., WorldView [43] and TanDEM-X [44]).
This paper aims to derive the glacier mass balances of the GLDDM in recent years, by employing the DEMs produced from TanDEM-X InSAR images and ZiYuan-3 (ZY3) tri-stereo optical scenes. Moreover, we employed the SRTM-C DEM to detect the mass balances of the GLDDM since 2000 and then investigated the changes in glacier mass losses during recent years. We also analyzed the difference in mass balances between non-surge and surge-type glaciers. In addition, the contribution of glacier melt-water to river runoff was evaluated.

2. Study Area

The GLDDM which is located in the inner plateau is the highest peak of the Tanggula mountain range [30]. Mountain glaciers over the GLDDM are summer-accumulation type because snowfall mainly occurs between June and August [45]. Glacier melt-water of the GLDDM mainly flows into the source region of the Yangtze River (SRYR) by the Tuotuo River and the Garang River and the endorheic basin of the TP (EBTP) (Figure 1a). A hydrological station (Tuotuohe station) has been installed downstream of the Tuotuo River to record river runoff (Figure 1a). The glacierized regions of the GLDDM are composed of more than 150 glaciers (Figure 1b). The regional climate of the GLDDM is mainly controlled by continental climatic conditions, rather than the Indian summer monsoon and the mid-latitude westerlies [13]. The records of ice core on the upper area of Guoqu Glacier revealed a continuous rise of air temperature for the past 500 years, and an accelerated climate warming in the 20th century [46]. Moreover, a significant increase in the mean annual temperature since the 1960s has been recorded by meteorological stations near the GLDDM as well [31].

3. Data and Methods.

3.1. Glacier Surface Topographic Data

We employed three space-borne DEMs to detect glacier mass balances of the GLDDM. The most recent DEM was generated from ZY3 tri-stereo optical images. The first satellite of the ZY3 series (ZY3-01), which was launched on 9 January 2012, equipped with three panchromatic cameras working in time-delay integration mode for linear push-broom imaging [48]. The ZY3-02 satellite, which is the second satellite of the ZY3 series, was launched on 30 May 2016 in the same orbit of the ZY3-01 satellite with 180° phase apart [49]. In general, the main sensor parameters of the ZY3-02 are similar to those of the ZY3-01. However, the spatial resolution of the forward and backward cameras of the ZY3-02 is higher than that of the ZY3-01 (from 3.5 m to 2.5 m) [50]. Here, considering spatial resolution and cloud cover, we employed three pairs of ZY3-02 tri-stereo images acquired in December 2016 and December 2017 to reconstruct the glacier surface topography of the GLDDM. The basic parameters of the used ZY3-02 optical scenes are summarized in Table 1. The ZY3 DEMs were produced by the Space Data Processor (SDP) software from the Land Satellite Remote Sensing Application Center (LSRSAC), Ministry of Natural Resources of the People’s Republic of China. Detailed descriptions of the generation of ZY3 DEMs can be found in Tang et al. (2018) [51].
We extracted the glacier surface DEMs in the early 2010s from three pairs of TanDEM-X InSAR data obtained in March and November 2012 (Table 1). The TanDEM-X mission, which is the first satellite bistatic interferometric configuration, is comprised of two identical satellites of TerraSAR-X and TanDEM-X [44]. These two satellites were launched by the German Aerospace Center in June 2007 and June 2010 [44]. Here, the used three pairs of TanDEM-X InSAR data were obtained in the CoSSC format. The spatial resolution of these TanDEM-X InSAR data is ~3 m in both azimuth and range directions. Moreover, we used the bistatic SAR interferometric method [37] to generate three TanDEM-X DEMs in March and November 2012.
We derived the glacier surface DEM in 2000 from the Shuttle Radar Topography Mission (SRTM), which is the first spaceborne single-pass InSAR system [52]. Surface topographic data for most of the continental regions (56ºS-60ºN) have been reconstructed by the SRTM mission [52]. In general, this topography mission was equipped with two InSAR systems of C-band and X-band. The vertical and horizontal accuracy of the X-band topographic product (the SRTM-X DEM) is better than that of the C-band topographic product (the SRTM-C DEM) [53]. However, only a few parts (less than 10%) of the glacierized regions of the GLDDM are covered by the SRTM-X DEM. Here, the SRTM-C DEM with a spatial resolution of 30 m, which was provided by the United States Geological Survey, was employed for better coverage of the glacierized regions over the GLDDM.

3.2. Glacier Outlines

Glacier boundaries, which were derived from the Second Chinese Glacier Inventory (SCGI), were employed to identify the glacierized regions of the GLDDM. In this study area, a Landsat Thematic Mapper (TM) image which was acquired in May 2007 was used to delineate the glacier outlines of the SCGI [47]. Therefore, in order to match with the SRTM-C DEM obtained in February 2000, the terminus locations of glaciers with apparent retreats during the studied periods were manually corrected with optical satellite images. Here, we employed one cloud-free Landsat TM image obtained in 1999 (Figure 1b), because the Landsat optical scenes in 2000 suffered from snow or cloud cover. Moreover, the recent terminus locations of some glaciers with surging events in 2000–2018 were updated with Landsat scenes corresponding to the acquisition dates of the used TanDEM-X InSAR data and ZY3-02 tri-stereo images.

3.3. DEM Co-Registration and Differencing

In this study, most of ZY3-02 and TanDEM-X images were acquired in December 2017 and March 2012, respectively. For detecting the annual rate of glacier elevation changes, we neglected the possible inter-annual variation and assumed that the observed results could represent the mean variations of the following time periods: 2000–2012, 2012–2018, and 2000–2018. Specifically, we subtracted the SRTM-C DEM from TanDEM-X DEMs and ZY3 DEMs to detect glacier elevation changes in 2000–2012 and 2000–2018, respectively. Moreover, we also compared TanDEM-X DEMs with ZY3 DEMs to observe recent glacier elevation changes (2012–2018). Before the process of DEM differencing, a pair of DEMs were first accurately co-registered with the universal co-registration method [54]. Moreover, the bias related to different spatial resolutions of the used DEMs were removed by applying a polynomial function between elevation difference and altitude with pixels over ice-free regions. Similar to that in Liu et al. (2016) [29], we excluded the glacier surface pixels with slope angles of larger than 25°. The outliers were also identified for elevation differences larger than ±15 m yr−1 for surge-type glaciers and ±10 m yr−1 for other glacierized regions. These thresholds were determined by investigating previous results in this study site (e.g., Chao et al. 2017 [31]) and our observed glacier elevation changes. The void areas in the elevation change map which are related to these outliers or data gaps in ZY3 DEMs due to snow or cloud cover were not filled by interpolation.
According to the assumption of similar elevation differences of glacier pixels at an altitude band [55], we accurately calculated the mean glacier elevation change of the GLDDM for 50 m altitude bands. Moreover, at a given altitude interval, three times standard deviation were used to select the valid pixels for computing mean value, in order to suppress the impact of random error. Note, the feature of glacier elevation changes with an altitude over surge-type glaciers is generally different to that of non-surge glaciers [22]. Therefore, for each surge-type glacier, we calculated its mean glacier elevation change separately. In addition, the mean glacier elevation change of the entire GLDDM was computed with the area-weighted average of the observed results for non-surge glaciers and all surge-type glaciers.

3.4. Corrections of Systematic Biases

In this study, radar signal penetration depth and seasonal glacier elevation change are the two possible systematic biases for estimating glacier mass balance. In general, when InSAR DEM was applied to observe glacier elevation change, radar signal penetration depth is a non-negligible systematic bias [56,57,58]. Here, we employed the X-band radar penetration depth of the Puruogangri ice field which was estimated by comparing the TanDEM-X DEMs in January and April 2012 [37]. We computed the correction values of X-band radar penetration depth for 50 m altitude bands and applied it to each altitude interval separately. Moreover, the C-band radar signal penetration depth was estimated by adding the X-band radar penetration depth to the difference in penetration depth between the C-band and X-band radar signals. For the limited coverage (less than 10%) of the SRTM-X DEM over the GLDDM, we estimated the C/X-band radar penetration difference by comparing the SRTM-C DEM and the SRTM-X DEM on the Puruogangri ice field.
Seasonal glacier elevation change is also a possible systematic bias because the used DEMs were generated from space-borne images obtained in different months of the year. As listed in Table 1, possible seasonal variations needed to be corrected in winter and early spring. However, snowfall and melt mainly occur in the summer season, because glaciers over the GLDDM belong to the summer-accumulation type [45]. This indicates that the GLDDM experiences a slight glacier elevation change in the months of winter and early spring. Thus, no correction of seasonal glacier elevation change was used in this study.

3.5. Glacier Mass Balance Estimation and Error Analysis

We employed the conversion factor of 850 kg m−3 [59] to estimate glacier mass balance from the observed mean glacier elevation change. In summary, the glacier mass balance of the GLDDM ( Δ M B ) was calculated with the following equation.
Δ M B = Δ M B i × S i S t o t a l
where S t o t a l is the total glacier area of the entire GLDDM. Δ M B i and S i are glacier mass change and glacier area over an altitude interval, respectively.
Δ M B i = ( Δ h i P i ) × ρ T y e a r × ρ w
where Δ h i and P i are the mean glacier elevation change and radar signal penetration depth over an altitude interval, respectively. Note, when subtracting the SRTM-C DEM from TanDEM-X DEMs, P i is the penetration difference of the C/X-band radar signals. T y e a r is the integer number of years. ρ and ρ w are conversion factors (850 kg m−3) and the density of water (1000 kg m−3), respectively.
We employed the standard law of error propagation to evaluate the uncertainty of the estimated glacier mass balance. Therefore, the error of glacier mass balance ( σ Δ M B ) can be computed with Equation (3).
σ Δ M B = σ Δ M B i 2 × S i 2 S t o t a l 2 + ( Δ M B ) 2 × σ S t o t a l 2 S t o t a l 2 ,
where σ S t o t a l is the error of the glacier area of the entire GLDDM. In this study, we assumed an uncertainty of ±5% for the total glacier area [60], because glacier terminus locations were corrected with satellite optical data. σ Δ M B i is the error of our observed glacier mass change for an altitude band.
σ Δ M B i = ( Δ h i P i ) 2 × σ ρ 2 + ( σ Δ h i × ρ ) 2 + ( σ P i × ρ ) 2 T y e a r × ρ w
where σ ρ is the uncertainty of the conversion factor. Huss (2013) suggested that σ ρ (±60 kg m−3) is approximately ±7% of the used conversion factor [59]. σ Δ h i and σ P i are the uncertainties of mean glacier elevation change and radar signal penetration depth over an altitude band, respectively. Here, these two uncertainties were estimated with Equation (5), because mean values were calculated for 50 m altitude bands.
σ i = S T i N e i
where S T i and N e i are standard deviation and the number of glacier pixels with independent observations over an altitude bin, respectively.
N e i = N t i × S R 2 D s a
For an altitude band, N t i is the number of all glacier pixels. S R is the spatial resolution of topographic data. Here, D s a (spatial autocorrelation distance) was calculated by applying the semivariogram model [37].

4. Results

4.1. Glacier Surface Elevation Changes

Annual glacier elevation changes of the GLDDM are given in Figure 2 for the periods of 2000–2012, 2012–2018, and 2000–2018. In general, we found a clear spatial variation of glacier elevation changes for the three time intervals. Specifically, an apparent glacier surface lowering was basically detected over the terminus zones of the GLDDM, whereas the upper zones experienced a slight glacier surface thinning or even surface thickening. However, a reverse spatial variation of surface elevation changes was derived for several surge-type glaciers (Figure 2), because of surging events in 2000–2018. For glaciers with surging events in the study period, we detected a significant increase of ice thickness at the terminus and a pronounced surface lowering at the upper regions.
Figure 2 also indicates that the measured glacier surface thinning in 2012–2018 is much more rapid than that in 2000–2012 for most of the glacierized areas in the GLDDM. Overall, the mean values of annual glacier elevation changes of the GLDDM were estimated to be −0.13 ± 0.04 and −0.55 ± 0.11 m yr−1 in the periods of 2000–2012 and 2012–2018, respectively (Table 2). The value of glacier surface thinning in 2012–2018 is approximately three times larger than that in 2000–2012, which means a significant increase of glacier lowering since the early 2010s. Moreover, we derived that the mean glacier elevation change of the GLDDM was −0.28 ± 0.08 m yr−1 from 2000 to 2018. This result is generally in agreement with the time-weighted average of the estimates in 2000–2012 and 2012–2018.
The altitudinal distribution of the observed annual elevation changes shows that glacier elevation changes over the GLDDM were affected by altitude in the studied periods (Figure 3). This altitude-dependent result is basically consistent with the spatial pattern of glacier elevation changes (Figure 2). Furthermore, we found that the values of glacier surface thinning in 2012–2018 were greater than that in 2000–2012 for almost all altitude bands over glacier tongue regions (lower than 5650 m). In addition, over the upper regions, the GLDDM experienced an apparent glacier surface thickening for all altitude bands in 2000–2012, whereas glacier surface thinning or a slight increase of ice thickness was detected for most of the altitude bands between 2012 and 2018. This difference of altitudinal distribution of glacier surface elevation changes in 2000–2012 and 2012–2018 generally supports the accelerating rate of glacier lowering over the GLDDM during recent years. It is noteworthy that the altitude band of 5400–5450 m experienced serious surface thinning, which is probably caused by glacier termination. Specifically, the terminus altitudes of some glaciers over the GLDDM are between 5400 and 5450 m.

4.2. Glacier Mass Balances of the GLDDM

Glacier mass balance of the entire GLDDM was estimated with the area-weighted average of the observed results for non-surge and surge-type glaciers. Our estimates of glacier mass balance of the GLDDM were −0.11 ± 0.03, −0.47 ± 0.09, and −0.24 ± 0.07 m w.e. yr−1 in the periods of 2000–2012, 2012–2018 and 2000–2018, respectively (Table 2). This result shows that the negative glacier mass change in 2012–2018 is much more than that in 20002012, and thus reveals a probably accelerated glacier mass loss during recent years. Furthermore, –for non-surge glaciers, we detected a similar temporal variation of glacier mass balance as that over the entire GLDDM. The glacier mass loss of non-surge glaciers in 2012–2018 (−0.53 ± 0.12 m w.e. yr−1) was about four times larger than that in 2000–2012 (−0.12 ± 0.04 m w.e. yr−1). However, the surge-type glaciers of the GLDDM experienced only a slight increase of glacier mass loss in recent years, from −0.08 ± 0.03 m w.e. yr−1 in 2000–2012 to −0.15 ± 0.05 m w.e. yr−1 in 2012–2018. Consequently, the observed accelerating rate of glacier mass loss over the GLDDM is mainly attributed to the significant increase of negative mass changes of non-surge glaciers since the early 2010s.

5. Discussion

5.1. Comparison with Previous Studies

Until now, the field measurement of glacier mass balances was not conducted over the GLDDM. In this study, the measured glacier mass changes were compared to the published geodetic estimates and the modeled annual glacier mass changes (Table 3). Basically, our estimate of −0.11 ± 0.03 m w.e. yr−1 between 2000 and 2012 is in good agreement with the results in Liu et al. (2017) (−0.12 ± 0.22 m w.e. yr−1 for 2000−2014 [32]), Chao et al. (2017) (−0.13 ± 0.06 m w.e. yr−1 for 2003-2009 [31]), and Zhang et al. (2018) (−0.14 ± 0.08 m w.e. yr−1 for 2000–2011 [61]). However, Xu et al. (2018) detected the glacier mass balance of −0.32 ± 0.09 m w.e. yr−1 over the GLDDM in 2000−2013 [62]. This overestimate of glacier mass loss in Xu et al. (2018) may be attributed to the data void of SPOT DEMs over accumulation zones. Specifically, the data gaps of SPOT DEMs, which were mainly detected over the firn areas due to lack of image contrast [63], cover ~50% of the entire GLDDM [62]. Furthermore, our observed glacier mass balances in 2012−2018 (−0.47 ± 0.09 m w.e. yr−1) and 2000−2018 (−0.24 ± 0.07 m w.e. yr−1) are generally consistent with the mass changes in 2012−2016 (−0.48 ± 0.13 m w.e. yr−1) and 2000–2016 (−0.24 ± 0.10 m w.e. yr−1) modeled by Zhang et al. (2018) [61].
Our geodetic estimates revealed an accelerating rate of negative mass changes over the GLDDM since the early 2010s. This recent accelerated glacier mass loss was also detected over several other glacierized regions in the ITP (e.g., the Xiaodongkemadi Glacier [61] and the Puruogangri ice field [37]), or even some glaciers in the Pamir mountains [24] and the southeast TP [11]. However, we cannot simply infer that mountain glaciers in the TP and its surroundings generally experienced an accelerating rate of negative mass changes, because of the heterogeneous responses of glaciers to regional climate variations [17,64].

5.2. The Influence of X-band Radar Penetration in Geodetic Estimates

When InSAR data was employed in the geodetic method, a bias caused by radar signal penetration depth is needed to correct for glacier mass balance estimation [56,57,58]. For the nearly exhaustive coverage of the glacierized areas in the TP and its surroundings, the SRTM-C DEM has been widely used as a reference topographic data to estimate glacier mass balance [22,23,35]. Moreover, previous works have mainly focused on investigating the penetration depth of the C-band radar signal [56,57]. The penetration depth of the X-band radar signal is generally neglected for glaciers in these glacierized areas [35,56]. However, the X-band radar penetration depth in the winter season was found to be non-negligible over the Fedchenko Glacier, Pamir mountains [24], and the Puruogangri ice field, ITP [37].
In this study, we extracted the glacier surface DEMs in the early 2010s from three pairs of X-band InSAR data. The correction values of the penetration depth of the X-band radar signal, which were computed for 50 m altitude bands over the Puruogangri ice field, were applied to each altitude interval of the GLDDM separately. A mean value of 0.53 ± 0.05 m was detected for the X-band radar penetration depth of the entire GLDDM. Generally, this X-band radar penetration caused a bias of 0.07 ± 0.01 m w.e. yr−1 for the result of glacier mass change during 2012−2018. This indicates that X-band radar penetration cannot be simply neglected for glacier mass change estimation on the GLDDM, or even in the ITP. Basically, the impact of radar penetration depth in geodetic estimates is related to the integer number of years for the observation period (Figure 4). Consequently, for a short study period of less than ten years (especially for 1−5 years), accurate correction of X-band radar penetration depth is necessary for geodetic estimates of glacier mass balance obtained from the X-band InSAR DEMs.

5.3. Difference in Mass Balances of Surge-Type Glaciers

Glacier surging events which are characterized by the quick movement of ice masses from upper to lower zones [65,66] may lead to geological hazards [67,68]. Many glaciers in the Pamir and Karakoram mountains have surged during recent decades [57,69]. Moreover, in this mountain range, the mass balance of surge-type glaciers was almost equivalent to non-surge glaciers during 1999−2011 [57]. In this study, six glaciers of the GLDDM experienced surging events between 2000 and 2018 (Figure 2). Furthermore, we observed a similar glacier mass change for non-surge (−0.12 ± 0.04 m w.e. yr−1) and surge-type (−0.08 ± 0.03 m w.e. yr−1) glaciers in 2000−2012. However, an apparent difference of glacier mass balance was detected between non-surge (−0.53 ± 0.12 m w.e. yr−1) and surge-type (−0.15 ± 0.05 m w.e. yr−1) glaciers over the GLDDM in 2012–2018 (Table 2). This discrepancy may be partly caused by the spatially heterogeneous response of surge-type glaciers to regional climatic variations in recent years (Figure 5).
In general, we detected a relatively balanced glacier mass change (between −0.22 ± 0.08 and 0.09 ± 0.03 m w.e. yr−1) over all the six surge-type glaciers of the GLDDM in 2000−2012 (Figure 5). However, the difference in the observed glacier mass balances of these surge-type glaciers was pronounced between 2012 and 2018 (Figure 5). Glacier mass gains (up to 0.47 ± 0.12 m w.e. yr−1) were detected over three surge-type glaciers of 5K451F0030, 5Z213A0007, and 5Z213B0003, whereas the other three surge-type glaciers experienced an apparent negative mass change (up to −0.51 ± 0.13 m w.e. yr−1). Furthermore, we found that the surge-type glaciers with mass gains in 2012−2018 have surged in both time periods of 2000–2012 and 2012−2018 (Figure 6). In contrast, the glaciers of 5K451F0036 and 5K451F0008 only surged between 2000 and 2012 (Figure 7). This means that mass losses of these two glaciers in 2012–2018 are possibly attributed to rapid ablation in the post-surge phase. In addition, by analyzing the changes in the terminus location and surface elevation, we found that the recent surge timing of Glacier 5K444B0064 is 2014–2015. We thus inferred that the Alaskan-type surge (active phase of 1–3 years) may be the reason for recent mass loss over this surge-type glacier. The surge events of the other five glaciers belong to Svalbard-type (active phase of more than 3 years). Consequently, the different responses of these six surge-type glaciers over the GLDDM to recent climate variations may be caused by the different timing and type of surge.

5.4. Contribution of Glacier Mass Loss to River Runoff

As shown in Figure 1a, the glacier melt-water of the GLDDM flows into the SRYR by the two rivers of Tuotuo and Garang. The runoff of the Tuotuo River has been recorded by a hydrological station downstream. Here, we detected that the glacier mass balances of the GLDDM in the SRYR were −0.029 ± 0.011, −0.187 ± 0.043, and −0.078 ± 0.032 Gt yr−1 in the periods of 2000–2012, 2012–2018, and 2000–2018, respectively (Table 4). Moreover, over the catchment of the Tuotuo River, we derived the glacier mass changes of −0.025 ± 0.010 (2000−2012) and −0.102 ± 0.031 Gt yr−1 (2012−2018). Considering the annual river runoff of 1.35 Gt yr−1 recorded by the Tuotuohe station in the 2000s [70], the contribution of glacier mass loss to the runoff of the Tuotuo River was only ~2% in the first decade of the 21st century. However, for the entire SRYR, glacier mass loss contributed to 17.5% of the total river runoff between 1986 and 2009 [6]. This difference may be related to the pronounced mass losses of other glaciers in the SRYR. For example, Xiaodongkemadi Glacier experienced a mass loss of −0.36 m w.e. yr−1 in 2000−2010 [13], which is about three times that over the GLDDM in 2000–2012. Overall, during the past decades, glacier melt-water was not a major contributor to river runoff in the SRYR.

6. Conclusions

In this study, glacier mass changes of the GLDDM since 2000 were investigated by employing the SRTM-C DEM and glacier surface topographic data generated from TanDEM-X InSAR images and ZY3 tri-stereo scenes. Glacier mass balances of −0.11 ± 0.03, −0.47 ± 0.09, and −0.24 ± 0.07 m w.e. yr−1 were derived for the periods of 2000–2012, 2012–2018, and 2000–2018, respectively. These estimates revealed an accelerating rate of glacier mass loss for the GLDDM during the past few years. This finding is basically supported by the modeled annual glacier mass balances between 2000 and 2016 [61]. Moreover, we found that this accelerated mass loss is mainly attributed to a significant increase in negative glacier mass changes of non-surge glaciers in 2012–2018.
Glacier mass change of surge-type glaciers was generally similar to that of non-surge glaciers over the GLDDM in 2000−2012. It is basically consistent with the similarity of mass balances of non-surge and surge-type glaciers in the Pamir and Karakoram between 1999 and 2011. However, in the period 2012−2018, we detected an apparent difference in glacier mass balance for the two types of glaciers, which may be partly caused by the heterogeneous responses of these surge-type glaciers to climate variations in recent years due to the different timing and type of surge.
Glacier mass loss only contributed to ~2% of the runoff of the Tuotuo River during the first decade of the 21st century. In general, glacier mass loss was not the major contributor to river runoff in the SRYR in the past decades, although glacier mass loss provides 17.5% of the river runoff in the entire SRYR between 1986 and 2009. A significant increase of glacier melt-water was possibly detected for several recent years due to accelerated glacier mass loss over some glacierized regions such as the GLDDM and the Xiaodongkemadi Glacier. In the future, continuous measurement of glacier mass balance is needed in the SRYR to investigate whether the recent accelerating rate of glacier mass loss extends to a long-term trend.

Author Contributions

Conceptualization, L.L., L.J.,and H.W.; Formal analysis, L.L., L.J., Z.Z., H.W., and X.D.; Funding acquisition, L.J. and H.W.; Methodology, L.L.; Supervision, L.J. and X.D.; Validation, L.L. and Z.Z.; Visualization, L.L. and Z.Z.; Writing—original draft, L.L. and Z.Z.; Writing—review & editing, L.J., H.W. and X.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program (2017YFA0603103 and 2018YFC1406102), the National Natural Science Foundation of China (41431070, 41704023 and 41590854), the China Postdoctoral Science Foundation (2017M622452), the State Key Laboratory of Geodesy and Earth’s Dynamics (SKLGED2018-2-4-E and SKLGED2020-2-1-E), and the Key Research Program of Frontier Sciences, CAS (QYZDB-SSW-DQC027 and QYZDJ-SSW-DQC042).

Acknowledgments

The authors would like to thank the German Aerospace Center (DLR) for providing TanDEM-X InSAR datasets (AO: NTI_BIST7302) and the SRTM-X DEM, the LSRSAC for providing ZY3-02 tri-stereo optical images and the Space Data Processor software, the United States Geological Survey (USGS) for providing the SRTM-C DEM, and the National Aeronautics and Space Administration (NASA) for providing Landsat optical scenes.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Immerzeel, W.; Stoorvogel, J.; Antle, J. Can payments for ecosystem services secure the water tower of Tibet? Agric. Syst. 2008, 96, 52–63. [Google Scholar] [CrossRef]
  2. Huang, X.; Sillanpää, M.; Duo, B.; Gjessing, E.T. Water quality in the Tibetan Plateau: metal contents of four selected rivers. Environ. Pollut. 2008, 156, 270–277. [Google Scholar] [CrossRef] [PubMed]
  3. Immerzeel, W.W.; Van Beek, L.P.; Bierkens, M.F. Climate change will affect the Asian water towers. Science 2010, 328, 1382–1385. [Google Scholar] [CrossRef] [PubMed]
  4. Singh, P.; Kumar, N. Impact assessment of climate change on the hydrological response of a snow and glacier melt runoff dominated Himalayan river. J. Hydrol. 1997, 193, 316–350. [Google Scholar] [CrossRef]
  5. Sorg, A.; Bolch, T.; Stoffel, M.; Solomina, O.; Beniston, M. Climate change impacts on glaciers and runoff in Tien Shan (Central Asia). Nat. Clim. Chang. 2012, 2, 725–731. [Google Scholar] [CrossRef]
  6. Yao, Z.; Liu, Z.; Huang, H.; Liu, G.; Wu, S. Statistical estimation of the impacts of glaciers and climate change on river runoff in the headwaters of the Yangtze River. Quat. Int. 2014, 336, 89–97. [Google Scholar] [CrossRef]
  7. Farinotti, D.; Round, V.; Huss, M.; Compagno, L.; Zekollari, H. Large hydropower and water-storage potential in future glacier-free basins. Nature 2019, 575, 341–344. [Google Scholar] [CrossRef] [Green Version]
  8. Fujita, K.; Sakai, A. Modelling runoff from a Himalayan debris-covered glacier. Hydrol. Earth Syst. Sci. 2014, 18, 2679–2694. [Google Scholar] [CrossRef] [Green Version]
  9. Pritchard, H.D. Asia’s shrinking glaciers protect large populations from drought stress. Nature 2019, 569, 649–654. [Google Scholar] [CrossRef]
  10. Zhang, G.; Kang, S.; Fujita, K.; Huintjes, E.; Xu, J.; Yamazaki, T.; Yao, T. Energy and mass balance of Zhadang glacier surface, central Tibetan Plateau. J. Glaciol. 2013, 59, 137–148. [Google Scholar] [CrossRef] [Green Version]
  11. Wu, K.; Liu, S.; Jiang, Z.; Xu, J.; Wei, J.; Guo, W. Recent glacier mass balance and area changes in the Kangri Karpo Mountains from DEMs and glacier inventories. Cryosphere 2018, 12, 103–121. [Google Scholar] [CrossRef] [Green Version]
  12. Yao, T.; Li, Z.; Yang, W.; Guo, X.; Zhu, L.; Kang, S.; Wu, Y.; Yu, W. Glacial distribution and mass balance in the Yarlung Zangbo River and its influence on lakes. Chin. Sci. Bull. 2010, 55, 2072–2078. [Google Scholar] [CrossRef]
  13. Yao, T.; Thompson, L.; Yang, W.; Yu, W.; Gao, Y.; Guo, X.; Yang, X.; Duan, K.; Zhao, H.; Xu, B. Different glacier status with atmospheric circulations in Tibetan Plateau and surroundings. Nat. Clim. Chang. 2012, 2, 663–667. [Google Scholar] [CrossRef]
  14. Zhu, M.; Yao, T.; Yang, W.; Xu, B.; Wu, G.; Wang, X. Differences in mass balance behavior for three glaciers from different climatic regions on the Tibetan Plateau. Clim. Dyn. 2018, 50, 3457–3484. [Google Scholar] [CrossRef]
  15. Cao, B.; Pan, B.; Guan, W.; Wen, Z.; Wang, J. Changes in glacier volume on Mt. Gongga, southeastern Tibetan Plateau, based on the analysis of multi-temporal DEMs from 1966 to 2015. J. Glaciol. 2019, 65, 1–10. [Google Scholar] [CrossRef] [Green Version]
  16. Kääb, A.; Berthier, E.; Nuth, C.; Gardelle, J.; Arnaud, Y. Contrasting patterns of early twenty-first-century glacier mass change in the Himalayas. Nature 2012, 488, 495–498. [Google Scholar] [CrossRef]
  17. Bolch, T.; Kulkarni, A.; Kääb, A.; Huggel, C.; Paul, F.; Cogley, J.; Frey, H.; Kargel, J.; Fujita, K.; Scheel, M. The state and fate of Himalayan glaciers. Science 2012, 336, 310–314. [Google Scholar] [CrossRef] [Green Version]
  18. Wagnon, P.; Vincent, C.; Arnaud, Y.; Berthier, E.; Vuillermoz, E.; Gruber, S.; Ménégoz, M.; Gilbert, A.; Dumont, M.; Shea, J. Seasonal and annual mass balances of Mera and Pokalde glaciers (Nepal Himalaya) since 2007. Cryosphere 2013, 7, 1769–1786. [Google Scholar] [CrossRef] [Green Version]
  19. Nuimura, T.; Fujita, K.; Yamaguchi, S.; Sharma, R.R. Elevation changes of glaciers revealed by multitemporal digital elevation models calibrated by GPS survey in the Khumbu region, Nepal Himalaya, 1992-2008. J. Glaciol. 2012, 58, 648–656. [Google Scholar] [CrossRef] [Green Version]
  20. Wagnon, P.; Linda, A.; Arnaud, Y.; Kumar, R.; Sharma, P.; Vincent, C.; Pottakkal, J.G.; Berthier, E.; Ramanathan, A.; Hasnain, S.I. Four years of mass balance on Chhota Shigri Glacier, Himachal Pradesh, India, a new benchmark glacier in the western Himalaya. J. Glaciol. 2007, 53, 603–611. [Google Scholar] [CrossRef] [Green Version]
  21. Bolch, T.; Pieczonka, T.; Benn, D. Multi-decadal mass loss of glaciers in the Everest area (Nepal Himalaya) derived from stereo imagery. Cryosphere 2011, 5, 349–358. [Google Scholar] [CrossRef] [Green Version]
  22. Gardelle, J.; Berthier, E.; Arnaud, Y. Slight mass gain of Karakoram glaciers in the early twenty-first century. Nat. Geosci. 2012, 5, 322–325. [Google Scholar] [CrossRef]
  23. Lin, H.; Li, G.; Cuo, L.; Hooper, A.; Ye, Q. A decreasing glacier mass balance gradient from the edge of the Upper Tarim Basin to the Karakoram during 2000–2014. Sci. Rep. 2017, 7, 6712. [Google Scholar] [CrossRef]
  24. Lambrecht, A.; Mayer, C.; Wendt, A.; Floricioiu, D.; Völksen, C. Elevation change of Fedchenko Glacier, Pamir Mountains, from GNSS field measurements and TanDEM-X elevation models, with a focus on the upper glacier. J. Glaciol. 2018, 64, 1–12. [Google Scholar] [CrossRef] [Green Version]
  25. Holzer, N.; Vijay, S.; Yao, T.; Xu, B.; Buchroithner, M.; Bolch, T. Four decades of glacier variations at Muztagh Ata (eastern Pamir): a multi-sensor study including Hexagon KH-9 and Pléiades data. Cryosphere 2015, 9, 2071–2088. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, Z.; Liu, S.; Wei, J.; Xu, J.; Guo, W.; Bao, W.; Jiang, Z. Mass change of glaciers in Muztag Ata–Kongur Tagh, Eastern Pamir, China from 1971/76 to 2013/14 as derived from remote sensing data. PLoS ONE 2016, 11, e0147327. [Google Scholar] [CrossRef] [PubMed]
  27. Neckel, N.; Kropáček, J.; Bolch, T.; Hochschild, V. Glacier mass changes on the Tibetan Plateau 2003–2009 derived from ICESat laser altimetry measurements. Environ. Res. Lett. 2014, 9, 014009. [Google Scholar] [CrossRef]
  28. Li, S.; Yao, T.; Yang, W.; Yu, W.; Zhu, M. Glacier energy and mass balance in the Inland Tibetan Plateau: seasonal and interannual variability in relation to atmospheric changes. J. Geophys. Res.: Atmos. 2018, 123, 6390–6409. [Google Scholar] [CrossRef]
  29. Liu, L.; Jiang, L.; Sun, Y. Glacier elevation changes (2012–2016) of the Puruogangri ice field on the Tibetan Plateau derived from bi-temporal TanDEM-X InSAR data. Int. J. Remote Sens 2016, 37, 5687–5707. [Google Scholar] [CrossRef]
  30. Ye, Q.; Kang, S.; Chen, F.; Wang, J. Monitoring glacier variations on Geladandong mountain, central Tibetan Plateau, from 1969 to 2002 using remote-sensing and GIS technologies. J. Glaciol. 2006, 52, 537–545. [Google Scholar] [CrossRef] [Green Version]
  31. Chao, N.; Wang, Z.; Hwang, C.; Jin, T.; Cheng, Y.-S. Decline of Geladandong Glacier Elevation in Yangtze River’s Source Region: Detection by ICESat and Assessment by Hydroclimatic Data. Remote Sens. 2017, 9, 75. [Google Scholar] [CrossRef] [Green Version]
  32. Liu, G.; Fan, J.; Zhao, F.; Mao, K. Monitoring elevation change of glaciers on Geladandong Mountain using TanDEM-X SAR interferometry. J. Mt. Sci. 2017, 14, 859–869. [Google Scholar] [CrossRef]
  33. Jacob, T.; Wahr, J.; Pfeffer, W.T.; Swenson, S. Recent contributions of glaciers and ice caps to sea level rise. Nature 2012, 482, 514–518. [Google Scholar] [CrossRef] [PubMed]
  34. Gardner, A.S.; Moholdt, G.; Cogley, J.G.; Wouters, B.; Arendt, A.A.; Wahr, J.; Berthier, E.; Hock, R.; Pfeffer, W.T.; Kaser, G. A reconciled estimate of glacier contributions to sea level rise: 2003 to 2009. Science 2013, 340, 852–857. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Zhou, Y.; Li, Z.; Li, J.; Zhao, R.; Ding, X. Glacier mass balance in the Qinghai–Tibet Plateau and its surroundings from the mid-1970s to 2000 based on Hexagon KH-9 and SRTM DEMs. Remote Sens. Environ. 2018, 210, 96–112. [Google Scholar] [CrossRef]
  36. Neckel, N.; Braun, A.; Kropáček, J.; Hochschild, V. Recent mass balance of the Purogangri Ice Cap, central Tibetan Plateau, by means of differential X-band SAR interferometry. Cryosphere 2013, 7, 1623–1633. [Google Scholar] [CrossRef] [Green Version]
  37. Liu, L.; Jiang, L.; Jiang, H.; Wang, H.; Ma, N.; Xu, H. Accelerated glacier mass loss (2011–2016) over the Puruogangri ice field in the inner Tibetan Plateau revealed by bistatic InSAR measurements. Remote Sens. Environ. 2019, 231, 111241. [Google Scholar] [CrossRef]
  38. Zhou, H.; Zhou, Z.; Luo, Z. A new hybrid processing strategy to improve temporal gravity field solution. J. Geophys. Res.: Solid Earth 2019, 124. [Google Scholar] [CrossRef]
  39. Chen, J.; Wilson, C.; Tapley, B.; Blankenship, D.; Young, D. Antarctic regional ice loss rates from GRACE. Earth Planet. Sci. Lett. 2008, 266, 140–148. [Google Scholar]
  40. Velicogna, I. Increasing rates of ice mass loss from the Greenland and Antarctic ice sheets revealed by GRACE. Geophys. Res. Lett. 2009, 36, L19503. [Google Scholar] [CrossRef] [Green Version]
  41. Matsuo, K.; Heki, K. Time-variable ice loss in Asian high mountains from satellite gravimetry. Earth Planet. Sci. Lett. 2010, 290, 30–36. [Google Scholar]
  42. Li, G.; Lin, H. Recent decadal glacier mass balances over the Western Nyainqentanglha Mountains and the increase in their melting contribution to Nam Co Lake measured by differential Bistatic SAR interferometry. Glob. Planet. Chang. 2017, 149, 177–190. [Google Scholar] [CrossRef] [Green Version]
  43. Aguilar, M.Á.; del Mar Saldaña, M.; Aguilar, F.J. Generation and quality assessment of stereo-extracted DSM from GeoEye-1 and WorldView-2 imagery. IEEE Trans. Geosci. Remote Sens. 2013, 52, 1259–1271. [Google Scholar] [CrossRef]
  44. Krieger, G.; Moreira, A.; Fiedler, H.; Hajnsek, I.; Werner, M.; Younis, M.; Zink, M. TanDEM-X: A satellite formation for high-resolution SAR interferometry. IEEE Trans. Geosci. Remote Sens. 2007, 45, 3317–3341. [Google Scholar] [CrossRef] [Green Version]
  45. Maussion, F.; Scherer, D.; Mölg, T.; Collier, E.; Curio, J.; Finkelnburg, R. precipitation seasonality and variability over the Tibetan Plateau as resolved by the High Asia Reanalysis*. J. Clim. 2014, 27, 1910–1927. [Google Scholar] [CrossRef] [Green Version]
  46. Zhang, Y.; Kang, S.; Grigholm, B.; Zhang, Y.; Kaspari, S.; Morgenstern, U.; Ren, J.; Qin, D.; Mayewski, P.A.; Zhang, Q. Twentieth-century warming preserved in a Geladaindong mountain ice core, central Tibetan Plateau. Ann. Glaciol. 2016, 57, 70–80. [Google Scholar] [CrossRef] [Green Version]
  47. Guo, W.; Liu, S.; Xu, J.; Wu, L.; Shangguan, D.; Yao, X.; Wei, J.; Bao, W.; Yu, P.; Liu, Q. The second Chinese glacier inventory: data, methods and results. J. Glaciol. 2015, 61, 357–372. [Google Scholar] [CrossRef] [Green Version]
  48. Pan, H.; Zhang, G.; Tang, X.; Li, D.; Zhu, X.; Zhou, P.; Jiang, Y. Basic products of the ZiYuan-3 satellite and accuracy evaluation. Photogramm. Eng. Remote Sens. 2013, 79, 1131–1145. [Google Scholar]
  49. Xu, K.; Jiang, Y.; Zhang, G.; Zhang, Q.; Wang, X. Geometric potential assessment for ZY3-02 triple linear array imagery. Remote Sens. 2017, 9, 658. [Google Scholar] [CrossRef] [Green Version]
  50. Zhang, T.; Lei, B.; Wang, J.; Li, Y.; Liu, K.; Li, T. Preliminary Quality Analysis of the Triple Linear-Array and Mul Tispectral Images of ZY-3 02 Satellite. In Proceedings of the IEEE International Geoscience and Remote Sensing Symposium, Valencia, Spain, 23–27 July 2018. [Google Scholar]
  51. Tang, X.; Yue, Q.; Gao, X. China DSM Generation and Accuracy Acessment Using ZY3 Images. In Proceedings of the IEEE International Geoscience and Remote Sensing Symposium, Valencia, Spain, 23–27July 2018. [Google Scholar]
  52. Rodriguez, E.; Morris, C.S.; Belz, J.E. A global assessment of the SRTM performance. Photogramm. Eng. Remote Sens. 2006, 72, 249–260. [Google Scholar]
  53. Rabus, B.; Eineder, M.; Roth, A.; Bamler, R. The shuttle radar topography mission—a new class of digital elevation models acquired by spaceborne radar. ISPRS J. Photogramm. Remote Sens. 2003, 57, 241–262. [Google Scholar]
  54. Nuth, C.; Kaab, A. Co-registration and bias corrections of satellite elevation data sets for quantifying glacier thickness change. Cryosphere 2011, 5, 271–290. [Google Scholar] [CrossRef] [Green Version]
  55. Berthier, E.; Arnaud, Y.; Baratoux, D.; Vincent, C.; Rémy, F. Recent rapid thinning of the “Mer de Glace” glacier derived from satellite optical images. Geophys. Res. Lett. 2004, 31, L17401. [Google Scholar] [CrossRef] [Green Version]
  56. Gardelle, J.; Berthier, E.; Arnaud, Y. Impact of resolution and radar penetration on glacier elevation changes computed from DEM differencing. J. Glaciol. 2012, 58, 419–422. [Google Scholar] [CrossRef] [Green Version]
  57. Gardelle, J.; Berthier, E.; Arnaud, Y.; Kääb, A. Region-wide glacier mass balances over the Pamir-Karakoram-Himalaya during 1999-2011. Cryosphere 2013, 7, 1263–1286. [Google Scholar] [CrossRef] [Green Version]
  58. Leinss, S. Depth, Anisotropy, and Water Equivalent of Snow Estimated by Radar Interferometry and Polarimetry. Doctoral Dissertation, Swiss Federal Institute of Technology Zurich, Zurich, Switzerland, 2015. [Google Scholar]
  59. Huss, M. Density assumptions for converting geodetic glacier volume change to mass change. Cryosphere 2013, 7, 877–887. [Google Scholar] [CrossRef] [Green Version]
  60. Paul, F.; Barrand, N.E.; Baumann, S.; Berthier, E.; Bolch, T.; Casey, K.; Frey, H.; Joshi, S.; Konovalov, V.; Le Bris, R. On the accuracy of glacier outlines derived from remote-sensing data. Ann. Glaciol. 2013, 54, 171–182. [Google Scholar] [CrossRef] [Green Version]
  61. Zhang, Z.; Jiang, L.; Liu, L.; Sun, Y.; Wang, H. Annual Glacier-Wide Mass Balance (2000–2016) of the Interior Tibetan Plateau Reconstructed from MODIS Albedo Products. Remote Sens. 2018, 10, 1031. [Google Scholar] [CrossRef] [Green Version]
  62. Xu, J.; Shangguan, D.; Wang, J. Three-Dimensional Glacier Changes in Geladandong Peak Region in the Central Tibetan Plateau. Water 2018, 10, 1749. [Google Scholar] [CrossRef] [Green Version]
  63. Moholdt, G.; Kääb, A. A new DEM of the Austfonna ice cap by combining differential SAR interferometry with ICESat laser altimetry. Polar Res. 2012, 31, 18460. [Google Scholar] [CrossRef] [Green Version]
  64. Scherler, D.; Bookhagen, B.; Strecker, M.R. Spatially variable response of Himalayan glaciers to climate change affected by debris cover. Nat. Geosci. 2011, 4, 156–159. [Google Scholar] [CrossRef]
  65. Copland, L.; Sylvestre, T.; Bishop, M.P.; Shroder, J.F.; Seong, Y.B.; Owen, L.A.; Bush, A.; Kamp, U. Expanded and recently increased glacier surging in the Karakoram. Arct. Antarct. Alp. Res. 2011, 503–516. [Google Scholar] [CrossRef] [Green Version]
  66. Quincey, D.J.; Glasser, N.F.; Cook, S.J.; Luckman, A. Heterogeneity in Karakoram glacier surges. J. Geophys. Res. Earth Surf 2015, 120, 1288–1300. [Google Scholar] [CrossRef] [Green Version]
  67. Hewitt, K. The Karakoram anomaly? Glacier expansion and the ‘elevation effect’, Karakoram Himalaya. Mt. Res. Dev. 2005, 25, 332–340. [Google Scholar] [CrossRef] [Green Version]
  68. Kääb, A.; Leinss, S.; Gilbert, A.; Bühler, Y.; Gascoin, S.; Evans, S.G.; Bartelt, P.; Berthier, E.; Brun, F.; Chao, W.-A. Massive collapse of two glaciers in western Tibet in 2016 after surge-like instability. Nat. Geosci. 2018, 11, 114–120. [Google Scholar] [CrossRef] [Green Version]
  69. Bhambri, R.; Hewitt, K.; Kawishwar, P.; Pratap, B. Surge-type and surge-modified glaciers in the Karakoram. Sci. Rep. 2017, 7, 15391. [Google Scholar] [CrossRef] [PubMed]
  70. Luo, Y.; Qin, N.; Zhou, B.; Li, J.; Wang, C.; Liu, J.; Pang, Y. Runoff characteristics and hysteresis to precipitation in Tuotuo River basin in source region of Yangtze River during 1961-2011. Bull. Soil Water Conserv. 2019, 39, 22–28. [Google Scholar]

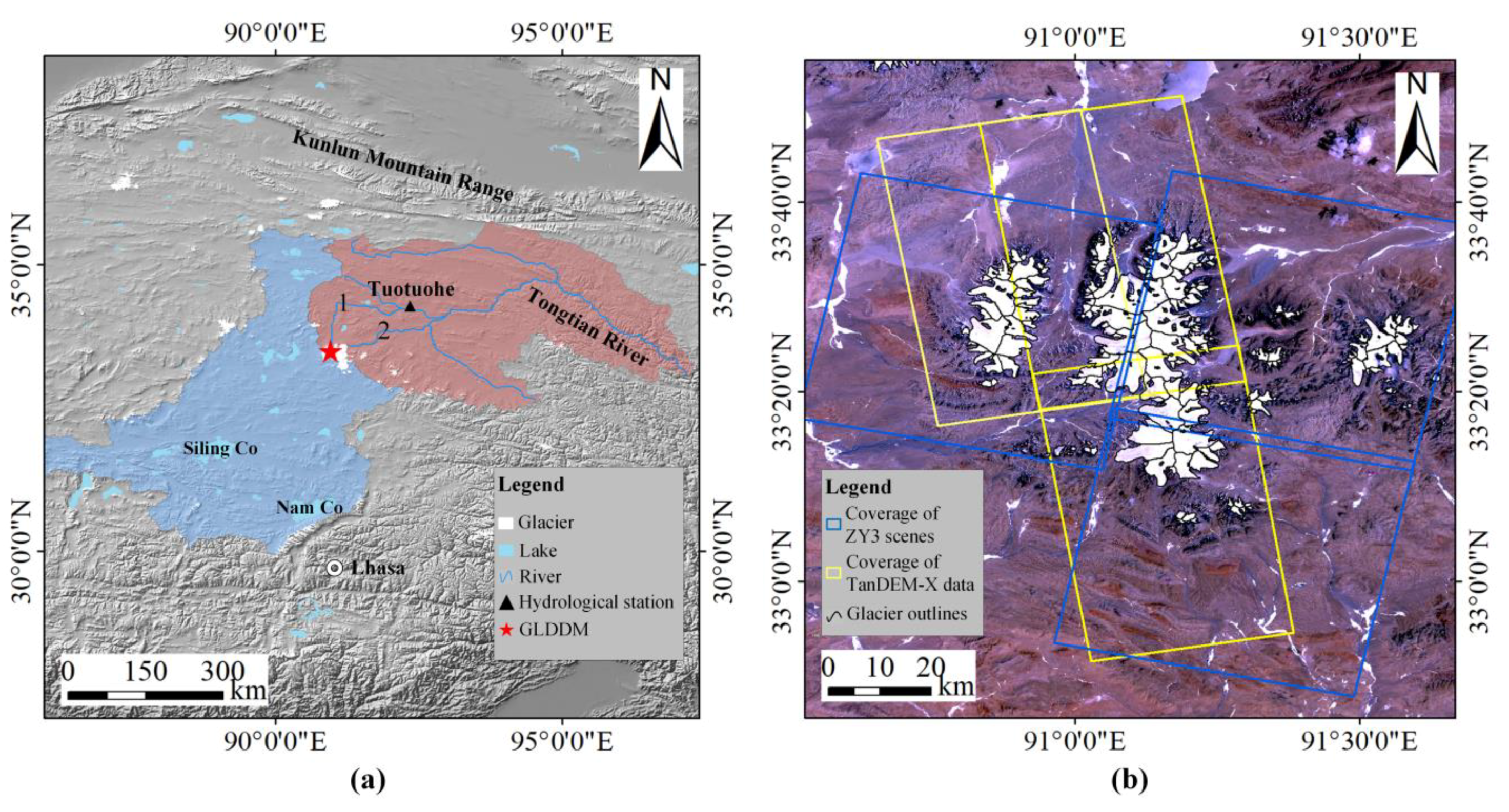

Figure 1. (a) Locations of the Geladandong mountain (GLDDM) and the Tuotuohe hydrological station in the Tibetan Plateau. The source region of the Yangtze River (SRYR) is in pink and the endorheic basin of the Tibetan Plateau is in blue. In the SRYR, the glacier melt-water of the GLDDM flows into the Tuotuo River (No. 1) and the Garang River (No. 2). (b) Glacierized regions of the GLDDM and the coverage of ZY-3 images and TanDEM-X data. Glacier boundaries were obtained from the Second Chinese Glacier Inventory [47]. Background: Landsat Thematic Mapper image in 1999 (Red, Band3; Green, Band2; Blue, Band1).
Figure 1. (a) Locations of the Geladandong mountain (GLDDM) and the Tuotuohe hydrological station in the Tibetan Plateau. The source region of the Yangtze River (SRYR) is in pink and the endorheic basin of the Tibetan Plateau is in blue. In the SRYR, the glacier melt-water of the GLDDM flows into the Tuotuo River (No. 1) and the Garang River (No. 2). (b) Glacierized regions of the GLDDM and the coverage of ZY-3 images and TanDEM-X data. Glacier boundaries were obtained from the Second Chinese Glacier Inventory [47]. Background: Landsat Thematic Mapper image in 1999 (Red, Band3; Green, Band2; Blue, Band1).
Remotesensing 12 00472 g001
Figure 2. Observed annual glacier elevation changes (m yr−1) over the GLDDM: (a) between 2000 and 2012; (b) between 2012 and 2018; (c) between 2000 and 2018. The glaciers with surging events in the studied periods are labeled as the last five codes of the WGMS (World Glacier Monitoring Service) IDs.
Figure 2. Observed annual glacier elevation changes (m yr−1) over the GLDDM: (a) between 2000 and 2012; (b) between 2012 and 2018; (c) between 2000 and 2018. The glaciers with surging events in the studied periods are labeled as the last five codes of the WGMS (World Glacier Monitoring Service) IDs.
Remotesensing 12 00472 g002

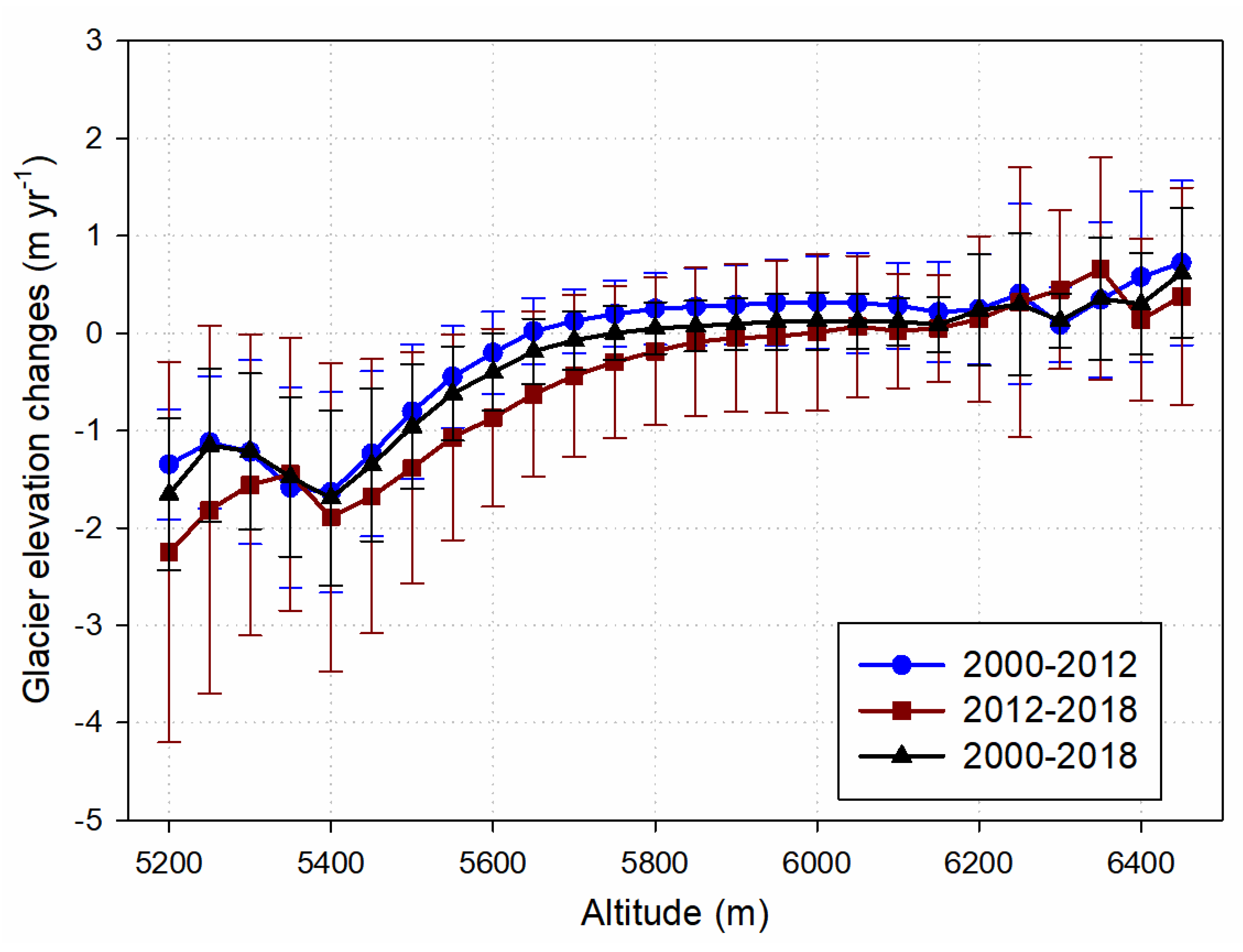

Figure 3. The annual rate of glacier elevation changes versus altitude over the GLDDM for the periods of 2000–2012, 2012–218 and 2000–2018. The error bars indicate the standard deviation of the observed glacier elevation changes.
Figure 3. The annual rate of glacier elevation changes versus altitude over the GLDDM for the periods of 2000–2012, 2012–218 and 2000–2018. The error bars indicate the standard deviation of the observed glacier elevation changes.
Remotesensing 12 00472 g003

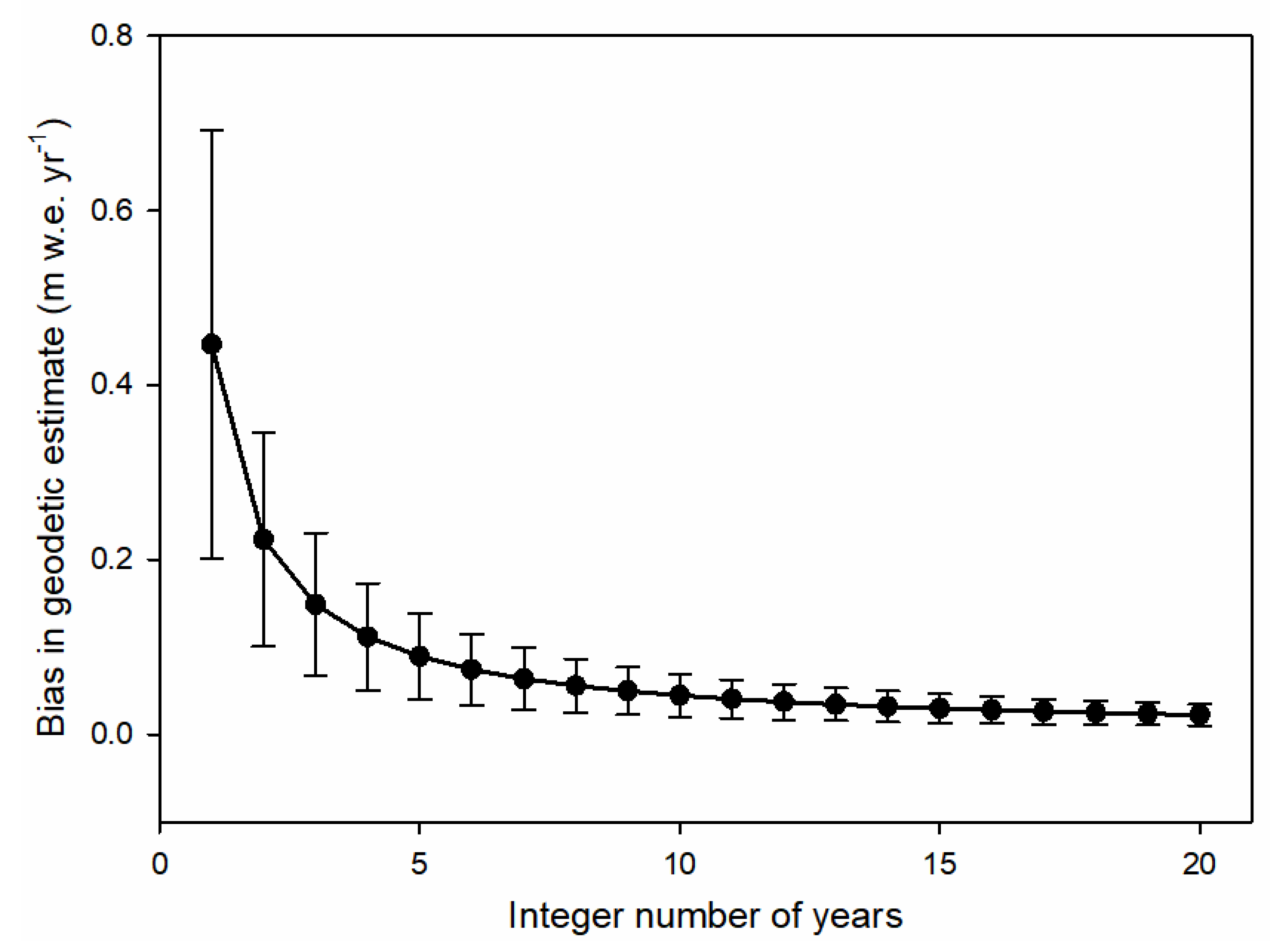

Figure 4. The impact of X-band radar penetration in mass balance estimation versus integer number of years for the study period. For visualization, the error bars indicate five times the estimated uncertainties.
Figure 4. The impact of X-band radar penetration in mass balance estimation versus integer number of years for the study period. For visualization, the error bars indicate five times the estimated uncertainties.
Remotesensing 12 00472 g004
Figure 5. Comparison of the estimated glacier mass balances between 2000−2012 and 2012−2018 over the six surge-type glaciers in the GLDDM. The WGMS IDs of these glaciers are depicted as the last five codes.
Figure 5. Comparison of the estimated glacier mass balances between 2000−2012 and 2012−2018 over the six surge-type glaciers in the GLDDM. The WGMS IDs of these glaciers are depicted as the last five codes.
Remotesensing 12 00472 g005
Figure 6. Observed annual glacier elevation changes (m yr−1) over three surge-type glaciers of 5K451F0030, 5Z213A0007, and 5Z213B0003. (a), (c) and (e) are the observations in the period 2000−2012; (b), (d) and (f) are the observations in the period 2012−2018. Black arrows indicate the directions of glacier surface flow.
Figure 6. Observed annual glacier elevation changes (m yr−1) over three surge-type glaciers of 5K451F0030, 5Z213A0007, and 5Z213B0003. (a), (c) and (e) are the observations in the period 2000−2012; (b), (d) and (f) are the observations in the period 2012−2018. Black arrows indicate the directions of glacier surface flow.
Remotesensing 12 00472 g006

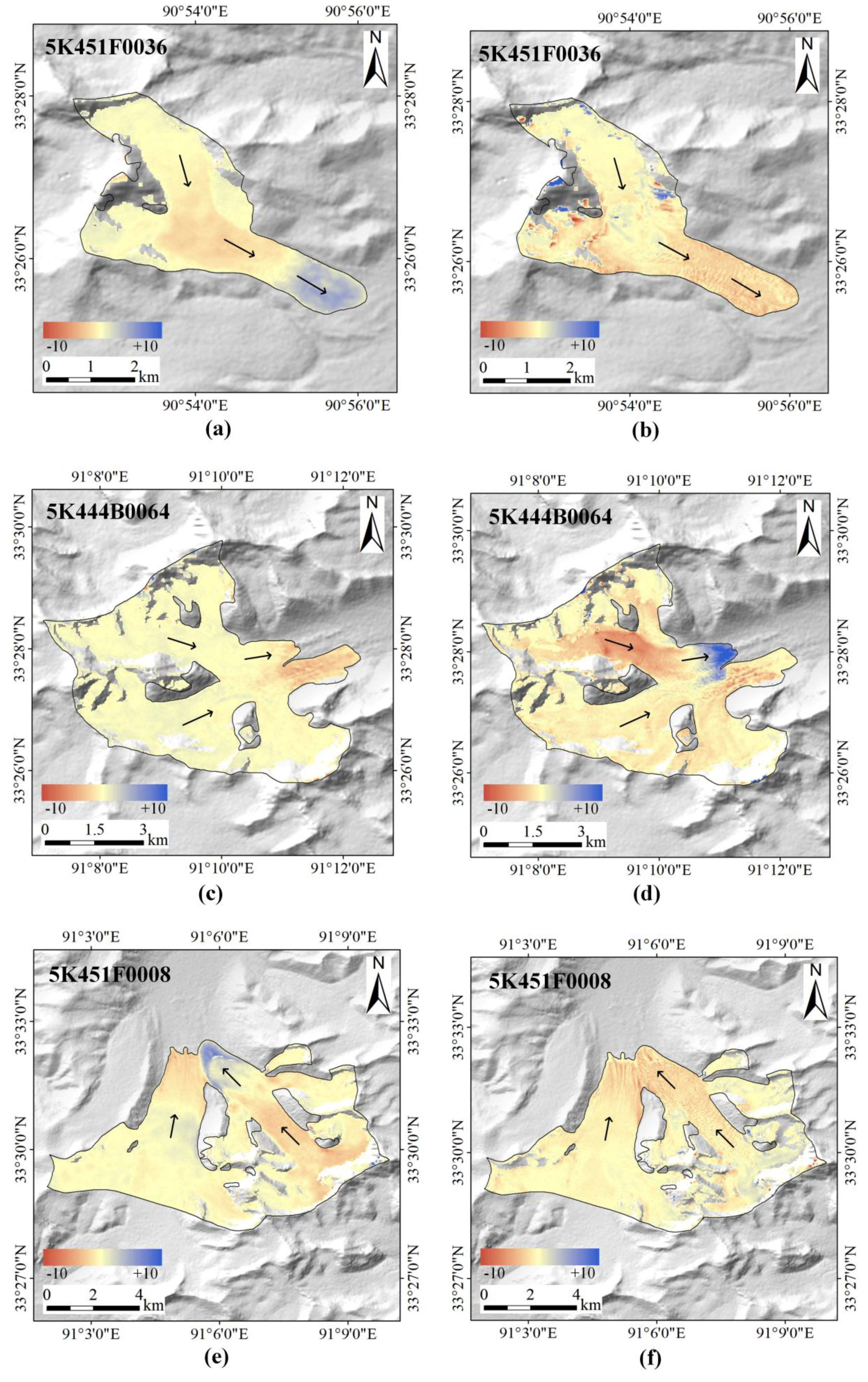

Figure 7. Same as Figure 6 but for three surge-type glaciers of 5K451F0036, 5K444B0064, and 5K451F0008. (a), (c) and (e) are the observations in the period 2000−2012; (b), (d) and (f) are the observations in the period 2012−2018. Black arrows indicate the directions of glacier surface flow.
Figure 7. Same as Figure 6 but for three surge-type glaciers of 5K451F0036, 5K444B0064, and 5K451F0008. (a), (c) and (e) are the observations in the period 2000−2012; (b), (d) and (f) are the observations in the period 2012−2018. Black arrows indicate the directions of glacier surface flow.
Remotesensing 12 00472 g007
Table 1. Main parameters of the used ZY3 images and TanDEM-X data.
Table 1. Main parameters of the used ZY3 images and TanDEM-X data.
Acquisition DateSensorImaging ModeCloud Cover/CoherenceOrbit Cycle
21 December 2016ZY3-02Panchromatic3% a61
15 December 2017ZY3-02Panchromatic8% a59
15 December 2017ZY3-02Panchromatic4% a59
16 March 2012TanDEM-XSAR0.84 b158
16 March 2012TanDEM-XSAR0.80 b158
13 November 2012TanDEM-XSAR0.79 b180
Note: a Cloud over of ZY3 optical images. b Average coherence of TanDEM-X InSAR data.
Table 2. Glacier elevation changes and mass balances of the Geladandong mountain(GLDDM) in 2000–2018.
Table 2. Glacier elevation changes and mass balances of the Geladandong mountain(GLDDM) in 2000–2018.
Time PeriodGlacier Elevation Change (m yr−1)Glacier Mass Balance (m w.e. yr−1)
Non-SurgeSurge-TypeEntire GLDDMNon-SurgeSurge-TypeEntire GLDDM
2000–2012−0.14 ± 0.04−0.09 ± 0.03−0.13 ± 0.04−0.12 ± 0.04−0.08 ± 0.03−0.11 ± 0.03
2012–2018−0.62 ± 0.13−0.18 ± 0.06−0.55 ± 0.11−0.53 ± 0.12−0.15 ± 0.05−0.47 ± 0.09
2000–2018−0.32 ± 0.09−0.13 ± 0.06−0.28 ± 0.08−0.27 ± 0.08−0.11 ± 0.05−0.24 ± 0.07
Table 3. Comparison with the estimates of glacier mass balances in previous studies over the GLDDM.
Table 3. Comparison with the estimates of glacier mass balances in previous studies over the GLDDM.
Mass Balance
(m w.e. yr−1)
Time PeriodStudyMethod a
−0.11 ± 0.032000-2012This studyGeod.
−0.12 ± 0.222000-2014Liu et al., (2017) [32]Geod.
−0.13 ± 0.062003-2009Chao et al., (2017) [31]Geod.
−0.14 ± 0.082000-2011Zhang et al., (2018) [61]Albed.
−0.32 ± 0.092000-2013Xu et al., (2018) [62]Geod.
−0.47 ± 0.092012-2018This studyGeod.
−0.48 ± 0.132012-2016Zhang et al., (2018) [61]Albed.
−0.24 ± 0.072000-2018This studyGeod.
−0.24 ± 0.102000-2016Zhang et al., (2018) [61]Albed.
Note: a Geod., geodetic method; Albed., albedo-based regression method.
Table 4. Glacier mass balances (Gt yr−1) of the GLDDM in the source region of the Yangtze River(SRYR), and the catchment of the Tuotuo River.
Table 4. Glacier mass balances (Gt yr−1) of the GLDDM in the source region of the Yangtze River(SRYR), and the catchment of the Tuotuo River.
Time PeriodSRYRTuotuo River
2000–2012−0.029 ± 0.011−0.025 ± 0.010
2012–2018−0.187 ± 0.043−0.102 ± 0.031
2000–2018−0.078 ± 0.032−0.052 ± 0.021

Share and Cite

MDPI and ACS Style

Liu, L.; Jiang, L.; Zhang, Z.; Wang, H.; Ding, X. Recent Accelerating Glacier Mass Loss of the Geladandong Mountain, Inner Tibetan Plateau, Estimated from ZiYuan-3 and TanDEM-X Measurements. Remote Sens. 2020, 12, 472. https://doi.org/10.3390/rs12030472

AMA Style

Liu L, Jiang L, Zhang Z, Wang H, Ding X. Recent Accelerating Glacier Mass Loss of the Geladandong Mountain, Inner Tibetan Plateau, Estimated from ZiYuan-3 and TanDEM-X Measurements. Remote Sensing. 2020; 12(3):472. https://doi.org/10.3390/rs12030472

Chicago/Turabian Style

Liu, Lin, Liming Jiang, Zhimin Zhang, Hansheng Wang, and Xiaoli Ding. 2020. "Recent Accelerating Glacier Mass Loss of the Geladandong Mountain, Inner Tibetan Plateau, Estimated from ZiYuan-3 and TanDEM-X Measurements" Remote Sensing 12, no. 3: 472. https://doi.org/10.3390/rs12030472

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
