Ice Concentration Retrieval from the Analysis of Microwaves: Evaluation of a New Methodology Optimized for the Copernicus Imaging Microwave Radiometer

1
Sorbonne Université, Observatoire de Paris, Université PSL, CNRS, LERMA, 75006 Paris, France
2
Estellus, 75002 Paris, France
*
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(10), 1594; https://doi.org/10.3390/rs12101594
Received: 24 March 2020 / Revised: 7 May 2020 / Accepted: 13 May 2020 / Published: 17 May 2020

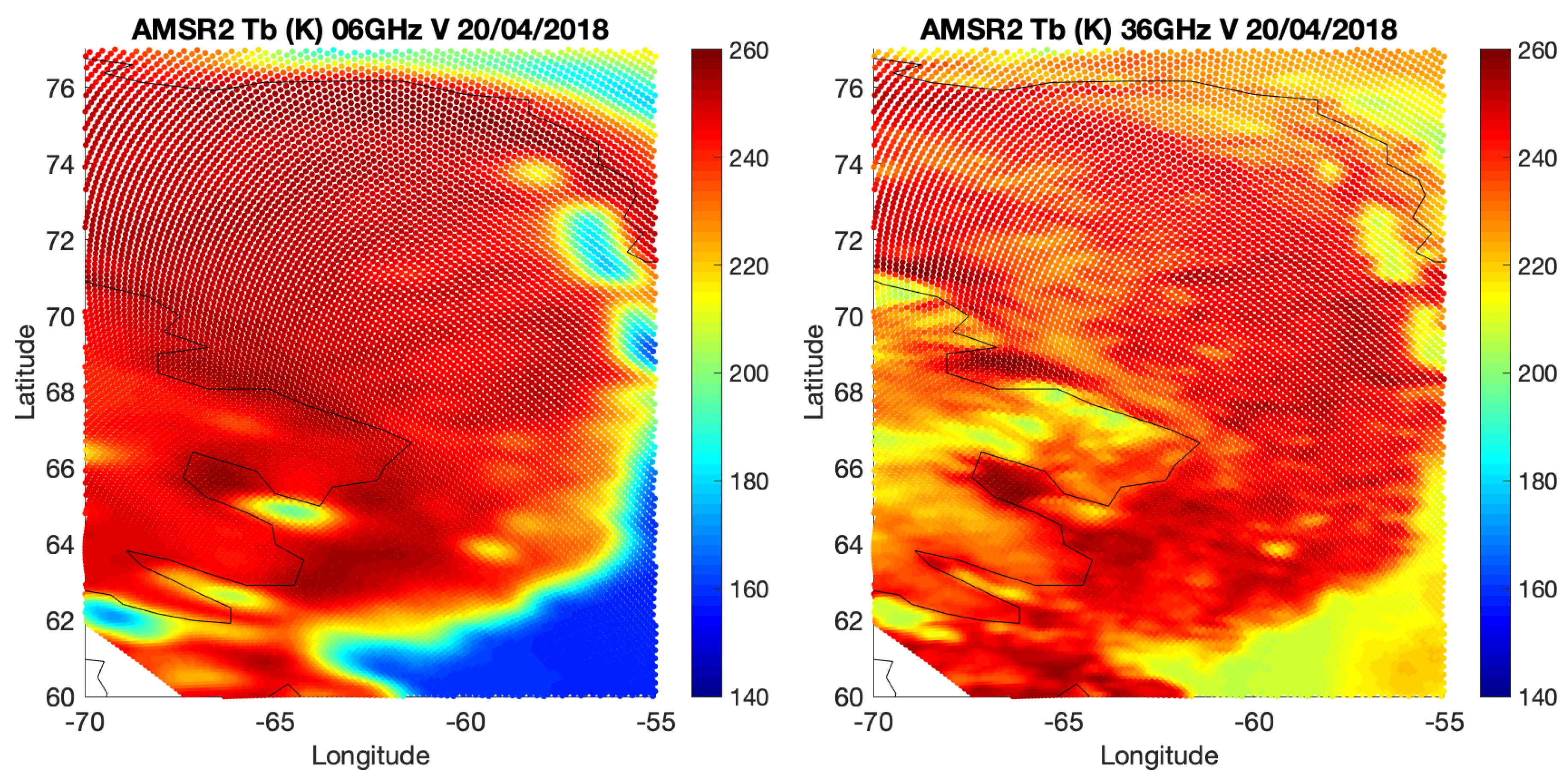

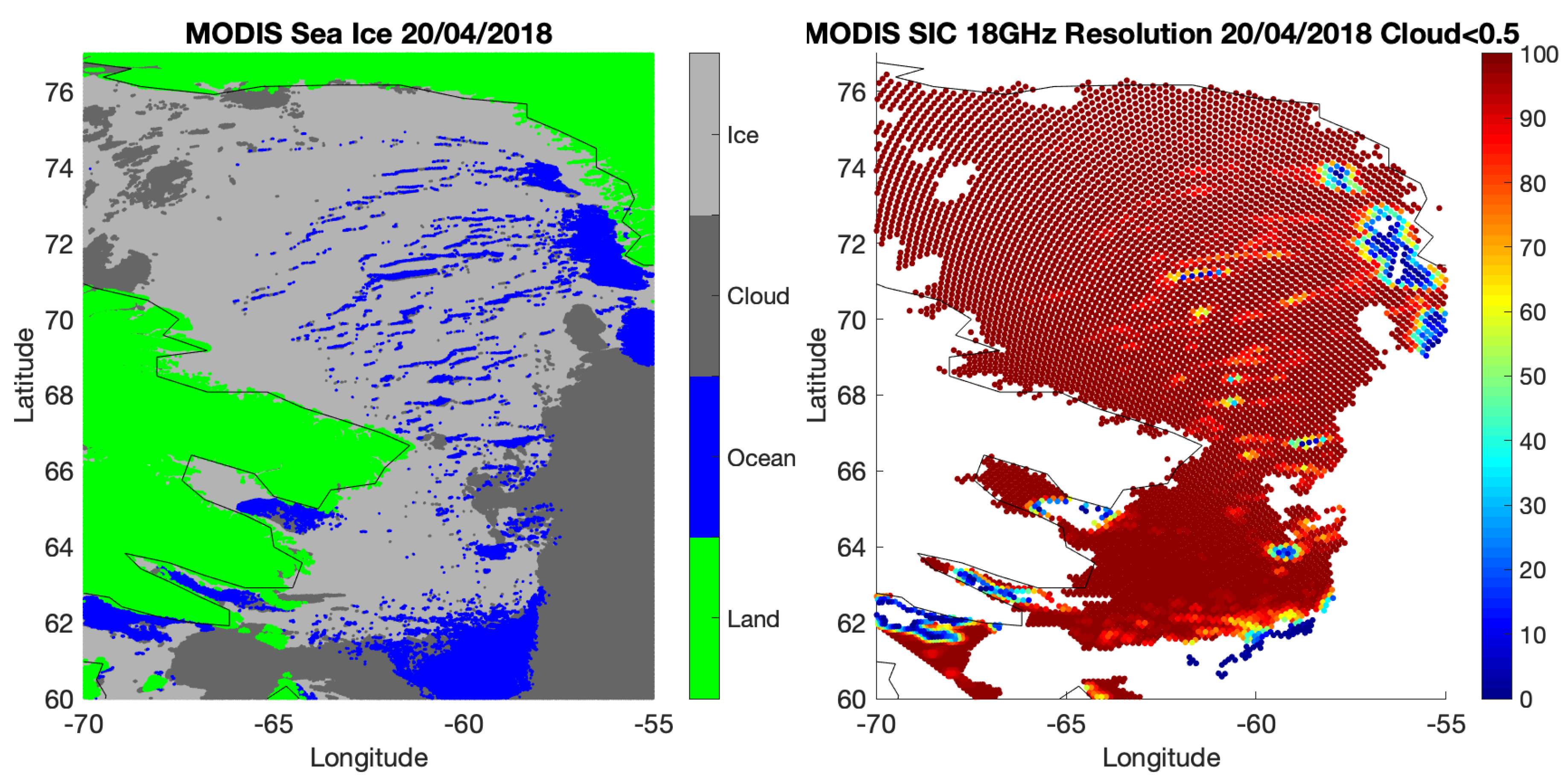

A new methodology has been described in Kilic et al. (Ice Concentration Retrieval from the Analysis of Microwaves: A New Methodology Designed for the Copernicus Imaging Microwave Radiometer, Remote Sensing 2020, 12, 1060, Part 1 of this study) to estimate Sea Ice Concentration (SIC) from satellite passive microwave observations between 6 and 36 GHz. The Ice Concentration Retrieval from the Analysis of Microwaves (IceCREAM) algorithm is based on an optimal estimation, with a simple radiative transfer model derived from satellite observations at 0% and 100% SIC. Observations at low and high frequencies have different spatial resolutions, and a scheme is developed to benefit from the low errors of the low frequencies and the high spatial resolutions of the high frequencies. This effort is specifically designed for the Copernicus Imaging Microwave Radiometer (CIMR) project, equipped with a large deployable antenna to provide a spatial resolution of ∼5 km at 18 and 36 GHz, and ∼15 km at 6 and 10 GHz. The algorithm is tested with Advanced Microwave Scanning Radiometer 2 (AMSR2) observations, for a clear scene over the north polar region, with collocated Moderate Resolution Imaging Spectroradiometer (MODIS) estimates and the Ocean Sea Ice—Satellite Application Facilities (OSI SAF) operational products. Several algorithm options are tested, and the study case shows that both high spatial resolution and low errors are obtained with the IceCREAM method. It is also tested for the full polar regions, winter and summer, under clear and cloudy conditions. Our method is globally applicable, without fine-tuning or further weather filtering. The systematic use of all channels from 6 to 36 GHz makes it robust to changes in ice surface conditions and to weather interactions. View Full-Text
Keywords: sea ice concentration; passive microwaves; inversion; optimal estimation; Copernicus Imaging Microwave Radiometer sea ice concentration; passive microwaves; inversion; optimal estimation; Copernicus Imaging Microwave Radiometer
Show Figures

Figure 1

MDPI and ACS Style

Prigent, C.; Kilic, L.; Aires, F.; Pellet, V.; Jimenez, C. Ice Concentration Retrieval from the Analysis of Microwaves: Evaluation of a New Methodology Optimized for the Copernicus Imaging Microwave Radiometer. Remote Sens. 2020, 12, 1594.
