Satellite Cross-Talk Impact Analysis in Airborne Interferometric Global Navigation Satellite System-Reflectometry with the Microwave Interferometric Reflectometer

1
CommSensLab—Unidad de Excelencia María de Maeztu, Department of Signal Theory and Communications (TSC), Universitat Politècnica de Catalunya—BarcelonaTech (UPC), Jordi Girona 1-3, Campus Nord, D4 Building, 08034 Barcelona, Spain
2
Institut d’Estudis Espacials de Catalunya (IEEC/UPC), 08034 Barcelona, Spain
3
Physics Department, School of Telecommunications and Aerospace Engineering (EETAC), Universitat Politècnica de Catalunya—BarcelonaTech (UPC), 08860 Castelldefels, Spain
4
Department of Civil Engineering, Monash University, Clayton, VIC 3800, Australia
5
Department of Infrastructure Engineering, The University of Melbourne, Parkville, VIC 3010, Australia
*
Authors to whom correspondence should be addressed.
Remote Sens. 2019, 11(9), 1120; https://doi.org/10.3390/rs11091120
Received: 10 April 2019 / Revised: 7 May 2019 / Accepted: 8 May 2019 / Published: 10 May 2019
  |
PDF [9243 KB, uploaded 14 May 2019]
  |

Abstract

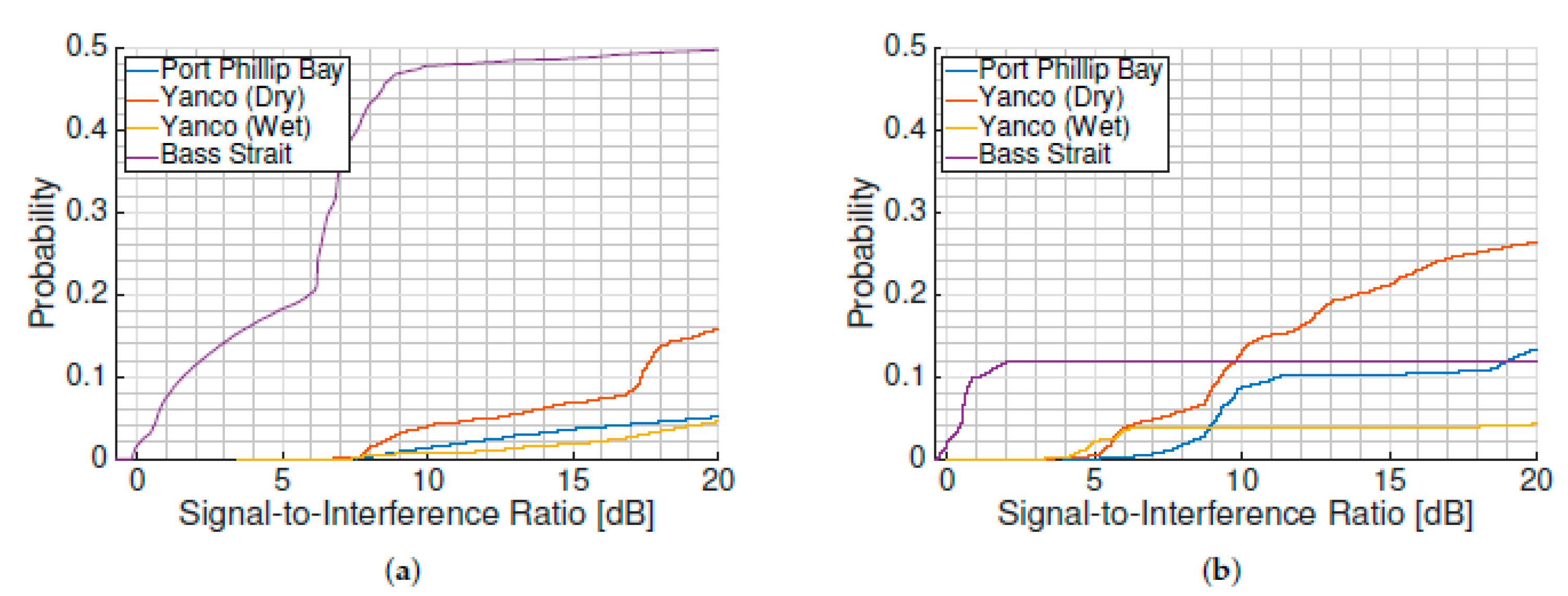

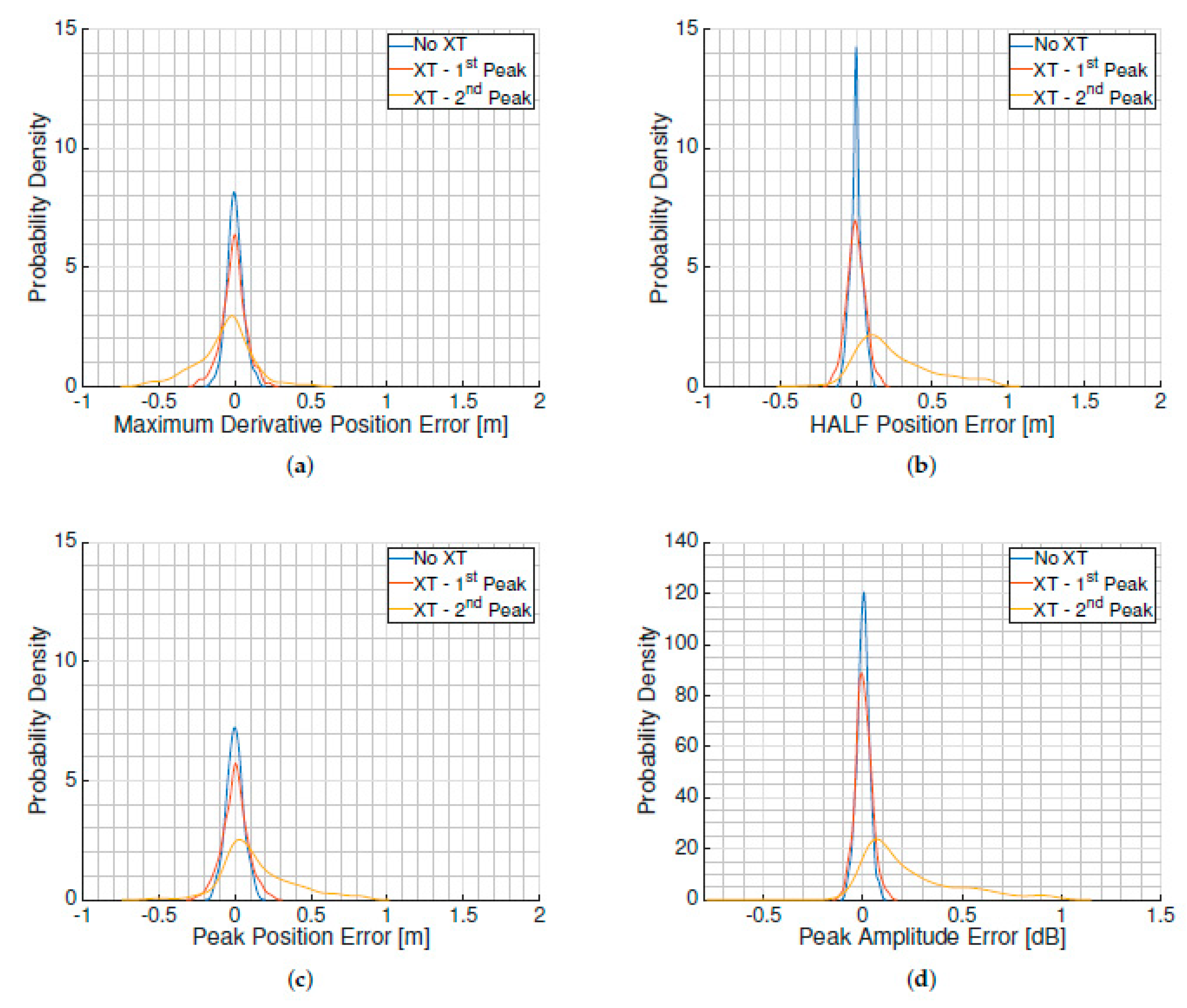

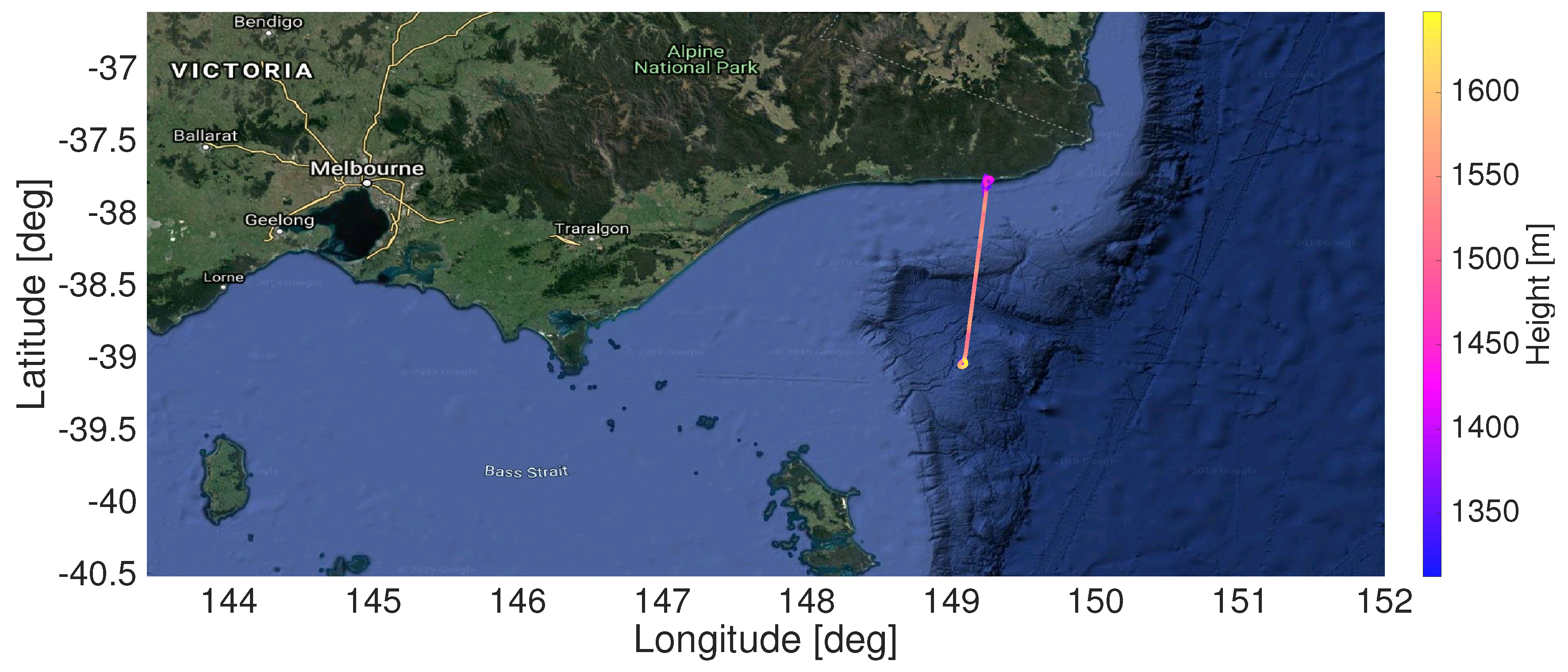

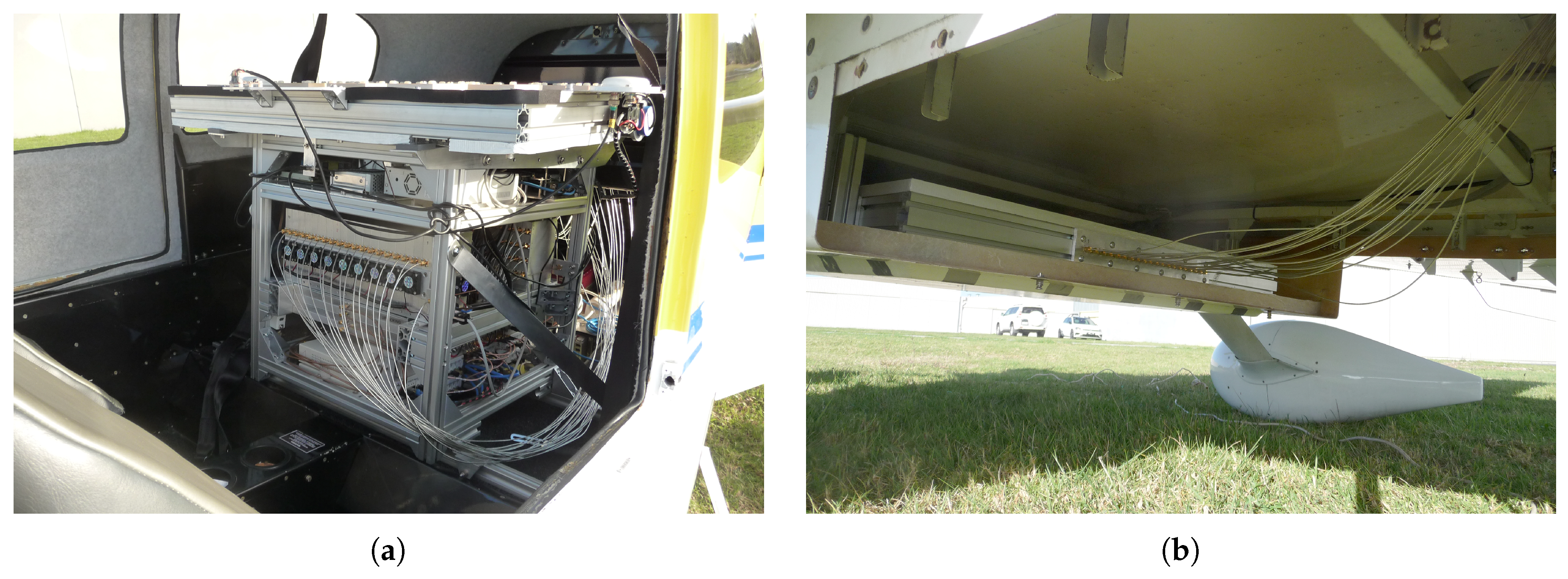

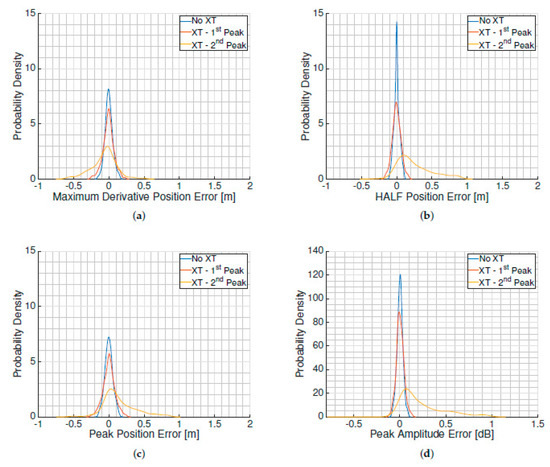

This work analyzes the satellite cross-talk observed by the microwave interferometric reflectometer (MIR), a new global navigation satellite system (GNSS) reflectometer, during an airborne field campaign in Victoria and New South Wales, Australia. MIR is a GNSS reflectometer with two 19-element, dual-band arrays, each of them having four steerable beams. The data collected during the experiment, the characterization of the arrays, and the global positioning system (GPS) and Galileo ephemeris were used to compute the expected delays and power levels of all incoming signals, and the probability of cross-talk was then evaluated. Despite the MIR highly directive arrays, the largest ever for a GNSS-R instrument, one of the flights was found to be contaminated by cross-talk almost half of the time at the L1/E1 frequency band, and all four flights were contaminated ∼5–10% of the time at the L5/E5a frequency band. The cross-talk introduces an error of up to 40 cm of standard deviation for altimetric applications and about 0.24 dB for scatterometric applications. View Full-Text
Keywords: GNSS; reflectometry; interferometric; satellite cross-talk; antenna array GNSS; reflectometry; interferometric; satellite cross-talk; antenna array
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
