# Small Wind Technology Diffusion in Suburban Areas of Sicily

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Italian Regulatory Framework

## 3. Small Wind Turbines Available on the Market

Power Classes | Wind Turbine Model | Producers |
---|---|---|

Class 0.5–1.8 kW | Soma 1000—1 kW (HAWT) | Sunrise Solar |

Windspire 1.2 G—1.2 kW (VAWT) | Mariah Power | |

Class 2–3.5 kW | Inclin 3000—3 kW (HAWT) | J. Bornay |

Windfox—3 kW (HAWT) | Italkero s.r.l | |

WindRotor WRE.030—3 kW (VAWT) | Ropatek | |

Cleanfield—3.5 kW (VAWT) | Cleanfield Energy | |

Class 5–6 kW | EasyWind 6 AC—6 kW (HAWT) | Conergy |

Maxy Vertical Wre 0.62—6 kW (VAWT) | Ropatec | |

Class 10–12.5 kW | BWC Excel-S—10 kW (HAWT) | Bergey Windpower |

Windpower Gyro—10 kW (VAWT) | Four Seasons Windpower | |

Class 15–17.5 kW | WT 15000—15 kW (HAWT) | Proven Energy Ltd |

Baywinds 24–15—15 kW (HAWT) | Baywinds | |

Class 20–25 kW | FL—20 kW (HAWT) | Flexyenergy |

Big Star Vertical—20 kW (VAWT) | Ropatek |

Wind Turbine | Technical Data | |
---|---|---|

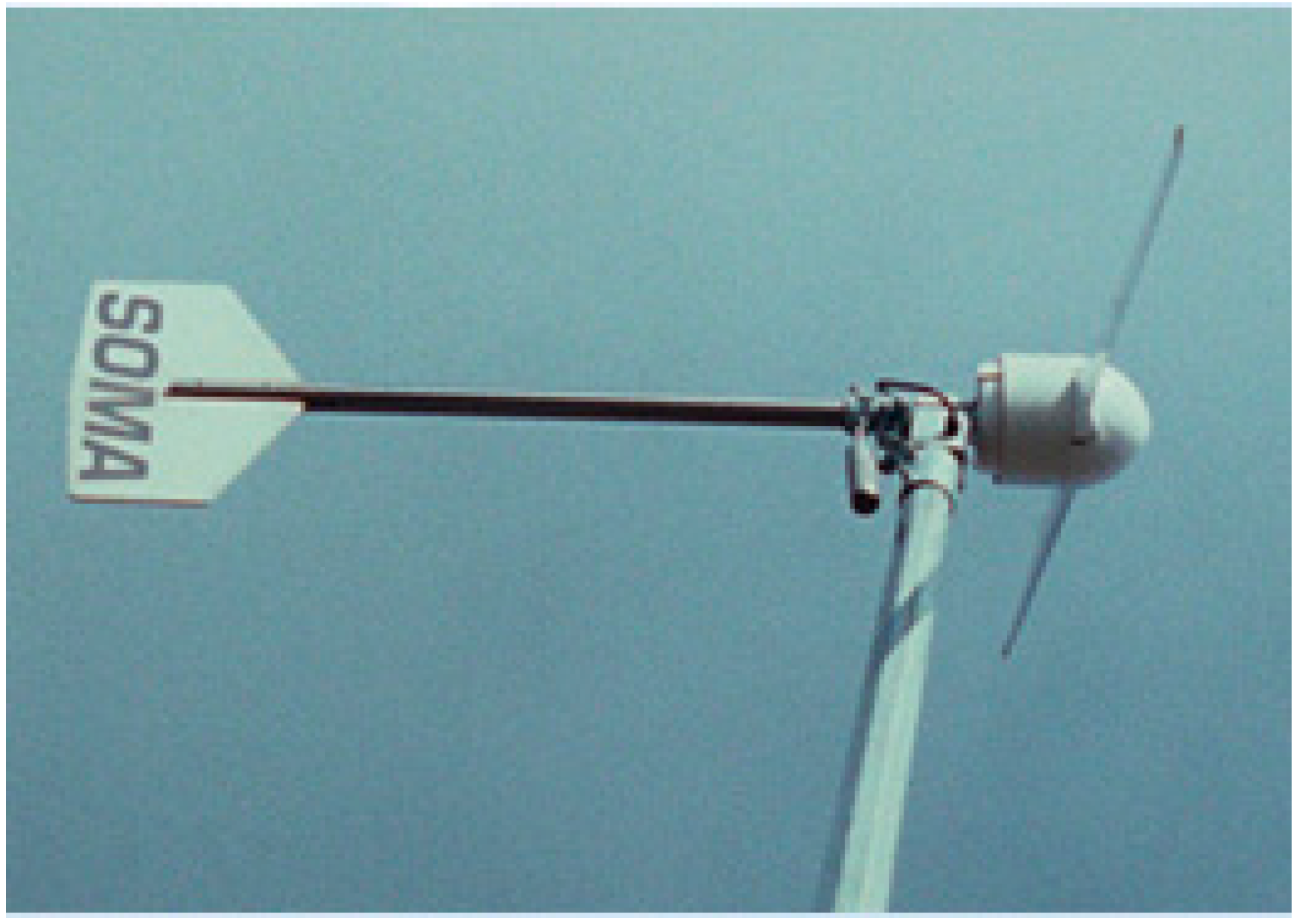

Soma 1000—1 kW (HAWT) | Nominal Power | 1 Kw |

Numbers. Blades and material, | 2, fiberglass | |

Rotor diameter | 2.7 m | |

Cut-in wind speed | 3.5 m/s | |

Cut-off wind speed | 50 m/s | |

Rated wind speed | 10 m/s | |

Security wind speed | 50 m/s | |

Weight nacelle | 50 Kg | |

Weight tower | 45 Kg | |

Price per kW | 1.980 €/kW |

## 4. Techno—Economic Analysis

#### 4.1. Siting

#### 4.2. Energy Analysis

Stations | c (m/s) | k | s % |
---|---|---|---|

Enna | 6.23 | 1.83 | 11.39 |

Gela | 4.65 | 1.46 | 7.22 |

_{0}is the wind speed recorded by meteorological station from the ground level h

_{0}(10 m), and the power law exponent α is the wind shear exponent. This parameter is generally between 0.1 and 0.4 and depends on the surface roughness, atmospheric stability, and height range

**Figure 4.**(

**a**) Wind velocity profile for Enna rural area; (

**b**) Wind velocity profile for Enna sub urban area.

**Figure 5.**(

**a**) Wind velocity profile for Gela rural area; (

**b**) Wind velocity profile for Gela sub urban area.

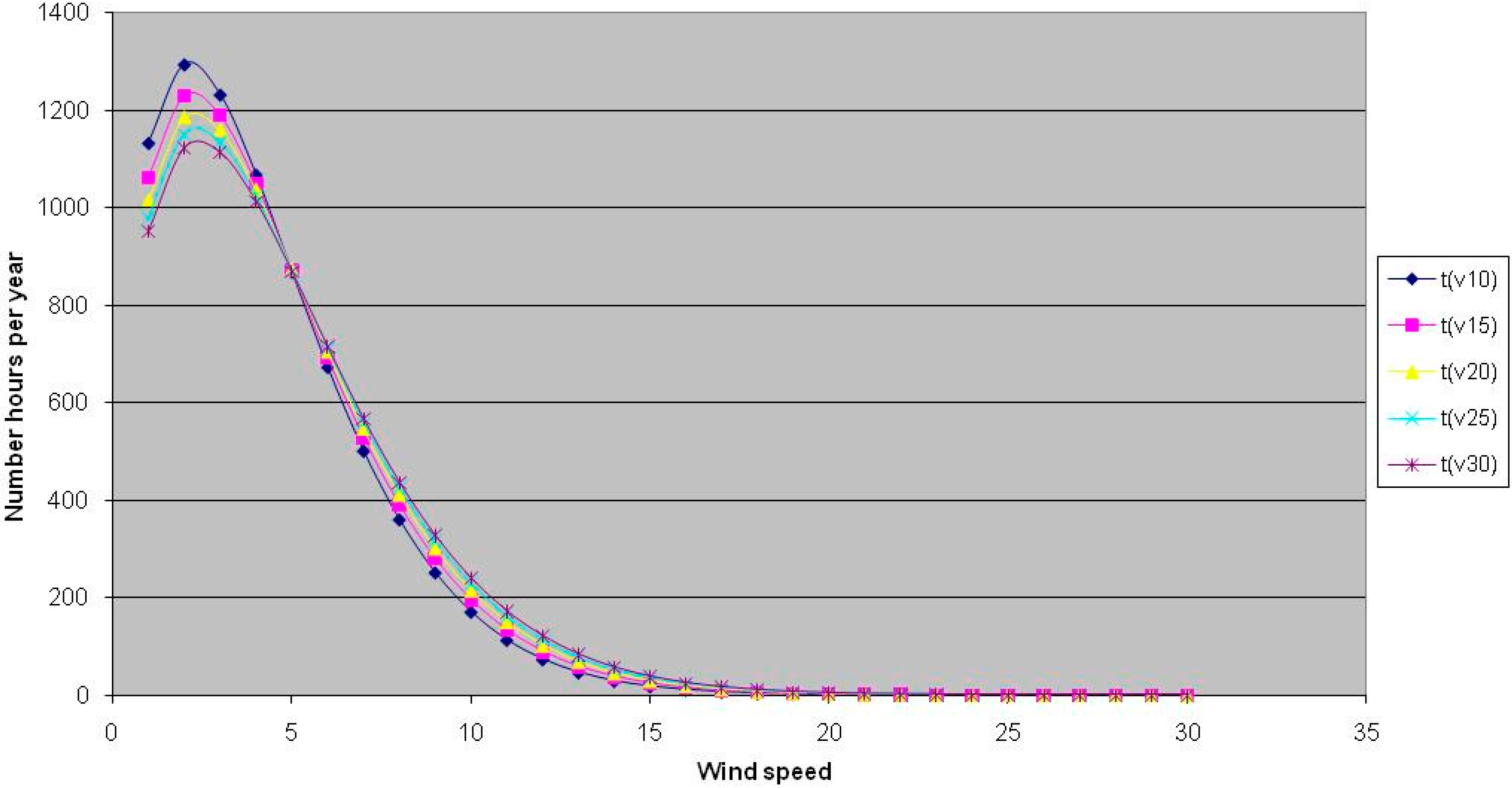

_{i}) is the number of hours in wind speed bin U

_{i}, P(U

_{i}) is the power output at that wind speed and there are n wind speed bins.

Enna Sub-Urban Area | Enna Rural Area | |||||||
---|---|---|---|---|---|---|---|---|

Class 0.5–1.8 kW | height (m) | height (m) | ||||||

Turbine | 10 | 15 | 20 | 25 | 10 | 15 | 20 | 25 |

Soma 1000—1 kW (HAWT) | 2550 | 2957 | 3256 | 3490 | 2550 | 2770 | 2929 | 3055 |

Windspire 1.2 G—1.2 kW (VAWT) | 1159 | 1459 | 1693 | 1884 | 1159 | 1318 | 1438 | 1534 |

Class 2–3.5 kW | height (m) | height (m) | ||||||

Turbine | 10 | 15 | 20 | 25 | 10 | 15 | 20 | 25 |

Inclin 3000—3 kW (HAWT) | 7259 | 8260 | 8999 | 9584 | 7259 | 7798 | 8191 | 8500 |

Windfox—3 kW (HAWT) | 8540 | 9715 | 10577 | 11259 | 8540 | 9174 | 9634 | 9995 |

WindRotor WRE.030—3 kW (VAWT) | 2569 | 3186 | 3683 | 4101 | 2569 | 2893 | 3141 | 3343 |

Cleanfield—3.5 kW (VAWT) | 4327 | 5309 | 6080 | 6716 | 4327 | 4846 | 5238 | 5555 |

Class 5–6 kW | height (m) | height (m) | ||||||

Turbine | 10 | 15 | 20 | 25 | 10 | 15 | 20 | 25 |

EasyWind 6 AC—6 kW (HAWT) | 13572 | 15708 | 17247 | 18443 | 13572 | 14730 | 15562 | 16212 |

Maxy Vertical Wre 0.62—6 kW (VAWT) | 5406 | 6760 | 7861 | 8792 | 5406 | 6115 | 6661 | 7108 |

Class 10–12.5 kW | height (m) | height (m) | ||||||

Turbine | 15 | 20 | 25 | 30 | 15 | 20 | 25 | 30 |

BWC Excel-S—10 kW (HAWT) | 9179 | 10807 | 12212 | 13453 | 8243 | 9035 | 9690 | 10253 |

Windpower Gyro—10 kW (VAWT) | 16123 | 18719 | 20868 | 22702 | 14575 | 15888 | 16951 | 17849 |

Class 15–17.5 kW | height (m) | height (m) | ||||||

Turbine | 15 | 20 | 25 | 30 | 15 | 20 | 25 | 30 |

WT 15000—15 kW (HAWT) | 35745 | 39490 | 42418 | 44805 | 33387 | 35392 | 36966 | 38262 |

Baywinds 24–15—15 kW (HAWT) | 22633 | 26003 | 28773 | 31121 | 20607 | 22325 | 23711 | 24877 |

Class 20–25 kW | height (m) | height (m) | ||||||

Turbine | 15 | 20 | 25 | 30 | 15 | 20 | 25 | 30 |

FL—20 kW (HAWT) | 57902 | 63288 | 67381 | 70647 | 54416 | 57385 | 59679 | 61541 |

Big Star Vertical—20 kW (VAWT) | 24074 | 27756 | 30870 | 33571 | 21920 | 23744 | 25239 | 26512 |

Gela Sub-Urban Area | Gela Rural Area | |||||||
---|---|---|---|---|---|---|---|---|

Class 0.5–1.8 kW | height (m) | height (m) | ||||||

Turbine | 10 | 15 | 20 | 25 | 10 | 15 | 20 | 25 |

Soma 1000—1 kW (HAWT) | 1678 | 1982 | 2213 | 2399 | 1678 | 1841 | 1961 | 2057 |

Windspire 1.2 G—1.2 kW (VAWT) | 689 | 881 | 1037 | 1167 | 689 | 790 | 867 | 931 |

Class 2–3.5 kW | height (m) | height (m) | ||||||

Turbine | 10 | 15 | 20 | 25 | 10 | 15 | 20 | 25 |

Inclin 3000—3 kW (HAWT) | 5079 | 5841 | 6419 | 6886 | 5079 | 5486 | 5787 | 6027 |

Windfox—3 kW (HAWT) | 5830 | 6751 | 7444 | 8002 | 5830 | 6324 | 6687 | 6975 |

WindRotor WRE.030—3 kW (VAWT) | 1617 | 2017 | 2344 | 2623 | 1617 | 1827 | 1988 | 2120 |

Cleanfield—3.5 kW (VAWT) | 2759 | 3400 | 3916 | 4351 | 2759 | 3096 | 3353 | 3563 |

Class 5–6 kW | height (m) | height (m) | ||||||

Turbine | 10 | 15 | 20 | 25 | 10 | 15 | 20 | 25 |

EasyWind 6 AC—6 kW (HAWT) | 8815 | 10438 | 11657 | 12634 | 8815 | 9685 | 10324 | 10832 |

Maxy Vertical Wre 0.62—6 kW (VAWT) | 3420 | 4281 | 4991 | 5601 | 3420 | 3870 | 4218 | 4504 |

Class 10–12.5 kW | height (m) | height (m) | ||||||

Turbine | 15 | 20 | 25 | 30 | 15 | 20 | 25 | 30 |

BWC Excel-S—10 kW (HAWT) | 5675 | 6716 | 7622 | 8428 | 5080 | 5583 | 6001 | 8428 |

Windpower Gyro—10 kW (VAWT) | 9917 | 11622 | 13067 | 14324 | 8920 | 9765 | 10457 | 14324 |

Class 15–17.5 kW | height (m) | height (m) | ||||||

Turbine | 15 | 20 | 25 | 30 | 15 | 20 | 25 | 30 |

WT 15000—15 kW (HAWT) | 23819 | 26657 | 28950 | 30872 | 22082 | 23557 | 24734 | 30872 |

Baywinds 24–15—15 kW (HAWT) | 14199 | 16460 | 18362 | 20008 | 12866 | 13995 | 14916 | 20008 |

Class 20–25 kW | height (m) | height (m) | ||||||

Turbine | 15 | 20 | 25 | 30 | 15 | 20 | 25 | 30 |

FL—20 kW (HAWT) | 38120 | 42542 | 46042 | 48932 | 35361 | 37706 | 39556 | 48932 |

Big Star Vertical—20 kW (VAWT) | 15615 | 18020 | 20081 | 21891 | 14219 | 15400 | 16373 | 21891 |

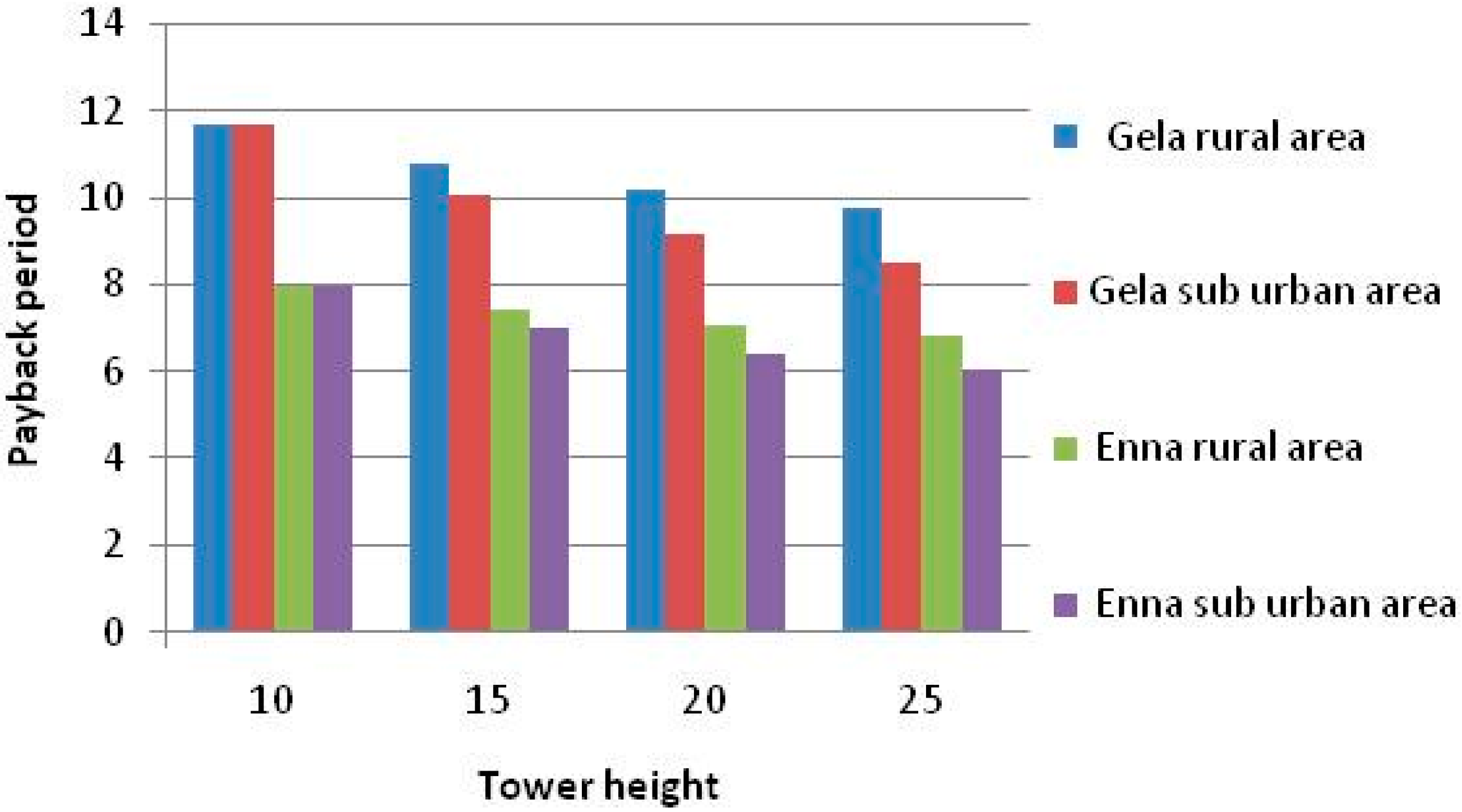

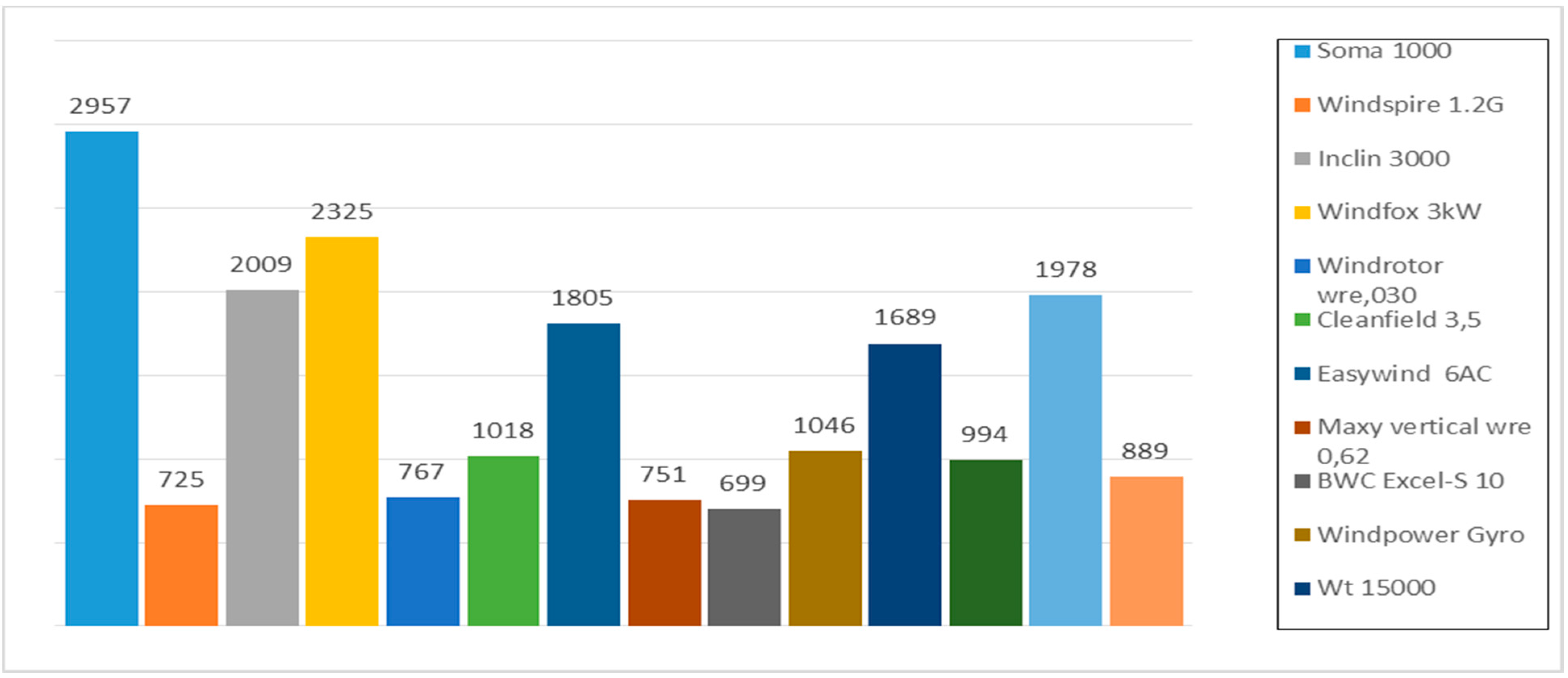

#### 4.3. Economic Analysis

## 5. Conclusions

## Author Contributions

## Conflicts of Interest

## Nomenclature

HAWT is the Horizontal Axis Wind Turbine; |

VAWT is the Vertical Axis Wind turbine; |

DIA is the simple declaration of the opening activity; |

GC is the green certificate; |

α is the wind shear exponent; |

c is the scale factor (m/s); |

h_{0} is the surface roughness; |

n is the wind speed bins; |

k is the shape factor (dimensionless); |

H(U_{i}) is the number of hours in wind speed bin U_{i}; |

P(U_{i}) is the power output at that wind speed; |

s is the calm wind frequency (in percentage); |

t(v) is the Weibull Distribution; |

v is the wind speed (m/s). |
