Abstract

Shifting towards renewable energy sources is essential for achieving sustainability goals. This research aims to develop and practically validate an integrated photovoltaic (PV) system with battery storage and electric vehicle (EV) charging, combined with smart energy management, to optimize energy use and minimize fossil fuel reliance. Conducted in Constanta, Romania, the study presents a novel practical solution involving a real-world grid-connected PV system leveraging battery storage to effectively retain excess solar energy for future consumption, thereby enhancing self-sufficiency and grid independence. Utilizing PV*SOL for system simulation and Global Solar Atlas for solar irradiance data, the authors provide accurate assessments of energy yield, economic feasibility, and environmental benefits. Results demonstrate a high energy autonomy level, with solar energy covering 92.2% of total consumption, alongside a notable annual reduction of 6239 kg in CO₂ emissions. The study significantly contributes to the field by providing an empirically validated model that bridges theory and practice, offering a scalable blueprint for sustainable and economically viable renewable energy systems.

1. Introduction

The integration of photovoltaic (PV) systems, battery storage, and electric vehicle (EV) charging has emerged as a critical strategy for enhancing energy sustainability and efficiency [1]. The transition to renewable energy is driven by the need to reduce carbon emissions, enhance energy security, and optimize resource utilization [2]. Numerous studies have explored various aspects of renewable energy integration, providing valuable insights into system performance, economic feasibility, and environmental impact [3].

The growing demand for sustainable energy solutions has highlighted the importance of solar power as a key renewable resource [4]. By integrating solar PV systems with battery storage, households and businesses can maximize self-consumption, store surplus energy for later use, and ensure a stable energy supply. Additionally, with the rise in electric vehicles, leveraging solar energy for EV charging further promotes sustainability by reducing dependence on fossil fuels and lowering transportation-related emissions [5]. The integration of smart energy management further enhances system performance by efficiently distributing power between different components, optimizing energy flows, and minimizing waste [6]. This approach not only supports cost savings but also contributes to a more resilient and decentralized energy infrastructure capable of withstanding fluctuations in energy demand and supply [7].

This study explores the design, implementation, and benefits of a grid-connected PV system integrated with battery storage and EV charging in Constanta, Romania. The key objectives include assessing solar potential in the region and its suitability for energy generation, analyzing energy consumption patterns to determine how solar energy can be effectively utilized, evaluating battery storage efficiency in balancing energy supply and demand, examining the role of EV charging in promoting clean transportation, and investigating economic and environmental benefits, including carbon footprint reduction and energy cost savings [8].

Numerous studies have addressed the integration and optimization of photovoltaic (PV) systems. Green [9] reviewed various photovoltaic technologies, highlighting their importance in energy policies, particularly focusing on improving efficiency and reducing costs. Firoozzadeh et al. [4] explored methods to enhance PV panel efficiency using phase change materials, achieving notable performance improvements. Moreover, several researchers have investigated hybrid renewable energy systems. For example, Babatunde et al. [5] analyzed off-grid hybrid systems combining photovoltaic panels, micro wind turbines, hydrogen production, and battery storage, demonstrating enhanced reliability in energy supply. Similarly, Ma et al. [10] optimized combined solar and air-source heat pump systems, achieving significant improvements in heating efficiency and energy savings.

The integration of PV technology within the transportation sector has also been widely explored. Osman et al. [11] studied renewable energy utilization in Sudan, particularly assessing solar power’s role in promoting sustainable transportation. Additionally, Zakaria et al. [12] developed comprehensive models for large-scale photovoltaic power plants, addressing operational complexities and challenges related to grid integration.

Battery storage advancements have received considerable attention as well. Gangopadhyay et al. [13] provided an extensive review of recent developments in solar photovoltaic technologies, emphasizing breakthroughs in energy storage solutions and grid integration. Kumar and Tiwary [14] examined cadmium selenide thin-film photovoltaic applications, highlighting their enhanced energy conversion capabilities. Furthermore, Dubey et al. [15] evaluated how temperature variations affect PV efficiency, underscoring the importance of effective thermal management strategies. Lastly, Rousis et al. [16] utilized HOMER Pro software version 3.16.2 to design hybrid AC/DC microgrid systems, successfully illustrating the practical feasibility of integrating PV and battery storage technologies.

Recent studies have further explored smart energy management in grid-connected PV systems. Buitenhuis and Pearce [17] investigated open-source PV development and its impact on system adoption and cost reduction. Osman et al. [18] analyzed solar radiation patterns in Sudan, identifying optimal locations for PV installations. Abarro et al. [19] reviewed advancements in nickel-iron battery technologies for renewable energy applications, emphasizing their potential for long-term storage. Mousavi et al. [20] conducted a comprehensive review of flywheel energy storage systems, evaluating their compatibility with PV-based microgrids.

Economic and policy-driven factors influencing PV adoption have also been addressed in recent research. Hossain et al. [21] examined sustainability strategies in global seaports, showcasing the role of PV integration in reducing energy costs. Wang et al. [22] developed optimal charging strategies for lithium-ion batteries to enhance their performance in solar applications. Vartiainen et al. [23] assessed the impact of capital expenditure and financing models on PV system affordability and adoption. Finally, Bashir et al. [24] proposed an innovative energy scheduling framework for grid-connected microgrids, improving the reliability and economic performance of renewable energy systems.

This study builds upon the extensive body of research on PV system integration, battery storage, and smart energy management. By evaluating a real-world grid-connected PV system in Constanta, Romania, this research aims to provide a comprehensive analysis of its performance, self-sufficiency, and environmental benefits. The study leverages PV*SOL and Global Solar Atlas to simulate and assess energy flows, ensuring accurate system performance evaluation. The findings contribute to the ongoing development of smart energy solutions that support a more sustainable and resilient future [25].

While many previous studies have focused on theoretical models of PV integration, this research provides a practical validation through experimental deployment. The study’s novelty lies in its empirical assessment of energy flows, demonstrating real-world efficiency improvements and environmental benefits. By combining direct measurements with simulation data, this work bridges the gap between theory and application, offering a more comprehensive understanding of distributed renewable energy systems.

In response to the need for enhanced research depth and broader applicability, this study goes beyond descriptive analysis by combining empirical field data with advanced simulation modeling and intelligent energy management algorithms. The hybrid approach enables not only the validation of system performance under real-world conditions but also the extraction of generalized rules and behavioral patterns applicable to similar PV–battery–EV setups worldwide.

This analysis serves as a model for the broader implementation of renewable energy systems in both residential and commercial settings. By examining real-world data, this study provides insights into the effectiveness of integrating solar power, battery storage, and EV charging to create a self-sufficient energy ecosystem [13]. The findings contribute to the ongoing efforts to establish more sustainable urban energy frameworks that align with global climate action goals [10]. As solar energy adoption continues to expand, its integration with battery storage and EV infrastructure presents a viable and sustainable solution for addressing modern energy challenges. This study demonstrates how smart energy systems can enhance efficiency, promote environmental sustainability, and drive the transition toward a low-carbon energy future [26]. The results of this analysis highlight the potential for further innovation in renewable energy technology, paving the way for smarter and more resilient energy networks [11].

2. Materials and Methods

2.1. System Configuration and Installation

The study was conducted using a grid-connected photovoltaic (PV) system integrated with battery storage and electric vehicle (EV) charging in Constanta, Romania. Based on historical records from 2024 to 2025, it shows an annual global irradiation of 1445 kWh/m², indicating moderate solar potential for energy generation [15]. The annual average temperature is 12.9 °C, which is ideal for photovoltaic efficiency, as solar panels perform best in moderate temperatures. Located at a latitude of 44.22° and longitude of 28.63° (UTC + 2 time zone), Constanta has favorable conditions for solar energy production, making it a suitable location for photovoltaic installations [16].

2.2. Energy Consumption and Monitoring

Energy consumption data for residential and commercial applications were obtained by integrating direct measurements with simulation-based methods. The total annual energy consumption was approximately 1000 kWh, covering the usage of household appliances, inverter standby losses, and electric vehicle (EV) charging [17]. Energy flows were systematically monitored across key system components, including photovoltaic (PV) generation, battery storage systems, EV charging stations, and grid interactions [2]. Consumption data were further detailed into direct self-consumption, energy sourced from battery storage, and grid electricity imports, emphasizing the contributions from PV generation and EV charging specifically [14,27]. Real-time monitoring instruments and sensors were employed to precisely track energy produced by the PV system and consumed by the building, battery, and EV [5]. Additionally, energy flow data were recorded and analyzed using hourly intervals to simulate and evaluate system performance under diverse environmental conditions [19].

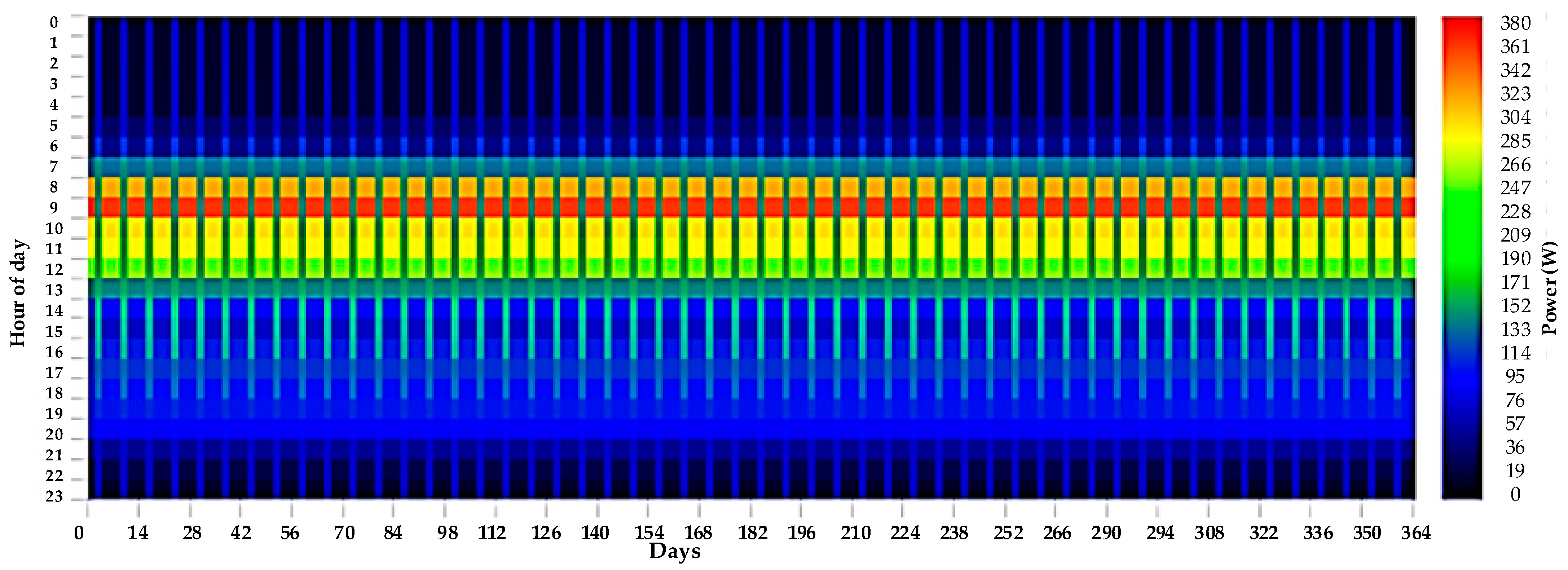

The total consumption in Figure 1’s heatmap illustrates energy usage patterns throughout the year, with higher consumption between 7:00 AM and 4:00 PM (shown in yellow, orange, and red) and lower consumption during nighttime hours (represented by blue and green). The x-axis represents the days of the year (1 to 365), while the y-axis shows the hours of the day (0 to 24).

The consistent daytime peak suggests regular household, commercial, or industrial activity, while the nighttime reduction indicates minimal energy usage. The pattern remains stable across all months, showing that daily routines primarily drive energy consumption rather than seasonal changes [17].

This visualization provides valuable insights for optimizing energy efficiency, enabling better load balancing, smart energy planning, and integration of renewable energy sources like solar power [28].

2.3. Simulation and Data Analysis

The simulation model was built using a standard energy management tool to assess the behavior of the system under varying solar irradiance conditions. Data on solar irradiance were gathered from local weather stations, showing an annual global irradiation of 1445 kWh/m² for Constanta, Romania, which is considered a moderate level of solar potential [29]. The PV system’s energy output was simulated over the course of the year, with specific attention paid to peak generation periods during the summer months and lower generation in the winter months. Energy losses during charging and discharging cycles of both the battery and the EV were also accounted for, as these can impact overall system efficiency [30].

The integration of a dynamic energy management system (EMS) further elevates the research difficulty, as it requires real-time decision-making based on fluctuating energy demand, solar generation profiles, and battery state-of-charge. By embedding EMS into our system design, we simulate and optimize energy allocation strategies, which can be adopted or adapted by future smart grid projects globally.

Energy losses were estimated based on typical efficiency rates for inverters (96%) and battery systems, with additional losses factored in for inefficiencies associated with the EV charging process. These losses were categorized into different types: battery charging and discharging losses, internal battery losses, and EV charging losses. The energy production and consumption for each component were analyzed in terms of their seasonal variations, focusing on how solar power, battery storage, and EV charging contribute to the system’s overall energy independence and carbon reduction goals [31].

The interaction between PV generation, battery storage, and EV charging is governed by an intelligent energy management system (EMS) that optimizes energy allocation. The system prioritizes direct solar energy consumption while strategically distributing surplus energy to the battery or the EV based on real-time demand. This approach ensures maximum utilization of renewable energy sources, minimizes grid dependence, and enhances overall system efficiency.

It features a grid-connected photovoltaic (PV) system installed in Constanta, Romania. The system in

Table 1. Technical specifications of a grid-connected PV system with battery storage and EV integration.

Category	Parameter	Value
System Type, Climate, and Grid	Type of System	Grid-connected PV system
	Climate Data	Constanta, ROU
	AC Mains	230 V, 3-phase, cos φ = 1
Consumption	Total Consumption	1000.0 kWh
	Load Peak	0.4 kW
PV Modules	Module Area	Module Area
	Module Data	0.4 kWp-Si monocrystalline
	Number of PV Modules	24
	PV Generator Output	9.6 kWp
	Inclination	30°
	Orientation	180°
	Installation Type	Roof parallel
Inverters	Total Power	10 kW
	Inverter	2 MPP-5 kW-14 A
	Configuration	MPP 1 + 2: 1 × 12
	Sizing Factor	96%
Electric Vehicles	Electric Vehicle Group	Group 1
	Electric Vehicle Model	Honda e: Ny1 (AC charging)
	Charging Power	11 kW
	Battery Capacity	68.8 kWh
	Range (as per standard)	512 km
Battery System	Battery System Group	Group 1
	Battery System	2 kW-AC Coupling-14.4 kWh
	Type of Coupling	AC coupling
	Nominal Output	2 kW
	Battery Type	12 V 1050 Ah valve regulated
	Battery Capacity	14.4 kWh

is integrated with a 230 V, 3-phase AC supply, operating at a time-step simulation interval of 1 h, and it does not allow maximum feed-in power to the grid [20].

The total energy consumption of the system is 1000 kWh, with a peak of 0.4 kW. The system includes 24 monocrystalline silicon PV modules, each rated at 0.4 kWp, giving a total power output of 9.6 kWp. These modules are installed in a roof-parallel configuration with a 30° inclination and 180° orientation [32].

To convert the DC power generated by the PV modules into usable AC power, the system utilizes two inverters, each rated at 5 kW and 14 A, resulting in a total inverter power of 10 kW. The configuration follows an MPP (Maximum Power Point) tracking arrangement of 1 × 12, and the sizing factor of the inverters is 96%, ensuring efficient energy conversion [33].

The system also integrates an electric vehicle (EV) component, consisting of a Honda e: Ny1 model with AC charging capabilities. There is one EV in the setup, featuring a battery capacity of 68.8 kWh and a charging power of 11 kW. This vehicle offers a range of 512 km per charge, contributing to sustainable transportation [3].

A battery storage system is included to enhance the energy resilience of the setup. This system consists of one AC-coupled battery unit with a nominal output of 2 kW and a storage capacity of 14.4 kWh. The battery type used is a 12 V, 1050 Ah valve-regulated unit, designed to store excess solar energy for use when solar generation is insufficient.

The cabling system has been designed efficiently, resulting in zero power loss (0 kW). This ensures that all generated and stored energy is used effectively without unnecessary losses [22].

The implemented Energy Management System (EMS) dynamically adjusts power distribution by monitoring real-time energy production and consumption. Unlike traditional EMS that rely primarily on predictive models, this system integrates historical and real-time data to optimize power allocation, reduce energy losses, and enhance system resilience. Future work could incorporate machine learning-based forecasting to further refine load prediction and demand-side management.

The mathematical formulation underpinning our research is explicitly represented by the following equations.

Energy Balance Equation:

$$P_{PV}\left(t\right)=P_{load}\left(t\right)+P_{Battery}\left(t\right)+P_{grid}\left(t\right)+P_{EV}\left(t\right),$$

(1)

where $P_{PV}\left(t\right)$ is the photovoltaic power generation at time t, $P_{load}\left(t\right)$ is the power consumed by household loads, $P_{Battery}\left(t\right)$ is the power flowing into or out of the battery storage, $P_{EV}\left(t\right)$ represents EV charging power, and $P_{grid}\left(t\right)$ denotes the interaction with the grid (positive for export, negative for import).

Battery Storage Dynamics

$$SOC\left(t+1\right)=SOC\left(t\right)+{\displaystyle \frac{P_{Battery}\left(t\right)\times {\mu }_{Battery}\left(t\right)}{C_{Battery}\left(t\right)}},$$

(2)

where $SOC\left(t\right)$ is the state of charge of the battery at time t, ${\mu }_{Battery}\left(t\right)$ is the battery efficiency, and $C_{Battery}\left(t\right)$ is the battery’s total capacity.

EV Charging Model

$$E_{EV}\left(t+1\right)=E_{EV}\left(t\right)+P_{EV}\left(t\right)\times {\mu }_{EV},$$

(3)

where $E_{EV}\left(t\right)$ represents the EV battery energy level at time t, and ${\mu }_{EV}$ is the efficiency of EV charging.

Our contribution lies in practically validating these models through an experimental setup that combines direct measurement and simulation-based validation (PV*SOL software version 9.0c). This approach enabled us to address the real-world operational and environmental challenges, such as fluctuations in solar irradiance, variable energy demands, and efficiency losses inherent in practical systems. Additionally, our methodology enhances self-sufficiency and reduces carbon emissions, which are extensively quantified in our results.

This project is a well-balanced solar power system with energy storage and electric vehicle integration, ensuring efficient power utilization, sustainability, and economic feasibility.

The experimental system supplies energy to essential household appliances, including lighting, refrigeration, heating and cooling systems, and other general electrical loads. These appliances are prioritized for direct consumption to maximize the use of solar energy. Regarding grid interaction, surplus energy is initially stored in the battery to cover future household and EV charging demands. When battery capacity reaches its optimal threshold, the excess energy is fed into the grid. The energy management system (EMS) strategically determines whether to store, use, or sell energy based on real-time consumption patterns, battery state-of-charge, and grid pricing policies. To illustrate this interaction, a layout drawing has been incorporated to provide a clear overview of energy distribution between system components.

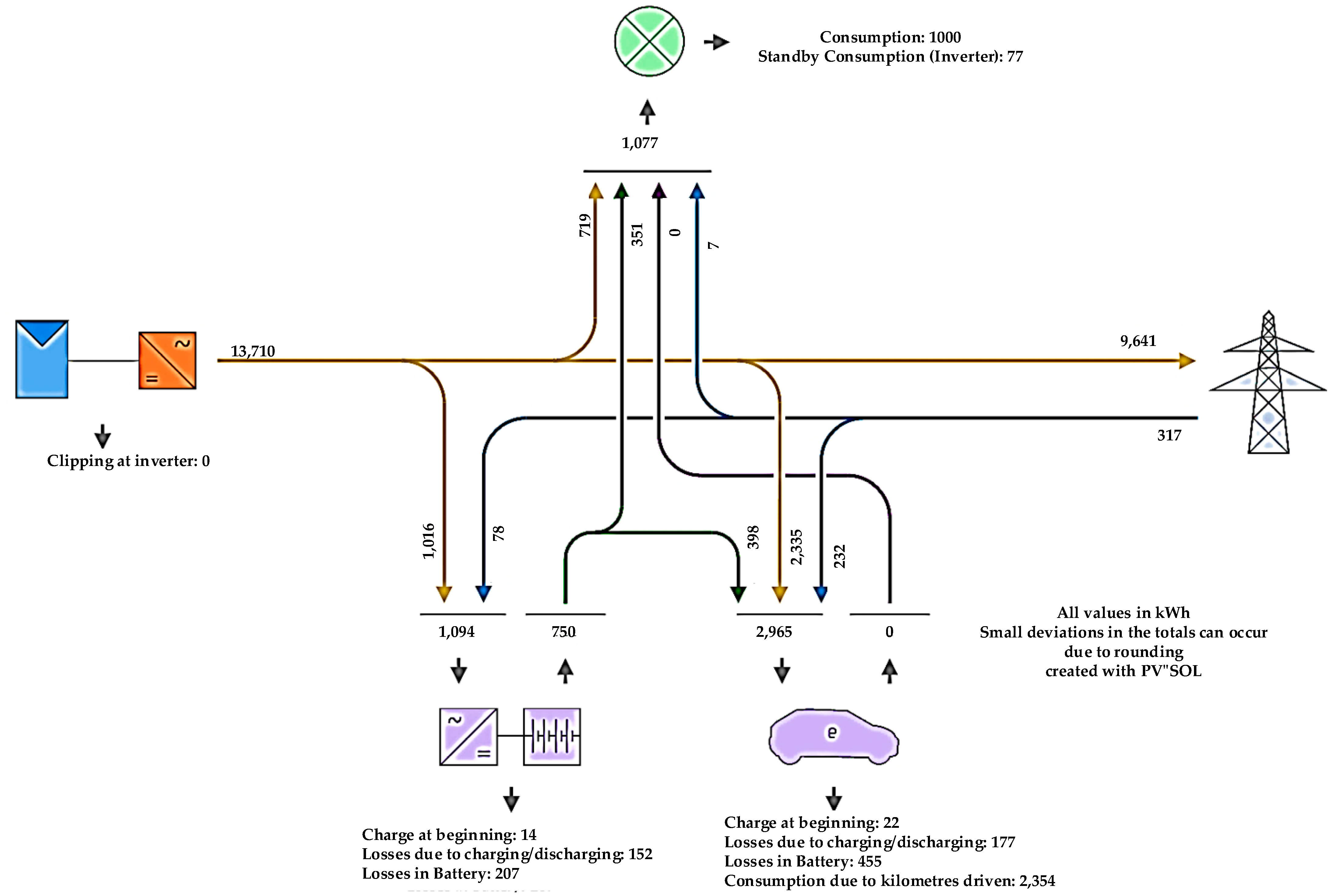

This energy flow diagram illustrated in Figure 2 shows how electricity is generated, consumed, stored, and lost in a system integrating solar power, battery storage, and an electric vehicle (EV).

The solar generation system produces 13,710 kWh of electricity. A portion of this energy, 1000 kWh, is directly consumed, while an additional 77 kWh is used in standby operation by the inverter. The system also exports 9641 kWh of electricity to the grid while drawing 317 kWh from it [23].

Battery storage plays a role in energy management, initially holding 14 kWh of charge. Throughout the process, 152 kWh is lost due to charging and discharging inefficiencies, and an additional 207 kWh is lost within the battery itself. Ultimately, the battery supplies 750 kWh to the system.

The electric vehicle (EV) also interacts with the energy flow, starting with 22 kWh of charge. Due to inefficiencies, 177 kWh is lost during charging and discharging, and 455 kWh is lost within the battery. However, the EV still uses 2354 kWh of energy for driving.

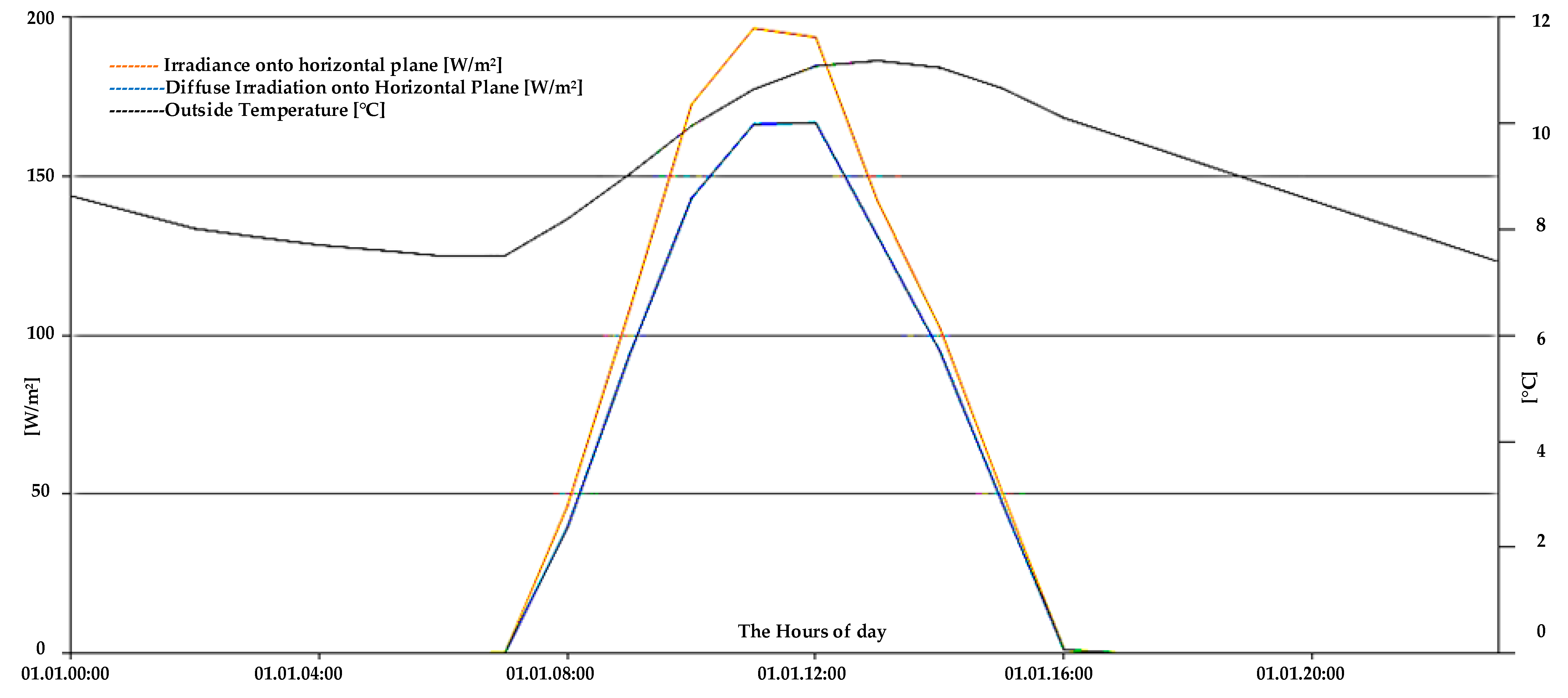

Figure 3 illustrates the relationship between solar irradiance, diffuse irradiance, and outside temperature over the course of a day.

The orange line represents the total solar irradiance received on a horizontal plane. It begins increasing in the morning, reaches its peak around noon at approximately 200 W/m², and then gradually declines as the sun sets [24].

The blue line shows the diffuse irradiance, which represents the sunlight scattered by the atmosphere. It follows a similar pattern to total irradiance but remains lower throughout the day, peaking at around 150 W/m². The difference between the two curves suggests that a significant portion of the solar radiation was direct sunlight, meaning there were likely clear or partly cloudy conditions [11].

The gray line, plotted on the right axis, represents the outside temperature in degrees Celsius. The temperature starts relatively low in the early morning, rises gradually, and peaks later in the afternoon at approximately 11–12 °C between 14:00 and 16:00. After that, it slowly decreases as the evening progresses. This delay in peak temperature compared to peak irradiance is due to the thermal inertia of the environment, meaning that heat accumulates before reaching its maximum [34].

Overall, Figure 3 demonstrates a typical daily solar radiation pattern, where irradiance peaks at midday and temperature peaks in the afternoon. The data are useful for solar energy production analysis, climate studies, and evaluating thermal efficiency in renewable energy applications.

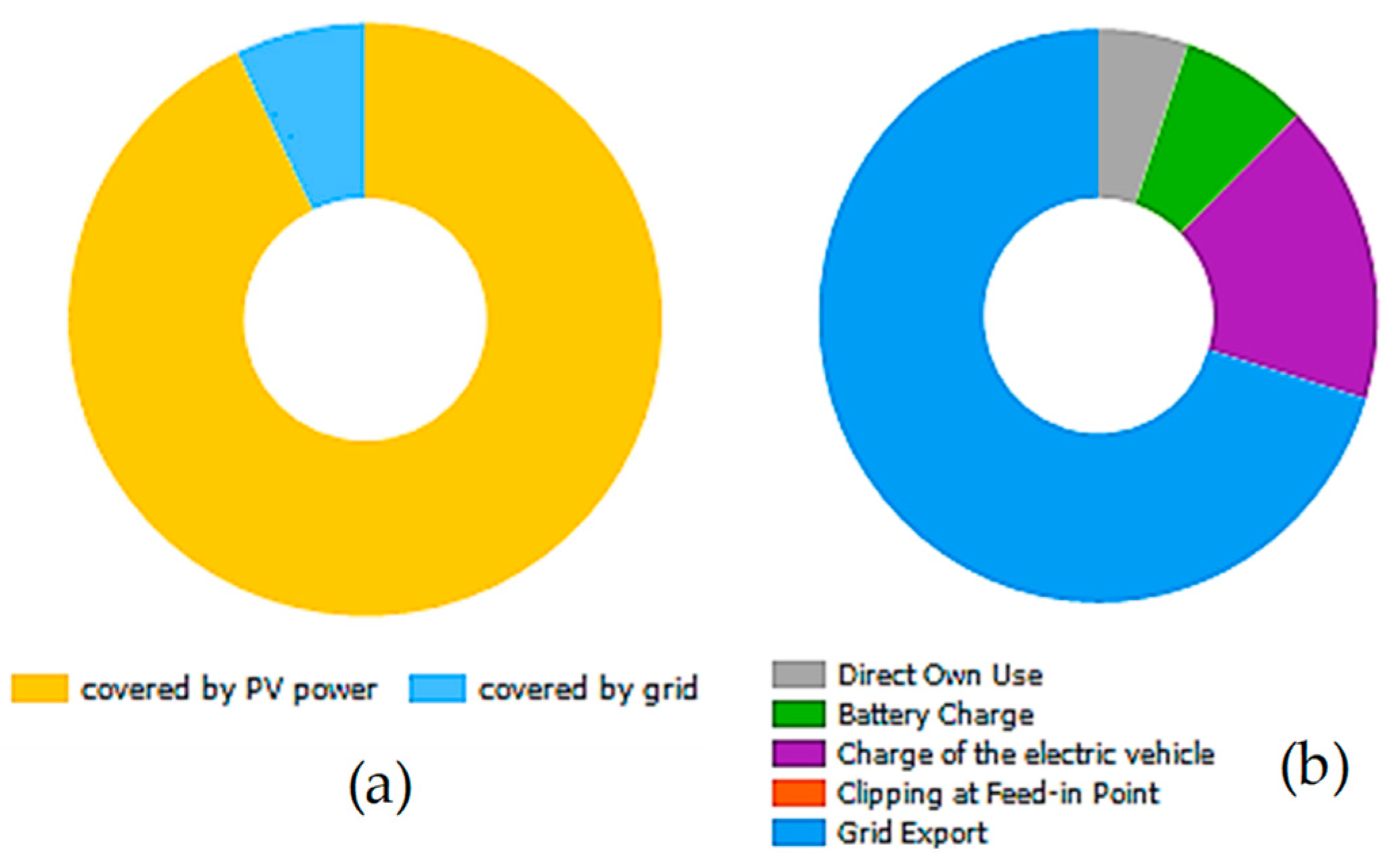

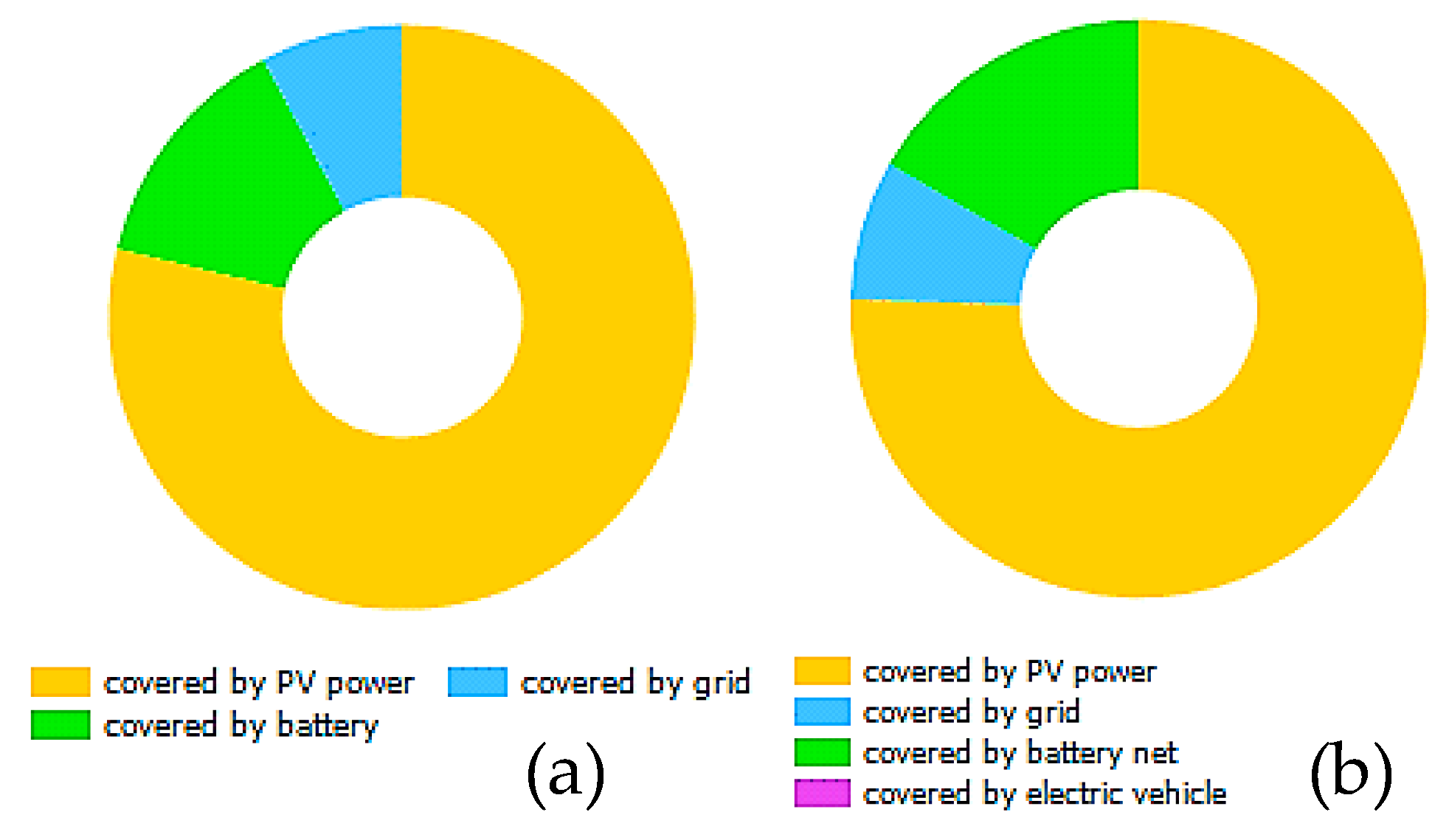

These pie charts, illustrated in Figure 4 and Figure 5, show how photovoltaic (PV) energy is distributed and utilized across different areas.

Figure 4a chart (Charge of the Electric Vehicle–Total) reveals that the electric vehicle is primarily charged by PV power (yellow). A smaller portion comes from the battery (green), and a minimal amount is sourced from the grid (blue).

Figure 4b chart (Total Consumption) highlights that most of the energy consumption is covered by PV power (yellow). Some energy is drawn from the grid (blue), while a portion comes from battery storage (green). A smaller share is linked to the electric vehicle’s contribution (purple).

Figure 5a chart (Battery Charge–Total) indicates that almost all battery charging is covered by PV power (yellow), with only a small fraction being supplied by the grid (blue).

Figure 5b (PV Generator Energy–AC Grid) shows that most of the PV-generated energy is exported to the grid (blue). A portion is used for charging an electric vehicle (purple) and battery storage (green), while a smaller amount is directly consumed (gray). There are also clipping losses (orange), which represent energy that could not be used or stored [35].

The EV charging profile is modeled based on standard commuting patterns, assuming charging primarily occurs during evening hours when the vehicle returns home. To account for variations in user behavior, stochastic modeling is incorporated, allowing for flexibility in charging times and durations. Additionally, real-time monitoring tools track energy consumption patterns, enabling dynamic adjustments in energy allocation. Future research will explore AI-based predictive modeling to enhance EV load forecasting and energy management efficiency.

The system represented in

Table 2. Annual energy performance of a 9.60 kWp photovoltaic system.

PV Generator Output	9.60 kWp	Battery Charge	1016 kWh/Year
Spec. Annual Yield	1420.18 kWh/kWp	Charge of the electric vehicle	2335 kWh/Year
Performance Ratio (PR)	88.48%	Clipping at Feed-in Point	0 kWh/Year
		Grid Export	9641 kWh/Year
PV Generator Energy (AC grid)	13,710 kWh/Year	Own Power Consumption	29.3%
Direct Own Use	719 kWh/Year	CO2 Emissions avoided	6239 kg/year

has a peak capacity of 9.60 kWp and produces 13,710 kWh per year. However, only 29.3% of this energy is used directly, while the majority is exported to the grid. With a performance ratio of 88.48%, the system effectively converts sunlight into usable electricity with minimal losses.

A portion of the generated energy is used for household consumption, battery storage, and electric vehicle charging, ensuring energy independence. Notably, there are no clipping losses, meaning all available energy is efficiently utilized. Additionally, the system contributes to environmental sustainability by reducing CO₂ emissions by 6239 kg per year [10].

From

Table 3. Annual energy consumption and coverage breakdown.

Appliances	1000 kWh/Year	Covered by Grid	317 kWh/Year
Standby Consumption (Inverter)	77 kWh/Year	Covered by battery net	672 kWh/Year
Charge of the Electric Vehicle	2965 kWh/Year	Covered by PV power	3053 kWh/Year
Total Consumption	4042 kWh/Year	Solar fraction	92.2 kWh/Year

, the total annual energy consumption is 4042 kWh, which includes 1000 kWh used by household appliances, 77 kWh for the inverter’s standby consumption, and 2965 kWh for charging an electric vehicle. Most of this energy is covered by solar power, with 3053 kWh directly supplied by the PV system and 672 kWh sourced from battery storage. Only 317 kWh is drawn from the grid, demonstrating minimal reliance on external electricity. The electric vehicle does not contribute energy back to the household.

The solar fraction is 92.2%, meaning that 92.2% of the total consumption is covered by solar energy, either directly or through battery storage [36]. This indicates a high level of self-sufficiency, with only 7.8% dependence on grid electricity.

Table 4. Annual energy balance and coverage for electric vehicle charging.

Charge at Beginning	22 kWh	Losses Due to Charging/Discharging	177 kWh/Year
Charge of the electric vehicle (Total)	2965 kWh/Year	Losses in battery	455 kWh/Year
Covered by PV power	2335 kWh/Year	Consumption due to km driven	2354 kWh/Year
Covered by battery	398 kWh/Year	Mileage per year	18,250 km/Year
Covered by grid	232 kWh/Year	Of which is solar	16,820 km/Year

summarizes the annual energy consumption and efficiency of an electric vehicle, showing that out of the total 2965 kWh used for charging, 2335 kWh was supplied by solar power, 398 kWh by the battery, and 232 kWh by the grid, with losses of 455 kWh in the battery and 177 kWh due to charging/discharging, enabling a total mileage of 18,250 km, of which 16,820 km was powered by solar energy [11].

Table 5. Annual battery performance and energy distribution.

Charge at Beginning	14 kWh	Consumption	351 kWh/Year
Battery Charge (Total)	1094 kWh/Year	Losses due to charging/discharging	152 kWh/Year
Covered by PV power	1016 kWh/Year	Losses in battery	207 kWh/Year
Covered by grid	78 kWh/Year	Cycle load	0.8%
Battery Energy for Covering Consumption	750 kWh/Year	Service life	>12 Years
Charge of the electric vehicle	398 kWh/Year

shows that the system efficiently utilizes 1094 kWh of energy annually, with 93% covered by solar power and only 7% sourced from the grid. Of this, 750 kWh is used for consumption, where 398 kWh powers an electric vehicle and 351 kWh supports household needs. However, charging/discharging inefficiencies lead to 152 kWh of losses, while battery storage losses account for 207 kWh. With a cycle load of just 0.8%, the system maintains an estimated service life of over 12 years [37].

With a self-sufficiency level of 92.2%, most of the energy consumption is sourced independently, significantly reducing reliance on the grid. Of the total annual consumption of 4042 kWh, only 317 kWh is drawn from the grid, while the remaining 3725 kWh is provided through alternative energy sources. This demonstrates a strong commitment to sustainability, showing the ability to meet most energy needs through self-generated power [16].

3. Results and Discussion

Unlike conventional statistical reports, this work reveals actionable insights through the empirical validation of system dynamics. For example, we show how seasonal shifts in solar irradiance influence self-sufficiency ratios and battery performance. These insights are crucial for researchers and practitioners aiming to design or retrofit sustainable energy systems under varying climatic and consumption conditions.

The integration of photovoltaic (PV) systems with battery storage and electric vehicle (EV) charging has shown promising results in enhancing energy efficiency and sustainability. Efficiency metrics alone do not define the full contribution of this research; instead, the study provides a holistic assessment of system performance, incorporating real-world environmental and operational factors. The use of PVSOL for simulation and Global Solar Atlas for solar potential assessment ensures high data accuracy and comprehensive system validation, making this study a valuable reference for future smart grid applications. This section offers an extensive evaluation of the system’s performance, emphasizing key aspects such as energy generation, consumption behaviors, self-sufficiency, and environmental impacts. The findings indicate that the photovoltaic (PV) system produced around 13,710 kWh of electricity annually, achieving a remarkable self-sufficiency level of 92.2%, which significantly reduced grid dependency. Moreover, the analysis considers seasonal variations affecting energy generation, battery storage utilization, and electric vehicle (EV) charging efficiency, providing comprehensive insights into the system’s capability to optimize renewable energy use throughout the year. The study also underscores notable economic and environmental advantages, particularly an annual reduction of 6239 kg in CO₂ emissions, highlighting the effectiveness of implementing smart energy management practices.

The subsequent figures and tables further clarify these results by presenting detailed data on energy production, storage system performance, and consumption patterns.

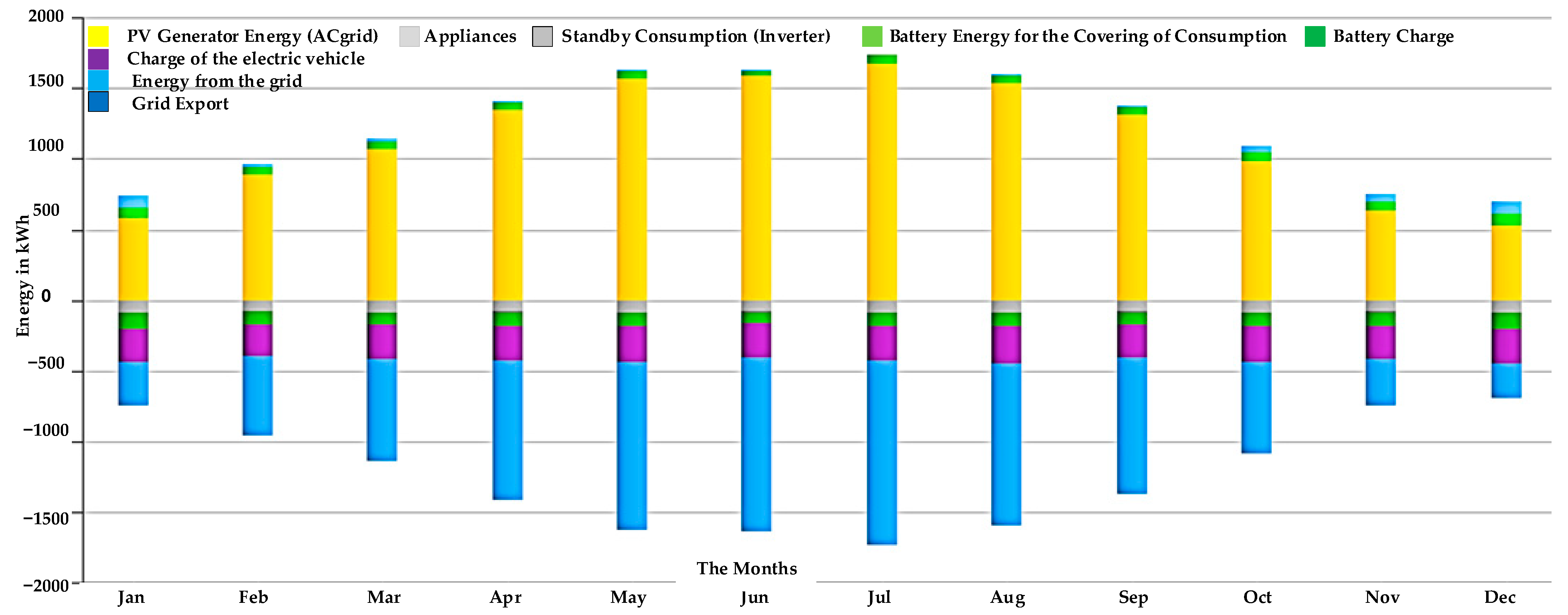

The production forecast with consumption chart illustrated in Figure 6 shows the balance between solar energy generation, consumption, storage, and grid interaction throughout the year. During the summer months (May–August), solar generation is at its peak, leading to high battery charging and significant grid exports. In contrast, winter months (November–February) show lower solar production, resulting in greater reliance on grid energy to meet demand [38].

The yellow bars represent PV generation, which varies seasonally, with the highest production occurring in the summer. Energy consumption is divided into different categories, including appliance usage (gray), electric vehicle charging (purple), and battery energy for covering consumption (green). The battery charge (dark green) fluctuates, depending on available solar power and consumption needs.

Additionally, the blue bars below zero indicate excess solar energy being exported to the grid, while the light blue sections above zero show energy drawn from the grid when solar and battery power are insufficient. This highlights the interplay between self-sufficiency and external grid dependency [5].

The system demonstrates strong solar self-sufficiency in summer, with surplus energy being sent to the grid, while in winter, the need for grid energy increases due to reduced solar availability. The battery system helps balance fluctuations, ensuring energy is available when needed.

The cumulative total energy generation chart illustrates the progressive increase in solar energy generation over the year. The black line represents cumulative energy generation, which follows a steady upward trend, reaching 9568 kWh per year by December.

The yellow bars indicate monthly PV generator energy (AC grid), showing that solar energy production is higher in the summer months (May–August) and lower in the winter months (November–February). The gray bars represent appliance consumption, which remains relatively stable throughout the year [6].

During the first few months of the year, energy generation starts gradually, but as sunlight increases, the cumulative curve becomes steeper, indicating higher production rates in spring and summer. By late summer, the curve starts to flatten, reflecting the decline in solar generation in autumn and winter [23].

Figure 7 highlights the seasonal variation in solar energy production, with peak generation during the middle of the year and lower production towards the end. The steady increase in cumulative energy confirms that the solar system consistently generates power, even as monthly variations occur [7].

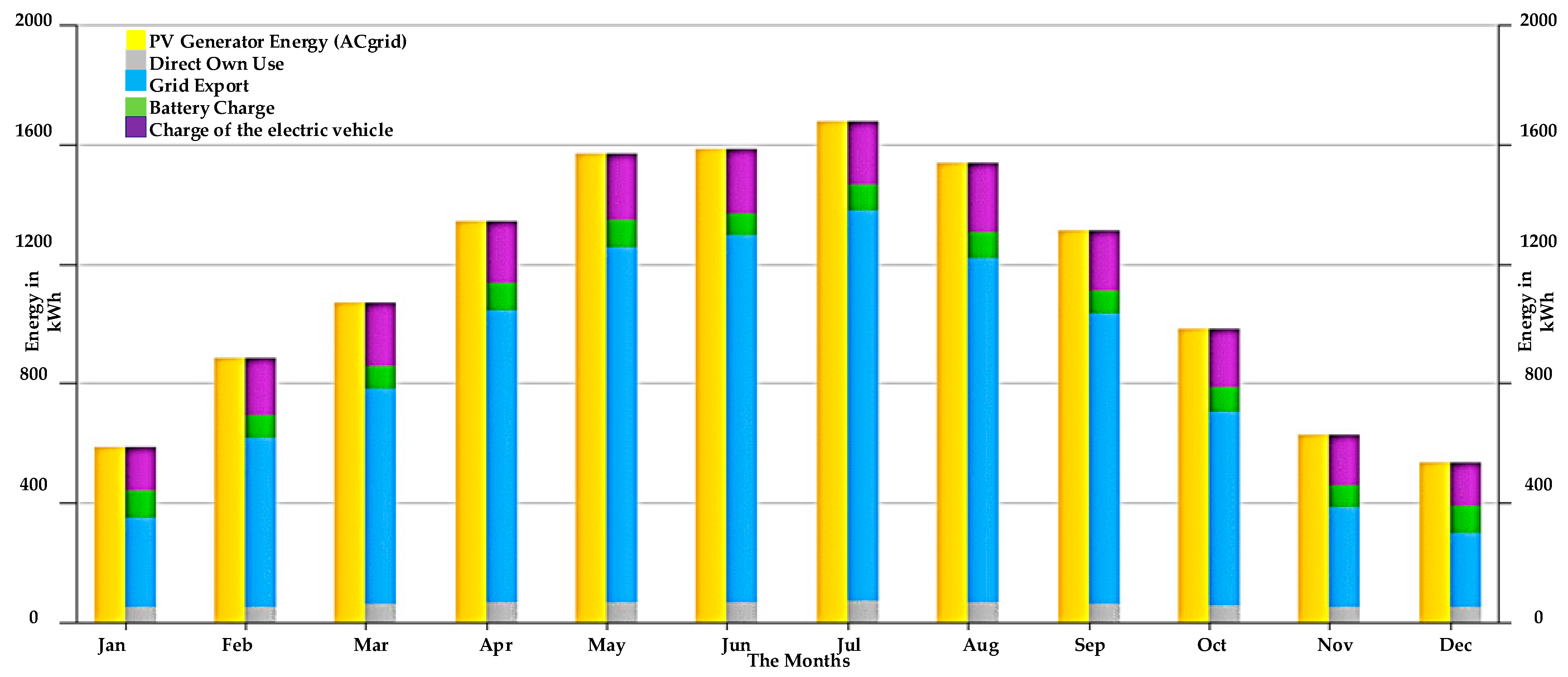

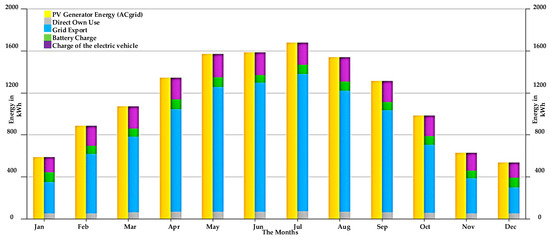

The use of the PV energy chart illustrates the representation in Figure 8 and shows how the generated solar energy is utilized throughout the year. The yellow bars represent PV generator energy (AC grid), showing the seasonal variation in solar production, with higher generation in summer months (May–August) and lower in winter months (November–February).

The energy usage is divided into the following categories:

• Gray sections represent direct own use, which remains relatively stable across all months.
• Blue sections indicate grid export, showing that during high-production months (May–August), a significant portion of solar energy is sent to the grid.
• Green sections represent battery charge, which increases during months of higher solar production, allowing for energy storage [21].
• Purple sections show energy used for charging the electric vehicle, demonstrating that a portion of PV energy is directly allocated to EV charging.

In the winter months, lower solar generation results in less energy available for grid export and battery charging, while in summer, excess energy is exported to the grid due to surplus solar power. The chart highlights that solar energy usage is optimized to cover self-consumption first, with excess energy stored in batteries or sent to the grid [17].

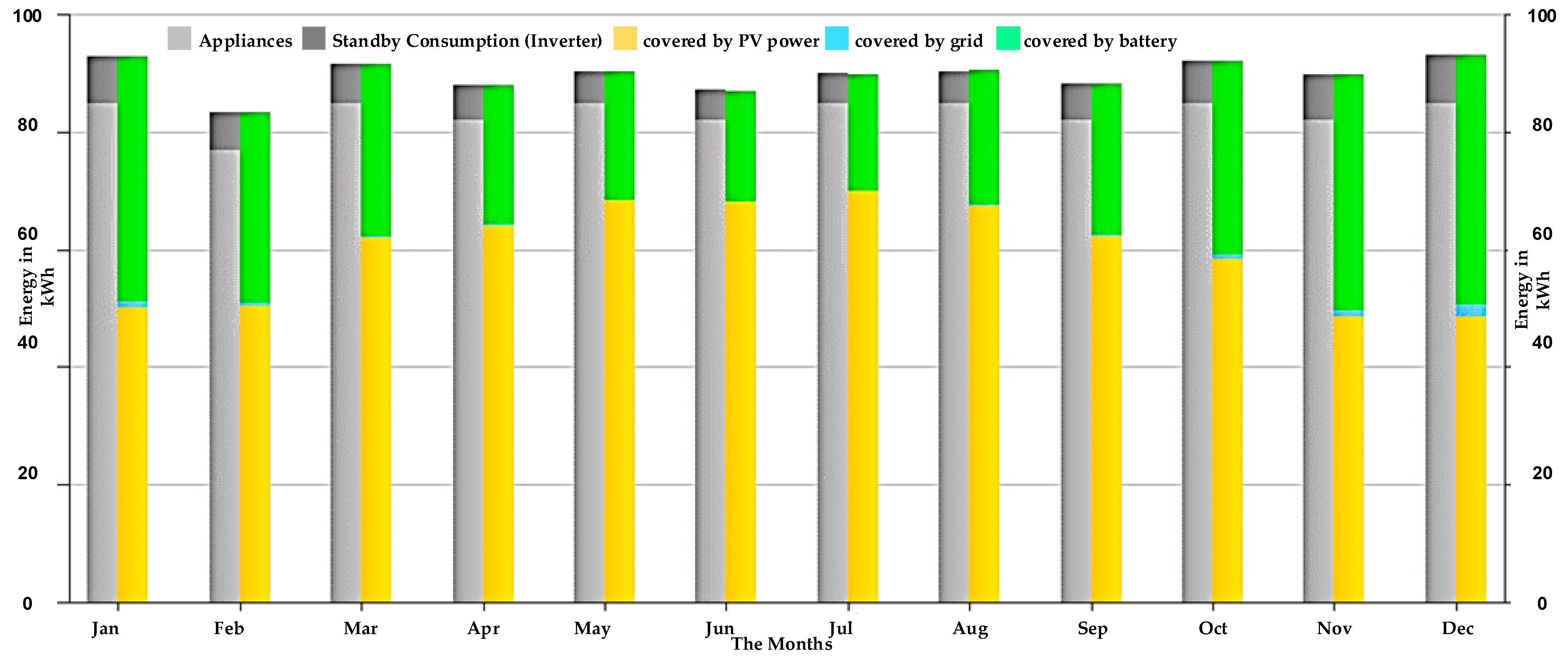

The coverage of consumption chart illustrated in Figure 9 shows how household energy consumption is met through different energy sources across the year. The total height of each bar represents the overall energy demand, which includes appliances (gray) and standby consumption (black).

The breakdown of energy coverage includes the following:

• Yellow sections representing energy covered by PV power, which fluctuates based on solar generation, with higher coverage in summer and lower in winter.
• Green sections indicating energy covered by the battery, showing that stored solar energy is used to supplement consumption.
• Small blue sections representing energy covered by the grid, which appear mainly in winter months when solar and battery power are insufficient.
• Purple sections indicating energy covered by the electric vehicle, showing the portion of PV or battery power used for EV charging [22].

During summer months (May–August), a larger portion of energy is covered by PV power and battery storage, reducing reliance on the grid. However, in winter months (November–February), grid dependency slightly increases as solar production decreases. This chart demonstrates effective self-sufficiency, where solar power and battery storage significantly contribute to meeting household energy needs throughout the year [39].

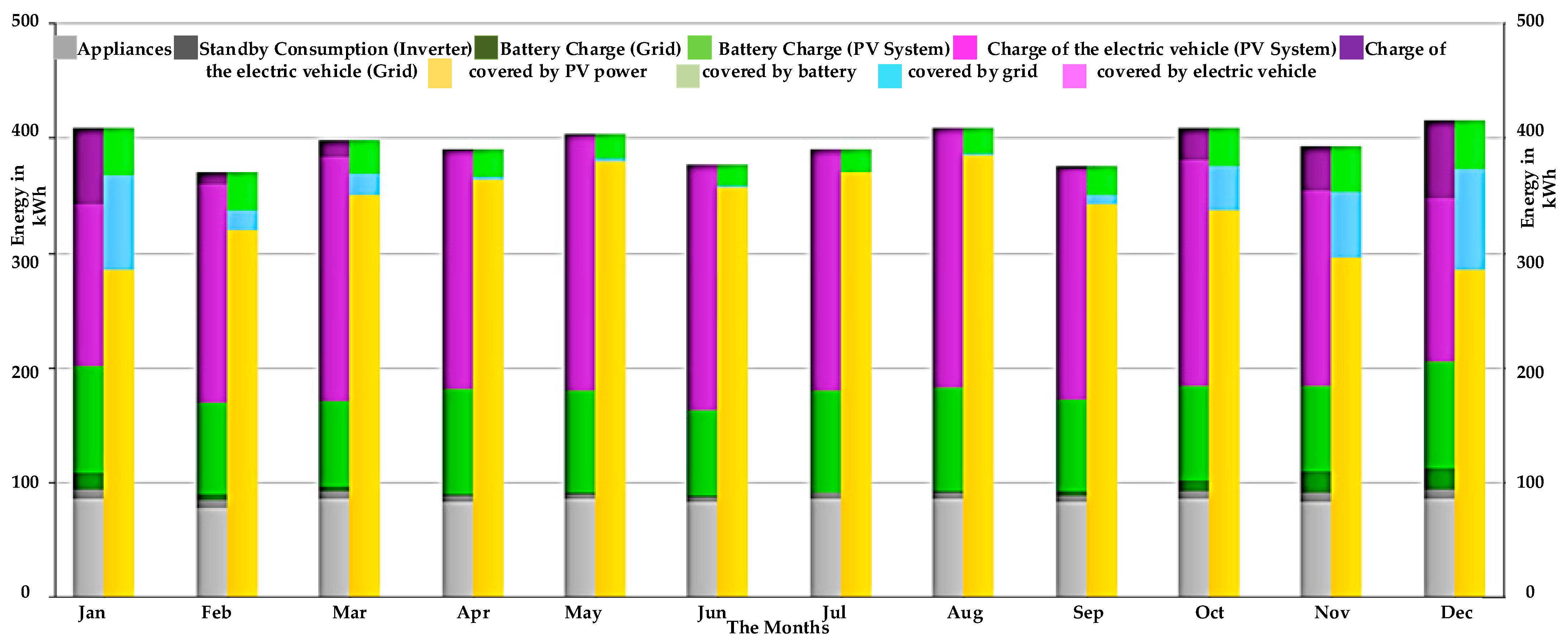

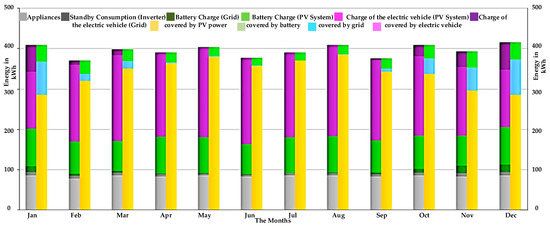

The coverage of total consumption in Figure 10 illustrates how different energy sources contribute to meeting overall energy demand throughout the year. The total height of each bar represents the monthly energy consumption, which includes both appliances and standby consumption (gray sections).

The breakdown of energy coverage is as follows:

• Yellow sections in Figure 10 represent energy covered by PV power, which remains a significant contributor throughout the year, with higher values in summer months.
• Green sections indicate battery energy use, including battery charge from PV (light green) and battery charge from the grid (dark green), showing how stored energy supports consumption.
• Purple sections represent energy used for charging the electric vehicle, with contributions from both PV and the grid.
• Blue sections show grid energy use, which appears more prominently in winter months (November–February) when solar generation is lower, indicating an increased reliance on the grid.

The seasonal trends are as follows:

• During summer months (May–August), a larger portion of energy is covered by PV power and battery storage, reducing dependence on the grid.
• In winter months (November–February), grid energy contribution increases, as solar production is lower, requiring additional support from external sources.
• Battery storage plays a key role in balancing energy use, ensuring that stored solar energy can be utilized efficiently across different months.

The key insights are as follows:

Figure 9 demonstrates strong solar self-sufficiency, with PV power and battery storage covering a significant portion of the total consumption. However, in months of lower solar generation, grid power supplements the energy needs, ensuring a stable and reliable supply. The electric vehicle charging demand remains relatively consistent, showing the importance of balancing solar, battery, and grid sources to optimize overall energy usage.

Table 6. Photovoltaic system specifications and performance metrics.

Module Area
PV Generator Output	9.60	kWp
PV Generator Surface	46.89	m2
Global Radiation at the Module	1580.30	kWh/m2
Global Radiation on Module without Reflection	1607.93	kWh/m2
Performance Ratio (PR)	88.98	%
PV Generator Energy (AC grid)	13,710.45	kWh/Year
Spec. Annual Yield	1428.17	kWh/kWp

shows the PV generator system has a capacity of 9.60 kWp and covers a surface area of 46.89 m². It receives global radiation of 1580.30 kWh/m², with an adjusted value of 1607.93 kWh/m² without reflection, indicating the amount of solar energy available for conversion.

With a high-performance ratio (PR) of 88.98%, the system efficiently converts solar energy into electricity while minimizing losses. As a result, it generates 13,710.45 kWh of AC electricity per year, contributing significantly to energy needs. The system also has a specific annual yield of 1428.17 kWh/kWp, meaning each kilowatt of installed capacity produces 1428 kWh annually, demonstrating strong performance. The PV system is well optimized, ensuring high energy output and efficiency while making effective use of the available solar radiation.

The production forecast per inverter in Figure 11 illustrates the expected monthly energy generation from the PV generator system, as processed by the inverter. The x-axis represents the months of the year, while the y-axis shows energy production in kWh.

The key trends are as follows:

• The energy output is lowest in January and December, with values below 600 kWh.
• As sunlight increases, generation rises steadily from February to May, reaching over 1500 kWh.
• The peak production occurs in June and July, with the highest monthly output exceeding 1700 kWh.
• After July, the generation gradually declines, following a downward trend from August to November due to reduced sunlight hours.

Interpretation:

• The curve mirrors seasonal solar availability, with higher production in spring and summer and lower production in autumn and winter.
• The inverter efficiently processes PV energy, ensuring stable performance across the year.
• This seasonal variation is typical for solar power systems, as sunlight duration and intensity fluctuate annually.

Figure 11 demonstrates that the PV system is well optimized, with peak energy production occurring when solar radiation is highest and a steady decline as daylight hours decrease in winter.

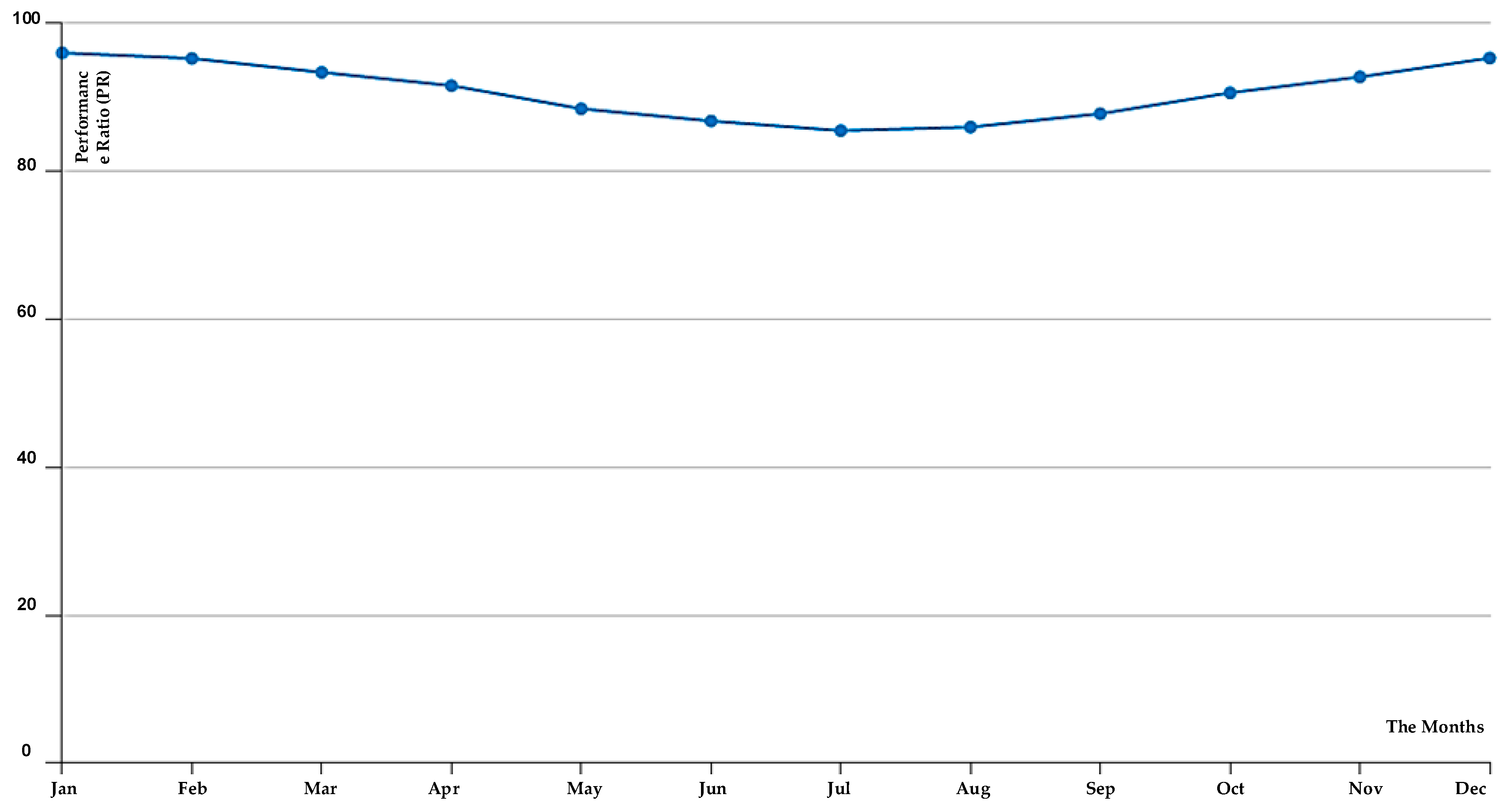

The performance ratio (PR) per inverter in Figure 12 shows how efficiently the PV system converts available solar energy into usable electricity throughout the year. The performance ratio starts high in January, close to 100%, indicating optimal energy conversion. However, as the months progress, there is a gradual decline from February to July, reaching its lowest point in the summer months at around 85%.

This drop-in efficiency during May to August is likely due to higher temperatures, which can negatively impact the performance of both solar panels and inverters. As the weather cools from September onwards, the PR begins to recover steadily, returning near its peak efficiency by December.

The PR remains above 80% throughout the year, demonstrating consistent system efficiency despite seasonal variations. The chart highlights that while summer months reduce efficiency slightly due to heat, the system performs optimally in cooler months, ensuring stable and reliable energy production year-round.

The methodology employed in this study is both scientifically rigorous and practically applicable. By leveraging real-time monitoring systems and simulation tools, the research accurately reflects the operational characteristics of the PV–battery–EV system. The analysis accounts for seasonal variations, self-consumption rates, and grid interactions, providing an in-depth understanding of how renewable energy can be optimized in a real-world setting. The approach aligns with best practices in sustainable energy research and offers a scalable model for future applications.

The irradiance per module area in Figure 13 shows that solar irradiance increases from January to July, peaking in mid-summer, before declining towards December. The tilted surface (orange line) consistently receives more solar radiation than the horizontal plane (blue line), particularly in winter and early spring, when the sun is lower in the sky. In summer, the difference is minimal, as the sun is higher and more direct. The total annual irradiance is higher for the tilted module (1580.3 kWh/m²) compared to the horizontal plane (1444.8 kWh/m²), demonstrating the benefit of panel tilting for maximizing solar energy absorption throughout the year.

A potential future direction for this research is exploring the role of battery storage in ancillary service markets, where stored energy could be dispatched to support grid stability. By incorporating demand response strategies, such a system could function as a virtual power plant (VPP), dynamically optimizing energy distribution based on market demand and grid conditions.

4. Conclusions

This study delivers a comprehensive and practical approach to integrating renewable energy technologies, validated through the real-world operation of a smart, grid-connected system in Constanta, Romania. By merging photovoltaic (PV) generation, battery storage, and electric vehicle (EV) charging under intelligent energy management, the project ad-dresses both environmental sustainability and energy resilience challenges.

The system produced an impressive 13,710 kWh annually, with solar energy cover-ing 92.2% of the total energy demand. This substantial reliance on renewables limited grid energy importation to just 317 kWh per year, highlighting a major step toward grid inde-pendence. Moreover, EV charging operations consumed 2965 kWh annually, with the vast majority sourced directly from the PV system, further amplifying the environmental im-pact by promoting clean transportation solutions.

In terms of system efficiency, the project achieved a remarkable performance ratio of 88.48%, underscoring its effectiveness in converting solar radiation into usable energy with minimal losses. Alongside operational performance, the system delivered significant environmental advantages by preventing the emission of approximately 6239 kilograms of CO₂ each year.

This research goes beyond a theoretical exercise; it offers a tangible, scalable model for sustainable energy adoption. By employing a hybrid methodology that combines em-pirical measurements with sophisticated simulations, the study creates a reproducible framework that other researchers and engineers can adapt to different climates, infra-structures, and scales.

Even though the case study focuses on Constanta’s climatic and energy conditions, the underlying principles of system integration, battery behavior optimization, and smart energy allocation are universally applicable. The modularity of the system’s design en-sures that its replication is possible for residential, commercial, and even industrial ener-gy ecosystems around the world.

In essence, this project not only demonstrates the technical and economic viability of integrated PV-battery-EV systems but also reinforces the crucial role of real-time energy management in maximizing renewable energy benefits. It represents a critical step toward achieving smarter, greener, and more resilient energy networks capable of meeting global sustainability goals.
