1. Introduction
Climate change is expected to raise Lebanon’s mean annual temperature by 1.45 °C by mid-century and reduce precipitation by 2.7% by 2025 [
1,
2]. If current trends in water scarcity continue, the direct costs to the Lebanese economy caused by higher temperatures, fluctuating precipitation, and drought events are estimated to reach USD 138,900 million in 2080 [
3], equivalent to 1.71% of current national gross domestic product. The resulting reduction in agricultural productivity will certainly threaten food security. Water scarcity causes yield reductions that can be offset by controlled irrigation to maintain sustainable crop production [
4].
However, climate change has diminished the positive effect of soil organic carbon sequestration, reduced wheat yield up to 39%, and increased CO
2 and N
2O emissions from the soil [
5]. Efforts to enhance on-farm irrigation management are crucial to addressing the growing challenges of a finite resource and maintaining food production [
6]. To avoid excessive irrigation, which causes depleted water resources, controlled or deficit irrigation is recommended. This approach restricts excessive leaf growth and enhances fruit development, positively affecting water consumption and improving water use efficiency [
7].
In Lebanon, emissions from energy, agriculture, and forestry-land use accounted for 58% of total emissions in 2019 [
8]. The majority of these emissions were attributed to energy consumption, particularly from diesel engines powering pumps to extract water from individual wells, costing approximately USD 0.86 per liter. This issue is especially prevalent in the Bekaa Plain, where collective irrigation schemes are lacking [
9]. Water scarcity has led to the chaotic drilling of unlicensed (i.e., illegal) wells and uncontrolled groundwater abstraction for irrigation to meet increasing demands for food and feed. This has resulted in aquifer depletion and the salinization of soil and water resources [
10,
11]. A study done 10 years ago in Lebanon reported more than 18,000 private, unlicensed wells in the Bekaa Plain, primarily used for irrigation with fossil energy [
12].
Integrating climate-proof agriculture into a comprehensive management approach involves monitoring soil and climatic conditions and considering crop water and nutrient demands in relation to crop growth and development. This can support pro-active decision-making to anticipate economic and environmental losses. Improving water management in the country can reduce yield gaps and meet the challenges of food security and sustainable development goals (SDGs), specifically SDG 2. But this outcome is impossible to achieve without increased water productivity at the farm level.
A comprehensive multiscale analysis that couples plot scale tests with district-wide assessments can be useful to identify the technical and socio-economic driving forces behind low water productivity and yield gaps and to support the adoption of modern irrigation technology. The three-year national development priorities and strategy to revive the Lebanese national economy through targeted investments in various sectors [
13], along with the Ministry of Agriculture’s five-year strategic plan [
14], proposed investing in capacity building and upgrading the technical basis and productivity of irrigated agriculture. They also call for innovation campaigns in fertilization and irrigation practices, which can contribute significantly to national economic growth and recovery. Developing local and national resilience to climate change requires a thorough analysis of prevailing irrigation and fertilization practices at the farmer level to boost adaptation capacity to drought and ensure food security. Since agro-ecosystems largely depend on both natural and climatic processes, resilience must be combined with innovation, adaptation, and the development of sustainable agricultural practices [
15].
A sustainable adaptation strategy can be achieved through information technology (IT) intervention and the adoption of permanent and simple field monitoring tools to control water application based on soil moisture and crop demands [
16]. This practice maintains optimal soil health conditions and achieves higher yields with less water and nutrient input, thereby reducing the footprint of irrigated agriculture. In addition to other adaptation practices, the use of regulated irrigation can decrease the risks of nitrogen losses, nitrate leaching, and gas emissions from agricultural lands [
17].
With net exploitable surface and groundwater estimated at around 2 billion m
3 (Bm
3), the 2012 National Water Sector Strategy assessed the available water resources at 2.7 Bm
3, of which 2.2 Bm
3 are surface water and 0.50 Bm
3 are derived from groundwater recharge [
18]. Since total groundwater abstraction by wells is estimated at 0.70 Bm
3, under normal climatic conditions, the yearly deficit in groundwater is equivalent to 0.2 Bm
3, causing a drop in the water table and decreased pumping. Recurring drought and depleted groundwater have caused local and regional drops in water table level [
19]. However, in semi-arid regions, crop evapotranspiration (ET) is negatively correlated with groundwater depth, indicating a higher contribution of irrigation to crop water requirements in deeper aquifers. This is associated with better yields and more efficient water use in the root zone [
20].
Over irrigation in field crop production has led to the intensive leaching of soluble pollutants, resulting in economic and environmental losses due to the deterioration of soil and groundwater quality [
21]. Current irrigation practices in the Bekaa Plain threaten sustainable food production and challenge the implementation of SDGs. An optimized irrigation schedule and water accounting, combined with adequate nitrogen application, increased soil organic carbon, boosted soil fertility, and enhanced crop production and water use efficiency [
22].
Despite governmental efforts to disseminate good practices among water users and farmers, adopt climatic information, and consider water balance [
23], the increase in water use efficiency remains insufficient [
24]. One of the main challenges hindering the expansion of such improvement is the lack of cost-effective and reliable data monitoring systems [
6]. Field experiments based on climate-soil-crop-water smart agriculture practices have shown good potential to enhance the sustainability of local farming. These experiments indicate substantial water saving potential and improved agronomic productivity through a shift from traditional fertilization and irrigation practices to well managed modern fertigation systems [
21].
Recent regional progress in determining crop water demands using data from a typical climatic year, correlated to crop growth cycles [
25], did not significantly influence farmers’ attitudes towards effective irrigation management in the Mediterranean region. Conservation measures in the USA, such as better correlation between pumping and precipitation and adjusting the area of irrigated lands, did not close the gaps between groundwater recharge and pumping rates [
26]. However, the application of deficit irrigation in major potato-growing regions in Lebanon [
21] and Northern China [
27] significantly increased potato water use efficiency (WUE) by 10% and irrigation water use efficiency (IWUE) by 31.6%, with a considerable reduction in ET by 26.3%.
Alternatively, greater success in reducing irrigation water use per irrigated area was achieved by using locally based climatic stations to estimate potential evapotranspiration (ET0) and link it to the crop phenological development [
28]. However, previous research in the region did not consider the total amount of water applied, starting from land preparation, amelioration of pre-sowing soil moisture, and post-sowing water application to maintain optimal conditions for good sprouting. Published studies mainly count water application related to evapotranspiration and crop coefficient (Kc) after seedling establishment, i.e., they account for effectively applied water covering the crop production cycle from plant emergence to physiological maturity.
A weak extension service is an additional constraint to the dissemination of good agricultural practices and effective water management in the semi-arid areas. Therefore, it is crucial to create and sustain living labs and demonstration (and experimental) sites in the main agroclimatic zones of the East and South Mediterranean. These sites ensure continuous interaction and participatory learning with local farmers. To our knowledge, this is the first time effectively applied water is considered in conjunction with the total applied water, with both parameters integrally analyzed within the concept of water accounting and water productivity under field conditions.
Meeting the objectives of the SDGs and addressing challenges to boost national capacities in the food-water-energy nexus, a project named “SEALACOM” was launched in 2023. It aimed to sustainably manage sea and land resources by the community, support development, sustain the environment, and strengthen farmer resilience. Accordingly, the purpose of this paper is to compare locally prevailing unsustainable fertilization and irrigation practices with science-based techniques and climate-smart practices proposed by the project. It assesses the impact in terms of water and nutrient saving and efficient use for two open field crops (potato and zucchini) cultivated under two different pedoclimatic conditions, following the traditional and advanced fertigation methods.
2. Materials and Methods
To reach the objectives of the SEALACOM Project and address the sustainable use of water in agriculture with a low energy and environmental footprint, two experimental sites in two different soil zones of Lebanon were selected. The first Demo Sites (DS1) is located in Serein-Cental Bekaa (Casa of Zahle) at 33°52′38″ N and 36°02′59″ E, and the second Demo Sites (DS2) is located in Sultan Yacoub (Casa of West Bekaa) at 33°40′21″ N and 35°51′40″ E. The study was run in fall 2023 in the two DS representing two agroecological zones of the Bekaa Plain of Lebanon with a total area of 86251.8 ha, of which 45.8% represent cultivated agricultural lands (
Figure 1).
The topography of the demo sites varies between level plains in Serein and undulating foot slopes in Sultan Yacoub. Both areas are surrounded from east and west by the sloping lands of Mount Lebanon and the Anti-Lebanon mountain chain. The average altitude of the first demo site (DS1), located at Serein, is 950 m, while that of the second demo site (DS2), located at Sultan Yacoub, is 850 m.

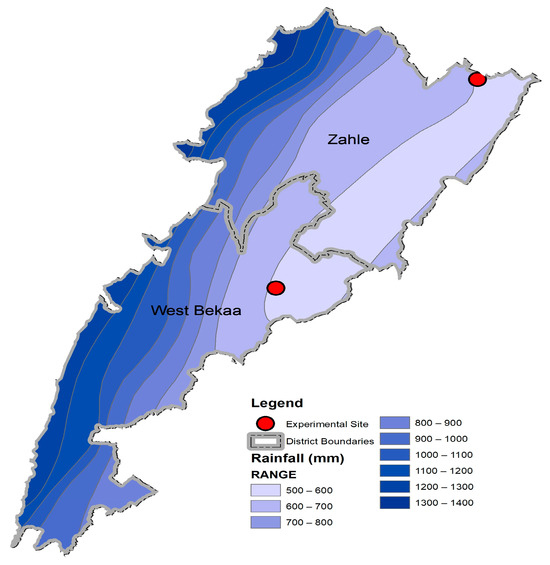

The annual climatic data were received from the climatic stations of Tal-Amara, Lebanese Agricultural Research Institute. DS1 is located within the semi-arid climatic zone with 566 mm of average annual precipitation falling in one season between November and March (
Figure 2). The rest of the year is dry with mean high and low annual temperatures reaching 25.6 °C and 8.5 °C, respectively.
DS2 belongs to the dry-subhumid climatic zone with an average annual rainfall of 700 mm and mean high and low annual temperatures reaching 24.6 °C and 10.8 °C, respectively. According to the World Reference Base for Soil Classification [
29], the area of the two DSs is represented by the dominance of Cambisols, Regosols, and Luvisols with the inclusion of Vertisols, Calcisols, Leptosols, Arenosols, and Andosols (
Figure 3).
The soil cover of DS1 was classified as deep Eutric Regosols. The soil is of neutral pH and non-saline (
Table 1), clay texture with negligible content of CaCO
3. The soil has an average low organic matter content and is poor in total nitrogen, enriched with phosphorous, and moderately high in available potassium.
The soil cover of DS2 was classified as Eutric Cambisols. Soil texture is clay with low organic matter content and weakly basic pH (
Table 1). The soil is non-saline, poor in nitrogen, enriched with available phosphorous, and highly enriched with potassium.
Farmers traditionally apply nutrients and water by fertigation using closed tanks, managing the types, amounts, and timing of applications themselves. This approach relied on traditional irrigation management tools with intermittent nutrient application. The SEALACOM Project adopted an advanced smart climate system, estimating irrigation water needs based on ET0 calculations from a nearby climatic station. The daily crop evapotranspiration (ETc) was defined by multiplying ETc by the crop coefficient (Kc). Crop coefficient (Kc) was proposed by Jensen [
30] and used together with the FAO guidelines to estimate crop water requirements [
31] to relate the evapotranspiration of a specific crop (ETc) to the calculated potential evapotranspiration (ET0) according to the equation:
Since Kc is crop dependent and unaffected by climate, it follows the crop’s growth and development dynamics, regardless of location. Kc values increased throughout the cropping season from 0.2 to 0.4, 0.6, 0.8, and 1.0 at full growth, then decreased to 0.7 by the end of the irrigation season, corresponding to the physiological maturity in potatoes and the onset of low night temperature (<10 °C) for zucchini.
Fertigation schedules usually divide the portion of the total recommended rate of nutrient to be injected into varying amounts or percentages for each application over the growing season. Small amounts (low concentration) are usually injected in the early plant growth stage, larger amounts at mid-season, and then it is diminished toward the end of the season. The overall picture is similar to the dynamic of the crop fraction (Kc). Therefore, nutrient concentrations (i.e., N, P, K, and Mg) were adjusted according to the crop’s age, starting from 50 mg/L and increasing to a maximum of 100 mg/L, with proportional increases in major and minor nutrients to meet the crop’s growing demands.
The basic factors in fertigation procedures to be taken into account are:
- a.
Injection rate (injection pump capacity)
- b.
Amount of material to be injected
- c.
Time available for injection
The injection rate (a = b/c) must be calibrated using a graduated cylinder of 1000 mL as a container and a watch to control how much of the nutritive solution is injected in one minute. To calculate the mass of dry fertilizer (m) to be dissolved for the preparation of stock solution, we used the following equation.
where M is the mass of soluble fertilizer (kg).
b is the concentration of the final nutritive solution (mg L−1 or kg m−3)
df is the dilution factor (unitless)
v is the volume of the barrel to prepare the stock solution (m3)
c is the concentration of the given fertilizer
Therefore, to prepare 100 L or 0.1 m
3 of stock solution, with a desired concentration (b) of the final solution equivalent to 100 mg L
−1 (100 g m
−3 or 0.1 kg m
−3) of nitrogen (N), at a dilution factor (df) = 100, i.e., one liter of stock solution is injected against 99 L of irrigation water, we proceeded as follows: The used fertilizer is Ammonium Sulfate (c = 21.5% NH
4-N). To calculate the needed amount of this fertilizer to be dissolved in a 100 L barrel, the calculation was done as follows:

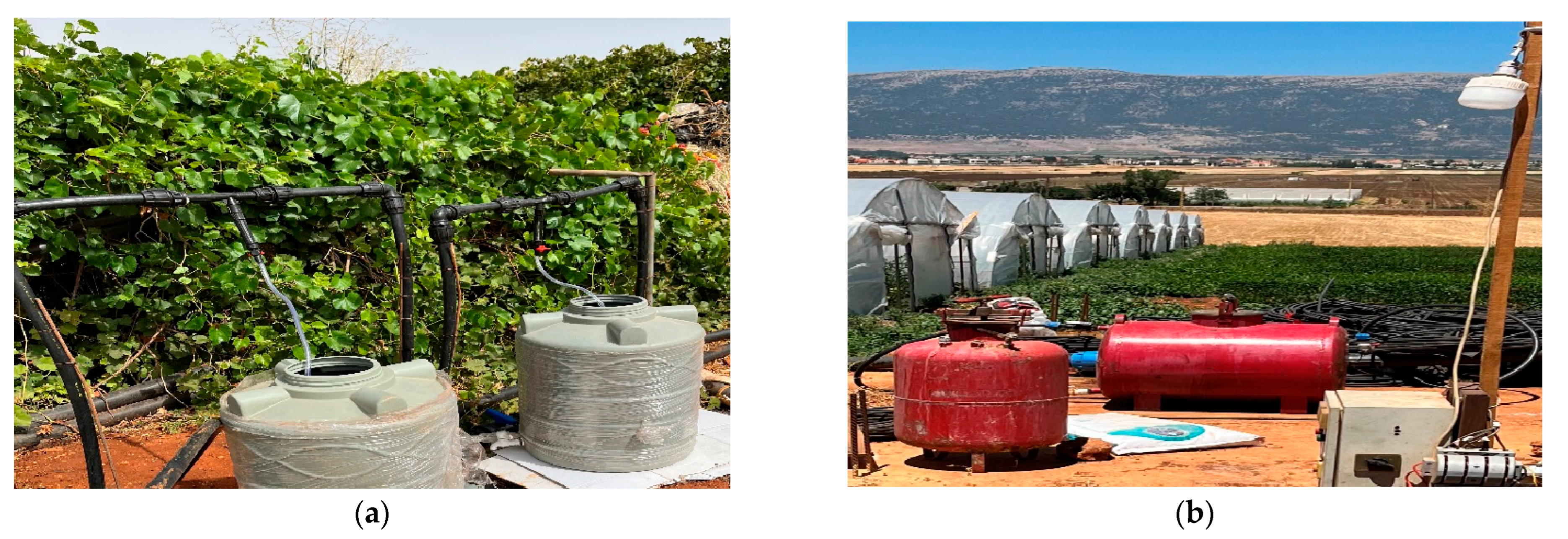

Instead of using the relatively expensive, high-precision dosatron injectors (DOSATRON, USA), the project used the feasible venturi system (Venturi Pump, 1 inch Elysee – Cyprus) to modify the concentration of the final solution and control the ratio between nutrients. Venturi is recommended for the fertigation of large areas. This system allows for the homogeneous and regulated distribution of water and nutrients in a continuous feeding mode compared to the farmer’s intermittent fertigation using the traditional closed tank (
Figure 4a,b).

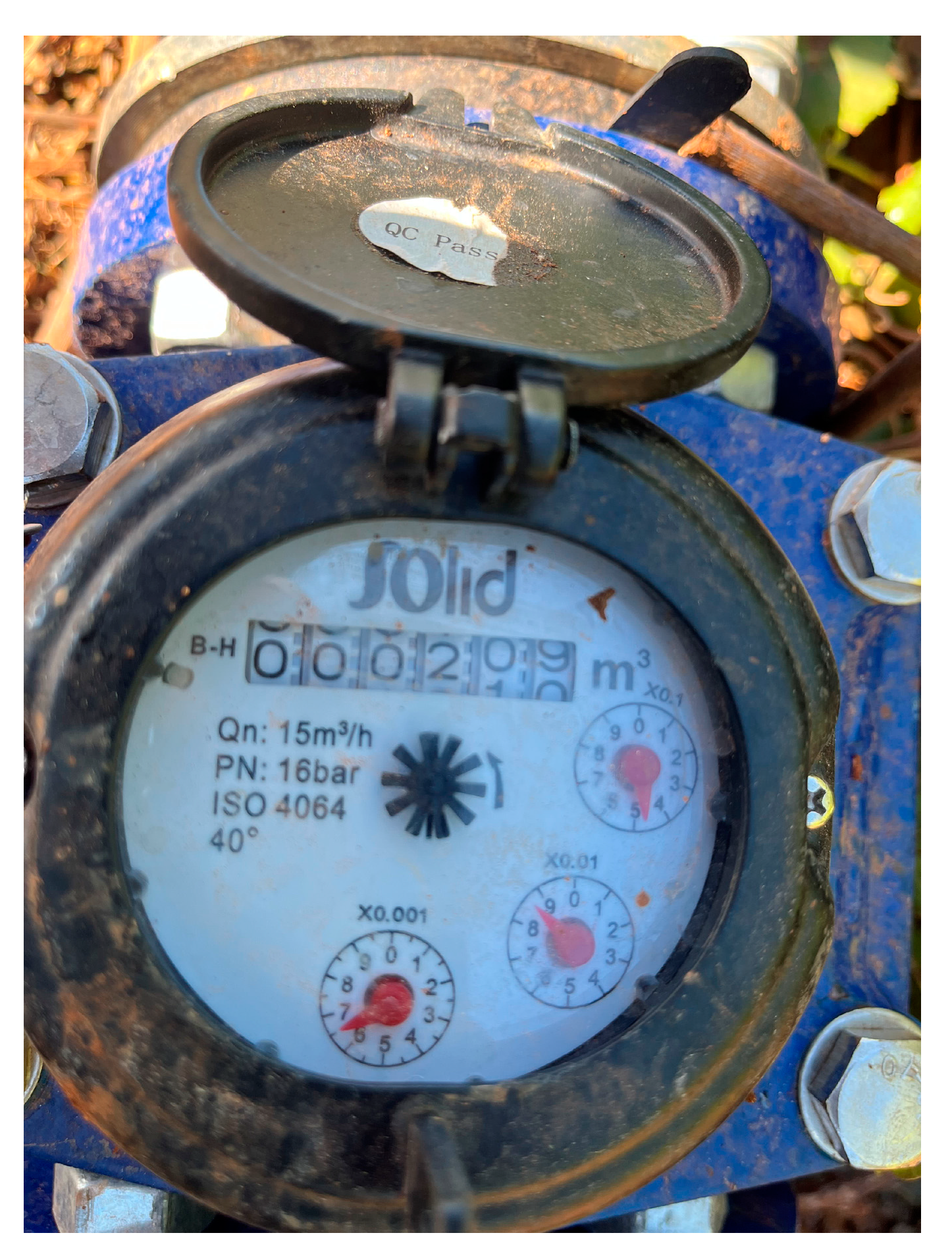

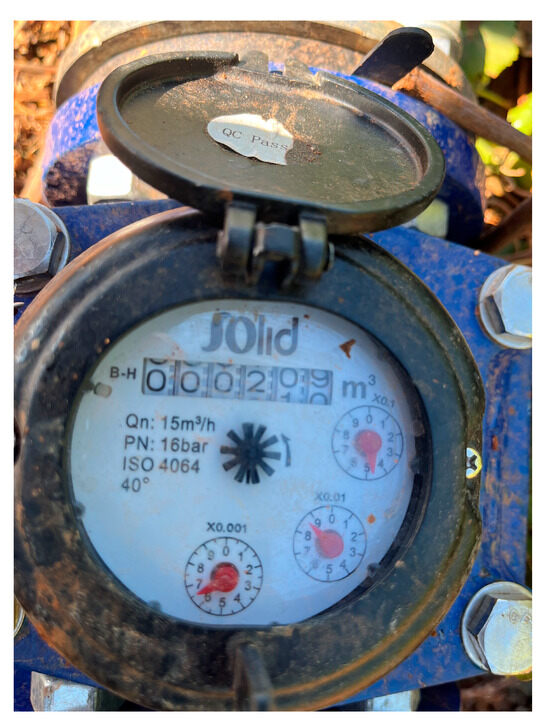

Water-meters (2 inch - Flange Type- Solid- China) were installed in both the SEALACOM plot and the farmer’s plot to control the amount of applied water (
Figure 5).
Zucchini (Cucurbita pepo) was cultivated in Serein (DS1) in an open field on a total area of 6000 m2 starting also from August 2023. The field was subdivided into two equal parts, 3000 m2 each. The SEALACOM project managed 3000 m2 and the farmer managed the other 3000 m2. The soil and irrigation water were similar in both treatments. Land preparation and time and density of sowing of the same Zucchini variety were also identical. SEALACOM used full fertigation with drip lines following the approach of continuous application of fertilizers and water. The farmer also used the drip system, but he used the traditionally followed intermittent application of nutrients.
Potato (Solanum Tuberosum), variety Spunta, was grown in Sultan Yacoub (DS2) on a total area of 2000 m2. The farmer managed the control plot of 1000 m2, followed intermittent application of nutrients using the closed tank for fertilizer injection through macro-sprinklers. The SEALACOM Project managed the neighboring plot of 1000 m2. The project applied continuous feeding with the same type of fertilizers using a venturi system, complemented by improved water management and application using mini-sprinklers.
A comparison of crop production, fertilizer, and water use efficiency between the project plot and traditional farmer practices was conducted to identify gaps and improve efficiency in drylands. Farmers’ water application was monitored through water-meter readings and coordination meetings held face to face two to three times a week. These meetings included field visits to monitor and compare crop health conditions.
Additionally, a comparison of crop production, total yield performance, and fertilizer recovery (i.e., productivity in kg product per 1 g of applied nutrient) and water productivity (kg product per 1 m3 of applied water) was conducted. This aimed to explore the potential for sustainable agriculture and disseminate good practices to meet the requirements of SDGs, particularly access to water and food security.
5. Discussion

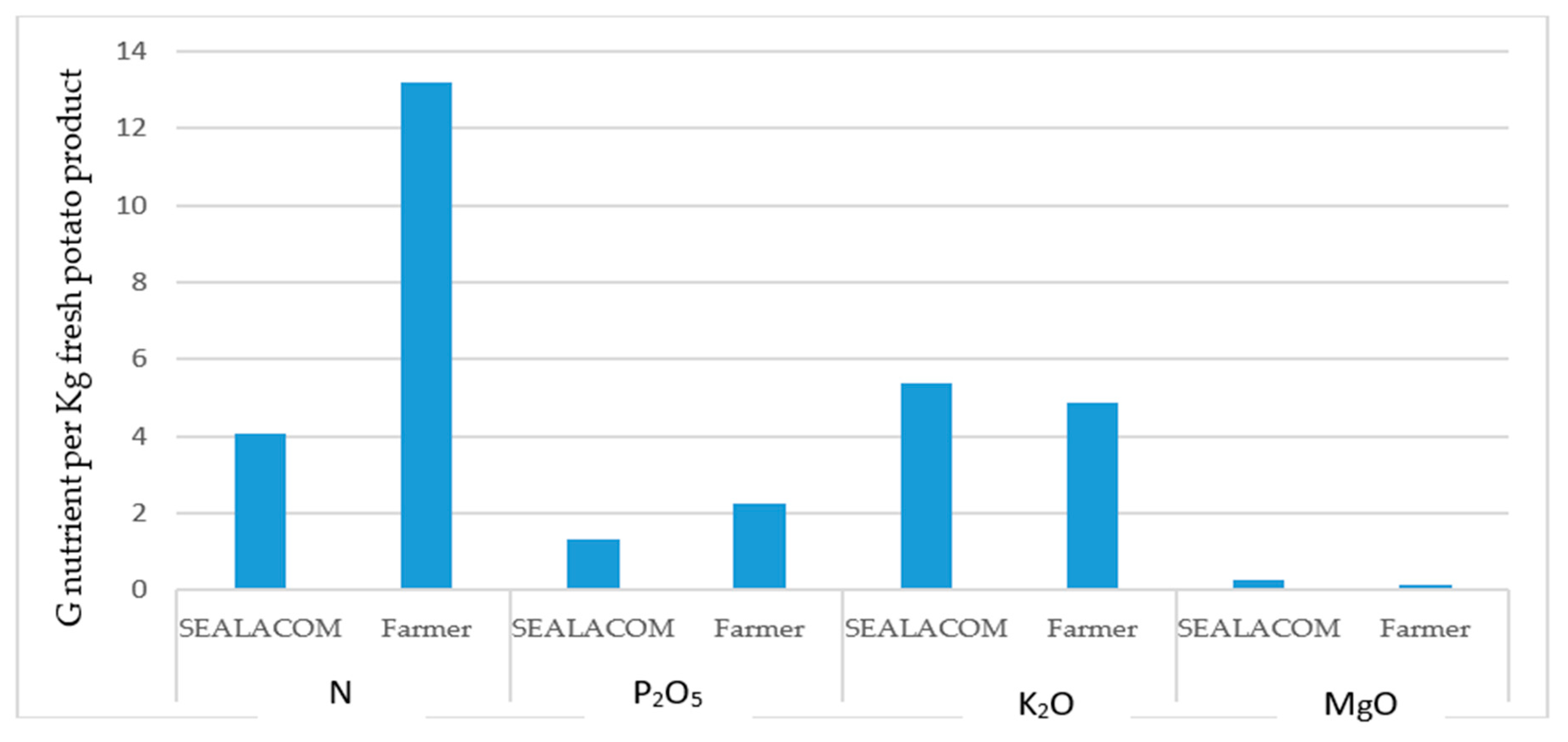

SEALACOM practice was more efficient in N and P utilization by the potato crop (
Figure 9). Similarly, squash grown in Jordan demonstrated higher yields with lower N rates and better water and fertilizer utilization through full fertigation compared to the traditional practices. This approach can minimize production costs and reduce nitrate pollution in the soil-groundwater system [
35]. Case studies from the region have reported nitrate accumulation and leaching, leading to significant groundwater contamination with nitrates [
34,
35,
36].
Given the deficiency of organic and mineral nitrogen in the soils of the area [
21,
32], it is recommended to develop a farming practice with an adequate dose of nitrogen for successful crop production. This policy must take into account the soil and climate conditions, plant response to nutrients, and crop tolerance to drought to improve carbon and nitrogen metabolism and achieve production goals and water use efficiency [
37,
38,
39].
The approach used to define crop water requirements has limitations, as the tested crop coefficients (Kc) for some field crops might not align with the FAO-56 Kc recommended values when determined for the same crops in different locations [
40]. Therefore, to properly regulate nutrient ratios and amounts, it is advisable to determine the crop coefficient in situ using both climatic stations and lysimeters to coordinate the lower and higher ranges of Kc values. This method allows for more precise water and nutrient application by matching the Kc range with crop genotypes and specific water demands, as well as local soil and climatic conditions. Consequently, it enables the modification and control of nutrient concentrations through continuous fertigation.
Using the same genotypes of potato and zucchini, cultivated simultaneously in the same locations under similar soil and climate conditions, reduced variability due to the smoothing effect of systematic error. Therefore, it is crucial to upgrade environmental performance, sustainable agricultural production, and precision farming in Lebanon at both farm and national levels. Capacity building will enhance the requirement for mass, energy, and human labor inputs that support food security through sustainable production and environmental practices [
41]. This aligns with the adoption of a multi-criteria approach to sustainable irrigated agriculture and crop endurance, addressing the challenges of food security and water scarcity in arid environments [
42].
In China, moderate and precise water and nitrogen application within the targeted root zone of sweet potatoes, considering soil and water pools, improved tuber yield and quality and enhanced water and nitrogen use efficiency [
43]. Three categories of farmers were identified in the Mediterranean: proactive, skeptical, and reluctant farmers, with a significant portion showing negative attitudes toward using digital technologies in agri-farming and environmental policies [
44]. However, adopting feasible tools and simple techniques that demonstrate both economic and environmental resilience can lead to a breakthrough.
Given the significant average global increase in ET over the last three decades, at an annual rate of 1.33 (±0.84) mm per year, largely due to an average summer ET increase of 2.06%, the adoption of sustainable irrigation strategies is a prime concern [
45]. Advanced soil and crop management, along with improved fertilization and irrigation practices in semi-arid zones, are among the key alternative farming options at all decision-making levels. These practices aim to improve carbon and nitrogen balance, enhance soil fertility, and boost crop yields [
46].
Since 1970, a significant decrease in groundwater levels, with a drop between 20 and 25 m in the major aquifers of Lebanon, has been attributed to chaotic drilling of water wells and over exploitation [
47]. Observations for Lebanon based on land subsidence and space information showed a total water storage decline in the Bekaa plain at a rate of 1.10 cm per year, caused by groundwater depletion [
19].
Evidence of uncontrolled expansion of illegal wells and excess pumping calls for immediate interventions and the activation of water governance to improve water accounting and water productivity in Lebanon and the Eastern Mediterranean. A good example of groundwater governance comes from Jordan, where acts of violence and mismanaged irrigation practices from private wells, along with incorrect metering of pumped water and inefficient water conveyance, were detected and corrected to promote the wise use of limited water resources [
10].
Adaptive responsive measures, such as the development and efficient use of water resources, were recommended in Jordan to reduce the impacts of drought and increased public demands on water resources and food security [
48]. In the face of water scarcity and recurrent drought events in semi-arid Mediterranean conditions, implementing sustainable agricultural practices for more efficient use of limited water and soil resources becomes a national and regional priority. These practices aim to enhance nitrogen and water use efficiency and address the challenges of food security [
49].
Quantifying evapotranspiration (ET) is crucial for a valid understanding of the global water cycle and precise resource management. However, accurately estimating ET, especially at local scales, has always been challenging [
50]. Substantial progress has been made in estimating regional crop water demands using low-resolution platforms such as the FAO Water Productivity Portal-WAPOR [
51], and AgSAT [
52]. These platforms provide real-time and lagged information to support decision-making on regional water use. However, unless these remote sensing platforms are applicable at local scales and integrated into a land-based smart climate and agricultural management system, achieving sustainable irrigated agriculture remains challenging for medium and small farmers.
The results obtained in the SEALACOM approach using mini sprinklers showed trends similar to those of earlier studies on potato performance and water use efficiency conducted in the country using a drip system [
21,
53,
54]. Our results indicated better performance of the Spunta variety tested in Lebanon compared to its performance in the Jordanian desert [
55]. However, full fertigation of potatoes ensured better nutrient distribution within the root zone on the fine textured Mediterranean soils of Jordan and prevented rapid immobilization of applied nitrogen by soil microorganisms [
55].
Similarly, with the drip-irrigated squash in Syria [
56], our results consistently showed higher water productivity, i.e., better biomass production per unit of applied water. This was explained by the higher irrigation frequency and the reduced amount of water applied per each irrigation event.
Adopting a practical, field-validated, simple, low-cost, and efficient continuous fertigation system that considers crop water and nutrient requirements and soil conditions and integrates weather-based irrigation with crop performance under dry Mediterranean climate is crucial. This approach can significantly maintain high yields and crop water productivity, which are essential for food security in water-scarce regions [
57]. Structural models that combine precision irrigation with slow-release nitrogen fertilizers and modern irrigation systems have significantly improved crop yield, N use efficiency, and water productivity [
58].
Compared to traditional farmer irrigation practices, the use of good agricultural practices with strong deficit irrigation mitigated water stress through expanded root density and better water interception [
59]. However, with the complex factors affecting water saving, crop performance, and water productivity in dry regions [
60,
61], local soil and climatic conditions as well as farmers’ attitudes and skills must always be considered.
6. Conclusions
The SEALACOM Project’s advanced methodology for assessing crop water demands and applying metered irrigation achieved increased yields and higher water use efficiency. This is crucial in an era of increasing drought incidences, which exacerbate water scarcity and put pressure on limited water resources. Compared to traditional practices, the improved SEALACOM fertigation method resulted in over a 22% increase in higher-quality zucchini yield, from 1417 kg ha−1 to 1729 kg ha−1, more than 23% water savings, and over 43% higher water productivity. Farmers expressed their intention to follow the SEALACOM approaches and adopt continuous feeding instead of intermittent fertilization, using a modern injector rather than a closed tank. Local farmers were trained in advanced fertilization and irrigation techniques.
In continuous feeding, higher yields and better quality zucchini and potatoes were obtained with doubled nitrogen and phosphorous use efficiency. For potato production, the improved practice using mini-sprinklers and continuous feeding resulted in a 17.8% yield increase, from 1900 kg ha−1 to 2200 kg ha−1, and a 40% increase in large tuber size (p < 0.05). The project methodology provided a better nutrient ratio formulation, aligning with soil conditions and crop demands to major nutrients. The efficient use of water and nutrients will reduce energy consumption for water pumping and application. Continuous feeding’s water and fertilizer savings have significant economic and environmental impacts, particularly in drylands.
Demonstrating water accounting and productivity based on totally and effectively applied water can help disseminate good, proactive practices, enhancing food production with a lower environmental footprint, higher sustainability, reduced production costs, and better commercial value of the final product. The findings from the SEALACOM Project are becoming part of local agricultural and water policies. Turning these results into an action plan requires strong commitment, decision-making, and capacity building to conserve and properly manage water resources, with special emphasis on groundwater, to enhance crop production. This is particularly important for the Bekaa Plain, where agriculture is the major source of income.
