Sustainable Transition Pathways for Steel Manufacturing: Low-Carbon Steelmaking Technologies in Enterprises

Abstract

Amid escalating global climate crises and the urgent imperative to meet the Paris Agreement’s carbon neutrality targets, the steel industry—a leading contributor to global greenhouse gas emissions—confronts unprecedented challenges in driving sustainable industrial transformation through innovative low-carbon steelmaking technologies. This paper examines decarbonization technologies across three stages (source, process, and end-of-pipe) for two dominant steel production routes: the long process (BF-BOF) and the short process (EAF). For the BF-BOF route, carbon reduction at the source stage is achieved through high-proportion pellet charging in the blast furnace and high scrap ratio utilization; at the process stage, carbon control is optimized via bottom-blowing O₂-CO₂-CaO composite injection in the converter; and at the end-of-pipe stage, CO₂ recycling and carbon capture are employed to achieve deep decarbonization. In contrast, the EAF route establishes a low-carbon production system by relying on green and efficient electric arc furnaces and hydrogen-based shaft furnaces. At the source stage, energy consumption is reduced through the use of green electricity and advanced equipment; during the process stage, precision smelting is realized through intelligent control systems; and at the end-of-pipe stage, a closed-loop is achieved by combining cascade waste heat recovery and steel slag resource utilization. Across both process routes, hydrogen-based direct reduction and green power-driven EAF technology demonstrate significant emission reduction potential, providing key technical support for the low-carbon transformation of the steel industry. Comparative analysis of industrial applications reveals varying emission reduction efficiencies, economic viability, and implementation challenges across different technical pathways. The study concludes that deep decarbonization of the steel industry requires coordinated policy incentives, technological innovation, and industrial chain collaboration. Accelerating large-scale adoption of low-carbon metallurgical technologies through these synergistic efforts will drive the global steel sector toward sustainable development goals. This study provides a systematic evaluation of current low-carbon steelmaking technologies and outlines practical implementation strategies, contributing to the industry’s decarbonization efforts.

1. Article Selection and Methodology

1.1. PRISMA Statement

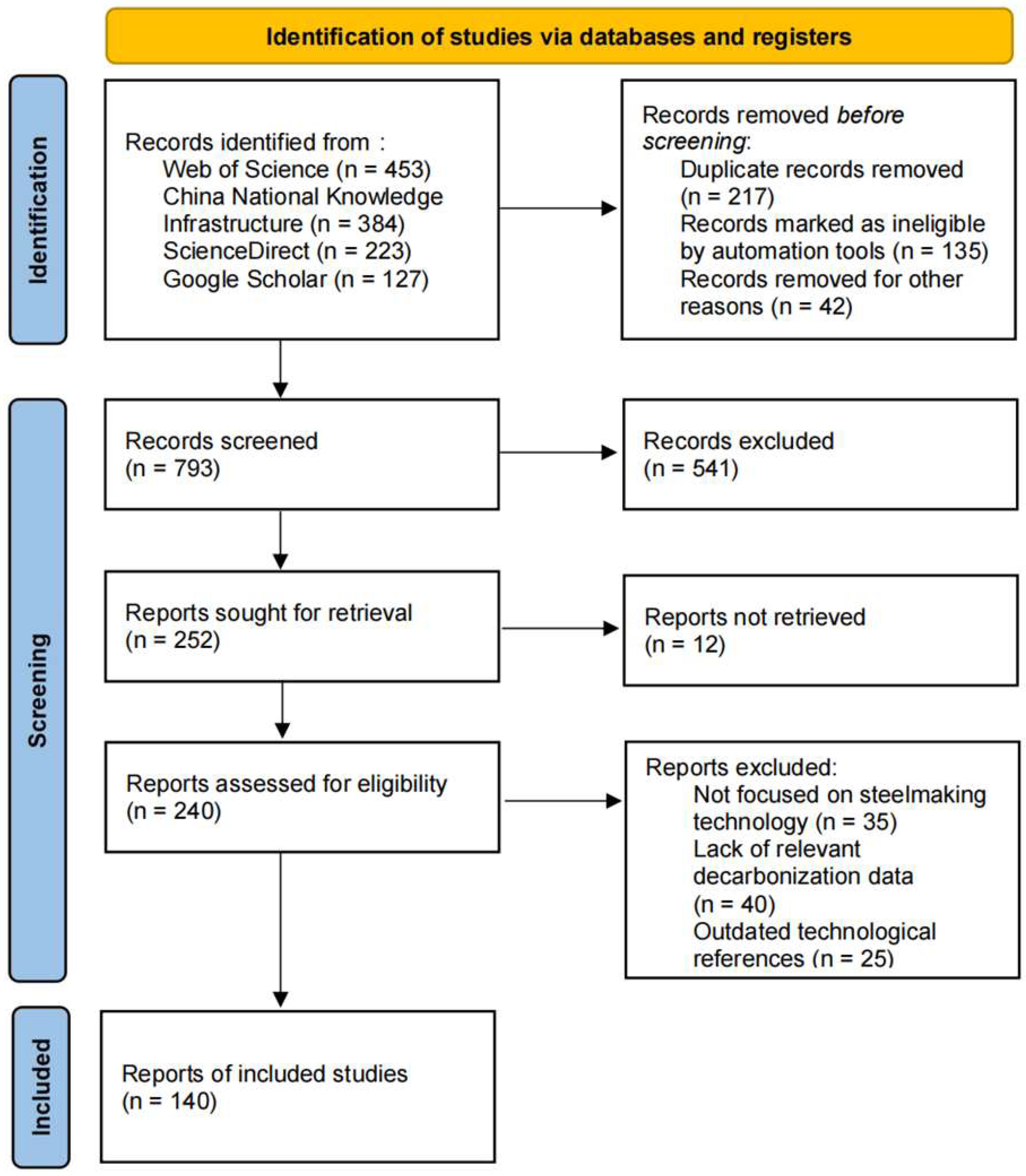

This study adopted the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) framework to screen relevant literature and conduct systematic analysis of the selected studies. The PRISMA approach involves four key steps in literature screening: identification, screening, eligibility as sessment, and inclusion (Figure 1).

1.2. Identification

Studies were initially identified from four databases: Web of Science (453 records), China National Knowledge Infrastructure (384 records), ScienceDirect (223 records), and Google Scholar (127 records).

After identifying these records, some were removed before the screening phase. This included:

• Duplicate records (217): Records that appeared more than once were discarded.
• Records marked as ineligible by automation tools (135): These records were automatically flagged as irrelevant.
• Records removed for other reasons (42): Any records that didn’t fit the inclusion criteria were removed for unspecified reasons.

1.3. Screening

A total of 793 records were screened for relevance based on the title and abstract.

Of these, 252 reports were sought for full-text retrieval, but 12 reports could not be retrieved.

The remaining 240 reports were assessed for eligibility.

1.4. Exclusion

Some reports were excluded based on specific reasons:

• Not focused on steelmaking technology (35 reports): These were excluded because they didn’t address the main subject.
• Lack of relevant decarbonization data (40 reports): These didn’t provide the necessary data on decarbonization.
• Outdated technological references (25 reports): These reports were excluded for referencing old technologies.

1.5. Inclusion

After the screening and exclusion steps, 140 reports were included in the review for final analysis.

2. Introduction

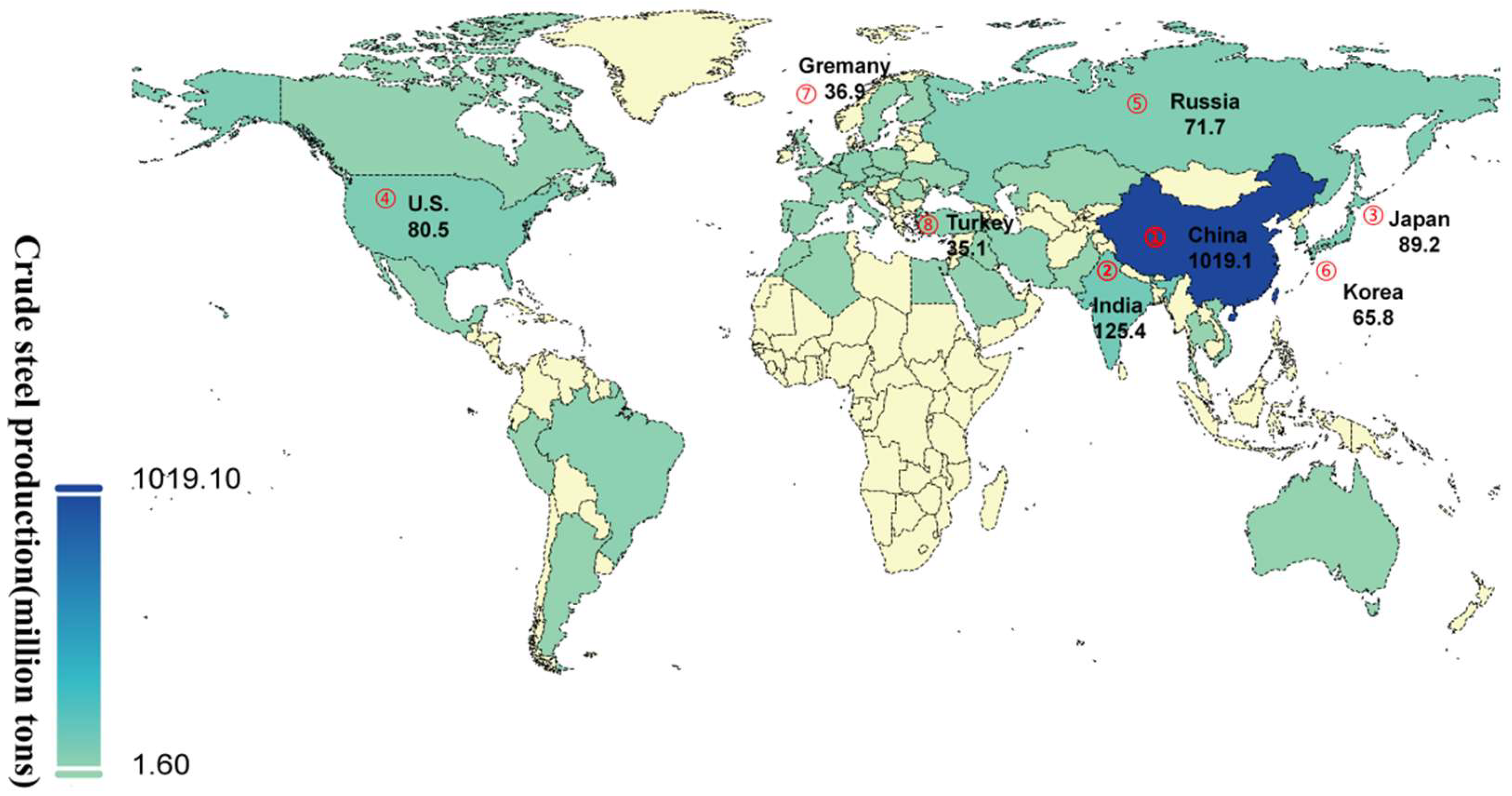

The steel industry, as a major contributor to global industrial carbon emissions (accounting for approximately 7% to 11%) [1,2], is facing the severe challenge of achieving net-zero emissions by 2050 under the framework of the Paris Agreement. Against the backdrop of the deepening of climate change governance, a technological revolution centered on low-carbon smelting has become an inevitable path for industry transformation. Since the 21st century, the international community has successively launched major scientific and technological projects such as ULCOS (Europe, 2004), COURSE50 (Japan, 2008), HYBRIT (Sweden, 2016) [3], SALCOS (Germany, 2019) [4], and ROSIE (USA, 2024), reshaping the traditional smelting model through innovative paths such as hydrogen-based metallurgy, carbon capture, and green energy utilization, demonstrating an accelerating trend of technological iteration.

The article will focus on analyzing the actual effects of low-carbon smelting technologies applied in industrial enterprises in terms of carbon reduction and energy conservation. Through the summary of advanced technologies and the exploration of future development trends, it aims to provide a theoretical basis and technical guidance for the steel industry’s low-carbon transformation, contributing to the realization of sustainable development goals.

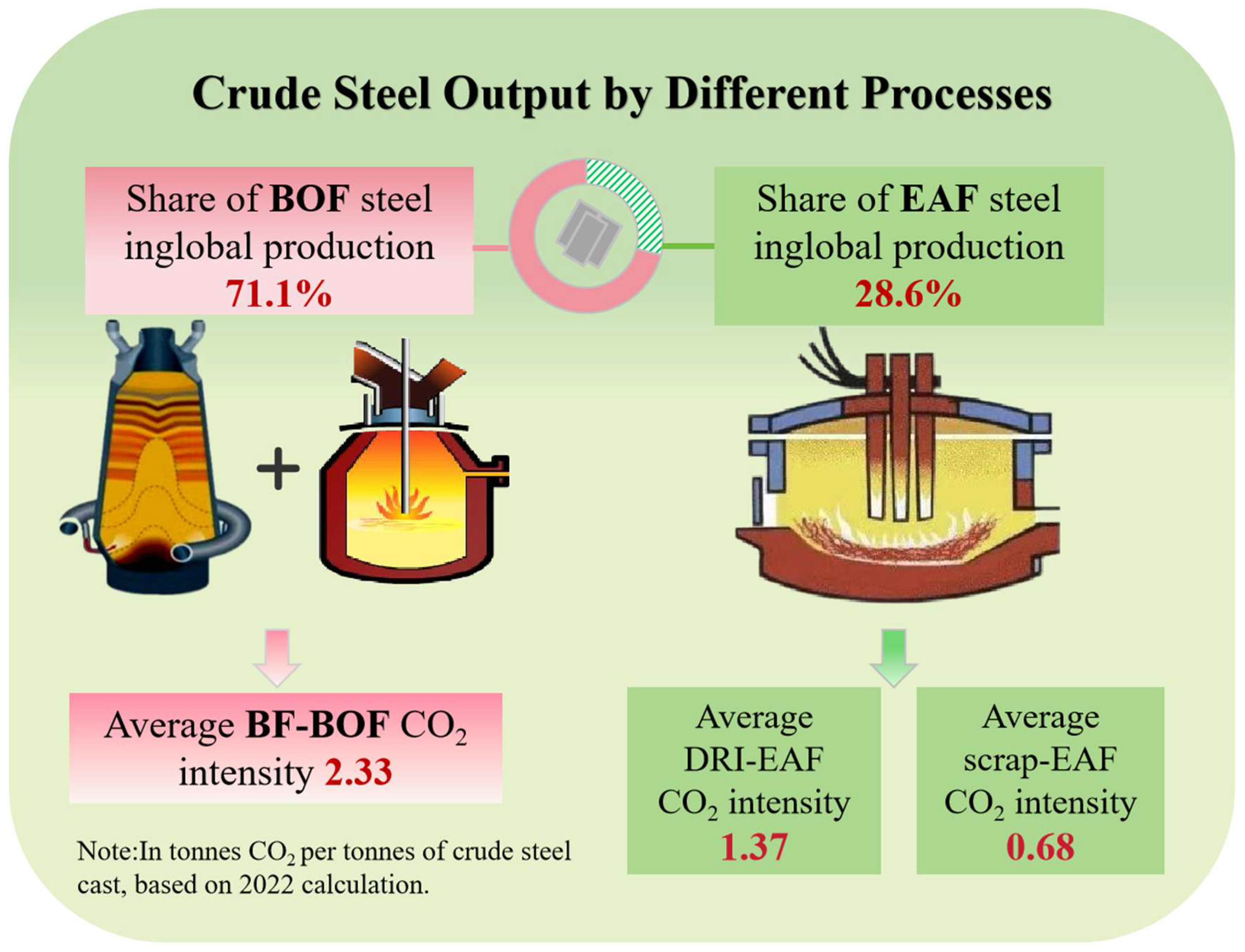

Currently, industrial steel production mainly adopts two process routes: one is the long process of blast furnace–converter, which requires the preparation of raw materials through processes such as coking, sintering, and pelletizing, followed by smelting in a blast furnace to obtain molten iron and, finally, refining in a converter to produce crude steel; the other is the short process, centered on electric arc furnaces, which mainly uses scrap steel as raw material that, after smelting in an electric furnace, is refined through equipment such as ladle furnaces to produce steel. This process can also use direct reduced iron or molten reduced iron as raw material, and after smelting in an electric furnace and going through the rolling process, it ultimately forms steel products. As shown in Figure 2, taking data from 2022 as an example, the global steel industry shows the characteristics of “Asia’s continuous dominance and accelerated green transformation”. International crude steel production was approximately 1.89 billion tons, and the CO₂ emissions from steel production were about 3.61 billion tons, with energy consumption of approximately 396.7 GJ [5]. Behind the huge figures of carbon emissions and energy consumption lie both challenges and opportunities. Figure 3 shows the proportion of different processes in global crude steel production in 2022 and their carbon emission intensities. Currently, the blast furnace–-converter long process still dominates steel production, accounting for about 71% of global crude steel production, with an average CO₂ emission intensity of 2.33 tons per ton of crude steel during the production process; the short process of electric arc furnaces accounts for 29%, and its carbon emission intensity varies significantly due to differences in raw materials: the average CO₂ emission intensity of the electric furnace process using direct reduced iron as raw material is 1.37 tons per ton of crude steel, and when using scrap steel as raw material, the emission intensity can be further reduced to 0.68 tons per ton of crude steel [5].

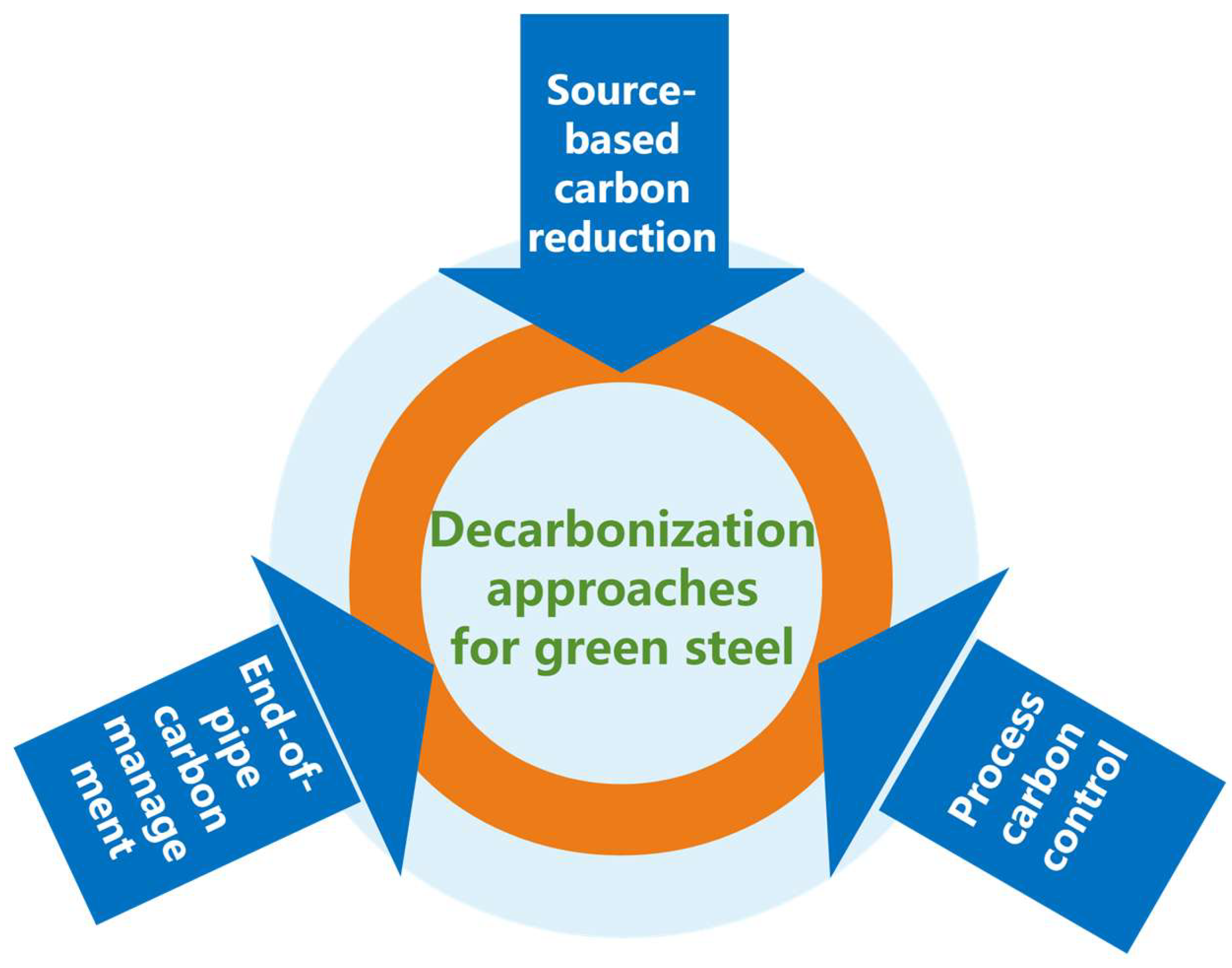

Currently, the primary strategies for controlling excessive CO₂ emissions and reducing energy consumption in the steel industry can be summarized into four approaches:

• Replacing conventional energy sources with clean energy;
• Improving energy utilization efficiency;
• Advancing fundamental research on energy utilization theories;
• Implementing carbon capture and resource utilization [6].

The adoption of clean energy alternatives enables source-level control of carbon emissions by fundamentally reducing CO₂ generation. Carbon capture and resource utilization technologies focus on recovering emitted CO₂ and converting it into valuable resources to minimize atmospheric release. Meanwhile, enhancing energy efficiency and developing foundational energy utilization theories can optimize energy consumption processes for better carbon emission management. Collectively, these four strategies address three critical phases of decarbonization: source-level emission reduction, process-level carbon control, and end-of-pipe carbon mitigation [7]. As illustrated in Figure 4, the analysis of green steelmaking pathways systematically integrates these strategies to achieve sustainable production objectives.

3. Decarbonization Pathways for BF-BOF Long-Process Steelmaking

Achieving carbon reduction in the blast furnace–basic oxygen furnace (BF-BOF) long process fundamentally challenges the century-old carbon-based reduction and smelting system. Although technologies such as hydrogen metallurgy and oxygen-enriched combustion provide new pathways for reducing carbon emissions, their application in blast furnaces faces thermodynamic limitations (e.g., temperature, reduction efficiency, and energy balance), sunk costs of existing BF–BOF infrastructure (amounting to hundreds of billions of dollars), and the immaturity of green hydrogen supply systems. These factors collectively create multiple barriers to low-carbon transition in the BF-BOF route. Therefore, the BF-BOF process must ensure steel supply security while gradually transitioning from “carbon metallurgy” to “green metallurgy”, which represents a critical challenge in the global steel industry’s low-carbon revolution.

3.1. Source-Stage Carbon Reduction

The BF–BOF long process dominates global steel production, contributing 71% of crude steel output. However, its high carbon emissions and energy consumption remain key challenges for the industry’s low-carbon transformation. Given the current limitations of electric arc furnace (EAF) short-process steelmaking in achieving large-scale substitution, innovative carbon reduction strategies for BOF processes are crucial. Source-stage carbon reduction focuses on optimizing raw materials, including increasing the use of low-carbon hot metal and enhancing scrap steel consumption. Methods to produce low-carbon hot metal include high-proportion pellet charging, oxygen-enriched injection, full-oxygen smelting, biomass/plastic/hydrogen injection, and blast furnace gas recycling. While many of these technologies remain immature (e.g., pilot technologies shown in Table 1), high-proportion pellet charging is relatively feasible for most enterprises. This study proposes a dual-carbon-reduction strategy: developing large-proportion pellet-based low-carbon metallurgy to produce low-carbon hot metal and establishing efficient scrap utilization systems to increase scrap ratios. Quantitative analysis shows that each 1% increase in the scrap ratio reduces carbon emissions by 16 kg per ton of steel [8], highlighting the advantages of a circular economy. Therefore, exploring the synergy between large-proportion pellet smelting for low-carbon hot metal production and advanced scrap utilization technologies will be critical for achieving deep decarbonization in BOF steelmaking.

Table 1. Pilot technologies for source-stage carbon reduction in BF-BOF long-process steelmaking.

Technology Name	Description	Industrial Maturity
3R Carbon-Hydrogen BF Technology [9]	Recirculates reducing gases from furnace gas and enhances reduction via carbon–hydrogen coupling, reducing coke consumption	Pilot stage (partial demonstration)
Top Gas Recycling and Full-Oxygen Smelting [10]	Injects hydrogen-enriched gas after CO2 separation and reduces coke ratio through full-oxygen blast	Demonstration stage (under validation)
Fluxed Pellets and Composite Iron Coke [11]	Replaces traditional sinter with low-carbon burden to reduce flux demand	Small-scale application
Hydrogen-Blended Injection [12]	Co-injects hydrogen with natural gas/pulverized coal to progressively replace fossil fuels	Pilot stage (exploratory development)
High-Grade Ore & Pellets [13]	Reduces sintering energy consumption by adopting high-grade ore and pellets	Gradual adoption (partial industrial use)
Biomass Fuel Substitution [14]	Substitutes coke breeze/anthracite with charcoal/biomass to reduce fossil carbon reliance	Limited pilot trials
Plasma Blast Heating [15,16]	Enhances blast temperature using green electricity-driven plasma to lower coke demand	Demonstration stage

Table 1. Pilot technologies for source-stage carbon reduction in BF-BOF long-process steelmaking.

Technology Name	Description	Industrial Maturity
3R Carbon-Hydrogen BF Technology [9]	Recirculates reducing gases from furnace gas and enhances reduction via carbon–hydrogen coupling, reducing coke consumption	Pilot stage (partial demonstration)
Top Gas Recycling and Full-Oxygen Smelting [10]	Injects hydrogen-enriched gas after CO2 separation and reduces coke ratio through full-oxygen blast	Demonstration stage (under validation)
Fluxed Pellets and Composite Iron Coke [11]	Replaces traditional sinter with low-carbon burden to reduce flux demand	Small-scale application
Hydrogen-Blended Injection [12]	Co-injects hydrogen with natural gas/pulverized coal to progressively replace fossil fuels	Pilot stage (exploratory development)
High-Grade Ore & Pellets [13]	Reduces sintering energy consumption by adopting high-grade ore and pellets	Gradual adoption (partial industrial use)
Biomass Fuel Substitution [14]	Substitutes coke breeze/anthracite with charcoal/biomass to reduce fossil carbon reliance	Limited pilot trials
Plasma Blast Heating [15,16]	Enhances blast temperature using green electricity-driven plasma to lower coke demand	Demonstration stage

3.1.1. Application Case Studies of High-Proportion Pellet Charging in Blast Furnaces

The high-proportion pellet charging technology in blast furnaces significantly reduces fuel consumption and carbon emissions by optimizing raw material quality, adjusting operational parameters, and innovating burden distribution methods. In China, enterprises such as Shougang and Tangsteel have achieved efficient low-carbon production through refined management and process innovation. In the EU and North America, breakthroughs in environmental and economic performance have been realized by leveraging high-quality pellet resources and mature technical systems.

By replacing traditional sinter, high-pellet-ratio smelting has become a critical pathway for low-carbon ironmaking, reducing carbon emissions by 12~35% (e.g., 35% reduction at SSAB Sweden [17], 18% at Shougang Jingtang [18]) while improving fuel efficiency (e.g., fuel ratios of 430 kg/t at U.S. Great Lakes Steel and 497 kg/t at Kobe Steel Japan). Representative cases include: Shougang Jingtang’s 5500 m³ blast furnace with a blast kinetic energy of 140 kJ/s, SSAB’s full-pellet smelting process achieving a slag generation rate of 146 kg/t, and Kobe Steel’s coke interlayer charging method reducing pressure differential by 15%. These cases demonstrate innovations in raw material compatibility, operational optimization, and localized resource utilization. A comparative analysis of their technical pathways, emission reduction potential, and limitations is systematically presented in Table 2.

Table 2. Application cases of blast furnace smelting with high pellet ratio.

Project Name	BF Volume (m3)	Pellet Ratio	Fuel Ratio (kg/t HM)	Coke Rate (kg/t HM)	Productivity (t/(m3·d))	Carbon Reduction (Baseline)	Technical Highlights	Advantages	Limitations	Distinctive Features
Shougang Jingtang No. 1	5500	>50%	510	264	2.15	18% (CN: 1.8 tCO2/t HM) [19]	High O2 (7.3%), top pressure 277 kPa, blast 8300 m3/min [20]	Gas utilization 49~50%, stable Si < 0.3%	Pellet strength > 3200 N, cost +10%	Blast energy 140 kJ/s, Zn < 160 g/t
Tangsteel No. 2	2922	40%	510	313	3.066	12% (CN baseline)	Tuyere area 0.4051 m2, blast temp. 1220 °C, slag Al2O3 < 16.5%	Slag/HM 210 kg/t, HM temp. >1500°C [18]	RDI fluctuation ±5% [21]	Fluxed pellet RDI + 6.3 > 90%, MgO/Al2O3 0.5~0.55
SSAB Sweden	1800	~100%	457 (H2-DRI)	—	3.5	35% (EU: 1.6 tCO2/t HM)	Full-pellet, TFe > 66.8%, slag 146 kg/t	Flue gas −28%, HM cost €15/t	Pellet energy +20%	Slag FeO < 0.5%, S < 0.02% [17]
U.S. Great Lakes	1645	92%	430 (coke + coal)	270	2.31	22% (NA: 1.7 tCO2/t HM)	Fluxed pellets (52%), slag < 200 kg/t	Flux −40%, HM cost $8/t	Heat load ±10 °C adjustments	Basicity (CaO/SiO2) 1.2~1.5
Kobe Steel No. 3	4850	100%	497	275	2.91	25% (JP: 1.5 tCO2/t HM)	Coke interlayer, O2 > 8%, flame 2250~2400 °C	ΔP −15%, Temp. error ±20 °C	Basicity ±0.1 (limestone needed)	Coke layer 80~100 mm, permeability +12% [17,22]

Table 2. Application cases of blast furnace smelting with high pellet ratio.

Project Name	BF Volume (m3)	Pellet Ratio	Fuel Ratio (kg/t HM)	Coke Rate (kg/t HM)	Productivity (t/(m3·d))	Carbon Reduction (Baseline)	Technical Highlights	Advantages	Limitations	Distinctive Features
Shougang Jingtang No. 1	5500	>50%	510	264	2.15	18% (CN: 1.8 tCO2/t HM) [19]	High O2 (7.3%), top pressure 277 kPa, blast 8300 m3/min [20]	Gas utilization 49~50%, stable Si < 0.3%	Pellet strength > 3200 N, cost +10%	Blast energy 140 kJ/s, Zn < 160 g/t
Tangsteel No. 2	2922	40%	510	313	3.066	12% (CN baseline)	Tuyere area 0.4051 m2, blast temp. 1220 °C, slag Al2O3 < 16.5%	Slag/HM 210 kg/t, HM temp. >1500°C [18]	RDI fluctuation ±5% [21]	Fluxed pellet RDI + 6.3 > 90%, MgO/Al2O3 0.5~0.55
SSAB Sweden	1800	~100%	457 (H2-DRI)	—	3.5	35% (EU: 1.6 tCO2/t HM)	Full-pellet, TFe > 66.8%, slag 146 kg/t	Flue gas −28%, HM cost €15/t	Pellet energy +20%	Slag FeO < 0.5%, S < 0.02% [17]
U.S. Great Lakes	1645	92%	430 (coke + coal)	270	2.31	22% (NA: 1.7 tCO2/t HM)	Fluxed pellets (52%), slag < 200 kg/t	Flux −40%, HM cost $8/t	Heat load ±10 °C adjustments	Basicity (CaO/SiO2) 1.2~1.5
Kobe Steel No. 3	4850	100%	497	275	2.91	25% (JP: 1.5 tCO2/t HM)	Coke interlayer, O2 > 8%, flame 2250~2400 °C	ΔP −15%, Temp. error ±20 °C	Basicity ±0.1 (limestone needed)	Coke layer 80~100 mm, permeability +12% [17,22]

High-proportion pellet smelting reduces carbon emission intensity by 12~35% (e.g., 25% at Kobe Steel Japan and 35% at SSAB Sweden [17]) while improving fuel efficiency (e.g., a fuel ratio of 430 kg/t at U.S. Great Lakes Steel) and lowering hot metal production costs (e.g., $8/t reduction in the U.S. and €15/t at SSAB). This is achieved through three integrated strategies: high-grade raw materials (SSAB’s pellets with TFe > 66.8% [17]), advanced process refinement (Shougang Jingtang’s optimized blast kinetic energy of 140 kJ/s [19]), and slag system optimization (Tangsteel’s MgO/Al₂O₃ ratio control at 0.5~0.55). The advantages are mainly due to the improvement of thermal efficiency and the strengthening of reaction process control brought by the improvement of raw material quality and the optimization of process parameters, whereas the disadvantages are mostly related to the preparation cost of raw materials, the sensitivity of multi-variable system disturbance, and the limitations of the existing blast furnace system.

However, challenges remain, including high raw material costs (SSAB’s pellet preparation energy consumption increases by 20%), process instability (Tangsteel’s ±5% fluctuation in pellet RDI [21]), and equipment compatibility limitations (Kobe Steel’s basicity fluctuations of ±0.1 requiring limestone adjustments [22]). Future development requires integrating hydrogen–electricity–pellet hybrid technologies, pelletization processes adaptable to low-grade ores, and intelligent control systems. Supported by advancing carbon pricing mechanisms and growing demand for green steel, high-pellet-ratio smelting is transitioning from pilot demonstrations to global scalability. This technology will serve as a pillar for the steel industry’s transition toward “near-zero carbon” goals, ensuring the sustainable competitiveness of blast furnace ironmaking in the carbon-neutral era.

3.1.2. Application Case Studies of High-Scrap-Ratio Steelmaking

High-scrap-ratio steelmaking, a core pathway for low-carbon transition in the steel industry, significantly reduces reliance on iron ore and coke by increasing scrap steel utilization in raw materials (10~100%), achieving a 6~78% reduction in carbon emissions per ton of steel. Its techno-economic feasibility depends on process type (BOF scrap preheating, EAF-based hybrid routes), resource availability (scrap/DRI supply, energy prices), and policy frameworks (carbon tax, green power subsidies). In current mainstream processes, the scrap ratio typically ranges from 10~25% in conventional BF-BOF routes, while EAF short processes under green electricity support can reach 80~100%, albeit facing challenges in scrap impurity control (Cu, Sn < 0.2%) and preheating costs (50~100 CNY/t).

Table 3 presents global case studies of scrap utilization across different process types, comparing technical configurations, carbon reduction performance, and economic viability.

Table 3. Representative cases and technical solutions for high-scrap-ratio steelmaking.

Company	Process Type	Scrap Ratio	Key Technical Support	Carbon Reduction Effect	Cost Change	Applicable Scenarios
Tangsteel	BF-BOF Synergy	10% [23]	Direct scrap charging + hot metal ladle preheating	6% reduction in CO2/t steel	5.8% lower hot metal cost	Abundant hot metal, retrofit constraints
JFE Steel	BOF-SMP Process	35% [24]	Scrap pre-melting + secondary combustion oxygen lance	15% reduction in CO2/t steel	12% lower fuel cost	Scrap availability, upgrade-capable equipment
ThyssenKrupp	BOF-Jet Process	40%	Natural gas injection preheating + dynamic thermal model [25]	18% reduction in CO2/t steel	5~9% higher profit/t steel	Carbon tax > $50/t
NuCOr	EAF-BOF Hybrid	86%	EAF scrap melting + DRI blending [26]	78% reduction in CO2/t steel	10~15% lower cost/t steel	Green power access, stable DRI supply
Danieli Q-One	100% Scrap EAF	100%	Oxy-fuel burners + carbon powder injection	Near-zero carbon (green power)	>500 kWh/t power consumption	Zero-carbon steel certification required

Table 3. Representative cases and technical solutions for high-scrap-ratio steelmaking.

Company	Process Type	Scrap Ratio	Key Technical Support	Carbon Reduction Effect	Cost Change	Applicable Scenarios
Tangsteel	BF-BOF Synergy	10% [23]	Direct scrap charging + hot metal ladle preheating	6% reduction in CO2/t steel	5.8% lower hot metal cost	Abundant hot metal, retrofit constraints
JFE Steel	BOF-SMP Process	35% [24]	Scrap pre-melting + secondary combustion oxygen lance	15% reduction in CO2/t steel	12% lower fuel cost	Scrap availability, upgrade-capable equipment
ThyssenKrupp	BOF-Jet Process	40%	Natural gas injection preheating + dynamic thermal model [25]	18% reduction in CO2/t steel	5~9% higher profit/t steel	Carbon tax > $50/t
NuCOr	EAF-BOF Hybrid	86%	EAF scrap melting + DRI blending [26]	78% reduction in CO2/t steel	10~15% lower cost/t steel	Green power access, stable DRI supply
Danieli Q-One	100% Scrap EAF	100%	Oxy-fuel burners + carbon powder injection	Near-zero carbon (green power)	>500 kWh/t power consumption	Zero-carbon steel certification required

As outlined in Table 3, high-scrap-ratio steelmaking has become a core pathway in the global steel industry’s low-carbon transformation, achieving carbon reduction and efficiency improvements through process innovation and policy coordination, yet facing multiple challenges. In current technological practices, traditional long-process routes have significantly enhanced efficiency through scrap preheating and multi-process synergy. For instance, Tangsteel increased its BOF scrap ratio to 30~40% [23,24] by adopting hot metal ladle preheating, full-laddle covering, and dynamic thermal balance models, reducing steelmaking costs by 5.8%. Shougang Jingtang achieved a 50% scrap ratio in continuous casting for automotive steel production through dynamic thermal control and plans to test 55%, highlighting the potential of optimizing long-process routes. In electric arc furnace (EAF) processes, the near-zero-carbon EAF technology developed by Prof. Zhu Rong’s team at the University of Science and Technology Beijing integrated wind–solar-storage microgrids and hydrogen burners, reducing green power costs to 0.2~0.3 CNY/kWh (0.03~0.04 USD/kWh) [27], while achieving near-zero process emissions via CO₂ injection for nitrogen control and biomass gas substitution for carbon powder.

The scalability of these technologies still faces dual challenges: material compatibility and energy economics. Impurities in scrap steel, such as copper and tin (e.g., purchased scrap containing 0.3~0.6% Cu), restrict high-grade steel production, necessitating pretreatment technologies like magnetic separation and eddy current sorting, as well as molten iron denitrification and residual element control. Green power and supplemental heating costs remain critical barriers. Prof. Zhu’s “EAF-energy storage-renewables” microgrid system [27] reduces energy consumption through peak shaving, while hydrogen-based reduction replaces carbon reductants, cutting emissions by 150 kg CO₂ per ton of steel.

Future advancements require policy-driven and industry-chain collaboration. China’s Steel Industry Standard Conditions (2025 Edition) set a target of 15% EAF steel share, and carbon taxes (>80 USD/t) combined with green steel certifications will accelerate the transition of BF–BOF capacities. Technology development will focus on three directions: maximizing long-process potential through BOF powder injection to increase dephosphorization rates to 92~95% and scrap ratios beyond 50%; advancing EAF purification via green power integration and intelligent controls, such as AI algorithms optimizing smelting parameters to reduce waiting time by 5~8 min per heat; and integrating hydrogen metallurgy, with projections indicating that full-scrap EAFs will account for 56.1% of production by 2045, complemented by hydrogen reduction–EAF routes at 17%, forming a “short-process dominant, hydrogen-supplemented” structure. Supported by expanding scrap resources (China’s annual scrap output exceeding 300 million tones by 2025) and a global trade network (import tariffs < 5%), the steel industry aims to reduce carbon emissions to below 0.2 tons CO₂ per ton of steel by 2060, providing critical support for carbon neutrality goals.

3.2. Process Carbon Control

Driven by global carbon peaking and neutrality goals, the steel industry—as a major carbon emitter—urgently requires technological innovations to achieve dual breakthroughs in process decarbonization and quality enhancement. Long-process steelmaking, characterized by high energy consumption and emissions, has become a critical focus for low-carbon transformation. Process carbon control technologies, serving as the nexus between energy utilization and metallurgical reactions, are evolving from single-factor efficiency optimization to integrated innovations involving multi-medium synergy and full-process dynamic regulation. As shown in Table 4, technologies such as sub-lance/online detection and AI-powered endpoint prediction models are under active development. This study focuses on the more mature BOF bottom-blowing O₂-CO₂-CaO technology, which significantly improves efficiency through process innovation during the core decarbonization stage of BOF operations and has been applied at the industrial scale.

Representing advanced low-carbon metallurgical practices, BOF bottom-blowing O₂-CO₂-CaO technology optimizes gas medium composition and equipment design, enhancing steel cleanliness and smelting efficiency while enabling in situ CO₂ resource utilization. By replacing traditional inert gases with CO₂-containing media, this technology reduces slag oxidation and improves dephosphorization rates, achieving 15~20% lower oxygen consumption and a 5~8% reduction in iron loss compared to conventional methods. Its ability to simultaneously enhance product quality and carbon utilization has positioned it as a strategic priority in global steel technology competition.

Table 4. Analysis of process carbon control technologies in BF–BOF long process.

Technology Name	Core Function	Application Maturity *
Sub-lance/Online Detection [28]	Real-time monitoring of molten steel composition and temperature to optimize smelting rhythm	Widely adopted
Coolant Control [29]	Precise regulation of furnace temperature and molten steel composition stability	Mature application
Endpoint Prediction Model (AI) [30]	Machine learning-based prediction of smelting endpoint parameters	Promotion and validation phase
Digital Twin and Simulation [31]	Virtual production line modeling for process optimization	Promotion and validation phase
RH Vacuum Degassing [32]	Efficient removal of gases and inclusions in steel	Mature application (high-grade steel)
LF Refining [33]	Fine-tuning of temperature/composition and inclusion control	Widely adopted
CAS-OB [34]	Rapid alloy adjustment and temperature boosting	Mature application (small–medium mills)
CO2 as Oxidizer [35,36]	Replaces O2 for decarbonization, desiliconization, and demanganization, reducing oxygen content	Industrial trial stage
CO2 as Stirring Gas [37,38]	Enhances bath stirring, improves composition homogeneity, and lowers nitrogen content	Industrial adoption phase
CO2 as Protective Gas [39,40]	Continuous casting protection and ladle covering to suppress reoxidation and nitrogen pickup	Industrial trial stage
CO2 Temperature Control and Dust Suppression [41,42]	Reduces localized temperature, minimizes metal evaporation, and suppresses dust generation	Laboratory research stage

* Application maturity detailed explanation is in Appendix A of

Table A1. Technology maturity levels—definitions and status.

Term	Definition and Characteristics	Technical Status
Widely adopted	Broadly used across the industry; standardized and stable processes	Commercialized, stable operation
Mature application	Reliable with clear cost benefits; widely accepted by major firms	Commercial maturity
Promotion and validation phase	Technically validated; pilot trials ongoing at several sites	Industrial pilot + commercial assessment
Industrial trial stage	Under evaluation at specific plants; performance and cost not yet stable	Multiple test cycles required
Industrial adoption phase	Operating in select industrial lines; nearing full commercialization	Semi-standardized, developing infrastructure
Laboratory research stage	Limited to lab-scale or theoretical research; not yet industrially verified	High innovation potential, high risk

.

Table 4. Analysis of process carbon control technologies in BF–BOF long process.

Technology Name	Core Function	Application Maturity *
Sub-lance/Online Detection [28]	Real-time monitoring of molten steel composition and temperature to optimize smelting rhythm	Widely adopted
Coolant Control [29]	Precise regulation of furnace temperature and molten steel composition stability	Mature application
Endpoint Prediction Model (AI) [30]	Machine learning-based prediction of smelting endpoint parameters	Promotion and validation phase
Digital Twin and Simulation [31]	Virtual production line modeling for process optimization	Promotion and validation phase
RH Vacuum Degassing [32]	Efficient removal of gases and inclusions in steel	Mature application (high-grade steel)
LF Refining [33]	Fine-tuning of temperature/composition and inclusion control	Widely adopted
CAS-OB [34]	Rapid alloy adjustment and temperature boosting	Mature application (small–medium mills)
CO2 as Oxidizer [35,36]	Replaces O2 for decarbonization, desiliconization, and demanganization, reducing oxygen content	Industrial trial stage
CO2 as Stirring Gas [37,38]	Enhances bath stirring, improves composition homogeneity, and lowers nitrogen content	Industrial adoption phase
CO2 as Protective Gas [39,40]	Continuous casting protection and ladle covering to suppress reoxidation and nitrogen pickup	Industrial trial stage
CO2 Temperature Control and Dust Suppression [41,42]	Reduces localized temperature, minimizes metal evaporation, and suppresses dust generation	Laboratory research stage

* Application maturity detailed explanation is in Appendix A of Table A1.

BOF bottom-blowing O₂-CO₂-CaO technology involves the simultaneous injection of oxygen (O₂), carbon dioxide (CO₂), and calcium oxide (CaO) fluxing agents through the bottom of the converter. By enhancing the efficiency of oxidation reactions within the furnace and optimizing atmosphere and temperature control, this technology significantly improves molten steel quality while reducing energy consumption and carbon emissions. The combined use of bottom-blown O₂ and CO₂ not only accelerates the smelting process but also minimizes nitride formation (e.g., TiN, AlN) and harmful gas generation (e.g., NO_x), advancing low-carbon steelmaking technologies. The technical characteristics and emission reduction effects of global industrial applications are systematically analyzed in Table 5, highlighting case studies from leading steel enterprises.

Table 5. Extended application cases of BOF bottom-blowing O₂-CO₂-CaO technology.

Country	Company/Project	Technical Features and Outcomes	Key Data and Emission Reduction
China	HBIS Handan 120 t BOF Project	Optimized bottom tuyere layout enhances stirring; external trunnion design simplifies structure, enabling high gas flow rates	Carbon-oxygen product: 0.0026 [43]; bottom-blowing lifespan matches furnace campaign; energy consumption reduced by 10%
China	Ansteel	Patented bottom-blowing components (eccentric gas ducts + bent nozzles) widen injection angles, improving bath dynamics	Enhanced process visibility; smelting efficiency +15%; oxygen consumption −10% [44]
China	JISCO Group	High-intensity CO2 bottom-blowing (0.21 m3/(t·min)) with N2/Ar switching optimizes final steel composition	Final nitrogen content <20 ppm; de-phosphorization rate +8%; CO2 emissions −15% [45]
China	Baosteel	Annular-gap swirling bottom-blowing device with multi-layer sleeve design enhances gas flow, reducing inclusions [46]	Steel cleanliness +20%; slag volume −30%; dust emissions −25% [47]
Germany	ThyssenKrupp	O2-CO2 hybrid bottom-blowing with off-gas recycling optimizes slag oxidation	Annual CO2 reduction: 2 million tonnes [48]; gas consumption −20%.
Japan	Nippon Steel	O2-CO2 bottom-blowing + CaO optimization reduces final oxygen content and boosts de-phosphorization	De-sulfurization rate +10%; final nitrogen content −20% [49]
Europe	ThyssenKrupp Decarb Project	Produces low-carbon steel via EAF technology, reducing emissions by 70% and driving green supply chains	CO2 emissions −70%; applied in Volkswagen’s supply chain [48]

Table 5. Extended application cases of BOF bottom-blowing O₂-CO₂-CaO technology.

Country	Company/Project	Technical Features and Outcomes	Key Data and Emission Reduction
China	HBIS Handan 120 t BOF Project	Optimized bottom tuyere layout enhances stirring; external trunnion design simplifies structure, enabling high gas flow rates	Carbon-oxygen product: 0.0026 [43]; bottom-blowing lifespan matches furnace campaign; energy consumption reduced by 10%
China	Ansteel	Patented bottom-blowing components (eccentric gas ducts + bent nozzles) widen injection angles, improving bath dynamics	Enhanced process visibility; smelting efficiency +15%; oxygen consumption −10% [44]
China	JISCO Group	High-intensity CO2 bottom-blowing (0.21 m3/(t·min)) with N2/Ar switching optimizes final steel composition	Final nitrogen content <20 ppm; de-phosphorization rate +8%; CO2 emissions −15% [45]
China	Baosteel	Annular-gap swirling bottom-blowing device with multi-layer sleeve design enhances gas flow, reducing inclusions [46]	Steel cleanliness +20%; slag volume −30%; dust emissions −25% [47]
Germany	ThyssenKrupp	O2-CO2 hybrid bottom-blowing with off-gas recycling optimizes slag oxidation	Annual CO2 reduction: 2 million tonnes [48]; gas consumption −20%.
Japan	Nippon Steel	O2-CO2 bottom-blowing + CaO optimization reduces final oxygen content and boosts de-phosphorization	De-sulfurization rate +10%; final nitrogen content −20% [49]
Europe	ThyssenKrupp Decarb Project	Produces low-carbon steel via EAF technology, reducing emissions by 70% and driving green supply chains	CO2 emissions −70%; applied in Volkswagen’s supply chain [48]

Global implementation of BOF bottom-blowing O₂-CO₂-CaO technology demonstrates that diversified gas injection media and equipment innovations effectively drive the low-carbon transition of the steel industry. HBIS Handan optimized molten bath stirring efficiency through tuyere layout adjustments, achieving a groundbreaking carbon-oxygen product of 0.0026. Ansteel’s patented eccentric gas duct design increased smelting efficiency by 15% while reducing oxygen consumption. Baosteel’s annular-gap swirling device improved steel cleanliness by 20% and significantly reduced dust emissions. ThyssenKrupp in Germany integrated off-gas recycling systems to achieve annual CO₂ reductions of 2 million tons, while Nippon Steel in Japan advanced endpoint control technologies, boosting de-sulfurization rates by 10% and lowering final nitrogen content. Notably, JISCO Group’s high-intensity CO₂ injection process with nitrogen–argon switching stabilized endpoint nitrogen content below 20 ppm and pioneered in situ CO₂ utilization. Despite regional differences in technical focus—China emphasizes equipment innovation, Germany prioritizes system integration, and Japan specializes in endpoint control—all approaches achieved 15~25% efficiency gains, 10~20% energy savings, and 15~70% CO₂ reductions, validating the dual advantages of process carbon control and product quality enhancement in long-process steelmaking.

Risk Analysis and Strategic Recommendations

Summary of Major Risks:

• Complex technical structure requiring high-precision injection and control systems;
• High investment and operating costs, making the technology sensitive to financial capacity and policy support;
• Significant challenges in system integration, with substantial retrofit demands for conventional processes;
• Precise coordination needed between gas control and final molten steel quality, resulting in high operational thresholds.

Recommended Directions:

• Promote standardized equipment design and material optimization to extend the service life of injection components;
• Develop intelligent gas control systems to enhance process robustness;
• Integrate with CO₂ capture and recycling systems to achieve closed-loop carbon utilization;

Leverage policy instruments (e.g., carbon pricing, green credit mechanisms) to improve economic feasibility and lower the entry barrier for small and medium-sized enterprises.

3.3. End-of-Pipe Carbon Mitigation

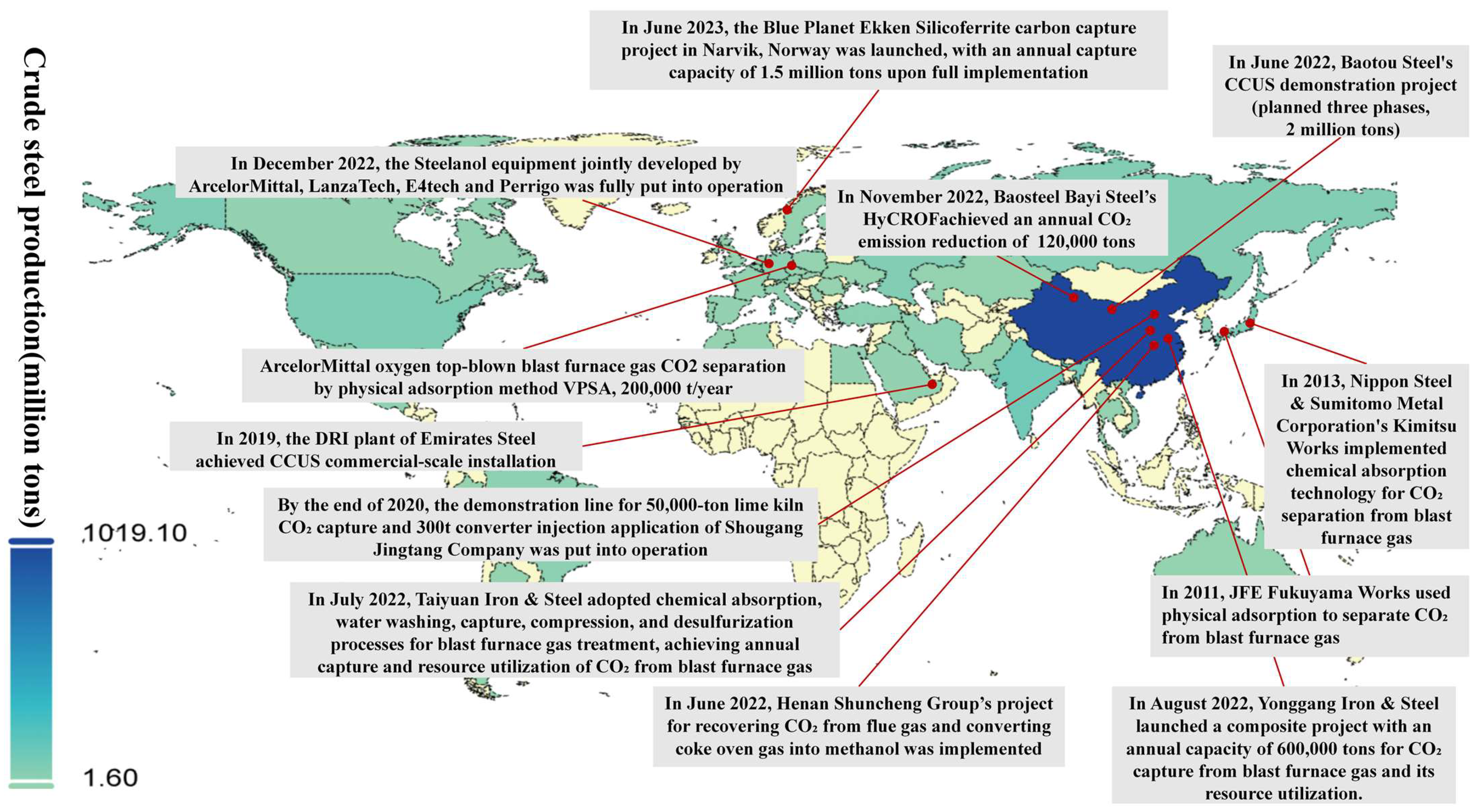

Current research on end-of-pipe carbon mitigation technologies for long-process steelmaking focuses on four key directions:

• Oxygen-enriched and CO₂ pre-concentration technologies: Including sinter carbon pre-concentration, lime kiln carbon pre-concentration, BF oxygen enrichment, and BF CO₂ enrichment.
• Low-cost carbon capture driven by waste heat: Analyzing steel process energy consumption, coupling medium–low temperature flue gas waste heat with carbon capture.
• CO₂ conversion to reducing gases: Catalytic hydrogenation of CO₂ (using coke oven gas-derived blue hydrogen) and CO₂ electrolysis for syngas production.
• Recycling of conversion products: Steel slag carbonation and direct utilization of CO₂ in iron/steelmaking.

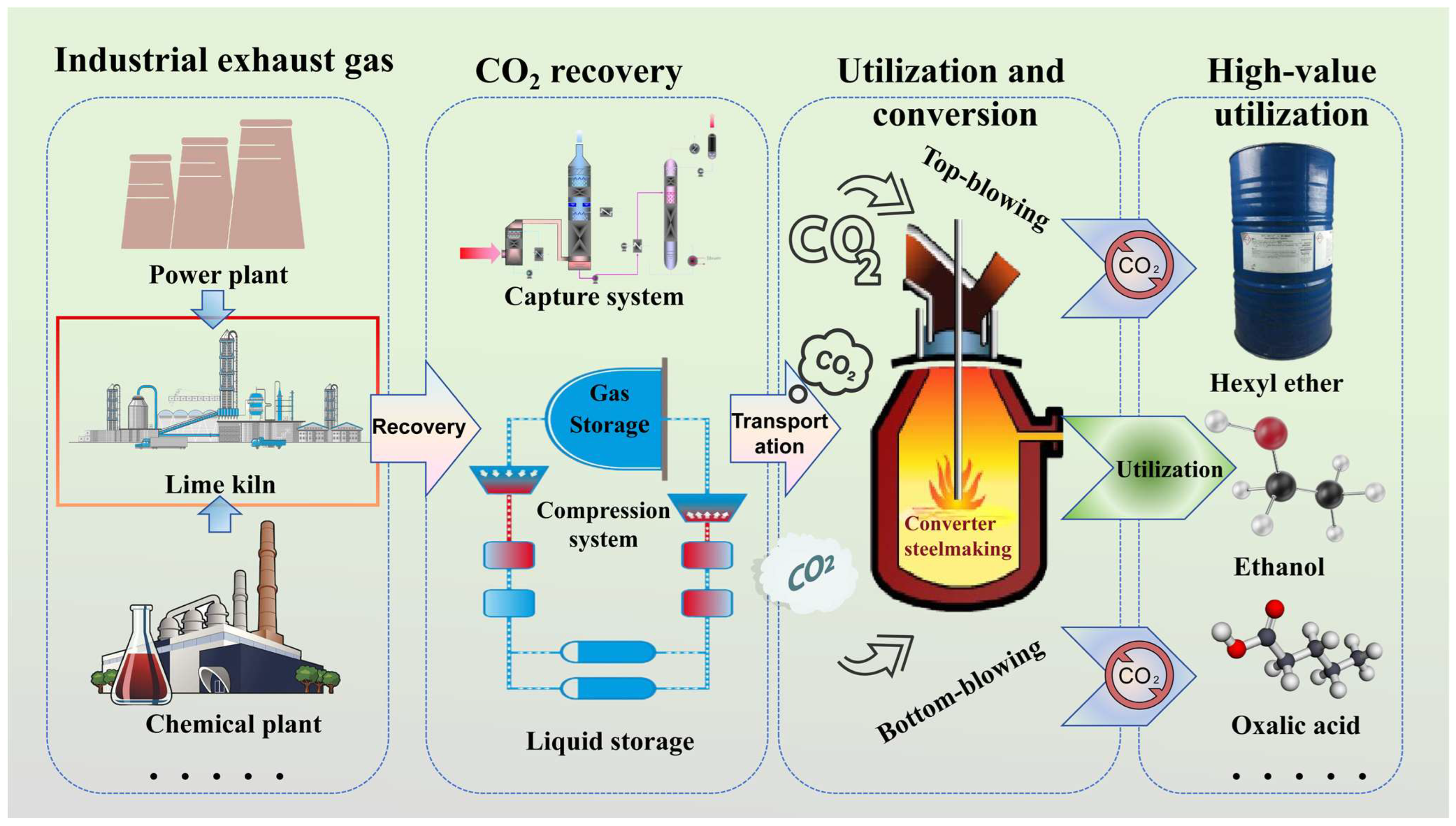

By integrating CO₂ capture–conversion–utilization systems, breakthroughs aim to leverage medium–low temperature waste heat for carbon capture, directly utilize CO₂ in metallurgical processes, and develop steel-specific carbon cycle pathways. This section focuses on analyzing CO₂ recycling steelmaking technologies and carbon capture case studies.

3.3.1. CO₂ Recycling in Steelmaking Technologies

A team led by Professor Zhu Rong at the University of Science and Technology Beijing developed CO₂-utilizing steelmaking technology, integrating CO₂ into BOF operations to address challenges such as dephosphorization, denitrification, oxygen control, and bottom-blowing longevity. At Shougang Jingtang’s 300 t BOF, CO₂ is utilized for process optimization (Table 6 summarizes the key technologies). By enhancing dephosphorization/decarburization efficiency, suppressing metal evaporation, and adsorbing inclusions, this technology establishes a carbon cycle. Life cycle assessment (LCA) shows the following:

• 4.09 kg/t reduction in iron consumption;
• 3.73% increase in CO concentration in off-gas;
• 5.57 Nm³/t increase in gas recovery;
• 10.08 kg/t steel CO₂ utilization;
• 6.12 kgce/t reduction in energy consumption;
• 26.28 kg/t steel CO₂ emission reduction.

As illustrated in Figure 5, CO₂ recycling involves capturing, compressing, storing, and converting industrial off-gas (e.g., from steel mills and power plants) into high-value products like ethanol and oxalic acid, while enabling efficient industrial applications in metallurgy.

Table 6. Analysis of CO₂ recycling technologies.

Technology Name	Core Function	Application Maturity
CO2-O2 Mixed Injection Dephosphorization [50,51]	Optimizes thermodynamic conditions for dephosphorization, improving efficiency	Industrial trial stage
CO2 in AOD Furnace Decarburization [52,53]	Utilizes CO2′s weak oxidation to selectively decarburize stainless steel, reducing Cr loss	Industrial adoption phase
CO2-Enhanced EAF Smelting [54]	Suppresses metal evaporation in arc zones via CO2 injection, lowering electrode consumption	Industrial trial stage
CO2-CCUS Integration [55]	Captures and reuses steel plant off-gas CO2 in steelmaking, forming a carbon loop	Demonstration project stage
Dynamic CO2 Injection Control Model [51]	Adjusts CO2 flow in real-time based on bath sensor feedback to optimize decarburization rate	Laboratory research stage
CO2 for RH Refining Oxygen Control [56]	Replaces partial Ar with CO2 in vacuum degassing to reduce molten steel oxygen content	Industrial trial stage
CO2-Powder Injection Synergy [57]	Uses CO2 as carrier gas for desulfurizers (CaO/Mg), enhancing interfacial mass transfer	Laboratory research stage
CO2 Inclusion Removal [58]	Generates dispersed CO bubbles via CO2 reactions to adsorb micro-inclusions	Theoretical validation stage

Table 6. Analysis of CO₂ recycling technologies.

Technology Name	Core Function	Application Maturity
CO2-O2 Mixed Injection Dephosphorization [50,51]	Optimizes thermodynamic conditions for dephosphorization, improving efficiency	Industrial trial stage
CO2 in AOD Furnace Decarburization [52,53]	Utilizes CO2′s weak oxidation to selectively decarburize stainless steel, reducing Cr loss	Industrial adoption phase
CO2-Enhanced EAF Smelting [54]	Suppresses metal evaporation in arc zones via CO2 injection, lowering electrode consumption	Industrial trial stage
CO2-CCUS Integration [55]	Captures and reuses steel plant off-gas CO2 in steelmaking, forming a carbon loop	Demonstration project stage
Dynamic CO2 Injection Control Model [51]	Adjusts CO2 flow in real-time based on bath sensor feedback to optimize decarburization rate	Laboratory research stage
CO2 for RH Refining Oxygen Control [56]	Replaces partial Ar with CO2 in vacuum degassing to reduce molten steel oxygen content	Industrial trial stage
CO2-Powder Injection Synergy [57]	Uses CO2 as carrier gas for desulfurizers (CaO/Mg), enhancing interfacial mass transfer	Laboratory research stage
CO2 Inclusion Removal [58]	Generates dispersed CO bubbles via CO2 reactions to adsorb micro-inclusions	Theoretical validation stage

3.3.2. Case Analysis of Carbon Capture: Pressure Swing Adsorption (PSA) and Chemical Absorption

Pressure swing adsorption (PSA) separates CO₂ from gas mixtures (e.g., N₂, O₂) by leveraging differences in adsorption affinity and capacity on adsorbent media. CO₂ is adsorbed under high pressure and released during low-pressure desorption, achieving adsorbent regeneration and CO₂ enrichment. The technology has an operating cost of 300~500 CNY/t CO₂ and energy consumption of 2.5~2.8 GJ/t CO₂ (electricity). Its advantages include compact system size, low capital investment, and high-purity CO₂ output suitable for food-grade applications. However, it relies solely on electricity (unable to utilize in-plant steam), has limited CO₂ capture capacity, and requires improvements in adsorbent long-term stability.

Chemical absorption technology uses physical or chemical absorbents to capture CO₂ from gas mixtures. The absorbed CO₂ is released through heating, yielding high-concentration CO₂ gas via absorption–desorption cycles. This method incurs an operating cost of 300~400 CNY/t CO₂ and energy consumption of 3.4~3.9 GJ/t _CO2 (electricity + steam). While it offers large-scale capture capacity and matures operational stability, it faces challenges including high desorption energy consumption, severe equipment corrosion, significant solvent degradation and volatility losses, and substantial capital investment.

$$\mathrm{Reaction} \mathrm{Formula}: 2R{R}^{\prime }NH+C{O}_2\iff R{R}^{\prime }NCO{O}^{-}+R{R}^{\prime }N{H^{+}}_2$$

The operating cost of chemical absorption ranges from 300~400 CNY per ton of CO₂, with energy consumption of 3.4~3.9 GJ per ton of CO₂ (electricity and steam). While this technology offers large-scale capture capacity and mature, stable operation, it is constrained by high desorption energy consumption, severe equipment corrosion, significant solvent degradation and volatility losses, and high capital investment.

As shown in Figure 6, carbon capture, utilization, and storage (CCUS) technologies in the steel industry have transitioned from laboratory research to industrial-scale application, accelerating progress toward large-scale decarbonization. Carbon capture technologies have emerged as a core solution for end-of-pipe carbon mitigation in long-process steelmaking, with pressure swing adsorption (PSA) and chemical absorption achieving scaled implementation in low-concentration flue gas treatment and high-concentration carbon source capture, respectively, leveraging their distinct technical advantages. For instance, Shougang Jingtang’s PSA system integrated with waste heat recovery combines physical adsorption and energy cascade utilization to achieve an annual CO₂ reduction of 50,000 tons while reducing capture energy consumption by 20%. The project also innovates a synergistic decarbonization pathway by substituting argon with CO₂ in BOF injection. Conversely, chemical absorption demonstrates economic viability in high-concentration scenarios, such as Norway’s Elkem ferrosilicon plant with CO₂ concentrations exceeding 90%, forming a closed-loop solution through integration with geological storage. Current applications of these technologies span capture capacities of 150,000 to 1.5 million tons per year, with breakthroughs in energy efficiency (e.g., Dongfang Boiler’s 66% reduction in capture costs), high-value byproduct utilization (e.g., TISCO’s dry ice production generating CNY 30 million in annual revenue), and cross-sector integration (e.g., the UAE’s DRI-enhanced oil recovery project delivering USD 300 million in economic value). Table 7 systematically compares representative cases to reveal the intrinsic logic of technology selection and industrial scenario adaptation.

Table 7. Application cases of carbon capture: pressure swing adsorption (PSA) vs. chemical absorption.

Company/ Project	Technical Pathway and Process Features	Emission Reduction and Efficiency Data	Economic Benefits and Costs
Shougang Jingtang Lime Kiln CCUS Project (China)	Physical adsorption (PSA) + waste heat cascade utilization	Annual capture: 50,000 t; CO2 concentration: 15~20% → 99%; steelmaking energy consumption reduced by 3~5%, argon use reduced by 30% [59]	Total investment: CNY 120 million; annual benefits: CNY 8 million; carbon reduction cost: ~240 CNY/t
Japan COURSE50 Project (Nippon Steel)	BFG PSA (zeolite/activated carbon adsorption) + hydrogen reduction	Capture rate: 80%; full-process emission reduction: 30% (lab); pilot plant captures 100,000 t/year [59]	Hydrogen reduction cuts coke reliance by 15%; carbon reduction cost: ~55 USD/t steel [60]
TISCO BFG CCUS Project (China)	Chemical absorption (MEA solvent) + water washing desulfurization	Annual capture: 100,000 t; energy consumption: 2.8 GJ/t; purity: 99.9%; dry ice production: 30 million CNY/year	Total investment: CNY 250 million; carbon reduction cost: ~40 USD/t
Elkem Ferrosilicon CCUS Project (Norway)	Chemical absorption (high-concentration CO2 capture) + geological storage	Annual capacity: 1.5 Mt; capture rate: 95%; ferrosilicon carbon intensity reduced by 60% [61]	Norwegian government funding: NOK 16 million; storage cost: ~50 EUR/t; reuse revenue: 12 million EUR/year [62]
Petra Nova Coal Plant CCUS (USA)	Amine-based absorption (KM-CDR process)	Annual capture: 1.4 Mt CO2; EOR boosts oil production by 15,000 barrels/day [63]	Total investment: 1 billion; EOR revenue: 30/t CO2; payback period: 8 years [64]

Table 7. Application cases of carbon capture: pressure swing adsorption (PSA) vs. chemical absorption.

Company/ Project	Technical Pathway and Process Features	Emission Reduction and Efficiency Data	Economic Benefits and Costs
Shougang Jingtang Lime Kiln CCUS Project (China)	Physical adsorption (PSA) + waste heat cascade utilization	Annual capture: 50,000 t; CO2 concentration: 15~20% → 99%; steelmaking energy consumption reduced by 3~5%, argon use reduced by 30% [59]	Total investment: CNY 120 million; annual benefits: CNY 8 million; carbon reduction cost: ~240 CNY/t
Japan COURSE50 Project (Nippon Steel)	BFG PSA (zeolite/activated carbon adsorption) + hydrogen reduction	Capture rate: 80%; full-process emission reduction: 30% (lab); pilot plant captures 100,000 t/year [59]	Hydrogen reduction cuts coke reliance by 15%; carbon reduction cost: ~55 USD/t steel [60]
TISCO BFG CCUS Project (China)	Chemical absorption (MEA solvent) + water washing desulfurization	Annual capture: 100,000 t; energy consumption: 2.8 GJ/t; purity: 99.9%; dry ice production: 30 million CNY/year	Total investment: CNY 250 million; carbon reduction cost: ~40 USD/t
Elkem Ferrosilicon CCUS Project (Norway)	Chemical absorption (high-concentration CO2 capture) + geological storage	Annual capacity: 1.5 Mt; capture rate: 95%; ferrosilicon carbon intensity reduced by 60% [61]	Norwegian government funding: NOK 16 million; storage cost: ~50 EUR/t; reuse revenue: 12 million EUR/year [62]
Petra Nova Coal Plant CCUS (USA)	Amine-based absorption (KM-CDR process)	Annual capture: 1.4 Mt CO2; EOR boosts oil production by 15,000 barrels/day [63]	Total investment: 1 billion; EOR revenue: 30/t CO2; payback period: 8 years [64]

Carbon capture technologies have developed distinct pathways in steel and energy applications: pressure swing adsorption (PSA) is suited for low-concentration CO₂ sources (15~20%), exemplified by Shougang Jingtang’s project achieving annual capture of 50,000 tons of CO₂ at a carbon cost of 240 CNY/t with 20% lower energy consumption through waste heat recovery. Chemical absorption excels in high-concentration scenarios (>90%), as seen in Norway’s Elkem project capturing 1.5 million tons/year, reducing carbon intensity by 60% with a storage cost of 50 EUR/t [62]. Chinese cases demonstrate cost advantages, such as TISCO’s project operating at 40 USD/t CO₂ while generating 30 million CNY/year from dry ice production. Cross-sector synergy (e.g., the U.S. Petra Nova project’s 30 USD/t revenue via enhanced oil recovery) and policy incentives (e.g., Norway’s NOK 16 million grant) are critical for scaling. Future advancements must address high energy consumption in low-concentration processing, strengthen full-process integration, and transition technologies from pilot demonstrations to systemic decarbonization. Chemical absorption relies heavily on mid-pressure steam for solvent regeneration, whereas PSA primarily uses electricity—making it more flexible and better suited for integration with renewable energy sources.

But CCUS projects have not yet scaled up in the steel industry, and the possible reasons are as follows:

• High energy consumption: The substantial energy demand of CO₂ capture technologies significantly increases overall operational costs, posing a major barrier to large-scale implementation.
• Absorbent degradation: Absorbents are susceptible to degradation and poisoning. Typical flue gas components in the steel industry—such as carbonyl sulfide, particulate matter, and alkali metals—accelerate solvent loss and decrease capture efficiency.
• Low CO₂ concentration: Steel industry flue gases generally exhibit low CO₂ concentrations, necessitating additional concentration steps that further elevate the technical complexity and cost of the process.
• Unclear utilization pathways: The lack of clearly defined and scalable carbon utilization routes limits the effective deployment of captured CO₂, thereby constraining the broader applicability of CCUS technologies.

Therefore, future technology iterations will focus on three major directions:

• Material Innovation: Develop high-capacity, sulfur- and moisture-resistant adsorbents (e.g., metal–organic frameworks, MOFs) and low-regeneration-energy solvents (e.g., phase-change absorbents like NCCC), targeting chemical absorption energy consumption below 1.5 GJ/t.
• Process Hybridization: Integrate PSA with membrane separation and cryogenic distillation for multi-stage CO₂ enrichment. For example, combining PSA (pre-concentrating CO₂ to 40~50%) with chemical absorption (purifying to 99%) could reduce energy use by 15~25% in blast furnace gas treatment.
• Carbon Valorization: Breakthroughs in catalytic conversion of CO₂ to methanol, polycarbonates, and other bulk chemicals, achieving >80% conversion efficiency via electrocatalysis/photocatalysis to establish a “capture–conversion–utilization” value chain.

4. Decarbonization Pathways for EAF Short Process

The carbon reduction logic of electric arc furnace (EAF) short-process steelmaking lies in transforming the material and energy flow from a linear “ore → coke → hot metal” chain to a circular “scrap → green power → recycled steel” system. This shift not only reduces process emissions but also lowers embodied carbon through resource circularity. However, global EAF steel production accounts for less than 30% [65], indicating its untapped potential as a decarbonization pillar. Realizing this potential requires balancing scrap supply chain development with systemic enablers: scaling scrap availability and quality, establishing green power infrastructure, optimizing carbon markets, and implementing EAF-friendly policies.

4.1. Source-Stage Decarbonization

Source-stage decarbonization aims to control carbon emissions at their origin by replacing fossil fuels, optimizing energy structures, and innovating processes, thereby fundamentally reducing greenhouse gas emissions and energy consumption. Short-process steelmaking (centered on electric arc furnaces, EAFs) and hydrogen-based metallurgy have become core pathways for the steel industry’s low-carbon transition due to their inherent potential for emission reduction at the source. As analyzed in Table 8, critical components of current low-carbon EAF steelmaking include scrap pretreatment, high-efficiency waste heat recovery, intelligent process control, and green hydrogen applications with integrated energy storage systems. While these technologies exhibit significant decarbonization potential, they remain in the engineering breakthrough phase and have yet to achieve large-scale industrial adoption. Challenges persist in stabilizing energy efficiency metrics, improving equipment reliability, and overcoming high investment and operational costs. This section focuses on commercially deployed technologies, including advanced high-efficiency EAFs, green power–metallurgy coupling, and hydrogen-based shaft furnace applications. Short-process steelmaking restructures production through dual mechanisms: “scrap replacing iron ore” and “green power replacing fossil fuels”, drastically reducing embodied emissions from upstream high-carbon processes like mining and coking. This lowers carbon intensity to 0.3~0.7 tons CO₂/ton of steel (20~30% of long-process emissions) [66]. Concurrently, hydrogen-based shaft furnace technology, which directly reduces iron ore using green hydrogen, further compresses carbon intensity to 0.04~0.4 tons CO₂/ton of steel [67], offering an ultimate near-zero emission solution for the industry.

Table 8. Analysis of source-stage decarbonization technologies for short-process steelmaking.

Technology Name	Core Function	Key Technologies/Methods	Application Maturity
Scrap Pretreatment and Sorting [68]	Enhances scrap utilization and reduces impurity impacts	AI visual recognition, magnetic/eddy current separation, high-temperature degreasing, shredding/compaction	Mature application
Real-Time Scrap Data Adjustment [69,70]	Dynamically optimizes charging mix and process parameters	Sensor monitoring, IoT, machine learning prediction models	Demonstration and promotion phase
Side-Draft Full Preheating [71]	Recovers waste heat, reduces energy use and pollution	Multi-stage heat exchangers, exhaust gas recirculation (EGR), high-temperature preheating (>1200 °C)	Mature application
Dynamic Sealing & Heat Recovery [72]	Minimizes heat loss and enhances waste heat utilization	Water-cooled flexible seals, regenerative combustion, waste heat power generation	Demonstration and promotion phase
Uniform Heating and Intelligent Control [73]	Ensures molten steel quality and reduces energy waste	Multi-electrode layout optimization, electromagnetic stirring, digital twin and AI control	Demonstration and promotion phase
Continuous Charging Optimization [71]	Enables continuous production and shortens smelting cycles	Twin-shell design, Consteel continuous charging, scrap preheating synchronization	Demonstration and promotion phase
Green Power Direct Supply and Storage [74,75]	Reduces carbon emissions and stabilizes power fluctuations	Wind/solar PPA, molten salt/battery storage, microgrids	Pilot application phase

Table 8. Analysis of source-stage decarbonization technologies for short-process steelmaking.

Technology Name	Core Function	Key Technologies/Methods	Application Maturity
Scrap Pretreatment and Sorting [68]	Enhances scrap utilization and reduces impurity impacts	AI visual recognition, magnetic/eddy current separation, high-temperature degreasing, shredding/compaction	Mature application
Real-Time Scrap Data Adjustment [69,70]	Dynamically optimizes charging mix and process parameters	Sensor monitoring, IoT, machine learning prediction models	Demonstration and promotion phase
Side-Draft Full Preheating [71]	Recovers waste heat, reduces energy use and pollution	Multi-stage heat exchangers, exhaust gas recirculation (EGR), high-temperature preheating (>1200 °C)	Mature application
Dynamic Sealing & Heat Recovery [72]	Minimizes heat loss and enhances waste heat utilization	Water-cooled flexible seals, regenerative combustion, waste heat power generation	Demonstration and promotion phase
Uniform Heating and Intelligent Control [73]	Ensures molten steel quality and reduces energy waste	Multi-electrode layout optimization, electromagnetic stirring, digital twin and AI control	Demonstration and promotion phase
Continuous Charging Optimization [71]	Enables continuous production and shortens smelting cycles	Twin-shell design, Consteel continuous charging, scrap preheating synchronization	Demonstration and promotion phase
Green Power Direct Supply and Storage [74,75]	Reduces carbon emissions and stabilizes power fluctuations	Wind/solar PPA, molten salt/battery storage, microgrids	Pilot application phase

4.1.1. Case Analysis of Green High-Efficiency Electric Arc Furnace Applications

The decarbonization efficacy of short-process steelmaking has transitioned from theoretical exploration to industrial validation, with globally diverse technological integrations and regionally adapted practices emerging. Table 9 systematically analyzes representative cases to elucidate innovative pathways in raw material substitution, green power integration, and process optimization for EAF steelmaking, providing scalable solutions for “source-stage carbon control” in the steel industry.

Table 9. Application cases of electric arc furnace (EAF) steelmaking.

Project	Country/Region	Technical Highlights	Investment Scale	Key Performance Indicators (Energy Saving/Emission Reduction)
ArcelorMittal Belgium Plant	Belgium	Scrap preheating system + waste gas recovery	EUR 100 million	Energy consumption reduced by 12% (electricity); CO2 emissions reduced by 15% (1 million tons/year); scrap ratio increased to 75% (from 60%) [76]
Nucor Arkansas Retrofit	USA	High-efficiency EAF design + renewable energy supply (solar/wind)	USD 200 million	Energy consumption reduced by 11% (400 kWh/t steel); CO2 emissions reduced by 20% (2 million tons/year); scrap ratio increased to 85% (from 65%) [77]
Baosteel Changxing Retrofit	China	EAF + secondary refining technology + increased scrap ratio	CNY 1 billion	Energy consumption reduced by 10% (450 kWh/t steel); CO2 emissions reduced by 18% (150,000 tons/year); scrap ratio increased to 70% (from 55%) [78]
Nippon Steel Kobe Gas Recovery	Japan	Waste gas recovery for scrap preheating + oxygen-enriched combustion	USD 600 million	Energy consumption reduced by 12% (electricity); CO2 emissions reduced by 15% (1.3 million tons/year); scrap ratio maintained at 80% [79]

Table 9. Application cases of electric arc furnace (EAF) steelmaking.

Project	Country/Region	Technical Highlights	Investment Scale	Key Performance Indicators (Energy Saving/Emission Reduction)
ArcelorMittal Belgium Plant	Belgium	Scrap preheating system + waste gas recovery	EUR 100 million	Energy consumption reduced by 12% (electricity); CO2 emissions reduced by 15% (1 million tons/year); scrap ratio increased to 75% (from 60%) [76]
Nucor Arkansas Retrofit	USA	High-efficiency EAF design + renewable energy supply (solar/wind)	USD 200 million	Energy consumption reduced by 11% (400 kWh/t steel); CO2 emissions reduced by 20% (2 million tons/year); scrap ratio increased to 85% (from 65%) [77]
Baosteel Changxing Retrofit	China	EAF + secondary refining technology + increased scrap ratio	CNY 1 billion	Energy consumption reduced by 10% (450 kWh/t steel); CO2 emissions reduced by 18% (150,000 tons/year); scrap ratio increased to 70% (from 55%) [78]
Nippon Steel Kobe Gas Recovery	Japan	Waste gas recovery for scrap preheating + oxygen-enriched combustion	USD 600 million	Energy consumption reduced by 12% (electricity); CO2 emissions reduced by 15% (1.3 million tons/year); scrap ratio maintained at 80% [79]

The cases in Table 9 demonstrate that achieving “source-stage carbon control” in short-process EAF steelmaking requires scrap recycling as the foundation, green power supply as the backbone, and process intelligence as the safeguard. Despite regional differences in technical pathways—such as Europe and the U.S. leveraging green power advantages, while China and Japan focus on process integration—universal strategies of increasing scrap ratios above 80%, coupling green power with waste energy recovery, and intelligent control can achieve 15~20% CO₂ reduction per ton of steel, validating the pivotal role of EAF short processes in the industry’s low-carbon transition.

As the core pathway for low-carbon steelmaking, EAF technology builds a multidimensional decarbonization system through raw material substitution, energy transition, and process innovation. Against the backdrop of accelerating global low-carbon steel technology evolution, the techno-economic and regional adaptability variations among leading enterprises provide critical empirical insights for industry transformation.

Table 10. Comparative analysis of representative EAF application cases.

Project	Advantages	Challenges	Distinctive Features
ArcelorMittal (Belgium)	Mature heat recovery technology; high scrap utilization rate (75%)	Difficulty in scrap impurity control; reliance on imported scrap	Representative of Europe’s circular economy model; policy-driven retrofitting
Nucor (USA)	High green power integration (solar/wind); world-leading scrap ratio (85%)	Geographically constrained green power supply (limited replicability in low-resource areas)	Deep market-driven integration of renewables and steel production
Baosteel (China)	Advanced secondary refining technology; suitability for large-scale production	Underdeveloped scrap recycling system (low domestic scrap quality/poor sorting)	Indigenous technology development path; policy-backed under China’s “Dual Carbon” goals
Nippon Steel (Japan)	High waste gas recycling rate (scrap preheating + oxygen enrichment); precision processes	High upgrade costs (USD 600 million); unaffordable for SMEs	Exemplar of resource efficiency; embodies lean manufacturing culture

systematically compares four benchmark projects—ArcelorMittal (Ghent, Belgium) (scrap recycling), Nucor (Charlotte, NC, USA) (green power integration), Baosteel (Shanghai, China) (intensive upgrading), and Nippon Steel (Tokyo, Japan) (waste gas reuse)—to reveal how regional resource endowments and industrial policies shape low-carbon technology choices. This analysis offers actionable insights for future technology diffusion, emphasizing the need to synergize scrap recycling systems, green power infrastructure, and policy mechanisms to build an EAF steelmaking ecosystem that balances economic viability and emission reduction efficacy.

The decarbonization practices of electric arc furnace (EAF) short-process steelmaking have shifted from single technological breakthroughs to systemic innovation, relying on a four-dimensional synergy of resources, energy, technology, and policy. Future efforts require material upgrades (promoting hydrogen-based DRI coupling and establishing a complete lifecycle traceability system for scrap), energy innovation (integrated wind–solar-storage power supply targeting ≥80% green electricity penetration and green hydrogen substitution), and intelligent integration (AI optimization of the entire smelting process, such as digital twins, and democratization of modular technologies), ultimately achieving carbon neutrality in the steel industry.

4.1.2. Case Analysis of Advanced Electric Arc Furnace (EAF) Applications

The electric arc furnace (EAF) redefines the energy and material metabolism of steel production through its dual substitution logic—“electricity replacing carbon-based fuels” and “scrap replacing iron ore”—making it a core enabler of low-carbon short-process steelmaking. As global carbon neutrality goals intensify and regional demands for scrap resources, power structures, and production scales diversify, EAF technology has evolved into a multi-branch collaborative system. Calculations indicate that the carbon intensity of scrap-based EAF routes (0.3~0.7 t CO₂/t steel) is only 20~30% of long-process routes, significantly reducing embodied emissions from upstream mining, sintering, and coking.

With rising demand for deep decarbonization, short-process steelmaking innovations centered on EAFs are diversifying globally. As shown in

Table 11. Analysis of low-carbon electric arc furnace (EAF) applications.

Company	Year	Technology/ Application	Key Metrics/Performance	Application Case
MCC-CISDI	2021	World’s first IGBT DC EAF	30~40% CO2 reduction per ton of steel	Panzhihua Special Steel Project
MCC-CISDI	2022	Domestic stepwise continuous charging EAF	35 min smelting cycle	Sichuan Dujiangyan Steel Project
MCC-CISDI	2023	First industrial-scale “Super EAF”	Target smelting energy consumption: 300 kWh/t	Yunnan Yuxi Xianfu Project
SMS Group	2021	Twin-shaft DC EAF (China’s first)	45% reduction in smelting energy consumption	HBIS Shisteel New District
SMS Group	2024	World’s largest AC EAF (185 t, 300 MVA)	Supports 80% DRI hybrid smelting; annual output: 1.9 Mt molten steel	Saarstahl AG, Germany
Danieli	2023	Q-ONE Lossless EAF Power System	Reduced power loss, improved energy efficiency	Commercial Metals Company, USA
SPCO (Japan)	—	ECOARC Ecological EAF	Fully enclosed scrap preheating; dioxin emissions < 0.1 ng TEQ/m3	Benxi Steel Application
Primetals	—	Ultimate EAF (120 t)	40 heats/day; 10% energy reduction	NSMMZ Steel Plant, Russia
Thyssen and SMS	2026	Midrex H2-DRI + EAF Hybrid Plant (Planned)	Annual DRI output: 2.5 Mt	Duisburg, Germany (Planned)
Voestalpine	2026	Hyfor-EAF (Hy4Smelt Pilot)	Pilot scale: 3 t/h; commercialization plan: 2.5 Mt/a	Based on Primetals Technologies
POSCO	2028	HyRex Fluidized Bed DRI + EAF Process	Fluidized bed DRI technology under pilot validation	Developed from FINEX Process
Tenova	—	iBlue (Enerqiron DRI + OSBF EAF)	BF alternative with cost advantages over DRI-EAF routes	Technical feasibility study phase
BHP and Hatch	2023	EAF Pilot Plant	Annual capacity: 10,000 t; informs decision-making for Australian facilities	Australia (Joint Design)
BHP, Rio Tinto and BlueScope	2024	ESF Process Development	Joint development of EAF-based smelting technology	Collaborative Framework Agreement
Rio Tinto and China Baowu	2023	Pilot-Scale EAF	Produces DRI from mid/low-grade iron ore fines for low-carbon steel	Baowu Demonstration Project (Planned)

, advanced EAF deployments are expanding regionally: China focuses on EAF upgrades led by MCC-CISDI and hydrogen metallurgy pilots by Baowu; Europe emphasizes hydrogen reduction and large-scale EAFs in Germany (SMS Group, ThyssenKrupp) and Voestalpine’s Hyfor technology; and Japan’s SPCO Eco-Arc EAF and the U.S.’s Danieli Q-ONE power system exemplify advancements in the Asia–Pacific and North America. These regional strategies integrate localized resources and policies, driving the steel industry toward carbon neutrality through tailored technological pathways.

As systematically categorized in Table 12, the differentiated technological characteristics and industrial implementation outcomes of mainstream international low-carbon electric arc furnaces (EAFs) are comprehensively analyzed. By conducting comparative analyses of critical metrics, including innovations in power supply modes, advancements in intelligent control systems, and compatibility with hydrogen-based feedstocks, this study elucidates the synergistic emission reduction effects across distinct technological pathways. It defines the boundary conditions for their scaled deployment.

Table 12. Green performance analysis of representative electric arc furnaces.

Company	Type	Technical Features	Advantages	Emission Reduction	Energy Savings	Cost-Saving Case
CISDI	Super EAF (IGBT Flexible DC)	Dual-electrode DC power supply, continuous scrap preheating, dioxin control via flue gas diversion, intelligent electrode adjustment	30 min smelting cycle; 40% lower electrode consumption; 160 kg/t steam recovery from waste heat	30~40% reduction vs. conventional EAF	300 kWh/t steel (industry-leading)	Panzhihua Special Steel Project saves CNY 20 million/year in electricity costs [80]
Primetals Quantum EAF	Shaft Preheating EAF	Fully automatic charging, finger scrap retention system, bottom-blown stirring	Flexible feedstock (0~100% scrap/DRI); 15 dB noise reduction	<500 kg CO2/t steel [81]	350 kWh/t steel	Tyasa Mexico achieves 25% higher smelting efficiency [82]
Tenova Consteel	Continuous Charging EAF	Horizontal scrap conveyor + flue gas preheating, dynamic sealing, smart slag foaming	Adapts to low-density scrap; 50% reduction in grid impact [83]	20~30% reduction vs. conventional	>70% waste heat utilization [84]	Nucor USA reduces 35% electrode consumption
Danieli Q-ONE	Quantum EAF	Electromagnetic stirring + ultrasonic detection, AI dynamic model, scrap-DRI co-preheating	Endpoint carbon control precision ±0.02% [85]; 2% higher metal yield	Up to 80% reduction with H2-DRI	25% lower oxygen consumption	Erdemir Turkey reduces USD 8.5/t steel cost
SMS Group	Intelligent EAF	Multi-sensor fusion (infrared + laser), digital twin system, CO2 injection denitrification	Nitrogen content < 60 ppm; dioxin emissions < 0.1 ng TEQ/m3	Optimal green power adaptation	40% lower natural gas use	Salzgitter Germany cuts 18% maintenance costs
Japan NKK DC EAF	Dual-Electrode DC EAF	Water-cooled bottom anode, stepwise charging, bottom argon blowing	Suitable for high-alloy steel; 70% harmonic pollution reduction	60% reduction vs. BF–BOF	Electrode consumption < 1.2 kg/t [86]	Nippon Steel improves 30% production rhythm

Table 12. Green performance analysis of representative electric arc furnaces.

Company	Type	Technical Features	Advantages	Emission Reduction	Energy Savings	Cost-Saving Case
CISDI	Super EAF (IGBT Flexible DC)	Dual-electrode DC power supply, continuous scrap preheating, dioxin control via flue gas diversion, intelligent electrode adjustment	30 min smelting cycle; 40% lower electrode consumption; 160 kg/t steam recovery from waste heat	30~40% reduction vs. conventional EAF	300 kWh/t steel (industry-leading)	Panzhihua Special Steel Project saves CNY 20 million/year in electricity costs [80]
Primetals Quantum EAF	Shaft Preheating EAF	Fully automatic charging, finger scrap retention system, bottom-blown stirring	Flexible feedstock (0~100% scrap/DRI); 15 dB noise reduction	<500 kg CO2/t steel [81]	350 kWh/t steel	Tyasa Mexico achieves 25% higher smelting efficiency [82]
Tenova Consteel	Continuous Charging EAF	Horizontal scrap conveyor + flue gas preheating, dynamic sealing, smart slag foaming	Adapts to low-density scrap; 50% reduction in grid impact [83]	20~30% reduction vs. conventional	>70% waste heat utilization [84]	Nucor USA reduces 35% electrode consumption
Danieli Q-ONE	Quantum EAF	Electromagnetic stirring + ultrasonic detection, AI dynamic model, scrap-DRI co-preheating	Endpoint carbon control precision ±0.02% [85]; 2% higher metal yield	Up to 80% reduction with H2-DRI	25% lower oxygen consumption	Erdemir Turkey reduces USD 8.5/t steel cost
SMS Group	Intelligent EAF	Multi-sensor fusion (infrared + laser), digital twin system, CO2 injection denitrification	Nitrogen content < 60 ppm; dioxin emissions < 0.1 ng TEQ/m3	Optimal green power adaptation	40% lower natural gas use	Salzgitter Germany cuts 18% maintenance costs
Japan NKK DC EAF	Dual-Electrode DC EAF	Water-cooled bottom anode, stepwise charging, bottom argon blowing	Suitable for high-alloy steel; 70% harmonic pollution reduction	60% reduction vs. BF–BOF	Electrode consumption < 1.2 kg/t [86]	Nippon Steel improves 30% production rhythm

An analysis of current intelligent EAF technologies is described in Table 12. Current intelligent electric arc furnace (EAF) technologies achieve 300~350 kWh/t steel energy consumption, 20~80% CO₂ intensity reduction, and 30 min smelting cycles (e.g., Panzhihua Special Steel Project saving CNY 20 million annually) through innovations such as waste heat power generation from scrap, AI dynamic models (endpoint carbon control accuracy of ±0.02% [85]), and hydrogen-based DRI synergy (80% emission reduction). However, challenges persist in low-density scrap melting efficiency, high green hydrogen costs, and limited multi-objective coordination accuracy.

Future advancements require accelerated development of the following:

• Hydrogen-Electric Coupling Processes: integrating technologies like Danieli Q-ONE with green hydrogen to enhance decarbonization.
• Blockchain-Based Carbon Tracking Systems: ensuring transparency in emission reduction across supply chains.
• Carbon Tax Policy Incentives: driving adoption through fiscal mechanisms (e.g., >USD 80/t CO₂ pricing).

By 2030, these efforts aim to halve EAF steel carbon emissions compared to 2020 levels, providing critical support for global steel industry carbon neutrality.

4.1.3. Case Studies of Low-Carbon Green Power Applications

The application of green renewable electricity represents a critical pathway for decarbonizing electric arc furnace (EAF) steelmaking. Globally, multiple exemplary cases demonstrate the potential of integrating green power with EAF technology. Through various renewable energy technologies—including solar, wind, hydropower, and green hydrogen electrolysis—these projects achieve significant carbon emission reductions in steel production. Detailed case studies and their specifications are presented in Table 13.

Table 13. Representative cases of green electricity applications in EAF steelmaking.

Country	Project/Enterprise	Technology Applied	Implementation Method	Energy Saving and Emission Reduction Effects
Sweden	HYBRIT Project (SSAB)	Green hydrogen–EAF steelmaking	Hydrogen production via water electrolysis	>90% CO2 reduction; targets 1 Mt/year green steel; requires ~70,000 m3/h electricity [87]
Germany	Thyssenkrupp	Hydrogen-based DRI-EAF	Green power and hydrogen for steel production	4.9 kWh/t steel; 0.75 kg CO2/kg steel by 2040 [88,89]
Australia	Green Steel Project	Green hydrogen DRI-EAF	Optimized wind-solar hybrid hydrogen production	1.2~2.7 GW renewables + 200~400 MW electrolyzer per Mt steel; cost: AUD 900/t (2030), AUD 750/t (2050) [89]
China	Baowu Zhanjiang Demo Line	Solar/wind- powered EAF	Green electricity for EAF operations	20~90% CO2 reduction per ton steel [90,91]
Australia	Economic Fairways	Wind/solar-to- hydrogen for EAF	Renewable hydrogen integration	Replacing 1% of global steel output requires 35 GW renewables, 11 GW electrolyzers; >85% indirect emission reduction [92]
EU	Low-Carbon Transition Project	EAF with green hydrogen DRI	Hydrogen-centric decarbonization	25% direct CO2 reduction by 2030; additional 20 TWh power and 40 TWhHHV hydrogen demand [93]
USA	Nucor Arkansas Plant	100% scrap-EAF + Green Power	Solar farm + storage (1.8 TWh/year)	300-tonne EAF; 3 Mt/year output; 85% green power share (2025 target) [94]

Table 13. Representative cases of green electricity applications in EAF steelmaking.

Country	Project/Enterprise	Technology Applied	Implementation Method	Energy Saving and Emission Reduction Effects
Sweden	HYBRIT Project (SSAB)	Green hydrogen–EAF steelmaking	Hydrogen production via water electrolysis	>90% CO2 reduction; targets 1 Mt/year green steel; requires ~70,000 m3/h electricity [87]
Germany	Thyssenkrupp	Hydrogen-based DRI-EAF	Green power and hydrogen for steel production	4.9 kWh/t steel; 0.75 kg CO2/kg steel by 2040 [88,89]
Australia	Green Steel Project	Green hydrogen DRI-EAF	Optimized wind-solar hybrid hydrogen production	1.2~2.7 GW renewables + 200~400 MW electrolyzer per Mt steel; cost: AUD 900/t (2030), AUD 750/t (2050) [89]
China	Baowu Zhanjiang Demo Line	Solar/wind- powered EAF	Green electricity for EAF operations	20~90% CO2 reduction per ton steel [90,91]
Australia	Economic Fairways	Wind/solar-to- hydrogen for EAF	Renewable hydrogen integration	Replacing 1% of global steel output requires 35 GW renewables, 11 GW electrolyzers; >85% indirect emission reduction [92]
EU	Low-Carbon Transition Project	EAF with green hydrogen DRI	Hydrogen-centric decarbonization	25% direct CO2 reduction by 2030; additional 20 TWh power and 40 TWhHHV hydrogen demand [93]
USA	Nucor Arkansas Plant	100% scrap-EAF + Green Power	Solar farm + storage (1.8 TWh/year)	300-tonne EAF; 3 Mt/year output; 85% green power share (2025 target) [94]

The cases in Table 13 highlight both the substantial potential and positive outcomes of adopting green renewable electricity in the global steel industry. They also reveal regional variations in resources, technologies, and policy frameworks. Further expansion of green energy technologies will accelerate the steel sector’s sustainable development, driving continued low-carbon transformation and technological innovation worldwide.

4.1.4. Case Analysis of Hydrogen-Based Shaft Furnace Applications

Hydrogen-based shaft furnace technology has emerged as a core solution for low-carbon transformation in the steel industry. By replacing traditional coke-based blast furnaces with green hydrogen/hybrid gas reductions of iron ore, this approach reduces carbon intensity to 0.04~0.4 tons CO₂/ton of steel (60~98% lower than conventional blast furnaces). Global flagship projects such as MIDREX H₂ (with metallization rates exceeding 94%) and HYBRIT demonstrate breakthroughs in green hydrogen-driven reduction, waste heat integration, and short-process optimization. However, challenges including high green hydrogen costs (USD 4~6/kg), DRI reoxidation risks, and hydrogen storage/transportation bottlenecks hinder large-scale adoption. The following comparative analysis of typical projects (Table 14) reveals the differences in their technical pathways, economic viability, and applicable scenarios.

Table 14. Comparative analysis of hydrogen-based shaft furnace application cases.

Project	Technology	Scale/Case	Advantages	Challenges	Suitable Regions	Distinctive Features
MIDREX H2	Natural gas reforming (H2 > 90%); metallization > 94% [95]	Boden Plant, Sweden (2.1 Mt/year)	Fully replaces blast furnaces; 0.04 t CO2/t steel	Relies on natural gas; green H2 cost (~USD 4~6/kg)	Gas-rich areas (e.g., North America)	First 100% H2-DRI plant; highest maturity
HYBRIT	Wind-powered H2 + EAF; targets 25 kg CO2/t steel	Pilot in Sweden (industrial by 2035)	Fossil-free lifecycle; 95% emission reduction potential	High green power demand (4~5 MWh/t steel); 10~15 year industrialization	Renewable-rich (e.g., Scandinavia)	Full lifecycle decarbonization; integrates wind-H2-EAF [96,97]
SALCOS	Waste heat-to-H2 (GrInHy 2.0); targets 95% reduction [98]	Germany test (40 Nm3/h H2)	>80% waste heat utilization; 3.5 kWh/Nm3 H2 production [98]	H2 storage/transport costs (35% share); immature liquid H2 tech	Industrial clusters (e.g., Ruhr, Germany)	Waste heat–H2 coupling benchmark [99]
Baowu Zhanjiang	Hybrid gas (57% NG +13% H2); Inconel 625 alloy tubes	China (1 Mt/year)	58~89% CO2 reduction; 30,000 h tube lifespan	Low H2 share (13%); fossil fuel dependency	Coastal renewable hubs (e.g., Guangdong)	Multi-gas synergy + anti-hydrogen embrittlement materials [100]
China Iron and Steel Research	Pure H2 (>95%); 85% waste heat recovery	Shandong demo plant	40% lower energy use (8.5 GJ/t iron); 0.138 t CO2/t	DRI reoxidation risk (+USD 20~30/t carburization)	Stable H2 supply zones (e.g., NW China)	Pure H2 metallurgy breakthrough; energy efficiency [101]
NEU Pilot Base	High-grade pellets (TFe > 70%, >2500 N/pellet) + H2-EAF short process	Global first 10 kt/year demo line	<300 kWh/t steel; multi-field coupling theory	Small scale (10 kt/year); lacks industrial validation	Specialty steel producers	Short-process integration + pellet innovation [102,103]
HYL-ZR	Methane self-reforming (950~1050 °C); no external reformer	JSPL Plant, India	2.8 GJ/t DRI (vs. 3.2 GJ industry avg.); 0.4 t CO2/t	Carbon deposition (30% higher corrosion); +15~20% maintenance costs	Coke-rich regions (e.g., India)	Simplified process; ideal for coke oven gas reuse [104]

Table 14. Comparative analysis of hydrogen-based shaft furnace application cases.

Project	Technology	Scale/Case	Advantages	Challenges	Suitable Regions	Distinctive Features
MIDREX H2	Natural gas reforming (H2 > 90%); metallization > 94% [95]	Boden Plant, Sweden (2.1 Mt/year)	Fully replaces blast furnaces; 0.04 t CO2/t steel	Relies on natural gas; green H2 cost (~USD 4~6/kg)	Gas-rich areas (e.g., North America)	First 100% H2-DRI plant; highest maturity
HYBRIT	Wind-powered H2 + EAF; targets 25 kg CO2/t steel	Pilot in Sweden (industrial by 2035)	Fossil-free lifecycle; 95% emission reduction potential	High green power demand (4~5 MWh/t steel); 10~15 year industrialization	Renewable-rich (e.g., Scandinavia)	Full lifecycle decarbonization; integrates wind-H2-EAF [96,97]
SALCOS	Waste heat-to-H2 (GrInHy 2.0); targets 95% reduction [98]	Germany test (40 Nm3/h H2)	>80% waste heat utilization; 3.5 kWh/Nm3 H2 production [98]	H2 storage/transport costs (35% share); immature liquid H2 tech	Industrial clusters (e.g., Ruhr, Germany)	Waste heat–H2 coupling benchmark [99]
Baowu Zhanjiang	Hybrid gas (57% NG +13% H2); Inconel 625 alloy tubes	China (1 Mt/year)	58~89% CO2 reduction; 30,000 h tube lifespan	Low H2 share (13%); fossil fuel dependency	Coastal renewable hubs (e.g., Guangdong)	Multi-gas synergy + anti-hydrogen embrittlement materials [100]
China Iron and Steel Research	Pure H2 (>95%); 85% waste heat recovery	Shandong demo plant	40% lower energy use (8.5 GJ/t iron); 0.138 t CO2/t	DRI reoxidation risk (+USD 20~30/t carburization)	Stable H2 supply zones (e.g., NW China)	Pure H2 metallurgy breakthrough; energy efficiency [101]
NEU Pilot Base	High-grade pellets (TFe > 70%, >2500 N/pellet) + H2-EAF short process	Global first 10 kt/year demo line	<300 kWh/t steel; multi-field coupling theory	Small scale (10 kt/year); lacks industrial validation	Specialty steel producers	Short-process integration + pellet innovation [102,103]
HYL-ZR	Methane self-reforming (950~1050 °C); no external reformer	JSPL Plant, India	2.8 GJ/t DRI (vs. 3.2 GJ industry avg.); 0.4 t CO2/t	Carbon deposition (30% higher corrosion); +15~20% maintenance costs	Coke-rich regions (e.g., India)	Simplified process; ideal for coke oven gas reuse [104]

As shown in Table 14, hydrogen-based shaft furnaces reduce carbon intensity by 60~98% through three strategies: deep green hydrogen substitution (HYBRIT achieves 25 kg CO₂/ton steel), hybrid gas transition (Baowu Zhanjiang uses 13% green hydrogen), and integrated process innovation (SALCOS produces hydrogen from waste heat at 3.5 kWh/Nm³). These innovations also lower energy consumption per ton of iron by 40% (China Iron & Steel Research Institute) and extend equipment lifespan to 30,000 h (Baowu Zhanjiang). Despite this progress, critical barriers remain, such as natural gas dependency in MIDREX H₂, DRI stability issues requiring carburization processes, and liquid hydrogen costs accounting for 35% of SALCOS operations.

Currently transitioning from pilot projects to diversified pathways, hydrogen-based shaft furnaces prioritize 100% green hydrogen routes as the ultimate goal. Short-term solutions involve hybrid/gray hydrogen systems, supported by material innovations (hydrogen-resistant alloys, high-strength pellets), energy recycling (waste heat utilization), and policy incentives (carbon pricing, hydrogen subsidies). With declining renewable energy costs and maturing green hydrogen supply chains, this technology is projected to achieve large-scale adoption by 2035, potentially halving global steel industry emissions. Regional strategies vary: Europe focuses on pure hydrogen routes, China optimizes hybrid systems, and North America addresses infrastructure gaps through modular solutions. Success hinges on overcoming economic and technical barriers through cross-sector collaboration.

Trend Analyses

• Diversification of Technological Pathways and Enhanced Regional Adaptability

Europe and the United States are leaning toward closed-loop systems based on green electricity and high scrap utilization, whereas China and Japan emphasize highly integrated and refined process optimization strategies.

• Short-Process Steelmaking Is Becoming the Mainstream Pathway

With ongoing improvements in renewable electricity supply and growing scrap availability, EAF-based short-process steelmaking is projected to become the dominant global route over the next 10 to 20 years.

• Clear Dual Objectives: Decarbonization and Economic Viability

Declining technology costs, increasing carbon tax pressures, and the growing demand for green supply chains are driving the steel industry toward solutions that achieve both environmental and economic goals.

4.2. Process Carbon Control

Under the global consensus of “dual carbon” goals, the steel industry, as a major carbon emitter, urgently requires technological innovation to achieve green transformation. Short-process electric arc furnace (EAF) steelmaking, which primarily uses scrap steel as raw material and eliminates high-carbon-emission coking and blast furnace processes, has emerged as a key pathway for low-carbon steel production. However, traditional EAF steelmaking still faces challenges such as significant carbon content fluctuations, high energy consumption, and interference from scrap impurities.

As shown in Table 15, current pilot technologies for carbon control in short-process EAF steelmaking include fully automated scrap intelligent batching systems, scrap classification, and impurity control, among others, which are actively under research and development. This section focuses on the more mature intelligent system control technologies, which dynamically optimize process parameters to achieve precise carbon control and energy efficiency improvements.

Table 15. Pilot technologies for process carbon control in short-process EAF steelmaking.

Technology	Main Function	Core Technologies
Fully Automated Scrap Intelligent Batching System [105]	Optimizes raw material ratio to enhance molten steel quality	Machine learning algorithms, multi-source sensor fusion technology
Scrap Classification and Impurity Control [106]	Improves feedstock quality by reducing harmful elements	Machine vision recognition, spectral analysis sorting technology
Low-Carbon Metallurgical Process Coupling [107,108]	Achieves energy-process synergy for carbon reduction	Multi-energy coupling modeling, system integration optimization technology
Intelligent Power Supply and Energy Management [109]	Optimizes power allocation for energy efficiency	Dynamic scheduling algorithms, energy storage system integration technology
Smart and Digital Control Technology [110]	Enhances production automation and real-time optimization	Industrial IoT platforms, AI-driven process decision systems
Short-Process Integration [111,112]	Shortens production flow to reduce overall energy consumption	Interface reaction control technology, process reengineering technology

Table 15. Pilot technologies for process carbon control in short-process EAF steelmaking.

Technology	Main Function	Core Technologies
Fully Automated Scrap Intelligent Batching System [105]	Optimizes raw material ratio to enhance molten steel quality	Machine learning algorithms, multi-source sensor fusion technology
Scrap Classification and Impurity Control [106]	Improves feedstock quality by reducing harmful elements	Machine vision recognition, spectral analysis sorting technology
Low-Carbon Metallurgical Process Coupling [107,108]	Achieves energy-process synergy for carbon reduction	Multi-energy coupling modeling, system integration optimization technology
Intelligent Power Supply and Energy Management [109]	Optimizes power allocation for energy efficiency	Dynamic scheduling algorithms, energy storage system integration technology
Smart and Digital Control Technology [110]	Enhances production automation and real-time optimization	Industrial IoT platforms, AI-driven process decision systems
Short-Process Integration [111,112]	Shortens production flow to reduce overall energy consumption	Interface reaction control technology, process reengineering technology

Through intelligent system control technologies (such as dynamic endpoint regulation, scrap preheating optimization, and arc stability enhancement) global steel enterprises have significantly reduced energy consumption and carbon emission intensity in electric arc furnace (EAF) steel production. Case studies in Table 16 demonstrate the practical application effects of intelligent control technologies in EAF steelmaking, covering process parameters, carbon control metrics, and economic benefits”.

Table 16. Global case studies of intelligent control systems in EAF Steelmaking for low-carbon applications.

Company (Country)	Technical Solution	Key Parameters and Data	Carbon Control and Economic Benefits
Nucor (USA)	SHARC DC EAF (150 t/160 MW) Twin-shaft scrap preheating (800 °C) Supersonic coherent jet oxygen lance (3500 m3/h)	Power consumption: 270 kWh/t (decrease18%) Tap-to-tap time: 40 min Electrode consumption: 1.0 kg/t Scrap preheating efficiency: 45% [113]	35% reduction in CO2 intensity per ton Annual CO2 reduction: 500,000 t FeO generation decrease: 30% [114]
ECOARC (Japan)	Flat bath AC EAF Ar/N2 bottom stirring (0.5~1.5 Nm3/(min·t)) Off-gas scrap preheating (400~800 °C)	Energy consumption decrease: 22% Dust emissions decrease: 30% Tap-to-tap time: 45 min Furnace lifespan: 1000 heats	Annual coal savings: 120,000 tce FeO in slag decrease: 15% Arc thermal efficiency increase: 18% [113,114]
Danieli (Italy)	AI stockyard system Machine vision scrap sorting (98% accuracy) IR slag detection (slag thickness ≤ 35 mm)	Scrap utilization: 98% Lime consumption decrease: 15% (baseline: 50 kg/t) Auxiliary materials decrease: 20%	28% reduction in CO2/t steel Annual cost savings: USD 12 M Steel purity increase: 25% [115]
HBIS Shisteel (China)	SHARC twinshaft DC EAF (150 t) Ar/N2 bottom blowing (0.8~1.2 Nm3/min) Onetap intelligent smelting system	Power consumption: 250 kWh/t (decrease 25%) Tapping time: 38 min Electrode consumption: 0.95 kg/t Endpoint C deviation: ±0.02%	Annual CO2 reduction: 300,000 t Total energy consumption decrease: 25% Manual intervention decrease: 80% [116]
SMS Group (Germany)	Conductive bottom electrode DC EAF High-impedance circuit design (4~8 mΩ) Arc harmonic suppression technology	Electrode lifespan: 3500 heats (increase of 40%) Electrical efficiency increase: 12% Harmonic incidence decrease: 50%	Electrode consumption decrease: 40%/t steel Annual power savings: 120 GWh Grid stability: voltage fluctuation ≤ 5% [114]
Sha Steel Group (China)	Static control model Material/heat balance algorithm for slag optimization Endpoint C prediction (±0.02%)	Lime consumption: 487 kg/t (baseline: 1200 kg/t) Dolomite decrease: 683 kg/t Splashing rate decrease: 90%	18% reduction in CO2/t steel Iron loss decrease: 5.63 kg/t Annual savings: CNY 8 M (auxiliary costs decrease 25%) [117]

Table 16. Global case studies of intelligent control systems in EAF Steelmaking for low-carbon applications.

Company (Country)	Technical Solution	Key Parameters and Data	Carbon Control and Economic Benefits
Nucor (USA)	SHARC DC EAF (150 t/160 MW) Twin-shaft scrap preheating (800 °C) Supersonic coherent jet oxygen lance (3500 m3/h)	Power consumption: 270 kWh/t (decrease18%) Tap-to-tap time: 40 min Electrode consumption: 1.0 kg/t Scrap preheating efficiency: 45% [113]	35% reduction in CO2 intensity per ton Annual CO2 reduction: 500,000 t FeO generation decrease: 30% [114]
ECOARC (Japan)	Flat bath AC EAF Ar/N2 bottom stirring (0.5~1.5 Nm3/(min·t)) Off-gas scrap preheating (400~800 °C)	Energy consumption decrease: 22% Dust emissions decrease: 30% Tap-to-tap time: 45 min Furnace lifespan: 1000 heats	Annual coal savings: 120,000 tce FeO in slag decrease: 15% Arc thermal efficiency increase: 18% [113,114]
Danieli (Italy)	AI stockyard system Machine vision scrap sorting (98% accuracy) IR slag detection (slag thickness ≤ 35 mm)	Scrap utilization: 98% Lime consumption decrease: 15% (baseline: 50 kg/t) Auxiliary materials decrease: 20%	28% reduction in CO2/t steel Annual cost savings: USD 12 M Steel purity increase: 25% [115]
HBIS Shisteel (China)	SHARC twinshaft DC EAF (150 t) Ar/N2 bottom blowing (0.8~1.2 Nm3/min) Onetap intelligent smelting system	Power consumption: 250 kWh/t (decrease 25%) Tapping time: 38 min Electrode consumption: 0.95 kg/t Endpoint C deviation: ±0.02%	Annual CO2 reduction: 300,000 t Total energy consumption decrease: 25% Manual intervention decrease: 80% [116]
SMS Group (Germany)	Conductive bottom electrode DC EAF High-impedance circuit design (4~8 mΩ) Arc harmonic suppression technology	Electrode lifespan: 3500 heats (increase of 40%) Electrical efficiency increase: 12% Harmonic incidence decrease: 50%	Electrode consumption decrease: 40%/t steel Annual power savings: 120 GWh Grid stability: voltage fluctuation ≤ 5% [114]
Sha Steel Group (China)	Static control model Material/heat balance algorithm for slag optimization Endpoint C prediction (±0.02%)	Lime consumption: 487 kg/t (baseline: 1200 kg/t) Dolomite decrease: 683 kg/t Splashing rate decrease: 90%	18% reduction in CO2/t steel Iron loss decrease: 5.63 kg/t Annual savings: CNY 8 M (auxiliary costs decrease 25%) [117]

Table 16 demonstrates significant global advancements in intelligent EAF steelmaking technologies: Nucor’s (USA) twin-shaft scrap preheating system (45% efficiency), HBIS Shisteel’s (China) dynamic endpoint control (±0.02% carbon deviation [116]), and SMS Group’s (Germany) arc stability optimization (50% harmonic reduction [114]) have collectively reduced power consumption to 250~270 kWh/t steel and decreased CO₂ intensity by 18~35%, achieving annual emission reductions of 300,000~500,000 tons. Danieli’s (Italy) AI stockyard system improved scrap utilization to 98% (annual savings: USD 12 million [115]). Current challenges include scrap impurity interference, high green hydrogen costs, and insufficient multi-objective control precision. Future development requires accelerated hydrogen-based DRI-EAF integration (e.g., Danieli Q-ONE) and digital twin real-time control systems to advance steel industry carbon neutrality.

4.3. End-of-Pipe Treatment

Current end-of-pipe treatment technologies for EAF short-process steelmaking, such as plasma-assisted emission reduction and ultra-low-energy membrane separation (as listed in Table 17), have achieved partial breakthroughs in pilot-scale projects. However, their industrial application maturity remains constrained by high energy consumption and insufficient process stability, requiring further optimization and validation. In contrast, waste heat recovery and slag treatment technologies have established mature industrialized application models, serving as the core pathways for emission reduction and efficiency enhancement in current EAF short-process production.

Table 17. Pilot technologies for end-of-pipe treatment in EAF short-process steelmaking.

Technology	Primary Function	Core Technology/Method
Flue Gas Waste Heat Deep Recovery and Utilization [118]	Recovers waste heat from flue gas and converts it into electricity/thermal energy	ORC power generation, absorption heat pump, cascade heat utilization
Cooperative Treatment of Flue Gas Pollutants [119]	Integrated removal of multiple pollutants (SO2, NOx, etc.)	Activated coke adsorption, non-thermal plasma, catalytic oxidation
Gas Resource Recovery and Recycling [120]	Purifies and recycles valuable components (H2, CO, etc.) from furnace gas	Membrane separation, PSA hydrogen purification, syngas conversion
Steel Slag Carbonation for CO2 Sequestration [121]	Utilizes steel slag to fix CO2 while improving slag recycling properties	Mineral carbonation (CaO/MgO-CO2 reaction)
Co-processing of Solid Wastes [122]	Synergistic treatment and high-value utilization of multi-source solid wastes	Co-processing in cement kilns, gasification for syngas, building material production
Plasma-Assisted Emission Reduction [123]	Degrades refractory pollutants (dioxins, VOCs, etc.)	Non-thermal plasma (corona discharge, dielectric barrier discharge)
Ultra-Low Energy Membrane Separation [124,125]	High-efficiency separation of target components in gas/liquid streams	MOFs membranes, graphene membranes, mixed-matrix membranes

Table 17. Pilot technologies for end-of-pipe treatment in EAF short-process steelmaking.

Technology	Primary Function	Core Technology/Method
Flue Gas Waste Heat Deep Recovery and Utilization [118]	Recovers waste heat from flue gas and converts it into electricity/thermal energy	ORC power generation, absorption heat pump, cascade heat utilization
Cooperative Treatment of Flue Gas Pollutants [119]	Integrated removal of multiple pollutants (SO2, NOx, etc.)	Activated coke adsorption, non-thermal plasma, catalytic oxidation
Gas Resource Recovery and Recycling [120]	Purifies and recycles valuable components (H2, CO, etc.) from furnace gas	Membrane separation, PSA hydrogen purification, syngas conversion
Steel Slag Carbonation for CO2 Sequestration [121]	Utilizes steel slag to fix CO2 while improving slag recycling properties	Mineral carbonation (CaO/MgO-CO2 reaction)
Co-processing of Solid Wastes [122]	Synergistic treatment and high-value utilization of multi-source solid wastes	Co-processing in cement kilns, gasification for syngas, building material production
Plasma-Assisted Emission Reduction [123]	Degrades refractory pollutants (dioxins, VOCs, etc.)	Non-thermal plasma (corona discharge, dielectric barrier discharge)
Ultra-Low Energy Membrane Separation [124,125]	High-efficiency separation of target components in gas/liquid streams	MOFs membranes, graphene membranes, mixed-matrix membranes

4.3.1. Case Studies on Waste Heat Utilization in EAF Steelmaking

Driven by global dual-carbon goals, the steel industry, as a major carbon emitter, urgently requires technological innovation to achieve a low-carbon transition. EAF steelmaking has emerged as a core pathway for decarbonization due to its reliance on scrap steel as the primary feedstock, shortened process flows, and significantly lower carbon emission intensity (only 20~30% of the blast furnace~basic oxygen furnace route). However, substantial waste heat resources in EAF processes remain underutilized, including high-temperature flue gas (1300~1500 °C), cooling water (50~85 °C), and slag sensible heat, with energy losses accounting for 15~25% of total input energy. Recent advancements in waste heat recovery technologies have enabled global steelmakers to markedly improve energy efficiency and reduce carbon emissions. Table 18 presents representative case studies of EAF waste heat utilization projects across leading enterprises, covering applications such as flue gas power generation, scrap preheating, and waste heat district heating.

Table 18. Representative cases of waste heat utilization in global EAF steelmaking.

Country	Company/Project	Technical Solution	Key Data and Performance
China	Tianjin Pipe Group (90 t EAF Project)	Evaporative cooling system Flue gas heat storage	Steam output: 242 kg/t steel 5% reduction in power consumption/t steel Annual CO2 reduction: 16,000 t Equipment lifespan extended to >2 years [126,127]
China	Laiwu Steel Group Waste Heat Heating System	BF slag flushing water + sintering waste heat recovery	Heating coverage: 5.3 million m2 Annual energy cost savings: CNY 1.1 million Replaced coal boilers, reducing 3.7 t SO2/year [128]
Germany	SMS Group CONSTEEL EAF Project	Continuous scrap preheating Post-combustion technology	Scrap preheating temp.: 300 °C 14% shorter tap-to-tap time [129] Post-combustion rate (PC): 60% 22% lower energy consumption/t steel [130]
Japan	Nippon Steel DC EAF System	DC EAF + waste heat boiler power generation	Steam pressure: 2.0 MPa Annual power generation: 8.4 GWh Electrode consumption: 1.1 kg/t 30% reduction in refractory consumption [131]
USA	Nucor Crawfordsville Plant	Oxygen fuel burners Hot metal charging (30%)	Power consumption: 300 kWh/t steel Oxygen supply: 45 m3/t Tap-to-tap time: 50 min [132]
South Africa	ISCOR EAF Bottom Blowing Project	Inert gas bottom stirring Waste heat heating	Gas flow rate: 0.25~0.3 m3/t 5% lower power consumption Heating coverage: 2 million m2 20% improvement in molten steel homogeneity [133]
Italy	Danieli QOne EAF Project	Fully enclosed design Multistage scrap preheating	Scrap preheating temp.: 600 °C Power consumption: 360 kWh/t steel Dust emissions: <30 mg/m3 EAF lifespan: 2500 heats [134]

Table 18. Representative cases of waste heat utilization in global EAF steelmaking.

Country	Company/Project	Technical Solution	Key Data and Performance
China	Tianjin Pipe Group (90 t EAF Project)	Evaporative cooling system Flue gas heat storage	Steam output: 242 kg/t steel 5% reduction in power consumption/t steel Annual CO2 reduction: 16,000 t Equipment lifespan extended to >2 years [126,127]
China	Laiwu Steel Group Waste Heat Heating System	BF slag flushing water + sintering waste heat recovery	Heating coverage: 5.3 million m2 Annual energy cost savings: CNY 1.1 million Replaced coal boilers, reducing 3.7 t SO2/year [128]
Germany	SMS Group CONSTEEL EAF Project	Continuous scrap preheating Post-combustion technology	Scrap preheating temp.: 300 °C 14% shorter tap-to-tap time [129] Post-combustion rate (PC): 60% 22% lower energy consumption/t steel [130]
Japan	Nippon Steel DC EAF System	DC EAF + waste heat boiler power generation	Steam pressure: 2.0 MPa Annual power generation: 8.4 GWh Electrode consumption: 1.1 kg/t 30% reduction in refractory consumption [131]
USA	Nucor Crawfordsville Plant	Oxygen fuel burners Hot metal charging (30%)	Power consumption: 300 kWh/t steel Oxygen supply: 45 m3/t Tap-to-tap time: 50 min [132]
South Africa	ISCOR EAF Bottom Blowing Project	Inert gas bottom stirring Waste heat heating	Gas flow rate: 0.25~0.3 m3/t 5% lower power consumption Heating coverage: 2 million m2 20% improvement in molten steel homogeneity [133]
Italy	Danieli QOne EAF Project	Fully enclosed design Multistage scrap preheating	Scrap preheating temp.: 600 °C Power consumption: 360 kWh/t steel Dust emissions: <30 mg/m3 EAF lifespan: 2500 heats [134]

Waste heat utilization technologies in EAF steelmaking have evolved from singular thermal energy recovery to integrated solutions encompassing flue gas power generation, scrap preheating, and molten bath stirring optimization. Global practices demonstrate that technologies such as evaporative cooling, post-combustion (e.g., 60% CO post-combustion rate in Germany’s CONSTEEL project), and DC EAF-coupled waste heat boilers (e.g., Nippon Steel’s annual power generation of 8.4 GWh in Japan) can reduce power consumption by 5~30% per ton of steel and lower CO₂ emissions by 16,000~37,000 tons annually, delivering significant economic and environmental benefits. However, challenges persist, including high technical complexity, substantial capital costs, and difficulties in regulating intermittent flue gas fluctuations. Future advancements require intelligent waste heat management systems, cascaded utilization of high-temperature flue gas chemical energy (e.g., hydrogen coupling), and cross-process multi-energy complementary models (e.g., synergies between waste heat district heating and power generation). Concurrently, international standards and policy incentives must be strengthened to accelerate technology adoption. The decarbonization of EAF steelmaking relies not only on process innovations but also on full-chain efficient utilization of waste heat resources to establish zero-waste energy recycling systems, serving as a core enabler for achieving carbon neutrality in the global steel industry.

4.3.2. Case Studies on Slag Treatment in EAF Steelmaking

The efficient utilization of electric arc furnace (EAF) steelmaking slag plays a crucial role in achieving low-carbon steel production and promoting a circular economy. Globally, steel enterprises and research institutions have developed various slag valorization approaches through technological innovation, covering metal recovery, building material substitution, thermal energy utilization, and environmental remediation. Table 19 presents representative global application cases of EAF slag treatment, demonstrating the energy-saving, emission-reduction effects, and economic benefits of different technical approaches, with data derived from multinational empirical studies and industrial practices.

Table 19. Global Application cases of EAF slag treatment.

Company/Project	Technology Application	Energy-Saving and Emission Reduction Data	Cost Savings Data
NucorSteel Brandenburg (USA)	Metal recovery from EAF slag (Cr, V, Mo)	Annual slag processing: 5~6 Mt; metal recovery rate: >95%; reduced iron ore consumption: 1.2 Mt/year	Value added per ton of slag: 50~80; annual revenue increase: 300~480 M [135]
TECNALIA Concrete Substitute Project (Spain)	EAF oxidized slag as concrete aggregate	Aggregate substitution rate: 50%; CO2 reduction: 18%; energy consumption decrease: 22%	Material cost decrease: 12%; road construction cost savings: 8% [136]
Hengyang Valin Steel Pipe Slag Prediction System (China)	Real-time slag composition prediction model	Auxiliary material consumption decrease: 10~15%; smelting energy decrease: 8%	Annual limestone savings: 12,000 t; cost reduction: CNY 6 M [137]
Jinchuan Group DC EAF Project (China)	Selective reduction smelting of Kaldo slag	Ni/Cu recovery rate: >98.5%; residual metals in slag: <0.3%; reduced tailings landfill: 120,000 t/year	Slag treatment cost decrease: 35%; annual high-grade alloy output: 20,000 t; revenue: CNY 480 M [82]
ThyssenKrupp Steel Europe AG (Germany)	Magnetic separation and road construction utilization	Slag recycling rate: 94% (70% for road base); compressive strength: 50 MPa [138]	Natural aggregate substitution cost decrease: 25%; annual raw material savings: EUR 120 M
Topy Industries Ltd. (Japan)	Slag-based soil amendment	Soil pH increase: 1.5~2.0; Fe utilization efficiency increase: 40%	Fertilizer cost decrease: 30%; annual lime application reduction: 50,000 t [139]
Ceramica S.p.A (Italy)	Slag-fired ceramic tiles	Tile water absorption: <2% (40% slag content); flexural strength: 35 MPa; heavy metal leaching compliant with EU standards	Production cost decrease: 20%; annual eco-tile output: 500,000 m2 [140]

Table 19. Global Application cases of EAF slag treatment.

Company/Project	Technology Application	Energy-Saving and Emission Reduction Data	Cost Savings Data
NucorSteel Brandenburg (USA)	Metal recovery from EAF slag (Cr, V, Mo)	Annual slag processing: 5~6 Mt; metal recovery rate: >95%; reduced iron ore consumption: 1.2 Mt/year	Value added per ton of slag: 50~80; annual revenue increase: 300~480 M [135]
TECNALIA Concrete Substitute Project (Spain)	EAF oxidized slag as concrete aggregate	Aggregate substitution rate: 50%; CO2 reduction: 18%; energy consumption decrease: 22%	Material cost decrease: 12%; road construction cost savings: 8% [136]
Hengyang Valin Steel Pipe Slag Prediction System (China)	Real-time slag composition prediction model	Auxiliary material consumption decrease: 10~15%; smelting energy decrease: 8%	Annual limestone savings: 12,000 t; cost reduction: CNY 6 M [137]
Jinchuan Group DC EAF Project (China)	Selective reduction smelting of Kaldo slag	Ni/Cu recovery rate: >98.5%; residual metals in slag: <0.3%; reduced tailings landfill: 120,000 t/year	Slag treatment cost decrease: 35%; annual high-grade alloy output: 20,000 t; revenue: CNY 480 M [82]
ThyssenKrupp Steel Europe AG (Germany)	Magnetic separation and road construction utilization	Slag recycling rate: 94% (70% for road base); compressive strength: 50 MPa [138]	Natural aggregate substitution cost decrease: 25%; annual raw material savings: EUR 120 M
Topy Industries Ltd. (Japan)	Slag-based soil amendment	Soil pH increase: 1.5~2.0; Fe utilization efficiency increase: 40%	Fertilizer cost decrease: 30%; annual lime application reduction: 50,000 t [139]
Ceramica S.p.A (Italy)	Slag-fired ceramic tiles	Tile water absorption: <2% (40% slag content); flexural strength: 35 MPa; heavy metal leaching compliant with EU standards	Production cost decrease: 20%; annual eco-tile output: 500,000 m2 [140]

The global application cases of EAF slag treatment presented in Table 19 demonstrate that integrated technologies have successfully achieved value-added utilization of steel slag worldwide. These practices confirm that slag valorization can simultaneously deliver carbon emission reductions (15~30% annually), decrease reliance on natural resources (with 1.2 Mt/year iron ore substitution [135]), and enhance industrial value (achieving 8~40% comprehensive cost reductions), thereby establishing replicable technical models and commercial pathways for end-of-pipe treatment in global short-process steelmaking.

Current EAF slag treatment technologies have developed a comprehensive valorization system focused on metal recovery, construction material substitution, and thermal energy utilization. Nevertheless, the field continues to face challenges including significant chemical composition variability and limited options for high-value applications. Future technological advancements should concentrate on developing efficient mineral separation techniques such as flotation and combined magnetic–gravity separation processes to enhance the precision of separating metallic and silicate phases. This should be complemented by establishing life cycle assessment models for slag through multi-scale simulation to optimize slag system design and application compatibility. Further research should explore the synthesis mechanisms of slag-based functional materials including CO₂ sequestration carriers and catalytic materials to expand their applications in renewable energy and environmental remediation sectors. Additionally, promoting intelligent control technologies and fostering cross-industry collaboration among metallurgical, construction, and chemical industries will be crucial to achieving slag composition standardization and facilitating large-scale utilization.

Through continued technological innovation and supportive policy frameworks, EAF slag has the potential to transition from being merely an end-of-pipe treatment target to becoming a valuable low-carbon resource carrier, thereby contributing systemic solutions toward the global steel industry’s carbon neutrality objectives. Currently, key low-carbon technology development for EAF processes remains focused on charge structure optimization, specialized power supply system development, material and energy consumption modeling, AI-based efficient power supply technologies, full-scrap EAF rapid melting process simulation, bottom stirring optimization design, dynamic operation optimization, and intelligent control systems implementation. While the adoption of short-process EAF steelmaking has emerged as a consensus approach for achieving deep decarbonization in the steel industry, this seemingly straightforward pathway still contains numerous hidden barriers that require systematic resolution through coordinated technological breakthroughs and policy support.

5. Summary and Outlook

Global carbon neutrality goals are driving the emergence of low-carbon steelmaking technologies as the core pathway for the steel industry’s green transformation. Current developments exhibit three key characteristics: parallel advancement of multiple technological routes, regionally adaptive optimization, and cross-industry supply chain collaboration. While traditional blast furnace–basic oxygen furnace (BF–BOF) long-process routes are achieving incremental decarbonization through process innovations and end-of-pipe carbon capture technologies, electric arc furnace (EAF) short-process routes demonstrate disruptive emission reduction potential via scrap recycling and green energy integration. Hydrogen-based metallurgy, which utilizes green hydrogen as a carbon-free reductant, represents the ultimate deep decarbonization solution. However, technological evolution faces persistent challenges including high green hydrogen costs, inconsistent scrap quality, inadequate intelligent control precision, and mismatched regional resource-energy infrastructure, necessitating coordinated solutions through policy incentives, carbon pricing mechanisms, and international cooperation.

Looking ahead, declining renewable energy costs, maturing hydrogen supply chains, and digitalization integration will accelerate the industry’s transition toward renewable energy-driven systems, hydrogen-based alternatives, and closed-loop circular systems. For long-process routes, multi-technology integration—such as optimizing gas injection media combinations, enhancing carbon capture efficiency, and improving resource recovery rates—will maximize decarbonization potential. Short-process routes require advancements in scrap pretreatment technologies, renewable-energy-storage synergy systems, and deep integration of hydrogen-based direct reduced iron (DRI) with EAFs to establish “resource recycling–clean energy–high-efficiency production” closed-loop ecosystems. Critical focus areas include high-quality scrap utilization, low-carbon smelting process innovation, equipment intelligence/scaling, and energy system optimization.

Policy frameworks must strengthen top-level design through standardized scrap recycling protocols, robust carbon pricing mechanisms, and green finance support for R&D. Industry players should pioneer cross-sector collaboration models encompassing slag valorization and hydrogen metallurgy–chemical co-production. The metallurgical sector must intensify fundamental research, promote interdisciplinary technology convergence, and establish globally recognized green certification standards under carbon market frameworks. This comprehensive transformation—from “carbon metallurgy” to “green metallurgy”—will position the steel industry as a cornerstone of global industrial decarbonization, providing critical technical and systemic support for achieving climate objectives.

Priority Technology Pathways for Immediate Support:

• Short Term: Accelerate the deployment of electric arc furnace (EAF) technology integrated with high scrap ratios and green electricity, due to its technological maturity, proven carbon reduction benefits, and suitability for regions with strong resource foundations.
• Medium Term: Promote the large-scale implementation of CO₂ capture, utilization, and storage (CCUS) in blast furnace-based long-process steelmaking as a primary means of carbon mitigation.
• Long Term: Expedite industrial demonstration of hydrogen-based direct reduction (H2-DRI) coupled with EAF, positioning it as the “ultimate pathway” for achieving deep decarbonization.

Major Risks Currently Faced:

• Dual Pressure of High Technology Costs and Resource Constraints: Challenges such as the high cost of green hydrogen, difficulty in impurity control in scrap, and the lack of commercially viable carbon capture systems.
• Policy–Market Misalignment: Inadequate carbon pricing incentives and lack of premium market space for green steel products.
• Regional Development Imbalance: Many developing countries face significant hurdles in energy infrastructure, investment conditions, and technological readiness, increasing the risk of global “carbon decoupling”.
