1. Introduction
Environmental issues are becoming worse and soaring everywhere, which calls for the restructuring of society. Among these, one of the most insistent is the transformation of the energy paradigm, replacing non-renewable energy and pollution-creating sources with renewable energy sources (RESs), which are cleaner, more sustainable, and less resource intensive. Additionally, these advanced technologies have already been considered as reliable and economical [
1,
2]. RESs tackle pressing issues, such as promoting energy security, enhancing public health, fostering economic opportunities, and driving technological innovation. By shifting to renewable energy, societies can decrease their negative impact on the environment [
3], promote sustainable development, and pave the way for a resilient and fair energy future [
4]. The EU seeks to reach climate neutrality by 2050 as a means for mitigating climate change [
5]. In recognizing the crucial part of the energy sector considering the climate crisis, the European Union’s Clean Energy Package emphasizes that the energy mix ought to be from RESs and that the energy market ought to be rationalized, taking into consideration flexibility [
6].
Over the past century, electricity industries around the globe have endured a revolution, moving toward predominantly large-scale centralized energy systems. This centralized structure has presented challenges in terms for accessing capital and efficiently operating interconnected power systems [
7,
8]. Conversely, there has been a paradigm shift, in recent years, in the power system because of the integration and management of growing RESs. This shift has resulted in a greater presence of decentralized energy resources within the grid. Decentralized energy systems provide local control, facilitating community-based energy generation and distribution at the local level [
9]. These systems seek to satisfy the local energy demand utilizing distributed energy resources available within the community [
10]. Local decentralized energy resources transport energy generation nearer to consumers, resulting in reduced cost, inefficiencies, and complexity; bolstering local resilience; promoting energy independence; and transitioning toward zero carbon emissions as compared to centralized energy systems [
11]. Decentralized systems have the potential to drive innovation, empower individuals, and encourage community engagement. As a result, energy communities have emerged as cooperative strategies that facilitate the sharing of renewable energy within decentralized energy systems. These communities align with the goals for minimizing energy consumption and promoting flexible energy utilization by active consumers, thereby alleviating the high energy loads on the power grid [
12]. Integrating local DERs and engaging local communities appears to be a promising initiative to address the transition of the local energy landscape effectively [
13,
14].
Apart from this, the energy community has made significant progress in Europe and is poised to be a foundational element in creating a further decentralized and adaptable energy union, where citizens gradually become more influential. The Renewable Energy Directive, also known as Directive (EU) 2018/2001, or RED II, commences the GHG emission criteria and sustainability goals in the European Union. It has also established a legally binding goal of 32% for the total percentage of energy from renewable sources in the EU’s gross final energy consumption by 2030. This regulation created a standard framework for promoting the use of renewable energy sources [
15]. With its annexation in the Clean Energy Package, Directive 2018/2001 RED II introduced the renewable energy community (REC) concept and its establishment, concentrating on the use of RESs, whereas 2019/944 ED directives presented the citizen energy community (CEC) concept, focusing on electricity, with the combined primary aim for delivering social, environmental, and economic advantages to their members [
15,
16]. These communities play a vital role in supporting individuals worldwide during the shift toward sustainable development and the utilization of RESs. Renewable energy communities offer a wide range of options to inspire the active involvement of community members, including the decision-making process, investment opportunities, ownership models, local energy conversation platforms, and economic inducements [
17]. Individual households serve as the fundamental units within local communities. Local communities are well positioned to recognize local energy requirements and unite individuals toward shared objectives, such as self-sufficiency [
18], resilience, autonomy [
19,
20], and sustainability [
21]. Moreover, as local communities transition, their roles evolve from being mere consumers to becoming prosumers who actively engage in local generation, energy sharing, demand-response strategies, and energy efficiency measures [
22].
In recent times, a global discourse has emerged surrounding energy autonomy, energy security, and energy poverty improvement policies in both developed and developing nations. Energy communities have appeared as substantial contributors to this discussion, as they facilitate the integration of DGs, particularly inside local energy systems. Many researchers are involved in and keen to work on and promote topics such as REC-like concepts [
23,
24], distributed energy technologies and their integration [
25,
26], design and modeling [
27,
28], energy sharing [
29,
30], economic and feasibility analyses [
31,
32], policies and policymakers [
33,
34], challenges [
34,
35], comparison between countries [
36,
37], business models [
38,
39], community and social acceptance [
28], prosumer and consumer roles [
40,
41], self-consumption [
42], and many others. All these topics are discussed individually in different articles. However, the authors have not covered all the core topics of RECs. Moreover, the review papers that were published in 2019–2023 are presented with titles in
Table 1.
It should be noted here that there are very few review articles relevant to the renewable energy community according to the RED II Directive and a lack of articles on the main topics to be discussed, like the progress of REC implementation in different countries of Europe, general and technical challenges associated with this slow progress, policies, policymakers, awareness, and future recommendations to boost this progress across Europe to involve the community to create and own RE projects for sustainable transition. Keeping in view this scenario and the emerging topic of renewable energy communities, this research work aims to fill this gap by covering all the parts of RECs, including the concepts, scope, benefits, activities, progress, challenges, and recommendations. Moreover, this article provides an updated, complete review of energy communities, serving as a valuable resource for researchers, policymakers, communities, and practitioners seeking to understand the concepts, progress, challenges, and potential solutions in this field. The motivation behind this emerging topic is to provide a comprehensive analysis of this emerging concept and its potential to drive the transition toward sustainable and community-driven energy systems. Motivations should be as diverse as the communities’ actions, such as social and environmental values that support their dedication to sustainability, worries about climate change, the shift to renewable energy sources, legislative incentives, and financial considerations, like solving social equity and poverty problems in some areas. This paper covers all the parts of RECs, investigating and discussing several aspects, from concepts to future recommendations, filling the gap on important topics relevant to RECs. The rest of this paper is organized into seven sections as follows:
Section 1 discusses motivations, related works, and contributions;
Section 2 highlights the role of the energy community, the concept of the energy community, and the renewable energy community as per the RED II Directive;
Section 3 discusses the scope and benefits in accordance with RECs;
Section 4 describes the participants and activities carried out, including technological components, like energy generation, energy consumption, ESSs, energy sharing, energy-monitoring and efficiency measures, and virtual power plants. Moreover, an illustration of an REC is also included for further clarification. This part plays an important role for all the researchers, participants, and other stakeholders to become familiar with these components, resulting in awareness regarding the economic, environmental, and social benefits.
Section 5 elaborates on the progress and challenges along with some barriers associated with the energy community;
Section 6 concludes the overall work, and
Section 7 gives the future recommendations to be considered for successful RECs.
2. Concept of Renewable Energy Communities
Energy communities are pivotal in Europe’s energy transition, attracting private investment, gaining public support for energy projects, and facilitating long-term renewable resource utilization. This leads to reduced electricity costs, decreased pollution, and a boost in local economies through job creation, ultimately empowering citizens to actively drive the energy transition [
55,
56]. Simultaneously, redirecting profits back into society enhances the social acceptance of sustainable development and the expansion of renewable energy. Linguistically, the term “community” refers to a social unit illustrated by shared customs, values, and a collective sense of place [
57]. From an energy perspective, an “SEC” or “sustainable energy community” refers to a group of energy utilities, either publicly, privately, or jointly owned and operated within a specified geographical area. In this setup, end-users (citizens, companies, and public administrations) come together to fulfill their energy requirements through a collaborative approach. A variety of definitions and terms exist in the literature for RE initiatives led by citizens and localities, as shown in

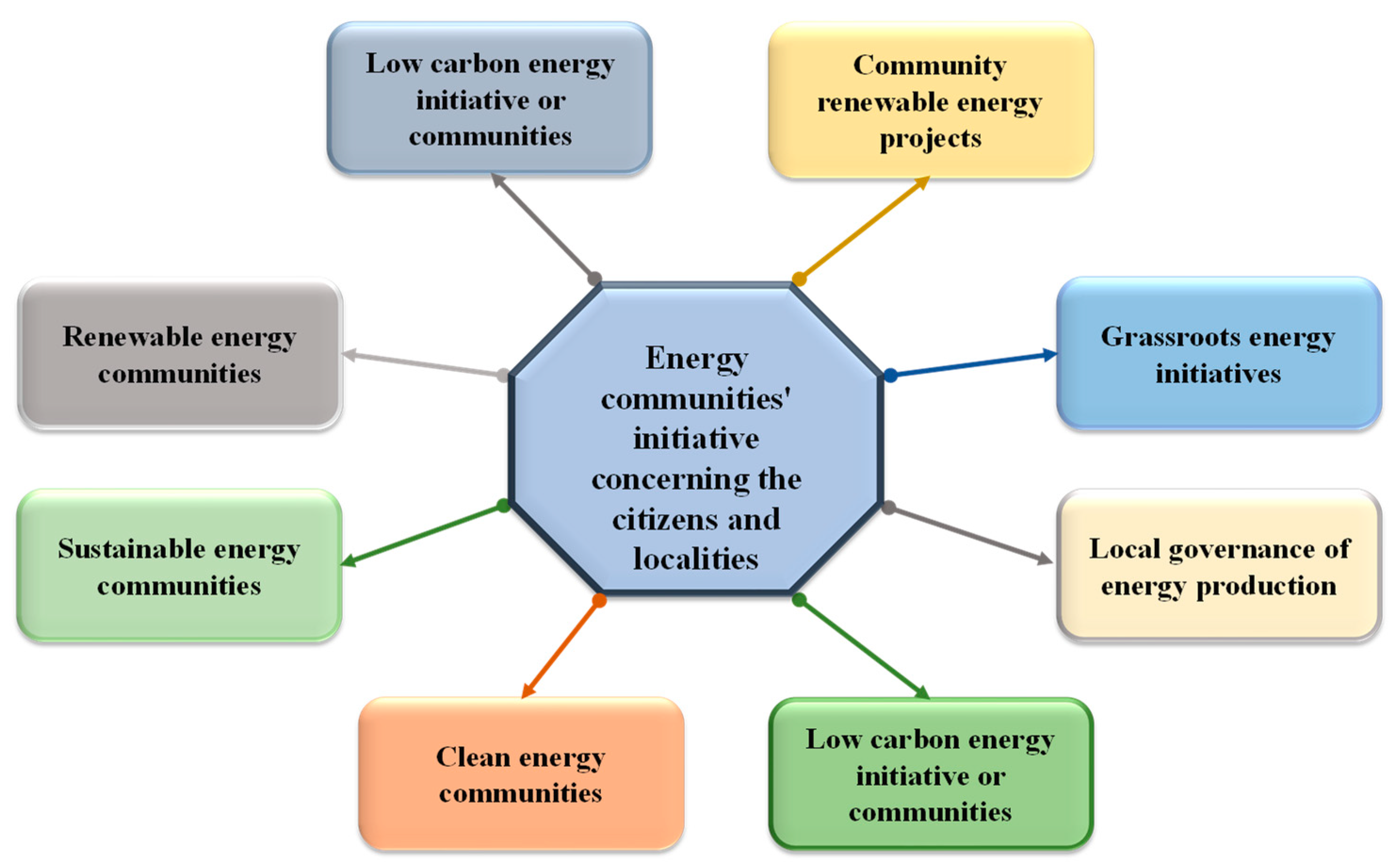

Figure 1 [
8,
21,
22,
37,
58,
59,
60,
61].
The terms given in the figure appear to cover a range of programs or activities pertaining to community-based initiatives focused on developing low-carbon and renewable energy projects. Even though the initiatives’ objectives could occasionally overlap, each word may have distinct meanings or concentrate on various facets of community involvement in sustainable energy practices. Although encouraging clean energy and sustainable behaviors at the community level is the same goal of all the types, there are some distinctions among them in terms of particular areas of emphasis, such as project execution, governance frameworks, or the overall reach of sustainability programs. The terminology used may also represent contextual or regional differences in language and policy emphasis.
As local communities progressively engage in the ownership, decision-making, and organization of energy generation plants [
62,
63], a new socio-energy system centered on DGs from RESs is evolving. The shift toward establishing renewable-powered communities has been thrusted owing to various economic and environmental concerns related to conventional energy consumption. The EC is divided as centralized, decentralized, and distributed, classifying the associates’ identities and aim [
8]. Bruno Canizes et al. [
64] discussed ECs and classified them as homogenous energy communities (HECs), mixed energy communities (MECs), and self-sufficient energy communities (SECs). Herein, the main term, ‘net energy’, differentiates all the parts. The
ENet value is the difference between
Eg and
Ec within a specified timeframe. In the following subsections, a more detailed description is reported. A negative value indicates a negative net energy (
Ec >
Eg). Conversely, a positive value indicates a positive net energy (
Ec <
Eg).
2.1. HECs
HECs are characterized by a group of members whose
ENet is consistently either positive or negative during the defined time, i.e.,
ENet < 0 or
ENet > 0.
ENet is the difference between
Eg and
Ec within a specified timeframe. Two variables are required to identify the various HECs in the electrical network: the geographical distance among the members (D) and
ENet. The problem for recognizing the EC may be viewed as a grouping problem according to D, and the HEC’s net energy can be aggregated. The relevant equation for the HEC is given as follows [
64]:
2.2. MECs
MECs consist of members with mixed net energies, including both positive (
ENet > 0) and negative values (
ENet < 0). The members within the community have surplus energy (
ENet > 0) that they can share or store, while others have a deficit (
ENet < 0) and require energy from the grid. This creates an opportunity for these members to come together and form an MEC. In an MEC, the surplus energy from some members can be shared with those in deficit. This arrangement benefits both parties; members with negative
ENet(
t) can access cheaper energy, while members with positive
ENet(
t) can enhance the profitability of their production units by selling their extra energy [
64].
2.3. SECs
SECs comprise members whose total net energy is positive, regardless of the individual ENet of each member. In SECs, the collective generation surpasses the overall consumption, leading to self-sufficiency in the energy supply. The SEC falls within the category of MECs but with a significant distinction: Like MECs, SECs consist of members with both positive and negative E(t) values. Nevertheless, the key difference lies in the SEC’s ability to fully balance their energy demand with locally generated energy from their own generation units, primarily utilized for self-consumption. This unique characteristic of SECs, where ENet > 0, makes them particularly intriguing for study. These communities are highly interesting because they rely less on the electricity grid, ensuring greater energy independence and resilience. SEC members enjoy several advantages, such as being unaffected by contingencies in the main grid. Their self-sufficiency in the energy supply makes them more secure during emergencies or disruptions in the larger power network. As a result, studying SECs offers valuable insights into sustainable and resilient energy community models.

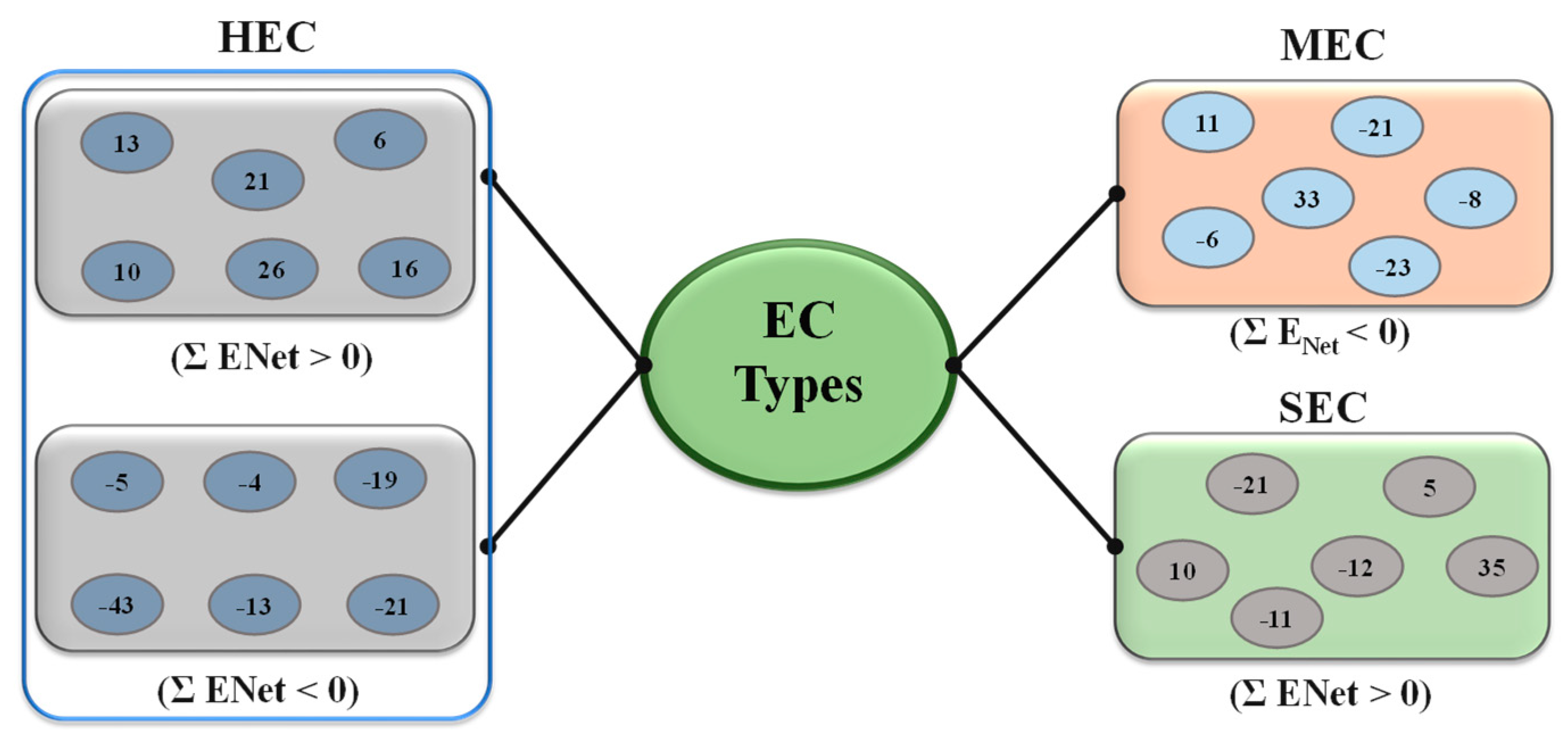

Figure 2 compares the energy communities according to their net energy. HECs are comprised solely of members with either
ENet > 0 or
ENet < 0. The first part of the HEC shows the positive value, and the other part of the figure presents the negative value after the addition, which is mentioned as resulting in
ENet > 0 and
ENet < 0. As per the constraints set by the authors, if
ENet is positive, it cannot exceed a positive upper value, and if
ENet is negative, it cannot be less than a negative lower value. In contrast, MECs consist of members with both negative and positive net energies. Lastly, special energy communities (SECs) are formed by members whose total net energy (Σ
ENet(
t)) is greater than zero [
64].
Continuing with this aspect, more recently, these energy communities’ innovative concepts have received explicit attention in the various standards and directives encompassed by the Clean Energy for All Europeans Package. Consequently, two distinct categories of ECs [
65,
66] can be identified: CECs represented by Directive 2019/944 [
16] and RECs presented by Directive 2018/2001 [
15]. To contribute to the attainment of energy and climate objectives actively and effectively, the creation of both CECs and RECs can play a vital role. The ultimate goal is to attain advantages in terms of cost efficiency, sustainability, and safety [
67]. RECs are poised to play a critical role in driving the transformation of the whole energy system and market. Simultaneously, these initiatives directly benefit citizens by enhancing energy efficiency, leading to reduced electricity costs and creating local job opportunities and economic growth [
68,
69]. RECs are identified as a pivotal factor in promoting the wider implementation of onsite RESs. Diverse RETs, like solar PVs, wind, and biomass, have been actively encouraged in recent years to pave the path toward a sustainable energy future [
70,
71]. Within RECs, consumers will be able to produce, store, use, sell, and share energy. RECs have emerged as an innovative and cooperative strategy to facilitate the sharing of renewable energy among participants [
72,
73], resulting in reduced energy costs and lower economic costs for infrastructure and services, contributing to climate change mitigation efforts, and fostering a sense of community spirit [
55,
74]. Also, RECs aim to reduce individual energy consumption, optimize grid loading, and leverage the energy flexibility of active consumers [
75].
4. Main Activities of RECs
This section discusses the main stakeholders and participants who can jointly work together to form an REC. The activities of these participants include energy generation, ESSs, energy consumption, energy selling, and energy sharing. Moreover, an REC example is illustrated for further discussion. Forming an REC is not convenient for a person or a family. Many stakeholders play vital roles in forming an REC. A diverse range of actors from both the private and public sectors may participate to varying degrees, contributing to or forming a cohesive community [
114,
115]. Citizen engagement in decision-making and RE projects can potentially enhance the acceptance and adoption of renewable energy sources. However, RECs consist of citizens as volunteers, investors, or participants; an energy-community’s local citizens [
116], social entrepreneurs, community organizations, and public authorities [
117] come together, jointly participating in the energy transition [
118,
119]. Moreover, these endeavors play a major role in facilitating the shift to a decreased-GHG-emission energy system, enhancing consumer engagement and trust, offering valuable flexibility in the market, decision-making, and local trading [
120]. Active participation, local involvement, and co-ownership play crucial roles in bolstering energy communities [
121]. The roles of these participants may vary, but collectively, they are contributing to the development, management, and success of the REC. It is important to mention, here, the role of all the participants, so
Table 2 is added, which highlights the main participants and their roles in the REC.

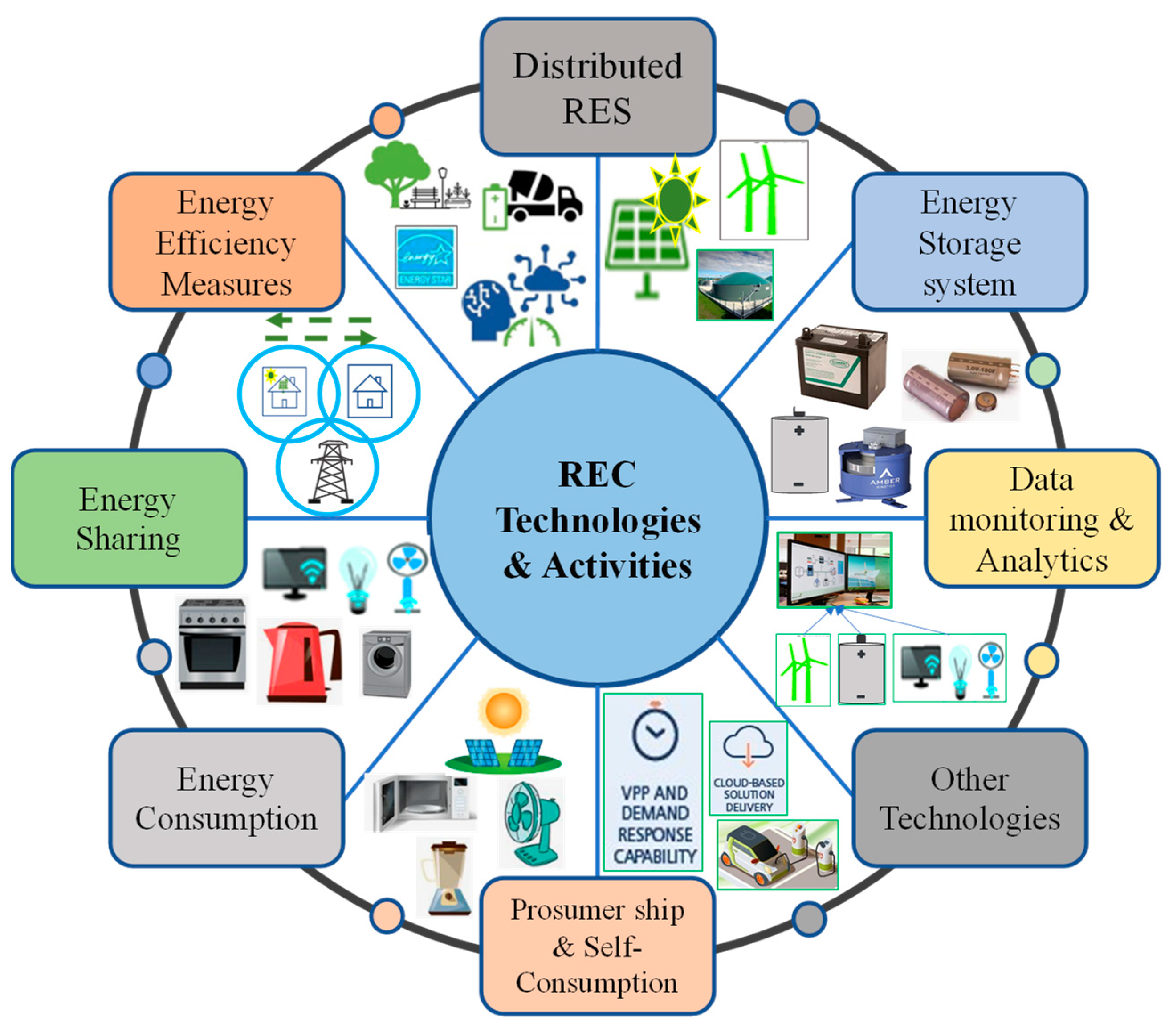

Considering the roles of the main participants, the diverse range of the collective energy in an energy community includes energy generation, electricity distribution, energy supply, aggregation, energy consumption, energy sharing, energy storage, the provision of energy-related services, and other technologies, as represented in
Figure 5 [
68].
4.1. Energy Generation through Renewable Energy Sources
Incorporating distributed generation from renewable sources yields societal advantages and holds the capability to enhance the functioning of distribution networks [
122,
123]. These systems, including from small-generation units to multi-energy centers, incorporate elements like RESs and other hybrid systems like PVs and thermoelectric systems [
124]. Nonetheless, research concerning the integration of these systems within community settings is limited, especially in relation to the involvement of local stakeholders, like community energy utilities, ownership aspects, and the spatial extent of the implementation. This gap hinders the acceleration of DES adoption [
125]. Energy communities incorporate various RETs, like wind, solar PV systems, hydro, biomass, or geothermal systems. These installations produce clean energy locally, decreasing dependency on non-renewable energy sources and raising economic benefits [
126]. The primary driving factor for the increasing preference for technologies like RES-based DGs is attributed to the environmental advantages they offer [
127]. The pursuit of expanding renewable energy shares in the system, with a specific focus on the deployment of PVs, while sustaining increasing rates and transitioning away from FiT schemes, along with prioritizing prosumers, highlights the promising potential of energy communities [
128,
129]. PV systems have become dominant owing to their availability and ease of use on roofs for producing electricity. The equation for the instant power output for a PV system, as described in reference [
130], is as follows:
Moreover, diverse forms of community energy exist, including initiatives where local individuals come together to invest in renewable energy, such as wind farms or cooperatives [
37,
131]. Researchers emphasize the need to move beyond feed-in tariff schemes and, as an alternative, focus on expanding prosumer-intensive business models. Prosumers, who both consume and generate electricity, are at the core of these models, which are essential for sustaining the growth of PV energy generation rates [
132].
Table 3 shows the characteristics of distributed renewable generation sources [
133,
134,
135].
4.2. Energy Consumption and Prosumer Role
Energy consumption is herein considered for the active consumer, the passive consumer, and the grid. One who generates electricity and consumes it from a self-generated plant via self-consumption is also known as a prosumer. The concept of the prosumer has become important in the new era after the development of smart grids, microgrids, and renewable energy communities. Alvin Toffler originally devised the term ‘prosumer’ in the 1980s by combining the words ‘producer’ and ‘consumer’ [
136]. In the beginning, this term was employed to describe the fusion of producers and consumers facilitated by the digital revolution, but now it could have a variety of applications. L. Brand et al. [
137] define the term as customers that both produce and consume direct heat. Energy communities foster the concept of “prosumers”, who both consume as well as produce energy. P.G. Da Silva et al. [
138] define it as a consumer having its own production capacity. P. Kästel et al. [
139] highlighted it as entities or houses that function as both energy producers and consumers simultaneously. Currently, RECs have encouraged consumers to become prosumers owing to various advantages in growth, including cost savings and energy independence. Community members are encouraged to become active participants in energy generation by installing renewable energy systems on their properties and contributing to the overall energy production of the community [
140]. ECs and consumer co-ownership are essential keystones in REs, leading to a successful energy shift [
141]. When consumers own RECs, they can be converted to prosumers, generating and consuming the energy [
142]. PV producers utilize a portion of the electricity they generate, essentially serving as both consumers and producers of their own electricity [
143]. This not only allows them to reduce their expenditure for energy but also obtains another income from selling the excess production [
144]. Owing to these benefits, prosumership is attracting energy communities and is expected to be increasingly embedded, entailing a broad range of actors [
145,
146]. The relevant equations for REC energy consumption, production, and self-consumption are respectively given as follows [
68]:
4.3. Energy Storage Systems
The primary idea behind an energy storage system is to create a buffer for energy, serving as a storage intermediary between generation and consumption. An energy storage system refers to a device that is able to convert electrical energy into a storable form and subsequently transform it back to electricity as required [
147]. ESSs, such as batteries, are essential components of energy communities. They allow the effective storage of extra energy produced during periods of peak production, which can then be used in periods of high demand or in the absence of active power generation from RESs [
148]. ESS technologies are categorized into the foremost groups as mechanical, thermal, chemical, electrochemical, electrical, and others, like hybrid energy storage [
149,
150]. According to their response characteristics, ESSs can be characterized into three main groups: short term (ranging from seconds to minutes), employed for power quality enhancements; medium term (from minutes to hours), utilized for managing grid congestion and offering frequency responses; and extended long term (spanning from hours to days), applied for aligning supply and demand over extended timeframes [

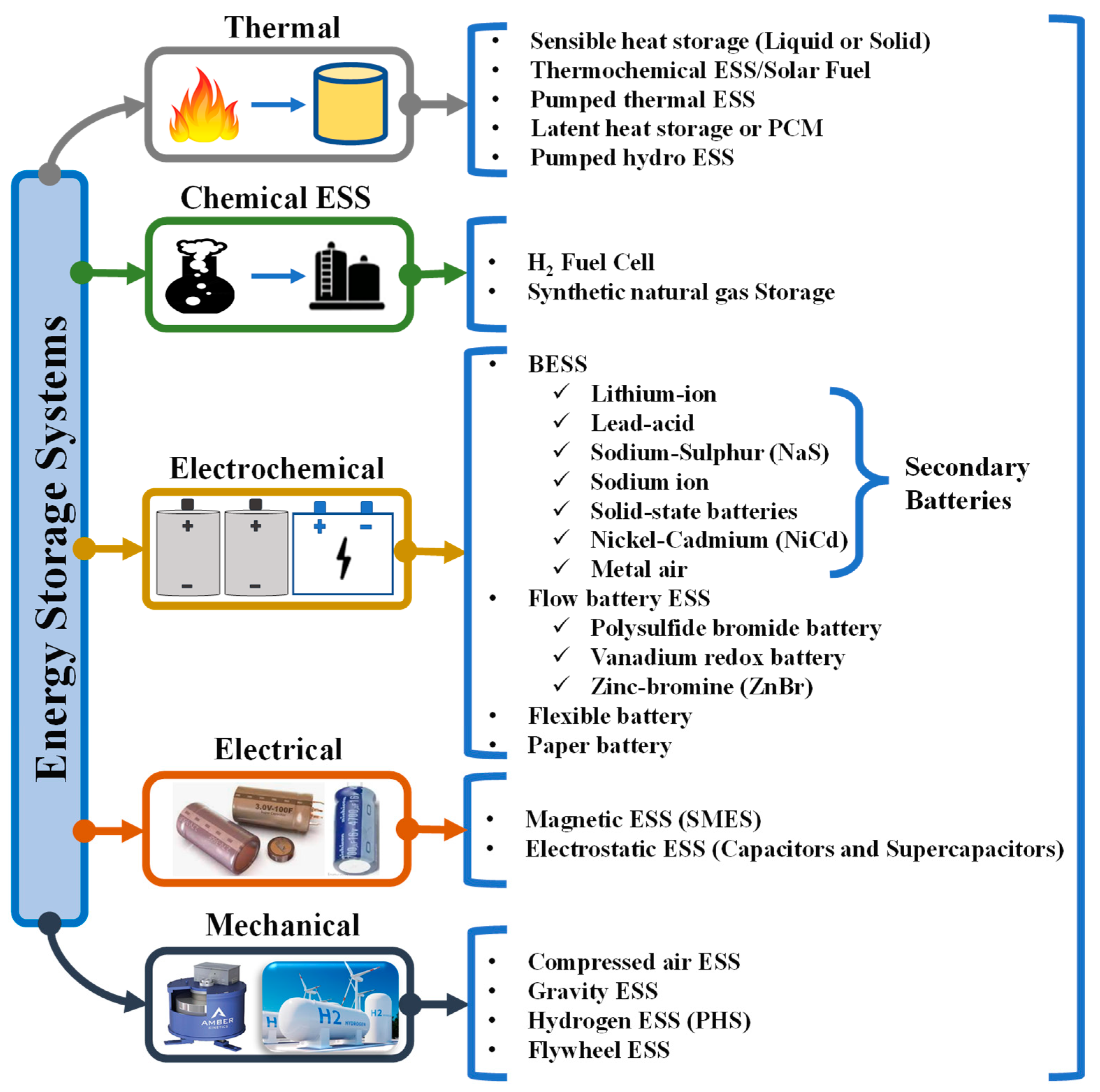

151]. The further subclassification of energy storage systems is given in
Figure 6 [
149,
150,
152].
A fundamental aspect of ECs is the inclusion of energy storage units. These units play a critical role in retaining a balance between supply and demand when DGs are operational. Owing to the intermittent nature of the majority of RESs, a significant challenge arises in maintaining a balance between energy generation and load for ensuring the stability and dependability of power networks. Extensive endeavors have been dedicated to exploring feasible remedies, encompassing EES, load adjustment through demand management, and integration with external grids. Of all the potential resolutions, electrical energy storage stands out as a particularly promising avenue [
153]. In the current economic landscape, batteries emerge as a cost-effective option, despite having a relatively higher negative environmental impact compared to other storage technologies [
154].
4.4. Energy Sharing
The sharing of energy in renewable energy communities involves the collaborative distribution and utilization of locally generated DREs. The participants share the produced energy among themselves in cases of excess, fostering a decentralized and sustainable approach [
155]. Energy sharing within communities transforms individual consumers into prosumers, allowing them to share surplus energy with other participants of the community. Community-level energy plans offer a superior prospect to tailor developed energy systems according to local states and specific constraints. This approach facilitates increased efficiency and the sustainable utilization of these RESs within the community [
156]. Sharing could occur through many mechanisms, like community microgrids, peer-to-peer energy exchanges [
157,
158], or collective energy storage initiatives, by aiming to optimize the usage of RESs, promote a sense of community engagement, enhance energy resilience, and promote self-sufficiency in sustainable energy practices. The amount of shared energy within the community at time interval
t can be computed as follows [
68]:

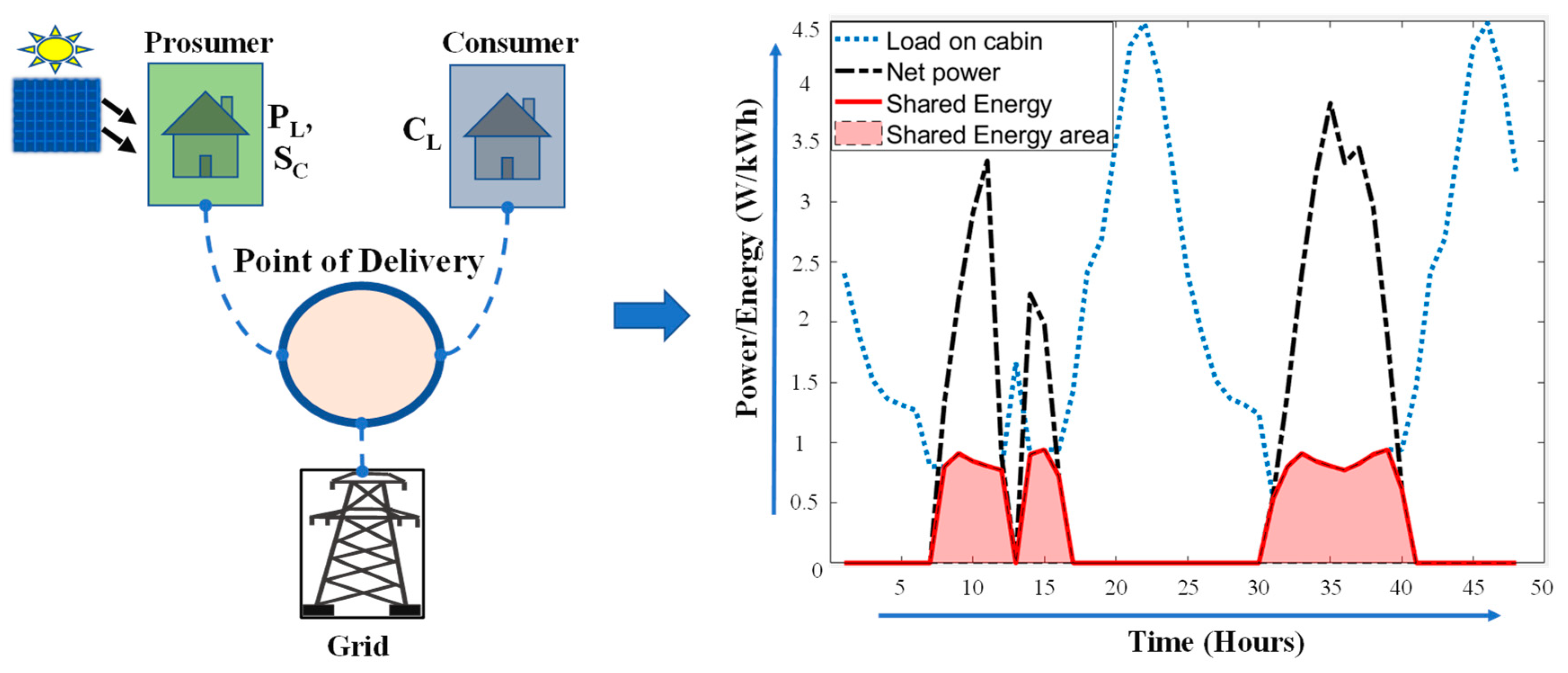

Figure 7 shows the REC concept diagram and results from MATLAB software (R2021a) for two days for an REC located in a southern city in Italy, showing the load on the cabin, net power, and energy sharing. In the simulation,
Np = 2 prosumers and
Nc = 2 consumers have been considered, evaluating the producibility using the PVGIS database [
159] and load data from a daily load profile (residential) on an hourly basis.
Many researchers are involved in working on this advanced topic and have proposed sharing models and concepts [
160,
161]. G. Di Lorenzo et al. [
162] proposed an innovative model for sharing the power produced by common generators and energy services. This model is appropriate for both multi-tenant structures and clusters of multiple buildings and is pertinent to both current as well as newly constructed buildings, having the advantages of scalability to larger systems and easy energy-storage integration. L. Martirano et al. [
163] proposed a model for sharing power, named PSM, designed for energy communities to share energy and other services that are suitable at the building level and in larger communities. B. Fina et al. [
164] examined the optimal installation capacities as well as economic feasibility of ECs compared with individual buildings, resulting in increased profitability in implementing a PV system with the optimum size as compared to the buildings.
4.5. Energy Efficiency Measures
Recently, there has been a notable surge in interest in the development of RECs, driven not only by the scientific community but also by their documentation of actual and simulated case studies showcasing various energy-sharing system setups owing to their many advantages [
165]. Specifically, the expansion of ECs has the potential to result in energy conservation, enhance energy efficiency, and contribute to the alleviation of “energy poverty” [
166]. ECs emphasize energy efficiency and encourage the installation and operation of energy-efficient technologies and practices among community members because the energy shift rests on two fundamental pillars: energy efficiency and the adoption of RESs [
167]. This not only necessitates a change from fossil fuels to RESs but also involves preventing energy wastage and elevating levels of energy efficiency [
168,
169]. The technologies include energy-efficient appliances, building design, and insulation, and behavior changes are aimed at reducing the overall energy consumption [
170]. F. Coonan et al. [
171] offer deeper insights into evaluating strategies and steps for guiding homeowners to attain energy savings and reduce carbon emissions. Also, they highlight the potential of RECs as a fresh approach for addressing energy efficiency in existing housing, along with potential enhancements in their energy performance. C. Chen et al. [
172] have presented an artificial-intelligence-driven evaluation model called AIEM, aimed at predicting the economic effects of REs and energy efficiency. This innovative model has the potential to boost energy efficiency and optimize the utilization of RESs.
4.6. Data Monitoring and Analytics
Energy communities utilize data monitoring and analytics tools to track energy production, consumption patterns, and the overall system performance [
173]. This data-driven approach helps to identify optimization opportunities, make updated decisions, and ensure the efficient operation of the EC. L. Gagliardelli et al. [
174] proposed the energy community data platform (ECDP), a middleware platform specifically crafted for gathering and analyzing extensive data on energy consumption within local ECs, with the primary goals for promoting greater awareness and conscientious energy usage among users. Online information sources play a crucial role in engaging people and raising awareness concerning the advantages of energy communities. Researchers examine online news data to gauge public awareness and the media’s significance regarding this subject and employ an innovative measure called the semantic brand score (SBS), which links text mining techniques and social network analysis [
175]. Z.D. Grève et al. [
42] proposed data analytics modules to assist community members in optimizing their resource usage (generation and consumption) to reduce their electricity costs. M. Sănduleac et al. [
176] recommend the integration of data collected at significantly varying reporting frequencies to enhance the system’s situational awareness and improve the monitoring accuracy because distribution power grids face partial observability issues, primarily stemming from inadequate metering infrastructure, particularly in areas downstream from medium-voltage substations. S.M. Patil et al. [
177] discussed their proposed system involving the real-time presentation of solar energy utilization, facilitated by a Raspberry Pi and Flask framework. This smart monitoring platform offers daily insights into renewable energy consumption, aiding users in analyzing their energy usage and its impacts on renewable energy utilization and electricity concerns.
4.7. Virtual Power Plants
Virtual communities, or power plants, leverage digital platforms and technologies to enable energy sharing and trading across a wider geographical area. They connect renewable energy producers with consumers who may be located remotely but share a common interest in supporting renewable energy. Virtual RECs facilitate P2P energy transactions, allowing individuals to buy and sell renewable energy credits or join in community solar projects. Kalle Pesonen et al. [
178] examine the notion of a decentralized virtual energy community comprising six rural Finnish farms. This is achieved through an exploration of their current and projected electricity generation, as well as demand-responsive resources created through electrical equipment. Kwang Y. Lee et al. [
179] introduce a P2P energy-trading model that optimizes green energy transactions, considering the preferences of prosumers and consumers, focusing on the cost-effective operation of the virtual energy community, reducing storage depreciation, and enhancing social welfare by promoting energy trading.
All the above components are considered as one of the major parts of RECs to know about RES technologies. In the literature, most of the research articles cover RES technologies, ESSs, and energy consumption, like those in microgrids. However, in the case of RECs, other terms are added, such as self-consumption, prosumership, and energy-sharing concepts. In addition, the other parts that must be considered are energy monitoring, data analytics, and VPPs, as these parts are important in tracking and monitoring the data of energy consumption, energy sharing, self-consumption, and PV production and to check the economic benefits. All the data are analyzed on an hourly basis. Furthermore, an illustration is also given in the next section to clarify the concept, different consumers (active and passive), prosumers, grid connection, and flow of energy in cases of energy excess and deficit within RECs.
4.8. Illustration of Activities in an REC

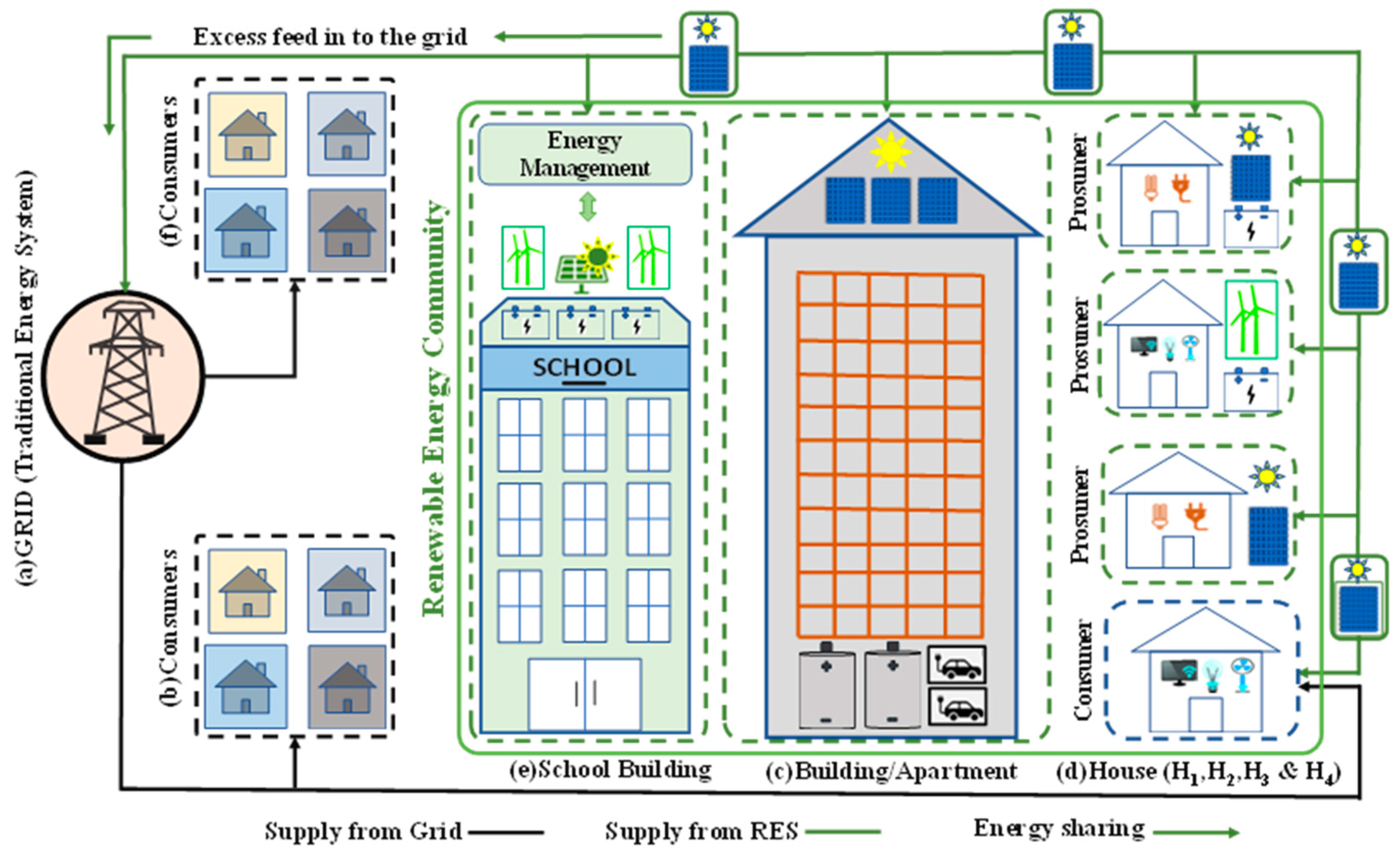

Furthermore, an illustration of the activities in an REC is shown in
Figure 8 for clarification. The REC consists of many parts, including (a) the grid/traditional energy system; (b) the supply to passive consumers from the grid; (c) apartments having their own generation and sharing their energy with the community and grid in the case of excess feed; (d) sharing of energy with houses H1, H2, H3, and H4 and the other buildings, school, and grid in the case of excess power; (e) the school generating electricity from wind and solar PV systems with battery sources and treated as a prosumer sharing the generated electricity with the community and grid in the case of excess power; and (f) the supply from the grid to consumers who will not generate their own electricity and may not be interested in taking part in the community.
Energy generation is the main part of the REC. The generation could be from wind, solar, biomass, etc. Most of the participants jointly invest in PV system plants used to produce electricity owing to their availability and excess potential in many countries. In
Figure 8, the generation is from a solar PV system and wind power. House-01 (H1), considered as a prosumer, produces electricity from a solar PV system, and a battery bank is also connected for charging to use at night. House-02 (H2) is considered as a prosumer because it produces electricity from a wind system. House-03 (H3) is also considered as a prosumer that produces electricity from a solar PV system without any battery backup. In part (c), there is a large building, including apartments, that produces electricity from a solar PV system, including a battery backup, and has an EV-charging station. Part (e) contains the building of the school, including energy production from a wind plant and a solar PV system with a battery bank, and part (a) is the grid/traditional energy system. This can generate electricity from non-renewable energy resources or fossil fuels.
Considering the energy consumption, it could be from the consumer side, the prosumer side (self-consumption), or grid consumption. The consumer side means those consumers who either consume energy from the grid or via the community. Self-consumption means that the actors within a building directly utilize the electricity that is generated onsite. Lastly, when the generated PV energy is not enough to meet the demand within the REC, the REC can supplement its energy needs by procuring electricity from the grid. Consumers who choose not to participate in the REC can still receive their energy supply from the grid.
According to the energy-sharing concept, actors share extra energy after consuming their load (self-consumption) to meet the demand inside the community. In
Figure 8, the green line shows the REC, and the line outside the boundary shows the sharing of energy from one to another, and in cases of excess, the energy will feed into the grid. Energy storage could be a major part of the REC because it helps to store energy that can be utilized at night or in the case of any disturbance. In the figure, House-01, House-02, and the building/apartments and school contain energy storage systems. When energy is in excess or exceeds the demand of the REC, the excess energy could be supplied to the public grid, introducing the grid feed-in concept. Referring to the figure, H1, H2, H3, and the school and building/apartment are power producers and considered as a part of the REC. In cases when the generation is higher than the demand, the energy from these prosumers will feed into the grid. In fact, it is a considerable advantage to the prosumers for obtaining an amount of money from the energy sold to the grid. Moreover, other services, like flexibility, could be applied by the EC, like shifting loads when the onsite PV production is high, resulting in high self-consumption. This will allow the community to offer implicit flexibility [
68,
180].
The above concept can be further extended to simulations using software, like MATLAB/Simulink, and a real-time REC to analyze the results in detail. E. Cutore et al. [
181] focused on the design phase of an REC, considering the performance and economic benefits by presenting the optimization model for the regulations in Italy. A. Hussain et al. [
182] considered various cases of residential communities to increase the consumption from RESs. They also considered three cases for their study: community ESSs, local ESSs, and internal trading. However, our future work will continue on the same topic, using MATLAB/Simulink and considering the optimal design of the REC with different consumers and prosumers, proper monitoring, and analytics to check the technical parameters on an hourly basis and the economic benefits at the specified time in the REC. An example of a time-dependent simulation is provided in
Figure 7.
6. Conclusions
This review article has provided a comprehensive analysis of renewable energy communities and their concepts, benefits, types as per different application locations and cooperatives, technological components relevant to energy efficiency measures, DREs, energy storage and energy monitoring, progress, challenges, and future directions. RECs offer numerous benefits across environmental, economic, social, and policy domains. They interpose to mitigate climate change and to reduce GHG emissions, fostering local economic development, enhancing energy resilience and security, and promoting social cohesion and community empowerment. Additionally, RECs provide policy and regulatory advantages, facilitating the transition toward a low-carbon and resilient energy future. Despite the many benefits of RECs following the RED II directive and according to research articles and sites, there is still a large gap, showing very slow progress in many countries. Some countries show good progress by transposing the REC framework, as per RED II, while others have partially transposed the REC framework and are in the initial stage. In this paper, we focused on practical insights and scholarly trajectories to advance the research activity within this field. In particular, it has been highlighted and discussed in detail that many challenges and barriers still exist, like administrative issues, customers’ unwillingness, economic and social issues, regulatory and legal challenges, policy issues, financial and funding issues from the government, grid connection barriers, like more losses, and technical issues, such as deteriorated voltage profiles and higher line loads. All these aspects could represent a barrier to REC progress and development and should be properly removed following the practical insights that were analyzed herein. Considering these challenges, the future recommendations and practical insights are listed and discussed in the next section and can lead to good results after incorporating them. Furthermore, this review paper contributes to the existing body of knowledge by providing comprehensive and up-to-date data and an analysis of RECs, which can help policymakers, researchers, industry stakeholders, and community members interested in fostering sustainable and community-driven energy systems.
