Short-Term Growth Dynamics of Spontaneous and Planted Vegetation on Subtropical Extensive Green Roof as Renaturalized Biotope
Abstract
:1. Introduction
2. Materials and Methods
2.1. The Study Site

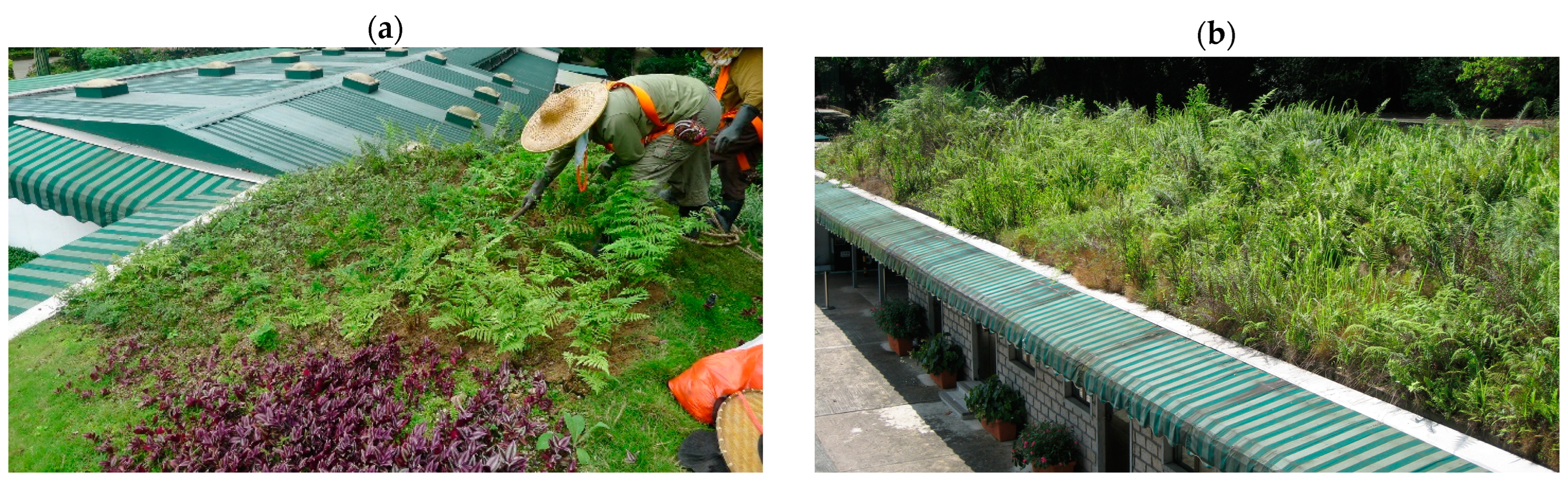

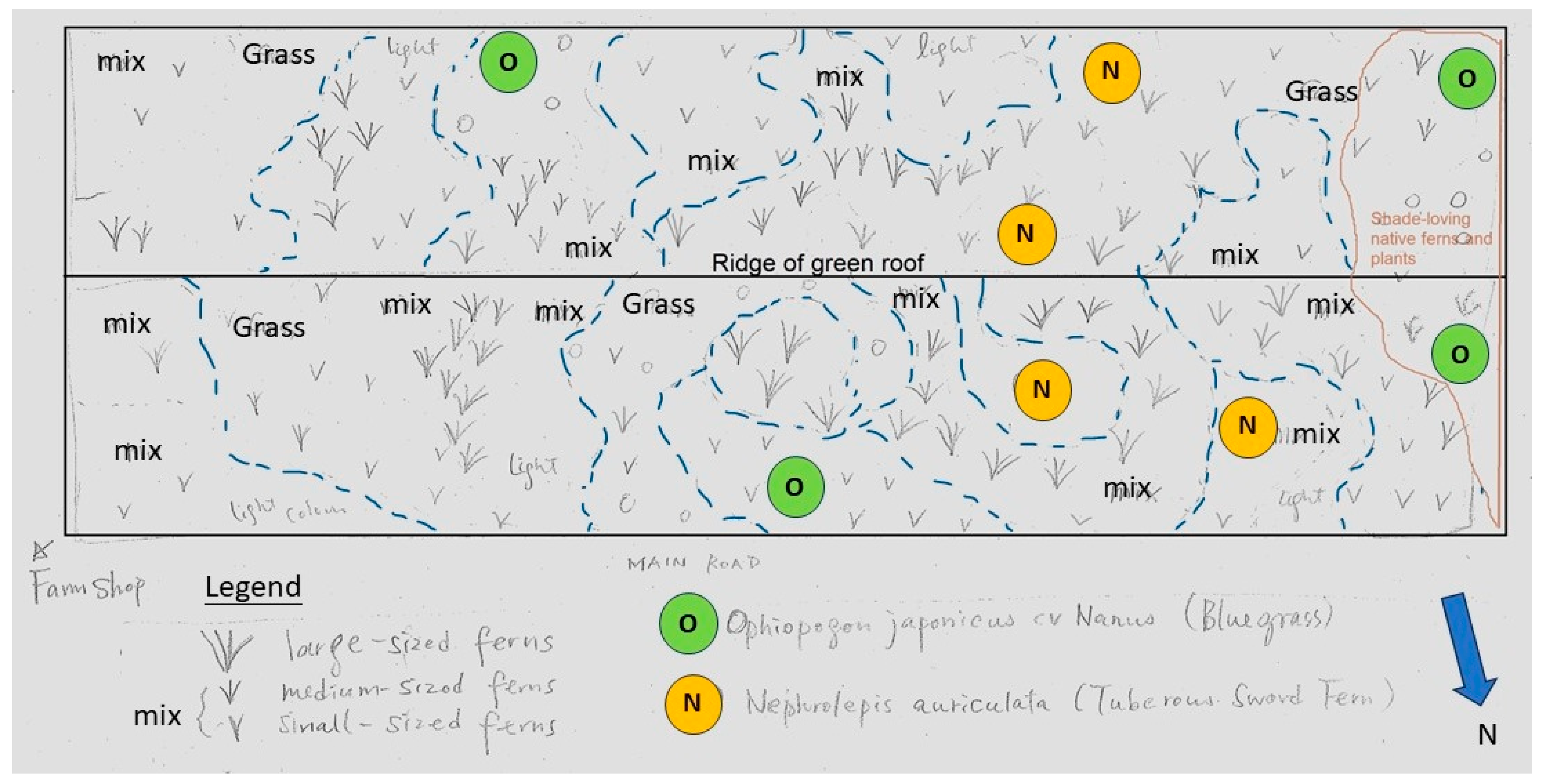

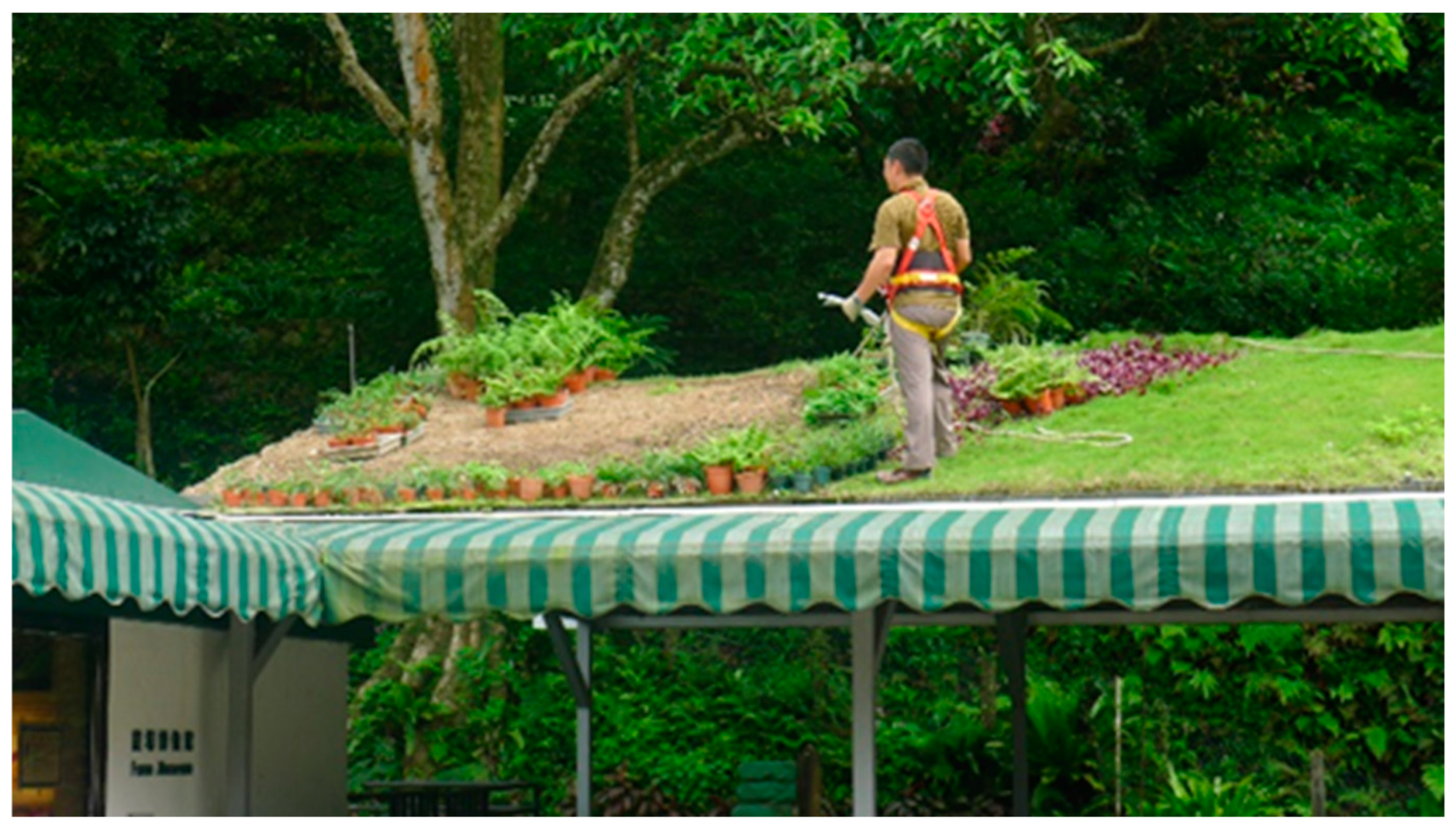

2.2. A Manicured Extensive Green Roof
2.3. Transforming a Manicured Green Roof into a Biodiverse Habitat

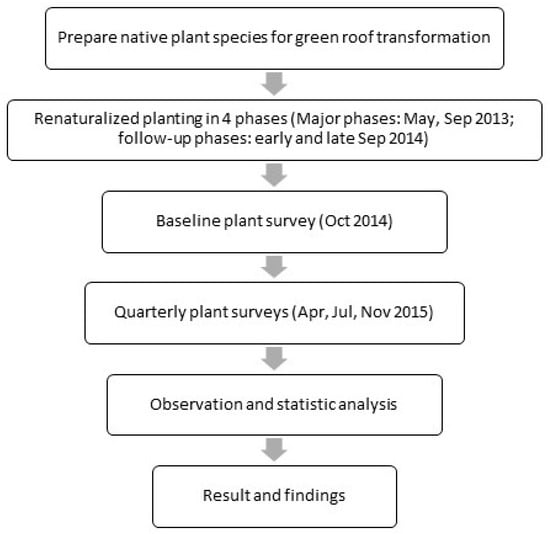

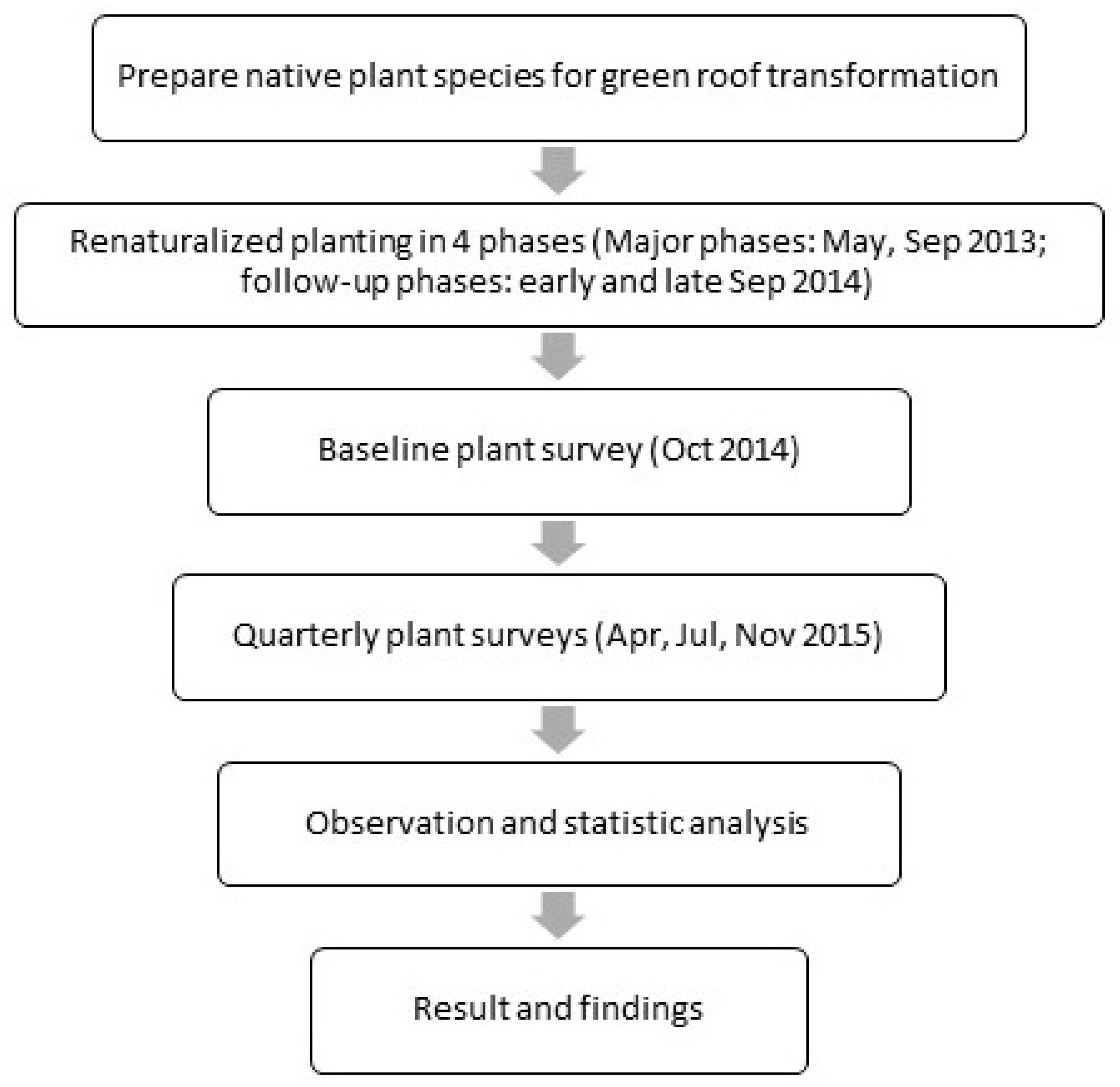

2.4. Vegetation Surveys and Statistical Analysis
3. Results

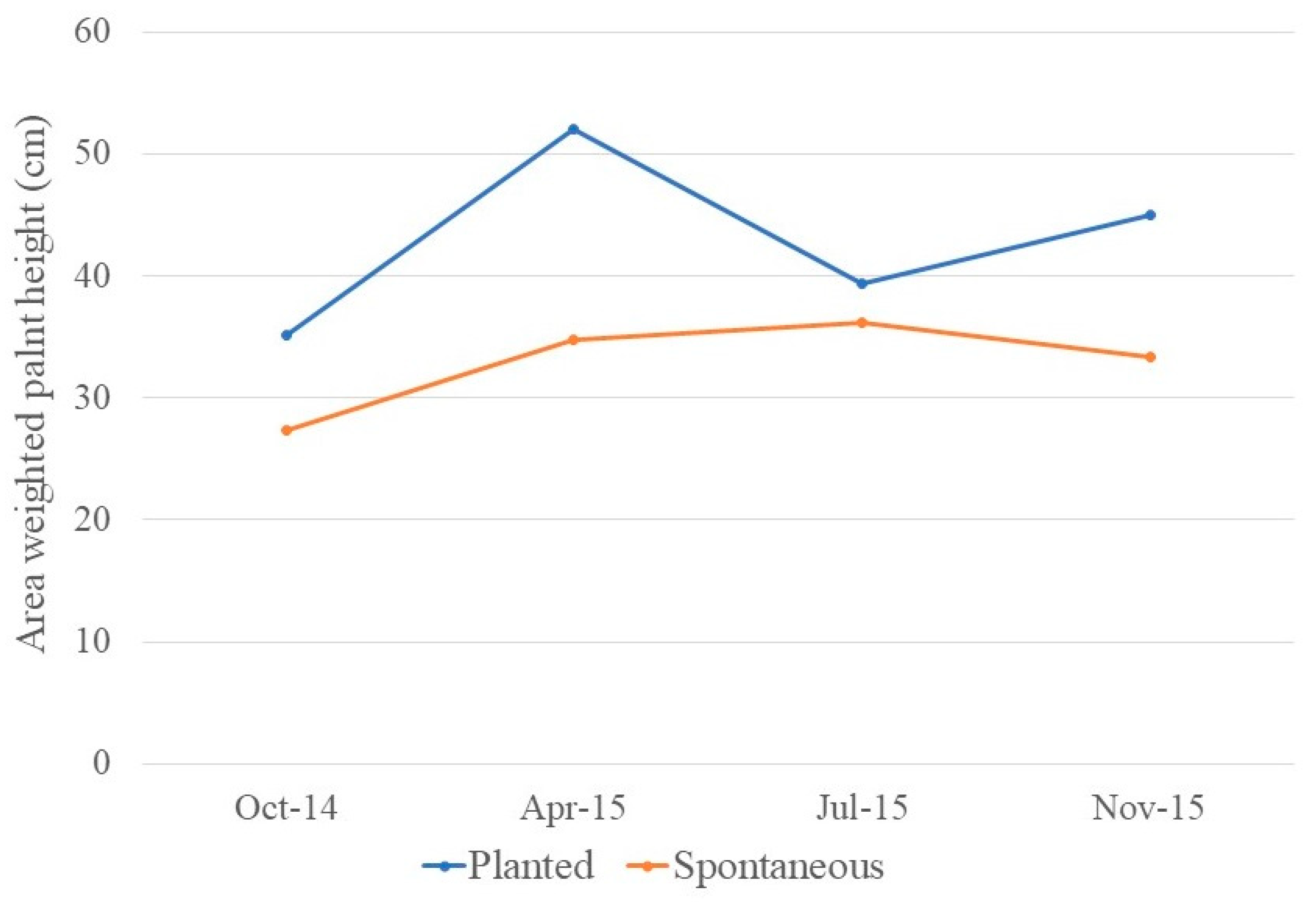

3.1. Revolution of Planted and Spontaneous Vegetations in Terms of Coverage, Plant Height and Diversity

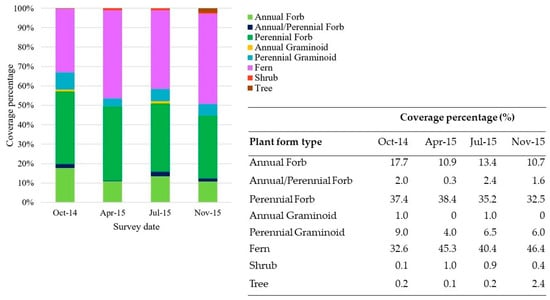

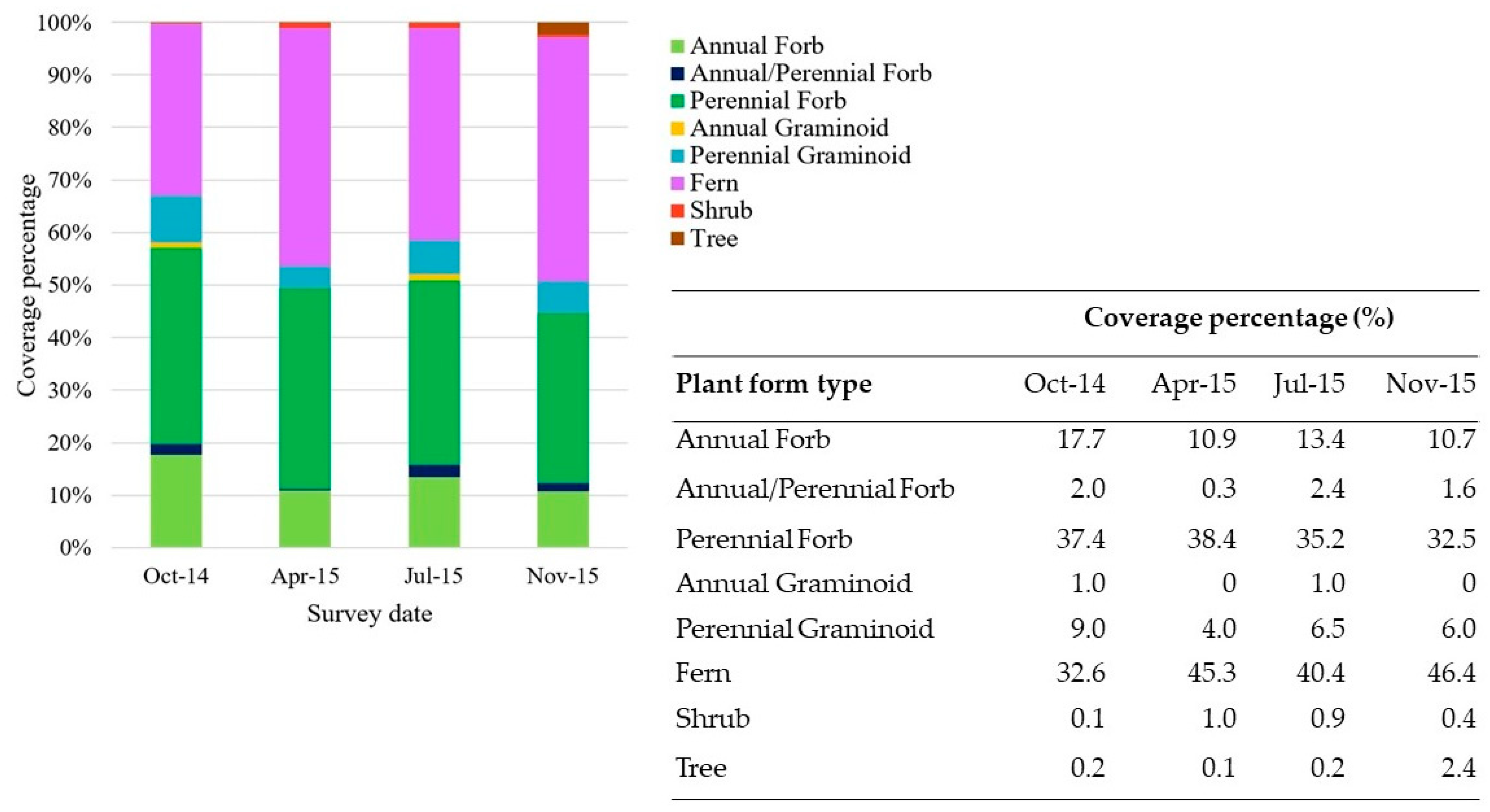

3.2. Revolution of Planted and Spontaneous Vegetations Grouped under Different Plant Forms

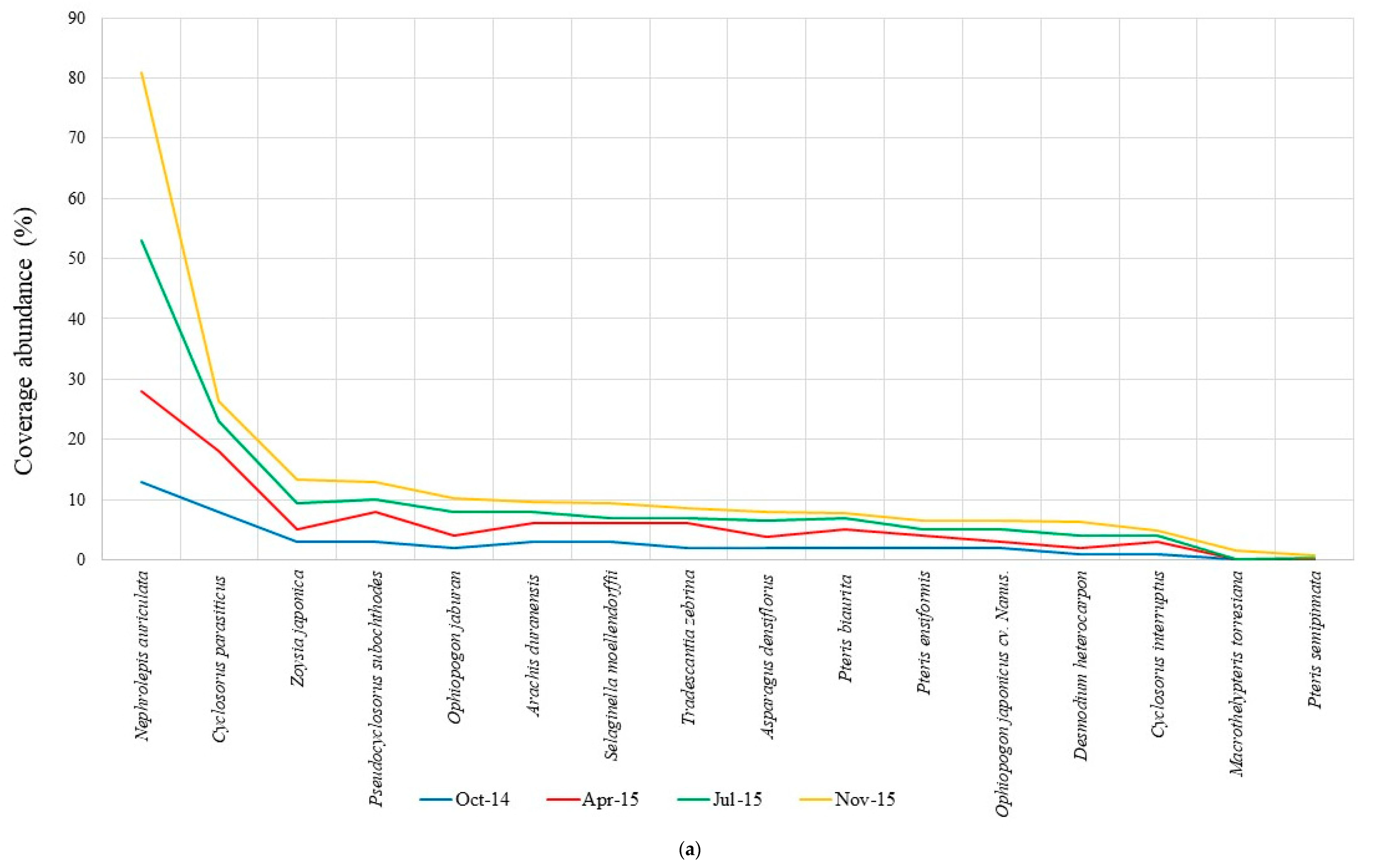

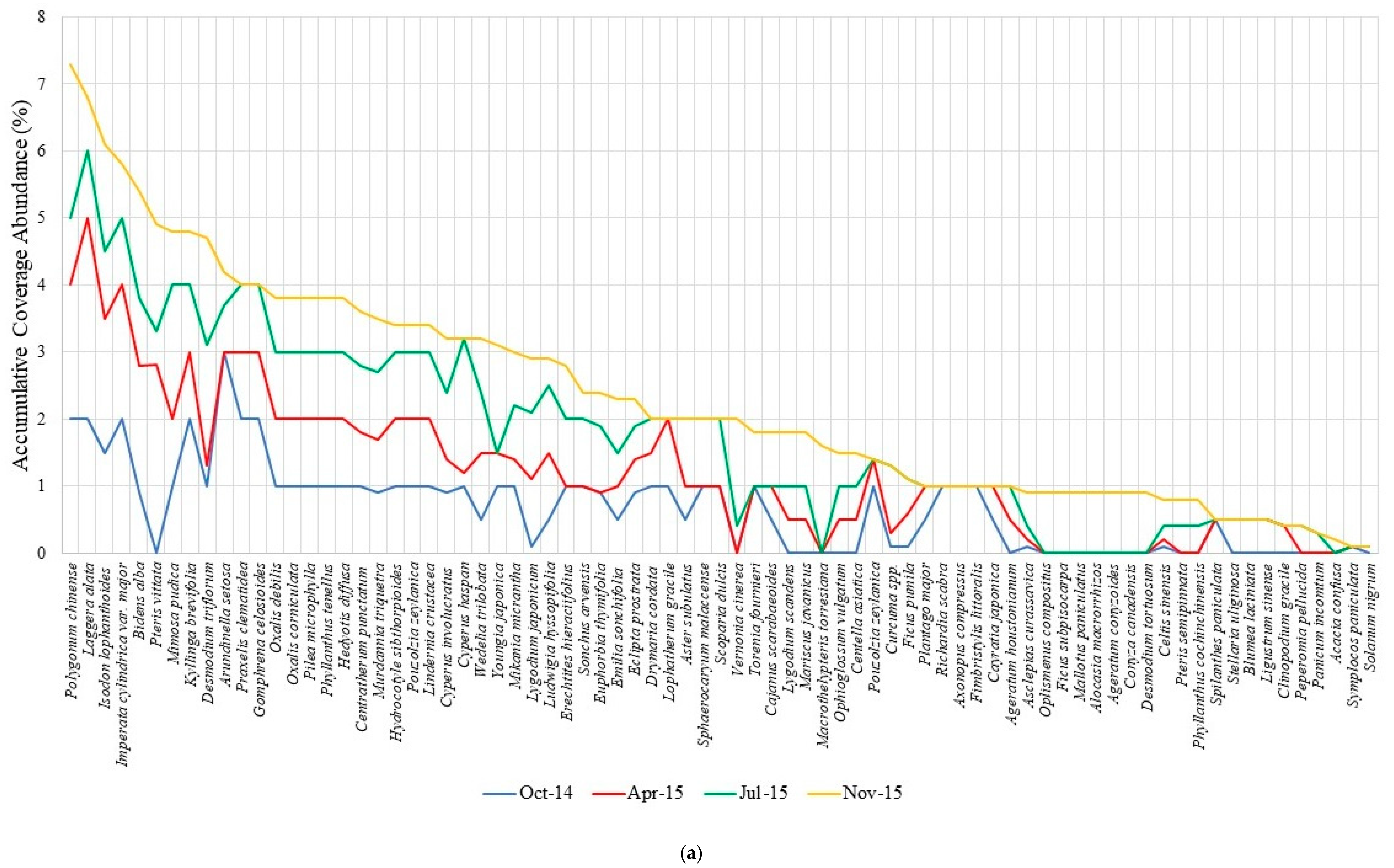

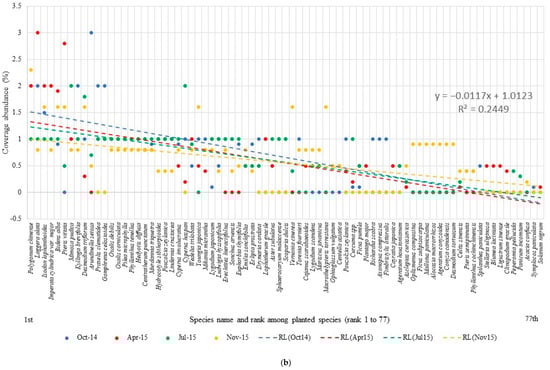

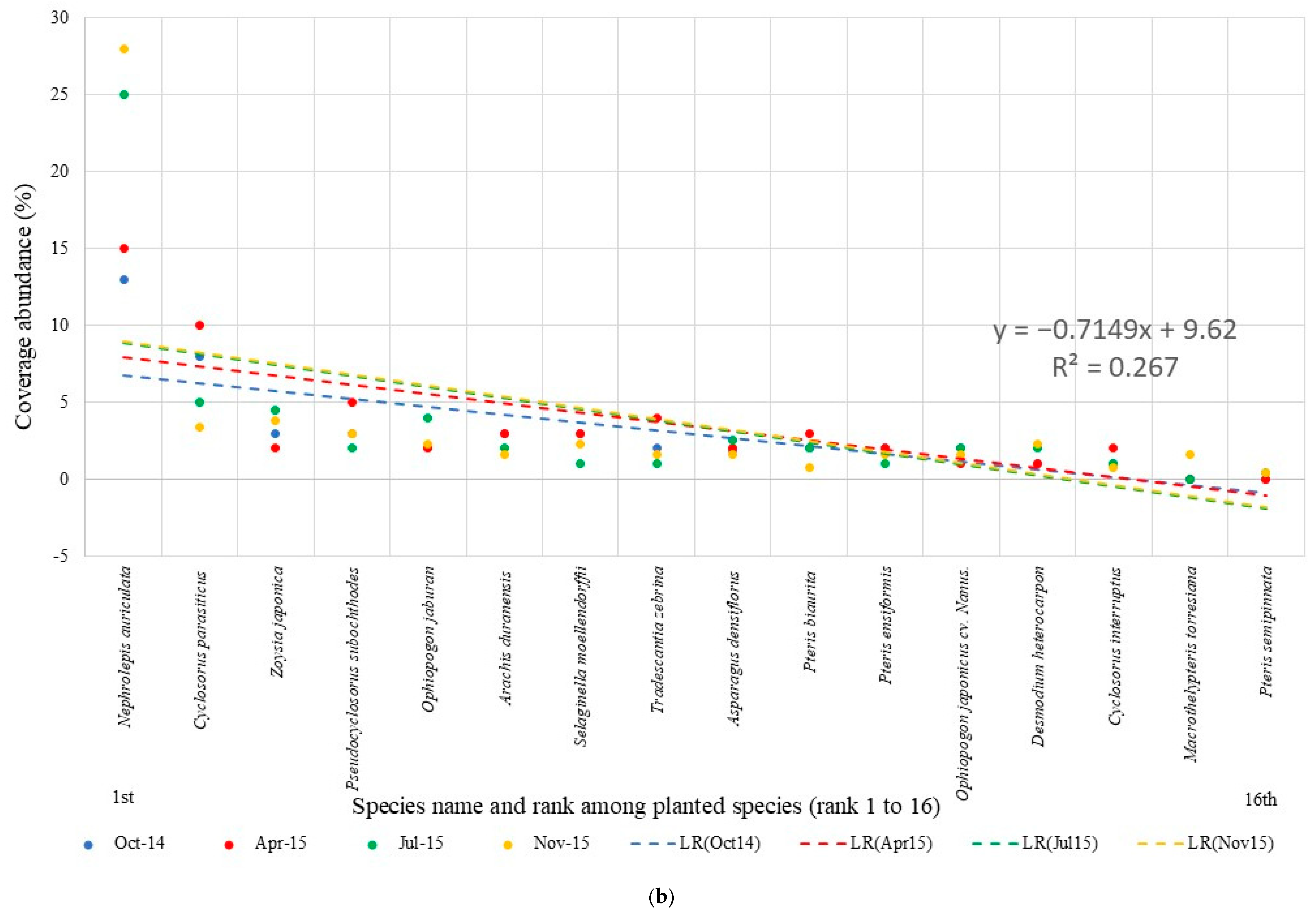

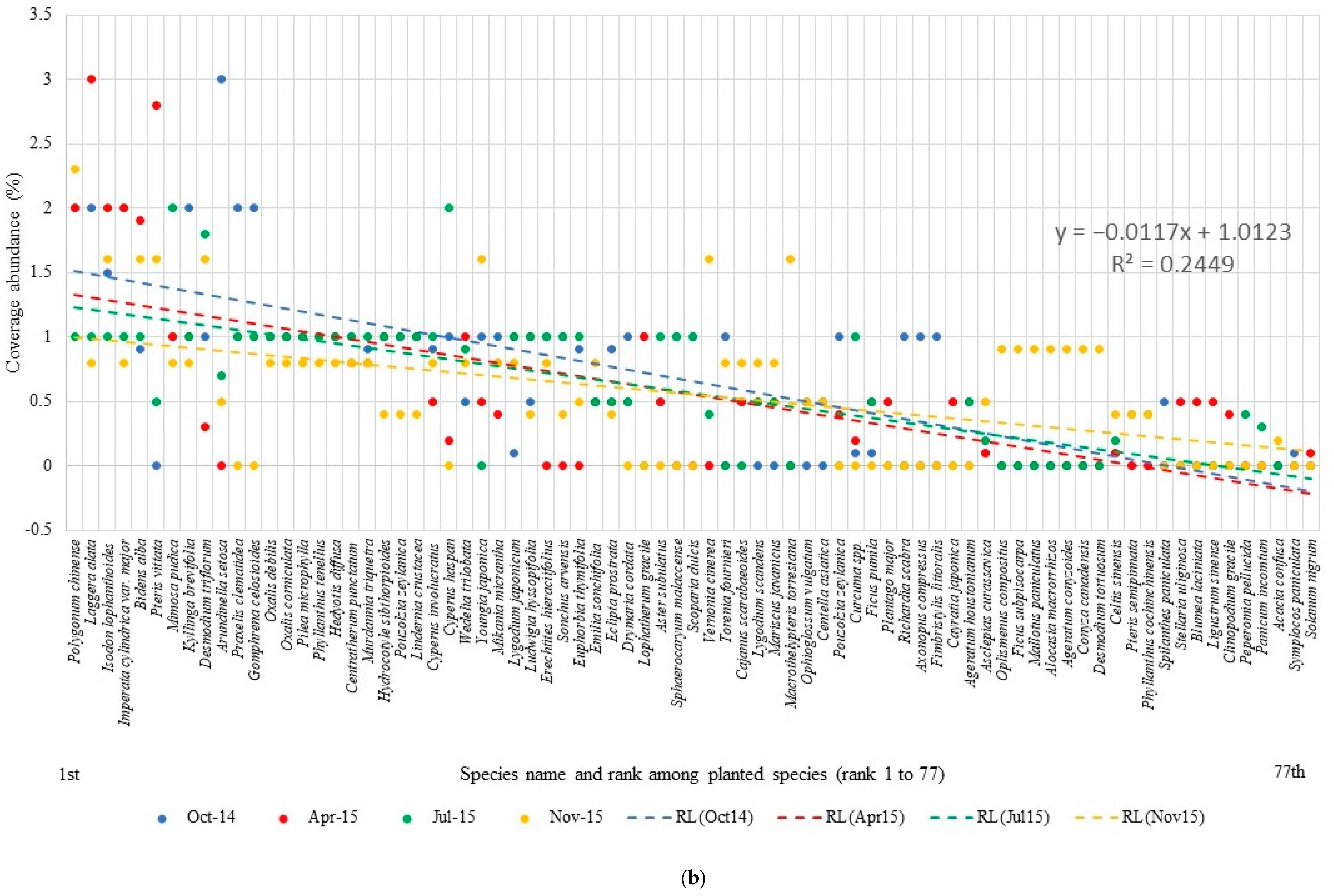

3.3. Species Abundance Distribution
3.4. Seasonal Growth Pattern of Spontaneous Species
4. Discussion
4.1. Single Dominant Species Flourished, While Minorities Diminished, Others Remained Stable
4.2. Annual Herbaceous Vegetation Fluctuated
4.3. Floral Diversity Peaked and Leveled, While Dominant Species Expanded
4.4. Spontaneous Vegetation Being More Resilient than Planted Vegetation
4.5. Medium and Less Abundant Spontaneous and Planted Species Require Attention
4.6. Factors Determining Plant-Growth Patterns on Renaturalized Green Roof
4.7. Management Recommendations for Balancing the Ecological, Aesthetic, and Functional Value of Extensive Green Roof
4.8. Guiding Principles for Choosing and Maintaining Plant Species in Renaturalization Projects
- Landscape designers and managers should communicate the expected appearance of the concerned green roof and the amount and pattern of manpower required thoroughly. Both should understand all traits of the plant species chosen.
- A summary or pictorial guide for all introduced plant species should be available to all landscape managers and frontline gardeners for easy identification, and their means of propagation (e.g., estimated germination rate) and effective removal should be taught.
- If native fern species are planned to be adopted in the renaturalization project, those fern species should be selected with great care to avoid aggressive species undermining biodiversity. Additionally, their mature height should not be underestimated by referencing their sizes in pots in nurseries. Their mature height and size should be compatible with other species to avoid competition for sunshine and resources.
- Annual forb species could be invisible over the winter months and thrive in the summer months. If some of them (e.g., Bidens alba) are too aggressive against other species, they could be problematic to deal with after the seeds are ripe.
- To control the spread and coverage of certain target species in subtropical regions, mowing may not be the best management practice, unlike what was suggested for temperate regions [1]. Total uprooting of the plants is sometimes a practical solution under the constraints of manpower. Understanding the growth cycle and physical structure of plants will help in formulating optimal management strategies.
4.9. Limitations of the Study
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Kühn, N. Intentions for the Unintentional: Spontaneous Vegetation as the Basis for Innovative Planting Design in Urban Areas. J. Landsc. Archit. 2006, 1, 46–53. [Google Scholar] [CrossRef]
- Qian, S.; Qin, D.; Wu, X.; Hu, S.; Hu, L.; Lin, D.; Zhao, L.; Shang, K.; Song, K.; Yang, Y. Urban growth and topographical factors shape patterns of spontaneous plant community diversity in a mountainous city in southwest China. Urban For. Urban Green. 2020, 55, 126814. [Google Scholar] [CrossRef]
- de la Fuente de Val, G. The effect of spontaneous wild vegetation on landscape preferences in urban green spaces. Urban For. Urban Green. 2023, 81, 127863. [Google Scholar] [CrossRef]
- Bonthoux, S.; Voisin, L.; Bouché-Pillon, S.; Chollet, S. More than weeds: Spontaneous vegetation in streets as a neglected element of urban biodiversity. Landsc. Urban Plan. 2019, 185, 163–172. [Google Scholar] [CrossRef]
- Lundholm, J.T. Green roof plant species diversity improves ecosystem multifunctionality. J. Appl. Ecol. 2015, 52, 726–734. [Google Scholar] [CrossRef]
- Cook-Patton, S.C.; Bauerle, T.L. Potential benefits of plant diversity on vegetated roofs: A literature review. J. Environ. Manag. 2012, 106, 85–92. [Google Scholar] [CrossRef] [PubMed]
- Dunnett, N.; Nagase, A.; Booth, R.; Grime, J. Vegetation composition and structure significantly influence green roof performance. In Proceedings of the Third North American Green Roof Conference: Greening Rooftops for Sustainable Communities, Washington, DC, USA, 4–6 May 2005; The Cardinal Group: Toronto, ON, Canada, 2005. [Google Scholar]
- Dunnett, N.; Nagase, A.; Booth, R.; Grime, P. Influence of vegetation composition on runoff in two simulated green roof experiments. Urban Ecosyst. 2008, 11, 385–398. [Google Scholar] [CrossRef]
- MacIvor, J.S.; Lundholm, J. Performance evaluation of native plants suited to extensive green roof conditions in a maritime climate. Ecol. Eng. 2011, 37, 407–417. [Google Scholar] [CrossRef]
- Nagase, A.; Dunnett, N. Amount of water runoff from different vegetation types on extensive green roofs: Effects of plant species, diversity and plant structure. Landsc. Urban Plan. 2012, 104, 356–363. [Google Scholar] [CrossRef]
- Perrelet, K.; Moretti, M.; Dietzel, A.; Altermatt, F.; Cook, L.M. Engineering blue-green infrastructure for and with biodiversity in cities. npj Urban Sustain. 2024, 4, 27. [Google Scholar] [CrossRef]
- Schrieke, D.; Lönnqvist, J.; Blecken, G.-T.; Williams, N.S.G.; Farrell, C. Socio-Ecological Dimensions of Spontaneous Plants on Green Roofs. Front. Sustain. Cities 2021, 3, 777128. [Google Scholar] [CrossRef]
- Law, C.M.Y.; Hui, L.C.; Jim, C.Y. Evaluation-perception of site attributes and plant species selection in the public urban green space of a compact city. Ecol. Soc. 2023, 28, 22. [Google Scholar] [CrossRef]
- Heim, A.; Biermann, B.; Hicks, T.; Buffam, I.; Lundholm, J. More than sedum: Colonizing weedy species can provide equivalent green roof ecosystem services. Nat. -Based Solut. 2024, 5, 100101. [Google Scholar] [CrossRef]
- Hwang, Y.H. Green Roof as Local Habitats in Singapore. In Proceedings of the IFLA(International Federation ofLandscape Architecture) AsiaPacific Congress, Kuching, Malaysia, 28–30 April 2014. [Google Scholar]
- Hong Kong Observatory. Climate of Hong Kong and Introduction of Climatological Service. 2018. Available online: http://www.hko.gov.hk/cis/climat_e.htm (accessed on 21 July 2023).
- Hong Kong Herbarium and South China Botanical Garden. Flora of Hong Kong; Agriculture, Fisheries and Conservation Department, Hong Kong SAR Government: Hong Kong, China, 2007; Volume 1.
- Hong Kong Herbarium and South China Botanical Garden. Flora of Hong Kong; Agriculture, Fisheries and Conservation Department, Hong Kong SAR Government: Hong Kong, China, 2008; Volume 2.
- Hong Kong Herbarium and South China Botanical Garden. Flora of Hong Kong; Agriculture, Fisheries and Conservation Department, Hong Kong SAR Government: Hong Kong, China, 2009; Volume 3.
- Hong Kong Herbarium and South China Botanical Garden. Flora of Hong Kong; Agriculture, Fisheries and Conservation Department, Hong Kong SAR Government: Hong Kong, China, 2011; Volume 4.
- Hwang, Y.H.; Yue, Z.E.J. Intended wildness: Utilizing spontaneous growth for biodiverse green spaces in a tropical city. J. Landsc. Archit. 2019, 14, 54–63. [Google Scholar] [CrossRef]
- Hwang, Y.H.; Yue, Z.E.J.; Ling, S.K.; Tan, H.H.V. It’s OK to Be Wilder: Preferences for the Natural Growth of Urban Greenery in a Tropical City. Urban For. Urban Green. 2019, 38, 165–176. [Google Scholar] [CrossRef]
- Hwang, Y.H.; Yue, Z.E.J. Observation of Biodiversity on Minimally Managed Green Roofs in a Tropical City. J. Living Archit. 2015, 2, 6–29. [Google Scholar] [CrossRef]
- Shannon, E.C. A Mathematical Theory of Communication. Bell Syst. Tech. J. 1948, 27, 379–423, 623–656. [Google Scholar] [CrossRef]
- Pielou, E.C. The measurement of diversity in different types of biological collections. J. Theor. Biol. 1966, 13, 131–144. [Google Scholar] [CrossRef]
- Smith, B.; Wilson, J.B. A consumer’s guide to evenness measures. Oikos 1996, 76, 70–82. [Google Scholar] [CrossRef]
- Hong Kong Herbarium. Checklist of Hong Kong Plants 2012; Agriculture, Fisheries and Conservation Department, Hong Kong SAR Government: Hong Kong, China, 2012.
- Poppenwimer, T.; Mayrose, I.; DeMalach, N. Revising the global biogeography of annual and perennial plants. Nature 2023, 624, 109–114. [Google Scholar] [CrossRef]
- Chiarucci, A.; Wilson, J.B.; Anderson, B.J.; Dominicis, V.D. Cover versus Biomass as an Estimate of Species Abundance: Does It Make a Difference to the Conclusions? J. Veg. Sci. 1999, 10, 35–42. [Google Scholar] [CrossRef]
- Ivanova, N.; Petrova, I. Species abundance distributions: Investigation of adaptation mechanisms of plant communities. E3S Web Conf. 2021, 254, 02003. [Google Scholar] [CrossRef]
- Hwang, Y.H.; Yue, Z.E.J.; Tan, Y.C. Observation of Floristic Succession and Biodiversity on Rewilded Lawns in a Tropical City. Landsc. Res. 2016, 42, 106–109. [Google Scholar] [CrossRef]
- Li, X.-P.; Fan, S.-X.; Guan, J.-H.; Zhao, F.; Dong, L. Diversity and influencing factors on spontaneous plant distribution in Beijing Olympic Forest Park. Landsc. Urban Plan. 2019, 181, 157–168. [Google Scholar] [CrossRef]
- Cervelli, E.; Lundholm, J.; Du, X. Spontaneous urban vegetation and habitat heterogeneity in Xi’an, China. Landsc. Urban Plan. 2013, 120, 25–33. [Google Scholar] [CrossRef]
- Xu, Y.; Zhang, X.; Liu, X.; Zhang, Z. Biodiversity and Spatiotemporal Distribution of Spontaneous Vegetation in Tangdao Bay National Wetland Park, Qingdao City, China. Int. J. Environ. Res. Public Health 2022, 19, 11665. [Google Scholar] [CrossRef]
- Yang, Y.; Xu, B.; Yu, Q.; Fan, L.; Guo, T.; Fu, D.; Chen, H.; Yan, H.; Shao, F.; Li, X. Distribution Pattern and Factors Influencing Spontaneous Plant Diversity in Different Wetland Habitats. Forests 2022, 13, 1678. [Google Scholar] [CrossRef]
- Vega, K.; Kueffer, C. Promoting wildflower biodiversity in dense and green cities: The important role of small vegetation patches. Urban For. Urban Green. 2021, 62, 127165. [Google Scholar] [CrossRef]
- Riva, F.; Fahrig, L. The disproportionately high value of small patches for biodiversity conservation. Conserv. Lett. 2022, 15, e12881. [Google Scholar] [CrossRef]
- Vidaller, C.; Jouet, A.; Van Mechelen, C.; De Almeida, T.; Cortet, J.; Rivière, L.; Mahy, G.; Hermy, M.; Dutoit, T. Coexistence and Succession of Spontaneous and Planted Vegetation on Extensive Mediterranean Green Roofs: Impacts on Soil, Seed Banks, and Mesofauna. Land 2023, 12, 1726. [Google Scholar] [CrossRef]
- Aloisio Jason, M.; Palmer Matthew, I.; Tuininga Amy, R.; Lewis James, D. Plant Colonization of Green Roofs Is Affected by Composition of Established Native Plant Communities. Front. Ecol. Evol. 2019, 6, 238. [Google Scholar] [CrossRef]
- Vanstockem, J.; Bastiaens, A.; Helsen, K.; Somers, B.; Hermy, M. Community assembly on extensive green roofs: Effects of dispersal-, abiotic- and biotic filtering on the spontaneous species- and functional diversity. J. Veg. Sci. 2019, 30, 1078–1088. [Google Scholar] [CrossRef]
- Schrieke, D.; Szota, C.; Williams, N.S.G.; Farrell, C. Evaluating the effectiveness of spontaneous vegetation for stormwater mitigation on green roofs. Sci. Total Environ. 2023, 898, 165643. [Google Scholar] [CrossRef] [PubMed]
- Schrieke, D.; Farrell, C. Trait-based green roof plant selection: Water use and drought response of nine common spontaneous plants. Urban For. Urban Green. 2021, 65, 127368. [Google Scholar] [CrossRef]
- Madre, F.; Vergnes, A.; Machon, N.; Clergeau, P. Green roofs as habitats for wild plant species in urban landscapes: First insights from a large-scale sampling. Landsc. Urban Plan. 2014, 122, 100–107. [Google Scholar] [CrossRef]
- Lönnqvist, J.; Hanslin, H.M.; Johannessen, B.G.; Muthanna, T.M.; Viklander, M.; Blecken, G. Temperatures and precipitation affect vegetation dynamics on Scandinavian extensive green roofs. Int. J. Biometeorol. 2021, 65, 837–849. [Google Scholar] [CrossRef]
Species | Family | Number of Pots Planted | % | Planting Date | Planting Location | Life-Form Group | Habitat | Survival Rate by the End of Renaturalized Planting (Sep 2014) |
---|---|---|---|---|---|---|---|---|
Adiantum capillus-veneris | Adiantaceae | 8 | 0.77% | May 2013 | South-facing roof | Low-growing fern | Heavy shade, moist rocky cliff | 0% |
Adiantum flabellulatum | Adiantaceae | 2 | 0.19% | May 2013 | South-facing roof | Low-growing fern | Acidic sunny slope | 0% |
Adiatum malesianum | Adiantaceae | 23 | 2.21% | May 2013 | South-facing roof | Low-growing fern | Heavy shade, moist rocky cliff | 0% |
Asplenium prolongatum | Aspleniaceae | 20 | 1.92% | May 2013 | South-facing roof | Low-growing fern | Heavy shade, moist rocky cliff | 0% |
Ctenitis eatonii | Dryopteridaceae | 27 | 2.59% | May 2013 | South-facing roof | Medium height fern | Wet places in forests | 0% |
Cyclosorus parasiticus | Thelypteridaceae | 256 | 24.54% | May 2013; mid-Sep 2013; late Sep 2014 | Both roofs | Tall fern | Forest undergrowth, beside stream | 37.50% |
Desmodium heterocarpon | Fabaceae | 12 | 1.15% | late Sep 2014 | North-facing roof | Creeping forb | Sparse shrubland | 100% |
Elephantopus scaber | Asteraceae | 40 | 3.84% | late Sep 2014 | North-facing roof | Low-growing forb | Sunny open field, roadside | 0% |
Liriope spicata | Liliaceae | 16 | 1.53% | late Sep 2014 | South-facing roof | Medium height forb | Slope, forest undergrowth | 0% |
Macrothelypteris torresiana | Thelypteridaceae | 115 | 11.03% | May 2013; mid-Sep 2013; early and late Sep 2014 | Both roofs | Tall fern | Forest valley | 100% |
Pteris biaurita | Pteridaceae | 22 | 2.11% | May 2013; mid-Sep 2013 | Both roofs | Medium height fern | Forest undergrowth, sunny location | 80% |
Pteris ensiformis | Pteridaceae | 446 | 42.76% | May 2013; mid-Sep 2013; late Sep 2014 | Both roofs | Low-growing fern | Forest undergrowth, sunny location | 100% |
Pteris semipinnata | Pteridaceae | 7 | 0.67% | May 2013; mid-Sep 2013 | Both roofs | Low-growing fern | Forest undergrowth, sunny location | 100% |
Selaginella moellendorffii | Selaginellaceae | 30 | 2.88% | May 2013 | South-facing roof | Low-growing fern | Heavy shade, moist rocky cliff | 0% |
Sphenomeris chinensis | Lindsaeaceae | 19 | 1.82% | May 2013; mid-Sep 2013 | Both roofs | Low-growing fern | Forest margins | 0% |
Oct 2014 | Apr 2015 | Jul 2015 | Nov 2015 | |
---|---|---|---|---|
Shannon–Weiner Diversity Index (H’) | 3.805 | 3.632 | 3.486 | 3.416 |
Pielou’s Evenness Index (J’) | 0.901 | 0.864 | 0.829 | 0.812 |
Smith and Wilson’s Index of Evenness (Evar) | 0.542 | 0.528 | 0.739 | 0.712 |
Number of plant species alive | 68 | 67 | 67 | 67 |
Number of planted species alive | 14 | 14 | 15 | 16 |
Number of spontaneous species alive | 54 | 53 | 52 | 51 |
Number of die-off spontaneous species compared with previous plant survey | -- | 12 | 11 * | 12 |
Number of newly colonized (spontaneous) species compared with previous plant survey | -- | 11 | 5 | 9 |
Number of revived spontaneous species compared with previous plant survey | -- | -- | 6 | 3 |

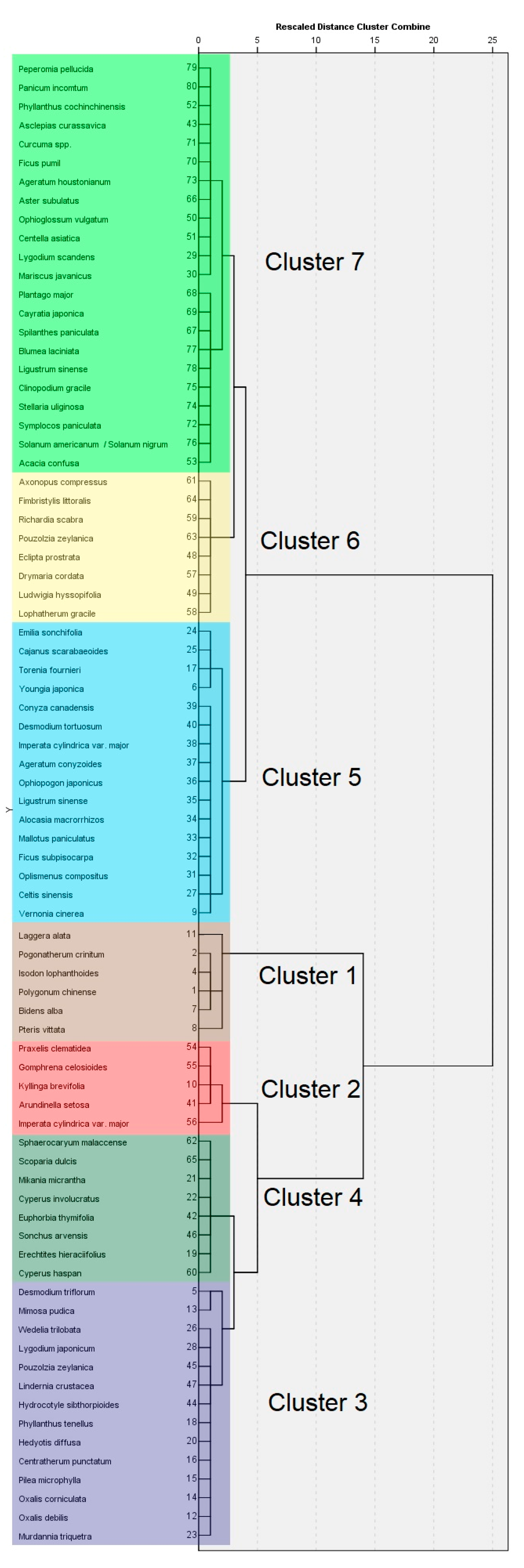

Cluster Number Shown in Figure 9 | Traits of Cluster | No. of Species | Range of Average Coverage % (Std Dev at Species Level) | Typical Pattern of Coverage % over the Year (14 October, 15 April, 15 July, 15 November) |
---|---|---|---|---|
1 | Dominant, slight decline in summer | 6 | 1.83–1.25% (0.195) | 1.4/2.3/0.9/1.6 |
2 | Thrive in spring, decline over winter | 5 | 1.2–1% (0.083) | 2.2/1/0.8/0.3 |
3 | Sustain over the year, slight decline in winter | 14 | 1.225–0.725% (0.130) | 0.9/0.9/1.1/0.8 |
4 | Decline in spring, regrow in summer | 8 | 0.8–0.5% (0.122) | 1/0.1/1.1/0.4 |
5 | Late colonizer | 14 | 0.775–0.2% (0.183) | 0.2/0.1/0.1/0.9 |
6 | Early colonizers, decline and die off | 8 | 0.58–0.25% (0.125) | 0.9/0.4/0.1/0.1 |
7 | Minority, seasonal | 22 | 0.5–0.025% (0.141) | 0.1/0.3/0.3/0.2 |
Type of Plants with Following Traits | Management Recommendations | Reason(s) | Examples of Plant Species |
---|---|---|---|
Tree and shrub species | Remove all | Damage engineering structure of the extensive green roof | Celtis sinensis, Ficus subpisocarpa, Acacia confusa |
Large-sized forb | Remove all | Shade out shorter plants | Alocasia macrorrhizos |
Tall and/or fast-growing, easily germinated forb, ferns, graminoids | Remove all or most of them (aggressive forbs to be moved before/during flowering) | Shade out shorter plants Adversely affects the aesthetic value | Bidens alba, Laggera alata, Aster subulatus, Cyperus involucratus |
Aggressive and fast spreading forb, ferns, graminoids with tubers | Remove all or most of them | Upset balance of species diversity | Nephrolepis auriculata, Polygonum chinense, Imperata cylindrica var. major |
Mild forb, ferns, graminoids with tubers | Monitor and remove some or all, if necessary | May upset the balance of species diversity if conditions favor their growth | Pteris vittate, Desmodium heterocarpon |
Thick rhizome species/fast-growing geophytes | Remove all | Damage engineering structure of green roof and can slowly spread to form large clumps | Curcuma spp. |
Annual species with suitable mature height (except aggressive ones) | Allow them to self-seed over winter Remove dead stems in spring to early summer (only if dead stems are unaesthetic) | Preserve seed source and mimic the natural environment | Spilanthes paniculata, Drymaria cordata, Eclipta prostrata |
