Optimized Data-Driven Models for Prediction of Flyrock due to Blasting in Surface Mines

1
School of Mines, China University of Mining and Technology, Xuzhou 221116, China
2
State Key Laboratory of Coal Resources and Safe Mining, China University of Mining and Technology, Xuzhou 221116, China
3
Faculty of Engineering, Shohadaye Hoveizeh Campus of Technology, Shahid Chamran University of Ahvaz, Dashte Azadegan 78986, Iran
4
New Era and Development in Civil Engineering Research Group, Scientific Research Center, Al-Ayen University, Thi-Qar, Nasiriyah 64001, Iraq
5
Institute of Research and Development, Duy Tan University, Da Nang 550000, Vietnam
6
Department of Geotechnics and Transportation, Faculty of Civil Engineering, Universiti Teknologi Malaysia, Johor Bahru 81310, Malaysia
7
School of Engineering and Technology, Duy Tan University, Da Nang 550000, Vietnam
*
Author to whom correspondence should be addressed.
Sustainability 2023, 15(10), 8424; https://doi.org/10.3390/su15108424
Submission received: 6 April 2023 / Revised: 13 May 2023 / Accepted: 18 May 2023 / Published: 22 May 2023
(This article belongs to the Special Issue Advances in Rock Mechanics and Geotechnical Engineering)

Abstract

:
Using explosive material to fragment rock masses is a common and economical method in surface mines. Nevertheless, this method can lead to some environmental problems in the surrounding regions. Flyrock is one of the most dangerous effects induced by blasting which needs to be estimated to reduce the potential risk of damage. In other words, the minimization of flyrock can lead to sustainability of surroundings environment in blasting sites. To this aim, the present study develops several new hybrid models for predicting flyrock. The proposed models were based on a cascaded forward neural network (CFNN) trained by the Levenberg–Marquardt algorithm (LMA), and also the combination of least squares support vector machine (LSSVM) and three optimization algorithms, i.e., gravitational search algorithm (GSA), whale optimization algorithm (WOA), and artificial bee colony (ABC). To construct the models, a database collected from three granite quarry sites, located in Malaysia, was applied. The prediction values were then checked and evaluated using some statistical criteria. The results revealed that all proposed models were acceptable in predicting the flyrock. Among them, the LSSVM-WOA was a more robust model than the others and predicted the flyrock values with a high degree of accuracy.

1. Introduction

Drilling and blasting is an indispensable technique for breakage and displacement of rock masses in open-pit mines. Nevertheless, some undesirable phenomena, such as ground vibration, airblast, flyrock (FR), and backbreak are produced by blasting operations [1,2,3,4,5]. Any blasting event produces a sudden ejection of rock pieces, which are referred to as “FR”. This phenomenon is one of the most hazardous environmental issues induced by blasting which may lead to various problems for humans, including fatalities [6,7,8,9]. As mentioned in previous studies, some blast design factors, such as burden (B), spacing (S), stemming (ST), weight charge (WC), and powder factor (PF), are the effective factors in the intensity of FR [8,9,10]. Aside from the aforementioned factors, the properties of the rock mass, such as rock density and uniaxial compressive strength, are considered the effective factors on the FR, called uncontrollable factors [9,10]. The FR can occur based on three different mechanisms, i.e., rifling, face burst, and cratering [11,12]. The poor ST material, the small ratio of ST to blast-hole diameter, and inadequate B are the most important causes for the rifling, cratering, and face burst mechanisms [9,13].
In the literature, numerical simulations are considered to be the common methods to study the blasting mechanism in rock masses. According to Kutter and Fairhurst [14], three main zones, i.e., the crushed, cracked, and elastic vibration zones, can be formed after each blasting event. Additionally, the in-situ stress has an important effect on the propagation of cracks produced by blasting. To study the failure responses of rocks, the distinct element method (DEM), finite difference method (FDM), and finite element method (FEM) have been extended in recent years by many scholars [15,16,17,18,19,20]. As an example, a two-dimensional discrete element method was used to numerically simulate the mechanism of rock fragmentation produced by blasting in the study conducted by Hajibagherpour et al. [19]. They showed that the proposed numerical model can be effectively employed to simulate the crack propagation process around a blast-hole. Aside from numerical modelling, several empirical models have been employed to predict flyrock [20]. These empirical models have been formulated based on considering only one or two of the effective factors of flyrock. For this reason, the accuracy of the mentioned empirical models is not good enough. Therefore, the use of artificial intelligence methods can be a good solution to predict FR with a high degree of performance. Additionally, the use of artificial intelligence methods in different fields of mingling and civil engineering indicates the effectiveness of these methods for predicting and optimizing aims [21,22,23,24,25,26,27,28,29,30,31].
An artificial neural network (ANN) model was employed to predict FR in the study conducted by Monjezi et al. [32], and its performance was compared with statistical models. Their results indicated the performance of ANN was better than statistical models in predicting FR. For the same purpose, Ghasemi et al. [33] employed ANN and fuzzy system (FS) and showed better prediction capability of FS over ANN. Moreover, the ANN model was compared with the adaptive neuro-fuzzy inference system (ANFIS) for the prediction of FR by Trivedi et al. [34]. They revealed higher performance in respect to accuracy of ANFIS compared with the ANN model. In another study, a genetic programming (GP) model was employed by Faradonbeh et al. [35] to predict FR. In their study, the non-linear regression models were also used for comparison aims. They concluded that the GP predicted FR with a higher performance in comparison to non-linear regression models. The GP model was also employed by Ye et al. [36] and its results was compared with a random forest model. According to their results, the performance of GP was better than the random forest model.
The present study attempts to propose several efficient hybrid models through the cascaded forward neural network (CFNN) and also the least squares support vector machine (LSSVM) in combination with three optimization algorithms, including artificial bee colony (ABC), gravitational search algorithm (GSA), and whale optimization algorithm (WOA), for the prediction of FR.
The rest of this article includes the following sections. More details about the source of the database and the developed models are explained in the second section. Then, the setting parameters in the modelling processes are explained in the third section. The results and discussions are provided in the fourth section; finally, the last section presents the conclusions of the study.

2. Research Significance

FR is considered as an environmental and hazardous problem in mine blasting, which may result in human injuries, fatalities, property damage, and instability of slopes. Hence, a valid and reliable prediction of FR has critical implications in mitigating and controlling the adverse effects along with sustainable development and responsible mining. In other words, the control and minimization of FR can lead to sustainability of surroundings environment in blasting sites. For the aforementioned aims, the present study attempts to propose several efficient hybrid models through the CFNN and also LSSVM in combination with three optimization algorithms. To the best of our knowledge, this is the first work that predicts the FR by using the proposed models.

3. Materials and Methods

3.1. Materials

The database used in this study was collected from three granite quarry sites located in Malaysia, including the Ulu Tiram, Pengerang, and the Masai quarry sites. The values of the rock quality designation (RQD) of the aforementioned quarry sites ranged from 45 to 80, 50 to 70, and 40 to 75, respectively. Additionally, the values of the rock strength ranged from 30 to 110 MPa, respectively. In total, 80 datasets including some effective parameters on the FR were used in constructing the predictive models. In this regard, the S, B, ST, PF, and density were used as the input parameters, and the FR was used as the output parameter. More details about the statistical properties of datasets will be provided in Section 5.

3.2. Methods

In this study, the LSSVM is combined with the ABC, GSA, and WOA to predict FR. Additionally, the CFNN model is also used for comparison aims. In this section, the mentioned models are briefly explained.

3.2.1. LSSVM Model

LSSVM is a robust machine learning technique. This method was proposed as an upgraded form of the SVM, which suffered from some drawbacks in its learning stage, namely the demand in calculability and the limitation in dealing with inequality constraints. Therefore, LSSVM becomes an efficient ML technique after fixing the aforesaid issues [37,38]. For a regression task which aims at finding a suitable correlation that emulates the behaviour of a system defined by a set of data having inputs x = x 1 , x 2 , , x N that x j   R D and N is the number of samples in the set, and targets t defined on R as y = y 1 , y 2 , , y N , the first step in the LSSVM method consists of formulating the following minimization problem [39]:
m i n i m i z e   1 2 w T w + 1 2 γ j = 1 N e j 2 s . t .   y j = w T φ x j + b + e j ,   i = 1 , 2 , , N
where e j denotes the regression error, γ represents the regularization parameter, T points out the transpose operator, w and b are the weight and bias parameters, respectively, and φ is a nonlinear mapping function.
The learning phase of LSSVM passes through finding the proper values of w and b . To this end, the formulated minimization problem is transformed into a Lagrangian function using the formula shown below [40]:
L w , b , α , e = 1 2 w T w + 1 2 γ j = 1 N e j 2 j = 1 N α j w T φ x j + b + e j y j
where the coefficients α i are called Lagrangian multipliers. The solution of L is obtained by solving the following system of equations:
L w , b , α , e w = 0 w = j = 1 N α j φ j x j L w , b , α , e b = 0 j = 1 N α j = 0   L w , b , α , e e j = 0 α j = γ e j ,       j = 1 , 2 , , N   L w , b , α , e α j = 0 w T φ x j + b + e j y j = 0 ,       j = 1 , 2 , , N
The above system which defines the vanishing of the partial derivatives of L with regard to w , b , e , and α can be arranged in the following matrix scheme:
0 1 N T 1 N Ω + γ 1 I N b α = 0 y
In the above equation,   I N points out N × N size identity matrix,   y = y 1 , y 2 , , y N T , α = α 1 , α 2 , , α N T , 1 N = 1 , 1 , , 1 T , and Ω is the kernel matrix. The elements of this latter term are expressed as follows:
Ω j , l = φ x j φ x l = K x j , x l
where K is the kernel function. Gaussian radial basis function (RBF) is among the frequently considered kernel functions in LSSVM.
In the last step, the gained LSSVM paradigm can predict the investigated target using the following expression:
f x = j = 1 N α j K x j , x l + b
where ( α j , b ) are determined from Equation (4).
It is worth mentioning that the robustness of LSSVM is related to the proper selection of its hyper-parameters, viz.,
σ 2 and γ . To do so, in the present work, three rigorous metaheuristic algorithms were suggested to tune these control parameters.

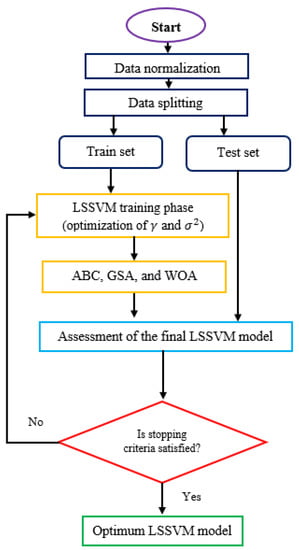

In this study, three optimization algorithms, including the GSA, WOA, and ABC, are used to improve the LSSVM performance. The aforementioned algorithms are briefly explained in this part.
(A)
 Gravitational search algorithm (GSA)
The GSA is a metaheuristic algorithm developed by Rashedi et al. [41] based on Newton’s law of gravity [37]. The GSA is a population-based algorithm, and this means that a population of possible solutions is considered during the optimization process. The particles of the population are subjected to positions updating using the main governing equations of the algorithms. In this regard, the position of each particle is denoted by a vector x , while the force between two elements i and j at iteration g , is expressed as follows [41]:
F i j g = G g M i g   M j g R i j g + ε x i g x j g
where ε points out a constant with a small value, R denotes the Euclidian distance between the two particles, while G represents the gravitational constant defined as:
G g = G g 0 g 0 χ g       χ < 1
where G g 0 is the initial value of the gravitational constant. The overall force resulted from the particles of the population on each particle i is determined using the following formula [41]:
F i g = j J b e s t ,   j i N r 1 j F i j g
where J b e s t represents a set of best particles in the population and r 1 j is a random determined uniformly over iterations from [0, 1].
In another step, the motion law is considered as per following formulas [41]:
a i = F i g M i g
where a i points out the acceleration of mass and M i is the inertia mass which is determined using the equation below:
M i g = m i g j = 1 N m j g
and
m i g = f i g w g b g w g
where f is the fitness value of the element i , and w and b represent the worst and best fitness values in the population, respectively. Finally, the velocity and the position of the elements are:
v i g + 1 = r 2 i v i g + a i g
x i g + 1 = v i g + 1 + x i g
where r 2 i is a random generated uniformly from [0, 1], and v and x point out the velocity and position of elements, respectively.
The steps of GSA based on the stated equations are repeated until a stopping criterion is fulfilled.
(B)
 Whale optimization algorithm (WOA)
The WOA is another population-based algorithm introduced by Mirjalili and Lewis [42]. The main steps and the governing equations of WOA mimic the hunting process of back whales [37]. Initially, an initial population of whales is created randomly. The positions of the whales represent possible solutions of the optimization problem. In order to evaluate the quality of these positions, a fitness function that emulates the objective function to optimize is applied. Based on the evaluation step, the whales are subjected to update their positions at a given generation g + 1 . To do so, the associated shapes of the position are changed to spiral or circular forms with respect to a probability p using the following equation [42]:
X g + 1 = D e b l cos 2 π t + X * g i f     p 0.5 X * g A D i f       p < 0.5
In the above equation, X * points out the best whale which is located nearby the prey. D = X i X * represents the distance between the whale i and the prey, b is a constant for specifying the spiral shape, and l is a random number from [−1, 1]. The other terms of the above equation are defined as per following equations [42]:
A = 2 a r a
C = 2 r
D = C X * X i
where a is a number decreasing linearly from 2 to 0 over the distance,   and   r is a random from [0, 1]. According to the value of A , if it is mainly outside the interval [−1, 1], a circular form is considered for upgrading the positions based on a randomly selected whale X r g . The following equation shows this process:
X g + 1 = X r g A D
The new positions obtained after carrying out the update of the shapes are assessed using the fitness function. Lastly, if the best whale shows an enhancement in its fitness values, it will change its position to this newest one, otherwise, the best existing position will be conserved.
The described steps of this optimization algorithm are repeated until a stopping criterion is achieved.
(C)
 Artificial Bee Colony (ABC)
The ABC is an intelligent swarm-based metaheuristic algorithm proposed by Karaboga [43]. As indicated in its appellation, ABC emulates the steps performed by honeybees as they search for nectar sources. In this regard, three groups, including employed, onlookers, and scout bees are considered in this process. The role of employed group is to amass the information and expose it to the onlooker group. The scout group consists of changing the positions once no improvement is noticed in some sources of bees.
The main steps of ABC are given below [44]:
-
An initial population of bees is generated randomly. Each bee has its own position x. The numbers of employed and onlookers are the same in the population. A fitness function is considered for assessing the quality of the bees.
-
Employed bees: this step consists of updating the positions of bees at the generation ( g + 1 ) using the following equation:
x i g + 1 = x i g + ϑ i x i g x ω g
where ϑ i is a random from [0, 1] and ω   { 1 ,   2 ,   ,   c o l o n y   s i z e } ω i .
Afterward, the quality of each new position is examined using the fitness function, and if an improvement is obtained, this new position is conserved, otherwise, it is abandoned.
-
Onlooker bees: by carrying out the previous step which emulates the exploitation phase, the gained information by the employed bees is exposed to the onlookers, which select the proper ones by applying the following equation bases on the probability P :
P i = f t i i = 1 E f t i
where f t points out the fitness value and E represents the number of employed bees. As in the case of employed bees, if an improvement is obtained, this new position is conserved, otherwise, it is abandoned.
-
Scout bees: this step consists of randomly changing the position of a given employed bee after a defined number of generations if it does not show any improvements in its fitness quality.
The optimum solution of the problem is represented by the fittest bee. The above-described steps are recurring until a stopping condition is reached.

3.2.2. CFNN Model

The CFNN is a type of ANN which is recognized by its flexible-based structure [45]. This advantage allows CFNN to generate accurate predictive models for many systems with different degrees of complexity. The structure of CFNN neurons is distributed into three kinds of layers, including input, hidden, and output layers [46]. The input layer receives the data, then this latter is transformed and processed in one or more hidden layers using the so-called activation functions (such as tansig and logsig), while the results of the paradigm are obtained from the output layer. The number of hidden layers and their involved neurons depend on the complexity of the system as one hidden layer is generally enough for low to medium complicated cases, while more than one hidden layer is requested for highly complex cases. CFNN is characterized by its specific cascaded scheme for linking the neurons to the others [46]. This scheme is ensured by linking each neuron from a preceding layer to the nodes of the subsequent layers [46].
As the other kinds of ANN, the learning phase of CFNN aims at achieving the suitable weight and bias values of its architecture. Backpropagation-based algorithms, such as the Levenberg–Marquardt algorithm (LMA), are known to be highly efficient for this kind of optimization. In this investigation, LMA algorithms were considered in the optimization of the bias and weights of CFNN. More information about LMA can be found in published literature [47,48].
It is worth mentioning that the considered soft computing approaches in this study, namely CFNN and LSSVM, differ from each other mainly on the learning strategy where in LSSVM, the learning process is done after the formulation of the minimization problem (shown in Equation (1)) and then the problem is resolved by finding the control parameters of the model, while in CFNN, the learning approach is gained by finding the suitable topology and the appropriate weights linking between the neurons of different layers until reaching the low function error (such as root mean square error) value.

3.2.3. Model Performance Evaluation

As stated in the previous section, the modelling task of FR using CFNN and LSSVM was extended in this study by investigating the suitable input parameters that can give the most accurate predictions of this vital factor. Before showing the main finding of the modelling tasks using the aforesaid ML models, it is worth mentioning that during the performance evaluation of the models, the following statistical indexes were calculated using the equations shown below [1,4,5,49,50,51,52]:
Average Absolute Relative Error (AARE):
A A R E % = 1 N i = 1 N F R i m e a F R i p r e d F R i m e a × 100
Coefficient of Determination (R2):
R 2 = 1 i = 1 N F R i m e a F R i p r e d 2 i = 1 N F R i p r e d F R ¯ 2
Root Mean Square Error (RMSE):
R M S E = 1 N i = 1 N F R i m e a F R i p r e d 2
In the above equations, the subscripts mea and pred denote the measured and estimated FR, respectively, F R ¯ mean of FR values, and N points out the number of samples.

4. Development of Predictive Models

The main purpose of the suggested ML learning methods in this study was to deliver robust models that can estimate the FR under different circumstances. For a better investigation, several input parameters were considered in each of the proposed paradigms. Accordingly, six different schemes were involved in the development of these ML-based predictive models. These schemes are summarized in the following equations:
M 1                             F R = f S , B , S T , P F ,   D e n s i t y
M 2                             F R = f S , B , S T , P F
M 3                             F R = f S , B , S T ,   D e n s i t y
M 4                             F R = f S , B , P F ,   D e n s i t y
M 5                               F R = f S , S T , P F ,   D e n s i t y
M 6                               F R = f B , S T , P F ,   D e n s i t y
In order to properly implement CFNN-LMA and the proposed hybridization LSSVM-metaheuristic algorithms, including the LSSVM-WOA, LSSVM-GSA, and LSSVM-ABC models, some necessary steps were carried out as shown in the two flowcharts of Figure 1 and Figure 2, respectively. According to these flowcharts, the first step consisted of normalizing the database. This step significantly improves the performance of the considered ML techniques. The normalization procedure of the database is given in the following equation:
x n = 2 x i x m i n x m a x x m i n 1
where x and x n point out the variable and the normalized value, respectively, while x m a x   and   x m i n represent the maximum and minimum values of the variable, respectively.
After performing the normalization of the data, the latter was divided into train and test sets. The aim of these two groups was to train the models (train set) and certify their robustness of unseen measurements (test set). These two sets covered 80% and 20% of the whole measurements, respectively. During the learning phase of the CFNN- and LSSVM-based models, their control parameters were investigated using the above-discussed algorithms and some other techniques. In this regard, the trial and error method was considered for selecting the best topology of CFNN, while LMA was applied for optimizing the weights and bias values of the network. For the LSSVM model, three metaheuristic algorithms including ABC, GSA, and WOA were implemented in the optimization of the two impacting LSSVM control parameters, namely γ and σ 2 . It is necessary to add that it was proven in some previous works that it is more suitable to consider some specific trust region algorithms such as Levenberg–Marquardt algorithms rather than applying metaheuristic algorithms in the training phase of some feedforward networks such as MLP and CFNN [53]. However, for many other soft-computing approaches such as LSSVM and SVM, metaheuristic algorithms are much more appropriate for finding the control parameters of these techniques [54]. Table 1 reports the main setting of these metaheuristic algorithms. In our suggested workflows (Figure 1 and Figure 2), the constraints and/or evaluation of overfitting were considered by checking the accuracy of the paradigms during both training and testing phases. It is clear from the statistical evaluation of the models that if the prediction accuracy of the latter is very satisfactory during the training and testing phases, the overfitting issue is avoided.

5. Results and Discussion

5.1. Exploratory Analysis

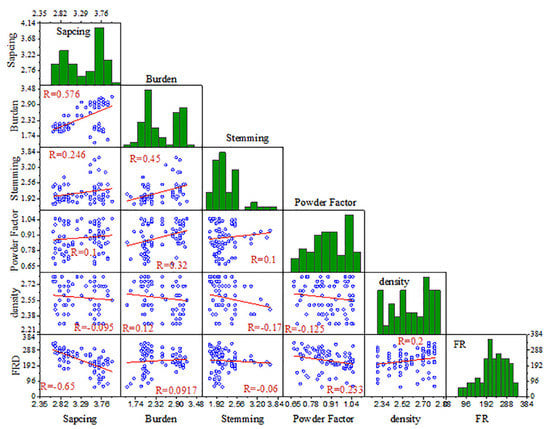

The optimal strategy for solving the high non-linear problems significantly depend on the behavior of the dataset used in the simulation process. Thus, the statistical data description is one of the most crucial tasks of the pre-processing stage in ML-based modelling in engineering problems. Table 2 lists the statistical properties of datasets implemented in the FR predicting procedure. The low values of skewness and kurtosis confirmed that all inputs and targets are categorized as a pseudo-normal distribution. Figure 3 demonstrates the Pearson correlation coefficients in form of a correlogram. It can be concluded that the “S” parameter with respect to the largest correlation coefficient (0.65) has the most significance in prediction of the FR value.
As stated before, the database considered in this study was divided into training and testing sets. The first set is applied in the models’ development, while the test set is devoted to the validation and investigation of the accuracy behavior of the established models when dealing with unseen measurements.

5.2. Modelling Results

By performing the steps described in the previous sections, it was found that 3 hidden layers with tansig as an activation function, and 12, 11, and 9 neurons in each of them, respectively, represented the proper CFNN topology in all of the six schemes. For LSSVM models, the achieved σ 2 and γ values using the ABC, GSA, and WOA ranged between 403.15 to 1847.43 and 35,479,174.56 to 67,688,321.04, respectively.

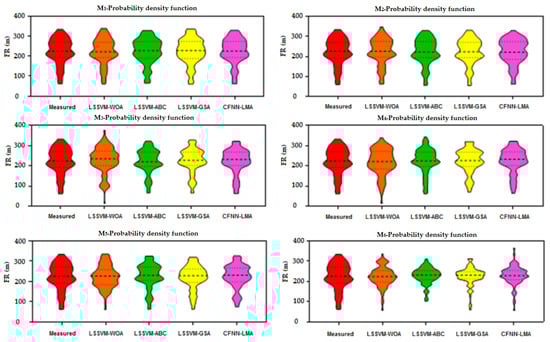

The statistical evaluation of the performance of the obtained ML-based models with respect to the stated six schemes in the previous sections is shown in Table 3. In this table, statistical criteria, namely AARE, R2, and RMSE are reported for the training set, the test set, and the whole dataset. According to this table, and based on the schemes, it can be seen that M1 is the best one, followed by M2. In the combination of M1 including all inputs for the testing phase, the LSSVM-WOA in terms of (R2 = 0.999, RMSE = 3.4209 m, and AARE = 1.3017) was identified as the superior predictive model, followed by CFNN-LMA (R2 = 0.9347, RMSE = 16.5215 m, and AARE = 7.512), LSSVM-GSA (R2 = 0.904, RMSE = 16.1775 m, and AARE = 5.5193), and LSSVM-ABC (R2 = 0.9049, RMSE = 19.439 m, and AARE = 8.0032), respectively. In the M2 (in testing phase), as the second-best combination, the LSSVM-WOA with respect to the highest R2 (0.9896) and smallest RMSE (10.4268) outperformed the other models. The result assessment demonstrated that M6 on account of poorest performance (R2 = 0.3616 and RMSE = 58.5744 for the LSSVM-WOA) was recognized as the worst scheme regardless of the ML type. Typically, it can be understood from this remark that S is the most impacting input parameter on FR as its exclusion from the input variables (M6) caused the worst prediction performance regardless of the type of ML techniques, while density has a small effect on FR since its elimination from the input parameters (M2) did not significantly affect the degree of prediction accuracy. In addition, it can also be deduced that for each of the six schemes, the LSSVM-WOA yielded more accurate predictions compared with the other LSSVM-metaheuristic algorithms and the CFNN-LMA. According to Table 3, it was found that M1 outperformed other combinations followed by M2, M4, M3, M5, and M6, respectively. Additionally, it can be said that the LSSVM-WOA in all input combinations was the best predictive model developed in this study for prediction of FR. For better comparison between the predictive performances of the provided models in all combinations, the probability density function violin plots are exhibited in Figure 4. According to this figure, considering the best agreement between measured and predicted values of FR, it can be clearly implied that the LSSVM-WOA was the superior model for accurately estimating FR, the CFNN-LMA was identified as the second-best model, and LSSVM-ABC yielded the worst results in all combinations. Regarding the mentioned analysis, the combination of M1 was kept for further performance investigation and validations. It is necessary to add that in order to confirm that the ANN scheme did not suffer from the overfitting issue, a 4-fold cross-validation was performed on our best ANN paradigm (the case of M1) to assess the generalization of the model when dealing with new sets of data. To do so, the database was randomly divided into 4 folds, then, the modelling was done by considering a sole fold as the test sub-data and devoting the rest for the training phase. In order to swap between the folds involved in the training and testing phases, the aforesaid step was repeated 4 times. The results gained from the 4-fold cross-validation are reported in Table 4. As can be seen, the consistency of the model is confirmed for all the folds, thus, the overfitting issue is avoided.

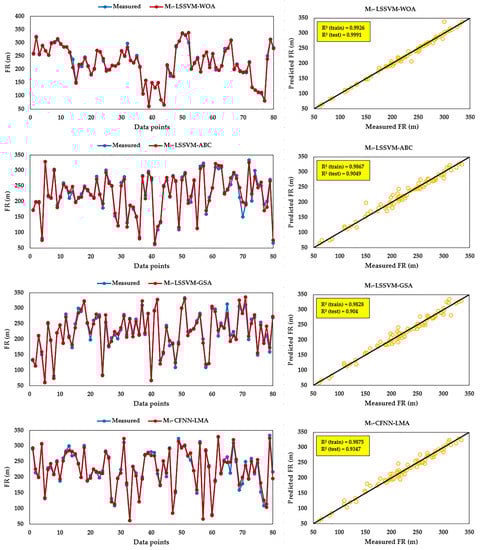

In order to extend the examination of the accuracy of the best implemented models, some graphical evaluation techniques were considered. Figure 5 shows the physical trend variation and cross plots related to the M1 which illustrate a comparison of the measured and predicted FR values during both the training and testing phases. Based on the scatter plots, a tight cloud of points is located nearby the line Y = X for all datasets. This means that the LSSVM-WOA can predict FR values with a great degree of accuracy as its predictions are very close to the perfect case shown by the unit-slop line. The left side of Figure 6 shows the ability of the predictive models to capture the non-linearity behaviour of the datasets. The LSSVM-WOA yields the best agreement with the measured FR compared with other LSSVM models and the CFNN-LMA model.

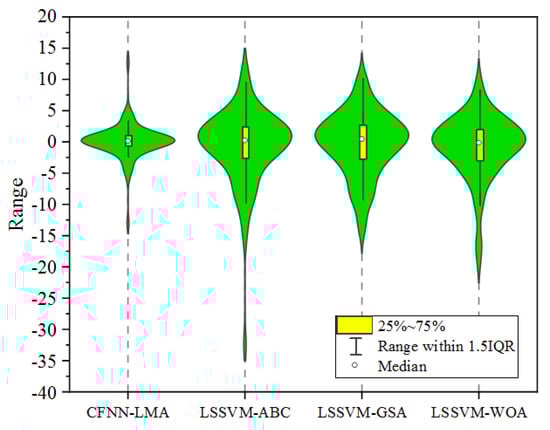

Another visual tool for inspecting the reliability of the LSSVM-WOA paradigm is dealing with the relative deviation (RD%) distribution diagram that is exhibited in Figure 6. The quartiles of RD for 25% and 75% of datasets are listed in Table 5. The LSSVM-WOA model, owing to having the least values of Q25% = −0.5566, Q75% = 1.093, and IQR = 1.650, yielded more reliable outcomes in comparison with the CFNN-LMA (Q25% = −2.976, Q75% = 2.105, and IQR = 5.081), LSSVM-ABC (Q25% = −2.778, Q75% = 2.504, and IQR = 5.282), and LSSVM-GSA (Q25% = −2.712, Q75% = 2.716, and IQR = 5.428), respectively. Obviously, the above diagnostic analysis reveals that the LSSVM-WOA model has very low prediction errors regardless of the considered conditions.

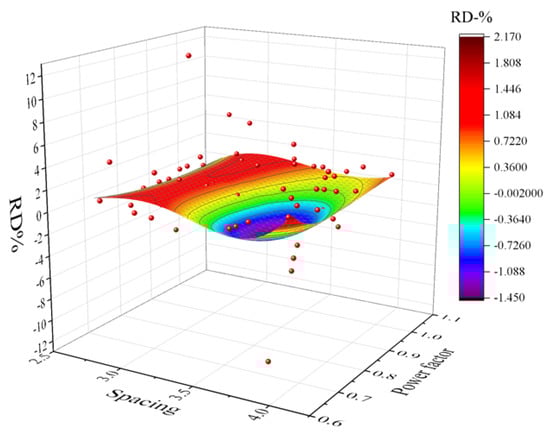

Lastly, Figure 7 demonstrates the 3D surface of RD variation concerning the LSSVM-WOA versus the S and PF, as the two most significant variables, to assess the reliability seeking zone for estimating the FR. The RD variation reveals that the most reliable and accurate results are obtained in the ranges of 3 ≤ S ≤ 3.5 and 0.8 ≤ PF ≤1.1.

6. Conclusions

FR is one of the most adverse effects induced by blasting in surface mines. In this study, an attempt was made to predict blast-induced FR through hybridizing three optimization algorithms including the ABC, GSA, and WOA with the LSSVM model. In addition, CFNN-LMA, as a powerful tool for the prediction aims, was developed. For developing the models, six different schemes based on different combinations of input parameters were employed and in total, twenty-four different models were constructed. After that, three statistical indexes, i.e., AARE, R2, and RMSE, were used to check the performance of the models and to compare their results.
Some conclusions are drawn as follows: the results indicated that among the total constructed models, the LSSVM-WOA model was the most accurate model in all six schemes compared with the CFNN-LMA, LSSVM-GSA, and LSSVM-ABC models. The most accurate results of the LSSVM-WOA (AARE = 1.3017, R2 = 0.9991 and RMSE = 3.4209), LSSVM-GSA (AARE = 5.5193, R2 = 0.904 and RMSE = 16.1775), and CFNN-LMA (AARE = 7.512, R2 = 0.9347 and RMSE = 16.5215) were obtained from the first scheme, while that for the LSSVM-ABC model (AARE = 7.083, R2 = 0.9235 and RMSE = 16.7483) was obtained from the second scheme. It is important to note that the above results were related to the testing phase. On the other hand, the sixth scheme had the worst performance. In this scheme, the S parameter was removed from the modelling. Therefore, it can be suggested that the S was an effective parameter in the modelling. Additionally, according to RD%, the LSSVM-WOA model had very low prediction errors regardless of the considered conditions. The presented results in this study cannot be compared with results of the previous studies because different fields investigation as well as different range of input parameters were used in the previous studies. Nevertheless, for a comparison with the literature, the LSSVM-WOA presented in this study predicted the FR with a very good R2, while Koopialipoor et al. [55], Faradonbeh et al. [56], Zhou et al. [57], Nguyen et al. [58], and Marto et al. [59] predicted the FR with an R2 of 0.959, 0.924, 0.944, 0.986, and 0.981, respectively. The aforementioned results indicate the effectiveness of the LSSVM-WOA model in predicting the FR.
It is worth mentioning that the proposed models herein are specific to studied cases and the use of these models in other surface mines requires some modification based on blasting and mining conditions. However, our best implemented model can predict the FR with high accuracy and the paradigm can be applied for cases filling the applicability conditions considered in this work, namely by respecting the maximum and minimum values of the involved input parameters.
For future works, it can be recommended to use other optimization algorithms, such as seagull optimization algorithm (SOA), sparrow search algorithm (SSA), loin swarm optimization (LSO), and moth-flame optimization (MFO) algorithms, in combination with CFNN and LSSVM models.

Author Contributions

Conceptualization, M.H.; Methodology, X.D. and M.J.; Validation, X.D., M.J. and M.H.; Investigation, M.H. and B.N.L.; Data curation, M.H.; writing—original draft preparation, X.D., M.J., M.H., R.A.A. and B.N.L.; writing—review and editing, X.D., M.J., M.H., R.A.A. and B.N.L.; Supervision, M.H. and R.A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This paper is supported by the National Natural Science Foundation of China (Grant No. 52174131).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data used in this study may be available on request from the corresponding author.

Acknowledgments

The authors would like to thank Danial Jahed Armaghani for providing the information and facilities required for conducting this research.

Conflicts of Interest

The authors have no conflict of interest to declare that are relevant to the content of this article.

References

  1. Raina, A.K.; Chakraborty, A.K.; Choudhury, P.B.; Sinha, A. Flyrock danger zone demarcation in opencast mines: A risk based approach. Bull. Eng. Geol. Environ. 2011, 70, 163–172. [Google Scholar] [CrossRef]
  2. Stojadinovic, S.; Pantovic, R.; Zikic, M. Prediction of flyrock trajectories for forensic applications using ballistic flight equations. Int. J. Rock Mech. Min. Sci. 2011, 48, 1086–1094. [Google Scholar] [CrossRef]
  3. Rad, H.N.; Hasanipanah, M.; Rezaei, M.; Eghlim, A.L. Developing a least squares support vector machine for estimating the blast-induced flyrock. Eng. Comput. 2018, 34, 709–717. [Google Scholar] [CrossRef]
  4. Jamei, M.; Hasanipanah, M.; Karbasi, M.; Ahmadianfar, I.; Taherifar, S. Prediction of flyrock induced by mine blasting using a novel kernel-based extreme learning machine. J. Rock Mech. Geotech. Eng. 2021, 13, 1438–1451. [Google Scholar] [CrossRef]
  5. Yari, M.; Armaghani, D.J.; Maraveas, C.; Ejlali, A.N.; Mohamad, E.T.; Asteris, P.G. Several Tree-Based Solutions for Predicting Flyrock Distance Due to Mine Blasting. Appl. Sci. 2023, 13, 1345. [Google Scholar] [CrossRef]
  6. Raina, A.K.; Chakraborty, A.K.; More, R.; Choudhury, P.B. Design of factor of safety based criterion for control of flyrock/throw and optimum fragmentation. J. Inst. Eng. Ser. A 2007, 87, 13–17. [Google Scholar]
  7. Ghasemi, E.; Sari, M.; Ataei, M. Development of an empirical model for predicting the effects of controllable blasting parameters on flyrock distance in surface mines. Int. J. Rock Mech. Min. Sci. 2012, 52, 163–170. [Google Scholar] [CrossRef]
  8. Armaghani, D.J.; Mahdiyar, A.; Hasanipanah, M.; Shirani Faradonbeh, R.; Khandelwal, M.; Bakhshandeh Amnieh, H. Risk assessment and prediction of flyrock distance by combined multiple regression analysis and monte-carlo simulation of quarry blasting. Rock Mech. Rock Eng. 2016, 49, 3631–3641. [Google Scholar] [CrossRef]
  9. Hasanipanah, M.; Jahed Armaghani, D.; Bakhshandeh Amnieh, H.; Abd Majid, M.Z.; Tahir, M. Application of PSO to develop a powerful equation for prediction of flyrock due to blasting. Neural Comput. Appl. 2017, 28, 1043–1050. [Google Scholar] [CrossRef]
  10. Hasanipanah, M.; Armaghani, D.J.; Amnieh, H.B.; Koopialipoor, M.; Arab, H. A risk based technique to analyze flyrock results through rock engineering system. Geotech. Geol. Eng. 2018, 36, 2247–2260. [Google Scholar] [CrossRef]
  11. Raina, A.K.; Murthy, V.; Soni, A.K. Flyrock in bench blasting: A comprehensive review. Bull. Eng. Geol. Environ. 2014, 73, 1199–1209. [Google Scholar] [CrossRef]
  12. Jahed Armaghani, D.; Hajihassani, M.; Monjezi, M.; Edy Tonnizam, M.; Marto, A.; Moghaddam, M.R. Application of two intelligent systems in predicting environmental impacts of quarry blasting. Arab. J. Geosci. 2015, 8, 9647–9665. [Google Scholar] [CrossRef]
  13. Little, T.N.; Blair, D.P. Mechanistic Monte Carlo models for analysis of flyrock risk. Rock Fragm. Blasting 2010, 9, 641–647. [Google Scholar]
  14. Kutter, H.K.; Fairhurst, C. On the fracture process in blasting. Int. J. Rock Mech. Min. Sci. Geomech. Abstr. 1971, 8, 181–202. [Google Scholar] [CrossRef]
  15. Liu, K.; Li, X.; Hao, H.; Li, X.; Sha, Y.; Wang, W.; Liu, X. Study on the raising technique using one blast based on the combination of long-hole presplitting and vertical crater retreat multiple-deck shots. Int. J. Rock Mech. Min. Sci. 2019, 113, 41–58. [Google Scholar] [CrossRef]
  16. Chao, Z.; Ma, G.; Wang, M. Experimental and numerical modelling of the mechanical behaviour of low-permeability sandstone considering hydromechanics. Mech. Mater. 2020, 148, 103454. [Google Scholar] [CrossRef]
  17. Wang, M.; Wang, F.; Zhu, Z.; Dong, Y.; Mousavi Nezhad, M.; Zhou, L. Modelling of crack propagation in rocks under SHPB impacts using a damage method. Fatigue Fract. Eng. Mater. Struct. 2019, 42, 1699–1710. [Google Scholar] [CrossRef]
  18. Wang, M.; Ma, G.; Wang, F. Numerically investigation on blast-induced wave propagation in catastrophic large-scale bedding rockslide. Landslides 2021, 18, 785–797. [Google Scholar] [CrossRef]
  19. Hajibagherpour, A.R.; Mansouri, H.; Bahaaddini, M. Numerical modeling of the fractured zones around a blasthole. Comput. Geotech. 2020, 123, 103535. [Google Scholar] [CrossRef]
  20. Trivedi, R.; Singh, T.N.; Raina, A.K. Prediction of blast-induced flyrock in Indian limestone mines using neural networks. J. Rock Mech. Geotech. Eng. 2014, 6, 447–454. [Google Scholar] [CrossRef]
  21. Yang, H.; Koopialipoor, M.; Armaghani, D.J.; Gordan, B.; Khorami, M.; Tahir, M.M. Intelligent design of retaining wall structures under dynamic conditions. Steel Compos. Struct. 2019, 31, 629–640. [Google Scholar]
  22. Yang, H.; Liu, X.; Song, K. A novel gradient boosting regression tree technique optimized by improved sparrow search algorithm for predicting TBM penetration rate. Arab. J. Geosci. 2022, 15, 461. [Google Scholar] [CrossRef]
  23. Yang, H.; Song, K.; Zhou, J. Automated Recognition Model of Geomechanical Information Based on Operational Data of Tunneling Boring Machines. Rock Mech. Rock Eng. 2020, 55, 1499–1516. [Google Scholar] [CrossRef]
  24. Yang, H.; Wang, Z.; Kanglei, S. A new hybrid grey wolf optimizer-feature weighted-multiple kernel-support vector regression technique to predict TBM performance. Eng. Comput. 2020, 38, 2469–2485. [Google Scholar] [CrossRef]
  25. Zhang, X.; He, B.; Sabri, M.M.S.; Al-Bahrani, M.; Ulrikh, D.V. Soil Liquefaction Prediction Based on Bayesian Optimization and Support Vector Machines. Sustainability 2022, 14, 11944. [Google Scholar] [CrossRef]
  26. Khan, N.M.; Cao, K.; Yuan, Q.; Bin Mohd Hashim, M.H.; Rehman, H.; Hussain, S.; Emad, M.Z.; Ullah, B.; Shah, K.S.; Khan, S. Application of Machine Learning and Multivariate Statistics to Predict Uniaxial Compressive Strength and Static Young’s Modulus Using Physical Properties under Different Thermal Conditions. Sustainability 2022, 14, 9901. [Google Scholar] [CrossRef]
  27. Shahani, N.M.; Zheng, X.; Guo, X.; Wei, X. Machine Learning-Based Intelligent Prediction of Elastic Modulus of Rocks at Thar Coalfield. Sustainability 2022, 14, 3689. [Google Scholar] [CrossRef]
  28. Yu, Q.; Monjezi, M.; Mohammed, A.S.; Dehghani, H.; Armaghani, D.J.; Ulrikh, D.V. Optimized Support Vector Machines Combined with Evolutionary Random Forest for Prediction of Back-Break Caused by Blasting Operation. Sustainability 2021, 13, 12797. [Google Scholar] [CrossRef]
  29. Hasanipanah, M.; Bakhshandeh Amnieh, H. A fuzzy rule based approach to address uncertainty in risk assessment and prediction of blast-induced flyrock in a quarry. Nat. Resour. Res. 2020, 29, 669–689. [Google Scholar] [CrossRef]
  30. Huat, C.Y.; Moosavi, S.M.H.; Mohammed, A.S.; Armaghani, D.J.; Ulrikh, D.V.; Monjezi, M.; Hin Lai, S. Factors Influencing Pile Friction Bearing Capacity: Proposing a Novel Procedure Based on Gradient Boosted Tree Technique. Sustainability 2021, 13, 11862. [Google Scholar] [CrossRef]
  31. Hosseini, S.; Pourmirzaee, R.; Armaghani, D.J.; Sabri Sabri, M.M. Prediction of ground vibration due to mine blasting in a surface lead–zinc mine using machine learning ensemble techniques. Sci. Rep. 2023, 13, 6591. [Google Scholar] [CrossRef] [PubMed]
  32. Monjezi, M.; Mehrdanesh, A.; Malek, A.; Khandelwal, M. Evaluation of effect of blast design parameters on flyrock using artificial neural networks. Neural Comput. Appl. 2013, 23, 349–356. [Google Scholar] [CrossRef]
  33. Ghasemi, E.; Amini, H.; Ataei, M.; Khalokakaei, R. Application of artificial intelligence techniques for predicting the flyrock distance caused by blasting operation. Arab. J. Geosci. 2014, 7, 193–202. [Google Scholar] [CrossRef]
  34. Trivedi, R.; Singh, T.N.; Gupta, N. Prediction of blast-induced flyrock in opencast mines using ANN and ANFIS. Geotech. Geol. Eng. 2015, 33, 875–891. [Google Scholar] [CrossRef]
  35. Faradonbeh, R.S.; Armaghani, D.J.; Monjezi, M. Development of a new model for predicting flyrock distance in quarry blasting: A genetic programming technique. Bull. Eng. Geol. Environ. 2016, 75, 993–1006. [Google Scholar] [CrossRef]
  36. Ye, J.; Koopialipoor, M.; Zhou, J.; Jahed Armaghani, D.; He, X. A Novel Combination of Tree-Based Modeling and Monte Carlo Simulation for Assessing Risk Levels of Flyrock Induced by Mine Blasting. Nat. Resour. Res. 2021, 30, 225–243. [Google Scholar] [CrossRef]
  37. Hemmati Sarapardeh, A.; Larestani, A.; Nait Amar, M.; Hajirezaie, S. Applications of Artificial Intelligence Techniques in the Petroleum Industry; Gulf Professional Publishing: Houston, TX, USA, 2020. [Google Scholar] [CrossRef]
  38. Cai, M.; Hocine, O.; Salih Mohammed, A.; Chen, X.; Nait Amar, M.; Hasanipanah, M. Integrating the LSSVM and RBFNN models with three optimization algorithms to predict the soil liquefaction potential. Eng. Comput. 2021, 38, 3611–3623. [Google Scholar] [CrossRef]
  39. Suykens, J.A.K.; Vandewalle, J. Least squares support vector machine classifiers. Neural Process. Lett. 1999, 9, 293–300. [Google Scholar] [CrossRef]
  40. Forrester, A.I.J.; Sóbester, A.; Keane, A.J. Engineering Design via Surrogate Modelling: A Practical Guide; John Wiley & Sons: Hoboken, NJ, USA, 2008. [Google Scholar]
  41. Rashedi, E.; Nezamabadi-Pour, H.; Saryazdi, S. GSA: A gravitational search algorithm. Inf. Sci. 2009, 179, 2232–2248. [Google Scholar] [CrossRef]
  42. Mirjalili, S.; Lewis, A. The Whale Optimization Algorithm. Adv. Eng. Softw. 2016, 95, 51–67. [Google Scholar] [CrossRef]
  43. Karaboga, D. An Idea Based on Honey Bee Swarm for Numerical Optimization; Technical Report-TR06; Erciyes University, Engineering Faculty, Computer Engineering Department: Kayseri, Turkey, 2005. [Google Scholar]
  44. Karaboga, D.; Basturk, B. A powerful and efficient algorithm for numerical function optimization: Artificial bee colony (ABC) algorithm. J. Glob. Optim. 2007, 39, 459–471. [Google Scholar] [CrossRef]
  45. Nait Amar, M. Modelling solubility of sulfur in pure hydrogen sulfide and sour gas mixtures using rigorous machine learning methods. Int. J. Hydrogen Energy 2020, 45, 33274–33287. [Google Scholar] [CrossRef]
  46. Abujazar, M.S.S.; Fatihah, S.; Ibrahim, I.A.; Kabeel, A.E.; Sharil, S. Productivity modelling of a developed inclined stepped solar still system based on actual performance and using a cascaded forward neural network model. J. Clean. Prod. 2018, 170, 147–159. [Google Scholar] [CrossRef]
  47. Hemmati-Sarapardeh, A.; Varamesh, A.; Husein, M.M.; Karan, K. On the evaluation of the viscosity of nanofluid systems: Modeling and data assessment. Renew. Sustain. Energy Rev. 2018, 81, 313–329. [Google Scholar] [CrossRef]
  48. Hemmati-Sarapardeh, A.; Nait Amar, M.; Soltanian, M.R.; Dai, Z.; Zhang, X. Modeling CO2 Solubility in Water at High Pressure and Temperature Conditions. Energy Fuels 2020, 34, 4761–4776. [Google Scholar] [CrossRef]
  49. Huang, J.; Zhang, J.; Li, X.; Qiao, Y.; Zhang, R.; Kumar, G.S. Investigating the effects of ensemble and weight optimization approaches on neural networks’ performance to estimate the dynamic modulus of asphalt concrete. Road Mater. Pavement Des. 2022, 1–21. [Google Scholar] [CrossRef]
  50. Huang, J.; Zhou, M.; Zhang, J.; Ren, J.; Vatin, N.; Sabri, M. Development of a new stacking model to evaluate the strength parameters of concrete samples in laboratory. Iran. J. Sci. Technol. Trans. Civ. Eng. 2022, 46, 4355–4370. [Google Scholar] [CrossRef]
  51. Huang, J.; Zhou, M.; Zhang, J.; Ren, J.; Vatin, N.I.; Sabri, M.M.S. The use of GA and PSO in evaluating the shear strength of steel fiber reinforced concrete beams. KSCE J. Civ. Eng. 2022, 26, 3918–3931. [Google Scholar] [CrossRef]
  52. Huang, J.; Xue, J. Optimization of SVR functions for flyrock evaluation in mine blasting operations. Environ. Earth Sci. 2022, 81, 434. [Google Scholar] [CrossRef]
  53. Talebkeikhah, M.; Amar, M.N.; Naseri, A.; Humand, M.; Hemmati-Sarapardeh, A.; Dabir, B.; Seghier, M.E.A.B. Experimental measurement and compositional modeling of crude oil viscosity at reservoir conditions. J. Taiwan Inst. Chem. Eng. 2020, 109, 35–50. [Google Scholar] [CrossRef]
  54. Rostami, A.; Baghban, A.; Shirazian, S. On the evaluation of density of ionic liquids: Towards a comparative study. Chem. Eng. Res. Des. 2019, 147, 648–663. [Google Scholar] [CrossRef]
  55. Koopialipoor, M.; Fallah, A.; Armaghani, D.J.; Azizi, A.; Mohamad, E.T. Three hybrid intelligent models in estimating flyrock distance resulting from blasting. Eng. Comput. 2019, 35, 243–256. [Google Scholar] [CrossRef]
  56. Faradonbeh, R.S.; Armaghani, D.J.; Amnieh, H.B.; Mohamad, E.T. Prediction and minimization of blast-induced flyrock using gene expression programming and firefly algorithm. Neural Comput. Appl. 2018, 29, 269–281. [Google Scholar] [CrossRef]
  57. Zhou, J.; Aghili, N.; Ghaleini, E.N.; Bui, D.T.; Tahir, M.M.; Koopialipoor, M. A Monte Carlo simulation approach for effective assessment of flyrock based on intelligent system of neural network. Eng. Comput. 2019, 36, 713–723. [Google Scholar] [CrossRef]
  58. Nguyen, H.; Bui, X.-N.; Nguyen-Thoi, T.; Ragam, P.; Moayedi, H. Toward a state-of-the-art of fly-rock prediction technology in open-pit mines using EANNs model. Appl. Sci. 2019, 9, 4554. [Google Scholar] [CrossRef]
  59. Marto, A.; Hajihassani, M.; Jahed Armaghani, D.; Tonnizam Mohamad, E.; Makhtar, A.M. A novel approach for blast-induced flyrock prediction based on imperialist competitive algorithm and artificial neural network. Sci. World J. 2014, 2014, 643715. [Google Scholar] [CrossRef]
Figure 1. The workflow of the suggested CFNN paradigm.
Figure 1. The workflow of the suggested CFNN paradigm.
Sustainability 15 08424 g001
Figure 2. The workflow of the suggested LSSVM paradigms.
Figure 2. The workflow of the suggested LSSVM paradigms.
Sustainability 15 08424 g002
Figure 3. Correlogram for assessing the Pearson correlation coefficient between input and target parameters. Green: Histogram, Red: Regression line, and Blue: Distribution points.
Figure 3. Correlogram for assessing the Pearson correlation coefficient between input and target parameters. Green: Histogram, Red: Regression line, and Blue: Distribution points.
Sustainability 15 08424 g003
Figure 4. Probability density function of the predictive models of M1 for prediction of FR for all datasets used in the simulation process.
Figure 4. Probability density function of the predictive models of M1 for prediction of FR for all datasets used in the simulation process.
Sustainability 15 08424 g004
Figure 5. Comparing the predicted and measured FR values in the form of the cross plot and trend variation plot for all datasets.
Figure 5. Comparing the predicted and measured FR values in the form of the cross plot and trend variation plot for all datasets.
Sustainability 15 08424 g005
Figure 6. Relative errors of prediction models versus the measured FR values.
Figure 6. Relative errors of prediction models versus the measured FR values.
Sustainability 15 08424 g006
Figure 7. RD variation versus S and PF for LSSVM-WOA model. (Red points: Samples in distribution).
Figure 7. RD variation versus S and PF for LSSVM-WOA model. (Red points: Samples in distribution).
Sustainability 15 08424 g007
Table 1. The considered control parameters of the three employed metaheuristic algorithms.
Table 1. The considered control parameters of the three employed metaheuristic algorithms.
AlgorithmParameterValue
ABCNumber of employer bees20
Number of onlooker bees20
Number of generations30
Number of generations to scout bees4
GSA r 1 j and r 2 j [0, 1]
Number of generations30
Number of individuals40
WOAa2 to 0
r[0, 1]
Number of generations30
Number of whales40
Table 2. Descriptive statistics of all features used in modelling the FR.
Table 2. Descriptive statistics of all features used in modelling the FR.
Metric/FeatureS (m)B (m)ST (m)PF (kg/m3)Density (gr/cm3)FR (m)
Minimum2.651.51.70.672.361
Maximum43.23.61.052.8334
Mean3.3242.4152.1710.89082.579223.5
Std. Deviation0.42280.47760.40220.1130.168464.61
CV12.72%19.78%18.53%12.69%6.529%28.91%
Skewness−0.20320.20171.608−0.2148−0.2942−0.5848
Kurtosis−1.556−1.5182.82−1.058−1.247−0.1065
Table 3. Performance of the suggested ML-based models with respect to the six schemes.
Table 3. Performance of the suggested ML-based models with respect to the six schemes.
SchemeModelStatistical CriteriaTrain DataTest DataAll Data
M1CFNN-LMAR20.98750.93470.977
AARE2.51637.5123.5154
RMSE7.229216.52159.8184
LSSVM-ABCR20.98670.90490.971
AARE3.04198.00324.0341
RMSE7.408919.43910.9311
LSSVM-GSAR20.98280.9040.967
AARE3.42155.51933.8411
RMSE8.730816.177510.6453
LSSVM-WOAR20.99260.99910.9943
AARE1.64731.30171.5782
RMSE7.48473.42096.8671
M2CFNN-LMAR20.98120.93660.972
AARE2.92618.57484.0558
RMSE8.464520.261211.8077
LSSVM-ABCR20.97690.92350.9675
AARE3.76437.0834.428
RMSE9.865516.748311.5743
LSSVM-GSAR20.97540.90540.9614
AARE4.2546.53564.7103
RMSE10.396218.044312.312
LSSVM-WOAR20.98710.98960.9875
AARE2.66622.87232.7074
RMSE10.10510.426810.1702
M3CFNN-LMAR20.8830.91720.89
AARE7.25738.24417.4546
RMSE21.909718.650121.2977
LSSVM-ABCR20.91910.76220.8811
AARE6.764212.43797.8989
RMSE17.736634.537622.1413
LSSVM-GSAR20.88740.79790.8714
AARE7.875713.6159.0236
RMSE21.703527.690823.0259
LSSVM-WOAR20.96250.93980.9305
AARE6.665721.86189.7049
RMSE17.507643.814125.0828
M4CFNN-LMAR20.88780.87060.8856
AARE6.964310.52197.6758
RMSE21.620922.089121.7153
LSSVM-ABCR20.8920.85720.8849
AARE7.03339.86447.5995
RMSE20.930724.909421.7846
LSSVM-GSAR20.86890.87480.8707
AARE8.128511.61698.8262
RMSE22.746324.393823.0852
LSSVM-WOAR20.99210.92010.9777
AARE2.738414.87045.1648
RMSE8.066631.604215.8689
M5CFNN-LMAR20.88790.84560.8791
AARE7.698311.27218.413
RMSE21.374325.784122.326
LSSVM-ABCR20.88910.83760.8823
AARE8.35367.55418.1937
RMSE22.185921.389522.0289
LSSVM-GSAR20.89830.8310.8825
AARE6.667611.64997.6641
RMSE19.929128.84622.0035
LSSVM-WOAR20.89790.79850.8859
AARE12.37413.779912.6551
RMSE29.591130.706129.8175
M6CFNN-LMAR20.43240.31950.4186
AARE17.81730.979920.4496
RMSE46.309158.347548.9542
LSSVM-ABCR20.48560.15750.4327
AARE17.950730.172320.395
RMSE44.632261.019548.356
LSSVM-GSAR20.55740.46690.4329
AARE18.58724.649119.7994
RMSE44.729560.689848.3449
LSSVM-WOAR20.8060.36160.7228
AARE15.596222.100216.897
RMSE40.17258.574444.466
Table 4. Results of the 4-fold cross-validation for the CFNN-LMA model (M1 scheme).
Table 4. Results of the 4-fold cross-validation for the CFNN-LMA model (M1 scheme).
Overall R2Overall RMSE
Fold 10.97599.8664
Fold 20.97619.8601
Fold 30.97549.9361
Fold 40.97629.8597
Table 5. Quartile of RD for 25% and 75% of datasets.
Table 5. Quartile of RD for 25% and 75% of datasets.
ModelCFNN-LMALSSVM-ABCLSSVM-GSALSSVM-WOA
Q25%-RD%−0.5566−2.778−2.712−2.976
Q75%-RD%1.0932.5042.7162.105
IQR-RD%1.6505.2825.4285.081
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ding, X.; Jamei, M.; Hasanipanah, M.; Abdullah, R.A.; Le, B.N. Optimized Data-Driven Models for Prediction of Flyrock due to Blasting in Surface Mines. Sustainability 2023, 15, 8424. https://doi.org/10.3390/su15108424

AMA Style

Ding X, Jamei M, Hasanipanah M, Abdullah RA, Le BN. Optimized Data-Driven Models for Prediction of Flyrock due to Blasting in Surface Mines. Sustainability. 2023; 15(10):8424. https://doi.org/10.3390/su15108424

Chicago/Turabian Style

Ding, Xiaohua, Mehdi Jamei, Mahdi Hasanipanah, Rini Asnida Abdullah, and Binh Nguyen Le. 2023. "Optimized Data-Driven Models for Prediction of Flyrock due to Blasting in Surface Mines" Sustainability 15, no. 10: 8424. https://doi.org/10.3390/su15108424

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
