SWCNTs/PEDOT: PSS Coated Cotton for Wearable Clothes and Supercapacitor Applications

Abstract

Herein, we report single-wall carbon nanotubes (SWCNT)/poly(3,4-ethylenedioxythiophene) polystyrene sulfonate (PEDOT: PSS) loading on the transparency and conductivity of pure cotton and systematically studied using a four-probe stack made of copper (Cu) which showed a surface resistance of 0.08 Ω/cm. Moreover, the treated cotton cloth retained its maximum resistance even after three months. Surface morphology was investigated by scanning electron microscopy (SEM) and elemental structure analysis was performed by energy-dispersive X-ray (EDX), while the structural analysis was performed using Fourier transform infrared spectroscopy (FTIR) and X-ray diffraction (XRD) techniques, confirming that there is a good dispersion of SWCNTs/PEDOT: PSS in the cotton sample. The composite cotton/hydrogel polymer/composite cotton achieved a specific capacitance of 212.16 F/g at 50 mV/s. Thermal properties were also investigated using thermogravimetric analysis (TGA) and differential scale calorimetry (DSC). The low surface resistance and thermal stability show that cotton fabric can be a promising candidate for smart wearable textiles and modern circuitry applications.

1. Introduction

Smart wearable devices can be produced using flexible materials in the field of energy, electronics, sensing, and healthcare products. These devices are prepared by incorporating conductive nanostructures single-wall carbon nanotubes and multiwall carbon nanotubes (SWCNTs and MWCNTs) and polymeric nanocomposites (PEDOT: PSS) on the surface of flexible cotton. Smart conductive fabric is an active area of research nowadays due to its growing applications in flexible electronics, wearable devices, and electronic sensors [1]. The fusion of cotton with conductive fillers makes composite cotton with exciting new properties, such as pressure and fatigue sensors [2].

We treated pure cotton using a mixture of SWCNTs and PEDOT: PSS with the addition of dimethyl sulfoxide (DMSO) as a catalyst to make the electrode and using the hydrogel as an electrolyte [3]. As an electrode, composite cotton can be used to incubate nanostructured energy materials such as SWCNTs and PEDOT: PSS. In order to convert pure cotton into conductive cotton, the dipping method is an effective technique. Due to the strong π-bond interaction between SWCNTs and PEDOT: PSS, the π-orbitals overlap to form “π-bonds” due to SWCNTs being a good conductor and due to the non-positional electrons in the π-orbitals [4]. SWCNTs are formed through graphene-like sp² hybridization. These bonds are stronger than the sp³ bonds found in diamonds and SWCNTs nanotubes are distinguished by their unique strength [5].

The carbon atoms are bonded together through a C–C conduction, where the energy difference between the 2s and 2p orbitals is less than the energy gain. To form the primary structure, the orbitals can fuse in hybrid orbitals, where each carbon atom is bonded to four carbon neighbors [6]. The hexagonal lattice is the main step in the fusing of single-walled nanotubes with pure cotton and PEDOT: PSS (Figure 1). Additionally, PEDOT: PSS reduces the aggregation of SWCNTs and thus increases the ion pathways and significantly improves the electron transfer efficiency in cotton [6].

The key to flexible collapsible electrodes is to achieve flexibility and increase their service life under repeated cyclic loading with certain stress. Extensibility refers to the ability of stretchable flexible electrodes to maintain electrical conductivity under mechanical deformation. In the field of supercapacitors, this is a research hotspot for preparing materials with more flexibility and even extensibility. In mechanics, cotton is a good way to achieve overall structural expansion. In addressing the presence of carbonaceous materials, an easy and inexpensive preparation process that is compatible with various new materials is a necessary step to achieve large-scale preparation. For charge storage mechanisms, supercapacitors (SCs) are classified as double-layer electrolytic capacitors (EDLCs) and pseudo-capacitors (PCs). It can contain EDLCs, activated carbon, graphene derivatives, carbon nanotubes, carbon fabrics, etc., as electromagnetic materials (EMs), while computers usually use conductive polymers such as polyaniline, polypyrole, polythiophene, polythiophene derivatives, etc., transition metal oxides, and transition metal nitrides, carbides, and sulfides. Supercapacitors (SCs) have many advantages such as long cycle life, high energy density, and low maintenance cost [7]. On the other hand, hydrogels have attracted the attention of researchers in the field of energy storage systems, given that they are multiple building blocks for the multiple uses of life. Hydrogels are interlocking 3D hydrated mesh materials based on hydrophilic mechanical elasticity, reversibility, and tunability. Thus, the complexities and diversity found in hydrogels populate various energy storage devices that can be bent, stretched, compressed, as well as deformed into arbitrary different shapes [3].

In this work, the conductive cotton fabric has been prepared by the dip-coating method of SWCNTs/PEDOT: PSS which was treated in the presence of dimethyl sulfoxide (DMSO) to destabilize the ripple of the cotton fibers, allowing better incorporation of SWCNTs and cotton fibers, followed by heating for 1 h at 100 °C. SEM, EDX, XRD, FTIR, and TGA were used to characterize the SWCNTs/PEDOT: PSS coated cotton. The conductivity of the materials was determined using a four-line probe method. The conductivity of the treated cotton fabric was monitored for three months. A low-cost, highly flexible, and scalable supercapacitor was assembled from a highly conductive stretchy composite cotton. By incorporating cotton-based high-conducting single-walled carbon nanotubes (SWCNTs) and PEDOT: PSS into the polymer hydrogel, we demonstrate that the capacitor has high capacity, is flexible, and is based on environmentally friendly materials. Electrochemical studies were carried out using a sandwich natural polymer hydrogel as an electrolyte between SWCNTs/PEDOT: PSS coated replica cotton electrodes.

2. Materials and Methods

2.1. Chemicals and Materials

A single-wall carbon nanotube (SWCNTs), with an individual diameter ~1.8 ± 0.3 nm, an individual length > 5 µm, carbon purity > 98%, and BET surface area ~500 m²/g was purchased with an initial flake size of 100 mesh from Sigma-Aldrich (308068-56-6). Poly (3,4 methylenedioxy thiophene and poly (4-styrene sulfonate) (PEDOT: PSS) (483095-250G), along with dimethyl sulfoxide (DMSO) (assay 99.9%), was also purchased from Sigma-Aldrich (67-68-5). Pure cotton fabric with a weight of 100 g m⁻² was purchased from Egypt. Deionized water (DI) was used as a solvent, while sodium alginate (NaC₆H₇O₆) (Na-Alginate) (SA, chemically pure) (9005-38-3), Acrylamide (AAM) (79-06-1), and Sulfuric Acid (H₂SO₄) (7664-93-9) to prepare the hydrogel was purchased from Sigma-Aldrich. The chemical structure of all the materials used is shown in Figure 1.

2.2. SWCNTs/PEDOT:PSS Ink Fabrication

A total of 0.5 mL of DMSO was dissolved in deionized water with help and then sonicated. An amount of 1.6 mg/mL concentration of SWNTs was then dispersed in the solution and sonicated for 5 min. A total of 5 mL PEDOT: PSS was then added to the solution as shown in Schematic Figure 2.

2.3. SWCNTs/PEDOT: PSS Cotton Preparation Procedure

Pure cotton ~1–2 mm thick was dipped in ink solution of SWCNT/PEDOT: PSS. Due to the high porosity and strong absorbency of cotton, the solution covers cotton quickly. The SWCNTs/PEDOT: PSS ink composite cotton was dried at 100 °C for an hour to remove the water.

2.4. Poly(acrylamide)/Na-Alginate

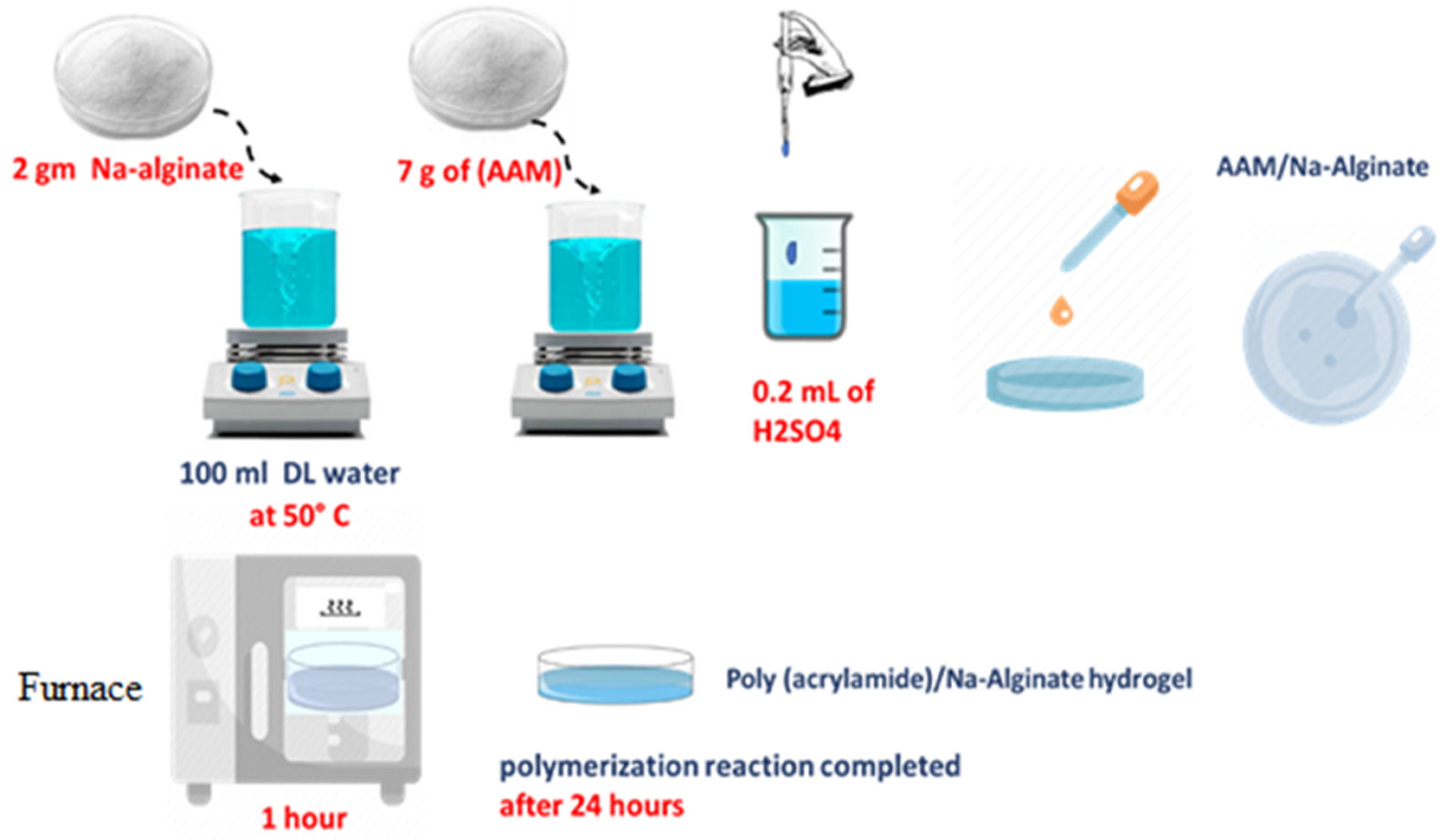

Next, 2 gm Na-alginate/100 mL water solution was added with heating and the solution was stirred continuously on a magnetic stirrer at 50° C, and then 7 g of Acrylamide (AAM) monomer was added to the solution. To initiate the polymerization reaction, 0.2 mL solution of H₂SO₄ was added to the solution and was shifted onto a plate. The polymerization reaction was completed after 24 h. The final product was heat-treated for 1 h to remove any water content (Figure 3).

2.5. Synthesis of Hydrogel Electrolytes

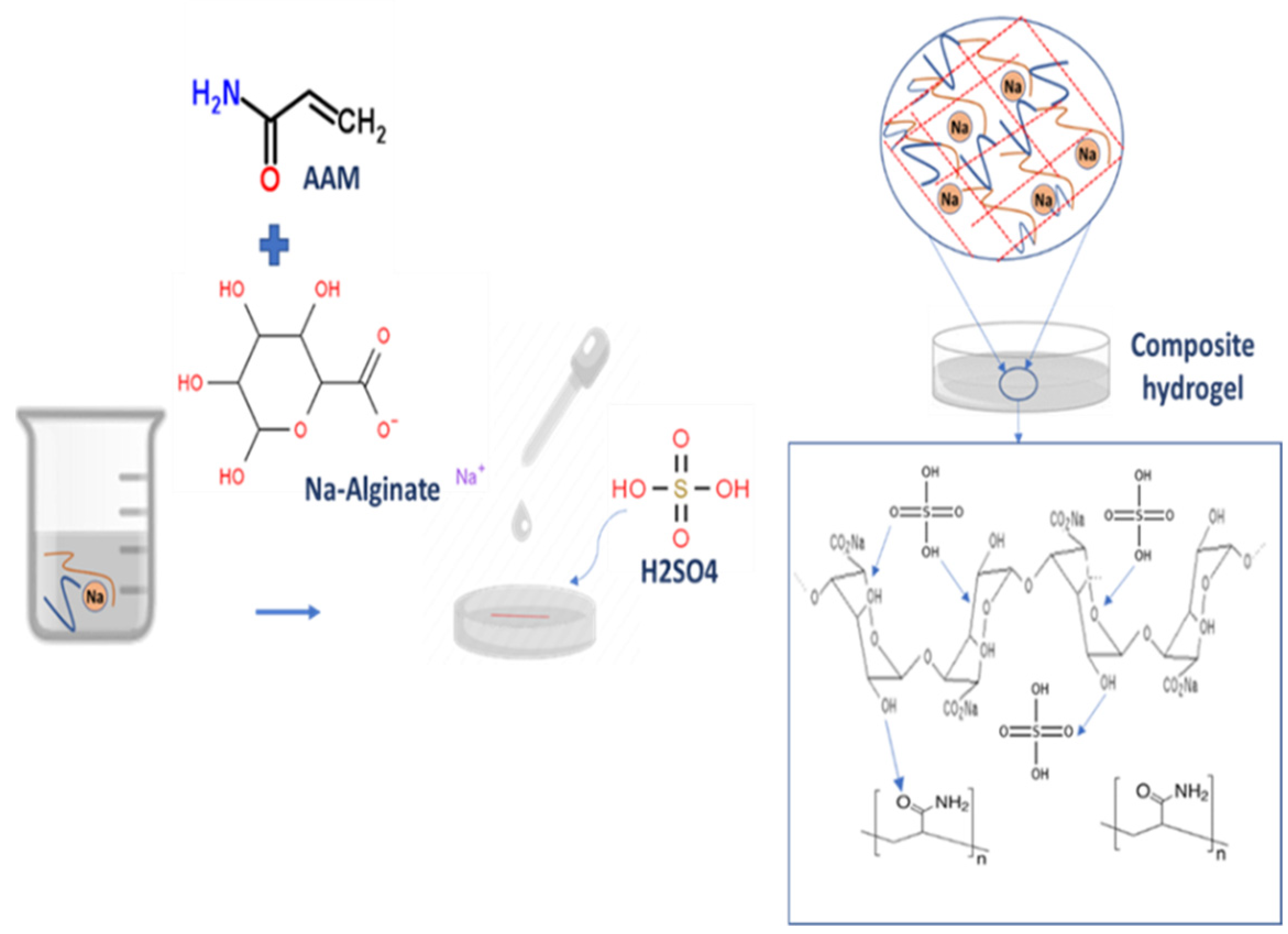

Poly(acrylamide)/Na-Alginate hydrogel electrolytes were developed by the free radical method. It is a fast and error-free method. The polymerization process was carried out in stages. In the first stage, the hydrogel formed free radicals when exposed to heat by heating. These free radicals generated more free radicals on the backbone of Poly(acrylamide) and Na-Alginate. Long-chain polymers were formed in the second stage after drying the sample in the oven through a hydrogel network Poly(acrylamide)/Na-Alginate via hydrogen bonding. Finally, by H₂SO₄, the polymer chain is physically bonded to form a stable 3D network. The hydrogel has good water absorption capacity due to hydrophilic amide groups and has good strength. The hydrophilic nature is due to the -OH and -COOH groups. The hydrogels were manufactured by adding different contents of Na-Alginate and Acrylamide to reach the desired equilibrium. The formation of the double lattice hydrogel through the cross-linking chains resulted from the repulsion of the negatively charged COO- groups on the linear AAM chain in the networks which led to the expansion of the lattice structure and the increase in the swell of deionized water. Figure 4 illustrates the mechanism of synthesis of the Poly(acrylamide)/Na-Alginate synthesized electrolyte hydrogel.

3. Characterization and Measurement

The surface morphology of pure and composite cotton was studied using scanning electron microscopy (SEM, Quanta FEG 450) at an accelerating voltage of 5 kV. The samples were coated with gold before SEM analysis. Moreover, energy-dispersive X-ray spectroscopy (EDX) was performed to investigate the elemental composition of pure and composite cotton. In addition, Fourier transformation infrared spectroscopy (FTIR) and X-ray diffraction (XRD) analyses were performed to study the structure and molecular bond formation. XRD patterns were recorded using Cu Kα radiation (1.5406 Å) at a current of 30 mA and voltage of 40 kV. Thermogravimetric analysis (TGA) was performed on pure and composite cotton with TGA 1000 instruments, where samples were heated under nitrogen purification from 25 °C to 600 °C at a heating rate of 10 °C/min. The sheet resistance of the composite cotton was measured using a four-line probe technique. To examine the electrical properties of conductive cotton, the electrical resistance of the samples was calculated from the I–V curves at 25 °C having 65% relative humidity [8]. The electrical resistance of conductive cotton was calculated from the formula:

R_s = R (w/d)

(1)

where R is the resistivity, R_s is the bulk resistivity of the fabric, w is the width of the sample (2.5 cm), and d is the distance between the leads (0.35 cm) [9].

The cotton composed by SWCNTs/PEDOT: PSS has high electrical and mechanical capabilities, so the composite cotton can be used as an electrode in supercapacitors. Conductive composite cotton has been used in electrical circuits to light a light-emitting diode (LED) as a supercapacitor.

3.1. Electrochemical Impedance Spectroscopy (EIS) Studies

The ionic conductivity of the composite cotton and the hydrogel was measured using a Hioki 3532-50 LCR HiTESTER impedance spectroscopy over a frequency range of 10 to 10⁶ Hz at a temperature of 25 °C. For this, the samples were kept in the sample holder. This holder is fitted with stainless steel electrodes as a blocking electrode [6]. Bulk resistance was measured from the complex impedance cut-off of the hydrogel electrolyte. The ionic conductivity (σ) of the supercapacitor was calculated from the measured area of the stapled electrodes [A (cm²)]. The mass resistance of the supercapacitor of the composite was studied according to the equation [10]:

$$\rho =R\frac{A}{l}$$

(2)

3.2. Symmetric Supercapacitor Cell Fabrication and Supercapacitor Performance Studies

The composite cotton-based symmetric supercapacitor cell was fabricated by sandwiching the hydrogel electrolytes between the electron-coated SWCNTs/PEDOT:PSS and the cells were subjected to CV and GCD with the interface of the Gamry 1000 potentiated [11]. CV measurements were performed at a scanning rate of 20, 30, 40, 60, 70, 80, 90, and 100 mV/sec in the 0–1 V potential window. The specific capacitance (C_sp) of EDLC was calculated from CV and GCD measurements using the following equation [12,13]:

$$C_{sp}=\frac{I\Delta t}{m\Delta V}$$

(3)

where the symbols $C_{sp}$, I, t, m, and V represent the specific capacitance, I is current, t is the discharge current, m is the mass of the material, and V is the voltage, respectively.

The relationship of supercapacitor capacitance to the surface area is theoretically expressed by using the following equation [14]:

$$\frac{\epsilon }{4\mathsf{\pi }\delta }=\frac{C}{A}$$

(4)

where C is the capacitance, A is the surface area of the electrode, ε is the dielectric constant of the electrolyte, and δ is the distance from the surface of the electrode to the center of the ionic layer [15,16].

4. Results and Discussion

4.1. Morphology Study

Bio-dispersive X-ray spectroscopy characterization was performed using field-emission scanning electron microscopy (SEM) because it provides detailed information about the morphology of the composite cotton. The internal shape of the hydrogels was carried out on pure cotton and composite cotton from SWCNT/PEDOT: PSS treated. The shape of the lyophilized hydrogel and the hydrogel electrolyte were investigated through a scanning electron microscope (SEM). The scanning electron microscopy images indicate that pure cotton fibers have a smoother surface as shown in Figure 5A(a–c), while the micrographs show cotton fiber samples covered with SWCNTs/PEDOT: PSS as seen in Figure 5A(d–f). The carbon nanotubes are quite visible in the coating and are randomly scattered on the surface of the cotton fibers. These nanotubes are interconnected to each other and frame a thick system that allows for an exchange of current transmission along the surface. FESEM pictures exhibited that SWCNT/PEDOT: PSS was effectively covered on the surface of the cotton [16,17,18,19]. Transmission electron microscopy (TEM) at an accelerating voltage of 200 kV was used to examine the powdery SWCNTs. Figure 6a–d shows single-walled carbon nanotubes as a bundle. Single-walled carbon nanotubes (SWCNTs) are conceptually characterized as a cylinder resting on a rolled graphene sheet. It is divided into one well (Figure 6e).

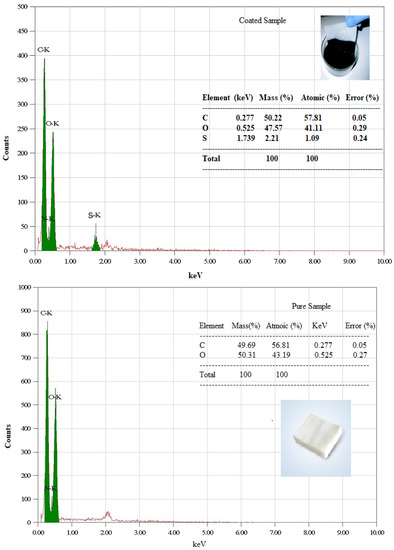

The elemental purity of the samples was verified through EDX measurement. The cotton samples displayed peaks at 0.277 kV and 0.525 kV, respectively, showing the presence of carbon and oxygen as shown in Figure 7. From Figure 7, the EDX estimates for composite cotton shows the presence of sulfur as evidenced by the presence of a peak at 2.307 kV which is a component of DMSO.

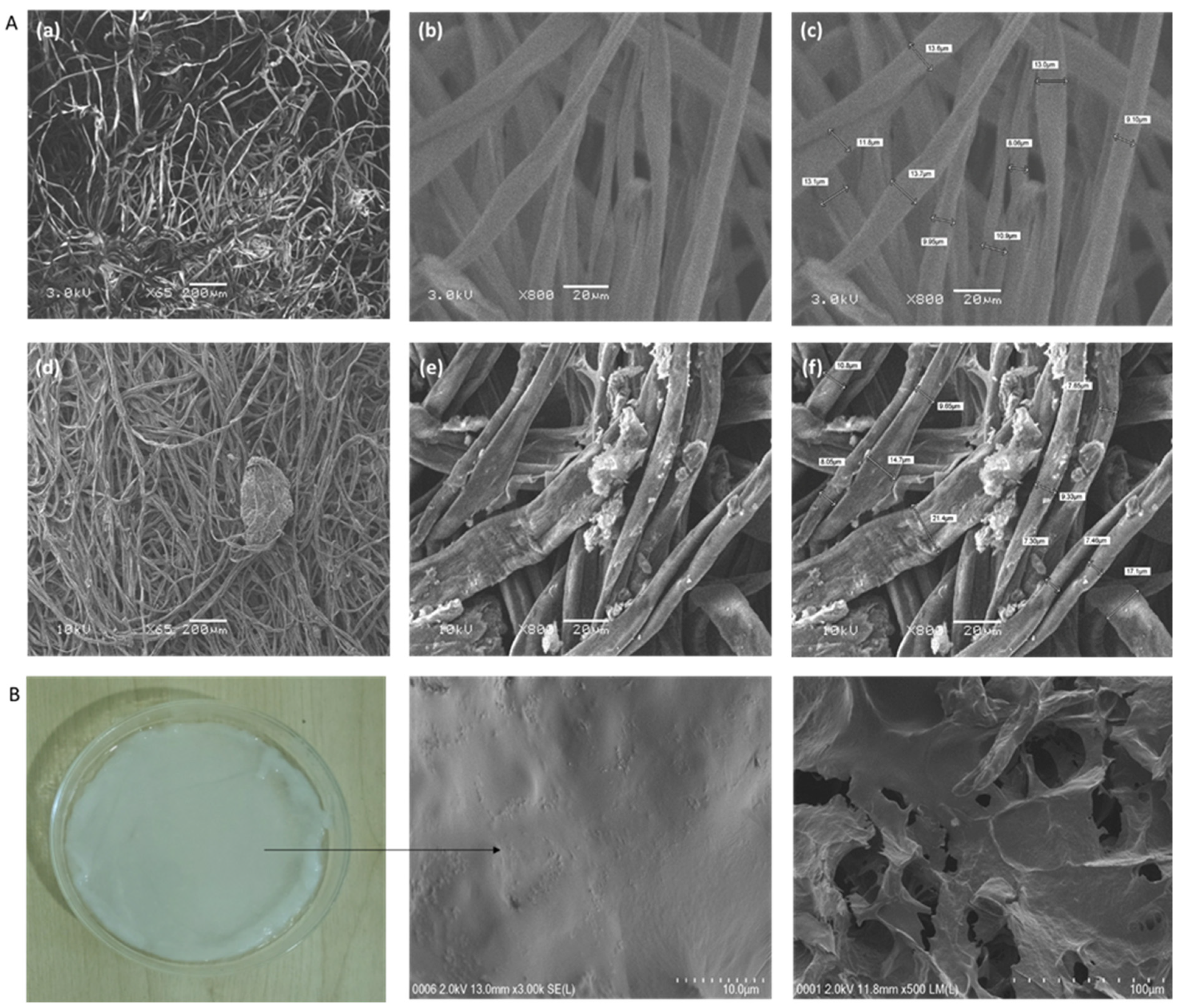

Figure 5B shows the SEM morphology of the hydrogel, where it is seen that the hydrogel exhibited a highly porous three-dimensional network in a regular structure with uniform distribution. The large and uniform pore size is due to the successful formation of a three-dimensional network interconnected with the monomer as well as due to the result of heating the mixture at a constant rate. This highly interconnected network can ensure a large amount of water content [14]. It can be seen that the addition of H₂SO₄ enhanced the density of the polymer network by connecting the pores through the reaction polymerization [20].

4.2. X-ray Diffraction (XRD)

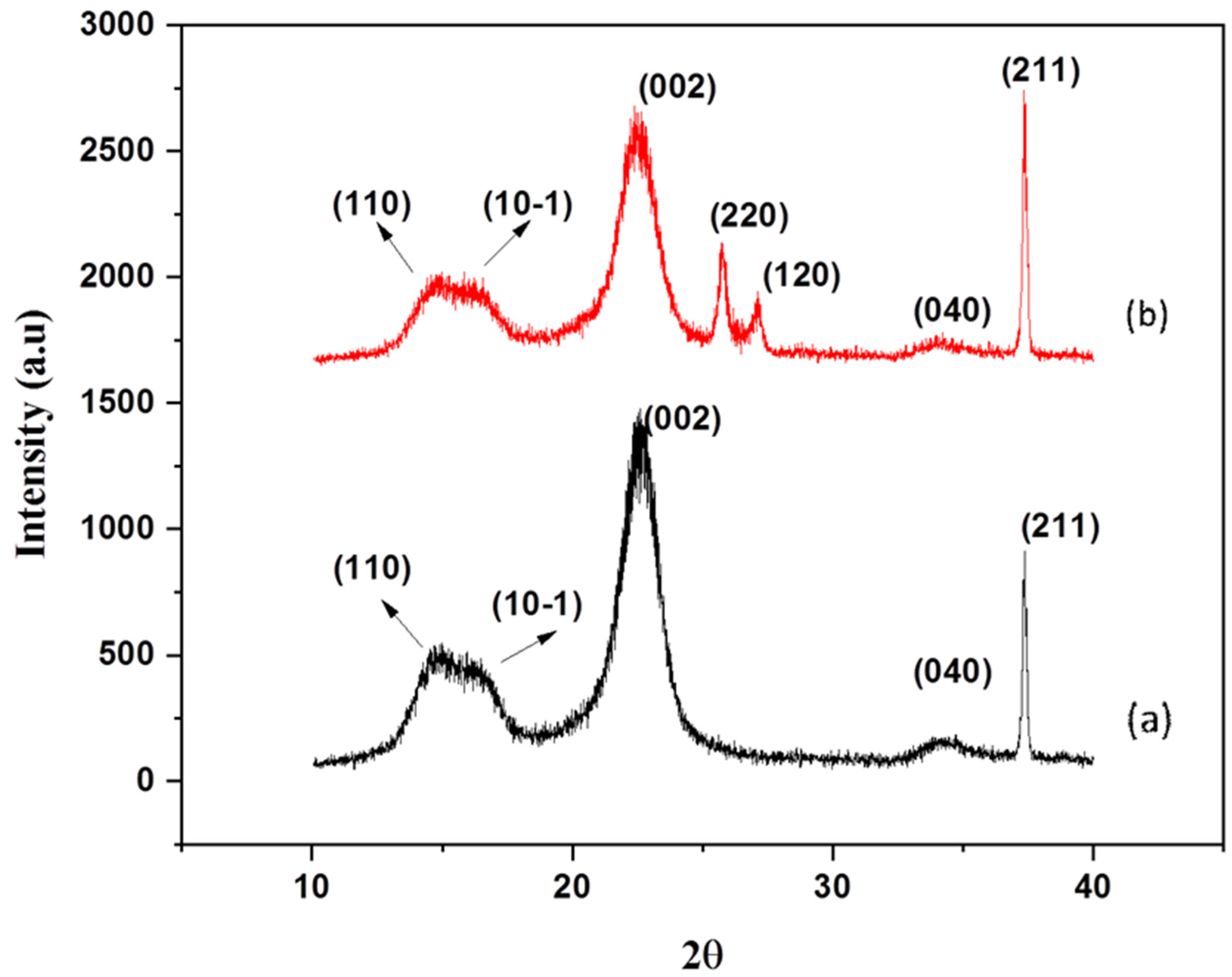

The structural and phase formation of the samples was studied using the X-ray diffraction method. The X-ray diffraction of pure cotton and SWCNT/PEDOT: PSS composite cotton is shown in Figure 8. It can be seen from the XRD pattern that four noteworthy peaks at the angular positions 2θ = 18°, 22.6°, 36.2°, and 38° are observed. The peaks are indexed to the Miller indices (110), (002), (040), and (211) and are ascribed to the spectral reflections generated by pure cotton. Pure represents the structure of the main component of cotton cellulose as seen in Figure 8a [21]. Moreover, the XRD pattern of the composite cotton reveals the higher intensity patterns at the angular positions 2θ = 22° and 25.8°, which are indexed as (222) and (120) and represent the characteristic peaks corresponding to the SWCNTs/PEDOT: PSS.

It was observed that the spectra of all samples, especially the cellulose-based ones, showed some peaks in the region, which are ascribed due to the structural bending, glycose binding, and ring deformation of C–O–H, C–C–H, C–O, C–C, and C–O–C groups in cellulose and hemicellulose [22,23,24]. The peak observed around 37.5 in the cotton samples is related to the crystallization of cellulose (C–C, C–O, and C–O bonds and ring deformation). Pure cotton shows strongly capped X-ray peaks that confirm the high stereoscopic organization of its fragments while the X-ray peak of pure cotton testing is essentially more extensive. The peak located around 28° disappeared, which shows the presence of a C=C bond in the composite cotton, and hence confirms the successful composite formation of cotton with SWCNT/PEDOT: PSS as shown in Figure 8b. The SWCNT/PEDOT: PSS composite cotton shows an improvement in the steric regularity of the cellulose network due to the development of hydrogen bonds, which in turn increases the length of the polymer chains. This indicates the good treatment of cotton by dipping it in the solution [25,26].

4.3. Fourier Transform Infrared (FTIR) Spectroscopy

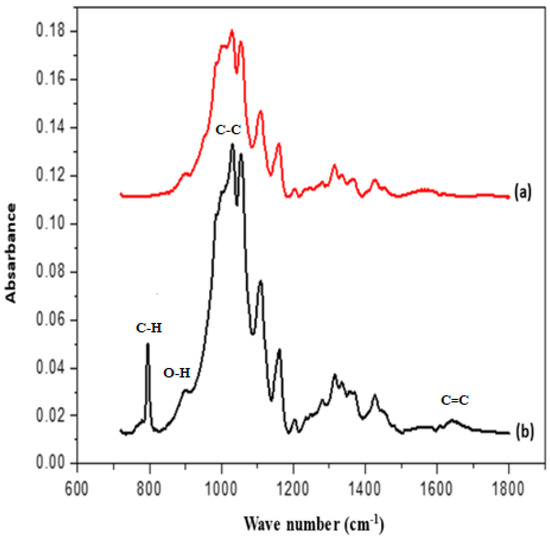

Figure 9 represents the FTIR spectra of pure and synthetic cotton from SWCNTs and PEDOT: PSS. In the spectrum of pure cotton, the peaks at 1300, 1100, and 1058 cm⁻¹ were observed which represent the O–H vibration stretching [25,27]. IR bands at 1660 cm ⁻¹ represent the characteristics of the CH₂ group, while the peaks at 1610 cm⁻¹, 1543 cm⁻¹, 1404 cm⁻¹_, and 1240 cm⁻¹, respectively, represent the C=C stretching vibration, the C–H distortion at 750 and 710 cm⁻¹, and the C–O stretching vibration at 1270, 1680, and 810 cm⁻¹. Curve b in Figure 5 represents the composite cotton spectrum having three major peaks at 1230 cm⁻¹, 1185 cm⁻¹, and 1030 cm⁻¹, respectively, that represent the asymmetric stretching vibration of C–C and the stretching vibration of the O–H group [28].

The peaks for composite cotton can be easily observed at 3480 cm⁻¹ which represents the O-H stretching vibration and the characteristic peak at 1656 cm⁻¹ which represents the C=C bond, with the shift of peak, and with the successful blending of cotton with SWCNT/PEDOT: PSS [29]. Additionally, the composite cotton peak at 790 cm⁻¹ represents the C-H and O-H stretching vibration exhibited for composite cotton.

4.4. Thermogravimetric Analysis (TGA)

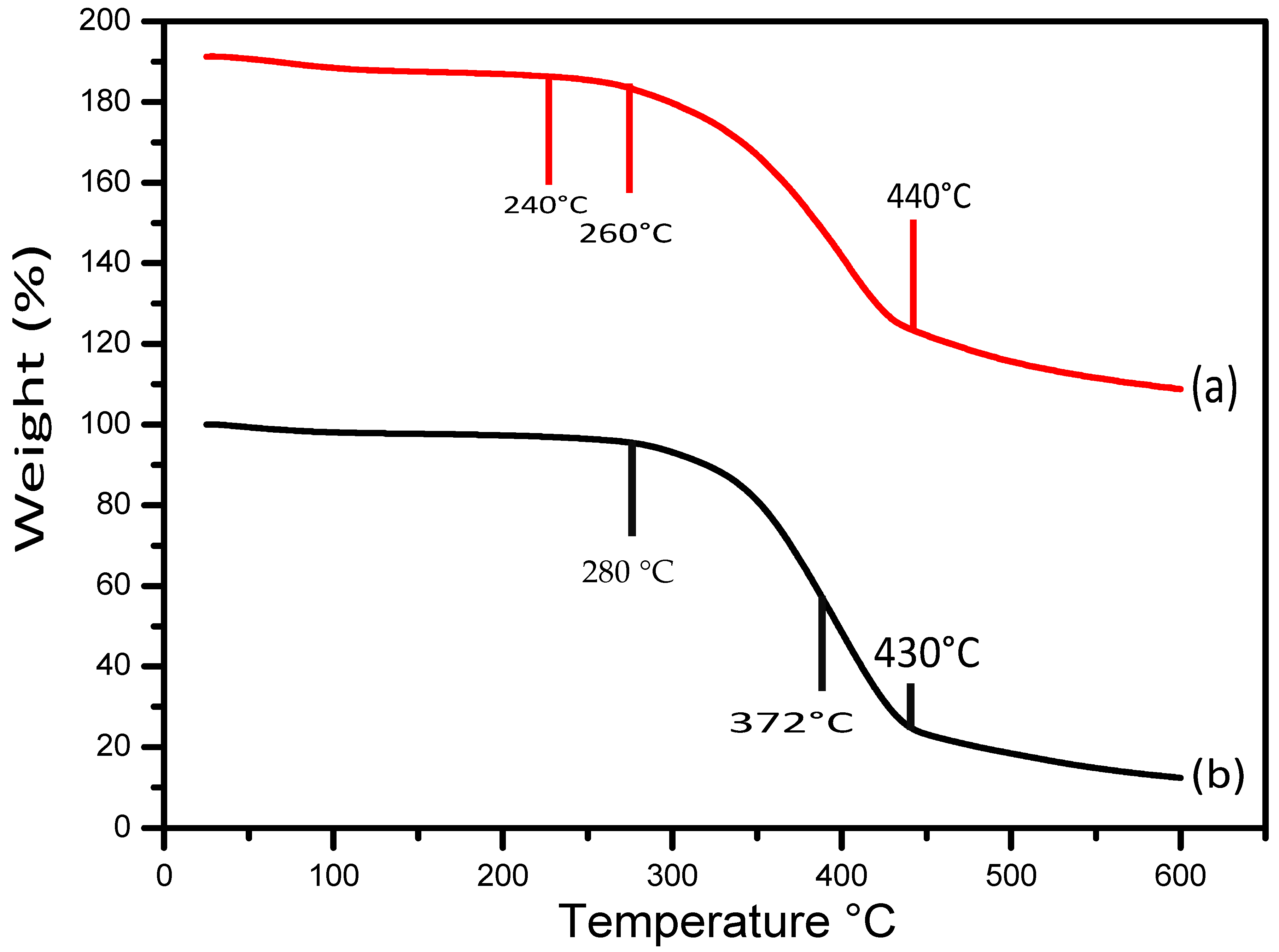

TGA analysis is an important tool to study the thermal stability and material degradation pattern of pure and SWCNT/PEDOT: PSS coated composite cotton. The thermogravimetric pattern for the prepared samples was performed in the temperature range of 25–600 °C as shown in Figure 10a,b. The thermal diagram of pure cotton is shown in Figure 10 (a), where we see three phases. The first phase of mass loss occurred in the temperature range of 100–240 °C which is due to the presence of bound moisture and water molecules. The second phase of weight loss can be seen at 260 °C due to the decomposition of the oxygen-containing functional groups, such as hydroxyl (–OH) and epoxy (C–O–C) which turn into molecules of gas (carbon dioxide and water vapor) [21]. The third stage of weight loss can be seen at 400–600 °C. TGA analysis shows the high thermal stability and decomposition of composite cotton. In Figure 10b, the decomposition of the compound cotton shows three stages, with the first stage ranging from 150 to 280 °C, where free water is absorbed and mutual irrigation occurs, and the second stage at 372 °C, in which the latter can be attributed to the slightly more fibrillation of the cellulose fibers during the reaction (mainly during the ammonia hydrolysis phase), which leads to a higher surface area release rate for the less thermally stable fibers. Thermal decomposition of these materials under flow oxygen can increase the rate of degradation and the third stage ranges from 430 to 600 °C for the combined cotton presumably due to evaporation of decomposed water and decomposition of surface functionalities, weight loss due to the combustion of SWCNTs [30]. The weight loss rate of composite cotton was noted significantly lower than that of pure cotton [15], which is due to the amount of oxygen-containing functional groups of SWCNTs fibers, such as hydroxyl (OH) and epoxy (C–O–C) [22].

4.5. Electrochemical Impedance Spectroscopy (EIS)

The basic and important property of an electrode and an electrolyte to be used in energy storage devices is ionic conductivity. The ionic conductivity of the composite cotton and the hydrogel was measured by electrochemical impedance spectroscopy. Figure 11 shows a Nyquist diagram of the hydrogel electrolytes and the composite cotton. The Nyquist plot consists of two regions, where the low-frequency region indicates the capacitive characteristics, and the high-frequency region indicates electrical equivalent series resistance (ESR) [31]. A low ESR value is observed due to the rapid transport of charge carriers at the electrolyte interface. Mobile ions are the charge carriers in the system that control the overall electrical conductivity [32]. In these samples, the vertical lines parallel to the imaginary axis at lower frequencies show the internal charge resistance within the electrode and the electrolyte, the resistance of the active material of the composite cotton, the interfacial resistance of electrolyte/hydrogel contact, and the collector current. We observe a straight line vertical to the imaginary axis [33]. Despite this, the hydrogel did not show a straight line perfectly parallel to the imaginal axis [34]. The ionic conductivity, σ (S cm⁻¹), of polymer gel electrolyte was estimated using a HIOKI 3532-50 LCR HiTESTER impedance spectrophotometer at a frequency of 10 to 10⁶ Hz [35]. Hydrogel and SWCNT/PEDOT: PSS cotton achieved maximum ionic conductivity of 12.5 × 10 ⁻³ and 13.8 × 10 ⁻³ S/cm, respectively. A stainless-steel sample holder with electrodes was used for analysis. The bulk resistance was calculated from the slope of the complex impedance plots [36,37]. It is noted from the Cole–Cole plots that the impedance values of the composite cotton are lower than the pure hydrogel. The straight-line values suggest that the impedance values are higher and beyond the measurement frequency range of our instrument [38,39].

4.6. I–V Measurement

A four-line probe method was used to investigate an effective reduction in the composite cotton with SWCNT/PEDOT: PSS and to study the electrical properties of the composite cotton. The sheet resistance is determined by the condition:

$$\sigma =\frac{w}{R.d}$$

(5)

where w is the width (w = 2.5 cm) and d (d = 0.35 cm) is the separation between the lines. In the pure cotton case, the resistance values are infinite, which means no electrical conductivity is observed or the pure cotton is insulating [40,41]. However, after processing the SWCNT/PEDOT: PSS surface resistance and electrical conductivity, the surface sheet resistance of the composite cotton, R_s = 0.08 Ω/cm, is obtained and is shown in Figure 12. The reason for the good electrical conductivity of the composite cotton is due to the effective bonding of the amino groups of the cotton with the carboxyl and hydroxyl groups in the SWCNTs [22]. This can also be demonstrated by studying the thermal properties and resistance stability. Moreover, it may be due to the effective chemical bonding between different functional groups of SWCNT/PEDOT: PSS and cotton [21]. The high electrical conductivity of the treated cotton also demonstrates the efficiency of the SWCNT/PEDOT: PSS mixture on pure cotton and the effective use of the solvent DMSO [42].

Table 1. The obtained sheet resistance value is compared with previously published results.

Year	Coated with Material	Sheet Resistance	Material	Reference
2017	Graphene/PEDOT:PSS	25 Ω/Sq. (~1.6S/cm)	Fabric	[43]
2018	PEDOT:PSS	12.1 Ω/Sq.	Cotton	[44]
			spray-Coated
2017	PEDOT:PSS	1.58 Ω/Sq	Cotton	[45]
	With DMSO		drop-casted
2013	PEDOT:PSS
	With (MWCNT)	300–500 Ω/Sq	Film	[46]
2014	(PEDOT:PSS)
	And hybrid	88 Ω/Sq at a	Film	[47]
2012	SWCNT-PEDOT:PSS	118 Ω/Sq at a	Film	[48]
	-DMSO	transmittance of 90.5%

provides details of the sheet resistance of the various composite cotton structures.

4.7. Cyclic Voltammetry (CV)

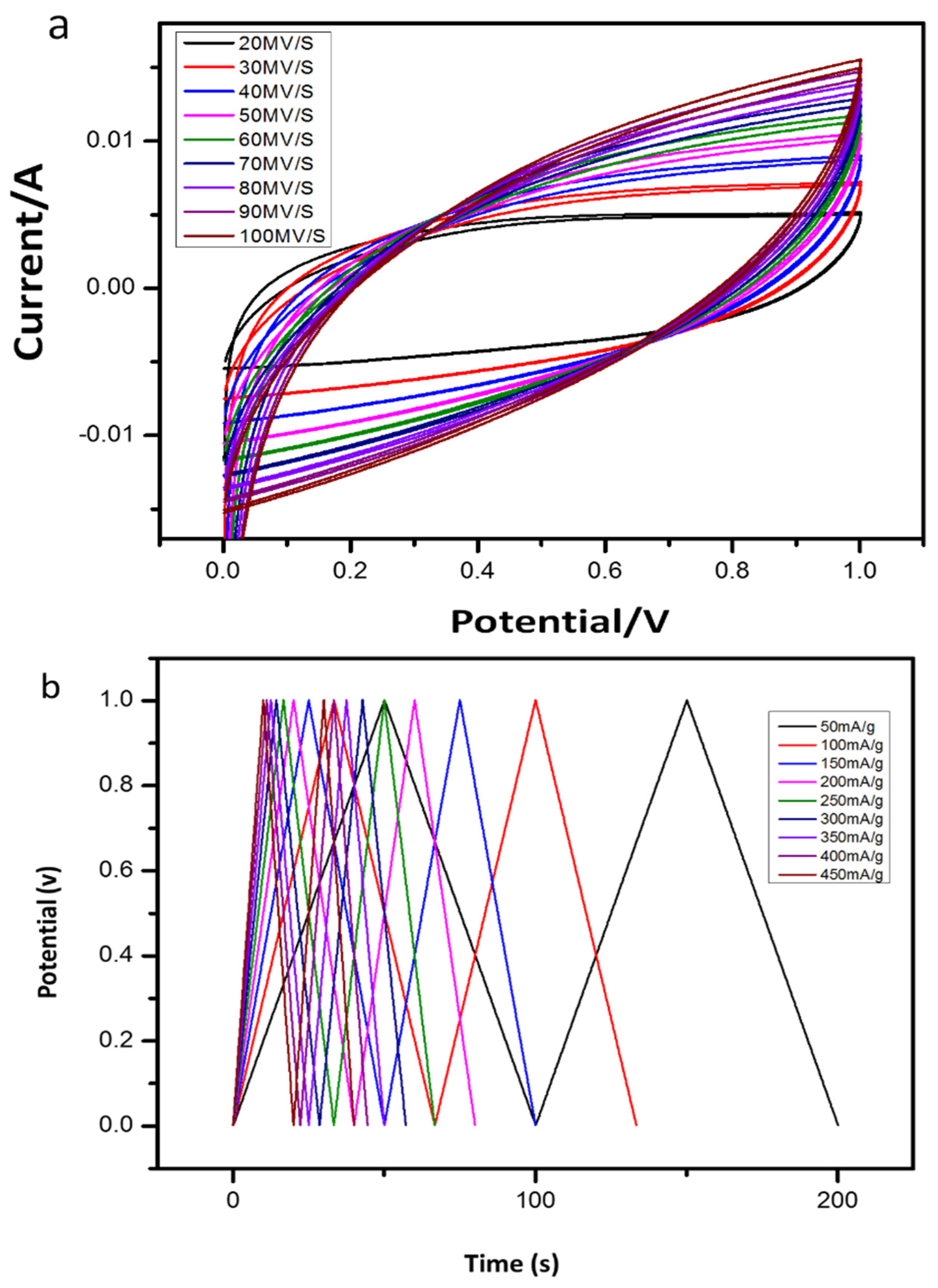

CV is the most common method to analyze the capacitive behavior of materials in energy storage devices. The electrochemical performance of the cotton-based supercapacitor was measured with the symmetric configuration of the two electrodes where ~3 mm thick hydrogel electrolytes were placed between the electrodes of the composite cotton. CV was studied in the 0–1 V potential range while using a scanning rate between 20 mV/s and 100 mV/s and the CV curves obtained are shown in Figure 13.

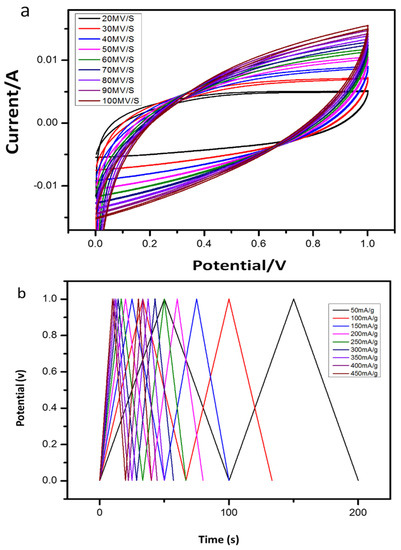

The composite cotton-based capacitor exhibited a large CV area and the specific capacitance of 212.16 F/g at 50 mV/s and 310.4 F/g (energy density of 49.57 Wh/kg at a power density of 100.08 W/kg) at 100 mA/g current density compared to AC/NHMA1/AC due to the increase in ionic transport, which is due to the complete dissociation of SWCNT in PEDOT: PSS solution within the synthesized cotton [39,40,41,42,43]. Figure 13b shows the procedure for galvanic charge and discharge analysis at different current densities ranging from 50 to 450 mA/g. All GCD curves for cells were identical, maintaining a high-power triangular shape. Additionally, at a lower current density, the applied current is low, as the EDLC takes a longer time to fully charge and discharge. The diffusion of ions through the electrode material indicates the presence of the active substance. On the other hand, it is noted that with the increase in the current density, the applied current increases, and the charging and discharging time decreases. The internal resistance produces a lower specific capacitance due to the higher rate of charge transfer.

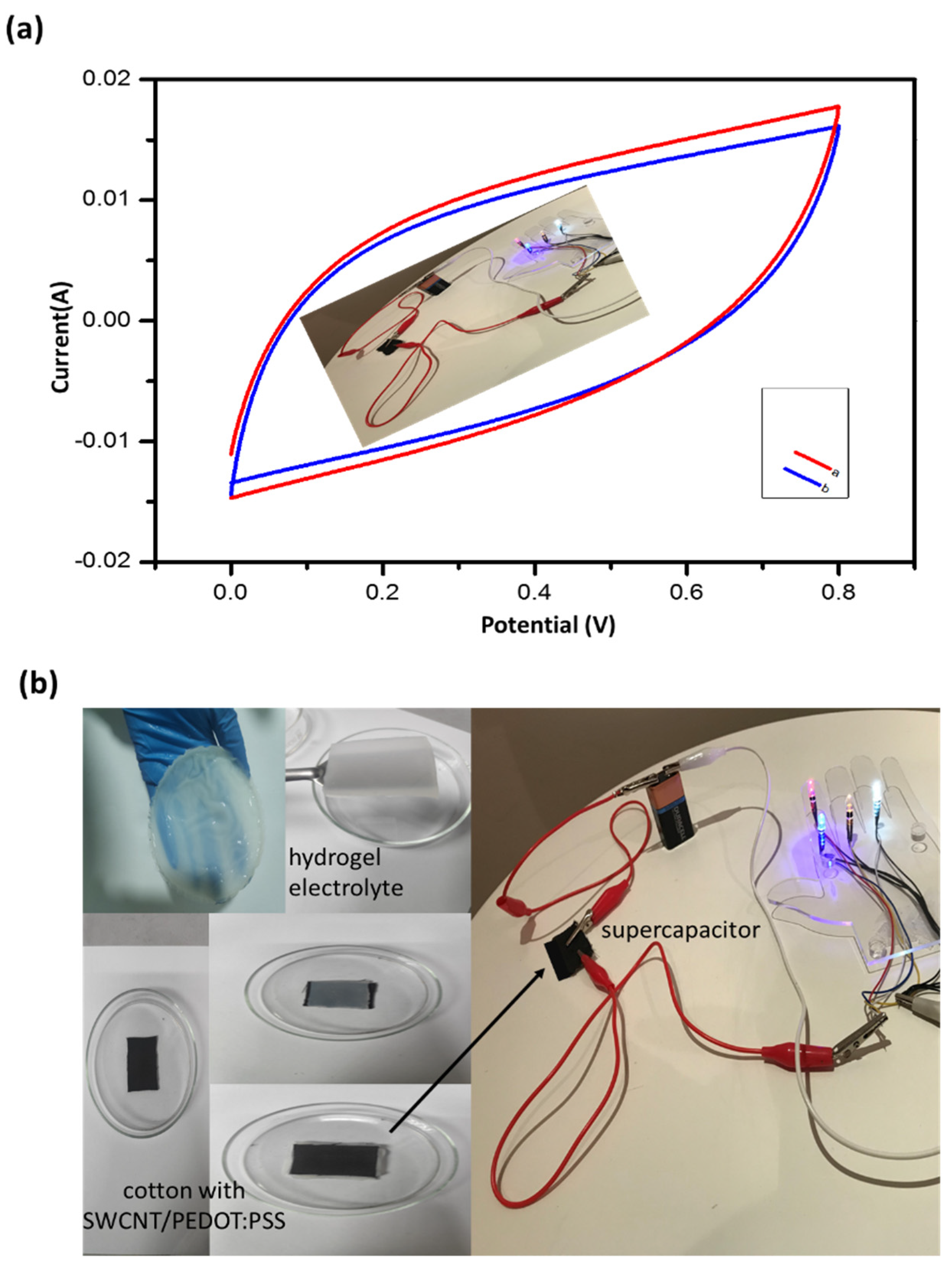

To achieve the high-power density of the cotton-based capacitor, the exact electrochemical performance of the positive and negative electrodes was tested using charge transportation or matching as shown in Figure 14. The device boasted outstanding electrochemical performance and exhibited a high operating voltage of 9 V, with high durability and flexibility. The proof-of-concept and the obtained results of the electrical conductivity and other properties of the composite cotton showed that the materials can be a promising candidate with great potential in the usage of wearable fabric as mechanical sensors, actuators, and modern circuitry designing [22,44,45,46,47,48], such as electromagnetic shielding, flexible heating elements [42], and capacitor fabric superlative. In addition, the sample was tested before and after the circuit was connected and the supercapacitor was charged several times. It was observed that the electrochemical performance by measuring the periodic voltage before and after connecting the symmetric supercapacitor to the circuit several times did not differ much from before the connection, but rather maintained its shape as shown in Figure 14a.

5. Conclusions

We have successfully grown composite cotton with SWCNT/PEDOT: PSS solution. XRD and FTIR analyses confirmed the formation of the composite structure. The morphology study showed that the 3D porous network structure and initial mapping describe the appropriate dispersion of SWCNT/PEDOT: PSS in pure cotton fibers. Thermal stability and material degradation pattern of pure natural cotton and composite cotton were also studied. TGA analysis and electrochemical impedance analysis also revealed that the presence of SWCNT/PEDOT: PSS in the composite cotton electrode increased the ionic conductivity of the cotton electrode when combined with the polymer hydrogel electrolyte. Using cyclic voltammetry (CV) and galvanic discharge techniques, supercapacitors were fabricated from cotton and polymer hydrogel electrolytes. Electrochemical studies showed that the composite structure exhibits a large CV area and has a specific capacitance of 212.16 F/g at 50 mV/s. The promising electrical properties of the composite materials can be used in wearable electrical fabrics and in designing modern green electrical/electronic circuitry.
