Article

Synthesis and Recyclability of Sheet-like Cobalt Carbonate Recovered from Spent Li-Ion Batteries Using a Simple Hydrometallurgy Process

Materials Science, Energy and Nano-Engineering Department, Mohammed VI Polytechnic University (UM6P), Lot 660, Hay Moulay Rachid, Bengurir 43150, Morocco
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(5), 2552; https://doi.org/10.3390/su14052552
Received: 6 January 2022 / Revised: 9 February 2022 / Accepted: 17 February 2022 / Published: 23 February 2022

Abstract

:
In the present manuscript, a simple hydrometallurgy process for recovering and recycling cobalt from spent lithium cobalt oxide LiCoO2 (LCO) in lithium-ion batteries (LIBs) is described. First, the black material (BM) containing LCO active material is extracted by discharging, dismantling and detachment of cathode active materials with an organic solvent. Then, sulfuric acid (H2SO4) and hydrogen peroxide (H2O2) are used to fully dissolve Co and Li in an aqueous solution at high dissolution efficiency (more than 99% of Li and Co). After a purification step, Co is selectively precipitated and separated from Li, as CoCO3, using a simple method. Results show that the obtained CoCO3 crystals have a unique sheets-like structure with a purity of more than 97% and could be reused to regenerate LCO active material for LIB. The as-prepared sheet-like CoCO3 was then converted to flower-like LCO through a solid-state reaction with commercial lithium carbonate (Li2CO3). Electrochemical performances of the regenerated LCO (LCOReg) in LIB have been studied. Interestingly, the flower-like LCOReg showed a good charge capacity of about 145 mAh.g−1 at the first cycle, compared to LCO synthesized from commercial cobalt and lithium precursors (LCOCom). Specific charge capacity and columbic efficiency also remained relatively stable after 60 charge/discharge cycles. The proposed recycling process of Co in the present work doesn’t require the use of the complicated and expensive solvent extraction method and thus it is simple, cost-effective, environmentally-friendly and could be used for recovering high purity critical metals such as Co and Li from spent LIBs at the industrial scale.

1. Introduction

The global rechargeable Lithium-Ion Batteries (LIBs) market was valued in 2020 around USD 40.5 billion and is expected to increase to about USD 92 billion by 2026 [1]. China dominates the LIB manufacturing market with the production of 4.8 billion LIBs units in 2013, and 18.85 billion LIBs units in 2020 [2]. Given that most LIBs have a life-span of around 1–3 years, a huge amount of obsolete and end-of-life LIBs enter the waste stream each year. For example, the total weight of discarded batteries in China alone was estimated to be higher than 500,000 tons in 2020 [3]. Expectations also predict that the growing electrical vehicles (EV) adoption will generate in the near future (2020–2040) around 300 million tons of end-of-life LIBs [4], which represents a real urban mine of strategic and critical metals such as Cobalt (Co), Lithium (Li) and Nickel (Ni). Among the valuable metals contained in these LIBs scraps, Co has high economic benefits because of its wide applications in magnets, super alloys, aircraft engines and LIBs. Its commercial value reached more than USD 61,000/t in November 2021, which is much higher than the value of any other important industrial metal such as Cu (UDS 9850/t), Al (USD 2683/t), Zn (USD 3208/t), Pb (USD 2209/t) or Fe (USD 92/t) [5]. Therefore, recycled Co from cathode materials of spent LIBs could be reused to produce new LIBs or as cobalt precursor in other applications, which would generate a significant economic benefit. Co is also a scarce strategic metal that could be only extracted as a by-product of nickel and copper mining processes from natural ores. The fact that almost 70% of Co supplies are provided by the politically unstable Democratic Republic of Congo (DRC) and Zambia makes the supply unpredictable [6] with economic and supply consequences. Furthermore, the large volume of spent LIBs present hazards, such as toxic metals, organic solvents and harmful reactive inorganic compounds (e.g., LiPF6 electrolyte) [7]. Regardless, the recycling rate of spent LIBs remains very low (only about 3–5%) [8,9], indicating that the current recycling processes are not easily scalable to handle the large amount of discarded LIBs every year. Therefore, the development of green, cost effective and scalable LIBs recycling processes for spent LIBs in order to protect human health and environment and support the market growth of LIBs is a necessity.
To date, hydrometallurgy, pyrometallurgy and biometallurgy are the three major recycling processes studied and used for spent LIBs. The pyrometallurgical recycling process of valuable metals from end-of-life LIBs is relatively simple and cost-effective, but it suffers from low metal recovery and atmospheric pollution issues since a large amount of hazardous gas and waste dust are generated during the thermal process [10,11]. The ‘’low energy’’ biometallurgy process advantageously requires simple equipment. However, drawbacks such as a slow kinetics, special conditions for cultivating and storing bacteria and the need to operate with low pulp density seriously prevent the wide adoption of this method at the industrial scale [12]. Hydrometallurgy is the commonly used recycling process due to its relatively low energy consumption, low gas emission, higher metal recovery and product purity, compared to the pyrometallurgy process. The hydrometallurgical process involves acid leaching, a purification step and a metal separation step (e.g., Co from Li) either by solvent extraction or selective precipitation. Acid leaching consists of dissolving cathode active materials from the battery after mechanical treatment in common inorganic acids such as HCl, H2SO4, H3PO4 and HNO3 [13,14,15,16]. In this process, H2O2 is generally used as a reducing agent to convert Co3+ to readily acid soluble Co2+ ions [17,18]. A purification step is then generally needed to remove metal impurities dissolved at the leaching step, such as Al and Cu [19]. In order to separate the metals from each other, the solvent extraction method is used. It is based on mixing the purified leaching solution with an organic extractant solution, where the extractant (e.g., Cyanex 272, Ionquest 801 or PC88A) has a specific affinity with the metal of interest so only this metal is separated from the aqueous solution and transferred to the organic phase [20,21,22]. The solvent extraction method generally yields high purity products but requires the usage of expensive/toxic organic chemicals and complicated experimental procedures [23,24]. In contrast, chemical precipitation, which is based on the selective precipitation of the metal of interest by adjusting the pH of the leaching solution with a precipitating agent, is scalable, simpler and more environmentally-friendly compared to the solvent extraction method [25,26,27]. In the literature, NaOH is typically used as the precipitating agent to recover Co as Co(OH)2, while Na2CO3 is used to precipitate Li+ as Li2CO3 [19,25]. However, the selective precipitation of CoCO3 from a leaching Co/Li solution using Na2CO3 is poorly described in the literature.
The aim of the present article is to demonstrate the first precipitation process of sheet-like CoCO3 crystals from an acid leaching solution containing Co2+ and Li+ ions and to convert the sheet-like CoCO3 to flower-like LiCoO2 active material for reuse in LIBs. The performances of the regenerated LCO in LIB are studied and compared to those of LCO synthesized from commercial cobalt/lithium precursors. Since the use of the solvent extraction method to separate Co from the other metals is not required, the recycling process of LCO spent batteries we describe in the present manuscript is simple, environmentally-friendly and easy to process at the industrial scale.

2. Materials and Methods

2.1. Chemicals

Sulfuric acid (H2SO4 95%), hydrogen peroxide solution (H2O2, 50 wt.% in H2O, stabilized), sodium hydroxide (NaOH, pellets, ≥97.0%), sodium carbonate powder (Na2CO3, ≥99.5%) and lithium carbonate (Li2CO3, 99.99%) were purchased from Sigma–Aldrich and used without further purification. Spent computers LCO batteries were used in this work as starting materials for cathode extraction and leaching experiments.

2.2. Pre-Treatment and Dismantling of Spent LIBs

First, the spent LIBs were completely discharged to avoid any spontaneous explosion or short-circuiting during dismantling and opening of the packaging. For discharging, spent LIBs were systematically immersed in NaOH aqueous solution and left in solution until the battery voltage became lower than 0.1 V (measured by a voltmeter). Then, the fully discharged spent LIBs were manually dismantled in order to separately collect all the components of the spent Li-ion batteries (e.g., cathode, anode, separator, packaging material, etc.) for further recycling treatment. Then, the cathode, which is composed of black material (BM) and aluminum foil, was immersed in DMF solvent and placed in an ultrasonic bath for 1 h. After being fully detached from the Al foil, the black suspension was collected using a 100 µm sieve. The BM was then separated from DMF solvent by centrifugation, washed several times with water and finally dried in air at 100 °C for further processing. The flow-sheet of the BM extraction process is shown in Figure 1.

2.3. Acid Leaching

The leaching step in this work was performed with H2SO4 in the presence of H2O2, used as the reducing agent to enhance the dissolution of cobalt and lithium from the black material (BM). This step was conducted in a 300 mL glass beaker put on a stirring hot plate. In a typical experiment, 10 g of BM were dispersed in 100 g of water under stirring. Then, 20 g of H2SO4 95% were added dropwise to the BM dispersion under vigorous stirring. The solution was then heated at 75 °C and 10 g of H2O2 (50 wt.% in water) were added dropwise to the mixture that was kept under stirring for 1 h. The leaching solution was finally filtered in order to separate the Co/Li leachate solution from the insoluble residue. The solid residue was washed, dried and weighed. The weight of the solid residue allowed us to calculate the dissolution efficiency (DE, in %) using the following expression:
DE (%) = ((m0 − mf)/m0) × 100
where DE (%) is the dissolution efficiency, m0 is the initial weight of the BM and mf is the weight of the dry solid residue obtained at the end of the leaching process.
The leaching efficiency of a metal × can also be calculated as follows:
L E x   ( % ) = C x L S V L S + C x W S V W S C x M S V M S + C x W S V W S + C x S R W S R × 100
where LEx (%) is the leaching efficiency of the metal x,
CxLS: Concentration of the metal x in leaching solution (in g·L−1)
VLS: Volume of the leaching solution (in L)
CxWS: Concentration of the metal x in the washing solution (in g·L−1)
VWS: Volume of the washing solution (in L)
CxSR: Concentration of the metal x in the solid residue obtained at the end of the leaching process (in %)
WSR: Weight of the solid residue obtained at the end of the leaching process (in g)

2.4. Purification Step

Aluminum, which is the major impurity in BM, was removed from the leaching solution by adding a 33% NaOH aqueous solution to bring the pH value up to 6.3 under stirring at about 40 °C. After 1 h stirring, the precipitate was removed by filtration and the purified solution was analyzed by inductively coupled plasma-atomic emission spectrometry (ICP-AES). The removal efficiency of Al could be assessed by calculating the precipitation efficiency (PE, in %) of Al using the following expression:
P E A l   ( % ) = C A l P r W P r C A l P r W P r + C A l L S V L S + C A l W S V W S × 100
where PEAl (%) is the precipitation efficiency of Al
CAlPr: Concentration of Al in the dry precipitate (in %)
WPr: Weight of the dry precipitate (in g)
CAlLS: Concentration of Al in the leachate solution (in g·L−1)
VLS: Volume of the leachate solution (in L)
CAlWS: Concentration of Al in the washing solution (in g·L−1)
VWS: Volume of the washing solution (in L)
The precipitation efficiency of Co and Li, which is not desirable at this stage, could also be calculated using the same expression.

2.5. Cobalt Recovery and Synthesis of Sheet-like Cobalt Carbonate

After the Al removal, a Co/Li-rich solution was obtained. Cobalt was then selectively precipitated from the purified solution and recovered as cobalt carbonate (CoCO3). In a typical experiment, a 20% Na2CO3 aqueous solution was added to 100 mL of the purified Co/Li solution under vigorous stirring at 40 °C until reaching a pH = 8.2. After 45 min of stirring, the Co precipitate was filtered, washed several times with water to remove soluble salts and impurities (such as Na2SO4) and then dried at 80 °C for 12 h for ICP-AES measurement and further use. The reaction of CoCO3 precipitation from the purified solution can be written as follows:
CoSO4 + Na2CO3 ⟶ CoCO3 + Na2SO4

2.6. Synthesis of Regenerated LiCoO2 (LCOReg) Cathode Material

The LCOReg cathode material was successfully resynthesized by mixing the recovered CoCO3 powder with Li2CO3 powder followed by the solid-state reaction. In a typical experiment, 0.6 g of recovered CoCO3 was mixed with 0.24 g of Li2CO3. Then, the mixture was thoroughly mixed for 30 min using 80 mm agate mortar. The mixture was then calcined in a tubular furnace at 600 °C for 3 h and 900 °C for 10 h with a heating rate of 5 °C/min in order to regenerate the LCO active material. The reaction of LCO formation could be written as follows:
4 CoCO3(s) + 2 Li2CO3(s) + O2(g) ⟶ 4 LiCoO2(s) + 6 CO2(g)
The flow sheet of cobalt purification and recovery as well as the regeneration of LCO from the recovered CoCO3 is shown in Figure 2.

2.7. Electrochemical Measurements

Electrochemical properties of the regenerated LCO from the recovered CoCO3 and the synthesized LCO from the commercial CoCO3 (for comparison) were assessed in CR2025 coin type cells. The cathodes were prepared by casting the slurry of the corresponding LCO on the Al foil surface using the doctor blade technique. Lithium metal was used as the anode material. The cathodes were vacuum-dried at 85 °C for 24 h. The electrolyte was 1 M LiPF6 in EC + DMC (1:1 by volume). The cells were then assembled in an Ar-filled glove box, then aged for 3 h before electrochemical measurements, which were carried out between 3 V and 4.4 V (versus Li/Li+) using a CT2001A-Land equipment under a constant current of 1C. The cells were tested over 60 charge/discharge cycles in order to characterize its cyclability and electrochemical performances. Several half-cells were systematically assembled with each LCO cathode and the electrochemical measurements were repeated thrice in order to guarantee the data accuracy and reliability. The loading weight of the LCO cathode generated from the recovered CoCO3 and the LCO synthesized from commercial Li/Co precursors was 3.25 mg and 3.23 mg, respectively.

2.8. Characterization Methods

X-ray diffraction (XRD) patterns were recorded on a Bruker D8 Discover. The diffractometer was equipped with a graphite monochromator, a Lynx-Eye detector and parallel beam optics, using Cu Kα radiation (λ = 1.5418 Å). Phase identification and materials structures were determined by the HighScore software using the 2014 database. The morphology of the obtained powders was studied by scanning electron microscopy (SEM, EVO 10—with backscatter detector and element EDS system). Thermo-gravimetric analysis (TGA) of the CoCO3 and the black material samples was performed using a thermal analyzer instrument (Shimadzu; model TA-60WS) under air with a heating rate of 5 °C/min. The metal content in solids and solutions was measured by ICP-AES using a 5110 ICP AES (Agilent Technologies). In order to determine the metal concentration in the spent LCO cathode, a sample was dissolved in aqua regia solution following the experimental procedure described in the literature [28].

3. Results and Discussion

3.1. Characterization of LCO Black Material

After extraction from spent LCO batteries, the BM was fully characterized by ICP-AES, XRD, TGA and SEM techniques. Table 1 shows the chemical composition and metal content of the spent LCO cathode, as determined by ICP-AES.
ICP-AES results show that the spent LCO BM contains 54.7 wt.% cobalt and 6.4 wt.% lithium as major elements. Calculated Co/Li molar ratio is 1.01, which is very close to the theoretical molar ratio of 1.00 in LiCoO2. The BM sample also includes 0.44% Al and 0.1% F, due to the residual LiPF6 electrolyte (and eventually PVDF binder), as minor constituents. The total weight of Co, Li, Al and F corresponds to about 96% in weight of the BM sample, which suggests that the remaining 4 wt.% constituent is likely carbon-based compounds and/or residual PVDF, commonly used as a conductive material and/or a binder during the preparation of the LCO active material. This assumption was confirmed by the TGA analysis of the BM (Figure S1, Supplementary Materials) which clearly shows a weight loss of about 4.3% between about 300 °C and 700 °C due to the decomposition of the carbon-based compounds present in the BM, in agreement with the reported data [29].
The BM was also characterized by XRD and SEM as shown in Figure 3. The XRD analysis indicates the presence of the hexagonal crystalline structure of lithium cobalt oxide (JCPDS n° 96-450-5483). The XRD pattern of BM doesn’t reveal the presence of other crystalline compounds, which suggests that the carbon-based compounds present in the BM are amorphous. The SEM images recorded on the BM sample revealed the formation of micro-sized particles with irregular size and shape as shown in Figure 3a.

3.2. Acid Leaching of Co and Li from BM

Performances of the acid leaching conducted with sulfuric acid and H2O2 (used as reducing agent) are given in Table 2. Results showed that over 99% of Co and almost the totality of Li and Al were dissolved in solution, resulting in high Co and Li concentration in the leaching solution (25.42 g·L−1 and 3.2 g/L−1 of Co and Li, respectively). Although, the Al concentration is low (0.13 g·L−1), the removal of this impurity from the leaching solution is mandatory in order to achieve a high purity CoCO3 precursor during the precipitation step.
Results also showed that about 96% of the BM sample is dissolved in the leaching medium, which is in agreement with the TGA result (Figure S1). The leaching residue that accounts for about 4% in weight of the initial black material was also analyzed by XRD (Figure S3, Supplementary Materials) which clearly shows that the remaining materials after leaching are graphite and carbon. The XRD pattern of the residue also indicates the absence of LCO peaks and confirms the full extraction of Li and Co from the spent LCO BM.

3.3. Purification Step (Removal of Al Impurities from the Leaching Solution)

ICP-AES results showed that over 90% Al impurities were successfully removed from the leaching solution at pH = 6.3, as shown in Table 3. We should note that Co and Li concentration in the purified solution is lower than the initial concentration in LS due to the dilution effect resulting from the addition of the 33% NaOH solution and not from their precipitation since the PE (%) of Co and Li at this pH is low (1.7% and 2.5%, respectively). Nevertheless, Co concentration (17.9 g·L−1) is still high in the purified solution and even much higher than the typical Co concentration in standard Co hydrometallurgy plants where the high grades Cu ores, from which Co is produced as a by-product, generally provide about 3 g of Co per L [30]. After purification, the Co/Li solution contains only 0.01 g·L−1 Al, which is much lower when compared to the un-purified leaching solution.

3.4. Cobalt Recovery and Synthesis of Sheet-like Cobalt Carbonate

Cobalt is recovered as a carbonate, CoCO3, with a precipitation yield higher than 99% as shown in Table 4. Interestingly, precipitation efficiency of Li at this stage is low (3.2% only), which allowed us to achieve high grade CoCO3 product. Cobalt content in CoCO3 determined by ICP-AES is 48.2% (w/w), which is close to the theoretical value of 49.5% (w/w) and satisfies the commercial standard requirements for this product in the industry (47–48% w/w of Co content). This result is also supported by the TGA measurement (Figure S2, Supplementary Materials) indicating a total weight loss of 32.7% between 100 °C and 500 °C, due to the thermal decomposition of CoCO3 to Co3O4, which is very close to the theoretical value of 33.06% and thus confirms the high purity of the recovered CoCO3 product. Moreover, the Li content in CoCO3 is low (only 0.18% w/w) and should not compromise the re-synthesis of a new LiCoO2 cathode material since it is one of this compound-forming element. In addition, the recovered Co precipitate has a red/pink color, which is characteristic of CoCO3, as shown in the inset of Figure 4b.
The recovered CoCO3 was also characterized by SEM and XRD in order to investigate the morphology and the crystalline structure of this material. Results are presented in Figure 4.
The XRD pattern of CoCO3 fits well with the major peaks of the hexagonal CoCO3 crystalline structure of spherocobaltite (JCPDS card number 96-900-7714) and shows that no other chemical component is present in the sample, which is in agreement with ICP-AES and TGA results. Interestingly, the SEM image (Figure 4a) shows that the CoCO3 crystals exhibit a sheet-like morphology with relatively uniform shape and size. The high magnification SEM image (inset of Figure 4a) shows that the CoCO3 crystals have a thickness of about 100–150 nm and a diameter around 10–15 µm. The low thickness of CoCO3 sheets is in agreement with the broadening of XRD peaks observed in the XRD pattern of the sample (Figure 4b).

3.5. Regeneration of LiCoO2 (LCOReg) from the Recovered Sheet-like CoCO3 and Its Electrochemical Performances

As described above, the sheet-like CoCO3 powder was thoroughly mixed with Li2CO3 in order to regenerate LiCoO2 (LCOReg) by the high temperature solid-state method. For comparison purposes, LiCoO2 prepared from commercial CoCO3 and Li2CO3 (LCOCom) was also synthesized, using the same synthesis method. At first, XRD and SEM analysis were conducted on the resulting LCOReg solid in order to characterize its structure and morphology. Results are provided in Figure 5.
The SEM images clearly show that the starting CoCO3 “flakes”, used as Co precursor to synthesize LCOReg, were conjugated to each other and formed a flower-like LCO structure after the solid-state reaction, as demonstrated by the inset of Figure 5a. For comparison with LCOReg cathode, the SEM picture of LCOCom is also provided in Figure S4 (Supplementary Materials). As shown by Figure S4, LCOCom exhibits grains with irregular shape and large particle size in the range of 10–25 µm. Results also show that both LCOReg and LCOCom have similar XRD patterns that fit with the hexagonal LiCoO2 structure as demonstrated in Figure 5b. XRD peaks are also significantly narrow and intense, which indicate that both materials are highly crystalline. The crystallite size calculated from the broadening of XRD peaks using the Debye-Scherrer equation is about 80 nm and 90 nm for LCOReg and LCOCom, respectively.
The electrochemical behavior of both LCOReg and LCOCom cathodes in the half-cells was also investigated and results are provided in Figure 6.
Results show that LCOReg has an initial discharge specific capacity of about 146 mAh.g−1 at 1C rate with an initial coulombic efficiency of 93%, which is relatively comparable to LCOCom. The initial discharge capacity of LCOReg is also roughly similar to most reported data of regenerated LiCoO2 cathodes in the literature, although a strict comparison could not be made as the measurement conditions (voltage range, current rate (C), electrolyte concentration and composition, cathode preparation, etc.) differ from one study to another [31,32,33]. Moreover, like LCOCom, the LCOReg cathode material exhibits stable cycling performances with a capacity retention of 90% after 60 cycles and a coulombic efficiency of about 96%, which suggests that the regenerated cathode has a stable and robust crystalline structure. This result is also supported by the cyclic voltammetry (CV) measurements performed on the Li/LCO half-cells of LCOReg and LCOCom cathodes (Figure S5, Supplementary Materials) which showed relatively stable and characteristic LCO CV curves for both LCOReg and LCOCom cathodes [34]. Interestingly, the potential difference between the oxidation and the reduction peaks (ΔV) was found to be lower in the case of LCOReg, compared to LCOCom, reflecting a faster lithiation/delithiation kinetics with the regenerated LCO cathode. These results indicate that this simple recycling process provides cobalt carbonate with properties comparable to those of commercial cobalt precursors and thus could be successfully used to restore LCO cathode materials from spent LIBs. This process is advantageously simple and environmentally-friendly since the use of solvent extraction method is not required. Recovery of Li from the Li-rich solution (shown in Figure 2) is currently under optimization and results will be published in the near future.

4. Conclusions

This work proposes a simple hydrometallurgy process for recycling cobalt from spent LCO LIBs and its purification and separation from lithium without using the complicated solvent extraction method and the related toxic and expensive organic substances. The method is based on the acid leaching of the black material in H2SO4/H2O2 aqueous solution, the removal of Al impurity at pH = 6.2 and the selective precipitation of Co at pH = 8.2 using an aqueous solution of Na2CO3. The overall recovery rate of Co by this method (including leaching, purification and precipitation steps) is higher than 96%. The method yielded a high grade CoCO3 (48.2% Co, w/w), containing only 0.18% Li, which makes the product highly suitable for re-use in manufacturing a fresh LCO cathode material. SEM observations revealed that the recovered CoCO3 has a unique sheet-like structure with a relatively uniform diameter. The recovered CoCO3 was used to regenerate LCO powder with a flower-like morphology through a solid-state reaction using Li2CO3 as the Li precursor. The regenerated LCO cathode displayed an initial discharge capacity that is roughly similar to the LCO prepared from the commercial Co/Li precursors with capacity retention of 90% at the 60th cycle. Considering the context of the current rise in cobalt prices and the high commercial value of CoCO3 prepared in the present work, recycling Co from spent LIBs using this simple process is economically attractive.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/su14052552/s1. Figure S1: TGA curve of as-extracted LCO black material. Figure S2: TGA curve of sheet-like cobalt carbonate (CoCO3) recovered from spent LCO battery. Figure S3: XRD pattern of the leaching solid residue resulting from the acid leaching step. Figure S4: SEM image of LCOCom synthesized from commercial Li/Co precursors using solid-state method. Figure S5: Cyclic voltammograms of LCOReg and LCOCom.

Author Contributions

Conceived the research idea and designed the experiments, A.A.; Performed the experiments together, A.Y. and N.E.; Prepared the cathodes for LIB testing, M.T.; Performed the XRD analysis, M.A.; Performed the electrochemical measurements and analyzed the data, L.H.; Reviewed the article and validated its scientific content, M.D. and J.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank Aziz Soulaimani and Sabah Fathallah (UM6P) for ICP-AES measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Projected Size of the Global Lithium-Ion Battery Market from 2020 to 2026. Available online: https://www.statista.com/statistics/1011187/projected-global-lithium-ion-battery-market-size/ (accessed on 21 November 2021).
  2. Shen, C.; Wang, H. Research on the technological development of lithium ion battery industry in China. J. Phys. Conf. Ser. 2019, 1347, 012087. [Google Scholar] [CrossRef]
  3. Zeng, X.; Li, J. Implications for the carrying capacity of lithium reserve in China. Resour. Conserv. Recycl. 2013, 80, 58–63. [Google Scholar] [CrossRef]
  4. Gao, W.; Liu, C.; Cao, H.; Zheng, X.; Lin, X.; Wang, H.; Zhang, Y.; Sun, Z. Comprehensive evaluation on effective leaching of critical metals from spent lithium-ion batteries. Waste Manag. 2018, 75, 477–485. [Google Scholar] [CrossRef]
  5. Trading Economics: Cobalt. Available online: https://tradingeconomics.com/commodity/cobalt (accessed on 21 November 2021).
  6. Olivetti, E.A.; Ceder, G.; Gaustad, G.G.; Fu, X. Lithium-ion battery supply chain considerations: Analysis of potential bottlenecks in critical metals. Joule 2017, 1, 229–243. [Google Scholar] [CrossRef][Green Version]
  7. Yu, Y.; Chen, B.; Huang, K.; Wang, X.; Wang, D. Environmental impact assessment and end-of-life treatment policy analysis for Li-ion batteries and Ni-MH batteries. Int. J. Environ. Res. Public Health 2014, 11, 3185–3198. [Google Scholar] [CrossRef]
  8. Natarajan, S.; Aravindan, V. Recycling strategies for spent Li-ion battery mixed cathodes. ACS Energy Lett. 2018, 3, 2101–2103. [Google Scholar] [CrossRef][Green Version]
  9. Sonoc, A.; Jeswiet, J.; Soo, V.K. Opportunities to improve recycling of automotive lithium ion batteries. Procedia Cirp. 2015, 29, 752–757. [Google Scholar] [CrossRef]
  10. Georgi-Maschler, T.; Friedrich, B.; Weyhe, R.; Heegn, H.; Rutz, M. Development of a recycling process for Li-ion batteries. J. Power Sources 2012, 207, 173–182. [Google Scholar] [CrossRef]
  11. Lv, W.; Wang, Z.; Cao, H.; Sun, Y.; Zhang, Y.; Sun, Z. A critical review and analysis on the recycling of spent lithium-ion batteries. ACS Sustain. Chem. Eng. 2018, 6, 1504–1521. [Google Scholar] [CrossRef]
  12. Zhuang, W.-Q.; Fitts, J.P.; Ajo-Franklin, C.M.; Maes, S.; Alvarez-Cohen, L.; Hennebel, T. Recovery of critical metals using biometallurgy. Curr. Opin. Biotechnol. 2015, 33, 327–335. [Google Scholar] [CrossRef][Green Version]
  13. Lee, C.K.; Rhee, K.-I. Reductive leaching of cathodic active materials from lithium ion battery wastes. Hydrometallurgy 2003, 68, 5–10. [Google Scholar] [CrossRef]
  14. Pinna, E.G.; Ruiz, M.C.; Ojeda, M.W.; Rodriguez, M.H. Cathodes of spent Li-ion batteries: Dissolution with phosphoric acid and recovery of lithium and cobalt from leach liquors. Hydrometallurgy 2017, 167, 66–71. [Google Scholar] [CrossRef]
  15. Wang, R.-C.; Lin, Y.-C.; Wu, S.-H. A novel recovery process of metal values from the cathode active materials of the lithium-ion secondary batteries. Hydrometallurgy 2009, 99, 194–201. [Google Scholar] [CrossRef]
  16. Aaltonen, M.; Peng, C.; Wilson, B.P.; Lundström, M. Leaching of metals from spent lithium-ion batteries. Recycling 2017, 2, 20. [Google Scholar] [CrossRef][Green Version]
  17. Zhu, S.-g.; He, W.-Z.; Li, G.-M.; Xu, Z.; ZHANG, X.-j.; Huang, J.-W. Recovery of Co and Li from spent lithium-ion batteries by combination method of acid leaching and chemical precipitation. Trans. Nonferrous Met. Soc. China 2012, 22, 2274–2281. [Google Scholar] [CrossRef]
  18. Kang, J.; Senanayake, G.; Sohn, J.; Shin, S.M. Recovery of cobalt sulfate from spent lithium ion batteries by reductive leaching and solvent extraction with Cyanex 272. Hydrometallurgy 2010, 100, 168–171. [Google Scholar] [CrossRef][Green Version]
  19. Wang, H.; Vest, M.; Friedrich, B. Hydrometallurgical processing of Li-Ion battery scrap from electric vehicles. In Proceedings of the 6th European Metallurgical Conference (EMC), Santa Barbara, CA, USA, 22–24 June 2011. [Google Scholar]
  20. Swain, B.; Jeong, J.; Lee J-c Lee, G.-H.; Sohn, J.-S. Hydrometallurgical process for recovery of cobalt from waste cathodic active material generated during manufacturing of lithium ion batteries. J. Power Sources 2007, 167, 536–544. [Google Scholar] [CrossRef]
  21. Pranolo, Y.; Zhang, W.; Cheng, C. Recovery of metals from spent lithium-ion battery leach solutions with a mixed solvent extractant system. Hydrometallurgy 2010, 102, 37–42. [Google Scholar] [CrossRef]
  22. Nan, J.; Han, D.; Yang, M.; Cui, M.; Hou, X. Recovery of metal values from a mixture of spent lithium-ion batteries and nickel-metal hydride batteries. Hydrometallurgy 2006, 84, 75–80. [Google Scholar] [CrossRef]
  23. Gaines, L. Lithium-ion battery recycling processes: Research towards a sustainable course. Sustain. Mater. Technol. 2018, 17, e00068. [Google Scholar] [CrossRef]
  24. Zhou, L.-F.; Yang, D.; Du, T.; Gong, H.; Luo, W.-B. The current process for the recycling of spent lithium ion batteries. Front. Chem. 2020, 8, 578044. [Google Scholar] [CrossRef] [PubMed]
  25. Contestabile, M.; Panero, S.; Scrosati, B. A laboratory-scale lithium-ion battery recycling process. J. Power Sources 2001, 92, 65–69. [Google Scholar] [CrossRef]
  26. Dorella, G.; Mansur, M.B. A study of the separation of cobalt from spent Li-ion battery residues. J. Power Sources 2007, 170, 210–215. [Google Scholar] [CrossRef]
  27. Li, J.; Shi, P.; Wang, Z.; Chen, Y.; Chang, C.-C. A combined recovery process of metals in spent lithium-ion batteries. Chemosphere 2009, 77, 1132–1136. [Google Scholar] [CrossRef] [PubMed]
  28. Xiao, X.; Hoogendoorn, B.W.; Ma, Y.; Sahadevan, S.A.; Gardner, J.M.; Forsberg, K.; Olsson, R.T. Ultrasound-assisted extraction of metals from Lithium-ion batteries using natural organic acids. Green Chem. 2021, 23, 8519–8532. [Google Scholar] [CrossRef]
  29. Zheng, Y.; Song, W.; Mo, W.-t.; Zhou, L.; Liu, J.-W. Lithium fluoride recovery from cathode material of spent lithium-ion battery. RSC Adv. 2018, 8, 8990–8998. [Google Scholar] [CrossRef][Green Version]
  30. Sole, K.C.; Parker, J.; Cole, P.M.; Mooiman, M.B. Flowsheet options for cobalt recovery in African copper–cobalt hydrometallurgy circuits. Miner. Processing Extr. Metall. Rev. 2019, 40, 194–206. [Google Scholar] [CrossRef]
  31. Sita, L.E.; da Silva, S.P.; da Silva, P.R.C.; Scarminio, J. Re-synthesis of LiCoO2 extracted from spent Li-ion batteries with low and high state of health. Mater. Chem. Phys. 2017, 194, 97–104. [Google Scholar] [CrossRef]
  32. Tang, Y.; Xie, H.; Zhang, B.; Chen, X.; Zhao, Z.; Qu, J.; Xing, P.; Yin, H. Recovery and regeneration of LiCoO2-based spent lithium-ion batteries by a carbothermic reduction vacuum pyrolysis approach: Controlling the recovery of CoO or Co. Waste Manag. 2019, 97, 140–148. [Google Scholar] [CrossRef]
  33. Li, L.; Chen, R.; Sun, F.; Wu, F.; Liu, J. Preparation of LiCoO2 films from spent lithium-ion batteries by a combined recycling process. Hydrometallurgy 2011, 108, 220–225. [Google Scholar] [CrossRef]
  34. Guo, H.-L.; Lin, H.-F.; Yang, Y.-C.; Cheng, C.-H.; Tsai, Y.-R.; Wang, F.-M. Modification of LiCoO2 through rough coating with lithium lanthanum zirconium tantalum oxide for high-voltage performance in lithium ion batteries. J. Solid State Electrochem. 2021, 25, 105–115. [Google Scholar] [CrossRef]

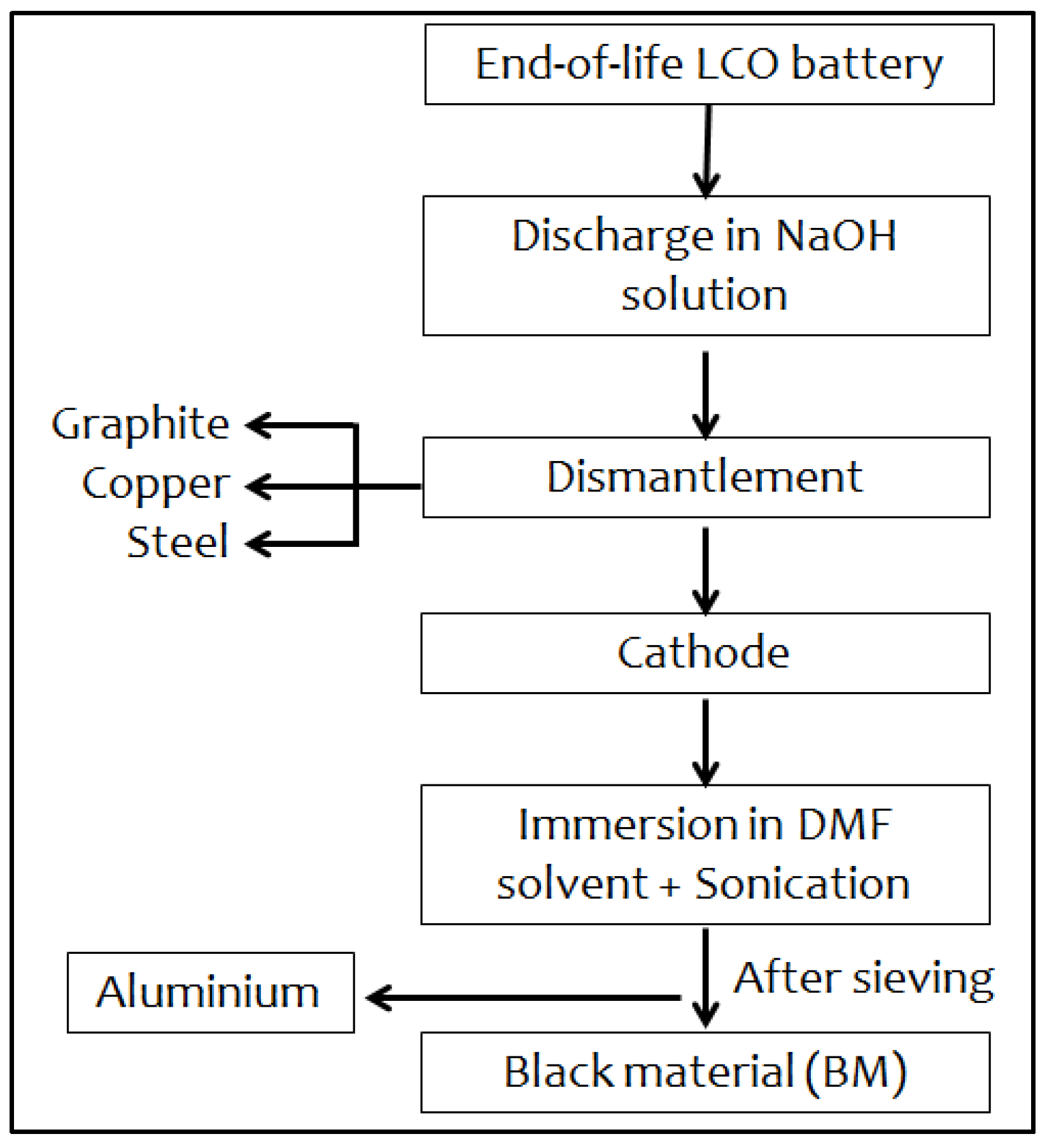

Figure 1. Flow-sheet of the black material (BM) extraction process.
Figure 1. Flow-sheet of the black material (BM) extraction process.
Sustainability 14 02552 g001

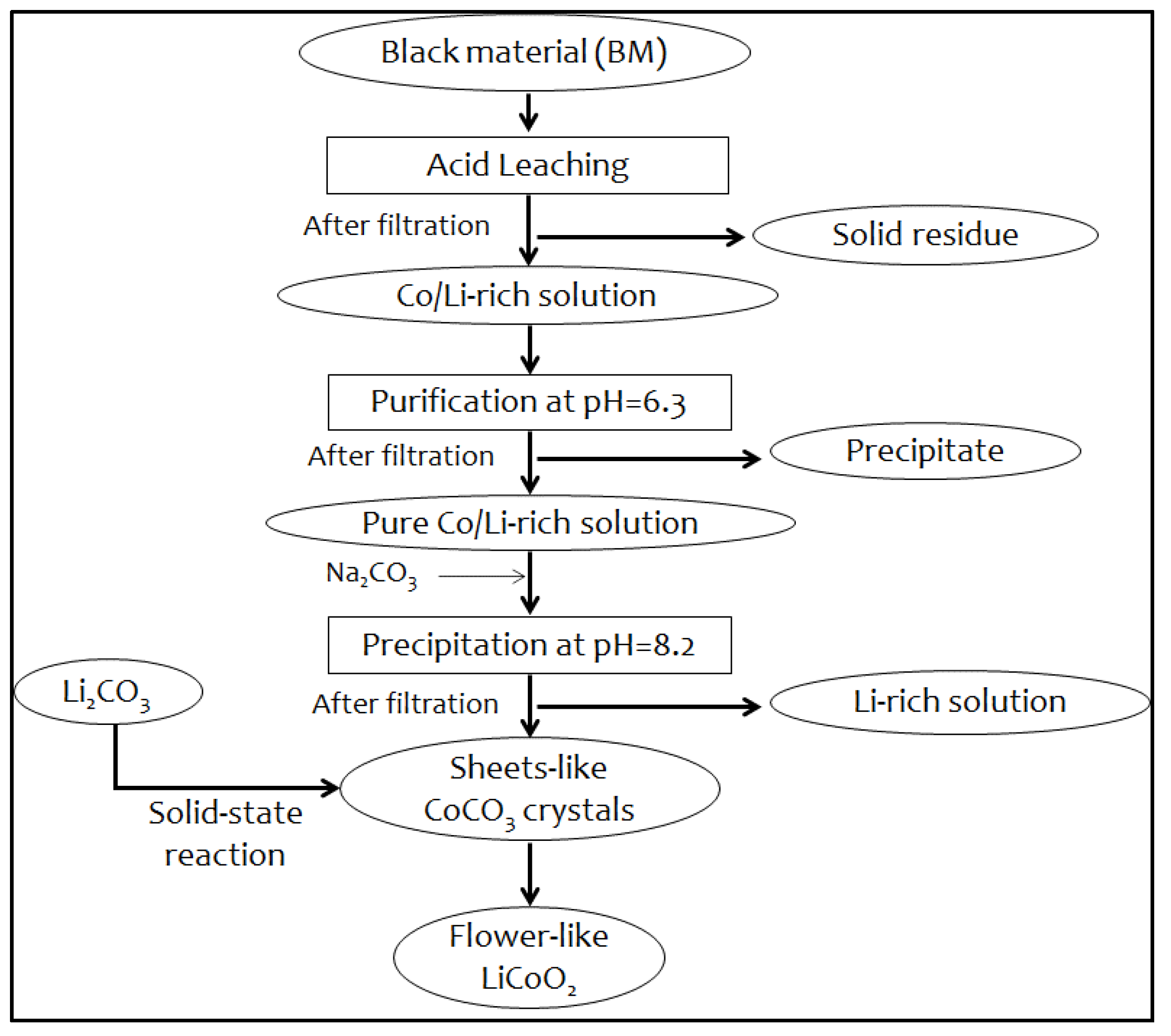

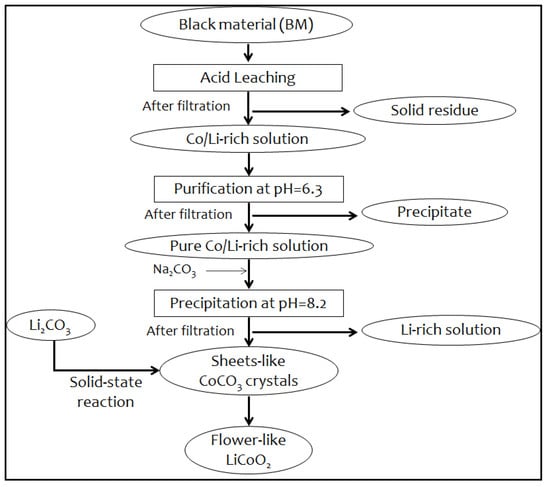

Figure 2. Flow sheet of cobalt recovery and regeneration of flower-like LCO.
Figure 2. Flow sheet of cobalt recovery and regeneration of flower-like LCO.
Sustainability 14 02552 g002

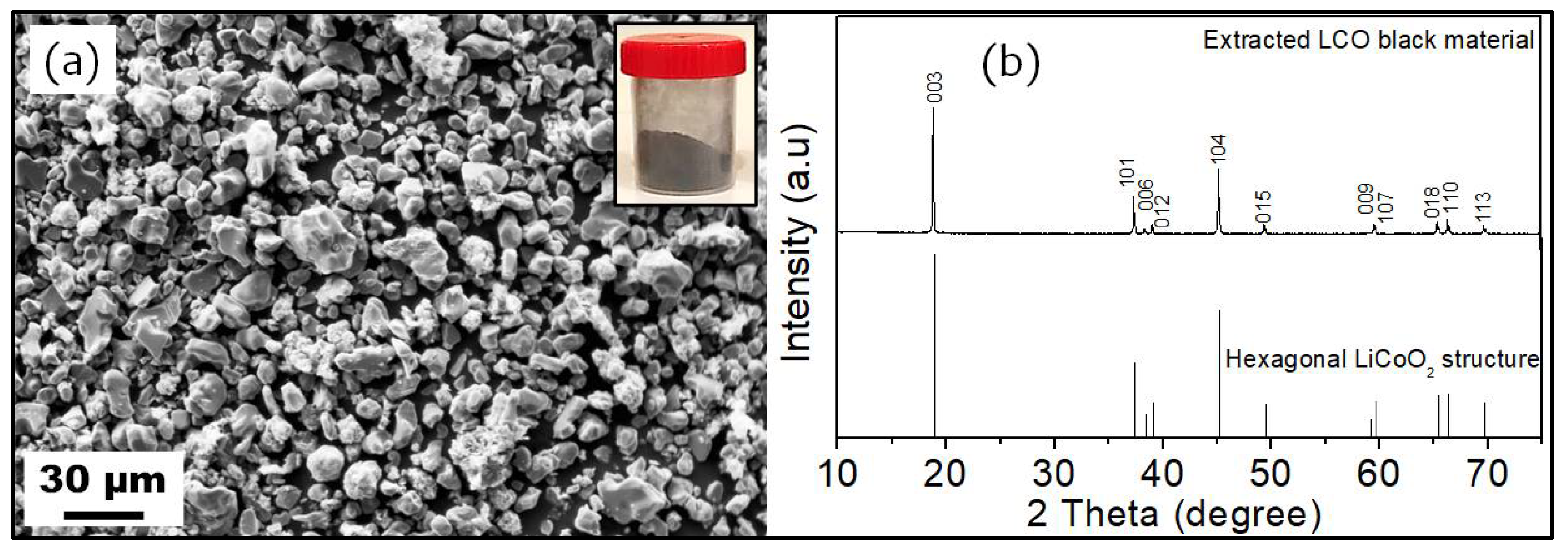

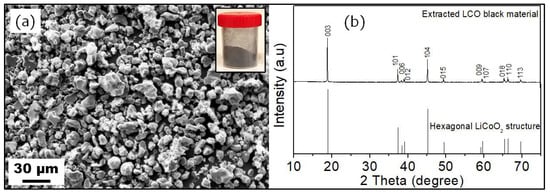

Figure 3. SEM image (a) and XRD pattern (b) of the extracted BM. The inset of figure (a) is a digital photograph of the extracted BM.
Figure 3. SEM image (a) and XRD pattern (b) of the extracted BM. The inset of figure (a) is a digital photograph of the extracted BM.
Sustainability 14 02552 g003

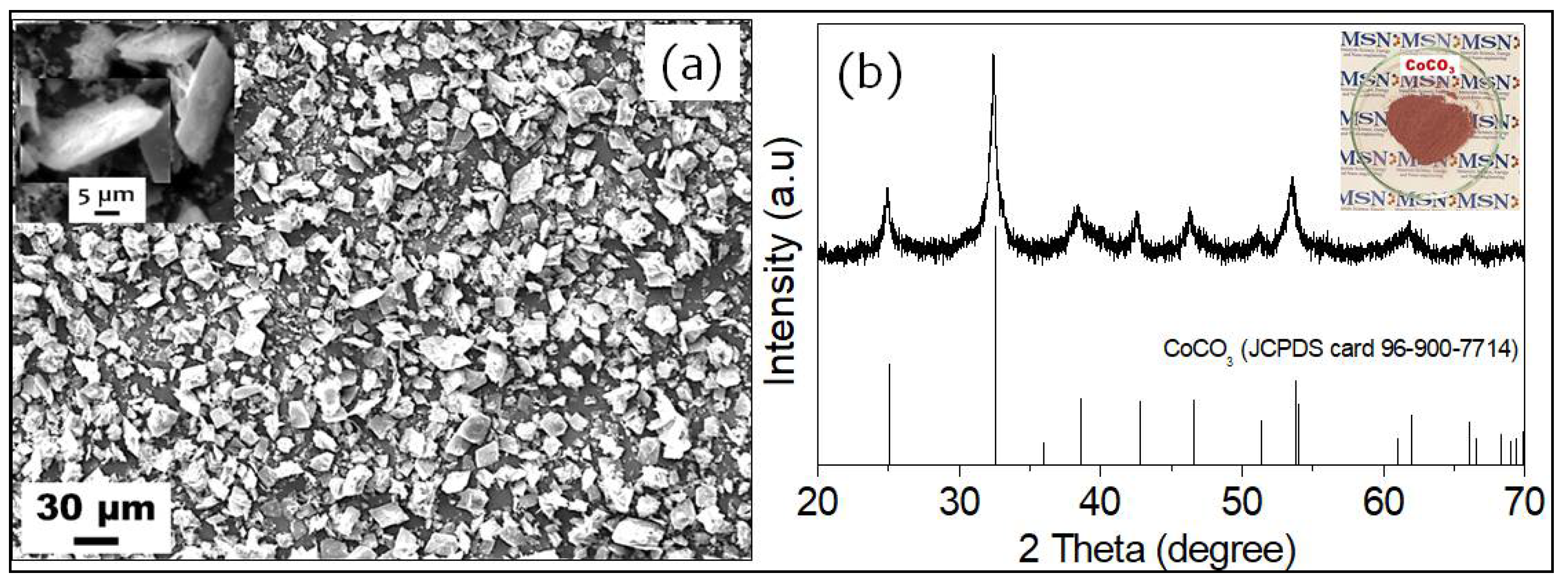

Figure 4. SEM image with two different magnifications (a) and XRD pattern (b) of recovered CoCO3. The inset of (b) shows a digital photograph of the dried CoCO3 powder.
Figure 4. SEM image with two different magnifications (a) and XRD pattern (b) of recovered CoCO3. The inset of (b) shows a digital photograph of the dried CoCO3 powder.
Sustainability 14 02552 g004

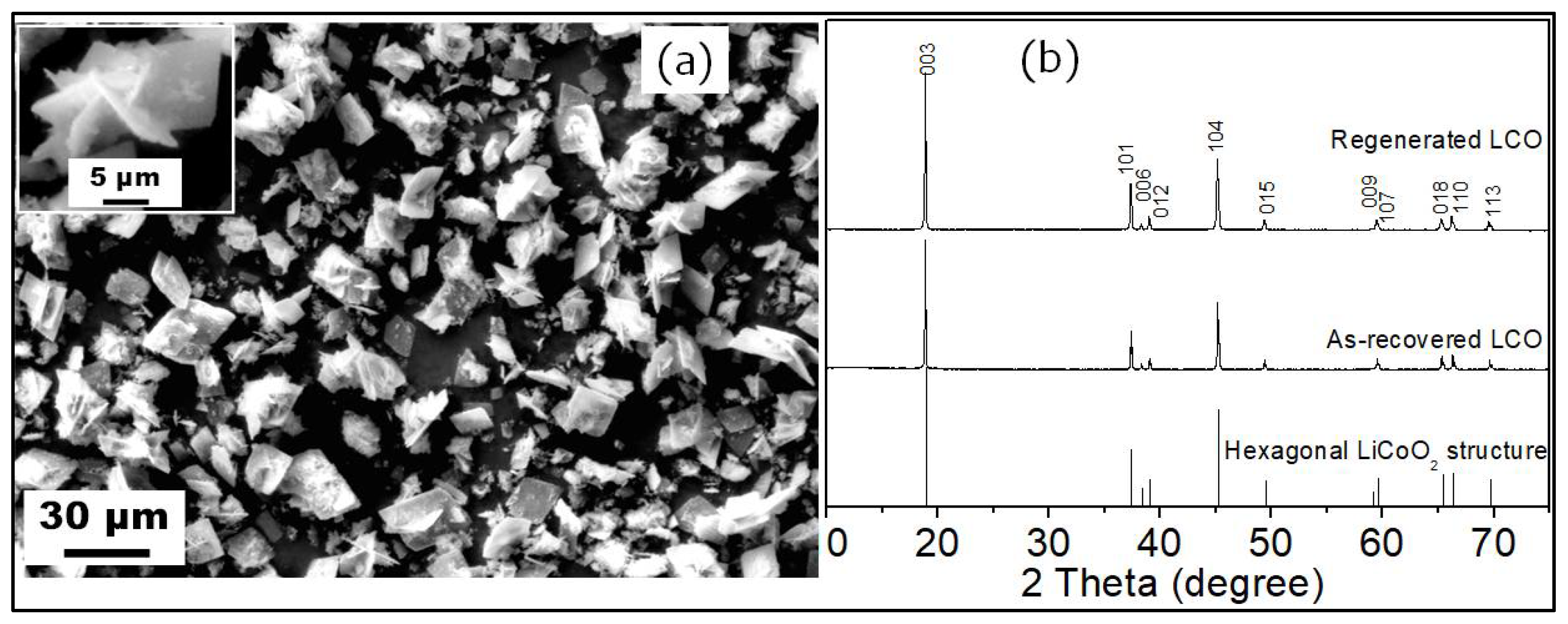

Figure 5. (a) SEM image with two different magnifications of LiCoO2 regenerated from sheet-like CoCO3 (LCOReg) and (b) XRD pattern of LCOReg and LCO synthesized from commercial CoCO3 (LCOCom).
Figure 5. (a) SEM image with two different magnifications of LiCoO2 regenerated from sheet-like CoCO3 (LCOReg) and (b) XRD pattern of LCOReg and LCO synthesized from commercial CoCO3 (LCOCom).
Sustainability 14 02552 g005

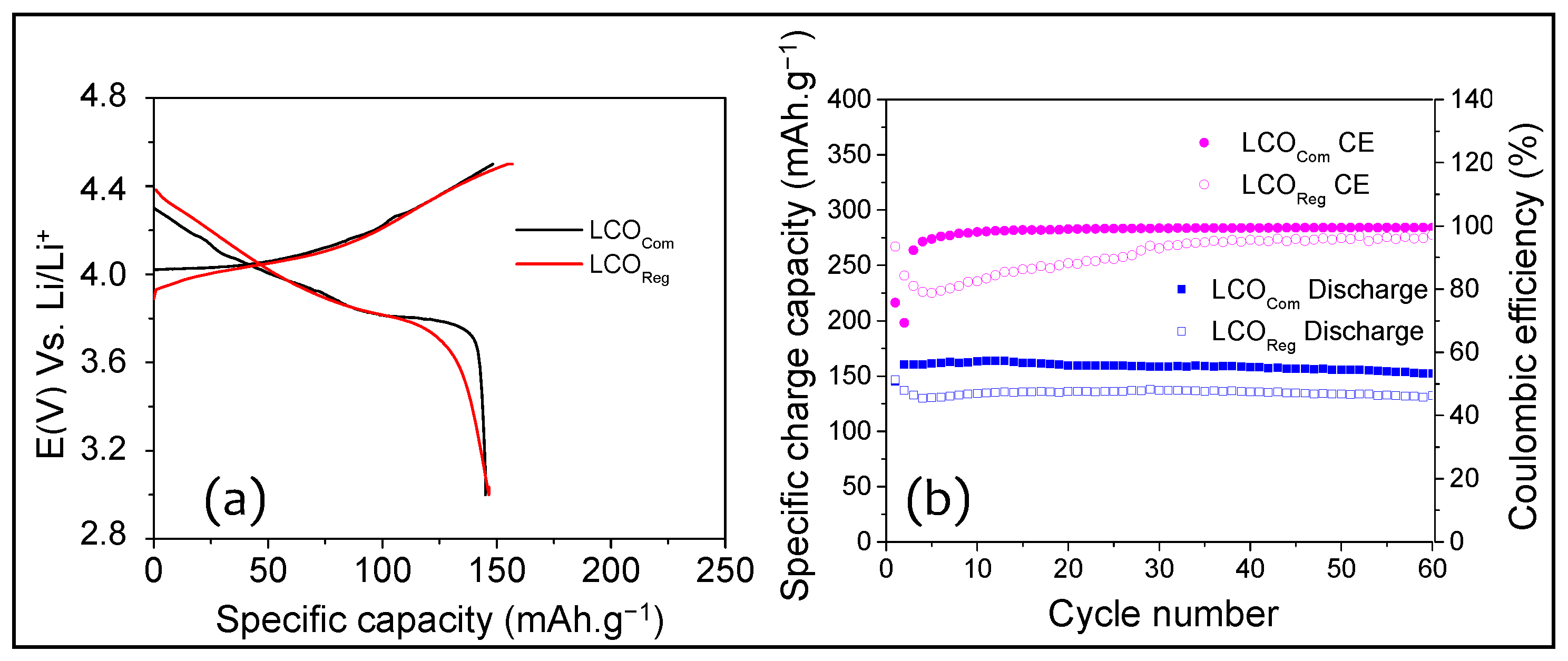

Figure 6. First charge/discharge curve (a), cycling performance and coulombic efficiency (CE) (b) of LCOReg and LCOCom cathodes in Li-ion half-cells.
Figure 6. First charge/discharge curve (a), cycling performance and coulombic efficiency (CE) (b) of LCOReg and LCOCom cathodes in Li-ion half-cells.
Sustainability 14 02552 g006
Table 1. Chemical composition of the extracted LCO black material.
Table 1. Chemical composition of the extracted LCO black material.
ElementCoLiCuAlF
%54.76.4<0.010.440.1
Table 2. Leaching efficiency (LE) in %, dissolution efficiency (DE) in % and concentration of each metal in the leaching solution (LS) in g·L−1.
Table 2. Leaching efficiency (LE) in %, dissolution efficiency (DE) in % and concentration of each metal in the leaching solution (LS) in g·L−1.
ElementCoLiAl
Concentration in LS (g·L−1)25.423.200.13
LE (%)99.199.999.8
DE (%)96
Table 3. Results of the purification step to remove Al from the leaching solution.
Table 3. Results of the purification step to remove Al from the leaching solution.
ElementCoLiAl
Concentration in purified solution (g·L−1)17.902.100.01
PE (%)1.72.590.1
Table 4. Results of the selective precipitation of Co at pH = 8.2.
Table 4. Results of the selective precipitation of Co at pH = 8.2.
ElementCoLi
Concentration in the purified solution (g·L−1)17.92.1
Concentration in the precipitate of pH = 8.2 (%)48.200.18
PE (%)99.23.2
