# Influence of Type of Sleeper–Ballast Interface on the Shear Behaviour of Railway Ballast: An Experimental and Numerical Study

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Study

#### 2.1. Test Materials

^{3}and 2.69, respectively. Sieve analysis was carried out to separate ballast aggregates into 4 different size groups, 19–25, 25–37.5, 37.5–50, and 50–63 mm. The test samples were prepared by mixing each sieved size of ballast aggregates according to the defined particle size distribution (PSD), as depicted in Figure 1a, which lies between the upper and lower limits of Indian standard gradation of ballast, widely adopted by the Department of Railways, Sri Lanka. Figure 1b shows the percentages of each sieved size group in a prepared test sample.

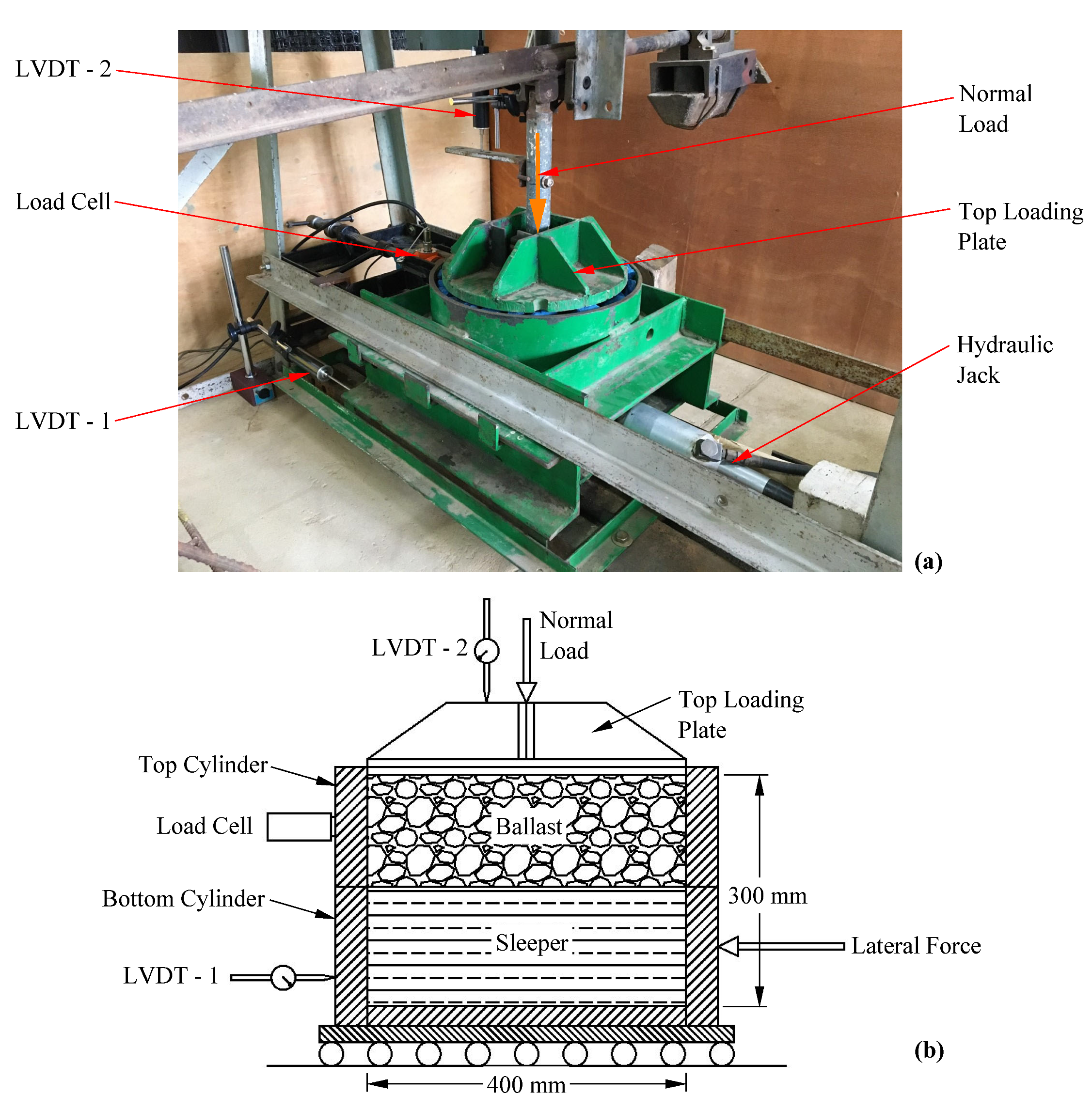

#### 2.2. Large-Scale Direct Shear Apparatus

#### 2.3. Test Procedure

#### 2.4. Experimental Results

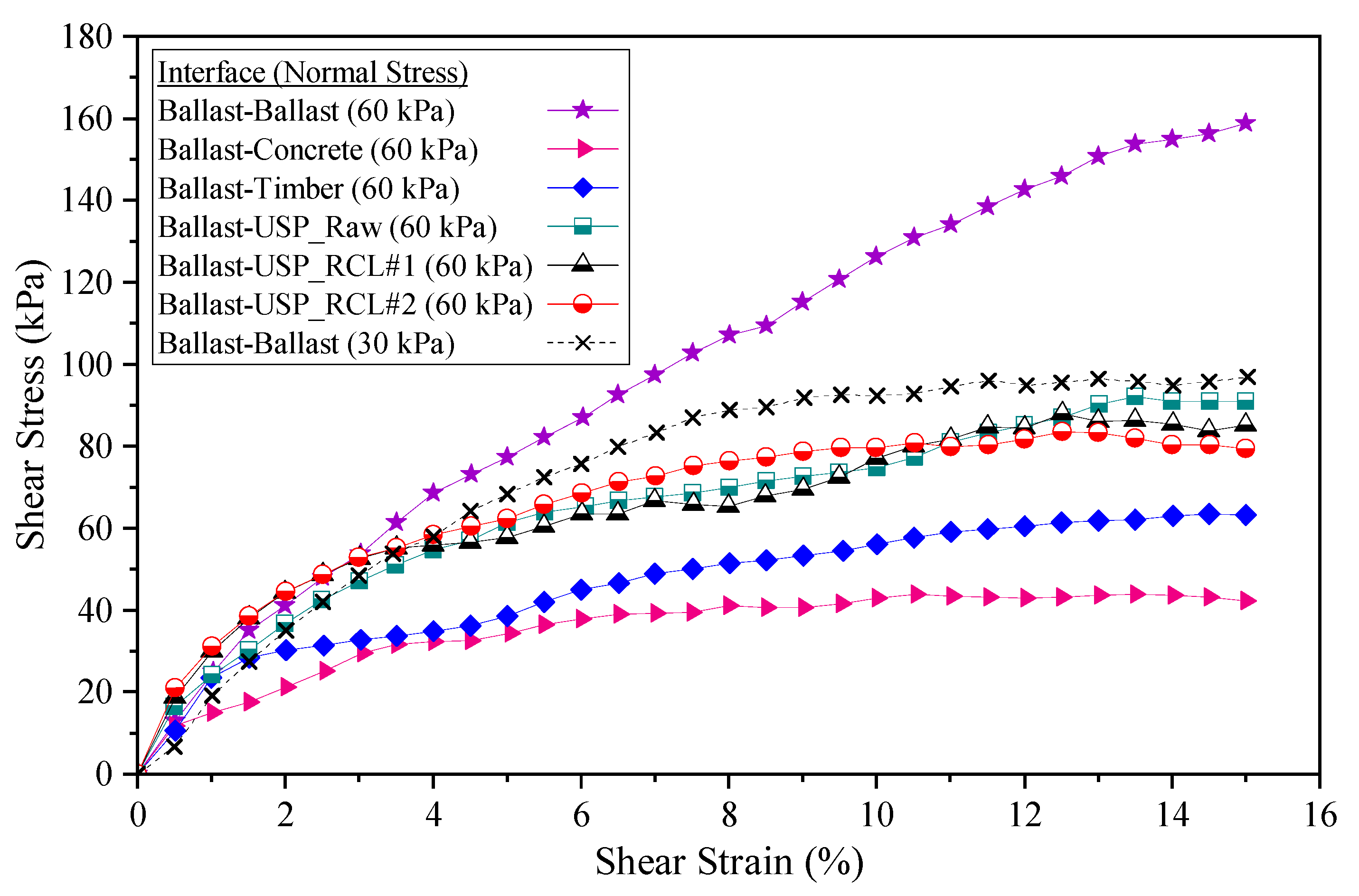

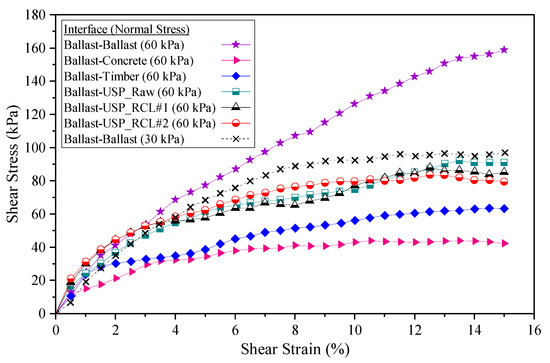

#### 2.4.1. Shear Behaviour

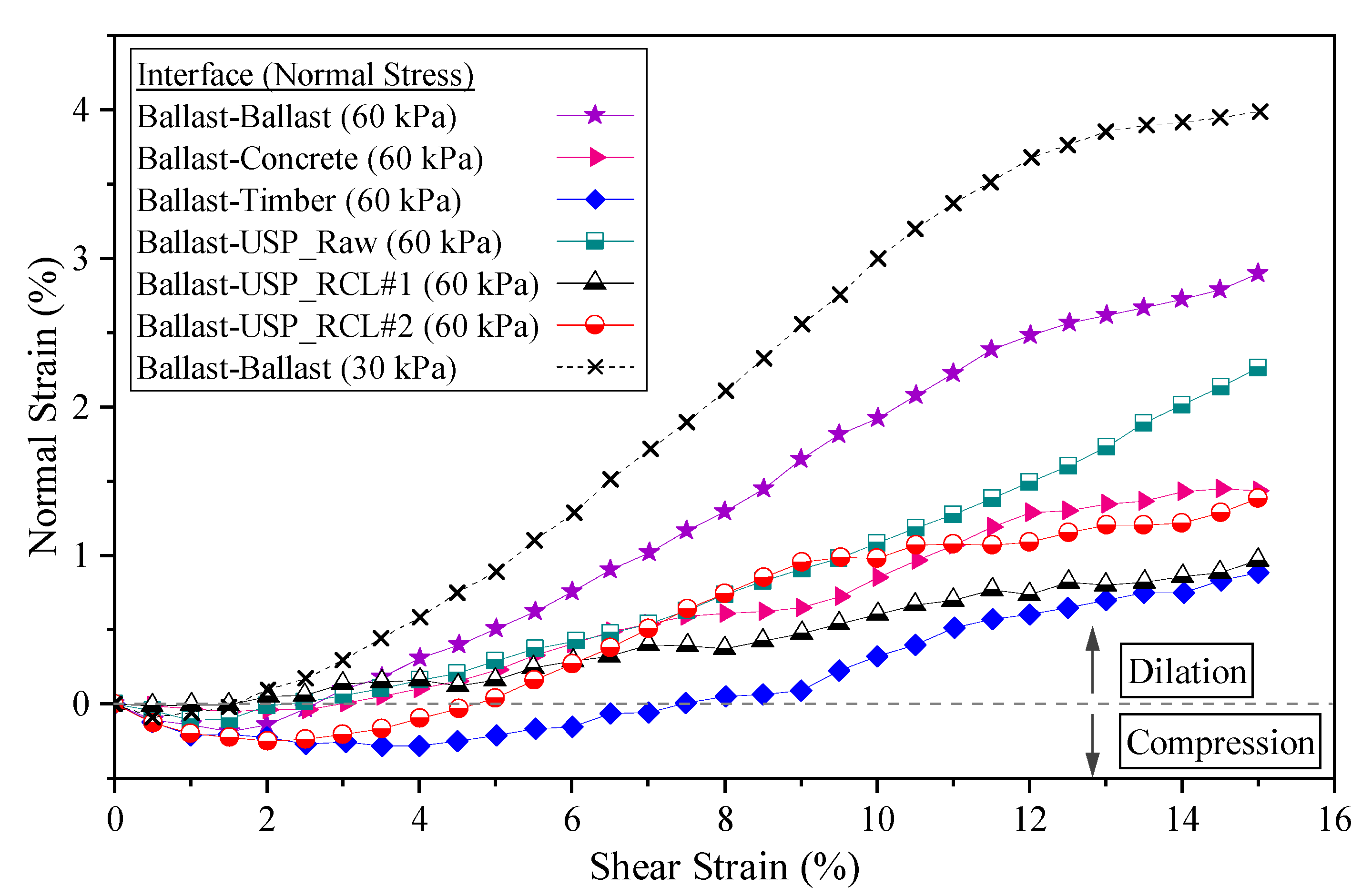

#### 2.4.2. Compression/Dilation Behaviour

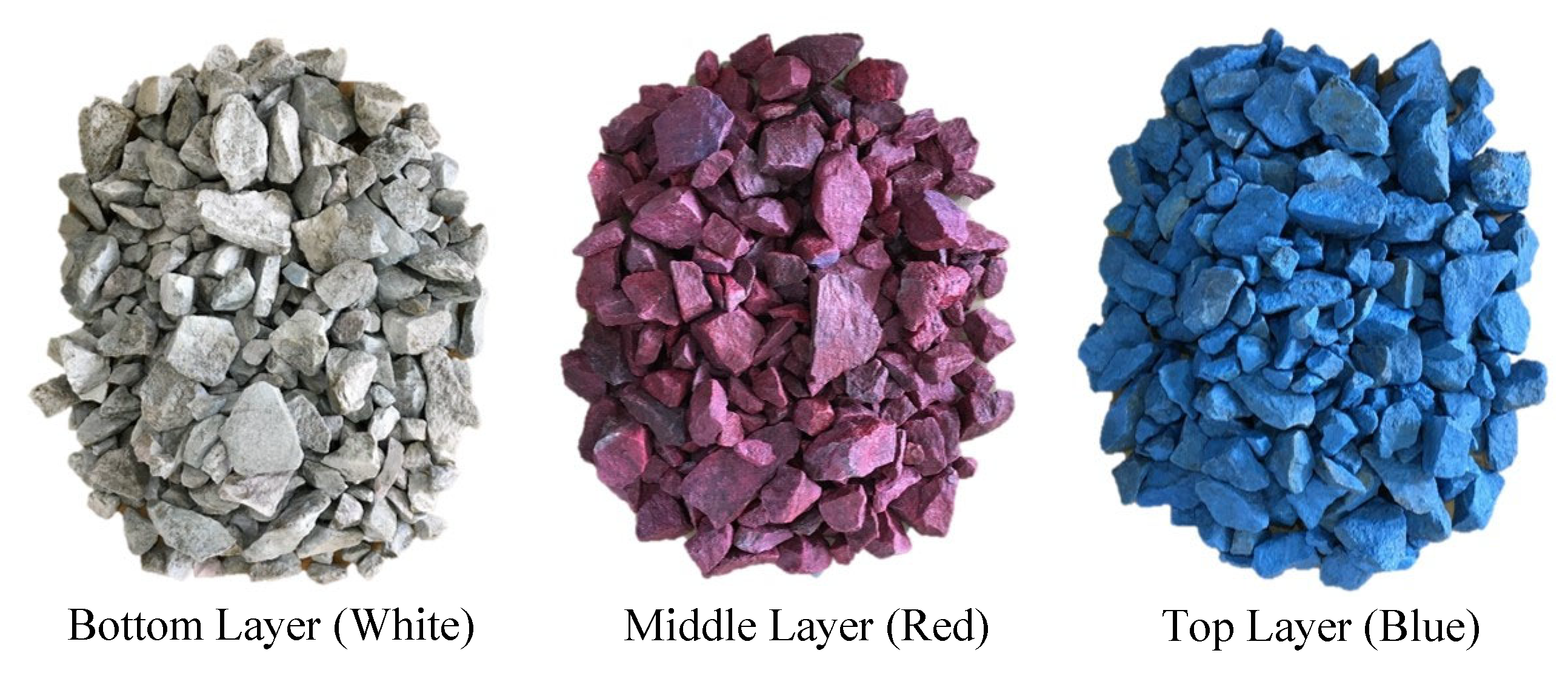

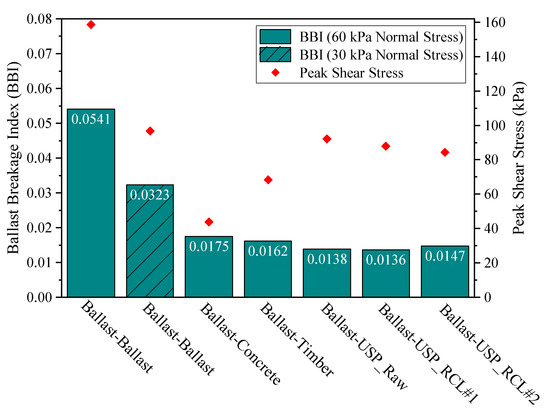

#### 2.4.3. Ballast Breakage

## 3. Numerical Study

#### 3.1. Discrete Element Modelling (DEM) of Ballast

_{B}denotes the radius of the finite-sized glue bonds. The criterion for bond breakage based on the normal and tangential shear stresses (σ

_{max}and τ

_{max}, respectively) is given by the following equations:

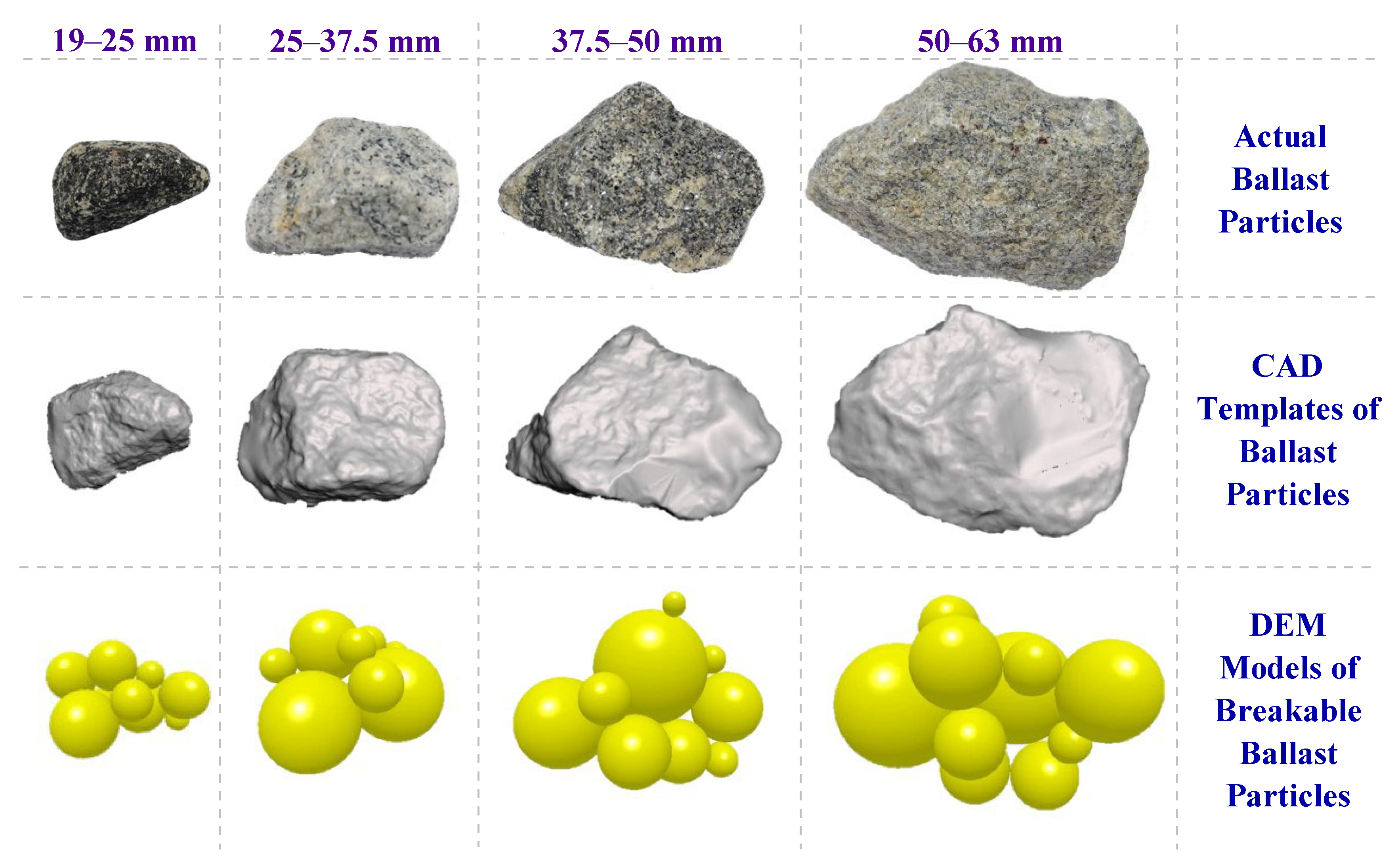

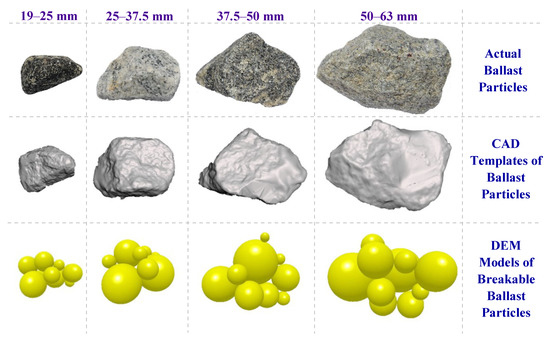

#### 3.2. Simulation of Ballast Particles

#### 3.3. Simulation and Validation of Large-Scale Direct Shear Test

#### 3.4. Parametric Study and Results

## 4. Conclusions

- The results of large-scale direct shear tests conducted under 60 kPa normal stress revealed that the ballast–ballast interface had the highest shear stress variation compared to the ballast–sleeper interface, regardless of the type of sleeper used in the railway tracks. In addition, when compared to timber and concrete sleeper interfaces, all three types of USPs employed in this study (including raw rubber USP and recycled rubber USP) improved the peak shear stress by 29% and 101%, respectively. Furthermore, because of its softer surface, the timber sleeper showed a 56% greater peak shear stress than the concrete sleeper. Moreover, as expected, the shear stress reduced when the normal stress decreased from 60 kPa to 30 kPa at the ballast–ballast interface.
- Based on the experimental data under 60 kPa normal stress, the ballast–ballast sample exhibited the greatest dilation behaviour, followed by the ballast–USP_Raw, ballast–concrete, ballast–USP_RCL#2, ballast–USP_RCL#1, and ballast–timber interface samples, respectively. Relatively softer USPs allowed ballast particles to embed into the USP surface and enhanced particle rolling at the ballast–USP interface, encouraging dilation. Because of its relatively soft and smooth surface, the timber sleeper promoted particle sliding, minimizing particle rolling as compared to the concrete sleeper. Additionally, the dilatation of the ballast–ballast sample at 30 kPa normal stress was greater than that at 60 kPa normal stress.

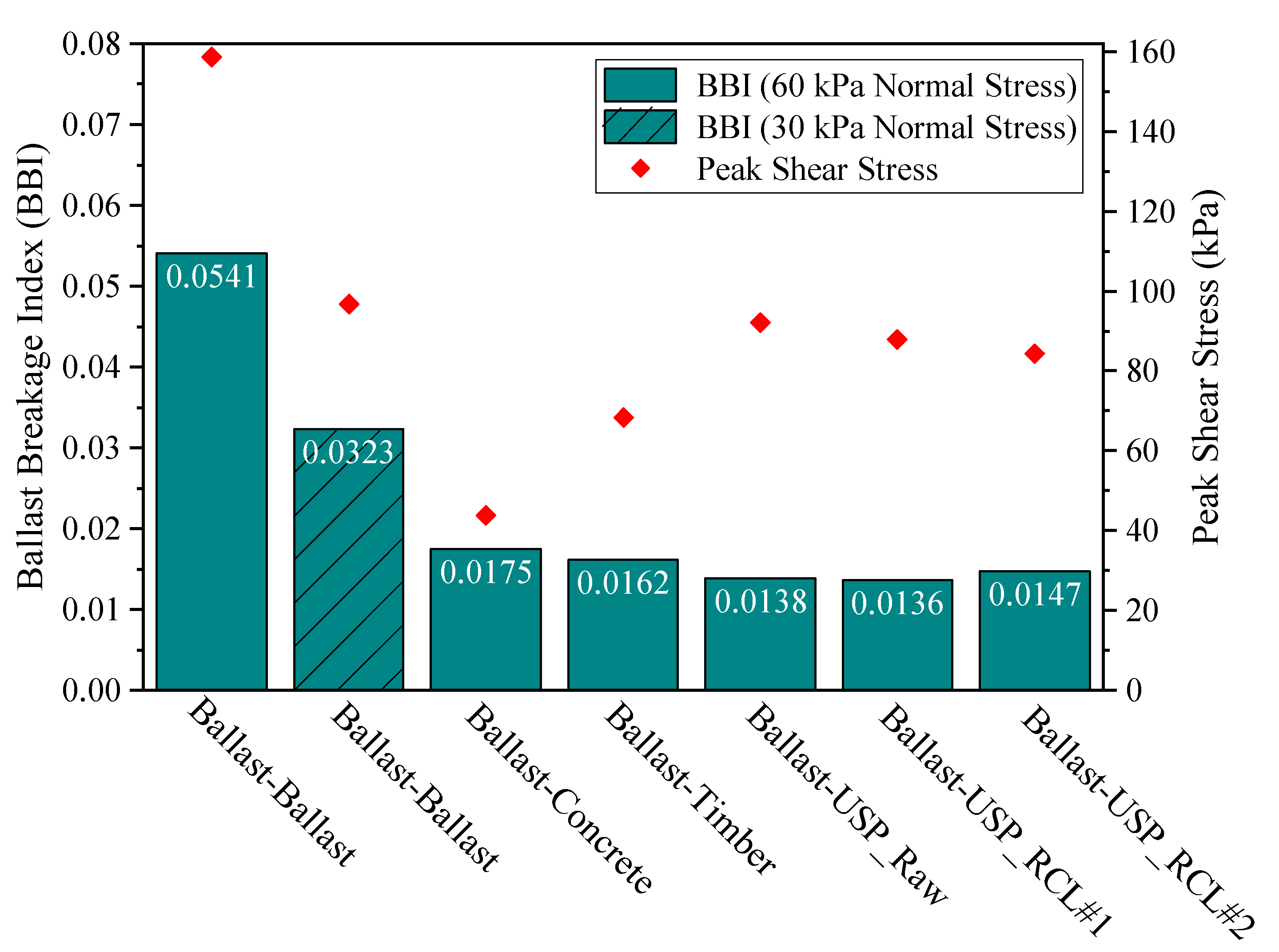

- Ballast particle breakage was quantified based on the ballast breakage index (BBI). The results under 60 kPa normal stress confirmed that the ballast–ballast interface had the highest BBI, followed by the ballast–concrete and ballast–timber interfaces. All three types of USPs used in this study exhibited the lowest BBI values, confirming their ability to reduce ballast degradation while enhancing the shear stress. Furthermore, as expected the ballast–ballast interface exhibited a lower BBI at 30 kPa normal stress compared to 60 kPa normal stress.
- The parametric study results of DEM simulation on the shear behaviour of each interface under different normal stresses revealed that when the normal stress increased, the shear stress also increased. For all normal stresses, the ballast–ballast interface showed the highest shear stress variation, followed by the ballast–USP_RCL#2, ballast–timber, and ballast–concrete interfaces, respectively.

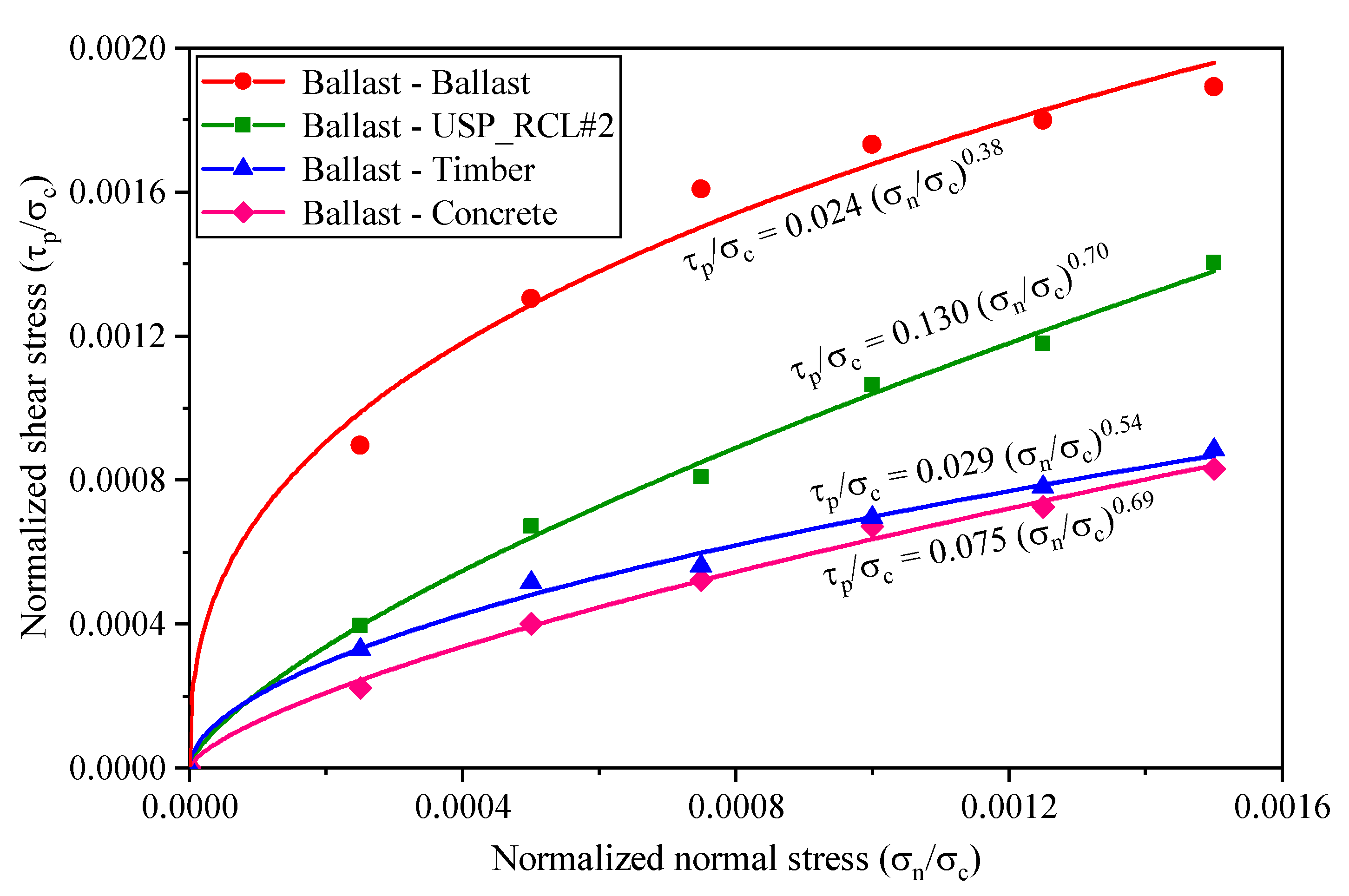

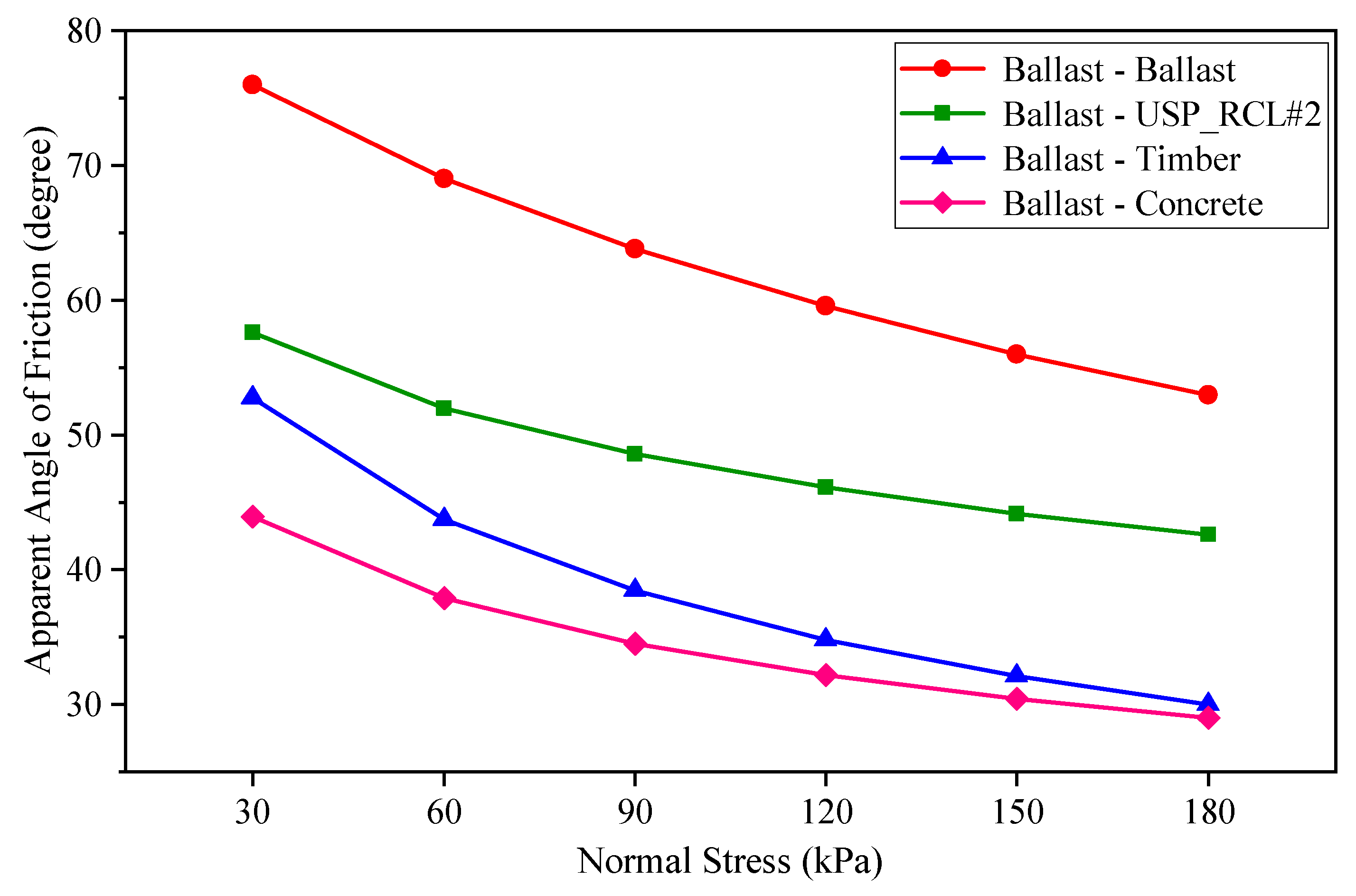

- Based on the DEM results, the non-linear Mohr–Coulomb failure envelopes were developed for each interface. As expected, the ballast–ballast interface had the greatest variation in normalized shear stress, whereas the ballast–concrete interface exhibited the least variation. The apparent friction angle values for each interface were calculated under each normal stress. The friction angle value for ballast–ballast, ballast–USP, ballast–timber, and ballast–concrete interfaces varied between 53° to 76°, 43° to 58°, 30° to 53°, and 29° to 44°, respectively.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Esveld, C. Modern Railway Track; MRT Press: Zaltbommel, The Netherlands, 2001; Volume 385. [Google Scholar]
- Li, D.; Hyslip, J.; Sussmann, T.; Chrismer, S. Railway Geotechnics; CRC Press: Boca Raton, FL, USA, 2015. [Google Scholar]
- Indraratna, B.; Salim, W.; Rujikiatkamjorn, C. Advanced Rail Geotechnology: Ballasted Track, 1st ed.; CRC Press: Boca Raton, FL, USA, 2011. [Google Scholar]
- Navaratnarajah, S.K. Application of Rubber Inclusions to Enhance the Stability of Ballasted Rail Track under Cyclic Loading. Ph.D. Thesis, School of Civil, Mining and Environmental Engineering, University of Wollongong, Wollongong, Austria, 2017. [Google Scholar]
- Indraratna, B.; Nimbalkar, S.; Ngo, N.T.; Neville, T. Performance improvement of rail track substructure using artificial inclusions—Experimental and numerical studies. Transp. Geotech.
**2016**, 8, 69–85. [Google Scholar] [CrossRef] [Green Version] - Sadeghi, J.; Barati, P. Comparisons of the mechanical properties of timber, steel and concrete sleepers. Struct. Infrastruct. Eng.
**2012**, 8, 1151–1159. [Google Scholar] [CrossRef] - Navaratnarajah, S.K.; Indraratna, B.; Ngo, N.T. Influence of under sleeper pads on ballast behavior under cyclic loading: Experimental and numerical studies. J. Geotech. Geoenviron.
**2018**, 144, 04018068. [Google Scholar] [CrossRef] - Jayasuriya, C.; Indraratna, B.; Ngo, T.N. Experimental study to examine the role of under sleeper pads for improved performance of ballast under cyclic loading. Transp. Geotech.
**2019**, 19, 61–73. [Google Scholar] [CrossRef] - Sol-Sanchez, M.; Moreno-Navarro, F.; Rubio-Gámez, M.C. Viability of using end-of-life tire pads as under sleeper pads in railway. Constr. Build. Mater.
**2014**, 64, 150–156. [Google Scholar] [CrossRef] - Mayuranga, H.G.S.; Navaratnarajah, S.K.; Bandara, C.S.; Jayasinghe, J.A.S.C. Numerical Simulation of Energy-Absorbing Rubber Pads Using FEM and DEM Approaches—A Comparative Study. In ICSECM 2021; Lecture Notes in Civil Engineering; Dissanayake, R., Mendis, P., Weerasekera, K., De Silva, S., Fernando, S., Eds.; Springer: Singapore, 2023; Volume 266, pp. 283–295. [Google Scholar]
- Abadi, T.; Le Pen, L.; Zervos, A.; Powrie, W. Measuring the area and number of ballast particle contacts at sleeper/ballast and ballast/subgrade interfaces. Int. J. Railw. Technol.
**2015**, 4, 45–72. [Google Scholar] [CrossRef] - Stahl, W. Improvement of balasted tracks using sleeper pads—Investigations and experiences in Germany. In Proceedings of the International Conferences on the Bearing Capacity of Roads, Railways and Airfields, Trondheim, Norway, 27–29 June 2005; pp. 1–10. [Google Scholar]
- Ngo, N.T. Performance of Geogrids Stabilised Fouled Ballast in RAIL Tracks. Ph.D. Thesis, School of Civil, Mining and Environmental Engineering, University of Wollongong, Wollongong, Austria, 2012. [Google Scholar]
- TolouKian, A.R.; Sadeghi, J.; Zakeri, J.-A. Large-scale direct shear tests on sand-contaminated ballast. Proc. Inst. Civ. Eng.-Geotech. Eng.
**2018**, 171, 451–461. [Google Scholar] [CrossRef] - Gong, H.; Song, W.; Huang, B.; Shu, X.; Han, B.; Wu, H.; Zou, J. Direct shear properties of railway ballast mixed with tire derived aggregates: Experimental and numerical investigations. Constr. Build. Mater.
**2019**, 200, 465–473. [Google Scholar] [CrossRef] - Estaire, J.; Santana, M. Large direct shear tests performed with fresh ballast. In Railway Ballast Testing and Properties, ASTM STP1605; Stark, T.D., Szecsy, R., Swan, R.H., Eds.; ASTM International: Conshohocken, PA, USA, 2018; pp. 134–151. [Google Scholar]
- ISO 20290-1:2021; Aggregates for Concrete—Test methods for mechanical and physical properties—Part1: Determination of Bulk Density, Particle Density, Particle Mass-per-Volume, and Water Absorption. International Organization for Standardization: Geneva, Switzerland, 2021.
- IRS-GE-1; Specification for Track Ballast. Research Designs and Standards Organisation (RDSO). Ministry of Railways: Lucknow, India, 2004.
- Indraratna, B.; Wijewardena, L.; Balasubramaniam, A. Large-scale triaxial testing of grey wacke rockfill. Geotechnique
**1993**, 43, 37–51. [Google Scholar] [CrossRef] - Marschi, N.D.; Chan, C.K.; Seed, H.B. Evaluation of properties of rockfill materials. J. Soil Mech. Found. Div.
**1972**, 98, 95–114. [Google Scholar] [CrossRef] - Olson, R.E.; Lai, J. Direct Shear Testing; Chaoyang University of Technology: Taichung, Taiwan, 1989; pp. 1–14. [Google Scholar]
- Wang, X.; Weng, Y.; Wang, X.; Chen, W. Interlocking mechanism of calcareous soil. Rock Soil Mech.
**2018**, 39, 3113–3120. [Google Scholar] - Wang, X.; Wang, X.-Z.; Zhu, C.-Q.; Meng, Q.-S. Shear tests of interfaces between calcareous sand and steel. Mar. Georesources Geotechnol.
**2019**, 37, 1095–1104. [Google Scholar] [CrossRef] - Indraratna, B.; Lackenby, J.; Christie, D. Effect of confining pressure on the degradation of ballast under cyclic loading. Geotechnique
**2005**, 55, 325–328. [Google Scholar] [CrossRef] - Cundall, P.A.; Strack, O.D. A discrete numerical model for granular assemblies. Geotechnique
**1979**, 29, 47–65. [Google Scholar] [CrossRef] - McDowell, G.; Bolton, M. On the micromechanics of crushable aggregates. Géotechnique
**1998**, 48, 667–679. [Google Scholar] [CrossRef] [Green Version] - Lu, M.; McDowell, G. Discrete element modelling of ballast abrasion. Géotechnique
**2006**, 56, 651–655. [Google Scholar] [CrossRef] - Tutumluer, E.; Qian, Y.; Hashash, Y.M.; Ghaboussi, J.; Davis, D.D. Discrete element modelling of ballasted track deformation behaviour. Int. J. Railw. Transp.
**2013**, 1, 57–73. [Google Scholar] [CrossRef] - Ngo, N.T.; Indraratna, B.; Rujikiatkamjorn, C. DEM simulation of the behaviour of geogrid stabilised ballast fouled with coal. Comput. Geotech.
**2014**, 55, 224–231. [Google Scholar] [CrossRef] [Green Version] - Ngamkhanong, C.; Feng, B.; Tutumluer, E.; Hashash, Y.M.; Kaewunruen, S. Evaluation of lateral stability of railway tracks due to ballast degradation. Constr. Build. Mater.
**2021**, 278, 122342. [Google Scholar] [CrossRef] - Ngo, N.T.; Indraratna, B.; Rujikiatkamjorn, C. Micromechanics-based investigation of fouled ballast using large-scale triaxial tests and discrete element modeling. J. Geotech. Geoenviron.
**2017**, 143, 04016089. [Google Scholar] [CrossRef] [Green Version] - Bian, X.; Li, W.; Qian, Y.; Tutumluer, E. Micromechanical particle interactions in railway ballast through DEM simulations of direct shear tests. Int. J. Geomech.
**2019**, 19, 04019031. [Google Scholar] [CrossRef] - Danesh, A.; Mirghasemi, A.A.; Palassi, M. Evaluation of particle shape on direct shear mechanical behavior of ballast assembly using discrete element method (DEM). Transp. Geotech.
**2020**, 23, 100357. [Google Scholar] [CrossRef] - Wang, B.; Martin, U.; Rapp, S. Discrete element modeling of the single-particle crushing test for ballast stones. Comput. Geotech.
**2017**, 88, 61–73. [Google Scholar] [CrossRef] - Ngo, T.; Indraratna, B. Mitigating ballast degradation with under-sleeper rubber pads: Experimental and numerical perspectives. Comput. Geotech.
**2020**, 122, 103540. [Google Scholar] [CrossRef] - Indraratna, B.; Ngo, N.T.; Rujikiatkamjorn, C. Performance of ballast influenced by deformation and degradation: Laboratory testing and numerical modeling. Int. J. Geomech.
**2020**, 20, 04019138. [Google Scholar] [CrossRef] [Green Version] - Cui, X.-H.; Xiao, H.; Ling, X. Analysis of ballast breakage in ballast bed when using under sleeper pads. Geomech. Geoeng.
**2022**, 17, 677–688. [Google Scholar] [CrossRef] - Xu, Y.; Yu, W.; Qie, L.; Wang, H.; Ning, N. Analysis of influence of ballast shape on abrasion resistance using discrete element method. Constr. Build. Mater.
**2021**, 273, 121708. [Google Scholar] [CrossRef] - Potyondy, D.O.; Cundall, P. A bonded-particle model for rock. Int. J. Rock Mech. Min.
**2004**, 41, 1329–1364. [Google Scholar] [CrossRef] - Jayawardena, U.d.S. A study on the engineering properties of Sri Lankan rocks. J. Inst. Eng. Sri Lanka
**2001**, XXXIV, 7–21. [Google Scholar]

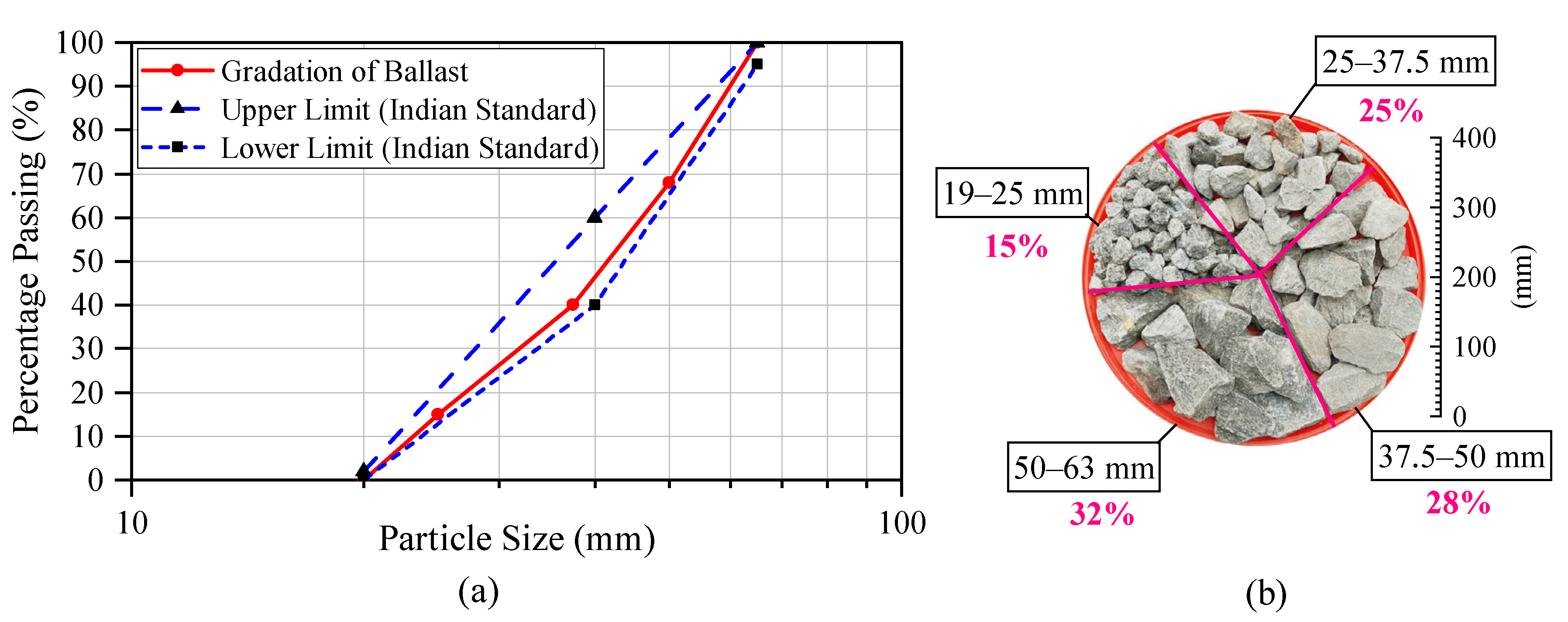

**Figure 1.**(

**a**) Particle size distribution of ballast with limits of Indian standard gradation [18] and (

**b**) percentages of each sieved size group of ballast.

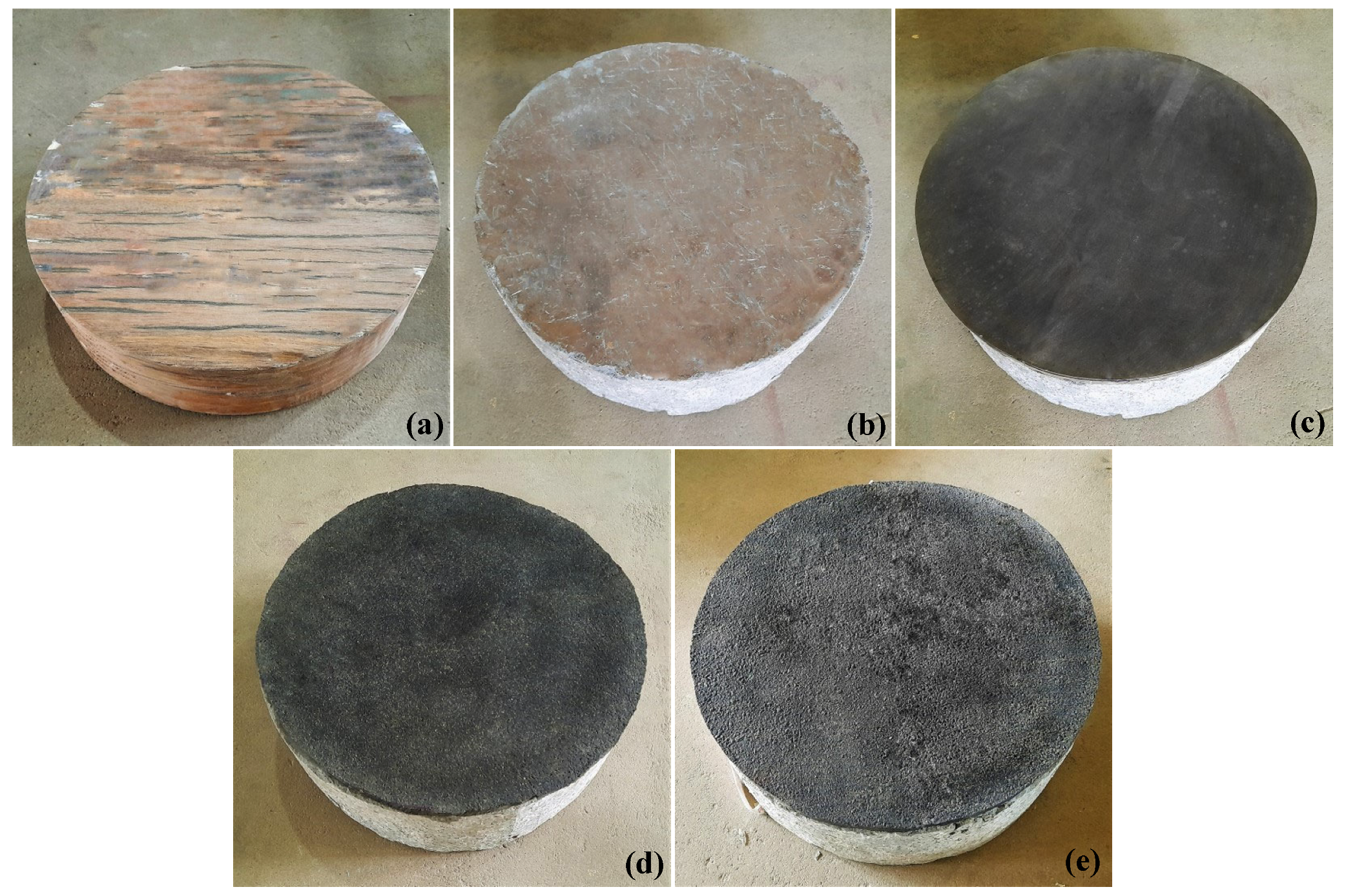

**Figure 2.**Different sleeper arrangements: (

**a**) timber sleeper; (

**b**) concrete sleeper; (

**c**) concrete sleeper with USP_Raw; (

**d**) concrete sleeper with USP_RCL#1; (

**e**) concrete sleeper with USP_RCL#2.

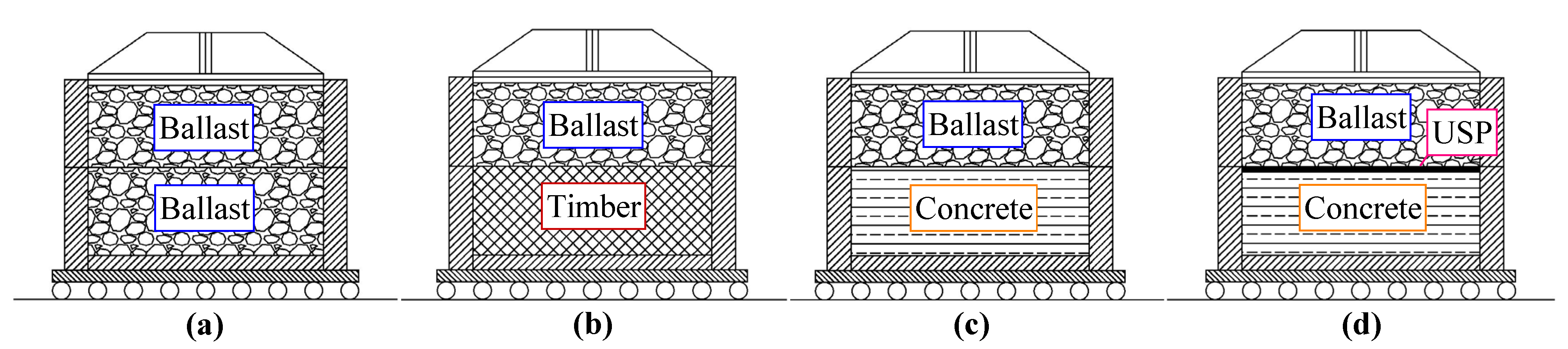

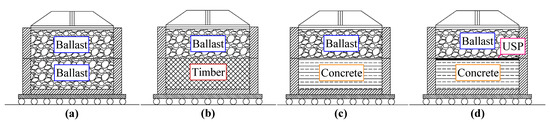

**Figure 4.**Different interface test configurations: (

**a**) ballast–ballast; (

**b**) ballast–timber; (

**c**) ballast–concrete; (

**d**) ballast–USP attached to concrete (USP is USP_Raw, USP_RCL#1, or USP_RCL#2).

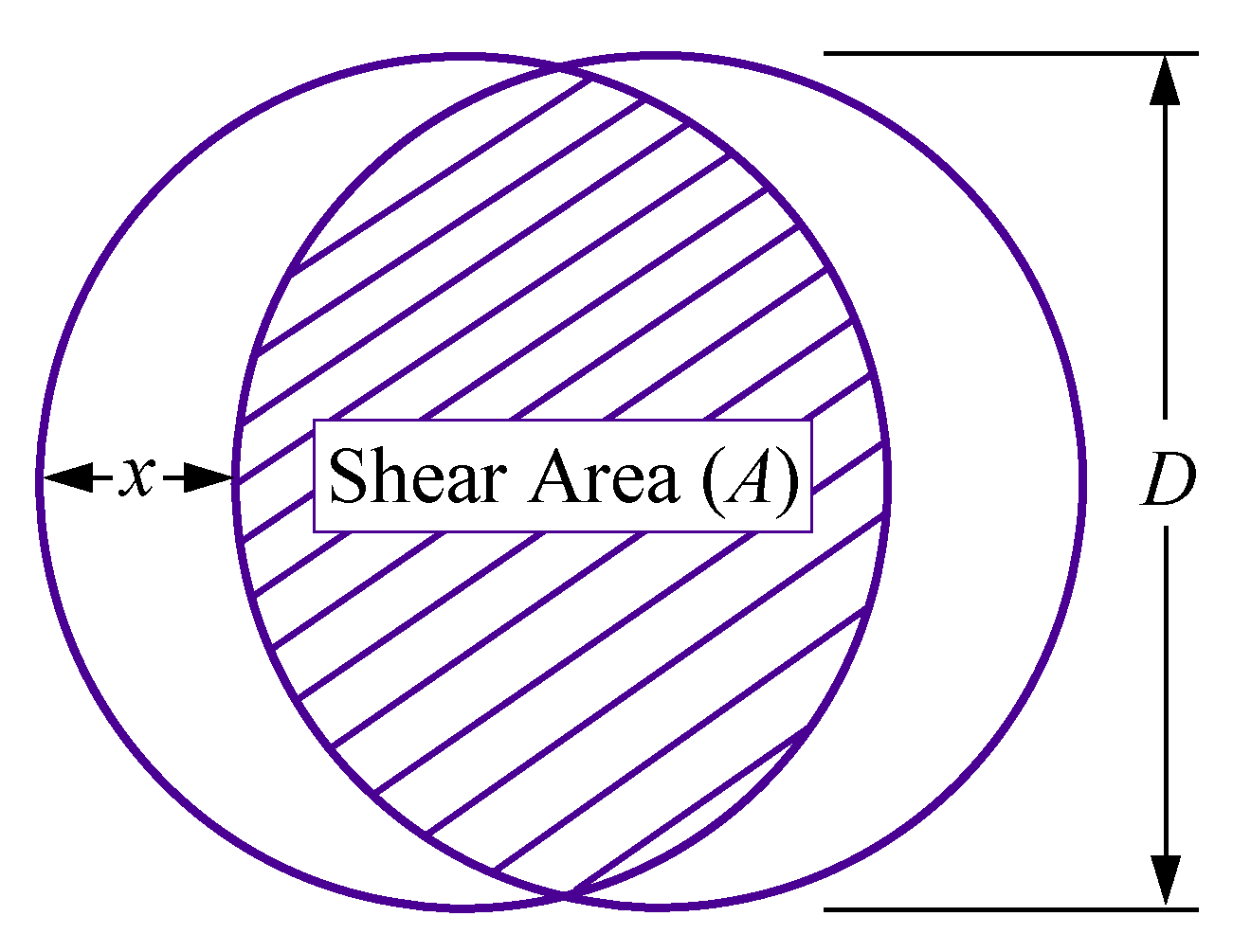

**Figure 6.**Shear area for calculating shear stress (after Olson and Lai [21]).

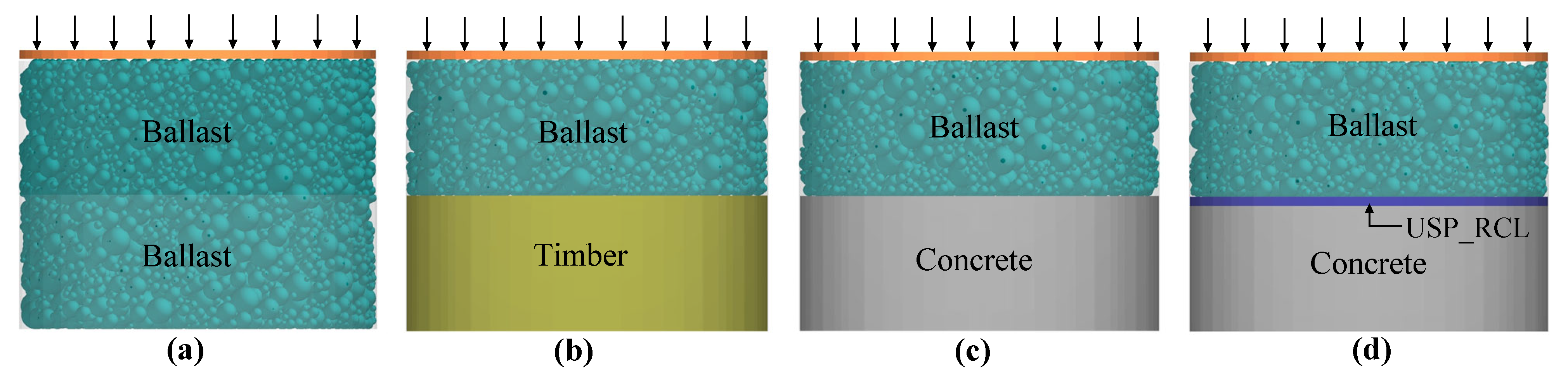

**Figure 11.**Developed DEM models: (

**a**) ballast–ballast interface, (

**b**) ballast–timber interface, (

**c**) ballast–concrete interface, and (

**d**) ballast–USP_RCL#2 interface.

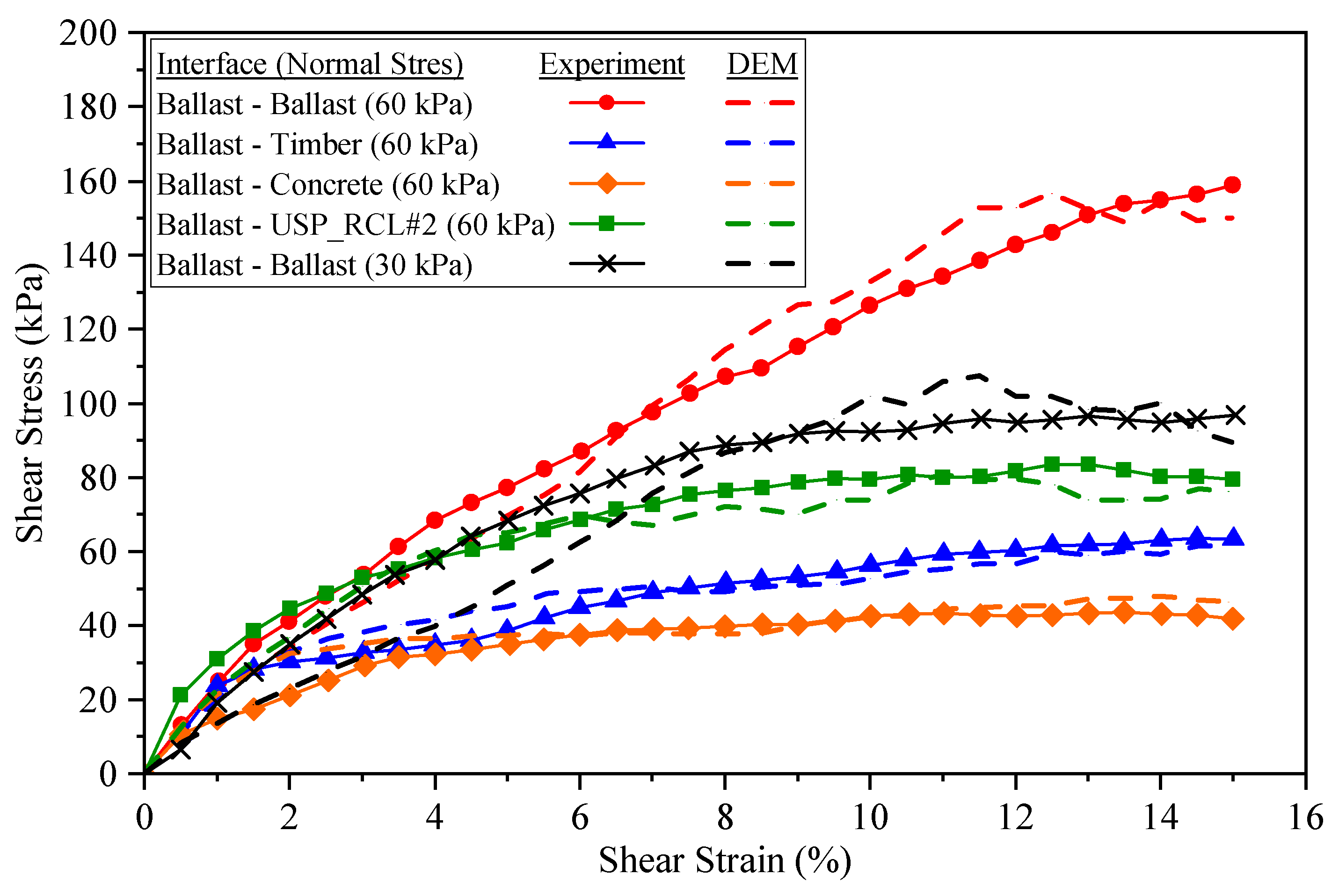

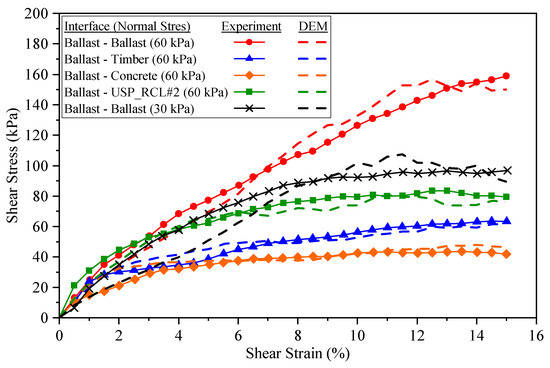

**Figure 12.**Comparison of stress–strain variation of experimental and numerical results for four different interfaces.

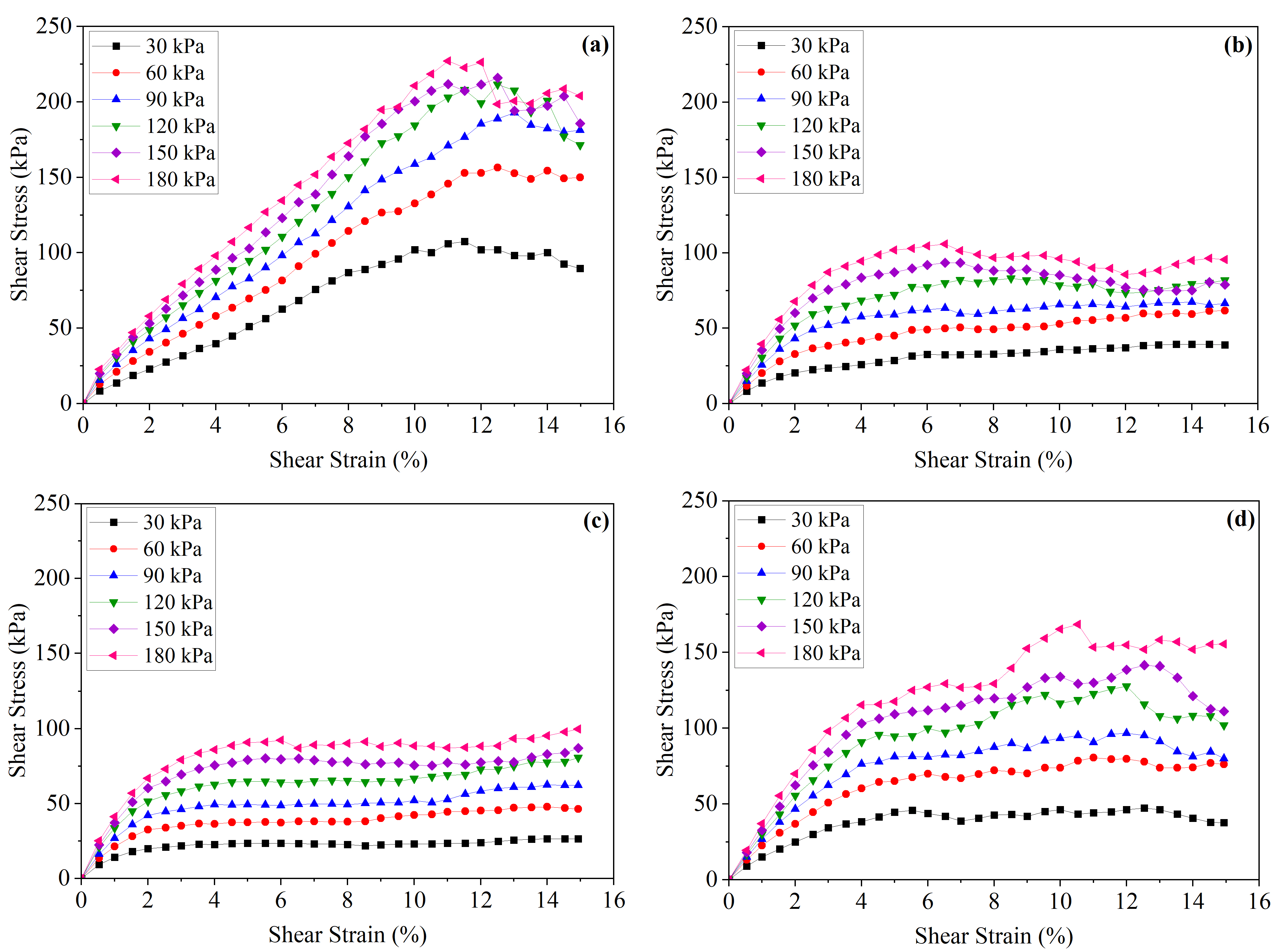

**Figure 13.**Variation of shear stress against shear strain under different normal stresses for (

**a**) ballast–ballast, (

**b**) ballast–timber, (

**c**) ballast–concrete, and (

**d**) ballast–USP_RCL#2 interfaces.

Property | USP_Raw | USP_RCL#1 | USP_RCL#2 |
---|---|---|---|

Thickness | 10 mm | 10 mm | 10 mm |

Density | 420 kg/m^{3} | 920 kg/m^{3} | 970 kg/m^{3} |

Static bedding modulus (DIN 45673-1) | 0.22 N/mm^{3} | 0.20 N/mm^{3} | 0.19 N/mm^{3} |

Young’s modulus | 6.00 MPa | 6.12 MPa | 6.15 MPa |

Property Type | Parameter | Value |
---|---|---|

Material properties | Solid density | 2950 kg/m^{3} |

Shear modulus | 50 MPa | |

Poisson’s ratio | 0.25 | |

Particle-to-particle interaction properties | Coefficient of restitution | 0.2 |

Coefficient of static friction | 0.5 | |

Coefficient of rolling friction | 0.01 | |

Bond strength properties | Normal/shear stiffness per unit area | 6.84 × 10^{9} N/m^{3} |

Normal/shear strength | 6 MPa | |

Bond disc scale | 0.5 |

Parameter | Steel | Timber | Concrete | USP_RCL#2 |
---|---|---|---|---|

Solid density (kg/m^{3}) | 7850 | 890 | 2400 | 970 |

Shear modulus (MPa) | 8.0 × 10^{4} | 3.93 × 10^{3} | 1.5 × 10^{4} | 2.03 |

Poisson’s ratio | 0.3 | 0.25 | 0.2 | 0.48 |

Interface | ballast–steel wall | ballast–timber | ballast–concrete | ballast–USP |

Coefficient of restitution | 0.7 | 0.4 | 0.6 | 0.3 |

Coefficient of static friction | 0.7 | 0.85 | 0.75 | 1.5 |

Coefficient of rolling friction | 0.05 | 0.04 | 0.01 | 0.08 |

**Table 4.**Comparison of numerical and experimental results using mean absolute percentage error (MAPE) and percentage variation in peak shear.

Interface | MAPE (%) | Variation in Peak Shear (%) |
---|---|---|

Ballast–Ballast (60 kPa) | 1.6 | 1.4 |

Ballast–Timber (60 kPa) | 1.0 | 5.7 |

Ballast–Concrete (60 kPa) | 10.1 | 8.5 |

Ballast–USP_RCL#2 (60 kPa) | 6.7 | 4.4 |

Ballast–Ballast (30 kPa) | 9.1 | 9.8 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Navaratnarajah, S.K.; Mayuranga, H.G.S.; Venuja, S.
Influence of Type of Sleeper–Ballast Interface on the Shear Behaviour of Railway Ballast: An Experimental and Numerical Study. *Sustainability* **2022**, *14*, 16384.
https://doi.org/10.3390/su142416384

**AMA Style**

Navaratnarajah SK, Mayuranga HGS, Venuja S.
Influence of Type of Sleeper–Ballast Interface on the Shear Behaviour of Railway Ballast: An Experimental and Numerical Study. *Sustainability*. 2022; 14(24):16384.
https://doi.org/10.3390/su142416384

**Chicago/Turabian Style**

Navaratnarajah, Sinniah Karuppiah, Henpita Gamage Sushan Mayuranga, and Somasundaraiyer Venuja.
2022. "Influence of Type of Sleeper–Ballast Interface on the Shear Behaviour of Railway Ballast: An Experimental and Numerical Study" *Sustainability* 14, no. 24: 16384.
https://doi.org/10.3390/su142416384
