# A Hybrid Generative Adversarial Network Model for Ultra Short-Term Wind Speed Prediction

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- (1)
- A hybrid generative adversarial network model (HGANN) is proposed for ultra-short-term wind speed prediction, which learns the distribution of wind data and predicts it through a continuous game between generators and discriminators.
- (2)
- To improve the error convergence of the model, the OBLS was developed as a generator for HGANN. The IPSO was used to optimize the hyperparameters of the OBLS. To maintain the stability of the generated samples, we used the discriminator of WGAN as the discriminator of HGANN.
- (3)
- A wind data decomposition and denoising process was carried out using CEEMDAN to reduce the randomness and instability in the original wind series.

## 2. Proposed Predictive Framework

#### 2.1. Overall Framework of HGANN

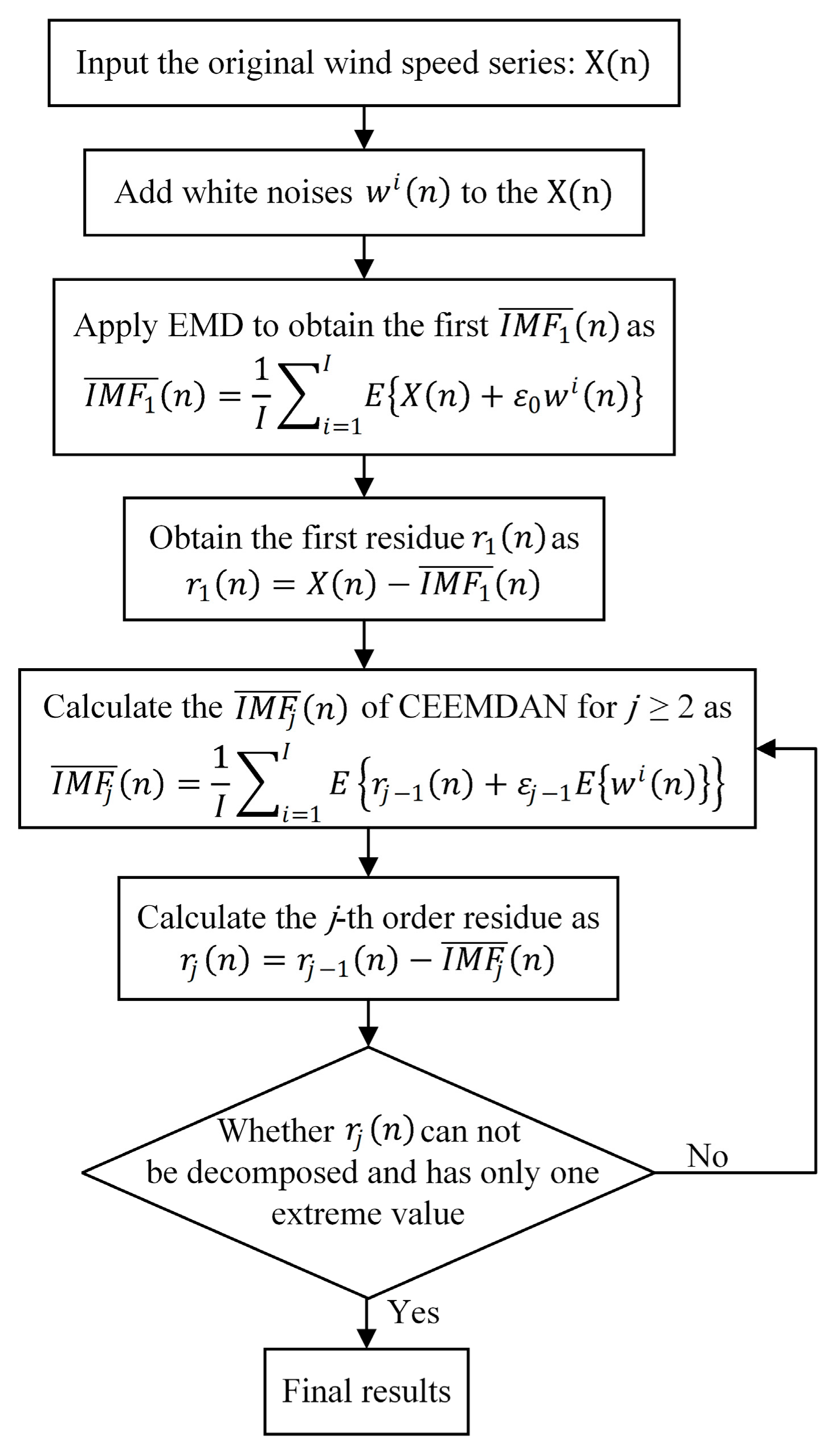

#### 2.2. CEEMDAN Model

#### 2.3. Generator OBLS for HGANN

#### 2.4. Discriminators for HGANN

#### 2.5. Prediction Steps of the Proposed HGANN Model

## 3. Case Analysis

#### 3.1. Data Description

#### 3.2. Evaluation Index

#### 3.3. Comparable Methods

#### 3.4. Experimental Results

- (1)
- Experiment I: Comparison Between Different Forecasting Methods

- (2)
- Experiment II: Multi-Step Prediction Experiment

- (3)

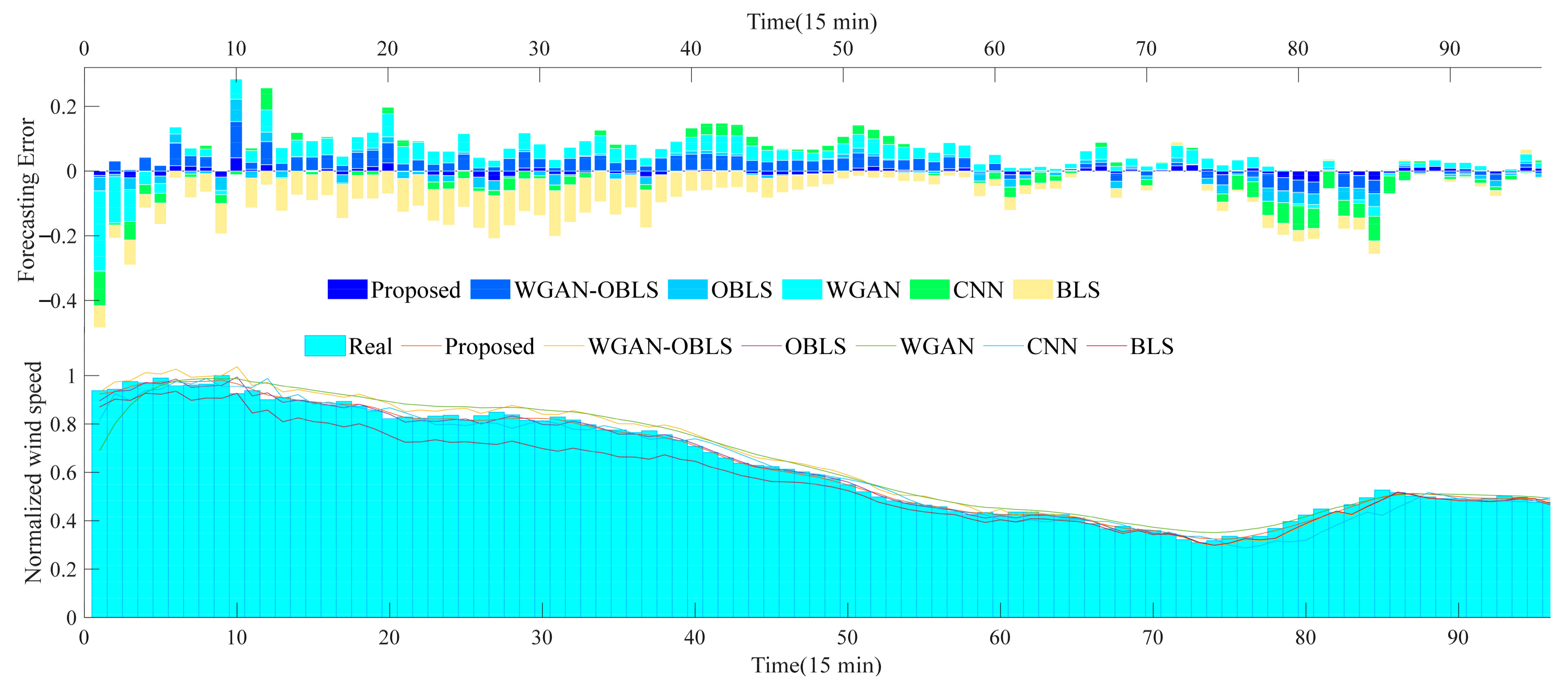

- Experiment III: Ablation Experiment Between Single Models and Hybrid Models.

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

ANFIS | Adaptive-network-based fuzzy inference system |

BLS | Broad learning system |

BP | Back propagation |

CEEMD | Complementary ensemble empirical mode decomposition |

CEEMDAN | Complete ensemble empirical mode decomposition with adaptive noise |

CNN | Convolutional neural network |

EEMD | Ensemble empirical mode decomposition |

EMD | Empirical mode decomposition |

GA | Genetic algorithm |

GMDH | Group method of data handling neural network |

GNN | Graph neural network |

GAN | Generative adversarial network |

GPR | Gaussian process regression |

ICEEMDAN | Improved CEEMDAN |

IMF | Intrinsic mode function |

IOWA | Induced ordered weighted averaging |

LSTM | Long short-term memory |

MAE | Mean absolute error |

MAPE | Mean absolute percentage error |

MTO | Multi-tracker optimizer |

PSO | Particle swarm optimization |

OBLS | Optimized broad learning system |

RBF | Radial basis function |

RMSE | Root mean square error |

SSE | Sum of squared error |

SVR | Support vector regression |

VMD | Variational mode decomposition |

WGAN | Wasserstein generative adversarial network |

## References

- Zhen, Z.; Qiu, G.; Mei, S.; Wang, F.; Zhang, X.; Yin, R.; Li, Y.; Osório, G.J.; Shafie-khah, M.; Catalão, J.P.S. An ultra-short-term wind speed forecasting model based on time scale recognition and dynamic adaptive modeling. Int. J. Electr. Power Energy Syst.
**2022**, 135, 107502. [Google Scholar] [CrossRef] - Wang, F.; Tong, S.; Sun, Y.; Xie, Y.; Zhen, Z.; Li, G.; Cao, C.; Duić, N.; Liu, D. Wind process pattern forecasting based ultra-short-term wind speed hybrid prediction. Energy
**2022**, 255, 124509. [Google Scholar] [CrossRef] - Wang, H.; Han, S.; Liu, Y.; Yan, J.; Li, L. Sequence transfer correction algorithm for numerical weather prediction wind speed and its application in a wind power forecasting system. Appl. Energy
**2019**, 237, 1–10. [Google Scholar] [CrossRef] - Do, D.-P.N.; Lee, Y.; Choi, J. Hourly Average Wind Speed Simulation and Forecast Based on ARMA Model in Jeju Island, Korea. J. Electr. Eng. Technol.
**2016**, 11, 1548–1555. [Google Scholar] [CrossRef] [Green Version] - Yunus, K.; Thiringer, T.; Chen, P. ARIMA-Based Frequency-Decomposed Modeling of Wind Speed Time Series. IEEE Trans. Power Syst.
**2016**, 31, 2546–2556. [Google Scholar] [CrossRef] - Wang, Y.; Wang, H.; Srinivasan, D.; Hu, Q. Robust functional regression for wind speed forecasting based on Sparse Bayesian learning. Renew. Energy
**2019**, 132, 43–60. [Google Scholar] [CrossRef] - Wang, S.; Zhang, N.; Wu, L.; Wang, Y. Wind speed forecasting based on the hybrid ensemble empirical mode decomposition and GA-BP neural network method. Renew. Energy
**2016**, 94, 629–636. [Google Scholar] [CrossRef] - Zhang, Y.; Zhang, C.; Zhao, Y.; Gao, S. Wind speed prediction with RBF neural network based on PCA and ICA. J. Electr. Eng.
**2018**, 69, 148–155. [Google Scholar] [CrossRef] [Green Version] - Son, Y.; Yoon, Y.; Cho, J.; Choi, S. Cloud Cover Forecast Based on Correlation Analysis on Satellite Images for Short-Term Photovoltaic Power Forecasting. Sustainability
**2022**, 14, 4427. [Google Scholar] [CrossRef] - Hameed, S.S.; Ramadoss, R.; Raju, K.; Shafiullah, G.M. A Framework-Based Wind Forecasting to Assess Wind Potential with Improved Grey Wolf Optimization and Support Vector Regression. Sustainability
**2022**, 14, 4235. [Google Scholar] [CrossRef] - Khodayar, M.; Wang, J.; Manthouri, M. Interval Deep Generative Neural Network for Wind Speed Forecasting. IEEE Trans. Smart Grid
**2019**, 10, 3974–3989. [Google Scholar] [CrossRef] - Beigi, M.; Beigi Harchegani, H.; Torki, M.; Kaveh, M.; Szymanek, M.; Khalife, E.; Dziwulski, J. Forecasting of Power Output of a PVPS Based on Meteorological Data Using RNN Approaches. Sustainability
**2022**, 14, 3104. [Google Scholar] [CrossRef] - Khodayar, M.; Wang, J. Spatio-Temporal Graph Deep Neural Network for Short-Term Wind Speed Forecasting. IEEE Trans. Sustain. Energy
**2019**, 10, 670–681. [Google Scholar] [CrossRef] - Zhu, Q.; Chen, J.; Shi, D.; Zhu, L.; Bai, X.; Duan, X.; Liu, Y. Learning Temporal and Spatial Correlations Jointly: A Unified Framework for Wind Speed Prediction. IEEE Trans. Sustain. Energy
**2020**, 11, 509–523. [Google Scholar] [CrossRef] - Zhang, Y.; Pan, G.; Zhang, C.; Zhao, Y. Wind speed prediction research with EMD-BP based on Lorenz disturbance. J. Electr. Eng.
**2019**, 70, 198–207. [Google Scholar] [CrossRef] [Green Version] - Santhosh, M.; Venkaiah, C.; Kumar, D.M.V. Short-term wind speed forecasting approach using Ensemble Empirical Mode Decomposition and Deep Boltzmann Machine. Sustain. Energy Grids Netw.
**2019**, 19, 100242. [Google Scholar] [CrossRef] - Wang, J.; Yang, Z. Ultra-short-term wind speed forecasting using an optimized artificial intelligence algorithm. Renew. Energy
**2021**, 171, 1418–1435. [Google Scholar] [CrossRef] - Ren, Y.; Suganthan, P.N.; Srikanth, N. A Comparative Study of Empirical Mode Decomposition-Based Short-Term Wind Speed Forecasting Methods. IEEE Trans. Sustain. Energy
**2015**, 6, 236–244. [Google Scholar] [CrossRef] - Li, Y.; Chen, X.; Li, C.; Tang, G.; Gan, Z.; An, X. A Hybrid Deep Interval Prediction Model for Wind Speed Forecasting. IEEE Access
**2021**, 9, 7323–7335. [Google Scholar] [CrossRef] - Tian, Z. Modes decomposition forecasting approach for ultra-short-term wind speed. Appl. Soft Comput.
**2021**, 105. [Google Scholar] [CrossRef] - Liu, Z.; Hara, R.; Kita, H. Hybrid forecasting system based on data area division and deep learning neural network for short-term wind speed forecasting. Energy Convers. Manag.
**2021**, 238, 114136. [Google Scholar] [CrossRef] - Cui, Y.; Huang, C.; Cui, Y. A novel compound wind speed forecasting model based on the back propagation neural network optimized by bat algorithm. Environ. Sci. Pollut. Res. Int.
**2020**, 27, 7353–7365. [Google Scholar] [CrossRef] - Duan, J.; Zuo, H.; Bai, Y.; Duan, J.; Chang, M.; Chen, B. Short-term wind speed forecasting using recurrent neural networks with error correction. Energy
**2021**, 217, 119397. [Google Scholar] [CrossRef] - Liu, H.; Yang, R.; Wang, T.; Zhang, L. A hybrid neural network model for short-term wind speed forecasting based on decomposition, multi-learner ensemble, and adaptive multiple error corrections. Renew. Energy
**2021**, 165, 573–594. [Google Scholar] [CrossRef] - Zhang, Y.; Han, J.; Pan, G.; Xu, Y.; Wang, F. A multi-stage predicting methodology based on data decomposition and error correction for ultra-short-term wind energy prediction. J. Clean. Prod.
**2021**, 292, 125981. [Google Scholar] [CrossRef] - Jiang, Y.; Liu, S.; Zhao, N.; Xin, J.; Wu, B. Short-term wind speed prediction using time varying filter-based empirical mode decomposition and group method of data handling-based hybrid model. Energy Convers. Manag.
**2020**, 220, 113076. [Google Scholar] [CrossRef] - Wang, J.; Wang, Y.; Li, Z.; Li, H.; Yang, H. A combined framework based on data preprocessing, neural networks and multi-tracker optimizer for wind speed prediction. Sustain. Energy Technol. Assess.
**2020**, 40, 100757. [Google Scholar] [CrossRef] - Altan, A.; Karasu, S.; Zio, E. A new hybrid model for wind speed forecasting combining long short-term memory neural network, decomposition methods and grey wolf optimizer. Appl. Soft Comput.
**2021**, 100, 106996. [Google Scholar] [CrossRef] - Goodfellow, I.; Pouget-Abadie, J.; Mirza, M. Generative adversarial nets. In Proceedings of the International Conference on Neural Information Processing Systems, Kuching, Malaysia, 8–13 December 2014; pp. 2672–2680. [Google Scholar]
- Torres, M.; Colominas, M.; Schlotthauer, G.; Flandrin, P. A complete ensemble empirical mode decomposition with adaptive noise. In Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Prague, Czech Republic, 22–27 May 2011; pp. 4144–4147. [Google Scholar] [CrossRef]
- Chen, C.L.P.; Liu, Z. Broad Learning System: An Effective and Efficient Incremental Learning System without the Need for Deep Architecture. IEEE Trans. Neural Netw. Learn. Syst.
**2018**, 29, 10–24. [Google Scholar] [CrossRef] - Zhang, Y.; Sun, H.; Guo, Y. Wind Power Prediction Based on PSO-SVR and Grey Combination Model. IEEE Access
**2019**, 7, 136254–136267. [Google Scholar] [CrossRef] - Arjovsky, M.; Chintala, S.; Bottou, L. Wasserstein GAN. arXiv
**2017**, arXiv:1701.07875v3. [Google Scholar] - Dokur, E.; Yuzgec, U.; Kurban, M. Performance Comparison of Hybrid Neuro-Fuzzy Models using Meta-Heuristic Algorithms for Short-Term Wind Speed Forecasting. Electrica
**2021**, 21, 305–321. [Google Scholar] [CrossRef] - Zhang, Y.; Pan, G.; Chen, B.; Han, J.; Zhao, Y.; Zhang, C. Short-term wind speed prediction model based on GA-ANN improved by VMD. Renew. Energy
**2020**, 156, 1373–1388. [Google Scholar] [CrossRef] - Huang, Y.; Liu, S.; Yang, L. Wind Speed Forecasting Method Using EEMD and the Combination Forecasting Method Based on GPR and LSTM. Sustainability
**2018**, 10, 3693. [Google Scholar] [CrossRef] [Green Version] - Tian, Z.; Chen, H. A novel decomposition-ensemble prediction model for ultra-short-term wind speed. Energy Convers. Manag.
**2021**, 248, 114775. [Google Scholar] [CrossRef] - Huang, L.; Li, L.; Wei, X.; Zhang, D. Short-term prediction of wind power based on BiLSTM–CNN–WGAN-GP. Soft Comput.
**2022**, 26, 1–15. [Google Scholar] [CrossRef] - Wang, H.; Yi, H.; Peng, J.; Wang, G.; Liu, Y.; Jiang, H.; Liu, W. Deterministic and probabilistic forecasting of photovoltaic power based on deep convolutional neural network. Energy Convers. Manag.
**2017**, 153, 409–422. [Google Scholar] [CrossRef]

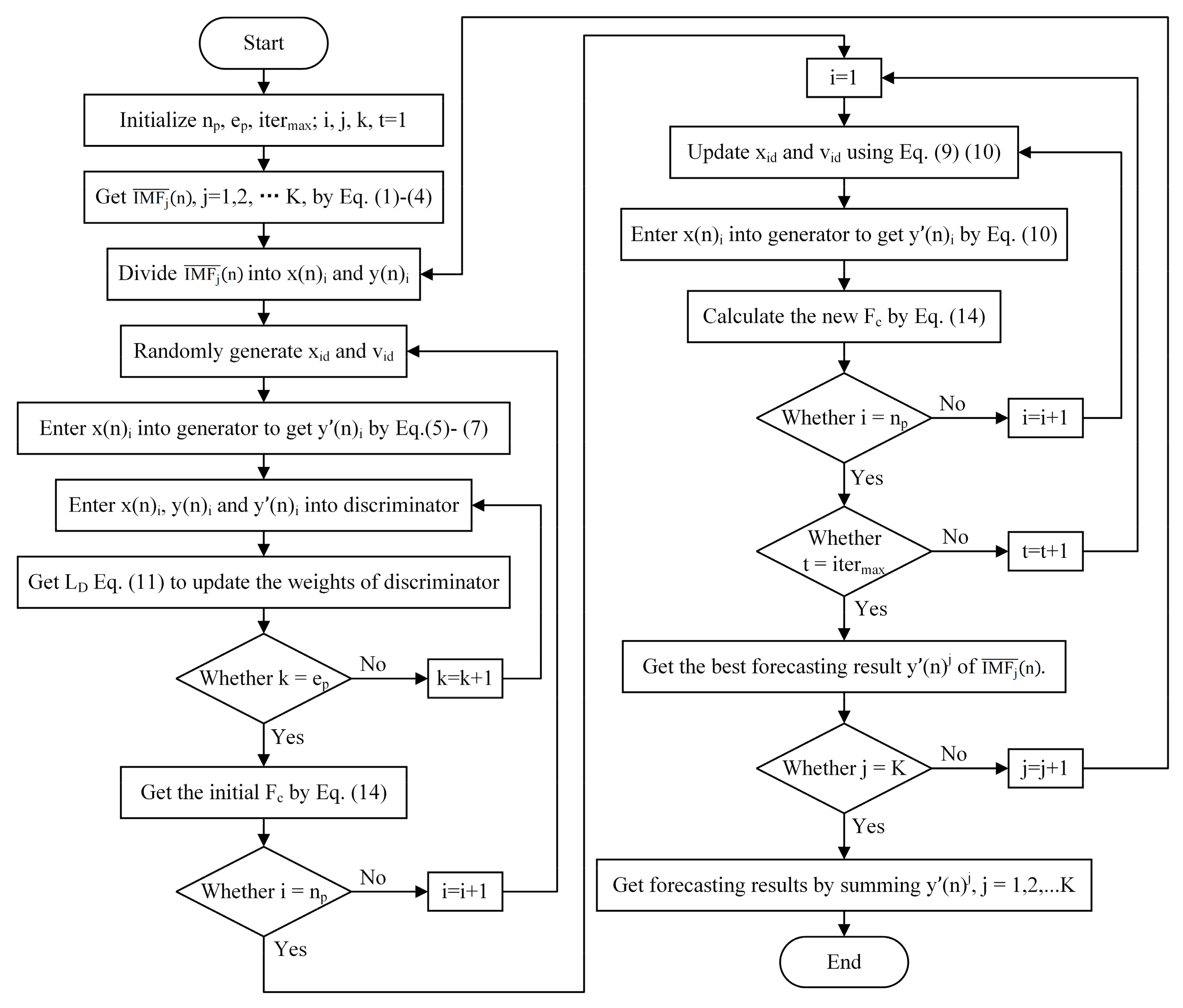

**Figure 1.**The proposed short-term wind speed forecasting framework. In the data processing step, CEEMDAN turns the wind data into multiple modalities. The HGANN network consisting of a generator and discriminator predicts these modalities. The final wind speed prediction result can then be obtained by stacking the prediction results of all modalities.

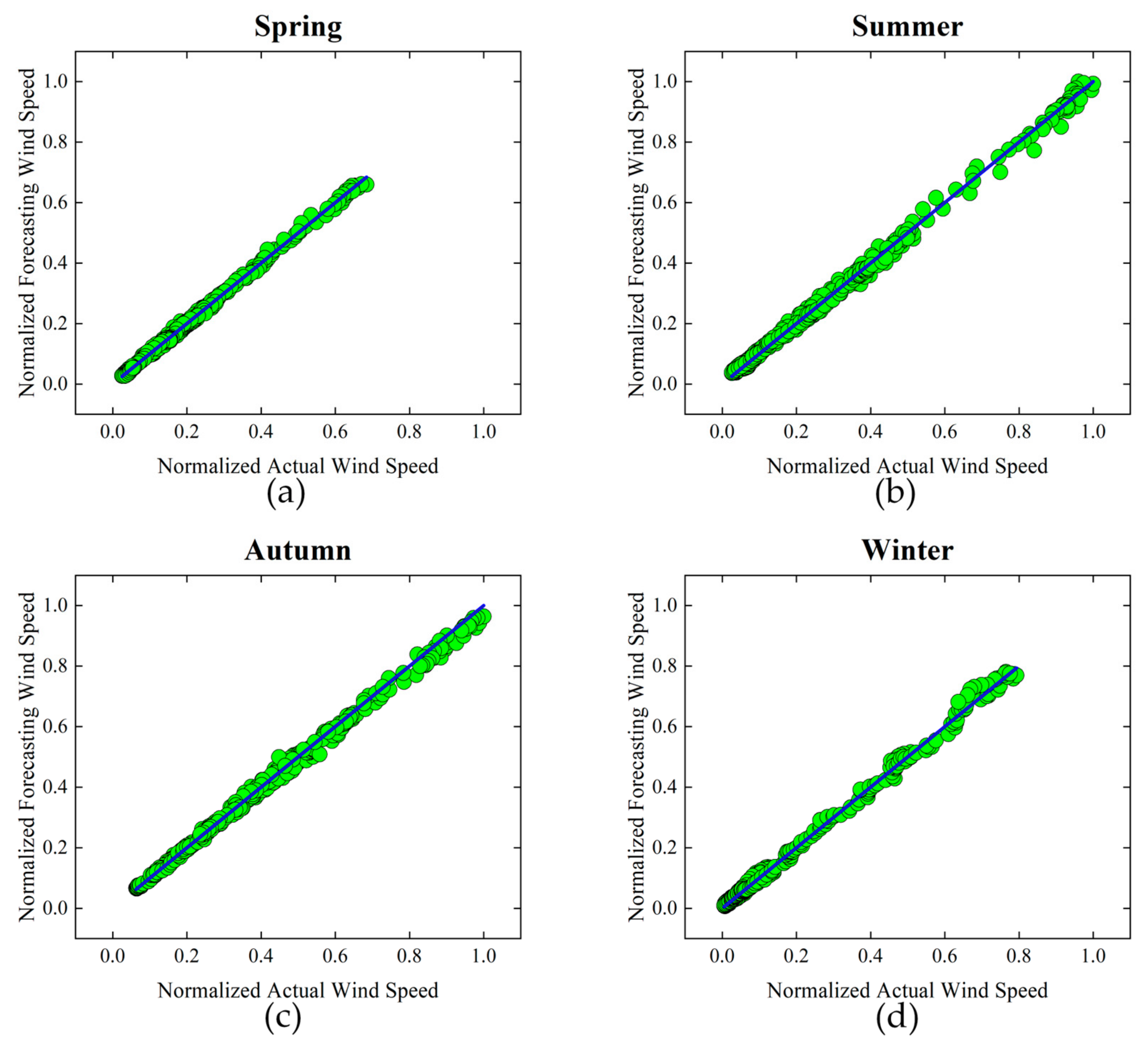

**Figure 4.**Forecasting results of HER wind speed data sets: (

**a**) experiment results of spring wind speed sequences; (

**b**) experiment results of summer wind speed sequences; (

**c**) experiment results of autumn wind speed sequences; (

**d**) experiment results of winter wind speed sequences.

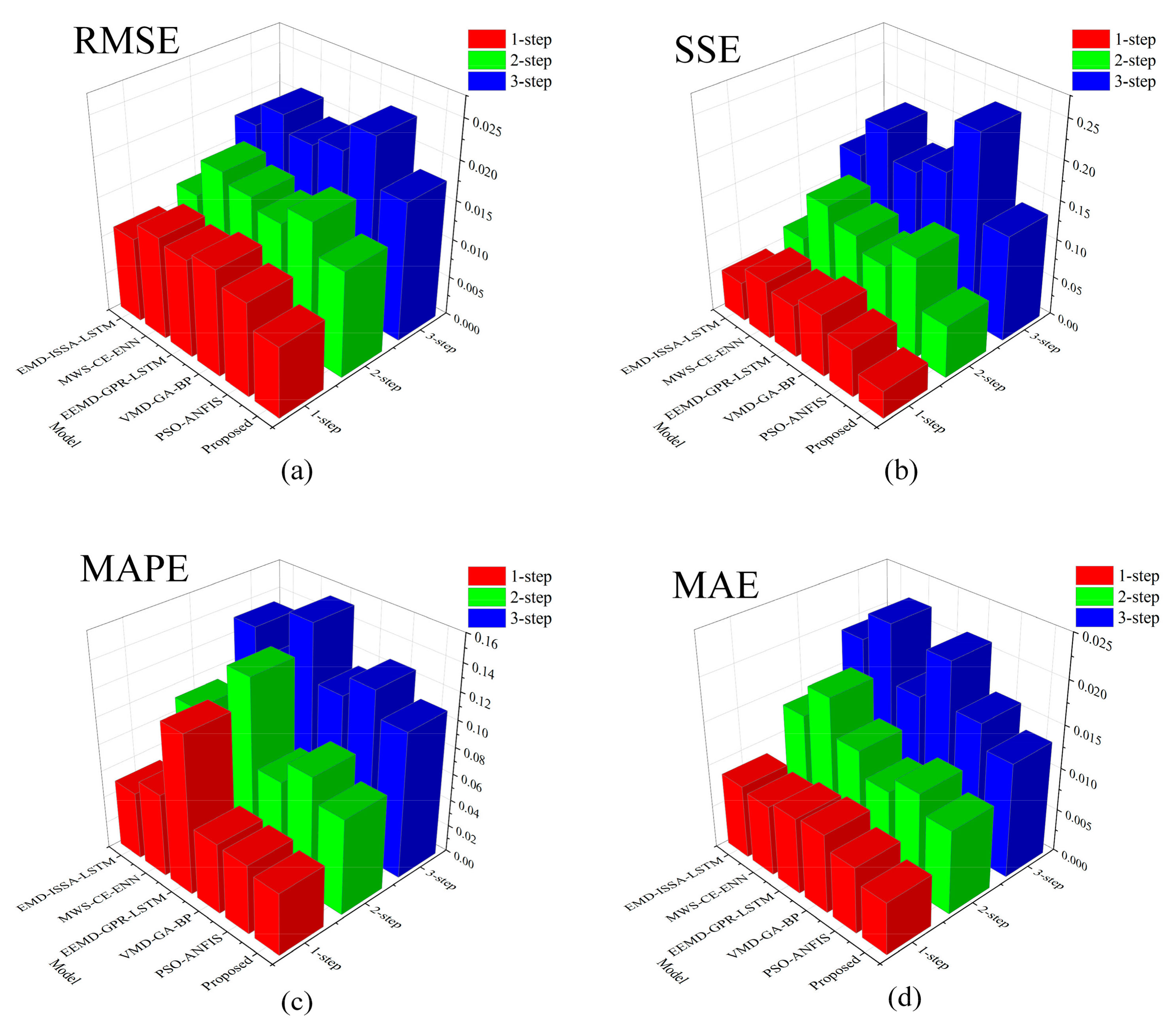

**Figure 5.**Multi-step forecasting experiments under RMSE, SSE, MAPE, and MAE indicators: (

**a**) experiment results on the RMSE indicator; (

**b**) experiment results on the SSE indicator; (

**c**) experiment results on the MAPE indicator; (

**d**) experiment results on the MAE indicator.

Season | Mean (m/s) | Median (m/s) | Max (m/s) | Min (m/s) | Standard Deviation (m/s) |
---|---|---|---|---|---|

HER data | |||||

Spring | 1.89 | 1.53 | 7.25 | 0.03 | 1.47 |

Summer | 0.82 | 0.63 | 4.27 | 0 | 0.75 |

Autumn | 1.23 | 0.83 | 6.65 | 0 | 1.19 |

Winter | 1.90 | 1.60 | 5.68 | 0.07 | 1.35 |

MHS data | |||||

Spring | 5.78 | 5.70 | 16.50 | 0.40 | 2.25 |

Summer | 5.46 | 5.45 | 12.50 | 0.40 | 2.21 |

Autumn | 5.18 | 5.20 | 16.50 | 0.40 | 2.33 |

Winter | 4.50 | 4.27 | 14.07 | 0 | 2.28 |

Model | Parameter Setting |
---|---|

PSO-ANFIS | $ite{r}_{max}$$=300,{n}_{p}$$=40,{c}_{1}$$=1.0,{c}_{2}$$=2.0,{n}_{r}$$=4,{n}_{v}$= 52 |

VMD-GA-BP | $k$$=11,ite{r}_{max}$$=150,{e}_{p}$$=100,{n}_{p}$$=40,{l}_{r}$$=0.1,{n}_{b1}$= 9 |

EEMD-GPR-LSTM | $k$$=11,{e}_{p}$$=200,{n}_{b1}$$=100,{n}_{b2}$$=100,{s}_{1}$$=50,\sigma $= 20 |

MWS-CE-ENN | ${e}_{p}$$=1000,{l}_{r}$$=0.1,{p}_{r}$$=0.000001,{n}_{p}$$=40,{n}_{i}$$=5,{n}_{b1}$$=6,{n}_{o}$$=1,ite{r}_{max}$$=100,{n}_{std}$= 0.2 |

EMD-ISSA-LSTM | ${e}_{p}$$=100,{l}_{r}$$=0.005,{n}_{p}$$=10,ite{r}_{max}$$=20,{v}_{e}$$=0.6,{p}_{d}$$=0.7,{p}_{e}$= 0.2 |

Proposed Model | ${n}_{std}$$=0.01,{n}_{p}$$=40,ite{r}_{max}$$=100,{c}_{1}$$=1.5,{c}_{2}$$=1.5,{e}_{p}$$=50,{l}_{r}$$=0.002,\mathsf{\lambda}$$={10}^{-30},{n}_{b1}$$=48,{n}_{b2}$$=96,{n}_{b3}$= 384 |

Season | Metrics | Proposed Model | PSO-ANFIS | VMD-GA-BP | EEMD-GPR-LSTM | MWS-CE-ENN | EMD-ISSA-LSTM |
---|---|---|---|---|---|---|---|

Spring | RMSE | 0.0065 | 0.0092 | 0.0128 | 0.0105 | 0.0093 | 0.0131 |

SSE | 0.0180 | 0.0365 | 0.0817 | 0.0471 | 0.0370 | 0.0737 | |

MAPE | 0.0300 | 0.0402 | 0.0732 | 0.0493 | 0.0632 | 0.0536 | |

MAE | 0.0048 | 0.0068 | 0.0108 | 0.0083 | 0.0071 | 0.0096 | |

Summer | RMSE | 0.0112 | 0.0172 | 0.0134 | 0.0126 | 0.0152 | 0.0117 |

SSE | 0.0537 | 0.1279 | 0.0768 | 0.0679 | 0.0989 | 0.0586 | |

MAPE | 0.0420 | 0.0641 | 0.0632 | 0.0596 | 0.0730 | 0.0500 | |

MAE | 0.0081 | 0.0123 | 0.0099 | 0.0114 | 0.0119 | 0.0093 | |

Autumn | RMSE | 0.0088 | 0.0120 | 0.0137 | 0.0126 | 0.0132 | 0.0204 |

SSE | 0.0331 | 0.0615 | 0.0806 | 0.0676 | 0.0746 | 0.1779 | |

MAPE | 0.0422 | 0.0514 | 0.0524 | 0.1177 | 0.0619 | 0.0851 | |

MAE | 0.0059 | 0.0077 | 0.0092 | 0.0089 | 0.0082 | 0.0129 | |

Winter | RMSE | 0.0063 | 0.0090 | 0.0067 | 0.0093 | 0.0104 | 0.0086 |

SSE | 0.0172 | 0.0354 | 0.0190 | 0.0370 | 0.0463 | 0.0317 | |

MAPE | 0.0575 | 0.0880 | 0.0683 | 0.0722 | 0.0923 | 0.0620 | |

MAE | 0.0043 | 0.0064 | 0.0047 | 0.0069 | 0.0073 | 0.0056 |

Season | Metrics | Proposed Model | PSO-ANFIS | VMD-GA-BP | EEMD-GPR-LSTM | MWS-CE-ENN | EMD-ISSA-LSTM |
---|---|---|---|---|---|---|---|

Spring | RMSE | 0.0237 | 0.0344 | 0.0264 | 0.0276 | 0.0339 | 0.0291 |

SSE | 0.2404 | 0.5054 | 0.2977 | 0.3250 | 0.4918 | 0.3624 | |

MAPE | 0.0724 | 0.0830 | 0.1007 | 0.1055 | 0.0990 | 0.0866 | |

MAE | 0.0146 | 0.0244 | 0.0187 | 0.0198 | 0.0229 | 0.0203 | |

Summer | RMSE | 0.0156 | 0.0267 | 0.0179 | 0.0205 | 0.0189 | 0.0236 |

SSE | 0.0104 | 0.3045 | 0.1375 | 0.1799 | 0.1529 | 0.2384 | |

MAPE | 0.0433 | 0.0857 | 0.0588 | 0.0697 | 0.0680 | 0.0765 | |

MAE | 0.0110 | 0.0200 | 0.0136 | 0.0171 | 0.0149 | 0.0192 | |

Autumn | RMSE | 0.0166 | 0.0245 | 0.0190 | 0.0183 | 0.0214 | 0.0262 |

SSE | 0.1179 | 0.2570 | 0.1543 | 0.1433 | 0.1960 | 0.2937 | |

MAPE | 0.0410 | 0.0641 | 0.0505 | 0.0439 | 0.0762 | 0.0658 | |

MAE | 0.0131 | 0.0185 | 0.0149 | 0.0137 | 0.0170 | 0.0211 | |

Winter | RMSE | 0.0266 | 0.0394 | 0.0309 | 0.0325 | 0.0286 | 0.0312 |

SSE | 0.3034 | 0.6645 | 0.4075 | 0.4521 | 0.3501 | 0.4166 | |

MAPE | 0.0828 | 0.1698 | 0.1540 | 0.1215 | 0.0937 | 0.1200 | |

MAE | 0.0190 | 0.0284 | 0.0228 | 0.0276 | 0.0193 | 0.0257 |

Model | RMSE | SSE | MAPE | MAE | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

1-Step | 2-Step | 3-Step | 1-Step | 2-Step | 3-Step | 1-Step | 2-Step | 3-Step | 1-Step | 2-Step | 3-Step | |

Proposed | 0.0091 | 0.0136 | 0.0178 | 0.0356 | 0.0679 | 0.1361 | 0.0463 | 0.0712 | 0.1087 | 0.0061 | 0.0098 | 0.0134 |

PSO-ANFIS | 0.0120 | 0.0174 | 0.0238 | 0.0615 | 0.1299 | 0.2428 | 0.0514 | 0.0885 | 0.1270 | 0.0077 | 0.0119 | 0.0161 |

VMD-GA-BP | 0.0137 | 0.0151 | 0.0203 | 0.0806 | 0.0976 | 0.1764 | 0.0524 | 0.0721 | 0.1123 | 0.0092 | 0.0101 | 0.0213 |

EEMD-GPR-LSTM | 0.0126 | 0.0164 | 0.0192 | 0.0676 | 0.1151 | 0.1578 | 0.1177 | 0.1353 | 0.1536 | 0.0089 | 0.0129 | 0.0157 |

MWS-CE-ENN | 0.0132 | 0.0176 | 0.0213 | 0.0746 | 0.1326 | 0.1942 | 0.0619 | 0.0826 | 0.1121 | 0.0082 | 0.0172 | 0.0224 |

EMD-ISSA-LSTM | 0.0109 | 0.0139 | 0.0183 | 0.0508 | 0.0827 | 0.1433 | 0.0503 | 0.0919 | 0.1325 | 0.0086 | 0.0134 | 0.0192 |

Indicators | Proposed Model | WGAN-OBLS | OBLS | WGAN | CNN | BLS |
---|---|---|---|---|---|---|

RMSE | 0.0088 | 0.0119 | 0.0122 | 0.0138 | 0.0221 | 0.0308 |

SSE | 0.0331 | 0.0603 | 0.0642 | 0.0819 | 0.2090 | 0.4058 |

MAPE | 0.0422 | 0.0506 | 0.0546 | 0.0571 | 0.0601 | 0.0648 |

MAE | 0.0059 | 0.0076 | 0.0080 | 0.0086 | 0.0161 | 0.0164 |
