# Quantitative Analysis of Infrared Thermal Images in Rock Fractures Based on Multi-Fractal Theory

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Process and Analysis Method

#### 2.1. Materials and Experimental System

^{3}. In order to ensure the homogeneity of the samples, the P-wave velocity of the samples was tested. The wave velocities of all samples are about 3.51 km/s and the homogeneity between samples is good.

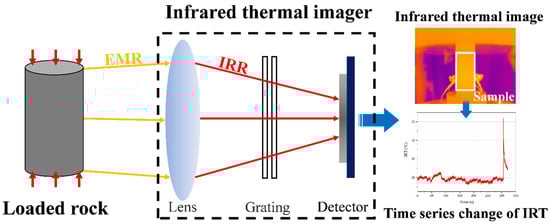

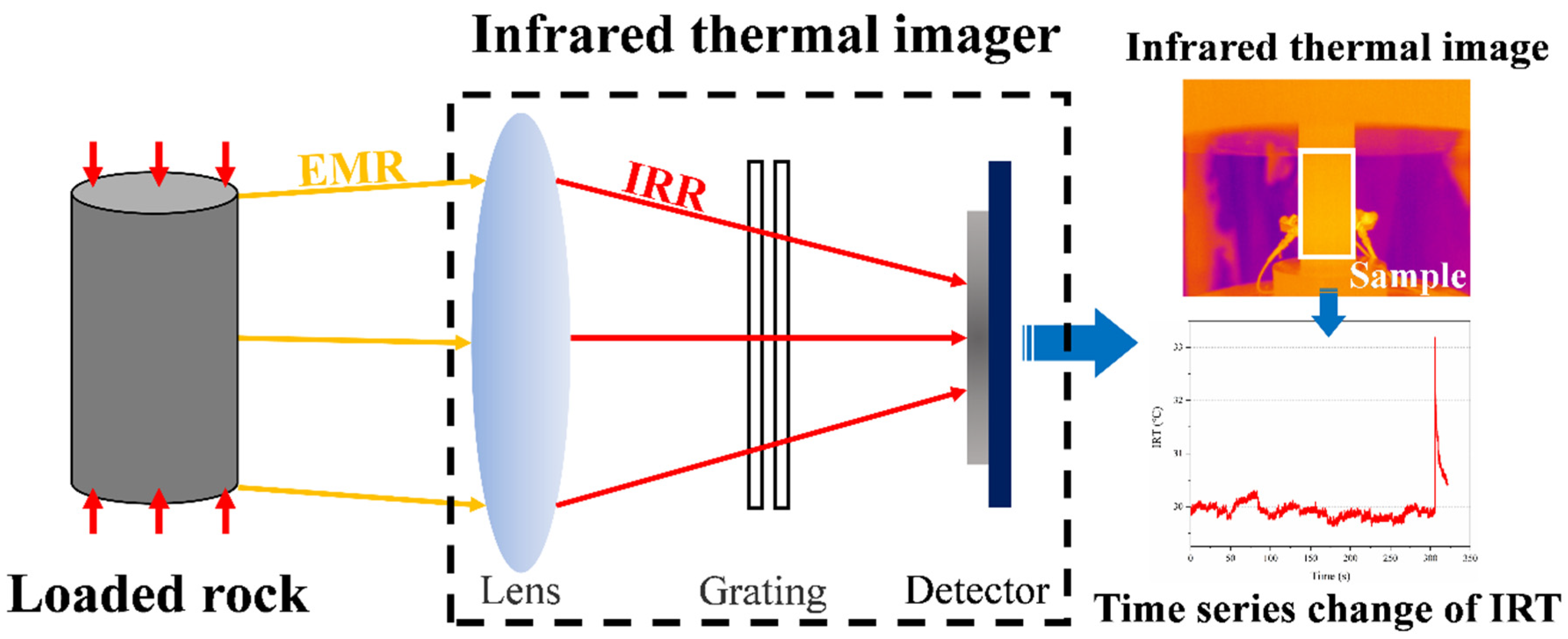

#### 2.2. IRR Principle of Rock Fracture

#### 2.3. Multi-Fractal Theory

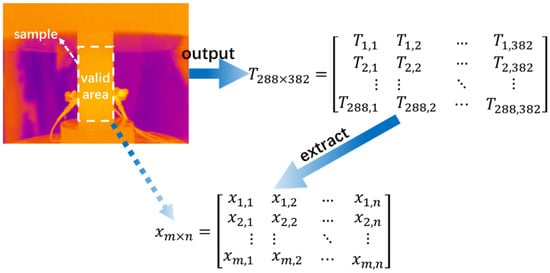

_{288×382}with the size of 288 × 382. The IRT matrix x

_{m×n}at the sample position (valid area) is extracted by MATLAB software, and the multi-fractal characteristics of the data in the matrix are analyzed according to the literature [38,39].

_{m×n}is divided into boxes of size $k\times k$. The probability density of the box subset (i, j) is $\left\{{P}_{ij}\left(k\right)\right\}$. The probability distribution $\left\{{P}_{ij}\left(k\right)\right\}$ is calculated for each subset:

## 3. Analysis and Discussion of Experimental Results

#### 3.1. Time Series Change in IRT

#### 3.2. Multi-Fractal Analysis of Infrared Thermal Images

_{1}-e

_{1}, a

_{2}-e

_{2}) were selected. The positions of different time points are shown in Figure 3. The multi-fractal characteristics of IRT field data at each time were calculated. Figure 4 and Figure 5a show the calculation results of sample S-1. The infrared thermal images in all the figures were redrawn by Surfer software. At the time of a

_{1}(47.03 s), the $\Delta \alpha $ is low, meaning that the degree of non-uniformity of the infrared temperature field data distribution is small, and $\Delta f$ is close to 0. With the loading process, the infrared temperature field changes as a whole. At the time of b

_{1}(190.88 s), the values of $\Delta \alpha $ and $\Delta f$ show little change. At c

_{1}(343.45 s), the loading is close to the peak stress of the specimen, and a macro fracture occurs. The temperature field of the surface is in the abnormally high-temperature region and develops continuously. At d

_{1}(345.73 s), the sample is destroyed, and there is an obvious shear fracture zone on the surface and some rock blocks fall off in the tensile fracture zone. The MaxIRT of the fracture zone is 31.16 °C and the temperature of the falling off area is the temperature of the background environment. In the process of c

_{1}-d

_{1}, the difference in infrared temperature distribution on the surface of samples gradually increases and $\Delta \alpha $ increases. The performance of high temperature data is gradually dominant, so $\Delta f$ decreases. e

_{1}(350.79 s) is the moment after the failure of the sample, at which time the temperature decreases, but the difference in the temperature distribution is still significant.

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Ortlepp, W.D.; Stacey, T.R. Rockburst mechanisms in tunnels and shafts. Tunn. Undergr. Space Technol.
**1994**, 9, 59–65. [Google Scholar] [CrossRef] - He, M.C.; Ren, F.Q.; Liu, D.Q. Rockburst mechanism research and its control. Int. J. Min. Sci. Technol.
**2018**, 28, 829–837. [Google Scholar] [CrossRef] - Feng, X.J.; Ding, Z.; Ju, Y.Q.; Zhang, Q.M.; Ali, M. “Double Peak” of dynamic strengths and acoustic emission responses of coal masses under dynamic loading. Nat. Resour. Res.
**2022**, 31, 1705–1720. [Google Scholar] [CrossRef] - Feng, X.J.; Ding, Z.; Hu, Q.J.; Zhao, X.; Ali, M.; Banquando, J.T. Orthogonal numerical analysis of deformation and failure characteristics of deep roadway in coal mines: A case study. Minerals
**2022**, 12, 185. [Google Scholar] [CrossRef] - Li, H.R.; Qiao, Y.F.; Shen, R.X.; He, M.C.; Cheng, T.; Xiao, Y.M.; Tang, J. Effect of water on mechanical behavior and acoustic emission response of sandstone during loading process: Phenomenon and mechanism. Eng. Geol.
**2021**, 294, 106386. [Google Scholar] [CrossRef] - Li, H.; Shen, R.; Wang, E.; Li, D.; Li, T.; Chen, T.; Hou, Z. Effect of water on the time-frequency characteristics of electromagnetic radiation during sandstone deformation and fracturing. Eng. Geol.
**2020**, 265, 105451. [Google Scholar] [CrossRef] - Li, H.R.; Qiao, Y.F.; Shen, R.X.; He, M.C. Electromagnetic radiation signal monitoring and multi-fractal analysis during uniaxial compression of water-bearing sandstone. Measurement
**2022**, 196, 111245. [Google Scholar] [CrossRef] - Shen, R.; Li, H.; Wang, E.; Chen, T.; Li, T.; Tian, H.; Hou, Z. Infrared radiation characteristics and fracture precursor information extraction of loaded sandstone samples with varying moisture contents. Int. J. Rock Mech. Min. Sci.
**2020**, 130, 104344. [Google Scholar] [CrossRef] - Khan, N.M.; Ma, L.Q.; Cao, K.W.; Hussain, S.; Liu, W.; Xu, Y.J. Infrared radiation characteristics based rock failure indicator index for acidic mudstone under uniaxial loading. Arab. J. Geosci.
**2022**, 15, 343. [Google Scholar] [CrossRef] - Cao, K.W.; Ma, L.Q.; Wu, Y.; Spearing, A.J.M.; Khan, N.M.; Hussain, S.; Rehman, F.U. Statistical damage model for dry and saturated rock under uniaxial loading based on infrared radiation for possible stress prediction. Eng. Fract. Mech.
**2022**, 260, 108134. [Google Scholar] [CrossRef] - Tian, H.; Li, Z.H.; Shen, X.F.; Zang, Z.S.; Song, J.J.; Zhang, Q.C. Identification method of infrared radiation precursor information of coal sample failure and instability under uniaxial compression. Infrared Phys. Technol.
**2021**, 119, 103957. [Google Scholar] [CrossRef] - Luong, M.P. Infrared thermovision of damage processes in concrete and rock. Eng. Fract. Mech.
**1990**, 35, 291–301. [Google Scholar] [CrossRef] - Freund, F.T.; Takeuchi, A.; Lau, B.W.S.; Al-Manaseer, A.; Fu, C.C.; Bryant, N.A.; Ouzounov, D. Stimulated infrared emission from rocks: Assessing a stress indicator. Earth
**2006**, 2, 7–16. [Google Scholar] - Wang, C.L.; Lu, Z.J.; Liu, L.; Chuai, X.S.; Lu, H. Predicting points of the infrared precursor for limestone failure under uniaxial compression. Int. J. Rock Mech. Min. Sci.
**2016**, 88, 34–43. [Google Scholar] [CrossRef] - Gornyi, V.I.; Salman, A.G.; Tronin, A.A.; Shilin, B.V. Terrestrial outgoing infrared radiation as an indicator of seismic activity. Proc. Acad. Sci. USSR
**1988**, 301, 67–69. [Google Scholar] - Sun, X.M.; Xu, H.C.; He, M.C.; Zhang, F. Experimental investigation of the occurrence of rockburst in a rock specimen through infrared thermography and acoustic emission. Int. J. Rock Mech. Min. Sci.
**2017**, 93, 250–259. [Google Scholar] [CrossRef] - He, M.C.; Jia, X.N.; Gong, W.L.; Faramarzi, L. Physical modeling of an underground roadway excavation in vertically stratified rock using infrared thermography. Int. J. Rock Mech. Min. Sci.
**2010**, 47, 1212–1221. [Google Scholar] [CrossRef] - Pappalardo, G.; Mineo, S.; Angrisani, A.C.; Di Martire, D.; Calcaterra, D. Combining field data with infrared thermography and DInSAR surveys to evaluate the activity of landslides: The case study of Randazzo Landslide (NE Sicily). Landslides
**2018**, 15, 2173–2193. [Google Scholar] [CrossRef] - Deng, M.D.; Cui, C.Y.; Geng, N.G.; Zhi, Y.Q. Study on the infrared waveband radiation characteristics of rocks. J. Infrared Millim. Waves
**1994**, 13, 425–430. [Google Scholar] - Deng, M.D.; Geng, N.G.; Cui, C.Y.; Zhi, Y.Q. The rule and characteristics of infrared radiation temperature along with stress of rock and their relation to AE rate. Northwestern Seismol. J.
**1995**, 17, 79–86. [Google Scholar] - Wu, L.X.; Wang, J.Z. Infrared radiation features of coal and rocks under loading. Int. J. Rock Mech. Min. Sci.
**1998**, 35, 969–976. [Google Scholar] [CrossRef] - Wu, L.X.; Cui, C.Y.; Geng, N.G.; Wang, J.Z. Remote sensing rock mechanics (RSRM) and associated experimental studies. Int. J. Rock Mech. Min. Sci.
**2000**, 37, 879–888. [Google Scholar] [CrossRef] - Wu, L.X.; Liu, S.J.; Wu, Y.H.; Wang, C.Y. Precursors for rock fracturing and failure—Part I: IRR image abnormalities. Int. J. Rock Mech. Min. Sci.
**2006**, 43, 473–482. [Google Scholar] [CrossRef] - Wu, L.X.; Liu, S.J.; Wu, Y.H.; Wang, C.Y. Precursors for rock fracturing and failure—Part II: IRR T-Curve abnormalities. Int. J. Rock Mech. Min. Sci.
**2006**, 43, 483–493. [Google Scholar] [CrossRef] - Freund, F.T. Rocks that crackle and sparkle and glow: Strange pre-earthquake phenomena. J. Sci. Explor.
**2003**, 17, 37–71. [Google Scholar] - Cao, K.W.; Ma, L.Q.; Zhang, D.S.; Lai, X.P.; Zhang, Z.T.; Khan, N.M. An experimental study of infrared radiation characteristics of sandstone in dilatancy process. Int. J. Rock Mech. Min. Sci.
**2020**, 136, 104503. [Google Scholar] [CrossRef] - Ma, L.Q.; Khan, N.M.; Cao, K.W.; Rehman, H.; Salman, S.; Rehman, F.U. Prediction of sandstone dilatancy point in different water contents using infrared radiation characteristic: Experimental and machine learning approaches. Lithosphere
**2021**, 2021, 3243070. [Google Scholar] [CrossRef] - Li, Z.; Yin, S.; Niu, Y.; Cheng, F.; Liu, S.; Kong, Y.; Sun, Y.; Wei, Y. Experimental study on the infrared thermal imaging of a coal fracture under the coupled effects of stress and gas. J. Nat. Gas Sci. Eng.
**2018**, 55, 444–451. [Google Scholar] [CrossRef] - Liu, S.J.; Wei, J.L.; Huang, J.W.; Wu, L.X.; Zhang, Y.B.; Tian, B.Z. Quantitative analysis methods of infrared radiation temperature field variation in rock loading process. Chin. J. Rock Mech. Eng.
**2015**, 34, 2968–2976. [Google Scholar] - Ma, L.Q.; Zhang, Y.; Cao, K.W.; Wang, Z.W. An experimental study on infrared radiation characteristics of sandstone samples under uniaxial loading. Rock Mech. Rock Eng.
**2019**, 52, 3493–3500. [Google Scholar] [CrossRef] - Liu, W.; Ma, L.Q.; Sun, H.; Khan, N.M. Using the characteristics of infrared radiation b-value during the rock fracture process to offer a precursor for serious failure. Infrared Phys. Technol.
**2021**, 114, 103644. [Google Scholar] [CrossRef] - Mandelbrot, B.B.; Passoja, D.E.; Paullay, A.J. Fractal Character of fracture surfaces of metals. Nature
**1984**, 308, 721–722. [Google Scholar] [CrossRef] - Qiu, L.; Song, D.; He, X.; Wang, E.; Li, Z.; Yin, S.; Wei, M.; Liu, Y. Multifractal of electromagnetic waveform and spectrum about coal rock samples subjected to uniaxial compression. Fractals
**2020**, 28, 2050061. [Google Scholar] [CrossRef] - Kong, X.; Wang, E.; Li, S.; Lin, H.; Xiao, P.; Zhang, K. Fractals and chaos characteristics of acoustic emission energy about gas-bearing coal during loaded failure. Fractals
**2019**, 27, 1950072. [Google Scholar] [CrossRef] - Kong, B.; Wang, E.Y.; Li, Z.H.; Lu, W. Study on the feature of electromagnetic radiation under coal oxidation and temperature rise based on multifractal theory. Fractals
**2019**, 27, 1950038. [Google Scholar] [CrossRef] - Cai, X.; Zhou, Z.; Tan, L.; Zang, H.; Song, Z. Water saturation effects on thermal infrared radiation features of rock materials during deformation and fracturing. Rock Mech. Rock Eng.
**2020**, 53, 4839–4856. [Google Scholar] [CrossRef] - Luong, M.P. Introducing infrared thermography in soil dynamics. Infrared Phys. Technol.
**2007**, 49, 306–311. [Google Scholar] [CrossRef] - Feng, J.J.; Wang, E.Y.; Huang, Q.S.; Ding, H.; Dang, L. Time-varying multifractal analysis of crack propagation and internal fracture process of coal under dynamic loading. Fractals
**2021**, 29, 2150089. [Google Scholar] [CrossRef] - Li, H.; Shen, R.; Li, D.; Jia, H.; Li, T.; Chen, T.; Hou, Z. Acoustic emission multi-parameter analysis of dry and saturated sandstone with cracks under uniaxial compression. Energies
**2019**, 12, 1959. [Google Scholar] [CrossRef] [Green Version]

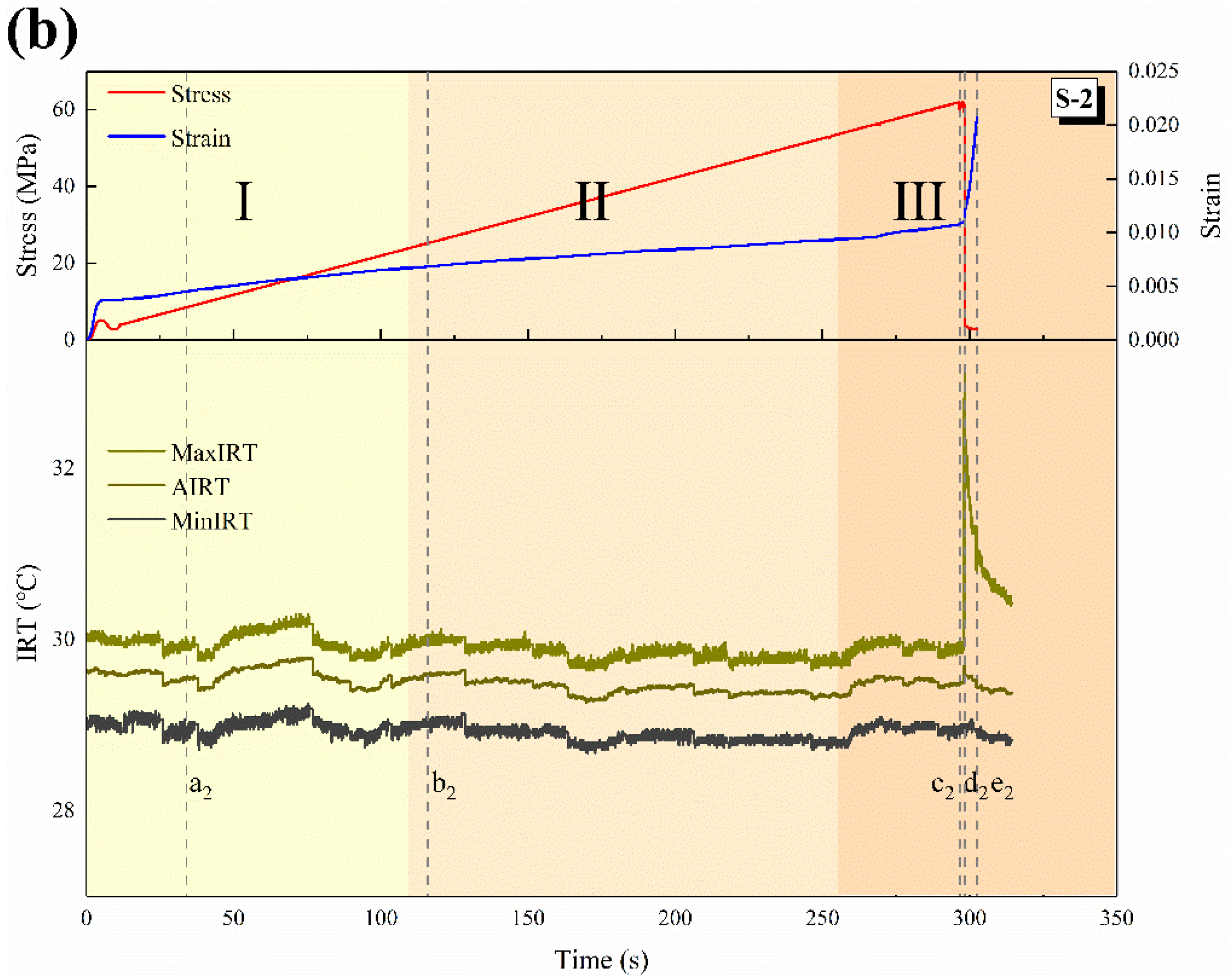

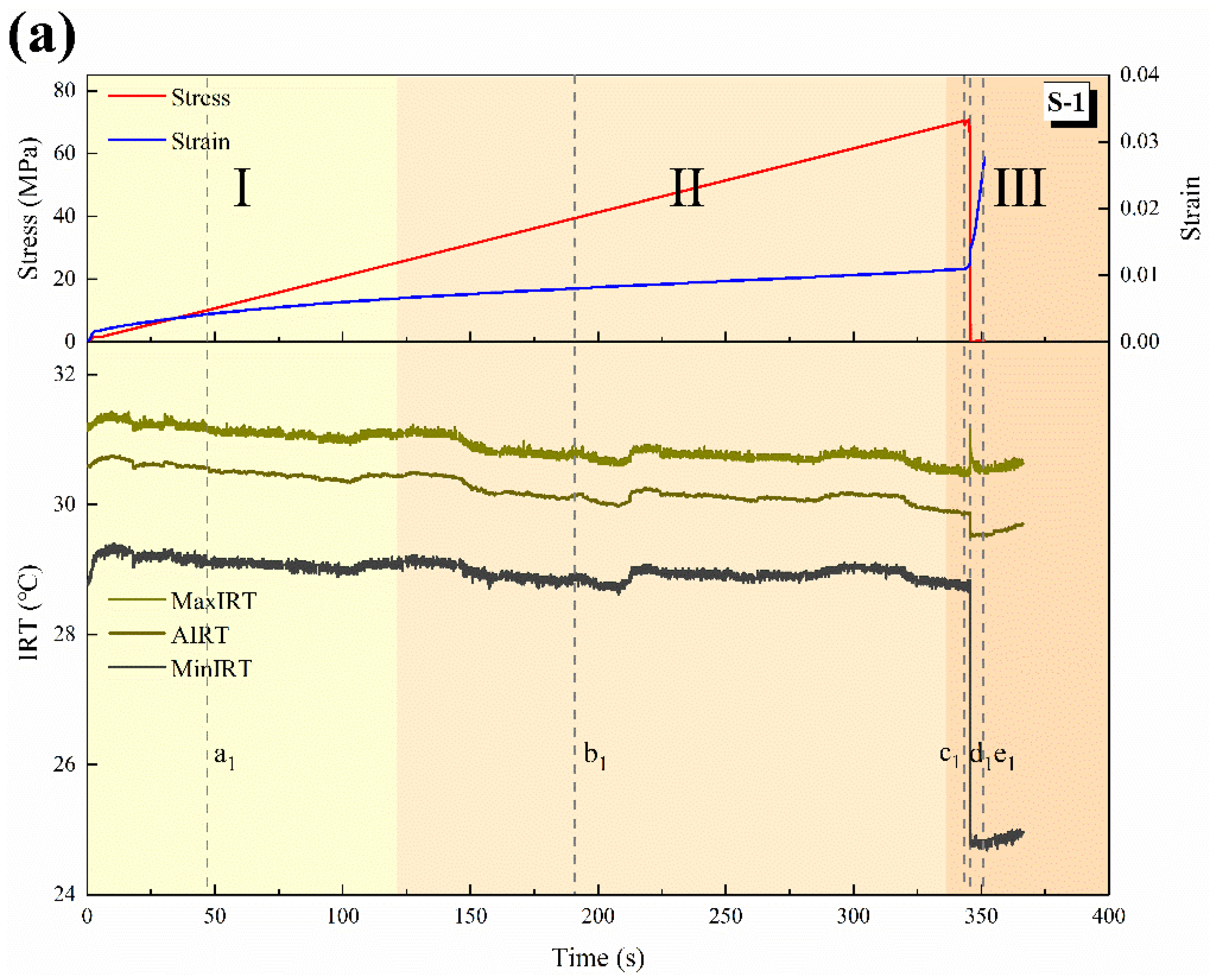

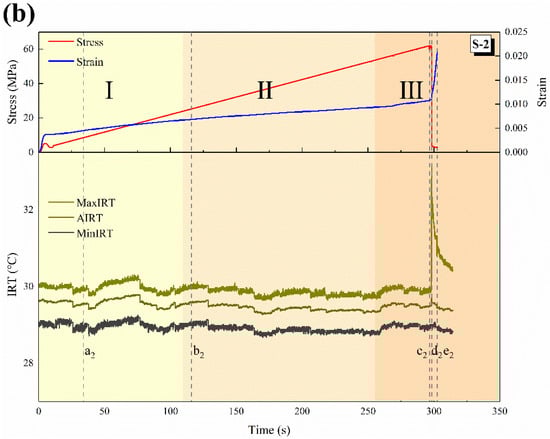

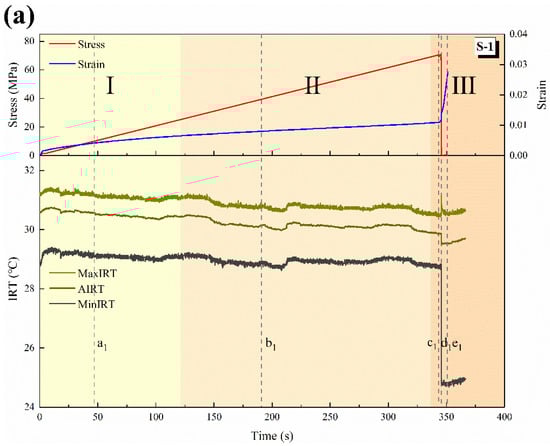

**Figure 3.**Time series change in IRT: (

**a**) S-1; (

**b**) S-2. (Different color blocks distinguish stage I, II and III).

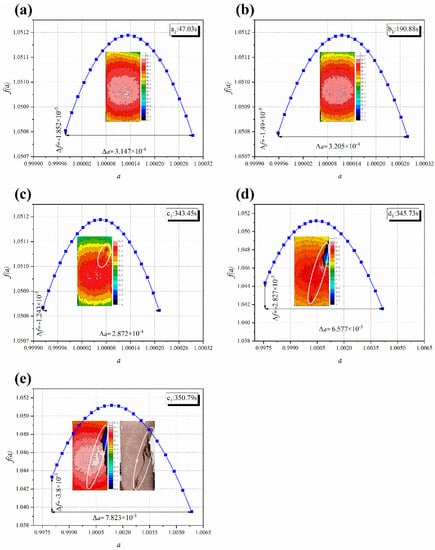

**Figure 4.**Multi-fractal features of infrared thermal images at different time points of S-1: (

**a**) a

_{1}; (

**b**) b

_{1}; (

**c**) c

_{1}; (

**d**) d

_{1}; (

**e**) e

_{1}.

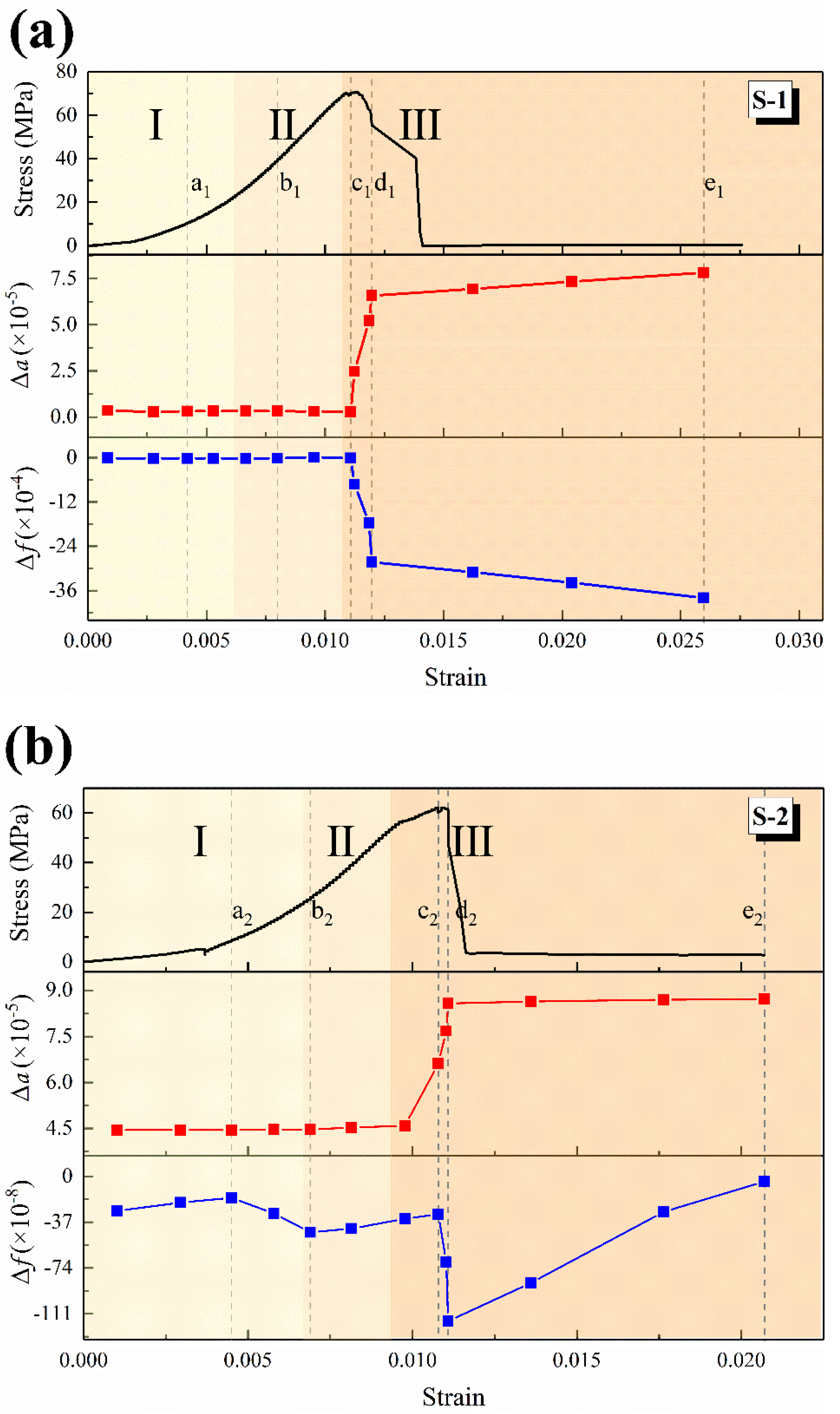

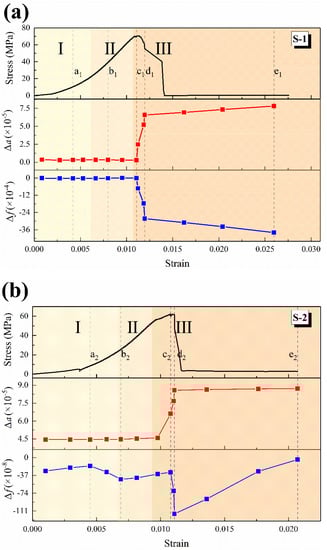

**Figure 5.**Dynamic changes of multi-fractal indicators of infrared thermal image: (

**a**) S-1; (

**b**) S-2. (Different color blocks distinguish stage I, II and III).

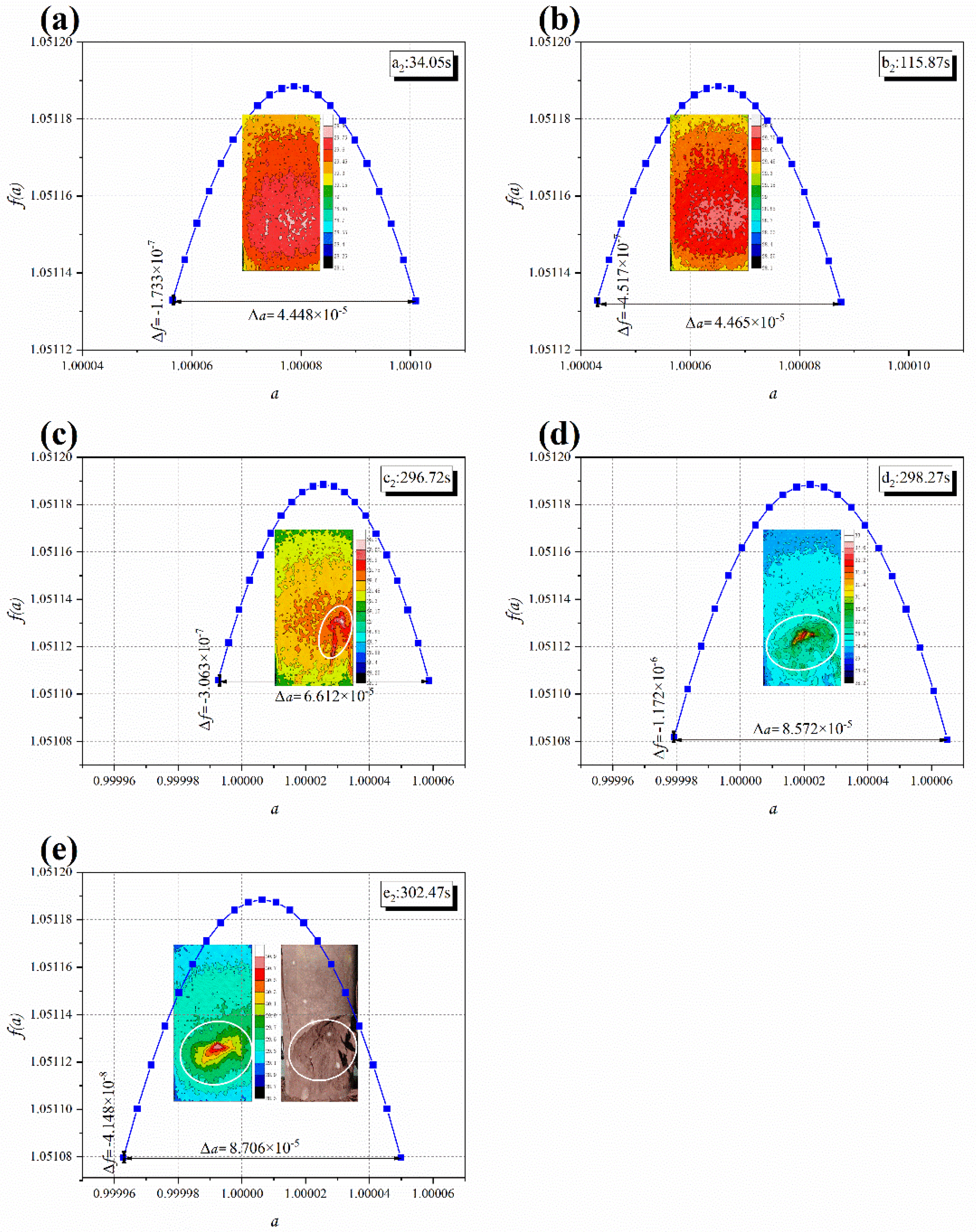

**Figure 6.**Multi-fractal features of infrared thermal images at different time points of S-2: (
