A GIS-Based Method of the Assessment of Spatial Integration of Bike-Sharing Stations

Abstract

The paper presents a method of the assessment of spatial integration of bike-sharing stations in urban agglomerations based on GIS tools for analyses. The method uses four sub-models: system of bike-sharing stations, road and street network, demand for bike-sharing ridership, bike-sharing ridership routing, and value matrix of spatial integration measures. The presented method allows the identification of different categories of segments of the road and street network used for bike travels and enables the identification of the set of segments that should be upgraded into bike-friendly infrastructure offering bike lanes or cycle paths in order to ensure the appropriate level of spatial integration of bike-sharing stations. The possibility of the application of the method has been studied on the example of the existing bike-sharing system in Katowice, a city in southern Poland. The research presented in the paper has been conducted based on data on bike rentals and bike trips from eight months of 2018. Selected results of the spatial integration assessment of bike-sharing stations, which may be useful for making investment decisions in the bike-sharing system development, are presented.

1. Introduction

Transport activity in large urban agglomerations has contributed to the numerous problems decreasing the quality of life. Such problems include congestion, pollution, noise, or health issues [1,2,3,4,5,6]. Many of them are derived from the dominant role of individual transport, especially private cars used for commuting [7]. Hence, multiple studies on sustainable mobility have highlighted the importance of transit and transport modes alternative to private cars [8,9,10,11].

In recent years, the expansion of shared mobility systems around the world is observed [12,13,14]. Such systems encompass car-sharing, e-scooter-sharing, and bike-sharing. This is consistent with the transition from ownership to shareship of transport assets in public areas [15,16]. The number of bike-sharing systems in operation is also increasing and currently, such systems are present in over 1000 cities all over the world. One of the first systems was introduced in Amsterdam in the 1960s (the so-called White Bike Plan). It was the first-generation system in which bikes were accessible without any payments. Currently, systems with dockless bikes are introduced (fifth-generation systems) [17].

However, there are certain conditions that should be met to encourage the use of bike-sharing systems [18]. These conditions are associated with certain aspects of operation like the accessibility of stations, accessibility and quality of bike paths, fares and fees, the technical condition of bikes, or the spatial integration of bike-sharing stations. The issue of integration is of particular importance since effective bike traveling requires safe bike paths forming a coherent and extensive network. The network of paths should be accessible and integrated to connect bike-sharing stations throughout the area.

The main aim of this paper was to develop a method of the assessment of the spatial integration of bike-sharing stations operating in urban agglomerations with the application of GIS-tools for spatial analyses. The paper is divided into four main sections. The first section pertains to a critical analysis of the literature in the context of bike-sharing system development, decision-making problems in this field, methods of data acquisition, and spatial analyses applied to bike-sharing systems. In the second section, the general procedure of the proposed method and essential functionalities of sub-models constituting the method are presented. An important element of the methodological section of the paper is the set of measures of the spatial integration of bike-sharing stations that could be useful in the decision-making process of developing a bike-sharing system.

Subsequent parts of the paper are the case study and discussion of the obtained results. The research on possible applications of the method was performed based on an existing bike-sharing system in Katowice, a city in southern Poland. The research presented in this paper is based on data about bike rentals and bike travels collected during eight months in 2018.

2. Literature Review

The increase in the number of bike trips may have a positive effect on the quality of life in metropolitan areas, as they help to overcome transport-related problems [19,20]. The bike is an eco-friendly vehicle, as it does not emit any pollutants or fumes. Thus, bicycles contribute to a decrease in air pollution, they may be also a solution to the problem of congestion or space occupation [21,22]. Bicycles also have the potential to reduce energy consumption and promote economic growth [23]. Many researchers point out the positive influence of bicycle riding on human health, that is, decreased cardiovascular risk or improved mental wellbeing [24]. These factors, as well as the growing demand for bike services, have led to numerous studies focused on the planning of effective, convenient, and accessible bike-sharing systems in large urban agglomerations [25]. The assessment of comfort, accessibility, and convenience of bike network is called bikeability in the literature [26,27].

Different studies have been focused on the determination of factors influencing bikeability. In [28], the authors have identified the availability and quality of bicycle infrastructure, street connectivity, topography, and land use. Factors that may contribute to the success of a bike-sharing system and a large number of trips include a strong influence of socio-demographic determinants, such as population density [29]. Studies have also shown the relationship between tourism and the popularity of bike-sharing systems [30]. Systems in cities with intensive touristic operations are characterized by a larger number of trips with shared bikes [20]. Researchers also point out the influence of weather conditions on bike usage. It has been proven that severe weather, such as rainfall, cold temperature, snow, or high humidity may discourage potential bike users [31,32]. These factors are, however, associated with the surroundings of the bike-sharing system and are not connected with its innate qualities like the size of the system (number of stations, number of bikes), fares and fees, location of stations, internal integration (i.e., integration of stations), and integration with other transport sub-systems in the area.

There are different aspects of integration in transport, such as spatial integration, functional integration, integration of information, or integration of fares [33]. The importance of spatial integration has been highlighted by numerous authors. A study conducted in New York has shown that more trips made with shared bikes are generated from stations located near subway stations [34]. It is also connected with the importance of bikes in the first-mile/last-mile problem [20,34]. Bicycle transport infrastructure between stations is a key factor in the integration of stations in the system. The role of bike-friendly infrastructure has also been pointed out in many studies.

In paper [35], the authors have shown that bike-friendly infrastructure may be a motivator for using a bike. Such infrastructure encompasses routes away from traffic noise or separated from road traffic. Another study was focused on the factors that may encourage or discourage cycling associated with the physical, environmental, and service-related characteristics of bike paths [36]. Factors with dissuasive effects include the presence of other modes of transport along cycling paths or difficult spots such as transit stops or curbs. On the other hand, street connectivity and the directness of pathways may influence the number of trips made using shared bikes. The physical characteristics of cycle lanes, their width and surface, as well as quality may have a similar effect [36]. The impact of cycling infrastructure has also been investigated in paper [37]. The authors state that factors associated with bike lanes or bike paths are crucial for increasing the share of bike-sharing systems and demand for their services. Similar observations were presented in [38], where the authors showed that factors like supportive cycling facilities may positively influence the use of shared bikes. In the same paper, the authors noticed that easy access to transit may have a positive impact on transport mode preferences, thus emphasizing the role of integration between different transport sub-systems in metropolitan areas.

The positive impact of separated cycling infrastructure (bike lanes, cycle tracks, and bike paths) was also discussed in [39]. In this paper, GIS-based tools were used for spatial analysis. Such methods have been already applied to the studies associated with bike-sharing and decision-making problems. In paper [40], the authors used GIS-methods for the evaluation of bike-sharing stations. In numerous studies, that is, [41,42,43], GIS-based methods were used to optimize the number and location of bike-sharing stations. These methods were also exploited for the studies focused on the identification of factors that contribute to higher usage of shared bikes [44]. In paper [45], the authors used GIS-tools to choose the optimal location of transport infrastructure. The GIS-based method was also used for spatial analyses of transport infrastructure in [46].

Details about analyzed studies are presented in

Table 1. Detailed description of analyzed studies.

Authors and Reference	Year	Country	Data	Description
Winters, Davidson, Kao [35]	2011	Canada	survey of cyclists in Vancouver	investigation of factors that influence the decision on taking a bike
Palomares, Gutierrez, Latorre [43]	2012	Spain	data from Madrid	employment of GIS-based methods to determine the locations of bike-sharing stations
Ghandehari, Pouyandeh, Javadi [42]	2013	Iran	data from bike system in Isfahan	employment of mathematical programming and MCDM methods to determine locations of bike-sharing stations
Croci, Rossi [44]	2014	Italy	data from bike-sharing system in Milan	employment of econometric analysis to examine the influence of selected factors on bike-sharing ridership
Buehler, Dill [39]	2015	United States	n/a	analysis of existing studies on bike ridership
El-Assi, Salah Mahmoud, Nurul Habib [37]	2015	Canada	bike ridership data from Toronto, 2013	employment of the regression analysis to examine the influence of built environment factors, socio-economic factors, and demographic factors on ridership
Noland, Smart, Guo [34]	2016	United States	trip data from New York, 2014	use of spatial models and Bayesian regression models on estimation of trip generation at bike-sharing stations
Gebhart, Noland [31]	2017	Sweden	n/a	analysis of existing studies on the influence of weather conditions on bike ridership
Zhang, Thomas, Brussel, Van Maarseveen [29]	2017	China	trip data from Zhongshan’s (China) public bike system	employment of multiple linear regression model to examine the influence of built environment factors on trip demand
Yu, Xiaohu, Jinhua [38]	2018	Singapore	GPS data on dockless bikes trips from nine days	employment of autoregressive models to analyze the spatiotemporal patterns of bike usage
Kabak, Erbas, Cetinkaya, Ozceylan [40]	2018	Turkey	data on bike-sharing stations from Karsiyaka, Izmir	employment of GIS-tools, MCDM methods, and AHP to determine the location of bike-sharing stations
Pazdan [32]	2020	Poland	n/a	analysis of existing studies on the influence of weather on bike risk exposure
Nogal, Jiménez [36]	2020	Netherlands and Spain	n/a	analysis of factors that may influence bike-sharing ridership (based on literature review)
Banerjee, Kabir Muhib, Khadem, Chavis [41]	2020	United States	GPS data on bike-sharing trips from Baltimore	modification of Huff’s gravity model and GIS-tools to determine the locations of bike-sharing stations

.

Methods for assessing cycling infrastructure were also developed. Some of them are based on the BLOS paradigm which considers stress, comfort, and perception of safety of the infrastructure, and grades the traffic conditions from the best (A) to the worst (F) [47,48,49].

3. Methodology

3.1. General Overview and Assumptions of the Proposed Approach

The assessment of the spatial integration of the bike-sharing stations may be performed in many ways. The proposed method focuses on the infrastructural aspects having an impact on the quality of cycling trips. Identification of the elements of bicycle road and street network in urban areas and the classification of their convenience to cyclists is a step in the development of measures to adapt sections and nodes of this network to the requirements of bicycle traffic.

A sufficiently large set of data on both the location and operation of bike-sharing stations is necessary to assess the spatial integration of the system. The proposed method assumes that a bike-sharing system requires the rental and return of bikes only in specific locations—rental stations. Detailed data on the use of rental stations are collected by the companies managing this system.

It is also important to specify the period that will be analyzed. It should be noted that the parameters of a bike-sharing system change over time. These changes may concern both the number and location of stations, as well as the structure of rentals resulting from the needs of users. Therefore, an important step in the assessment is to identify the period with the greatest stability of operation. This also applies to the state of development of road and street network in the city, including sections and junctions used by cyclists.

It is important for the method to determine the spatial extent of the analysis, especially when the bike-sharing system covers several cities. Depending on the study purpose, analyses can be carried out for various options of spatial limitations. In the most comprehensive approach, the analysis is conducted for the entire area of operation of the bike-sharing system. To a more limited extent, it may be restricted to the area of a single city only.

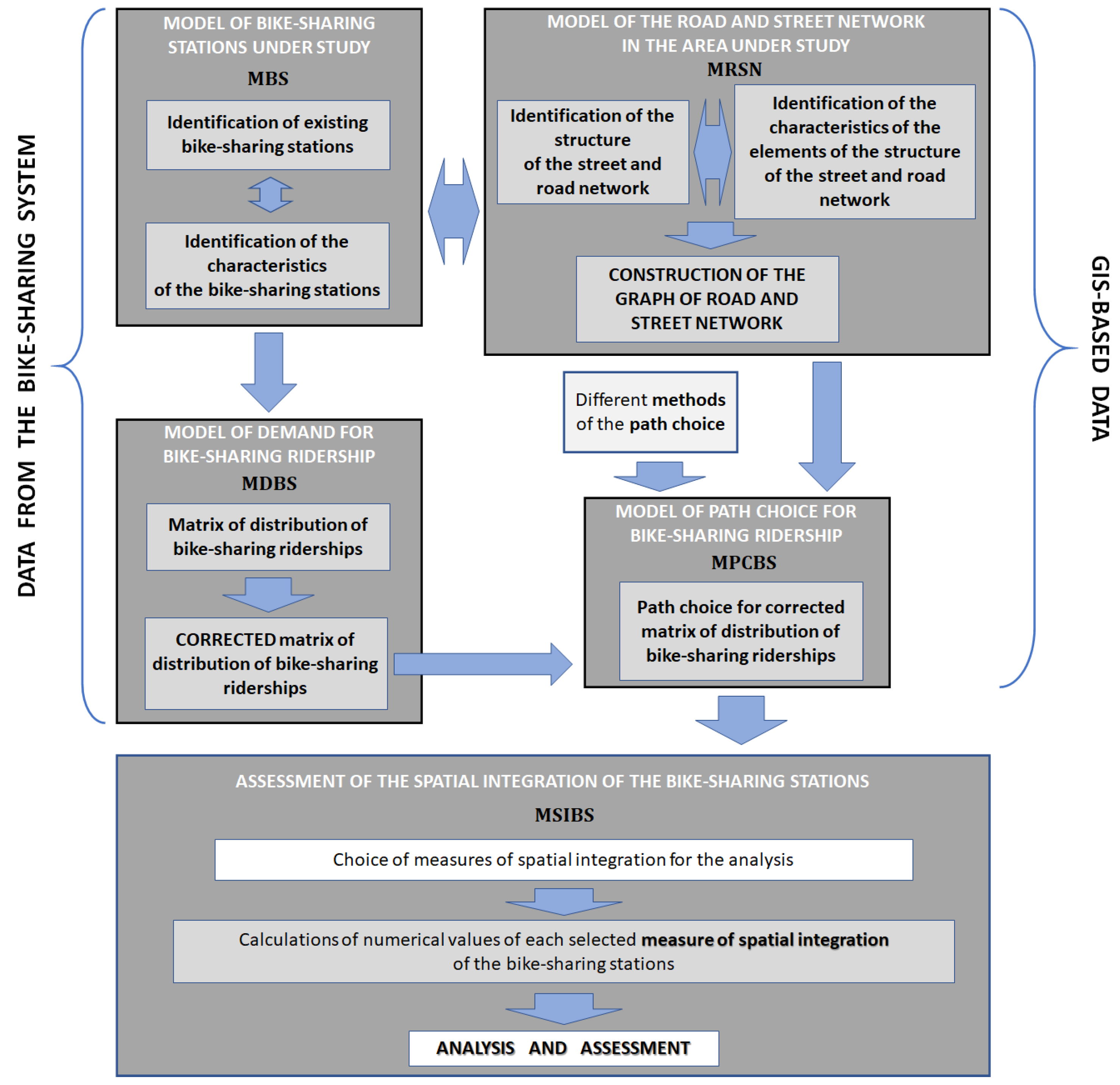

The proposed method consists of five main parts that can be treated as sub-models. The schematic connections between them are presented in Figure 1. It is assumed that data obtained from the bike-sharing system are used to build the distribution matrix of bicycle flows. In turn, the road and street network is described using GIS tools and graph theory. For the most loaded relations identified by the analysis of the distribution matrix, the shortest paths are determined, and then the sections of the road and street network belonging to these paths are subjected to a detailed analysis. The essential part of the method is the selection of appropriate measures and approaches to be used in the analysis. The selection of parameters describing segments of the road and street network is of great importance in this process.

The systemic approach to the problem in discussion requires presenting the proposed method as an ordered vector:

$$\mathrm{MACSIBS} = ⟨\mathrm{MBS},\mathrm{MRSN},\mathrm{MDBS},\mathrm{MPCBS},\mathrm{MSIBS}⟩$$

(1)

where:

$\mathrm{MACSIBS}$—Method of the Assessment of the Spatial Integration of Bike-sharing Stations,

$\mathrm{MBS}$—model of bike-sharing stations system,

$\mathrm{MRSN}$—model of road and street network,

$\mathrm{MDBS}$—model of demand for bike-sharing ridership (trips),

$\mathrm{MPCBS}$—model of path choice for bike-sharing ridership (trips),

$\mathrm{MSIBS}$—value matrix of spatial integration measures of the assessment of bike-sharing stations selected for detailed analysis.

The model of the system of bike-sharing stations $\mathrm{MBS}$ covers the attributes of bike-sharing stations divided into three main groups: descriptive, spatial, and related to bike traffic demand, which are presented in

Table 2. Attributes of bike-sharing stations.

Group of the Attributes	Attribute
descriptive	number
	name
spatial	longitude
	latitude
bike traffic demand	number of rentals in analyzed period
	number of returns in analyzed period

.

Descriptive attributes like the number or name are for the identification of the stations. The station name is usually associated with the name of the street or a landmark located in the immediate vicinity. In turn, spatial attributes, like latitude and longitude are for the precise location of the station in space. Data on bike traffic demand are also important attributes in the proposed method.

In terms of the operational research model of the road and street network—$\mathrm{MRSN}$ may be formulated as a structural graph of a transport network with sets of attributes assigned both to the edges and nodes of the graph, that is, features of the sections and intersections of the road and street network. The features can generally be divided into two main groups:

• qualitative (such as category),
• technical (such as length, average speed, number of lanes—for sections; number of inlets, type—for intersections; travel time for both types of elements).

In order to assess sections of the road and street network in terms of spatial integration of a bike-sharing system, it is necessary to assign each element of the road and street network to a predefined category corresponding to the appropriate degree of inconvenience for bicycle traffic. The classification according to OSM [50] was adopted with the following types of sections of the road and street network to be introduced:

• category I_l—sidewalk,
• category II_l—service; for access to the buildings, service stations, beaches, campsites, industrial estates, business parks, etc. This is also commonly used for access to car parks, driveways, and alleys,
• category III_l—unclassified; the lowest road category, also known as “quaternary roads”. These roads are usually the least important links of the road and street network in the hierarchy. In cities, such a category of roads complements the “tertiary roads”, while outside cities and inhabited areas, they are most often municipal roads. An unclassified road is often paved, but it can also be unpaved, for example, when it is a well-maintained main road to a village,
• category IV_l—residential; usually used in cities to describe local roads that provide access to property or small settlements. Most often, roads of this category are in built-up areas, but not in residential zones. They do not have to be paved and do not function as roads connecting localities,
• category V_l—tertiary; roads situated outside the main road network but having an important role on a local scale. These often connect smaller cities, larger villages, or important parts of larger cities. In cities, they are the main inter-residential roads, often used also by public transport,
• category VI_l—living street; a zone in which a pedestrian can move freely throughout the entire area available for public use and has priority over vehicles,
• category VII_l—stairs.

Cycleways constitute a special group of bicycle-friendly sections of the road and street network. Due to incomplete data on the OSM website, all sections were inventoried and appropriate categories were assigned to them. The following categories were adopted for the sections of bicycle paths:

• category I_b—completely separated bicycle path (separated, e.g., by a green line),
• category II_b—a bicycle path shared with the sidewalk (separated by color and marking),
• category III_b—a bicycle path located on the sidewalk (separated only by vertical and/or horizontal marking),
• category IV_b—bicycle path located in the road (a lane separated through horizontal and vertical marking),
• category V_b—bicycle path in the road (only horizontal and vertical markings are available).

The proposed method assumes that the minimum connectivity of the road and street network for bicycle traffic is ensured. This means that there is a connection between each pair of bike-sharing stations made by existing infrastructure, that is, sections of the categories I_l–VII_l or I_b–V_b.

The classification of intersections considers types and the ways a cyclist moves along the section before and after the intersection. The categories of intersections are presented in

Table 3. Categories of intersections.

Category	Type of Intersection	The Way the Cyclist Moves
		Before the Intersection	After the Intersection
Ip	intersection with traffic lights	the road	the road
IIp		the sidewalk	the sidewalk
IIIp	intersection without traffic lights	the major road	the road
IVp		the minor road	the road
Vp		the sidewalk	the sidewalk
VIp		the sidewalk	the road
VIIp		the road	the sidewalk

.

To prevent outward and inward flows, it was assumed that rentals and returns of bicycles are possible only in the rental station inside the model. Moreover, bike-sharing trips, in which the bike has been rented and returned at the same station, were not considered in the analysis.

The primary assumption of the method is that the appropriate quality of the bicycle infrastructure should be ensured for connections that are most heavily loaded with bicycle traffic. There are many methods of assessing the volume of bicycle traffic. The significant values may be determined arbitrarily or by statistical methods. In the proposed method the upper quartile was adopted as the limit value of the traffic flow. It allowed to determine the relations for further analysis.

It was assumed that for each connection between bike-sharing stations $\left(bss,bss\prime \right)$ exists a finite set of paths. For practical purposes, in the model of path choice for bike-sharing ridership—$\mathrm{MPCBS}$, each path is denoted as $p\left(bss,bss\prime \right)$.

In dense road and street network, a pair of bike-sharing stations may be connected by many paths but only one of them was selected for further analysis. The proposed method allows one to consider various criteria to choose the path, but travel time and path length are most used. It is also possible to apply economic, ecological, and social criteria as well as various synthetic criteria corresponding to a multi-criteria approach. In this case, the path length was chosen as the criterion for the selection of the optimal path.

3.2. The Measures of Assessment of the Spatial Integration of Bike-Sharing Stations

The analyses for the assessment of spatial integration of bike-sharing stations may be carried out at the level of:

• sections of the road and street network,
• intersections constituting connections between sections,
• paths connecting bike-sharing stations,
• the entire bike-sharing system.

The analyses were conducted for two measures for which the values are compiled to the matrix $\mathrm{MSIBS}$:

• the percentage share of sections of a given category in relation to the length of the entire path,
• the number of intersections of a certain category in the optimal path.

The percentage share of sections of a given category in relation to the length of the entire path is an important measure of the spatial integration of bike-sharing stations. The values of this measure $W{1}_{ca}^{p^{*}\left(bss,bs{s}^{\prime }\right)}$, were determined for each optimal path $p^{*}\left(bss,bs{s}^{\prime }\right)$ between the pair of the bike-sharing stations as:

$$W{1}_{ca}^{p^{*}\left(bss,bs{s}^{\prime }\right)} = \frac{{\gamma }_{ca}\left(p^{*}\left(bss,bs{s}^{\prime }\right)\right)}{\gamma \left(p^{*}\left(bss,bs{s}^{\prime }\right)\right)}·100, [\%]$$

(2)

where:

${\gamma }_{ca}\left(p^{*}\left(bss,bs{s}^{\prime }\right)\right)$—total length of sections of the category $ca$ belonging to the optimal path $p^{*}\left(bss,bs{s}^{\prime }\right)$,

$\gamma \left(p^{*}\left(bss,bs{s}^{\prime }\right)\right)$—length of the optimal path $p^{*}\left(bss,bs{s}^{\prime }\right)$.

The second important measure of the spatial integration of bike-sharing stations (noted as $W{2}_{cv}^{p^{*}\left(bss,bs{s}^{\prime }\right)}$) is the number of intersections of a certain category in the optimal path $p^{*}\left(bss,bs{s}^{\prime }\right)$ that can be determined as:

$$W{2}_{cv}^{p^{*}\left(bss,bs{s}^{\prime }\right)}= {\displaystyle \sum }_v{\delta }_{cv}\left(v\right), [-]$$

(3)

where ${\delta }_{cv}\left(v\right)$ takes the value of 1, if the intersection $v$ is of the category $cv$, and 0 otherwise.

When assessing the integration of bike-sharing stations, attention should be paid to those sections of the road and street network (i.e., categories I_l–VII_l), that are not the elements of bicycle infrastructure, but belong to the paths connecting pairs of stations and are loaded with large numbers of bicycle trips. These are the elements that after modernization and adaptation to the needs of cyclists, can improve the conditions of bicycle traffic and increase its share in traffic within the city.

4. Case Study

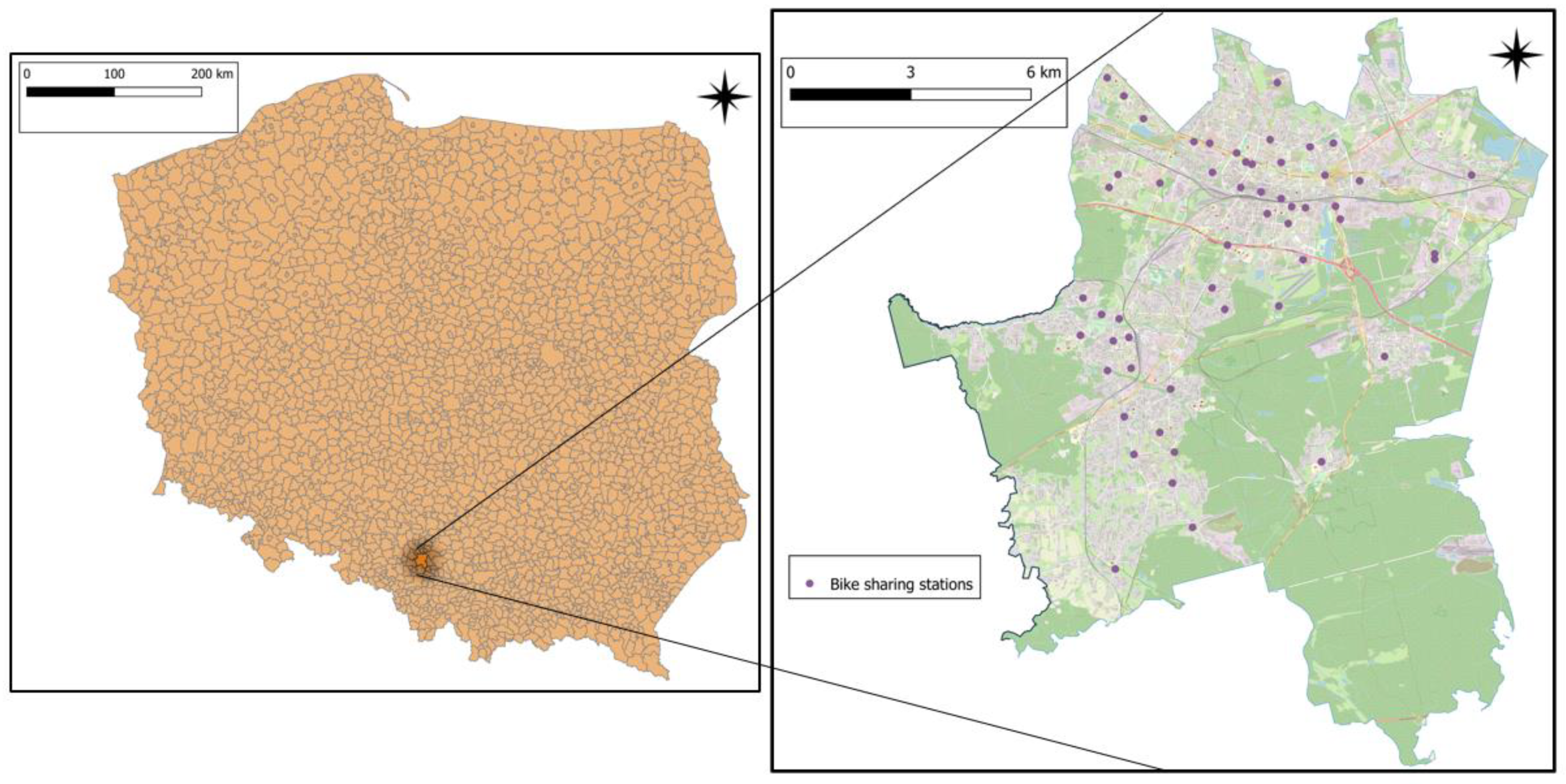

The developed method was applied in the city of Katowice. The city is in the south of Poland, in the central part of the Silesian region. The total number of inhabitants of Katowice is approximately 292,774 [51], and the area is 165 square kilometers. During the analysis period in 2018, 54 bike rental stations were operating in the city. Figure 2 shows the location of the city against the background of Poland and the location of the bicycle rental stations.

In 2018, the city bike rental season in which bikes are available to rent in Katowice started on 1 April and lasted continuously until 1 November. The duration of the season is mainly related to the weather conditions and covers eight months. The data on traffic were obtained from the authorities of the city of Katowice and the OpenStreetMap (OSM), which provided information on the category of the elements of road and street network. Data from OpenStreetMap conform to official data and are ready for processing using GIS tools.

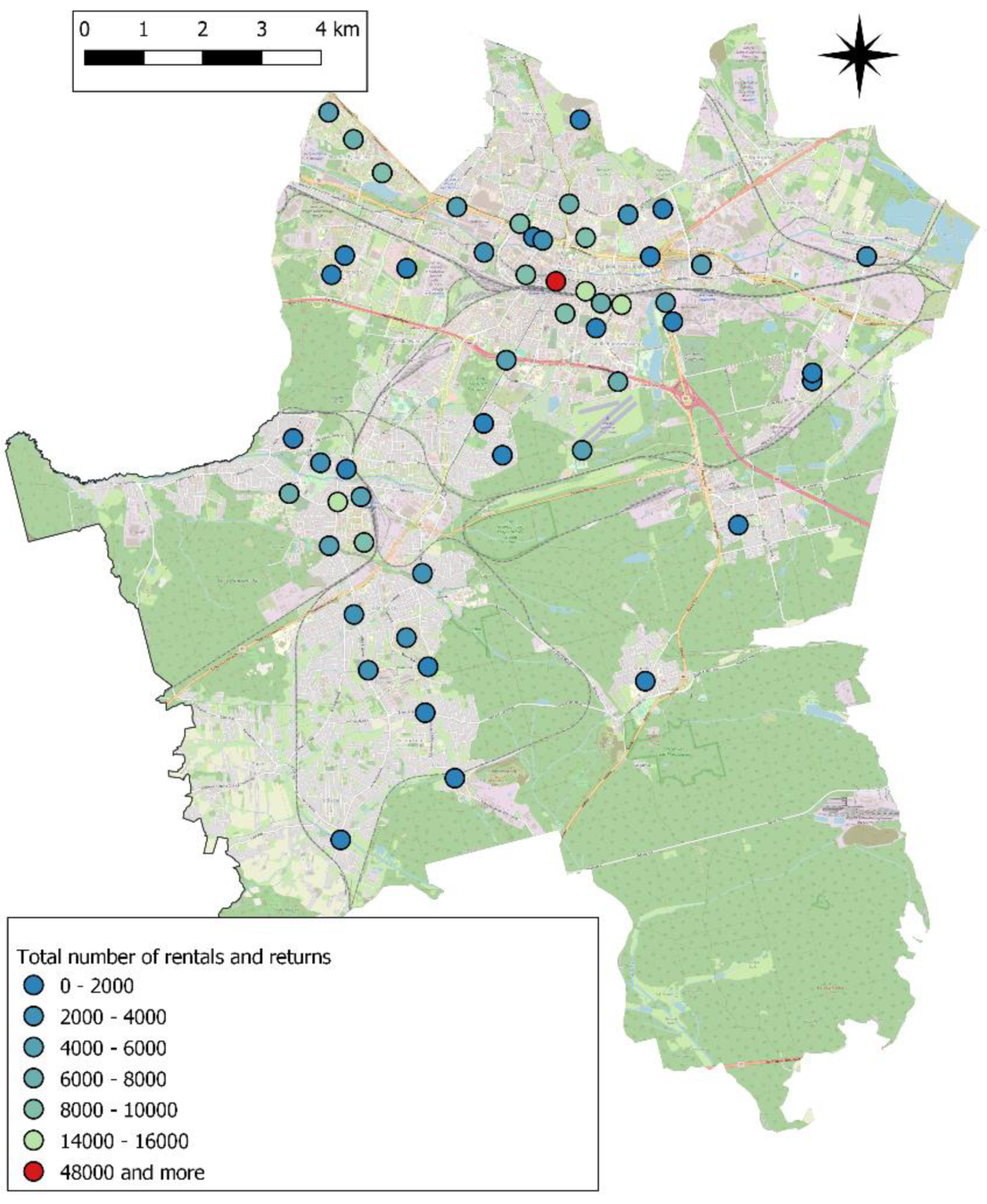

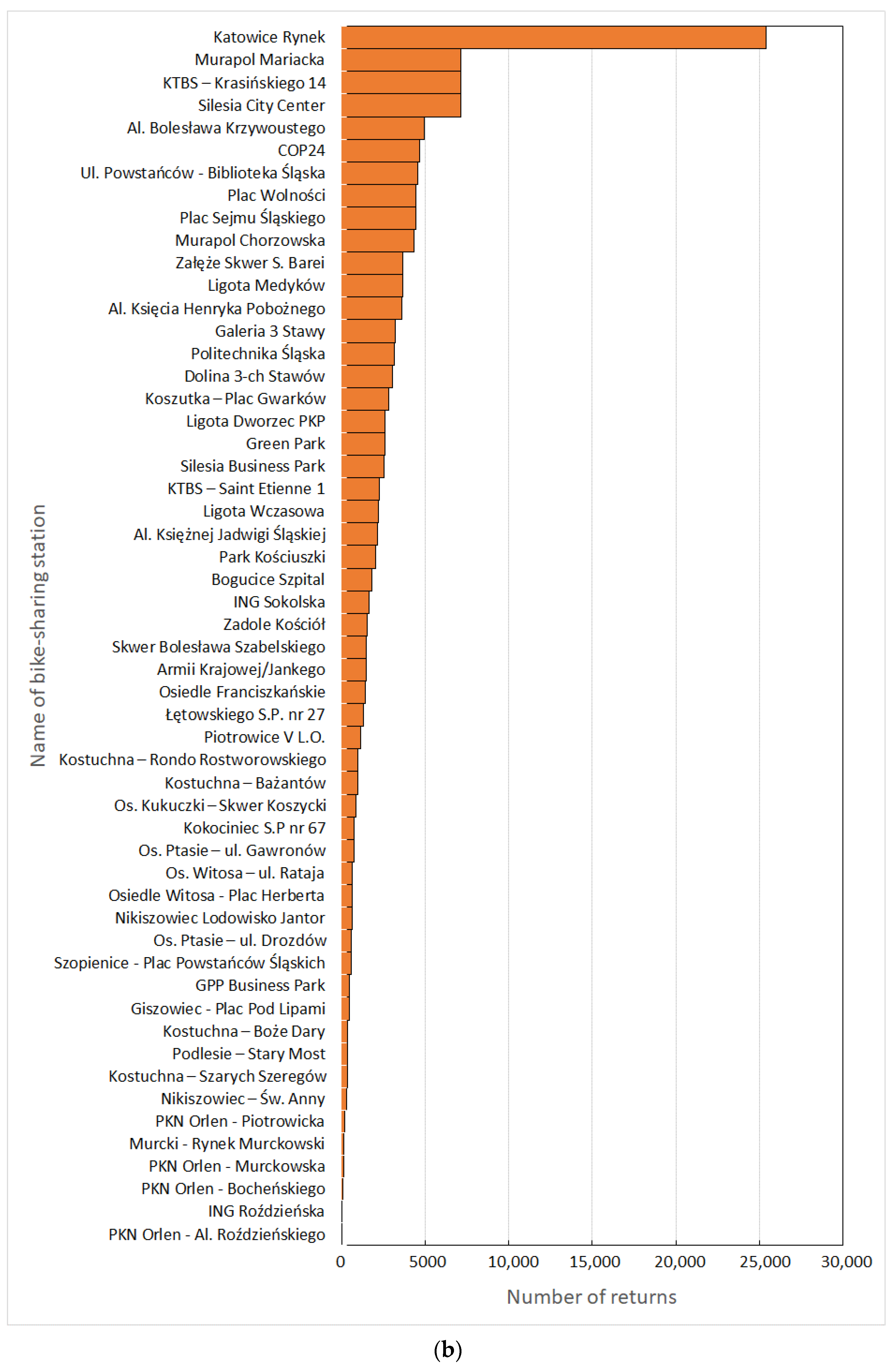

Figure 3 shows the total number of rentals and returns during the rental season. The bike-sharing stations in the system differ in their usability due to their location. Figure 4 presents differences between rentals and returns and between returns and rentals. Only those stations for which the measure had a positive value were considered.

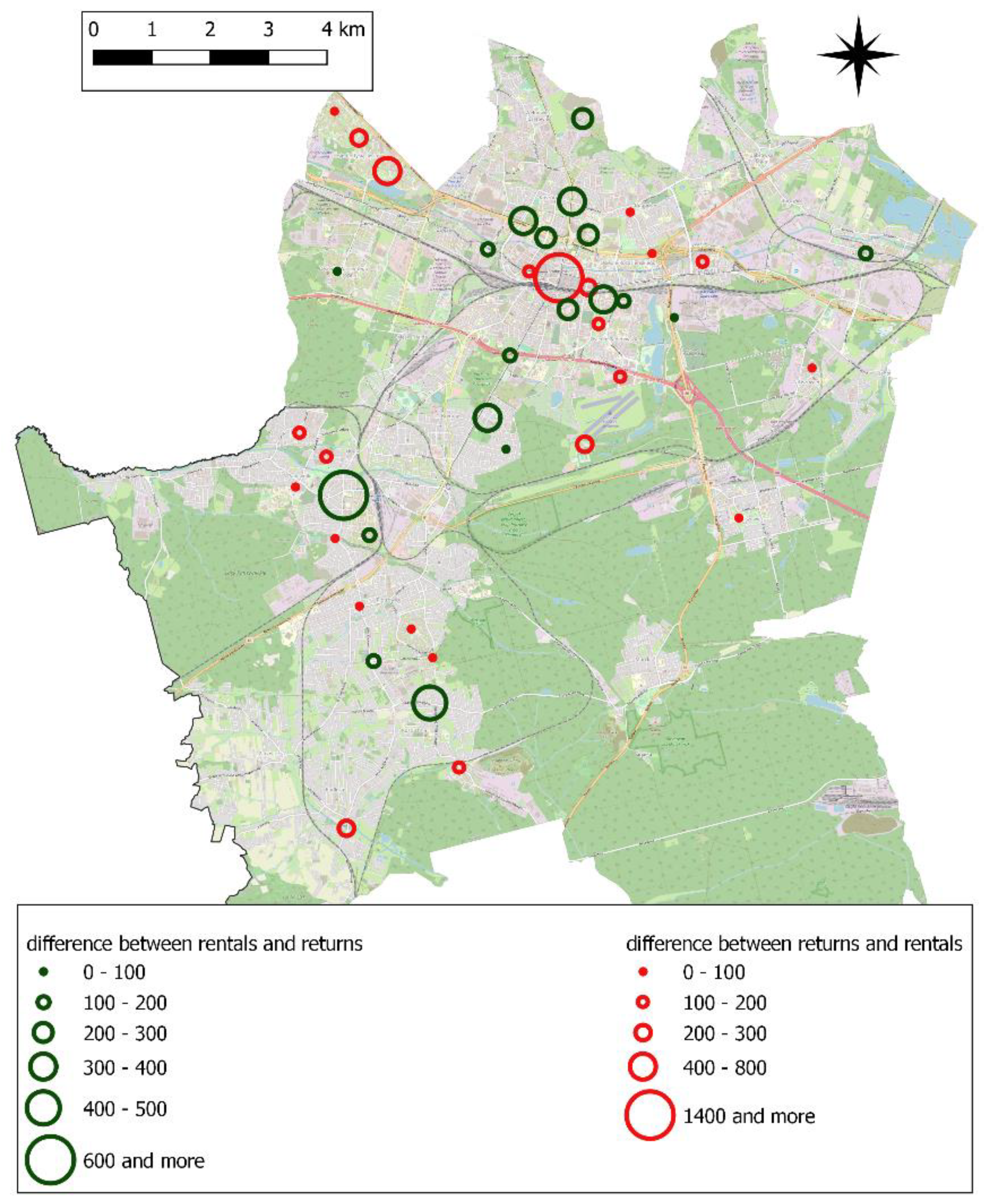

Figure 4 shows clear disproportions between the usability of bike-sharing stations. Some of them are the main starting points for trips, while others are in the vicinity of popular destinations. The rankings of the bike-sharing stations, taking into account the number of rentals and number of returns, are presented in Figure 5a and Figure 5b, respectively. The most popular, both in terms of the number of bike rentals and returns, are the following stations: Katowice Rynek, Silesia City Center, KTBS—Krasińskiego 14, and Murapol Mariacka, with a clear dominance of the station Katowice Rynek. In turn, the lowest usability was noted at the following stations: PKN Orlen—Aleja Roździeńskiego, ING Roździeńska, and PKN Orlen—Bocheńskiego. The average use of bike-sharing stations in Katowice in 2018 was approximately 2100 rentals or returns per station (excluding Katowice Rynek station as an outlier).

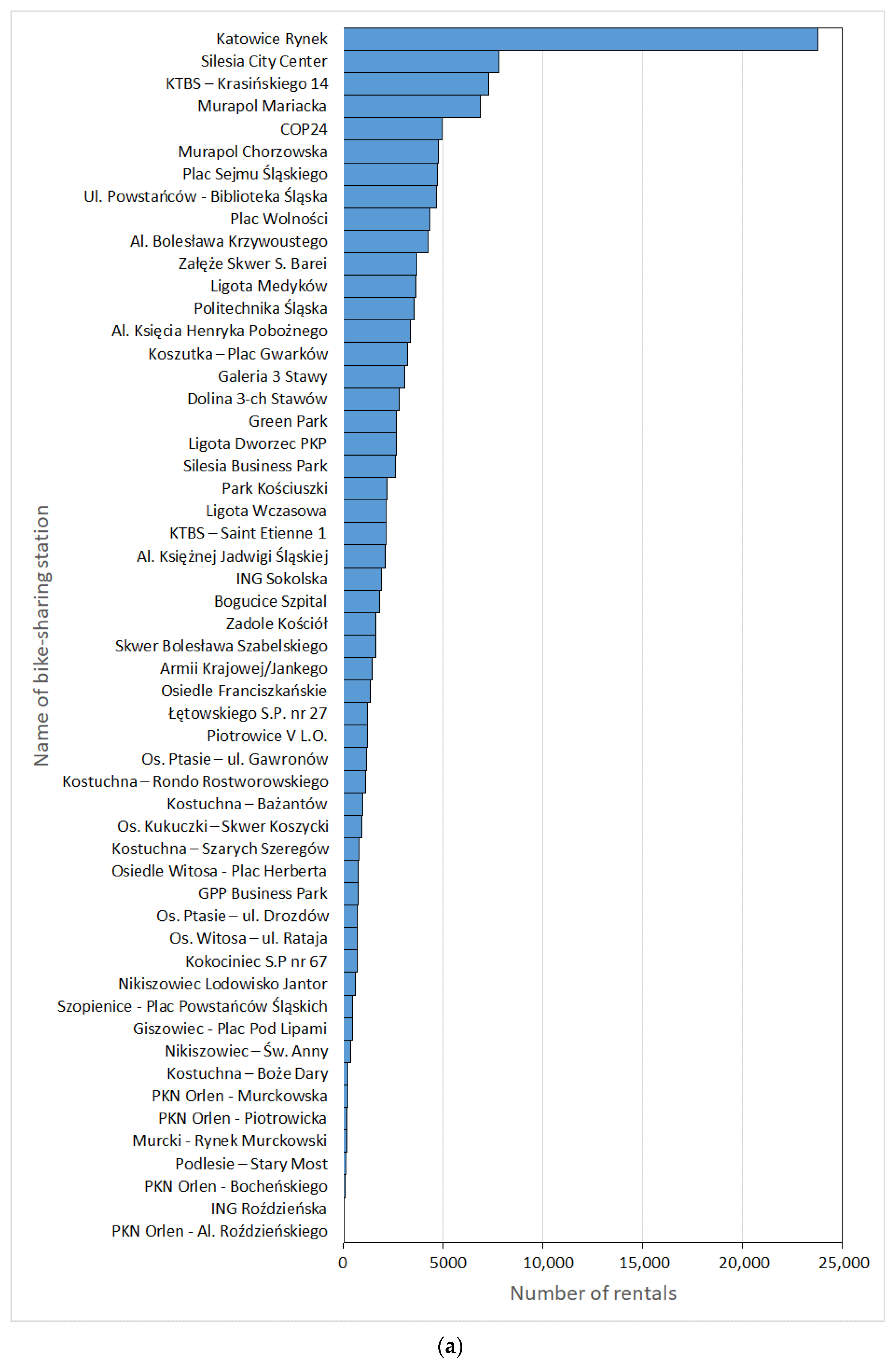

The bike-sharing stations were also sorted according to the total number of rentals and returns of the bicycles to make the ranking. The numbers for the three most popular stations and three least popular are presented in

Table 4. Stations with the highest and smallest total number of rentals and returns of bicycles.

Station IDs in Hierarchy	Station Name	Number of Rentals	Number of Returns	Total Number of Rentals and Returns
1	Katowice Rynek	23,787	25,384	49,171
2	Silesia City Center	7773	7119	14,892
3	KTBS—Krasińskiego 14	7268	7123	14,391
…	…	…	…	…
52	PKN Orlen—Bocheńskiego	76	74	150
53	ING Roździeńska	47	23	70
54	PKN Orlen—Al. Roździeńskiego	11	16	27

. The full table is provided in

Table A1. Ranking of the stations in terms of the total number of rentals and returns of bicycles.

Station IDs in Hierarchy	Station Name	Number of Rentals	Number of Returns	Total Number of Rentals and Returns
1	Katowice Rynek	23,787	25,384	49,171
2	Silesia City Center	7773	7119	14,892
3	KTBS—Krasińskiego 14	7268	7123	14,391
4	Murapol Mariacka	6861	7149	14,010
5	COP24	4954	4672	9626
6	Ul. Powstańców—Biblioteka Śląska	4668	4540	9208
7	Al. Bolesława Krzywoustego	4242	4949	9191
8	Plac Sejmu Śląskiego	4682	4428	9110
9	Murapol Chorzowska	4736	4343	9079
10	Plac Wolności	4314	4475	8789
11	Załęże Skwer S. Barei	3677	3671	7348
12	Ligota Medyków	3628	3666	7294
13	Al. Księcia Henryka Pobożnego	3331	3606	6937
14	Politechnika Śląska	3529	3166	6695
15	Galeria 3 Stawy	3061	3226	6287
16	Koszutka—Plac Gwarków	3189	2840	6029
17	Dolina 3-ch Stawów	2779	3058	5837
18	Ligota Dworzec PKP	2625	2606	5231
19	Green Park	2649	2581	5230
20	Silesia Business Park	2584	2527	5111
21	KTBS—Saint Etienne 1	2109	2278	4387
22	Ligota Wczasowa	2115	2199	4314
23	Park Kościuszki	2189	2065	4254
24	Al. Księżnej Jadwigi Śląskiej	2063	2137	4200
25	Bogucice Szpital	1800	1846	3646
26	ING Sokolska	1881	1644	3525
27	Zadole Kościół	1640	1534	3174
28	Skwer Bolesława Szabelskiego	1618	1494	3112
29	Armii Krajowej/Jankego	1443	1483	2926
30	Osiedle Franciszkańskie	1323	1433	2756
31	Łętowskiego S.P. nr 27	1215	1312	2527
32	Piotrowice V L.O.	1184	1168	2352
33	Kostuchna—Rondo Rostworowskiego	1118	1004	2122
34	Kostuchna—Bażantów	984	984	1968
35	Os. Ptasie—ul. Gawronów	1131	761	1892
36	Os. Kukuczki—Skwer Koszycki	901	883	1784
37	Kokociniec S.P nr 67	669	772	1441
38	Osiedle Witosa—Plac Herberta	732	643	1375
39	Os. Witosa—ul. Rataja	673	669	1342
40	Os. Ptasie—ul. Drozdów	678	578	1256
41	GPP Business Park	722	504	1226
42	Nikiszowiec Lodowisko Jantor	587	625	1212
43	Kostuchna—Szarych Szeregów	773	343	1116
44	Szopienice—Plac Powstańców Śląskich	428	570	998
45	Giszowiec—Plac Pod Lipami	426	463	889
46	Nikiszowiec—Św. Anny	353	324	677
47	Kostuchna—Boże Dary	228	367	595
48	Podlesie—Stary Most	120	362	482
49	PKN Orlen—Piotrowicka	187	170	357
50	Murcki—Rynek Murckowski	165	153	318
51	PKN Orlen—Murckowska	198	114	312
52	PKN Orlen—Bocheńskiego	76	74	150
53	ING Roździeńska	47	23	70
54	PKN Orlen—Al. Roździeńskiego	11	16	27

in Appendix A.

The station in the first place in the ranking, with the highest sum of bike rentals and returns, is located on the market square (Katowice Rynek) in the city center. The next station is in the vicinity of a shopping mall. The third place is located near popular university buildings. All these locations are associated with the objects acting as large traffic generators. Two of the last three stations are in the vicinity of petrol stations. The number of bikes rented in these places indicates an unattractive location for bicycle stations.

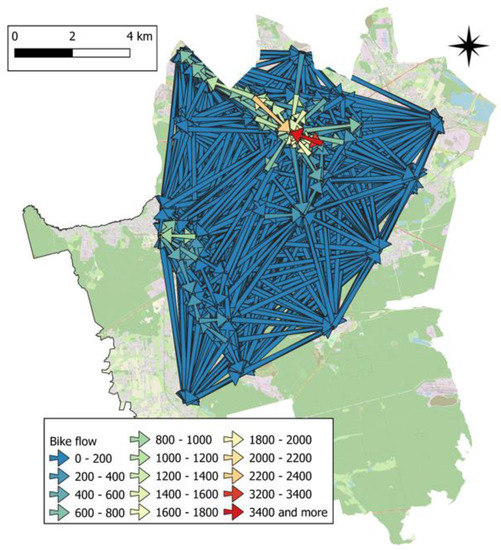

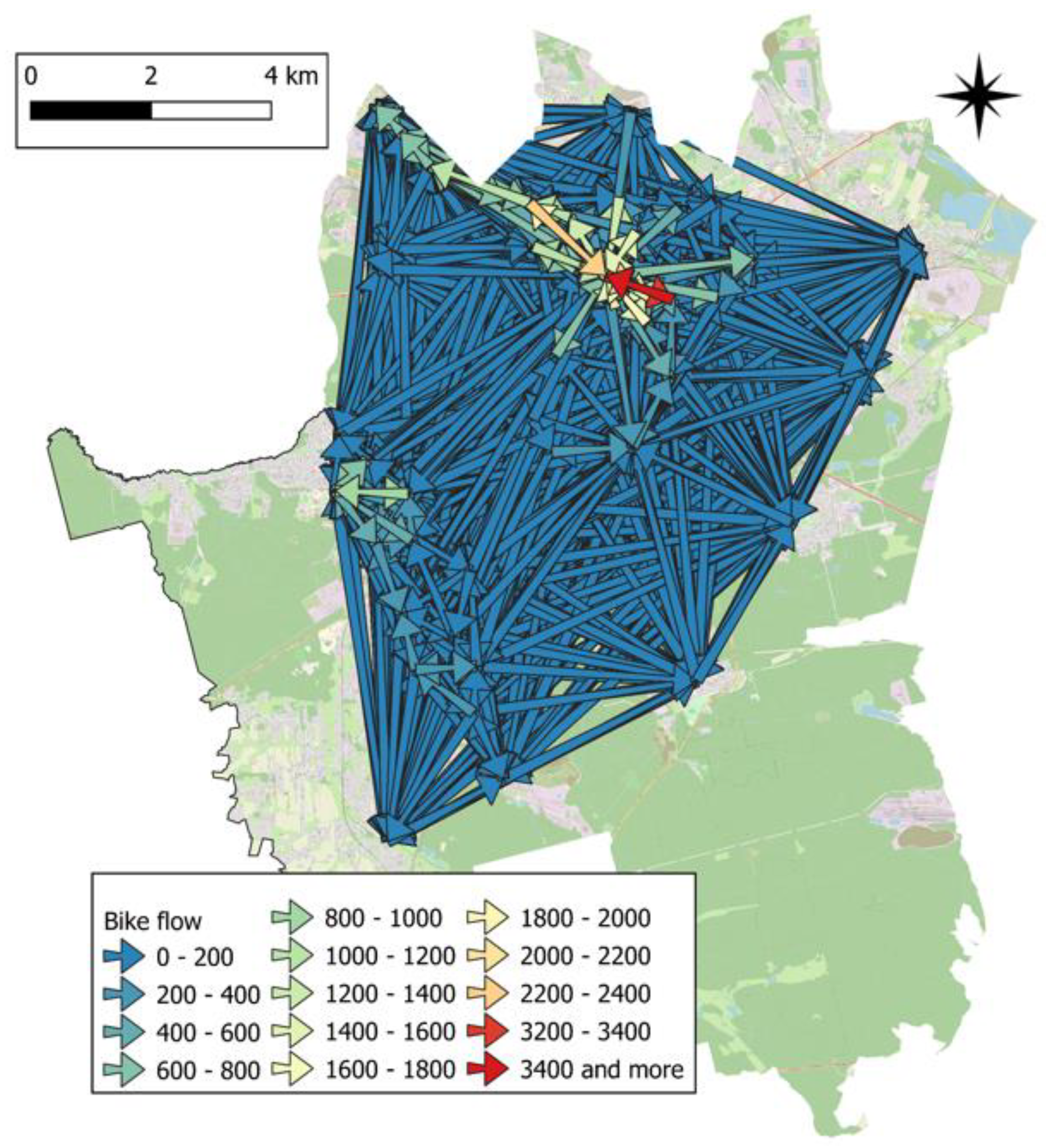

Figure 6 shows a two-way bicycle traffic pattern for all inter-station connections in the analyzed area. It shows the spatial distribution of traffic between each pair of stations without considering the road and street network. The color (from blue to red) of the arrow represents the number of bicycle trips between stations in each direction. To increase the transparency of the drawing, the most popular connections are displayed above those that are less used.

In total, 2862 relations may be determined in dense and connective road and street network with 54 bike-sharing stations (without cases where the bicycle is rented from and returned to the same station). In the analyzed period, 136,124 trips were made for 2087 of 2862 possible relations. Figure 6 reveals a high intensity of cycling in the northern part of the city (where the functional city center is located) and slightly in the south-western part of the city (with two large hospitals and an academic center). On the other hand, in 2018, less than 100 bicycle trips were made for over 1800 connections between bike-sharing stations.

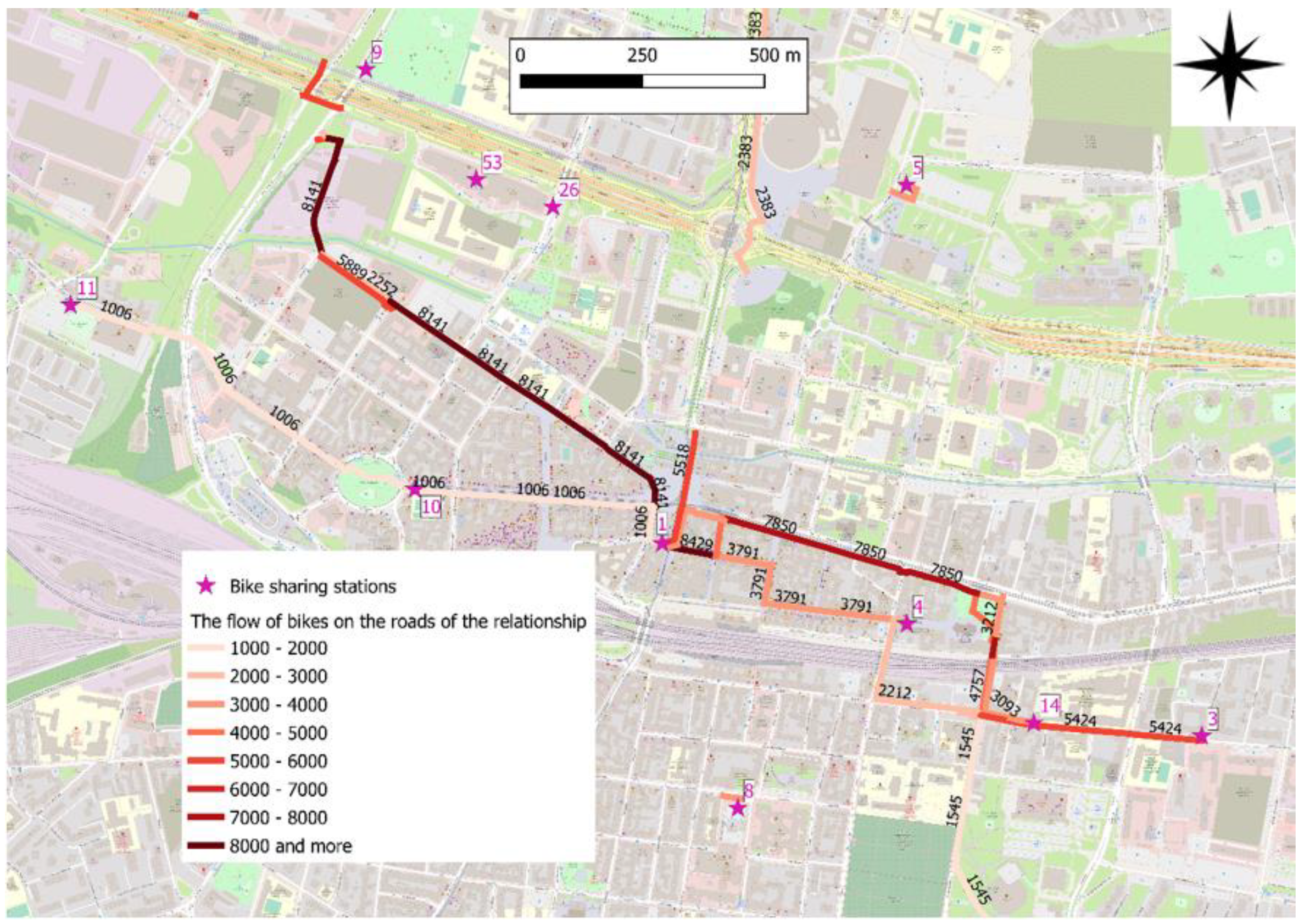

In order to determine potential sections of the road and street network that require infrastructure improvement and adapting to bicycle traffic, 23 of the most heavily loaded relations for which the number of trips in the analyzed period exceeded 1000 were selected. These 23 relations are responsible for more than 25% of trips.

Table 5. Set of relations selected for further analysis.

Relation IDL in the Hierarchy	Name of the Start Station	The IDs of the Start Station	Name of the End Station	The IDs of the End Station	Number of Bicycle Trips
1	KTBS—Krasińskiego 14	3	Katowice Rynek	1	3423
2	Katowice Rynek	1	KTBS—Krasińskiego 14	3	3212
3	Silesia City Center	2	Katowice Rynek	1	2290
4	Katowice Rynek	1	Murapol Mariacka	4	2008
5	Katowice Rynek	1	Silesia City Center	2	1804
6	Ul. Powstańców—Biblioteka Śląska	6	Katowice Rynek	1	1795
7	Murapol Mariacka	4	Katowice Rynek	1	1783
8	Politechnika Śląska	14	Katowice Rynek	1	1657
9	COP24	5	Katowice Rynek	1	1596
10	Plac Sejmu Śląskiego	8	Katowice Rynek	1	1588
11	Katowice Rynek	1	Ul. Powstańców—Biblioteka Śląska	6	1545
12	Katowice Rynek	1	COP24	5	1539
13	Katowice Rynek	1	Plac Sejmu Śląskiego	8	1492
14	Katowice Rynek	1	Politechnika Śląska	14	1436
15	Koszutka—Plac Gwarków	16	Katowice Rynek	1	1295
16	Katowice Rynek	1	Murapol Chorzowska	9	1206
17	Murapol Mariacka	4	KTBS—Krasińskiego 14	3	1178
18	Silesia City Center	2	Al. Bolesława Krzywoustego	7	1147
19	Katowice Rynek	1	Koszutka—Plac Gwarków	16	1088
20	Murapol Chorzowska	9	Silesia City Center	2	1073
21	Murapol Chorzowska	9	Katowice Rynek	1	1046
22	KTBS—Krasińskiego 14	3	Murapol Mariacka	4	1034
23	Załęże Skwer S. Barei	11	Katowice Rynek	1	1006

shows all selected relations with the number of trips between bike-sharing stations for each of them.

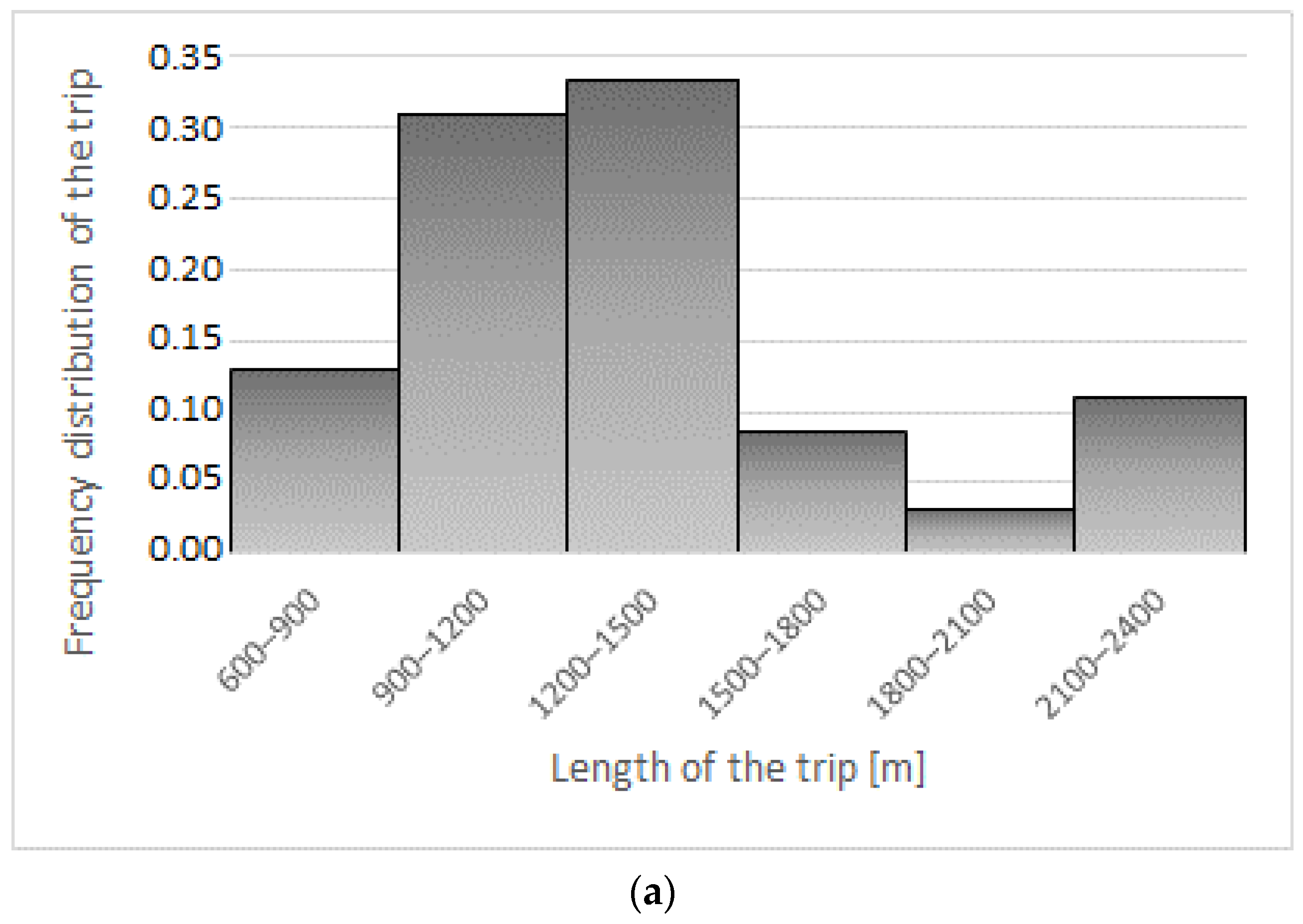

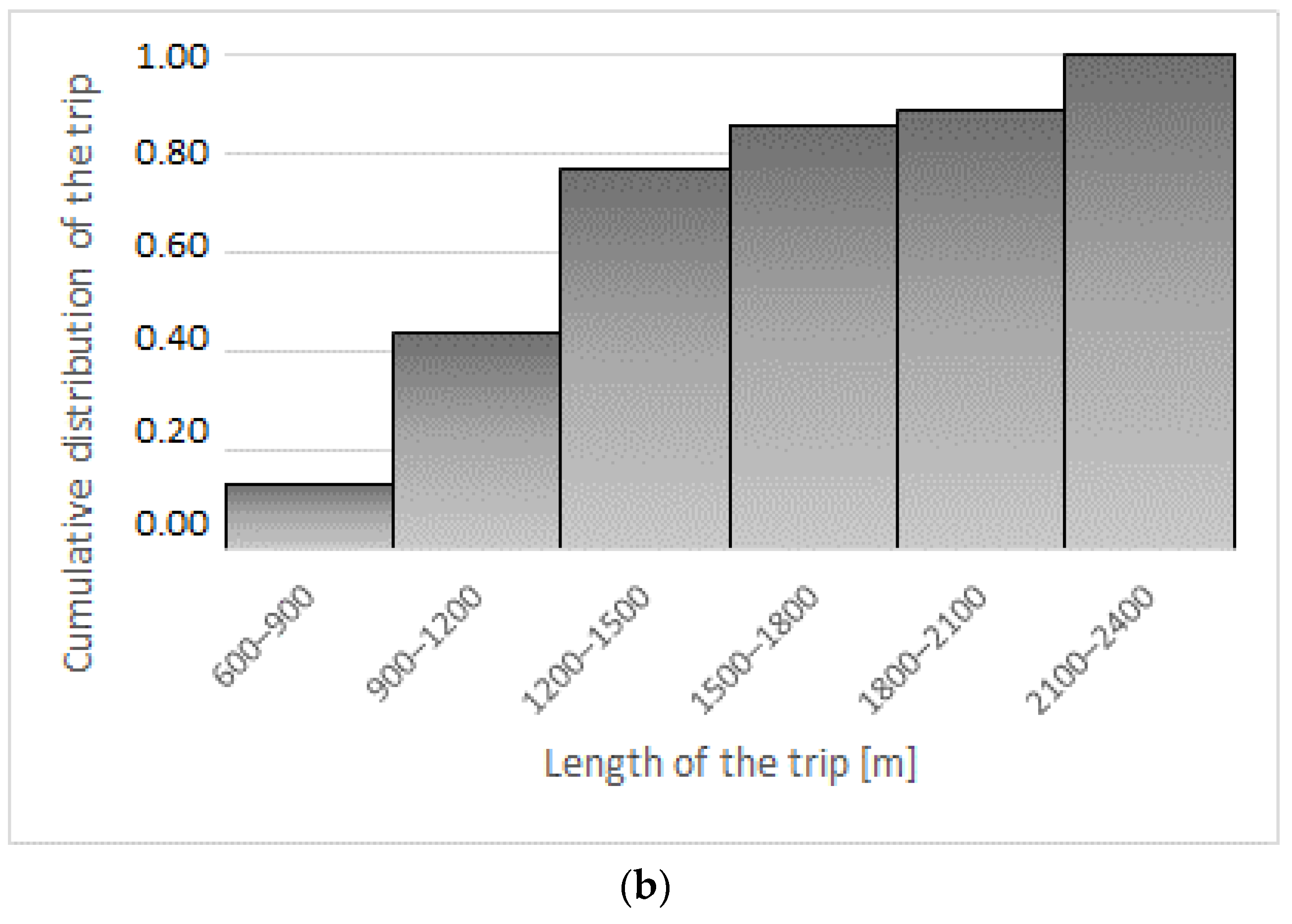

The selected relations connecting pairs of bike-sharing stations with the heaviest bicycle traffic are two-way relations. These relations were considered in further analysis, the purpose of which was to identify sections of road and street networks that require, in the first place, modernization of infrastructure in terms of bikeability. The overlapping of network sections resulting from common parts of paths between stations increases the volume of bicycles on a given road section.

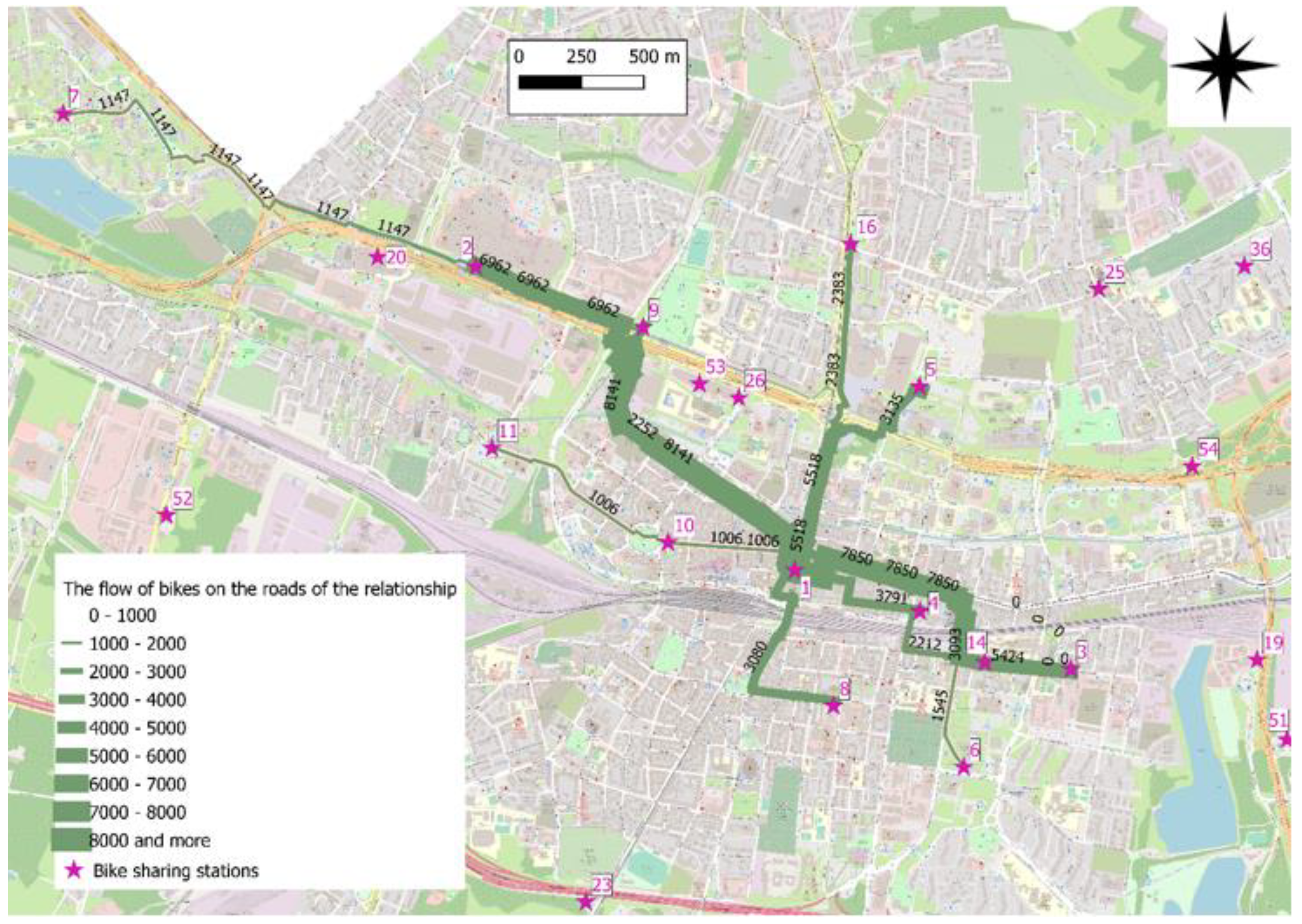

For each of the indicated pairs of bike-sharing stations, a path was determined using the plug-in for QGIS: ORS Tools software which works based on the OpenRouteService [52]. After selecting two points on the map using the OpenRouteServices API, the path was searched according to the selected criterion (i.e., length) using parameterized sections archived on the OSM website. It allows to choose, considering the conditions and goals of the research, the following modes of paths search:

• normal—which uses a default set of speeds and road type preferences,
• electric—in which uphill speed is not affected as much by the incline,
• road—in which anything that is not the road pavement (i.e., paving stone, asphalt, etc.) is seen as a pushing section but allows for secondary and tertiary roads (other bike profiles are avoided),
• mountain—which allows going over most pavement types and tracks without defining as a pushing section,
• cycling-safe—which only applies to cycling paths.

Additionally, for each type of path, a time or distance criterion can be specified. After initial research, the normal mode was selected for the analysis and the length of the path was applied as the criterion for selecting the optimal one. The selected parameter makes it possible to determine the path in a way similar to reality. In the studied area, there are no direct bicycle connections between all bike-sharing stations and, therefore, a significant part of travelers also uses the areas shared with pedestrians or car traffic.

As a result, for each pair of bike-sharing stations, the optimal path was determined. Figure 7 shows the locations of bike-sharing stations with the optimal paths between them.

Spatial analysis showed that most of the paths have a common point in the Katowice Rynek station (city square).

Table 6. Values of the measure $W{1}_{ac}^{p^{*}\left(bss,bs{s}^{\prime }\right)}$ (%).

IDL	Length of the Path (m)	Categories of the Sections
		Sections of Road and Street Networks							Sections of Bicycle Infrastructure
		Il	IIl	IIIl	IVl	Vl	VIl	VIIl	Ib	IIb	IIIb	IVb	Vb
1	1461.2	86.4	0.0	0.0	0.0	0.0	13.1	0.5	0.0	0.0	0.0	0.0	0.0
2	1500.7	40.1	0.0	0.0	30.3	16.4	13.1	0.0	0.0	0.0	0.0	0.0	0.0
3	2163.7	16.0	18.9	8.2	16.7	0.0	7.2	0.0	9.5	3.6	19.9	0.0	0.0
4	604.1	0.0	0.0	0.0	0.0	0.0	100.0	0.0	0.0	0.0	0.0	0.0	0.0
5	2163.7	16.0	18.9	8.2	16.7	0.0	7.2	0.0	9.5	3.6	19.9	0.0	0.0
6	1466.5	56.0	0.4	0.0	0.0	30.5	13.1	0.0	0.0	0.0	0.0	0.0	0.0
7	604.1	0.0	0.0	0.0	0.0	0.0	100.0	0.0	0.0	0.0	0.0	0.0	0.0
8	1122.5	79.1	0.6	0.0	0.5	2.8	17.1	0.0	0.0	0.0	0.0	0.0	0.0
9	1111.0	0.0	7.2	0.0	0.0	0.0	22.3	0.0	0.0	54.3	16.3	0.0	0.0
10	941.4	4.3	0.0	0.0	0.0	0.0	0.0	0.0	0.0	95.7	0.0	0.0	0.0
11	1466.5	56.0	0.4	0.0	0.0	30.5	13.1	0.0	0.0	0.0	0.0	0.0	0.0
12	1111.0	0.0	7.2	0.0	0.0	0.0	22.3	0.0	0.0	54.3	16.3	0.0	0.0
13	941.4	4.3	0.0	0.0	0.0	0.0	0.0	0.0	0.0	95.7	0.0	0.0	0.0
14	1122.5	79.1	0.6	0.0	0.5	2.8	17.1	0.0	0.0	0.0	0.0	0.0	0.0
15	1387.2	56.2	0.0	0.0	0.0	0.0	17.9	0.4	0.0	19.7	5.9	0.0	0.0
16	1432.0	0.0	28.1	24.2	24.2	0.0	10.9	0.0	0.0	5.9	6.6	0.0	0.0
17	912.4	42.3	0.0	0.0	54.7	0.0	3.0	0.0	0.0	0.0	0.0	0.0	0.0
18	1939.8	24.2	5.3	0.0	0.0	0.0	10.7	0.0	19.2	36.7	3.9	0.0	0.0
19	1381.8	56.4	0.0	0.0	0.0	0.0	17.9	0.0	0.0	19.7	5.9	0.0	0.0
20	736.0	1.0	0.0	0.0	0.0	0.0	0.0	0.0	27.9	3.3	67.9	0.0	0.0
21	1432.0	0.0	28.1	24.2	24.2	0.0	10.9	0.0	0.0	5.9	6.6	0.0	0.0
22	912.4	42.3	0.0	0.0	54.7	0.0	3.0	0.0	0.0	0.0	0.0	0.0	0.0
23	1485.8	22.1	1.2	0.0	0.0	31.8	44.9	0.0	0.0	0.0	0.0	0.0	0.0

shows the lengths of the optimal paths for each pair of bike-sharing stations and the percentage share of lengths of sections of individual categories in total length of the path between the pair of stations (measure $W{1}_{ac}^{p^{*}\left(bss,bs{s}^{\prime }\right)}$). The average length of the 23 most frequently used paths is 1278 (m).

The longest analyzed path is 2163.7 m and is located between the second station (Silesia City Center) and the first bike-sharing station (Katowice Rynek). It is the third link according to the bicycle traffic load. There are no sections of the IV_b and V_b categories in any connection. For the three paths (ID_L: 10, 13, 20) it is possible to complete the trip almost entirely using bicycle paths. On the other hand, in the case of 11 of the analyzed 23 paths, there is no section categorized as a bicycle path. For two connections between bike-sharing stations (ID_L: 1, 15), it is necessary to overcome the stairs. Apart from bicycle paths, the most frequently used in the analyzed area are sidewalks (29.6% on average) and pedestrian zones (20.2% on average).

The total number of trips made within the bike-sharing system for the 23 selected relations is 37,241. The frequency and cumulative distributions of the trips as a function of their length are shown in Figure 8. It can be noticed that over 64% of bicycle trips in the most loaded 23 relations are longer than 900 m and shorter than 1500 m.

Table 7. Values of the measure $W{2}_{cv}^{p^{*}\left(bss,bs{s}^{\prime }\right)}$ [−].

IDL	Categories of the Intersections of Road and Street Network							Total Number of the Intersections in the Path
	Ip	IIp	IIIp	IVp	Vp	VIp	VIIp
1	0	3	0	1	5	0	0	9
2	2	1	0	0	5	1	1	10
3	2	3	1	0	2	2	1	11
4	0	1	0	0	1	0	0	2
5	2	3	1	0	2	2	1	11
6	1	1	1	0	4	1	1	9
7	0	1	0	0	1	0	0	2
8	0	1	0	0	3	1	0	5
9	0	2	0	1	7	0	0	10
10	0	0	0	0	7	0	0	7
11	1	1	1	0	4	1	1	9
12	0	2	0	1	7	0	0	10
13	0	0	0	0	7	0	0	7
14	0	1	0	0	3	1	0	5
15	0	2	0	0	4	0	0	6
16	2	1	4	1	0	0	1	9
17	2	0	0	0	2	1	0	5
18	0	4	1	0	1	0	0	6
19	0	2	0	0	4	0	0	6
20	0	3	0	0	0	0	0	3
21	2	1	4	1	0	0	1	9
22	2	0	0	0	2	1	0	5
23	1	1	3	0	1	2	1	9
Sum	17	34	16	5	72	13	8	165

shows the number of intersections of a specific category (measure $W{2}_{cv}^{p^{*}\left(bss,bs{s}^{\prime }\right)}$) in the optimal path for each pair of the bike-sharing stations, considering the adopted classification of the sections.

The most common category of intersections crossed by cyclists is V_p, which occurred 72 times for 23 paths. For five paths, at least 10 junctions must be followed to reach the destination. Pedestrian crossings with traffic lights also play an important role. In the future, consideration should be given to changing the indicated crossings to pedestrian and bicycle crossings which enable cyclists to cross such places more smoothly.

The conducted analyses allowed for the distribution of traffic flows into sections of optimal paths for the most frequently used relations (23 selected ones). Figure 9 shows the results of the analysis of the sections. At this stage, the existing bicycle paths, which were the subject of the general analysis (Figure 7), were not considered.

The analyzed sections of the road and street network (categories marked as I_l to VII_l) were ordered according to the volume of bicycle traffic.

Table 8. Ranking of 20 sections according to the volume of bicycle traffic.

Section IDse in the Hierarchy	Volume of Bicycle Traffic (Bikes/8 Months)	Length of the Section (m)	Category of the Section
1	11,641	16	VIl
2	8429	97	VIl
3	8141	178	IIIl
4	8141	111	IVl
5	8141	22	IIl
6	8141	84	IVl
7	8141	42	IIl
8	8141	24	IIl
9	8141	50	IVl
10	8141	21	IVl
11	8141	117	IIl
12	8141	166	IIl
13	8141	14	IIl
14	8141	29	IVl
15	8141	37	IVl
16	8141	15	IVl
17	8141	156	VIl
18	7850	13	Il
19	7850	157	Il
20	7850	226	Il

shows the 20 most heavily loaded sections with the data on the length and category of each section. Complete data are presented in

Table A2. Ranking of the sections in terms of the volume of bicycle traffic.

Section IDse in the Hierarchy	Volume of Bicycle Traffic (bikes/8 months)	Length of the Section (m)	Category of the Section	Section IDse in the Hierarchy	Volume of Bicycle Traffic (Bikes/8 Months)	Length of the Section (m)	Category of the Section
1	11,641	16	VIl	71	2383	3	Il
2	8429	97	VIl	72	2383	4	Il
3	8141	178	IIIl	73	2383	69	Il
4	8141	111	IVl	74	2383	5	VIIl
5	8141	22	IIl	75	2383	11	Il
6	8141	84	IVl	76	2383	23	Il
7	8141	42	IIl	77	2383	13	Il
8	8141	24	IIl	78	2383	21	Il
9	8141	50	IVl	79	2383	21	Il
10	8141	21	IVl	80	2383	40	Il
11	8141	117	IIl	81	2383	6	Il
12	8141	166	IIl	82	2383	5	Il
13	8141	14	IIl	83	2383	4	Il
14	8141	29	IVl	84	2383	2	Il
15	8141	37	IVl	85	2383	274	Il
16	8141	15	IVl	86	2383	12	Il
17	8141	156	VIl	87	2383	52	Il
18	7850	13	Il	88	2383	31	Il
19	7850	157	Il	89	2383	41	Il
20	7850	226	Il	90	2383	146	Il
21	7850	153	Il	91	2252	169	IIIl
22	7850	31	Vl	92	2252	17	IIl
23	6962	7	Il	93	2212	16	Il
24	5889	11	Il	94	2212	44	IVl
25	5889	20	Il	95	2212	12	Il
26	5889	34	Il	96	2212	16	Il
27	5889	19	Il	97	2212	27	VIl
28	5889	46	Il	98	2212	342	Il
29	5889	4	Il	99	1545	131	Il
30	5889	11	Il	100	1545	118	Vl
31	5889	11	Il	101	1545	20	Il
32	5889	12	Il	102	1545	3	Il
33	5889	5	Il	103	1545	172	Vl
34	5889	8	Il	104	1147	19	IIl
35	5889	13	IVl	105	1147	333	Il
36	5889	22	IIl	106	1147	67	VIl
37	5889	158	Il	107	1147	45	Il
38	5518	248	VIl	108	1147	59	Il
39	5424	47	IVl	109	1147	141	VIl
40	5424	264	IVl	110	1147	9	Il
41	5424	144	IVl	111	1147	11	IIl
42	4757	124	Vl	112	1147	36	IIl
43	4757	1	Vl	113	1147	5	Il
44	4638	38	Il	114	1147	11	Il
45	4638	10	Il	115	1147	7	Il
46	4638	47	Il	116	1147	37	IIl
47	4638	79	VIl	117	1006	268	Vl
48	4638	7	IIl	118	1006	64	Vl
49	4638	23	Il	119	1006	17	IIl
50	3791	81	VIl	120	1006	9	Vl
51	3791	32	VIl	121	1006	56	Vl
52	3791	106	VIl	122	1006	20	Il
53	3791	157	VIl	123	1006	18	Il
54	3791	116	VIl	124	1006	33	Il
55	3212	52	Il	125	1006	17	Il
56	3212	60	VIl	126	1006	17	Il
57	3212	16	VIl	127	1006	76	Vl
58	3212	67	VIl	128	1006	130	Il
59	3212	10	VIl	129	1006	6	Il
60	3212	28	VIl	130	1006	8	Il
61	3212	0	VIl	131	1006	22	Il
62	3212	90	Vl	132	1006	9	Il
63	3135	43	IIl	133	1006	10	Il
64	3135	23	IIl	134	1006	8	Il
65	3135	14	IIl	135	1006	32	Il
66	3093	5	IVl	136	1006	83	VIl
67	3093	172	Il	137	1006	80	VIl
68	3093	49	Il	138	1006	121	VIl
69	3080	17	Il	139	1006	384	VIl
70	3080	23	Il	-	-	-	-

in Appendix A.

A total of 8471 m of new bicycle paths would ensure safer and faster travel on the relations most heavily loaded with bicycle traffic in the city of Katowice. This goal should be achieved in stages, considering sections for the most frequently used relations (pairs of bike-sharing stations).

Table 9. Categories of the sections of road and street network together with total lengths of the sections and their share in total length for all analyzed paths between pair of bike-sharing stations.

Category of Section	Total Length of Sections of the Category (m)	Share of the Length of Sections of the Category in Total Length of all Sections (%)	Number of Sections of the Category	Average Length of Section of the Category (m)
Il	3443	0.41	72	47.82
IIl	631	0.07	17	37.12
IIIl	458	0.05	3	152.67
IVl	753	0.09	12	62.75
Vl	1009	0.12	11	91.73
VIl	2172	0.26	23	94.43
VIIl	5	0.00	1	5.00

shows the total lengths of the sections for each category and their percentage share in the total length of the sections (i.e., 8471 m).

The optimal paths for the 23 selected relations mostly lead through the sections of the category I_l (over 50% of 139 sections), that is, sidewalks. This is also the category with the greatest total length of sections—3443 m. The sidewalks can be easily modified in order to introduce bicycle paths depending on their width. The shortest length of sections is in the category representing stairs—5 m. However, it is a big nuisance for cyclists, so the indicated places should be considered first for the changes.

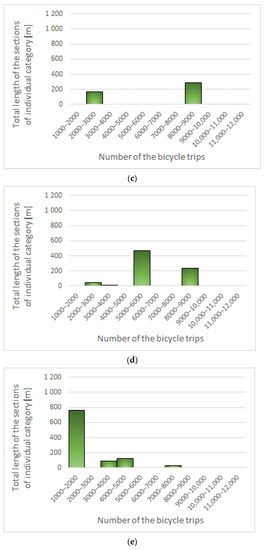

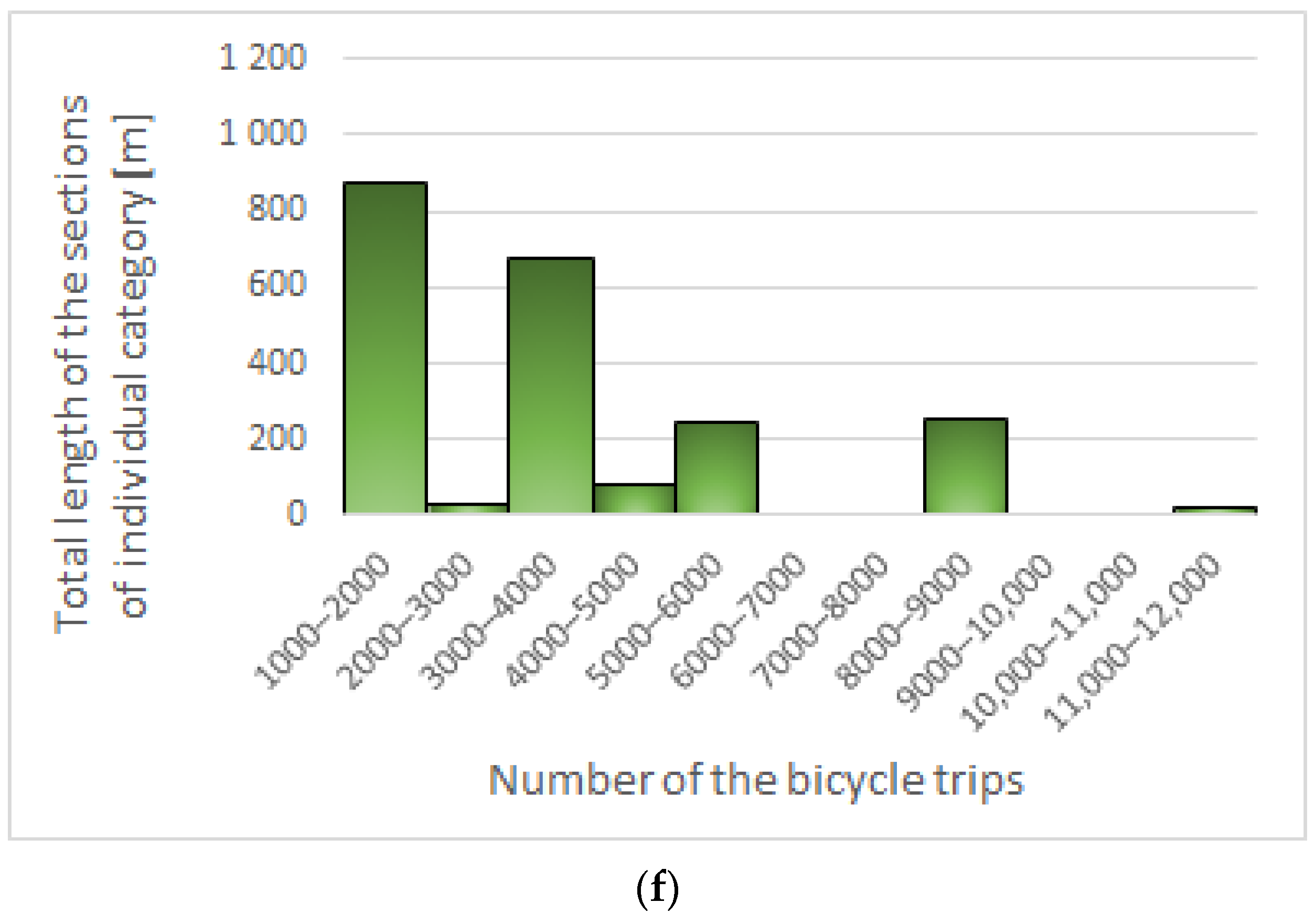

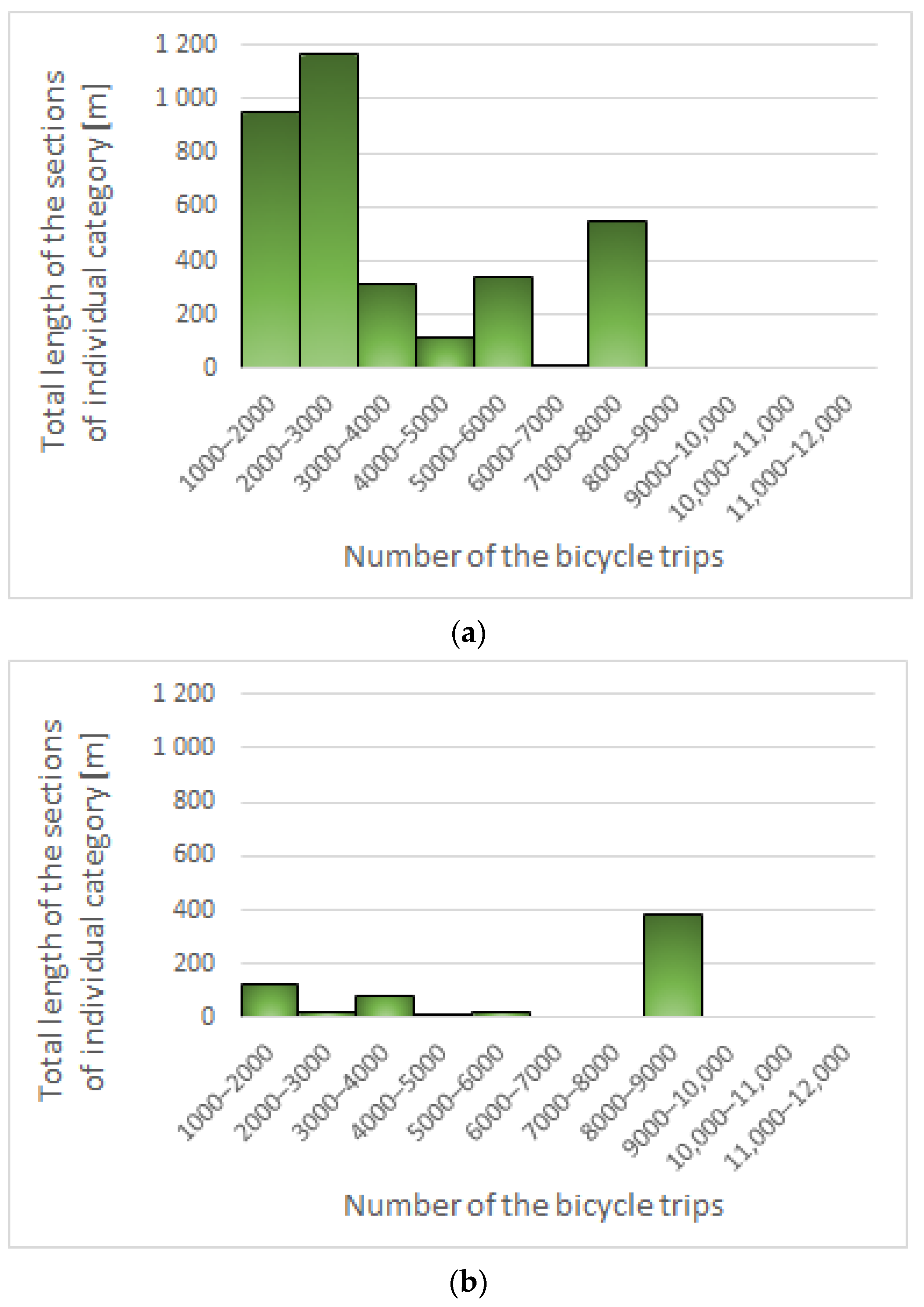

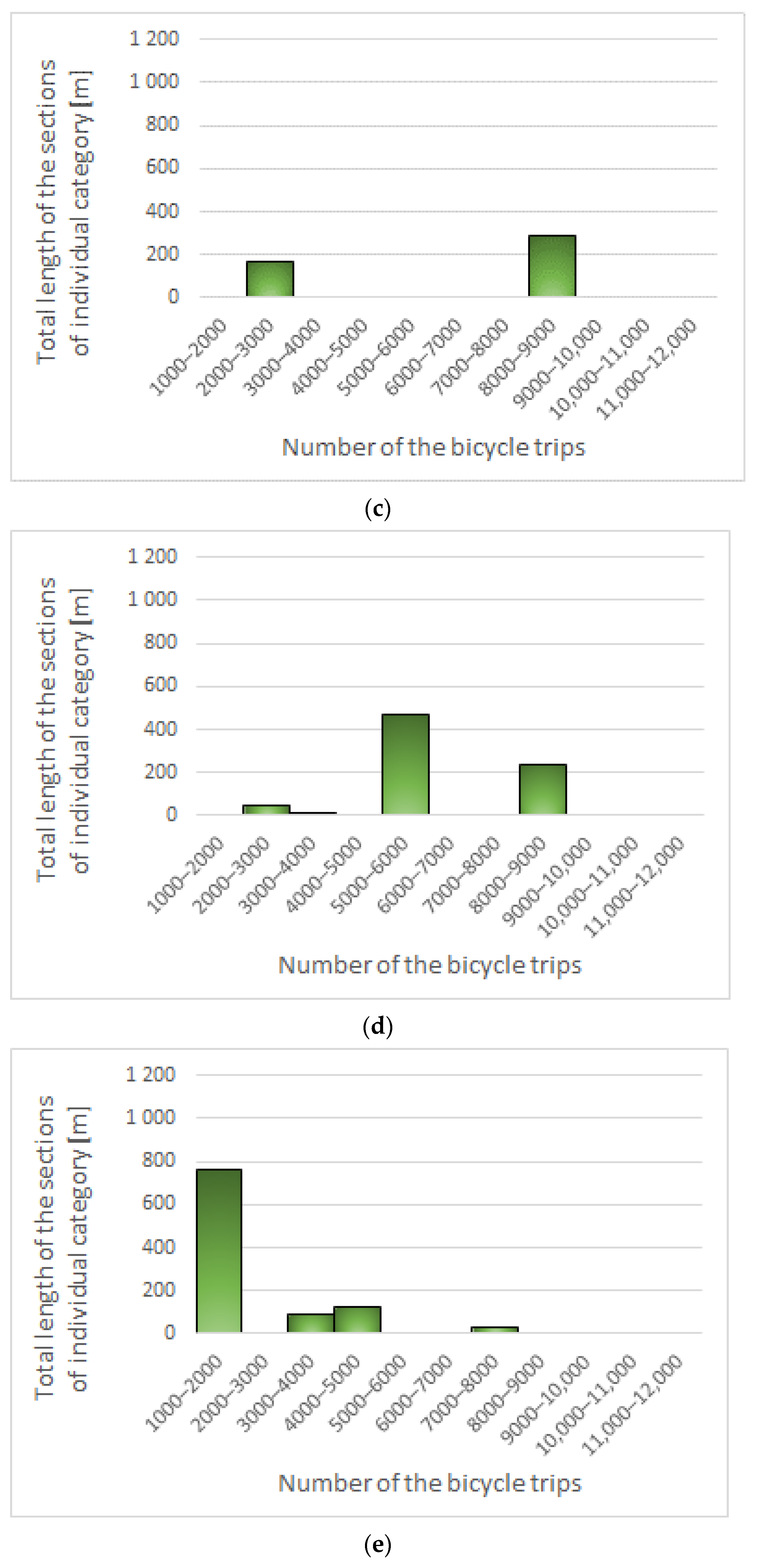

Figure 10 shows the distributions of the total length of sections for individual categories as a function of the number of trips made in the bike-sharing system. They provide an overall view of the use of sections in each category. Category VII_l, that is, stairs, was not included in the analyses due to the presence of only one such case for the selected 23 relations.

When analyzing distributions of the total length of the sections for each category separately, it can be noticed that the sections of category I_l dominate for relatively small cycle flows (up to 8000 trips/season). In the case of sections of categories II_l, III_l, IV_l, and VI_l, the use of 8000–9000 bicycle trips was also observed. For categories V_l and VI_l, it can be stated that with the decrease in the number of journeys, the total length of sections in this category also decreases.

5. Discussion

To increase the number of bike-sharing system users it is necessary to take up actions to increase its attractiveness in comparison to other modes of traveling in urban areas. Therefore, it is inevitable to provide appropriate spatial integration of bike-sharing rental stations. It can be achieved by improving the technical parameters of segments of transport infrastructure that connect those stations, so they meet the needs of bike traffic. This requires the identification of segments of road and street network potentially preferred by bike users when traveling between stations.

The method proposed in the article requires determining the paths for the most loaded relations. The aim of the method is to select the sections which have a high potential of spatial integration (e.g., connectivity) but currently are not used. It is assumed that the improvement of these sections will have a positive effect on the network connectivity for cycling, and thus on the integration of bike-sharing stations. The data obtained from the operator of the bicycle rental system allowed us to determine the most popular directions of bike traffic between the stations. The use of GIS tools made the choice of the shortest path in terms of length possible. The path selected in this way may also include sections that are less frequently used by cyclists due to lower safety or riding comfort. Such sections should be modernized and adapted to the requirements of bicycle traffic.

Two measures W1 and W2 were calculated for each relation. The W1 measure expresses the percentage share of the length of sections assigned to each category of road and street network segments. Several categories of such segments were distinguished. It is of great importance to enable traveling between stations using bicycle paths separated from road traffic. On the other hand, the W2 measure pertains to the percentage share of intersections assigned to categories.

Results of calculations of the W1 measure have shown that in the case of only 4 out of 23 relations, there are segments of the network which are bike-friendly—completely separated from road traffic. In the case of only one path, these segments constitute more than 20% of the total length of the path. Most paths consist of segments of sidewalks separated only by floor markings and signs. The analysis shows which segments should be adjusted and upgraded and to what extent in order to increase the level of integration of the whole bike-sharing system. The analysis of values of the W2 measure shows that most intersections, which the cyclists cross using the sidewalks, are not equipped with traffic lights (category V_p). It is necessary to determine whether such intersections provide an appropriate level of safety or not. This requires a thorough analysis of specific locations, considering the environmental conditions, traffic organization, and the visibility of both cyclists and drivers of other vehicles.

6. Conclusions

The analysis presented in the paper allows stating that the proposed method of the assessment of the spatial integration of bike-sharing stations in urban agglomerations based on GIS tools may be a useful instrument to perform essential analyses for the appropriate development of a bike-sharing system in the city. The analysis performed according to the proposed method allowed us to identify segments of road and street network that should be upgraded in order to increase the spatial integration of bike-sharing stations as well as bikeability.

Presently, for the enhancement of the ecological safety of cities, decision-makers implement new instruments for the development of sustainable mobility. Important actions include providing new bike paths and bike-sharing stations, especially since bike-sharing systems are popular, and the number of their users is increasing. It is indicated by research presented in numerous studies, that is, [17,22,25], that pertain to analyses from different parts of the world.

In the presented study, the authors point out that increasing the number of active bike-sharing users requires actions that enhance the attractiveness of bike-sharing systems in comparison to other modes of transport available in urban areas. It is indispensable to provide an appropriate level of spatial integration of bike-sharing stations by adjusting technical parameters of segments of transport infrastructure which connect stations so they meet the needs of bike traffic. That process requires the identification of segments of road and street network that may be potentially used by bike users in trips between stations. The method proposed by the authors allows the performing of such actions.

The method is based on GIS-tools and contains four sub-models that constitute a complex approach to all aspects of the analysis and assessment of necessary investment actions. An important part of the method is a model of a bike-sharing station system. It allows the identification of existing bike-sharing stations and their characteristics, both from the point of view of a user and infrastructural needs. The model of road and street networks that describes the network of streets and intersections in combination with the model of demand for bike-sharing ridership allows preparing a matrix of traffic flows between stations. Therefore, it is possible to apply the model of path choice for the bike-sharing system. To assess the spatial integration of bike-sharing stations, appropriate measures were developed.

Results of empirical research indicate that the percentage share of segments, in particular, categories of segments of road and street network, allows the identification of categories that are important for possible traveling between stations using bike paths separated from road traffic.

Another important measure that was analyzed is the percentage share of intersections assigned to categories. The analysis showed that the most common type of intersection is an intersection without traffic lights, where bike users ride on sidewalks both before and after the intersection. It is essential to conduct additional research to determine whether such intersections always provide the required level of safety.

The analysis of said measures shows which segments of road and street network, and to what extent, should be modified and upgraded to increase the level of spatial integration of the whole bike-sharing system. Undoubtedly, the research conducted, and the method proposed indicate that it is necessary to perform a complex study on shaping the network of streets and intersections to develop the bike-sharing network in the future, so its users could travel to every location and park or return the bike without additional hassle.

Bike-sharing systems provide interesting opportunities for future research. Therefore, it is possible to expand the proposed method by including different analyses, that is, analysis of centrographic indicators, hot spot analysis, or correlation and multivariate statistics. Moreover, the number of trips in each relation could be compared with the share of each type of section of the road or intersection and the observed flow could be compared with the gravity model. Future expansion of the method should lead to more systematic analyses of the bike-sharing network in urban areas.
