Sustainable Design and Prototyping Using Digital Fabrication Tools for Education

by
Sohail Ahmed Soomro
1,2,
Hernan Casakin
3 and
Georgi V. Georgiev
1,*
1
Center for Ubiquitous Computing, University of Oulu, 90570 Oulu, Finland
2
Department of Electrical Engineering, Sukkur IBA University, Sukkur 65200, Pakistan
3
School of Architecture, Ariel University, Ariel 44837, Israel
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(3), 1196; https://doi.org/10.3390/su13031196
Submission received: 29 December 2020 / Revised: 18 January 2021 / Accepted: 19 January 2021 / Published: 23 January 2021
(This article belongs to the Collection Science Education Promoting Sustainability)
Browse Figures
Versions Notes

Abstract

:
Prototyping physical artifacts is a fundamental activity for both product development in industrial and engineering design domains and the development of digital fabrication skills. Prototyping is also essential for human-centric problem-solving in design education. Digital fabrication assists in rapid prototype development through computer-aided design and manufacturing tools. Due to the spread of makerspaces like fabrication laboratories (FabLabs) around the world, the use of digital fabrication tools for prototyping in educational institutes is becoming increasingly common. Studies on the social, environmental, and economic sustainability of digital fabrication have been carried out. However, none of them focus on sustainability and prototyping-based digital fabrication tools or design education. To bridge this research gap, a conceptual framework for sustainable prototyping based on a five-stage design thinking model is proposed. The framework, which is based on a comprehensive literature review of social, economic, and environmental sustainability factors of digital fabrication, is applied to evaluate a prototyping process that took place in a FabLab in an education context aimed at enhancing sustainability. Three case studies are used to evaluate the proposed framework. Based on the findings, recommendations are presented for sustainable prototyping using digital fabrication tools.

1. Introduction

Various definitions of a prototype can be found in the literature [1,2,3]. In this study, a prototype is defined as “a concrete representation of part or all of an interactive system” and as “a tangible artefact, not an abstract description that requires interpretation” [4]. As the word prototype suggests, it is the outcome of the prototyping activity. Indeed, the prototyping activity and its outcome help to improve design [1,5,6]. Prototyping provides an opportunity to transform a design idea into a tangible form. This activity is frequently carried out by product development designers from the earlier stages of the design process. Architects, engineers, and designers use prototypes for concept testing and evaluation purposes. Prototyping is highly relevant in design education, where students learn how to produce creative idea solutions for real-life problems [7]. Different types of prototype processes exist [6,8]. Digital fabrication is one of them [9] and is largely affected by the manner that designers think.

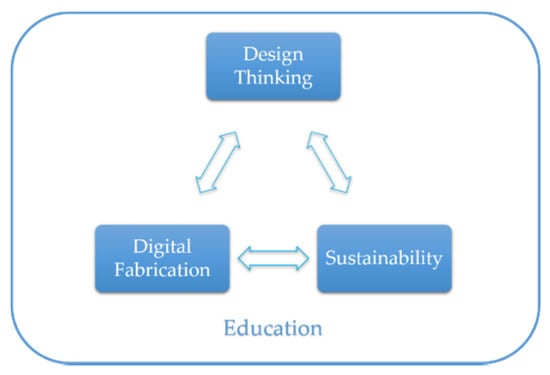

Design thinking is concerned with the generation of ideas while tackling a design problem and transforming them into a solution. Among many models that can be found in the literature, Stanford’s design thinking model relates to a well-established conceptual framework in which the development of a solution leads to a concrete product [10]. This model is used for the sake of creating human-centric product solutions. It is composed of five steps, the fourth of which is to prototype. This is the step where prototyping, digital fabrication, and design thinking come into place [9]. In the present technological era, digital fabrication is characterized by the use of convenient techniques that facilitate the rapid creation of tangible prototypes using CAD and CAM tools. The digital fabrication techniques are used in a variety of disciplines ranging from architectural to industrial design [7,11,12,13]. Several studies have examined the role of digital fabrication tools in the design education context. Kim [14] highlights the importance of digital fabrication tools such as parametric design software, 3D printers (additive manufacturing), and Computer numerical control (CNC) milling (subtractive manufacturing process) in architectural design education. Researchers explore the contribution of these techniques in STEM and STEAM education [15,16,17,18]. Digital fabrication techniques have gained popularity in educational environments all over the world, mainly due to the influential role of the Fabrication Laboratory (FabLab) from MIT [19], the makerspaces [20], and the rapid prototyping laboratories [21].
The increasing use of these digital fabrication tools raises questions regarding the extent to which the fabrication process can be sustainable and has become the core of the debate in the literature. For example, Corsini and Moultrie [22] conducted a comprehensive study on the social aspects of digital fabrication for humanitarian development. They suggested a framework aimed at dealing with the social sustainability of design implemented through digital fabrication [22]. In another study, the life cycle assessment (LCA) of a digital fabrication-based prototype was discussed by Lazaro Vasquez et al. [23]. In their work, the use of conventional materials for prototype development is replaced by biomaterial to improve the environmental sustainability and life cycle of prototypes. Kohtala et al. [24] propose the use of new technologies and environmentally friendly materials to improve sustainability in digital fabrication. Agusti-Juan et al. [25], who studied the role of 3D printing to improve sustainability in construction, offer environmental guidelines to make digital fabrication tools more sustainable.
The above studies explore social, environmental, or economic aspects of sustainability but do not investigate all these aspects together. Digital fabrication tools used for prototyping are not only relevant at the higher education level, but also for STEM and primary education [20]. Despite its importance, no study has addressed sustainability and prototyping-based digital fabrication tools in the design education context. A conceptual framework focusing on all major aspects of sustainability in digital fabrication-based prototyping in the educational environment has yet to be proposed to fill this research gap. Therefore, the objectives of the present study are: firstly, based on existing literature, to propose a conceptual framework that combines design thinking, digital fabrication-based prototyping, and sustainability and secondly, to test this comprehensive conceptual framework empirically in the context of design education. It is expected that the present study will allow a deeper understanding of the contribution of sustainability to digital fabrication during design problem-solving, with important implications for education environments such as design courses dictated in FabLabs. The outcomes of this study will encourage designers, instructors, and students to become more aware of the importance of sustainability in the digital fabrication process. For the scope of this study see Figure 1.

2. Literature Review

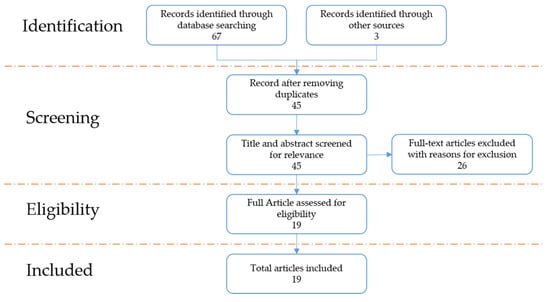

To explore the existing work on sustainability issues in digital fabrication-based projects, a comprehensive literature review is conducted. After inspecting the scope of this topic, four major keywords were identified: prototype or prototyping, sustainable or sustainability, digital fabrication, and design education. Carrying out an initial search using prototype or prototyping keywords led to too many results, and using all four keywords at once ended up with only a few outcomes. Hence, it was decided to stick with sustainable or sustainability and digital fabrication keywords to gain a comprehensive view of the literature on sustainability issues in digital fabrication. A logical approach was adopted to find relevant peer-reviewed articles available on the Scopus and Web of Science databases using the AND operator between sustainable or sustainability and digital fabrication keywords. The decision to use Scopus and Web of Science databases as search tools was made sense because they cover many academic disciplines of science, arts, and engineering. The current search was limited to peer-reviewed journal articles published in English. A total of 64 journal articles were initially found in these databases. Forty-five articles remained after removing duplicates. The next phase consisted of screening for relevant articles. Twenty-six out of 45 articles were found to be related to the application of digital fabrication in architecture and construction. After removing duplicates and irrelevant articles, only 16 articles were found to be relevant to the scope of this research. After a discussion among all the authors, two conferences [23,26] and one further journal article [27] were identified through snowballing and included in the literature review due to their relevance and contribution to this study. In total, 19 articles were found to be eligible for inclusion in the literature review. The complete searching process is described in Figure 2. The filters and instructions used during the search are provided in Table 1.
Table 2 summarizes all 19 articles we found in the literature review described above. It also indicates the focus of the research papers included in the review in terms of the sustainability aspect they address and its context (i.e., digital fabrication, prototyping, or design education). It is worth mentioning that there is a limited number of articles centering on the sustainability of prototyping using digital fabrication in the educational context. Hence, this is the gap addressed in this article. However, the sustainability of digital fabrication tools is a topic that is widely discussed [24,28,29,30]. Digital fabrication is the technology used for prototyping and product design and development [11,31]. This is why research on the sustainability of digital fabrication can be related to prototyping activity. The prototyping activity is largely based on digital fabrication tools due to their availability in most makerspaces and FabLabs in many universities around the globe [32].

2.1. Social Sustainability

Social sustainability is a central topic discussed in many articles in the literature (see Table 2). This notion is defined in many ways in the literature [42,43,44]. In this study, the clear and simple definition by Corsini and Moultrie was adopted: “Social sustainability is necessary to sustain positive change that addresses pressing social challenges” [22]. These authors proposed a framework for social sustainability evaluation of designs made through digital fabrication for the humanitarian development sector. The first two stages (product and process) of that framework are applicable for digital fabrication-based prototypes, provided that the technology (digital fabrication) considered in their study is similar to that employed in the present research.

2.2. Environmental and Economic Sustainability

Environmental sustainability is another central concept discussed in the literature [13,14,25]. To understand this notion in digital fabrication-based projects, two factors should be referred to: the material and the process used in making the prototypes [23,45]. Literature addressing the environmental sustainability of digital fabrication recommends the use of renewable material and the efficient employment of tools [11,38]. Forthcoming design projects can be evaluated by the life cycle assessment (LCA) approach [23]. In the digital fabrication context, LCA centers on issues such as waste reduction, energy consumption, recycling, and reuse.
Prendeville et al. [27] noted that embedding the concept of circular economy and redistributed manufacturing in makerspaces (place with digital fabrication tools) can create a suitable environment for sustainable product development. It hinges on product reuse, repair, remanufacture, and recycling. This notion is in contrast to conventional linear economy, which is to take–make–waste products. The concept of redistributed manufacturing is to make the product locally instead of at a centralized production facility. It can reduce supply chains and transportation. Redistributed manufacturing therefore reduces environmental impact due to energy consumption and transportation. It can be concluded that reuse, repair, remanufacture, and local manufacturing are the factors for the environmental and economic sustainability of digital fabrication-based production. Hence, the environmental and economic sustainability of digital fabrication-based projects can be divided into material and process groups, which are discussed below.

2.2.1. Environmental and Economic Impacts of Materials Used in Digital Fabrication

Vasquez et al. [23] proposed a life cycle assessment method based on material and manufacturing processes for digital fabrication projects and concluded that the use of biomaterials in prototyping contributes to making the process more sustainable. These researchers also indicated that waste reduction can improve sustainability in prototyping activity in FabLabs. They found that laser-cutting- and 3D printing-based prototypes generate 37% and 22% of waste, respectively. They also indicated the end-of-life and recycling factor of sustainability in their findings. Moreover, they showed that 47.5% of unused prototypes are placed in FabLabs for more than one year after their usage, and 27.5% are kept for 6 months to a year in FabLabs and become part of the waste. Nevertheless, many components of these prototypes, such as electronic components and material, can be reused or recycled. Since electronic components are among the most common parts used in digital fabrication-based prototypes, the reuse of these components can help in the reduction of e-waste [26,46]. Similar studies about environmental and economical sustainability indicators are listed in Table 2. Transportation was also identified as an important indicator affecting design sustainability. Birtchnell et al. [47] noted that the environmental impact due to long-distance transportation can be reduced by making products locally. This is aligned with the concept of redistributed manufacturing described by Prendeville et al. [27].

2.2.2. Environmental and Economic Impacts of Machines Used in Digital Fabrication

The machinery employed in digital fabrication has an important effect on environmental and economic aspects. Faludi et al. studied the environmental impacts of 3D printers and CNC machines, considering popular digital fabrication tools [48]. While analyzing the environmental impact, these researchers focused on energy consumption, material waste, and high and low utilization of these types of equipment. They reported that energy consumption of 3D printers is frequent, but in the case of higher utilization of CNC machines, material waste becomes much higher. However, they found that energy utilization in idle time was an important parameter that reduces energy efficiency. They concluded that higher and well-planned utilization of 3D printers and CNC machines can balance energy consumption or machine usage for the produced parts. Similar parameters were considered to evaluate the environmental impact of these machines [49,50]. A laser cutter machine was found to emit gases that are not considered environmentally friendly [51]. When employed for cutting metal and engraving any other material, they consume even more energy than CNC machines [52]. However, the gas emission produced could be reduced by selecting the appropriate material and type of laser cutter, i.e., fiber or CO2 types. In addition to the environmental impact, the cost of usage of metal cutting machines is also studied in literature [53].

2.3. Sustainability Indicators

In the first stage, the authors identified from the literature 20 sustainability indicators in the context of digital fabrication. In a second stage, they classified these indicators into three main categories based on their usability and applicability. The indicators and their corresponding categories are summarized in Table 3, with corresponding references.
The recycling indicator reflects the use of recyclable material [23,39]. The reusability indicator represents the reuse of electronic components and material from previously built projects/prototypes [26,46]. The transportation indicator refers to local production and the use of locally available materials to reduce environmental and economic transportation impact [25,27]. The energy consumption indicator denotes the energy utilized by machines in the manufacturing process [25,45,48]. The waste reduction indicator represents the excessive use of material during the fabrication process [23,45,46,54]. Material waste is usually caused when the prototyping process lacks optimization and therefore leads to more than a single iteration. The emission indicator represents the emission of unsafe gases like HCN, NO2, CO, CO2, HOCH, CoCl2, and styrene from laser cutting machines [23,51,55]. The amount and type of emission depend on the material used and the type of laser cutter (Fiber/CO2) [51]. The end-of-life indicator refers to the possibility of reusing parts and material of the prototype after testing it [23,56]. This factor can be attained by utilizing most of the material of the current prototype for future prototypes. Finally, the social sustainability indicators were based on the work of Corsini and Moultrie [22], who grouped them into product and process categories. The product category included: need, suitable, access, usability, quality, adjustability, inclusive and complementary. The process category included: local manufacture, local control and repair, collaborative, transparent, and scalable. These social sustainability indicators refer to the degree of social sustainability product design possesses.

3. Materials and Methods

From the literature review outlined above, it can be concluded that there is an emerging body of work on sustainability regarding digital fabrication, but not in connection to prototyping in general, or prototyping in design education in particular. Dealing with this research gap can be helpful to enhance sustainability awareness in prototyping activities carried out in FabLabs [57] and makerspaces [58]. To this aim, a conceptual framework for sustainable prototyping based on a five-stage design thinking model is proposed. The framework, which is based on a comprehensive literature review of social, economic, and environmental sustainability factors of digital fabrication, is described as follows.

3.1. Stanford Design Thinking Process

The Stanford design thinking process [10] is a human-centric model used to solve commercial real-life problems. The model was found to be effective in design education, since it offers a systematic approach to tackling problems and coming up with creative solutions [59]. Because of its effectiveness, it is used in education and in this study. It consists of the following five stages: empathize, define, ideate, prototype, and test. Instead of using a linear approach, it uses a continuous process to improve the solution. In the empathy stage, the user needs and opinions are analyzed by a personal interview. The designer tries to understand all the aspects of the product related to the user before designing the product in the empathy stage. In the definition stage, a one line definition of the core problem is written to clearly express and explain the problem. This definition also includes the requirement of the product under question. In the ideate stage, designers have to come up with all possible ideas to create the product. In the prototype stage, a working model is created that can solve the user problem, and this prototype also helps to improve the design with users’ input. In the test stage, the prototype is provided for the user to use, and the designer seeks information on how the product is used and notices the features that can be improved.
Our study mainly focuses on the last three stages of the design thinking model, as they are directly related to the prototyping process. Hence, only the stages of the model rather than the interaction loops were included in the Stanford design thinking process [10].

3.2. Digital Fabrication

Rapid prototype development using digital fabrication tools is considered the most convenient approach for prototyping. These tools provide the facility to create computer designs of the prototype first, and then use them to make the prototype. This approach is called computer aided design (CAD) and computer aided manufacturing (CAM). Digital fabrication tools are also increasingly popular because of makerspaces around the globe. One example is the digital fabrication laboratory (FabLab) idea presented by Neil Gershenfeld [19]. FabLabs have become very popular educational environments, as there are more than 1000 FabLabs with digital fabrication facilities in universities, colleges, and schools [60]. FabLab provides facilities for all digital fabrication tools, such as 3D designing and printing, electronic circuit design and PCB milling, large CNC machines, 3D scanning, laser cutting, molding, and casting. These laboratories are highly suitable for prototyping activities using digital fabrication tools. Fleischmann et al. [38] commented, “Fab Labs can potentially be the places that encourage sustainable design, where people can produce products locally and think about the various implications for the environment and society of their design”. Hence, making digital fabrication-based prototyping sustainable will have a significant impact on the associated environmental, social, and economic factors.

3.3. Proposed Framework for Sustainable Design and Prototyping

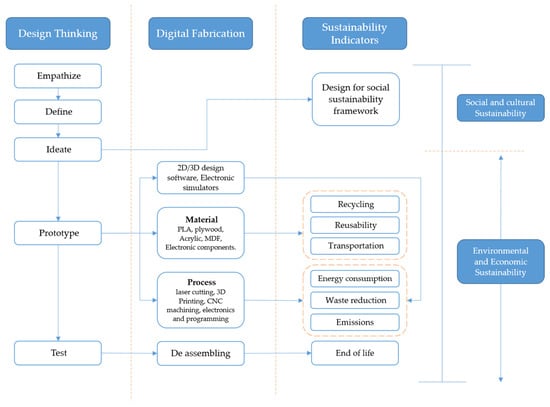

The sustainability indicators of digital fabrication identified in the literature (see Table 3) are related to the five-stage Stanford design thinking model as part of the proposed conceptual framework (see Figure 3). The first and second stages of the model consist of understanding and defining the design problem, and therefore they do not relate to any sustainability measure. The third stage is about ideation, where ideas are generated for further product development. Once an idea is selected, it is evaluated for social sustainability using the Design for Social sustainability (DfSS) framework [22], as shown in Figure 3. The fourth stage of the design thinking process is to prototype. In this stage, digital fabrication is employed as the main tool for developing the prototype. This activity can be divided into three parts: designing using CAD software, material, and process. In the first part, the design of the prototype is produced. The design optimization using CAD software helps to reduce energy consumption, waste induced, and gas emissions. The three indicators of energy consumption, waste induced, and gas emission focus on the main sustainability indicators concerned with the prototyping process. The three other sustainability indicators dealing with recycling, reusability, and use of local material (transportation) are related to the materials used during the prototyping activity. The final stage of the design model consists of testing the prototype. In consequence, the prototype can be disassembled, and the reusable parts can be detached. This is called an end-of-life indicator, as shown in Figure 3.

3.4. Principles of Digital Fabrication Course

The proposed framework for digital fabrication-based sustainable design and prototyping was implemented in the Principles of Digital Fabrication course. The course, which included 87 students, was aimed at helping develop design knowledge and skills during a digital fabrication process in a FabLab environment. Moreover, a major aim was to promote several aspects of sustainability. At the beginning of the academic period, course leaders gave a series of six lectures to students on sustainable design and prototyping practices. These included presentations focusing on the main themes included in the proposed framework, including awareness of design and sustainability. Above all, the lectures were aimed at enhancing the theoretical background of sustainability and of digital fabrication tools and their application in transforming ideas into a physical prototype. In the second part of the course, students implemented the content delivered in the lectures in a practical design prototyping task. During this period, relying on the expert opinion of instructors and other specialized personnel, optimal solutions were encouraged by providing feedback on the design ideas for the prototypes, alternative solutions, materials, and the reuse of existing product components. Explicit and detailed instructions were given to the students to optimize the digital fabrication process and materials. As part of the course philosophy, a portion of the electronic components in the produced prototypes were reused in later courses.
The design task of the course was to design an interactive 3D prototype, create basic electronics, implement control logic for an open hardware embedded board, design mechanical parts for prototype, and work in teams on a project. Some of goals of the course consisted of designing mechanical components by using solid modeling tools, building necessary electronics, implementing software with a microcontroller, and creating a prototype of a physical interactive gadget. The course was offered as part of a BSc in computer science, but students from other programs in the university participated. Students worked in teams of three to four members. They were free to decide the type of project they wanted to work on. However, digital fabrication tools were requested for the development of the design prototype. At the beginning, they were guided by their instructors on how to generate design ideas while working with teammates. Teams were encouraged to post the ongoing development of their project on a web-based blog (website provided by the course instructors). The weekly posts were available to both students and instructors to visit and comment on. Another course requirement was to document the prototyping process so that they could post all the problems they had faced and the approaches they used to solve them. Students were asked to finalize the project by the end of the seventh week, after which the instructors reviewed the design process and the produced outcomes. Scores were assigned to students based on the quality of the design prototypes, on sustainability and digital fabrication indicators, and on the design process and outcomes outlined in the proposed framework.

3.5. Selection of Case Studies

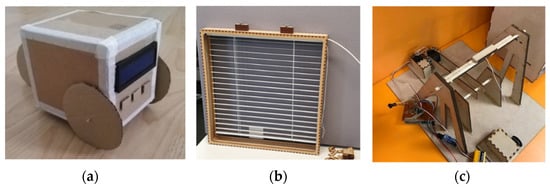

Three case studies were used as examples of the outcomes produced by the students in the Principle of Digital Fabrication course to evaluate the relevance of the proposed framework. These projects were selected based on the following criteria: first, a minimum of three to four students working in a team to develop the prototype (co-creation); second, the project was carried out in a FabLab educational setting, where students learn to generate ideas and develop prototype solutions using a human-centric approach (based on the five-stage design thinking model); third, the produced documentation embraced the last three stages of the design thinking model concerned with the prototyping process; finally, digital fabrication tools were used to produce the prototype.
To evaluate the sustainability of each of the case studies based on the proposed conceptual framework, sustainability indicators were applied by considering criteria for evaluation that included product, process, and material (see Table 3). The criteria were taken or adapted from the referred literature. The motivation for analyzing these cases is to test key elements of the proposed framework and discuss their application in digital fabrication-based projects in an educational design context.

3.6. Assessment

Sustainability indicators were evaluated independently by two design experts using a five-point Likert scale, ranging from 1 (low) to 5 (high). Each expert had at least 10 years of experience in supporting students in prototyping using digital fabrication tools.

4. Results

Table 4 depicts the assessment (mean score) by the two design experts of the sustainability indicators for each of the three case studies. The level of agreement between the evaluators was tested with Cohen’s [61] kappa coefficient. The value of kappa calculated in this study was 0.73 (Table 5). These κ values ranging from 0.61 to 0.81 represent significant agreement, and values ranging from 0.81 to 1.0 represent perfect agreement [62]. There is significant agreement among the assessors in most of the indicators, separate case studies, and overall.
Table
Table 3. Evaluation criteria of sustainability indicators.
Table 3. Evaluation criteria of sustainability indicators.
CategoryIndicatorCriteriaReference
ProductNeedDoes the user or community need it?[22,63,64]
SuitableIs it socially, culturally and environmentally appropriate?
AccessIs it accessible and affordable now and in the future?
UsabilityIs it solution easily understood and easy to use?
QualityIs it robust and long-lasting? Does it meet the necessary standard?
AdjustabilityIs it flexible and adaptive to changing circumstances?
InclusiveIs it inclusive of marginalized groups, or does it prioritize specific user groups?
ComplementaryDoes it support existing solutions and avoid unnecessary redundancy?
ProcessLocal
manufacture		Can it be manufactured locally?[22,56,65]
Local control and repairCan it be controlled, maintained, and repaired?
CollaborativeDoes it consider and engage with all stakeholders?
TransparentIs there supporting documentation? Is information shared?
ScalableIs the production process replicable and scalable?
Energy
consumption		Is the shared use of machines considered? Are standby modes avoided?
Is the prototype made with the minimum possible iterations?		[25,45,48]
Waste
reduction		Is the design optimized using relevant software prior to manufacture?
Is an appropriate machine selected for the task?
Is the minimum number of iterations considered in making a prototype?		[23,45,46,54]
EmissionDoes the manufacturing process cause the emission of unwanted gas (e.g., use of a laser cutter)?[23,51,55]
MaterialRecycle Is the use of environmentally friendly materials (like cardboard and biomaterials) considered in making a prototype?[23,39]
ReusabilityAre any used materials or electronic components utilized in making the prototype?[26,46]
TransportationIs the prototype made using locally available material?[25,27]
End of life What are the useful parts after testing the prototype?[23,56]

4.1. Case Study 1

The first example is a design project entitled the escaping clock. The main goal was to produce a prototype of an alarm clock that can force people to wake up from bed to turn the clock off. The device contained motors, an LCD, and a microcontroller board as electric circuits to control all inputs and output devices. A tilt sensor was used to monitor whether clock was stable in its defined position, and a battery was used to power all electric devices. The complete documentation of the prototyping process was reported using a web-based blog. The prototype is shown in Figure 4a.
Based on the conceptual framework proposed in Section 3.3, sustainability indicators defined in Table 3 were used to evaluate the sustainability of the escaping clock project. The need indicator, related to the necessity to wake up to turn off the alarm, was satisfactory. The product was also evaluated as suitable, considering that it was culturally and environmentally appropriate. It was considered accessible and affordable for the users, bearing in mind that its component parts can be purchased at low cost, or made in any FabLab, and are simple to use. However, the fact that cardboard is not a durable material for long-term use compromises the quality of the prototype. Regarding adjustability, the product was considered of satisfactory value as it can be upgraded through additional features, such as communication with mobile phones. Since the prototype was designed using standard components made in the university FabLab, it was also regarded as successful in terms of the complementary technology and local manufacturing indicator. The prototype can be repaired locally in FabLab. While all stakeholders (users and makers) were involved in the design and prototyping process, the project was evaluated as the outcome of a collaborative effort. The prototyping process was deemed transparent, since the documentation was available on a web-based blog and accessible for instructors and the other teams participating in the course. While manufacturing the clock from scratch, no heavy machinery (e.g., laser cutter, CNC, or 3D printer) requiring high energy consumption was required. Hence, a low amount of energy was consumed. Since a laser cutter machine was not required, the emission factor did not pose any threats. Cardboard was used to make the project casing and was assessed as a recyclable material. Only one design iteration was necessary to produce the prototype, and therefore no material was wasted. After testing the prototype, electronic components such as buttons, the LCD, and the microcontroller can be reused in other projects. A large part of the material used in the project was locally purchased, and hence no long-distance transportation was necessary. After the testing and dissembling phase, the material used in the prototype can be recycled and its electronic components reused, positively affecting the end-of-life indicator.

4.2. Case Study 2

This project is called smart blinds. The design team intended to tilt Venetian blinds at different angles automatically using light sensors. After making five iterations for the casing, they ended up with a medium-density fiberboard (MDF) casing to hold the blinds and electronic parts of the project. The casing was made using a laser cutter and designed through an online tool called “Boxes.py”. Electronic components included a photoresistor as a light detecting sensor, servo motors as actuators to tilt blinds, and a microcontroller board to control all parts of the project. Two attempts were made to make a printed circuit board (PCB) through a CNC milling machine. This PCB was used to integrate all the components on a single board. All electronic parts were imported, and MDF for the casing was locally available (see Figure 4b).
Manually adjusting window blinds daily can be an annoying experience for users. Therefore, products such as smart blinds are very much needed. This product causes no environmental damage and is socially suitable. High-quality materials and processes like MDF for the casing, PCB for electronic components, and automatic control using sensors turn the smart blinds into a good quality prototype with high fidelity (quality, access, and usability). A feature that makes this prototype inclusive is that it can be automatically operated, and hence users should not concern themselves with controlling the functions. Moreover, the product can communicate with other devices and can be adjusted according to user requirements. Another important factor is that it is complementary with existing technology, machines, and other commercially available electronic components. The product is locally and collaboratively manufactured in a local FabLab, and the documentation is available on a website blog. This reflects the transparency of the process, which can be an advantage when repair might be needed. The production process is also scalable, as the casing is cut through a laser cutter. Consequently, the same files can be used for large-scale production. The MDF material used for casing is environmentally friendly and therefore can be recycled. On the other hand, the electronic components are new and in the future can be reused in any other prototypes. In contrast, sustainability indicators that were not achieved in this design project are energy consumption, waste reduction, emission, and transportation, since most of the product components were imported from foreign countries. Moreover, multiple attempts were made to optimize the casing using a laser cutter, which caused an increase in waste generated, higher energy consumption, and unwanted gas emitted. After testing the prototype, MDF could be recycled and some electronic components could be reused; hence, the end-of-life indicator was partially achieved (see Table 4).

4.3. Case Study 3

This project is named Catapult. The objective was to design a small catapult with actuators, which can be seen as elements changing electrical energy to mechanical that operate and control the device via a mobile application. The project was completed after producing three prototypes using cardboard material and a laser cutter. The final prototype included two 3D printed components. The electronics parts were motors, Bluetooth connection modules, and a dedicated electronic circuit to control all the electronic devices of the project. A mobile application was created to communicate with the product (see Figure 4c).
This project incorporates the element of fun and means to learn fabrication skills and therefore was not intended to fulfill any kind of user needs. The prototype was evaluated as culturally and environmentally appropriate (suitable). It uses cheap and commercially available components (access). The Catapult is a purpose-built prototype, and hence usability was not a problem. However, its adjustability for including further features was possible. It was evaluated as a low-quality prototype, since it uses cardboard as the main structure material and provides no protection to electronic circuits. The project was made in collaboration with a team of students working in a local FabLab (local manufacture) for learning purposes, and it does not target other users. Therefore, it does not fulfill the criterion of inclusiveness. Transparency was achieved given that the complete documentation for the process was available on a web blog. Since the electronic components were imported, some parts of the project needed long-distance transportation. Since three prototype iterations took place during the prototyping process, waste reduction was disregarded, and vast energy was consumed. Moreover, the prototyping process generated unwanted gas emissions as a laser cutter was used multiple times. While the project used purpose-built electronic circuits, only a few components (Bluetooth and motors) could be reused after the testing phase. Therefore, the end-of-life indicator was not satisfactory (see Table 4).

5. Discussion

Findings and observations derived from the assessment of the case studies are discussed concerning the proposed framework. The section is organized into three parts dealing with product, process, and material.

5.1. Product

The sustainability indicator under the product category reflected the level of social sustainability of the design prototype [22,29]. From the analysis of the case studies, the overall importance of the social sustainability indicators was observed to be directly related to the quality of a design project. This was particularly evidenced in case studies 1 and 2, where most social sustainability indicators were attained. Both designs were found to be socially viable, since they were used to solve real-life problems. Therefore, it can be said that the social sustainability indicator is largely concerned with the design and usability of the product. In educational settings, a larger awareness of social sustainability indicators can make students’ projects more practical and beneficial for society.

5.2. Process

In the proposed framework, the sustainability of the prototyping process is divided into two parts: social sustainability and economic and environmental sustainability. The social sustainability of the fabrication process hinges on five factors: local manufacture, local repair and control, collaborative, transparent, and scalable [22]. In all case studies, four out of the five indicators were met. This is because in educational prototyping activities, students can design the full prototype locally in FabLab. This makes the design activity collaborative and locally manufactured. Students also shared the documentation generated during prototyping with their instructors, which made the process more transparent. Hence, it can be said that teamwork in FabLab environments contributes to sharing and communicating information, which makes the prototyping process sustainable.
The three indicators, energy consumption, waste reduction, and emission, were identified in this study as responsible for environmental and economic sustainability indicators of the prototyping process. A reason all three indicators were attained in case study 1 is that the prototype was produced in only one iteration without using machines like a laser cutter, which led to minimum waste. In contrast, in case studies 2 and 3, prototypes were produced after three to five iterations, which involved a heavier use of the laser cutter machine and correspondingly higher energy consumption and induced waste. Hence, reducing the number of iterations in the prototyping activity can contribute to reducing energy usage, waste, and gas emissions. However, this contradicts the philosophy of FabLabs, which stated that multiple iterations of prototypes are considered helpful in improving design learning [66]. As a tradeoff and as a way to reduce iterations, it is recommended to optimize the design activity using CAD software before producing the concrete prototype.

5.3. Material

The type of material used during the prototyping activity can also be helpful to improve design sustainability when the material is recyclable [23]. This was the case in all three examples analyzed in this study. To improve suitability, microcontrollers, integrated circuits, sensors, and motors employed in the prototyping activity can be reused in the same design or in future projects [46]. It was observed that in case studies 1 and 2, the reusability of electronic components was present. This is because general-purpose electronic components were used. Employing general purpose electronic boards and sensors in prototypes allows reusability in future prototypes. Finally, local availability of materials and parts was found to reduce transportation costs, hence improving design sustainability [26,46]. This finding is aligned with Fleischmann et al. [38], who used cork—a naturally available and renewable material—in a project located in Portugal and found that this had a significantly positive impact on the sustainability of the final design. The process through which cork is made also causes zero emissions of harmful gases into the environment [67].

5.4. Guidelines for Sustainable Designing and Prototyping

Based on the study findings, guidelines can be suggested to ensure sustainable prototyping of design artifacts. (1) Follow the systematic approach provided by the design thinking model. (2) Involve users in the designing process and incorporate their needs and desires at the early stages. (3) Design a product/prototype making use of the locally available materials, since this will help to fabricate environmentally friendly and economic end products. (4) Use CAD software to optimize the design in terms of material usage and time required for machining. (5) Avoid idle modes of machines and maximize machine utilization by engaging in more than one job at a time to make this process more efficient. (6) Select appropriate machines by considering their energy usage and material wastage. (7) Do your best to reuse electronic components from prior prototypes. (8) Think about the environmental impact of the materials before selecting them for the prototype. (9) Make use of a general-purpose electronic circuit to increase reusability. (10) Disassemble the prototype after testing and recycle used material to the best of your abilities.

6. Conclusions

Prototyping is an important aspect of design education, new product development, learning digital fabrication skills, and STEM education. This activity is carried out in FabLabs and makerspaces around the globe. The topic of sustainability is a main concern for digital fabrication tools used for product design, and its many facets have been widely studied over the last decade. This study proposes a comprehensive and novel conceptual framework that incorporates the Stanford five-stage design thinking model, key sustainability indicators identified in the literature (i.e., social, environmental, and economic), and digital fabrication components (i.e., material and process) aimed at evaluating sustainable prototyping processes and outcomes. The framework was tested against three case studies that served as concrete examples to discuss best practices in the educational environment.
From the literature review conducted in this study, it is also concluded that sustainability concerning prototyping in design education is a relatively unexplored field that deserves more investigation. Hence, the conceptual framework can be of assistance for researchers as well as for educational programs interested in promoting and evaluating sustainability issues in environments such as FabLabs. This work is limited to prototyping using digital fabrication tools. Therefore, it can be extended to and compared with other types of prototyping processes and tools. The environmental and economic sustainability indicators identified in this study can also be employed in sustainability evaluation for industrial and commercial product designs using new product development strategies. Moreover, no sustainability article specifically focusing on purely economic factors in relation to digital fabrication was found in the literature review; hence, no sustainability indicator that specifically focuses on economic aspects alone was included in the proposed conceptual framework. However, the proposed framework potentially could be extended in the future to include such an indicator.

Author Contributions

Conceptualization, H.C., G.V.G., S.A.S.; methodology, S.A.S., H.C., G.V.G.; validation, S.A.S., G.V.G.; investigation, S.A.S., G.V.G.; data curation, S.A.S., G.V.G.; writing—original draft preparation, S.A.S.; writing—review and editing, H.C., S.A.S., G.V.G.; visualization, S.A.S.; supervision, H.C., G.V.G.; funding acquisition, G.V.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Academy of Finland 6Genesis Flagship grant number 318927.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

This study has been financially supported by Academy of Finland 6Genesis Flagship (grant 318927).

Conflicts of Interest

The authors declare no conflict of interest.
