Evaluating Accessibility Benefits of Opening Gated Communities for Pedestrians and Cyclists in China: A Case Study of Shanghai

College of Architecture and Urban Planning, Tongji University, Shanghai 200092, China
Author to whom correspondence should be addressed.
Sustainability 2021, 13(2), 598;
Received: 25 October 2020 / Revised: 5 January 2021 / Accepted: 5 January 2021 / Published: 10 January 2021
(This article belongs to the Section Sustainable Urban and Rural Development)


Opening gated communities (GCs) has been widely discussed for urban inclusion and revitalization. With the policies of opening GCs being promoted in China, the quantitative and comprehensive evaluation of the potential benefits is heavily needed. Taking Shanghai as an example, this study quantifies and analyzes the accessibility benefits and risks of opening GCs for pedestrians and cyclists considering two GC types, two opening levels, two travel modes, and different facilities. We found that (1) opening GCs can bring 50 m+ accessibility gains to 17% and 52% of the residents in moderate opening (MO) and complete opening (CO) scenarios, respectively. (2) Cyclists benefits more than pedestrians in all scenarios. (3) Conventional GCs have fewer benefits in MO but more in CO than newly established ones. Trips to bus stations demonstrate the largest accessibility gains. (4) The accessibility benefit of a residential building is highly determined by its closeness to the gates and relative location in the block. (5) Only 1% and 5–7% of external trips may penetrate the opened communities in MO and CO scenarios, respectively, which are far less than both the expectation and the benefits. Finally, several local design guidelines are proposed.

1. Introduction

The gated community (GC) is a longstanding residential estate pattern in China. Urban organization in the early phase of China’s foundation was greatly influenced by development methods in the Soviet Union, in which an ideal “generalized” space form was self-sufficient and able to offer its residents most daily functions, including housing, working, and other services [1,2]. Therefore, in China, large numbers of gated “work units”, where residence and employment are well balanced, were created and formed to be a typical Chinese cityscape [3,4]. After China’s reform and opening up since the 1970s, the “acquaintance society” in the conventional GCs started to confront disintegration and renewal [5]. Meanwhile, the new housing estates developed by private companies took the form of GCs, making them one of the dominant forms of residential estates in China in both urban and rural areas [4,6].
Though widely adopted, GCs are criticized for negatively affecting both the internal living quality and external urban environments, especially for bringing inconvenience to both pedestrians and cyclists. As for interior residents, they have to take the strain of high housing prices and property costs [7] but are unable to enjoy public spaces inside the neighboring communities due to inconvenient transportation, which significantly affects slow traffic. Moreover, without connections to a larger urban environment, the semi-private internal streets in GCs can hardly support a social life, with insufficient diversity of pedestrians [8]. As for the exterior urban area, GCs foster traffic congestion and high automobile dependency [9]. Researchers estimate that residents from GCs in superblocks use 65% to 80% more transit energy than those living in mixed-use, walkable neighborhoods [10]. Furthermore, GCs also cause fragmentation and polarization in sociocultural aspects [11]. All these drawbacks inspire the exploration of GCs’ opening up. As the urban regeneration in China shifts from “superblock centered” to “street centered” [12], an open block system is strongly promoted by the government. In 2016, “opening gated residential communities to public road systems” was first put forward in official documents, stressing that newly established communities should adopt the block system. Another official document, Shanghai Street Design Guidelines (SSDG), encourages opening the main internal roads in large-scale GCs for pedestrians and cyclists. In 2017, the urban renewal projects represented by opening GCs were launched in a few large Chinese cities, such as Changsha, Chongqing, and Nanjing. Since 2018, the opening policies have been released in middle and small size cities, highlighting the government’s attention to the revitalization of GCs and their adjacent urban areas. The exemplary cases are Yulin community in Chengdu, Gubei community in Shanghai, and the Guogongzhuang public rental housing project in Beijing.
Prior studies have explored multiple aspects of GCs’ (re)development, involving both the benefits and the risks of opening up. Some researchers found that opening GCs provides great benefits, including enhancing spatial accessibility, strengthening social–cultural connections, and improving low-carbon transport by creating a more walkable and bikeable environment [9]. The opening strategy is also highly praised by urban practitioners. One study demonstrates that for urban planners, adding additional entrances is ranked in second place among multiple spatial interventions in GCs [13]. However, some researchers argue that opening up will negatively affect some households [14]. In a recent study, five types of pressure brought by opening GCs are revealed as site redesign, urban governance, social frictions, legal status, and a financial burden [15]. In summary, no consensus has been reached on the evaluation of opening GCs.
Although the effects of opening GCs have been widely discussed, there still exist some limitations. Most studies, whether they are based on qualitative or quantitative approaches, seldom consider factors such as GCs’ characteristics, attributes of pedestrians and cyclists, and travel destinations, which may lead to discrepancies in the estimated benefits of opening GCs. Furthermore, the risks accompanied by opening the gates have been noticed but never measured or surveyed.
Taking Shanghai as an example, this paper focuses on quantifying and analyzing the accessibility benefits for pedestrians and cyclists as well as the potential risks brought by opening the GCs. To incorporate the aforementioned factors, we select two typical GCs and quantify the accessibility benefits for both pedestrians and cyclists and in two opening scenarios, which are designed based on the most common situation of GC renewal rather than the design of new blocks. Moreover, quantitative analysis is carried out by combining activity models and the data from the Comprehensive Transportation Survey, census data, and online maps.
This paper is organized as follows: Section 2 provides a literature review of GC formation and influences. Section 3 describes our metrics, scenario design, and data processing. Section 4 evaluates the overall accessibility benefits of opening GCs and explores the discrepancies between two communities, cyclists and pedestrians, different categories of facilities, and different scenarios. Finally, Section 5 presents the conclusion and discussion.

2. Literature Review

2.1. Gated Community Formation and Urban Development in China

The gated community (GC) is a form of neighborhood with secured entrances and boundaries created by walls, fences, and other barriers. According to the evolution of GCs revealed by Blakely and Snyder (1997), GCs can be traced back to gated military settlements built by the occupying Romans around 300 BC. Not until the latter half of the nineteenth century were the first purely residential gated neighborhoods developed by the upper-income citizens, aiming to insulate themselves from the troublesome industrializing cities [16]. During suburbanization in the 1960s, downtowns in many Western cities declined and, consequently, rich people moved to suburbs for a better living environment. In order to attract the middle classes back to downtowns and revitalize city development, many GCs were then built within the cities. In brief, GCs and current urban policies seek similar ends, which is the promotion of the city as a place to live for the middle classes [17].
Being a typical manifestation of enclave urbanism [18], the Chinese GCs are different from the Western form in their larger scale, higher density, and serving mixed-level income classes [19]. The reason for these differences is their unique historical origin, based on which Chinese GCs can be divided into two types. The first type dates to the planned economy period and is still common today in downtown areas of big cities, including Shanghai and Beijing. After the founding in 1949, urban neighborhoods in China were reorganized as “work units” called “dayuan” or “danwei”, which emerged as the first form of GCs in China. Gates in these GCs are used to segregate not only residential estates but also the production places and even the power space. For example, administrative bureaus and state-owned companies usually built exclusive communities for employers, where outsiders were ineligible to enter or reside. Since the 1978 economic reform, these productive units have been constantly penetrated by private business, becoming more and more inhomogeneous [19].
Another type of GC has a similar origin to its Western counterparts. As China began to reform and open up after 1978, new housing estates were built outside the old city areas and took the form of GCs that can provide an upmarket neighborhood to attract residents of the increasing middle and upper classes. The new GCs grew rapidly in the metropolitan periphery [20], characterized by large-scale blocks and internalized public space. This type of GC and the renewed productive units in the old city areas together comprise two typical categories of urban GCs in China.

2.2. Debates about Gated Communities

A GC produces clear benefits for internal residents. The widely recognized positive effects of GCs includes increased security [21], better privacy [13], greater efficiency in exclusive service provision [22,23], and a stronger sense of place attachment [24]. From another aspect, GCs also offer an escape from outside pollution and vehicles [25].
Nevertheless, considerable amounts of studies also propose that GCs have harmful effects on urban society. Many studies demonstrate that GCs deepen social polarization [26,27,28]. In one study, GCs are interpreted as an internal simplification which will inevitably increase social tensions and exacerbate social cleavage among communities [29]. A recent study also puts forward that as one of the important spatial representations of gentrification in China, GCs further weaken and destroy neighborhood relationships [11].
Accompanied by such influence exerted on the social structure, the quality of public spaces in GCs also declined. Pseudo-public spaces increased [30] and are characterized by similar, minimum-level facilities (a central green space, sometimes a clubhouse) [19]. The more the public spaces are privatized by the affluent class, the more free-access green space provision decreases [28], which primarily affects low-income renters and leads to many social problems [7].
Additionally, GCs are blamed for negatively affecting urban transportation and the environment as they causes detours for outsiders. GCs are criticized not only for damaging the overall connectivity of urban space but also having a negative effect on the choice of low-carbon transportation [31]. Recent literature even finds that the main reason pedestrians accessing metro stations were deviating from the shortest station access path is the presence of GCs [32]. Some researchers also demonstrate that the expansion of GCs generates much more traffic congestion and pollution from hydrocarbon emissions [22].
In essence, these hazards are attributed to GCs’ negative impact on the openness, transparency, and accessibility of cities [17]. To be more specific, GCs provide huge challenges to the traditional porosity and democracy of the street [21], which triggers the method of opening the gates and reconnecting the roads. Not only can openness erase the traffic congestion by expanding the micro-road network [33], it can also increase the overall connectivity and accessibility of the current road network and alleviate the urban traffic problem [34].
As an efficient and low-cost solution to improve the overall isolation of GCs, the opening up method has led to some explorations of its benefits from both socioeconomic and physical aspects. On the social level, one study emphasizes that opening GCs should be exploited to achieve quality urban space to enhance the well-being of the residents [35]. It is also found that without gating, the local commercial value based on the city’s street network would be developed [36]. On the physical environment level, one study uses the “permeability” change in network analysis to illustrate the improvement of opening gates [37]. Another study finds that an opened community outperforms a gated one by a 49 percent reduction in time cost, fuel cost, air pollution cost, and noise pollution cost in a hypothetical community scenario [38].
To sum up, the major defect in existing studies is the lack of quantitative evaluation of the accessibility benefits of opening GCs with more realistic factors considered. Though the benefits of opening GCs have been widely discussed in several dimensions with knowledge of multiple disciplines, the significant discrepancies of such benefits between pedestrians and cyclists due to factors including GC types, opening levels, and travel destinations have not yet been adequately revealed. Therefore, this study endeavors to fill the gap by quantitatively evaluating the accessibility benefits of opening GCs for pedestrians and cyclists, regarding two typical Chinese GCs and various opening scenarios. Based on an empirical study, the outcomes may support policymaking in opening implementation and revitalization of GCs in China.

3. Methodology and Data

3.1. Accessibility Benefit Quantification and Metric Design

This paper quantifies the accessibility benefits combining activity models and assumed GC opening scenarios. An accessibility benefit of opening a GC simply refers to the saving percentages of cumulative travel distances or the proportion of potential routes that with the reduced distances exceed some thresholds. More specifically, the total benefit of distance provided by opening a GC is given by
B t o t a l d i s t a n c e = i [ T i × j P i j ( d i j b a r r i e r d i j o p e n ) ] i [ A i × j P i j d i j b a r r i e r ]
P i j = e γ d i j j e γ d i j
where d i j b a r r i e r is the present travel distance from residential building i to a destination j without any opening procedure, d i j o p e n is the travel distance from i to j under a scenario in which some new gates are opened. P i j is the travel probability from i to j that is calculated by a single-constrained gravity model, T i is the total numbers of trips that originate from i, so that the products T i × j P i j d i j o p e n   and T i × j P i j d i j b a r r i e r refer to the cumulative travel distances that originate from i with or without any GC opening policy.
To provide a more precise quantification, T i   is further subdivided into different activity types and corresponding facilities. This paper takes into account four types of facilities: bus station, metro station, daily services, and sports and entertainment. The latter two categories are extracted by combining the activity types defined in the comprehensive transportation survey in Shanghai and the point of interest (POI) types defined by the online mapping services in China so that T i can be well estimated based on real activity patterns.
T i k = A i D p o p μ k
where A i is the residential building area of building i, D p o p is the average population density in Shanghai regarding the residential building area, and μ k is the average travel frequency (person/day) regarding facility k.
The metric B t o t a l d i s t a n c e measures the absolute savings in travel distance when gates are opened. However, since the detours caused by community gates are generally limited by the size of urban blocks (e.g., 100 m), the fraction of the total travel distances would be comparatively small if we consider trips as long as, e.g., 2 km. In fact, since people choose to walk mostly when travel distances are less or around 400 m [39], a saving of 50 m in opening scenarios may be sufficiently perceptible for people to support and act for such policies.
Therefore, in order to eliminate the effect of travel distance on the absolute accessibility benefit B t o t a l d i s t a n c e , we propose another metric B t o t a l c o u n t , which measures the proportion of benefitted ODs that have their distances dropped by at least 50 m:
B t o t a l c o u n t = i j A i P i j   I ( d i j b a r r i e r d i j o p e n > 50 m ) i j A i P i j
where I is an indicator function to detect whether the saved distance exceeds 50 m. If 10% of the trips involve accessibility improvements, even though the average distance ( B t o t a l d i s t a n c e ) savings are relatively small, an opening policy may still be welcomed. Finally, it should be noted that both B d i s t a n c e and B c o u n t can be calculated either by aggregating the trips originating from all buildings in one community or from each building to specific facilities.
Moreover, the penetration risk r i s k c o u n t is defined in a similar way to B t o t a l c o u n t ,
  r i s k c o u n t i j B i P i j   I ( d i j b a r r i e r d i j o p e n > 50 m ) i j B i P i j
where B i is the residential building area of building i that is located within the neighboring 500 m from the case communities. Again, we presume that if the saved distance exceeds 50 m, the neighboring residents may choose to penetrate the opened GCs.

3.2. Scenario Design

As summarized in Table 1, two scenarios are modeled. One is the moderate opening scenario (MO), in which the fake gates, those built but not actively used, are assumed to be opened. Note that there are two types of fake gates, as shown in Figure 1. Some fake gates, namely locked gates, are set but completely closed, blocking all potential walkers, cyclists, and automobiles. Other fake gates, namely pedestrian gates, are equipped with rotating doors so that all access is restrained except for walkers. To demonstrate such a difference, we measure the accessibility benefits for walking and bicycles, respectively.
Another scenario is the complete opening scenario (CO), in which we not only open the fake gates but also add new gates with a reasonable interval distance by breaking the walls. The new gates are determined mainly based on the grids of the major roads within the community, which should be planned as entrances from the perspective of the latest opening community policy.
Figure 2 depicts a virtual community with two existing gates (where the community roads are linked directly to the city road network) and one fake gate (the thick red line). As one can expect, when no opening policies are implemented, the residents in building O1 suffer the most from the gates and walls, while residents in building O3 can easily access D1 or D3 by walking but cycling. In contrast, O1 generally has better accessibility to all facilities. In MO, as the only fake gate will be opened, O3 benefits significantly for D1 and D3. O1 and O2 also benefit slightly for D1. In CO, four new entrances (green nodes) will be added considering the grid of the major community roads and the intervals. O2 and O3 will benefit remarkably for the facilities in the direction of D2 and D1, respectively. O1 will also benefit slightly for some facilities.

3.3. Data Preprocessing and Case Selection

Two cases are chosen according to different formations and developments of GCs mentioned in Section 2.1. The Yangpu community is the first type of GC in the old city, developed from working units which have a history of more than half a century. The Pudong community is the second type of new GC in new urban areas, characterized by a larger block size and community-owned central public space. As shown in Figure 3, the research area is delimited within 2 km of each community, considering the general tolerance of pedestrians and cyclists. Since the detours caused by GCs are generally limited by the size of urban blocks, the benefit brought by opening the gates for long-distance travel by car is negligible.
Four categories of facilities are encompassed, which are bus station, metro station, daily services (shopping, catering, and services), and sports and entertainment. The first two categories are considered because they are the most common facilities related to daily mobility. The latter two categories are extracted by combining the activity types defined in the Comprehensive Transportation Survey in Shanghai and the point of interest (POI) types defined by the data provider in China (, one of the largest online mapping services in China). The activity frequencies of residents visiting different facilities ( μ k ) are derived from the Comprehensive Transportation Survey. The number of residents in each parcel was taken from each district available in the census report based on the floor area of each parcel.

4. Results

4.1. Overall Accessibility Benefits

In general, we find that opening GCs can provide significant accessibility benefits, which, however, may vary dramatically as the metric changes. When measured by reductions in the cumulative trip distance ( b d i s t ), this benefit is seemingly limited. As shown in Table 2 in both Yangpu and Pudong cases, MO improves walking and cycling accessibilities by no more than 3% and 5%, respectively. Even in the CO scenario, which removes all the surrounding walls, the reduction percentages of trip distances by walking and cycling are only 5.7% and 11.8%. The numbers are small due to two reasons. On the one hand, opening the GCs mainly reduces the detour distances within the communities, which are naturally limited to no more than the size of urban blocks, generally producing constrained values of the nominator of b d i s t . On the other hand, our evaluation takes into account the destinations with distances up to 2 km to the origins, which may generate relatively long trips and increase the values of the denominator of b d i s t . In the case of 1 km trips, a 5% saving in the distance on average equals a 50 m reduction, which could be a subjectively perceivable benefit.
The accessibility benefits are more significant in the count-based metric, b c o u n t , which measures the proportion of OD pairs that have sufficiently perceptible accessibility benefits. Our result shows that the accessibility improvements brought by CO in both cases reach about 40–50%. That is to say, if all kinds of gates and walls are completely removed, nearly half of journeys from both communities will benefit from a distance reduction of more than 50 m, which may bring residents a huge sense of accessibility improvement. For the MO scenario, the Yangpu community still displays significant accessibility benefits, 9.1% for walking and 17.7% for cycling, which are far beyond the percentages revealed by b d i s t . In contrast, b c o u n t in the Pudong case and MO scenario is much smaller than the Yangpu case and demonstrates little difference from b d i s t . However, under the CO scenario, the benefits in the Pudong case surpass Yangpu distinctly, not only in distance savings but also in the count metric. We speculate that the reason is that the Pudong case is a renewed community that has only six unusable gates (fake and only for walking) but relatively tight walls, while the Yangpu case has 26 unusable gates, meaning the Pudong case benefits less from MO, that is, opening the unusable gates, but more from CO. This indicates that suitable opening policies regarding different gated communities may vary dramatically according to their characteristics, such as gates’ configurations.
Another distinct pattern is that the improvements for cycling accessibility are generally higher than that for walking in all cases and all scenarios. This is because the Yangpu and Pudong cases have eight and four pedestrian gates, respectively, which are unimpeded for pedestrians but physically impassable for bicycles and cyclists. Since such gates are common in Shanghai and presumably also in other Chinese cities, the revealed accessibility benefits for cycling emphasize the appropriateness of the widespread implementation of opening such gates for bicycles.

4.2. Accessibility Benefits Regarding Different Facilities

The accessibility benefits of opening gates regarding different facilities are consistent with the overall trends in Section 4.1: the CO scenario has much more improvement than MO, the count metric reveals larger proportions of perceptible trips, the Pudong case has fewer benefits in MO, but more in CO, and the improvements for cycling accessibility are generally higher than for walking.
However, there are still distinctions between the accessibility benefits regarding the four types of facilities. Table 3 presents the benefits of four facilities under sixteen combinational situations (two metrics, two opening scenarios, and two travel modes for two cases). The bus station demonstrates the largest accessibility improvements eight times out of the 16 situations. In contrast, although they are public transport facilities, the accessibility improvements of metro stations are polarized between the two cases. Trips from the Yangpu community to metro stations consistently have the least accessibility benefits, while the Pudong case benefits significantly for both walking and cycling, especially when measured by distance. We speculate that the reasons are: (1) metro stations are sparser than bus stations, which accounts for a smaller chance for accessibility benefit, and (2) the Pudong community is a renewed modern estate whose gate configuration is mainly based on considerations for private car convenience, so its gates are located more towards the arterial roads rather than metro stations.
Unlike the public traffic facilities above, the accessibility benefits regarding daily services and sports and entertainment appear to be the most stable. The benefits of these two types of facilities mostly coincide with the average value in Table 2. For example, b d i s t a n c e and b c o u n t of these two facilities in the CO scenario are around 6–9.5% and 40.2–51.6%, which are exactly within the range shown in Table 2. This is because, since these two types of facilities are more widely and homogeneously distributed than public traffic facilities, residents can always get access to them conveniently through existing gates so that only a few trips may benefit significantly from newly added exits.
Moreover, the benefits of cycling still generally prevail over walking, indicating again that cyclists in Shanghai suffer more from GCs no matter what their destinations are. Table 3 demonstrates that merely opening the fake gates can bring around a 5% benefit for cyclists in Pudong, while a similar benefit for walkers is less than 0.8%. Obviously, such a disparity may be due to fewer fake gates in the Pudong case, as discussed in Section 4.1.

4.3. Spatial Heterogeneity of the Benefits

Spatial analyses show that significant heterogeneity of the benefits can be observed. Residents in the same community may have dramatically varying accessibility benefits, which are strongly determined by 1) their closeness to the corresponding opened gates in specific scenarios, and 2) the relative location of the building in the block.
Figure 4 illustrates the effect of the first factor, closeness to the opened gates. In the MO scenario (left column in Figure 4), residents within 200 m of the locked gates or pedestrian gates can receive benefits of b c o u n t as high as 40% for walking and cycling, though in the Pudong case, such a benefit is not common because it has only five fake gates. However, in the CO scenario, there exists almost no correlation between distance to opened gates and b c o u n t (right column in Figure 4). This is because, in the CO scenario, all the accessibility shortcomings regarding each pair of residents and facilities can be generally overcome since gates are added in every wall, as depicted in Figure 2. This result demonstrates that spatial heterogeneity caused by the first factor can be counteracted in the ideal opening scenario, though at great expense.
Figure 5 depicts the effect of the second factor, whether the location of a residential building is marginal or central. Firstly, residents who live in more central areas generally gain less benefit in the MO scenario than the CO scenario. This is natural; as shown in Figure 2, opening the fake gates has little influence on O1 to D4. However, the route O1–D4 will be significantly shortened when the walls are broken down in the CO scenario. On the contrary, residents who live near the edge have greater chances to improve their accessibilities in the MO scenario. Such a phenomenon can be seen in many blocks of both the Yangpu and Pudong cases in Figure 5. Secondly, those living near the edge and more adjacent to the wall benefit the most in the CO scenario. In Figure 5, the northwest block in Yangpu and the southern three blocks in Pudong are the best examples. This is because many trips of those living near the edge, such as O2–D2 and O4–D3 in Figure 2, are naturally more limited by the walls. Therefore, when gates are added by breaking down the wall in the CO scenario, they benefit significantly.

4.4. Potential Risk Analyses

This section analyzes the potential penetrating risk due to opening new gates. Since nearby citizens tend to cross the community for travel convenience, the security and living environment inside the community may be adversely affected. To measure such risk, it is assumed that if a trip originates from the buildings that are outside but within the neighboring 500 m of the case communities and receives an accessibility gain larger than 50 m, it is considered likely to penetrate the community. Then, we propose another metric,   r i s k c o u n t , which measures the proportion of such trips from outside the community.
The result shows that the penetrating risk is relatively marginal and far less than both our expectation and the reward. Compared to the overall benefits in Table 2, where 9–17% of the internal ODs have their distances reduced by more than 50 m, Table 4 shows that only 1% of external ODs may penetrate. In the CO scenario, although the r i s k c o u n t reaches 5–7%, benefitting internal ODs increase to 40–50%. Again, the risk is far less than the reward. Actually, penetrating risks can be mitigated by detailed road and landscape design. For example, if roads within the community are joined to external urban arteries through twisted rather than a direct connection, it will be hard for outsiders who are unfamiliar with the community to see through and take shortcuts because of obscured vision.

5. Conclusions and Discussion

Taking two typical GCs in Shanghai as examples, this study quantifies and analyzes the accessibility benefits of opening gated communities. Considering more realistic factors, the accessibility benefits are quantified in two opening scenarios with respect to four categories of facilities and for both pedestrians and cyclists. Quantitative analysis is carried out by combining activity models and the data from the Comprehensive Transportation Survey, census data, and online mapping services. The major findings are:
(1) Opening GCs can indeed bring sufficiently perceptible accessibility. In the MO and CO scenarios, up to 17% and 52% of the residents could experience accessibility gains exceeding 50 m, respectively.
(2) Cycling benefits more than walking in all cases and all opening GC scenarios, which can be attributed to the pedestrian gates. Considering the wide distribution of such gates in China, to open them may be essential for creating a bicycle-friendly environment.
(3) The types of GCs and facilities matter. Compared to the conventional GCs that are derived from working units, the newly established modern GCs in Shanghai may have fewer benefits in MO but more in CO. In terms of different facilities, bus stations demonstrate the largest accessibility gains while metro stations are polarized between the two cases, which is probably due to their spatial distribution.
(4) The locations of residential buildings also matter. The accessibility benefit of a residential building is highly determined by its closeness to the corresponding opened gates and its relative location in the block. However, complete opening (CO) can erase the spatial heterogeneity, though at great expense.
(5) In MO and CO scenarios, only 1% and 5–7% of external ODs may penetrate, respectively. The risk is far less than both our expectations and the reward.
Based on the findings in this study, several design guidelines can be proposed. Firstly, they propose strong support for opening the two GCs considering the significant overall benefits, comparatively low risk, and stable accessibility benefits in terms of metro/bus stations, which may further improve the utilization of public transit in the two communities. Secondly, the results suggest that it is more efficient and cost-effective for the Yangpu GC to implement MO, namely, opening all the existing fake gates, to gain a significant benefit. For the newly established Pudong GC, however, CO is a more effective option. In spite of this, we strongly recommend that pedestrian gates in the two cases are opened before any radical policies are implemented. To generalize these guidelines to other GCs in Shanghai or even other cities requires numerous similar experiments. The targeted guidelines may be dramatically different in other cases. Therefore, we emphasize again the necessity and appropriateness of applying the proposed evaluation before making targeted policies.
Moreover, opening GCs could have more side effects than measured in this paper. For instance, to mitigate existing transportation conflicts, the key point is not merely the openness of GCs but a rational urban traffic plan. An advanced road network plan should synthetically increase its capacity for both cyclists and pedestrians. Second, accompanied by opening up, the allocation of public resources becomes the primary issue. Government finances are already tight in many parts of China, indicating that a radical change in the pricing model for public services will be inevitable to follow the international open block system. The prosperity of community public life can be realized only after the property rights, privacy, convenience, and sharing of public facilities are guaranteed.
This study still has several limitations. First, since the two opening scenarios are confined to China’s existing GCs, the design guidelines are more suitable for the renewal of such GCs rather than the open design of new neighborhoods. Despite this, both of the two opening scenarios are derived from current situations of typical Chinese GCs, which are easy to implement. Second, the study only assesses two cases rather than a variety of samples for analysis, which inevitably leads to some accidental results and affects the contribution to policy implications.
To address the first limitation, more inclusive opening scenarios could be tested. For example, recent studies have suggested that “hutong”, a traditional open block pattern in China, provides localized opened community experiences that are worth learning from [40]. As for the second limitation, we do believe that the proposed method can be generalized to measure the benefit of opening other GCs. Moreover, this paper emphasizes the importance of objective benefits and how to measure them but neglects the subjective satisfaction. Therefore, both the parameters in our method and the proposed opening up guidelines could be refined by combining them with further investigations and interviews.

Author Contributions

Conceptualization, S.Y., W.T., and L.Y.; Formal analysis, S.Y.; Methodology, L.Y.; Project administration, W.T.; Supervision, W.T.; Writing—original draft, S.Y.; Writing—review and editing, W.T. and L.Y. All authors have read and agreed to the published version of the manuscript.


This study is supported by the Fundamental Research Funds for the Central Universities (No. 2682019CX54).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable. No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Xie, Y.; Costa, F.J. Urban planning in socialist China: Theory and practice. Cities 1993, 10, 103–114. [Google Scholar] [CrossRef]
  2. Deng, F. Work unit and private community in the evolution of urban planning in contemporary China. Plan. Theory 2018, 17, 533–550. [Google Scholar] [CrossRef]
  3. Breitung, W. Enclave Urbanism in China: Attitudes Towards Gated Communities in Guangzhou. Urban Geogr. 2012, 33, 278–294. [Google Scholar] [CrossRef]
  4. Wu, F. Rediscovering the ‘gate’under market transition: From work-unit compounds to commodity housing enclaves. Hous. Stud. 2005, 20, 235–254. [Google Scholar] [CrossRef]
  5. Qian, X.; Cai, Y.; Yin, C. Driving Force of Grassroots Self-governance in Beijing’s Neighborhoods: Social Capital, Community Network and Community Service Motivation. Lex Localis 2019, 17, 159–177. [Google Scholar] [CrossRef]
  6. Xu, M.; Yang, Z. Design history of China’s gated cities and neighbourhoods: Prototype and evolution. Urban Des. Int. 2009, 14, 99–117. [Google Scholar] [CrossRef][Green Version]
  7. Xiao, Y.; Lu, Y.; Guo, Y.; Yuan, Y. Estimating the willingness to pay for green space services in Shanghai: Implications for social equity in urban China. Urban. For. Urban. Green. 2017, 26, 95–103. [Google Scholar] [CrossRef]
  8. Miao, P. Brave new city: Three problems in Chinese urban public space since the 1980s. J. Urban Des. 2011, 16, 179–207. [Google Scholar] [CrossRef]
  9. Wang, Z.; Li, L.; Li, Y. From super block to small block: Urban form transformation and its road network impacts in Chenggong, China. Mitig. Adapt. Strateg. Glob. Chang. 2015, 20, 683–699. [Google Scholar] [CrossRef]
  10. Normile, D. China Rethinks Cities. J. Sci. 2016, 352, 916–918. [Google Scholar] [CrossRef]
  11. Song, W.; Wu, Q. Gentrification and residential differentiation in Nanjing, China. Chin. Geogr. Sci. 2010, 20, 568–576. [Google Scholar] [CrossRef]
  12. Abramson, D.B. Haussmann and Le Corbusier in China: Land control and the design of streets in urban redevelopment. J. Urban Des. 2008, 13, 231–256. [Google Scholar] [CrossRef]
  13. Liao, K.H.; Wehrhahn, R.; Breitung, W. Urban planners and the production of gated communities in China: A structure-agency approach. Urban Stud. 2019, 56, 2635–2653. [Google Scholar] [CrossRef]
  14. Makhale, S.; Landman, K. Gating and conflicting rationalities: Challenges in practice and theoretical implications. Int. Plan. Stud. 2018, 23, 130–143. [Google Scholar] [CrossRef][Green Version]
  15. Wang, H.; Pojani, D. The challenge of opening up gated communities in Shanghai. J. Urban Des. 2020, 25, 505–522. [Google Scholar] [CrossRef]
  16. Blakely, E.J.; Snyder, M.G. Fortress America: Gated Communities in the United States; Brookings Institution Press: Washington, DC, USA, 1997. [Google Scholar]
  17. Atkinson, R.; Flint, J. Fortress UK? Gated communities, the spatial revolt of the elites and time-space trajectories of segregation. Hous. Stud. 2004, 19, 875–892. [Google Scholar] [CrossRef][Green Version]
  18. Iossifova, D. Borderland urbanism: Seeing between enclaves. Urban Geogr. 2015, 36, 90–108. [Google Scholar] [CrossRef]
  19. Miao, P. Deserted streets in a jammed town: The gated community in Chinese cities and its solution. J. Urban Des. 2003, 8, 45–66. [Google Scholar] [CrossRef]
  20. Li, S.M.; Zhu, Y.S.; Li, L.M. Neighborhood Type, Gatedness, and Residential Experiences in Chinese Cities: A Study of Guangzhou. Urban Geogr. 2012, 33, 237–255. [Google Scholar] [CrossRef]
  21. Atkinson, R. Padding the bunker: Strategies of middle-class disaffiliation and colonisation in the city. Urban Stud. 2006, 43, 819–832. [Google Scholar] [CrossRef]
  22. Douglass, M.; Wissink, B.; van Kempen, R. Enclave urbanism in China: Consequences and interpretations. Urban Geogr. 2012, 33, 167–182. [Google Scholar] [CrossRef]
  23. Lin, L.Y.; Han, H.Y.; Yan, W.L.; Nakayama, S.; Shu, X.F. Measuring Spatial Accessibility to Pick-Up Service Considering Differentiated Supply and Demand: A Case in Hangzhou, China. Sustainability 2019, 11, 3448. [Google Scholar] [CrossRef][Green Version]
  24. Lu, T.T.; Zhang, F.Z.; Wu, F.L. Place attachment in gated neighbourhoods in China: Evidence from Wenzhou. Geoforum 2018, 92, 144–151. [Google Scholar] [CrossRef]
  25. Wang, Y.; Peng, Z.Y.; Chen, Q. The choice of residential layout in urban China: A comparison of transportation and land use in Changsha (China) and Leeds (UK). Habitat Int. 2018, 75, 50–58. [Google Scholar] [CrossRef]
  26. de Duren, N.R.L. Gated communities as a municipal development strategy. Hous. Policy Debate 2007, 18, 607–626. [Google Scholar] [CrossRef]
  27. de Duren, N.L. Planning a la carte: The location patterns of gated communities around Buenos Aires in a decentralized planning context. Int. J. Urban Reg. Res. 2006, 30, 308–327. [Google Scholar] [CrossRef]
  28. Kovacs, Z.; Hegedus, G. Gated communities as new forms of segregation in post-socialist Budapest. Cities 2014, 36, 200–209. [Google Scholar] [CrossRef]
  29. Xu, F. Gated communities and migrant enclaves: The conundrum for building ‘harmonious community/shequ’. J. Contemp. China 2008, 17, 633–651. [Google Scholar] [CrossRef]
  30. Hansen, R.S. Public space in current debate: A critical reflexion about post-modern urbanism. Eure-Rev. Latinoam. Estud. Urbano Reg. 2002, 28, 5–19. [Google Scholar]
  31. Guan, C.H.; Srinivasan, S.; Nielsen, C.P. Does neighborhood form influence low-carbon transportation in China? Transp. Res. Part D Transp. Environ. 2019, 67, 406–420. [Google Scholar] [CrossRef]
  32. Sun, G.B.; Wallace, D.; Webster, C. Unravelling the impact of street network structure and gated community layout in development-oriented transit design. Land Use Policy 2020, 90. [Google Scholar] [CrossRef]
  33. Dong, L.; Rinoshika, A.; Tang, Z.X. Dynamic Evaluation on the Traffic State of an Urban Gated Community by Opening the Micro-Inter-Road Network. Technologies 2018, 6, 71. [Google Scholar] [CrossRef][Green Version]
  34. Yao, Y.; Hong, Y.; Wu, D.; Zhang, Y.; Guan, Q. Estimating the effects of "community opening" policy on alleviating traffic congestion in large Chinese cities by integrating ant colony optimization and complex network analyses. Comput. Environ. Urban Syst. 2018, 70, 163–174. [Google Scholar] [CrossRef]
  35. Hamama, B.; Liu, J. What is beyond the edges? Gated communities and their role in China’s desire for harmonious cities. City Territ. Archit. 2020, 7, 1–12. [Google Scholar] [CrossRef]
  36. Webster, C.; Ruan, J.; Sun, G. Private gains and social costs of China’s gated communities. In Handbook of Cultural Security; Edward Elgar Publishing: Cheltenham, UK, 2018. [Google Scholar]
  37. Sun, G.B.; Webster, C.; Chiaradia, A. Ungating the city: A permeability perspective. Urban Stud. 2018, 55, 2586–2602. [Google Scholar] [CrossRef]
  38. Cai, M.; Li, J.; Wang, Z.; Wang, H. Evaluation of external costs in road transport under the openness of a gated community. Front. Earth Sci. 2020, 14, 1–12. [Google Scholar] [CrossRef]
  39. Yang, Y.; Diez-Roux, A.V. Walking distance by trip purpose and population subgroups. Am. J. Prev. Med. 2012, 43, 11–19. [Google Scholar] [CrossRef][Green Version]
  40. Liu, Q.; Zhao, M.; Xu, F. The Reference Significance of the Space Form of Hutong to the Opening of the Residential Area. Urban Plan. Int. 2019, 34, 96–102. [Google Scholar] [CrossRef]

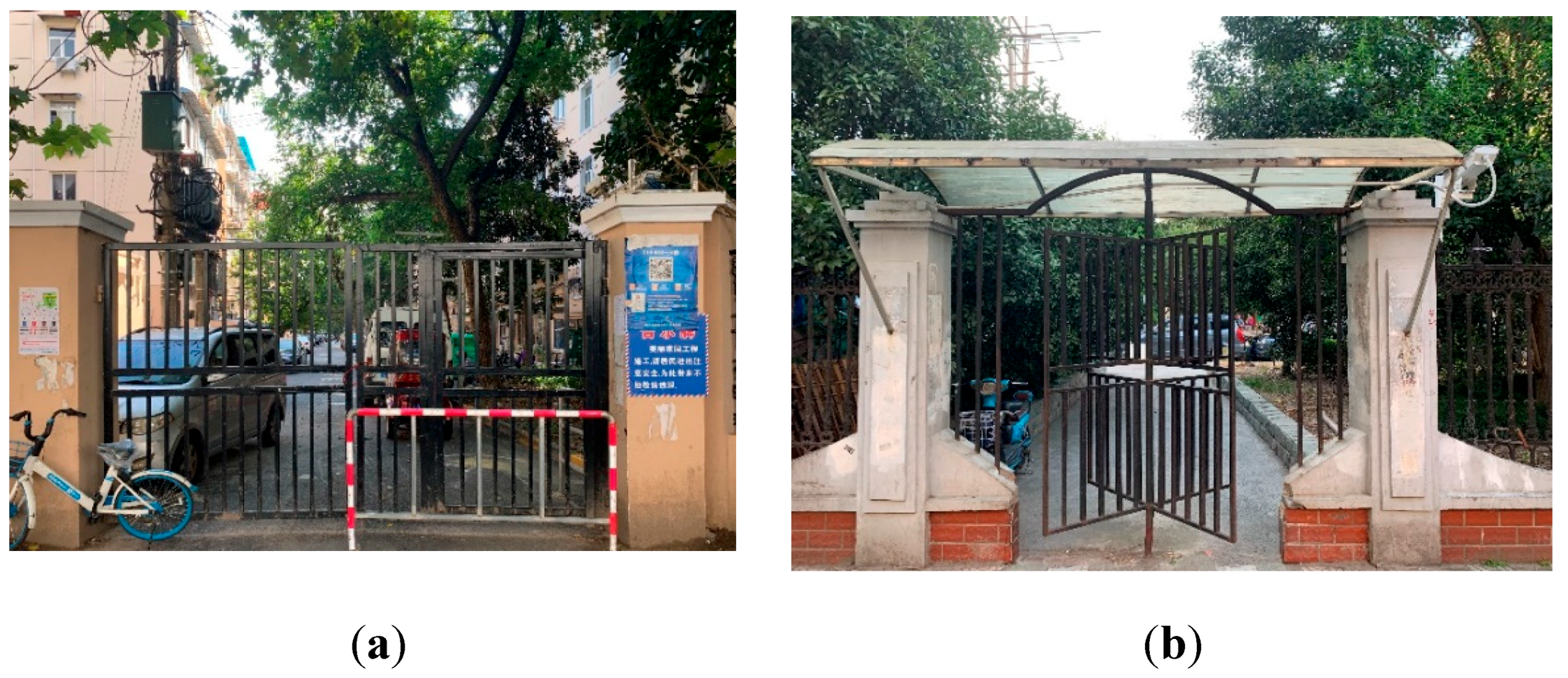

Figure 1. Examples of locked gates (a) and pedestrian gates (b).
Figure 1. Examples of locked gates (a) and pedestrian gates (b).
Sustainability 13 00598 g001

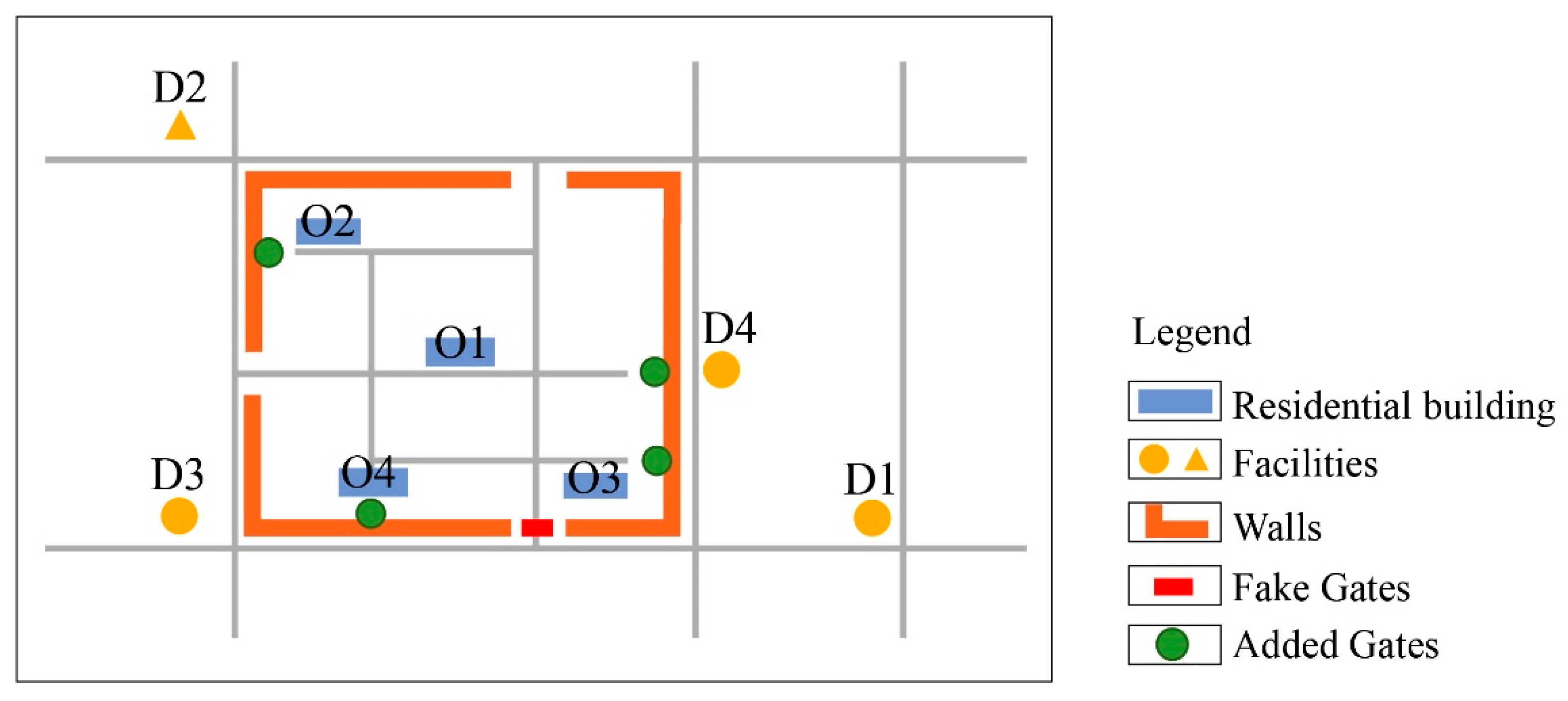

Figure 2. Diagram of a virtual gated community.
Figure 2. Diagram of a virtual gated community.
Sustainability 13 00598 g002

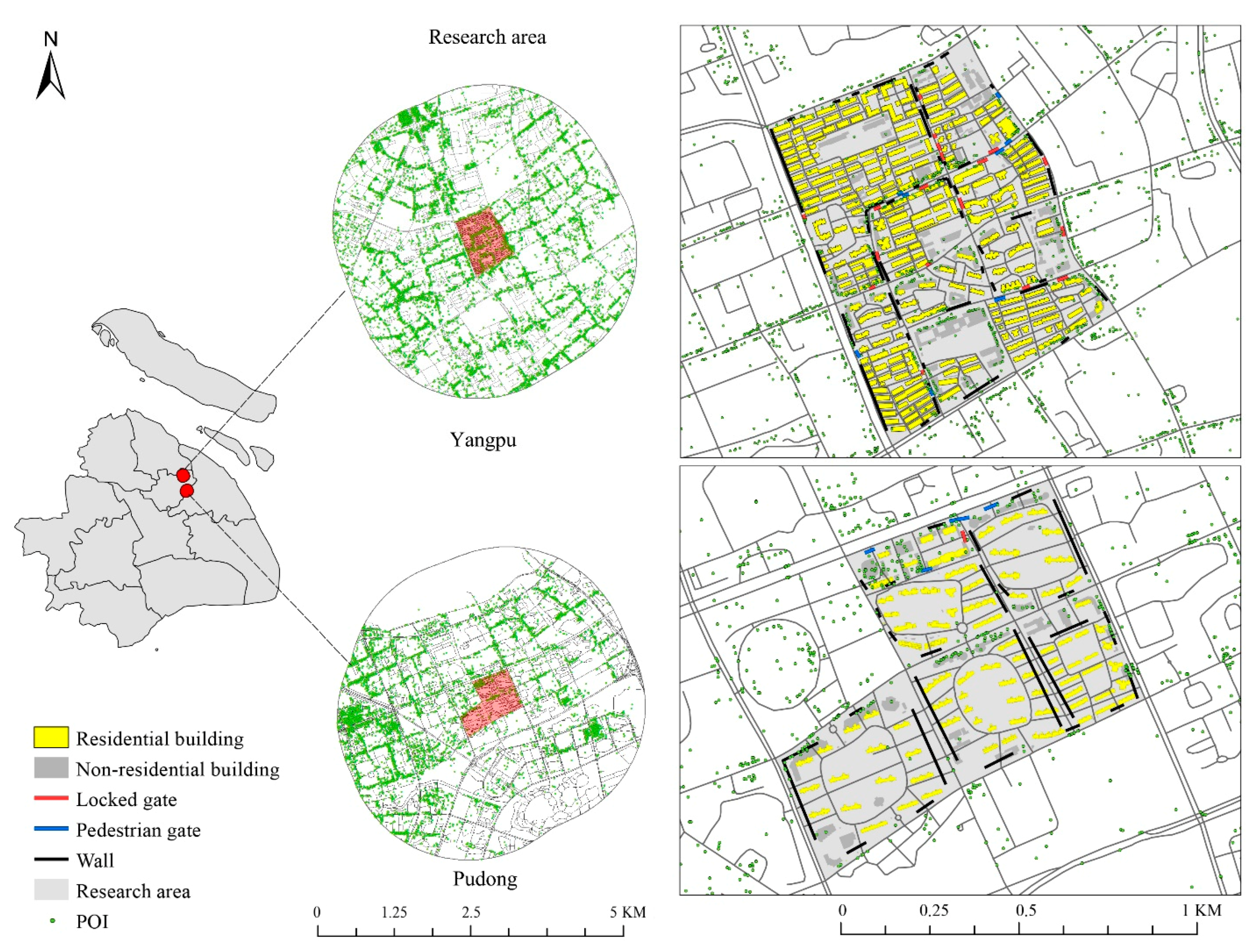

Figure 3. Research cases.
Figure 3. Research cases.
Sustainability 13 00598 g003

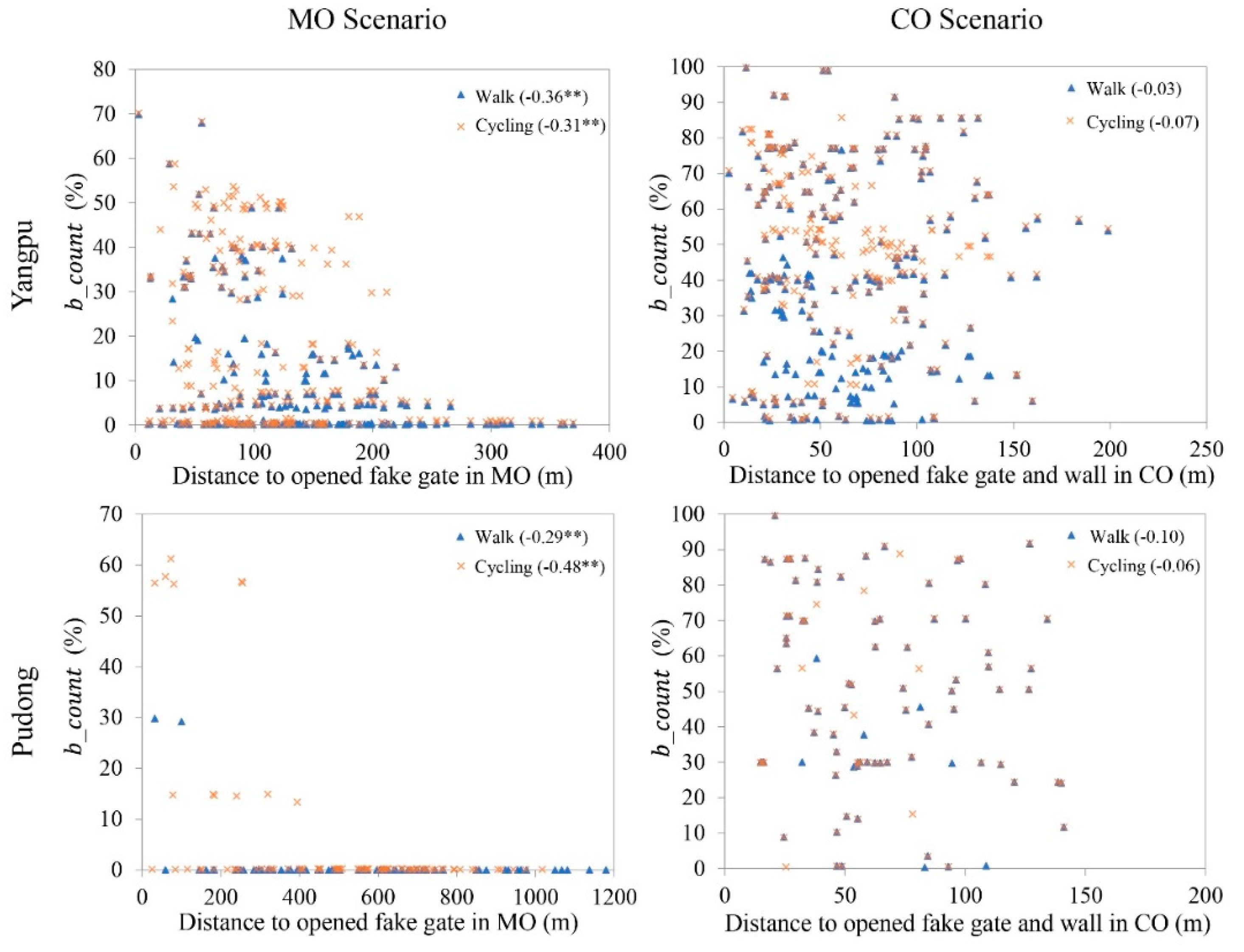

Figure 4. Residence locations against accessibility benefits in two scenarios. Note: the correlation coefficients between distance to gates and b c o u n t and the significance level in terms of each scenario and travel mode are given in brackets. ** p < 0.05.
Figure 4. Residence locations against accessibility benefits in two scenarios. Note: the correlation coefficients between distance to gates and b c o u n t and the significance level in terms of each scenario and travel mode are given in brackets. ** p < 0.05.
Sustainability 13 00598 g004

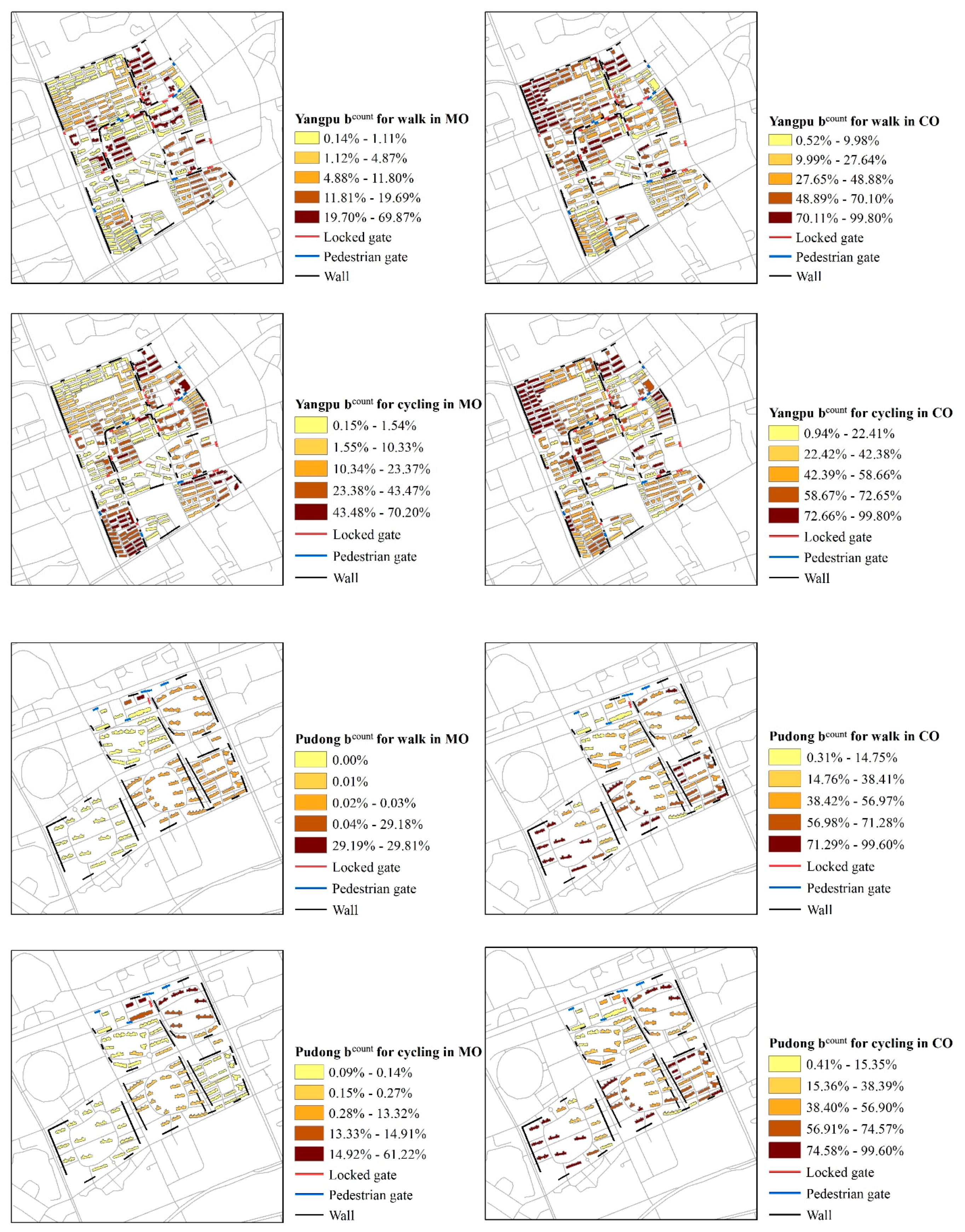

Figure 5. Spatial heterogeneity of b c o u n t .
Figure 5. Spatial heterogeneity of b c o u n t .
Sustainability 13 00598 g005
Table 1. Scenario design.
Table 1. Scenario design.
ScenarioDefinition Affected Travel Modes Gated by
Current situation No opening policyWalking Wall + pedestrian gates
CyclingWall + pedestrian gates + locked gates
Moderate openingOpen existing gates Walking and CyclingWalls
Complete openingBreak the walls Walking and CyclingAlmost none
Table 2. Overall accessibility benefits.
Table 2. Overall accessibility benefits.
Moderate Opening (MO)
Complete Opening (CO)
Table 3. Accessibility benefits regarding different facilities.
Table 3. Accessibility benefits regarding different facilities.
Bus stationMetro StationDaily ServicesSports and Entertainment
b c o u n t
Moderate Opening
Complete Opening
b d i s t a n c e
Moderate Opening
Complete Opening
Note: the row-wise maximum numbers are highlighted in bold.
Table 4. Potential risks from crossing traffic.
Table 4. Potential risks from crossing traffic.
MO > 50 m0.84%1.25%0.06%0.51%
CO > 50 m4.68%5.64%7.10%7.19%
