Use of Sewage Sludge Ash in the Production of Innovative Bricks—An Example of a Circular Economy

by
Andelina Bubalo
1,*,
Drazen Vouk
1,
Nina Stirmer
2 and
Karlo Nad
3
1
Water Research Department, Faculty of Civil Engineering, University of Zagreb, 10000 Zagreb, Croatia
2
Department of Materials, Faculty of Civil Engineering, University of Zagreb, 10000 Zagreb, Croatia
3
Division of Experimental Physics, Ruđer Bošković Institute, 10000 Zagreb, Croatia
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(16), 9330; https://doi.org/10.3390/su13169330
Received: 2 July 2021 / Revised: 12 August 2021 / Accepted: 14 August 2021 / Published: 19 August 2021
(This article belongs to the Collection Advanced Materials, Systems and Policies for Achieving Sustainability Goals in Construction)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this paper the properties of clay bricks with 5 wt%, 10 wt%, and 20 wt% sewage sludge ash (SSA) were studied and compared with the properties of control bricks made of 100% clay. Sewage sludge (SS) was collected at two wastewater treatment plants (WWTPs) in Croatia—WWTP Zagreb and WWTP Karlovac—and incinerated at a temperature of 900 °C The bricks were produced on a laboratory scale. A total of seven types of bricks were produced—control bricks and six types of bricks as combinations of different wt% of SSA generated from SS that was collected at two different WWTPs. The physical and mechanical properties of produced bricks were tested. Compressive strengths of bricks with 5 wt% SSA (54.0–54.5 N/mm2) and 10 wt% SSA (50.2–51.0 N/mm2) were higher compared to the control bricks (50.4 N/mm2), while bricks with 20 wt% SSA (37.0–43.9) N/mm2) had noticeably lower compressive strenght. The coefficient of saturation was lower for bricks with SSA compared to control bricks. The initial absorption values were more pronounced for SSA fractions of 20 wt%.

1. Introduction

The production of bricks from clay has a long tradition in the world and its growth is particularly pronounced in developing countries. Globally, 1500 billion bricks are produced annually, 87% of which are produced in Asia [1]. The trend of urbanization and industrial expansion is leading to an increase in demand for bricks, although brick production in some countries has shown a negative trend in the last decade [1,2]. Brick is one of the most commonly used building materials. Although the possibilities of using brick are wide, it is still mainly used for the construction of residential buildings [3]. Clay brick provides the properties of a good thermal insulator, fulfills the capacity of heat storage, and is characterized by the ability to self-regulate moisture as a result of high resistance to water vapor diffusion and by good sound insulation, high fire resistance, and long service life [3,4]. On the other hand, brick production is characterized by low energy efficiency [5,6]. Calkins reported that brick production requires 150% to 400% more energy than concrete block production [6]. Brick production contributes to greenhouse gas (GHG) and black carbon (BC) emissions, which have a significant impact on human health and climate change. In addition, the brick production sector is characterized by intensive exploitation of natural resources—clay deposits. In 2014, for example, approximately 10 million tons of common clay were mined in the United States alone [7]. In order to minimize the impacts associated with natural resource exploitation, reduce production costs, and establish a higher level of environmental sustainability, nearly 50% of global manufacturers incorporate some form of waste into brick production [8]. Many researchers have also analyzed the possibility of and justification for using various waste materials in brick production, including for example fly ash and kiln-bottom ash [9,10], coal-producer fly ash [11], mine waste [12], cigarette butts [13], and rice-husk ash [14]. The possibility of sewage sludge (SS) [15] as a substitute raw material in brick production and the possibility of mixing SS with other waste materials (e.g., fly ash, ash from the bottom of the kiln, agricultural waste, forest waste, and waste glass) has been studied since the 1980s. An adequate solution for the disposal of SS from wastewater treatment plants (WWTPs) is a global problem, and from the analysis of practices and experiences in the EU and the world in the field of SS management, no unique approach to the application of technologies for the treatment and use or disposal of SS can be identified. Wastewater treatment plants in European countries generate about 10 million tons of SS as dry matter per annum. Only thermal treatment allows this amount to be reduced by 70% by weight and 90% by volume [16]. In recent years, thermal treatment of SS by incineration or co-incineration has been increasingly promoted and this method is most widespread in Switzerland, Netherlands, Germany, Austria, and Belgium [17]. Worldwide, mainly in the USA, the EU, and Japan, about 1.7 million tons of incinerated sewage-sludge ash (SSA) are generated [18,19]. SSA is mostly disposed of in controlled landfills, although there are numerous examples of positive practices in the use of SSA in construction [20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. It is obvious that the developed countries in the world are positively oriented to a circular economy and looking for technologies to make use of SS through its complete digestion by thermal treatment (with maximum energy recovery) and with the use of SSA (agricultural and non-agricultural land, construction, etc.). The incorporation of SSA into bricks fits well into the above example of a circular economy and helps to reduce the use of raw clay from nature, thus conserving natural resources. The production of bricks with SSA involves the usual steps of mixing, molding, drying, and firing, using SSA as a substitute for clay or some of the other additives (e.g., sand or sawdust). The present research [32,36,37,38] has shown justification for the production of bricks with added SS/SSA (maximum of 25 wt%), even though the results also differ between different authors indicating that results are influenced by the sludge origin, sludge treatment method, and the conditions used to generate the SSA.

2. Materials and Methods

2.1. Materials

SS samples for research purposes were provided by the WWTP Zagreb (ZG) and WWTP Karlovac (KA). The WWTP ZG uses secondary treatment and samples of fresh, digested, and mechanically dewatered SS were taken directly from in the outlet screw conveyor (September 2020). The WWTP KA uses tertiary treatment with phosphorus and nitrogen removal from wastewater which results in higher SS age and presence of coagulants in the SS. Samples of digested and mechanically dewatered SS were taken from a temporary landfill at which the SS was a few weeks old (October 2020). Dewatered SS was subjected to a drying process at 105 °C for 24 h, i.e., until a constant mass was obtained. Dried SS was then incinerated under laboratory conditions at a temperature of 900 °C. The resulting SSA material was odorless and brownish gray in color. SSA was then ground using a multi-purpose mill and sieved through a 700 μm sieve. The clay used in this study was provided by the company Termoterra, a brick manufacturer from Topusko (TO), Croatia (October 2020). The clay, like the SS, was also subjected to the same drying process. The dried clay was then ground with a mill and also sieved through a 700 μm sieve.

2.2. Characterization of SSA and Clay

The particle size distribution of clay and SSA was determined by the laser light scattering method, and the results are presented as plots of the percentage of particles of a given size in the particle volume (mass) distribution. The results of particle size distribution measurements made with a Malvern Mastersizer 2000 instrument are as follows: A representative sample was crushed, lightly pressed with a pestle in a porcelain mortar (note: all samples except clay could be crushed with fingers), then dispersed in water (approximately 100 mg in 1 mL) with an ultrasonic probe pretreatment (44 kHz, 190 W, steel tip, 3 × 20 s). Then the dispersed sample was added to the flow cell of the instrument and the particle size distribution was measured. A value characteristic of aluminosilicate, 1.65, was used as the reference refractive index.
The morphology of the samples was studied by scanning electron microscopy (SEM). The samples were examined at FE-SEM, Mira, Tescan, Czech Republic, and the evaporator was a Q150T, Quorum Technologies, England (the samples were evaporated with chromium for 100 s).
X-ray diffraction (XRD) analysis of the clay and SSA samples was performed. The powder samples were reduced by quantification to the amount required for analysis, homogenized, and placed in a carrier and subjected to X-ray diffraction (XRD) analysis on a Shimadzu XRD-6000 diffractometer using CuK α-radiation, with an accelerating voltage of 40 kV and a current of 30 mA, in the range of 2–90 2θ° with a step of 0.02 2θ° and a retention time of 0.6 s. Qualitative analysis was performed using the ICDD database of diffraction data and literature data. The results are shown graphically in (Figure 8,Figure 9,Figure 10) as a function of the intensity of the diffraction maxima around the diffraction angle.
Determination of oxides present in the clay and SSA was performed by atomic absorption spectroscopy using an AAnalyst 200 instrument (PerkinElmer, Inc., Waltham, MA, USA). Samples were first dissolved by boiling in an acid mixture in steel autoclaves with a Teflon cartridge, then diluted to the required amount and measured. Results are reported as mass percent of each oxide in the sample (K2O, MgO, Fe2O3, CaO, Na2O, SiO2, Al2O3, and TiO2).
Heavy metals in clay and SSA were determined by X-ray fluorescence (XRF), recorded with molybdenum tube and molybdenum secondary target, set at 1000 s at 45 kV/35 mA, under vacuum, and compared with IAEA SL-1.

2.3. Laboratory Production of Bricks and Testing of Their Properties

Some research has shown that initial laboratory-scale studies on smaller disc-shaped bricks may be useful in determining the optimum proportion of waste material in bricks [39,40,41]. Following the aforementioned work, solid disc-shaped bricks were produced in this research, diameter d = 50 mm, thickness s = 14 mm, weight m = 46–48 g. For the needs of brick production, two types of SSA were used—from WWTP Zagreb and from WWTP Karlovac—both incinerated at 900 °C (ZG 900 and KA 900). A total of seven types of bricks were produced—control bricks (without addition of SSA) made of 100% clay and bricks with SSA ZG 900 and SSA KA 900 in mass proportions of 5 wt%, 10 wt%, and 20 wt% (5 wt% ZG 900, 10 wt% ZG 900, 20 wt% ZG 900, 5 wt% KA 900, 10 wt% KA 900, and 20 wt% KA 900).
The mixing of the raw materials was done using an electric mixer (Figure 1. In this study, tap water was added to the solid raw materials. Bound water is the amount of water required to obtain a plastic moldable dough [42,43,44].

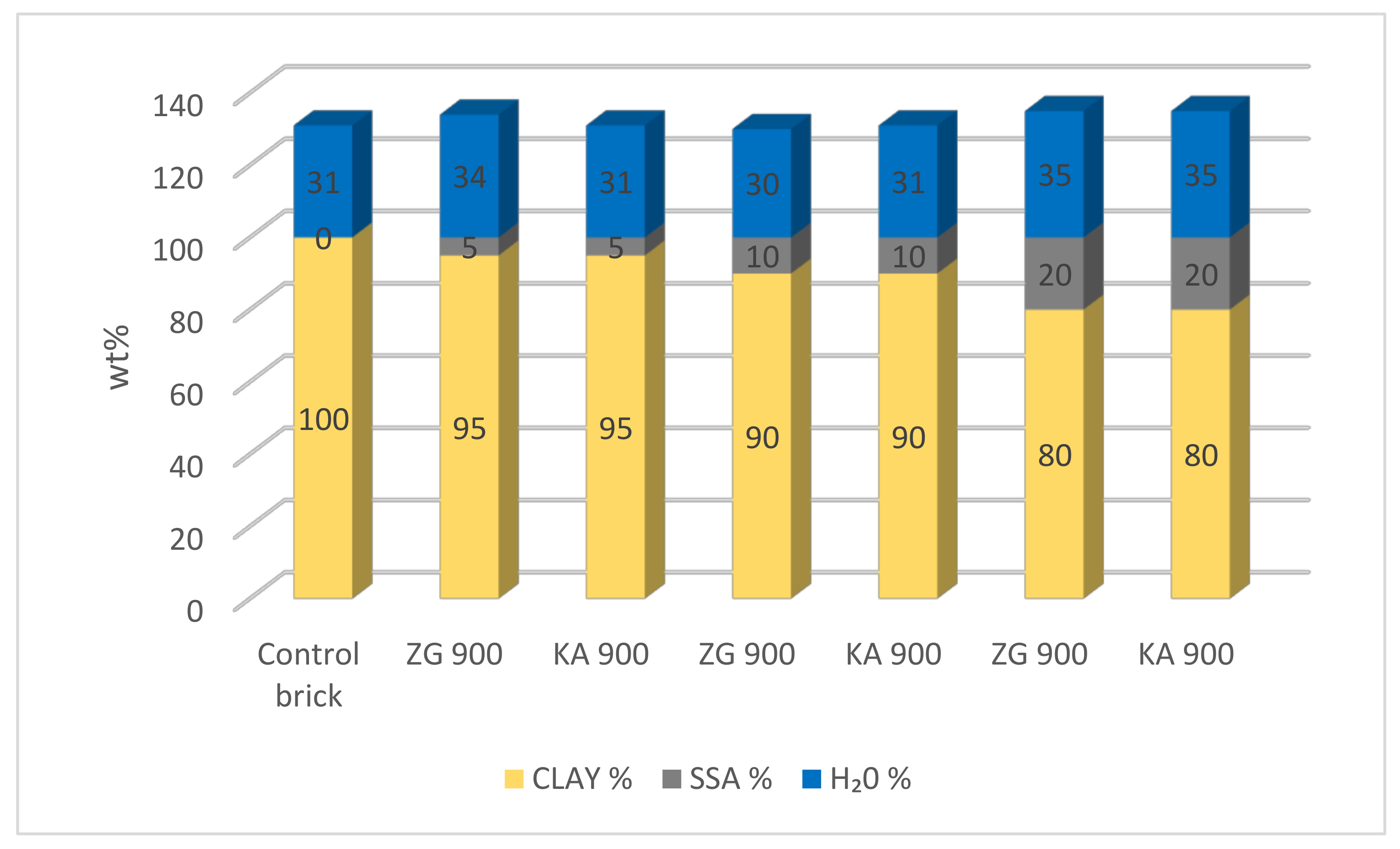

A gradual increase in the SSA content in the mixture leads to a greater need for water addition due to the nature of non-plasticity of SSA (Figure 2).
The prepared dough was then pressed into the metal molds by hand under load.
The bricks were left in the molds for a few hours (until the mass shrank), then it was released from the mold with light pressure, dried and stored until the next day (Figure 1). Drying was carried out in a forced-air oven at T = 105 °C, t = 24 h. After drying, the brick was left in the dryer until it had cooled down. The diameter of the brick was measured with a movable balance, and the mass of the brick was measured with an analytical balance.

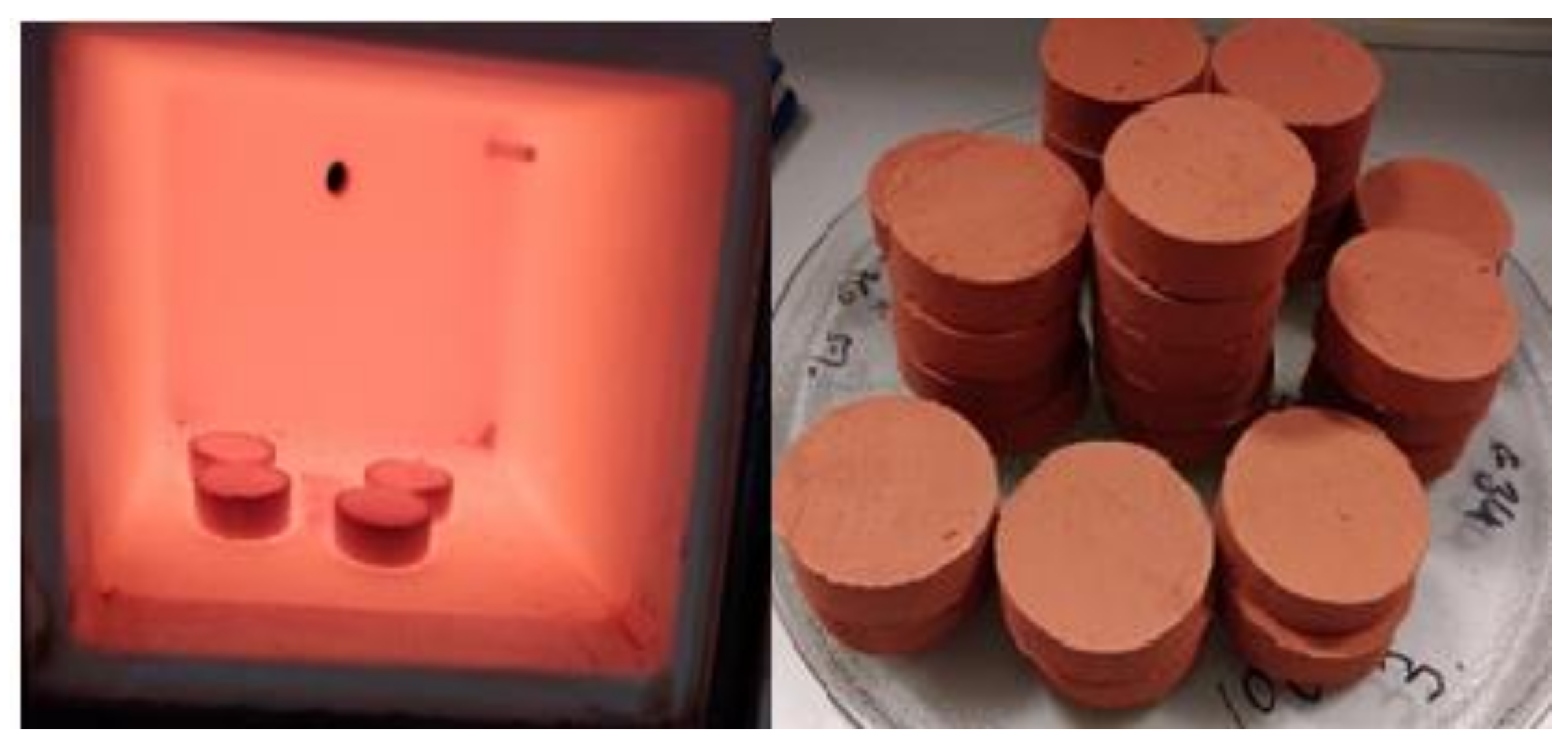

The dry brick was placed in an annealing furnace and subjected to heat treatment with a temperature increase of 5 °C/min (Figure 3). After reaching a temperature of 950 °C, the bricks were fired for another three hours at the specified temperature and then left in the furnace until complete cooling.
The following tests were carried out on the bricks produced:
  • Compressive strength
Sample preparation and testing was carried out in accordance with EN 772–1: 2015. The test is carried out on three specimens.
2.
Determination of water absorption of brick and sand–lime brick wall elements by cold water absorption.
The test was carried out in accordance with EN 772-21: 2011 on three specimens for each batch of bricks produced.
3.
Determination of water absorption of brick wall elements with a layer for insulation against moisture by boiling in water. The test was performed in accordance with the standard EN 772-7: 2003 on three test specimens for each batch of bricks produced.
4.
Saturation coefficient (water absorption by cold water/water absorption by boiling in water)
5.
Determination of initial absorption by the method prescribed by ASTM C67/C67M—20, the test was carried out on three test specimens.
6.
Determination of net volume and percentage of voids of brick wall units by hydrostatic weighing as per EN 772-3: 1998. The test was carried out on three specimens.
7.
Loss during firing. The total mass loss during firing was determined from the expression
(m105°C − m950°C)/m105°C) * 100%.

3. Results

3.1. Characterization of Clay and SSA

3.1.1. Particle Size Distribution

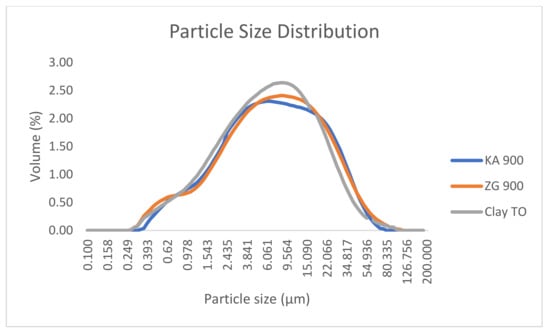

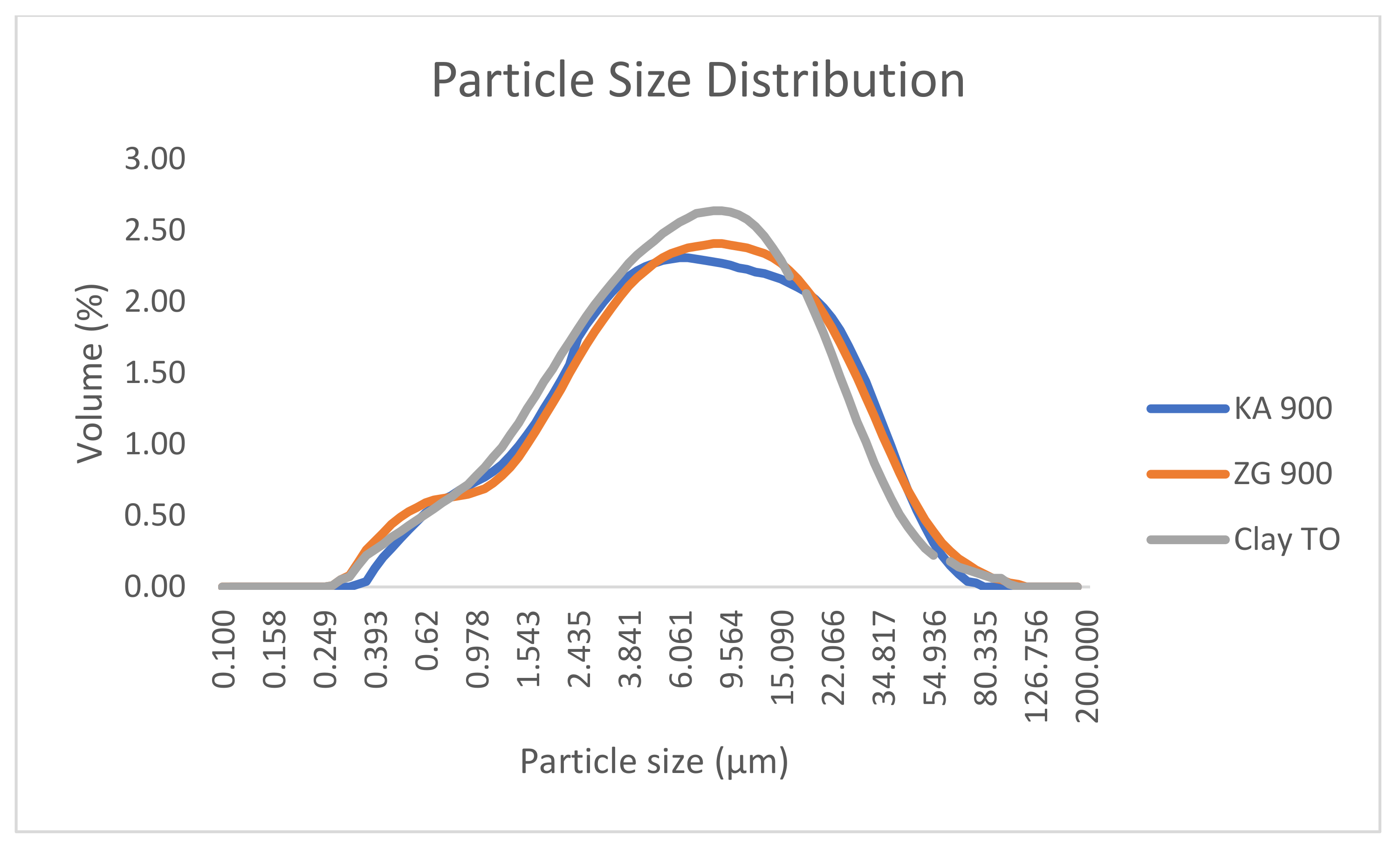

The particle size distribution or granulometric composition of clay plays an important role in the quality of brick products. Particles smaller than 2 µm are called clay fractions, those 2 to 20 µm are silt fractions, and particles larger than 20 µm are sand fractions [3,44]. The smallest fractions are also the richest in clay minerals and significantly affect the plasticity of brick clays. The increase in the mass fraction of particles below 2 µm contributes both to the increase in the mechanical properties of the product and to the increased shrinkage of the clay during the drying and firing process and the increase in the density of the product. When the mass fraction of non-clay particles is increased (e.g., when the sand content exceeds the allowable amount), the finished product is assumed to have a coarser texture and increased porosity [4,45,46]. By regulating the ratio of clay and non-clay minerals of the raw material, it is possible to model the plasticity properties of the raw brick [4,45,46,47]. By increasing the total amount of the largest fraction of the raw material, the shrinkage of the raw material is reduced, reducing the occurrence of cracks and deformation of the product. Increasing the total amount of clay minerals ensures not only the necessary plasticity, but also the strength of the raw product [45,48].
The particle size curves showed an approximately normal distribution for all three samples (Figure 4). A significant peak was estimated in the particle size range of 2.435–27.718 µm, with a volume ratio of 2.30–2.64. The range of particle size ratios was more than 70% and dominated by fine particles.

3.1.2. SEM

For both SSA samples (ZG 900 and KA 900), the microphotographs show a similar morphology to the clay sample (Figure 5, Figure 6 and Figure 7). Polydisperse grains were observed. The particles were present in a wide range of sizes and with significant differences in shape. However, irregularly shaped particles predominated with a significant degree of agglomeration. Micrograms indicated a porous and smooth SSA structure. Glassy structures were also visible in both samples (SiO2).
Areas with different chemical composition were not well visible, indicating that the arrangement of crystals of different phases in the samples was homogeneous and that these crystals were very small. For this reason, it was not possible to observe significant differences in chemical composition in the morphology of samples
The SSA consisted of fine-grained, multiphase particles with many amorphous components. Because of the small grain sizes and transitions between grains of different compositions, there was also some “mixed” spectra represented by combinations of peaks of elements in adjacent grains.

3.1.3. X-ray Diffraction Analysis (XRD) of Clay and SSA

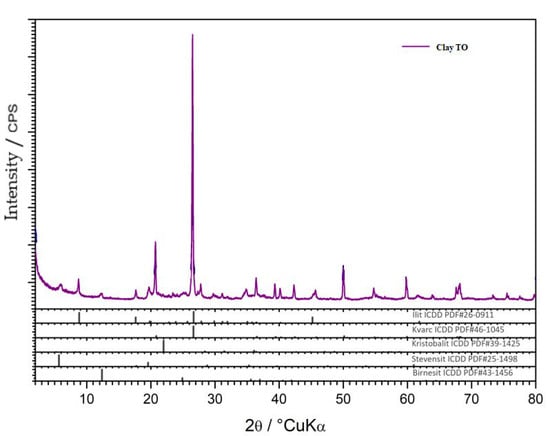

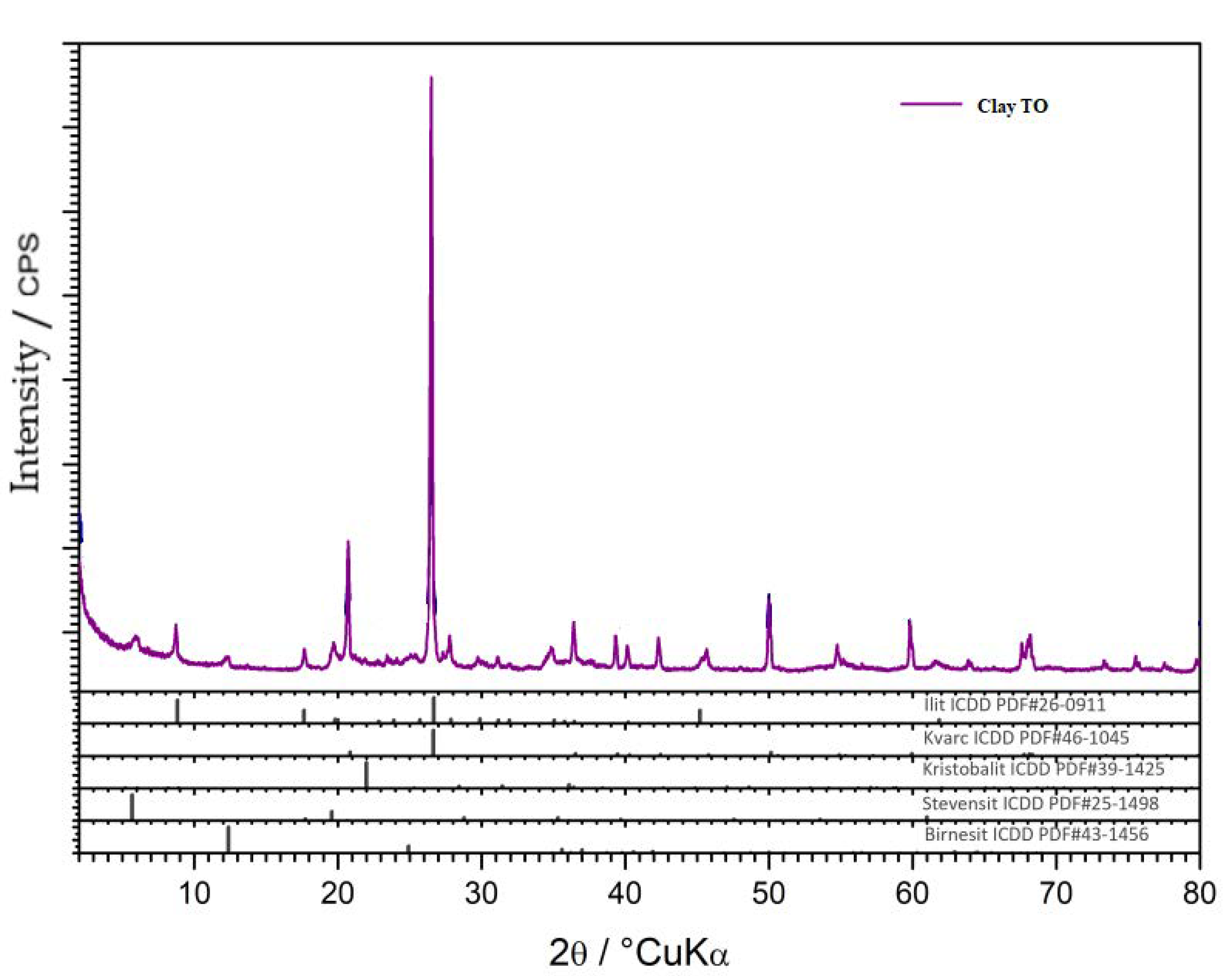

The clay sample was based on clay raw materials. In the clay sample from the Topusko minefield, used in this research, the main phases were quartz, SiO₂ (ICDD PDF # 46-1045), and illite (ICDD PDF # 70-3754), and traces of low-grade cristobalite, SiO₂ (ICDD PDF # 76-0941) are found. The presence of stevensite (ICDD PDF # 25-1498) and birnesite (ICDD PDF # 43-1456) was possible in the traces. This cannot be confirmed but should be considered as indicative. The amorphous phase was also present in a very small amount in the clay sample (Figure 8).

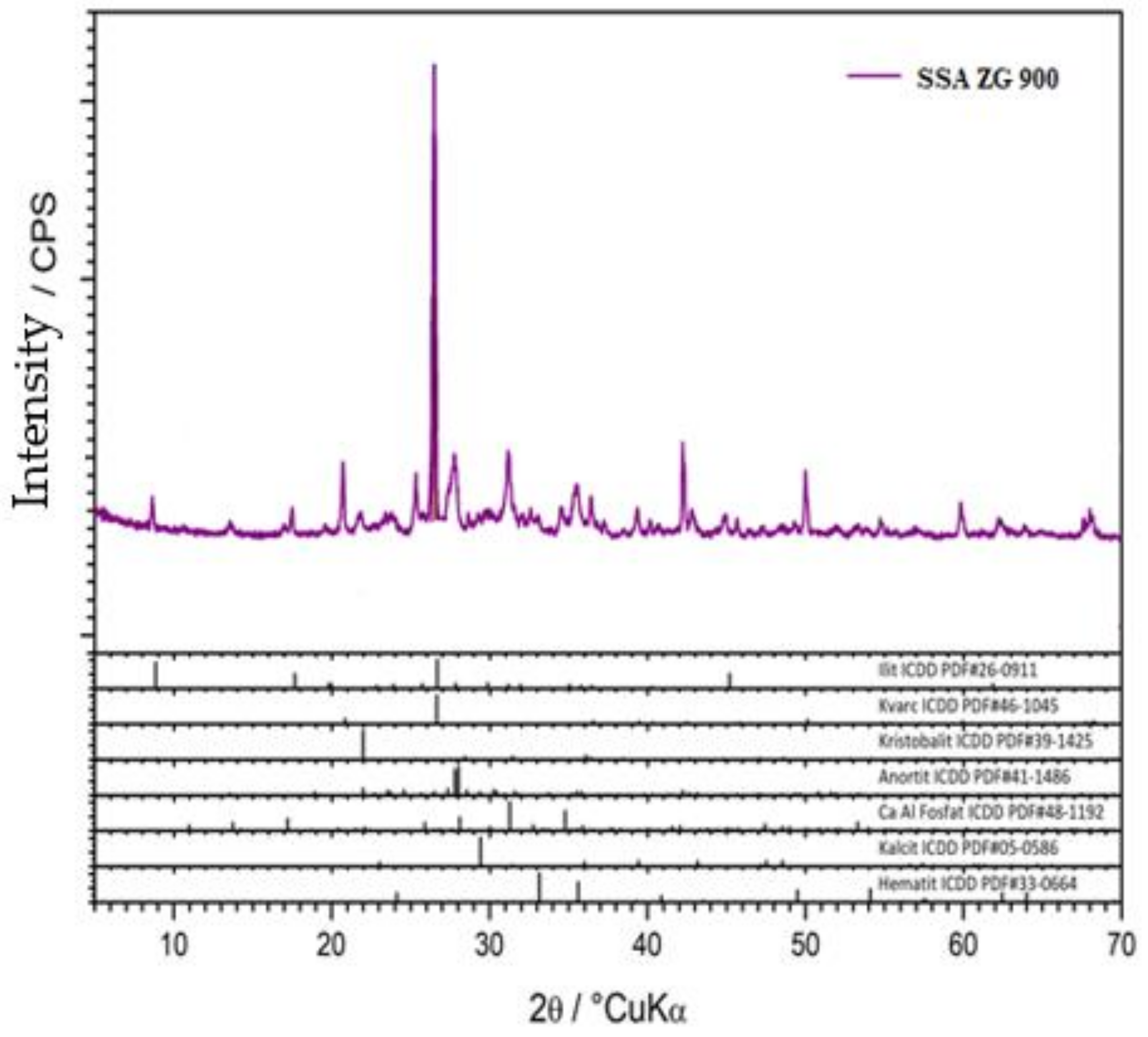

The SSA ZG 900 sample contained a visible amount of illite (ICDD PDF # 26-0911), quartz, SiO2 (ICDD PDF # 46-1045), and cristobalite, SiO₂ (ICDD PDF # 39-1425). Aluminosilicate crystalline phases were present as secondary phases. An amorphous phase was not present (Figure 9).

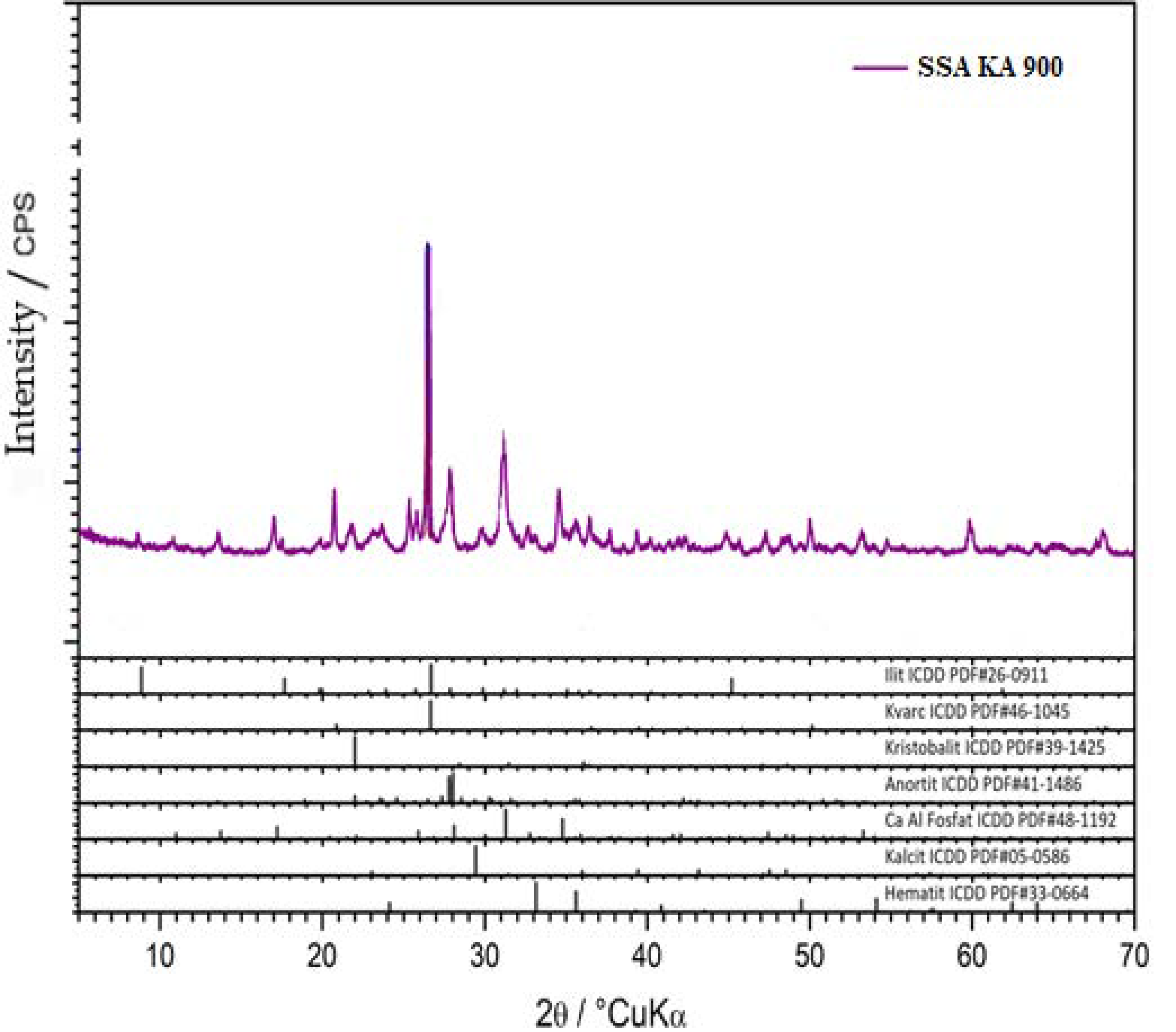

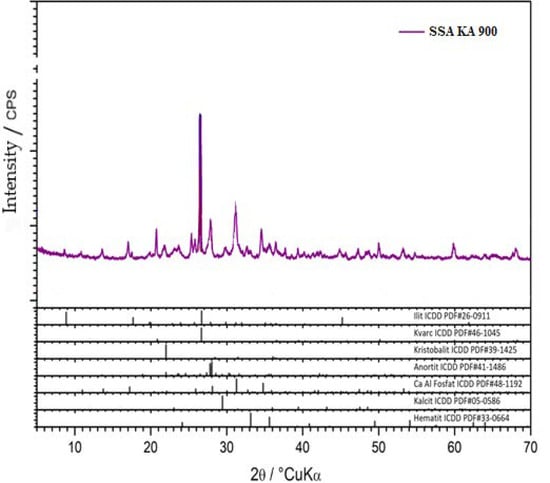

The SSA KA 900 sample contained a visible amount of illite (ICDD PDF # 26-0911), quartz, SiO2 (ICDD PDF # 46-1045), and cristobalite, SiO2 (ICDD PDF # 39-1425). Aluminosilicate crystalline phases were present as secondary phases. An amorphous phase was not present (Figure 10).

3.1.4. Chemical Composition of Clay and SSA

Oxides

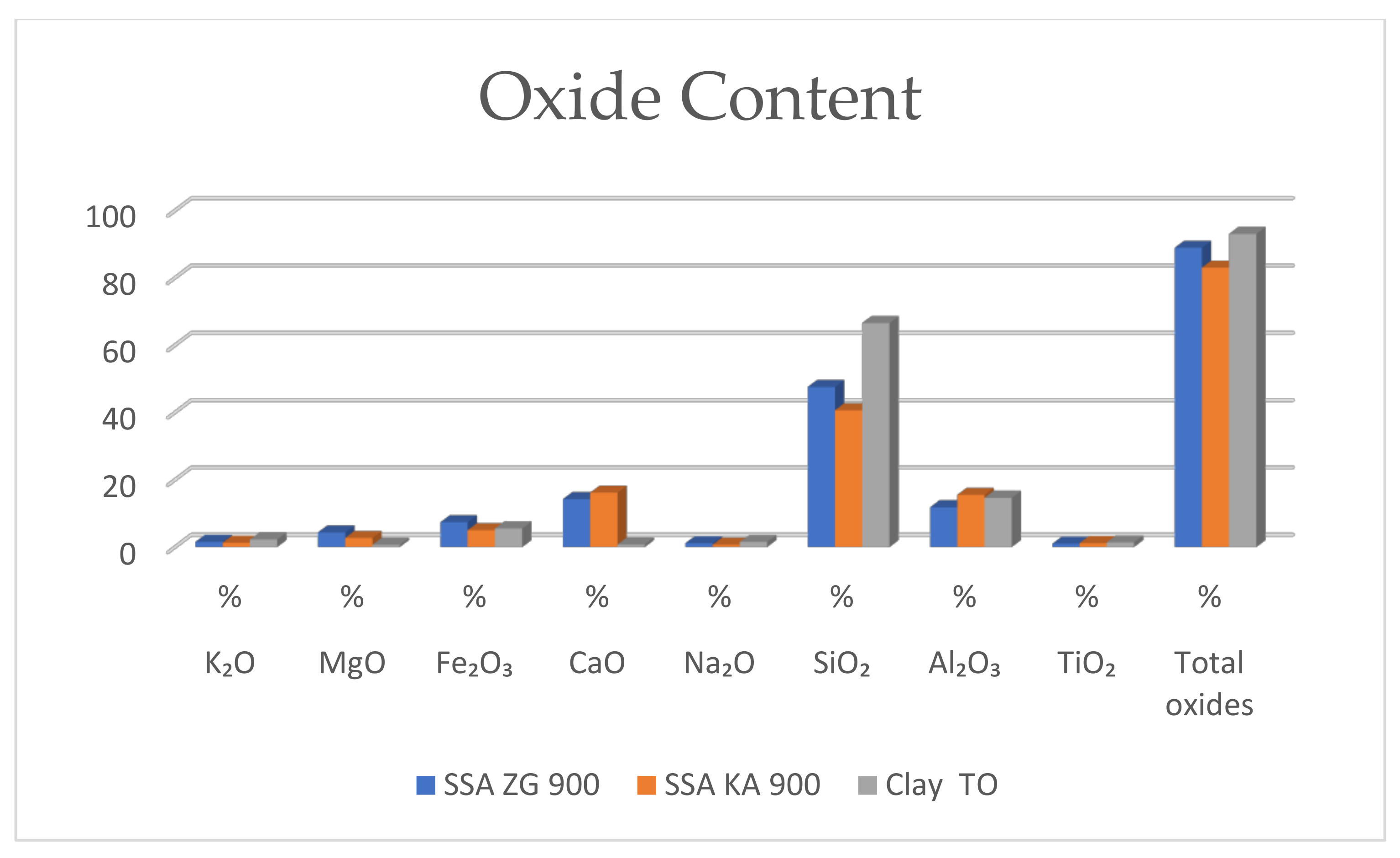

Based on a review of the research literature, it was found that the basic minerals that make up SSA are SiO2 and Al2O3, which creates good conditions for use in the production of ceramic materials (building bricks, tiles, ceramic tiles, and glass ceramics) [49]. The content of CaO, SO3, P2O5, and Fe2O3 is also significant. It was also found that these SSA usually contain high amounts of phosphate, typically 10–20 wt% in the form of P2O5, especially at the WWTPs with tertiary treatment.
The results show a high content of SiO2 and AlO2 in SSA, which are characteristic oxides for ceramic materials. In addition, SSA is characterized by a high content of CaO compared to clay (Figure 11). Fe2O3 is also a characteristic oxide in SSA and is normally 11.6% [49], but is slightly lower in the SSA ZG 900 and SSA KA 900. CaO and Fe2O3 contribute to better melting properties, which promote lower melting temperatures during the sintering process, thus reducing energy costs. However, the highest proportions of oxides are seen in sample of clay. Depending on the proportions of mineral components, clays may be non-carbonate (with low proportions of carbonate and higher proportions of quartz (over 50%)) or carbonate (with proportions of carbonate between 15% and 30% and a low proportion of quartz (less than 15%)) [3,4,50]. Non-carbonate clays contain a higher proportion of SiO₂ and Al₂O₃ in the chemical composition and carbonate clays contain a higher proportion of Ca and Mg [3,50]. Better resistance to wall elements is achieved by clays with lower CaO content [50,51,52,53].

Heavy Metals

The burning of organic material increases the concentration of heavy metals from the SS in the SSA by a factor of 2–3 [54] Elements in SSA that pose a potential threat are heavy metals [49]. Some heavy metals (Hg, Pb, and Cd) vaporize, but condensation reforms them on the surface of ash particles [55]. Significant vaporization of lead occurs at a temperature of ~400 °C, arsenic vaporizes at ~600 °C, while copper and zinc vaporize at ~800 °C [56]. Combustion dynamics affect the loss of particles and hence heavy metals. Lead and cadmium are largely contained in fine particles (1 µm); differences in chromium concentration may be related to particle size. Table 1 shows the results of the analysis of heavy metals in SSA ZG 900 and SSA KA 900 and compares them with the concentrations of heavy metals naturally occurring in clay. It can be seen that the origin of SS affects the concentrations of certain heavy metals in SSA. Heavy metals can dissolve even in low concentrations and pollute the environment, indicating the need for safe disposal of the materials, which is confirmed by the analysis, as SSA is classified as a non-inert waste/residual [57]. Incorporation of SSA into bricks is an alternative method for stabilization of hazardous waste, which is characterized by reduction of leaching of hazardous substances (heavy metals) into the environment [49,58,59,60,61].

3.2. Properties of Bricks

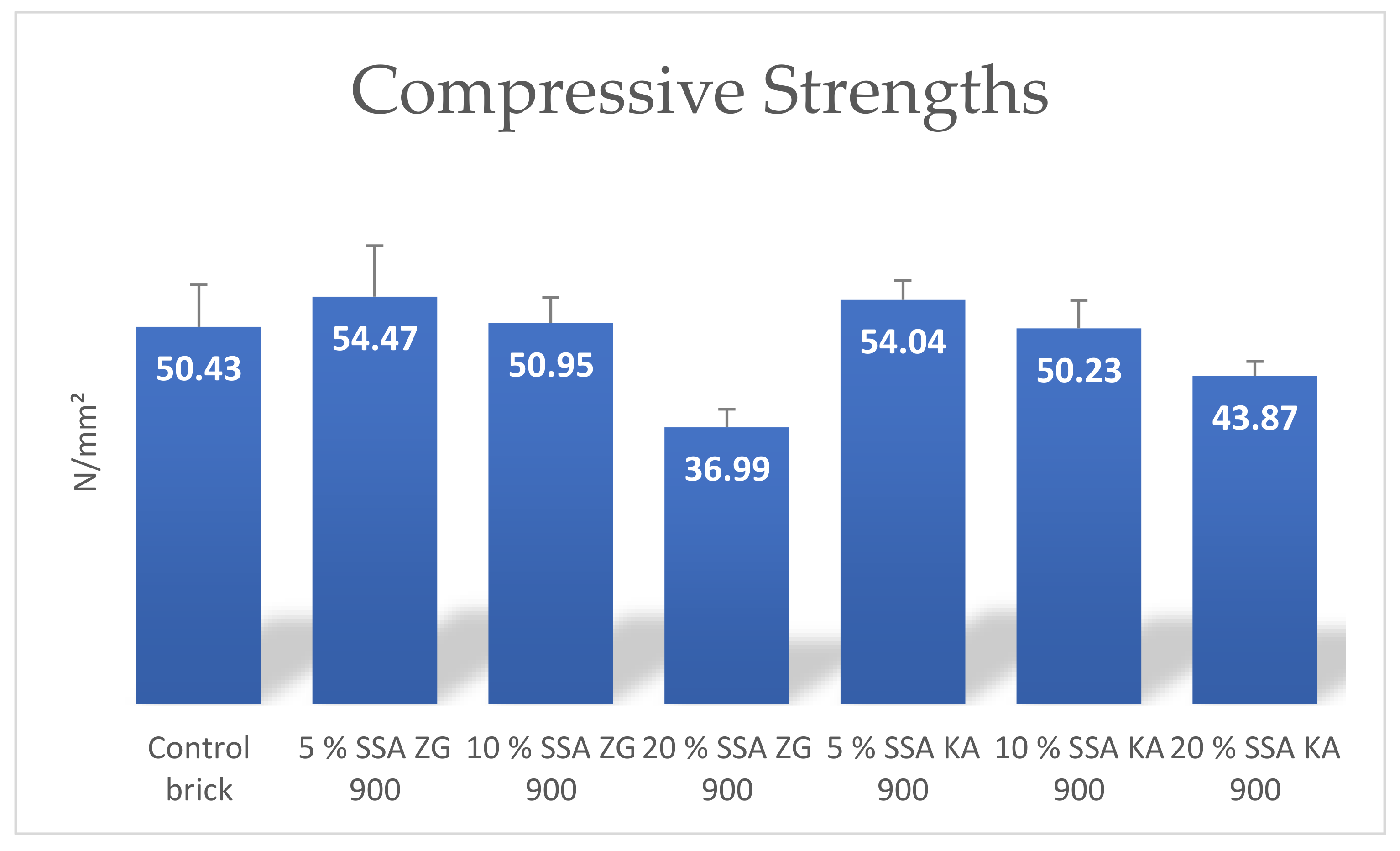

Compressive strength is inversely proportional to the total porosity of the material, which means that bricks with low strength also have high porosity, making them susceptible to damage from the freeze–thaw cycle [3]. The minimum values of compressive strength of bricks proposed according to American and Canadian regulations are presented in Table 2 [62,63].
The results show that the strength is strongly dependent on the amount of SSA in the brick. This finding is closely related to the amount of water absorbed as shown in Figure 12 and Figure 13. It decreases with the increase of SSA content in the brick mixture. Bricks made of SSA ZG and SSA KA showed the best compressive strength at 5 wt%, while at 10 wt% compressive strength they were roughly equivalent to the control bricks. When the SSA content was increased up to 20 wt%, the compressive strengths showed significantly lower values compared to the other test specimens (Figure 12).
Essential parameters for the assessment of the freeze–thaw resistance of bricks are, in addition to the determination of the compressive strength, the water absorption during boiling, the water absorption in cold water, and the saturation coefficient.

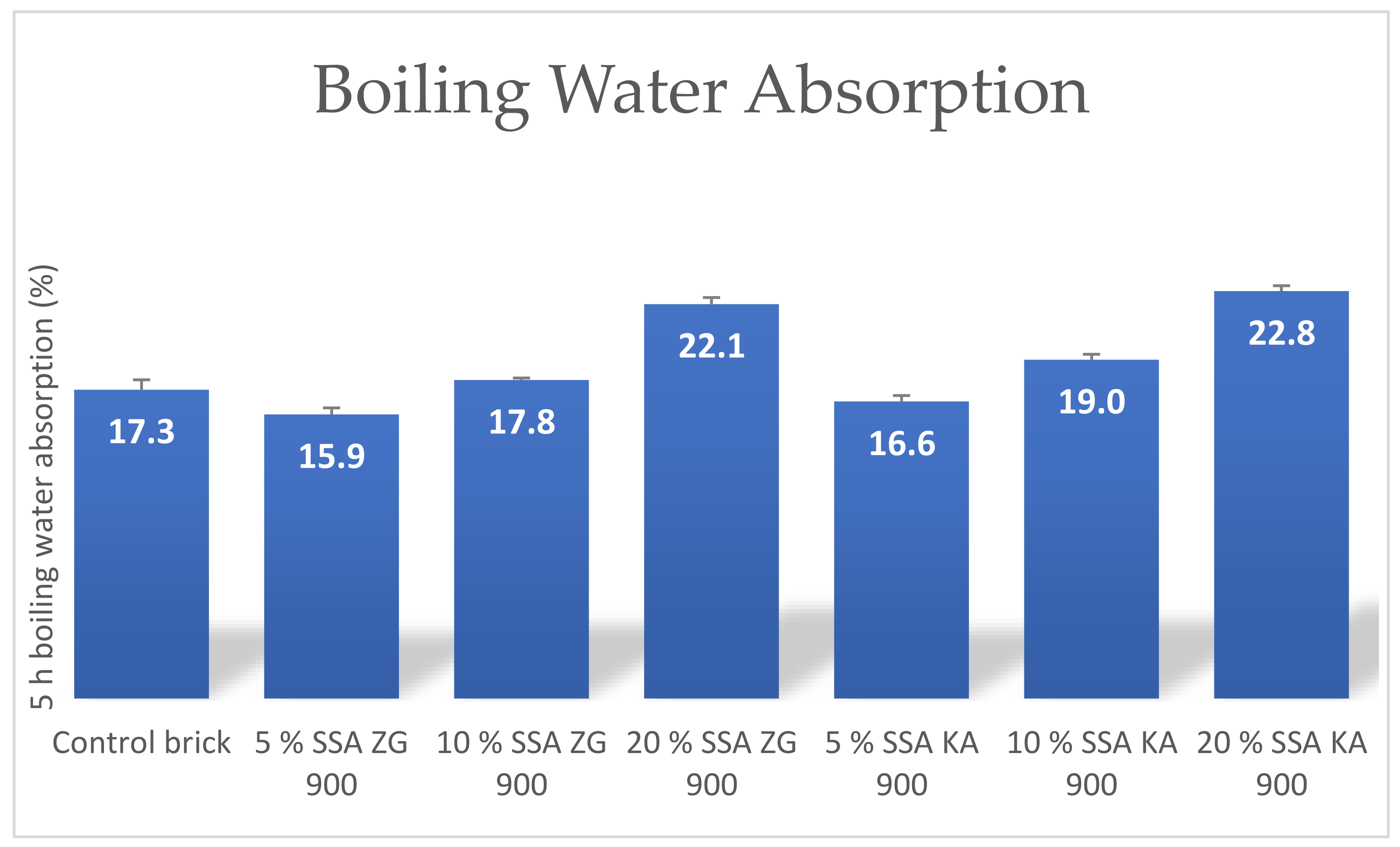

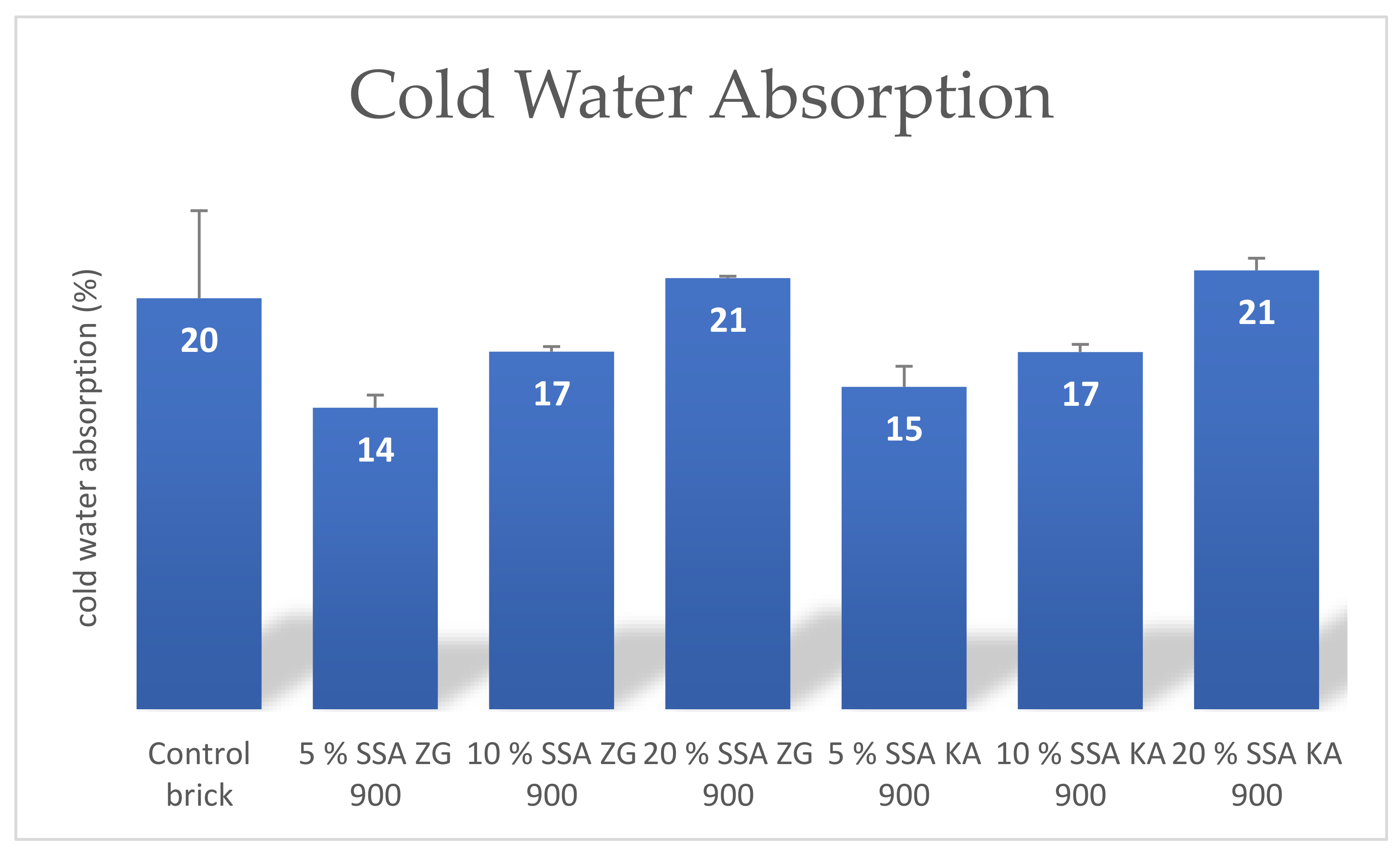

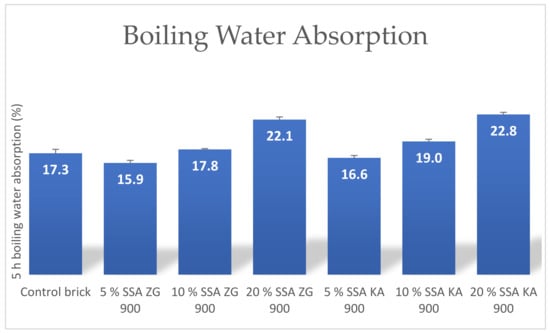

Water absorption is an important parameter indicating the durability of the brick. Lower water absorption indicates greater resistance of the brick to external influences [62]. Replacing clay with SSA in higher mass proportions reduces the plasticity of the mixture, resulting in an increase in internal pores in the brick, which contributes to higher absorption [51]. Parameters of the water absorption during boiling and water absorption in cold water showed a linear growth with increasing proportion of SSA ZG and SSA KA in the brick, Figure 13 and Figure 14. Water absorption should be between 5% and 20% for normally fired bricks [66].

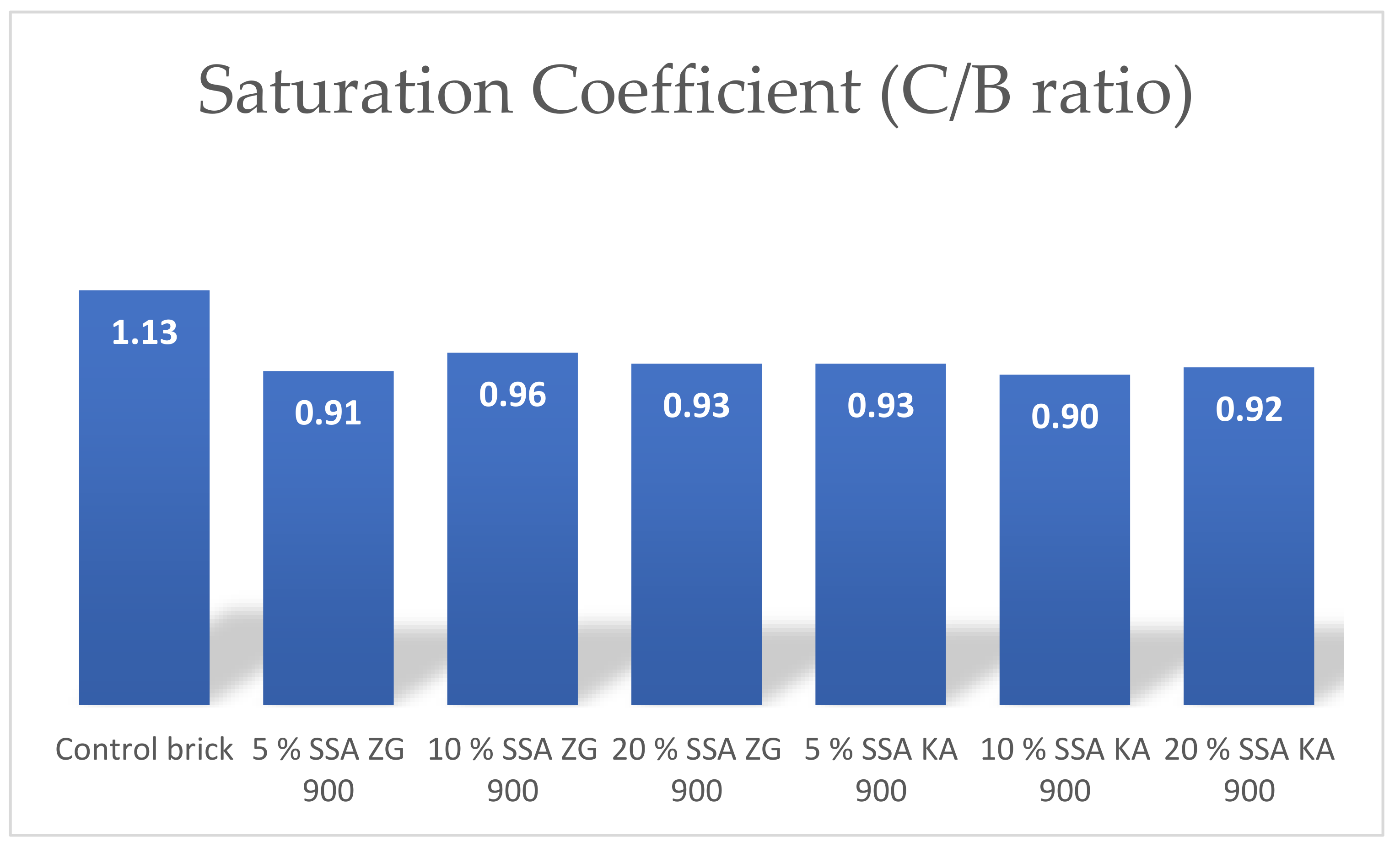

The coefficient of saturation is the ratio between the absorption of cold water and the absorption of water by boiling. The saturation coefficient is used to determine the amount of water absorbed that will not damage the material by freezing/thawing. In other words, the saturation coefficient determines the pores that are easily filled with water in relation to the total pore volume [3]. Particle size distribution, i.e., a higher proportion of fine clay particles contributes to a higher saturation coefficient, while larger particles contribute to a decrease in the saturation coefficient [65]. The saturation coefficient was lower for all samples containing SSA compared to the control brick. For bricks containing 5%, 10%, and 20% SSA, the saturation coefficients were approximately the same (Figure 15).

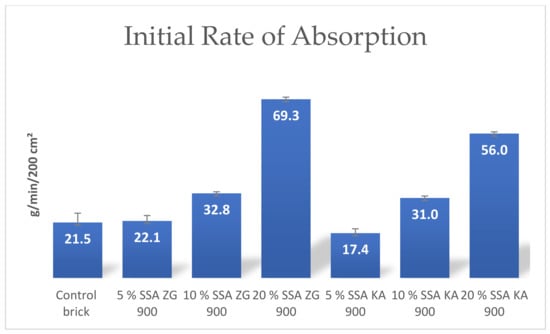

The initial water absorption (IRA) is a measure of how quickly a brick will absorb water. The relationship between IRA and saturation coefficient was studied in [65] and a proportional increase in saturation coefficient with increasing initial water intake was found. The degree of correlation of these two parameters is a function of the homogeneity of the raw material and is more pronounced when only one raw material is used than when multiple raw materials are mixed [4]. A higher rate of water absorption over time should indicate a higher proportion of large pores and thus greater resistance to freeze–thaw cycles [4,67]. This may be due to the texture of the sample surface. The initial water absorption parameter increased linearly with the increase of SSA content in the brick, and they were higher compared to the control brick (Figure 16).

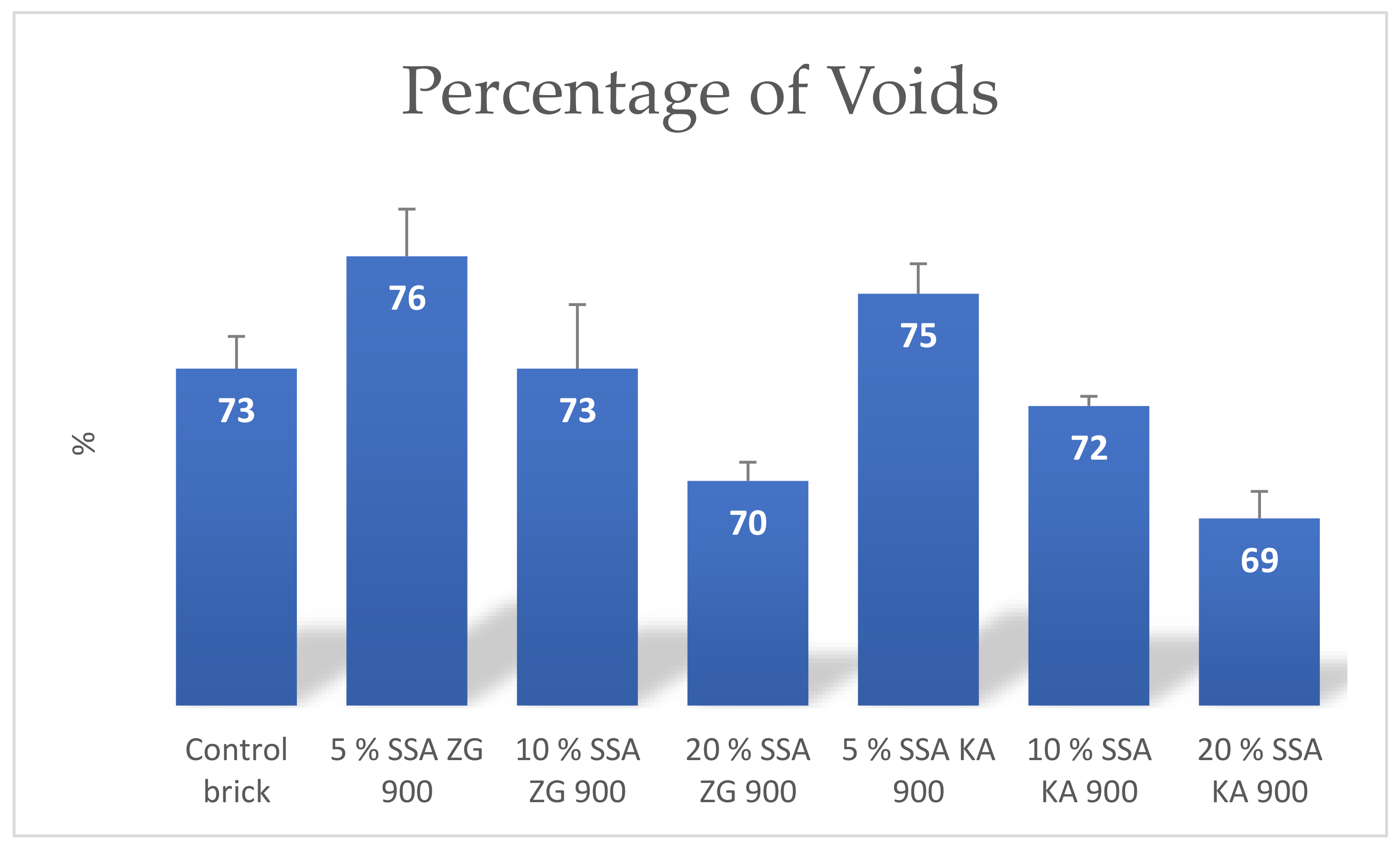

The parameter percentage of voids in brick samples containing 5% and 10% SSA was significantly higher compared to control bricks, while bricks containing 20% SSA had a significantly lower percentage of voids (Figure 17).

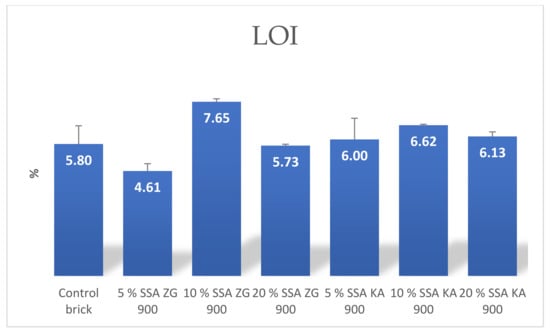

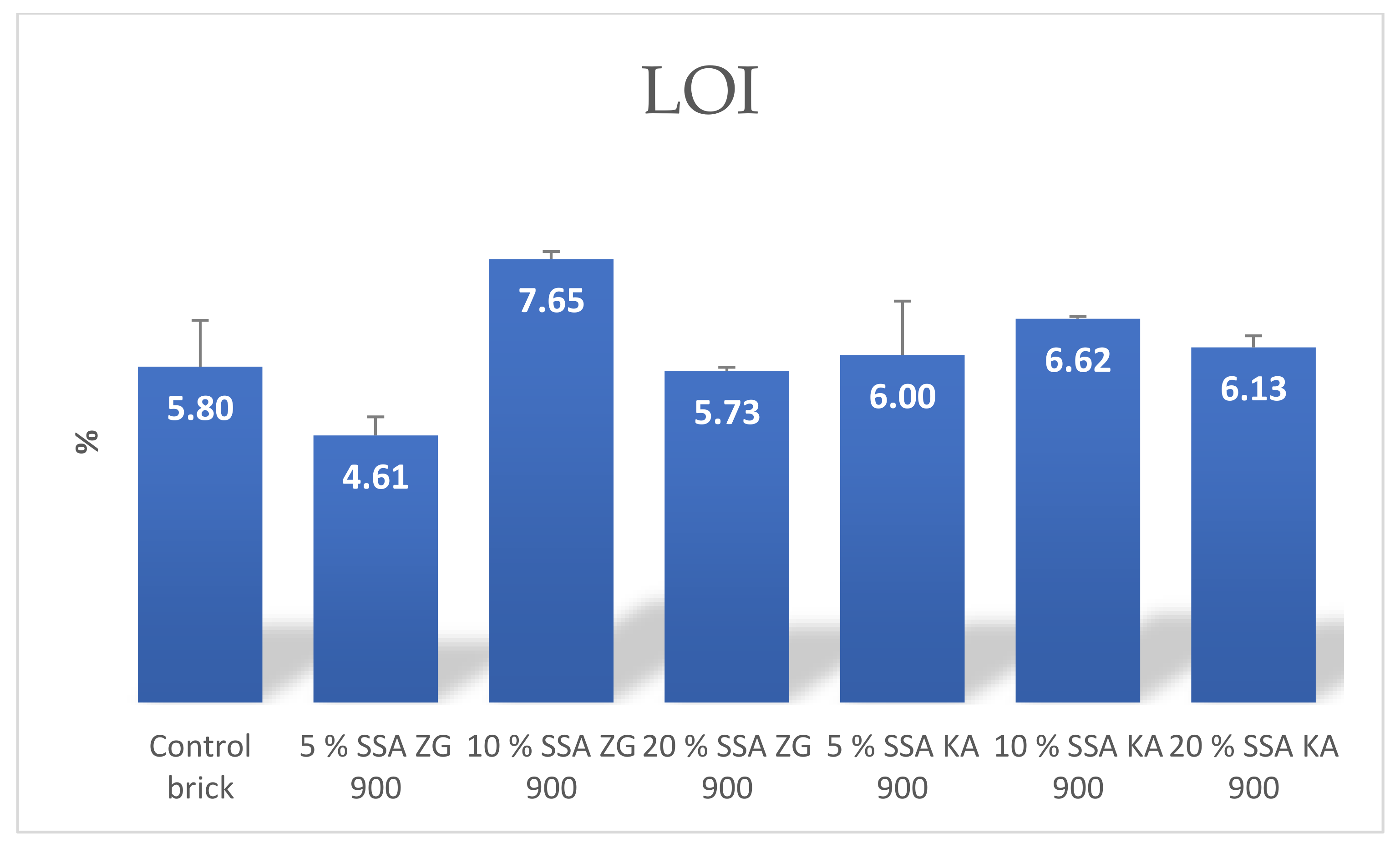

Loss of mass during firing may be due to loss of chemically bound water and evaporation of compounds within the brick [62] and may be caused by combustion at high temperatures of both organic and inorganic substances present in SSA and clay [37,51]. The degradation of CaCO₃ is a major cause of weight loss during firing.
From the results presented, it can be seen that the SSA brick specimens showed a slightly higher weight loss during firing compared to the control brick, especially for the 10% content of SSA (Figure 18). The weight loss during firing was 15% for hand-molded bricks [58].

4. Conclusions

Studies on clay and SSA (ZG and KA) showed the compatibility of the two materials (grain size distribution, morphology, chemical composition, and mineralogical composition).
This study showed that replacing clay with SSA in proportions of 5 and 10 wt% resulted in profitable brick production with better or equal quality compared to control bricks. Increasing the SSA mass fraction to 20% showed a significant deterioration in brick quality.
Handmade bricks made of SSA showed only a slightly higher need for water addition at 20% SSA content compared to control bricks.
Compressive strength is the most important quality index for evaluating the performance of building materials. Partial replacement of clay with SSA in proportions of 5% and 10% resulted in bricks with high compressive strength. Bricks made with SSA content of 20 wt% showed significantly lower compressive strength compared to control bricks and bricks with lower SSA content.
The parameters of water absorption in cold and hot water recorded a linear increase with an increase in SSA addition.
The results of the initial absorption test on brick samples also recorded a linear increase with increasing SSA content in the brick and were higher compared to the control brick.
The saturation coefficients were approximately the same for all SSA proportions and slightly lower compared to the control brick.
The parameter percentage of voids in the brick recorded a linear decrease with increasing SSA content in the brick. The percentage of voids in the brick with 5% and 10% SSA was higher compared to the control brick, while the percentage of voids in the brick with 20% was lower compared to the control brick.
The LOI values of the tested bricks with different SSA contents showed slightly higher mass losses during firing compared to the control bricks.
The laboratory production and testing of the bricks give positive indications about the production of SSA bricks on a real scale and about the expected quality of the bricks obtained. From an economic point of view, the recycling of SSA in the brick industry is a good alternative and a positive example of a circular economy, given the ever-increasing disposal prices and numerous restrictions on waste disposal. Calcium, iron, phosphorus, and potassium contained in SSA have fluxing properties that promote lower firing temperatures of bricks, resulting in energy savings.

Author Contributions

Conceptualization: N.S.; data curation: A.B., D.V. and K.N.; formal analysis: A.B. and D.V.; investigation: A.B. and D.V.; methodology: A.B., D.V. and N.S.; supervision: K.N.; validation: K.N.; writing—original draft, A.B. and D.V.; writing—review and editing: A.B., D.V. and N.S. All authors have read and agreed to the published version of the manuscript.

Funding

Croatian Science Foundation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work has been fully supported by the Croatian Science Foundation under the project “IP-2019-04-1169—Use of treated oily wastewater and sewage sludge in brick industry—production of innovative brick products in the scope of circular economy”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. The Brick Industry Worldwide. Available online: https://hablakilns.com/the-brick-industry/the-brick-market/ (accessed on 25 July 2021).
  2. Overview of the Global Market for Refractory Bricks, Blocks and Tiles. Available online: https://www.indexbox.io/store/world-refractory-bricks-blocks-and-tiles-market-analysis-forecast-size-trends-and-insights/ (accessed on 25 July 2021).
  3. Vracevic, M. Doprinos Trajnosti Zidanih Konstrukcija. Ph.D. Dissertation, Građevinski i Arhitektonski Fakultet, Sveučilište Josipa Jurja Strossmayera u Osijeku, Osijek, Croatia, 2018. [Google Scholar]
  4. Netinger, I.; Vracevic, M.; Backalic, Z. Opeka-od Sirovine do Gotovog Proizvoda (Clay Brick-From Raw Material to Final Product); Sveuciliste Josipa Jurja Strossmayera u Osijeku, Građevinski fakultet: Osijek, Hrvatska, 2014. [Google Scholar]
  5. Mitigating Black Carbon and other Pollutants from Brick Production. Available online: https://breathelife2030.org/wp-content/uploads/2016/09/Fact-Sheet-5-Bricks-FINAL-Digital-May2015.pdf (accessed on 30 June 2021).
  6. Calkins, M. Materials for Sustainable Sites: A Complete Guide to the Evaluation, Selection, and Use of Sustainable Construction Materials; Brick Masonry; John Wiley and Sons: Hoboken, NJ, USA, 2008; Chapter 7; pp. 179–180. [Google Scholar]
  7. Jewell, S.; Kimball, S.M. Mineral commodity summaries. USA Geol. Surv. 2015, 9, 196. [Google Scholar]
  8. The Brick Industry Association. Available online: httpshttps://www.gobrick.com/docs/default-source/read-research-documents/technicalnotes/9-manufacturing-of-brick.pdf?sfvrsn=0 (accessed on 25 July 2021).
  9. Arıöz, Ö.; Kilinç, K.; Tuncan, M.; Tuncan, A.; Kavas, T. Physical, Mechanical and Micro-Structural Properties of F Type Fly-Ash Based Geopolymeric Bricks Produced by Pressure Forming Process. Adv. Sci. Technol. 2010, 69, 69–74. [Google Scholar] [CrossRef]
  10. Chen, C.; Li, Q.; Shen, L.; Zhai, J. Feasibility of manufacturing geopolymer bricks using circulating fluidized bed combustion bottom ash. Environ. Technol. 2012, 33, 1313–1321. [Google Scholar] [CrossRef]
  11. Freidin, C. Cementless pressed blocks from waste products of coal-firing power station. Constr. Build. Mater. 2007, 21, 12–18. [Google Scholar] [CrossRef]
  12. Ahmari, S.; Zhang, L. Production of eco-friendly bricks from copper mine tailings through geopolymerization. Constr. Build. Mater. 2012, 29, 323–331. [Google Scholar] [CrossRef]
  13. Kadir, A.A.; Mohajerani, A.; Roddick, F.; Buckeridge, J. Density, Strength, Thermal Conductivity and Leachate Characteristics of Light-Weight Fired Clay Bricks Incorporating Cigarette Butts. World Acad. Sci. Eng. Technol. Int. J. Mater. Metall. Eng. 2009, 53, 1035–1040. [Google Scholar]
  14. Hegazy, B.E.E.; Fouad, H.A.; Hassanain, A.M. Brick Manufacturing from Water Treatment Sludge and Rice Husk Ash. Aust. J. Basic Appl. Sci. 2012, 6, 453–461. [Google Scholar]
  15. Alleman, J.E.; Serman, N.A. Constructive sludge management: Biobrick. J. Env. Eng. Div. ASCE 1984, 110, 301–311. [Google Scholar] [CrossRef]
  16. Eurostat-Tables, Graphs and Maps Interface (TGM) Table [WWW Document]. Available online: https://ec.europa.eu/eurostat/web/waste/data/main-tables (accessed on 30 June 2021).
  17. Eurostat. 2019. Available online: https://ec.europa.eu/eurostat/documents/3217494/10165279/KS-DK-19-001-EN-N.pdf/76651a29-b817-eed4-f9f2-92bf692e1ed9 (accessed on 30 June 2021).
  18. Cyr, M.; Coutand, M.; Clastres, P. Technological and environmental behavior of sewage sludge ash (SSA) in cement-based materials. Cem. Concr. Res. 2007, 37, 1278–1289. [Google Scholar] [CrossRef]
  19. Murakami, T.; Suzuki, Y.; Nagasawa, H.; Yamamoto, T.; Koseki, T.; Hirose, H. Combustion characteristics of sewage sludge in an incineration plant for energy recovery. Fuel Process. Technol. 2009, 90, 778–783. [Google Scholar]
  20. Ahmaruzzaman, M. A review on the utilization of fly ash. Prog. Energy Combust. Sci. 2010, 36, 327–363. [Google Scholar] [CrossRef]
  21. Chen, M.; Blanc, D.; Gautier, M.; Mehu, J.; Gourdon, R. Environmental and technical assessments of the potential utilization of sewage sludge ashes (SSAs) as secondary raw materials in construction. Waste Manag. 2013, 33, 1268–1275. [Google Scholar] [CrossRef] [PubMed]
  22. Halliday, J.E.; Jones, M.R.; Dyer, T.D.; Ravindra, K.D. Potential use of UK sewage sludge ash in cement-based concrete. Proc. Inst. Civ. Eng. Waste Resour. Manag. 2012, 165, 57–66. [Google Scholar] [CrossRef]
  23. Kute, S.; Deodhar, S.V. Effect of fly ash and temperature on properties of burnt clay bricks. J. Inst. Eng. India Civ. Eng. Div. 2003, 84, 82–85. [Google Scholar]
  24. Lin, K.L.; Chiang, K.Y.; Lin, C.Y. Hydration characteristics of waste sludge ash that is reused in eco-cement clinkers. Cem. Concr. Res. 2005, 35, 1074–1081. [Google Scholar] [CrossRef]
  25. Lynn, C.J.; Dhir, R.K.; Ghataora, G.S.; West, R.P. Sewage sludge ash characteristics and potential for use in concrete. Constr. Build. Mater. 2015, 98, 767–779. [Google Scholar] [CrossRef][Green Version]
  26. Monzó, J.; Payá, J.; Borrachero, M.V.; Córcoles, A. Use of sewage sludge ash (SSA)-cement admixtures in mortars. Cem. Concr. Res. 1996, 26, 1389–1398. [Google Scholar] [CrossRef]
  27. Smol, M.; Kulczycka, J.; Henclik, A.; Gorazda, K.; Wzorek, Z. The possible use of sewage sludge ash (SSA) in the construction industry as a way towards a circular economy. J. Clean. Prod. 2015, 95, 45–54. [Google Scholar] [CrossRef]
  28. Wang, K.-S.; Chiou, I.-J.; Chen, C.-H.; Wang, D. Lightweight properties and pore structure of foamed material made from sewage sludge ash. Constr. Build. Mater. 2005, 19, 627–633. [Google Scholar] [CrossRef]
  29. Wiebusch, B.; Seyfried, C.F. Utilization of sewage sludge ashes in the brick and tile industry. Water Sci. Technol. 1997, 36, 251–258. [Google Scholar] [CrossRef]
  30. Yusuf, R.O.; Noor, Z.Z.; Din, M.D.F.M.D.; Abba, A.H. Use of sewage sludge ash (SSA) in the production of cement and concrete–A Review. Int. J. Glob. Environ. Issues 2012, 12, 214. [Google Scholar] [CrossRef]
  31. Al Sayed, M.H.; Madany, I.M.; Buali, A.R.M. Use of sewage sludge ash in asphaltic paving mixes in hot regions. Constr. Build. Mater. 1995, 9, 19. [Google Scholar] [CrossRef]
  32. Lin, D.-F.; Weng, C.-H. Use of Sewage Sludge Ash as Brick Material. J. Environ. Eng. 2001, 127, 922–927. [Google Scholar] [CrossRef]
  33. Taruya, T.N.; Okuno, K.K. Reuse of sewage sludge as raw material of Portland cement in Japan. Water Sci. Technol. 2002, 46, 255–258. [Google Scholar] [CrossRef] [PubMed]
  34. Vouk, D.; Nakic, D.; Stirmer, N.; Cheeseman, C. Influence of combustion temperature on the performance of sewage sludge ash as a supplementary cementitious material. J. Mater. Cycles Waste Manag. 2018, 20, 1458–1467. [Google Scholar] [CrossRef]
  35. Areias, I.O.R.; Vieira, C.M.F.; Colorado, H.A.; Delaqua, G.C.G.; Monteiro, S.N.; Azevedo, A.R.G. Could city sewage sludge be directly used into clay bricks for building construction? A comprehensive case study from Brazil. J. Build. Eng. 2020, 31, 101374. [Google Scholar] [CrossRef]
  36. Liew, A.G.; Idris, A.; Wong, C.H.K.; Samad, A.A.; Noor, M.J.M.M.; Baki, A.M. Incorporation of Sewage Sludge in Clay Brick and its Characterization. Waste Manag. Res. 2004, 22, 226–233. [Google Scholar] [CrossRef]
  37. Jordan, M.M.; Almendro-Candel, M.B.; Romero, M.; Rincón, J.M. Application of sewage sludge in the manufacturing of ceramic tile bodies. Appl. Clay Sci. 2005, 30, 219–224. [Google Scholar] [CrossRef][Green Version]
  38. Martı’nez Garcıa, C.; Cotes Palomino, T.; Iglesias Godino, F.J.; Corpas Iglesias, F.A. Porosity of expanded clay manufactured with addition of sludge from the brewing industry. Int. J. Energy Env. Eng. 2014, 5, 341–347. [Google Scholar] [CrossRef][Green Version]
  39. Torres, P.; Fernandes, H.R.; Olhero, S.; Ferreira, J.M.F. Incorporation of wastes from granite rock cutting and polishing industries to produce roof tiles. J. Eur. Ceram. Soc. 2009, 29, 23–30. [Google Scholar] [CrossRef]
  40. Guedes, P.; Couto, N.; Ottosen, L.M.; Ribeiro, A.B. Phosphorus recovery from sewage sludge ash through an electrodialytic process. Waste Manag. 2014, 34, 886–892. [Google Scholar] [CrossRef]
  41. Ottosen, L.M.; Bertelsen, I.M.G.; Jensen, P.E.; Kirkelund, G.M. Sewage sludge ash as resource for phosphorous and material for clay brick manufacturing. Constr. Build. Mater. 2020, 249, 118684. [Google Scholar] [CrossRef][Green Version]
  42. Koscevic, P.V. Građevna Opeka–Crijep i Ostali Opekarski Građevni Proizvodi; Tehnička Knjiga: Zagreb, Hrvatska, 1969. [Google Scholar]
  43. Hughes, R.E.; Bargh, B.L. The Weathering of Brick: Causes, Assessment and Measurement; A Report of the Joint Agreement between the USA Geological Survey and the Illinois State Geological Survey; U.S. Geological Survey: Reston, VA, USA, 1982.
  44. Dondi, M.; Fabbri, B.; Guarini, G. Grain-Size Distribution of Italian Raw Materials for Building Clay Products. Clay Miner. 1998, 33, 435–442. [Google Scholar] [CrossRef]
  45. Delari, R. Tehnologija Proizvodnje Opekarskih Proizvoda; Sremski Karlovci, Serbia, 1960. [Google Scholar]
  46. Hansen, W.; Kung, J.H. Pore structure and frost durability of clay bricks. Mater. Struct. 1988, 21, 443–447. [Google Scholar] [CrossRef]
  47. Constantinescu, J.; Constantinescu, D. Particularity of plasticity characteristics of fine glacial materials. GeoEcoMar 2011, 17, 59–65. [Google Scholar]
  48. Arsenovic, M. Optimizacija i Predviđanje Kvaliteta Materijala, Procesa i Krajnjih Osobina opeKarskih Proizvoda Matematičkim Modelovanjem Karakteristicnih Parametara. Ph.D. Dissertation, Univerzitet u Beogradu, Tehnolosko Metalurski Fakultet, Belgrade, Serbia, 2013. [Google Scholar]
  49. Lynn, C.J.; Dhir, R.K.; Ghataora, G.S. Sewage sludge ash characteristics and potential for use in bricks, tiles and glass ceramics. Water Sci. Technol. 2016, 74, 17–29. [Google Scholar] [CrossRef]
  50. Bauluz, B.; Mayayo, M.J.; Fennandez-Nieto, C.; Cultrone, G.; Gonzalez Lopez, J.M. Assessment of technological properties of calcerous and non-calcerous clays used for the brick-making industry of Zaragoza (Spain). Appl. Clay Sci. 2003, 24, 121–126. [Google Scholar] [CrossRef]
  51. Maniatis, Y. The Emergence of Ceramic Technology and Its Evolution as Revealed with the Use of Scientific Techniques. Available online: https://www.researchgate.net/publication/228776265_The_Emergence_of_Ceramic_Technology_and_its_Evolution_as_Revealed_with_the_use_of_Scientific_Techniques (accessed on 30 June 2021).
  52. Bong, W.S.K.; Matsumura, K.; Nakai, I. Firing Technologies and Raw Materials of Typical Early and Middle Bronze Age Pottery from Kaman-Kalehoyuk: A Statistical and Chemical Analysis. Available online: https://www.researchgate.net/publication/284949480_Firing_technologies_and_raw_materials_of_typical_early_and_middle_bronze_age_pottery_from_Kaman-Kalehoyuk (accessed on 30 June 2021).
  53. Sanchez de Rojas, M.I.; Marin, F.P.; Frias, M.; Valenzuela, E.; Rodriguez, O. Influence of freezing methods, composition and microstructure on frost durability assessment of clay roofing tiles. Constr. Build. Mater. 2011, 25, 2888–2897. [Google Scholar] [CrossRef]
  54. Schnell, M.; Horst, T.; Quicker, P. Thermal treatment of sewage sludge in Germany: A Review. J. Environ. Manag. 2020, 263, 110367. [Google Scholar] [CrossRef] [PubMed]
  55. Elled, A.L.; Amand, L.E.; Leckner, B.; Andersson, B.A. The fate of trace elements in fluidised bed combustion of sewage sludge and wood. Fuel 2007, 86, 843–852. [Google Scholar] [CrossRef]
  56. Han, J.; Xu, M.H.; Yao, H.; Furuuchi, M. Partition of heavy and alkali metals during sewage sludge incineration. Energy Fuel 2006, 20, 583–590. [Google Scholar] [CrossRef]
  57. Zabielska-Adamska, K. Sewage Sludge Bottom Ash Characteristics and Potential Application in Road Embankment. Sustainability 2019, 12, 39. [Google Scholar] [CrossRef][Green Version]
  58. Mageed, A.A.; Rizk, S.H.A.; Abu-Ali, M.H. Utilization of water treatment plants sludge ash in brick making. J. Eng. Sci. Assiut Univ. 2011, 39, 195–206. [Google Scholar] [CrossRef]
  59. Beshah, D.A.; Tiruye, G.A.; Mekonnen, Y.S. Characterization and recycling of textile sludge for energy-efficient brick production in Ethiopia. Environ. Sci. Pollut. Res. Int. 2021, 28, 16272–16281. [Google Scholar] [CrossRef] [PubMed]
  60. Kadir, A.A.; Hassan, M.I.H.; Salim, N.S.A.; Sarani, N.A.; Ahmad, S.; Rahmat, N.A.I. Stabilization of heavy metals in fired clay brick incorporated with wastewater treatment plant sludge: Leaching analysis. J. Phys. Conf. Ser. 2018, 995, 012071. [Google Scholar] [CrossRef]
  61. Aeslina, A.K.; Mohajerani, A. Leachability of heavy metals from fired clay bricks incorporated with cigarette butts. In IEEE Symposium on Business, Engineering and Industrial Applications; IEEE: Piscataway, NJ, USA, 2012. [Google Scholar] [CrossRef]
  62. Trauner, E.J. Sludge ash bricks fired to above and below ash vitrifying temperature. J. Environ. Eng. 1993, 119, 3. [Google Scholar] [CrossRef]
  63. Specifications for and Classification of Brick. Available online: https://www.gobrick.com/docs/default-source/read-research-documents/technicalnotes/9a-specifications-for-and-classification-of-brick.pdf/ (accessed on 25 July 2021).
  64. Straube, J.; Schumacher, C.; Mensinga, P. Assessing the FreezeThaw Resistance of Clay Brick for Interior Insulation Retrofit Projects. In Proceedings of the Thermal Performance of the Exterior Envelopes of Whole Buildings XI International Conference, Clearwater, Florida, USA, 5–9 December 2010. Conference Paper-1013. [Google Scholar]
  65. Kung, J.H. Frost durability study on canadian clay bricks. In Proceedings of the 7th International Brick Masonry Conference, Melbourne, Australia, 17–20 February 1985; National Research Council Canada: Ottawa, ON, Canada; pp. 245–251. [Google Scholar]
  66. Kadir, A.A.; Mohajerani, A. Recycling cigarette butts in lightweight fired clay bricks. Constr. Mater. 2011, 164, 219–229. [Google Scholar] [CrossRef]
  67. Kayali, O. Published. High performance bricks from fly ash. In Proceedings of the World of Coal Ash Conference, Lexinton, KY, USA, 11–14 April 2005; pp. 11–15. [Google Scholar]
Sustainability 13 09330 g001 550

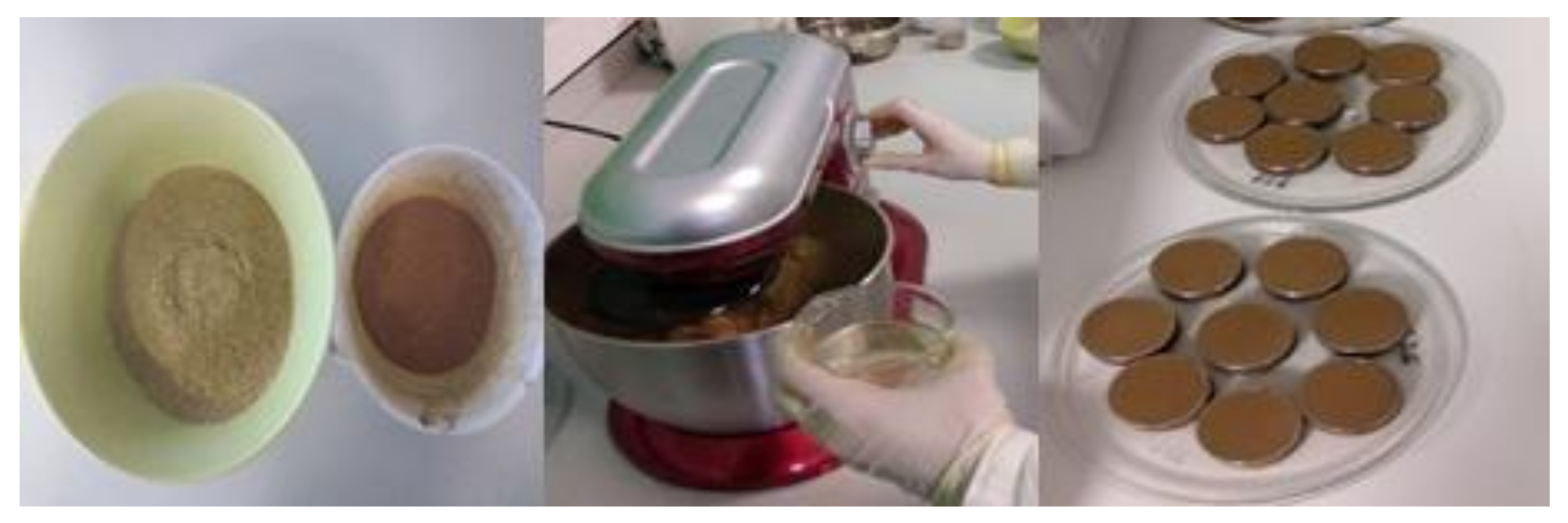

Figure 1. The brick manufacturing process in the laboratory.
Figure 1. The brick manufacturing process in the laboratory.
Sustainability 13 09330 g001
Sustainability 13 09330 g002 550
Figure 2. Water consumption in the manufacture of bricks with different proportions of SSA.
Figure 2. Water consumption in the manufacture of bricks with different proportions of SSA.
Sustainability 13 09330 g002
Sustainability 13 09330 g003 550
Figure 3. Firing process/fired brick.
Figure 3. Firing process/fired brick.
Sustainability 13 09330 g003
Sustainability 13 09330 g004 550
Figure 4. Particle size distribution Comparison of the particle size distribution of the clay sample with samples SSA ZG and SSA KA.
Figure 4. Particle size distribution Comparison of the particle size distribution of the clay sample with samples SSA ZG and SSA KA.
Sustainability 13 09330 g004
Sustainability 13 09330 g005 550
Figure 5. SEM microgram of clay.
Figure 5. SEM microgram of clay.
Sustainability 13 09330 g005
Sustainability 13 09330 g006 550
Figure 6. SEM microgram of SSA ZG 900.
Figure 6. SEM microgram of SSA ZG 900.
Sustainability 13 09330 g006
Sustainability 13 09330 g007 550
Figure 7. SEM microgram of SSA KA 900.
Figure 7. SEM microgram of SSA KA 900.
Sustainability 13 09330 g007
Sustainability 13 09330 g008 550
Figure 8. Clay mineral XRD analysis.
Figure 8. Clay mineral XRD analysis.
Sustainability 13 09330 g008
Sustainability 13 09330 g009 550
Figure 9. SSA ZG 900 mineral XRD analysis.
Figure 9. SSA ZG 900 mineral XRD analysis.
Sustainability 13 09330 g009
Sustainability 13 09330 g010 550
Figure 10. SSA KA 900 mineral XRD analysis.
Figure 10. SSA KA 900 mineral XRD analysis.
Sustainability 13 09330 g010
Sustainability 13 09330 g011 550
Figure 11. Properties of clay and SSA (mass fraction of each oxide in SSA ZG 900 and SSA KA 900).
Figure 11. Properties of clay and SSA (mass fraction of each oxide in SSA ZG 900 and SSA KA 900).
Sustainability 13 09330 g011
Sustainability 13 09330 g012 550
Figure 12. Mean values of compressive strengths of produced bricks containing SSA.
Figure 12. Mean values of compressive strengths of produced bricks containing SSA.
Sustainability 13 09330 g012
Sustainability 13 09330 g013 550
Figure 13. Average 5-hour boiling water absorption of bricks produced.
Figure 13. Average 5-hour boiling water absorption of bricks produced.
Sustainability 13 09330 g013
Sustainability 13 09330 g014 550
Figure 14. Average cold water absorption of the bricks produced.
Figure 14. Average cold water absorption of the bricks produced.
Sustainability 13 09330 g014
Sustainability 13 09330 g015 550
Figure 15. Mean values of the coefficient of saturation of the manufactured bricks.
Figure 15. Mean values of the coefficient of saturation of the manufactured bricks.
Sustainability 13 09330 g015
Sustainability 13 09330 g016 550
Figure 16. Mean values of initial adsorption rate of manufactured bricks.
Figure 16. Mean values of initial adsorption rate of manufactured bricks.
Sustainability 13 09330 g016
Sustainability 13 09330 g017 550
Figure 17. Mean values of the percentage of voids in the bricks produced.
Figure 17. Mean values of the percentage of voids in the bricks produced.
Sustainability 13 09330 g017
Sustainability 13 09330 g018 550
Figure 18. The mean values of the LOI of the manufactured bricks.
Figure 18. The mean values of the LOI of the manufactured bricks.
Sustainability 13 09330 g018
Table
Table 1. Heavy metals in SSA and clay.
Table 1. Heavy metals in SSA and clay.
Chemical ElementMeasuring UnitSSA ZG 900SSA KA 900CLAY (TO)
Fe wt%3.612.154.15
Znmg/kg DM931.262170.06111.90
Cumg/kg DM310.74227.7755.00
Crmg/kg DM84.19187.7590.50
Srmg/kg DM208.40275.3297.00
Pbmg/kg DM244.09124.8931.60
Nimg/kg DM75.08130.1348.90
Vmg/kg DM102.6386.91177.40
Asmg/kg DM8.12<10016.80
K wt%1.361.181.96
Ca wt%8.3210.780.25
Timg/kg DM4160.123176.766721.00
Mnmg/kg DM950.46461.91313.00
Gamg/kg DM13.0913.7022.80
Brmg/kg DM72.69123.52<0.50
Rbmg/kg DM62.4451.63144.20
Ymg/kg DM51.6941.85106.90
Zrmg/kg DM341.49368.88632.00
Thmg/kg DM9.846.4517.35
Table
Table 2. Proposed minimum values recommended for clay bricks according to US and Canadian standards [62,64,65].
Table 2. Proposed minimum values recommended for clay bricks according to US and Canadian standards [62,64,65].
StandardsProposed Minimum Value for Compressive Strength (N/mm2)Proposed Maximum Value for Absorption at Boiling (%)Proposed Maximum Value for the Coefficient of SaturationProposed Maximum Value for Absorption in Cold Water (%)
CSAFor one brick sample17.2017.000.788.00
Mean value for five brick samples20.70---
ASTMFor one brick sample17.2020.000.80-
Mean value for five brick samples20.7017.000.78-
CSA, Canadian standards; ASTM, US standards.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bubalo, A.; Vouk, D.; Stirmer, N.; Nad, K. Use of Sewage Sludge Ash in the Production of Innovative Bricks—An Example of a Circular Economy. Sustainability 2021, 13, 9330. https://doi.org/10.3390/su13169330

AMA Style

Bubalo A, Vouk D, Stirmer N, Nad K. Use of Sewage Sludge Ash in the Production of Innovative Bricks—An Example of a Circular Economy. Sustainability. 2021; 13(16):9330. https://doi.org/10.3390/su13169330

Chicago/Turabian Style

Bubalo, Andelina, Drazen Vouk, Nina Stirmer, and Karlo Nad. 2021. "Use of Sewage Sludge Ash in the Production of Innovative Bricks—An Example of a Circular Economy" Sustainability 13, no. 16: 9330. https://doi.org/10.3390/su13169330

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
