Agrivoltaic Systems Design and Assessment: A Critical Review, and a Descriptive Model towards a Sustainable Landscape Vision (Three-Dimensional Agrivoltaic Patterns)

Carlos Toledo
Alessandra Scognamiglio
Italian National Agency for New Technologies, Energy and Sustainable Economic Development, ENEA, Centro Ricerche Portici, Largo Enrico Fermi 1, 80055 Portici, Italy
Author to whom correspondence should be addressed.
Sustainability 2021, 13(12), 6871;
Submission received: 29 May 2021 / Revised: 11 June 2021 / Accepted: 15 June 2021 / Published: 17 June 2021


As an answer to the increasing demand for photovoltaics as a key element in the energy transition strategy of many countries—which entails land use issues, as well as concerns regarding landscape transformation, biodiversity, ecosystems and human well-being—new approaches and market segments have emerged that consider integrated perspectives. Among these, agrivoltaics is emerging as very promising for allowing benefits in the food–energy (and water) nexus. Demonstrative projects are developing worldwide, and experience with varied design solutions suitable for the scale up to commercial scale is being gathered based primarily on efficiency considerations; nevertheless, it is unquestionable that with the increase in the size, from the demonstration to the commercial scale, attention has to be paid to ecological impacts associated to specific design choices, and namely to those related to landscape transformation issues. This study reviews and analyzes the technological and spatial design options that have become available to date implementing a rigorous, comprehensive analysis based on the most updated knowledge in the field, and proposes a thorough methodology based on design and performance parameters that enable us to define the main attributes of the system from a trans-disciplinary perspective.

1. Introduction1
2. Materials and Methods4
3. State of art5
3.1. Current design solution and technologies5
3.2. Further agri-PV integrated applications11
3.3. Relevant design parameters and performance metrics11
3.3.1. Height of the modules from the ground11
3.3.2. Spatial configuration of PV and type of crops12
3.3.3. Performance metrics14
4. A Trans-Disciplinary Cognitive Framework for the Design and Assessment of Agrivoltaics15
4.1 Innovative three-dimensional patterns for improved ecological performances15
4.2 A new landscape oriented descriptive model17
4.2.1 On ground photovoltaics + open-field crops: The agrivoltaic pattern19
4.2.2 Greenhouses (envelope integrated PV + protected crops)25
4.3 Three-dimensional agrivoltaic patterns and related metrics29
5 Conclusions32

1. Introduction

Thanks to its modularity, decreasing cost, lifespan and efficiency improvements, photovoltaic (PV) technology is playing a key role in the transition to low-carbon economies. Nowadays, however, land-based PV farms compete with food production for land allocation. Therefore, the number of innovative solutions for implementing PV while reducing the related land use are becoming increasingly relevant. Building integrated photovoltaics (BIPV) (use of existing building surfaces), floating PV (use of existing water surfaces) or agrivoltaic systems (APV) (double use of land for food and energy) are some of these new examples. They represent a strategic part of the future vision, with a huge potential driven by the growing shift towards renewable energy sources.
In recent years, agrivoltaic systems have been the subject of numerous studies due to their potential in the food–energy nexus. Demonstrative projects with new conceptual designs based on PV modules for covering open fields have shown promising results through optimizing light availability while reducing the need for irrigation and protecting from extreme weather phenomena. APV denotes sharing the sunlight for co-production of food and energy on the same piece of land; therefore, designs must overcome, as far as possible, physical constrains of covering crops with photovoltaic modules in order to alleviate the reduction in crop profitability. Some examples of the main issues related to the use of co-located PV on cropland and the solutions commonly proposed to solve them are shown in Table 1.
In parallel to the development of the new field-tested designs, the continuously scientific progress in PV has extended the range of design solutions by using different technologies which optimize the light absorption of the modules in different regions of the light spectrum, so that the light resource can be shared for both purposes: energy generation and crop growth. In this regard, success of experiences implementing PV in greenhouses (protected fields) has shown technical feasibility in real operating conditions. Just as Table 1 summarizes the main problems of integrating PV modules in open fields together with the solutions from two perspectives, design and technology, Table 2 shows them for greenhouses.
As can be seen, APV does not follow classical PV system design practices where parameters such as tilt and orientation angles are optimized to maximize electricity production choosing slopes close to the latitude and orientations facing the equator. Moving PV to include farm activities is an ongoing challenge since energy performance sometimes conflicts with optimal agricultural development and landscape preservation issues, and thus involves multiple design adaptations according to the local climate conditions, crop type, energy needs and landform. A new list of requirements must be addressed to ensure and understand the tight connection between energy, food production and space. This paper therefore aims to analyze the different design possibilities that focus on the energy performance of the PV system, extending to agriculture objectives and presenting an original contribution in the cognitive trans-disciplinary approach for describing and classifying the agrivoltaic system, which harmonizes different disciplinary issues in a unique vision, making room to consider landscape issues.
The article is organized as follows. Section 2 presents the research method to describe how the literature review was conducted. Section 3 gives an overview of the current design solutions and technologies used in agrivoltaic systems based on the literature and current practices. In Section 4, the new inclusive approach to describe an agrivoltaic system is presented and discussed. Finally, main conclusions are presented in Section 5.

2. Materials and Methods

A comprehensive review process was conducted by using Web of Science (WoS) (Clarivate Analytics, (accessed on 7 December 2020)) and Scopus (Elsevier, (accessed on 7 December 2020)). Peer-reviewed literature databases where highly cited documents written in English and published up to the date were consulted for the analysis. The following categories were considered: journal publication (article or review) and conference paper. The keywords for the search engines are listed as follows, including the different terminologies for the concept:
  • “Agrophotovoltaics” (APV)—German research context
  • “Agrivoltaics systems/array” (AVS/AVA)—French and US research context
  • “Photovoltaic agriculture”—Chinese context
  • “Solar sharing”—Japanese context
  • “Photovoltaic or solar greenhouse” (PVG)
  • “Agro-PV” or “agri-PV”
In addition to academic research papers, and in order to include the current research development of agrivoltaics systems, the search was extended to outstanding demonstration projects and commercial-scale plants from the industry and relevant international conferences in the field.
The academic papers were then reviewed to select those that follow the criteria of “dual functionality” of generating electricity and serve a specific and integral purpose. In this case, solutions which consider synergies between agriculture and photovoltaics.
Therefore, PV systems that are in “co-existence” with agricultural land and prioritize farming activities were considered (It should be noted that publications which focus on key saving strategies and climate control technologies for greenhouses using PV technology were excluded in this research. We included only PV solutions which strategically were used to provide electricity without substantially affecting crop quality or yield).
In total, 195 academic papers were identified. Upon reviewing the detail information in the academic papers, there are three application areas that are being actively researched:
  • PV + open-field crops
  • PV + protected crops (photovoltaic greenhouses, PVGs)
  • PV technology with innovative solutions designed to optimize the light transmission (amount and spectral quality) increasing the compatibility between PV and agriculture.
Two scales are distinguished: the system scale (dynamic solutions) and the module scale (enhances light transmittance through PV devices).

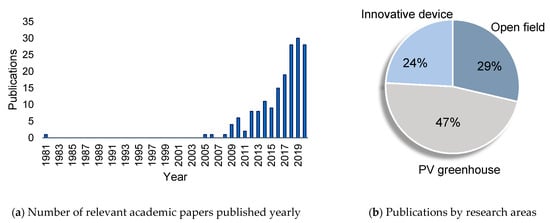

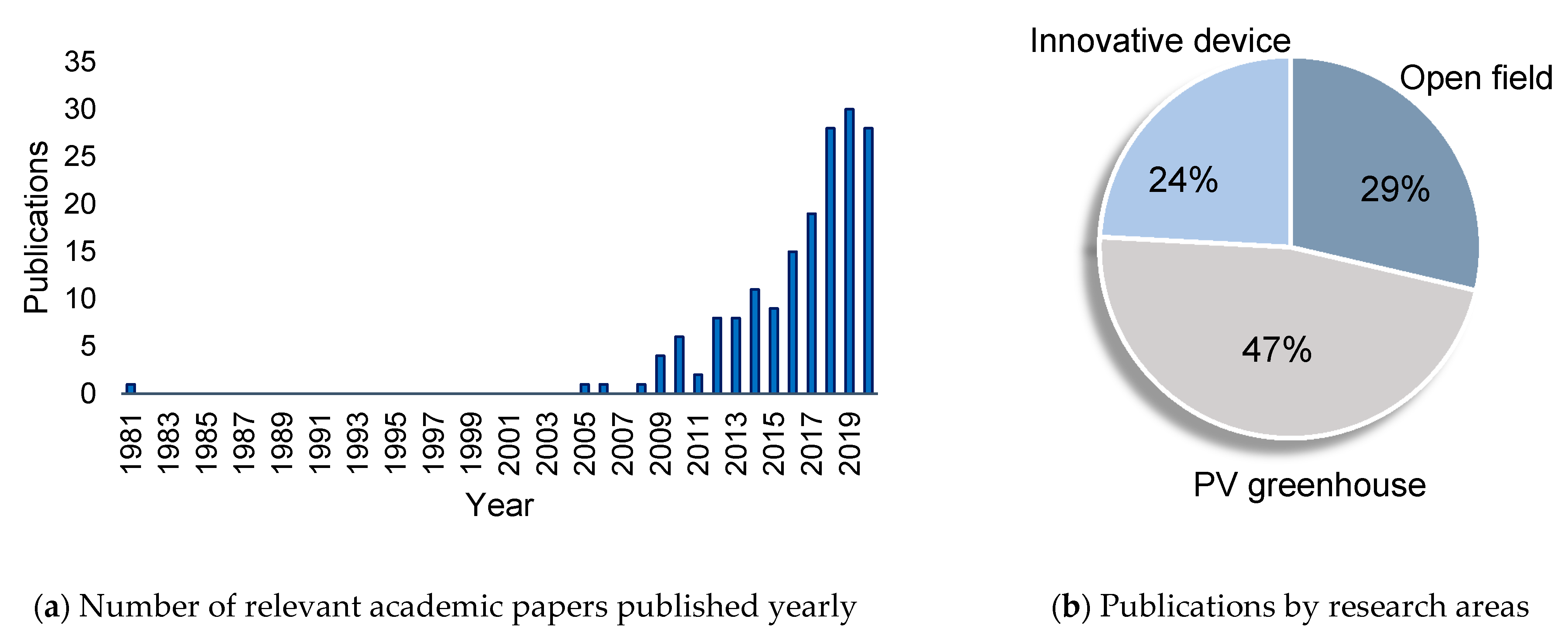

The literature review shows the increase in studies related to the topic in recent years, as shown Figure 1a, while Figure 1b shows the special interest of the scientific community in PV systems applied to greenhouses.

3. State of Art

3.1. Current Design Solution and Technologies

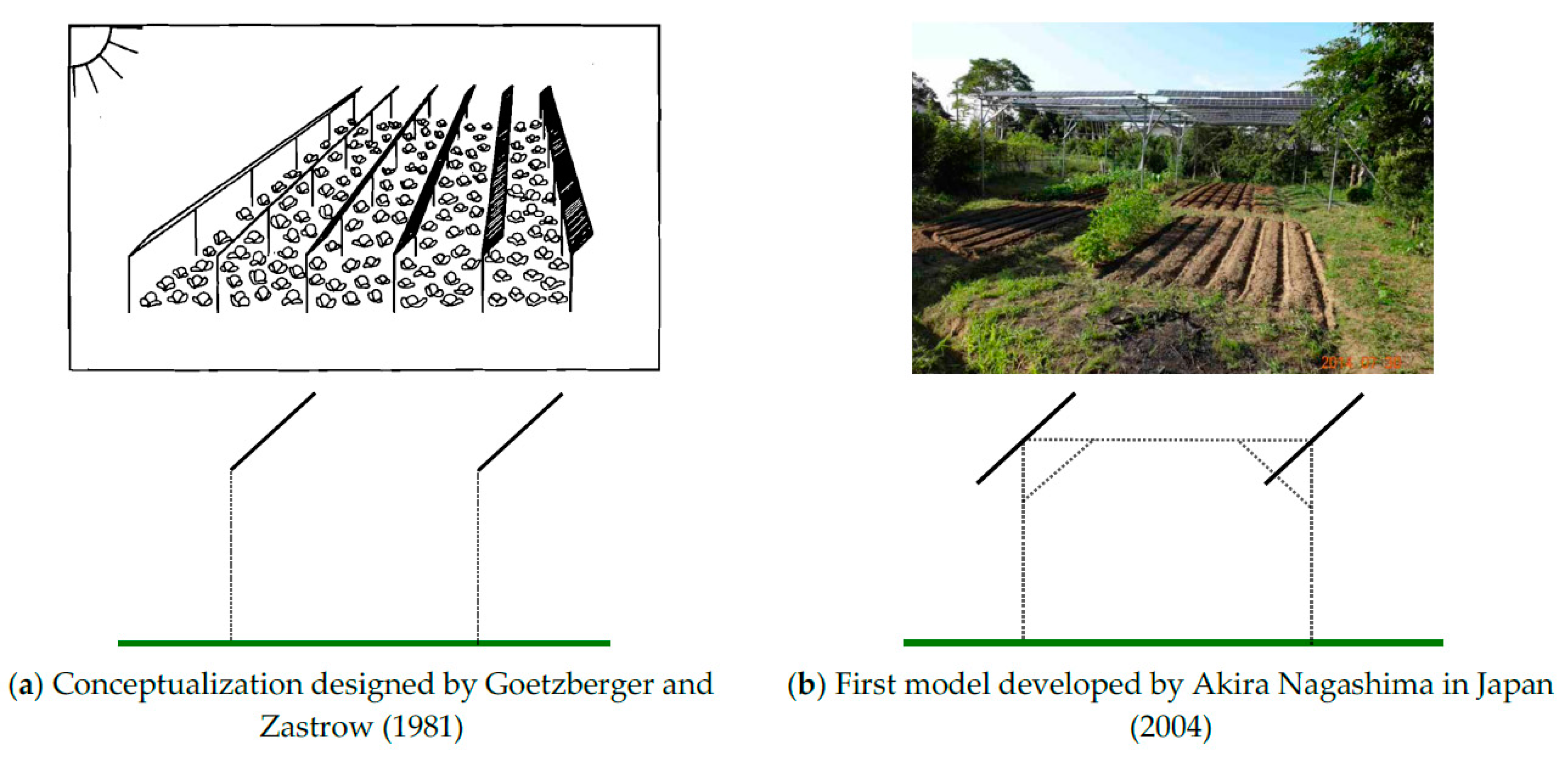

The concept of a dual-use approach for both solar photovoltaic power as well as agricultural production was theoretically conceived by Goetzberger and Zastrow at the Fraunhofer Institute (Germany) in 1981 [1]. They proposed to elevate the structure (by about 2 m) and the distance between rows (about 3 times the height of the modules) to achieve uniform radiation on the ground while at the same time that allow the moving of mechanized agricultural equipment. In 2004, Japanese engineer Akira Nagashima developed the first agrivoltaic system (here referred to as “solar sharing”) using a structure similar to a garden pergola [2]. Nagashima designed diverse test fields with different shadowing rates based on the concept of the light saturation point of each crop (plants only employ a small percentage of incident sunlight (between 3% and 6% of total solar radiation) to accomplish their maximum rate of photosynthesis) with the idea of sharing the excess of solar radiation with PV systems to generate electricity. Graphical representations of both proposed solutions are presented in Figure 2.
The first experimental pilot project, however, was installed in France, close to the southern city of Montpellier (43°65′ N, 3°87′ E) in the spring of 2010. The prototype has mono-crystalline PV modules mounted at a height of 4 m above the ground (Figure 3a,b). Since the PV modules are opaque, the main issue is the effect of the shade created by PV on the plant growth. In order to evaluate the effect of the shadow by the PV, the prototype was split into different parts with two densities of solar modules: one called “full density”, with optimal spacing between rows for electricity production and which transmitted on average 50% of the incident radiation to the crop, and the second called “half density”, obtained by removing one PV strip out of two and which left on average 70% of incident radiation available to the crop, so that the effect of the shadow by the PV can be compared to each density, and to control plants under full sun conditions [4]. Additionally, to evaluate the advantages of solar-tracking technology, which allows the adjustment of the radiation level on crops, two independent single-axis tracking PV systems were added in 2014 [5] (Figure 3c). The experimental farm led to the exploration of the potential of the open-field agrivoltaic systems, giving rise to many scientific publications, from the effect of the rain distribution (PV–water nexus) [6,7] to the impact on microclimatic condition together with growth, morphology and yield in crops such as lettuce, cucumber and durum wheat [8,9,10].

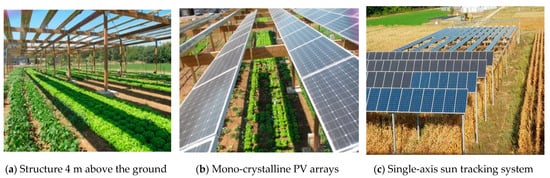

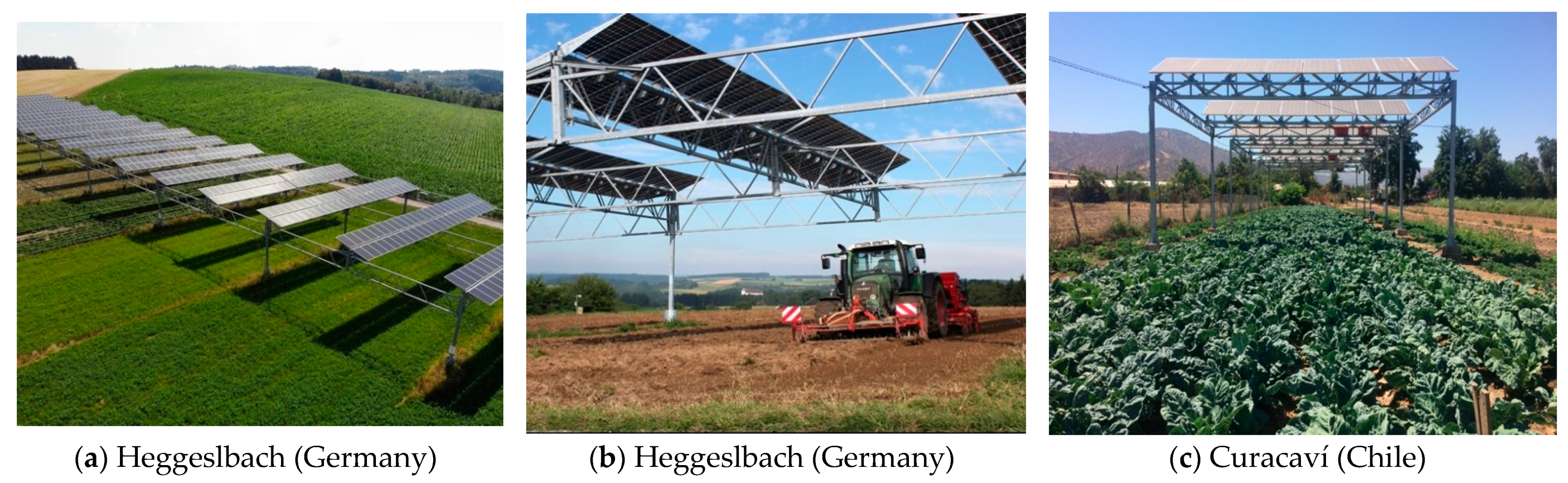

In recent years, several research groups have implemented agrivoltaics demonstration projects around the world. In Germany, the Fraunhofer Institute for Solar Energy Systems (Fraunhofer ISE) is at the forefront of APV research. A research pilot project was installed in 2016 near Lake Constance in southern Germany under the project APV-RESOLA [11]. This pilot research plant is used to examine the impacts of the technology with regard to aspects such as energy production, economic feasibility, crop production, social acceptance and technological design. It has a size of 0.3 ha and a capacity of 194 kWp. The solar modules are mounted on stilts with a vertical clearance of 5 m (Figure 4a,b). Moreover, in cooperation with their Chilean subsidiary Fraunhofer Center for Solar Energy Technologies (Fraunhofer CSET), three further pilot plants have been realized near Santiago de Chile to investigate the implementation of APV systems and its impact on field crops in regions with arid areas and high solar radiation (Figure 4c).

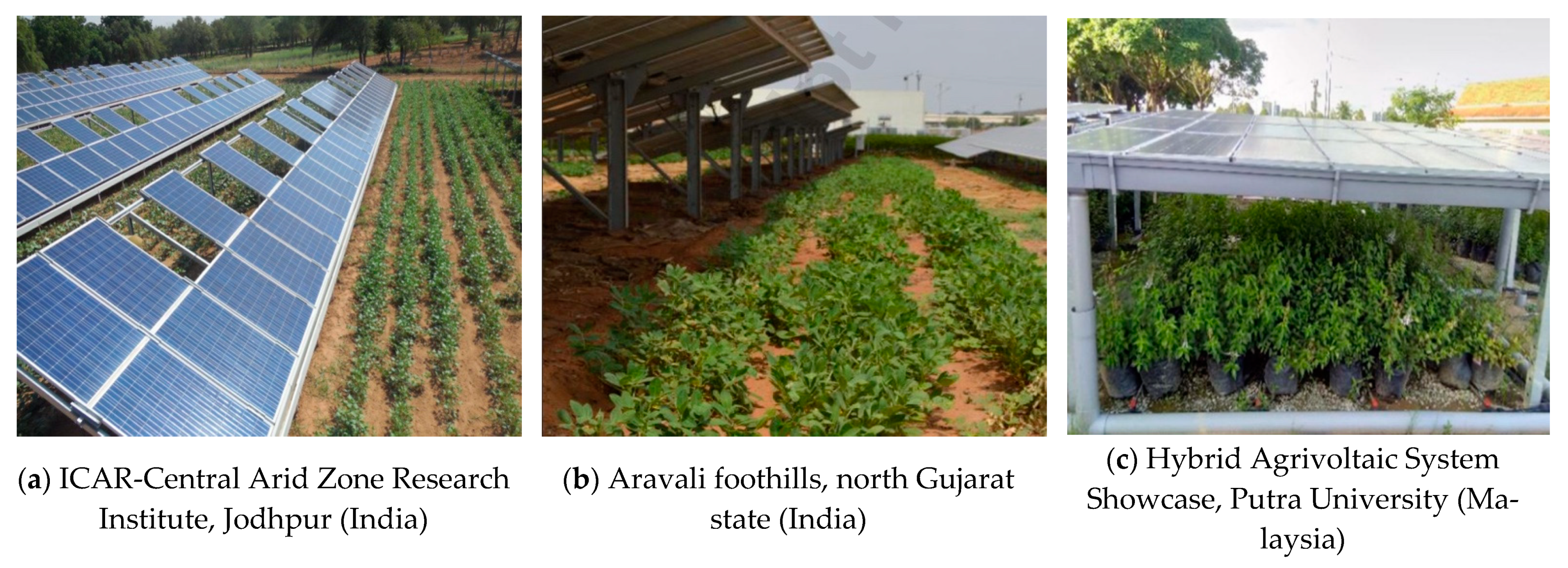

The performance of the agrivoltaic systems in drylands is also under investigation by the Barron-Gafford research group in the USA [12]. A small-scale research plant was installed in Arizona at the Biosphere 2 Lab in August 2016. The research group focuses on common agricultural species for drylands such as peppers, jalapeños and cherry tomatoes [13]. The APV system is 3.3 m off the ground with a tilt of 32° and 1 m of spacing between each row of PV modules.
Research in the field continues to progress at a furious pace. Aside from these pilot projects, agrivoltaics have triggered much interest in the research community that explores the potential from different disciplinary perspectives and practical issues, such as the solar power potential by land cover type (croplands, grasslands and wetlands) [14], the water use efficiency in drylands [15] or groundwater stressed regions [16] (PV–water nexus), the economic value of energy production coupled with shade tolerant crop production [17], the implementation in peri-urban agriculture areas [18] or the viability over shade-intolerant crops in specific geographical locations [19,20].
Although research in the field continues to progress, excitement around agrivoltaics remains high enough that commercialization is well underway. Globally, the installed capacity of the APV continues to climb. It is estimated that 2200 systems have been installed worldwide since 2014 (Japan is probably the country where the most agrivoltaic farms were installed, with over 1992 APV farms which produced about 0.8% of total PV energy in 2019), leading to a capacity of about 2.8 GWp as of January 2020 [21]. From the results of the experimental farm in Montpellier, Sun’agri (FR) [22] was founded in cooperation with Sun’R group. In 2018, the first agrivoltaic field was built in the east Pyrenean region (France). This field has a capacity of 2.2 MWp installed on 4.5 ha of vineyards (Figure 5a). Today, the company focuses on the development of large-scale demonstrator systems of dynamic agrivoltaic technology in orchards, grapes and market gardening. In Italy, together with the University of Piacenza, REM Tec [23] patented an agrivoltaic solar tracking system named Agrovoltaico®. It was examined for maize crop production by Amaducci et al. [24] while Agostini et al. assessed economic and environmental performance [25]. The first two Agrovoltaico systems were installed in 2012 in Castelvetro Piacentino (1.3 MWp, Figure 5b) and Monticelli d’Ongina (3.2 MWp) in the North of Italy covering an area of 7 ha and 20 ha, respectively. In the Dutch town of Babberich, BayWa r.e. company [26] has installed a 2.7 MWp raspberry agri-PV farm, being the largest agrivoltaic system for fruit production in Europe (Figure 5c). Semi-transparent PV modules without frames are mounted above the crop with a semi-enclosed single-row system, protecting from weather phenomena, whilst providing better ventilation and reducing the use of pesticides, thereby improving biodiversity in the fields.
However, concepts that combine farming and energy production on the same site are not limited to stilted solar arrays (stripes) above crops. There are more design criteria with PV modules mounted on the ground (less than 2 m of clearance height). Low height mounting structures are then preferred because of their lower structure-related cost than stilted agrivoltaics and the microclimate, which is generated underneath the solar modules so that crops grow in between the rows of PV arrays or underneath the modules depending on the height of the plants and light requirements. Therefore, the area below modules may be exploited with shade-tolerant species, especially in hot arid climates. Some studies in this regard have already been carried out in India [27,28] and Malaysia [29,30,31,32] for testing species such as java tea, aloe vera or spinach (Figure 6), achieving higher crop yields for herbal plants while at the same time reducing the module temperature by 0.85%, which may increase the annual energy production up to 2.8% [33], although with a potential risk of pest due the high moisture [30].

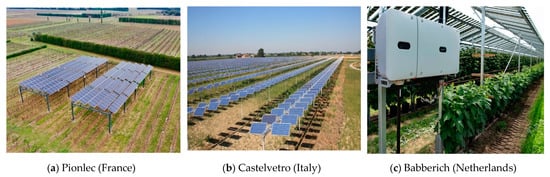

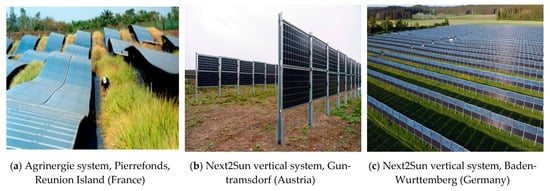

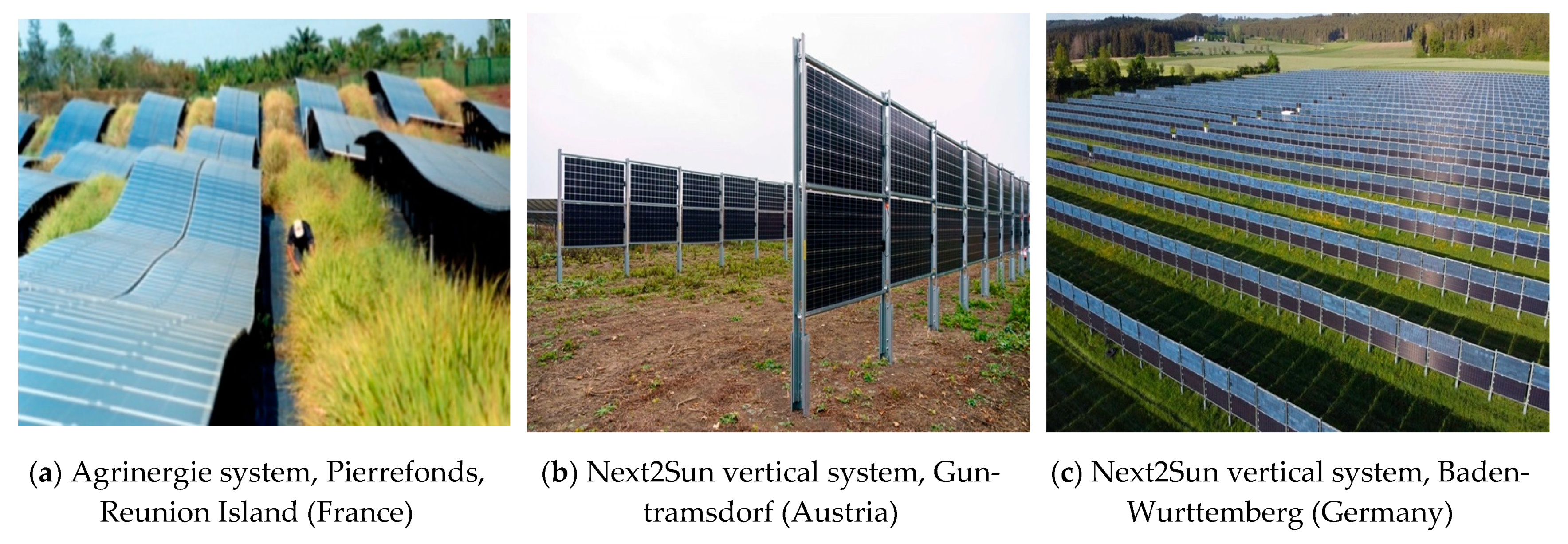

Some projects have also reached the market. Agrinergie® is the name of the systems created by Akou Energy [34] group to combine energy generation from PV and crop production, while considering landscape preservation issues. The first project which incorporates this concept was installed in the French tropical island of La Reunion. Two modules’ stripes are deliberately spaced to allow cultivation of lemongrass between them. The ground has not been graded with the natural topography, as this helps to blend harmoniously into the landscape (Figure 7a). More ground-based projects are being developed with innovative design concepts. Thus, vertical installations with bifacial PV modules facing east and west and leaving the areas between the rows (about 10 m) for agriculture is the idea behind the Next2Sun company (GE) [35]. Projects with an installed capacity from 22 kWp (Figure 7b) to 4.1 MWp (Figure 7c) have already been developed in Austria and Germany for the cultivation of potatoes and hay and silage, respectively.
Depending on the location, weather conditions and land availability, crops need to grow under climate control. In this case, the implementation of PV into agricultural settings is through integrating PV modules into the greenhouse’s envelope, mainly the roof [36,37,38,39,40,41]. However, conventional opaque PV modules produce shade, thereby significantly affecting the microclimate inside the structure (air temperature, relative humidity, level of light and CO2 concentration) and productivity [42,43,44,45,46]. To minimize this effect, one approach is to use completely opaque PV modules that cover part of the greenhouse roof or PV modules with partial opaque sections that produce electricity (Figure 8a). In this way, the percentage of the greenhouse area covered by opaque PV modules is reduced in such a way that the light reaching the plants is sufficient for photosynthesis. Nevertheless, the solar irradiance is still distributed non-uniformly and varies seasonally. Therefore, it is necessary to find optimum arrangements of PV modules on the greenhouse roof in order to define the optimal conditions for plant cultivation. Checkerboard arrangement, for instance, has revealed better uniformity and consequently diminished the PV shading effects [47,48,49,50,51,52]. A recently published study—in which the yield estimations and the crop planning of 14 horticultural and floricultural crops inside four PV greenhouse (PVG) types, with coverage ratio ranging from 25% to 100%, is discussed—shows that all the considered species (including high light demanding crops) can be cultivated inside PVGs with 25% coverage ratio showing limited yield reductions (below 25%), but restrictions on growth and yield occurred when the coverage ratio raised from 50% to 100% [53]. More studies in literature, with diverse PV layouts in different roof geometries and covering ratios, seem to confirm that the relative density ratio of opaque PV modules should not exceed 50% (Table 3). This would provide a shading ratio that is compatible with greenhouse cultivation.

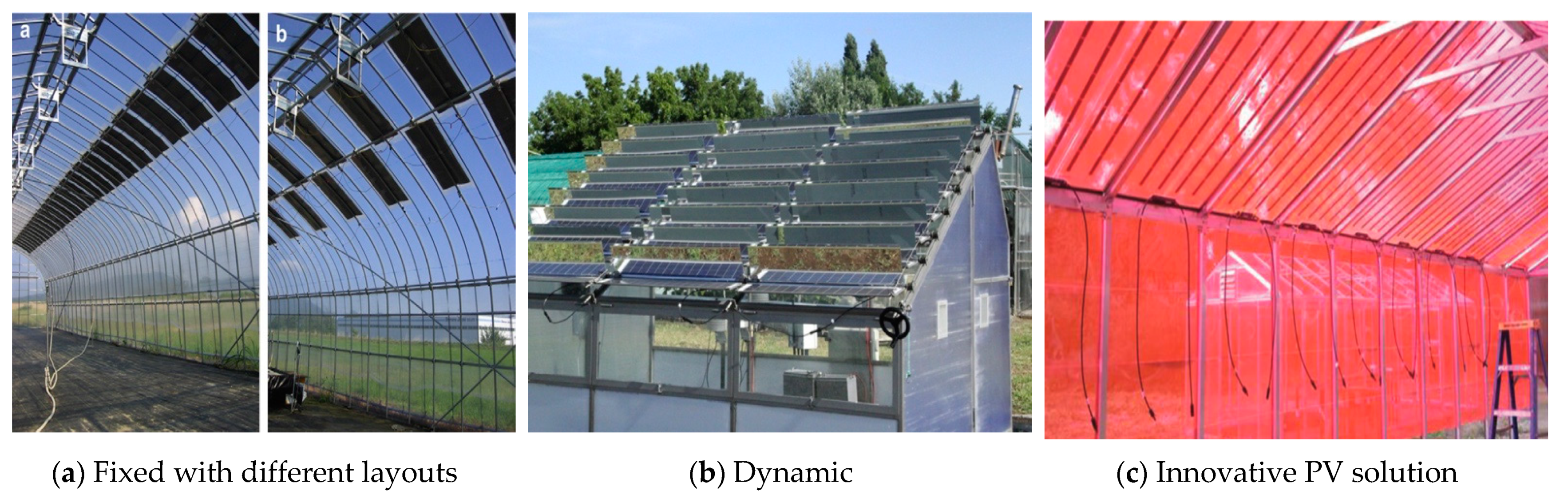

To further control the light delivered to the crops according to their needs, shading levels can be regulated dynamically. PV modules can rotate around fixed axes to adjust the degree of shading inside the greenhouse (Figure 8b). Sun-tracking mechanisms are then installed in the roof with PV rows used as slats of venetian blinds. The PV blind, oriented parallel to the roof, partially blocks intense sunlight penetration into the greenhouse and generates electricity, and perpendicular to the roof, the sunlight passes through the roof to crops below the PV modules. Already, some researchers have investigated the feasibility of using dynamic systems in greenhouses under different configurations:
  • Opaque PV modules mounted above the greenhouse roof at different PV densities and layouts [71,72,73];
  • Opaque PV modules integrated into the roof coupling with high reflective mirrors in order to allow for a better collection of reflective light (Figure 8b) [74,75,76,77,78];
  • PV blinds installed underneath the greenhouse glass roof using semi-transparent PV technology [79,80,81].
Researchers also propose additional strategies for the application of dynamic mechanisms which allow control of the shading in an active way. Colantoni et al. [65] set up a rail system inside a PV greenhouse prototype, where two rows of semi-transparent glass-glass PV modules are installed. One row is fixed; the other one, mounted on top of the first, at about 25 cm distance, moves to control the shading dynamically. The modules translate over the fixed ones, and in combination with the others, enable a variation from 33% to 66% of light transmission by overlapping the transparent part of PV modules located above with PV cells from the PV module placed below (and therefore configuration a dense or porous layout). In all these cases, the shading level is regulated by a threshold parameter, commonly the irradiance level, for the blind rotation or rail movement to adjust the ratio for electricity production and for plant cultivation.
Progress in PV technology has also provided additional possibilities for application in greenhouses. PV modules are not then conceived as partial shading systems where the spacing or coverage must be optimized since the annual solar radiation available inside a greenhouse may decrease with a ratio of 0.8% for each 1% of additional PV cover ratio [50]. The sunlight quality (direct vs. diffuse; availability of PAR) management inside the greenhouse is addressed by different innovative approaches: from using semi-transparent films [82,83], the use of new materials or techniques to transmit to the plant the diffuse component of the light [84] and devices based on spherical silicon micro-cells (1.2 mm of diameter) where the overlapping of the PV cells over the sun barely eclipses the plants [85,86] to sharing the solar spectrum through PV devices which generate electricity outside the PAR regions [87,88,89,90]. (Only a small portion of the sunlight is used for efficient plant growth. It is driven by two relative narrow wavelength regions: a red wavelength band around 660 nm and a blue wavelength band around 450 nm. Green light contributes less to photosynthesis due to the poor light absorption of chlorophyll in this region.)
Recently, studies of combining concentrated photovoltaic (CPV) technology with special bended glass modules (an optimized dichroitic polymer film which allows the transmission of the blue light and red light for photosynthesis) has been reported with an efficiency of 6.8% [91,92,93]. Previous studies in the same line show efficiencies of about 3.3% by only reflecting the near infrared radiation (NIR) fraction [94,95,96,97,98]. CPV technology also allows the possibility to separate direct and diffuse light. Thus, systems that focus direct radiation through Fresnel lenses, transmitting the diffuse sunlight to the crops, have been analyzed to optimize their performance in recent years [99,100,101,102,103,104]. In fact, commercial production under this concept is already under way. Swiss startup Insolight [105] patented a system where optical lenses concentrate the direct sunlight onto tiny cells, which cover only 0.5% of the module surface. The cells are able to track the sun through horizontal movement of a few millimeters per day to keep the cells aligned with the light beam component [106].
Along the development of CPV technology, wavelength-selective PV systems which combine LSCs with PV have also attracted great interest from the scientific community. Luminescent dyes are embedded into a transparent matrix, trapping and guiding some of the incoming solar radiation at certain wavelengths and delivering to PV cells that are integrated into the module (Figure 8c). Designs to optimize this technology for APV applications have been developed by Corrado et al. [107] to field-test studies to explore its performance and reliability [108]. Additional research shows the potential of this technology over species such basil [109], tomato [87] and microalgae [110].
Customized PV modules to harness specific portions of the solar spectrum are also possible by using thin film semi-transparent devices. Thompson et al. [111] recently published a study where tinted semi-transparent solar modules (based on thin-film amorphous silicon technology) were tested for plant growth of basil and spinach. The results highlight that even with a loss in the yield production, this solution could apport a financial gain of up to 2.5% for basil and 35% for spinach. Another opportunity is offered by third-generation PV cells based on organic PV cells (OPV) or dye-sensitized solar cells (DSSC). Emmott et al. [112] demonstrated the potential of OPV devices in greenhouses modeling the impact on crop growth for a wide range of commercially available organic semiconductor materials. Ravishankar et al. [113,114] reported that there are benefits of integrating semi-transparent OPV to meet energy demand of greenhouses in warm and moderate climates, being a potential candidate to achieve net-zero energy greenhouses. Intensive research on OPV greenhouses currently focuses on developing new optimized devices that minimize the impact on crop yield [115,116,117,118,119], to evaluate performance in real operational conditions [120,121,122,123,124] and to study of the environmental impacts through the life cycle assessment (LCA) methodology [125,126,127]. Variation in color and transparency are characteristics that can be also achieved by DSSC technology being a potential candidate to be considered as a photo-selective covering for a greenhouse [128,129,130,131,132,133,134]. Despite the specific features of third-generation PV devices (flexibility, light weight, diverse colors and transparency degree, lower fabrication costs and environmental impact in comparison to silicon-based PV) and the new developments in the field, stability and efficiency are still critical factors which must be improved to promote them as an alternative to PV technologies consolidated at market levels.

3.2. Further agri-PV Integrated Applications

This paper focuses mainly on crop farming applications where significant adjustments to PV module infrastructure is needed, although other common approaches such as planting pollinators or livestock activities can also coexist along with PV, and they are beneficial to the overall ecological performance of APV. Benefits of integrating grazing livestock has been shown by Andrew, who analyzed the lamb growth and pasture production in Oregon (USA). The study reveals that grazing under PV can increase land productivity up to 200% as well as provide a more animal welfare and friendly environment [135]. In line with the study of Andrew, Maia et al. determined livestock shade preference, showing that animals spent more than 70% of their time under the shade from PV at irradiance values greater than 800 W/m2 [136]. Agrivoltaics can benefit local biodiversity, creating a habitat for pollinators [137]. An ongoing study to quantify the potential is currently being carried out by the US Renewable Energy Laboratory (NREL) through the InSPIRE project [138]. The objective is studying pollinator-friendly solar in order to quantify the benefits and barriers of certain design approaches.

3.3. Relevant Design Parameters and Performance Metrics

3.3.1. Height of the Modules from the Ground

The height of the systems from the ground (space in between the modules and the ground surface) is an important design parameter since the use of higher structures, commonly associated with APV systems, can determine the homogeneity of the radiation availability under the PV modules, improve the connectivity and allow the use of high plants. The closer to the ground the modules are, the higher the heterogeneity of radiation over the crops in the same land unit is (without considering the effects on the surrounding areas).
However, there are also other implications when the modules are installed high on the ground. For instance, taller configurations may result in several public concerns or even rejection due to the negative impact (visibility is acknowledged as one of the complex objective factors that contribute to the visual impact of PV [139]) on areas such as recreation and tourism [140,141,142]. The use of higher mounting structures not only have influence on social acceptance but would also significantly affect the cost of installation and the environmental impact. In the German context, the extra cost related to elevating the PV modules (mounting, installation and site preparation costs) is assumed to be more than double (increasing from 0.3 EUR/kWp to 0.7 EUR/kWp) compared to ground-mounted PV [143].
The height of the system also can be used as a parameter of sustainability. Higher emissions are related to larger size of the structure for elevating the modules. As the LCA study of Serrano et al. [144] shows, an integrated PV parking lot (222 kWp) needs 72 t of steel, accounting for 82 t of CO2 emissions, that, in comparison to the galvanized steel structure of a conventional PV mounted system, generates eight times more CO2 emissions. In the case of PVG, the gutter height also is an important design parameter since it positively affects the cumulated global radiation inside the greenhouse; each additional 1 m of gutter height may increase by 3.8% the yearly global radiation on the PV greenhouse compared to the conventional one [50].
Thus, high APV systems can be beneficial for the plants, as they allow for better solar energy collection; nevertheless, literature also presents some concerns related to possible detrimental effects on the ecological performance of the system.

3.3.2. Spatial Configuration of PV and Type of Crops

A module’s height and spacing may be adjusted to grow different types of crops depending on plant light, humidity, temperature and space requirements. In this way, zones for a successful growth can be identified. Thus, for ground-mounted PV installations combined with low-height crops, three different areas are detected (Figure 9): zone 1 with a low irradiance and high humidity level, zone 2 with regular light exposure and enough soil moisture and zone 3, which shows the highest irradiation and lowest humidity [145]. In the same way, APV for orchards or grapevines will need designs with tilt-mounted structures and PV modules placed at higher heights to allow tree growth and farm machinery to pass underneath.
Quality aspects (size, fruit coloration, sugar content, etc.) can be affected by the passive influence of the PV modules even though there are no significant yield losses. Ureña et al. [68] shows that tomato cultivated under a PVG with 9.8% of PV covering area is affected negatively in terms of fruit size and color although there is not a significant impact on its yield and price. Bulgari et al. [146] also found a lower content of quality parameters for tomatoes with a configuration of 50% PV coverage besides lower yield by the high PV percentage coverage. Cho et al. [147] detected lower weight and sugar content in grapes cultivated in Korea than those of the control group, delaying the harvest time about 10 days, and the sugar-content level present almost the same level as that of the control site. Conversely, some species including strawberry show good response in terms of quality (with higher chlorophyll content) and yield in comparison to unshaded treatment [55]. Despite the studies mentioned above, there is a little information on the effects on quality parameters of the APV systems since they strongly depend on the season, crop type (with its own adapted strategy in terms of morphology, yield or quality parameters) and microclimatic conditions given by the technical implementation of PV. Therefore, crop selection method for agrivoltaic systems continues to be a key issue for the scientific community.
PV greenhouses are closed systems and should not be compared to open-field APV, where the effect of shading has no significant effect on air temperature or relative humidity. As covering ratio increases, the microclimate can play a negative role in the PV greenhouse yield production or quality of the plant, reducing the amount of solar radiation and thereby decreasing the air temperature and increasing the humidity. On the contrary, for open-field crops and open-field PV, soil temperature can significantly decrease, affecting the early phase of the plant growth [9].
Currently, the effectiveness of agrivoltaic systems, in terms of crop suitability, is analyzed based on the priority of the biomass yield, which is directly related to the potential benefit in terms of market value.
Dinesh and Pearce [17] show that if shade tolerant crops are used in APV, the crop yield losses are minimized and computed that, for lettuce production in the US context, the value of APV could reach over 30% when compared with conventional agriculture. In this sense, the correlation between plant light requirements (given by the light saturation point or, in other words, its degree of shade tolerance) and the percent of shade of the PV system define the selection of the crop.
Japan, where the most agrivoltaic systems are installed to date, has identified a list of the most important agrivoltaic crops suitable for the Japanese context through a repository collected by Chiba University, with more than 120 species cultivated under agrivoltaic farms along the country [148] providing a showcase of successful practices that have contributed to the consolidation of these systems in the country. Likewise, the Japanese Solar Sharing Network [149] provides a list of plants with advice on cultivation based on the crop’s light saturation point.
Although there is a correlation between crop’s shade tolerance and biomass yield, this seems to be only one of the multiple factors that define the effectiveness of the agri PV solution. There are studies that show that the performance of shade-intolerant crops with stilt-mounted PV structures present higher crop yields when compared to full sun conditions. Sekiyama and Nagashima [20] applied a stilt-mounted solution with two different configurations in terms of density to corn crop and found that the low-density configuration produces larger values of biomass than control by 5.6%. The findings carried out by the experiments on the Heggelbach farm in Germany show that seasonal temperature variations influence the total yield production of wheat, potato, celery and clover grass crops. Thus, in 2017, the production was reduced by −19% for wheat, −18% for potato, −19% for celery and −5% for clover grass, contrary to the production in 2018, characterized by a hot summer, changing to higher yields with +3%, +11% and +12% for wheat, potato and celery, respectively, and scarcely affected clover grass with −8% under the same system configuration [150].
That is why further research is needed to define an accurate approach to classify the crop suitability in this context. Some authors suggest a classification composed of three categories: PLUS (+) for higher yields, ZERO (0) shows no influence and MINUS (−) is a negative effect [145]. Obergfell [151] evaluated the most important crops in Germany under this category. Based on field performance, the experiments carried out by the Barron-Gafford research group [13] classify the impact from the agrivoltaic system mounted in Arizona (USA) using this system with positive results on species such as basil (++), cabbage (+), carrots (++), chard (+), chiltepin peppers (+), lemon grass (+), lettuce (++), marigolds (+), sweet potatoes (++) and tomatoes (++); on the other hand, melon (0) and jalapeño (0) production was nearly equal between PV and full sun treatments.
Nevertheless, there is no general consensus to date on a standardized system that makes it possible to experimentally compare crop productivity under field conditions. The above proposed classification could help to identify suitable crop groups through the experience of different PV concepts in different operating conditions. However, in order to achieve a common frame of reference, it will be necessary to establish thresholds for crop yield reductions/increases to ensure that the dual use of the land unit enables the generation of electricity while maintaining active and productive agriculture. In this sense, farmers, who are the experts on their land, can define the tolerance of yield losses which can serve as reference to set the levels for the classification. For instance, based on the experience of the projects carried out in Germany, farmers reported they could tolerate crop yield losses up to 20% [152], which coincides with the guidelines of the Japanese Ministry of Agriculture, Forestry and Fishery (MAFF) for the implementation of PV systems on existing crop-producing farmlands.

3.3.3. Performance Metrics

Since the APV system is composed of PV modules and farmland, the impact of land use intensity on the energy performance of the system will determine an important part of the feasibility of the whole system’s solution. In this sense, the land use energy intensity can be quantified by metrics which express the land area use per unit of energy generation (ha/kWh) and/or land area use per unit of capacity (ha/kWp), whereas the performance can be expressed as unit of energy per unit of capacity over the course of a typical or actual year (kWh/kWp/y), as commonly used for solar systems.
In order to assess the performance of the APV system, authors suggest using the indicator land equivalent ratio (LER) that leads to comparing the conventional approach (PV and farm set up separately) with the integrated solution on the same land area [4]. LER measures whether the combined value of agricultural yield and solar energy is equal or higher than it would be from the singular use of land. LER can be computed as:
LER   =   Y agri APV Y agri + Y APV Y PV
where Yagri stands for agricultural yield (kg/ha for instance) in a single use of land for farming and Yagri-APV refers to the yield under the agrivoltaic system for the same area. YPV refers to the electricity production under a standard PV system assumption, and YAPV to the agrivoltaic system. Thus, LER values above 1 indicate that the integrated approach is more effective than separate crop production and PV for the same land area. (LER = 1.3 indicates that 30% additional area would be needed to produce the same amount of electricity and biomass on separate land areas.) However, caution must be taken in interpreting LER since it does not differentiate the yield of biomass over the energy. Higher LER can be obtained even if the crop yield represents only a small fraction of the system. For this reason, it is also important to describe performance characteristics such as morphology, yield and quality of the crop (as detailed in Section 3.3.2).
The impact of the PV design on agricultural production also can be quantified through the water usage efficiency (WUE) as proposed by Adeh et al. [153] and Marrou et al. [10]. WUE is then calculated as unit of biomass per unit of water used (commonly kg/m3) against the biomass produced in a control zone without the influence of PV:
WUE   =   WUE PV WUE control WUE control
where WUEPV refers to the water efficiency under PV panels.
The technical feasibility is strongly influenced by the design parameters of the PV system. Design criteria that consider a variation in azimuth and tilt angles of the modules to meet the light requirements for an optimal crop growth affect other parameters such as the land area occupation ratio (LAOR). (LAOR is the ratio between the area of the modules and the area of land that they occupy, expressed in percentage. When modules are tilted, there is a difference between the dimension of the height of the modules (that determines the height of the stripe) and one of their orthogonal projections on the ground (what we see in the pattern).) Nevertheless, considering that the average tilt angle of photovoltaic arrays is about 30°, the difference between these two values is neglectable (for modules 1.00 m high, the projection on ground is 1.06 m); for higher tilt angles, this difference increases) and thus, the normalized yearly energy generation and the land use intensity. Low tilt angles and larger row distance mean higher LAOR values which minimize the shading effect between rows, and enables enough radiation to allow the photosynthesis of the crop, but to the detriment of electricity generation. Therefore, finding the trade-off between energy and agricultural demands will require a careful analysis of the implications of selecting the design criteria. A frame of reference can be given by specific metrics, best known as key performance indicators (KPI), that are useful to analyze and compare existing facilities creating an analytical basis which helps the decision-making process, and hence the future development of these systems.
High LAOR values provide a high energy yield due to the amount of solar radiation that reaches solar modules, whereas the crop yield will be low. LER is a combination of PV and agriculture efficiency and comprises energy yield (unit of energy per unit of area on a yearly basis, or by time parameters that farmers can set according to the growing season) and agricultural yields, so the value also depends on local factors such as climate and crop under test. LER should only be used as reference for similar climatic conditions, PV system configuration and technology and crop. WUE is a useful parameter to assess the benefits of the food–energy–water nexus in drylands.

4. A Trans-Disciplinary Cognitive Framework for the Design and Assessment of Agrivoltaics

4.1. Innovative Three-Dimensional Patterns for Improved Ecological Performances

An agrivoltaic system is a complex system, being, at least, a spatial, an energy and an agronomic system. Its design and assessment must adhere to requirements set depending on the project’s needs in order to meet desired performance quality objectives. Different dimensions of performance need to be taken into account. Moreover, the PV performance and the agri performance are in opposition, as solutions optimized for PV are detrimental to the sun caption of the plants (shading effects). This means that an optimization of the PV performance in general implies some negative effects on the “other” performance, the agri one.
It is crucial to understand what are the most influential parameters that can allow for an optimal design of the overall integrated performance of agrivoltaic system, considering the photovoltaic and the agri dimensions, and also some others, such as the effects on water and microclimate (already analyzed in literature) and new ones related to additional activities that may take place in the pore space of the APV pattern.
The analysis carried out so far demonstrates that the most influential design parameters are the pattern of the system and the height of the modules from the ground.

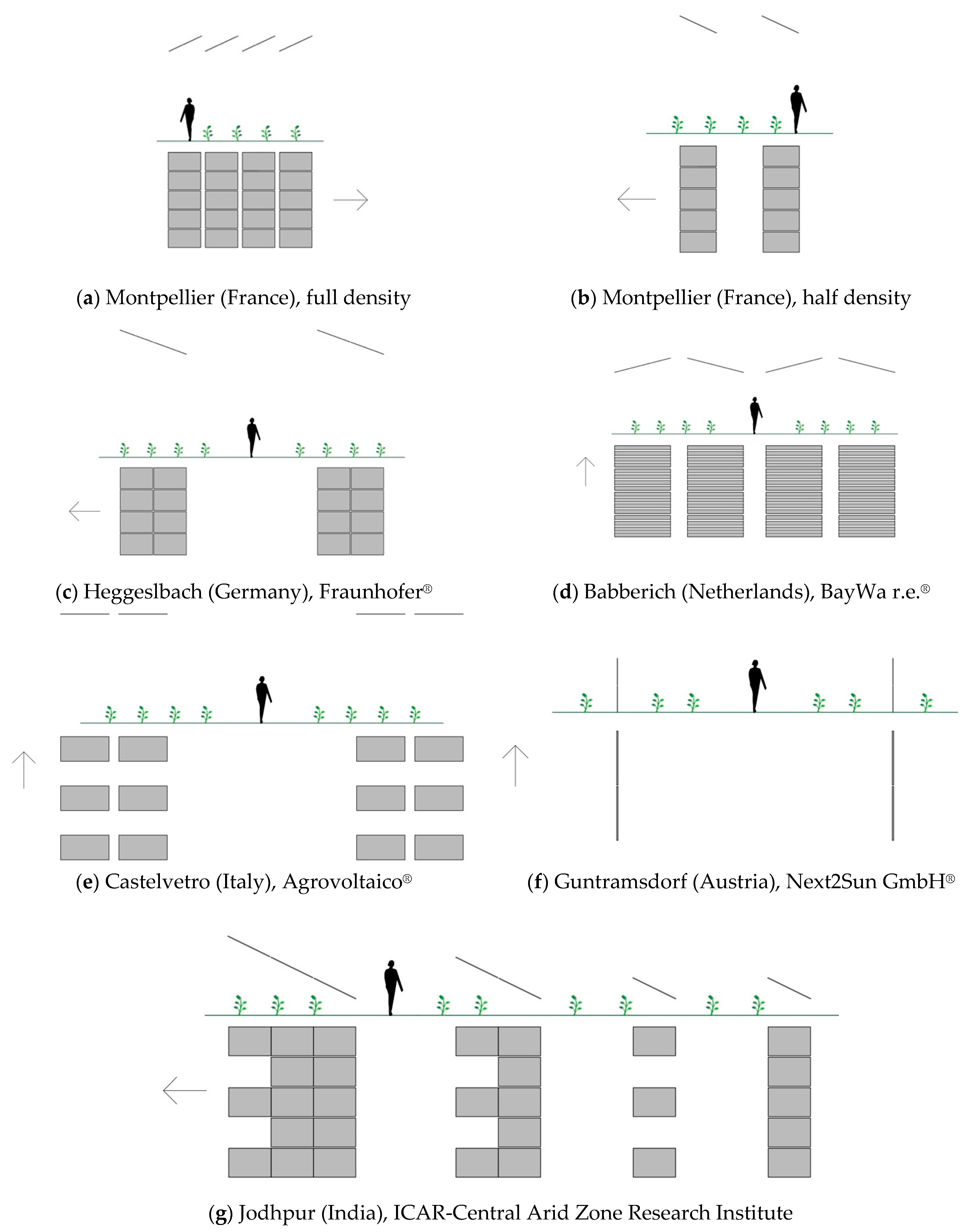

The following figures (Figure 10 and Figure 11) show the state of art with designs for increasing the overall performance of the APV systems by varying the PV pattern (geometry and density) and the modules’ height (besides the technologies used for the PV systems and modules).
If the implications of different design choices related to the variation in the pattern (i.e., density) and in the height have been already emphasized, some new considerations are possible if APVs are understood as solar sharing systems, being part of a landscape.

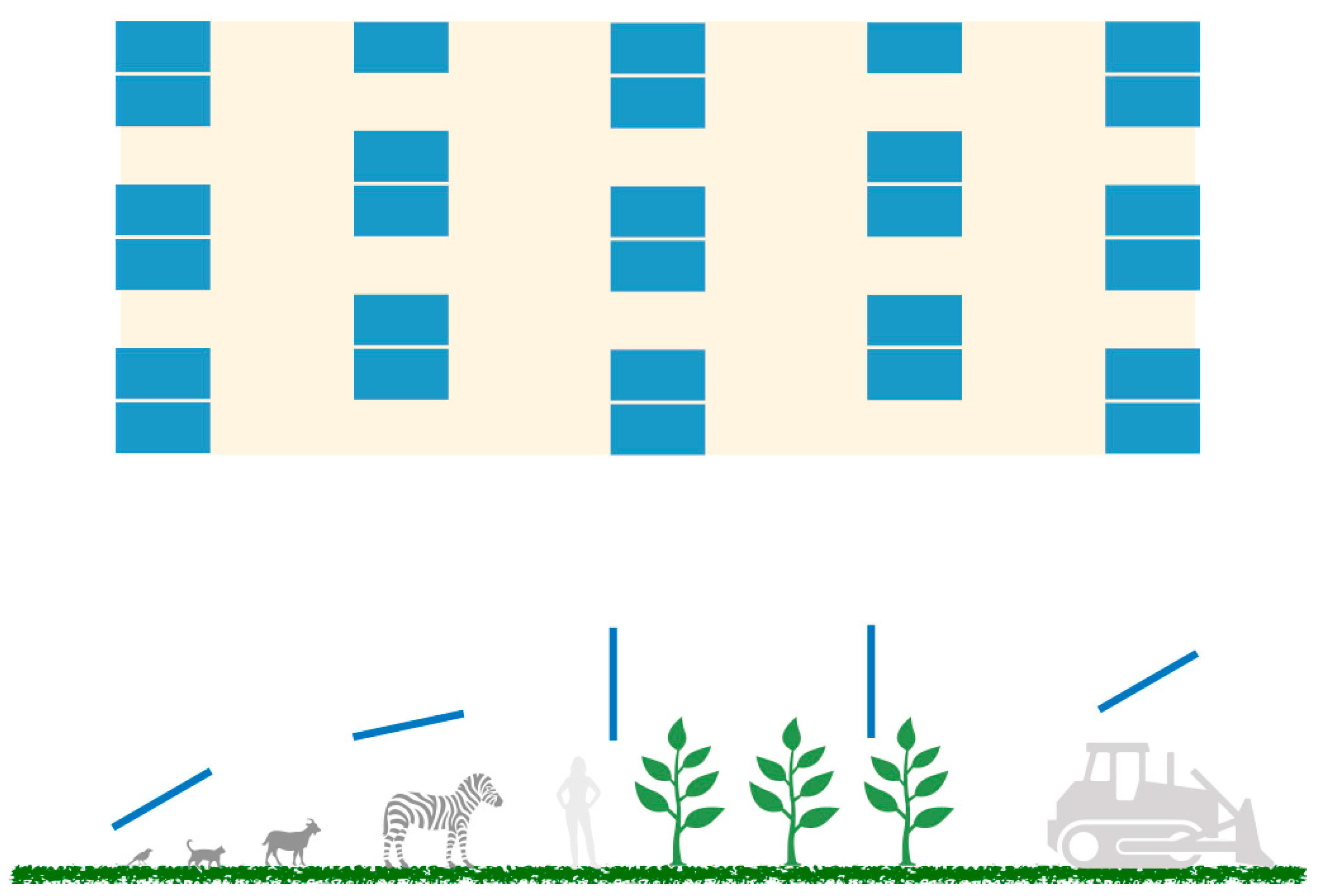

For instance, the orientation of the pattern stripes (the PV modules), which until now mainly related to energy performance issues, can be varied so as to meet other objectives, such as the creation of pathways in designed areas of the landscape for people to walk on. The negative effects on the economical dimension related to the increased height of the modules from the ground have been proposed in literature. Nevertheless, in view of possible additional solar sharing options related to the APV, the perspective may change, as the structures of the APV can be seen as facilitating infrastructures (e.g., for the water collection, or for ground stabilizing elements).
Moreover, higher APV systems allow for better connectivity, and this is a relevant factor if additional functions related to animals and/or human activities are envisioned as further options for APV. Such new functions (or business models) might also generate beneficial effects for the economy (e.g., the use of APV areas as educational occasions for the local community).
For this reason, a “three-dimensional spatial approach” seems to be suitable for supporting design choices able to meet desired ecological quality objectives.

4.2. A New Landscape Oriented Descriptive Model

In light of all the features found in the literature, different disciplinary perspectives and related issues have to be considered in order to describe each system and identify diverse options and opportunities which correspond to performance quality objectives set by different stakeholders (farmers, PV industry, researchers, policy makers, local authorities). The study and development of APV systems requires, in fact, a truly trans-disciplinary approach, as their design and implementation entail agrarian, engineering, technological and energy issues, as well as landscape transformation and community acceptance ones. The existing knowledge should be addressed in a way that allows for the inclusion of current and future design issues and related ecological impacts. In this sense, some classifications have been presented, such as those of Willockx et al. [156] and Trommsdorff et al. [150] (this one mainly addresses first insights of how to design an open-field stilt-mounted type agrivoltaic system in the German context), but broader and more varied research questions must be addressed and discussed in a comprehensive methodological approach.
The background for the approach proposed here is the classification formulated by Scognamiglio [157] for the photovoltaic landscape, which builds a methodology for considering on ground PV as a part of the landscape, elaborating on fundamentals taken from the landscape ecology discipline. The descriptive methodology is based on the pattern-patch-matrix-corridor approach, as formalized by Forman [158], and then further elaborated for the specific needs of PV.

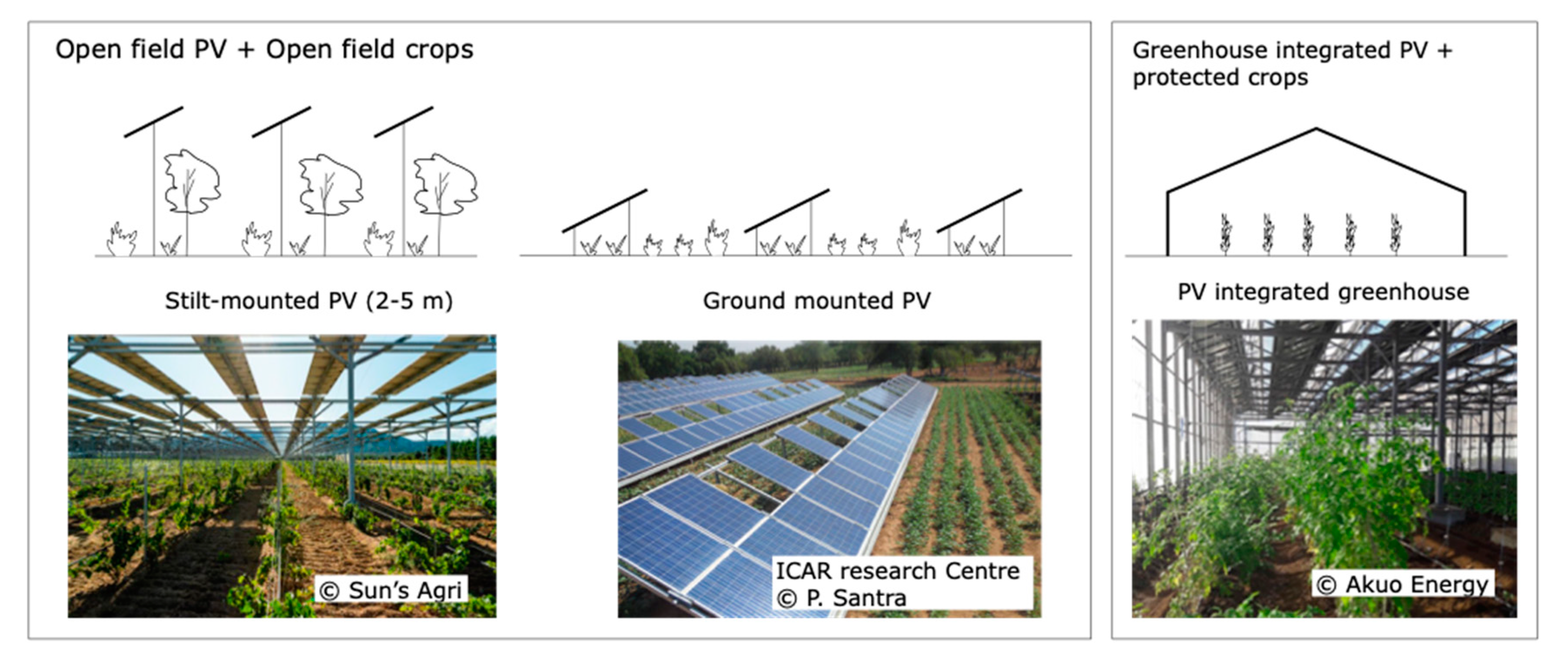

Based on research studies and commercial developments two main morphologies (to which multifaceted typologies are associated) were identified:
  • On ground PV + open-field crops;
  • Photovoltaic greenhouses (envelope integrated PV + protected crops).
Within the first category, two design approaches were detected in terms of installation height: stilt-mounted PV (elevating the solar infrastructure range from 2 to 5 m) and ground-mounted PV (Figure 12).
Thanks to the flexibility of the PV technology, integrated system configurations result in solutions that meet a complex set of objectives, wider than those carried out by the current PV design practices which only focus on prioritizing the energy generation at a given land area. A variety of spatial arrangements by modifying PV arrays’ size, height and spacing in different patterns can be described according to a set of spatial parameters. In this context, energy and space features are strongly linked as a whole design approach where the spatial configuration of PV patterns within the existing parcellation defines the impact at landscape level. Therefore, the degree of porosity or density of the system becomes a relevant attribute to describe the pore (we define the pore as the space left by PV to host additional functions on the same land area) space (or the matrix) where the farming activity will be hosted. Moreover, the change of scale to include greenhouse applications can be covered by this approach through the analysis of the elements that comprise the envelope of the greenhouse and its configuration.

4.2.1. On Ground Photovoltaics + Open-Field Crops: The Agrivoltaic Pattern

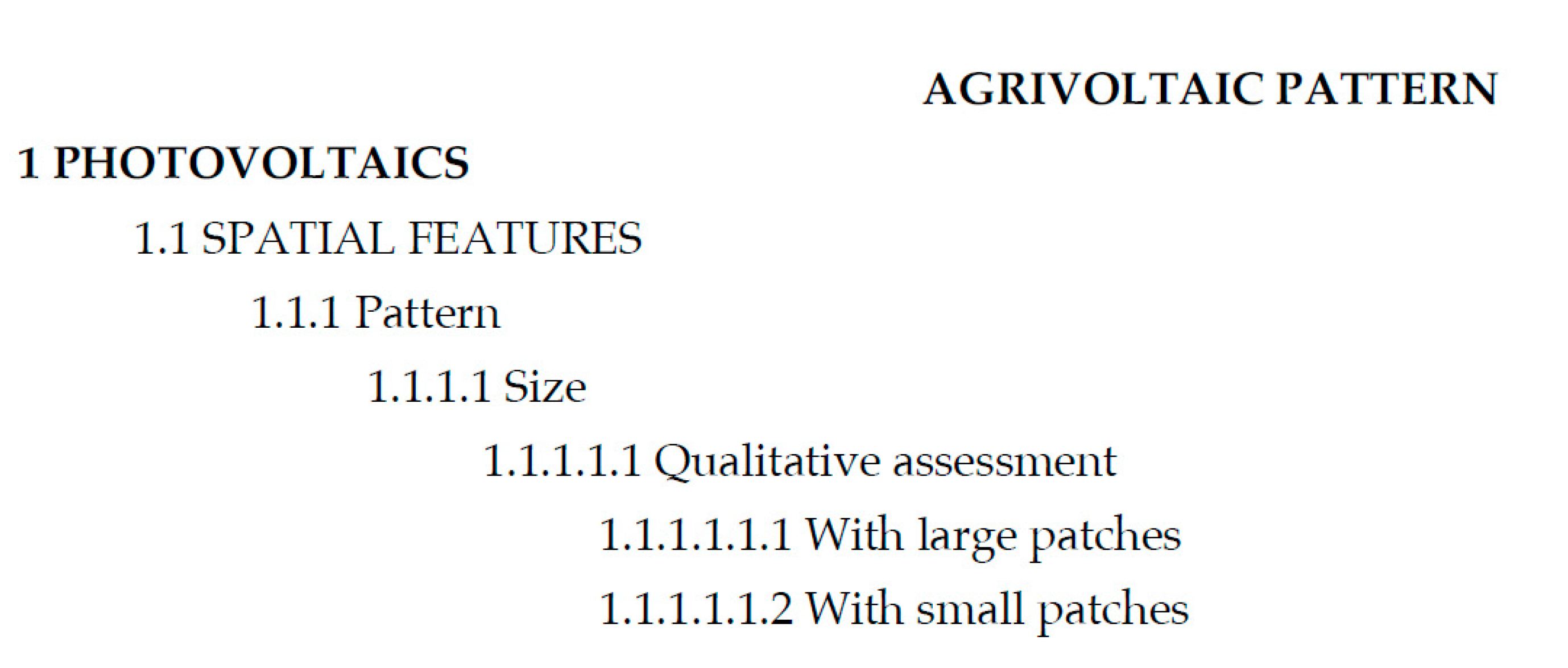

Regarding the first family, the description assumes that the PV modules and the associated structures are the elements of partition of the space, whereas the crops are considered as a continuous in the considered area (matrix). The whole APV system is described as the APV pattern, so as to align the description to that of the landscape, and, i.e., the patch-corridor-matrix model [158].
The APV pattern is described as composed of photovoltaics and pore space (see Figure 13).
The PV system is considered in its multifaceted features, and it is described accordingly in terms of spatial features, energy features and engineering features. In this regard, Oudes and Stremke [159] have recently published a comparative study that analyzes solar landscapes by examining spatial properties, visibility, multifunctionality and temporality, showing the imperative need to build analytical frameworks for analyzing PV systems in a holistic manner, evaluating both individual properties and the system as a whole.
The spatial features are broken down into pattern and patch.

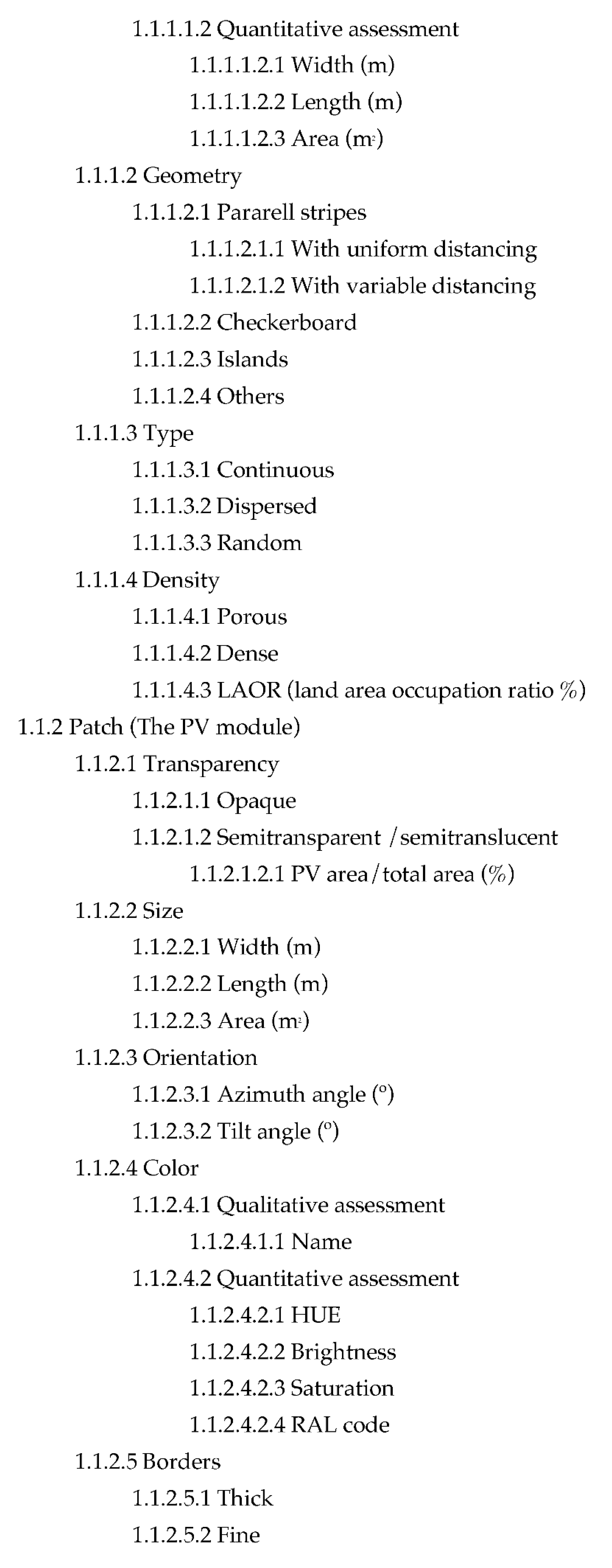

The pattern description gives an account of the spatial arrangement of the PV modules through the size (qualitatively: with large patches, with small patches; quantitatively: width, length, area); geometry (parallel stripes, checkboard, islands); type (continuous, dispersed, random); and density (porous, dense, LAOR). (In assessing as “porous” or “dense” a certain agrivoltaic pattern, here it is considered that about 40% of PV area/land area is usually standard for agrivoltaic systems.)
The patch corresponds to the single unit of a stripe configuring a pattern; that is, the PV module. It is therefore a repetition of PV modules, arranged along a line to form a stripe configuration. A patch is described in terms of transparency (opaque or semi-transparent/semi-translucent, and if semi-transparent or semi-translucent, the ratio between the PV and the total area is given in %); size (length, width, area); orientation (azimuth angle, tilt angle); color (qualitative assessment: name; quantitative assessment: RAL code, hue, saturation, brightness); borders (thick, fine); and height from the ground. (The assumption is considering the lowest side of the module for measuring the height from the ground.)

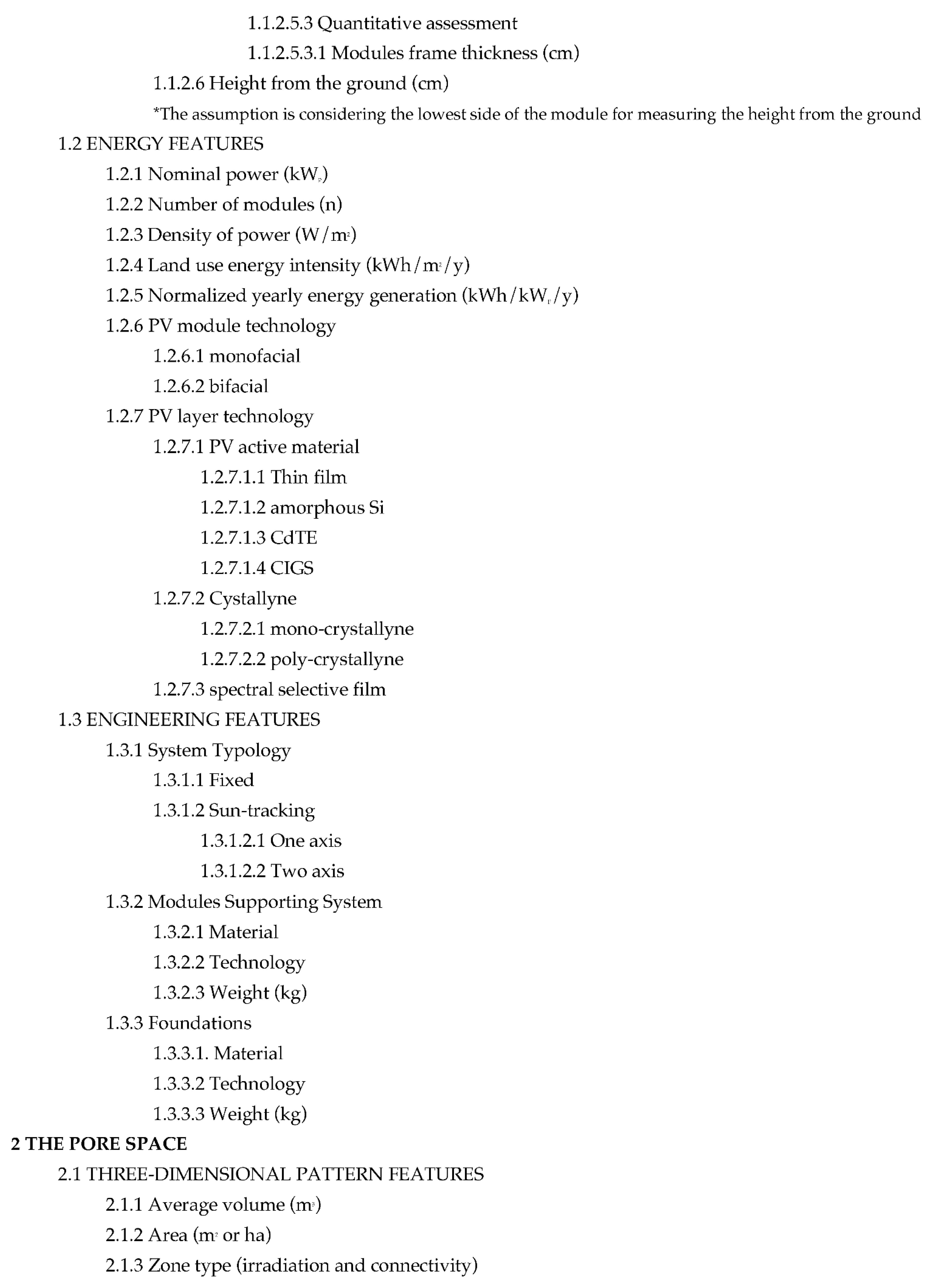

The energy features are broken down into nominal power, number of modules, density of power, land use energy intensity, normalized yearly energy generation and PV module technology. For each of these categories, appropriate metrics are considered.
The engineering features are broken down into system typology (fixed, sun-tracking one axis/two axis), modules supporting system (material, technology, weight) and foundations (material, technology, weight).

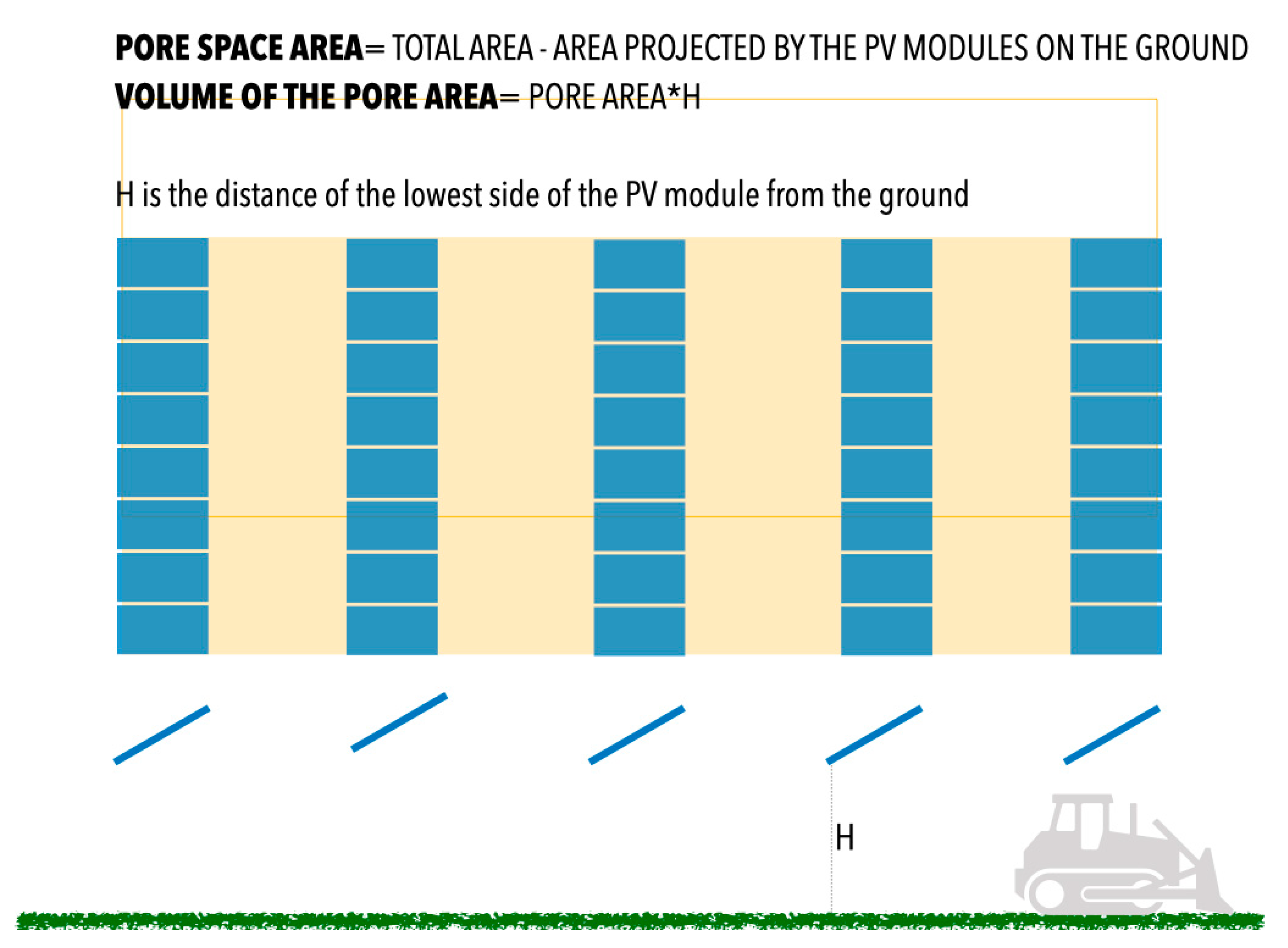

The “pore space” (what is in between the PV modules, and in between the PV modules and the ground) in the agrivoltaic pattern is described in terms of three-dimensional pattern features, crop features (type, homogeneity, plant’s height and seasonality) and energy features.
The three-dimensional pattern is an original descriptive expedient that the authors propose for characterizing an APV system from the performance point of view, based on the three-dimensional features of its pattern, referring to a unitary land area.
The features of the three-dimensional pattern are average volume, area, zone type (irradiation and connectivity) and crop density (crop area/total area %). The average volume considers the pore space area (total land area minus the area corresponding to the projection of the PV modules on the ground) multiplied by the height of the modules from the ground (considering the lowest line of the modules) (see Figure 14).
The zone type qualitatively describes irradiation and connectivity that characterize the pore area. Connectivity is defined as the degree to which the landscape facilitates or impedes movement among resource patches. There are zones with high, medium and low irradiation, and to these correspond high, medium and low connectivity.
Irradiation and connectivity basically depend on the degree of porosity of the PV pattern and on the height of the PV modules from the ground: the more porous the pattern, the higher the irradiance (and therefore the irradiation), whereas a high distance from the ground implies generally a higher connectivity and a lower irradiance.

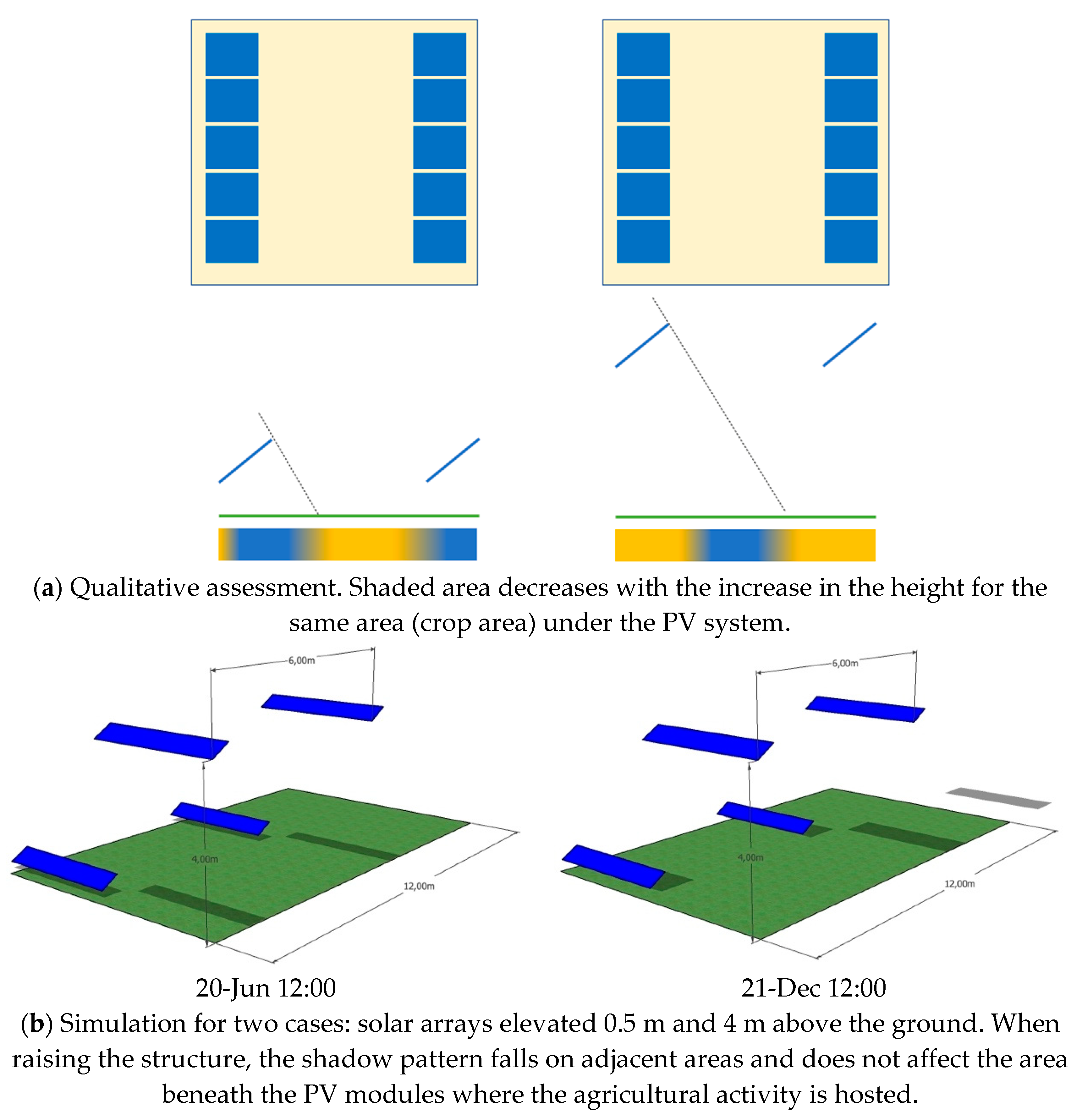

Figure 15 shows the influence of module height on irradiance. Given a certain PV pattern and sun altitude, in fact, depending on the height of the modules from the ground, it is possible to see that the dynamically shaded area decreases with the increase in the height for the same area under the PV arrays. In Figure 15a, the color ranging from blue to orange provides a qualitative assessment of the height effect on the irradiance, and therefore on the irradiation. A quantitative assessment is more complex (a simple analysis is shown in Figure 15b) and requires a simulation effort, as the degree of irradiation depends on the dynamic shading on the ground.

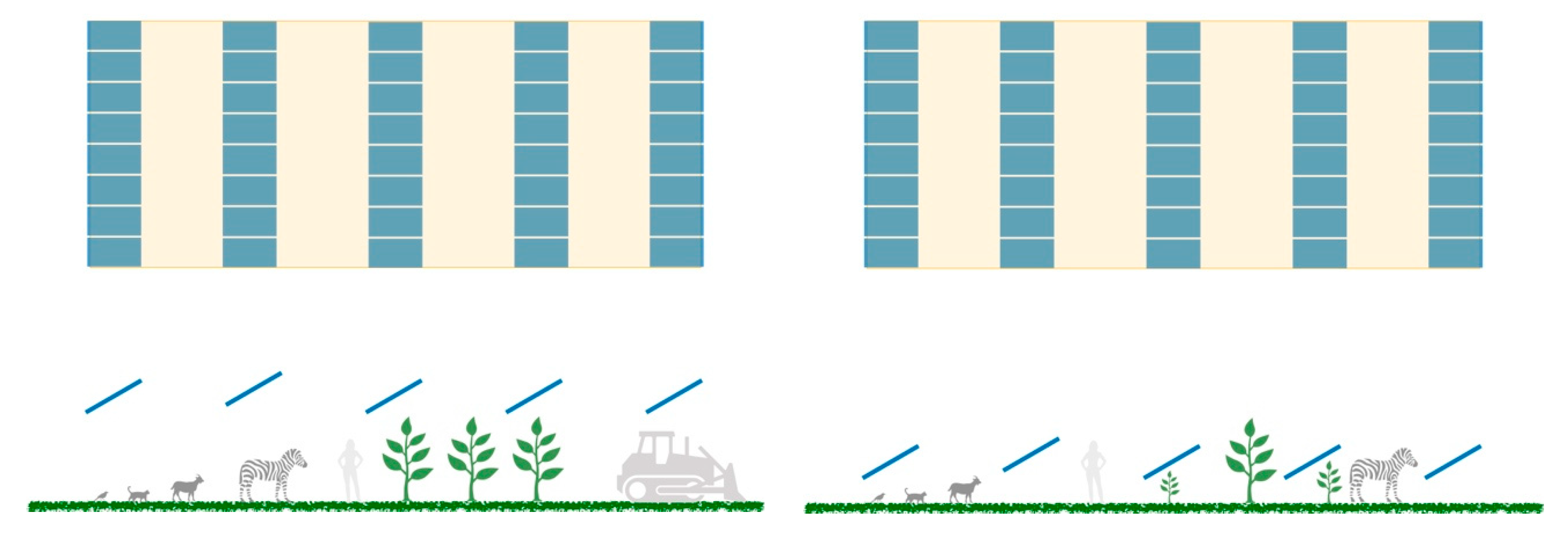

Regarding the connectivity, Figure 16 shows that, given a certain PV pattern, the connectivity increases along with the increase in the height of the modules from the ground.

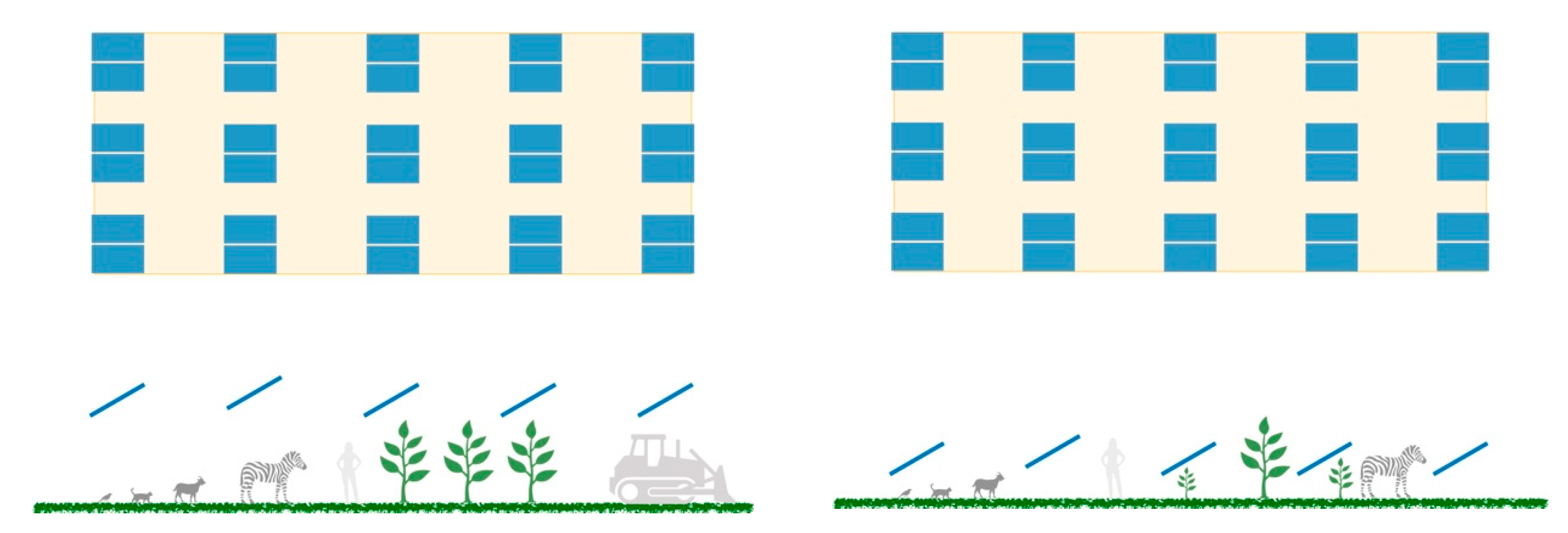

Figure 17 shows how, given a certain land area, a porous pattern increases both the average irradiation on the crops and the connectivity.
Based on these considerations, zone types have been defined as high irradiation and high/medium/low connectivity, medium irradiation and high/medium/low connectivity and low irradiation and high/medium/low connectivity.

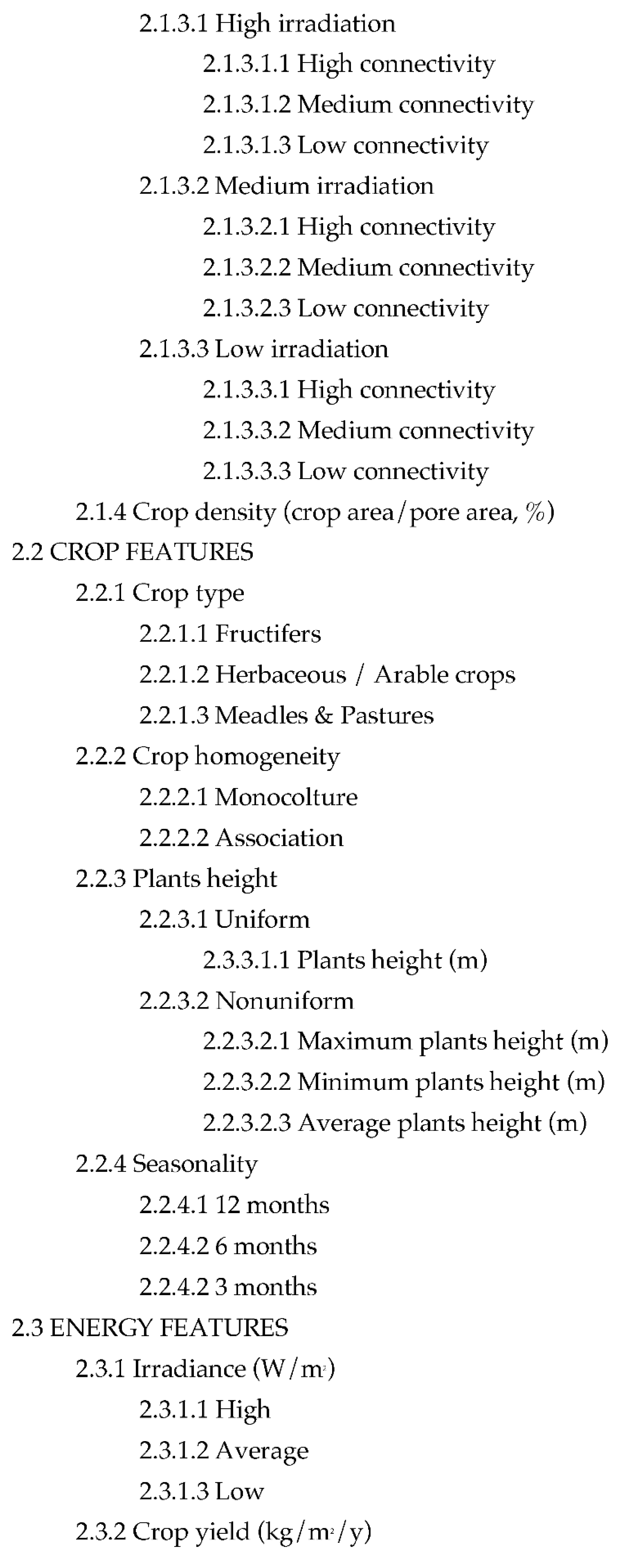

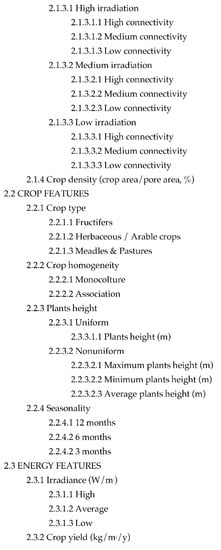

Then, the crop density is considered as the ratio between the crop area and the pore area (%).

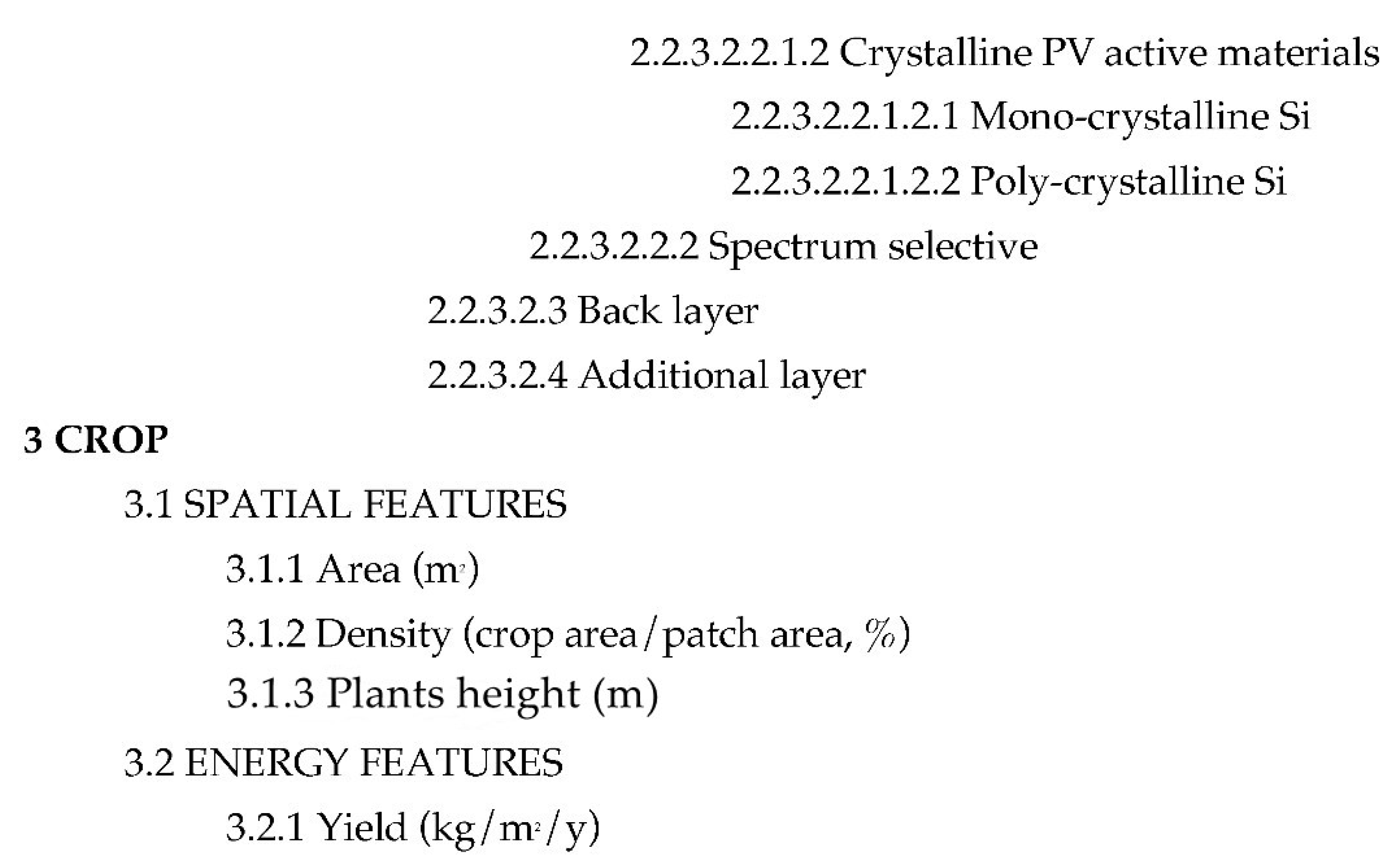

The crop features are plant’s height (uniform; nonuniform, and is uniform: height; if nonuniform maximum, minimum and average height); seasonality (12, 6 or 3 months).
The energy features are irradiance (classified as high, average, low) and crop yield.
Being aware of the complexity in describing vegetable organisms, we propose this preliminary classification as a starting point for creating a link between spatial features of the pore area and crop selection based on low to high irradiance needs of the plants—and also on additional animal or human activities that can take place in the pore area based on connectivity degree.

4.2.2. Greenhouses (Envelope Integrated PV + Protected Crops)

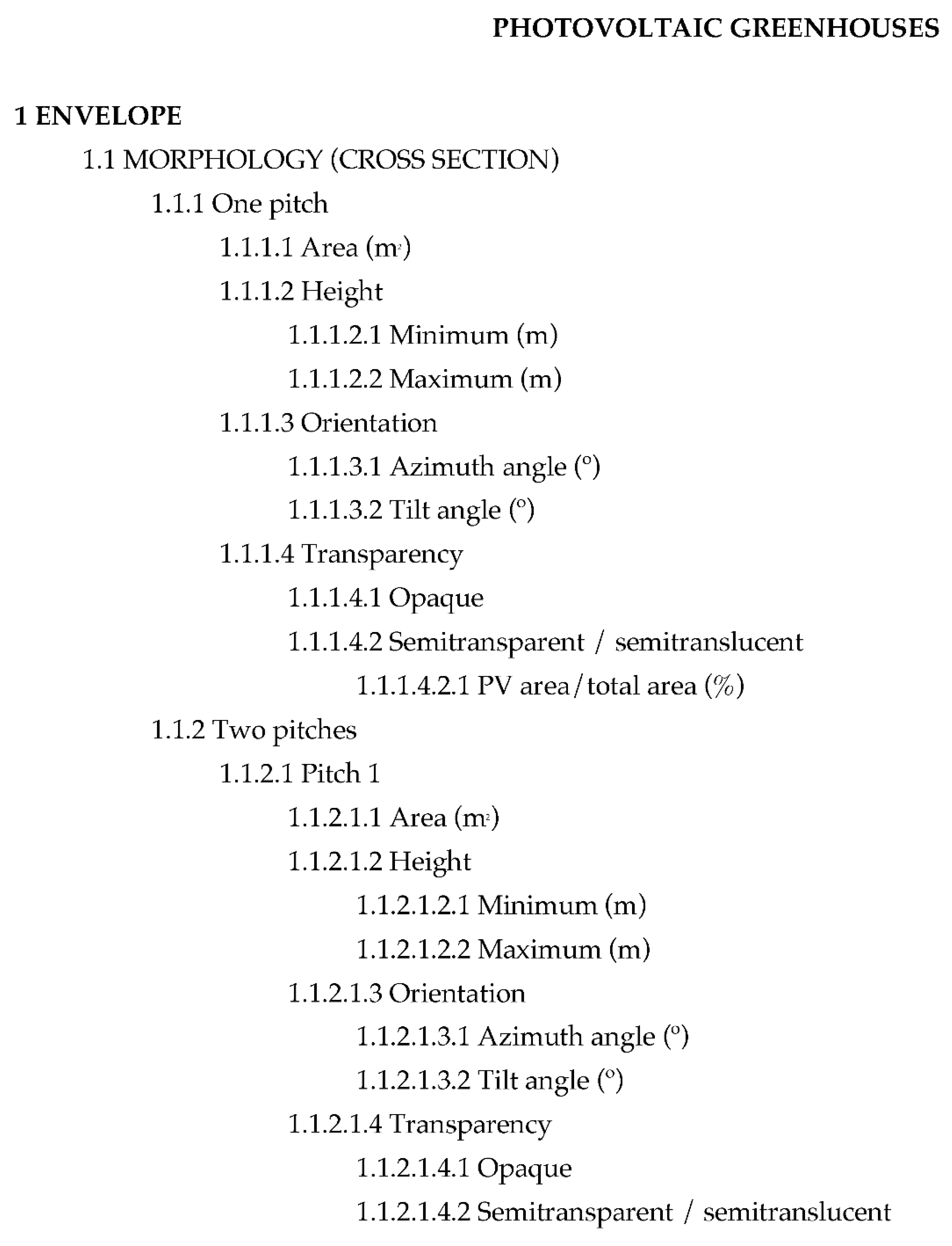

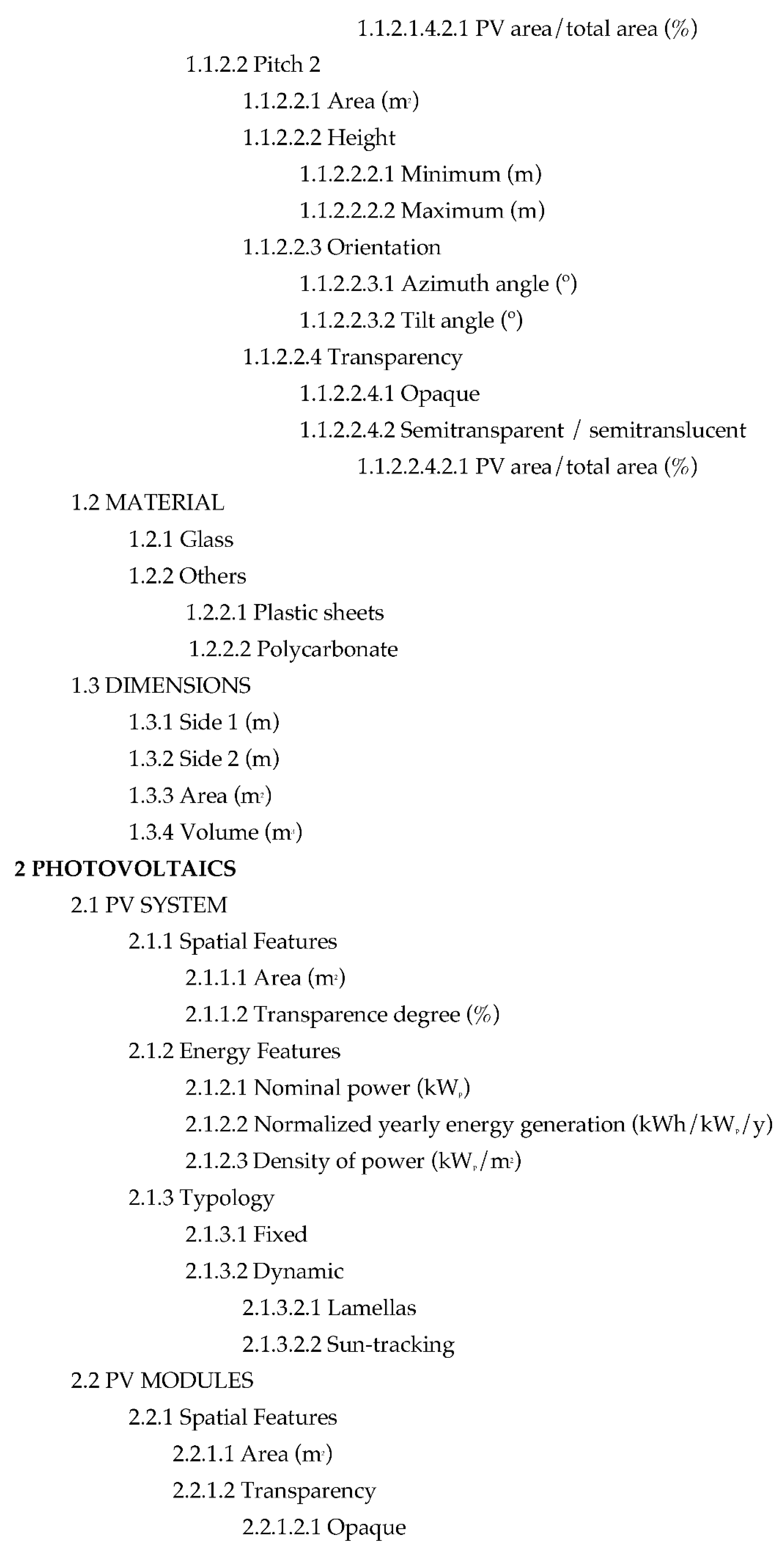

The greenhouses (envelope integrated PV + protected crops) are described, keeping into account the PV systems and the crop (see Figure 18). Technological systems for microclimate controlling and performance monitoring should be added for giving a complex account of the greenhouse functioning, but this is out of the scope of this paper.
The envelope is broken down in morphology, material and dimensions.

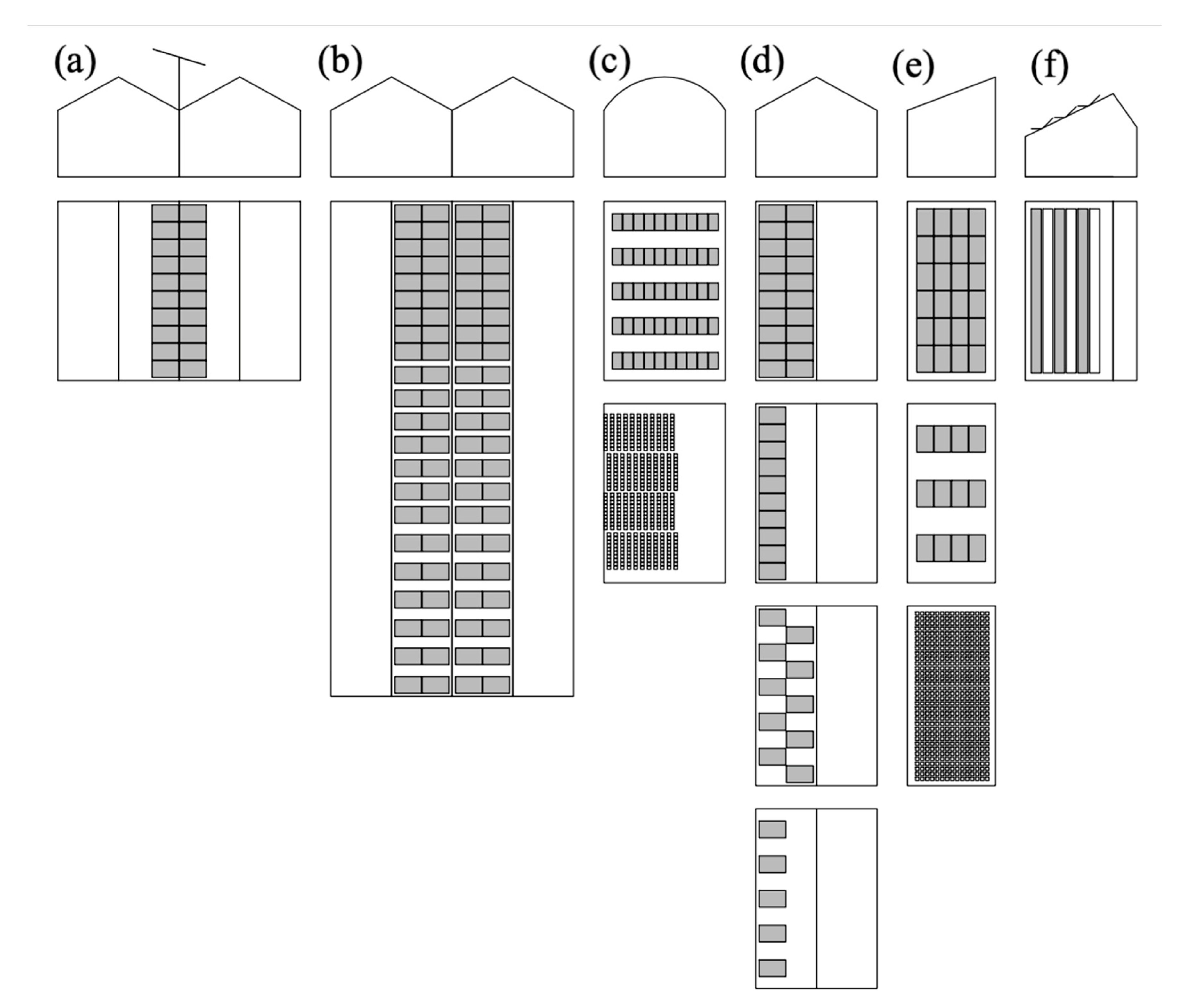

Morphology refers to the cross section of the greenhouse, and it is therefore broken down into one pitch, two pitches and curved. Each single pitch is described in terms of area, height (minimum and maximum, respectively), orientation (azimuth angle, tilt angle) and transparency (opaque, semi-transparent/semi-translucent).
For the envelope material, glass and others (plastic sheets, polycarbonate, etc.) are considered.
The dimensions are side 1, side 2, area and volume.

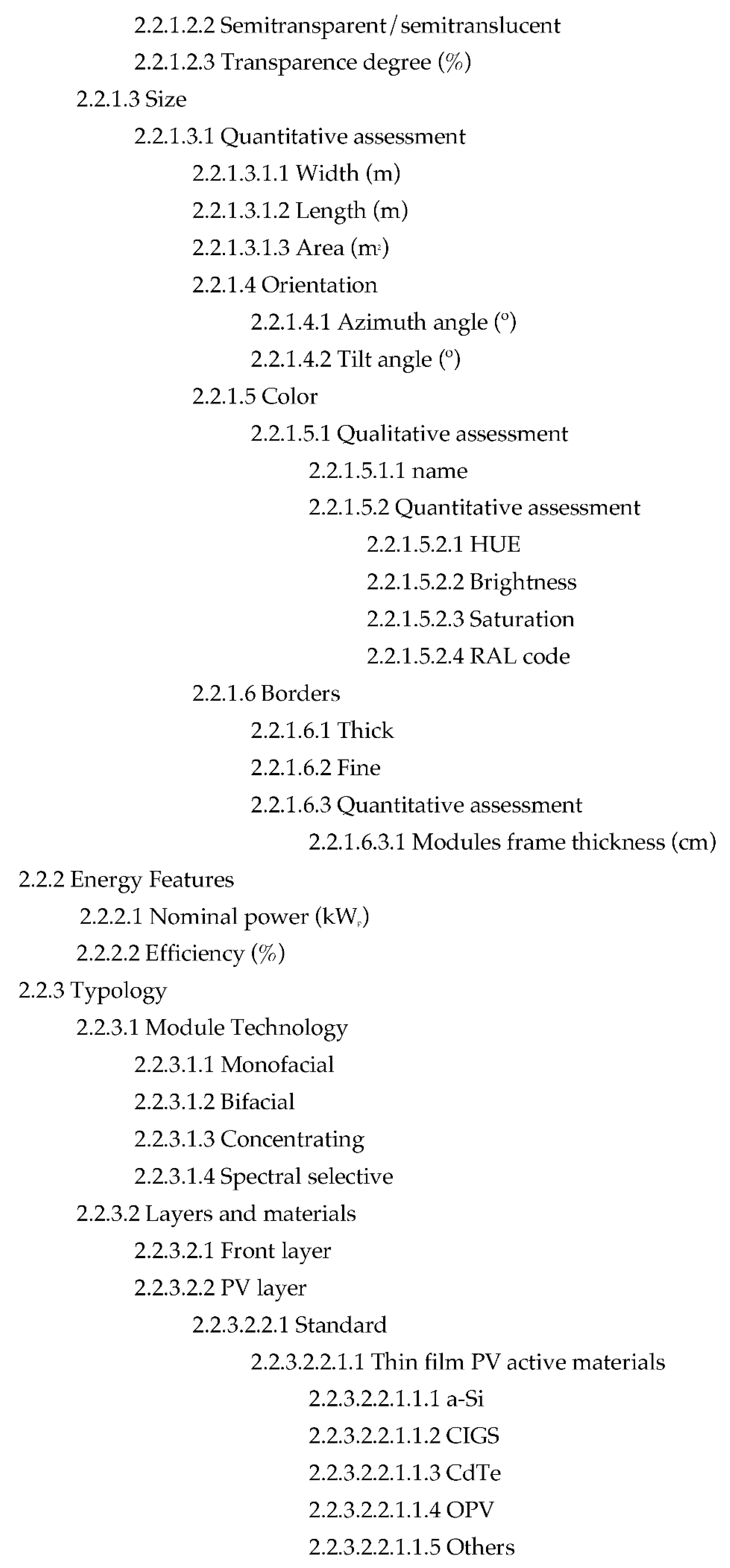

Photovoltaics is broken down in PV system and PV modules. For each of them, spatial features, energy features and typology are described.
For the PV system, spatial features are area (m2) and transparency (%). Energy features are nominal power (kWp), normalized yearly energy production (kWh/kWp/y) and density of power (kWp/m2). Typology is broken down into fixed and dynamic (lamellas and sun-tracking).
For the PV modules, the spatial features are area (m2) and transparency (opaque, semi-transparent/semi-translucent, transparency degree %). Energy features are nominal power (kWp) and efficiency (W/m2). Typology is broken down into module technology (monofacial, bifacial, concentrating; spectral selective) and layers and materials (front layer, PV layer, back layer, additional layer). The PV layer is further broken into standard (thin film and crystalline technologies) and spectrum selective.

4.3. Three-Dimensional Agrivoltaic Patterns and Related Metrics

Starting from the considerations thus far, some first preliminary metrics related to the three-dimensional agrivoltaic pattern, useful for guiding and assessing the design of sustainable APV systems, can be advanced (see Table 4). It is worth noting that there is still room for exploring design possibilities of APV. This translates into a variety of possibilities for the PV greenhouses, both in terms of envelope and technologies; whereas in the case of the on-ground PV + open-field crops (agrivoltaic patterns), this translates into the design and assessment of new patterns, which may be characterized by low or high levels of “randomness”, both in terms of horizontal and vertical patterns of the PV modules (Figure 19 and Figure 20), and leading, theoretically, to a kind of three-dimensional sparse mosaic or to the PV modules fading out in space (with possible new ecological significance).

5. Conclusions

The energy and engineering design optimization, the development of new technologies and the correct selection of plant species adapted to the PV system are the areas where the current research is actively focusing in APV systems. Along with the continuous research progress, the success of several international experiences through pilot projects which implement new design solutions and use different PV technologies (showing the technical potential in real working conditions) has triggered APV, and it has been met with great acceptance from the industry and interest from governments. It is in fact a significant potential contribution to meet climate challenges touching on food, energy, agriculture and rural policies [161,162]. Moreover, it is understood—i.e., by energy developers—as a possible driver for the implementation of large-scale PV installations and building-integrated agriculture [163], which without the APV function, would not be successful in the authorization process due to land use concerns.
A sharp increase is expected in terms of number of installations and capacity in the near future. Along this trend, new concerns regarding landscape and urban transformation issues are emerging as the implementation of APV might be mainly focused on the efficiency of the PV system (more profitable than agriculture), with insufficient attention on the correct synergy between energy and food production.
The landscape, as intended by the European Landscape Convention [164], is the correct dimension where issues can be faced in view of an improved ecological performance of the systems. The mere technical perspective must be overcome in favor of a more inclusive, sustainable one that considers new approaches for conceiving APV patterns. These may include, for instance, new community-oriented functions (e.g., educational or recreational) that can empower the use of APV as solar-sharing solutions (energy, agri, community).
The proposed framework, which describes the APV systems as three-dimensional landscape patterns, seeks to characterize them from a new inclusive design vision enabling understanding of the tight connection between energy and space and making some room for other new considerations (i.e., landscape related). A set of parameters classified by category to define an APV system as a part of the landscape (pattern, patch, pore) including different disciplinary contents (photovoltaic technology, agronomy, engineering) has been formalized, guiding and assessing the design of agrivoltaic systems in view of desired quality objectives. Under this perspective, the need for new APV-related research emerges.
The study of ecosystem service trade-offs in the spatial planning and design for energy transition, to identify potential synergies and minimize trade-offs between renewable energy and other ecosystem services, has been already acknowledged as a key issue for avoiding conflicts between global and local perspectives [165].
Further specific actions towards the formalization of an appropriate cognitive framework for APV are a multidimensional performance matrix including heterogeneous performance indicators for assessing the overall ecosystem performance of the systems and the experimentation with new innovative patterns able to include community functions.
The development of new innovative systems (PV system technology) and components (photovoltaic devices technology) can enhance the energy performance of selected design options for APV greenhouse typology.
None of these perspectives can overlook a truly inter-disciplinary and even trans-disciplinary approach.

Author Contributions

Conceptualization by A.S. and C.T.; State of Art by C.T.; relevant design parameters and performance metrics by A.S. and C.T.; trans-disciplinary cognitive framework for the design and assessment of agrivoltaics by A.S.; conclusions by A.S. and C.T. All authors have written and reviewed the paper. All authors have read and agreed to the published version of the manuscript.


This work was supported by the Italian Ministry of Economic Development in the framework of the Operating Agreement with ENEA for Research on the Electric System.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.


Carlos Toledo is grateful for postdoctoral fellowship 21227/PD/19. Fundación Séneca. Región de Murcia (Spain).

Conflicts of Interest

The authors declare no conflict of interest.


BIPVBuilding integrated photovoltaics
CPVConcentrated photovoltaics
DSSCDye-sensitized solar cell
KPIKey performance indicator
LAORLand area occupation ratio
LCALife cycle assessment
LERLand equivalent ratio
LSCLuminescent solar concentrator
NIRNear infrared radiation
OPVOrganic photovoltaics
PARPhotosynthetically active radiation
PCEPower conversion efficiency
PVGPhotovoltaics greenhouses
WUEWater usage efficiency


  1. Goetzberger, A.; Zastrow, A. On the Coexistence of Solar-Energy Conversion and Plant Cultivation. Int. J. Sol. Energy 1981, 1, 55–69. [Google Scholar] [CrossRef]
  2. Sekiyama, T. Akira Nagashima Sunlight Power Generation System. Patent No. 2005-277038, 6 October 2005. [Google Scholar]
  3. Akira Nagashima. Solar Sharing: Changing the World and Life. 2020. Available online: (accessed on 16 June 2021).
  4. Dupraz, C.; Marrou, H.; Talbot, G.; Dufour, L.; Nogier, A.; Ferard, Y. Combining Solar Photovoltaic Panels and Food Crops for Optimising Land Use: Towards New Agrivoltaic Schemes. Renew. Energy 2011, 36, 2725–2732. [Google Scholar] [CrossRef]
  5. Valle, B.; Simonneau, T.; Sourd, F.; Pechier, P.; Hamard, P.; Frisson, T.; Ryckewaert, M.; Christophe, A. Increasing the Total Productivity of a Land by Combining Mobile Photovoltaic Panels and Food Crops. Appl. Energy 2017, 206, 1495–1507. [Google Scholar] [CrossRef]
  6. Elamri, Y.; Cheviron, B.; Mange, A.; Dejean, C.; Liron, F.; Belaud, G. Rain Concentration and Sheltering Effect of Solar Panels on Cultivated Plots. Hydrol. Earth Syst. Sci. 2018, 22, 1285–1298. [Google Scholar] [CrossRef] [Green Version]
  7. Elamri, Y.; Cheviron, B.; Lopez, J.-M.; Dejean, C.; Belaud, G. Water Budget and Crop Modelling for Agrivoltaic Systems: Application to Irrigated Lettuces. Agric. Water Manag. 2018, 208, 440–453. [Google Scholar] [CrossRef]
  8. Marrou, H.; Wery, J.; Dufour, L.; Dupraz, C. Productivity and Radiation Use Efficiency of Lettuces Grown in the Partial Shade of Photovoltaic Panels. Eur. J. Agron. 2013, 44, 54–66. [Google Scholar] [CrossRef]
  9. Marrou, H.; Guilioni, L.; Dufour, L.; Dupraz, C.; Wery, J. Microclimate under Agrivoltaic Systems: Is Crop Growth Rate Affected in the Partial Shade of Solar Panels? Agric. For. Meteorol. 2013, 177, 117–132. [Google Scholar] [CrossRef]
  10. Marrou, H.; Dufour, L.; Wery, J. How Does a Shelter of Solar Panels Influence Water Flows in a Soil–Crop System? Eur. J. Agron. 2013, 50, 38–51. [Google Scholar] [CrossRef]
  11. APV RESOLA Research Project Agrophotovoltaic-Resource Efficient Land Use. Available online: (accessed on 7 December 2020).
  12. Barron-Gafford, G.A.; Barron-Gafford Research Group. Biogeography & Ecosystem Science. Available online: (accessed on 7 December 2020).
  13. Barron-Gafford, G.A.; Pavao-Zuckerman, M.A.; Minor, R.L.; Sutter, L.F.; Barnett-Moreno, I.; Blackett, D.T.; Thompson, M.; Dimond, K.; Gerlak, A.K.; Nabhan, G.P.; et al. Agrivoltaics Provide Mutual Benefits across the Food–Energy–Water Nexus in Drylands. Nat. Sustain. 2019, 2, 848–855. [Google Scholar] [CrossRef]
  14. Adeh, E.H.; Good, S.P.; Calaf, M.; Higgins, C.W. Solar PV Power Potential Is Greatest over Croplands. Sci. Rep. 2019, 9, 11442. [Google Scholar] [CrossRef]
  15. Ravi, S.; Macknick, J.; Lobell, D.; Field, C.; Ganesan, K.; Jain, R.; Elchinger, M.; Stoltenberg, B. Colocation Opportunities for Large Solar Infrastructures and Agriculture in Drylands. Appl. Energy 2016, 165, 383–392. [Google Scholar] [CrossRef] [Green Version]
  16. Parkinson, S.; Hunt, J. Economic Potential for Rainfed Agrivoltaics in Groundwater-Stressed Regions. Environ. Sci. Technol. Lett. 2020, 7, 525–531. [Google Scholar] [CrossRef]
  17. Dinesh, H.; Pearce, J.M. The Potential of Agrivoltaic Systems. Renew. Sustain. Energy Rev. 2016, 54, 299–308. [Google Scholar] [CrossRef] [Green Version]
  18. Majumdar, D.; Pasqualetti, M.J. Dual Use of Agricultural Land: Introducing ‘Agrivoltaics’ in Phoenix Metropolitan Statistical Area, USA. Landsc. Urban Plan. 2018, 170, 150–168. [Google Scholar] [CrossRef]
  19. Malu, P.R.; Sharma, U.S.; Pearce, J.M. Agrivoltaic Potential on Grape Farms in India. Sustain. Energy Technol. Assess. 2017, 23, 104–110. [Google Scholar] [CrossRef] [Green Version]
  20. Sekiyama, T.; Nagashima, A. Solar Sharing for Both Food and Clean Energy Production: Performance of Agrivoltaic Systems for Corn, A Typical Shade-Intolerant Crop. Environments 2019, 6, 65. [Google Scholar] [CrossRef] [Green Version]
  21. Schindele, S.; Trommsdorff, M.; Schlaak, A.; Obergfell, T.; Bopp, G.; Reise, C.; Braun, C.; Weselek, A.; Bauerle, A.; Högy, P.; et al. Implementation of Agrophotovoltaics: Techno-Economic Analysis of the Price-Performance Ratio and Its Policy Implications. Appl. Energy 2020, 265, 114737. [Google Scholar] [CrossRef]
  22. Sun’Agri Agrivoltaism. Available online: (accessed on 7 December 2020).
  23. REM Tec Agrovoltaico. Available online: (accessed on 7 December 2020).
  24. Amaducci, S.; Yin, X.; Colauzzi, M. Agrivoltaic Systems to Optimise Land Use for Electric Energy Production. Appl. Energy 2018, 220, 545–561. [Google Scholar] [CrossRef]
  25. Agostini, A.; Colauzzi, M.; Amaducci, S. Innovative Agrivoltaic Systems to Produce Sustainable Energy: An Economic and Environmental Assessment. Appl. Energy 2021, 281, 116102. [Google Scholar] [CrossRef]
  26. BayWa, r.e. Agri-PV. Available online: (accessed on 7 December 2020).
  27. Santra, P.; Pande, P.C.; Kumar, S.; Mishra, D.; Singh, R.K. Agri-Voltaics or Solar Farming: The Concept of Integrating Solar PV Based Electricity Generation and Crop Production in a Single Land Use System. Int. J. Renew. Energy Res. 2017, 7, 694–699. [Google Scholar]
  28. Patel, B.; Gami, B.; Baria, V.; Patel, A.; Patel, P. Co-Generation of Solar Electricity and Agriculture Produce by Photovoltaic and Photosynthesis—Dual Model by Abellon, India. J. Sol. Energy Eng. 2018, 141. [Google Scholar] [CrossRef]
  29. Othman, N.F.; Yaacob, M.E.; Mat Su, A.S.; Jaafar, J.N.; Hizam, H.; Shahidan, M.F.; Jamaluddin, A.H.; Chen, G.; Jalaludin, A. Modeling of Stochastic Temperature and Heat Stress Directly underneath Agrivoltaic Conditions with Orthosiphon Stamineus Crop Cultivation. Agronomy 2020, 10, 1472. [Google Scholar] [CrossRef]
  30. Othman, N.F.; Jamian, S.; Su, A.S.M.; Ya’acob, M.E. Tropical Field Assessment on Pests for Misai Kucing Cultivation under Agrivoltaics Farming System. AIP Conf. Proc. 2019, 2129, 020002. [Google Scholar] [CrossRef]
  31. Othman, N.F.; Mat Su, A.S.; Ya’acob, M.E. Promising Potentials of Agrivoltaic Systems for the Development of Malaysia Green Economy. In Proceedings of the IOP Conference Series: Earth and Environmental Science, Xiamen, China, 1–3 March 2018; IOP Publishing: Bristol, UK, 2018; Volume 146, p. 012002. [Google Scholar]
  32. Othman, N.F.; Ya’acob, M.E.; Abdul-Rahim, A.S.; Shahwahid Othman, M.; Radzi, M.A.M.; Hizam, H.; Wang, Y.D.; Ya’acob, A.M.; Jaafar, H.Z.E. Embracing New Agriculture Commodity through Integration of Java Tea as High Value Herbal Crops in Solar PV Farms. J. Clean. Prod. 2015, 91, 71–77. [Google Scholar] [CrossRef]
  33. Othman, N.F.; Ya’acob, M.E.; Abdul-Rahim, A.S.; Hizam, H.; Farid, M.M.; Abd Aziz, S. Inculcating Herbal Plots as Effective Cooling Mechanism in Urban Planning. In Proceedings of the Acta Horticulturae; International Society for Horticultural Science (ISHS), Leuven, Belgium, 21 March 2017; pp. 235–242. [Google Scholar]
  34. Akuo Energy Agrienergie. Available online: (accessed on 7 December 2020).
  35. Next2Sun GmbH Bifacial Solar Fences. Available online: (accessed on 7 December 2020).
  36. Scognamiglio, A.; Garde, F.; Ratsimba, T.; Monnier, A.; Scotto, E. Photovoltaic Greenhouses: A Feasible Solutions for Islands? Design Operation Monitoring and Lessons Learned from a Real Case Study. In Proceedings of the World Conference on Photovoltaic Energy Conversion, Kyoto, Japan, 23–27 November 2014; pp. 1070–1169. [Google Scholar]
  37. Cuce, E.; Harjunowibowo, D.; Cuce, P.M. Renewable and Sustainable Energy Saving Strategies for Greenhouse Systems: A Comprehensive Review. Renew. Sustain. Energy Rev. 2016, 64, 34–59. [Google Scholar] [CrossRef]
  38. Hassanien, R.H.E.; Li, M.; Dong Lin, W. Advanced Applications of Solar Energy in Agricultural Greenhouses. Renew. Sustain. Energy Rev. 2016, 54, 989–1001. [Google Scholar] [CrossRef]
  39. Aroca-Delgado, R.; Pérez-Alonso, J.; Callejón-Ferre, J.Á.; Velázquez-Martí, B. Compatibility between Crops and Solar Panels: An Overview from Shading Systems. Sustainability 2018, 10, 743. [Google Scholar] [CrossRef] [Green Version]
  40. Harjunowibowo, D.; Ding, Y.; Omer, S.; Riffat, S. Recent Active Technologies of Greenhouse Systems-a Comprehensive Review. Bulg. J. Agric. Sci. 2018, 24, 158–170. [Google Scholar]
  41. Yano, A.; Cossu, M. Energy Sustainable Greenhouse Crop Cultivation Using Photovoltaic Technologies. Renew. Sustain. Energy Rev. 2019, 109, 116–137. [Google Scholar] [CrossRef]
  42. Carlini, M.; Villarini, M.; Esposto, S.; Bernardi, M. Performance Analysis of Greenhouses with Integrated Photovoltaic Modules. In Proceedings of the Computational Science and Its Application, Fukuoka, Japan, 23–26 March 2010; Taniar, D., Gervasi, O., Murgante, B., Pardede, E., Apduhan, B.O., Eds.; Springer: Berlin/Heidelberg, Germany, 2010; pp. 206–214. [Google Scholar]
  43. Cossu, M.; Murgia, L.; Ledda, L.; Deligios, P.A.; Sirigu, A.; Chessa, F.; Pazzona, A. Solar Radiation Distribution inside a Greenhouse with South-Oriented Photovoltaic Roofs and Effects on Crop Productivity. Appl. Energy 2014, 133, 89–100. [Google Scholar] [CrossRef]
  44. Fatnassi, H.; Poncet, C.; Brun, R.; Muller, M.M.; Bertin, N. CFD Study of Climate Conditions under Greenhouses Equipped with Photovoltaic Panels. In Proceedings of the Acta Horticulturae; International Society for Horticultural Science (ISHS), Leuven, Belgium, 22 October 2014; pp. 63–72. [Google Scholar]
  45. El Kolaly, W.; Ma, W.; Li, M.; Darwesh, M. The Investigation of Energy Production and Mushroom Yield in Greenhouse Production Based on Mono Photovoltaic Cells Effect. Renew. Energy 2020, 159, 506–518. [Google Scholar] [CrossRef]
  46. Ezzaeri, K.; Fatnassi, H.; Wifaya, A.; Bazgaou, A.; Aharoune, A.; Poncet, C.; Bekkaoui, A.; Bouirden, L. Performance of Photovoltaic Canarian Greenhouse: A Comparison Study between Summer and Winter Seasons. Sol. Energy 2020, 198, 275–282. [Google Scholar] [CrossRef]
  47. Yano, A.; Kadowaki, M.; Furue, A.; Tamaki, N.; Tanaka, T.; Hiraki, E.; Kato, Y.; Ishizu, F.; Noda, S. Shading and Electrical Features of a Photovoltaic Array Mounted inside the Roof of an East-West Oriented Greenhouse. Biosyst. Eng. 2010, 106, 367–377. [Google Scholar] [CrossRef]
  48. Kadowaki, M.; Yano, A.; Ishizu, F.; Tanaka, T.; Noda, S. Effects of Greenhouse Photovoltaic Array Shading on Welsh Onion Growth. Biosyst. Eng. 2012, 111, 290–297. [Google Scholar] [CrossRef]
  49. Perez-Alonso, J.; Perez-Garcia, M.; Pasamontes-Romera, M.; Callejon-Ferre, A.J. Performance Analysis and Neural Modelling of a Greenhouse Integrated Photovoltaic System. Renew. Sust. Energ. Rev. 2012, 16, 4675–4685. [Google Scholar] [CrossRef]
  50. Cossu, M.; Cossu, A.; Deligios, P.A.; Ledda, L.; Li, Z.; Fatnassi, H.; Poncet, C.; Yano, A. Assessment and Comparison of the Solar Radiation Distribution inside the Main Commercial Photovoltaic Greenhouse Types in Europe. Renew. Sustain. Energy Rev. 2018, 94, 822–834. [Google Scholar] [CrossRef]
  51. Marucci, A.; Zambon, I.; Colantoni, A.; Monarca, D. A Combination of Agricultural and Energy Purposes: Evaluation of a Prototype of Photovoltaic Greenhouse Tunnel. Renew. Sustain. Energy Rev. 2018, 82, 1178–1186. [Google Scholar] [CrossRef]
  52. Chen, J.; Xu, F.; Ding, B.; Wu, N.; Shen, Z.; Zhang, L. Performance Analysis of Radiation and Electricity Yield in a Photovoltaic Panel Integrated Greenhouse Using the Radiation and Thermal Models. Comput. Electron. Agric. 2019, 164, 104904. [Google Scholar] [CrossRef]
  53. Cossu, M.; Yano, A.; Solinas, S.; Deligios, P.A.; Tiloca, M.T.; Cossu, A.; Ledda, L. Agricultural Sustainability Estimation of the European Photovoltaic Greenhouses. Eur. J. Agron. 2020, 118, 126074. [Google Scholar] [CrossRef]
  54. Blando, F.; Gerardi, C.; Renna, M.; Castellano, S.; Serio, F. Characterisation of Bioactive Compounds in Berries from Plants Grown under Innovative Photovoltaic Greenhouses. J. Berry Res. 2018, 8, 55–69. [Google Scholar] [CrossRef]
  55. Tang, Y.; Ma, X.; Li, M.; Wang, Y. The Effect of Temperature and Light on Strawberry Production in a Solar Greenhouse. Sol. Energy 2020, 195, 318–328. [Google Scholar] [CrossRef]
  56. Tang, Y.; Li, M.; Ma, X. Study on Photovoltaic Modules on Greenhouse Roof for Energy and Strawberry Production. E3S Web Conf. 2019, 118. [Google Scholar] [CrossRef]
  57. Buttaro, D.; Renna, M.; Gerardi, C.; Blando, F.; Santamaria, P.; Serio, F. Soilless Production of Wild Rocket as Affected by Greenhouse Coverage with Photovoltaic Modules. Acta Sci. Pol.-Hortorum Cultus 2016, 15, 129–142. [Google Scholar]
  58. Zisis, C.; Pechlivani, E.M.; Tsimikli, S.; Mekeridis, E.; Laskarakis, A.; Logothetidis, S. Organic Photovoltaics on Greenhouse Rooftops: Effects on Plant Growth. Mater. Today Proc. 2019, 19, 65–72. [Google Scholar] [CrossRef]
  59. Kavga, A.; Strati, I.F.; Sinanoglou, V.J.; Fotakis, C.; Sotiroudis, G.; Christodoulou, P.; Zoumpoulakis, P. Evaluating the Experimental Cultivation of Peppers in Low-Energy-Demand Greenhouses. An Interdisciplinary Study. J. Sci. Food Agric. 2019, 99, 781–789. [Google Scholar] [CrossRef]
  60. Tsichlias, C.; Kavga, A.; Souliotis, M.; Katsoulas, N. Greenhouse Integrated Photovoltaics (GIPV): Effects in Microclimatic Parameters and Canopy Production. In Proceedings of the Acta Horticulturae; International Society for Horticultural Science (ISHS), Leuven, Belgium, 20 March 2020; pp. 71–78. [Google Scholar]
  61. Hassanien, R.H.E.; Ming, L. Influences of Greenhouse-Integrated Semi-Transparent Photovoltaics on Microclimate and Lettuce Growth. Int. J. Agric. Biol. Eng. 2017, 10, 11–22. [Google Scholar] [CrossRef] [Green Version]
  62. Trypanagnostopoulos, G.; Kavga, A.; Souliotis, Μ.; Tripanagnostopoulos, Y. Greenhouse Performance Results for Roof Installed Photovoltaics. Renew. Energy 2017, 111, 724–731. [Google Scholar] [CrossRef]
  63. Kavga, A.; Trypanagnostopoulos, G.; Zervoudakis, G.; Tripanagnostopoulos, Y. Growth and Physiological Characteristics of Lettuce (Lactuca Sativa L.) and Rocket (Eruca Sativa Mill.) Plants Cultivated under Photovoltaic Panels. Not. Bot. Horti Agrobot. Cluj-Napoca 2018, 46. [Google Scholar] [CrossRef] [Green Version]
  64. Kavga, A.; Trypanagnostopoulos, G.; Koulopoulos, A.; Tripanagnostopoulos, Y. Implementation of Photovoltaics on Greenhouses and Shading Effect to Plant Growth. In Proceedings of the Acta Horticulturae; International Society for Horticultural Science (ISHS), Leuven, Belgium, 10 July 2019; pp. 749–756. [Google Scholar]
  65. Colantoni, A.; Monarca, D.; Marucci, A.; Cecchini, M.; Zambon, I.; Di Battista, F.; Maccario, D.; Saporito, G.M.; Beruto, M. Solar Radiation Distribution inside a Greenhouse Prototypal with Photovoltaic Mobile Plant and Effects on Flower Growth. Sustainability 2018, 10, 855. [Google Scholar] [CrossRef] [Green Version]
  66. Hassanien, R.H.E.; Li, M.; Yin, F. The Integration of Semi-Transparent Photovoltaics on Greenhouse Roof for Energy and Plant Production. Renew. Energy 2018, 121, 377–388. [Google Scholar] [CrossRef]
  67. Ureña, R.; Pérez, J.; Pérez, M.; Carreño, A.; Callejón, A.J.; Vázquez, F.J. Experiences on the Integration of Thin Film Photovoltaic Modules in a Mediterranean Greenhouse. In Proceedings of the World Congress of the International Commission of Agricultural and Biosystems Engineering, Québec City, QC, Canada, 13–17 June 2010. [Google Scholar]
  68. Ureña, R.; Callejón, A.J.; Pérez, J.; Carreño, A. Greenhouse Tomato Production with Electricity Generation by Roof-Mounted Flexible Solar Panels. Sci. Agric. 2012, 69, 233–239. [Google Scholar] [CrossRef]
  69. Ezzaeri, K.; Fatnassi, H.; Bouharroud, R.; Gourdo, L.; Bazgaou, A.; Wifaya, A.; Demrati, H.; Bekkaoui, A.; Aharoune, A.; Poncet, C.; et al. The Effect of Photovoltaic Panels on the Microclimate and on the Tomato Production under Photovoltaic Canarian Greenhouses. Sol. Energy 2018, 173, 1126–1134. [Google Scholar] [CrossRef]
  70. Aroca-Delgado, R.; Pérez-Alonso, J.; Callejón-Ferre, Á.-J.; Díaz-Pérez, M. Morphology, Yield and Quality of Greenhouse Tomato Cultivation with Flexible Photovoltaic Rooftop Panels (Almería-Spain). Sci. Hortic. 2019, 257, 108768. [Google Scholar] [CrossRef]
  71. Vadiee, A.; Yaghoubi, M.; Martin, V.; Bazargan-Lari, Y. Energy Analysis of Solar Blind System Concept Using Energy System Modelling. Sol. Energy 2016, 139, 297–308. [Google Scholar] [CrossRef]
  72. Gao, Y.; Dong, J.; Isabella, O.; Santbergen, R.; Tan, H.; Zeman, M.; Zhang, G. Modeling and Analyses of Energy Performances of Photovoltaic Greenhouses with Sun-Tracking Functionality. Appl. Energy 2019, 233–234, 424–442. [Google Scholar] [CrossRef]
  73. Alinejad, T.; Yaghoubi, M.; Vadiee, A. Thermo-Environomic Assessment of an Integrated Greenhouse with an Adjustable Solar Photovoltaic Blind System. Renew. Energy 2020, 156, 1–13. [Google Scholar] [CrossRef]
  74. Marucci, A.; Monarca, D.; Cecchini, M.; Colantoni, A.; Capuccini, A. Analysis of Internal Shading Degree to a Prototype of Dynamics Photovoltaic Greenhouse through Simulation Software. J. Agric. Eng. 2015, 46, 144–150. [Google Scholar] [CrossRef] [Green Version]
  75. Marucci, A.; Cappuccini, A. Dynamic Photovoltaic Greenhouse: Energy Balance in Completely Clear Sky Condition during the Hot Period. Energy 2016, 102, 302–312. [Google Scholar] [CrossRef]
  76. Marucci, A.; Cappuccini, A. Dynamic Photovoltaic Greenhouse: Energy Efficiency in Clear Sky Conditions. Appl. Energy 2016, 170, 362–376. [Google Scholar] [CrossRef]
  77. Moretti, S.; Marucci, A. A Photovoltaic Greenhouse with Variable Shading for the Optimization of Agricultural and Energy Production. Energies 2019, 12, 2589. [Google Scholar] [CrossRef] [Green Version]
  78. Moretti, S.; Marucci, A. A Photovoltaic Greenhouse with Passive Variation in Shading by Fixed Horizontal PV Panels. Energies 2019, 12, 3269. [Google Scholar] [CrossRef] [Green Version]
  79. Li, Z.; Yano, A.; Cossu, M.; Yoshioka, H.; Kita, I.; Ibaraki, Y. Electrical Energy Producing Greenhouse Shading System with a Semi-Transparent Photovoltaic Blind Based on Micro-Spherical Solar Cells. Energies 2018, 11, 1681. [Google Scholar] [CrossRef] [Green Version]
  80. Li, Z.; Yano, A.; Cossu, M.; Yoshioka, H.; Kita, I.; Ibaraki, Y. Shading and Electric Performance of a Prototype Greenhouse Blind System Based on Semi-Transparent Photovoltaic Technology. J. Agric. Meteorol. 2018, 74, 114–122. [Google Scholar] [CrossRef] [Green Version]
  81. Li, Z.; Yano, A.; Yoshioka, H. Feasibility Study of a Blind-Type Photovoltaic Roof-Shade System Designed for Simultaneous Production of Crops and Electricity in a Greenhouse. Appl. Energy 2020, 279, 115853. [Google Scholar] [CrossRef]
  82. Marucci, A.; Monarca, D.; Cecchini, M.; Colantoni, A.; Manzo, A.; Cappuccini, A. The Semitransparent Photovoltaic Films for Mediterranean Greenhouse: A New Sustainable Technology. Math. Probl. Eng. 2012, 2012, 451934. [Google Scholar] [CrossRef]
  83. Marucci, A.; Gusman, A.; Pagniello, B.; Cappuccini, A. Solar Radiation inside Greenhouses Covered with Semitransparent Photovoltaic Film: First Experimental Results. J. Agric. Eng. 2013, 44. [Google Scholar] [CrossRef]
  84. Tani, A.; Shiina, S.; Nakashima, K.; Hayashi, M. Improvement in Lettuce Growth by Light Diffusion under Solar Panels. J. Agric. Meteorol. 2014, 70, 139–149. [Google Scholar] [CrossRef] [Green Version]
  85. Yano, A.; Onoe, M.; Nakata, J. Prototype Semi-Transparent Photovoltaic Modules for Greenhouse Roof Applications. Biosyst. Eng. 2014, 122, 62–73. [Google Scholar] [CrossRef] [Green Version]
  86. Cossu, M.; Yano, A.; Li, Z.; Onoe, M.; Nakamura, H.; Matsumoto, T.; Nakata, J. Advances on the Semi-Transparent Modules Based on Micro Solar Cells: First Integration in a Greenhouse System. Appl. Energy 2016, 162, 1042–1051. [Google Scholar] [CrossRef] [Green Version]
  87. Loik, M.E.; Carter, S.A.; Alers, G.; Wade, C.E.; Shugar, D.; Corrado, C.; Jokerst, D.; Kitayama, C. Wavelength-Selective Solar Photovoltaic Systems: Powering Greenhouses for Plant Growth at the Food-Energy-Water Nexus. Earth’s Future 2017, 5, 1044–1053. [Google Scholar] [CrossRef]
  88. Osterthun, N.; Steenhoff, V.; Neugebohrn, N.; Gehrke, K.; Vehse, M.; Agert, C. Spectrally Selective Solar Cells for Simultaneous Use of Photosynthesis and Photovoltaics. In Proceedings of the 35th European Photovoltaic Solar Energy Conference and Exhibition, Brussels, Belgium, 24–28 September 2018; pp. 180–183. [Google Scholar]
  89. Cho, C.; Nam, K.; Kim, G.-Y.; Seo, Y.H.; Hwang, T.G.; Seo, J.-W.; Kim, J.P.; Han, J.-I.; Lee, J.-Y. Multi-Bandgap Solar Energy Conversion via Combination of Microalgal Photosynthesis and Spectrally Selective Photovoltaic Cell. Sci. Rep. 2019, 9, 18999. [Google Scholar] [CrossRef] [Green Version]
  90. Osterthun, N.; Neugebohrn, N.; Gehrke, K.; Vehse, M.; Agert, C. Spectral Engineering of Ultrathin Germanium Solar Cells for Combined Photovoltaic and Photosynthesis. Opt. Express 2021, 29, 938–950. [Google Scholar] [CrossRef]
  91. Liu, L.; Guan, C.; Zhang, F.; Li, M.; Lv, H.; Liu, Y.; Yao, P.; Ingenhoff, J.; Liu, W. A Novel Application for Concentrator Photovoltaic in the Field of Agriculture Photovoltaics. AIP Conf. Proc. 2017, 1881, 080008. [Google Scholar] [CrossRef] [Green Version]
  92. Liu, W.; Liu, L.; Guan, C.; Zhang, F.; Li, M.; Lv, H.; Yao, P.; Ingenhoff, J. A Novel Agricultural Photovoltaic System Based on Solar Spectrum Separation. Sol. Energy 2018, 162, 84–94. [Google Scholar] [CrossRef]
  93. Zhang, Z.; Zhang, F.; Li, M.; Liu, L.; Lv, H.; Liu, Y.; Yao, P.; Liu, W.; Ou, Q.; Liu, W.; et al. Progress in Agriculture Photovoltaic Leveraging CPV. AIP Conf. Proc. 2018, 2012, 110006. [Google Scholar] [CrossRef]
  94. Sonneveld, P.J.; Swinkels, G.L.A.M.; Kempkes, F.; Campen, J.B.; Bot, G.P.A. Greenhouse with an Integrated NIR Filter and a Solar Cooling System. In Proceedings of the Acta Horticulturae; International Society for Horticultural Science (ISHS), Leuven, Belgium, 30 September 2006; pp. 123–130. [Google Scholar]
  95. Sonneveld, P.J.; Holterman, H.J.; Swinkels, G.L.A.M.; van Tuijl, B.A.J.; Janssen, H.J.J.; Gieling, T.H. PV System Integrated in a Solar Greenhouse with NIR Selective Coating. In Proceedings of the 24th European Photovoltaic Solar Energy Conference, Hamburg, Germany, 21–25 September 2009; pp. 3752–3757. [Google Scholar]
  96. Sonneveld, P.J.; Swinkels, G.L.A.M.; Bot, G.P.A. Design of a Solar Greenhouse with Energy Delivery by the Conversion of near Infrared Radiation-Part 1 Optics and PV-Cells. In Proceedings of the Acta Horticulturae; International Society for Horticultural Science (ISHS), Leuven, Belgium, 31 January 2009; pp. 47–54. [Google Scholar]
  97. Sonneveld, P.J.; Swinkels, G.L.A.M.; Bot, G.P.A.; Flamand, G. Feasibility Study for Combining Cooling and High Grade Energy Production in a Solar Greenhouse. Biosyst. Eng. 2010, 105, 51–58. [Google Scholar] [CrossRef]
  98. Sonneveld, P.J.; Swinkels, G.L.A.M.; Campen, J.; Tuijl, B.A.J.; Van Tuijl, B.A.J.; Janssen, H.J.J.; Bot, G.P.A. Performance Results of a Solar Greenhouse Combining Electrical and Thermal Energy Production. Biosyst. Eng. 2010, 106, 48–57. [Google Scholar] [CrossRef]
  99. Sonneveld, P.J.; Swinkels, G.L.A.M.; van Tuijl, B.A.J.; Janssen, H.J.J.; Gieling, T. A Fresnel Lenses Based Concentrated PV System in a Greenhouse. In Proceedings of the 24th European Photovoltaic Solar Energy Conference, Hamburg, Germany, 21–25 September 2009; pp. 3758–3761. [Google Scholar]
  100. Sonneveld, P.J.; Swinkels, G.L.A.M.; van Tuijl, B.A.J.; Janssen, H.J.J.; Campen, J.; Bot, G.P.A. Performance of a Concentrated Photovoltaic Energy System with Static Linear Fresnel Lenses. Sol. Energy 2011, 85, 432–442. [Google Scholar] [CrossRef]
  101. Sonneveld, P.J.; Swinkels, G.L.A.M.; van Tuijl, B.A.J.; Janssen, H.; de Zwart, H.F. Up Scaling and Test Results of an Advanced Fresnel Greenhouse. In Proceedings of the Acta Horticulturae; International Society for Horticultural Science (ISHS), Leuven, Belgium, 1 June 2012; pp. 531–537. [Google Scholar]
  102. Janssen, H.J.J.; Swinkels, G.L.A.M.; de Zwart, H.F. Results from a PV System with Linear Fresnel Lenses Integrated in a Greenhouse. In Proceedings of the 28th European Photovoltaic Solar Energy Conference and Exhibition, Paris, France, 30 September–4 October 2013; pp. 4325–4330. [Google Scholar]
  103. Sonneveld, P. Possibility of Climate Control of a Greenhouse with Concentrating Solar Power System-a Concept Design. In Proceedings of the Acta Horticulturae; International Society for Horticultural Science (ISHS), Leuven, Belgium, 22 October 2014; pp. 55–61. [Google Scholar]
  104. Sonneveld, P.J.; van der Sluys, M.; van Rhijn, A.; Hebbink, M. Feasibility Study of an Electricity Delivering Fresnel Greenhouse. In Proceedings of the Acta Horticulturae; International Society for Horticultural Science (ISHS), Leuven, Belgium, 31 July 2017; pp. 477–484. [Google Scholar]
  105. Insolight Planar Optical Micro-Tracking Photovoltaic Modules. Available online: (accessed on 7 December 2020).
  106. Nardin, G.; Domínguez, C.; Aguilar, Á.F.; Anglade, L.; Duchemin, M.; Schuppisser, D.; Gerlich, F.; Ackermann, M.; Coulot, L.; Cuénod, B.; et al. Industrialization of Hybrid Si/III–V and Translucent Planar Micro-Tracking Modules. Prog. Photovolt. Res. Appl. 2020. [Google Scholar] [CrossRef]
  107. Corrado, C.; Leow, S.W.; Osborn, M.; Chan, E.; Balaban, B.; Carter, S.A. Optimization of Gain and Energy Conversion Efficiency Using Front-Facing Photovoltaic Cell Luminescent Solar Concentratordesign. Sol. Energy Mater. Sol. Cells 2013, 111, 74–81. [Google Scholar] [CrossRef]
  108. Corrado, C.; Leow, S.W.; Osborn, M.; Carbone, I.; Hellier, K.; Short, M.; Alers, G.; Carter, S.A. Power Generation Study of Luminescent Solar Concentrator Greenhouse. J. Renew. Sustain. Energy 2016, 8, 043502. [Google Scholar] [CrossRef] [Green Version]
  109. Bernardoni, P.; Vincenzi, D.; Mangherini, G.; Boschetti, M.; Andreoli, A.; Gjestila, M.; Samà, C.; Gila, L.; Palmery, S.; Tonezzer, M.; et al. Improved Healthy Growth of Basil Seedlings under LSC Filtered Illumination. In Proceedings of the 37th European Photovoltaic Solar Energy Conference and Exhibition, Lisbon, Portugal, 7–11 September 2020; pp. 1767–1771. [Google Scholar]
  110. Detweiler, A.M.; Mioni, C.E.; Hellier, K.L.; Allen, J.J.; Carter, S.A.; Bebout, B.M.; Fleming, E.E.; Corrado, C.; Prufert-Bebout, L.E. Evaluation of Wavelength Selective Photovoltaic Panels on Microalgae Growth and Photosynthetic Efficiency. Algal Res. 2015, 9, 170–177. [Google Scholar] [CrossRef]
  111. Thompson, E.P.; Bombelli, E.L.; Shubham, S.; Watson, H.; Everard, A.; D’Ardes, V.; Schievano, A.; Bocchi, S.; Zand, N.; Howe, C.J.; et al. Tinted Semi-Transparent Solar Panels Allow Concurrent Production of Crops and Electricity on the Same Cropland. Adv. Energy Mater. 2020, 2001189. [Google Scholar] [CrossRef]
  112. Emmott, C.J.M.; Röhr, J.A.; Campoy-Quiles, M.; Kirchartz, T.; Urbina, A.; Ekins-Daukes, N.J.; Nelson, J. Organic Photovoltaic Greenhouses: A Unique Application for Semi-Transparent PV? Energy Environ. Sci. 2015. [Google Scholar] [CrossRef]
  113. Ravishankar, E.; Booth, R.E.; Saravitz, C.; Sederoff, H.; Ade, H.W.; O’Connor, B.T. Achieving Net Zero Energy Greenhouses by Integrating Semitransparent Organic Solar Cells. Joule 2020, 4, 490–506. [Google Scholar] [CrossRef]
  114. Ravishankar, E.; Charles, M.; Xiong, Y.; Henry, R.; Swift, J.; Rech, J.; Calero, J.; Cho, S.; Booth, R.E.; Kim, T.; et al. Balancing Crop Production and Energy Harvesting in Organic Solar-Powered Greenhouses. Cell Rep. Phys. Sci. 2021, 100381. [Google Scholar] [CrossRef]
  115. Yang, F.; Zhang, Y.; Hao, Y.; Cui, Y.; Wang, W.; Ji, T.; Shi, F.; Wei, B. Visibly Transparent Organic Photovoltaic with Improved Transparency and Absorption Based on Tandem Photonic Crystal for Greenhouse Application. Appl. Opt. 2015, 54, 10232–10239. [Google Scholar] [CrossRef]
  116. Chang, S.-Y.; Cheng, P.; Li, G.; Yang, Y. Transparent Polymer Photovoltaics for Solar Energy Harvesting and Beyond. Joule 2018, 2, 1039–1054. [Google Scholar] [CrossRef] [Green Version]
  117. Liu, Y.; Cheng, P.; Li, T.; Wang, R.; Li, Y.; Chang, S.-Y.; Zhu, Y.; Cheng, H.-W.; Wei, K.-H.; Zhan, X.; et al. Unraveling Sunlight by Transparent Organic Semiconductors toward Photovoltaic and Photosynthesis. ACS Nano 2019, 13, 1071–1077. [Google Scholar] [CrossRef]
  118. Shi, H.; Xia, R.; Zhang, G.; Yip, H.-L.; Cao, Y. Spectral Engineering of Semitransparent Polymer Solar Cells for Greenhouse Applications. Adv. Energy Mater. 2019, 9, 1803438. [Google Scholar] [CrossRef]
  119. Song, W.; Fanady, B.; Peng, R.; Hong, L.; Wu, L.; Zhang, W.; Yan, T.; Wu, T.; Chen, S.; Ge, Z. Foldable Semitransparent Organic Solar Cells for Photovoltaic and Photosynthesis. Adv. Energy Mater. 2020, 10, 2000136. [Google Scholar] [CrossRef]
  120. dos Reis Benatto, G.A.; Corazza, M.; Roth, B.; Schütte, F.; Rengenstein, M.; Gevorgyan, S.A.; Krebs, F.C. Inside or Outside? Linking Outdoor and Indoor Lifetime Tests of ITO-Free Organic Photovoltaic Devices for Greenhouse Applications. Energy Technol. 2017, 5, 338–344. [Google Scholar] [CrossRef]
  121. Hirata, Y.; Watanabe, Y.; Yachi, T. Evaluation of Output of Transparent Organic Photovoltaic Modules on Curved Surfaces Depending on Azimuth. In Proceedings of the 2018 IEEE 7th World Conference on Photovoltaic Energy Conversion (WCPEC) (A Joint Conference of 45th IEEE PVSC, 28th PVSEC & 34th EU PVSEC), Waikoloa, HI, USA, 10–15 June 2018; pp. 1112–1115. [Google Scholar]
  122. Friman Peretz, M.; Geoola, F.; Yehia, I.; Ozer, S.; Levi, A.; Magadley, E.; Brikman, R.; Rosenfeld, L.; Levy, A.; Kacira, M.; et al. Testing Organic Photovoltaic Modules for Application as Greenhouse Cover or Shading Element. Biosyst. Eng. 2019, 184, 24–36. [Google Scholar] [CrossRef]
  123. Friman-Peretz, M.; Ozer, S.; Geoola, F.; Magadley, E.; Yehia, I.; Levi, A.; Brikman, R.; Gantz, S.; Levy, A.; Kacira, M.; et al. Microclimate and Crop Performance in a Tunnel Greenhouse Shaded by Organic Photovoltaic Modules–Comparison with Conventional Shaded and Unshaded Tunnels. Biosyst. Eng. 2020, 197, 12–31. [Google Scholar] [CrossRef]
  124. Magadley, E.; Teitel, M.; Peretz, M.F.; Kacira, M.; Yehia, I. Outdoor Behaviour of Organic Photovoltaics on a Greenhouse Roof. Sustain. Energy Technol. Assess. 2020, 37, 100641. [Google Scholar] [CrossRef]
  125. Leon, A.; Ishihara, K.N. Assessment of New Functional Units for Agrivoltaic Systems. J. Environ. Manag. 2018, 226, 493–498. [Google Scholar] [CrossRef]
  126. Leon, A.; Ishihara, K.N. Influence of Allocation Methods on the LC-CO2 Emission of an Agrivoltaic System. Resour. Conserv. Recycl. 2018, 138, 110–117. [Google Scholar] [CrossRef]
  127. Hollingsworth, J.A.; Ravishankar, E.; O’Connor, B.; Johnson, J.X.; DeCarolis, J.F. Environmental and Economic Impacts of Solar-Powered Integrated Greenhouses. J. Ind. Ecol. 2020, 24, 234–247. [Google Scholar] [CrossRef] [Green Version]
  128. Kim, J.-J.; Kang, M.; Kwak, O.K.; Yoon, Y.-J.; Min, K.S.; Chu, M.-J. Fabrication and Characterization of Dye-Sensitized Solar Cells for Greenhouse Application. Int. J. Photoenergy 2014, 2014, 376315. [Google Scholar] [CrossRef]
  129. Allardyce, C.S.; Fankhauser, C.; Zakeeruddin, S.M.; Grätzel, M.; Dyson, P.J. The Influence of Greenhouse-Integrated Photovoltaics on Crop Production. Sol. Energy 2017, 155, 517–522. [Google Scholar] [CrossRef]
  130. Barbera, E.; Sforza, E.; Guidobaldi, A.; Di Carlo, A.; Bertucco, A. Integration of Dye-Sensitized Solar Cells (DSC) on Photobioreactors for Improved Photoconversion Efficiency in Microalgal Cultivation. Renew. Energy 2017, 109, 13–21. [Google Scholar] [CrossRef]
  131. Barbera, E.; Sforza, E.; Vecchiato, L.; Bertucco, A. Energy and Economic Analysis of Microalgae Cultivation in a Photovoltaic-Assisted Greenhouse: Scenedesmus Obliquus as a Case Study. Energy 2017, 140, 116–124. [Google Scholar] [CrossRef]
  132. Roslan, N.; Ya’acob, M.E.; Radzi, M.A.M.; Hashimoto, Y.; Jamaludin, D.; Chen, G. Dye Sensitized Solar Cell (DSSC) Greenhouse Shading: New Insights for Solar Radiation Manipulation. Renew. Sustain. Energy Rev. 2018, 92, 171–186. [Google Scholar] [CrossRef]
  133. Ntinas, G.K.; Kadoglidou, K.; Tsivelika, N.; Krommydas, K.; Kalivas, A.; Ralli, P.; Irakli, M. Performance and Hydroponic Tomato Crop Quality Characteristics in a Novel Greenhouse Using Dye-Sensitized Solar Cell Technology for Covering Material. Horticulturae 2019, 5, 42. [Google Scholar] [CrossRef] [Green Version]
  134. Chalkias, D.A.; Charalampopoulos, C.; Aivali, S.; Andreopoulou, A.K.; Karavioti, A.; Stathatos, E. A Di-Carbazole-Based Dye as a Potential Sensitizer for Greenhouse-Integrated Dye-Sensitized Solar Cells. Energies 2021, 14, 1159. [Google Scholar] [CrossRef]
  135. Andrew, A.C. Lamb Growth and Pasture Production in Agrivoltaic Production System. Bachelor’s Thesis, Oregon State University, Corvallis, OR, USA, 2020. [Google Scholar]
  136. Maia, A.S.C.; de Andrade Culhari, E.; Fonsêca, V.D.F.C.; Milan, H.F.M.; Gebremedhin, K.G. Photovoltaic Panels as Shading Resources for Livestock. J. Clean. Prod. 2020, 258, 120551. [Google Scholar] [CrossRef]
  137. Walston, L.J.; Mishra, S.K.; Hartmann, H.M.; Hlohowskyj, I.; McCall, J.; Macknick, J. Examining the Potential for Agricultural Benefits from Pollinator Habitat at Solar Facilities in the United States. Environ. Sci. Technol. 2018, 52, 7566–7576. [Google Scholar] [CrossRef] [PubMed]
  138. U.S. Department of Energy’s InSPIRE Project. Available online: (accessed on 7 December 2020).
  139. Sánchez-Pantoja, N.; Vidal, R.; Pastor, M.C. Aesthetic Impact of Solar Energy Systems. Renew. Sustain. Energy Rev. 2018, 98, 227–238. [Google Scholar] [CrossRef]
  140. Irie, N.; Kawahara, N.; Esteves, A.M. Sector-Wide Social Impact Scoping of Agrivoltaic Systems: A Case Study in Japan. Renew. Energy 2019, 139, 1463–1476. [Google Scholar] [CrossRef]
  141. Ketzer, D.; Weinberger, N.; Rösch, C.; Seitz, S.B. Land Use Conflicts between Biomass and Power Production–Citizens’ Participation in the Technology Development of Agrophotovoltaics. J. Responsible Innov. 2020, 7, 193–216. [Google Scholar] [CrossRef]
  142. Ketzer, D.; Schlyter, P.; Weinberger, N.; Rösch, C. Driving and Restraining Forces for the Implementation of the Agrophotovoltaics System Technology—A System Dynamics Analysis. J. Environ. Manag. 2020, 270, 110864. [Google Scholar] [CrossRef]
  143. Trommsdorff, M. An Economic Analysis of Agrophotovoltaics: Opportunities, Risks and Strategies towards a More Efficient Land Use; University of Freiburg, Institute for Economic Research, Department of Economic Policy and Constitutional Economic Theory: Freiburg im Breisgau, Germany, 2016. [Google Scholar]
  144. Serrano-Luján, L.; García-Valverde, R.; Espinosa, N.; García-Cascales, M.S.; Sánchez-Lozano, J.M.; Urbina, A. Environmental Benefits of Parking-Integrated Photovoltaics: A 222 KWp Experience. Prog. Photovolt. Res. Appl. 2015, 23, 253–264. [Google Scholar] [CrossRef]
  145. Beck, M.; Bopp, G.; Goetzberger, A.; Obergfell, T.; Reise, C.; Schindele, S. Combining PV and Food Crops to Agrophotovoltaic–Optimization of Orientation and Harvest. In Proceedings of the 27th European Photovoltaic Solar Energy Conference and Exhibition, Frankfurt (GE), Germany, 24–28 September 2012; pp. 4096–4100. [Google Scholar]
  146. Bulgari, R.; Cola, G.; Ferrante, A.; Franzoni, G.; Mariani, L.; Martinetti, L. Micrometeorological Environment in Traditional and Photovoltaic Greenhouses and Effects on Growth and Quality of Tomato (Solanum Lycopersicum L.). Ital. J. Agrometeorol. 2015, 20, 27–38. [Google Scholar]
  147. Cho, J.; Park, S.M.; Park, A.R.; Lee, O.C.; Nam, G.; Ra, I.-H. Application of Photovoltaic Systems for Agriculture: A Study on the Relationship between Power Generation and Farming for the Improvement of Photovoltaic Applications in Agriculture. Energies 2020, 13, 4815. [Google Scholar] [CrossRef]
  148. Chiba University; NPO Regional Sustainability Research Institute. Report of the Results of Nationwide Survey on Solar Sharing; Chiba University: Chiba, Japan, 2019. [Google Scholar]
  149. APC Solar Sharing Network. Solar Sharing for Fun. Available online: (accessed on 7 December 2020).
  150. Trommsdorff, M.; Kang, J.; Reise, C.; Schindele, S.; Bopp, G.; Ehmann, A.; Weselek, A.; Högy, P.; Obergfell, T. Combining Food and Energy Production: Design of an Agrivoltaic System Applied in Arable and Vegetable Farming in Germany. Renew. Sustain. Energy Rev. 2021, 140, 110694. [Google Scholar] [CrossRef]
  151. Tabea Obergfell Agrovoltaik–Landwirtschaft Unter Photovoltaikanlagen. In Eine Machbarkeitsstudie Für Den. Standort Deutschland; University of Kassel: Kassel, Germany, 2012.
  152. Weselek, A.; Ehmann, A.; Zikeli, S.; Lewandowski, I.; Schindele, S.; Högy, P. Agrophotovoltaic Systems: Applications, Challenges, and Opportunities. A Review. Agron. Sustain. Dev. 2019, 39, 35. [Google Scholar] [CrossRef]
  153. Hassanpour Adeh, E.; Selker, J.S.; Higgins, C.W. Remarkable Agrivoltaic Influence on Soil Moisture, Micrometeorology and Water-Use Efficiency. PLoS ONE 2018, 13, e0203256. [Google Scholar] [CrossRef] [Green Version]
  154. López-Díaz, G.; Carreño-Ortega, A.; Fatnassi, H.; Poncet, C.; Díaz-Pérez, M. The Effect of Different Levels of Shading in a Photovoltaic Greenhouse with a North–South Orientation. Appl. Sci. 2020, 10, 882. [Google Scholar] [CrossRef] [Green Version]
  155. Marucci, A.; Monarca, D.; Colantoni, A.; Campiglia, E.; Cappuccini, A. Analysis of the Internal Shading in a Photovoltaic Greenhouse Tunnel. J. Agric. Eng. 2017, 48, 154–160. [Google Scholar] [CrossRef] [Green Version]
  156. Willockx, B.; Uytterhaegen, B.; Ronsijn, B.; Herteleer, B.; Cappelle, J. A Standardized Classification and Performance Indicators of Agrivoltaic Systems. In Proceedings of the 37th European Photovoltaic Solar Energy Conference and Exhibition, Lisbon, Portugal, 7–11 September 2020; pp. 1995–1998. [Google Scholar]
  157. Scognamiglio, A. ‘Photovoltaic Landscapes’: Design and Assessment. A Critical Review for a New Transdisciplinary Design Vision. Renew. Sustain. Energy Rev. 2016, 55, 629–661. [Google Scholar] [CrossRef]
  158. Forman, R.T.T. Land Mosaics: The Ecology of Landscapes and Regions; Cambridge University Press: Cambridge, UK, 1995; ISBN 978-0-521-47980-6. [Google Scholar]
  159. Oudes, D.; Stremke, S. Next Generation Solar Power Plants? A Comparative Analysis of Frontrunner Solar Landscapes in Europe. Renew. Sustain. Energy Rev. 2021, 145, 111101. [Google Scholar] [CrossRef]
  160. Balmori Associates University of Buffalo Solar Park Project. Available online: (accessed on 1 March 2021).
  161. Solar Power Europe. Agri-PV: How Solar Enables the Clean Energy Transition in Rural Areas; SolarPower Europe: Brussels, Belgium, 2020. [Google Scholar]
  162. European Commission, Joint Research Centre. Horizon Scanning Alert: Agrivoltaics, Shielding Crops with PV Panels; European Commission: Brussels, Belgium, 2020. [Google Scholar]
  163. Muñoz-Liesa, J.; Toboso-Chavero, S.; Mendoza Beltran, A.; Cuerva, E.; Gallo, E.; Gassó-Domingo, S.; Josa, A. Building-Integrated Agriculture: Are We Shifting Environmental Impacts? An Environmental Assessment and Structural Improvement of Urban Greenhouses. Resour. Conserv. Recycl. 2021, 169, 105526. [Google Scholar] [CrossRef]
  164. Council of Europe European Landscape Convention. Available online: (accessed on 7 December 2020).
  165. Picchi, P.; van Lierop, M.; Geneletti, D.; Stremke, S. Advancing the Relationship between Renewable Energy and Ecosystem Services for Landscape Planning and Design: A Literature Review. Ecosyst. Serv. 2019, 35, 241–259. [Google Scholar] [CrossRef]
Figure 1. Literature review analysis.
Figure 1. Literature review analysis.
Sustainability 13 06871 g001
Figure 2. First models of agrivoltaic systems: co-located agriculture and solar photovoltaic (APV). © Goetzberger and Zastrow [1] (a), A. Nagashima [3] (b).
Figure 2. First models of agrivoltaic systems: co-located agriculture and solar photovoltaic (APV). © Goetzberger and Zastrow [1] (a), A. Nagashima [3] (b).
Sustainability 13 06871 g002
Figure 3. Experimental agrivoltaic system in Montpellier, France. © C. Dupraz.
Figure 3. Experimental agrivoltaic system in Montpellier, France. © C. Dupraz.
Sustainability 13 06871 g003
Figure 4. Experimental agrivoltaic systems installed by Fraunhofer ISE in Germany (a,b) and Chile (c). © Fraunhofer ISE.
Figure 4. Experimental agrivoltaic systems installed by Fraunhofer ISE in Germany (a,b) and Chile (c). © Fraunhofer ISE.
Sustainability 13 06871 g004
Figure 5. First demonstrator projects developed by the following companies: Sun’agri in France (a), REM Tec in Italy (b) and BayWa r.e. in the Netherlands (c). © Sun’agri (a), REM Tec (b), BayWa r.e. (c).
Figure 5. First demonstrator projects developed by the following companies: Sun’agri in France (a), REM Tec in Italy (b) and BayWa r.e. in the Netherlands (c). © Sun’agri (a), REM Tec (b), BayWa r.e. (c).
Sustainability 13 06871 g005
Figure 6. Research pilot plants with low height PV mounting system. © P. Santra (a), B. Patel (b), N.F. Othman (c).
Figure 6. Research pilot plants with low height PV mounting system. © P. Santra (a), B. Patel (b), N.F. Othman (c).
Sustainability 13 06871 g006
Figure 7. Commercial plants with ground-based PV mounting system. © Akuo Energy (a), Next2Sun GmbH (b,c).
Figure 7. Commercial plants with ground-based PV mounting system. © Akuo Energy (a), Next2Sun GmbH (b,c).
Sustainability 13 06871 g007
Figure 8. Approaches to integrate PV into greenhouse’s envelope. © A. Yano [47] (a), A. Marucci [75] (b), M. E. Loik [87] (c).
Figure 8. Approaches to integrate PV into greenhouse’s envelope. © A. Yano [47] (a), A. Marucci [75] (b), M. E. Loik [87] (c).
Sustainability 13 06871 g008
Figure 9. Ground-mounted PV and crop zones (adapted from [145]).
Figure 9. Ground-mounted PV and crop zones (adapted from [145]).
Sustainability 13 06871 g009
Figure 10. Different pattern solutions currently implemented or under investigation in open-field type APV systems. In the figures, the arrow is pointed north. The different solutions have an influence on irradiance and connectivity, as emphasized in Section 4.1, and different configurations create different pore zone types.
Figure 10. Different pattern solutions currently implemented or under investigation in open-field type APV systems. In the figures, the arrow is pointed north. The different solutions have an influence on irradiance and connectivity, as emphasized in Section 4.1, and different configurations create different pore zone types.
Sustainability 13 06871 g010
Figure 11. PV patterns in envelope integrated PV + protected crops systems (PV greenhouses). (a) Gable roof, dynamic system. (b) Gable roof fixed system, different densities 15%, 25% and 50% (adapted from [154]). (c) tunnel greenhouse, up: 37% PV density [122,123,124], down: checkerboard arrangement [51,155]. (d) Gable roof, one pitch covered 100% [43], 25% [47,48] checkerboard arrangement [47,48,49,50,51,52] and 20% [55,56]. (e) one pitch 100% and 32% covered [54] and semi-transparent glass PV modules (by spacing PV cells) 50% of light transmittance [65,84]. (f) Asymmetrical greenhouse, dynamic approach [74,75,76,77,78].
Figure 11. PV patterns in envelope integrated PV + protected crops systems (PV greenhouses). (a) Gable roof, dynamic system. (b) Gable roof fixed system, different densities 15%, 25% and 50% (adapted from [154]). (c) tunnel greenhouse, up: 37% PV density [122,123,124], down: checkerboard arrangement [51,155]. (d) Gable roof, one pitch covered 100% [43], 25% [47,48] checkerboard arrangement [47,48,49,50,51,52] and 20% [55,56]. (e) one pitch 100% and 32% covered [54] and semi-transparent glass PV modules (by spacing PV cells) 50% of light transmittance [65,84]. (f) Asymmetrical greenhouse, dynamic approach [74,75,76,77,78].
Sustainability 13 06871 g011
Figure 12. Agrivoltaic systems: typologies.
Figure 12. Agrivoltaic systems: typologies.
Sustainability 13 06871 g012
Figure 13. Comprehensive methodological approach to describe APV systems (on ground PV + open-field crops) from a trans-disciplinary perspective (preliminary qualitative assessment).
Figure 13. Comprehensive methodological approach to describe APV systems (on ground PV + open-field crops) from a trans-disciplinary perspective (preliminary qualitative assessment).
Sustainability 13 06871 g013aSustainability 13 06871 g013bSustainability 13 06871 g013cSustainability 13 06871 g013d
Figure 14. The three-dimensional pattern of the APV systems.
Figure 14. The three-dimensional pattern of the APV systems.
Sustainability 13 06871 g014
Figure 15. Irradiation vs. height of the photovoltaic modules on the ground.
Figure 15. Irradiation vs. height of the photovoltaic modules on the ground.
Sustainability 13 06871 g015
Figure 16. Photovoltaic pattern and connectivity.
Figure 16. Photovoltaic pattern and connectivity.
Sustainability 13 06871 g016
Figure 17. Porous pattern and connectivity.
Figure 17. Porous pattern and connectivity.
Sustainability 13 06871 g017
Figure 18. Comprehensive methodological approach to describe APV systems (envelope integrated PV + protected crops) from a trans-disciplinary perspective (preliminary qualitative assessment).
Figure 18. Comprehensive methodological approach to describe APV systems (envelope integrated PV + protected crops) from a trans-disciplinary perspective (preliminary qualitative assessment).
Sustainability 13 06871 g018aSustainability 13 06871 g018bSustainability 13 06871 g018cSustainability 13 06871 g018d
Figure 19. The design and assessment of agrivoltaics open new perspectives if the system is approached as a three-dimensional pattern characterized by a certain degree of randomness, both in the horizontal and vertical arrangement of the modules. The limit point is that PV modules fade out in space, with possible new related ecological performances.
Figure 19. The design and assessment of agrivoltaics open new perspectives if the system is approached as a three-dimensional pattern characterized by a certain degree of randomness, both in the horizontal and vertical arrangement of the modules. The limit point is that PV modules fade out in space, with possible new related ecological performances.
Sustainability 13 06871 g019
Figure 20. Suggestion for a three-dimensional photovoltaic random pattern. Solar Drifts, designed by Balmori Associates. University of Buffalo, Buffalo Solar Park, NY, USA. Competition Finalist, 2010 [160].
Figure 20. Suggestion for a three-dimensional photovoltaic random pattern. Solar Drifts, designed by Balmori Associates. University of Buffalo, Buffalo Solar Park, NY, USA. Competition Finalist, 2010 [160].
Sustainability 13 06871 g020
Table 1. Barriers and solutions to implementation of agrivoltaics in open-field systems.
Table 1. Barriers and solutions to implementation of agrivoltaics in open-field systems.
TopicDesign Related SolutionTechnology Related Solution
Minimizing shadows on crops (biomass yield)Optimal design:
Distance between the arrays of modules (the stripes)Distance of the modules from the ground
Sun-tracking systems
Semi-transparent PV modules (by spacing PV cells)
Light-selective PV devices
Maximizing electric energy generationOptimal planning:
Avoiding sharing losses from surrounding elements (structures, buildings, trees, inter-row shading of the PV modules should be minimized)
Highly efficient systems (e.g., sun-tracking systems)
Highly efficiency modules or technologies (e.g., bifacial module technology)
Optimal design:
Azimuth facing equator and tilt close to latitude
Social acceptance (landscape dimension)Optimal landscape design:
Pattern of PV arrays aligned to the parcel
Natural fences and low height structures to minimize visual disturbance
Use of marginal areas
Removable systems
New materials for structure
Optimal design:
Different tilt, azimuth and height to reproduces the orography of the land
New business models:
Higher economic efficiency per land unit (farmer perspective)
Benefits for local economy and employment (tourism, local recreation, etc.)
Table 2. Technical barriers and solutions to implementation of agrivoltaics in greenhouses.
Table 2. Technical barriers and solutions to implementation of agrivoltaics in greenhouses.
TopicDesign Related SolutionTechnology Related Solution
Minimizing shadows on crops (biomass yield)Different layouts to homogenize the distribution of the light inside the greenhouse
Increase the gutter height of the greenhouse
Dynamic systems
Semi-transparent PV modules (by spacing PV cells or using semi-transparent PV layers)
Minimizing the loss of PAR (Photosynthetically active radiation)Use of colored layersSpectral selective PV devices by selective focus different wavelengths of the solar spectrum on plants and modulesLuminescent solar concentrator technology (LSC)
Maximizing electric energy generationOptimal design for energy generation:
Maximum energy intensity (dense pattern of the PV modules) with no shading effects on the modules
Optimal positioning of the modules (tilt and azimuth angles of the roof)
Use of high efficiency PV systems, or high efficiency PV modules (such as bifacial modules)
Microclimatic issues (temperature and humidity conditions inside the greenhouse)Ventilation (natural through vents)
Orientation (sun direction along the year)
Location (climate)
Highly efficient heating, ventilation and air conditioning systems
Artificial light
Social acceptanceDesigning the greenhouse for an optimal visual performance (e.g., high level of integration of the greenhouse in the landscape, and of the modules in the greenhouse envelope)Appropriate choice of the PV technologies allowing for an increased visual performance (size, shape, color and texture)
Table 3. Studies where yield reductions or quality of plants of different species are not affected significantly by the coverage of opaque PV modules integrated into the greenhouse’s roof.
Table 3. Studies where yield reductions or quality of plants of different species are not affected significantly by the coverage of opaque PV modules integrated into the greenhouse’s roof.
% PV RoofPlantReference
25%Wild rocket[57]
20%Flowers (iberis, cyclaments and petunias)[65]
Table 4. Three-dimensional APV pattern: definition and metrics.
Table 4. Three-dimensional APV pattern: definition and metrics.
Three-Dimensional Agrivoltaic Pattern: Main Metrics Involved
The three-dimensional agrivoltaic pattern (normalized “pore space”, being the pore space the space in between the PV modules and in between the PV modules and the ground) corresponds to certain spatial configuration of an APV system. It can be defined as a function of the volume of the pore space given a unitary land area and a unitary modules height (H).
For instance: 1 ha and 1 m.

The normalized pore space volume would then be: 100∗100∗1 = 10,000 m3

The density of the PV pattern influences the amount of the yearly irradiation, while specific pattern configurations (geometrical arrangement of the PV modules) influence the homogeneity of the irradiation on ground. The height of the PV modules from the ground influences the degree of connectivity (the degree to which the landscape facilitates or impedes movement among resource patches) of the system.
Sustainability 13 06871 i001
Three-Dimensional Pattern Spatial Attributes
PV PATTERNDensity degree (PV area/ pore area)%
Number of crop zone types (depending on irradiance)n
PORE SPACE VOLUME(Pore area—PV area projection on the ground) ∗ Hm3
(Site Depending) Solar Potential Parameters
SOLAR POTENTIALYearly equivalent sun hoursn
(Three-Dimensional Pattern) Depending Solar Potential And Connectivity Parameters
IRRADIANCE HOMOGENEITY DEGREE ON PVNumber ranging from 1 to 0 depending on whether the orientation of PV is homogeneous or not. No variation of tilt and azimuth is 1; no variation of azimuth, variation of tilt or variation of azimuth, no variation of tilt is 0.5; variation of azimuth and tilt is 0.n (1; 0.5; 0)
IRRADIANCE HOMOGENEITY DEGREE ON CROPSNumber ranging from 1 to 0 depending on whether the geometrical pattern of PV is homogeneous (1), dispersed (0.5) or random (0).n (1; 0.5; 0)
CROP TYPE ZONESThe crop selection depends on irradiance. If the irradiance is homogeneous, there is 1 zone type. If it is not there, are more. For standard patterns (parallel stripes with optimized distancing between the stripes), there are 2 (one underneath the PV modules, and the other in between the stripes of modules), but a more porous pattern may allow for a third zone with no shading.n (1 or 2 or 3)
PV TYPE ZONESDepending on how many different orientations of the PV modules are, the number of PV type zones can be determined.n
CONNECTIVITY DEGREE (MATRIX PERMEABILITY)Volume of the pore area/total area.%
Nominal Power Parameters
Solar Conversion Efficiency Parameters
Producibility Parameters (should be calculated based on yearly equivalent Sun hours)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Toledo, C.; Scognamiglio, A. Agrivoltaic Systems Design and Assessment: A Critical Review, and a Descriptive Model towards a Sustainable Landscape Vision (Three-Dimensional Agrivoltaic Patterns). Sustainability 2021, 13, 6871.

AMA Style

Toledo C, Scognamiglio A. Agrivoltaic Systems Design and Assessment: A Critical Review, and a Descriptive Model towards a Sustainable Landscape Vision (Three-Dimensional Agrivoltaic Patterns). Sustainability. 2021; 13(12):6871.

Chicago/Turabian Style

Toledo, Carlos, and Alessandra Scognamiglio. 2021. "Agrivoltaic Systems Design and Assessment: A Critical Review, and a Descriptive Model towards a Sustainable Landscape Vision (Three-Dimensional Agrivoltaic Patterns)" Sustainability 13, no. 12: 6871.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
