Seismic Vulnerability Assessment Methodologies for Roadway Assets and Networks: A State-of-the-Art Review

Abstract

Road networks are considered as one of the most important transport infrastructure systems, since they attain the economic and social prosperity of modern societies. For this reason, it is vital to improve the resiliency of road networks in order to function normally under daily stressors and recover quickly after natural disasters such as an earthquake event. In the last decades, vulnerability assessment studies for road networks and their assets gained great attention among the research community. This literature review includes a brief introduction about seismic vulnerability assessment, followed by the roadway assets damage and their damage states, and then the main typologies for the vulnerability assessment of roadway assets. Moreover, it focuses on available assessment methods, which were proposed to quantify the vulnerability of road networks and its assets. These methods are divided into two main categories, physical and traffic-based approaches. Methods based on fragility functions and vulnerability indexes were investigated in physical approach for roadways and its assets. On the other hand, accessibility and link importance index were explored in traffic-based approach for road networks. This paper reviews and comments the most common vulnerability assessment methods for road networks and its assets and points out their advantages and disadvantages. The main gaps and needs are identified and recommendations for future studies are provided.

1. Introduction

Infrastructure is considered the backbone of our society and economy; it plays a crucial role in attaining the economic and social prosperity and sustainability of our world. Transport systems are essential critical infrastructure and play a crucial role in maintaining national security and supporting the recovery of any country during and/or after natural disasters. Nevertheless, earthquakes are considered as one of the most destructive geophysical disasters that might affect and paralyze transport systems [1].

Road networks are one of the main forms of transport infrastructure that contribute to mobility and accessibility for users. According to the World Bank, about 80% of freight and passenger movements occur on road networks. In addition to that, the annual passenger traffic on road networks will increase by 50% in the near future, and an additional 1.2 billion cars will be using road networks by 2050 [2]. Yet, road networks as any other transportation infrastructure are exposed and could be vulnerable to various natural hazard incidents. Koks et al. [3] investigated the risk and exposure for multihazards on different assets of road and railway infrastructure by studying the global expected annual damages (EAD) and exposures (EAE). The results showed that 27% of this infrastructure is subject to at least one hazard for a return period of 250 years, while, with respect to EAE, 0.5% of global infrastructure is endangered by multihazards. Direct damage for transport infrastructures exposed to multi-hazards is estimated to be between 3.1 to 22 billion USD globally; in particular, earthquakes result in 7.3% of the overall global EAD.

Due to all urgent risks, many countries have developed and improved measures to reduce the risk and to make cities and critical infrastructure more resilient [4,5]. Moreover, the United Nations adapted a strategic plan to implement the 2030 agenda for sustainable development goals (SDGs). One of the main goals in SDGs is making sustainable cities and human settlements and enhancing their resiliency against natural hazards. In particular, SDG9 and SDG11 mainly focus on building resilient infrastructure by promoting public and private investments and making human settlements inclusive, safe, and sustainable, to conduct a risk reduction plan that will save lives, reduce losses, and strengthen the resilience of cities. Achieving SDG9 and SDG11 will impact other SDGs. For example, decreasing the risk will result in low damage and loss of livelihood that will reduce poverty, as per SDG1 [6].

Moreover, the Transportation Research Board (TRB) policy works on achieving twelve basic goals that address critical issues for transportation. One of the main goals focuses on building more resilient and secure infrastructure against natural hazards. This goal, which is represented in the fourth topic of TRB report “Critical Issues in Transportation 2019”, concentrates on endangered transport infrastructures facing natural hazards. TRB is concerned about rising risks resulting from natural hazards that threatens all transport systems. In this respect, policies and strategies should be extended to increase the resiliency and sustainability of critical transport infrastructure [7].

Past earthquake incidents have proven that the road network and its assets are vulnerable, while damage to the road network can affect the transportation of people and goods [8]. The destruction of roads can obstruct emergency vehicles and directly affect the rescue and aid emergency activities in the affected region, resulting in considerable economic, social, and livelihood losses for the community [6]. Furthermore, earthquake disasters can cause direct impacts on the structures of road networks, which involve both life-safety issues and repair/replacement losses. Additionally, this destruction results in long term and indirect economic losses on nations, by affecting tourism, trade, and/or other industries. A common classification of economic impact includes direct economic effects (repair/replacement costs of the damaged infrastructure) and direct consequential economic effects (linked to the disruption of the transport infrastructure and its cost on road users, such as road delays, fuel carbon emissions, and accident costs), and indirect consequential economic effects (usually influence rural regions, which mainly depend on transport activities in their daily life), as per Winter et al. [9]. Thus, these impacts are mostly influenced by the functionality of the transport network rather than the earthquake incident itself. Consequently, local business and tourism sectors in these regions will be negatively affected because reduction of accessibility will adversely decrease the profits and viability in these sectors in the short and long term [9,10].

Representative examples of disruptive earthquakes that have caused failure to transport infrastructure are given in

Table 1. Examples of disruptive earthquakes that have caused failure to transport infrastructure.

Earthquake Event and Losses	Impact	References
Loma Prieta (USA), 1989, M = 7.1 It is considered among the most destructive and costly earthquakes in the history of United States of America (USA), accounted for approximately in $1.8 billion in damages for road networks and $300 million in restoration cost for bridges. Various closures occurred at multiple roads, accumulating 65 blockages related to direct damages and 85 blockages related to indirect damages.	Traffic disruption Infrastructure damages Possible safety concern Economic costs High restoration costs Indirect economic impacts	[11,12,13,14,15]
Kobe (Japan), 1995, M = 7.9 One of the most devastating and destructive earthquakes that hit Kobe-Osaka in Japan, resulted in blockage of many roads, due to the damage of more than 1300 spans of Hanshin expressway, with direct losses of $4.6 billion.	Traffic disruption Obstruction of aid activities Infrastructure damages Economic costs High restoration costs	[16,17,18,19,20]
Kocaeli (Turkey), 1999, M = 7.4 The transportation system in Kocaeli was affected; most of the damages were related to fault ruptures and ground settlements. The E80 segment, which is also known as the Trans European Motorway (TEM) was severely damaged. Roads experienced damages, mainly in the form of surface ruptures and roadway fills settlement.	Traffic disruption Possible safety concern Economic costs Damage for industrial plants	[21,22,23]
Chi-Chi (Taiwan), 1999, M = 7.6 One of the largest earthquakes in Taiwan, resulting in extensive damage to the transport system and infrastructure, particularly in Taichung and Nantou areas.	Traffic disruption Safety concern Direct and indirect economic losses Economic Repercussions	[24,25,26]
Sichuan (China), 2008, M = 7.9 Several landslides were triggered, which caused a reduction in accessibility of road network. Rugged mountainous roads were mainly damaged. The damaged roads obstructed the movement of heavy machines and emergency vehicles, which led to life losses.	Reduction of accessibility Obstruction of aid activities Infrastructure damage High repair costs Economic costs	[27,28]
Chile (Chile), 2010, M = 8.8 One of the most devastating earthquakes in the last decade that damaged roads and highways in a large area in Chile. Most of the damages were related to deficiencies in bridges, embankments, and ground settlements.	Paralyzed road networks High safety concern Infrastructure damages Economic repercussions Loss of some major lifelines	[29,30,31,32]
Ranau (Malaysia), 2015, M = 6.0 One of the highest magnitude earthquakes that was recorded in Sabah state in the east of Malaysia. Twenty-two roads were damaged and caused malfunction to road network systems, which obstructed the movement of emergency vehicle and prevented industrial and domestic activities for a long time.	Traffic disruption Obstruction of aid activities Economic costs Travel disruption	[33,34,35]

M: moment magnitude of earthquake.

. These events led to improvements in the seismic design and risk management in each country and in some cases internationally.

Looking at this evidence gives rise to the importance of assessing the seismic performance of road networks. The possible loss associated with potential seismic events can be estimated through a seismic vulnerability assessment of road networks and their assets. In this respect, a seismic vulnerability assessment of road networks is an important step toward improvement of infrastructure resilience and considerable enhancement of emergency accessibility through the application of suitable and efficient mitigation measures for emergencies [36,37].

The aim of this paper is to shed light on the most common and practical methodologies used to assess the seismic vulnerability of road networks and their assets and to identify the main gaps and needs in this field. In this respect, this paper reviews and discusses available methods, aiming at underpinning the understanding of road network risks and the efficient mitigation measures by transport infrastructure owners and operators. Most of the studies tackling vulnerability assessment of road networks focus on a single criterion, whether it is asset damage, functionality, or network performance. The first section of this paper describes the main types of roadway asset damage, including damage measurement criteria. The second section highlights the main typologies of roadway assets and defines the critical vulnerability factors. The next part reviews available fragility functions and damage states for seismic vulnerability assessment of roadway assets, including a discussion of the fragility assessment methodologies. This is followed by a part that discusses and compares methods that are based on vulnerability indices, including the type of parameters used and their weighting scores. Afterwards, a comprehensive review on assessment of road network vulnerability is presented, including two main approaches, the accessibility and link importance method. The final part addresses the integrated seismic risk assessment for a road system, with a focus on the integration between asset damage, functionality, and network traffic. The paper sums up with the knowledge gaps on this topic and provides recommendations for future research, emphasizing the cardinal need to include more technologies for vulnerability assessment, and thus paving the way towards more resilient infrastructure.

2. Roadway Assets Damage and Their States

2.1. Roadway Assets Damage

A roadway system consists of various assets interacting with the surrounding environmental conditions. Most of the vulnerability assessment methods consider single assets exposed to single hazards and/or surrounding topographical and geomorphological conditions, while recently, Argyroudis et al. [38] introduced the system of assets (SoA) concept for transport infrastructures in diverse ecosystems exposed to multiple hazards.

Furthermore, transport infrastructures can be exposed to accumulation of damage, e.g., after a sequence of seismic events within the lifetime of an asset or an abrupt disruption following a strong event permitting that accumulation [39]. The effect of earthquakes on roadway assets can be classified into different types. Damage is related to ground shaking, commonly represented by peak ground acceleration (PGA), or to ground failure, e.g., due to soil liquefaction, commonly expressed by permanent ground deformation (PGD), as shown in Figure 1a–c. Damage can be direct, affecting directly the roadway and its assets, or indirect, where the cause is eccentric through interaction with other components. Additionally, damage can be structural (physical damage of the roadway), or geotechnical, where the subsurface underneath the roadway and its assets is affected [40], as shown in Figure 1d,e. The damage of roadway assets is described and illustrated in

Table 2. Seismic damage of roadway assets.

Assets	Type of Damage	Definition	Reference
Road Pavements	Direct damage	Fault ruptures and ground failures due to soil liquefaction and/or lateral spreading.	[41]
	Indirect damage	Closure of roads due to building collapse and/or collapse of electricity pylons and failures of underlying pipes.
Slopes and Trenches	Ground shaking and/or failure; geotechnical; and direct damage	Accumulation of debris on road surface due to earthquake induced landslides. Structural damages due to landslides that may affect the pavement, tranches, and slopes near the road. Geotechnical failure such as permanent ground deformation, lateral spreading, and shear deformations can affect slopes and trenches.	[42,43]
Embankments	Ground shaking and/or failure; structural; and geotechnical damage	As above. Vulnerability factors depend on the method of construction, topographical condition, and geometry of embankments, Figure 1c.	[44,45]
Bridges	Structural damage; indirect damage	Damage is related to the seismic performance of bridge components (deck, bearings, piers, shear keys, abutments, foundations, approach fills). The level and type of failures depend on the bridge type, the severity of the earthquake, and the local soil conditions Figure 1d,e.	[38,46]
Tunnels	Ground shaking and/or failure; structural damage	Damage due to ground failure and ground shaking, including lining failure, ovaling/racking failure, axial tension failure, axial compression failure, invert failure, portal failure, Figure 1a.	[38,47]
Retaining Walls	Ground shaking and/or failure; geotechnical damage	The main type of seismic failure is the backfill settlement (heaving).	[38]

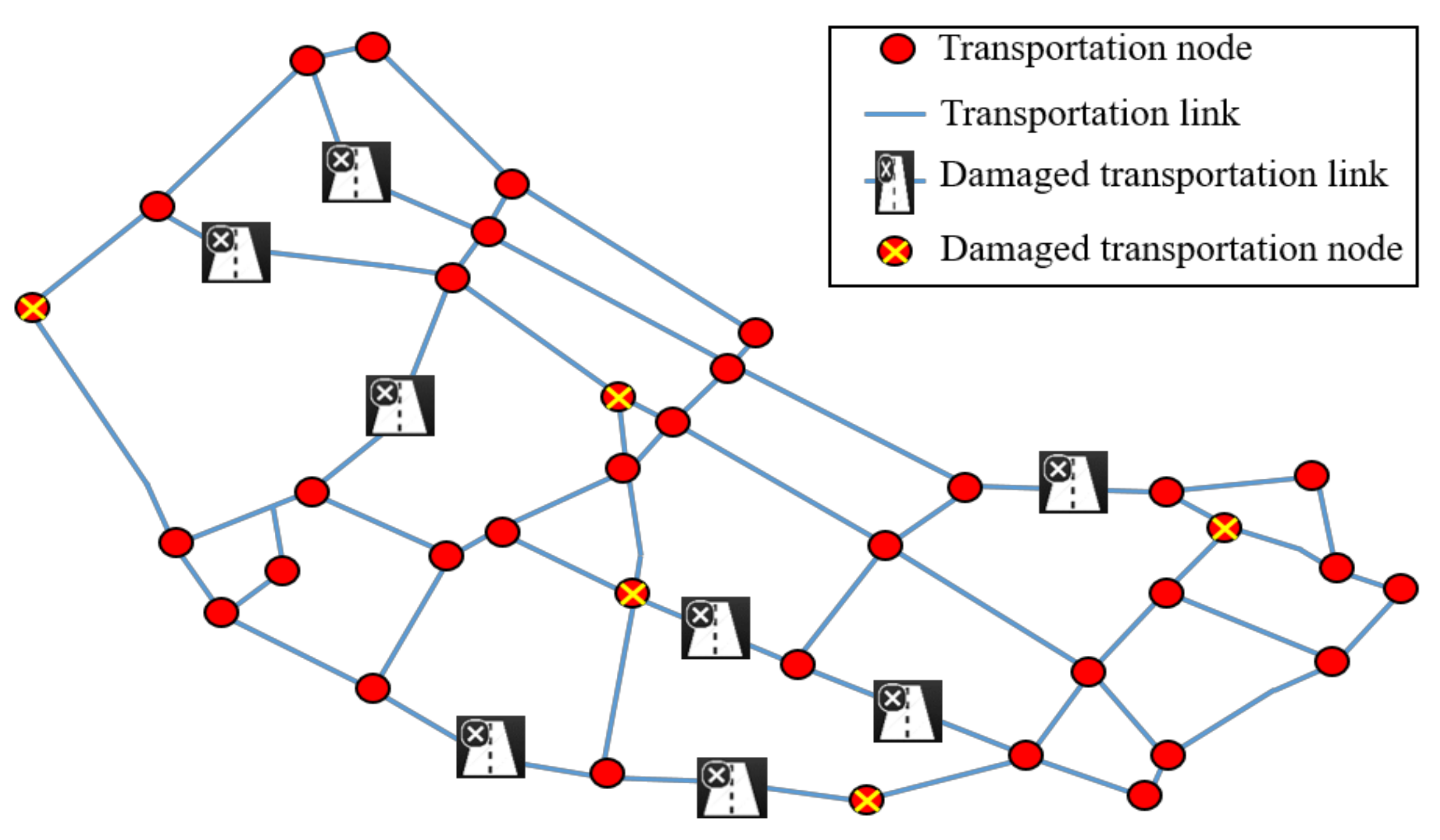

and Figure 1. In Figure 1, the black arrows are used to label the type of roadway assets and their structural elements, and the red arrows label the seismic damage for these assets and their elements.

2.2. Damage States for Roadway Assets

Damage states (DS) are mainly used to evaluate the post-earthquake condition of structures by giving a clear description of failure mechanisms. Furthermore, DS can be used for categorizing the damage of structures in the context of a seismic risk assessment [48]. The damage evaluation criteria are defined by damage thresholds and limits, which define the main boundaries among various damage conditions and states. Different damage criteria were proposed depending on the approach used to formulate fragility models and the type of the asset [49]. Maruyama et al. [50] categorized DS for roadway assets into four main categories (major, moderate, minor, and very minor) as shown in

Table 3. Damage states of roadway assets in Japan [50].

Damage	Major	Moderate	Minor	Very Minor
Side Slope	Total Collapse	Partial Collapse	Deformation	-
Gap in Roadway (horizontal displacement)	-	Traffic lane: >3 cm Shoulder: >20 cm	Traffic lane: 1–3 cm Shoulder: 1–20 cm	Traffic lane: <1 cm
Crack in Roadway	-	>5 cm	3–5 cm	<3 cm

. The DS were defined based on damage reports after earthquake events in Japan. Argyroudis and Kaynia [51] defined DS for highways and railways in terms of PGD, including into three main grades (minor, moderate, and extensive/complete), which are depicted in

Table 4. Highway damage states [51].

Damage State	Permanent Vertical Ground Displacement (m)			Serviceability
	Min	Max	Mean
Minor	0.02	0.08	0.05	Open, reduced speeds or partially closed during repair
Moderate	0.08	0.22	0.15	Closed or partially closed during repair works
Extensive/Complete	0.22	0.58	0.40	Closed during repair works

. Furthermore, Argyroudis et al. [52] in Risk-UE approach classified damage for roadways into four main classes (extensive, moderate, minor, and none), including direct and indirect damage with representation of the serviceability of roads after being damaged (

Table 5. Damage states of roads [52].

Serviceability	Damage States	Direct Damages	Indirect Damages
Fully closed due to temporary repairs for few days to few weeks. Partially closed to traffic due to permanent repairs for few weeks to few months.	Extensive	Major settlement or offset of the ground (>60 cm)	Considerable debris of collapsed structures
Fully closed due to temporary repairs for few days. Partially closed to traffic due to permanent repairs for few weeks.	Moderate	Moderate settlement or offset of the ground (30 to 60 cm)	Moderate amount of debris of collapsed structures
Open to traffic. Reduced speed during repairs.	Minor	Slight settlement (<30 cm) or offset of the ground	Minor amount of debris of collapsed structures
Fully open.	None	-	No damage/Clean road

). Nevertheless, Argyroudis and Pitilakis [53] defined DS for tunnels, based on the ratio of the total bending moment ($M$) due to static and dynamic loading to the capacity bending moment ($M_{Rd}$) of the lining section. $M_{Rd}$ corresponds to the first yielding of the steel, assuming that the lining behaves as a beam section (

Table 6. Tunnel lining damage states [53].

Damage State	Damage Index	Central Value of Damage Index
Ds0. None	$M/M_{Rd}\le 1.0$	-
Ds1. Minor/slight	$1.0<M/M_{Rd}\le 1.5$	1.25
Ds2. Moderate	$1.5<M/M_{Rd}\le 2.5$	2.00
Ds3. Extensive	$2.5<M/M_{Rd}\le 3.5$	3.00
Ds4. Collapse	$M/M_{Rd}>3.5$	-

M: Actual bending moment. M_Rd: Capacity-bending moment.

). Finally, DS for bridges are commonly defined based on the performance of the most vulnerable bridge components, since a bridge is considered as a serial system in various studies. For example, Nielson and DesRoches [54] and Padgett and DesRoches [55] defined DS for typical and multi-span bridges, respectively, by developing a fragility curve through integrating all potential failure aspects of the combined seismic probabilistic demand models by producing an integration between random bridge models of different parameters and specific geometric bridge models. This integration helps in reducing the margin of the probability distribution through developing a single joint for the probability distributions.

3. Main Typologies for Vulnerability Assessment of Roadway Assets

This section includes the main vulnerability factors of roadway assets, i.e., the classification of soil and the functional hierarchical road categorization. The typologies of road pavements and geotechnical assets (embankments, cuts, trenches) are also described. Other structural assets, e.g., bridges, tunnels, and retaining walls are not included here and are described elsewhere [38,56,57].

3.1. Classification of Soil

Roadway assets are geotechnical structures, so the soil is considered a main factor for their vulnerability assessment. Various soil classifications are available to specify the type of the soil according to different variables and parameters. One of the most widely used classifications is the one given by Eurocode 8 [58], which categorized the type of soil into four categories: soil A (rock), B (very dense sand), C (medium dense sand), D (loose-to-medium cohesion-less soil), and E (soil profile consisting of a surface alluvium layer).

3.2. Functional Hierarchical Road Categorization

The classification of roads according to their functional hierarchy includes six types, which are local streets, minor collectors, major collectors, minor arterials, major arterials, and freeways [59,60]. Different factors are used in this classification, such as accessibility, mobility, geometry, speed limits, and number of lanes [61]. For instance, Goto and Nakamura [62] categorized roads’ hierarchy using the characteristics of the surrounding area, i.e., access control, place status, road surface, link role, and transport mode. Other studies considered a relation between local roads and high speed [63,64].

3.3. Road Pavements

The major parameter of typology is the number of lanes. Adafer and Bensaibi [65] used pavement type as an additional parameter for assessing a vulnerability index (VI) of roads. Moreover, Benedetto and Chiavari [66] used the pavement condition as a vulnerability parameter for floods, while a specific weight was assigned for each parameter.

3.4. Embankments, Slopes, and Trenches

The main parameters are the geometrical characteristics such as the height of embankments and slope angles [38]. Some researchers used compaction quality of the embankments as an additional vulnerability factor [65,67].

3.5. Tunnels

The main factors that influence tunnels are the shape and dimensions of the structure, the main properties of the surrounding soil and/or rock (geological conditions), and the supporting system (e.g., steel, concrete, or masonry) [47].

3.6. Bridges and Retaining Walls

The damage of bridges is mainly related to the seismic performance of bridge components (i.e., deck, bearings, piers, shear keys, abutments, foundations, approach fills), which might be affected differently depending on the bridge type, the severity of the earthquake, and the local soil conditions. Moreover, the important typological characteristics for bridge abutments and retaining walls include the type of the abutment and its foundation, the soil conditions of foundation, and the fill material (backfill behind retaining walls/abutments) [38,68].

4. Fragility Functions for Vulnerability Assessment of Roadway Assets

Fragility functions is a key element in seismic risk assessment; it is described by relating a given level of seismic intensity with the probability of reaching or exceeding a given level of damage. The structural damage is quantified based on engineering demand parameters (EDP) such as vertical displacements, crack patterns, or rotations in order to estimate the performance limit states based on performance based seismic design (PBSD) during ground motion excitations [69,70]. Different methods can be used to conduct fragility curves such as empirical, analytical, judgemental, and hybrid [47].

4.1. Empirical Method

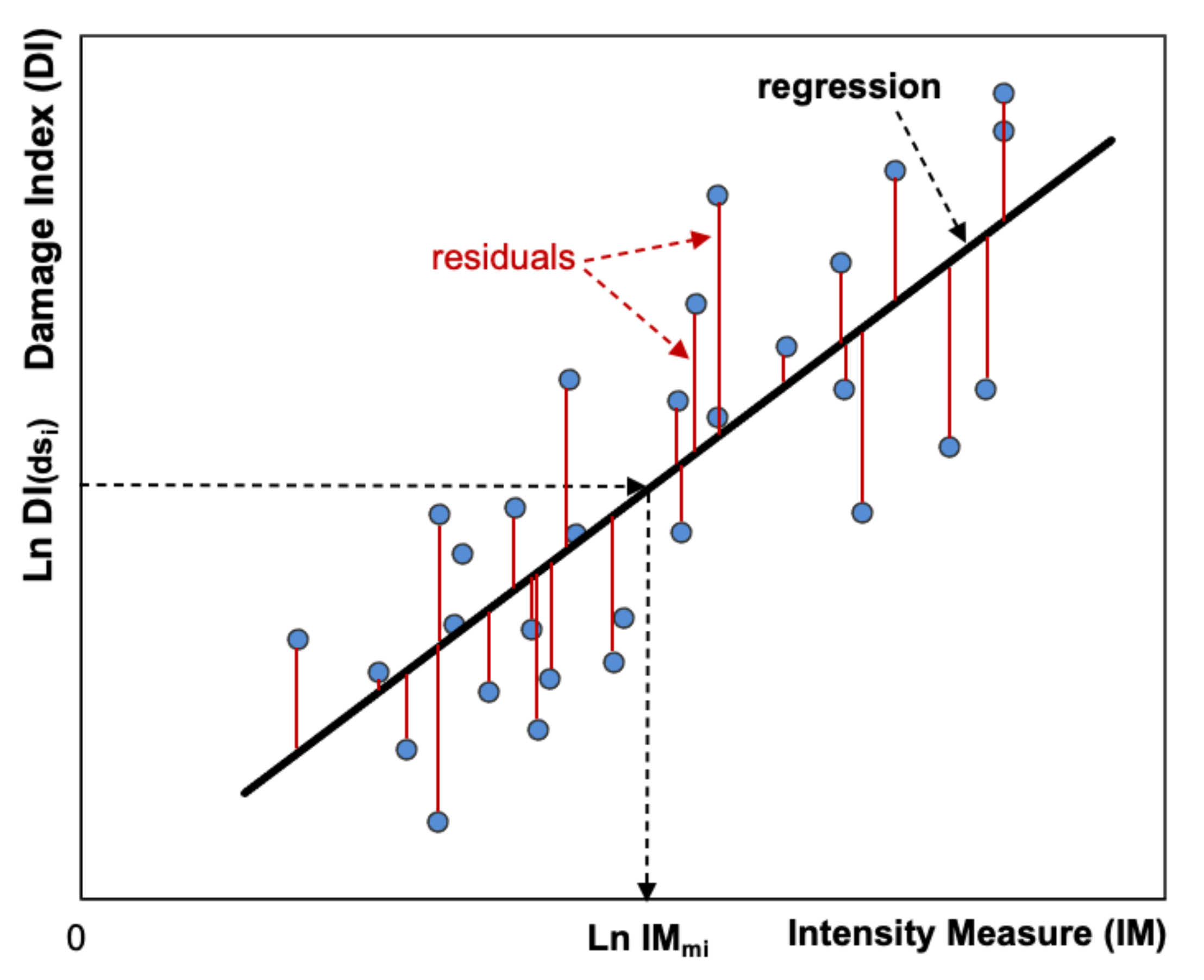

It relies on post-earthquake survey and damage statistics for developing empirical fragility curves. The reliability of the results depends mainly on the completeness and variety of the empirical data collected from past earthquakes. Moreover, the empirical fragility curves can have a large variation due to differences in the observed damage datasets, such as the number of samples observed, the road assets typology, soil types, and range of ground motions [71]. Different researchers have developed and validated different empirical fragility curves for roadway assets. Kaynia et al. [47] validated the results of the empirical fragility curves tailored for road pavements, which are presented in HAZUS [72] using a combination of expert judgmental models and empirical models that were conducted by Giovinazzi and King [73]. Furthermore, Maruyama et al. [50] and Oblak et al. [74] conducted and assessed, respectively, the empirical fragility curves of embankments. In addition to that, new methods are being used to develop empirical fragility models by considering nonspecific damage data. For instance, Kim [75] formulated a framework based on the possibility theory, which considers the fragility functions nested to each other. The resulted possibility-based fragility function demonstrated by two main measures, certainty and possibility, are compared with the traditional fragility curves that are based on probability.

4.2. Analytical Method

Analytical fragility curves mainly analyze the damage distribution on any structure of increasing earthquake loadings based on structural models. The damage levels are defined based on a specific damage state classification [76]. In addition to that, the selection of ground motion records is a fundamental tool to obtain an incremental dynamic analysis to develop the fragility curves, as proposed by several seismic codes that recommend a minimum of three or seven sets of ground motions. The ground motions can be chosen based on several parameters such as magnitude (Mw), soil type, or epicentral distance. This method has high efficiency compared to other methods, although the limitation of the method has not been fully investigated [77]. Argyroudis and Kaynia [40] studied the fragility functions of roadway assets by analyzing the level of damage in road assets through a specific damage index (DI) representing the EDP, which is affected by increasing intensity of earthquake excitation. Figure 2 illustrates a graph in Ln scale, where the horizontal axis corresponds to the hazard intensity, expressed by a specific measure, e.g., PGA (g), and the vertical axis shows the adopted damage index. The latter is expressed based on a specific response parameter of the numerical model, e.g., the vertical displacement of a road embankment or the drift of a bridge pier. The different points of the graph represent the results of the numerical analyses (i.e., estimated DI) for different hazard intensities. The solid line is produced based on regression analysis and describes the correlation between the DI and the intensity measure (IM). This regression curve is used to define the median of the intensity that is responsible for the $i_{th}$ damage, based on the corresponding mean or central value of the DI_(dsi) (e.g., Table 3, Table 4 and Table 6). The standard deviation of the residuals, i.e., vertical distance between the data point and the regression line, defines the variability of the seismic demand [40]. It is commonly referred as β_D (see also Table 5) and describes the uncertainty in response due to variation in ground motion properties [78]. Panchireddi and Ghosh [79] applied an approach based on the Park and Ang damage index [80] to investigate the vulnerability of bridges against earthquakes. Similar methods focused on vulnerability assessment of bridges by using the Park and Ang Damage Index (DI) [81,82,83]. Baker [84] investigated the efficiency of fragility functions by applying dynamic structural analysis. The study focused on evaluating the approaches, which are used to develop the fragility functions. The fitting approach focuses on statistical inference concepts, which works on a specific number of IM levels by analyzing multiple strips. The results showed that the fitting approach for fragility functions used in this research is appropriate and easy to implement. Furthermore, Argyroudis et al. [38] performed a study to investigate the fragility of transportation infrastructure systems, by representing all the existing information and synthesizing it. Moreover, Lu et al. [85] formulated a model to assess the fragility of pavement infrastructure due to different environmental conditions. The research formulated a pavement fragility method that relies on lognormal cumulative distribution functions.

4.3. Expert-Based Judgement Method

Several judgmental fragility functions were built based on professional experience and experts’ opinion through questionnaires. This method is simple and fast in derivation, but the reliability of the results is uncertain, since this methodology is not focused on experimental evidence but is based solely on professional judgement [86]. For instance, Winter et al. [87] determined the physical vulnerability for roads exposed to landslides based on questionnaires filled by experts regarding the probability of road closure for different volumes of debris. Moreover, HAZUS methodology includes fragility models based on a combination of expert observations and empirical data from previous earthquakes [88]. Werner et al. [89] formulated a method that relies on REDARS 2 modules, by which an expert judgmental approach can be conducted to evaluate the main parameters of formulated PGD threshold values for abutment and road pavements. Moreover, ATC-13 [90] defined six slope classes by formulating an expert judgment model that depends on matrices for slope failure probability. These approaches provide useful assessments when insufficient empirical data are available, or when the numerical modelling is very demanding.

4.4. Hybrid Method

The hybrid method uses different approaches to combine analytical, observational, and judgmental data. This approach can be beneficial to calibrate analytical results with experimental or empirical data. In this respect, the computational effort might be reduced, while the reliability of the fragility model is increased. Additionally, the hybrid method can be more efficient than other methods, because it is merging different sources of data, which can overcome the limitations and reduce the error of other methods [91,92]. Moreover, it takes into consideration all types of uncertainties, which is not available in the empirical and analytical approach.

4.5. Equations for Generating Fragility Functions

The fragility functions depend on uncertain values, which are known as random variables, i.e., damage measures (DM) and intensity measures (IM). The uncertainty in fragility functions is due to unpredictable change in the seismic intensity measures generated from different ground motions due to the uncertain behavior of roadways under seismic loading. For instance, the capacity of road infrastructure will not change with time, but the capacity of this infrastructure is uncertain during and post-earthquake [93]. The fragility functions are commonly described by a lognormal probability distribution as shown in Equation (1).

$$P_f(ds\ge d{s}_i)=\varphi \left[\frac{1}{{\beta }_{tot}}\times \ln \left(\frac{S}{S_{mi}}\right)\right]$$

(1)

where, ($P_f$) is the probability of reaching or exceeding a particular damage state ($d{s}_i$), ($\varphi$) is the standard cumulative probability function, ($S_{mi}$) is the median threshold value of the earthquake parameter S (e.g., peak ground acceleration—PGA) required to cause the $i_{th}$ damage state, and (${\beta }_{tot}$) is the total lognormal standard deviation. Various equations were employed for expressing fragility curves of roadway assets. An overview of representative equations for different assets (e.g., embankments, road pavements, bridges, trenches and slopes, and tunnels) is presented in

Table 7. Equations describing fragility functions.

Asset	Equation	Parameters	Reference
Typical bridges	$P\left[D>C|IM\right]=\varphi \left[\frac{\ln \left(S_d/S_c\right)}{\sqrt{{\beta }_{d|IM}^2+{\beta }_c^2}}\right]$	$S_d$: median estimate of the demand as a function of $IM$, $S_c$: median estimate of the capacity. ${\beta }_{d|IM}$: logarithmic standard deviation of the demand conditioned on the intensity measure. ${\beta }_c$: dispersion of the capacity, $\varphi$: standard normal cumulative distribution function.	[54,55]
Embankments	$P=C\varphi \left(\left(\frac{\ln PGV-\lambda }{\zeta }\right)\right)$	$\varphi (x)$: standard normal distribution function. $\lambda$,$\zeta$, and $C$: constants calculated by regression analysis.	[94]
Embankments Trenches/ slopes	$P(D>D{S}_k)=\frac{1}{2}\left[1+erf\left(\frac{\ln PGA-\ln \mu }{\beta \sqrt{2}}\right)\right]$	$erf$: error function. $\mu$: median of fragility curve, $\beta$: lognormal standard deviation.	[47]
Bridges	$P\left[D\ge C\left|IM\right.\right]=\varphi \left(\frac{\ln \left(S_D/S_C\right)}{\sqrt{{\beta }_{tot}^2}}\right)$	$S_D$ and $S_C$: median values for demand C and D. ${\beta }_{tot}$: total uncertainty. ${\beta }_{tot}={\beta }_{Ds}^2+{\beta }_D^2+{\beta }_C^2$ where, ${\beta }_{Ds}$ is the variability of damage state, ${\beta }_D$ is the variability of seismic demand, and ${\beta }_C$ is the variability of capacity.	[95]
Embankments Tunnels	$P_f(ds>d{s}_i|\mathrm{S})=\varphi \left[\frac{1}{{\beta }_{tot}}\times \ln \left(\frac{IM}{I{M}_{mi}}\right)\right]$	$\varphi$: standard cumulative probability function. $I{M}_{mi}$: median threshold of intensity measure. ${\beta }_{tot}$: total lognormal standard deviation.	[51,96]
Road pavements	$P_{Fragility}=P\left(Damage|EP=x\right)=\varphi \left(\frac{\ln x-\alpha }{\beta }\right)$	$\varphi$: distribution function of standard normal distribution $\alpha$ and $\beta$: logarithmic mean and logarithmic standard deviation of EP.	[83]
Tunnels	$F_R\left(Ds\ge Dsi|\mathrm{IM}\right)=\varphi \left(\frac{IM}{\sqrt{{\beta }_{Ds}^2+{\beta }_D^2+{\beta }_C^2}}\right)$	$\varphi$: cumulative probabilistic function of fragility functions. ${\beta }_{Ds}$: variability of damage state, ${\beta }_D$: variability of seismic demand, ${\beta }_C$: variability of tunnel capacity	[97]

.

Figure 3 illustrates some samples representing the fragility functions of roads and tunnel linings, by which the damage states of roads are categorized into three and four main categories, correspondingly. Assessing the vulnerability of roadway assets using fragility curves is a vital method for performing quantitative risk analysis in component or network level [98]. Yet, the assessment of vulnerability for roadway assets can be conducted by using the VI method, which is described in the following section.

5. Vulnerability Index for Roadway Infrastructures Based on Physical Approach

Vulnerability index (VI) approaches assess roadway infrastructure based on different parameters, which describe the vulnerability of the infrastructure to seismic events [99,100]. VI methods have been developed individually for bridges and other assets; however, the focus of this review is on assets other than bridges.

5.1. Vulnerability Parameters

VI is mainly related to the intrinsic characteristic of roadway infrastructures, but it is independent to any external factors. The number of parameters used varies depending upon the type of vulnerability understudy and the main context of this VI.

Francini et al. [100] used four different parameters to formulate a VI for urban roads: (i) the length of the road, (ii) the width of the road, (iii) redundancy level of the road, and (iv) critical elements (bridges, intersections, underpasses, tunnels, and other elements that could affect the vulnerability of the system). The VI of each road segment is calculated according to Equation (2):

$$I_{v_j}={\displaystyle {{\displaystyle \sum }}_{i=1}^n{w}_i}{P}_{a_i}$$

(2)

where, $I_{v_j}$ is the Vulnerability Index of the j-th alternative road, $w_i$ is the weight relative to the i-th parameter, $P_{a_i}$ is the is the i-th parameter, and $n=1\mathrm{to}4$.

Moreover, Adafer and Bensaibi [65] proposed an index-based method, based on various literature reviews from previous earthquakes worldwide, including ground motion characterization, fragility curves, and traffic analysis during earthquake. This VI is developed based on different factors shown in

Table 8. Vulnerability index factors [65].

Parameter	Item	Factor
	Pavement	Number of lane Pavement type
Structural	Ground conditions	Ground type
	Embankment	Height
	Maintenance condition	Pavement conditions
Hazard	Seismic intensity	-

that are weighted according to the analytical hierarchy process (AHP) method.

The VI is formulated to study the effect of those factors on the response of roads against seismic action based on Equation (3).

$$VI={\displaystyle {\sum }_{i=1}^2{W}_i}{\displaystyle {\sum }_{j=1}^{3or4}{W}_{ij}}{\displaystyle {\sum }_{k=1}^{2or3}{W}_{ijk}}.C_{ijkl}$$

(3)

where, $W_i$ is the weighting coefficient of structural or hazard parameter, $W_{ij}$ is the weighting coefficient of the item, $W_{ijk}$ is the weighting coefficient of factor, and $C_{ijkl}$ is the score of the factors, where l = 2, 3, 4, or 5.

In addition, various VI based methods were developed to study vulnerability of bridges [101,102,103]. Federal Highway Administration (FHWA) described the indices method for rating the vulnerability of bridges. The VI is used in this method to rate and prioritize the vulnerability of bridges, where various components of the bridge are assessed (connections, bearings, columns, piers, foundations, abutments, and soils) and rated according to different rate values. The vulnerability ratings for connections, bearings, and seat widths are calculated together to form vulnerability set V1, while column vulnerability rating (CVR), abutment vulnerability rating (AVR), and liquefaction vulnerability rating (LVR) are added together in the other vulnerability set, V2. The highest set is considered as the overall VI value for ranking the bridge [56].

5.2. Weighting of Vulnerability Parameters

Weighting factors are commonly employed to assess the contribution of the different parameters to the road vulnerability. In this respect, Francini et al. [100] used the AHP method to weight the vulnerability parameters. For assignment of the scores for each weight, a pairwise comparative matrix is applied, as per the three areas indicated in

Table 9. Pairwise comparative matrix (n × n) [100].

	Road Length	Road Width	Critical Elements	Redundancy
Road Length	1	2	1/3	2
Road Width	1/2	1	1/3	1/2
Critical Elements	3	3	1	2
Redundancy	1/2	2	1/2	1

. In particular, the table is split into three major segments, an upper triangular section of the table colored in dark orange, a lower triangular section of the table colored in light orange, and a line in the center (mean diagonal) separating the two triangular parts. In order to calculate the weight percentage $w_i$, an eigenvalue problem should be conducted, as shown in Equation (4) below [104].

$$w=\frac{v_{\lambda }}{{\displaystyle {\sum }_{i=1}^n{v}_{\lambda }(i)}}=\left[\begin{array}{l}24.20\%\\ 11.07\%\\ 45.00\%\\ 19.10\%\end{array}\right]$$

(4)

where $w$ is the weight factor and $v_{\lambda }$ is the relative Eigen vector of the matrix.

A consistency index (CI) is also developed, for achieving matrix consistency, as shown in Equation (5). The CI can be calculated by determining random consistency index (RI) as shown in Equation (6). RI is based on different values for variation of matrix size (

Table 10. RI values in term of matrix size n [100].

n	1	2	3	4	5	6	7	8	9	10
RI	0	0	0.58	0.9	1.12	1.24	1.32	1.41	1.45	1.49

n: Size of the matrix. RI: Random consistency index.

).

$$CI=\frac{\lambda -n}{n-1}$$

(5)

where CI is the consistency index, $\lambda$ is a maximum Eigen value, and n is the size of the matrix.

$$CR=\frac{CI}{RI}$$

(6)

where CR is the consistency ratio and RI is the random consistency index.

After assignment of scores by calculating the matrix, the main weights of each parameter are established, and the VI of the roads is calculated based on Equation (7). The parameter that is related to critical element $P_{C{E}_j}$ is the most influential, with a weighting factor 0.450, while the least important parameter is related to length of roadway $P_L{}_{{}_j}$, with a weighting factor 0.242.

$$I_{v_j}=0.242\times P_L{}_{{}_j}+0.177\times P_{W_j}+0.450\times P_{C{E}_j}+0.191\times P_{R_j}$$

(7)

Similarly, Adafer and Bensaibi [65] conducted the VI method by defining seven main items and nine main factors, which are divided into two main parameters, i.e., structural and hazard. The main items and factors are weighted using the AHP method, as shown in

Table 11. Weighted items and factors [65].

Parameter	Item	Weight (${\mathit{W}}_{\mathit{i}\mathit{j}}$)	Factor	Weight (${\mathit{W}}_{\mathit{i}\mathit{j}\mathit{k}}$)
Structural	Pavement	0.108	Number of lanes	0.667
	Ground conditions	0.561	Pavement type	0.333
			Height	0.648
	Embankment	0.283	Compaction quality	0.122
	Maintenance condition	0.048	Ground type	0.200
			Landslides potential	0.800
			Pavement conditions	0.667
			Slope protection measures	0.333
Parameter	Item	Weight (${\mathit{W}}_{\mathit{i}\mathit{j}}$)	Factor	Weight (${\mathit{W}}_{\mathit{i}\mathit{j}\mathit{k}}$)
Hazard	Seismic intensity	0.633	-	-
	Liquefaction potential	0.106	-	-
	Intersection with fault	0.261	-	-

W_ij: weighting coefficient of the item. W_ijk: weighting coefficient of the factor.

.

5.3. Vulnerability Rating

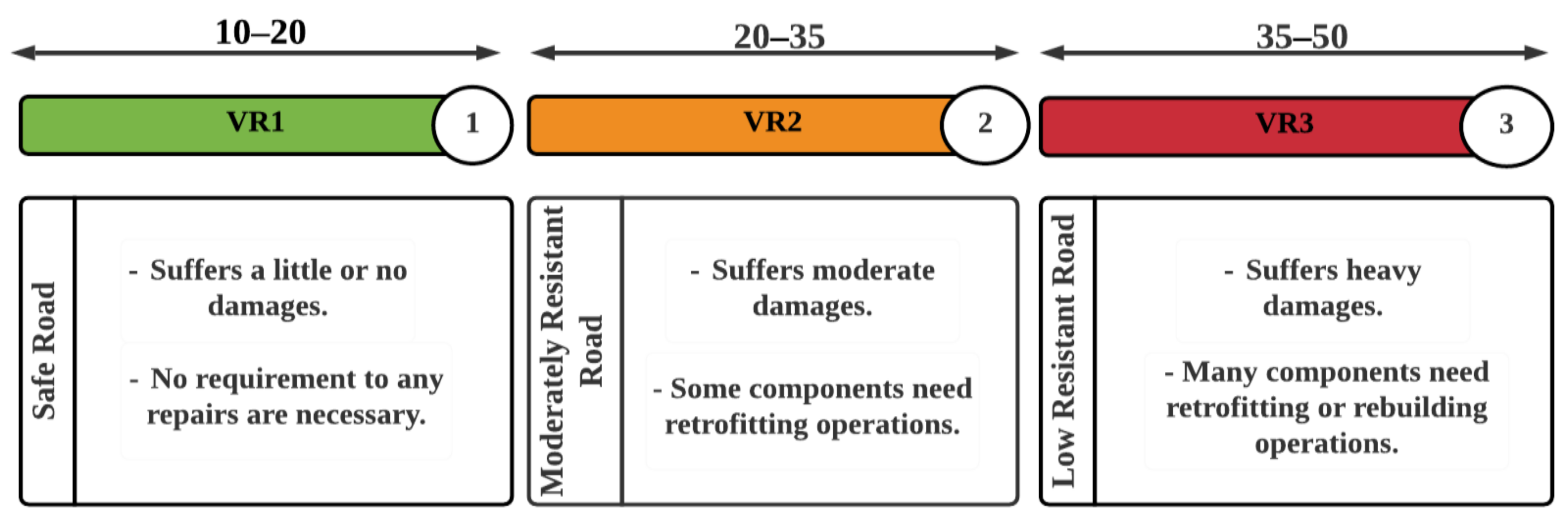

Adafer and Bensaibi [65] proposed three different categories for the vulnerability of roads based on the range of the estimated VI as shown in Figure 4: VR1 (safe: VI = 10–20), VR2 (moderately resistant: VI = 20–35), and VR3 (low resistant: VI = 35–50).

The vulnerability parameters were classified into two main groups, including structural and hazard criteria. The hazard parameter $(W_i)$ was weighted as 0.75, which is higher than the structural parameter by 0.25. However, Francini et al. [100] focused more on the structural elements and the surroundings by categorizing the parameters into qualitative estimates and quantitative measurements of the roads under study.

Mainly the type of parameters used and the weighting score for those parameters can affect critically the values of VI. Adafer and Bensaibi [65] conducted a study in Algeria and obtained VI values that are equal to 0.271 for the roads of Ain Temouchent region and 0.580 for the roads of Zemmouri region. While Francini et al. [100] assessed the vulnerability of two alternative roads for emergency plan in Italy for Rende Municipality. The study resulted in two different values for VI of the two alternative roads, which are 0.096 for the first road and 0.174 for the second road. The classification of the roads with their VI values is shown in

Table 12. Prioritization of VI values for roads.

Roads Under Study	VI	Classification	Reference
Ain Temouchent region roads	0.271	Safe	Adafer and Bensaibi [65]
Zemmouri region roads	0.580	Moderate Damage
Alternative road 1	0.096	Safe	Francini et al. [100]
Alternative road 2	0.174	Safe

. This variation in VI value, in response to the change of the parameters used and their weighting score coefficient, is controversial. Additional empirical data are required to improve the applicability of VI methods and to reduce the variation between the weighting coefficients of the parameters. Nevertheless, the parameters must be prioritized from the most to the least influential after investigating different VI methods.

5.4. Comparison Between Physical Vulnerability Assessment Methods

The physical vulnerability assessment of roadway assets focuses on assessing the expected degree of direct physical damage (Table 2), which can be studied by using fragility functions (see Section 4) and vulnerability indexes (see Section 5). The main steps of the two methods are illustrated in Figure 5. They are essential for understanding the risks of the network and for identifying the most vulnerable assets while they support efficient risk reduction strategies and emergency planning by the infrastructure owners. The fragility functions provide the damage probability for a given seismic intensity, which is a key factor in quantitative risk analysis (QRA) and estimation of direct losses [105]. This approach is becoming more and more prevalent today, with fragility functions being generated and applied to various infrastructure assets exposed to diverse hazards around the world. The VI approach results in a rating of the assets’ vulnerability based on different parameters and weighting factors. Therefore, it does not provide loss estimations, but is useful for prioritization purposes, in particular as part of periodical assessments of different components of the network. Hence, it is considered as an important tool toward efficient risk management and allocation of resources.

Potential improvements include the development of new analytical and/or hybrid-based models for roadway assets for which limited fragility functions are available, i.e., road pavements and slopes, and considering geotechnical and topographical conditions as well as multi-hazard effects. The derived results should be compared and verified with expert-based approaches and/or empirical data if available. Further improvements regarding the VI methods include the definition of the most critical parameters and the adjustment of weighting score coefficients based on empirical data and sensitivity analyses as well as comparative studies between different VI methods to assess and evaluate the main parameters used in these approaches. Finally, future research may formulate an alternative approach by using vulnerability indices to adjust generic fragility curves, taking into account the characteristics of specific assets such as geometry, age, structural conditions, etc.

6. Assessment of Road Network Vulnerability Using Traffic-Based Approach

Assessing the vulnerability of a road network by evaluating its accessibility provides useful information for the functionality and traffic capacity of roads. The connectivity and operability of the road define the term accessibility. In other words, a road is accessible whenever it is connected (structurally) and operable (functionally). The most critical factor for assessing the traffic capacity and functionality is the direct physical damage of the road elements. The vulnerability assessment does not investigate the road network as a whole, but identifies the most vulnerable points (weak points) in the network [106] (see Section 4 and Section 5). To analyze the vulnerability of any road network, it is essential to divide the network into elements, including nodes and links as shown in Figure 6 below. Mainly, nodes represent the point elements, where the user can enter from (e.g., intersections and bridges) or change the direction of travel (e.g., ramps, road interchanges, and roundabouts). Links are linear elements, which connect the nodes [107]. The classification of road network components depends on different factors, such as the length, connection, path, cycle, circuit, or importance of these components inside a specific road network. Kilanitis and Sextos [108] described the road network configuration in groups of nodes (intersections and other points of interest), links (road segments), and key component (bridges). Nevertheless, Merschman et al. [109] considered intersections, endpoints, and zones as the main nodes for the road network. In addition, the study of a system of assets (e.g., roadway on embankment and a retaining wall in one of its sides) or grade separation of roads (planarity conditions) requires more advanced network-based analysis [110,111,112,113]. Eventually, modelling a road network and classifying its components as nodes or links is considered a complicated process, as it depends on the scope of the analysis and the level of required detail. To assess the network, different vulnerability scores are assigned to its damaged links and nodes, which are prioritized according to their infrastructure condition, as shown in Figure 6. These scores can be based on fragility curves results (damage probabilities) and/or VI calculations (see Section 4 and Section 5). Various methods were employed to assess the road network vulnerability and subsequently functionality, based on their accessibility and the importance of transportation links, which stay operative after an earthquake. Two of these methods, the accessibility index and the link importance index, are described in the following.

6.1. Methods for Network Vulnerability Assessment

In order to assess the impact of seismic damage to certain links or nodes on the functionality of the road network, a number of approaches were applied. Taylor [114] differentiated and provided a relationship between reliability and vulnerability of the road network, with vulnerability being considered more important than reliability when dealing with major impacts of the transport network such as social and economic degradation. Accordingly, the vulnerability of the road network is linked to the failure of the elements critical to that network. One of the first attempts is attributed to Berdica [115], who defined the vulnerability of the road network as the susceptibility to events that can lead to various deficiencies in the serviceability of road networks. In addition, D’Este and Taylor [116] introduced a new approach to assess the vulnerability of road networks by performing an accessibility analysis based on two criteria: (i) a node is considered vulnerable if the loss or substantial degradation of a small number of links reduces the accessibility of the node; (ii) the link is considered critical if the loss of a particular link reduces the accessibility of the network.

6.1.1. Accessibility Index

The vulnerability of the road network is assessed on the basis of the quality of accessibility between the nodes. Relative accessibility is the connection between two different points, which can be evaluated using different terms such as distance, travel costs, and travel time. Relative accessibility is mainly used to determine ease of transport to critical facilities places such as emergency centers, hospitals, and police stations, by which the ease of transport can be assessed on the basis of the degree of connection between origin and destination [116].

Different methods for calculating accessibility have been established, based on different factors and scales of analysis. These include accessibility, place-accessibility, individual- level analysis, and areal analysis [117]. The first accessibility index that was introduced is the Hansen index, which includes the spatial separation coefficients and supply demand coefficients [118].

D’Este and Taylor [116] introduced the accessibility index of road networks by using the integral accessibility approach of Black and Conroy [119], which investigates the connection between different nodes and activities in a given region. In addition, Chang [117] formulated an indicator to measure the accessibility performance of the network $D$, for specific spatial units $S$, at a particular time t after an earthquake. The value of this index ranges from 0 (no accessibility) to 1 (full accessibility). If a particular link breaks or fails, a measure of vulnerability is generated, defined as the cost of transport between two separate nodes, which is resulting from the variation of travel distance, travel time, and travel costs [120]. Nevertheless, Luathep et al. [121] assessed vulnerability of the road network, by conducting a sensitivity analysis (SA) to evaluate the accessibility. The SA approach is mainly used to improve the conducted results by increasing the computational efficiency. This method is based on the accessibility index proposed by Taylor [114] and integrated with the Hansen integral index [122]. The result of this method is considered to be the normal accessibility index, which is symbolized by $A{I}^{Normal}$. An approximation for the accessibility index was then performed, which led to the degraded accessibility index $A{I}^{\mathrm{deg}raded}$. The Jacobian of the normal accessibility index and Taylor index [114] is performed using SA. For further details, refer to Luathep et al. [121].

The assessment of road network accessibility requires the processing of a large amount of spatial data, and thus, GIS technology provides useful spatial analysis tools and methods, which are described in the following.

Ertuğay et al. [123] investigated the probabilistic models used to study the accessibility of road networks using GIS and to determine the probability of road closures in a given road network. Accessibility in the model is based on a zoning approach; the main advantage of this approach is the comparison between different zones based on different accessibility scores (zone-based method). Mainly, the method is conducted by evaluating the cumulative cost between time and distance, which can be formulated by referring to the centroid of the main services in each zone.

Another approach used to assess accessibility based on GIS is the isochrone–based method, which studies the main boundaries of important service areas by evaluating and connecting equal average travel time and distance points away from one or more specific points. When the origin is specified as the main reference point (demand/supply location), isochronal boundaries are conducted by connecting different points in all directions in terms of time or distance or equal threshold [123,124,125,126,127].

The third method is the raster-based method, which is represented with pixels or cells, which present the accessibility values. The raster pixels is considered the smallest entity in the raster environment, which gives a specific accessibility score, depending on the closest proximity to the supply/demand node [123,128,129,130,131].

Each method has specific advantages and disadvantages. For instance, in regional studies, the Raster-based approach is preferred over other methods, because it does not require advanced spatial accuracy. This method results in different representations of accessibility scores, which leads to a variety of advanced capabilities. However, the isochrone–based method is preferred mainly because of the efficient representation of important service and catchment areas. Although this approach is widely used, its weakness is its sensitivity to travel time, distance costs, and user-defined thresholds. Finally, the zone-based method has advantages over the two other methods. This is because this method compares the accessibility score between zones in a simplified way; however, it is complicated to obtain the required data for small zones than coarse zones [132].

6.1.2. Link Importance Index

The assessment of VI for road networks is divided into two main categories. The first category is related to travel-cost vulnerability measures (distance-based methods), while the second is related to the cost vulnerability measures (cost-based methods) [133]. The link between different nodes in the road network forms a cluster. A link is considered critical if the loss of this link impairs the functionality of the road network [134]. Different approaches were employed to study the criticality of links and their effect on road networks.

Taylor et al. [135] investigated the effect of the loss of a certain link on the functionality of the road network. The study defined a cost factor that results from a specific combination of distance and time. The index $T_a$ evaluates the variation in costs between two different scenarios. In the first scenario the link is intact, while in the second scenario the link is removed. Nagurney and Qiang [136] assessed the link importance index (LI) by performing an efficiency measurement for networks with a specific network topology $G$ and origin-destination demand Q. Furthermore, Jenelius et al. [137] formulated an importance index by studying the importance of a specific non-cut link symbolized by the letter a, through which the cut-link increases the cost of travel and leads to a finite increase for the whole network. Scott et al. [138] developed a network robustness index (NRI) for networks, based on the volume of discrete links, taking into account redirection options for OD pair in these links. The method then considered the travel time to measure the redirection cost, when a link is completely removed. An assumption is built upon the complete closure of a specific link, by which the users could follow the user-equilibrium in route options. Finally, the travel costs for the network with all the intact links are calculated (base case). The difference between the two scenarios is performed and results in NRI.

Balijepalli and Oppong [133] introduced a new vulnerability index (NVI) to examine the criticality of links in the network. The NVI studies the importance of each link in the road network by considering the serviceability of that link. In addition, the NVI works efficiently in evaluating the system in case of partial degradation for a specific link, resulting in different scenarios with different results. The serviceability of the link is obtained by dividing the available capacity for the link by the maximum hourly capacity per lane for a given road type. The capacity of a single link is calculated by summing the capacities of available operational lanes. The hourly capacities are specified according to DfT Transport Analysis Guidance [139]. Finally, the value of r represents a reduction factor for the available capacities in case of multiple hazards [133]. Nevertheless, Rupi et al. [140] introduced LI to evaluate the criticality of links in road network, by conducting a case study in Bolzano, northern Italy, where the LI depends on two main aspects: usage level and closure impact on the entire road network, which range from zero to one. LI was formulated by studying the local and global significance.

In addition, Gecchele et al. [141] used LI to analyze the vulnerability of road networks by introducing two new measures for the local, $F(AD{T}_e)$ and $G(\Delta C_e)$, which are defined in Equations (8) and (9).

$$F(AD{T}_e)=\frac{D{T}_e-D{T}_{\min }}{D{T}_{\max }-D{T}_{\min }}$$

(8)

where $D{T}_e$ is the daily traffic (DT) for a given link and $D{T}_{\max }$ and $D{T}_{\min }$ are the maximum and minimum DT values, respectively.

$$G(\Delta C_e)=\frac{g_e-g_{\min }}{g_{\max }-g_{\min }}$$

(9)

where $g_{\max }$ and $g_{\min }$ are the maximum and minimum values of $g_e$ calculated for the set of links in road network, by which $g_e$ is defined as shown in Equation (10):

$$g_e=\Delta C_e+\alpha d_{ij}^e$$

(10)

where $\Delta C_e$ represents the total variation in travel time after the closure of link e; $d_{ij}^e$ is the unsatisfied demand from $i$ to $j$; and $\alpha$ is coefficient calculated with respect to link (cut or non-cut link).

Additionally, Chen et al. [142] proposed a vulnerability index to evaluate the effect of link closure on the surrounding area instead of the entire road network. The impact on the surrounding area if a specific link is closed is evaluated by the vulnerability index $VU{L}_a^1$ (relative change in network efficiency). The network efficiency of the affected area is developed based on Latora and Marchiori [143], with modifications by Chen et al. [142] and the performance measure $E(G)$ shown in Equation (11).

$$E\left(G\right)=\frac{{\displaystyle {\sum }_i{\displaystyle {\sum }_{rs}\frac{u^{rs}{q}_{rs}}{{\pi }_i^{rs}}}}}{{\displaystyle {\sum }_{rs}{q}_{rs}}},{\forall }_{rs}\in RS,{\forall }_i\in I$$

(11)

where $q_{rs}$ is mean travel demand between O–D nodes; $u^{rs}$ i is the proportion of type $i$ travelers traveling from $r$ to $s$; and ${\pi }_i^{rs}$ is minimum travel time budget between the O–D pair for type $i$ travelers.

Li et al. [144] introduced a new approach to assess the criticality of links in the road network. This method used the traffic flow betweenness index (TFBI) to identify the most critical links. This approach assumes different scenarios with different link disruptions, which leads to a time-consuming, prohibitive procedure.

Other studies introduced different methods to assess the vulnerability of road networks by identifying the criticality of links. For example, Rehak et al. [145] introduced the cascading impact assessment method (CIA) to identify the most critical links. Vodak et al. [146] studied the criticality by formulating a rapid deterministic algorithm. Furthermore, Zhang et al. [134] focused on characteristics that are highly correlated for traffic flow in order to create a verification method, capable of specifying the most critical links in road network.

The vulnerability assessment is mainly based on two measures, the travel distance and travel time. Vulnerability indices based on distance work efficiently for scattered regional networks. However, they are less suitable for urban networks, as travelers in urban networks weight the travel time more than travel distance. Moreover, the VI that is related to OD cost assumes that all traffic in scattered regional networks tends to travel through the routes with the least cost. Therefore, while driver travel on different routes in the urban network, all of these routes are considered important [133]. Furthermore, other indices are based on computational methods that can be helpful in studying the vulnerability of larger and more complex networks, such as the cascading impact assessment method and the rapid deterministic algorithm method. After assessing the vulnerability of road networks, a road network map with prioritized links is produced, taking into account different scenarios of link failure.

An overview of the available methods for assessing network vulnerability is presented in

Table 13. Existing methods for network vulnerability assessment.

Vulnerability Assessment Method	Equation	Parameters	Reference
Accessibility index	$AI={\displaystyle \sum _j{B}_j}f(C_{ij})/{\displaystyle \sum _j{B}_j}$	$f\left(C_{ij}\right)$: Impedance function. $B_j$: the intensity of an activity at j.	[118]
Accessibility index	$D_{s,t}=\frac{f-R_{s,t}}{f-1}$	$R_{s,t}$ Transport accessibility ratio of spatial unit s at a specific time t. $f$: Constant (effective distance multiplayer).	[117]
Accessibility index	$A{I}_i(T)={\displaystyle \underset{0}{\overset{T}{{\displaystyle \int }}}{N}_i}(t)dt$	$A{I}_i\left(T\right)$: Cumulative number of opportunities within T travel cost units from location i. $N_i\left(t\right)$: Absolute number of opportunities at t travel cost units from i.	[116]
Link importance index	$\mathrm{Importance}\left(a\right)=\frac{{\displaystyle {\sum }_k{w}_k\stackrel{\_}{{\Delta }_{ka}}}}{{\displaystyle {\sum }_k{w}_k}}$	$w_k$: Weight specified for OD pair $k$ that reflects its importance by $\stackrel{\_}{{\Delta }_{ka}}=-{\Delta }_{ka}$.	[135]
Network robustness index	$NR{I}_a=\stackrel{\sim }{C_a}-C$	$\stackrel{\sim }{C_a}$: Represent the total travel cost for network when link (a) is detached. $C$: Evaluated cost for the base cost when all links are in the network are intact ($C={\displaystyle \sum _s{t}_s}{x}_s$).	[138]
Link importance index	$T_a={\displaystyle \sum _k{q}_k}\Delta c_{ka}$	$q_k$: Travel demand. $\Delta c_{ka}$: Change in generalized cost for origin demand (OD) pair $k$ when link $a$ fails.	[135]
Link importance efficiency measure	$\epsilon \left(G,Q\right)={\displaystyle \sum _k\frac{q_k}{c_k}}/n_k$	$c_k$: Cost of OD pairs. $n_k$: Number of the OD pairs.	[136]
Accessibility index	$AI=\frac{{\displaystyle {\sum }_{w\in W}{q}^w}.A{I}^w}{{\displaystyle {\sum }_{w\in W}{q}^w}}$	$q^w$: Travel demand of OD movement $w\in W$. $A{I}^w$: Accessibility index.	[114]
Accessibility index (sensitivity analysis)	$A{I}^{\mathrm{deg}raded}\approx A{I}^{normal}+{\nabla }_{s}A{I}^{normal}\left|{}_{s_0}\right..s^T$	${\nabla }_{s}A{I}^{normal}\left|{}_{s_0}\right.$ Jacobian of the normal accessibility index with respect to vector of link capacity degradations at initial state.	[121]
Accessibility loss	$V_{rs}={\displaystyle \sum _i{\displaystyle \sum _j{d}_{ij}}}{v}_{ijrs}$	$d_{ij}$: Movement between $i$ and $j$. $v_{ijrs}$: Difference of the generalized cost of transportation between node $i$ and $j$.	[120]
Network vulnerability index	$VU{L}_a^1=\frac{E_0(G_a)-E_a(G_a)}{E_0(G_a)}$	$E_0(G_a)$ and $E_a(G_a)$: Network efficiency of impacted area $G_a$ under two different scenarios (normal condition and during closure of link a).	[142]
Network vulnerability index	$NVI={\displaystyle \sum _{i=1}^{\left|A\right|}\left[\left(\frac{x_i^{before}}{r_i^{before}}{t}_i^{before}\right)\right]}-{\displaystyle \sum _{i=1}^{\left|A\right|}\left[\left(\frac{x_i^{after}}{r_i^{after}}{t}_i^{after}\right)\right]}$	$r_i$: Link serviceability i. |A|: number of specified links in the network.	[133]
Link importance index	$LI(j)=k.F(AD{T}_j)+(1-k)·G(\Delta C_j)$	F: is the function that is related to $AD{T}_j$. G: function that is related to $\Delta C_j$. K: calibration coefficient.	[140]
Accessibility index (zone-based approach)	$A_i={\displaystyle \sum _j\frac{1}{time\mathrm{or}\mathrm{distance}(i,j)}}$	$A_i$: Accessibility score for origins. $i$: Origin. $j$: Destination.	[123]
Accessibility index (zone-based approach)	$A_i={\displaystyle \sum _j\frac{G(j)}{time\mathrm{or}\mathrm{distance}(i,j)}}$	$G\left(j\right)$: Gravity measure of specific service in the road-network.	[123]
Traffic flow betweenness index	$TFB{I}_a={\left[{\left(TF{B}_a\right)}_{nor}\right]}^r.{\left[{\left(d_{st}\right)}_{nor}\right]}^{1-r}$	$d_{st}$: Endpoint for OD demand; it represents the affected demand caused by the closure of link a. $TF{B}_a$: Traffic flow betweenness for a specific defined link a. $r$: Coefficient used to allocate weights between ${\left(TF{B}_a\right)}_{nor}$ and ${\left(d_{st}\right)}_{nor}$.	[144]

, including indices, parameters, and type of method.

7. Integrated Seismic Risk Assessment for Road Network System

Although damage of road networks as a result of earthquakes cannot be accurately predicted, there is a precautionary process, i.e., a risk assessment of the road network, that could help in the mitigation and adaptation process by infrastructure owners and stakeholders to decrease the disruptions in the event of an earthquake. A pre-earthquake study is therefore essential to assess the performance of each road. An accurate assessment of the seismic hazard estimation is a key challenge to be addressed in this process. This is due to the fact that a road network, as opposed to a single structure where the risk is site-specific, spans over a large region, which can lead to higher impact of the natural disaster. Moreover, the risk assessment is more challenging, as the different network assets are exposed to different levels of seismic hazard and variable geotechnical conditions [38,147].

Most of the available models focus mainly on a single criterion, e.g., physical damage to road assets, traffic disruption, and/or functionality of the road network. However, the correlation between damage to assets and network functionality by risk assessment models that focus on multi criteria aspects are limited. In addition, specifying the seismic performance considering the road network functionality is an essential step toward improving the resilience of the transport infrastructure [148,149].

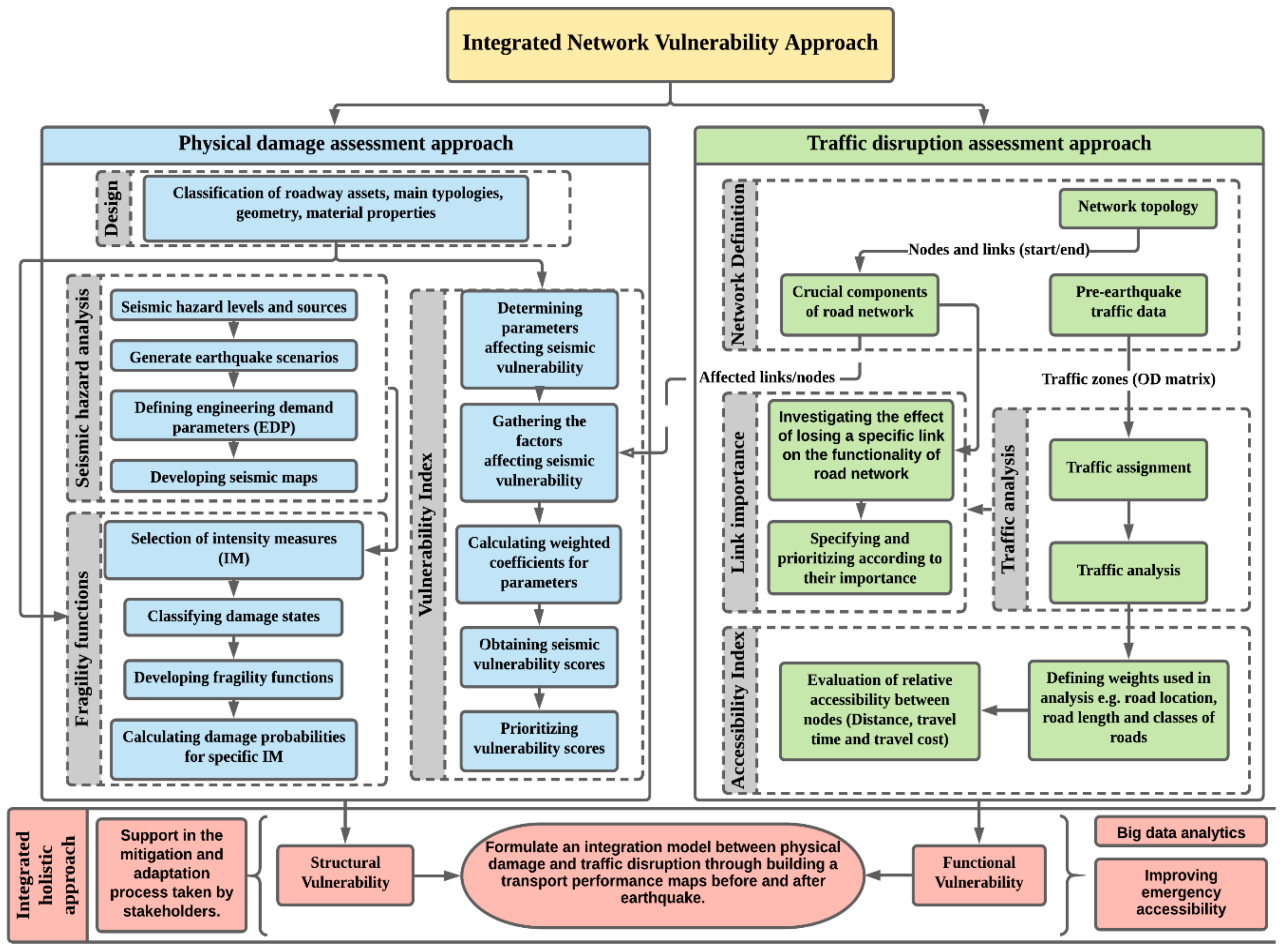

For all the above reasons, a comprehensive integrated model for risk assessment of the road network needs to be implemented. This model will be able to assess and evaluate all the above-mentioned critical consequences and to specify the seismic performance of road networks. A number of studies and methods based on different integration approaches are currently available.

7.1. Methods Considering Uncertainties (Probabilistic Models)

Tang and Huang [150] assessed the seismic vulnerability of road networks based on a Bayesian network approach, which considers bridges and roads as the main components. The model was developed on the area that is centering Shunhe Hui District and the Baogong Lake in China. The model focused on connectivity as a seismic vulnerability index (VI) to assess the serviceability of the network in case of earthquakes. In addition to O-D connectivity, the capacity of the network depends on the integrity of its segments. Yet, there is uncertainty in the seismic hazard, as well as in the evaluation of demand and capacity of the road elements; hence, probabilistic methods are commonly adopted to treat uncertainties. Moreover, seismic vulnerability of each component (road segments and bridges) is examined prior to the road network vulnerability assessment. Eventually, the Bayesian network method is considered important in reducing uncertainties, and it was used extensively before in fields of safety management and risk assessment [151,152,153].

Costa et al. [154] developed a probabilistic approach to study the impact of earthquakes on road traffic by studying the correlation between the physical damage of road assets and traffic flow on road networks in Messina, Italy. A probabilistic approach was employed to account for the spatial variation of earthquake-induced damages. This research investigated the functionality of road network by comparing the traffic behavior of the road network in normal conditions and in case of disruptions caused by building debris.

Although the physical damage of road networks is a crucial part for developing the VI, the main problem arising from this physical damage is the reduced accessibility and serviceability [115]. Therefore, in the vulnerability assessment, a combination of damage, traffic, and functionality should be considered for both road network and its system of assets.

7.2. Traffic Flow Analysis Methods

A frequently applied approach is the sensitivity analysis method [155]: this model is used to assess road network vulnerability from the capacity degradation aspect; it is considered more efficient than the traditional assignment method (traffic assignment). Thus, the analytical performance is greatly improved, and the vulnerability of the actual large road network can be analyzed more efficiently. Additionally, the model conducted the route vulnerability models and origin–destination (OD) pair based on road segments by applying a weighted arithmetic average. The OD matrix presents a model that yields the most likely origin–destination matrix that is consistent with measurements of link traffic volumes [156]. Jin et al. [157] assessed the seismic risk by studying the vulnerability of road networks using non-structural components. The model considered the increment of travel time costs that resulted from different negative consequences. The aim of this model is to test the vulnerability of the road network that becomes sensitive to internal and external strains without taking into consideration the structural disruption. Nevertheless, Khademi et al. [158] employed a binary OD matrix model to analyze the vulnerability of Tehran road networks in Iran. This research proposes a method to investigate post-earthquake responsive and recovered routes through identification of isolation measures (distance between nodes and the type of trips), which are based on redundancy. These measures can help in determining the most susceptible roads to disruption during earthquake. For instance, as the distance increases between two nodes, more redundant paths will be implied, but when the distance decreases, less redundant paths will be available, making this node more isolated. The study aims to identify which areas in the road network are the most vulnerable to disruptions caused by major earthquakes.

Other researchers provided seismic risk assessment and studied seismic vulnerability performance for road networks using different methods. For instance, Liu et al. [159] established a new theory by using a system-thinking method to analyze the vulnerability of road networks. Cai et al. [160] performed vulnerability analysis for the subway network by investigating two different models: a generalized travel time model with capacity constraint and a logit based equilibrium model for path choice. Bílová et al. [161] investigated six sites in the Czech Republic that were severely damaged due to earthquakes and used two indexes, the network efficiency index and weighed network efficiency index, to identify the number of damaged roads, which are investigated using computational-time demand models. The network efficiency index $V_t$ is calculated based on an approach called closeness centrality, which compares the average efficiency of the damaged network with average efficiency of the undamaged road network. However, the weighted network efficiency index is evaluated according to the importance of each node in a road network [135].

7.3. Connectivity Analysis Methods

Argyroudis et al. [51] conducted an integrated method for analyzing the systematic risk of road networks. This research used a global connectivity indicator to investigate the road network performance. The connectivity performance indicator is evaluated through the relation between the physical damages and functional losses caused by interaction with other systems. Furthermore, Caiado et al. [162] formulated an approach, based on three main dimensions, to evaluate and strengthen the resiliency of urban networks. Those three dimensions are network connectivity, land use, and specific demand patterns for transportation. Finally, an accurate seismic risk assessment is considered as a complex task, due to variety of factors involved. In addition, vulnerability is taken into account as a main factor in this process alongside other factors. In general, the performance of road networks is commonly evaluated by using a single criterion model. However, a proper and accurate risk assessment for road networks requires an appropriate model that integrates damage, traffic, and functionality [163,164,165].

7.4. Methods Considering Socioeconomic Factors

Mainly, the integration approach is considered more effective in determining road network vulnerability, as it tests various parameters and their impact on each other. The integration can be done for studying different parameters and their effect on each other [166]. For instance, Kilanitis and Sextos [96] studied the functionality of a road network considering the economic and environmental consequences. Furthermore, Shinozuka et al. [167] investigated the effect of retrofitted bridges on road networks, by developing a probabilistic model to estimate and compare the economic losses before and after seismic retrofit of the bridges. The benefit of the retrofitting measures are assessed based on the drivers’ delay index.

Duzgun et al. [168] assessed the vulnerability of urban areas based on a model, which integrated socio-economic impacts, structural vulnerabilities, structural characteristics of the ground condition, and accessibility to important services. In this study, a socio-economic index was developed including demographic, socio-economic, social security, socio-spatial, political, and behavioral dimension aspects. This model was formulated by following four main steps, which are selection of samples and questionnaire formation, development of clusters and indicators, measurement analysis and assigning of the indicators, and formulation of socio-economic index. The study indicated that the socio-economic index could help in specifying and prioritizing the most vulnerable areas, by which more effective vulnerability reduction criteria can be implemented.

Nevertheless, Yang and Frangopol [169] investigated the deterioration of coastal bridges due to hurricanes addressing climatic and socio-economic variations. A model was built to study the effect of socioeconomic growth on life-cycle risks for coastal bridges, considering indirect economic costs due to bridge failure, which are the cost due to extra travelled time and distance per one car $C_{time}{\mathrm{and}\mathrm{C}}_{run}$. The model accounts for the variation of travel time and average daily traffic (ADT) between normal circumstances and after hurricanes. Moreover, Kiremidjian et al. [170] formulated a model to evaluate the losses due to earthquakes, landslides, and liquefaction. Losses were represented by the repair costs of bridges as a measure of direct seismic losses.

7.5. Holistic Vulnerability Analysis Methods

These models investigate the urban system as a whole by integrating all its components (physical, economic, and social). Rus et al. [171] introduced a holistic concept considering four main components: buildings, community, open space, and infrastructure. This concept employed (i) probabilistic fragility functions for the individual physical components, (ii) a composite index approach for evaluating the resilience of the community against disasters, and iii) a complex network methodology (graph theory) to assess of the systemic resiliency. Nevertheless, Sevilla et al. [172] developed a holistic resilience assessment platform (HRAP) that provides an advanced environmental simulation for different potential impacts due to multi-hazards. This holistic platform provides an improved understanding of the performance of infrastructure and system of assets exposed to multi-hazards by evaluating interdependencies due to cascade failures and building up efficient risk-based response criteria for different scenarios.

Additionally, vulnerability assessment mainly helps to obtain big data analytics for better implementation of natural disaster security measures and resilience-based solutions. With the increase interest of the internet of things (IoT), applications nowadays are considered smarter with better connectivity aspects, making them beneficial in building sustainable and resilient city infrastructure. Additionally, machine learning (ML) approaches can significantly improve the efficiency of transport models based on prediction models such as the Bayesian method, Markov model, clustering method, artificial neural networks, or regression analysis. These solutions can reduce the number of injuries and accidents [173,174,175,176]. Eventually, different integrated models should be developed, through the use of ML approaches, to increase the efficiency of the methods used for assessment of vulnerability for road networks. Additionally, different open-source simulation tools for traffic analysis are being used. For instance, Costa et al. [154] used the Simulation of Urban Mobility (SUMO) tool to conduct the traffic simulations; in this tool different specifications can be inserted to define the network, such as geometric specifications, speed limits, and any junctions or traffic lights. Nevertheless, Van noort et al. [177] developed an integrated traffic simulation platform (MOBYSIM) that takes into account the interaction between vehicles and the surrounding environment, which can help in determining the road network performance for three different aspects: efficiency, the environment, and safety.

Moreover, monitoring-enhanced resilience has not been completely investigated yet. Digital technologies have the ability to yield rapid resilience assessments for transport infrastructure exposed to natural and human induced hazards within its life cycle. For instance, remote sensing, which uses space-borne and air-borne imaging platforms, provides the main merits of broad spatial coverage in the absence of any means of assessment for the infrastructure performance or functionality. In addition, satellite images can provide rapid vulnerability assessment maps for larger geographic areas [39,172,177]. Finally, different technologies are being used to monitor and assess the vulnerability and the traffic conditions of transport infrastructure. These technologies can provide valuable information and improve the available vulnerability models as well as the phases of resilience (preparation, response and recovery, mitigation). An improved integrated network vulnerability model is proposed in this literature review (Figure 7), which integrates two main different assessment approaches (physical damage and traffic disruption assessment approach). Although the focus here is on seismic hazard effects, this integrated approach is also applicable to other hazards.

8. Conclusions

The vulnerability assessment of critical infrastructure has gained great attention in the last decades due to its great importance in natural disasters. Vulnerability assessment is a key step for adaptation and improvement of the resiliency of road networks, to continue their function under hazard events. This literature review aimed to present the methods that are used in assessing the vulnerability of road networks and their assets, focusing on seismic hazard. At first, this paper presented the two main categories of vulnerability assessment, the ones based on fragility functions and the vulnerability index (VI) methods. In the fragility functions, four different approaches are used: empirical, analytical, expert-judgment, and hybrid. The empirical and expert-judgment approaches can be insufficient and, in some cases, less accurate compared to the hybrid and analytical counterparts. However, the available hybrid and analytical based fragility models for road pavements and slopes are limited. The VI methods are more efficient for road networks compared to fragility curve methods due to their capability to tackle a set of road segments in a specific network. Moreover, the VI method is considered important in rating and prioritization of assets. However, the variability of data regarding the vulnerability parameters and their weighting scores makes it difficult to formulate a common VI approach.

Subsequently, this paper explored two main methods for assessing the vulnerability of road networks, the accessibility index, and the link importance index; these methods evaluate the functionality of the road network with respect to the analyzed traffic. The accessibility index is based on GIS techniques to obtain results that are more efficient and practical, particularly in regional and complex road networks compared to the accessibility indices. However, this model is data-dependent with respect to other models. On the other hand, the link importance index is based on two main measures, the travel time and travel distance. The travel time measurement is considered more efficient for studying urban road networks, while travel distance-based is more adequate in case of regional networks. Most of the vulnerability assessment studies focus on a single criterion without considering the integration between different attributes. Therefore, more comprehensive models such as integrated seismic risk assessment should be formulated and validated in future studies. Conducting accurate integrated seismic risk assessment is a complex task due to the large number of variables. However, a more reliable risk assessment for road networks requires a model that integrates damage, traffic, and functionality. Therefore, integrated seismic risk assessment methodologies were investigated in the last part of this paper, including probabilistic models, traffic flow analysis methods, methods considering socioeconomic factors, connectivity analysis methods, and holistic vulnerability analysis methods.

In summary, considerable efforts have been made to develop either physical approaches or traffic analysis-based approaches, in order to study the vulnerability of road networks and their assets. The focus of future research should be on the testing of the different methods in real-life settings and on the development of integrated systems that will in turn show us the interrelations between all components of the road networks. A main factor for such effort would be the integration of the physical based approach with the traffic analysis. In addition to that, another important factor that should be further investigated is the system of assets under the effect of multi-hazards. Formulating an integrated assessment model is considered complex, yet an important approach that should be followed in assessment of road network vulnerability and its assets. Indeed, the new emerging and digital technologies are considered the ideals for development of these integrated models in the future. In this respect, a holistic model forms the foundation for the shift that is needed in formulation of more efficient integrated assessment approaches in the research field.
