Feeding Models to Optimize Dairy Feed Rations in View of Feed Availability, Feed Prices and Milk Production Scenarios

Abstract

In the global dairy production sector, feed ingredient price and availability are highly volatile; they may shape the composition of the feed ration and, in consequence, impact feed cost and enteric methane (CH₄) emissions. The objective of this study is to explore the impact of changes in feed ingredients’ prices and feed ingredients’ availability on dairy ration composition, feed cost and predicted methane yield under different levels of milk production. To meet the research aim, a series of multi-period linear programming models were developed. The models were then used to simulate 14 feed rations formulations, each covering 162 months and three dairy production levels of 10, 25 and 35 kg milk/d, representing a total of 6804 feed rations altogether. Across milk production levels, the inclusion of alfalfa hay into the feed rations declined from 55% to 38% when daily milk production increased from 10 to 35 kg, reflecting the cows’ increased energy requirements. At a daily milk production level of 35 kg, CH₄ production (per kg milk) was 21% and 53% lower than in average and low milk producing cows, respectively, whereas at 10 kg of milk production the potential to reduce CH₄ production varied between 0.6% and 5.5% (average = 3.9%). At all production levels, a reduction in CH₄ output was associated with an increase in feed costs. Overall, and considering feeding scenarios in low milk producing cows, feed cost per kg milk was 30% and 37% higher compared to that of average and high milk production, respectively. The feed ration modeling approach allows us to account for the interaction between feed ingredients over time, taking into consideration volatile global feed prices. Overall, the model provides a decision-making tool to improve the use of feed resources in the dairy sector.

1. Introduction

Global dairy production is expected to increase by 35% in the coming decade [1]. Such growth requires judicious allocation of resources in terms of land, water, animals and feed, in order to enhance the operation’s environmental as well as economic sustainability. Dairy feeding systems vary widely depending on geographical location, utilized breeds, production level and the availability of feed resources [2]. These variations may also reflect variations in feed costs, milk production costs and the emission of greenhouse gasses (GHG), notably enteric methane (CH₄) [3,4]. Furthermore, in the global dairy production sector, feed ingredient price and availability are highly volatile; they may shape the composition of the feed ration and, in consequence, enteric CH₄ emissions per animal and per kg of milk. A feed commodity switch that responds to changing feed prices may induce changes to the overall feed costs and CH₄ yield. Alqaisi et al. (2019) [5] evaluated dairy feeding scenarios under alternative feed availabilities and relative prices. In that study, only one level of milk production was considered for feed formulation, in order to explain monthly variations in ration composition and feed costs. The current work provides further analyses and considers varying levels of milk production, since this typically varies between herds, between lactations and within the lactation period. These variables need to be accounted for in feed formulation, since they are affecting feed costs and CH₄ emissions in dairy production. In dairy production, feed is the most expensive component, typically representing 50–70% of total milk production costs [2,6]. Yet, the actual share of feed costs in the total milk production costs is highly dependent on feeding systems, which vary widely worldwide [2]. Feed costs are driven by the availability of feeds, feed input prices and overall diet composition. Furthermore, dairy production level drives the feed cost per day or per kg of milk produced, since it reflects the animal’s efficiency. However, information about feed cost under different milk production levels and the associated CH₄ emission is not thoroughly evaluated in the literature in relation to feed ingredients supply. Alqaisi et al. (2019) [5] demonstrated that CH₄ emission is associated with the feeding system practiced (i.e., grain versus meal feeding). Using available historical market feed prices for feed formulation could be instrumental in providing estimates on feed ration composition, overall feed costs and the resulting CH₄ emissions under scenarios of changing feed availability (e.g., availability of corn and absence of wheat or barley) and dairy production levels.

Wilkinson and Garnsworthy (2017) [7] reported that the environmental impact of feed use by dairy cows may be reduced via diet formulation but depends on the availability of raw materials for concentrate feeds and level of milk output. In feed formulation, linear programming (LP) has been widely used to formulate least cost rations for livestock feed requirements. However, the issues of commodity prices and dietary dynamics over time, and their relationship with feed ration composition, feed cost change, CH₄ emission and milk yield have not been comprehensively evaluated. In diet formulation, decisions need to be made frequently (daily, weekly or monthly). Therefore, the traditional LP approach needs to incorporate changing feed prices, milk production levels and time variables to adequately depict necessary changes in rations that reduce costs and perhaps CH₄ emissions. From an economic point of view, dairy farmers might be more interested in feed cost reduction than CH₄ emission mitigation. Historically, milk production cost was lowered by increasing milk yield [8]. However, reducing CH₄ emissions has not been thoroughly evaluated in relation to feed ingredient supply, which might become a challenging issue in the future due to the disruption in ingredients production. Since increasing milk yield is associated with improving feed efficiency, increasing milk production per cow has been reported to reduce CH₄ emissions per kg of milk [3,9]. With fluctuating feed commodity prices, multi-period LP modeling could be used to recommend dietary switching from one feed commodity to the other (i.e., switch from corn to wheat, or from soybean meal (SBM) to distiller’s dried grains with solubles (DDGS)) [5]. The authors concluded that the magnitude of the feed commodity switch is price-dependent. Accordingly, this approach can explore dietary options that result in varying CH₄ emissions and may provide further options for lowering feed costs and CH₄ production under limited feed resource availability. Since we propose a feeding model that captures market price changes, diet composition might change accordingly, and therefore CH₄ emissions might change subject to the monthly dietary change instances. In this context, we hypothesize that the feed ingredients’ inclusion rates are correlated with feed prices and determine feed cost as well as the CH₄ emissions of cows, whose effects depend on the level of milk production. Therefore, evaluating potential changes in feeding systems, feed cost and CH₄ emissions requires a periodic (multi-period) tool that mimics the feed trading and feed production process in response to feed ingredients’ availability. In consequence, the objectives of this study are to (1) develop multi-period LP feed models for dairy cows with three levels of milk production, (2) demonstrate the potential use of the method in different commodity feed availability situations (feeding scenarios), (3) illustrate the impact of a feed commodity switch on the vulnerability of feeding systems and on CH₄ emissions, and (4) explore the relationships between feed cost, feed commodity switch and the predicted CH₄ emissions.

2. Materials and Methods

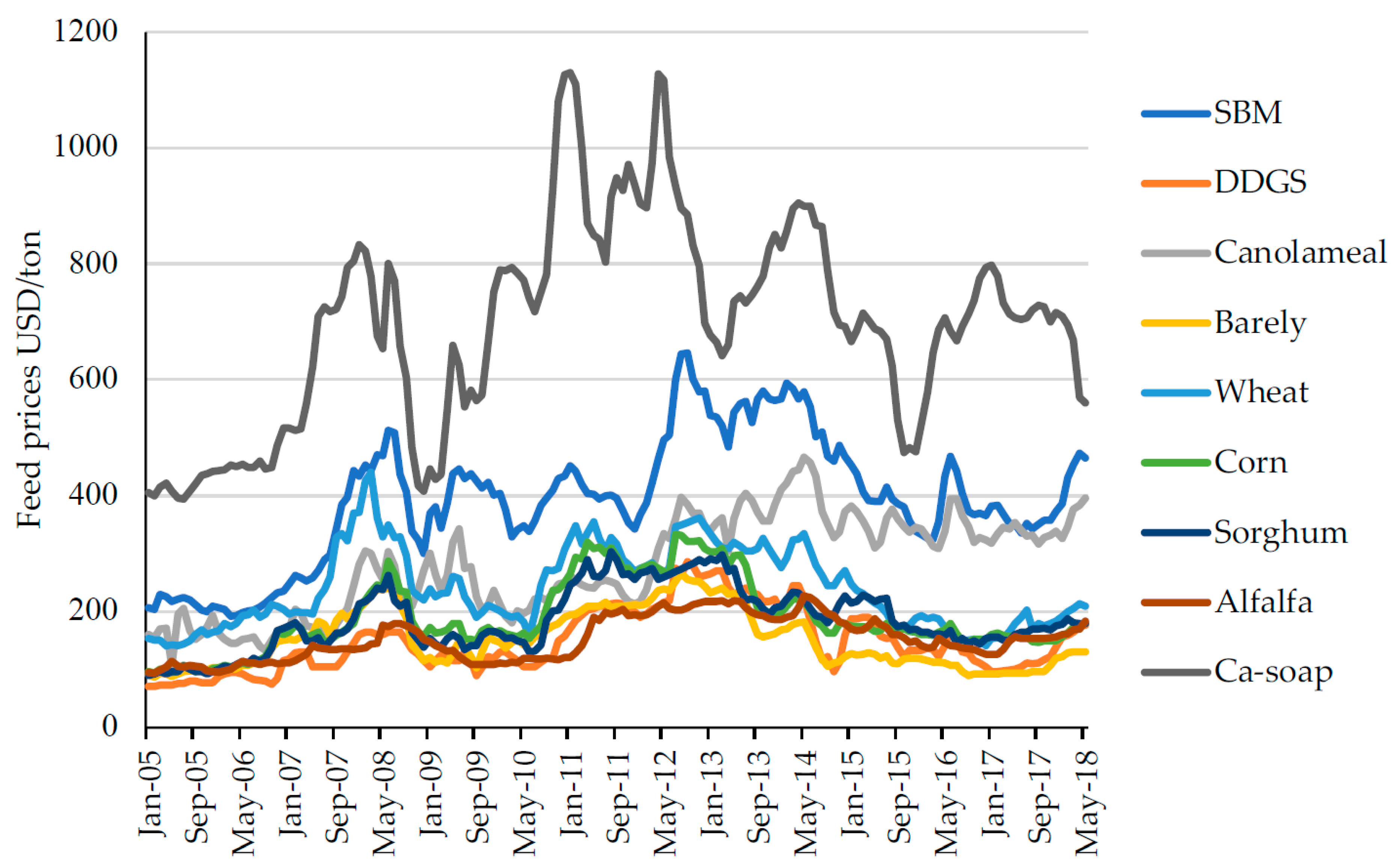

Diet formulation is a continuous process based on daily, weekly and monthly trends. In the current study, we use global monthly feed commodity prices dependent on their availability. We hypothesize that changes in feed ration formulation, which are feed-price-dependent in an LP formulation, are correlated with the costs of individual feeds and affect enteric CH₄ emissions. The formulation considers three levels of milk production (10, 25 and 35 kg/d), representing a low, average and high milk production level. The three levels correspond to usual variations in milk production levels between dairy herds and during a lactation period, and they also represent distinctly different energy and nutrient requirements. These variables will lead to different diets and provide changes to feed costs and CH₄ emissions. In addition to the grains and cereal meals that are used to supply energy and protein to fulfil the animals’ requirements, alfalfa hay was used as a fiber source for dairy cows; this choice is justified by its global importance in dairy cattle rations, and due to the availability of its market prices.

2.1. Multi-Period LP Model

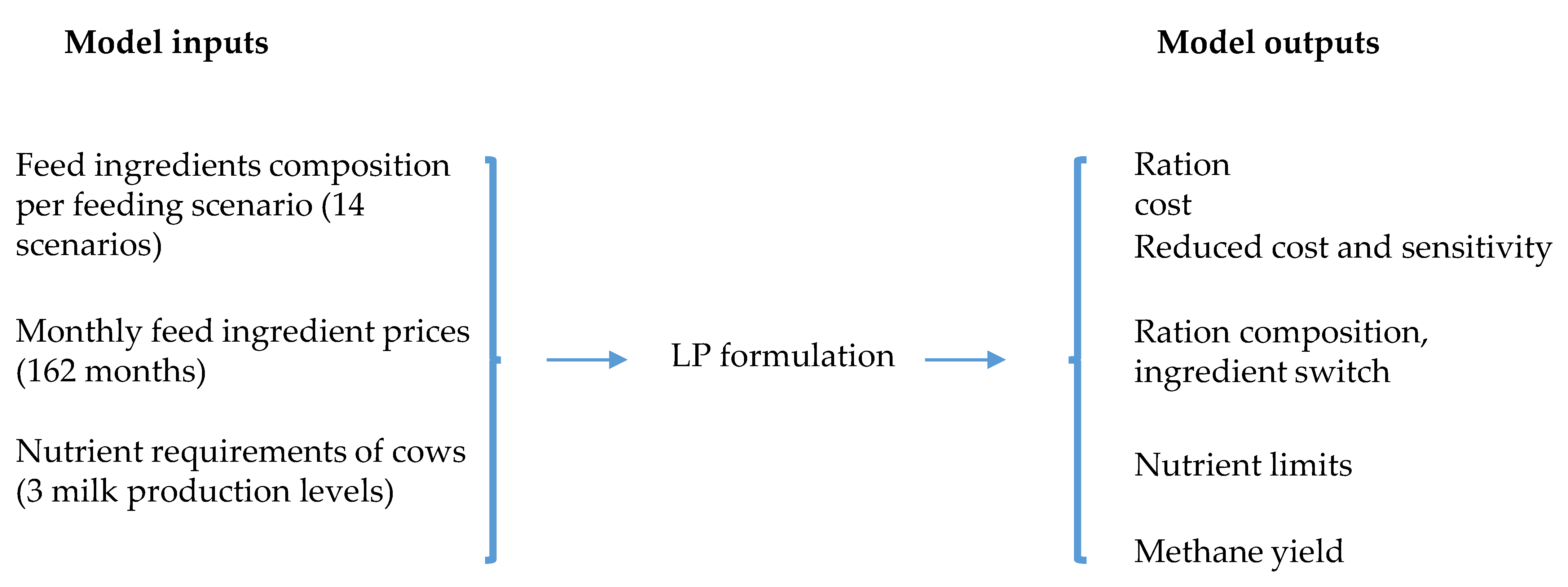

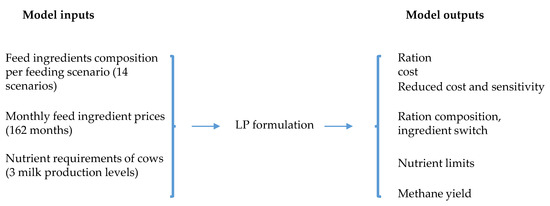

The proposed approach is based on monthly analyses of the output of linear programming models. The objective of the multi-period LP models is to produce a feed blend at a minimum cost in different periods (defined here as a month) and for cows varying in their production, either between individuals, or within the lactation period of one individual. The model selects the optimal proportion of feed ingredients to produce the least costly diet given feed nutritional composition, animal nutritional requirements and feed prices. Consequently, least feed costs are compared to commodity use alternatives (i.e., corn versus wheat) and enteric CH₄ emissions that result from the LP formulation.

To determine the time (defined by the month) when a feed ration adjustment is required, and the proportion of an alternative feed commodity to be included into the new feed ration, a multi-period LP model was developed for dairy cow feeding for 14 case scenarios representing the potential feed commodity availability in a region provided by international trade. These feeding scenarios allow for an evaluation of simulated diets and their vulnerability to changes in feed availability options and feed price volatility. The first six scenarios (S1 to S6) were based on grains, and one meal source typically used to formulate rations, while the remaining eight scenarios included additional options for agricultural by-products (meals).

Unlike static LP models, the multi-period LP model developed in this study minimizes a sequence of objective functions and provides time series relationships between decision variables and constraints via optimized solutions. The resulting relationships are estimated using the open source R programming software version 3.5 [10]. The model provides, but is not limited to, a sequence of results from multiple periods by retrieving values from a sequence of successfully solved single-period LP models. The results produced by this model allow the decision-maker to investigate the relationships between objective function values, values of the decision variables, values of the constraints, dual variables (the reduced costs) and the sensitivity of the objective function. In many respects, the model serves to provide an efficient sensitivity analysis of the optimal feed mix under alternative input prices and animal nutritional requirements.

2.2. Model Structure

The general structure of the multi-period LP is described for each milk production level as follows:

$$for t=1, \dots , 162$$

$$\min T{C}_i= {\displaystyle \sum }_{i=1}^n{c}_{it}{x}_{it}$$

$$subject to$$

$$a_{ijt}{x}_{it}\frac{\ge }{\le } b_{jt} \forall j \in J$$

$$x_{it} \ge 0$$

where TC_t is the total cost of the feed ration in period t (month), c_it is the per-unit cost of feed ingredient i at period t and x_it is the quantity of feed ingredient i in the feed ration in period t. J is the set of nutrients that must be considered in the feed ration, with j being one of the nutrients of the set of J, a_ijt the quantity of nutrient j in feed ingredient i in period t and b_jt the required amount of each nutrient j in the feed ration in period t.

The sign of the relationship for each of the nutrients depends on the particular nutrient and the nutrient balance that must exist in the ration. It is important to note that our model assumes that the nutrient composition of feed ingredients is the same across periods, whereas the nutrient requirements for the model cow changes per production level. The general structure of the model for one particular scenario is shown in

Table 1. The multi-period LP model structure in R with decision variables, objective function and the RHS constraints for three milk production levels (10, 25 and 35 kg/d).

Monthly Feed Prices			SBM	DDGS	Canola Meal	Barley	Wheat	Corn	Sorghum	Alfalfa Hay	Ca-Soap	Dicalcium Phosphate
Objfn1			Ob1P1	Ob2P1	Ob3P1	Ob4P1	Ob5P1	Ob6P1	Ob7P1	Ob8P1	Ob9P1	Ob10P1
Objfn2			Ob1P2	Ob2P2	Ob3P2	Ob4P2	Ob5P2	Ob6P2	Ob7P2	Ob8P2	Ob9P2	Ob10P2
Objfn3			…	…	…	…	…	…	…	…	…	…
Objfnn			Ob1Pn	Ob2Pn	Ob3Pn	Ob4Pn	Ob5Pn	Ob6Pn	Ob7Pn	Ob8Pn	Ob9Pn	Ob10Pn
															RHS Constraints
Constraints		Unit	SBM	DDGS	Canola meal	Barley	Wheat	Corn	Sorghum	Alfalfa hay	Ca-soap	Dicalcium phosphate		10 kg milk	25 kg milk	35 kg milk
Constraint 1	Weight	kg	1	1	1	1	1	1	1	1	1	1	“=“	1	1	1
Constraint 2	CP	g/kg DM	499	297	378	124	142	94	116	192	0	0	“≥“	119	147	152
Constraint 3	UCP	g/kg DM	175	172	113	35	33	54	71	52	0	0	“≥“	22	49	55
Constraint 4	NFC	%	27	16	19	63	70	76	69	25	0	0	“≤“	44	44	44
Constraint 5	Fat	%	1.6	10	5.4	2.2	2.3	4.2	3.1	2.5	84.5	0	“≤“	5	5	5
Constraint 6	ME	MJ/kg DM	13.8	12.7	11.5	12.2	13	13.1	11.5	8.2	26.2	0	“≥“	8	10	11
Constraint 7	NDF	%	15	39	30	21	13	10	11	42	0	0	“≥“, “≤“	27–35	27–33	27–33
Constraint 8	Ca	g/kg DM	4	1	8	1	1	0	1	15	0	176	“≥“	4.07	6.03	6.7
Constraint 9	P	g/kg DM	7.1	6.6	11.6	3.8	4.3	3	2.8	2.4	0	205	“≥“	2.64	3.8	3.6
Constraint 10	peNDF	%	6	15.5	11.9	14.7	8	3.8	6.5	39.5	0	0	“≥“	22	22	22
Upper bound		%	inf	20	15	inf	inf	inf	inf	inf	inf	2
Lower bound			0	0	0	0	0	0	0	0	0	0

RHS: right hand side, LP: linear programming, objfn1 to n: data represent the monthly objective function (feed price Ob1P1 to Ob10Pn) of each feed included in each LP model, inf: infinitive upper feed inclusion limit, SBM: soybean meal, DDGS: distiller’s dried grains with solubles, CP: crude protein, UCP: undegradable crude protein, NFC: non-fiber carbohydrate, ME: metabolizable energy, NDF: neutral detergent fiber, Ca: calcium, P: phosphorus, peNDF: physically effective NDF calculated according to Mertens et al. (1997).

.

Each table is divided into two parts: The upper part includes multi-period price data of the objective function, namely the monthly feed ingredient/commodity prices, while the lower part of the table consists of information relevant to the feed ration composition and the model’s right and left hand side constraints (RHS, LHS) and boundaries for three levels of daily milk production (10, 25 and 35 kg). The monthly feed commodity prices are saved in an external text format file and linked to the LP model in the R console with functions to iterate the optimization for each individual monthly set of prices subject to the model parameters. Monthly feed prices were collected from the World Bank (2018) [11], Ca-soap (Nurisol) prices were provided by Heinrich Nagel KG, Germany, the US average monthly alfalfa hay prices were obtained from (https://hayandforage.com) [12] and DDGS prices were obtained from USDA (2018) [13]. Figure 1 shows the historical feed ingredient prices used in our study.

The minimization of the objective function in each period is subject to a set of constraints. These are the standard feed requirement variables for each milk production level, which are composed of the weight of total formulated feed ration in kg or percentage dry matter (DM), metabolizable energy (ME) in Megajoules (MJ), the dietary Crude Protein (CP) in gram per kg of DM, Undegradable Crude Protein (UCP) in gram per kg of DM, Neutral Detergent Fiber (NDF) in percentage, physically effective NDF (peNDF) in percentage, fat content in percentage, non-fiber carbohydrate (NFC) in percentage, Calcium (Ca) and Phosphorus (P) in gram per kg of DM. Furthermore, upper boundaries were set to the model for the feed inclusion rate in the case of DDGS and RSM feeding. Ultimately, the optimized feed ration results are given in dry matter percentages. The nutritional requirements for the three standard model cows and feed composition data were taken from the NRC (2001) [14]. The peNDF content was calculated according to Mertens (1997) [15]. In particular, all “model cows” are standard cows with daily milk production of 10, 25 and 35 kg, milk fat of 3.5%, milk protein of 3%, and gaining between 500 g and 300 g of live weight (including gravity products) per day.

The corresponding estimated DM feed intake is 12.4 kg per day for the low milk producing cow (10 kg/d), 20.3 kg for the average milk producing cow (25 kg/d) and 23.6 kg per day for the high milk producing cow (35 kg/d). Therefore, feed efficiency expressed as kg of milk per kg of DM intake estimates would be 0.8, 1.23 and 1.5 for the low, average and high milk producing cow, respectively. The ME concentrations were set to 8 MJ, 10 MJ and 11 MJ per kg of DM of the formulated ration and CP concentrations were set to 119 g, 141 g and 152 g per kg of DM of the formulated ration for the low, average and high yielding cow, respectively [14]. UCP dietary content was set to 22 g, 49 g and 55 g per kg of DM of the formulated ration for the low, average and high producing cow, respectively. The nutrient requirements and feed composition of the “model cows” are listed in Table 1. Figure 2 illustrates the multi-period LP model inputs and outputs for 14 dairy feeding scenarios and for three levels of milk production.

The modeling approach considers the variations in milk production level within a herd or between herds, which is expected to induce changes to the feed ration subject to market feed prices. However, milk production fluctuation due to seasonal differences between regions was not captured in the current analysis due to the added complexity of including it in the same feeding model. The non-zero, non-negative constraint directions were assumed in equality and non-equality forms.

The major objective of this study was to develop a decision-making tool with an economic perspective. Yet, for each scenario and each month, the analysis also provides results for the enteric methane yield (CH₄) that would be potentially emitted by each of the model cows consuming the designed feed ration. The amount of CH₄ was predicted using the equation: CH₄ (MJ/d) = 3.41 + 0.520 × DMI (kg/d) − 0.996 × ADF (kg/d) + 1.15 × NDF (kg/d) ([16], Equation 10c) and was converted to g CH₄/kg milk, where DMI is the intake of dry matter, and acid detergent fiber (ADF) and NDF are the daily intakes of these components expressed in kg. The daily intakes of ADF and NDF were estimated by multiplying their corresponding monthly LHS computed values by DMI for each production level. The reason for using this methane yield estimation model is that it includes the dietary parameters that were computed in the current LP models, accounts for the variations in CH₄ emissions caused by NDF and ADF values, and has a low prediction error (RMSPE% = 30.5) and a relatively high R² of 0.67.

The multi-period approach to the LP model was implemented in R; the solution time per scenario varied depending on the instance being solved but was within the range of one-half to one second. The solutions of the LP model for each of the scenario-months give the optimal feed ingredient inclusion rate, in percentages, that minimizes the total formulated feed cost. In total, 6804 diets were formulated, representing 14 scenarios over a period of 162 months each and for three production levels (14 × 162 × 3) between January 2005 and May 2018. A total of 6804 objective functions (least formulated feed cost) and 68,040 constraints (RHS) were obtained from successfully solved LPs. Furthermore, a total of 50,679 decision variables were obtained. Data on upper and lower feed prices, the objective function and the dual variables (including the RHS duals and sensitivity results) were obtained but not presented in the current study due to their large size.

2.3. Statistical Analysis

The root mean square error (RMSE) was used to calculate the deviation of the multi-period LP formulated nutrients from the assigned model constraints using the formula:

$$RMSE=\sqrt{\frac{1}{N}{\displaystyle \sum }_{i=1}^{\mathrm{N}}{\left(y_i-x_i\right)}^2}$$

where y_i and x_i are the LHS and RHS constraints of CP, UCP and ME. Accordingly, RMSE% was calculated using the following formula:

$$RMSE \%=\frac{100 \times N}{{\sum }_{i=1}^N{y}_i}\sqrt{\frac{1}{N}{\displaystyle \sum }_{i=1}^N{\left(y_i-x_i\right)}^2}$$

2.4. Modeled Scenarios

Taking as a basis the model structure described herein, 14 simulation scenarios were defined. The scenarios represent a potential long-term feeding strategy on a farm and in a region, given that feeds are provided through trade or production activity. The scenarios therefore assume that some feed items, such as grains or by-products, might be continuously available in some regions at an affordable price, though they might be completely absent or very expensive in other regions. To our knowledge, such a multi-period LP model for long-term evaluation of trade and animal feed production has not yet been evaluated for its efficacy in this particular industry.

2.5. Scenario Definitions

The definition of scenarios and resulting analysis is based on the availability of feeds:

Scenario 1 (S1) assumes that wheat, barley and SBM commodities are used in ration formulation. The reasoning for using these feeds is to evaluate the feeding system’s vulnerability/switch when there is only a limited number of feeds available, and to examine if wheat and barley price spreads correlate with commodity inclusion rates. Scenario 2 (S2) assumes that wheat is not available and that only corn and barley grains are available in addition to SBM. The simulation elaborates on the vulnerability/switch of feeding systems for these commodities. Scenario 3 (S3) assumes that barley and sorghum are available, SBM is included, and there is no access to corn or wheat. Scenario 4 (S4) assumes that barley is not available and only wheat and corn grains are accessible. The scenario elaborates on the corn-wheat price spread and the associated effect on inclusion levels. Scenario 5 (S5) assumes that only corn and sorghum are available in the market. Scenario 6 (S6) assumes no limitations on grain availability for corn, wheat, sorghum and barley, and allows for the use of SBM. Scenario 7 (S7) includes the by-product DDGS as a protein and energy source in addition to SBM, with barley and corn grains available. The objective of the analysis in this scenario is to evaluate the degree to which DDGS inclusion will affect the inclusion rates of grains and meals over time. Scenario 8 (S8) includes the grain commodities of barley, corn and sorghum in addition to SBM and DDGS.

Scenario 9 (S9) includes the grain commodities of barley and corn, and assumes that canola meal is available as a protein source in addition to DDGS and SBM. Scenario 10 (S10) assumes that DDGS is not accessible or traded, while SBM and canola meal are available as protein feeds. Scenario 11 (S11) omits corn, which is replaced by sorghum, and allows for the inclusion of DDGS. Scenario 12 (S12) assumes the availability of dietary SBM, DDGS and corn. This scenario allows for the evaluation of the magnitude of corn use under the availability of DDGS and the magnitude of DDGS as a partial substitute for alfalfa hay. Scenario 13 (S13) assesses the use of canola meal under limited DDGS availability (limiting inclusion to a maximum level of 10%) and in the absence of barley. Scenario 14 (S14) assumes the availability of SBM, DDGS, canola meal, barley, wheat, corn and sorghum. In all simulated scenarios, alfalfa hay is included and assumed to be available as a forage source in addition to the bypass fat Ca-soap (a widely used energy-rich feed additive) and dicalcium phosphate (DCP; a source of Ca and P). This selective inclusion of additional feeds is interesting for feed producers and dairy farmers, since we hypothesize that alfalfa hay could be partly replaced when high fiber meals and grains are available for feeding or vice versa. The modeled scenarios are justified by the fact that not all feed commodities are available in each region or traded on a regular basis, reflecting the variety of dairy feeding systems prevailing in different regions. On the one hand, these commodities are globally available and extensively used, and on the other they are often satisfactory to formulate nutritional dairy feed rations for varying production levels.

3. Results and Discussion

3.1. Feed Rations Selection Across Scenarios and Dairy Production Levels

Table S1 (see the Supplementary tables) shows a summary of the composition of the formulated feed rations for a low, average and high yielding cow simulated between 2005 and 2018. In the grain-based scenarios (scenarios 1 to 6), formulated feed rations feature a maximization of alfalfa hay inclusion rate varying in average between 54% and 71% of total feed DM. Across milk production levels, the level of alfalfa hay inclusion declined with increasing daily milk production from 10 to 35 kg. For instance, in S4, alfalfa hay inclusion declined from 71% at the 10 kg to 50% at the 35 kg level. Since ME requirements increased with increasing milk yield, the grain inclusion rate increased in parallel. In grain-based scenarios, grain inclusion varied between scenarios and across production levels and was favoring barley grain inclusion at a range of 33% to 51%. Even when more grain feeding options were included in a feeding scenario, barley inclusion was the highest in comparison to corn, sorghum and wheat inclusions. When barley was omitted from the low yielding cow rations in S4, the feed ration featured an average increase in alfalfa hay of 14%, which reduced grain inclusion to 28% in the total DM of formulated feed rations. However, at a 35 kg production in S4, barley was replaced by corn and wheat. When all grains were included in S6, wheat was not selected for any productivity level, and sorghum was a more important dietary component than corn. Compared to S6, corn in S5 (which omitted barley) was more important and comprised a large proportion of the feed rations across production levels. Further, SBM was not included in any of the feeding scenarios at the 10 kg level, as the daily CP requirement could be fulfilled by grains and alfalfa hay. However, at 35 kg daily milk production, SBM inclusion increased and varied on average between 9% and 12%.

The low grain inclusion for the low yielding cow is driven by the low energy requirement of 8 MJ/kg DM, where a basic diet of barley and alfalfa hay could fulfill the requirements. Ca-soap was an important energy source at the high milk production level, but only in the grain-based feeding, with the inclusion rate varying between 1% and 2%. The dietary selection of Ca-soap was driven by the increasing ME demand of 11 MJ/kg of DM in the high milk producing cow. Overall, grain-based feeding maximized the inclusion of SBM and alfalfa hay compared to multiple meal feeding scenarios. In the meal-based scenarios (S7 to S14), the inclusion of DDGS and canola meal significantly reduced the alfalfa hay use compared to the grain-based scenarios. In average, alfalfa hay inclusion varied between 30% and 63% for the high and low yielding cows, respectively, whereas DDGS inclusion varied between 6% and 20% for high and low yielding cows, respectively. Moreover, in the meal-based scenarios, SBM was only important in the absence of DDGS and barley grain. Compared to grain-based scenarios, the availability of additional meal sources such as DDGS and canola did not affect grain inclusion significantly. Unlike in grain feeding scenarios in which SBM was not important for low producing cows’ rations, in the meal feeding scenarios DDGS was selected in all scenarios, except in S10, since canola meal was used in the formulation. The presence of additional meal sources minimized the inclusion of dietary SBM and alfalfa hay. In average, and taking all scenarios and production levels into account, dietary meal inclusion was 10% greater (i.e., 14% inclusion rate) in meal feeding scenarios than in grain feeding scenarios (i.e., 4% inclusion rate), while the alfalfa hay inclusion rate was 11% greater in the grain scenarios than in the meal scenarios (i.e., in average 52% versus 43% in the grain and meal feeding scenarios, respectively). Most of the dietary variations between grain and meal feeding scenarios were driven by the greater inclusion rate of alfalfa hay in the grain feeding scenarios. Therefore, meals are important feeding sources for partly replacing alfalfa hay. Table S2 (see the Supplementary tables) provides a summary of the dairy rations’ concentrations of CP, UCP and ME and the associated optimization errors (representing deviations from the RHS constraints) for all studied scenarios and milk production levels from the solved time series analyses. The model evaluation is based on the calculated root mean squared error (RMSE) in absolute and percentage terms. In relation to the multiple formulation data obtained from successfully solved LPs, the magnitude of the error in the proposed models was calculated. The major optimization errors are due to deviations in crude protein results imposed by the constraints on feed formulation requirements.

In feed ration formulation for low milk production, the average RMSE% for CP varied between 26% and 31% in grain- and meal-based diets, respectively (i.e., in average 41 versus 53 g CP excess/kg DM formulated feed in grain and meal based diets, respectively), which is significantly greater than that under average and high milk production. At 25 kg milk diet formulation, RMSE% for CP was lowest and ranged between 10% and 17% (i.e., 15 vs. 27 g CP excess/kg of DM in grain- and meal-based diets, respectively). At a milk production of 35 kg, RMSE% for CP did not vary between grain- and meal-based feeding scenarios, with CP excess being 32 g/kg of DM formulated feed. In meal feeding scenarios, the decision of including SBM in high yielding cows’ diet is subject to DDGS and barley availability. For instance, in the absence of barley in S12 and S13, SBM was included at different rates, in spite of DDGS being included in the formulation. Moreover, in grain feeding scenarios, SBM was included at maximum levels ranging between 9% and 10%, which can be compared with DDGS inclusion rates of 18% and 20% in meal feeding scenarios with fully available DDGS and barley. Furthermore, ME was limiting in high yielding cows’ diets, in particular in the grain feeding scenarios, which justified a greater inclusion of SBM, causing an excess in the formulated CP. This conclusion was supported by the inclusion of additional energy supplied by Ca-soap, which was greater in the grain feeding than in the meal feeding scenarios. However, RMSE% of ME was greatest in the 10 kg milk feed ration (i.e., ME excess varied between 2 and 3 MJ/kg of DM), while it was lowest in the 35 kg milk diet. In this regard, Alqaisi et al. (2019) [5] stated that the magnitude at which the CP formulation error could be minimized depends on the level of competitiveness between meal feeds, which is not only quality-dependent, but also price-dependent.

3.2. Predicted Methane Production in Relation to Feed Cost

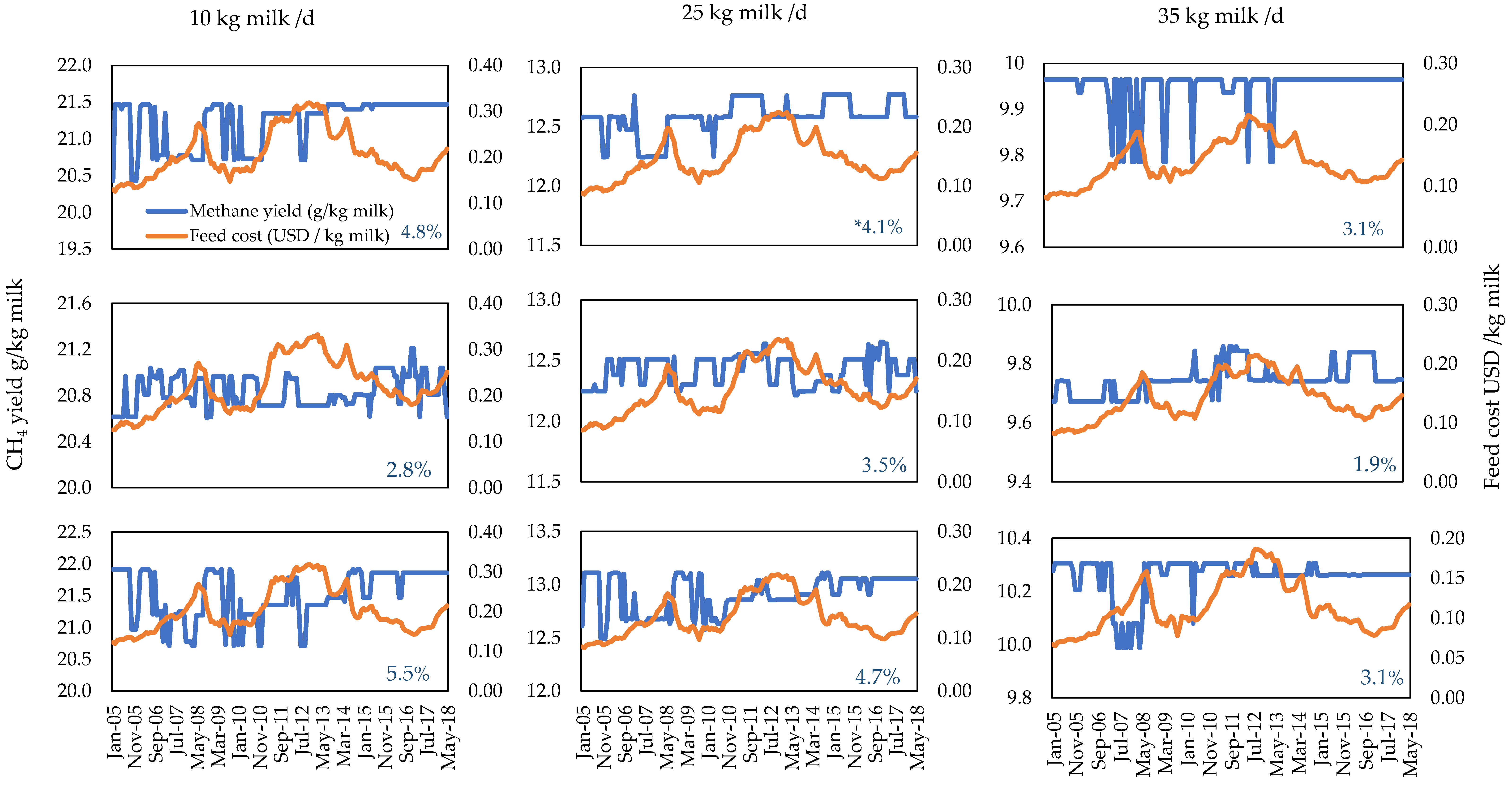

Figure 3 and Figure 4 (and further graphical illustrations in the supplementary Figures S1–S3) show the predicted CH₄ yield (g CH₄/kg milk) and feed ration cost (USD/kg milk) at different levels of milk production and for different feeding scenarios throughout the study duration. The predicted levels of CH₄ emissions reflect the feed ration composition across scenarios and levels of milk production. In average, the emission of the 10 kg milk producing cow varied between 20.7 and 21.6 g CH₄/kg milk. At 25 kg milk production, the predicted CH₄ was 40% lower compared to the 10 kg milk producing cow, and varied between 12.2 and 12.9 g CH₄/kg milk. At a high daily milk production of 35 kg, CH₄ production varied between 9.47 and 10.25 g CH₄/kg milk. This emission level is 21% and 53% lower than in the average and low milk producing cows, respectively. The magnitude of CH₄ reduction (the relative proportion between minimum and maximum CH₄ production) in each feeding scenario and across production levels is elaborated in the same figures in percentage terms. At 10 kg milk production, the potential to reduce CH₄ production varied between 0.6% in S1 and 5.5% in S8 (average = 3.9%). At 25 kg milk production, the potential to reduce CH₄ production was lower than in a 10 kg milk producing cow and varied between 0.1% and 5.7% (average = 3.2%). At 35 kg milk production, the potential to reduce CH₄ production was lower than in the 25 and 10 kg milk producing cows and varied between 0.3 and 4.2% (average = 2.2%). Our results could be interpreted in such a way that the potential for selecting feed rations that reduce CH₄ production declines with increasing milk production.

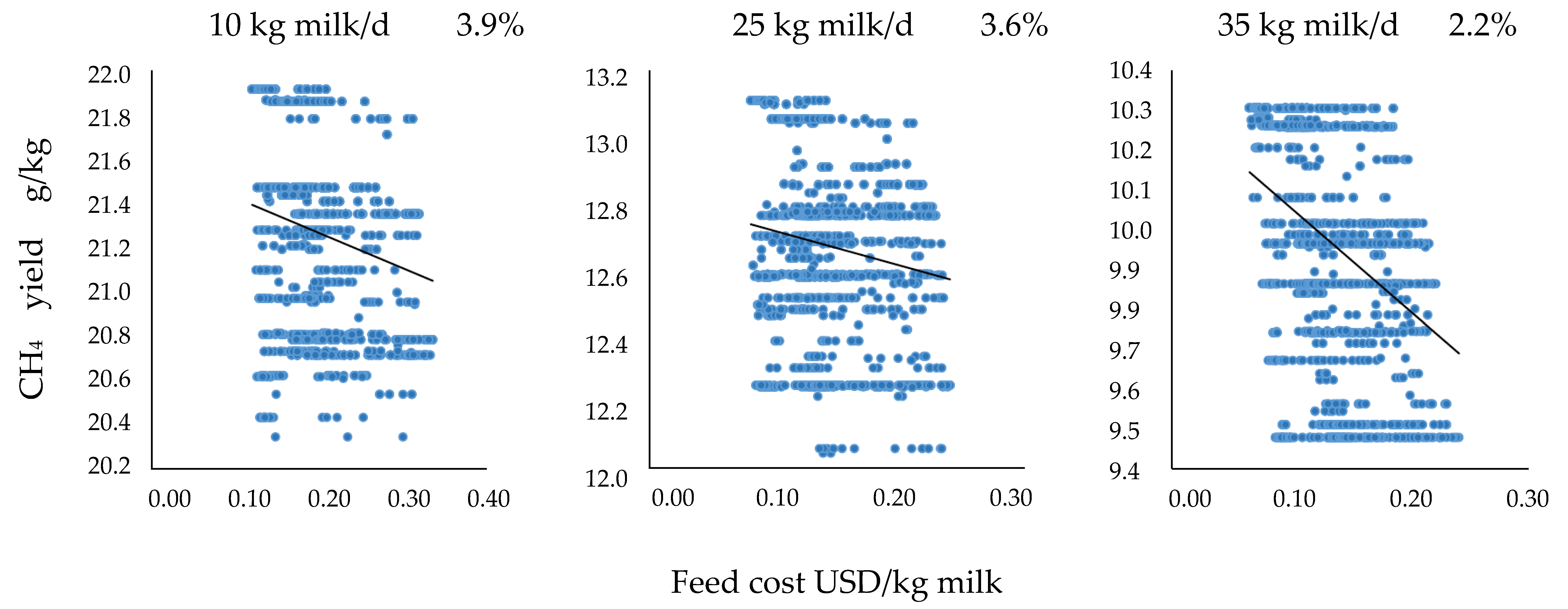

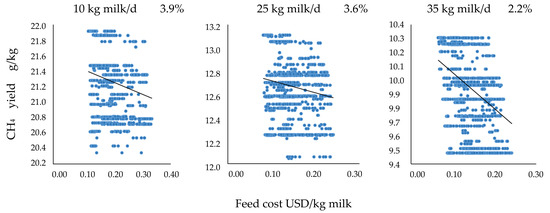

Furthermore, Figure 5 (and supplementary Figure S4) presents results on CH₄ production per day and per kg of milk produced in relation to feed ration cost.

When considering all formulated feed rations, feeding scenarios and milk production levels, a typical and expected relationship between CH₄ production and feed cost per kg of milk is obtained. Overall, within each milk production level, the decline in CH₄ production increases the daily feed cost and feed cost per kg milk, as indicated by the negative slopes.

However, the negative slope (−2.6) is greater at a high production level, compared to that at the average and low milk production levels, which indicates that the reduction in CH₄ yield may induce a lower cost, compared to the higher cost required to reduce CH₄ yield at the average and low production levels. This is in part due to the small variation (2.2%) between the minimum and maximum CH₄ yield at a high milk production level. This seems to be a reasonable conclusion since a decline in CH₄ production may also indicate an improvement in the formulated feed rations (i.e., greater ME/kg DM), nutrient selection and nutrient supply, which adds further costs to the total feed ration in all feeding scenarios.

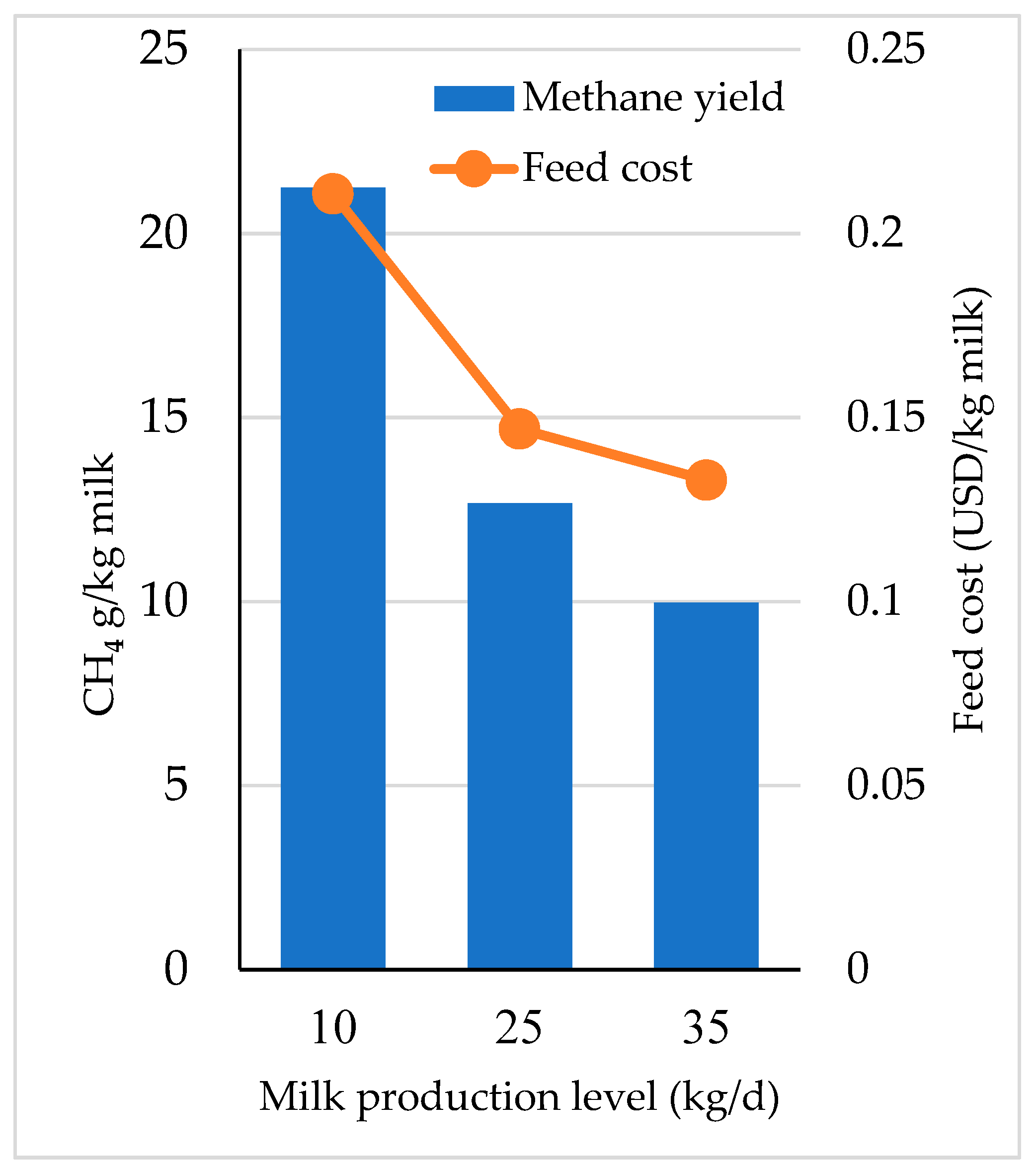

Our observations illustrate that the CH₄ yield increases significantly with a declining milk production level. Furthermore, the daily feed cost was highest at the 35 kg milk production level compared to average and low milk production levels. However, at 35 kg milk production, feed cost per kg milk was lowest. This reflects the high feed efficiency of 1.5 (kg milk/kg DM feed), estimated for the high milk producing cow. Furthermore, at a low daily milk production (10 kg), alfalfa hay was included in the ration at a rate of 55%, which may explain the high feed ration cost per kg of milk; besides, feed efficiency at this level of milk production is expected to be low. Methane emission is positively related to the dietary NDF content and inversely to concentrate contents [17]. In our study, within each milk production level, the magnitude of CH₄ reduction reflects the feed ration switch (between months) which depends on feed prices and feed ingredient availability. Therefore, with frequent CH₄ emission evaluation (on a monthly or weekly basis), there should emerge a relationship between the magnitude of CH₄ emissions and feed cost. The use of optimization models for the reduction of the environmental impacts of dairy systems has been suggested as a great tool, with particular emphasis on the trade-offs between CH₄ emissions and feeding costs [18]. Cottle et al. (2011) [19] and Knapp et al. (2014) [9] revealed feeding alteration strategies that lead to reducing CH₄ per kg of milk. As in the present study, [9] revealed that an increase in DMI (due to a higher dietary ME concentration) and, accordingly, in feed efficiency, would be expected to reduce the enteric methane yield between 2 and 6% for each kilogram increase in DMI, which is in agreement with our results.

Like in our results, Moraes et al. (2015) [20] reported an increase in feed cost associated with reducing CH₄ emission. In the latter study, feed cost and CH₄ emission were expressed per cow per day, whereas in our study we also expressed feed cost and CH₄ yield per kg of milk. Expressing enteric CH₄ yield per kg of milk was reported to be the correct and the most useful basis nutritionally, environmentally and economically [9]. In conclusion, CH₄ yield and feed cost per kg of milk across milk production levels show a low CH₄ yield and feed cost at high milk production compared to average and low milk production levels. In the Supplementary Materials, Figures S5 and S6 show the feed cost expressed in USD per kg of milk for all evaluated scenarios and milk production levels. Comparing feed cost across milk production level and feeding scenarios, feed cost was lowest at high milk production level and ranged between 0.11 and 0.16 USD per kg milk in S7 and S5 scenarios, respectively. In the average milk producing cow, feed cost was 5% greater than with high milk production and ranged between 0.14 and 0.16 USD per kg of milk in S4 and S8 scenarios, respectively. In a low milk producing cow, feed cost increased by 30% and 37% (compared to average and high milk production feed costs) and ranged between 0.20 and 0.23 USD per kg of milk in S4 and S8 scenarios, respectively. The variations in feed cost levels reflect the improved milk production efficiency across milk production levels. As in the study of Richardson et al. (2019) [21], our results illustrate the feed economic benefits of an increased milk production level. Our results agree with Buza et al. (2014) [22], who suggested a monthly evaluation of feed cost and milk profitability on dairy farms. Furthermore, Buza et al. (2014) [22] demonstrated a lower income over feed cost at low milk production level (i.e., 18 kg milk/d) compared to that at maximum milk production level (i.e., 31.5 kg milk/d). This could also be expected for our result, since feed cost per kg milk was highest at low milk production. However, since milk price was not used in the current analysis, it was not possible to confirm this conclusion. Evaluating the method used in our study, the primary limitation of the used model is that the set of linear constraints (minimum nutritional requirements), combined with the relative prices in the objective function, consistently yielded corner solutions, which was observed in some feed formulas. It is these corner solutions that lead to the discrete changes in feed inputs (e.g., completely substituting barley for corn in some scenarios), in which it might be interesting to further evaluate models that generate smoother transitions between inputs. Furthermore, we assumed a constant DMI across feeding scenarios within a milk production level (i.e., DMI does not change when dietary ME concentration changes), and therefore the current modeling framework might not capture the effect of dietary ME content on the DMI level.

4. Conclusions

The current study explored the impact of changes in feed ingredients’ prices and feed ingredients’ availability on dairy ration composition, feed cost and predicted methane yield under different levels of milk production. The results demonstrate the potential of using the LP method for different feed supply situations in order to improve feed efficiency in dairy production. The method further allows for the estimation of cows’ CH₄ production subject to dietary changes across months. Within each milk production level, the magnitude of CH₄ reduction reflects the monthly switch in feed commodities which depends on feed price and feed availability. The study shows that CH₄ mitigation has greater potential in low producing cows than in average and high yielding cows. These cows are mostly located in low income countries in Asia, Africa and Latin America. Therefore, our results can be primarily utilized to improve the efficiency of low yielding cows, which would be a key strategy to mitigate CH₄ and improve economic benefits from dairy production in different geographical locations. This conclusion is supported by the fact that feed ingredients’ production may be disrupted in a particular geographical region for many reasons, which may affect the supply to other regions. Finally, the model provides diet selection options that can improve dairy herds’ efficiency and mitigate the environmental impacts of milk production.
