Novel Cake Washer for Removing Oil-Based Calcium Carbonate Filter Cake in Horizontal Wells

by
Osama Siddig
1,
Saad Al-Afnan
1,
Salaheldin Elkatatny
1,* and
Mohamed Bahgat
2
1
College of Petroleum Engineering & Geosciences, King Fahd University of Petroleum & Minerals, 31261 Dhahran, Saudi Arabia
2
Rosewell Energy Company, 327 El-Horreya Road, Cleopatra, Alexandria 21500, Egypt
*
Author to whom correspondence should be addressed.
Sustainability 2020, 12(8), 3427; https://doi.org/10.3390/su12083427
Submission received: 27 March 2020 / Revised: 20 April 2020 / Accepted: 21 April 2020 / Published: 22 April 2020
Browse Figures
Versions Notes

Abstract

:
An impermeable layer “filter cake” usually forms during the overbalanced drilling technique. Even though it helps in protecting the formation from a further invasion of drilling fluids, the removal of this layer is essential for a proper cement job and to avoid any reduction in wellbore deliverability. The design of the removal process is complicated and depends on the filter cake composition and homogeneity. This paper presents an experimental evaluation on the usage of a novel cake washer (NCW) in the removal of a filter cake formed by an invert emulsion oil-based drilling fluid that contains calcium carbonate as a weighting material while drilling a horizontal reservoir. The proposed NCW is a mixture of organic acid, mutual solvent and nonionic surfactant. It is designed to enable restored wellbore permeability for a sustainable production. Since the filter cake mainly consists of the weighting material, the solubility of calcium carbonate in NCW at different ranges of temperature, duration and concentration was investigated. An actual casing joint was used to test the corrosion possibility of the treating solution. High-pressure and high-temperature (HPHT) filtration tests on ceramic discs and Berea sandstone core samples were conducted to measure the efficiency of the filter cake removal and the retained permeability. Ethylene glycol mono butyl ether (EGMBE) was used as a mutual solvent and the solubility was higher compared to when the mutual solvent was not used in the washer formulation. A significant increase in calcium carbonate dissolution with time was observed for a duration of 24 h. The solubility was found to be proportional to the concentration of NCW with optimum results of 99% removal at a temperature of around 212 °F. At those conditions, no major corrosion problems were detected. Permeability of the core retained its pristine value after the treatment.

1. Introduction

The drilling fluids have many operational objectives, such as drillstring and drill bit lubrication [1], cuttings lifting and suspension [2], the prevention of formation fluids invasion, and the creation of a thin filter cake that protects formations from being contaminated by the drilling fluid additives [3,4,5].
Due to a pressure difference between the formation and the wellbore during overbalanced drilling, fluid particles tend to invade the near-wellbore vicinity which could result in the rock plugging, and hence, permeability reduction [6]. This invasion is significantly reduced when a thin impermeable layer called a filter cake is built at the surfaces of the wellbore [7]. The filter cake is an impermeable, thin layer with a permeability range from 0.0001 to 0.01 mD [8,9]. Despite its vital role during drilling, the filter cake must be removed afterwards for a better cementing job and to avoid any reduction in hydrocarbon production [10,11].
Weighting additives are added to the drilling fluids to obtain the desired density to ensure a proper hydrostatic pressure in the well [12]. These weighting additives have a considerable effect on the created filter cake structure as they composed 70 to 80 wt% of the formed filter cake [13,14,15,16]. Therefore, the efficiency of filter cake removal depends mainly on the solubility of the weighting material in the chemical solution. Elkatatny et al. studied filter cakes and reported that filter cakes consist of two layers, one containing the polymer (away from the formation) and the other layer contains the solid particles closer to the rock surface [17,18,19]. The drilling fluid’s components and additives considerably affect the filter cake’s structure and its characteristics [20,21]. Various chemical solutions (oxidizers, enzymes, acids and acid precursor) are available as solvents for the calcium carbonate contained in the filter cake [22,23,24].
The recent advances in nanotechnologies’ applications in the oil and gas industries have allowed for the development of nanoparticle-based drilling fluids with enhanced properties. Several experimental evaluations on the nanoparticle drilling fluids demonstrate the enhancements in rheological properties, thermal stability, lubrication, hole cleaning and shale stability. Additionally,, there can be fewer filtration losses and thinner and more compact filter cakes compared to the conventional drilling fluids [25,26,27,28,29]. Although improvement by nanotechnology can decrease the thickness of the mud cake, its removal is still an issue.
When drilling shaly sands, oil-based drilling fluid (OBDF) is considered a better option than water-based drilling fluid (WBDF). The former shows better stability and fewer swelling issues over the latter. In addition, OBDF has stable rheology, less filtration and better hole cleaning than WBDF [30,31,32], and is often used in completing the pay-zone section [33]. However, the oil presence in OBDF complicates the filter cake removal processes. Due to its chemical nature, oil tends to coat the weighting materials and act as a dissolution inhibitor during the cleaning stages [34,35]. Hence, a wettability alteration of the oil-weighting additives-water system is needed prior to treatment [36].
The removal process of filter cakes is challenging and requires several considerations, such as filter cake homogeneity, particle size distribution, formation characteristics, drilling fluid type and additives [12,37]. Price-Smith et al. carried out an acid dissolution of filter cake study and showed that that live acids cannot uniformly remove heterogeneous filter cakes [38]. Moreover, solid particles in the filter cake can be coated with polymers, which act as a barrier reducing acid contact with the filter cake [39].
Much effort has been made for oil-based filter cake removal. Leschi et al. and Al-Kuait et al. proposed the use of organic acid precursor (OAP) and water wetting additives [40,41]. Micro-emulsion solutions formulated from alcohol and surfactants have been suggested [42,43,44]. Another approach utilizing an oxidant agent (persulfate salt) and a non-ionic surfactant has also shown some improvement in filter cake removal [45].
Quintero et al. [46] investigated the use of micro-emulsion on OBDFs’ filter cake removal. The investigated single-phase micro-emulsion (SPME) consists of water, solvent and surfactant diluted in calcium chloride brine. Soaking the filter cake in SPME altered the wettability of the filter cake and resulted in more porous and loosely consolidated filter cake, even without acid addition. Several retained permeability tests were conducted to evaluate the performance of SPME combined with hydrochloric acid or acetic acid, on removing the filter cake generated by invert emulsion drilling fluids with calcium carbonate, barite or a mixture of calcium carbonate and barite as the weighting material, over a ceramic disc or sandstone core. SPME mixtures with hydrochloric acid or acetic acid were able to restore the permeability after the drilling fluid damage.
In situ acid generation by acid precursors is one of the techniques in filter cake removal that delay the acids/filter cake particles reaction, resulting in a more even reaction rate over the treatment section. Binmoqbil et al. [47] studied a combination of a formic acid precursor and surfactant for OBDFs’ CaCO3 filter cake cleanup. CaCO3 solubility in the formic acid precursor was measured over time and temperature, which reflects the acid’s strength and generation rate. The acid generation rate was higher at 188 °F compared to the room temperature, which means a shorter delay period at reservoir conditions. Two high-pressure and high-temperature (HPHT) removal tests were conducted at different surfactant concentrations: 2 and 4 vol.%. In both tests, the filter cake was efficiently removed and the permeability restored, and there was no significant difference between the results of the two surfactant concentrations.
Mohamed et al. [34] presented a washer that consists of a biodegradable acid and a mutual solvent diluted by water. HPHT removal efficiency and retained permeability tests on sandstone and limestone cores were conducted, along with a corrosion test to evaluate their new cleaning fluid. The new biodegradable acid system (NBAS) was able to remove the filter cake and restore the permeability with an acceptable corrosion rate. This solution is recommended for vertical wells where the time required for fluid distribution is small as the reservoir section in the vertical well is small.
Although there are many suggested solutions for oil-based filter cake removal, there is a need to develop a new solution which can be used over a wide range of temperatures to remove the oil-based filter cake in the long horizontal section. The developed solution should have a slow reaction rate, a very low corrosion rate, and will not require corrosion inhibitors and intensifiers which usually alternate the formation wettability.
The objective of this study is to develop a new cake washer that can be used at a wide range of temperatures to remove the oil-based filter cake in horizontal wells with high efficiency and a low corrosion rate. In this paper, a laboratory evaluation on a novel filter cake removal is presented. The procedure followed for the treatment design includes a solubility test for calcium carbonate particles in a novel cake washer (NCW) at different conditions, such as duration, temperature and acid concentration, a corrosion test of the actual casing joint at HPHT, and filter cake removal efficiency at 212 °F and 300 psi, and retained permeability on a ceramic disc and Berea sandstone core sample. NCW removal performance was compared with different studies that investigated removal solutions for filter cakes generated by OBDF with calcium carbonate as a weighted material [34,46,47]. The comparison against the presented study was conducted based on the filter cake removal efficiency, the retained permeability and the corrosion rate generated by the cleaning fluid, as possible.

2. Materials and Methods

The experimental work started with various solubility tests in which a magnetic stirrer with a condenser was used to measure CaCO3 solubility in NCW for different time durations, NCW concentrations and some ranges of temperature. After testing the effectiveness of NCW in CaCO3 dissolution, HPHT corrosion tests were performed using an actual casing joint for 6 h without using corrosion inhibitors at 212 °F.
A HPHT filter press was used to build a filter cake over 2.5 inches of Berea sandstone core and a ceramic disc at 212 °F and 300 psi differential pressure. Then, in the same cell and at the same conditions, the core with the formed filter cake was soaked with NCW for 24 h to check for the removal efficiency. In order to check the effect of the cake washer on restoring the rock permeability, the permeability of the core sample was measured after the removal test and compared against its pristine value.

2.1. Oil-Based Mud

Actual field invert emulsion drilling fluid extracted from a flow line was used in this experimental study, the OBDF consisted of diesel and water as the continuous and dispersed phases, respectively. Two different particle-size-distributions of calcium carbonate CaCO3 were used as bridging and weighting materials, fine (D50 = 25 microns) and medium (D50 = 50 microns). The other OBDF components included a bridging agent, viscosifier, a filtration control material, and primary and secondary emulsifiers. Table 1 lists the formula of the drilling fluid used in this study. The fluid had a density of 79 lb/ft3, an oil/water ratio of 81/19 and 38.8 wt.% total solid content.
The drilling fluid’s rheological properties were tested at 120 °F, as shown in Figure 1. The plastic viscosity was 18.9 cP and the yield point was found to be 16.7 lb/100 ft2.

2.2. Cleaning Fluid

The investigated novel cake washer was a mixture of the following chemicals:
  • Acetic acid (15 wt%): an organic acid that is less corrosive than hydrochloric acid (HCl) especially at high-temperatures, and is compatible with formations that contain HCl sensitive clays.
  • Mutual Solvent (15 wt%): an additive for stimulation treatments that is soluble in oil, water and acid-based treatment fluids. The mutual solvent used in this cake washer formula was ethylene glycol mono butyl ether (EGMBE). The purpose of the mutual solvent is to remove the oil that covers the surface of the CaCO3 particles in the filter cake and thus allowing the acid/solids interaction to happen.
  • Nonionic surfactant (3 wt%): to change the wettability of filter cake from oil to water wet.
  • Distilled water: as the continuous phase.
NCW had a pH of 2.7, 1.02 specific gravity, 24 mN/m surface tension, and a viscosity of 2.11 cP all measured at room temperature and atmospheric pressure.

2.3. Core Sample

A ceramic disc and a Berea sandstone core sample were used as the porous medium for filtration and the filter cake removal tests. The core was 2.5 inches in diameter and 1.07 inches in height, and had a diesel permeability of 98.6 mD. A 50-micron ceramic disc (2.5 inches in diameter and 0.25 inches in thickness) with a permeability of around 15 Darcy was used. Both materials were originally dried and saturated totally by diesel before the experimental work.

3. Results and Discussion

3.1. Mutual Solvent Effect

The cake washer was originally prepared without the mutual solvent. The solubility tests were made at 212 °F. Then, the mutual agent was added and the solubility tests were carried out again. The solubility increased from 73 to 83 g/L when the mutual agent was added. This can be attributed to the fact that the mutual solvent in the formulation acted as a retarder to the reactive part and delayed the reaction. That retardation allowed for more dissolution. Based on this observation, the mutual solvent was kept in the NCW formulation for any further tests.

3.2. Solubility Duration

CaCO3 solubility in NCW for different durations was conducted at 212 °F. As shown in Figure 2, there are no significant increases in CaCO3 solubility after a 24 h period. The duration of any subsequent treatment was planned accordingly.

3.3. Ncw Concentration

To assess the effect of the NCW concentration on solubility, two different mixtures diluted with deionized water were prepared. In particular, 50 and 75 vol.% of the washing solution were prepared and the solubility was determined at 212 °F. Figure 3 shows that the maximum solubility was obtained when no further dilution was made. This was due to the reduction of the acid concentration that yielded less solubility. Therefore, 100% of NCW is to be used in subsequent treatments.

3.4. Temperature

Figure 4 shows the CaCO3 solubility over a wide range of temperatures. It could be observed that the maximum solubility was achieved at 212 °F, where around 83 g/L of calcium carbonate was dissolved. Further increase in the temperature resulted in decreasing the solubility. This could be due to a reduction in the retardation effect by the mutual solvent. Consequently, the solubility of the whole formulation decreased.

3.5. Corrosion Test

An actual casing joint was used in the corrosion test. NCW of 2.7 pH was tested for its corrosion effect at 212 °F and 1000 psi. The corrosion rate after 6 h was found to be 0.000268 lbm/ft2,which indicates minimal corrosion problems. This could be compared to the corrosion by the hydrochloric acid, which was 0.65 lbm/ft2 at the same conditions and the accepted corrosion rate of 0.05 lb/ft2 at this temperature.

3.6. Filter Cake Removal

An HPHT filter press was used to build the filter cake on a ceramic disc, and again on a 2.5 inch Berea sandstone core for 30 min at 212 °F and 300 psi. Figure 5 illustrates the filtration over time, it is noticeable that in both materials the fluid generated the filter cake within 30 min and the total filtration volumes were relatively small and less than 2.5 cubic centimeters. Figure 6 shows the generated filter cake on the core and the ceramic disc. The thickness of the filter cake was 1.2 mm and 1.5 mm on the ceramic disc and the core, respectively.
The core/ceramic disc with formed filter cakes were soaked into 250 cm3 of the investigated solution in a HPHT filter cell at 212 and 300 °F for 24 h. Figure 7 shows post-treatment images of the core and the ceramic disc. The effect of the NCW soaking on the filter cakes was obvious, as shown in Figure 7, and can be quantified by calculating the removal efficiencies using the following formula:
Removal   Efficiency = W 2 − W 3 W 2 − W 1 × 100 %
where
  • W1 = weight of the diesel saturated core/disc, g
  • W2 = weight of the filter cake containing core/disc, g
  • W3 = core/disc weight after the removal process, g
The efficiency for both cases was found to be more than 99%. Furthermore, the diesel permeability was remeasured and the permeability of the sandstone core was 100% of the original permeability.

3.7. Results Comparison with Similar Studies

In order to evaluate the NCW removal performance, the results were compared with three different studies that investigated removal solutions of filter cakes generated by oil-based mud with calcium carbonate as a weighting material, [34,46,47]. Table 2 shows the filter cake removal efficiency, the retained permeability on sandstone cores, and the corrosion generated by the cleaning fluid for the aforementioned studies and for the proposed one. The retained permeability and weight removal efficiency percentages resulting from the use of the NCW were around the same values as the other procedures. Some of the selected studies did not present the removal efficiency or the corrosion rate. Even though Mohamed et al.’s [34] results have an acceptable range of corrosion rates, NCW showed a lower corrosion rate, (note that both tests conducted at 212 °F for 6 h contact). All of the results presented in Table 2 were conducted on sandstone cores for the sake of consistency. According to the results presented in this table, it can be concluded that NCW showed promising results on all of the selected three performance criteria.

4. Conclusions

A novel cake washer was investigated for the removal of filter cake generated from an invert emulsion drilling fluid with calcium carbonate as a weighting material. Based on the obtained results, the following conclusion can be drawn:
  • The detected corrosion rate was relatively low (0.000268 lbm/ft2) after 6 hrs of testing at 212 °F, which is far below the accepted corrosion rate of 0.05 lb/ft2 at this temperature.
  • CaCO3 solubility was significantly decreased when the solution mixture was further diluted with water.
  • The highest dissolution rate was achieved at 212 °F.
  • No increase in solubility was achieved after a 24 h duration.
  • The removal efficiency obtained using the novel washer on the ceramic disc and the sandstone core sample was more than 99%, with 100% restored permeability for the latter.
  • The comparison between NCW and other solutions in similar conditions showed close results in terms of retained permeability, yet NCW had a lower corrosion rate.

5. SI Metric Conversion Factors:

1 micron = 1 × 10−6 m
1 mm = 1 × 10−3 m
1 inch = 0.0254 m
1 Darcy = 9.869233 × 10−13 m²
1 bbl = 0.158987294928 m3
1 gal = 0.00378541 m3
1 lb = 0.453592 kg
1 g/L = 1 kg/m3
1 lb/ft3 = 16.0185 kg/m3
1 psi = 6894.76 Pa
1 lb/ft2 = 47.88 pa
1 cP = 0.001 Pa.s
T ( ℉ ) =   T ( K ) × 9 5 − 459.67

Author Contributions

Conceptualization, S.E., and M.B.; methodology, S.E., S.A.-A.; validation, O.S. and S.E.; formal analysis, O.S. and S.A.-A.; investigation, S.E., and M.B.; resources, S.E., and S.A.-A.; data curation, O.S.; writing—original draft preparation, O.S., S.A.-A.; writing—review and editing, S.E., S.A.-A., and M.B.; visualization, S.E., and S.A.-A.; supervision, S.E. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gordon, C.; Lewis, S.; Tonmukayakul, P. Rheological properties of cement spacer: Mixture effects. In Proceedings of the AADE-08-DF-HO-09, AADE Fluids Conference and Exhibition, Houston, TX, USA, 8–9 April 2008. [Google Scholar]
  2. Fink, J. Petroleum Engineer’s Guide to Oil Field Chemicals and Fluids, 2nd ed.; Gulf Professional Publishing: Waltham, MA, USA, 2015, Chapters 1 and 9; pp. 2–59, 296–310. ISBN 978–0123838445. [Google Scholar]
  3. Bourgoyne, A.T., Jr.; Millheim, K.K.; Chenevert, M.E.; Young, F.S., Jr. Applied Drilling Engineering; Society of Petroleum Engineers: Houston, TX, USA, 1986; Chapter 2; pp. 42–83. ISBN 1-55563-001-04. [Google Scholar]
  4. Rabia, H. Well Engineering and Construction; Entrac Consulting: London, UK, 2001; Chapter 7; pp. 197–234. ISBN 0954108701. [Google Scholar]
  5. Hossain, M.; Al-Majed, A.A. Fundamentals of Sustainable Drilling Engineering; Scrivener Publishing LLC: Beverly, MA, USA, 2015; Chapter 3; pp. 73–139. ISBN 9781119100300. [Google Scholar]
  6. Iscan, A.G.; Civan, F.; Kok, M.V. Alteration of permeability by drilling fluid invasion and flow reversal. J. Pet. Sci. Eng. 2007, 58, 227–244. [Google Scholar] [CrossRef]
  7. Argillier, J.; Audibert, A.; Longeron, D. Performance Evaluation and Formation Damage Potential of New Water-Based Drilling Formulas. SPE Drill. Complet. 1999, 14, 266–273. [Google Scholar] [CrossRef]
  8. Civan, F. A multi-phase mud filtrate invasion and wellbore filter cake formation model. In Proceedings of the SPE-28709-MS, International Petroleum Conference and Exhibition of Mexico, Society of Petroleum Engineers, Veracruz, Mexico, 10–13 October 1994. [Google Scholar]
  9. Hanssen, J.E.; Jiang, P.; Pedersen, H.H.; Jorgensen, J.F. New Enzyme process for dawnhole cleanup of reservoir fluid filtercake. In Proceedings of the SPE-50709-MS, SPE International Symposium on Oilfield Chemistry, Houston, TX, USA, 16–19 February 1999. [Google Scholar]
  10. Zain, Z.M.; Sharma, M.M. Cleanup of Wall-Building Filter Cakes. In Proceedings of the SPE-56635-MS, SPE Annual Technical Conference and Exhibition, Houston, TX, USA, 3–6 October 1999. [Google Scholar]
  11. Huang, S.; Guo, X.; Duan, W.; Cheng, X.; Zhang, X.; Li, Z. Degradation of high molecular weight polyacrylamide by alkali-activated persulfate: Reactivity and potential application in filter cake removal before cementing. J. Pet. Sci. Eng. 2019, 174, 70–79. [Google Scholar] [CrossRef]
  12. Yao, R.; Jiang, G.; Li, W.; Deng, T.; Zhang, H. Effect of water-based drilling fluid components on filter cake structure. Powder Technol. 2014, 262, 51–61. [Google Scholar] [CrossRef]
  13. Ba Geri, B.S.; Al-Majed, A.A.; Al-Mutairi, S.H.; Ul-Hamid, A.; Sultan, A.S. Evaluation of Filter Cake Mineralogy in Extended Reach and Maximum Reservoir Contact Wells in Sandstone Reservoirs. In Proceedings of the SPE-163519-MS, SPE/IADC Drilling Conference, Amsterdam, The Netherlands, 5–7 March 2013. [Google Scholar]
  14. Ba Geri, B.S.; Mahmoud, M.; Al-Mutairi, S.H.; Abdulraheem, A. Effect of Sand Content on the Filter Cake Properties and Removal During Drilling Maximum Reservoir Contact Wells in Sandstone Reservoir. J. Energy Resour. Technol. 2015, 138, 032901. [Google Scholar] [CrossRef]
  15. Ba Geri, B.S.; Mahmoud, M.A.; Al-Majed, A.A.; Al-Mutairi, S.H.; Abdulazeez, A.; Shawabkeh, R. Water Base Barite Filter Cake Removal Using Non-Corrosive Agents. In Proceedings of the SPE-183653-MS, SPE Middle East Oil & Gas Show and Conference, Manama, Bahrain, 6–9 March 2017. [Google Scholar]
  16. Geri, B.B.; Mahmoud, M.; Abdulraheem, A.; Al-Mutairi, S.; Elkatatny, S.; Shawabkeh, R.A. Single stage filter cake removal of barite weighted water based drilling fluid. J. Pet. Sci. Eng. 2017, 149, 476–484. [Google Scholar] [CrossRef]
  17. Elkatatny, S.; Mahmoud, M.; Nasr-El-Din, H.A. Characterization of Filter Cake Generated by Water-Based Drilling Fluids Using CT Scan. SPE Drill. Complet. 2012, 27, 282–293. [Google Scholar] [CrossRef]
  18. Elkatatny, S.; Mahmoud, M.; Nasr-El-Din, H.A. Filter Cake Properties of Water-Based Drilling Fluids Under Static and Dynamic Conditions Using Computed Tomography Scan. J. Energy Resour. Technol. 2013, 135, 042201. [Google Scholar] [CrossRef]
  19. Elkatatny, S.M.; Mahmoud, M.A.; Nasr-El-Din, H.A. A New Approach to Determine Filter Cake Properties of Water-Based Drilling Fluids. In Proceedings of the SPE/DGS Saudi Arabia Section Technical Symposium and Exhibition, Al-Khobar, Saudi Arabia, 15–18 May 2011. [Google Scholar]
  20. Chellappah, K.; Tarleton, E.S.; Wakeman, R.J. The Porosity, Permeability and Restructuring of Heterogeneous Filter Cakes. Chem. Eng. Technol. 2010, 33, 1283–1289. [Google Scholar] [CrossRef]
  21. Caenn, R.; Darley, H.C.H.; Gray, G.R. Composition and properties of drilling and completion fluids. In The Filtration Properties of Drilling Fluids, 6th ed.; Gulf Professional Publishing: Oxford, UK, 2011; ISBN 9780123838599. [Google Scholar]
  22. Nasr-El-Din, H.A.; Al-Otaibi, M.B.; Al-Qahtani, A.A.; Al-Fuwaires, O.A. Filter-Cake Cleanup in MRC Wells Using Enzyme/Surfactant Solutions. In Proceedings of the SPE-98300-MS, SPE International Symposium and Exhibition on Formation Damage Control, Lafayette, LA, USA, 15–17 February 2006. [Google Scholar]
  23. Siddiqui, M.A.; Al-Anazi, H.A.; Al-Ansari, A.A.; Bataweel, M.A.; Hembling, D.E. Evaluation of Acid Precursor-Enzyme System for Filter-Cake Removal by a Single-Stage Treatment. In Proceedings of the SPE-99799-MS, SPE Europec/EAGE Annual Conference and Exhibition, Vienna, Austria, 12–15 June 2006. [Google Scholar]
  24. Wang, X.; Smith, K.; Cutler, J.; Beall, B. Advancement in Acid-Precursor Chemistry for Removal of Drill-in Fluid Filter Cake. In Proceedings of the SPE-147480-MS, SPE Deepwater Drilling and Completions Conference, Galveston, TX, USA, 20–21 June 2012. [Google Scholar] [CrossRef]
  25. Boyou, N.V.; Ismail, I.; Sulaiman, W.R.W.; Haddad, A.S.; Husein, N.; Hui, H.T.; Nadaraja, K. Experimental investigation of hole cleaning in directional drilling by using nano-enhanced water-based drilling fluids. J. Pet. Sci. Eng. 2019, 176, 220–231. [Google Scholar] [CrossRef] [Green Version]
  26. Rafati, R.; Smith, S.R.; Haddad, A.S.; Novara, R.; Hamidi, H. Effect of nanoparticles on the modifications of drilling fluids properties: A review of recent advances. J. Pet. Sci. Eng. 2018, 161, 61–76. [Google Scholar] [CrossRef] [Green Version]
  27. Sharma, M.M.; Zhang, R.; Chenevert, M.E. A New Family of Nanoparticle-Based Drilling Fluids. In Proceedings of the SPE Annual Technical Conference and Exhibition, San Antonio, TX, USA, 8–10 October 2012. [Google Scholar] [CrossRef]
  28. Smith, S.R.; Rafati, R.; Haddad, A.S.; Cooper, A.; Hamidi, H. Application of aluminium oxide nanoparticles to enhance rheological and filtration properties of water based muds at HPHT conditions. Colloids Surfaces A Physicochem. Eng. Asp. 2018, 537, 361–371. [Google Scholar] [CrossRef] [Green Version]
  29. Cai, J.; Chenevert, M.E.; Sharma, M.M.; Friedheim, J.E. Decreasing Water Invasion Into Atoka Shale Using Nonmodified Silica Nanoparticles. SPE Drill. Complet. 2012, 27, 103–112. [Google Scholar] [CrossRef]
  30. Enright, D.P.; Dye, W.M.; Smith, M.F. An Environmentally Safe Water-Based Alternative to Oil Muds. SPE Drill. Eng. 1992, 7, 15–19. [Google Scholar] [CrossRef]
  31. Patel, A.; Stamatakis, E.; Young, S.; Friedheim, J. Advances in Inhibitive Water-Based Drilling Fluids—Can They Replace Oil-Based Muds? In Proceedings of the SPE-106476-MS, International Symposium on Oilfield Chemistry, Houston, TX, USA, 28 February–2 March 2007. [Google Scholar]
  32. Sayindla, S.; Lund, B.; Ytrehus, J.D.; Saasen, A. Hole-cleaning performance comparison of oil-based and water-based drilling fluids. J. Pet. Sci. Eng. 2017, 159, 49–57. [Google Scholar] [CrossRef] [Green Version]
  33. Vickers, S.; Bruce, S.; Hutton, A.; Nunzi, P. Protect and Then Inject: Optimized Well Fluids Successfully Drill Depleted Reservoirs to Store Gas. SPE Drill. Complet. 2012, 27, 113–117. [Google Scholar] [CrossRef]
  34. Mohamed, A.; Elkatatny, S.; Basfar, S. One-Stage Calcium Carbonate Oil-Based Filter Cake Removal Using a New Biodegradable Acid System. In Proceedings of the SPE-198045-MS, SPE Kuwait Oil & Gas Show and Conference, Mishref, Kuwait, 13–16 October 2019. [Google Scholar]
  35. Elkatatny, S. One-Stage Calcium Carbonate Oil-Based Filter Cake Removal Using a New Biodegradable Acid System. Sustainability 2019, 11, 5715. [Google Scholar] [CrossRef] [Green Version]
  36. Davidson, E.; McMillan, D.N.; Martin, F.; Morton, K.; Lenz, R. Successful Deployment of a New Stimulation Chemical, Post Horizontal Open-Hole Gravel Pack in Wells Drilled with both Water-Based and Oil-Based Drill-In Fluid. In Proceedings of the SPE/IADC Indian Drilling Technology Conference and Exhibition, Mumbai, India, 16–18 October 2006. [Google Scholar]
  37. Zain, M.; Suri, A.; Sharma, M.M. Mechanisms of Mud Cake Removal during Flowback. In Proceedings of the SPE-58797-MS, SPE International Symposium on Formation Damage Control, Lafayette, Louisiana, 23–24 February 2000. [Google Scholar]
  38. Price-Smith, C.; Bennett, C.; Ali, S.A.; Hodge, R.M.; Burton, R.C.; Parlar, M. Open Hole Horizontal Well Cleanup in Sand Control Completions: State of the Art in Field Practice and Laboratory Development. In Proceedings of the European Petroleum Conference, The Hague, The Netherlands, 20–22 October 1998. [Google Scholar]
  39. Burnett, D. Using a Physical Wellbore Model to Study Formation Damage Problems in Well Completions. SPE Drill. Complet. 1995, 10, 61–65. [Google Scholar] [CrossRef]
  40. Leschi, P.; Demarthon, G.; Davidson, E.; Clinch, D. Delayed Release Acid System for Cleanup of Al Khalij Horizontal Open Hole Drains. In Proceedings of the SPE International Symposium and Exhibition on Formation Damage Control, Lafayette, LA, USA, 15–17 February 2006. [Google Scholar]
  41. Al-Kuait, A.M.S.; Al-yateem, K.S.; Olivares, T.; Zubail, M.A.; El Bialy, M.; Ezell, R.G.; Maghrabi, S. Improved Producibility after Delayed Filter Cake Breaker Treatment in the Safaniya Offshore Field in Saudi Arabia. In Proceedings of the SPE Kuwait International Petroleum Conference and Exhibition, Kuwait City, Kuwait, 10–12 December 2012. [Google Scholar]
  42. Quintero, L.; Jones, T.; Pietrangeli, G. Phase Boundaries of Microemulsion Systems Help to Increase Productivity. In Proceedings of the SPE European Formation Damage Conference, Noordwijk, The Netherlands, 7–10 June 2011. [Google Scholar]
  43. Al-Otaibi, M.A.; BinMoqbil, K.H.; Al-Rabba, A.S.; Abitrabi, A.N. Single-Stage Chemical Treatment for Oil-Based Mudcake Cleanup: Field Case and Laboratory Studies. In Proceedings of the SPE International Symposium and Exhibition on Formation Damage Control, Lafayette, LA, USA, 10–12 February 2010. [Google Scholar]
  44. Kumar, V.A.; Balraj AAIshaq, G.K.; Prakash, B.L.; Imran, J.A.; Al Saqer, Q.R.; El Sherbeny, W.; Pino, A.R.; Gad-Alla, A.E.; Olivaresantunez, T. Overcoming OBM Filter Cake Damage Using Micro-Emulsion Remediation Technology across a High-Temperature Formation. In Proceedings of the SPE International Conference& Exhibition on Formation Damage Control, Lafayette, LA, USA, 24–26 February 2016. [Google Scholar]
  45. Zhou, J.; Nasr-El-Din, H.A.; Socci, D.; Holcomb, J. A Cost-Effective Application of New Surfactant/Oxidant System to Enhance the Removal Efficiency of Oil-Based Mud Filter Cake. In Proceedings of the SPE Western Regional Meeting, Garden Grove, CA, USA, 22–27 April 2018. [Google Scholar]
  46. Quintero, L.; Jones, T.A.; Clark, D.E. One Step Acid Removal of Invert Emulsion. In Proceedings of the SPE European Formation Damage Conference, Sheveningen, The Netherlands, 25–27 May 2005. [Google Scholar]
  47. Binmoqbil, K.H.; Al-Otaibi, M.A.; Al-Faifi, M.G.; Al-Khudair, W.S.; Al-Aamri, A.D. Cleanup of Oil-Based Mud Filter Cake Using an In-Situ Acid Generator System by a Single-Stage Treatment. In Proceedings of the SPE Saudi Arabia Section Technical Symposium, Al-Khobar, Saudi Arabia, 9–11 May 2009. [Google Scholar]
Sustainability 12 03427 g001 550

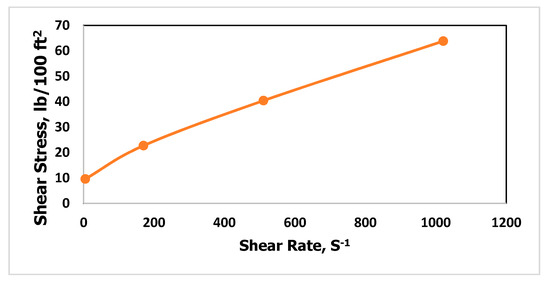

Figure 1. Shear rate vs. shear stress at 120 °F.
Figure 1. Shear rate vs. shear stress at 120 °F.
Sustainability 12 03427 g001
Sustainability 12 03427 g002 550

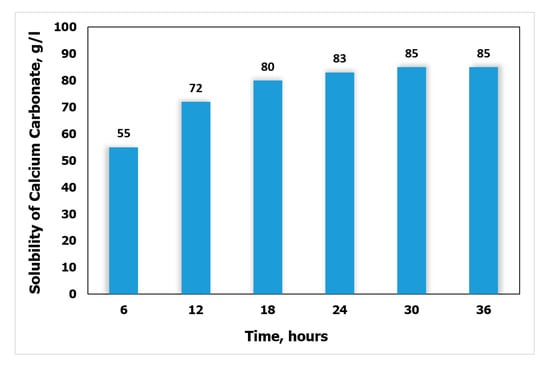

Figure 2. Calcium carbonate solubility with time at 212 °F.
Figure 2. Calcium carbonate solubility with time at 212 °F.
Sustainability 12 03427 g002
Sustainability 12 03427 g003 550

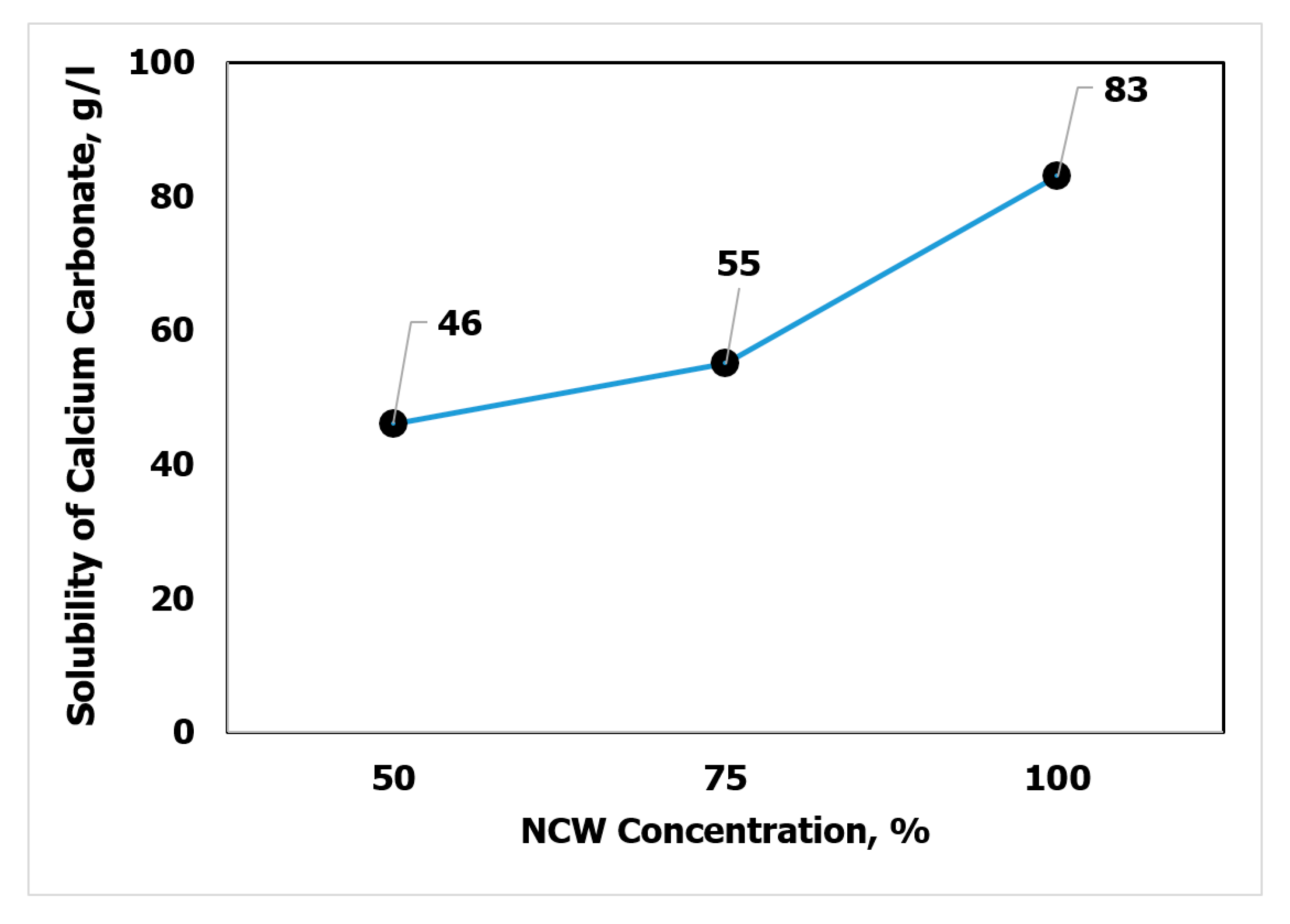

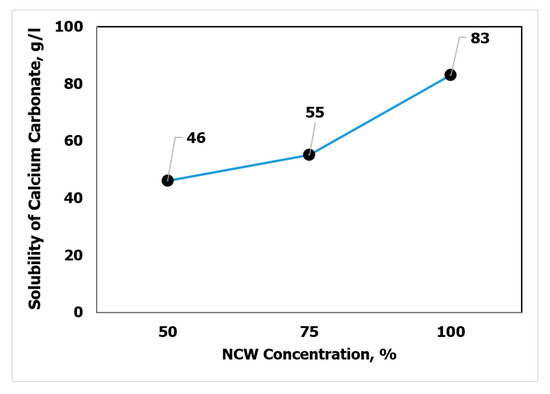

Figure 3. Effect of the novel cake washer (NCW) concentration on the solubility.
Figure 3. Effect of the novel cake washer (NCW) concentration on the solubility.
Sustainability 12 03427 g003
Sustainability 12 03427 g004 550

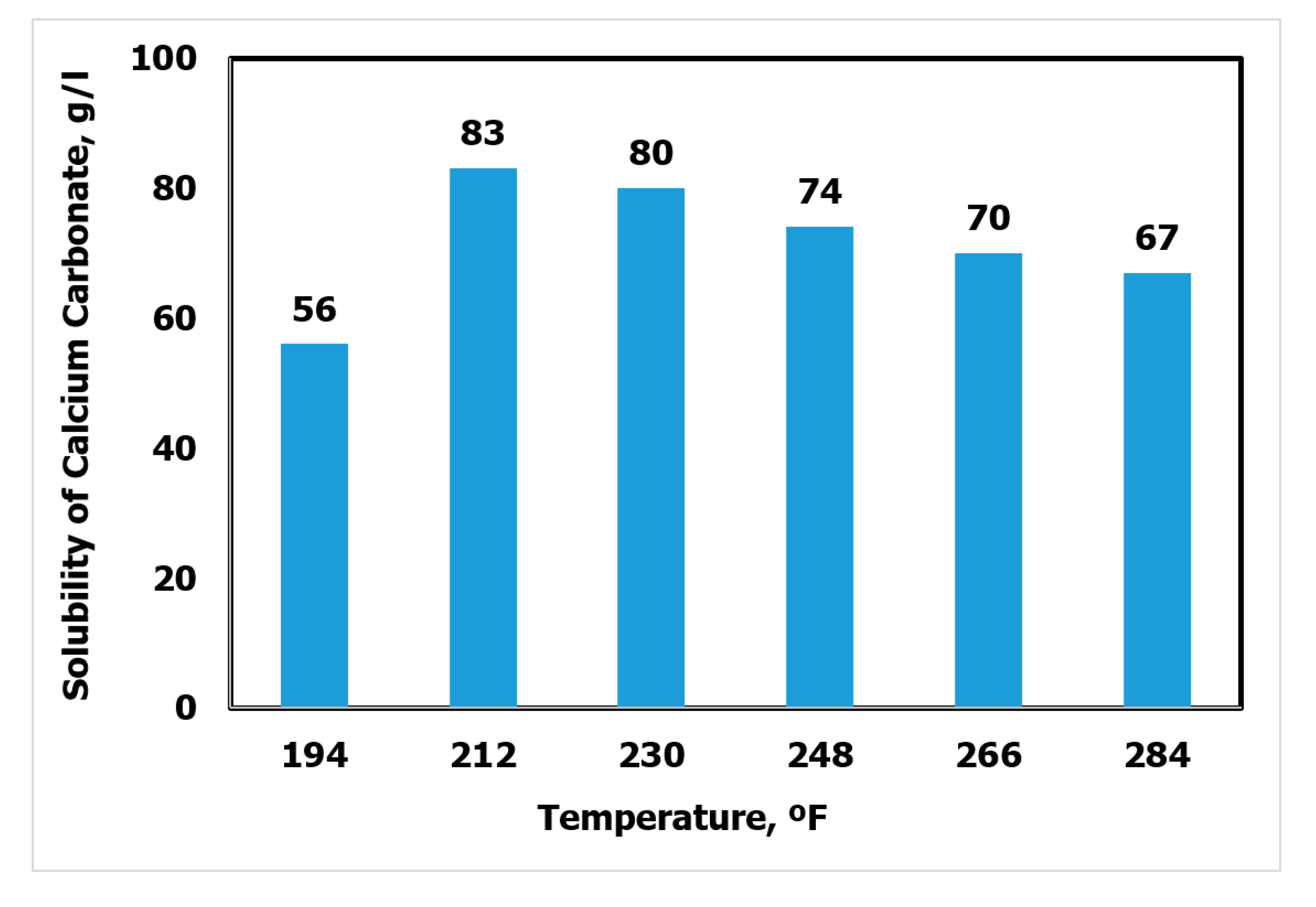

Figure 4. Calcium carbonate solubility over a wide range of temperatures.
Figure 4. Calcium carbonate solubility over a wide range of temperatures.
Sustainability 12 03427 g004
Sustainability 12 03427 g005 550

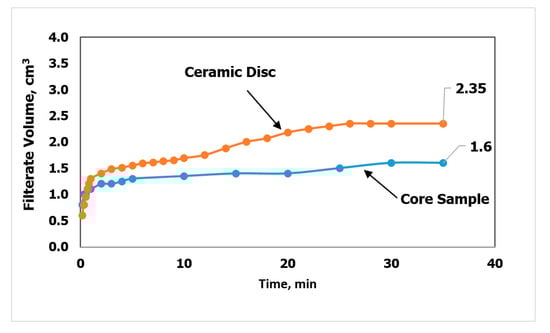

Figure 5. Cumulative filtrate volume over time.
Figure 5. Cumulative filtrate volume over time.
Sustainability 12 03427 g005
Sustainability 12 03427 g006 550

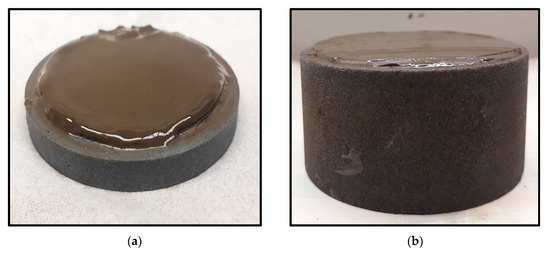

Figure 6. Generated filter cake on (a) the ceramic disc and (b) the sandstone core.
Figure 6. Generated filter cake on (a) the ceramic disc and (b) the sandstone core.
Sustainability 12 03427 g006
Sustainability 12 03427 g007 550

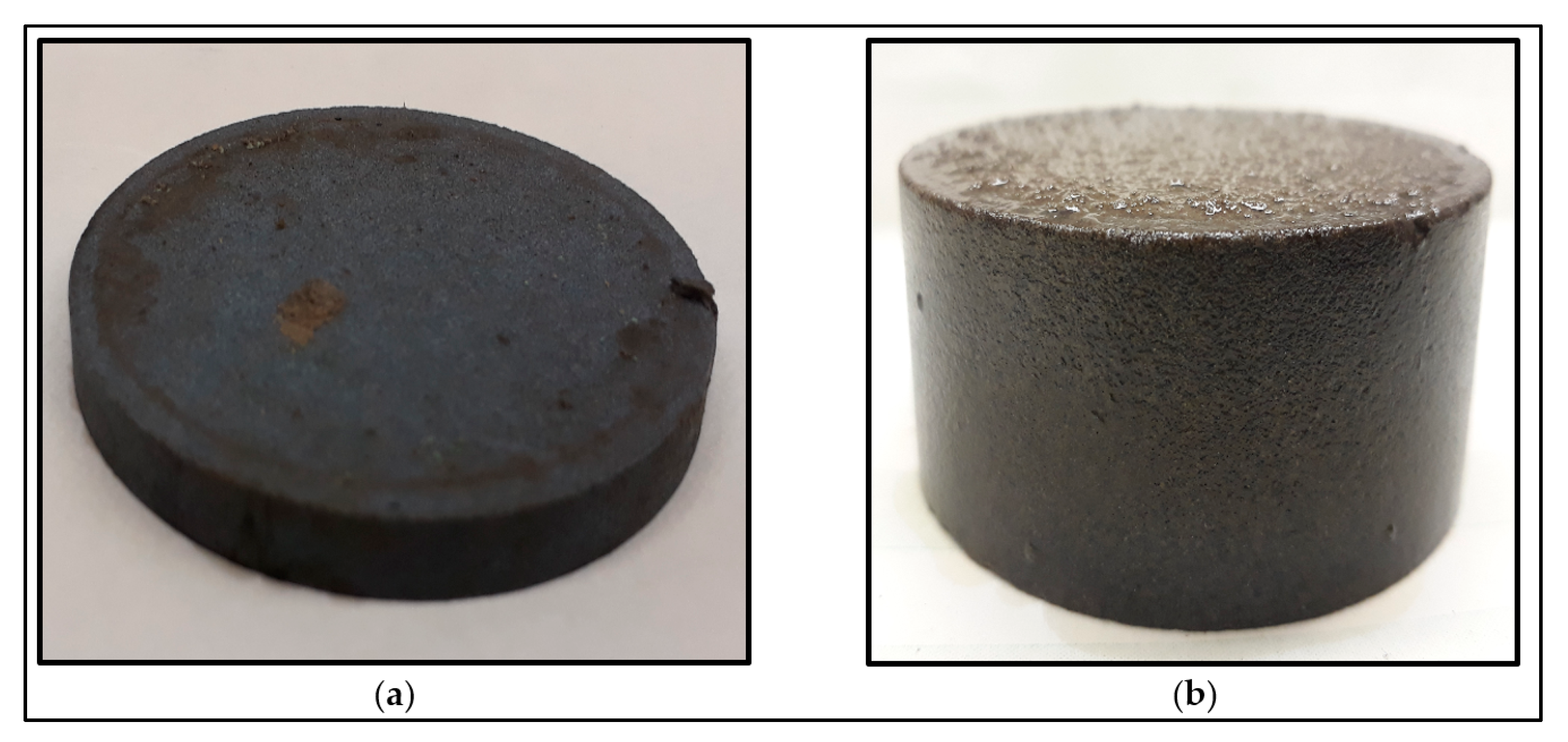

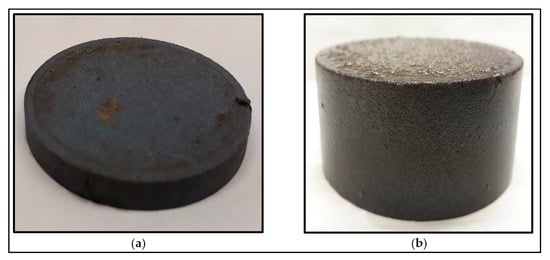

Figure 7. (a) The ceramic disc and (b) the core after 24 h soaking into NCW.
Figure 7. (a) The ceramic disc and (b) the core after 24 h soaking into NCW.
Sustainability 12 03427 g007
Table
Table 1. Oil-based drilling fluid formulation.
Table 1. Oil-based drilling fluid formulation.
AdditiveAmountUnitTask
Diesel0.59bblContinuous phase
Invermul1galEmulsifier
Lime4lbAlkalinity
Versalig6lbFiltration control
Fresh water0.16bblDispersed phase
VG 696lbViscosifier
Ezmul0.5galEmulsifier
CaCl233lbSalt
Fine CaCO3 (D50 = 25 microns)140lbWeighting material
Medium CaCO3 (D50 = 50 microns)20lbBridging material
Table
Table 2. Comparison of different filter cake treatments where calcium carbonate is used as the oil-based drilling fluid (OBDF) weighting material. All reported procedures were conducted on sandstone cores.
Table 2. Comparison of different filter cake treatments where calcium carbonate is used as the oil-based drilling fluid (OBDF) weighting material. All reported procedures were conducted on sandstone cores.
AuthorRemoval SolutionRemoval EfficiencyRetained Permeability PercentageCorrosion
Quintero et al. [46]Micro-emulsion (water, solvent, surfactant, co-surfactant) + acetic acid (16 h)NA85.3–100.3%NA
Binmoqbil et al. [47]Formic acid precursor + surfactant (24 h)NA100.4%NA
Mohamed et al. [34]biodegradable acid + mutual solvent + water (24 h)100% 100% 0.03 lb/ft2
Current studyNCW (24 h)99%100%0.000268 lb/ft2
