Slope Stability Analysis of Unsaturated Soil Slopes Based on the Site-Specific Characteristics: A Case Study of Hwangryeong Mountain, Busan, Korea
Abstract
1. Introduction

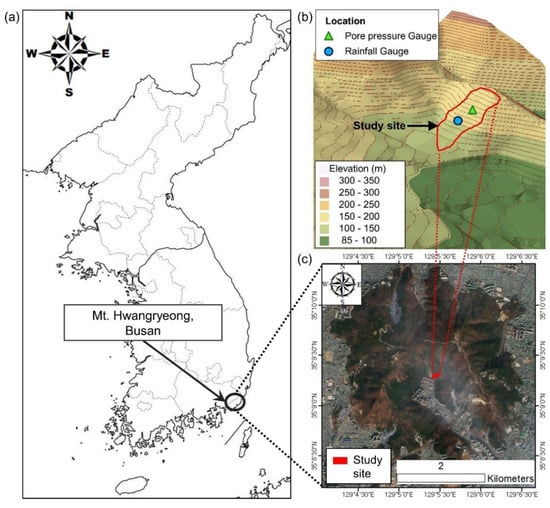

2. Study Area and Observation Devices
3. Materials and Methods
3.1. Rainfall Infiltration Analysis

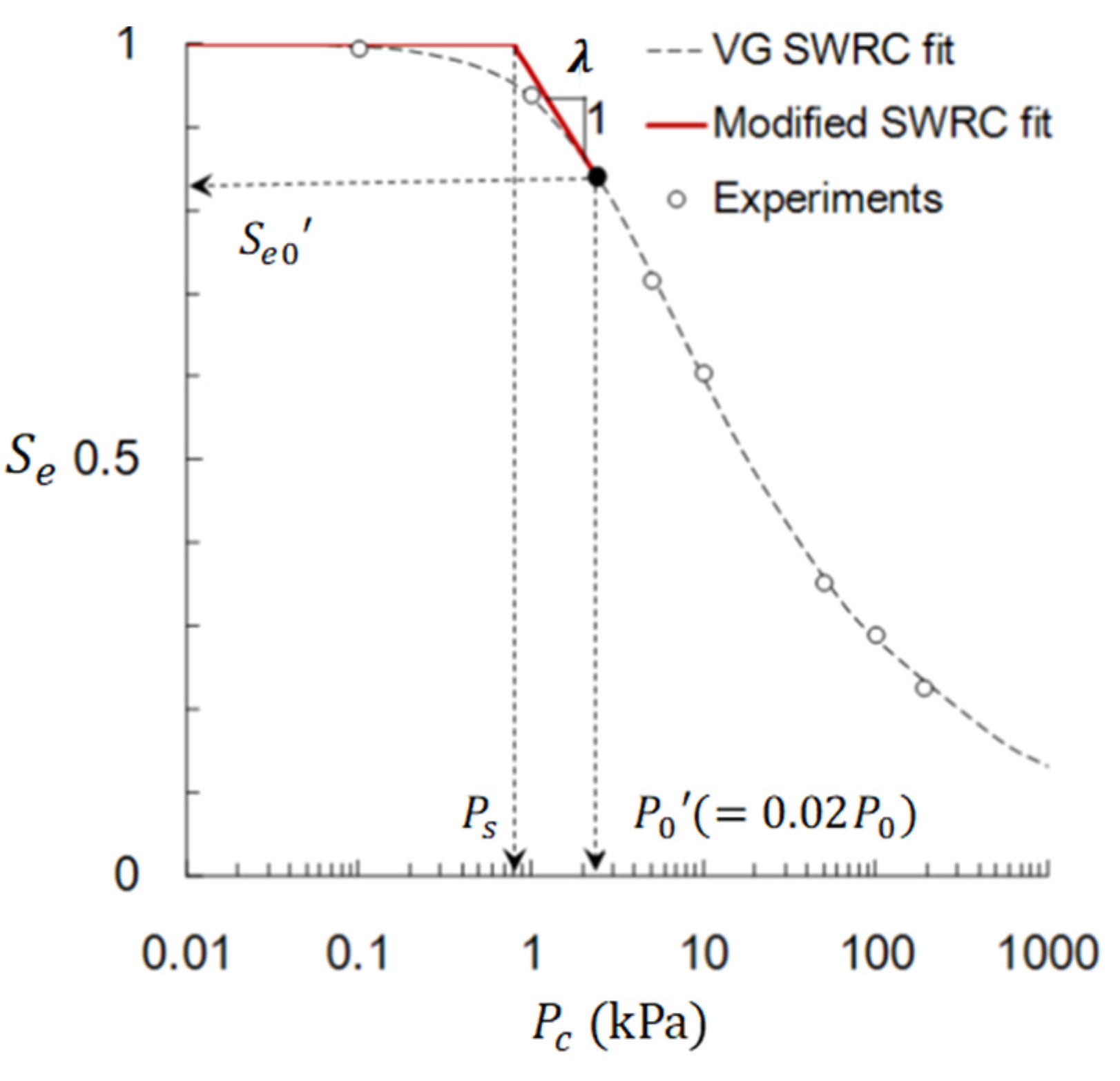

3.1.1. Unsaturated Flow
3.1.2. Balance of Momentum
3.1.3. Coupled Hydro-Mechanical Analysis

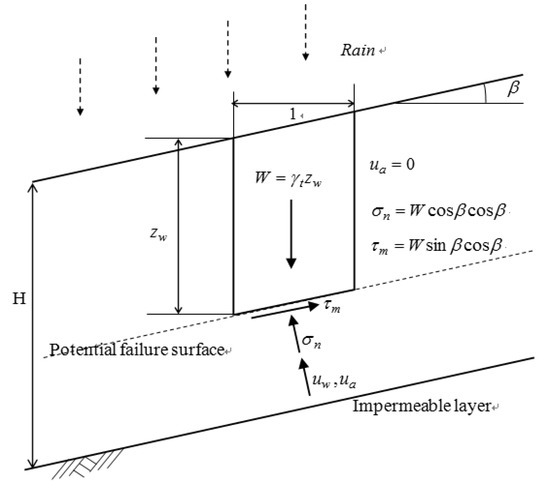

3.2. Slope Stability Analysis

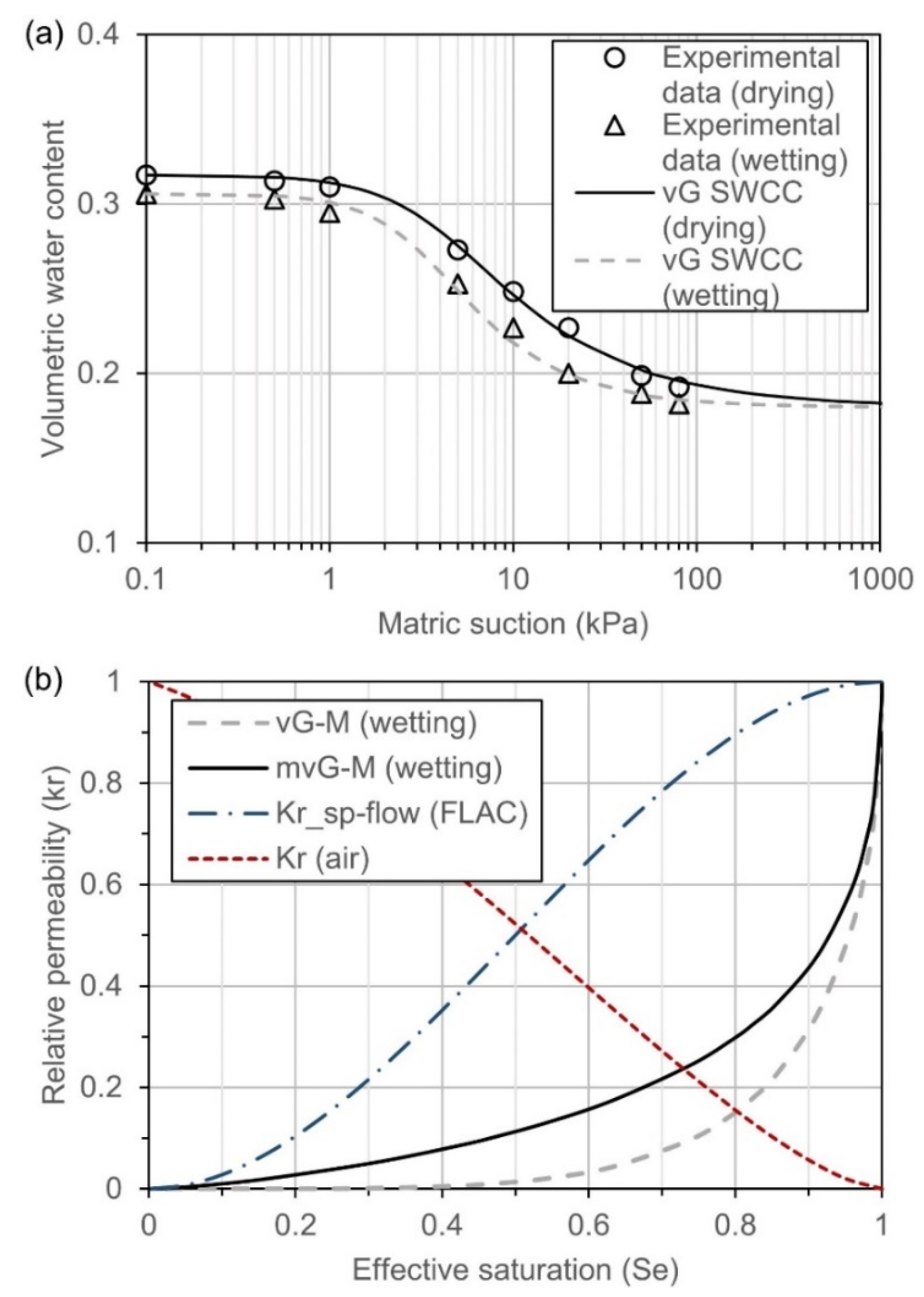

3.3. Material Properties

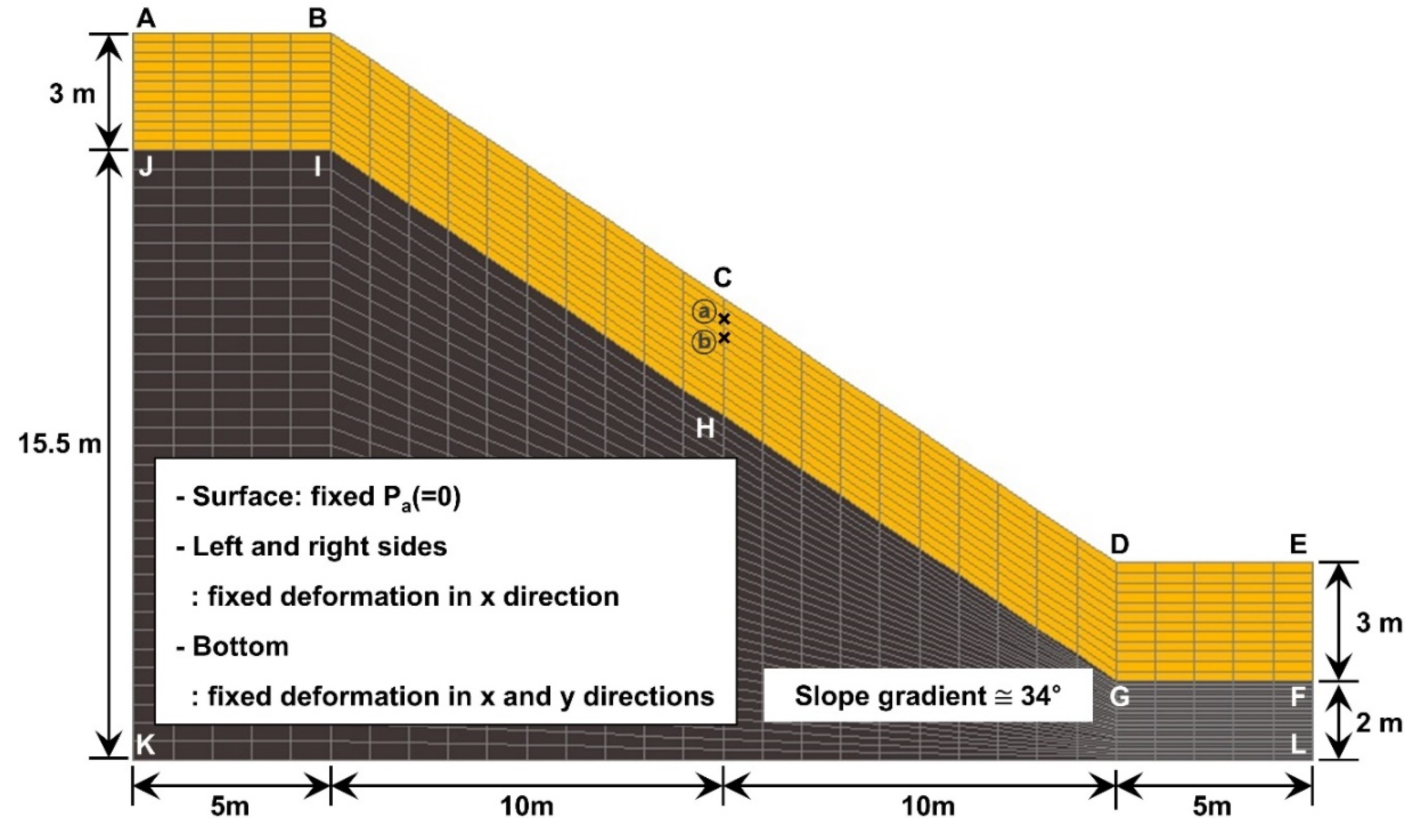

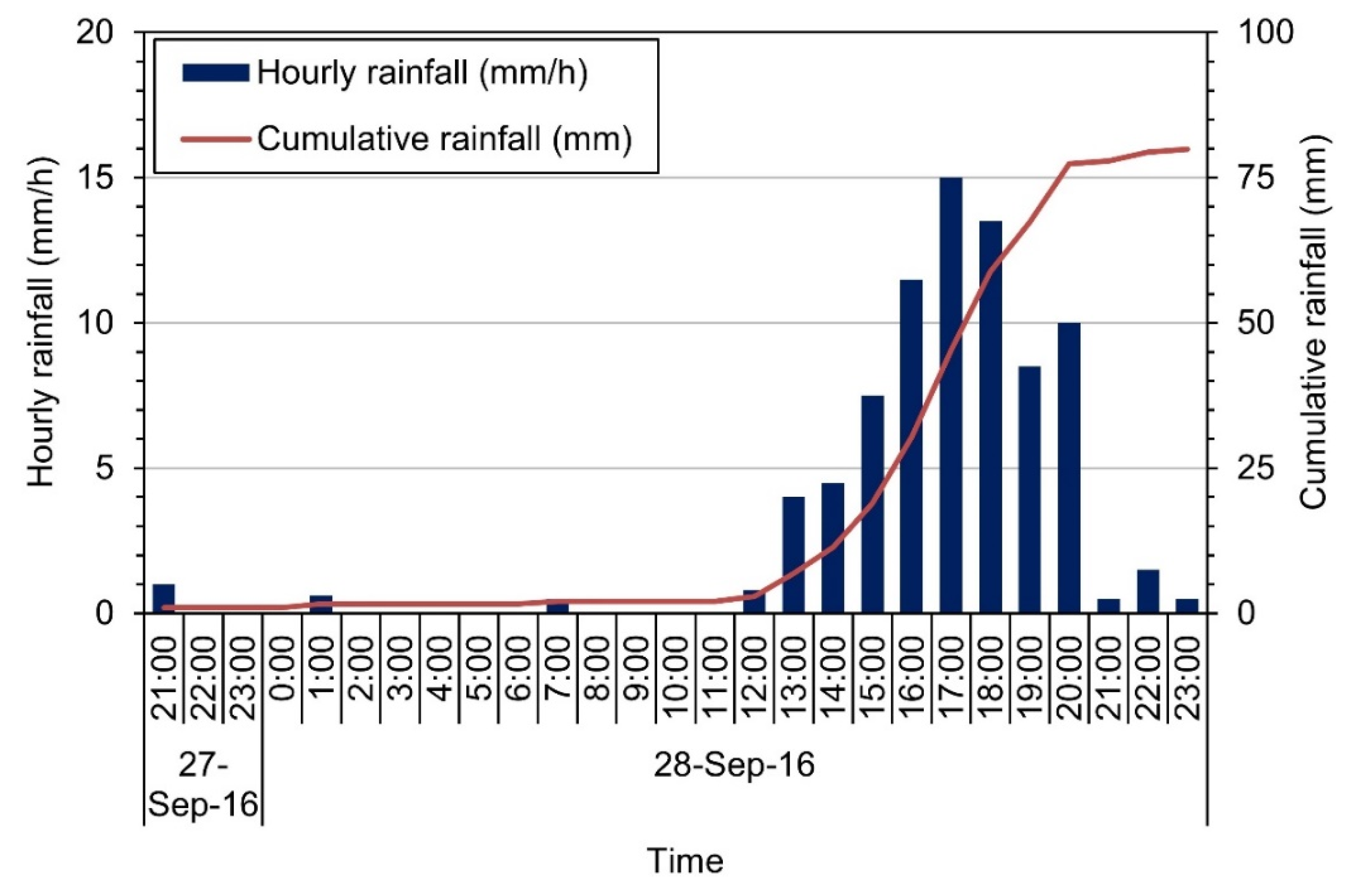

3.4. Slope Geometry and Boundary and Initial Conditions
4. Results and Discussion

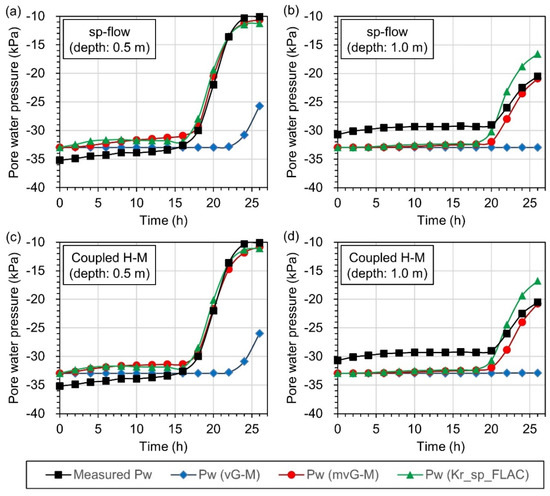

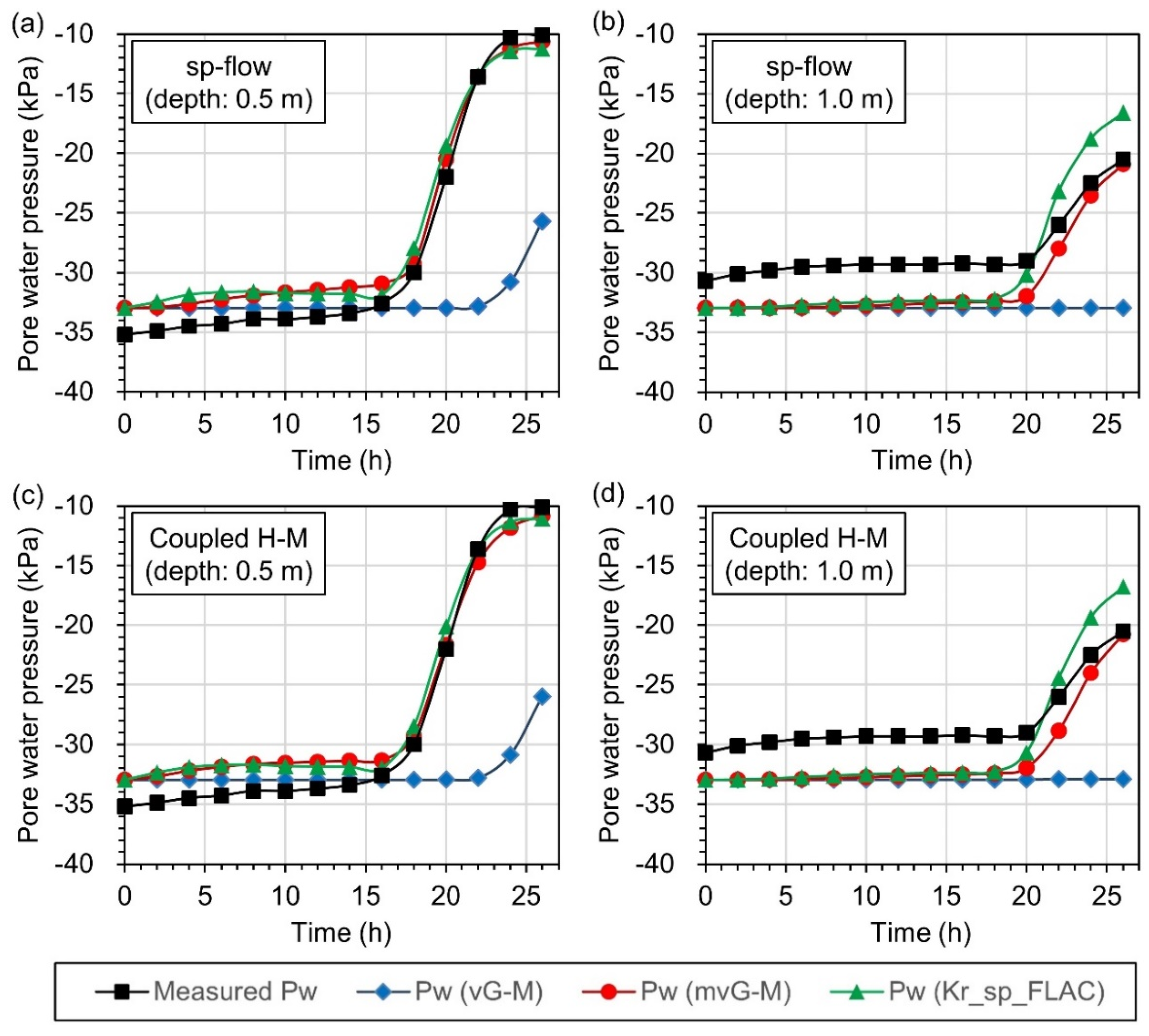

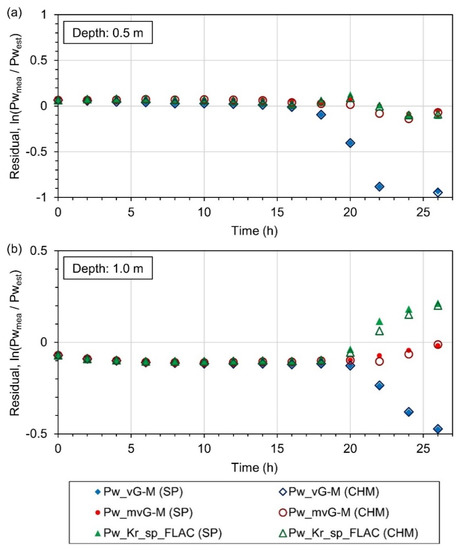

4.1. Site-Specific Rainfall Infiltration Analysis

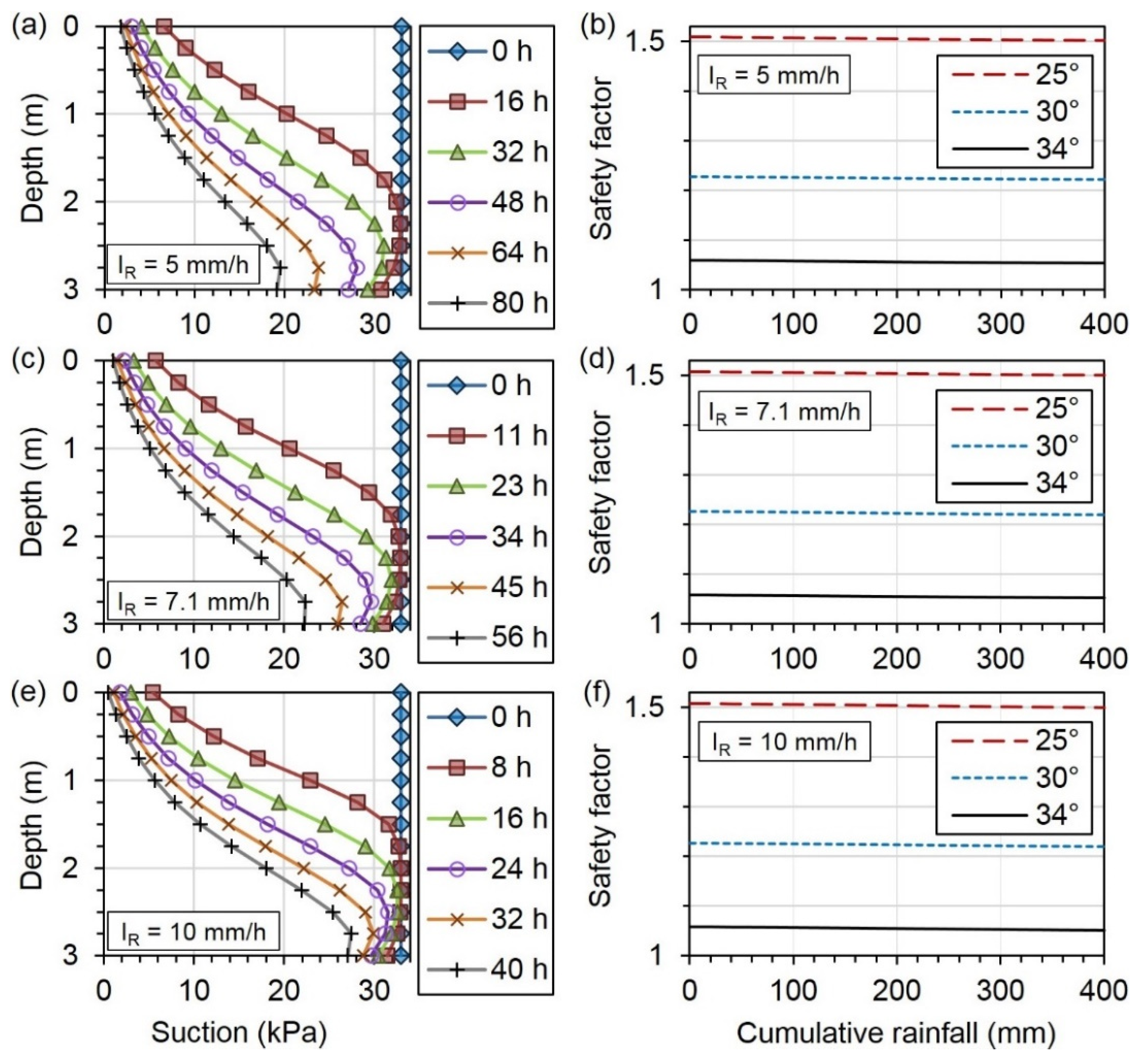

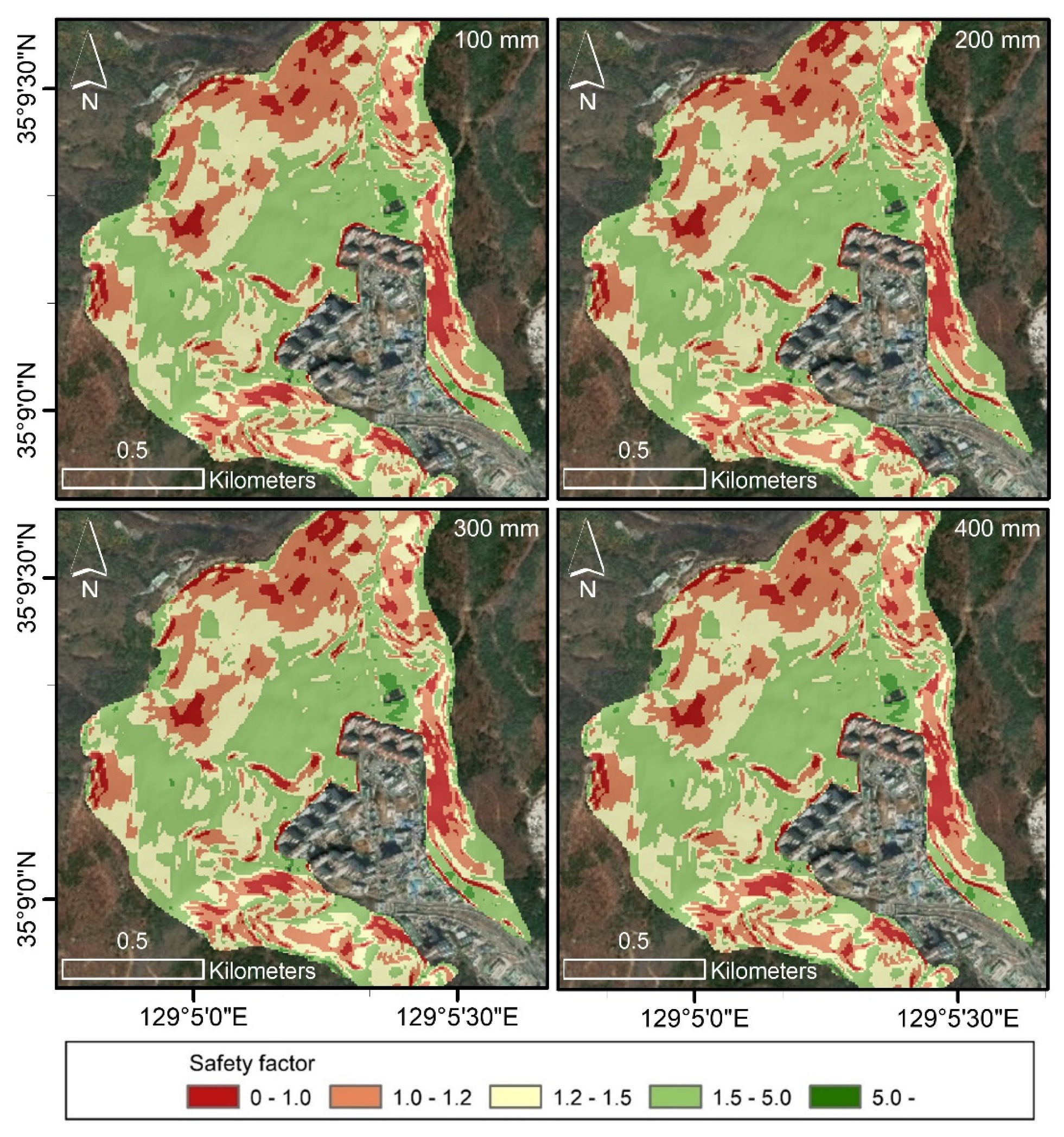

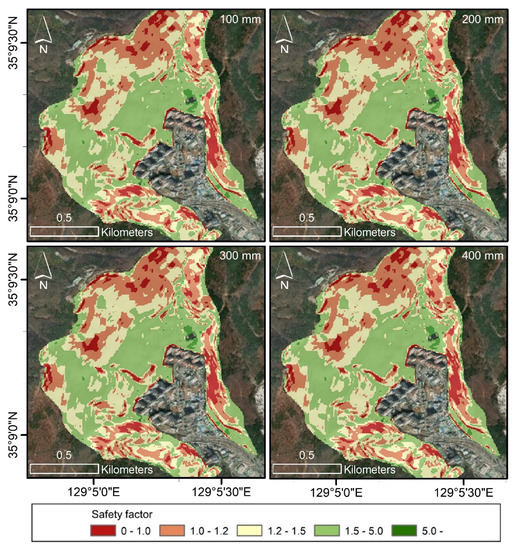

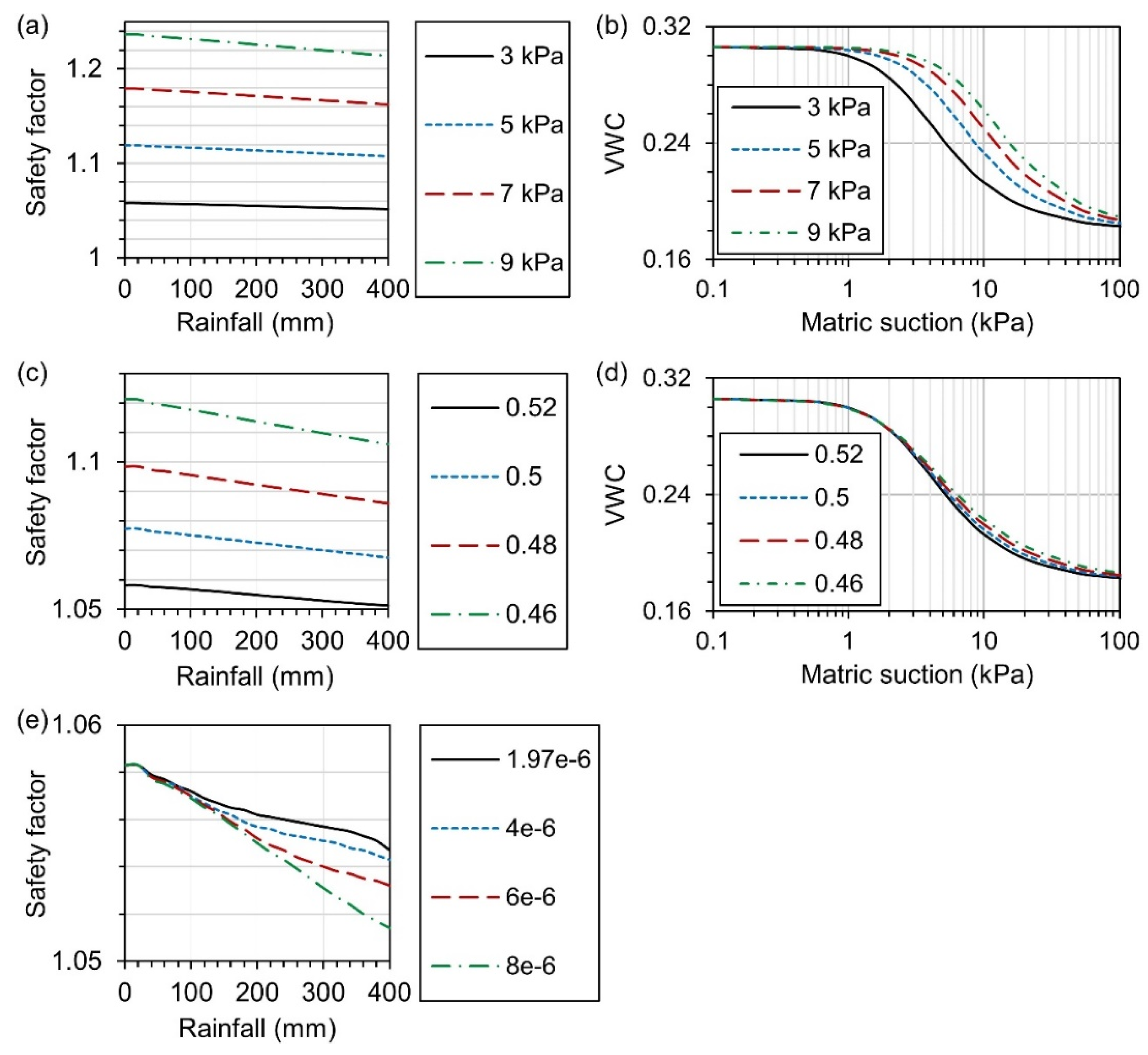

4.2. Slope Stability Assessment
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
