Industrial Symbiosis in Insect Production—A Sustainable Eco-Efficient and Circular Business Model
Abstract
:1. Introduction
2. Materials and Methods
2.1. Goal and Scope Definition of the A-LCA (ISO 14040)
2.2. Inventory Analysis (ISO 14044)
2.2.1. Inventory Flows

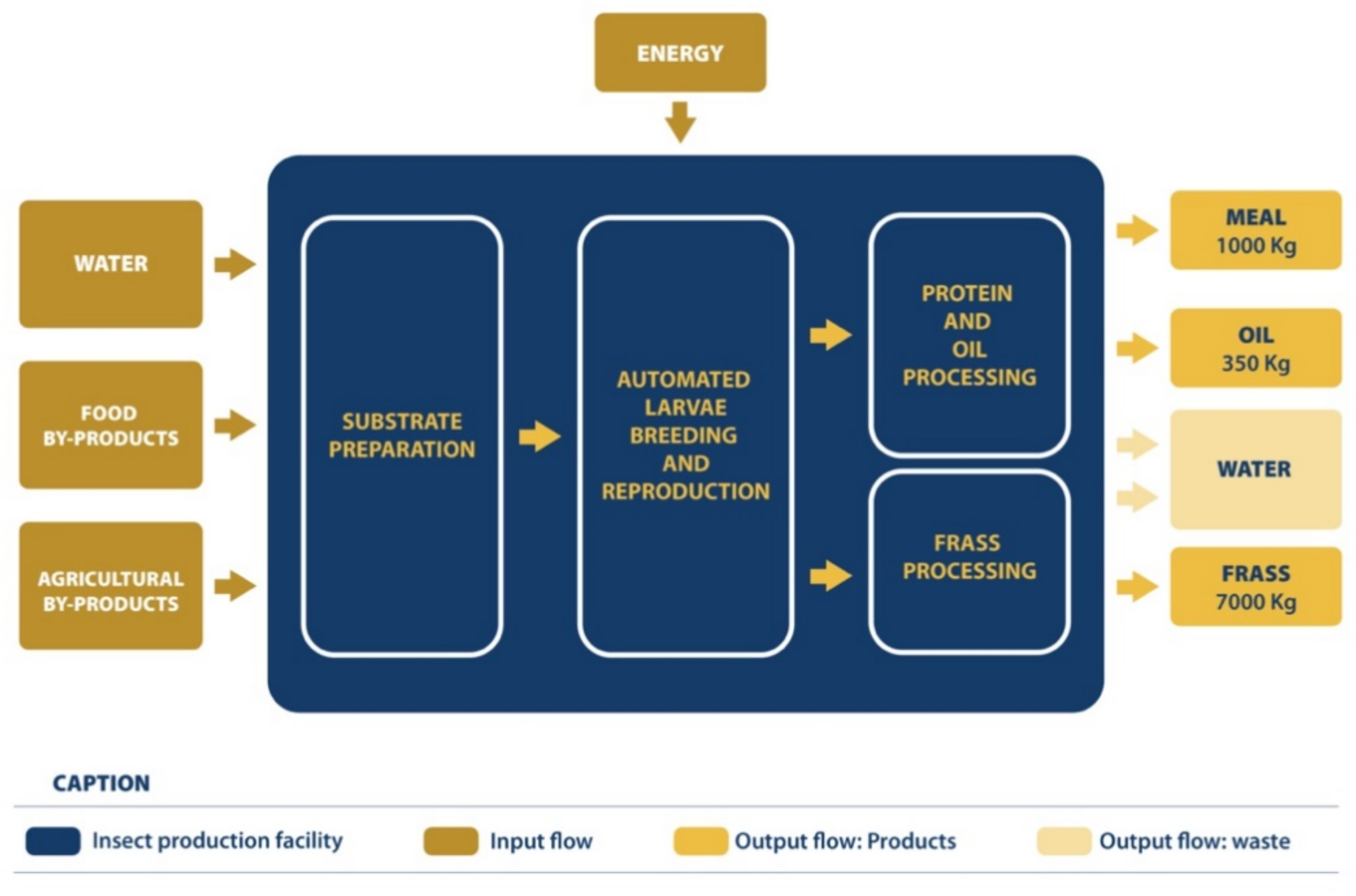

2.2.2. Scenario Analysis
- Agricultural by-products were sourced dry (DMslurry = 88%, DMbran = 88%) from a starch manufacturer located 40 km away and transported by truck;
- Hence, additional water was required to mix the agricultural by-products and obtain a BSFL feed substrate with the same DM content as in the symbiosis model;
- Electricity was sourced from the French grid (standard renewable energy to fossil resources ratio);
- Heat was sourced from a gas furnace instead of using waste energy, steam, and warm slurry as in the symbiosis model.
2.3. Impact Assessment (ISO 14044)
2.3.1. Methodology and Indicators
2.3.2. Environmental Impact Calculation
- -
- The impact of wheat slurry was adjusted to consider the cancelation of the drying step of the process as wheat slurry was supplied wet (15% DM) in the symbiosis model;
- -
- The impact of electricity was adjusted to account for the use of at least 80% wood waste in the wood biomass turbine, as required by CREII certification;
- -
- No impact was associated with the waste energy and heat captured from the wheat slurry nor with the transport of starch by-products in the symbiosis model as the latter are conveyed between partners through a direct pipeline;
- -
- Finally, for wheat bran and wheat slurry, the replacement of nitrogen-phosphorous-potassium (NPK) mineral fertilizers by insect frass considered the NPK profile of the frass as well as the wheat NPK intake from mineral sources necessary for its growth. Based on the NPK required to produce the wheat by-products and on the NPK content of the produced frass, it was assumed that the latter could replace 100% of the NPK fertilizer required to produce the wheat by-products used as BSFL feed. This was the only consequential effect considered in this A-LCA.
2.4. Sensitivity Analysis
3. Results

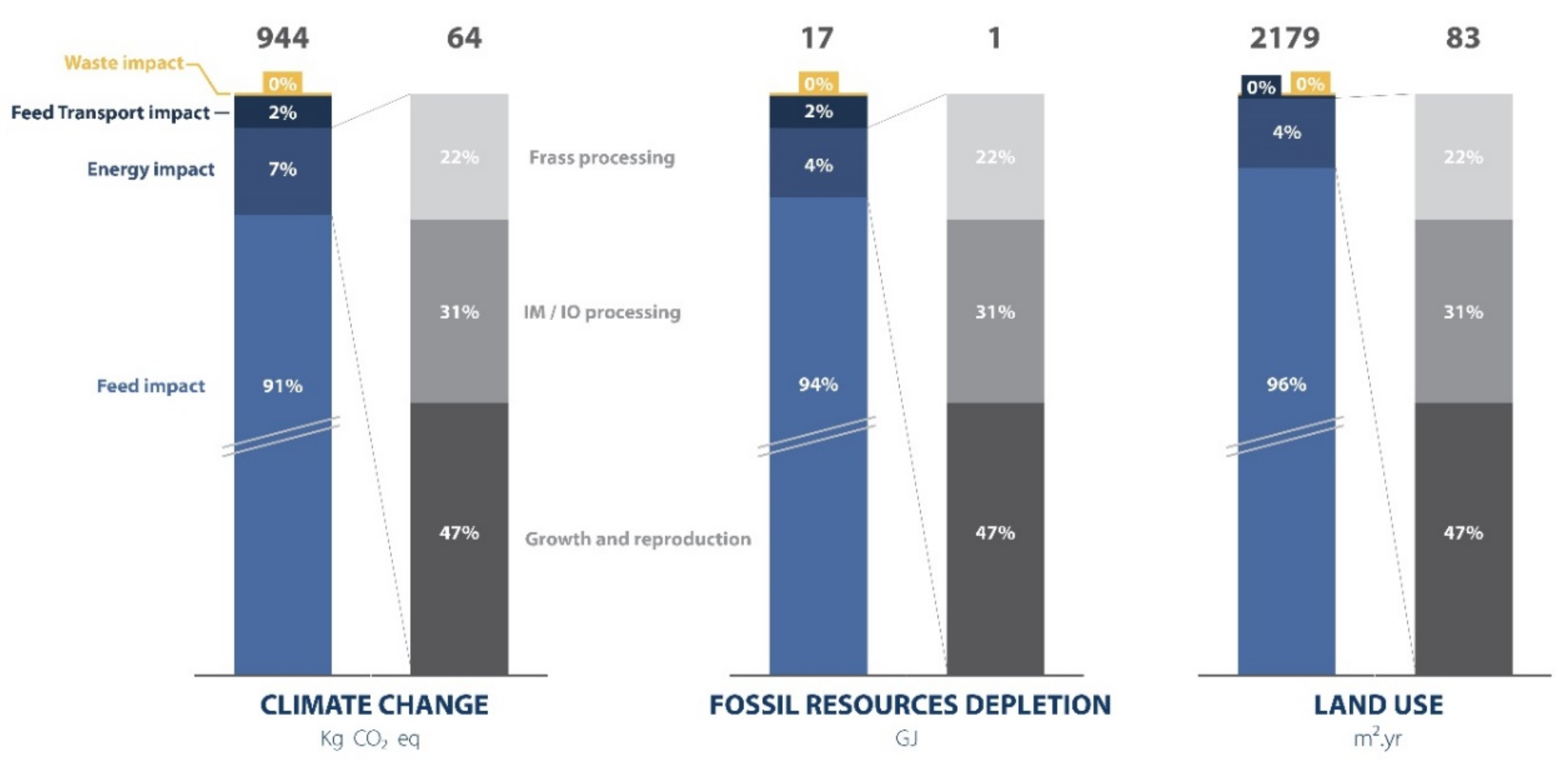

3.1. Environmental Impacts of the Symbiosis Model

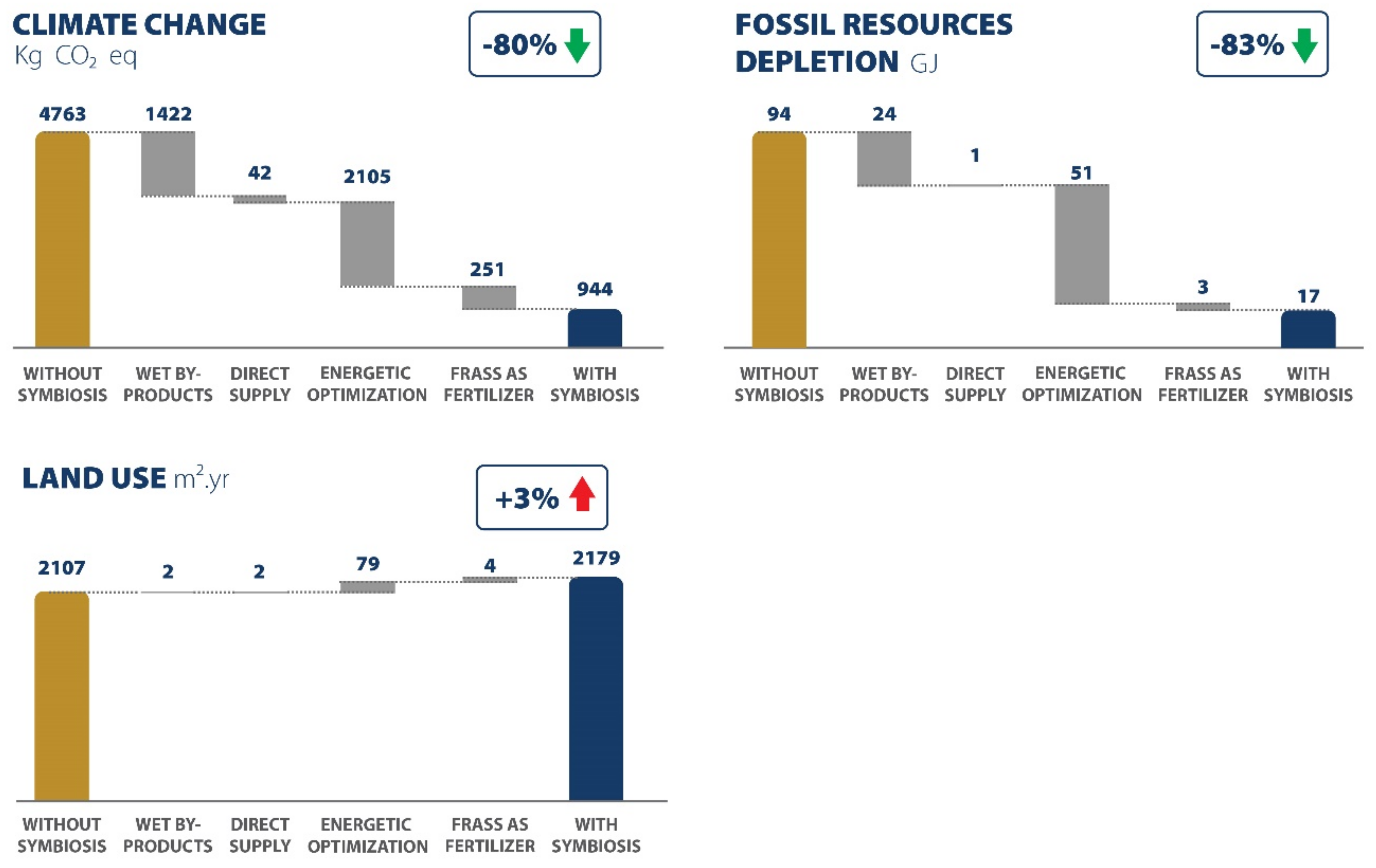

3.2. Comparison of the Environmental Impacts of the Symbiosis and No-Symbiosis Models
- The use of wet agricultural by-products: In the symbiosis model, wheat slurry is received at 15% DM whereas in the no-symbiosis model it is dried up and received at 88% DM;
- The direct supply of by-products: In the symbiosis model, wheat bran and wheat slurry are directly delivered from the starch manufacturer to the insect production facility through a pipeline whereas in the no-symbiosis model the same by-products are transported by truck over a 40 km distance;
- Energy mix optimization: In the symbiosis model, the energy required to power the insect production facility is sourced from (i) the calorific capacity of the wheat slurry received at 80 °C, (ii) the calorific capacity of the water heated to 60 °C using the waste energy from the nearby wood biomass turbine, and (iii) the nearby wood biomass turbine itself; in the no-symbiosis model, the energy required to power the insect production facility is sourced from natural gas and electricity assuming the standard mix used in the French grid;
- The use of frass as fertilizer: In the symbiosis model, the produced frass is assumed to be spread on agricultural lands thereby replacing 100% of the required mineral fertilizers to produce wheat bran and wheat slurry (the only consequential effect taken into account in this A-LCA); in the no-symbiosis model, no consequential effect related to the use of the produced frass was accounted for.
3.3. Comparison of the Environmental Impacts of IM and IO with Their Alternatives

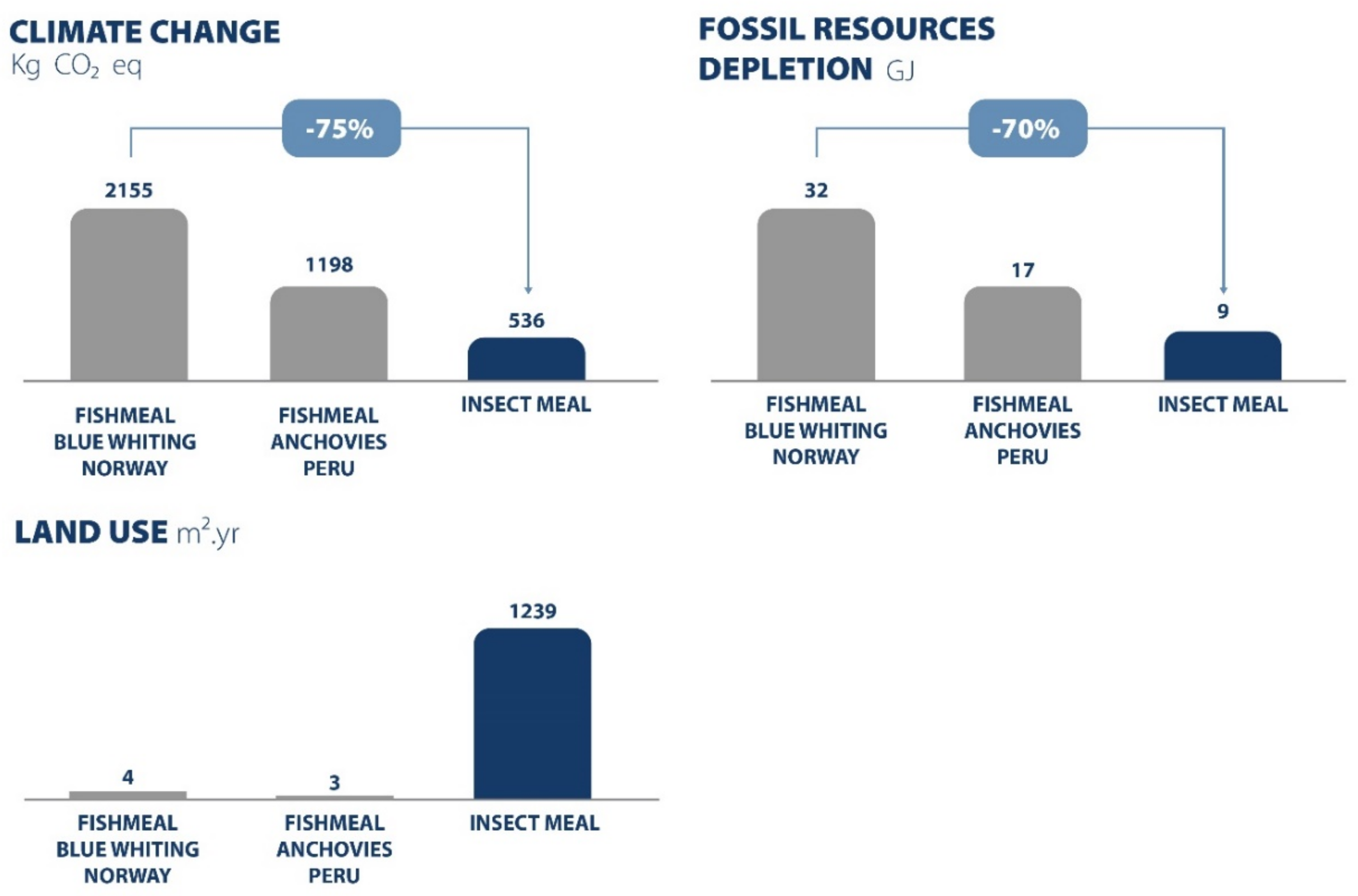

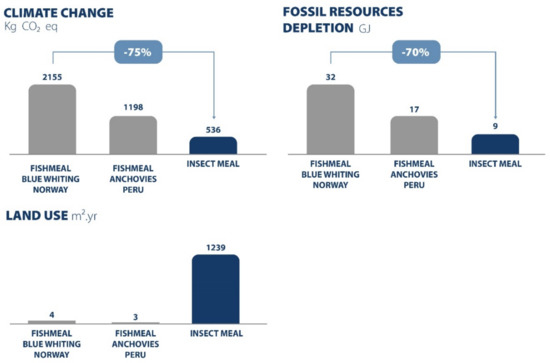

3.3.1. Comparison of IM and FM

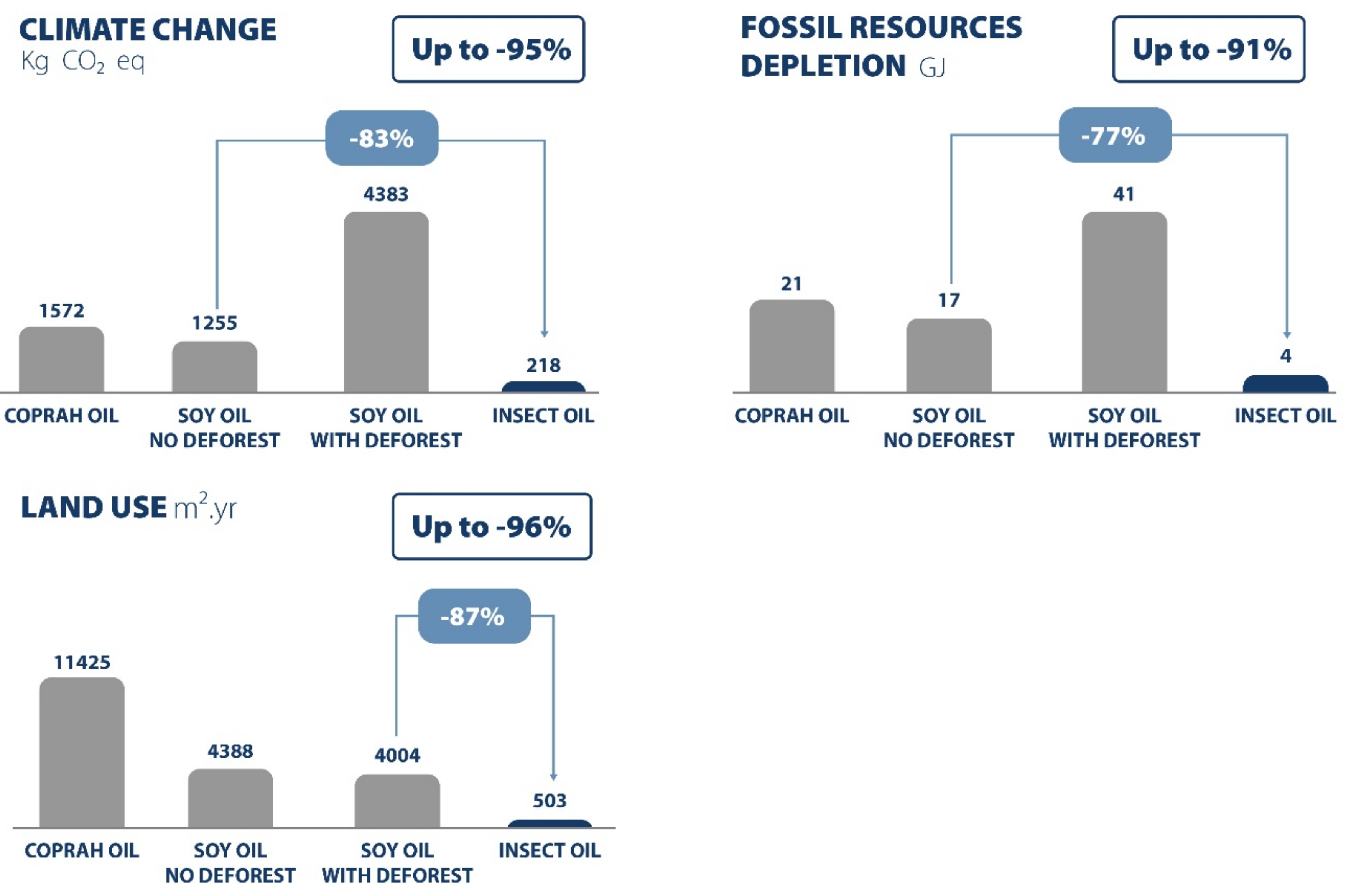

3.3.2. Comparison of IO and VOs
3.4. Sensitivity Analysis
4. Discussion
4.1. Impact of the Innovative Symbiosis Model Compared to That of the No-Symbiosis Model
4.2. Impact Drivers and Scope for Improvement in the Symbiosis Model
4.3. Impact of IM and IO Compared to That of Conventional Feed Ingredients
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- FAO. The State of World Fisheries and Aquaculture 2020. Sustainability in Action; Food and Agriculture Organization of the United Nations: Rome, Italy, 2020. [Google Scholar]
- Ritchie, H. Meat and Dairy Production. Available online: https://ourworldindata.org/meat-production (accessed on 8 December 2020).
- Gasco, L.; Biancarosa, I.; Liland, N.S. From waste to feed: A review of recent knowledge on insects as producers of protein and fat for animal feeds. Curr. Opin. Green Sustain. Chem. 2020, 23, 67–69. [Google Scholar] [CrossRef]
- FAO. Gateway to poultry production and products. Available online: http://www.fao.org/poultry-production-products/ (accessed on 8 December 2020).
- Tschirner, M.; Kloas, W. Increasing the sustainability of aquaculture systems: Insects as alternative protein source for fish diets. GAIA Ecol. Perspect. Sci. Soc. 2017, 26, 332–340. [Google Scholar] [CrossRef]
- Arru, B.; Furesi, R.; Gasco, L.; Madau, F.A.; Pulina, P. The introduction of insect meal into fish diet: The first economic analysis on European sea bass farming. Sustainability 2019, 11, 1697. [Google Scholar] [CrossRef] [Green Version]
- Llagostera, P.F.; Kallas, Z.; Reig, L.; de Gea, D.A. The use of insect meal as a sustainable feeding alternative in aquaculture: Current situation, Spanish consumers’ perceptions and willingness to pay. J. Clean. Prod. 2019, 229, 10–21. [Google Scholar] [CrossRef]
- Schiavone, A.; Cullere, M.; De Marco, M.; Meneguz, M.; Biasato, I.; Bergagna, S.; Dezzutto, D.; Gai, F.; Dabbou, S.; Gasco, L.; et al. Partial or total replacement of soybean oil by black soldier fly larvae (Hermetia illucens L.) fat in broiler diets: Effect on growth performances, feed-choice, blood traits, carcass characteristics and meat quality. Ital. J. Anim. Sci. 2017, 16, 93–100. [Google Scholar] [CrossRef] [Green Version]
- Sypniewski, J.; Kierończyk, B.; Benzertiha, A.; Mikołajczak, Z.; Pruszyńska-Oszmałek, E.; Kołodziejski, P.; Sassek, M.; Rawski, M.; Czekała, W.; Józefiak, D. Replacement of soybean oil by Hermetia illucens fat in turkey nutrition: Effect on performance, digestibility, microbial community, immune and physiological status and final product quality. Br. Poult. Sci. 2020, 61, 294–302. [Google Scholar] [CrossRef] [PubMed]
- Cullere, M.; Schiavone, A.; Dabbou, S.; Gasco, L.; Dalle Zotte, A. Meat quality and sensory traits of finisher broiler chickens fed with black soldier fly (Hermetia illucens L.) larvae fat as alternative fat source. Animals 2019, 9, 140. [Google Scholar] [CrossRef] [Green Version]
- Chia, S.Y.; Tanga, C.M.; van Loon, J.J.; Dicke, M. Insects for sustainable animal feed: Inclusive business models involving smallholder farmers. Curr. Opin. Environ. Sustain. 2019, 41, 23–30. [Google Scholar] [CrossRef]
- Berggren, Å.; Jansson, A.; Low, M. Approaching ecological sustainability in the emerging insects-as-food industry. Trends Ecol. Evol. 2019, 34, 132–138. [Google Scholar] [CrossRef] [Green Version]
- Salomone, R.; Saija, G.; Mondello, G.; Giannetto, A.; Fasulo, S.; Savastano, D. Environmental impact of food waste bioconversion by insects: Application of life cycle assessment to process using Hermetia illucens. J. Clean. Prod. 2017, 140, 890–905. [Google Scholar] [CrossRef]
- Thévenot, A.; Rivera, J.L.; Wilfart, A.; Maillard, F.; Hassouna, M.; Senga-Kiesse, T.; Le Féon, S.; Aubin, J. Mealworm meal for animal feed: Environmental assessment and sensitivity analysis to guide future prospects. J. Clean. Prod. 2018, 170, 1260–1267. [Google Scholar] [CrossRef]
- Smetana, S.; Schmitt, E.; Mathys, A. Sustainable use of Hermetia illucens insect biomass for feed and food: Attributional and consequential life cycle assessment. Resour. Conserv. Recycl. 2019, 144, 285–296. [Google Scholar] [CrossRef]
- Jolliet, O.; Margni, M.; Charles, R.; Humbert, S.; Payet, J.; Rebitzer, G.; Rosenbaum, R. IMPACT 2002+: A new life cycle impact assessment methodology. Int. J. Life Cycle Assess. 2003, 8, 324. [Google Scholar] [CrossRef] [Green Version]
- Li, S.; Ji, H.; Zhang, B.; Tian, J.; Zhou, J.; Yu, H. Influence of black soldier fly (Hermetia illucens) larvae oil on growth performance, body composition, tissue fatty acid composition and lipid deposition in juvenile Jian carp (Cyprinus carpio var. Jian). Aquaculture 2016, 465, 43–52. [Google Scholar] [CrossRef]
- Smetana, S.; Palanisamy, M.; Mathys, A.; Heinz, V. Sustainability of insect use for feed and food: Life Cycle Assessment perspective. J. Clean. Prod. 2016, 137, 741–751. [Google Scholar] [CrossRef]
- Madau, F.A.; Arru, B.; Furesi, R.; Pulina, P. Insect Farming for Feed and Food Production from a Circular Business Model Perspective. Sustainability 2020, 12, 5418. [Google Scholar] [CrossRef]
- Cadinu, L.A.; Barra, P.; Torre, F.; Delogu, F.; Madau, F.A. Insect Rearing: Potential, Challenges, and Circularity. Sustainability 2020, 12, 4567. [Google Scholar] [CrossRef]
- Van Zanten, H.H.; Mollenhorst, H.; Oonincx, D.G.A.B.; Bikker, P.; Meerburg, B.G.; de Boer, I.J.M. From environmental nuisance to environmental opportunity: Housefly larvae convert waste to livestock feed. J. Clean. Prod. 2015, 102, 362–369. [Google Scholar] [CrossRef]
- Roffeis, M.; Muys, B.; Almeida, J.; Mathijs, E.; Achten, W.; Pastor, B.; Velásquez, Y.; Martinez-Sanchez, A.I.; Rojo, S. Pig manure treatment with housefly (Musca domestica) rearing–an environmental life cycle assessment. J. Insects Food Feed 2015, 1, 195–214. [Google Scholar] [CrossRef] [Green Version]
- Oonincx, D.G.A.B.; de Boer, I.J.M. Environmental impact of the production of mealworms as a protein source for humans–a life cycle assessment. PLoS ONE 2012, 7, e51145. [Google Scholar] [CrossRef] [Green Version]
- Smetana, S.; Mathys, A.; Knoch, A.; Heinz, V. Meat alternatives: Life cycle assessment of most known meat substitutes. Int. J. Life Cycle Assess. 2015, 20, 1254–1267. [Google Scholar] [CrossRef]
- Muys, B.; Roffeis, M. Generic Life Cycle Assessment of Proteins from Insects. In Insects to Feed the World, Proceedings of the 1st International Conference, Wageningen, The Netherlands, 17 May 2014; Ku Leuven: Leuven, Belgium, 2014. [Google Scholar]
- Komakech, A.J.; Sundberg, C.; Jönsson, H.; Vinnerås, B. Life cycle assessment of biodegradable waste treatment systems for sub-Saharan African cities. Resour. Conserv. Recycl. 2015, 99, 100–110. [Google Scholar] [CrossRef]
- Wang, Y.-S.; Shelomi, M. Review of black soldier fly (Hermetia illucens) as animal feed and human food. Foods 2017, 6, 91. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Diener, S.; Solano, N.M.S.; Gutiérrez, F.R.; Zurbrügg, C.; Tockner, K. Biological treatment of municipal organic waste using black soldier fly larvae. Waste Biomass Valoriz. 2011, 2, 357–363. [Google Scholar] [CrossRef] [Green Version]
- Diener, S.; Zurbrügg, C.; Tockner, K. Conversion of organic material by black soldier fly larvae: Establishing optimal feeding rates. Waste Manag. Res. 2009, 27, 603–610. [Google Scholar] [CrossRef]
- Li, Q.; Zheng, L.; Qiu, N.; Cai, H.; Tomberlin, J.K.; Yu, Z. Bioconversion of dairy manure by black soldier fly (Diptera: Stratiomyidae) for biodiesel and sugar production. Waste Manag. 2011, 31, 1316–1320. [Google Scholar] [CrossRef]
- Newton, L.; Sheppard, C.; Watson, D.W.; Burtle, G.; Dove, R. Using the Black Soldier Fly, Hermetia Illucens, as a Value-Added Tool for the Management of Swine Manure; Animal and Poultry Waste Management Center, North Carolina State University: Raleigh, NC, USA, 2005; Volume 17. [Google Scholar]
- Zhou, F.; Tomberlin, J.K.; Zheng, L.; Yu, Z.; Zhang, J. Developmental and waste reduction plasticity of three black soldier fly strains (Diptera: Stratiomyidae) raised on different livestock manures. J. Med. Entomol. 2013, 50, 1224–1230. [Google Scholar] [CrossRef]
- Woods, J.S.; Veltman, K.; Huijbregts, M.A.; Verones, F.; Hertwich, E.G. Towards a meaningful assessment of marine ecological impacts in life cycle assessment (LCA). Environ. Int. 2016, 89, 48–61. [Google Scholar] [CrossRef] [Green Version]
Climate Change | Fossil Resources Depletion | Land Use | |
---|---|---|---|
kg CO2 eq | GJ | m2.yr | |
Total of functional unit | 944 | 17 | 2179 |
Per fraction of the functional unit | |||
IM (1 t) | 57% | 86% | 86% |
IO (0.35 t) | 8% | 12% | 12% |
Frass (7 t) | 35% | 1% | 1% |
Per ton of insect product | |||
IM (1 t) | 536 | 9.39 | 1239 |
IO (1 t) | 218 | 3.81 | 503 |
Frass (1 t) | 47 | 0.02 | 2.59 |
Environmental Impact Indicator | Feed Intake | Environmental Impact Reduction | |
---|---|---|---|
100% | 90% | ||
Climate change (kg CO2 eq) | 944 | 856 | 9% |
Fossil resources depletion (GJ) | 17 | 15 | 10% |
Land use (m2.yr) | 2179 | 1969 | 10% |
Insect Species [Reference Source] | Indicators | ||
---|---|---|---|
Climate Change kg CO2 eq | Fossil Resources Depletion GJ | Land Use m2.yr | |
House fly larvae [21] | 770 | 9.3 | 32 |
House fly larvae [22] | - | 159.8–288.1 | 2790–5320 |
Mealworm larvae [23] | 3500 | 44.3 | 4680 |
Mealworm larvae [24] | 7100–7550 | 80.0–101.0 | 50 |
BSFL [25] | - | 13.4–64.06 | 10–40 |
BSFL [26] | 1240 | 1.5 | - |
BSFL [13] | 2100 | 15.1 | 50 |
BSFL [18] | 1360–15,100 | 21.2–99.6 | 32–7030 |
BSFL [present study] | 536 | 9.4 | 1239 |
