Case Report

Innovative Methods for Small Mixed Batches Production System Improvement: The Case of a Bakery Machine Manufacturer

1
Faculty of Materials, Metallurgy and Recycling, Technical University of Košice, 04200 Košice, Slovakia
2
Faculty of Electrical Engineering and Informatics, Technical University of Košice, 04200 Košice, Slovakia
3
Faculty of Mechanical Engineering, University of Belgrade, 11000 Belgrade, Serbia
4
Faculty of Manufacturing Technologies, Technical University of Košice, 08001 Prešov, Slovakia
5
School of Design, Polytechnic Institute Cavado Ave, Campus do IPCA, 4750-810 Barcelos, Portugal
*
Authors to whom correspondence should be addressed.
Sustainability 2020, 12(15), 6266; https://doi.org/10.3390/su12156266
Received: 3 July 2020 / Revised: 27 July 2020 / Accepted: 31 July 2020 / Published: 4 August 2020
(This article belongs to the Special Issue Actual Trends of Logistics and Industrial Engineering)

Abstract

:
One of the common problems of organizations with turn-key projects is the high scrap rate. There exist such traditional methods as Lean Six Sigma (LSS) and DMAIC tools that analyze causes and suggest solutions. New emerging intelligent technologies should influence these methods and tools as they affect many areas of our life. The purpose of this paper is to present the innovative Small Mixed Batches (SMB). The standard set of LSS tools is extended by intelligent technologies such as artificial neural networks (ANN) and machine learning. The proposed method uses the data-driven quality strategy to improve the turning process at the bakery machine manufacturer. The case study shows the step-by-step DMAIC procedure of critical to quality (CTQ) characteristics improvement. Findings from the data analysis lead to a change of measurement instrument, training of operators, and lathe machine set-up correction. However, the scrap rate did not decrease significantly. Therefore the advanced mathematical model based on ANN was built. This model predicts the CTQ characteristics from the inspection certificate of the input material. The prediction model is a part of a newly designed process control scheme using machine learning algorithms to reduce the variability even for input material with different properties from new suppliers. Further research will be focused on the validation of the proposed control scheme, and acquired experiences will be used to support business sustainability.

1. Introduction

The rapidly changing economic and market environment and increasing pressure for a sustainable lifestyle bring changes in the behavior and the habits of people. Machines for the macroscopic world are being developed [1]. Similarly, engineering can produce at the precision level of microns, and measurement technologies have shifted to high-sensitive optical sensors and imaging technologies. This changing environment places new demands on innovation and change, but most industrial organizations, according to the survey [2,3], are not yet in a state where they would introduce intelligent technologies. These technologies, in the context of Quality 4.0, allow the processing and presentation of a large amount of data from past measurements that can be used to look back for the trends and forward-looking decision making [4,5], where new business can appear based on new technologies [6], aiming at value creation [7] with increasingly demanding customers.
Despite these possibilities, many non-automotive industry organizations still record their measurements in paper forms and underuse the power of data to reduce material and energy consumption, which is a necessary condition for sustainability on the organizational level [8]. Moreover, bakery machine manufacturers have to keep up with this reality and continuously innovate their activities, change the product portfolio, and improve the quality and performance of processes, but all within the principles of hygienic design of the bakery machine [9]; although, in many cases, they produce machine components in small mixed batches according to individual customer requirements (custom made bakery machines). There is no remaining time or financial opportunities for 100% quality inspection of all characteristics of manufactured parts. Therefore, process engineers and quality engineers must be able to monitor the critical to quality (CTQ) characteristics, process quality, and performance indicators in real-time and must be able to use tools of advanced quality improvement to ensure that the production process is stable and efficient [10,11]. Research on processes with low repeatability and small mixed batches has, in the past, been focused mainly on products and less on processes. That is, quality has been studied only on final parts or products [12].
The presented case study relates to an organization that has not analyzed the process capability and performance in the past; it relied mainly on production time standards and the skills of operators. Nowadays, the necessity to modify production towards more sustainable business and according to individual customer specifications and preferences, the “Lean” paradigm [13,14] and Six Sigma philosophy, is increasingly being applied, because organizations need to focus on process improvement [15,16].
Our research aims to propose a sequence of quality improvement steps related to the implementation of Lean Six Sigma (LSS) tools and intelligent technologies for Small Mixed Batch (SMB) production. In the case study of a bakery machine manufacturer, the newly developed Lean Six Sigma Small Mixed Batch (LSS-SMB) method with machine learning methodology is applied. The goal of the case organization is to improve the turning process capability (Cp).
The rest of the paper is structured as follows: Section 2 contains the literature survey of tools and methods used for SMB production system improvement with a focus on using intelligent technologies. Section 3 describes the problem in the bakery machine manufacturer and introduces the newly developed LSS-SMB method. This section also contains a detailed description of data collection and analysis during the two years of project duration. In Section 4, we continue by presenting the key results of our case study with the support of tables and figures. Section 5 discusses our findings, and Section 6 presents the key conclusions from the entire paper.

2. Context: Tools and Methods Used for Small Mixed Batch Production System Improvement

The volume of data available for research in recent years is exponentially growing [17]. Therefore, most businesses try to gain value from them. Data and analytics are changing the basis of competition, and companies are using analytical capabilities to launch brand new business and process models. Regarding quality management, access to data and information has also changed. The desired results are more likely to be achieved if decisions are based on the analysis and evaluation of data from the documented information [18]. The use of information from various existing organization databases in connection with Lean manufacturing principles translates the organization’s performance into higher productivity, less invested time, better quality, customer satisfaction, increased sales and, consequently, increased profit [19]. Currently, the use of Lean tools in the manufacturing industry has been remarkably expanded thanks to using extensive data analysis that has impressive power to detect non-conformances, reduce waste and delivery times and lead the organization to streamlined manufacturing and value stream mapping [20].
Our research started with a literary survey, which contained keywords and abstracts related to: “Six Sigma”; “Lean”; “Small Mixed Batch”; “Statistical Process Control” and, applying intelligent technologies for Quality 4.0, “machine learning”; “machine vision”. To ensure better search inclusion, phrase variants “Statistical Process Control” and “SPC”, “Six Sigma” and “Lean Six Sigma”, were used. There was initially no search restriction in the release year to avoid the arbitrary exclusion of resources. The results have been examined in more detail by keyword and thematic focus, and a group of papers was selected and sorted by years of occurrence. In particular, those related to industrial production and intelligent technologies were used in further research. Findings are summarized in the following three Sections.

2.1. Six Sigma, Lean and Intelligent Technologies

Selecting the right analytical tools to understand data to work with is a difficult task for experts. In industrial practice, the Six Sigma methodology is often used. It combines analytical and statistical quality tools and offers a universally applicable method of gradual improvement, which is an integral part of it. Lean Manufacturing is a system for maximizing product value for the customer while minimizing waste without reducing productivity. The synthesis of Lean Manufacturing with Six Sigma creates a comprehensive system that removes waste and reduces process variation and optimizes product output [21]. The high-level problem-solving approach in Lean Six Sigma is a 5-steps process called DMAIC (Define, Measure, Analyze, Improve, Control) [22]. Data analysis in Lean Six Sigma is typically historical in nature because data are gathered and analyzed after processes have run. Even in the control phase, when active process management is ongoing, data analysis occurs after the manufacturing rather than as the process runs [23].
Current intelligent technologies related to Quality 4.0 enable real-time process control and decision-making. Machine learning as a sub-set of artificial intelligence that provides systems with the ability to automatically learn and improve from experience without being explicitly programmed. Several researchers use machine vision [24], machine learning [25] and artificial neural networks (ANN) [26] for prediction of dimensional deviation and surface roughness. However, these intelligent technologies and real-time quality control and improvement are not yet an integral part of LSS practice.

2.2. Small Mixed Batches, Short Run, and Statistical Process Control

The term “small mixed batch” is used when different products are in the batch, but according to some characteristics, they can be investigated together [12]. The term “short-run” (SR) means that only a few pieces are produced, and consequently, a different part or item is going to be produced. It means that the production cycle is very short, or it does not allow intervention within a reasonable time; the repeatability of the production batch is low, and a very small volume of items is in a batch.
Statistical process control (SPC) techniques are applicable in any small mixed batch or short-run production, which are repeatable in any way [27]. The primary tool of the SPC is a control chart that shows the evolution of process variability over time.
For the application of control charts to SMB, process measurements from different products should be grouped. The procedure for the grouping of similar processes is described in [12]. It is necessary to regularly verify that data grouping for small mixed batch SPC is still valid. To flexibly group and reorganize operations, it is essential to record meta-data along with the measured data so that each measured value is associated with a group of processes [28].
The concept of intelligent SPC uses gathered data, artificial neural networks, and machine learning to improve the automatic detection of the out of control state of the process, or to estimate the process’s mean value and variance [29,30,31]. The authors use intelligent technologies only for the detection of an adverse condition, but not for its prediction or prevention. To flexibly group and reorganize operations, it is essential to record meta-data along with the measured data so that each measured value is associated with a group of processes.

2.3. Dimensional Deviation and Surface Roughness Prediction

The ability to predict the surface quality before machining gives manufacturers an advantage in terms of cost-saving, shorter cycle time, and less re-work or rejects [32]. Several advanced approaches have been applied to develop the methodology of the dimensional tolerances and surface roughness prediction:
  • Response surface methodology (RSM) in combination with the design of experiments (DOE) or regression analysis is used to develop a mathematical model for predicting surface roughness for a given set of input parameters. Mathematical modelling was used for the turning process in [33,34].
  • Artificial intelligence methods, particularly neural networks, can be applied to predict surface roughness and dimensional deviation based on the input variables [26,35,36]. Radial basis function (RBF) as a tool for prediction has been used by several authors [37,38,39].
In recent years, the development of machine vision hardware and advanced image processing technology has opened new possibilities in the field of tool condition monitoring and geometrical properties measurement of the workpiece without removing the workpiece from the lathe machine [40]. There are three commonly used technologies in optical shaft measurement systems: high-resolution matrix array, CCD cameras, and line scan technology [41].
Classical statistics and Lean Six Sigma have shown that if input variables have large variance, we would expect a large variance in the output variable(s). Finding a suitable approximation for the proper functional relationship y = f ( X ) between the response of interest y and a set of input variables X = { x i ,   x 2 ,   , x n } , e.g., a response surface method (RSM) according to [33] can be used. Generally, if the response function is not known or is non-linear, a second-order model is utilized [42] in the form of Equation (1):
y = b 0 + i = 1 n b i x i + i = 1 n b i i x i 2 + i < j n b i j x i x j + ε
where ε represents the noise or error observed in the response y such that the expected response is ( y ε ) and b ´ s are the regression coefficients to be estimated.
The least-square technique can be used to fit a model equation containing input variables by minimizing the residual error measured by the sum of squared deviations between the actual and estimated responses. The calculated coefficients or the model equations, however, need to be tested for statistical significance.

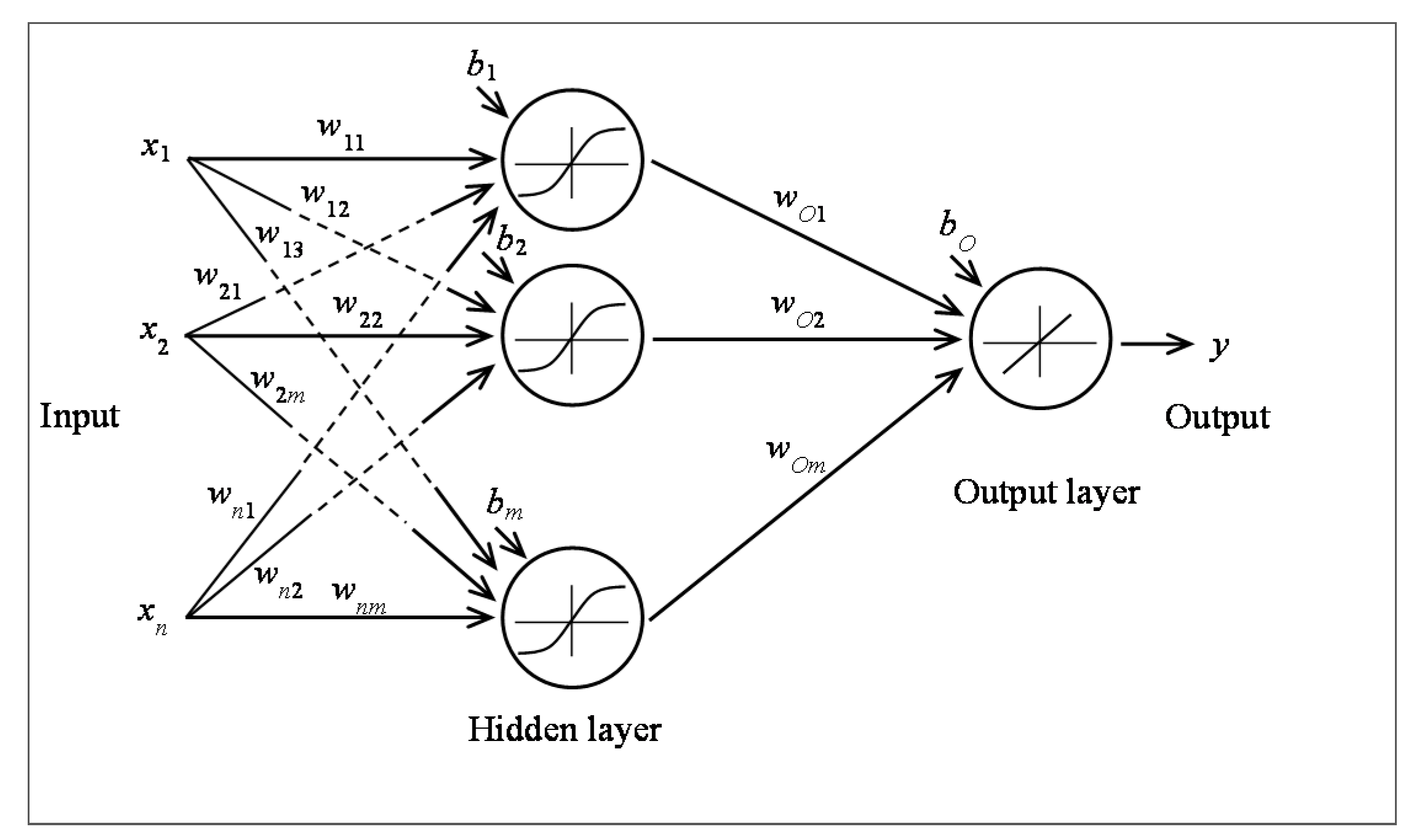

According to [39], due to the inadequacy and inefficiency of the analytical models to explain the non-linear properties existing between machining parameters, intelligent systems such as ANN, fuzzy logic, and expert systems have emerged. ANN is an appropriate technique used to handle the problem of non-linearity. ANNs trained with a backpropagation algorithm can be used according to [39,43] to predict optimal machine set-up. The feedforward backpropagation neural network [44] is applied in many cases when it is necessary to determine the output in terms of reliability, accuracy, and efficiency. The ANN defines a mapping y = f ( X ; θ ) and learns parameters θ = { w , b } to accomplish the best function approximation. Figure 1 shows the structure of the neural network with n input variables, one hidden layer with m neurons, and the output layer with one neuron. The parameters θ of a neural network are weights w i j and biases b k . Each neuron j calculates its output Equation (2):
y j = f a ( i = 1 n ( w i j + b j ) )
where f a is a neuron activation function. The learning algorithm uses a training set T = { ( X , y ) } of input/output pairs to find the parameters θ . A different set of input/output pairs that are not included in T is used to evaluate an ANN precision.
Factors (controllable variables X) affecting the dimensional deviation and surface roughness (output variables y ), according to [33,38,45], are listed in Table 1.
Among these factors, according to [33,38,39], cutting speed, depth of cut, and feed rate are most often used to determine the influence on the quality of a produced surface. These factors were used in the prediction models discussed later. The authors in [29,33,34,35,36,37,38,39,40,41,43,44,45] use prediction models for dimensional deviation and surface roughness prediction only. They do not deal with the integration of models into the process of quality control.
The critical survey in Section 2.1, Section 2.2 and Section 2.3 implies that intelligent technologies are not fully integrated into traditional methods of Lean Six Sigma and process quality control. Therefore, our research is going to address this issue to further move industrial processes towards business sustainability.

3. Methods and Materials

The new, innovative Lean Six Sigma Small Mixed Batch (LSS-SMB) method was developed by making use of the ANN and machine learning approach in addition to the standard set of LSS tools. This method was applied in the bakery machine manufacturer organization for improvement of the turning process. The following Sections describe the problem that needed to be solved and explain the new LSS-SMB method and its implementation.

3.1. Organization and Problem Description

The research was conducted in an organization that develops innovative solutions for the bakery industry. A medium-sized, engineering-oriented organization with a small production volume has a diverse range of product-mix and many machine settings for different production orders. The main end products are bakery machines. The machines are made up of components like conveyors, hoppers, cylinders, and electrical cabinets. The assembly of these components creates units for processing a bakery dough, forming and molding units, and food ingredient-dispensing units. Almost every project has specific customer requirements and is a so-called “turn-key” solution. Therefore, manufacturing can be considered as SMB production.
Stainless-steel cylinders are one of the most important and expensive components of produced units. Each cylinder consists of a tube (A), a side flange (B), and a shaft (C) (Table 2). Product volume is about 1800 pcs/year in 271 design variants. The cylinder material AISI 304 (X5CrNi18-10) DIN 1.4301 or AISI 304L (X2CrNi18 9) DIN 1.4307 is purchased from European (EUR) and Indian (IND) suppliers. Cylinders are machined by turning on CNC center MAZAK QTN 350, and the cylinder type determines the lathe machine set-up. The resulting CTQ characteristic is a shaft precise diameter 50 h 6 obtained from stainless steel rod 80 h 9 by hard and finish turning. For finish turning, a coated cemented carbide cutting tool (CVD TICN+AL2O3+TIN), manufactured by Sandvik, Sweden, is used. The new cutting tool is used for each workpiece.
One of the most important problems of the organization was the cylinder scrap rate of about 14%. The Pareto analysis showed that the main cause of non-conformity was the exceeding of precise diameter and roughness specifications. Therefore, the improvement was focused on the turning process. The organization decided to implement the Six Sigma project, where the data-driven quality strategy is used. The precise diameter 50 h 6 and roughness Ra is measured after completion of a batch of three cylinders (type 400, type 600, type 800) loaded into pallets and transferred to the quality inspection with an average time lapse up to 12 h.
The problem was investigated in detail using the 8D report (Appendix A Table A1). Part D3 of the 8D report highlights the risk of the existence of a similar problem on other cylinders in the batch. Therefore, the innovative Lean Six Sigma Small Mixed Batch was designed to improve the production system.

3.2. Lean Six Sigma Small Mixed Batch Method

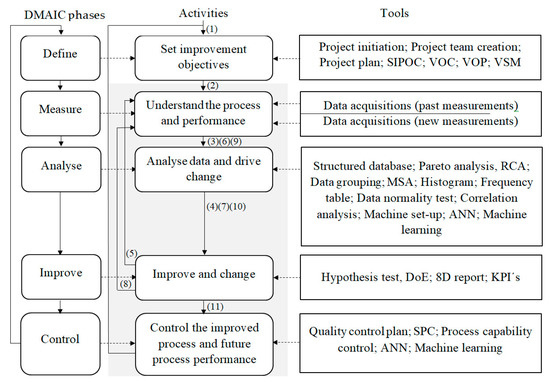

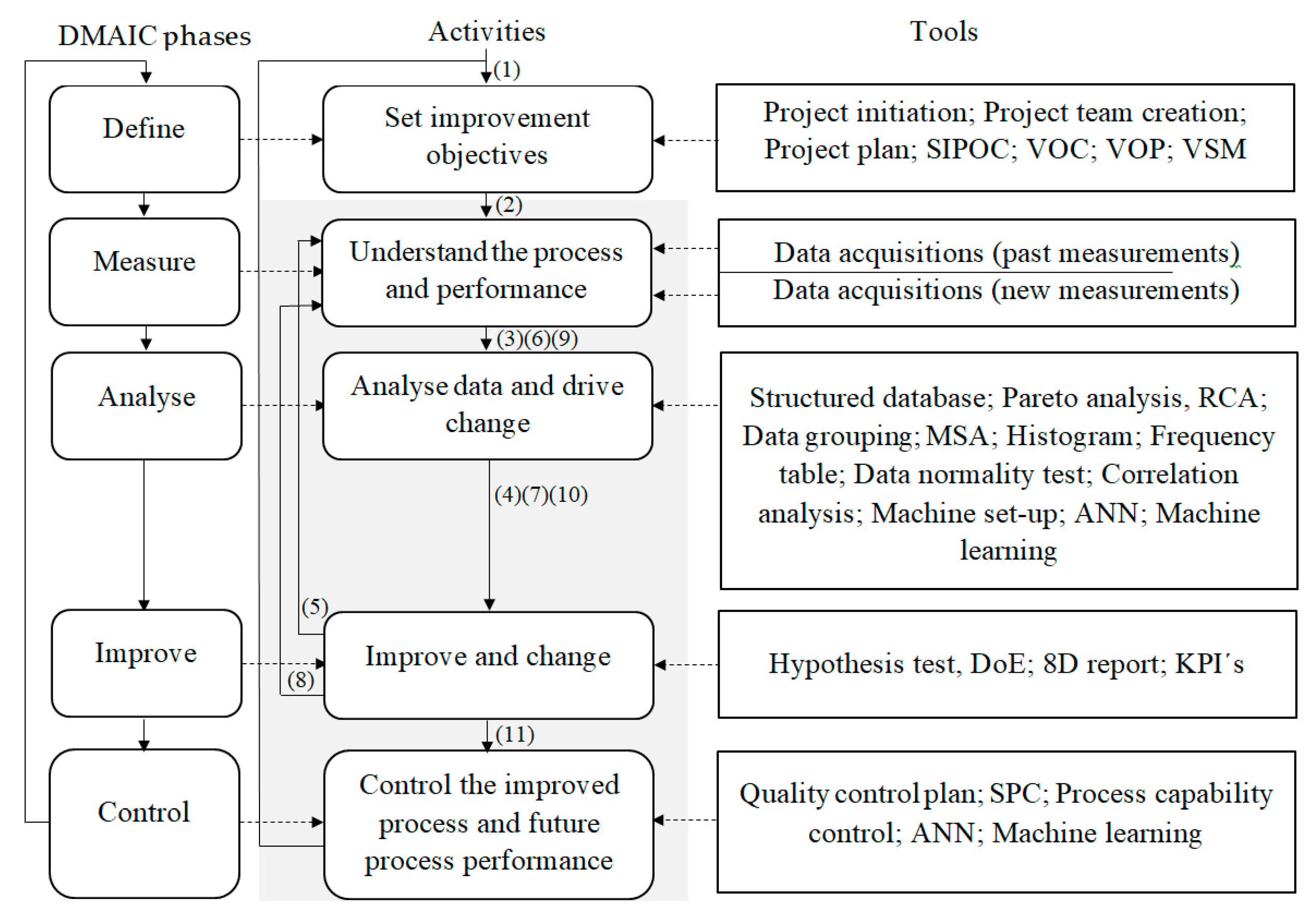

The essence of the LSS-SMB method lies in the use of Define–Measure–Analyze–Improve–Control (DMAIC) phases in repetitive cycles until the expected improvement of the process under investigation is achieved. The method takes into account the specifics of the short-run and small mixed batch production system. It uses several tools from the well-known Lean Six Sigma toolbox that was extended by artificial neural networks (ANN) and machine learning. Figure 2 shows the DMAIC phases, activities, and selected tools of the LSS-SMB method.
The method is implemented using a sequence of the following steps:
  • (1)—Improvement objectives are set in the Define phase of the DMAIC cycle.
  • (2)—Existing data are collected and processed in the Measure phase of the DMAIC cycle.
  • (3)—The collected data from the past measurements are analyzed with appropriate tools, and the necessary changes are determined in the Analysis phase.
  • (4)—The changes are realized in the Improvement phase using suitable tools.
  • (5)—If necessary, new measurements are designed and performed in the next cycle through the Measurement phase.
  • (6)—New measurements are analyzed to determine if further changes are needed.
  • (7)—Further changes are realized in the repeated Improvement phase of the DMAIC cycle using suitable tools.
  • (8–10)—The phases Measure, Analyze, and Improve are repeated until the improvement objectives are reached.
  • (11)—The process is maintained in the improved condition through a better understanding of the process obtained in the preceding steps.

3.3. Data Collection

In the first stage of the project (beginning of the 2018), 150 individually measured data for one design variant recorded on paper forms were transferred to table (Appendix B Table A2). The data represents the deviation from the precise diameter of 50 mm. The initial target value of deviation (T) was set by the operator to −0.008 mm.
In the second stage of the project in 2018, Lean Six Sigma training was conducted for project team members and operators. The high-speed optical micrometer was purchased, and data was directly recorded into the Excel table (Appendix B Table A3). Measured data were separated according to EUR supplier (100 records) and IND supplier (100 records) for all design variants.
The third stage of the project in 2019 brought a detailed recording of input material properties: diameter deviation, roughness, chemical composition, and mechanical properties, from individual inspection certificates. Twenty-six records are intended for the prediction models calculation (Appendix B Table A4).

3.4. Data Analysis

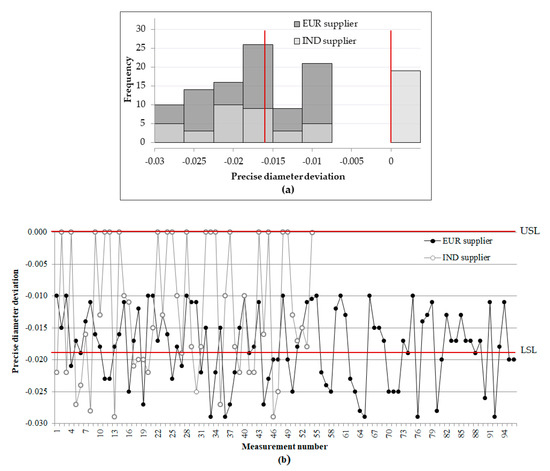

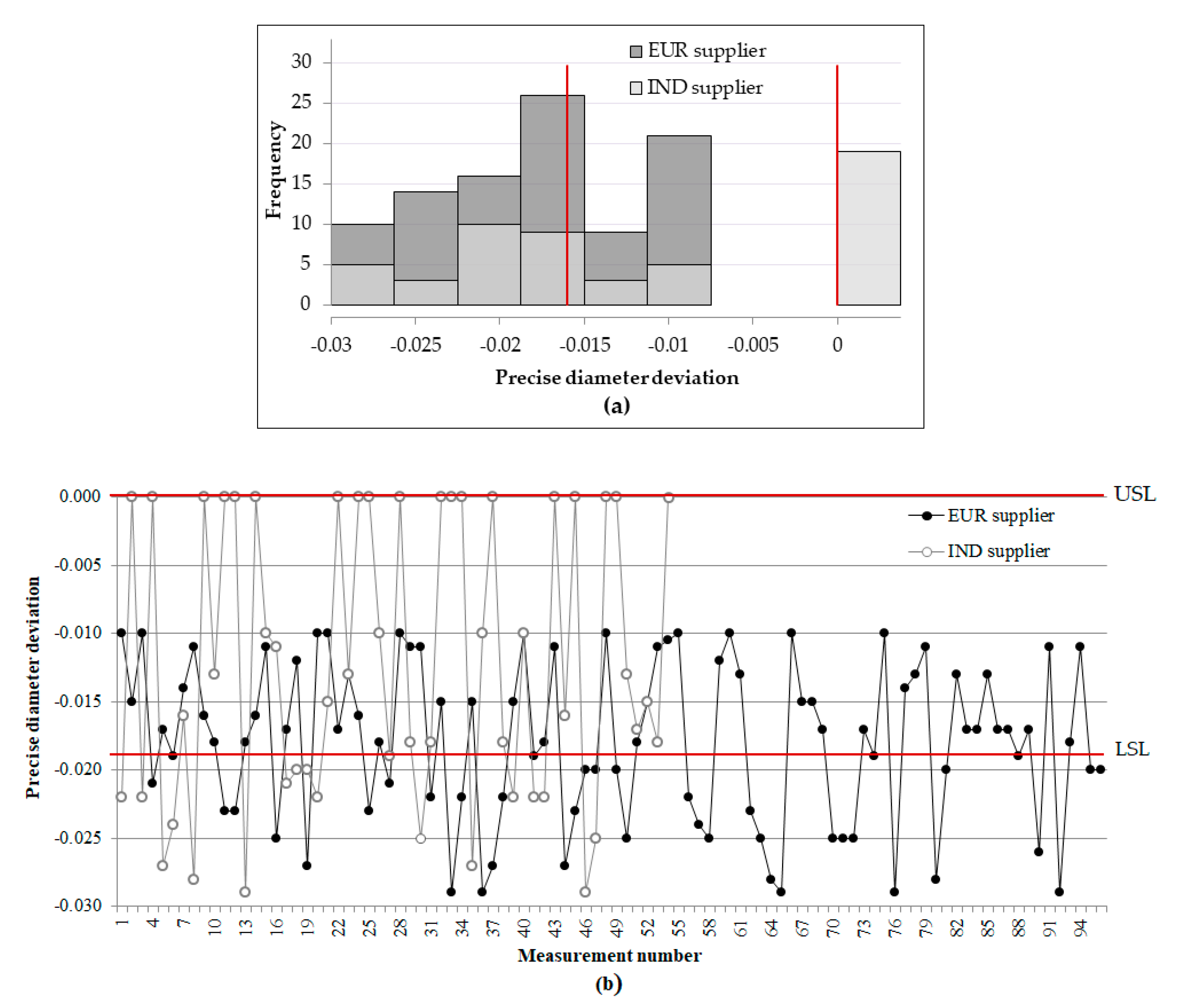

The analysis of measurements from the year 2017 shows missing data between 0.000 and −0.010 mm in the histogram (Figure 3a). The run chart in Figure 3b displays dependence of variance and mean value on the workpiece material supplier. It was concluded that the operator and the measuring device influence measured data significantly. Therefore, no deeper data analysis was conducted for these measurements.
Based on process expert recommendation, the depth of cut and finish allowance was changed for EUR material and the machine target value was moved from −0.008 mm to 0.000 mm. Input material was labelled with a QR-code according to its origin (EUR or IND). The new lathe machine set-up parameters are listed in Table 3.
The analysis of measurements from the year 2018 showed that data are normally distributed, the process capability is 0.94 for EUR supplier, and 0.73 for IND supplier, but the target C p k = 1.33 was not met. Therefore, a more in-depth analysis was required to find out the cause of variability. Dimensional deviation and roughness are influenced not only by machine set-up but also depend on material properties. New analysis should consider different sub-suppliers and material properties according to the inspection certificate. Histogram and individual moving range (IMR) charts are shown in Figure 4.
The analysis of measurements from the year 2019 showed that even the chemical composition, mechanical properties, and hardness of the material are within tolerances; they influence the investigated CTQ characteristics. Table 4 shows an observed range of material properties and CTQ characteristics of the cylinder after finish turning.
Therefore, the collected data were used to create two models to estimate the diameter deviation and two models for roughness Ra estimation after turning operation, based on the knowledge of the material properties of stainless steel used. Both models have three input variables: yield strength RP0.2, elongation, and hardness. The first of the two models uses the response surface method (RSM) and the second-order polynomial model described by Equation (1).
The second model uses feedforward ANN, as described in Section 2.3. The network has one hidden layer with ten neurons with a hyperbolic tangent sigmoid activation function. The output layer has one neuron with a linear activation function. The models were created in Matlab software (Total Academic Headcount license).
Table 5 shows the values of the Coefficient of Determination R2 used to assess how good the model is. The value closer to one is better. Training of ANN is a stochastic process. Therefore, 30 independent runs were statistically evaluated to compare three different training methods. Appendix B Table A5 contains results for three to ten neurons in the hidden layer. The ANN trained with Levenberg–Marquardt backpropagation algorithm with ten neurons in the hidden layer has higher value of R2 at shorter calculation time.

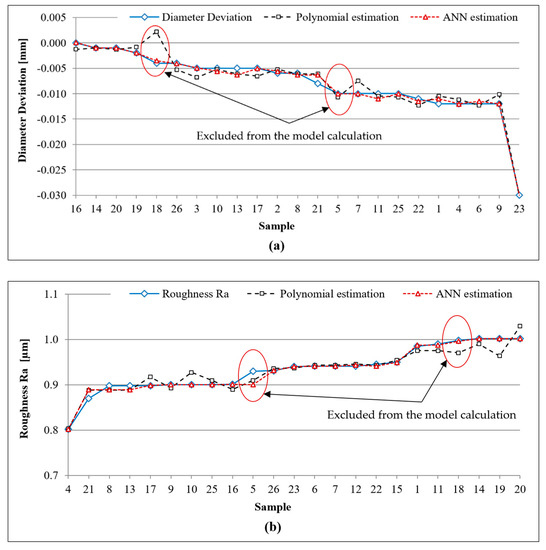

A comparison of the diameter deviation model’s accuracy is graphically presented in Figure 5a. The models use 23 samples from 26 because the preliminary calculation revealed three outliers. Two randomly chosen samples, No 5 (material supplier from IND) and No 18 (EUR supplier), were excluded from the model calculation to demonstrate model accuracy and behavior for the input that is outside of the set of known samples. Similarly, the comparison of the accuracy of roughness Ra models is depicted in Figure 5b. From Figure 5a,b it is evident that:
  • The functional dependence between steel mechanical properties and monitored CTQ characteristics exists, and an appropriate model can be created to predict values of diameter deviation and roughness after machining.
  • Models can predict values outside of the set of known samples with lower but sufficient precision.
  • The accuracy of the ANN model is better than the polynomial regression model in both cases.
The presented models can be used for prediction of the diameter deviation and roughness if a new supplier or new steel grade will appear.

4. Results

In this section, the results of the newly developed LSS-SMB method applied on the turning process are described. The application of the method brought an incremental improvement during the years 2018 and 2019. The proposed method is a sequence of quality improvement steps based on Lean Six Sigma DMAIC. Therefore, the results are described in chronological order.
The LSS-SMB project started in 2018 by analyzing historical data from 2017. The analysis revealed problems due to inaccurate measurement and recording of data by the operator. At the same time, it showed an improper lathe machine set-up and that the material from different suppliers (EUR or IND) significantly affects the CTQ characteristics. The following steps were taken as part of the improvement: the operator was trained for Lean Six Sigma, the measuring instrument was replaced, and the lathe machine set-up changed according to the material supplier.
Table 6 summarizes the results of the first project stage. It contains the tools and the results of the use of those tools for each step numbered according to Figure 2. For example, in the LSS phase (1) Define, the Project initiation tool was used, and the result is a Project charter. The LSS phase (3) Analyze also includes Findings, which identify the cause of the problem. This structure is repeated in Table 7 and Table 8.
The analysis of data gathered during the year 2018 showed an improvement in the preliminary process capability, but the organization’s stated goal Cpk = 1.33 was still not achieved. Dimensional deviation and roughness variances could not be explained only by machine set-up, or EUR and IND supplier. From this knowledge, the hypothesis arises that the variances are caused by differences in chemical composition and in mechanical properties of the material from individual sub-suppliers. Table 7 summarizes the results of this project stage.
As a part of the next project stage, a more sophisticated analysis of the measured data from 2019 was carried out using analytical modeling and ANN. The result was two models, which confirmed our hypothesis that the variability of CTQ characteristics could be predicted according to the mechanical properties of the input material. This prediction has proved to be very important for further reduction in variability and improvement of the turning process capability. This finding leads to the design of the new control scheme (Figure 6).

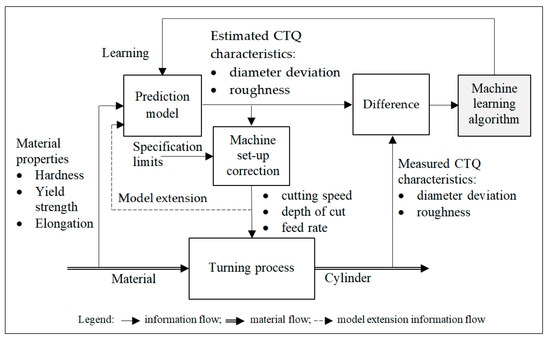

The created prediction model is used in cooperation with machine learning algorithms to indicate conditions when the change of machine set-up parameters (cutting speed, depth of cut, and feed rate) must compensate for the variation in the mechanical properties of the input material. If predicted characteristics are not within tolerances, then the machine set-up has to be changed. The prediction model allows us to compensate for the variability in supplied steel material properties, which can bring the process under control. A new machine set-up, together with measured inputs, must be recorded. Data will be used to extend existing models in such a way that cutting speed, depth of cut, and feed rate will be included in the set of model inputs. The prediction model will learn from each new measurement by the appropriate machine learning algorithm. A detailed description of the actual project stage results is given in Table 8.

5. Discussion

The current state of knowledge presented in the literature [22,23,24,25,26] shows that the tools of intelligent technologies [27,28] are not fully integrated into the traditional methods of Lean Six Sigma DMAIC and process quality control and real-time data availability is not currently used. Therefore, we extended the traditional method with ANN tools, machine learning, and predictive models in the Analysis and Control phases, according to Figure 2. We added an internal cycle in the DMAIC where the Measurement—Analysis—Improvement phases are repeated to make full use of real-time data.
The literature [11,30] describes the concept of intelligent SPC that uses gathered data, artificial neural networks, and machine learning to improve the automatic detection of the out of control state of the process [31,32]. This approach indicates only the already existing shift of the process, and it does not compensate for the input variability.
The application of the new LSS-SMB in a bakery machine manufacturer has shown us that the tools used so far are not enough to reduce the variability of the turning process. A more in-depth analysis revealed that information from inspection certificates could be used to predict the observed CTQ characteristics and allows the operator to change the process set-up parameters in advance. It has therefore proved appropriate to incorporate intelligent technologies into the LSS-SMB method and to use previously unused information and thus improve the logistics of the flow of information obtained from suppliers’ material certificates.
Predictive models for dimensional deviation and surface roughness have already been created, but the authors [29,37,38,39,40,41,42,43,44,45] did not integrate them into the process quality control. Our proposed control scheme (Figure 6) responds to changes in material properties and corrects the process in advance (feedforward control). The whole system learns and improves automatically through machine learning.
The presented case study confirmed the functionality and applicability of the proposed LSS-SMB method in the case of a bakery machine producer. Its application led to the proposal to improve the entire process control system, which uses intelligent technologies for further reduction in variability and process capability improvement.
The limitation of the LSS-SMB method is that the prediction models are based on data from the past, and the real future may be different. Therefore, intelligent SPC will also have to be used. The diagram in Figure 6 is incomplete because it does not directly determine the lathe machine set-up.
In future research, we would like to:
  • Analyze whether the prediction model, which includes a larger number of samples and, at the same time, takes into account the chemical composition of the material, will be more accurate.
  • Modify the control scheme to determine the machine set-up correction directly.
  • Determine how the LSS-SMB application contributed to the bakery machine manufacturer’s business sustainability.
The organization will benefit from the proposed LSS-SMB if the presented control scheme is implemented.

6. Conclusions

The paper has presented the innovative Lean Six Sigma methodology for Small Mixed Batch production systems. The standard set of LSS tools is extended by intelligent technologies, namely artificial neural networks and machine learning. The LSS-SMB methodology is illustrated in the case study of the bakery machine turning process. The step-by-step DMAIC procedure was conducted with the following results:
  • Data analysis revealed that operators inaccurately recorded measurement data, and the measuring device did not have a sufficient range. Therefore the measurement instrument was changed, and operators were trained on how to use it.
  • The average value of the deviation of precise diameter is shifted from the target value; therefore, lathe machine set-up was corrected.
  • Further analysis of data shown that the variance of mechanical properties of the material from the same suppliers influences the precise diameter deviation and roughness. Therefore, the advanced mathematical model based on ANN that allows prediction of CTQ characteristics from input material properties was built. The created prediction model is a part of a newly designed process variability control scheme using machine learning algorithms to reduce the variability for input material with different properties from new suppliers.
As further causes of variability have been identified, and the process has become statistically stable, it is possible to proceed with the implementation of SPC for SMB production. Acquired experiences will be used by the organization to improve other organization processes. The use of modern advanced methods such as mathematical modeling, ANN, and machine learning is a necessary step in further quality problem-solving in the industry. Therefore, our future research will be focused on the implementation and validation of proposed methods in the context of LSS.

Author Contributions

Conceptualization, K.Z.; methodology, D.J., K.Z. and P.B.; validation, K.Z., P.B. and G.S.; formal analysis, D.J. and K.M.; data curation, D.J.; writing—original draft preparation, K.Z. and P.B.; writing—review and editing, K.Z. and V.M.; visualization, D.J.; supervision, K.Z.; project administration, K.Z. and D.J.; funding acquisition, K.Z., P.B. and D.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by MINISTERSTVO ŠKOLSTVA, VEDY, VÝSKUMU A ŠPORTU SLOVENSKEJ REPUBLIKY, grant number VEGA 1/0187/18 “Development of dynamically demanding and energy-optimal electromechanical systems”, and grant number KEGA 043TUKE-4/2019 “Improving material engineering and integrated management systems study programs for Industry 4.0”.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table A1. 8D report.
Table A1. 8D report.
D1 Team formationLSS-SMB project manager, quality engineer, process engineer, set-up operator, lathe operator.
D2 Problem descriptionCustomer: Assembly departmentPart number: Roller 400XXXXXXXXX72Category: LSS-SMB project
What?The surface quality and dimensional deviation Ø50 h6 is NOK Sustainability 12 06266 i002 Picture of the defect
Why?Surface quality NOK for assembly
Where?Unit assembly department
When?Preparation of roller for UNIT assembly
Who?Assembly operator
How?Pre-assembly visual control
How many?One piece
Part manufacturing date:November 29, 2017
Re-occurrence:Yes
D3 Risk on a similar product and processYes. Similar rollers produced at the same time: Roller 600 00000026. Roller 800 00007242.
D4 Root causes of occurrenceAfter lathe operation, the surface quality of precise roller diameter not controlled.
D5 Root causes of non-detection (RCO)1) Lathe operators not instructed to control product surface quality when lathe operation is finished. 2) Quality control department not instructed to inspect the surface quality and surface damages after lathe operation.
D6 Permanent countermeasures1) Inspect surface quality of roller in precise diameter area by the operator and set up product release by the shift leader. 2) Inspect surface quality of roller by the Quality control department. 3) Lathe operation instruction updated. 4) Lathe operators trained. 5) Quality control instruction updated. 6) Quality control department staff trained.
D7 EffectivenessCheck effectiveness result during the next 3 productions (lathe operation of rollers 400-600-800). Verify roller surface quality after lathe operation.
D8 Lessons learned1) Verify documents: Lathe instruction; Quality control instruction, 2) Verify samples: Verify three types of rollers (400, 600, 800) prior assembly—after lathe operation, 3) Verify staff: Lathe department, Quality control department.

Appendix B

Table A2. Measurements from the year 2017.
Table A2. Measurements from the year 2017.
NoEURINDNoEURINDNoEURINDNoEURIND
1−0.010−0.02225−0.0230.00049−0.0200.00073−0.017
2−0.0150.00026−0.018−0.01050−0.025−0.01374−0.019
3−0.010−0.02227−0.021−0.01951−0.018−0.01775−0.010
4−0.0210.00028−0.0100.00052−0.015−0.01576−0.029
5−0.017−0.02729−0.011−0.01853−0.011−0.01877−0.014
6−0.019−0.02430−0.011−0.02554−0.0110.00078−0.013
7−0.014−0.01631−0.022−0.01855−0.010 79−0.011
8−0.011−0.02832−0.0150.00056−0.022 80−0.028
9−0.0160.00033−0.0290.00057−0.024 81−0.020
10−0.018−0.01334−0.0220.00058−0.025 82−0.013
11−0.0230.00035−0.015−0.02759−0.012 83−0.017
12−0.0230.00036−0.029−0.01060−0.010 84−0.017
13−0.018−0.02937−0.0270.00061−0.013 85−0.013
14−0.0160.00038−0.022−0.01862−0.023 86−0.017
15−0.011−0.01039−0.015−0.02263−0.025 87−0.017
16−0.025−0.01140−0.010−0.01064−0.028 88−0.019
17−0.017−0.02141−0.019−0.02265−0.029 89−0.017
18−0.012−0.02042−0.018−0.02266−0.010 90−0.026
19−0.027−0.02043−0.0110.00067−0.015 91−0.011
20−0.010−0.02244−0.027−0.01668−0.015 92−0.029
21−0.010−0.01545−0.0230.00069−0.017 93−0.018
22−0.0170.00046−0.020−0.02970−0.025 94−0.011
23−0.013−0.01347−0.020−0.02571−0.025 95−0.020
24−0.0160.00048−0.0100.00072−0.025 96−0.020
Table A3. Measurements from the year 2018.
Table A3. Measurements from the year 2018.
NoEURINDNoEURINDNoEURINDNoEURIND
1−0.007−0.00525−0.007−0.01049−0.011−0.00873−0.008−0.006
2−0.010−0.00426−0.004−0.00550−0.012−0.01174−0.007−0.005
3−0.006−0.00827−0.004−0.00551−0.006−0.00475−0.013−0.011
4−0.012−0.01528−0.007−0.00552−0.009−0.01576−0.009−0.006
5−0.007−0.01429−0.010−0.00553−0.007−0.00477−0.0090.000
6−0.006−0.00430−0.005−0.00854−0.012−0.00478−0.008−0.008
7−0.015−0.00731−0.011−0.01655−0.009−0.01179−0.006−0.007
8−0.008−0.00732−0.008−0.00656−0.010−0.01080−0.012−0.010
9−0.009−0.00833−0.005−0.00957−0.012−0.00881−0.013−0.005
10−0.014−0.00434−0.003−0.00958−0.009−0.01182−0.009−0.001
11−0.011−0.01035−0.007−0.01159−0.011−0.00583−0.010−0.014
12−0.009−0.01336−0.008−0.00360−0.008−0.00984−0.010−0.007
13−0.006−0.00937−0.010−0.00761−0.015−0.00685−0.008−0.002
14−0.0130.00038−0.009−0.01062−0.014−0.01386−0.006−0.010
15−0.007−0.00539−0.003−0.01063−0.008−0.00887−0.012−0.009
16−0.011−0.00240−0.006−0.00664−0.007−0.00788−0.016−0.006
17−0.011−0.00741−0.011−0.00465−0.009−0.00789−0.008−0.008
18−0.008−0.01342−0.010−0.00566−0.010−0.00890−0.008−0.007
19−0.011−0.01243−0.011−0.01467−0.009−0.00691−0.008−0.005
20−0.005−0.00544−0.010−0.00868−0.006−0.00792−0.007−0.008
21−0.009−0.00845−0.008−0.01169−0.006−0.00293−0.008−0.009
22−0.008−0.00546−0.007−0.00970−0.011−0.00894−0.012−0.011
23−0.005−0.00447−0.007−0.01171−0.010−0.00895−0.009−0.004
24−0.012−0.01048−0.011−0.00672−0.010−0.00296−0.009−0.006
Table A4. Measurements from the year 2019.
Table A4. Measurements from the year 2019.
SampleSub-supplierMechanical PropertiesOutputs
YS 0.2ElongationHardnessDiameter DeviationRa
1IND s-s129258174−0.0120.985
2EUR s-s123555168−0.0060.832
3IND s-s2276.0554158−0.0050.808
4IND s-s3270.1354156−0.0120.802
5IND s-s429271174−0.0100.930
6IND s-s528472176−0.0120.941
7IND s-s628659176−0.0100.941
8IND s-s7290.5353158−0.0060.898
9IND s-s828673175−0.0120.900
10EUR s-s223555168−0.0050.900
11IND s-s929258174−0.0100.990
12IND s-s10284591760.0000.941
13IND s-s11290.5353158−0.0050.898
14EUR s-s323958170−0.0011.002
15IND s-s1228658175−0.0100.950
16IND s-s13281571760.0000.901
17IND s-s1428658176−0.0050.898
18EUR s-s427753.9171−0.0040.998
19EUR s-s524953.2167−0.0021.002
20EUR s-s627953.2167−0.0011.002
21IND s-s15290.5353158−0.0080.870
22IND s-s1628472176−0.0110.945
23EUR s-s731857.5170−0.0300.940
24EUR s-s823555168−0.0200.992
25IND s-s1729271174−0.0100.900
26EUR s-s923954167−0.0040.931
YS 0.2—yield strength; IND—India; EUR—Europe; s-s—sub-supplier number; Ra—roughness.
Table A5. Statistical evaluation of ANN; each line contains statistics for 30 runs.
Table A5. Statistical evaluation of ANN; each line contains statistics for 30 runs.
Coefficient of Determination R2Calculation Time [minutes]
NeuronsTraining FunctionMaxMinMeanMaxMinMean
Diameter Deviation3Levenberg–Marquardt0.9840.8490.9736.381.723.03
4Levenberg–Marquardt0.9860.9260.9823.891.622.47
5Levenberg–Marquardt0.9870.9680.9792.811.692.05
6Levenberg–Marquardt0.9890.9810.9832.971.591.96
7Levenberg–Marquardt0.9910.9790.9852.401.471.81
8Levenberg–Marquardt0.9890.9760.9882.381.461.83
9Levenberg–Marquardt0.9860.9400.9792.871.491.80
10Levenberg–Marquardt0.9900.9460.9862.001.411.59
3Scaled Conjugate Gradient0.9580.9570.9573.281.452.02
4Scaled Conjugate Gradient0.9750.8570.9662.961.622.04
5Scaled Conjugate Gradient0.9670.8920.9532.751.431.99
6Scaled Conjugate Gradient0.9800.9560.9772.641.542.04
7Scaled Conjugate Gradient0.9820.9650.9792.961.702.17
8Scaled Conjugate Gradient0.9790.9780.9782.691.602.03
9Scaled Conjugate Gradient0.9840.9570.9793.431.592.23
10Scaled Conjugate Gradient0.9740.9530.9723.131.522.09
3BFGS Quasi-Newton0.9490.8410.9374.702.053.53
4BFGS Quasi-Newton0.9580.9310.9515.002.893.79
5BFGS Quasi-Newton0.9620.8880.9515.392.683.67
6BFGS Quasi-Newton0.9800.8710.9525.232.853.74
7BFGS Quasi-Newton0.9660.9450.9574.912.973.84
8BFGS Quasi-Newton0.9790.9430.9735.752.434.13
9BFGS Quasi-Newton0.9720.9570.9645.732.954.11
10BFGS Quasi-Newton0.9780.8900.9696.163.004.28
Roughness RaANNLevenberg–Marquardt0.9720.2740.8849.092.755.86
4Levenberg–Marquardt0.9730.5500.9267.981.713.87
5Levenberg–Marquardt0.9730.8300.9644.251.462.55
6Levenberg–Marquardt0.9730.9620.9714.741.492.47
7Levenberg–Marquardt0.9730.9020.9703.471.422.11
8Levenberg–Marquardt0.9730.9510.9685.251.382.10
9Levenberg–Marquardt0.9730.4030.9374.591.432.13
10Levenberg–Marquardt0.9730.8760.9664.761.512.35
3Scaled Conjugate Gradient0.8440.7460.8179.376.097.51
4Scaled Conjugate Gradient0.9720.1430.8498.375.747.35
5Scaled Conjugate Gradient0.9640.7640.9508.796.937.59
6Scaled Conjugate Gradient0.9720.5240.9478.005.886.98
7Scaled Conjugate Gradient0.9720.7600.9337.895.427.07
8Scaled Conjugate Gradient0.9730.9680.9717.944.756.84
9Scaled Conjugate Gradient0.9730.9670.9739.096.517.91
10Scaled Conjugate Gradient0.9730.9480.9649.246.368.06
3BFGS Quasi-Newton0.9140.5470.8489.893.307.11
4BFGS Quasi-Newton0.9730.4010.95411.363.248.38
5BFGS Quasi-Newton0.9720.9150.96311.355.228.92
6BFGS Quasi-Newton0.974−0.2710.92911.045.738.85
7BFGS Quasi-Newton0.9710.7860.93311.076.779.16
8BFGS Quasi-Newton0.9730.6480.95111.625.949.01
9BFGS Quasi-Newton0.973−0.1870.93411.646.359.47
10BFGS Quasi-Newton0.9740.7240.94911.916.669.69

References

  1. The Nobel Prize, Press Release. The Nobel Prize in Chemistry. Available online: https://www.nobelprize.org/prizes/chemistry/2016/press-release/ (accessed on 14 April 2019).
  2. Sutoova, A.; Zgodavová, K. Future of Needs for Learning and Development, in Q-MOD’2019, Leadership and strategies for Sustainable Quality and Innovation in the 4th Industrial Revolution. In Proceedings of the Maturity of Automotive Industry 4.0 and Quality 4.0 Intelligent Technology in Slovakia, Lund, Sweden, 13—15 October 2019. [Google Scholar]
  3. Jakob, T. A 5-Step Approach towards Successful Industry 4.0 Projects. Bosch ConnectedWorld Blog. Available online: https://blog.bosch-si.com/industry40/a-5-step-approach-towards-successful-industry-4-0-projects/ (accessed on 5 June 2019).
  4. Šibalija, T.; Majstorovic, V. Advanced Multiresponse Process Optimisation: An Intelligent and Integrated Approach; Springer: Berlin/Heidelberg, Germany, 2016; p. 65. [Google Scholar]
  5. Bravi, L.; Murmura, F.; Santos, G. Manufacturing labs: Where new digital technologies help improve life quality. Int. J. Qual. Res. 2018, 12, 957–974. [Google Scholar] [CrossRef]
  6. Santos, G.; Gomes, S.; Braga, V.; Braga, A.; Lima, V.; Teixeira, P.; Sá, J. Value creation through quality and innovation–A case study on Portugal. TQM J. 2019, 31, 928–947. [Google Scholar] [CrossRef]
  7. Isaksson, R. Economic sustainability and the cost of poor quality. Corp. Soc. Responsib. Environ. Manag. 2005, 12, 197–209. [Google Scholar] [CrossRef]
  8. Krolczyk, G.; Nieslony, P.; Maruda, R.; Wojciechowski, S. Dry cutting effect in turning of a duplex stainless steel as a key factor in clean production. J. Clean. Prod. 2017, 142, 3343–3354. [Google Scholar] [CrossRef]
  9. Zgodavová, K.; Slimák, I. Advanced Improvement of Quality in Annals of DAAAM & Proceedings of the 19th International DAAAM Symposiu; Katalinc, B., Ed.; DAAAM International: Vienna, Austria, 2008; pp. 1551–1553. [Google Scholar]
  10. Jarošová, E.; Noskievičová, D. Pokročilejší Metody Statistické Regulace Procesu; Grada Publishing, a.s.: Prague, Czech Republic, 2015. (In Czech) [Google Scholar]
  11. ISO 7870-8:2017. Charting Techniques for Short Runs and Small Mixed Batches; ISO: Geneva, Switzerland, 2017. [Google Scholar]
  12. Ustyguová, T.; Noskievičová, D. Integration of lean and agile manufacturing based on principles from wikinomics. Qual. Innov. Prosper. 2013, 17, 48–56. [Google Scholar] [CrossRef][Green Version]
  13. Zell, S. How Six Sigma Supports Sustainable Business Practice. Available online: https://www.sixsigmadaily.com/six-sigma-inherently-supports-sustainable-business-practice/ (accessed on 15 May 2020).
  14. Zimon, G.; Zimon, D. The Impact of Implementation of Standardized Quality Management Systems on Management of Liabilities in Group Purchasing Organizations. Qual. Innov. Prosper. 2019, 23, 60–73. [Google Scholar] [CrossRef][Green Version]
  15. Vertical Data Analytics, Process. Available online: https://www.verticaldata.com/process/ (accessed on 12 June 2019).
  16. ISO 9001:2015. Quality Management Systems—Requirements; ISO: Geneva, Switzerland, 2015. [Google Scholar]
  17. Castro, M.; Posada, L. Implementation of lean manufacturing techniques in the bakery industry in Medellin. Gestão Produção 2019, 26, e2505. [Google Scholar] [CrossRef]
  18. Hossain, M. A Study to Reduce the Lead Time of a Bakery Factory by Using Lean Tools: A Case Study. Int. J. Sci. Res. Public 2015, 5, 249–256. [Google Scholar]
  19. Kaid, H.; Noman, M.; Nasr, E.; Alkahtani, M. Six Sigma DMAIC phases application in Y company: A case study. Int. J. Collab. Enterp. 2016, 5, 181–197. [Google Scholar] [CrossRef]
  20. DEAR Systems, 8 Powerful Lean Six Sigma Tools for Streamlined Manufacturing. Available online: https://dearsystems.com/lean-six-sigma/ (accessed on 6 June 2019).
  21. Park, S.; Dahlgaard-Park, S.; Kim, D.-C. New Paradigm of Lean Six Sigma in the 4th Industrial Revolution Era. Qual. Innov. Prosper. 2020, 24, 1–16. [Google Scholar] [CrossRef][Green Version]
  22. Debbagh, S. How Operational Intelligence and Lean Six Sigma Improve Business Processes. Available online: https://apifriends.com/api-analytics/operational-intelligence-and-lean-six-sigma/ (accessed on 5 April 2019).
  23. Turisová, R.; Pačaiová, H. Inžinierstvo Kvality Produkcie; Technická univerzita v Košiciach: Košice, Slovakia, 2015. [Google Scholar]
  24. Jurkovic, Z.; Cukor, G.; Brezocnik, M.; Brajkovic, T. A comparison of machine learning methods for cutting parameters prediction in high speed turning process. J. Intell. Manuf. 2018, 29, 1683–1693. [Google Scholar] [CrossRef]
  25. Karayel, D. Prediction and control of surface roughness in CNC lathe using artificial neural network. J. Mater. Process. Technol. 2008, 209, 3125–3137. [Google Scholar] [CrossRef]
  26. Berardinelli, C. Short-Run Statistical Process Control Techniques. ISIXSIGMA. Available online: https://www.isixsigma.com/tools-templates/control-charts/short-run-statistical-process-control-techniques/ (accessed on 4 May 2020).
  27. M&S Machine Company, Ltd., Predictive Statistical Control. Available online: https://www.lsmachineco.com/ (accessed on 17 July 2020).
  28. Zorriassatine, F.; Tannock, J. A review of neural networks for statistical process control. J. Intell. Manuf. 1998, 9, 209–224. [Google Scholar] [CrossRef]
  29. Psarakis, S. The Use of Neural Networks in Statistical Process Control Charts. Qual. Reliab. Eng. 2011, 27, 641–650. [Google Scholar] [CrossRef]
  30. Zan, T.; Liu, Z.; Su, Z.; Wang, M.; Gao, X.; Chen, D. Statistical Process Control with Intelligence Based on the Deep Learning Model. Appl. Sci. 2020, 10, 308. [Google Scholar] [CrossRef][Green Version]
  31. Sahasrabudhe, A.; Ratnam, M. Prediction of surface roughness and dimensional deviation by measuring cutting forces and vibrations in turning process. Int. J. Adv. Manuf. Technol. 2010, 48, 213–226. [Google Scholar] [CrossRef]
  32. Routara, B.; Bandyopadhyay, A.; Sahoo, P. Roughness modeling and optimization in CNC end milling using response surface method: Effect of workpiece material variation. Int. J. Adv. Manuf. Technol. 2009, 40, 1166–1180. [Google Scholar] [CrossRef]
  33. Cakir, M. Mathematical modeling of surface roughness for evaluating the effects of cutting parameters and coating material. J. Mater. Process. Technol. 2009, 209, 102–109. [Google Scholar] [CrossRef]
  34. Grzesik, W. A revised model for predicting surface roughness in turning. Wear 1996, 194, 143–148. [Google Scholar] [CrossRef]
  35. Azouzi, R.; Guillot, M. On-line prediction of surface finish and dimensional deviation in turning using neural network based sensor fusion. Int. J. Mach. Tools Manuf. 1997, 37, 1201–1217. [Google Scholar] [CrossRef]
  36. Benardos, P.; Vosniakos, G. Predicting surface roughness in machining: A review. Int. J. Mach. Tools Manuf. 2003, 43, 833–844. [Google Scholar] [CrossRef]
  37. Lu, C.; Costes, J. Surface profile prediction and analysis applied to turning process. Int. J. Mach. Mach. Mater. 2008, 4, 158–180. [Google Scholar] [CrossRef][Green Version]
  38. Dhas, J.; Stalin, R.; Rajeesh, J. RBF neural network model for machining quality prediction in CNC turning process. Int. J. Model. Identif. Control. 2013, 20, 174. [Google Scholar] [CrossRef]
  39. Krolczyk, G.; Gajek, M.; Legutko, S. Predicting the tool life in the dry machining of duplex stainless steel. Eksploat. Niezawodn. 2013, 15, 62–65. [Google Scholar]
  40. Nugent, P. Shaft Measurement: What is the Best Tool for the Job? Qual. Mag. 2019, 58, 20–23. [Google Scholar]
  41. Montgomery, D. Design and Analysis of Experiments; Wiley: New York, NY, USA, 2001. [Google Scholar]
  42. Sun, Q.; Dong, N.; Chen, Z.; Yuan, Z. A modified neural network based predictive control for non-linear systems. Int. J. Model. Identif. Control. 2009, 8, 91–97. [Google Scholar] [CrossRef]
  43. Goodfellow, I.; Bengio, Y.; Courville, A. Deep Learning (Adaptive Computation and Machine Learning Series); The MIT Press: Cambridge, UK, 2016; pp. 200–223. [Google Scholar]
  44. Mozammel, M.; Królczyk, G.; Maruda, R.; Wojciechowski, S. Intelligent Optimization of Hard-Turning Parameters Using Evolutionary Algorithms for Smart Manufacturing. Materials 2019, 12, 879. [Google Scholar] [CrossRef][Green Version]
  45. Lee, W.; Lau, H. Factory on demand: The shaping of an agile production network. Int. J. Agil. Manag. Syst. 1999, 2, 83–87. [Google Scholar] [CrossRef]
Figure 1. Structure of the feedforward artificial neural network.
Figure 1. Structure of the feedforward artificial neural network.
Sustainability 12 06266 g001
Figure 2. Lean Six Sigma Small Mixed Batch production system method. Legend: SIPOC—acronym for Suppliers, Inputs, Process, Outputs, and Customers; VOC—voice of customer; VOP—voice of process; VSM—value stream mapping; RCA—root cause analysis; MSA—measurement system analysis; 8D—eight disciplines problem-solving method; KPI—key performance indicators; SPC—statistical process control; Cp, Cpk—process capability index; Pp, Ppk—process performance index.
Figure 2. Lean Six Sigma Small Mixed Batch production system method. Legend: SIPOC—acronym for Suppliers, Inputs, Process, Outputs, and Customers; VOC—voice of customer; VOP—voice of process; VSM—value stream mapping; RCA—root cause analysis; MSA—measurement system analysis; 8D—eight disciplines problem-solving method; KPI—key performance indicators; SPC—statistical process control; Cp, Cpk—process capability index; Pp, Ppk—process performance index.
Sustainability 12 06266 g002
Figure 3. Measured data recorded by European (EUR) and Indian (IND) material supplier (a) histogram; (b) the run chart for precise diameter deviation (data from the year 2017).
Figure 3. Measured data recorded by European (EUR) and Indian (IND) material supplier (a) histogram; (b) the run chart for precise diameter deviation (data from the year 2017).
Sustainability 12 06266 g003
Figure 4. Histogram and individual moving range charts for diameter deviation: (a) EUR suppliers, (b) IND suppliers (data from the year 2018).
Figure 4. Histogram and individual moving range charts for diameter deviation: (a) EUR suppliers, (b) IND suppliers (data from the year 2018).
Sustainability 12 06266 g004
Figure 5. Comparison of the actual and estimated values of (a) diameter deviation, (b) roughness Ra.
Figure 5. Comparison of the actual and estimated values of (a) diameter deviation, (b) roughness Ra.
Sustainability 12 06266 g005
Figure 6. Control scheme using the prediction model to reduce variability in process outputs.
Figure 6. Control scheme using the prediction model to reduce variability in process outputs.
Sustainability 12 06266 g006
Table 1. Factors affecting surface profile, dimensional deviation, and roughness.
Table 1. Factors affecting surface profile, dimensional deviation, and roughness.
ClassificationFactors
Cutting parametersCutting speed, depth of cut, feed rate, process kinematics
Tool propertiesTool wear, tool angle, tool nose radius, tool shape, tool material, run-out errors, tool deflection
Workpiece propertiesWorkpiece diameter, length, defect in the material
Workpiece materialChemical composition, mechanical properties: hardness, tensile and yield strength, elongation and reduction in area, toughness, creep resistance, fatigue resistance
Machining equipmentChatter, vibrations, noise, cutting forces
Machining environmentCooling fluid, friction in the cutting zone, chip formation, temperature
Table 2. Basic components, material, and critical to quality (CTQ) characteristics of the cylinder.
Table 2. Basic components, material, and critical to quality (CTQ) characteristics of the cylinder.
TypeCylinder and Its Components *MaterialCTQ Specification
Precise DiameterRoughness Ra
400 Sustainability 12 06266 i001AISI 304 DIN1.4301 AISI 304L DIN 1.4307 50 0.019 + 0.000 mm1.1 μm
600
800
* Components: A—tube, B—flange, C—shaft.
Table 3. Lathe machine set-up parameters.
Table 3. Lathe machine set-up parameters.
SupplierLathe Machine Set-Up Parameters
Cutting Speed (vc) [m/min]Depth of Cut (ap) [mm]Feed Rate (f) [mm/rev]Allowance [mm]
RoughingFinishingRoughingFinishingRoughingFinishingRoughing
EUR1801102.0 (2.5 1)1.0 (0.5 1)0.250.21.0 (0.5 1)
IND1801102.01.00.250.21.0
1 EUR steel set-up changed from the year 2018.
Table 4. Range of the chemical and mechanical properties, precise diameter deviations and roughness Ra (data from the year 2019).
Table 4. Range of the chemical and mechanical properties, precise diameter deviations and roughness Ra (data from the year 2019).
MaterialChemical Composition [%]Mechanical PropertiesRoughness RaDiameter Deviation
EUR supplier0.012–0.026%C
0.260–0.500%Si
1.510–1.850%Mn
0.036–0.040%P
0.015–0.030%S
18.041–18.200%Cr
8.020–8.130% Ni
H: 167–170 HBW
YS(Rp0.2): 235–318 MPa
A: 53.2–58%
0.832 to 1.002−0.001 to −0.006
IND supplier0.017–0.027%C
0.260–0.490%Si
1.450–1.800%Mn
0.036–0.042%P
0.018–0.025%S
18.030–18.370%Cr
8.020–8.280% Ni
H: 158–176 HBW
YS (Rp0.2): 192–270 MPa
A: 53–73%
0.802 to 0.9900.000 to −0.012
Legend: H—Hardness [HBW]; YS (Rp0.2)—Yield strength [MPa]; A—Elongation [%].
Table 5. Comparison of prediction models (30 runs for statistical evaluation of artificial neural networks with ten neurons in hidden layer).
Table 5. Comparison of prediction models (30 runs for statistical evaluation of artificial neural networks with ten neurons in hidden layer).
Prediction ModelCoefficient of Determination R2Calculation Time [minutes]
Diameter deviationANNTraining MethodMaxMinMeanMaxMinMean
Levenberg–Marquardt0.9900.9860.9462.001.591.41
Scaled Conjugate Gradient0.9740.9720.9533.132.091.52
BFGS Quasi-Newton0.9780.9690.8906.164.283.00
Polynomial regression0.917< 0.1
Roughness RaANNTraining MethodMaxMinMeanMaxMinMean
Levenberg–Marquardt0.9730.8760.9664.751.512.35
Scaled Conjugate Gradient0.9730.9480.9649.246.368.06
BFGS Quasi-Newton0.9740.7240.95011.96.669.69
Polynomial regression0.892< 0.1
Table 6. The project’s gradual results from the 1st project stage.
Table 6. The project’s gradual results from the 1st project stage.
LSS PhaseToolsResults and Findings
(1) Define
  • Project initiation
  • Project team creation
  • Project plan
  • Project goal
  • Project charter:
    -
    Gant diagram
    -
    SIPOC
Results:
  • Project charter: 2018–2019
  • Goal: Achieving of the turning process capability Cpk = 1.33
  • SIPOC definition:
    -
    Supplier (internal): welding shop
    -
    Input material: steel rod 80   h 9
    -
    Process: Turning on CNC center (Mazak QTN 350)
    -
    Output: cylinder CTQ characteristics (precise diameter 50   h 6 mm, roughness Ra = 1.1 μm)
    -
    Customer (internal): assembling department
(2) Measure (Data from the year 2017)Data acquisition
Database
Data grouping
MSA
Results:
  • Electronic database of past measurements
  • Data grouped by material origin (EUR, IND) as they had the same:
    -
    machine: CNC turning center MAZAK QTN 350
    -
    process: turning (hard; finish)
    -
    CTQ characteristics specification ( 50   h 6 mm; Ra   1.1   μm )
    -
    measuring instrument: digital micrometer (range 25–50 mm; reading error 0.005 mm)
  • MSA was not conducted
(3) Analyze (Data from the year 2017)Root causes analysis
VOC
Pareto analysis
CTQFrequency analysis
Set-up analysis
Run chart
Capability analysis
Results:
  • The total number of non-conformities caused by non-compliance of precise diameter 50   h 6 mm is 8%.
  • Frequency analysis: missing data between 0.000 and −0.010.
  • Machine set-up analysis: same set-up for (400, 600, 800 cylinder types) (Table 3)
  • Histogram, IMR chart, Figure 3a,b
  • Initial material inspection is not performed
Findings:
  • Inaccurate, manual data entry in paper forms
  • Data rounding by operators
  • Insufficient measuring range of measuring device
  • The average value of the deviation of precise diameter 50 is shifted from the target value due to the inappropriate lathe machine setting. The deviation average is −0.017 for EUR material, and, for IND material, it is −0.015
(4) Improve8D reportResults:
  • Personnel training for LSS
  • Input material labeling by QR-code
  • Changing the lathe machine set-up (Table 3) for hard turning and finish turning
  • Purchasing the new measuring device: High-speed optical micrometer
Legend: LSS—Lean Six Sigma; SIPOC—Suppliers, Inputs, Process, Outputs, and Customers; Cpk—process capability; MSA—measurement system analysis; EUR—Europe; IND—India; CTQ—critical to quality; VOC—voice of customer; IMR—individual moving range.
Table 7. The project’s gradual results from the 2nd project stage (year 2018).
Table 7. The project’s gradual results from the 2nd project stage (year 2018).
LSS PhaseToolsResults and Findings
(5) MeasureData acquisition
Database
Data grouping
MSA
Capability analysis
Results:
  • Data grouped by material origin (EUR, IND)
  • Electronic data capture from high-speed optical micrometer to a structured database
  • MSA (TV < 10%)
(6) AnalyzeRoot causes analysis 8D reportResults:
  • Data normality analysis (Shapiro–Wilk test): normal distribution
  • Correlation analysis: data are not correlated
  • Histogram and IMR charts Figure 4a EUR supplier; Figure 4b IND supplier
  • Preliminary process capability for EUR supplier Cpk = 0.94 and IND supplier Cpk = 0.73
Results:
  • Hypothesis: Variances in chemical composition and mechanical properties of the material from individual sub-suppliers are significant
  • Further measurements are required for determining non-conformity causes
(7) Improve8D reportResults:
  • Extended recording of the mechanical properties of the input material
Legend: LSS—Lean Six Sigma; MSA—measurement system analysis; EUR—Europe; IND—India; IMR—individual moving range; Cpk—process capability.
Table 8. Project gradual results from the 3rd project stage (year 2019).
Table 8. Project gradual results from the 3rd project stage (year 2019).
LSS PhaseToolsResults and Findings
(8) MeasureCapability analysisResults:
  • New data measurement and gathering material properties from the inspection certificates
(9) AnalyzePredictive modeling
Root causes analysis
Result:
  • Second-order polynomial models and ANN models to estimate the diameter deviation and roughness Ra
Findings:
  • The hypothesis that variances in mechanical properties of the material from individual sub-suppliers are significant is confirmed.
  • The model can predict the precise diameter deviation and roughness.
(10) Improve8D reportResults:
  • Design of the control scheme for reducing variability in process outputs (Figure 6)
(11) Control
(Not realized yet)
Quality control plan
SPC
Result:
  • Keeping the process in an improved state using the practices outlined in the QC plan and SPC.
Legend: LSS—Lean Six Sigma; SPC—statistical process control; QC—quality control.

Share and Cite

MDPI and ACS Style

Zgodavova, K.; Bober, P.; Majstorovic, V.; Monkova, K.; Santos, G.; Juhaszova, D. Innovative Methods for Small Mixed Batches Production System Improvement: The Case of a Bakery Machine Manufacturer. Sustainability 2020, 12, 6266. https://doi.org/10.3390/su12156266

AMA Style

Zgodavova K, Bober P, Majstorovic V, Monkova K, Santos G, Juhaszova D. Innovative Methods for Small Mixed Batches Production System Improvement: The Case of a Bakery Machine Manufacturer. Sustainability. 2020; 12(15):6266. https://doi.org/10.3390/su12156266

Chicago/Turabian Style

Zgodavova, Kristina, Peter Bober, Vidosav Majstorovic, Katarina Monkova, Gilberto Santos, and Darina Juhaszova. 2020. "Innovative Methods for Small Mixed Batches Production System Improvement: The Case of a Bakery Machine Manufacturer" Sustainability 12, no. 15: 6266. https://doi.org/10.3390/su12156266

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
