Environmental burdens of External Thermal Insulation Systems. Expanded Polystyrene vs. Mineral Wool: Case Study from Poland

Abstract

The external thermal insulation composite system (ETICS) improves the energy efficiency of buildings, and nowadays, this method is the most popular to insulate buildings in many European Union (EU) countries. The article presents the impact of producing ETICS with expanded polystyrene (EPS) or mineral wool (MW) on the natural environment using the life cycle assessment (LCA) method. The data used in the calculations, related to 2017 real production, were obtained from the externally verified inventory from five manufacturing plants located in different regions of Poland. The LCA of the examined products covered modules from A1 to A3 (cradle-to-gate), according to EN 15804 standard. The study determines and analyses the values of basic indicators related to environmental impacts and environmental aspects of resource use. It comprises indicators calculated for 1 m² ETICS for five thicknesses of the mentioned thermal insulation materials. Results show that for all environmental indicators, MW systems are characterized by a more negative environmental impact than the equivalent systems with EPS. The study aims to highlight knowledge about ETICS sustainability. The data presented in work are essential for assessment in terms of the sustainable development of ETICS. Such an evaluation is not just a need for the future but a necessity for the present.

1. Introduction

Protection, preservation, and improvement of natural capital, as well as the protection of citizens’ health and well-being against threats and adverse effects related to environmental degradation, is one of the most critical challenges of today. Recently, the European Commission, recognizing the need to intensify efforts to counteract the negative impact of man on the environment expertly, has formulated a new strategy: the European Green Deal [1]. The goal is to achieve zero net greenhouse gas emissions in the European Union (EU) in 2050. The implementation of this goal involves the separation of economic growth from the use of natural resources.

The construction, use, and renovation of buildings require considerable energy and mineral resources. [The building sector in the EU is the largest single energy consumer, accounting for 40% of the total energy used [2]. As a result of the energy demand for construction, 36% of total carbon dioxide (CO₂) emissions are generated in the European Union. In the EU, 75% of buildings are energy inefficient [3]. In the Member States, the annual building renovation rate is between 0.4% and 1.2% today [1]. There is no chance of achieving the target set in the European Green Deal in 2050 without doubling this indicator. Thus, it is necessary to start renovating buildings, both public and private, on a more massive scale. The most commonly used method to save energy in buildings in EU countries is through the use of external thermal insulation composite systems (ETICS).

The construction sector, corresponding to 9% of European GDP and 18 million direct jobs, is responsible for the most significant damage to the environment among all branches of the economy. The scale of its negative impact has also been confirmed at the global level. In 2015, fossil fuels were the source of 82% of the energy consumed in buildings in EU countries [4]. Still, the current approach of participants in the construction process (architect, constructor, contractor, and investor) for environmental impact is based on the strategy of meeting immediate needs. In most cases, the main goal is to erect the object, preferably with the lowest possible investment. Design and construction of buildings without assessing its long-term impact (by means of its full life cycle) on the natural environment is still permitted by law. Shortly it will be necessary to change this approach.

Construction Products Regulation (CPR) has been marketing the construction products in the EU countries since 1 July 2013 [5]. The authors of the CPR have introduced the issue of product sustainability in the regulation of construction products. Before 1 July 2013, Directive 89/106/EEC [6] defined six basic requirements related to:

• mechanical resistance and stability,
• safety in case of fire,
• hygiene, health, and environment,
• safety in use,
• protection against noise,
• energy economy and heat retention.

According to the CPR, construction works must be designed, built and demolished in such a way as to ensure the sustainable use of natural resources, and in particular to provide:

• reuse of recyclability of the construction works, their materials, and parts after demolition,
• the durability of the construction works,
• use of environmentally compatible raw and secondary materials in the construction works.

Despite the great importance of the issue of sustainable development [7,8] and the definition of the seventh basic requirement in the CPR, it is not yet a criterion for compulsory assessment before placing a construction product on the EU market. To determine the environmental impact of a construction product, its manufacturer can develop an Environmental Product Declaration (EPD). EPD is an independently checked and registered document that provides transparent and comparable information on the environmental impact of products during their life cycle [9,10]. EPD is an internationally recognized and accepted document defining product quality. EPD, also known as a Type III environmental declaration, is based on the life cycle assessment (LCA) and complies with the ISO 14025 standard [11]. EPDs are used in construction, mainly for performing the life cycle assessment of a building (according to EN 15978 [12] or a construction product (according to EN 15804 [13]. Because EPDs are not required by law, and they are only a voluntary document, they are not widely used. It is true that their number increases every year and currently amounts to over 6000 [14]. In Poland, the Building Research Institute (ITB) has issued over 100 EPDs [15]. However, these documents are still used only in business-to-business (B2B) communication and certification processes of such systems like LEED, BREEAM, DGNB, HQE^®, and others [16,17,18]. An ordinary user of construction products knows little or nothing about EPD.

As mentioned above, the application of ETICS improves the energy efficiency of both new and existing buildings. ETICS are kit in the sense of the CPR consisting of specified prefabricated components being applied directly to the facade onsite. The Polish ETICS market, estimated at around 40 million m² annually, is one of the highest in Europe [19]. Every year, ETICS manufacturers improve the functionality of their solutions by trying to match them to the expectations of customers. Expectations are high, especially considering that a dozen or so years ago, Polish buildings had the highest average heating energy consumption: 63% above the European average [20]. Buildings in Poland, alongside French ones, also had the highest production of airborne emissions and the highest emissions of solid wastes [20]. In Poland, as in other EU countries, with expanded polystyrene (EPS) or mineral wool (MW) panels are commonly used as insulation material in ETICS. It is worthy of mentioning that both materials are in use for decades. In Central Europe, the share of ETICS with EPS is about 84%, while about 12% of ETICS installed on the walls as thermal insulation material is MW. In other regions of Europe, the share of EPS ranges from 60% to 88%, and MW from 9% to 25% [19]. Systems with EPS and MW can be used both on newly erected buildings and those undergoing modernization. However, there are significant differences between EPS and MW, which can decide on the selection of specific insulation material, and thus the entire insulation system. Below we present the most critical features of both materials, which, due to their practical application, are essential for an investor planning building insulation:

• Thermal insulation characterized by a thermal conductivity coefficient λ (or k, W m⁻¹ K⁻¹).

The thermal conductivity coefficient for facade EPS presumably can be found in the range between 0.029 and 0.041 W m⁻¹ K⁻¹ [21], where minimal value is designated for graphite polystyrene. As for mineral wool, the λ value commonly is in the range of 0.037 to 0.050 W m⁻¹ K⁻¹ [22].

• Insulation material weight.

Depending on the type, the facade mineral wool is from five to nine times heavier than EPS. Additionally, the consumption of adhesives used for fixing it and embedding fiberglass mesh is about 15% higher. Approximately, 1 m² ETICS with 10 cm thick EPS insulation weighs about 15 kg, where lamella MW panels of the same thickness reach about 22 kg, and on MW with a laminar fiber disturbance up to about 27 kg [23].

• Water vapor permeability.

This is one of the most important properties when analyzing vapors flows in the wall. Measured water diffusion resistance factor (μ) is on average equal to 2 and 35 for MW and EPS, respectively. Water vapor permeability is significantly lower for EPS because of its structure and the high share of tightly closed pores [23]. On the other hand, the disadvantages of high permeability of MW are possibly easier condensation between materials fibers which can affect negatively the properties of thermal conductivity [24].

• Fire resistance.

According to the classification of thermal insulation materials through EN 13501-1 [25], MW (European fire classes: Euroclasses A1 and A2) is in a solid privileged position compared to EPS (European fire classes: Euroclasses F and E). Nevertheless, according to the same norm, classifications of ETICS with MW and EPS (with external mineral layer) are as follows, A2-s2-d0 and B-s1-d0, respectively. Described ETICS classification concerns systems described further in the Materials and Methods section and is representative for ETICS based on MW and EPS as thermal insulation material and mineral rendering system. It is worth to mention that properly designed and built ETICS based on both MW or EPS are classified as non-spreading fire according to Polish norm PN-B-02867:2013 [26].

From a practical aspect, when comparing systems based on different insulation materials, it is also essential to consider the mounting method, and the total cost of investment in insulation MW-ETICS to EPS-ETICS (identical insulation thickness and the same finishing layers) can be significantly higher. As mentioned earlier, the environmental impact of ETICS is not considered during the assessment of the system and laying down product on the market. It is also not commonly determined when making an ETICS selection by an investor, architect, or the final consumer. The exception is when the building is assessed in one of the voluntary environmental assessment systems. Despite the importance of environmental issues and the widespread use of ETICS, as well as extensive scientific literature in the field of LCA and EPD, the number of scientific publications on ETICS environmental impacts is still limited [27,28,29,30,31,32]. This work compares EPS based ETICS to MW based ETICS environmental impact.

2. Materials and Methods

ETICS consists of a prefabricated insulation product bonded to the wall or mechanically fixed with anchors, or a combination of adhesive and mechanical fixings. This technique was applied for the first time to a residential building in 1957 in Berlin, Germany [19]. Over the past 60 years, ETICS has been and continues to be the most widely used solution to improve the energy efficiency of buildings in Europe. Thus, this solution has flowed over the years and continues to affect the achievement of environmental goals [19].

In Poland, construction products can be laid down on the market with the CE marking or in the system on the national level with the construction mark B. At the European level, the requirements for ETICS are set out in ETAG 004 [33]. In Poland, ETICS manufacturers can obtain a European Technical Assessment based on ETAG 004 and, after subjecting their solution to conformity assessment, place on the market with CE marking. It is also possible to obtain the National Technical Assessment (before 1 January 2017, National Technical Approval), and after completing the conformity assessment, mark the product with the building mark B. In the national system, the requirements for granting the National Technical Assessment for ETICS with EPS and MW are specified in the relevant guideline for issuing national technical assessments (for EPS based ETICS [34] and MW based ETICS [35]).

In the Polish national assessment system, ETICS is subject to assessment in the same basic requirements using the same test methods as in the European order. Besides, due to regulations on the national level, it is possible to assess the fire spread rate and susceptibility to algae growth.

Atlas ETICS and Atlas ETICS Roker are trading names for External Thermal Insulation Composite System. Both systems comprise the insulation board (bonded or bonded and mechanically fixed) with reinforced undercoat and decorative finishes, as described in the National Technical Approval ITB AT-15-9090/2016 (EPS) [36] and ITB AT-15-2930/2016 (MW) [37] issued by the Building Research Institute (ITB) in Warsaw. The systems consist of a vast selection of adhesives, base coats, renders, and decorative coats of various colors. Figure 1 schematically shows the arrangement of ETICS layers.

For the study presented in this paper, mineral renders systems selected from various possible variants described in the ITB AT-15-9090/2016 (EPS), and ITB AT-15-2930 (MW) were analyzed [36,37].

The environmental impact was assessed using the LCA method for a complex thermal insulation system described in the National Technical Approval AT-15-9090/2016 (EPS) and AT-15-2930/2016 (MW). For this publication, the results obtained for ETICS containing expanded polystyrene (EPS) or mineral wool (MW) panels of five different thicknesses: 10, 12, 15, 20, and 25 cm with a mineral render as a finish layer were analyzed.

The data used in the calculations relate to 2017 (EPD’s released in March 2019) for five production plants located in the different regions of Poland: Bydgoszcz, Dąbrowa Górnicza, Piotrków Trybunalski, Suwałki, and Zgierz [38,39]. It is also worth noting that during 2017, the production volume of ETICS components corresponded to approximately 10 million square meters of insulation of the external walls of buildings. Type III Environmental Declarations (EPD) was developed by following EN 15804 [13], and their content was verified per under ISO 14025 [11] by Building Research Institute (ITB) experts. The life cycle that was the subject of the analysis covered modules A1 to A3 (i.e., from the extraction of raw material to the finished product delivered to the factory gate), where A1 is extraction, and processing of raw materials, processing of secondary material, including recycling processes, A2 is transport to the manufacturer, and A3 is production. The total values of modules A1, A2, and A3 for studied ETICS have been analyzed in this paper. For a better understanding, it is worth mentioning that the share of module A1 in the total A1 + A2 + A3 in the case of ETICS with EPS ranged from 94.14% (for EPS thickness of 10 cm) up to 96.82% (25 cm thick). For ETICS with MW, the A1 module was from 98.11% (10 cm of EPS) to 99.14% (25 cm EPS). The transport share for ETICS with EPS (module A2) ranged from 1.44% to 0.80% for 10 and 25 cm EPS thick, respectively. For ETICS with MW, the share of the A2 module varied from 0.38% to 0.17% for EPS 10 and 25 cm thick. The share of module A3 (production) ranged from 4.42% to 2.38% for ETICS with EPS for 10 and 25 cm thick, respectively. For ETICS with MW, the share of module A3 was lower than for ETICS with EPS. It was only 1.38% for a 10 cm MW thickness and 0.69% for a 25 cm MW thickness.

The environmental assessment refers to the product unit, which is 1 m² of insulation made using a complex insulation system described in the National Technical Approvals AT-15-9090/2016 (EPS) and AT-15-2930/2016 (MW). The impacts and consumption of raw materials for each production plant and the entire production were assigned to representative products through the application of mass allocation rules (i.e., the weighted average mass of given products). Impacts at individual production locations have been inventoried, assigned, and included in the calculations separately.

Table 1. EITCS components as described in the National Technical Approval ITB AT-15 9090/2016 (for ETICS with EPS) and ITB AT-15-2930/2016 (for ETICS with MW).

Component	Component description	Quantity/m2 ETICS with EPS	Quantity/m2 ETICS with MW
Adhesive for bonding	Cement-based adhesives modified with re-dispersible polymer powder, methylcellulose ether, fibers, and mineral fillers.	4.5 kg	4.5–5.5 kg
Insulation 1	Prefabricated EPS board or MWpanel. 2	ca. 1.35 kg	3.5–4.5 kg
Adhesive for base coat	Cement-based adhesives modified with re-dispersible polymer powder, methylcellulose ether, fibers, and mineral fillers.	5.5 kg	5.5–6.5 kg
Glass fiber mesh 1	Alkaline-resistant glass mesh with a nominal weight of 150 or 165 g/cm2.	≥ 0.15 kg	≥ 0.15 kg
Key coat	Dispersion-based key coat with mineral/quartz fillers.	ca. 0.2 kg	ca. 0.3 kg
Finishing coat	Cement-based render modified with re-dispersible polymer powder, methylcellulose ether, fibers, and mineral fillers.	2.0–4.5 kg	2.0–4.5 kg
Ancillary materials 1	Anchors, special fittings.	-	-

¹ products from suppliers; ² for thermal conductivity coefficient λ = 0.039 W/m K.

specifies all components of the ETICS with expanded polystyrene (EPS) described in the National Technical Approval ITB-AT-15-9090/2016 and analogous data for the ETICS with mineral wool (MW), as described in ITB-AT-15-2930/2016.

The environmental data on raw materials used in the analysis come from valid sources (databases) such as Ecoinvent, Ullmann’s, Plastic-Europe, ITB-Data, SPC, and selected Type III environmental declarations of components of ETICS.

3. Results

Table 2. Environmental characteristics of 1 m² ETICS system described in the National Technical Approval AT-15-9090/2016 calculated in the year 2019 (data from 2017) with 10, 12, 15, 20, and 25 cm of expanded polystyrene (EPS) used as thermal insulation material, and mineral renders as a finishing layer [38].

Indicator [unit]	A1–A3
	10 cm	12 cm	15 cm	20 cm	25 cm
Environmental Impacts: 1 m2
GWP [kg CO2 eq.]	8.70	9.64	1.10 × 101	1.34 × 101	1.57 × 101
ODP [kg CFC 11 eq.]	5.01 × 10−5	5.01 × 10−5	5.01 × 10−5	5.02 × 10−5	5.02 × 10−5
AP [kg SO2 eq.]	2.57 × 10−2	2.78 × 10−2	3.10 × 10−2	3.63 × 10−2	4.16 × 10−2
EP [kg (PO4)3- eq.]	4.63 × 10−3	4.82 × 10−3	5.11 × 10−3	5.60 × 10−3	6.09 × 10−3
POCP [kg Ethene eq.]	2.41 × 10−3	2.68 × 10−3	3.07 × 10−3	3.73 × 10−3	4.38 × 10−3
(ADP-elements) [kg Sb eq.]	9.90 × 10−3	9.90 × 10−3	9.90 × 10−3	9.90 × 10−3	9.90 × 10−3
(ADP-fossil fuels) [MJ]	1.55 × 102	1.82 × 102	2.23 × 102	2.90 × 102	3.57 × 102
Environmental aspects related to the consumption of raw materials, 1 m2
PERT [MJ]	8.70	9.09	9.69	1.07 × 101	1.17 × 101
PENRT [MJ]	1.62 × 102	1.90 × 102	2.32 × 102	3.01 × 102	3.70 × 102

shows the environmental characteristics of ETICS with different thicknesses of EPS insulation material and mineral renders as the finishing layer calculated for 1 m² of insulation, of:

• global warming potential (GWP),
• depletion potential of the stratospheric ozone layer (ODP),
• acidification potential of soil and water (AP),
• eutrophication potential (EP),
• formation potential of tropospheric ozone (POCP),
• abiotic depletion potential (ADP-elements) for non-fossil resources,
• abiotic depletion potential (ADP-fossil fuels) for fossil resources,
• total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) (PERT),
• total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) (PENRT)

Table 3. Environmental characteristics of 1 m² ETICS system described in the National Technical Approval AT-15-2930/2016 calculated in the year 2019 (data from 2017) with 10, 12, 15, 20, and 25 cm of mineral wool (MW) used as thermal insulation material, and mineral renders as a finishing layer [39].

Indicator [unit]	A1–A3
	10 cm	12 cm	15 cm	20 cm	25 cm
Environmental impacts: 1 m2
GWP [kg CO2 eq.]	2.65 × 101	3.51 × 101	3.72 × 101	4.79 × 101	5.87 × 101
ODP [kg CFC 11 eq.]	9.21 × 10−5	9.25 × 10−5	9.26 × 10−5	9.31 × 10−5	9.35 × 10−5
AP [kg SO2 eq.]	1.03 × 10−1	1.36 × 10−1	1.45 × 10−1	1.87 × 10−1	2.29 × 10−1
EP [kg (PO4)3- eq.]	4.22 × 10−3	5.40 × 10−3	5.69 × 10−3	7.16 × 10−3	8.63 × 10−3
POCP [kg Ethene eq.]	1.28 × 10−2	1.64 × 10−2	1.73 × 10−2	2.19 × 10−2	2.64 × 10−2
(ADP-elements) [kg Sb eq.]	1.38 × 10−1	1.89 × 10−1	2.01 × 10−1	2.64 × 10−1	3.27 × 10−1
(ADP-fossil fuels) [MJ]	2.45 × 102	3.35 × 102	3.58 × 102	4.70 × 102	5.83 × 102
Environmental aspects related to the consumption of raw materials, 1 m2
PERT [MJ]	6.26	6.26	6.26	6.26	6.26
PENRT [MJ]	2.69 × 102	3.68 × 102	3.93 × 102	5.17 × 102	6.41 × 102

presents comparable data for ETICS with MW as a thermal insulation material, and the same mineral renders as the final layer.

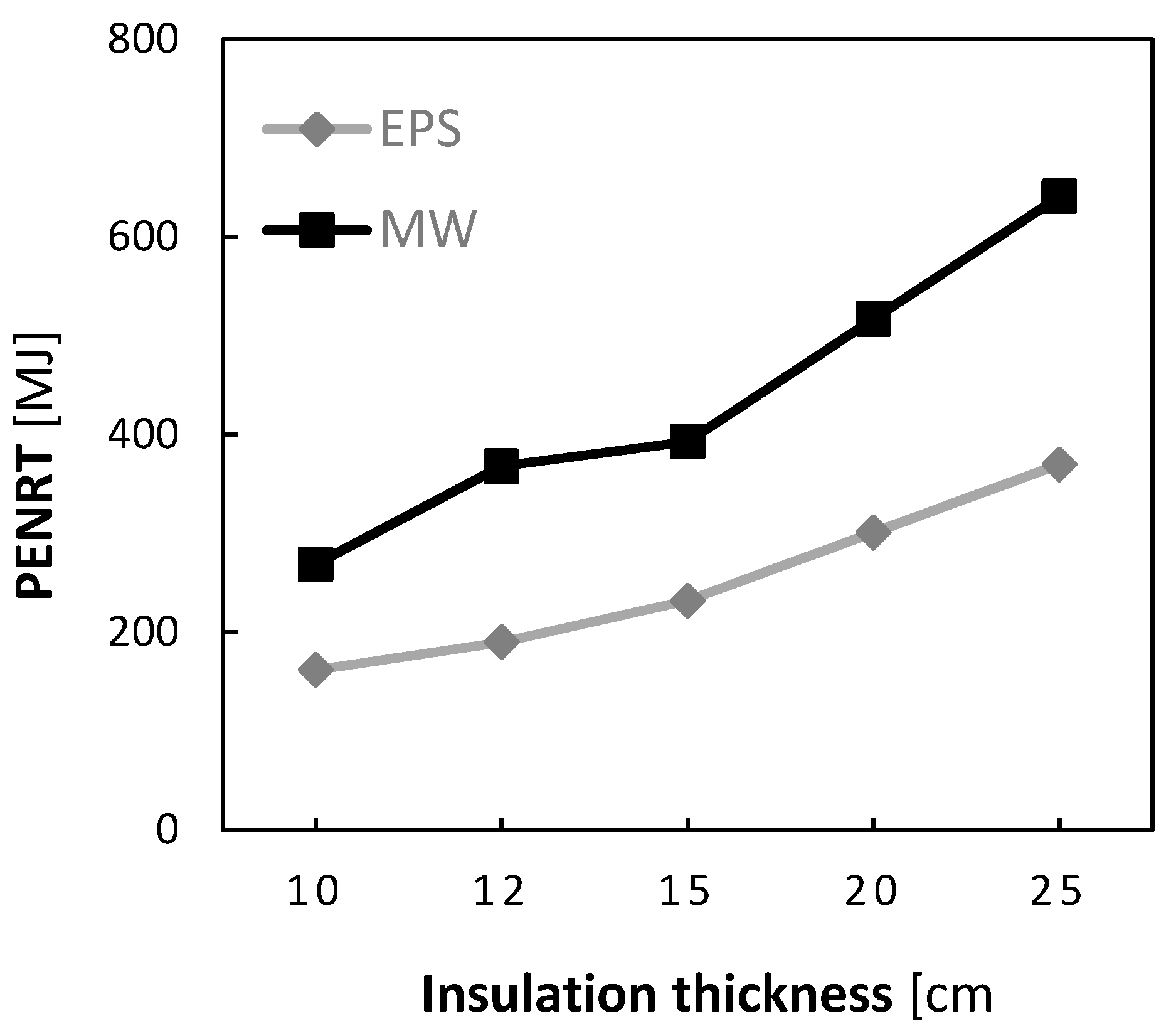

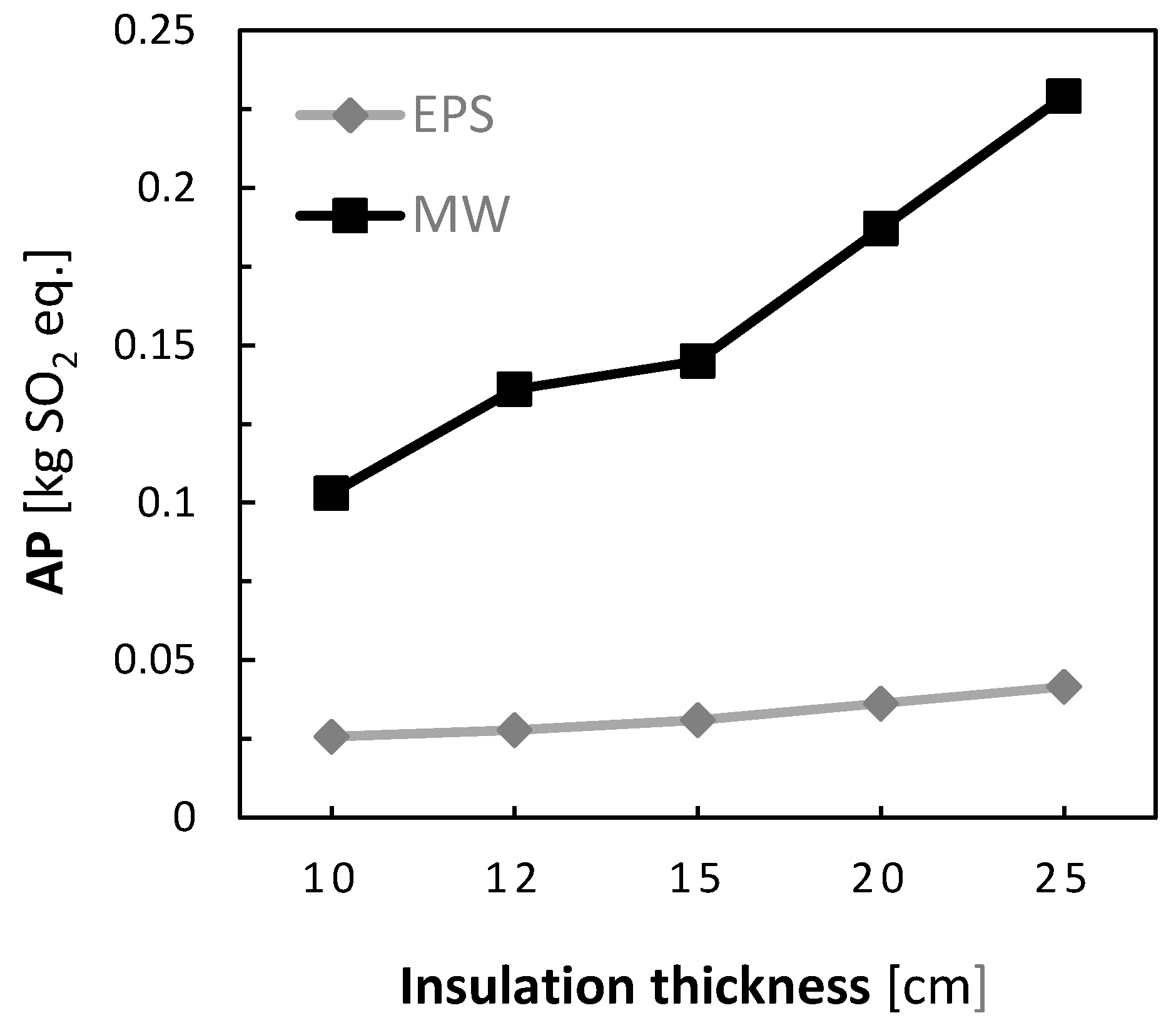

Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9 and Figure 10 present mentioned above indicators values calculated for 1 m² of ETICS with EPS and ETICS with MW, with different thickness of the thermal insulation material.

As mentioned earlier, ETICS are kits, in the sense of the CPR, consisting of specified prefabricated components being applied directly to the facade onsite. ETICS are also defined in the same way in the Polish national building regulations. Assessment and verification of constancy of performance of ETICS are carried out for the whole system and not for individual components. For this reason, this work presents a comparison of the environmental impact of 1m² ETICS with EPS to 1 m² ETICS with MW. However, knowledge of the environmental impacts of individual ETICS components is crucial.

Figure 11 shows the share of environmental impacts of individual ETICS components for the system when the thickness of the thermal insulation material is equal to 10 cm.

Both thermal insulation materials (EPS and MW) have a significant impact on the value of the studied environmental indicators. EPS footprint was responsible for more than half of GWP, POCP, ADP-fossil fuels, and PENTR. For such indicators as AP, EP, and PERT, contribution of EPS was also significant. The impact of EPS on two environmental indicators (ODP and ADP-elements) was negligible. MW footprint was responsible for almost or more than 90% of GWP, AP, POCP, ADP-elements, ADP-fossil fuels, and PENRT. MW also has a significant influence on the ODP and relatively small influence for EP and PERT.

4. Discussion

For all indicators analyzed in this article, the environmental burdens related to the production of 1 m² of ETICS with MW were higher than for 1 m² of ETICS with EPS. Although the value of total use of renewable primary energy resources (PERT) was higher for EPS than for MW, it should be remembered that this is an environmentally beneficial situation.

In the case of the global warming potential (GWP), when comparing the production of 1 m² ETICS with MW to 1 m² ETICS with EPS, the first is associated with almost three times higher CO₂ equivalent emissions for 10 cm thick insulation material and nearly four times higher for 25 cm thick. The Polish ETICS market is one of the largest in the European Union, and its size is estimated at around 40 million m² of ETICS per year [19].

Table 4. Global warming potential of manufacturing ETICS (modules A1-A3) calculated for 40 million m² insulated external walls annually with ETICS with MW (10 and 25 cm) and with EPS (10 and 25 cm).

Insulation Material Thickness in ETICS [cm]	GWP [t CO2 eq.]
	EPS	MW
10 cm	348,000	1,060,000
25 cm	628,000	2,348,000

presents the global warming potential of manufacturing ETICS (modules A1-A3) calculated for 40 million m² insulated external walls annually with ETICS with MW (10 and 25 cm) and with EPS (10 and 25 cm) based on data obtained from data gathered in this paper. When analyzing the above data, it is worth referring to such indicators as the emission of carbon dioxide resulting from heating/cooling activities by households, total CO₂ emissions, and total greenhouse gas (GHG) emissions. In 2017 the emission of CO₂ resulting from heating/cooling activities by households in Poland was equal to 35.7 million tons [40]. Total CO₂ emissions and total GHG emissions in Poland in 2017 were equal to 319.0 million tons of CO₂ [41] and 413.8 million tons of CO₂ equivalent excluding Land Use, Land Use Change, and Forestry (LULUCF) [42], respectively.

The stratospheric ozone layer depletion potential (ODP), determining the quantitative impact of the ETICS on the destruction of the ozone layer, is for ETICS with MW nearly two times higher than for the system with EPS. It does not depend on the thickness of the thermal insulation material (EPS or MW). When considering the ozone layer depreciation, ODP, it is worth mentioning that no ozone-depleting substances as regulated by the EU, such as chlorofluorocarbons (CFCs) or hydrochlorofluorocarbons (HCFCs), are nowadays used as blowing agents for the production of EPS [43].

Acidification potential of soil and water (AP) is the result of acids being emitted to the atmosphere and subsequently deposited in surface soils and waters. AP expressed as SO₂ equivalent refers to the emission of SO₂, NO_x, HCl, NH₃, and HF. ETICS with MW has a higher AP than ETICS with EPS. The ratio of AP with MW to AP with EPS is varying between 4 and 5.5 for 10 cm and 25 cm of thermal insulation material, respectively.

Eutrophication potential (EP) quantitatively determines the impact on the accumulation of organic matter in waters. With the change of MW thickness from 10 to 25 cm, the value of EP increases more than twice (from 4.22 × 10⁻³ to 8.63× 10⁻³ kg (PO₄)^3- eq.). When using EPS, this change with the change in the thickness of the thermal insulation material is not so significant (from 4.63 × 10⁻³ to 6.09 × 10⁻³ kg (PO₄)^3- eq.).

The formation potential of tropospheric ozone, POCP, determines the relative abilities of volatile organic compounds to produce ground-level ozone. ETICS with MW is characterized by 5.3 to 6.0 times higher POCP value than ETICS with EPS depending on the thickness of MW/EPS.

The EPS thickness does not affect the value of the abiotic depletion potential (ADP-elements) for non-fossil resources. It is different in the case of ETICS with MW, for which this indicator grows almost three times as the thickness increases from 10 to 25 cm. It is also worth noting that the value of the ADP-elements indicator is 14 (10 cm of thermal insulation material) to 33 (25 cm) times higher for ETICS with MW compared to similar systems with EPS.

In the scope of the abiotic depletion potential (ADP-fossil fuels) for fossil resources indicator, ETICS with MW is characterized by higher values.

A comparison of the two PERT and PENRT indicators shows that significantly more non-renewable primary energy resources are used to manufacture ETICS components, regardless of the kind of the thermal insulation material (EPS or MW). For the production of ETICS with EPS, more renewable primary energy and primary energy resources as raw materials were used than for systems with MW. In terms of the PENRT indicator related to the use of non-renewable primary energy resources, ETICS with MW is less environmentally friendly. In the use of renewable and non-renewable primary energy resources (primary energy and primary energy resources used as raw materials), significant changes have taken place in Poland in recent years. For the ETICS system with EPS and acrylic renders tested in the scope of modules from A1 to A3, the PERT indicator increased more than seven times while the value of the PENRT indicator decreased by 11% over five years, from 2012 till 2017 [44].

ETICS improves the energy efficiency of buildings. The energy payback is depending on many factors, like insulation thickness, heating method, and energy source. Also, the original situation, as well as climate, are playing a crucial role. As a rule, the energy payback period of insulating materials is less than two years [45].

5. Conclusions

Today, the indoor environment, as well as occupant’s health and comfort, are essential topics. It is also crucial to stop the degradation of nature and minimalize the environmental burden due to human activity. Nowadays, we need a holistic approach in which all influencing factors should be simultaneously taken into consideration. Thermal insulation of the external walls plays a key role in saving energy in buildings. It is not only important to know characteristic of ETICS in terms of first six basic requirements according to the CPR; knowledge about the wide-spread sustainability of ETICS is necessary. All decision-makers involved in the construction, as well as in a renovation of buildings, should have access to data related to the environmental influence of building materials, including external thermal insulation composite systems.

From the perspective of several years, the environmental impact may be part of the mandatory assessment and verification of the constancy of the performance of construction materials, including ETICS. The work determines and analyzes the values of nine environmental indicators calculated for ETICS with EPS and MW as a thermal insulation material. Environmental impact rates were calculated for 1 m² ETICS for five thicknesses of thermal insulation material (EPS or MW). For all nine environmental indicators, mineral wool (MW) systems are characterized by a more negative environmental impact than the equivalent systems with expanded polystyrene (EPS). The value of the PERT indicator for ETICS with EPS is higher than for ETICS with MW. However, the PERT and PENRT indicators should be considered together, comprehensively. Of course, both thermal insulation materials (EPS and MW) are widely used in ETICS, and their technical properties are well known. Both materials, EPS as well as MW, have been in use for decades. However, when deciding to use EPS or MW, it is important to be aware of their different impact on the environment characterized in this work in the scope of modules from A1 to A3.

It should be emphasized that the environmental impact indicators calculated and analyzed in the article refer to the residual data related to significant production (about 10 million m²) located in five production plants in different regions of Poland.

The purpose of this work was to show the environmental impact of the production of ETICS with EPS and ETICS with MW (modules A1-A3). ETICS, like other construction products, are not subject to mandatory assessment in terms of the basic requirement for the sustainable use of natural resources. It is essential to publish real industry data. These data, apart from being informative, can help determine evaluation criteria in standardization work. The criteria for assessing building materials, including ETICS, must be realistic. Also, publications in scientific journals are a crucial element of changing awareness in the area of popularizing sustainable development issues.
