# An Improved Mathematical Model for Green Lock Scheduling Problem of the Three Gorges Dam

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- How can the carbon emissions related to the lockage process be reduced through an improved and green navigation scheduling at the Three Gorges Dam?
- Whether a green navigation scheduling can reduce the total waiting time and improve the overall efficiency.

## 2. Literature Review

#### 2.1. Vessel Scheduling

#### 2.2. Lock Scheduling

#### 2.3. Summary

- We proposed a new mathematical model for the green lock scheduling problem of the Three Gorges Dam in order to reduce the total carbon emissions and improve the lockage efficiency, fairness and economic performance.
- In the model formulation, we incorporate both vessel scheduling problem and lock scheduling problem in order to fully address the characteristics of the green lock scheduling problem of the Three Gorges Dam.
- We obtain managerial implications that can be adopted in order to improve the navigation scheduling at the Three Gorges Dam.

## 3. Problem Description

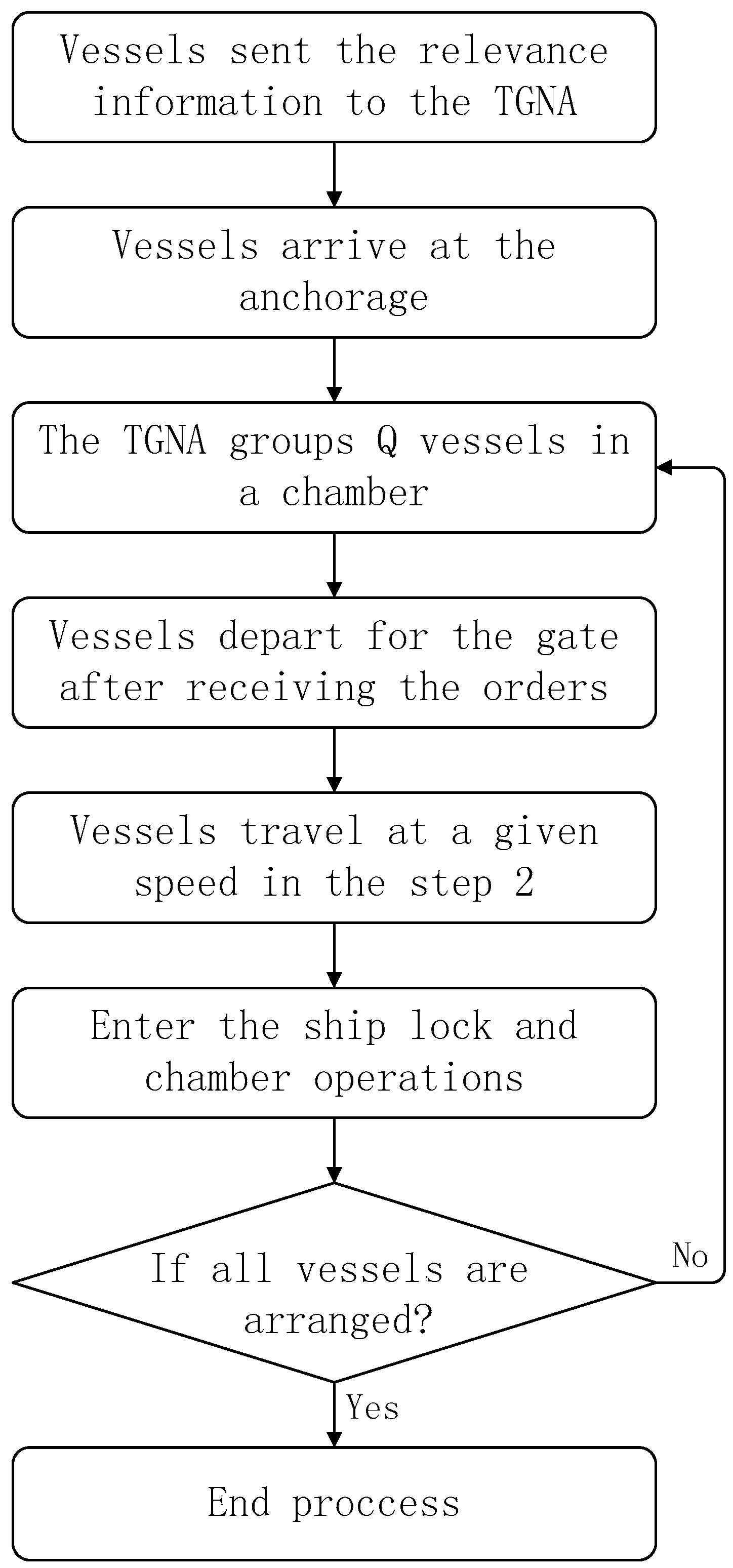

## 4. Mathematical Model

#### 4.1. Fuel Consumption

- v
_{i}—Speed of vessel i (kilometer per hour); - w
_{i}—Payload of vessel i (tonnes); - a
_{i}—The weight of the vessel i if empty (tonnes); - k, p, q—Constants, and k$>$ 0, p $\ge $ 0 and q $\ge $ 3.

- ${F}_{i}^{1}$—The daily fuel consumption of vessel i in step 1 (tonnes/day).

- ${F}_{if}^{2}$—The daily fuel consumption of vessel i in step 2 (tonnes/day);

#### 4.2. Carbon Emissions

- CE
_{i}—the carbon emissions of vessel i (tonnes/day); - α
_{co2}—carbon coefficient.

#### 4.3. Chamber Capacity and Vessel Arrangement

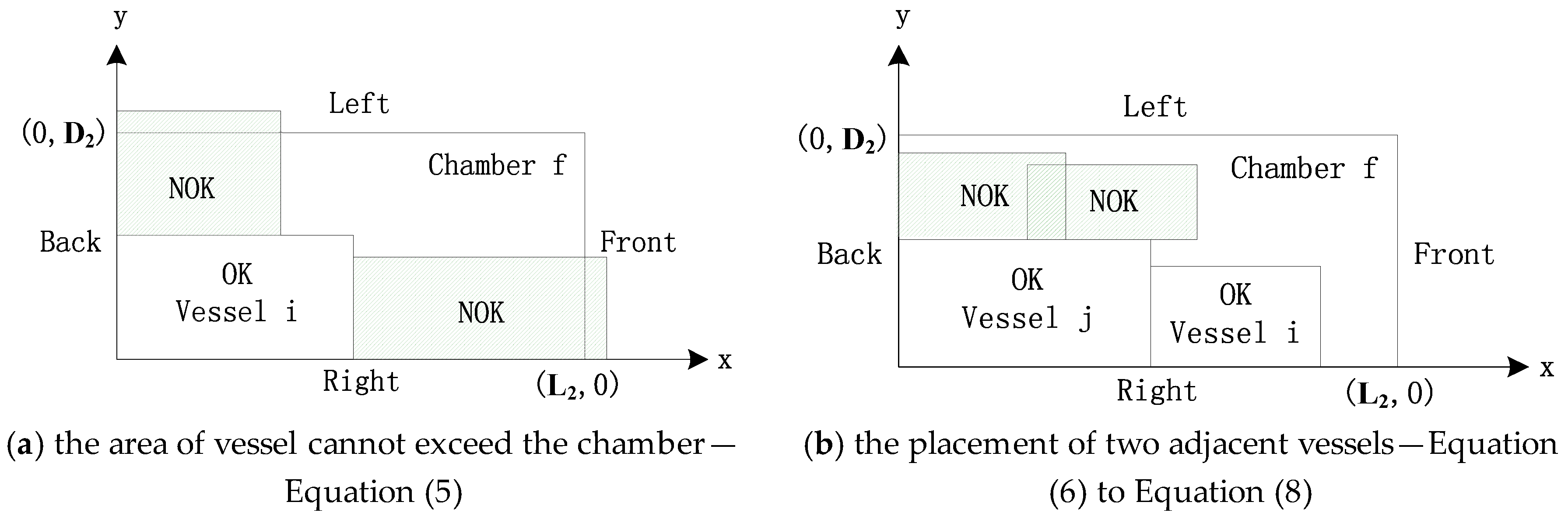

- ${G}_{f}^{i}$—Binary variable, if ${G}_{f}^{i}$ = 1, vessel i is in chamber f, and ${G}_{f}^{i}$ = 0 otherwise;
- x
_{i}, y_{i}—Variables that define the x and y position of vessel i in the chamber; - l
_{i}, d_{i}—Length and width of vessel i (meter); - D
_{2}, L_{2}—Length and width of the lock chamber (meter).

_{f}is used to represent the number of vessels in chamber f, which decides the dimension of the particle in particle swarm optimization (PSO).

#### 4.4. Expected Cost

- P
_{1}—Cost of fuel per unit (CNY/tonne); - P
_{2}—Multiplier of the additional cost in waiting (CNY/hour); - C
_{i1}—Expected fuel cost of carrier i (CNY); - C
_{i2}—Expected additional cost of carrier i in waiting (CNY); - ${RT}_{i}^{A}$—Real arrival time of vessel i at the anchorage;
- ${RT}_{i}^{D}$—Real departure time of vessel i from the anchorage.

_{D}) is implemented for the delay on departure of vessels parking at the anchorage after an order has been given by the TGNA, and this may influence the planning of the lockage operations. Compared with the arrival delay, the influence of the departure delay on the overall efficiency of the navigation scheduling and the lockage operations is much more serious, so the penalty on the departure delay should be higher than that of the arrival delay.

- P
_{A}—Arrival delay penalty per unit (CNY/hour); - P
_{D}—Departure delay penalty per unit (CNY/hour); - C
_{i3}—Expected arrival delay of carrier i (CNY); - C
_{i4}—Expected departure delay of carrier i (CNY); - ${PT}_{i}^{A}$—Estimated arrival time of vessel i at the anchorage;
- ${DT}_{I}^{D}$—Scheduled departure time of vessel i from the anchorage
- Expected cost
_{i}—Total expected cost of carrier i (CNY).

#### 4.5. The Mathematical Model for Green Lock Scheduling Problem

**Decision variables:**

${v}_{i}$ | Speed of vessel i. (km/hour) |

${K}_{ij}$ | Binary variable, if K_{ij} = 1, vessel i directly follows vessel j, and K_{ij} = 0Otherwise. |

${G}_{f}^{i}$ | Binary variable, if ${G}_{f}^{i}$ = 1, vessel i is in chamber f, and ${G}_{f}^{i}$ = 0 otherwise. |

$D{T}_{i}^{D}$ | Scheduled departure time of vessel i from the anchorage. (hour) |

$S{C}_{1}^{i}$ | Scheduled time for vessel i in the first chamber. (hour) |

**Sets and Parameters:**

$S$ | Set of vessels scheduled on a daily basis, i, j ∈ S |

${N}_{s}$ | Number of elements in set S |

$F$ | Set of chambers, f ∈ F |

${W}_{i}$ | The total weight of vessel i. (tonnes) |

${F}_{3}^{i}$ | The daily fuel consumption of vessel i in chamber. (tonnes/day) |

$T{C}_{f}^{i}$ | Real time for vessel i in chamber f. (hour) |

${T}_{start}$ | Starting time of navigation scheduling. (hour) |

${T}_{end}$ | Required end time of the scheduling period. (hour) |

${t}_{r}$ | Upper limit of waiting time at anchorage. (hours) |

${t}_{i}^{ber}$ | The waiting time of vessel i at the anchorage. (hours) |

${t}_{1}$ | Overall operation time in a chamber. (hours) |

${L}_{1}$ | Distance from the anchorage to the pier. (km) |

${v}_{2}$ | Limited speed in the lock chamber. (km/hour) |

$U$ | A constant specifying the relationship between weight and speed of a vessel |

$Safet{y}_{dis}$ | Safety departure interval for two connecting vessels in sequence. (hours) |

## 5. Solution Approach

#### 5.1. Greedy Algorithm

#### 5.2. Particle Swarm Optimization (PSO)

_{i}= (x

_{i,1}, x

_{i,2},…, x

_{i,Qf}) and V

_{i}= ( v

_{i,1}, v

_{i,2},…, v

_{i,Qf}). Each particle has their fitness that is determined by the objective function. The fitness measures the distance between the position of the particle and the current best position in the search space identified by other particles. In each iteration, a particle knows the best position in the search space (a local optimum) and its current position, based on which it determines the next movement towards the local optimum. The mathematical model depicting the movement of particles is given as follows [42]:

- p
_{i,j}—Maximum fitness value of the individual i; - p
_{g,j}—Maximum fitness value of the whole population; - w—Inertia weight;
- c
_{1}, c_{2}—Positive learning factor; - r
_{1}, r_{2}—Uniformly distributed random numbers between 0 and 1.

#### 5.3. Greedy-Particle Swarm Optimization (G-PSO)

## 6. Numerical Experiments

_{1}, c

_{2}) are 2; the number of iterations (t) is 100; and the inertia weight (w) is 0.5.

## 7. Result and Discussion

#### 7.1. Speed Adjustment

#### 7.2. The Correlation between Vessel Weight and Carbon Emission

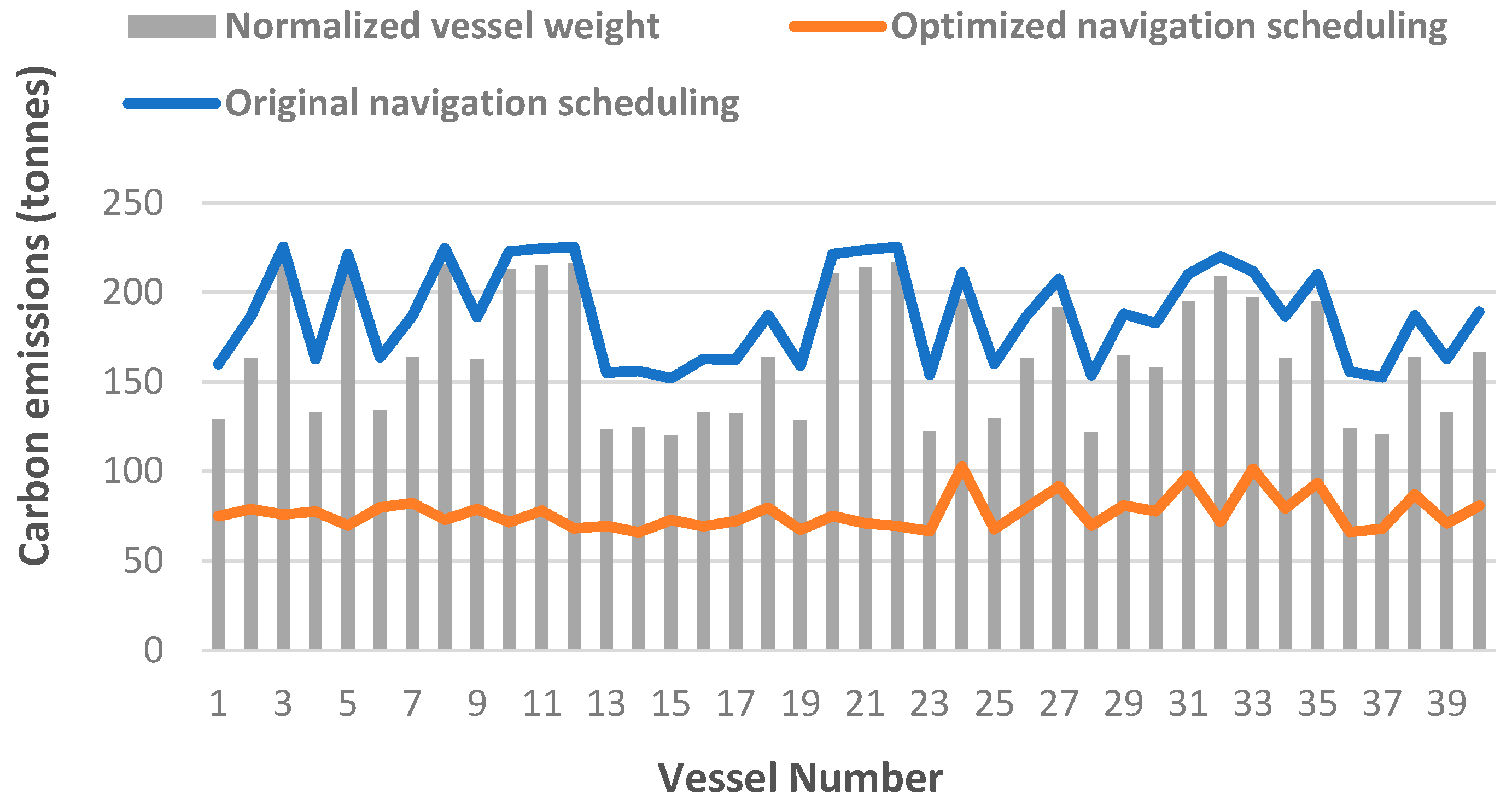

#### 7.3. Reduction on Waiting Time and Improvement of the Fairness

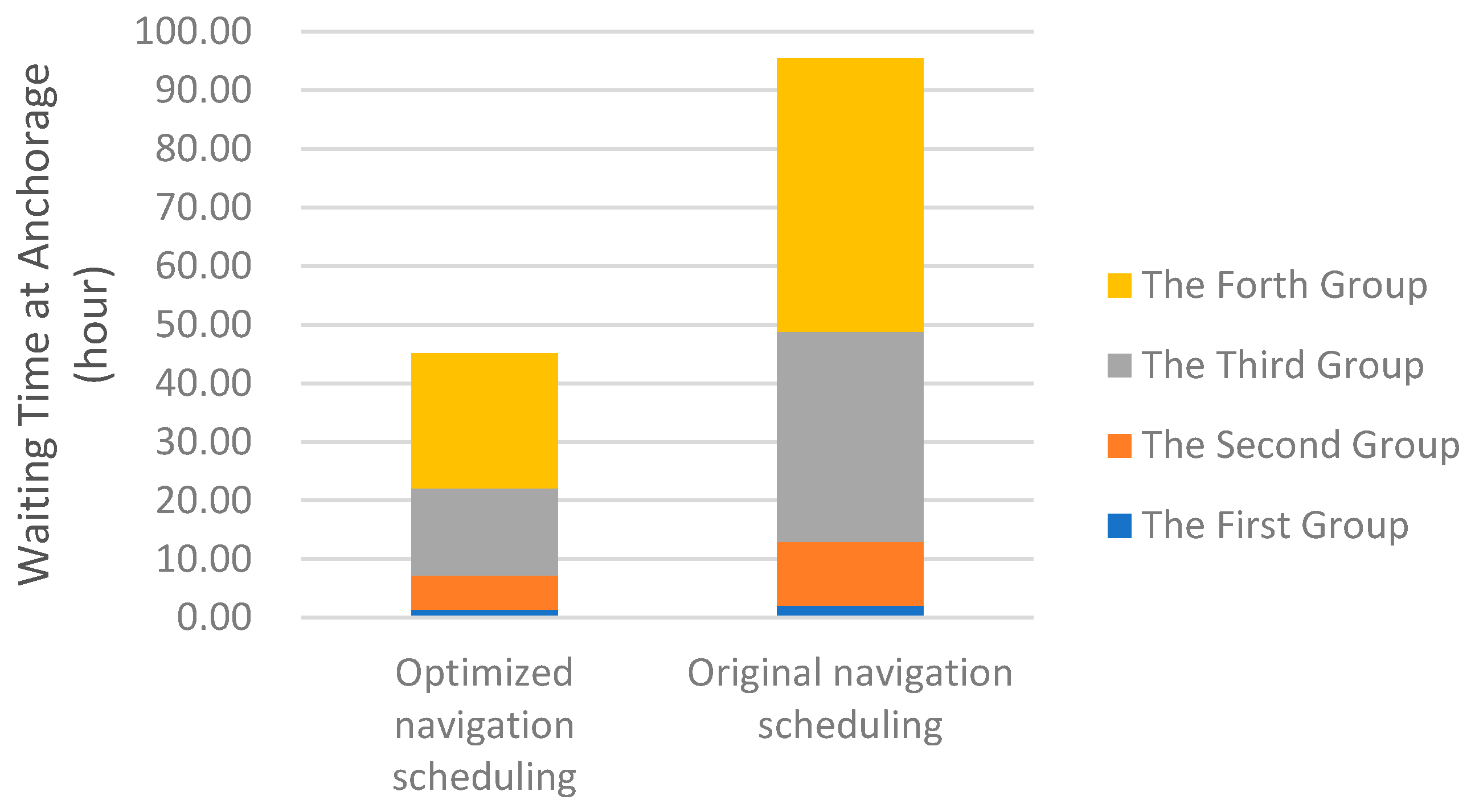

#### 7.4. Managerial Implications

- The carbon emissions from the vessels in passing through the Three Gorges Dam may be greatly reduced by optimizing the navigation scheduling. The reduction on carbon emissions of the overall lockage process is mainly contributed by the speed adjustment in the sailing from the anchorage to the gate of the ship lock.
- In the optimized planning, the overall efficiency of the navigation scheduling is not affected by the speed adjustment of the vessels due to the reduction on the average waiting time at the anchorage.
- Due to the proportionality between the cost and fuel consumption given in Section 4.4. The speed adjustment of vessels may also reduce the cost related to fuel consumptions, and the reduction on waiting time may minimize the risk of good damage at the anchorage.
- The fairness of the navigation scheduling may also be improved through the implementation of the rule of FCFS and the reduction on the difference between the waiting time of different vessels.

## 8. Conclusions

- The average area utilization rate (AUR) and lockage times of lock chamber problem in step 3 has not explicitly formulated in the current model. Besides, the cooperation between the ship lift and the ship lock is not taken into account. Thus, for further improvement, the modeling efforts may be done in order to improve the formulation in Step 3.
- Even if the delay penalty is formulated in this paper, it has not been thoroughly tested in the experiments due to the lack of relevant information. Thus, future research may be conducted in order to test different economic means (e.g., different levels of delay penalty) for ensuring the efficiency of the navigation scheduling.
- In addition, the navigation scheduling may be disrupted by unexpected events, i.e., accidents happened in the lockage process, equipment malfunction, etc., so the development of a decision-support tool for reactive strategy is of interest.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Cleveland, C.J.; Morris, C. Volume II: Chronologies, Top Ten Lists, and Word Clouds. In Handbook of Energy; Elsevier: Boston, MA, USA, 2014; p. 4. [Google Scholar]
- Lindstad, H.; Asbjørnslett, B.E.; Strømman, A.H. The importance of economies of scale for reductions in greenhouse gas emissions from shipping. Energy Policy
**2012**, 46, 386–398. [Google Scholar] [CrossRef] [Green Version] - Wang, S.; Meng, Q.; Liu, Z. Containership scheduling with transit-time-sensitive container shipment demand. Transp. Res. Part B Methodol.
**2013**, 54, 68–83. [Google Scholar] [CrossRef] - Agarwal, R.; Ergun, Ö. Ship Scheduling and Network Design for Cargo Routing in Liner Shipping. Transp. Sci.
**2008**, 42, 175–196. [Google Scholar] [CrossRef] [Green Version] - Christiansen, M.; Fagerholt, K. Robust ship scheduling with multiple time windows. Nav. Res. Logist.
**2010**, 49, 611–625. [Google Scholar] [CrossRef] - Dulebenets, M. A comprehensive multi-objective optimization model for the vessel scheduling problem in liner shipping. Int. J. Prod. Econ.
**2017**, 196, 293–318. [Google Scholar] [CrossRef] - Venturini, G.; Iris, Ç.; Kontovas, C.A.; Larsen, A. The multi-port berth allocation problem with speed optimization and emission considerations. Transp. Res. Part D Transp. Environ.
**2017**, 54, 142–159. [Google Scholar] [CrossRef] - Umang, N.; Bierlaire, M.; Erera, A.L. Real-time management of berth allocation with stochastic arrival and handling times. J. Sched.
**2017**, 20, 67–83. [Google Scholar] [CrossRef] - Dulebenets, M.A.; Kavoosi, M.; Abioye, O.; Pasha, J. A Self-Adaptive Evolutionary Algorithm for the Berth Scheduling Problem: Towards Efficient Parameter Control. Algorithms
**2018**, 11, 100. [Google Scholar] [CrossRef] - Lalla-Ruiz, E.; Shi, X.; Voß, S. The waterway ship scheduling problem. Transp. Res. Part D Transp. Environ.
**2016**, 60, 191–209. [Google Scholar] [CrossRef] - Elwany, M.H.; Ali, I.; Abouelseoud, Y. A heuristics-based solution to the continuous berth allocation and crane assignment problem. Alex. Eng. J.
**2013**, 52, 671–677. [Google Scholar] [CrossRef] [Green Version] - Li, M.W.; Hong, W.C.; Geng, J.; Wang, J. Berth and quay crane coordinated scheduling using multi-objective chaos cloud particle swarm optimization algorithm. Neural Comput. Appl.
**2017**, 28, 3163–3182. [Google Scholar] [CrossRef] - Zhen, L.; Liang, Z.; Zhuge, D.; Lee, L.H.; Chew, E.P. Daily berth planning in a tidal port with channel flow control. Transp. Res. Part B Methodol.
**2017**, 106, 193–217. [Google Scholar] [CrossRef] - Xiang, X.; Liu, C.; Miao, L. Reactive strategy for discrete berth allocation and quay crane assignment problems under uncertainty. Comput. Ind. Eng.
**2018**, 126, 196–216. [Google Scholar] [CrossRef] - Chuang, T.N.; Lin, C.T.; Kung, J.Y.; Lin, M.D. Planning the route of container ships: A fuzzy genetic approach. Expert Syst. Appl.
**2010**, 37, 2948–2956. [Google Scholar] [CrossRef] - Lindstad, H.; Asbjørnslett, B.E.; Strømman, A.H. Reductions in greenhouse gas emissions and cost by shipping at lower speeds. Energy Policy
**2011**, 39, 3456–3464. [Google Scholar] [CrossRef] - Psaraftis, H.N.; Kontovas, C.A. Speed models for energy-efficient maritime transportation: A taxonomy and survey. Transp. Res. Part C Emerg. Technol.
**2013**, 26, 331–351. [Google Scholar] [CrossRef] - Dulebenets, M.A.; Golias, M.M.; Mishra, S. The green vessel schedule design problem: Consideration of emissions constraints. Energy Syst.
**2015**, 8, 761–783. [Google Scholar] [CrossRef] - Du, Y.; Chen, Q.; Quan, X.; Long, L.; Fung, R.Y.K. Berth allocation considering fuel consumption and vessel emissions. Transp. Res. Part E Logist. Transp. Rev.
**2011**, 47, 1021–1037. [Google Scholar] [CrossRef] - Dulebenets, M. Green Vessel Scheduling in Liner Shipping: Modeling Carbon Dioxide Emission Costs in Sea and at Ports of Call. Int. J. Transp. Sci. Technol.
**2017**, 7, 26–44. [Google Scholar] [CrossRef] - Wang, S.; Meng, Q.; Liu, Z. A note on “Berth allocation considering fuel consumption and vessel emissions”. Transp. Res. Part E Logist. Transp. Rev.
**2013**, 49, 48–54. [Google Scholar] [CrossRef] - Bialystocki, N.; Konovessis, D. On the estimation of ship’s fuel consumption and speed curve: A statistical approach. J. Ocean Eng. Sci.
**2016**, 1, 157–166. [Google Scholar] [CrossRef] - Kontovas, C.A. The Green Ship Routing and Scheduling Problem (GSRSP): A conceptual approach. Transp. Res. Part D Transp. Environ.
**2014**, 31, 61–69. [Google Scholar] [CrossRef] - Passchyn, W.; Briskorn, D.; Spieksma, F.C.R. Mathematical programming models for lock scheduling with an emission objective. Eur. J. Oper. Res.
**2016**, 248, 802–814. [Google Scholar] [CrossRef] - Ting, C.J.; Schonfeld, P. Effects of Speed Control on Tow Travel Costs. J. Waterw. Port Coast. Ocean Eng.
**1999**, 125, 203–206. [Google Scholar] [CrossRef] - Ting, C.J.; Schonfeld, P. Control Alternatives at a Waterway Lock. J. Waterw. Port Coast. Ocean Eng.
**2001**, 127, 89–96. [Google Scholar] [CrossRef] - Polyakovskiy, S.; M’Hallah, R. A Hybrid Feasibility Constraints-Guided Search to the Two-Dimensional Bin Packing Problem with Due Dates. Eur. J. Oper. Res.
**2018**, 266, 819–839. [Google Scholar] [CrossRef] - Verstichel, J.; Causmaecker, P.D.; Spieksma, F.; Berghe, G.V. The generalized lock scheduling problem: An exact approach. Transp. Res. Part E Logist. Transp. Rev.
**2014**, 65, 16–34. [Google Scholar] [CrossRef] - Ji, B.; Yuan, X.; Yuan, Y. Orthogonal Design-Based NSGA-III for the Optimal Lockage Co-Scheduling Problem. IEEE Trans. Intell. Transp. Syst.
**2017**, 18, 2085–2095. [Google Scholar] [CrossRef] - Yuan, X.; Ji, B.; Yuan, Y.; Wu, X.; Zhang, X. Co-scheduling of lock and water–land transshipment for ships passing the dam. Appl. Soft Comput.
**2016**, 45, 150–162. [Google Scholar] [CrossRef] - Latorre, R. Reducing fishing vessel fuel consumption and NO X emissions. Ocean Eng.
**2001**, 28, 723–733. [Google Scholar] [CrossRef] - Cullinane, K.; Bergqvist, R. Environment, Emission control areas and their impact on maritime transport. Transp. Res. Part D Transp. Environ.
**2014**, 28, 1–5. [Google Scholar] [CrossRef] - Zhen, L.; Shen, T.; Wang, S.; Yu, S. Models on ship scheduling in transshipment hubs with considering bunker cost. Int. J. Prod. Econ.
**2016**, 173, 111–121. [Google Scholar] [CrossRef] - Qi, X.; Song, D.P. Minimizing fuel emissions by optimizing vessel schedules in liner shipping with uncertain port times. Transp. Res. Part E Logist. Transp. Rev.
**2012**, 48, 863–880. [Google Scholar] [CrossRef] - Corbett, J.J.; Wang, H.; Winebrake, J.J. The effectiveness and costs of speed reductions on emissions from international shipping. Transp. Res. Part D Transp. Environ.
**2009**, 14, 593–598. [Google Scholar] [CrossRef] - IMO (International Maritime Organization). Second IMO GHG Study 2009. 2009. Available online: http://www.imo.org/en/OurWork/Environment/PollutionPrevention/AirPollution/Documents/SecondIMOGHGStudy2009.pdf (accessed on 7 May 2019).
- Zhen, L.; Wang, S.; Wang, K. Terminal allocation problem in a transshipment hub considering bunker consumption: TAP in a Transshipment Hub. Nav. Res. Logist.
**2016**, 63, 529–548. [Google Scholar] [CrossRef] - Fagerholt, K.; Christiansen, M. A travelling salesman problem with allocation, time window and precedence constraints—An application to ship scheduling. Int. Trans. Oper. Res.
**2000**, 7, 231–244. [Google Scholar] [CrossRef] - Reinhardt, L.B.; Plum, C.E.M.; Pisinger, D.; Sigurd, M.M.; Vial, G.T.P. The liner shipping berth scheduling problem with transit times. Transp. Res. Part E Logist. Transp. Rev.
**2016**, 86, 116–128. [Google Scholar] [CrossRef] [Green Version] - Zhang, X.; Lin, J.; Guo, Z.; Liu, T. Vessel transportation scheduling optimization based on channel–berth coordination. Ocean Eng.
**2016**, 112, 145–152. [Google Scholar] [CrossRef] - Liu, B.; Wang, L.; Jin, Y.; Huang, D. An Effective PSO-Based Memetic Algorithm for TSP. In Proceedings of the Intelligent Computing in Signal Processing and Pattern Recognition: International Conference on Intelligent Computing, ICIC 2006, Kunming, China, 16–19 August 2006; Huang, D.S., Li, K., Irwin, G.W., Eds.; Springer: Berlin/Heidelberg, Germany, 2006; pp. 1151–1156. [Google Scholar]
- Mokarram, V.; Banan, M.R. A new PSO-based algorithm for multi-objective optimization with continuous and discrete design variables. Struct. Multidiscip. Optim.
**2018**, 57, 509–533. [Google Scholar] [CrossRef]

**Figure 2.**A simplified instance of vessel sequence and lockage process at the Three Gorges Dam (Northern ship lock).

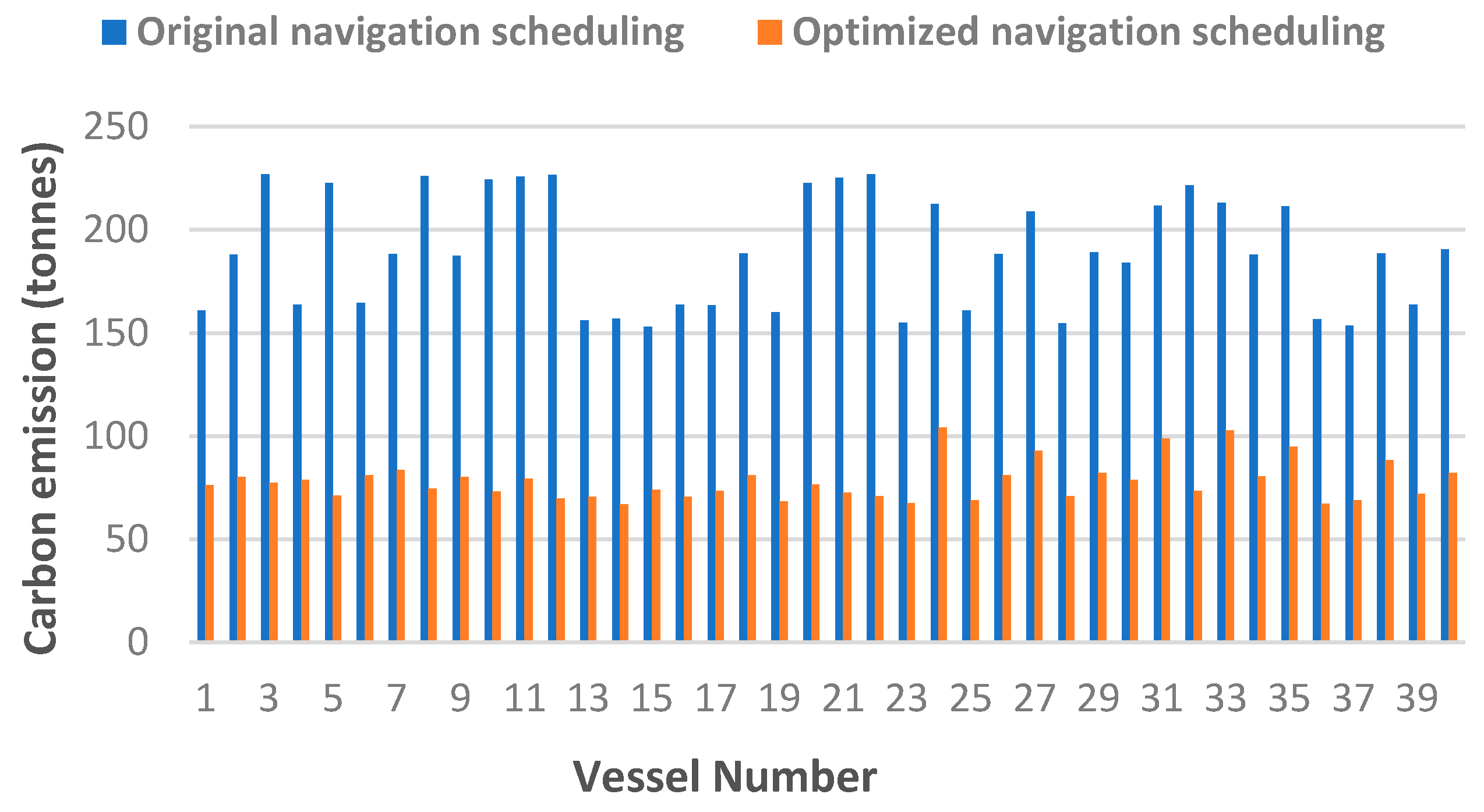

**Figure 5.**Comparison of the carbon emissions between original navigation scheduling and optimized navigation scheduling.

**Figure 6.**Comparison of carbon emission between the original navigation scheduling and optimized navigation scheduling in: (

**a**) Step 1; (

**b**) Step 2.

**Figure 7.**The correlation between the speed and normalized weight of each vessel in the optimized navigation scheduling.

**Figure 9.**Comparison of vessel sequence in both original navigation scheduling and optimized navigation scheduling.

Number | Arrival Time (hh:mm:ss) | Weight (Tonnes) | Length (Meter) | Width (Meter) |
---|---|---|---|---|

1 | 00:33:00 | 3878 | 56 | 25 |

2 | 01:55:00 | 4894 | 56 | 26 |

3 | 02:03:00 | 6496 | 60 | 38 |

4 | 02:22:00 | 3985 | 56 | 27 |

5 | 02:26:00 | 6317 | 60 | 32 |

6 | 04:08:00 | 4019 | 54 | 28 |

7 | 04:24:00 | 4906 | 57 | 23 |

8 | 04:29:00 | 6465 | 59 | 39 |

9 | 05:51:00 | 4881 | 56 | 20 |

10 | 05:54:00 | 6392 | 56 | 30 |

11 | 06:14:00 | 6457 | 60 | 38 |

12 | 07:21:00 | 6489 | 65 | 49 |

13 | 07:49:00 | 3709 | 56 | 22 |

14 | 08:08:00 | 3739 | 56 | 32 |

15 | 08:10:00 | 3599 | 56 | 31 |

16 | 09:16:00 | 3983 | 56 | 23 |

17 | 10:07:00 | 3972 | 57 | 21 |

18 | 10:25:00 | 4917 | 59 | 24 |

19 | 11:11:00 | 3853 | 56 | 32 |

20 | 12:11:00 | 6322 | 58 | 42 |

21 | 12:20:00 | 6421 | 65 | 41 |

22 | 12:31:00 | 6496 | 58 | 26 |

23 | 13:00:00 | 3672 | 55 | 33 |

24 | 13:46:00 | 5884 | 65 | 38 |

25 | 13:48:00 | 3883 | 56 | 29 |

26 | 14:05:00 | 4904 | 57 | 32 |

27 | 14:52:00 | 5740 | 57 | 19 |

28 | 15:07:00 | 3658 | 55 | 29 |

29 | 16:11:00 | 4948 | 57 | 27 |

30 | 17:05:00 | 4746 | 56 | 31 |

31 | 17:14:00 | 5854 | 66 | 44 |

32 | 17:24:00 | 6265 | 68 | 44 |

33 | 18:16:00 | 5918 | 58 | 38 |

34 | 19:37:00 | 4899 | 56 | 36 |

35 | 19:41:00 | 5848 | 58 | 25 |

36 | 19:58:00 | 3727 | 65 | 44 |

37 | 21:09:00 | 3620 | 55 | 21 |

38 | 21:49:00 | 4919 | 58 | 30 |

39 | 21:57:00 | 3986 | 56 | 24 |

40 | 22:04:00 | 4997 | 58 | 33 |

**Table 2.**Comparison of the vessel sequence, the departure time from the anchorage, the arrival time at the pier and the waiting time at the anchorage of each vessel in both original navigation scheduling and optimized navigation scheduling.

Number | Original Navigation Scheduling | Optimized Navigation Scheduling | ||||||
---|---|---|---|---|---|---|---|---|

Sequence | Departure Time (hh:mm:ss) | Arrival Time at the Pier (hh:mm:ss) | Waiting Time (Hour) | Sequence | Departure Time (hh:mm:ss) | Arrival Time at the Pier (hh:mm:ss) | Waiting Time (Hour) | |

1 | 1 | 01:03:00 | 02:08:00 | 0.5 | 1 | 01:03:00 | 02:35:00 | 0.5 |

2 | 2 | 02:45:00 | 03:50:00 | 0.8 | 2 | 02:00:00 | 03:37:00 | 0.1 |

3 | 8 | 07:13:00 | 08:18:00 | 5.2 | 3 | 02:08:00 | 03:57:00 | 0.1 |

4 | 3 | 03:42:00 | 04:47:00 | 1.3 | 4 | 02:28:00 | 04:04:00 | 0.1 |

5 | 7 | 07:07:00 | 08:12:00 | 4.7 | 5 | 02:33:00 | 04:25:00 | 0.1 |

6 | 4 | 04:38:00 | 05:43:00 | 0.5 | 6 | 04:18:00 | 05:55:00 | 0.2 |

7 | 5 | 05:21:00 | 06:26:00 | 1.0 | 7 | 04:36:00 | 06:11:00 | 0.2 |

8 | 12 | 08:52:00 | 09:57:00 | 4.4 | 8 | 04:41:00 | 06:31:00 | 0.2 |

9 | 6 | 06:07:00 | 07:12:00 | 0.3 | 9 | 06:01:00 | 07:38:00 | 0.2 |

10 | 14 | 10:34:00 | 11:39:00 | 4.7 | 10 | 06:08:00 | 07:59:00 | 0.2 |

11 | 16 | 10:50:00 | 11:55:00 | 4.6 | 11 | 06:28:00 | 08:30:00 | 0.2 |

12 | 18 | 12:09:00 | 13:14:00 | 4.8 | 12 | 07:26:00 | 09:21:00 | 0.1 |

13 | 9 | 08:09:00 | 09:14:00 | 0.3 | 13 | 08:07:00 | 09:41:00 | 0.3 |

14 | 10 | 08:18:00 | 09:23:00 | 0.2 | 14 | 08:33:00 | 10:10:00 | 0.4 |

15 | 11 | 08:27:00 | 09:32:00 | 0.3 | 15 | 08:43:00 | 10:40:00 | 0.6 |

16 | 13 | 09:56:00 | 11:01:00 | 0.7 | 16 | 09:41:00 | 11:17:00 | 0.4 |

17 | 15 | 10:41:00 | 11:46:00 | 0.6 | 17 | 10:40:00 | 12:14:00 | 0.6 |

18 | 21 | 14:15:00 | 15:41:00 | 3.8 | 18 | 11:12:00 | 12:49:00 | 0.8 |

19 | 17 | 11:31:00 | 12:36:00 | 0.3 | 19 | 12:11:00 | 13:48:00 | 1.0 |

20 | 23 | 15:51:00 | 16:56:00 | 3.7 | 20 | 13:16:00 | 15:04:00 | 1.1 |

21 | 25 | 17:17:00 | 18:22:00 | 5.0 | 21 | 13:26:00 | 15:18:00 | 1.1 |

22 | 24 | 16:47:00 | 17:52:00 | 4.3 | 22 | 13:41:00 | 15:34:00 | 1.2 |

23 | 19 | 13:05:00 | 14:10:00 | 0.1 | 23 | 14:12:00 | 15:48:00 | 1.2 |

24 | 26 | 17:46:00 | 18:51:00 | 4.0 | 24 | 15:00:00 | 16:30:00 | 1.2 |

25 | 20 | 13:56:00 | 15:01:00 | 0.1 | 25 | 15:05:00 | 16:42:00 | 1.3 |

26 | 27 | 17:56:00 | 19:01:00 | 3.9 | 26 | 15:34:00 | 17:11:00 | 1.5 |

27 | 28 | 18:41:00 | 19:46:00 | 3.8 | 27 | 16:23:00 | 17:58:00 | 1.5 |

28 | 22 | 15:17:00 | 16:22:00 | 0.2 | 28 | 17:02:00 | 18:35:00 | 1.9 |

29 | 29 | 19:40:00 | 20:45:00 | 3.5 | 29 | 18:06:00 | 19:42:00 | 1.9 |

30 | 30 | 19:50:00 | 20:55:00 | 2.8 | 30 | 19:03:00 | 20:40:00 | 2.0 |

31 | 32 | 20:36:00 | 21:41:00 | 3.4 | 31 | 19:19:00 | 20:51:00 | 2.1 |

32 | 36 | 22:15:00 | 23:20:00 | 4.9 | 32 | 19:24:00 | 21:14:00 | 2.0 |

33 | 34 | 21:35:00 | 22:40:00 | 3.3 | 33 | 20:16:00 | 21:47:00 | 2.0 |

34 | 35 | 21:59:00 | 23:04:00 | 2.4 | 34 | 21:36:00 | 23:13:00 | 2.0 |

35 | 38 | 23:45:00 | 01:02:00 | 4.3 | 35 | 21:57:00 | 23:31:00 | 2.3 |

36 | 31 | 20:04:00 | 21:09:00 | 0.1 | 36 | 22:16:00 | 23:53:00 | 2.3 |

37 | 33 | 21:24:00 | 22:29:00 | 0.3 | 37 | 23:28:00 | 01:02:00 | 2.3 |

38 | 40 | 01:23:00 | 02:28:00 | 3.6 | 38 | 00:14:00 | 01:46:00 | 2.4 |

39 | 37 | 22:21:00 | 23:53:00 | 0.4 | 39 | 00:24:00 | 01:59:00 | 2.5 |

40 | 39 | 00:59:00 | 02:04:00 | 2.9 | 40 | 01:16:00 | 02:52:00 | 3.2 |

**Table 3.**Comparison of the vessel groups and the starting time of the lockage process in both original navigation scheduling and optimized navigation scheduling.

Group | Original Navigation Scheduling | Optimized Navigation Scheduling | ||
---|---|---|---|---|

Vessel Number | Starting Time of the Lockage Process | Vessel Number | Starting Time of the Lockage Process | |

1 | 1, 2, 4, 6, 7, 9 | 07:12:00 | 1, 2, 3, 4, 5 | 04:25:00 |

2 | 5, 3, 13, 14 | 09:23:00 | 6, 7, 8, 9, 10 | 07:59:00 |

3 | 15, 8, 16, 10, 17 | 11:46:00 | 11, 12, 13, 14 | 10:10:00 |

4 | 11, 19, 12, 23 | 14:10:00 | 15, 16, 17, 18, 19 | 13:48:00 |

5 | 25, 18, 28, 20, 22 | 17:52:00 | 20, 21, 22, 23 | 15:48:00 |

6 | 21, 24, 26, 27 | 19:46:00 | 24, 25, 26, 27, 28 | 18:35:00 |

7 | 29, 30, 36, 31 | 21:41:00 | 29, 30, 31, 32 | 21:14:00 |

8 | 37, 33, 34, 32 | 23:20:00 | 33, 34, 35, 36 | 23:53:00 |

9 | 39, 35, 40, 38 | 02:28:00 | 37, 38, 39, 40 | 02:52:00 |

**Table 4.**The vessel sequence, weight and RCESA (reduction on carbon emissions in step 2/reduction on vessel speed) in the optimized navigation scheduling.

Number | Vessel Weight (Tonnes) | RCESA |
---|---|---|

1 | 3878 | 26.9 |

2 | 4894 | 30.8 |

3 | 6496 | 35.6 |

4 | 3985 | 27.5 |

5 | 6317 | 34.5 |

6 | 4019 | 27.8 |

7 | 4906 | 31.1 |

8 | 6465 | 35.3 |

9 | 4881 | 30.7 |

10 | 6392 | 34.9 |

11 | 6457 | 35.7 |

12 | 6489 | 34.9 |

13 | 3709 | 25.9 |

14 | 3739 | 25.7 |

15 | 3599 | 25.7 |

16 | 3983 | 26.9 |

17 | 3972 | 27.1 |

18 | 4917 | 30.9 |

19 | 3853 | 26.3 |

20 | 6322 | 35.0 |

21 | 6421 | 35.0 |

22 | 6496 | 35.0 |

23 | 3672 | 25.5 |

24 | 5884 | 35.8 |

25 | 3883 | 26.4 |

26 | 4904 | 30.9 |

27 | 5740 | 34.5 |

28 | 3658 | 25.7 |

29 | 4948 | 31.1 |

30 | 4746 | 30.2 |

31 | 5854 | 35.3 |

32 | 6265 | 34.6 |

33 | 5918 | 35.8 |

34 | 4899 | 30.8 |

35 | 5848 | 35.0 |

36 | 3727 | 25.7 |

37 | 3620 | 25.4 |

38 | 4919 | 31.5 |

39 | 3986 | 27.0 |

40 | 4997 | 31.3 |
