Article

Evaluation of Matricaria aurea Extracts as Effective Anti-Corrosive Agent for Mild Steel in 1.0 M HCl and Isolation of Their Active Ingredients

by
Merajuddin Khan
1,*,
Mahmood M. S. Abdullah
1,
Adeem Mahmood
1,
Abdullah M. Al-Mayouf
2 and
Hamad Z. Alkhathlan
1,*
1
Department of Chemistry, College of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
2
Electrochemical Sciences Research Chair, Department of Chemistry, College of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Sustainability 2019, 11(24), 7174; https://doi.org/10.3390/su11247174
Submission received: 6 November 2019 / Revised: 8 December 2019 / Accepted: 11 December 2019 / Published: 14 December 2019

Abstract

:
Plant extracts have shown promising corrosion inhibitive actions for different metals in diverse corrosive climate. In numerous studies, it has been demonstrated that corrosion inhibitive features of plant extracts are due to the presence of complex mixtures of phytomolecules in their composition. However, rare efforts have been made to identify those phytomolecules accountable for the activity of the extracts. Therefore, in this paper, several Matricaria aurea extracts were prepared and assessed for their anticorrosive actions for mild steel (MS) in corrosive media (1.0 M HCl). Among the tested extracts, the methanolic extract showing the utmost anticorrosive activity was selected and processed further to identify its active phytomolecules, which led to the identification of a novel green corrosion inhibitor, MAB (Apigetrin). Furthermore, the anticorrosive properties of MAB on MS were evaluated comprehensively involving gravimetric, linear polarization, Tafel plots, EIS, and techniques like SEM and EDS. These findings expose that MAB performs like a mixed-type inhibitor and conforms the isotherm of Langmuir adsorption model. Moreover, the MS surface via SEM techniques exhibits a remarkable advanced surface of the MS plate in the company of MAB. The outcome of results through electrochemical analysis and weight loss methods were in good consonance, which depicts remarkable inhibition properties of the novel green inhibitor MAB.

1. Introduction

Plants have been an excellent, cheap, and renewable source of natural products either in the form of extracts or pure organic compounds (phytomolecules). Plant extracts and their phytomolecules have been extensively employed in food, cosmetic, perfumery, textile, and pharmaceutical industries. One of the most important areas where natural plant products have shown astonishing success is cancer therapy. Corrosion is another area where plants have demonstrated significant promising results. Natural products from plants have been successfully applied as green corrosion inhibitors for varieties of metals in diverse corrosive media [1,2,3]. For example, tomato peel waste collected from canning industries was successfully utilized for the protection of tin corrosion in sodium chloride, acetic acid, and citric acid corrosive media [4]. Elgahawi et al. reported the effects of Linum usitatissimum seeds extracts as a potential source for the inhibition of aluminum alloy corrosion in sodium chloride solution [5]. In another study, water extract of henna leaves has been successfully employed for the protection of metals like C-steel, Zinc, and nickel in HCl, NaCl, and NaOH corrosive environment [6]. Similarly, Finsgar and Jackson has described the importance of natural products as effective corrosion inhibitors against various concentrations of hydrochloric acid solution for low grade steel samples useful in oil and gas industries [7].
Generally, plant extracts-based corrosion inhibitors are considered to be economical, renewable, non-toxic, biodegradable, and environmentally friendly compared to synthetic corrosion inhibitors [2,3,8,9]. Plant extracts are composed of highly complex mixtures of phytomolecules belonging to various chemical classes such as flavonoids, terpenoids, alkaloids, anthocyanins, tannins, and saponins. These phytomolecules are rich in π electrons (benzene ring, double/triple bonds) and contain electronegative functional groups and heteroatoms such as oxygen, sulfur, and nitrogen in their chemical structure. Adsorption of these phytomolecules on metal surface through: (1) electrostatic attraction of charged phytomolecules and charged metals, (2) metals vacant d-orbital and π electrons or lone pair electrons of phytomolecules, and (3) a combination of these two described processes tend to protect metals from corrosion [10].
Many extracts of plants have been proven to be remarkable candidates for the novel corrosion inhibitor development for different metals in numerous aggressive mediums. For instance, Gingko leaf extract [11], date palm leaves and seed [12], Holoptelea integrifolia leaf [2], Thymus vulgaris leaves [13], Rhus verniciflua [8], Cymbopogon citratus [14], Pimenta dioica leaf [15], Guatteria ouregou and Simira tinctoria alkaloid extracts [16], and Michelia alba leaves extract [17] were discovered to be commendable, environmentally friendly corrosion inhibitors for different metals in several aggressive solutions.
Moreover, natural products from plants as green corrosion inhibitors have been reviewed in several papers [1,2,3,18,19]. From all these studies, it has been revealed that a large number of phytomolecules that present in the extract composition are responsible for their corrosion inhibitive properties. However, in the majority of the studies, it has been found that very rare efforts have been made to identify active phytomolecules of plant extracts accountable for the corrosion inhibitive activity. Therefore, in order to proceed with our work on medicinal plants [20,21,22,23] in this paper, various extracts of Matricaria aurea were examined for their corrosion inhibitive actions for mild steel (MS) in corrosive solution (1.0 M HCl). In addition, active phytomolecules accountable for corrosion inhibitive properties were identified from the highly active extract of M. aurea through activity-assay guided isolation approach.
M. aurea is an important medicinal plant which belongs to Asteraceae family. In Saudi Arabia and in different parts of the world, it is popularly used in traditional medicines for various ailments such as asthma, cough, spasmodic, common cold, flatulence, and influenza [24]. Moreover, M. aurea has also been reported to possess anti-inflammatory and analgesic activity [25]. Varieties of chemical compounds such as quercetin, coumarins: umbelliferone, caffeic acid, apigenin-7-O-glucoside, and naringenin have been isolated from Matricaria species. However, chemical investigation of M. aurea are very scarce and only few phytomolecules have been reported from it [25]. Furthermore, corrosion inhibitive properties of M. aurea are being investigated here for the first time.

2. Experimental Section

2.1. Materials

2.1.1. Collection and Identification of Plant Material

The flowers of M. aurea produced in Saudi Arabia central province were obtained from an herbal market, Batha, Riyadh, in February 2011. A taxonomist from the King Saud University (Riyadh, Saudi Arabia) performed the identification of this tested plant. A sample of the identified plant is upheld with a voucher sample no. KSUHZK-303.

2.1.2. Test Specimen Preparation

The MS working electrode was procured from Goodfellow, England, with the following composition (wt%): C-0.2%, Si-0.3%, Mn-0.94%, and iron (an uncovered region of 0.9498 cm2). This uncovered region was instinctively polished with numerous sandpapers of multi-grades, ranging from rough (600) to the flushest (1000) quality. The MS electrode was subsequently cleaned thoroughly with distilled water (DW) and finally with acetone to instantly take out all oily substances before incorporation in to the cell. With analytical grade chemicals and reagents, the M. aurea dried extracts and purified isolated compound were used for the inhibitor assay solution preparation.

2.2. Methods

2.2.1. Purification of the Active Phytomolecule

Purification of the active phytomolecules from M. aurea was achieved using activity-guided isolation approach as shown in the flow diagram in Figure 1. In short, dried and grinded M. aurea flowers were initially defatted with n-hexane and the marc was then extracted with methanol (MeOH), water (H2O), and finally with a mixture of MeOH: H2O (80:20) at room temperature. The resultant extracts were individually dried under vacuum at 50 °C. Evaluation of corrosion inhibitive properties of these three extracts revealed that MeOH extract was more active than those of aqueous and aqueous methanolic extracts. Therefore, methanolic extract was selected for the isolation of active compound. MeOH extract was dissolved in water and fractionated with solvents of different polarity like n-hexane, chloroform (CHCl3), ethyl acetate (EtOAc), and finally with n-butanol (n-BuOH). Testing of corrosion inhibitive properties of EtOAc and n-BuOH fractions showed that butanol fraction had the highest activity. Thus, in order to identify its active phytomolecules, n-BuOH fraction was loaded on a silica gel column applying different ratios of n-hexane, chloroform, and methanol as eluting solvents to produce an active compound MAB.

2.2.2. 1D and 2D Nuclear Magnetic Resonance (NMR) Analysis

The NMR spectra 1D (1H, 13C, DEPT) and 2D (COSY, HMQC and HMBC) of the purified compound MAB were recorded on a 500 MHz spectrometer (JEOL, ECP) by dissolving the sample in deuterated dimethyl sulfoxide-d6 (DMSO-d6) and taking tetramethylsilane (TMS) as an internal standard. The coupling constants (J) and chemical shifts are represented in Hz and δ (ppm), respectively.

2.2.3. UV-Visible Spectroscopy

UV spectra λmax (log ε, nm) of the purified compound MAB were documented by a Shimadzu-UV-260 spectrophotometer using a quartz cell.

2.2.4. Mass Spectrometry (MS) Analysis

MS spectra of the purified compound MAB were documented through UPLC-MS/MS (Waters Acquity) attached with a TQD detector. The test compounds were imparted as a MeOH-H2O suspension through API-ESI ionization with a positive or negative mode.

2.2.5. Chemical Structure Identification of MAB

Apigenin-7-O-β-d-glucoside (MAB): [26] C21H20O11; Yellow amorphous powder, m.p. 235–239 °C. ESI-MS (negative mode) m/z: 431 [M − H]. UV (λmax, MeOH): furnishes bands at 267 and 333 nm, adding NaOMe; 266 and 389, NaOAc; 267 and 335, NaOAc-H3BO3; 266 and 336, AlCl3; 273, 384 while AlCl3-HCl; 274, 384. 1H-NMR (500 MHz, DMSO-d6) δ (ppm): δ 7.94 (2H, d, J = 8.4 Hz, H-2′ and H-6′), 6.93(2H, d, J = 8.4 Hz, H-3′ and H-5′), 6.83 (1H, s, J H-3), 6.80 (1H, d, J = 2.0 Hz, H-8), 6.42 (1H, d, J = 2.0 Hz, H-6), 5.06 (1H, d, J = 6.9 Hz, H-1″), 3.16-3.89 (5H, m, H-2″, H-3″, H-4″, H-5″, H-6″). 13C-NMR (100 MHz, DMSO-d6) δ (ppm): δ 182.8 (C-4), 164.9(C-2), 163.5(C-7), 161.9 (C-5), 161.8 (C-4’), 157.5 (C-9), 129.8 (C-2’ and C-6’), 121.8 (C-1’), 116.7 (C-3’and C-5’), 105.8 (C-10), 103.9 (C-3), 100.7 (C-1″), 100.0 (C-6), 95.3 (C-8), 77.9 (C-5″), 76.9 (C-3″), 73.6 (C-2″), 70.3 (C-4″), 61.2 (C-6″).

2.2.6. Weight Loss Experiments

Firstly, the varieties of MS samples were abraded using various grades of sandpapers (grade 600, 800, and 1000). Subsequently, the drying with an air blower was done right after the water washing and acetone degreasing. After precisely weighing with an accurateness of 0.1 mg, these samples were fully submersed in a beaker containing 1.0 M HCl solution (100 mL) in the absence and presence of various quantities of inhibitors (0.116–0.580 mM) at altered temperatures (298, 313, and 328 ± 1 K) for 3 h. Finally, the MS specimens were collected, cleaned, desiccated, and precisely weighed. All experiments were repeated thrice, and results are mentioned in three runs. The inhibition efficiency ( I E   % ) and the surface coverage degree ( θ ) were determined using the following equations:
I E   % = W 0 W i W 0 × 100
θ = I E   % 100
where W 0 and W i are the weight loss of the MS samples in the absence and presence of the inhibitors, respectively.
The MS corrosion rate (CR) was measured using Equation (3):
C R ( mm   year 1 ) = 87.6   W A t D
where A is the specimen area, W is the MS weight loss (mg), D is the MS density ( gcm 3 ) and t is the exposure time (h).

2.2.7. Electrochemical Studies

For the electrochemical study, a traditional 3-electrode cell assembly was used at 25 °C, having a typical potentiostat fitted through an impedance spectra analyzer. A platinum sheet acts as the counter electrode (CE) and a saturated calomel electrode (SCE) attached to a fine Luggin capillary acts as the reference electrode. Initially, to attain a steady open-circuit potential (OCP), the working electrode was dipped in the standard solution for 30 min. The Tafel plots were recorded for the test samples on MS corrosion, from a cathodic potential ( 250 mV) to an anodic potential ( + 250 mV) at a constant sweep rate of 1 mV/s. The anodic and cathodic linear Tafel segments were inferred to the corrosion potential to get the corrosion current densities ( I c o r r ). The I E   % was determined through the measured corrosion current density ( I c o r r ) values using Equation (4):
I E   % = I c o r r 0 I c o r r i I c o r r 0 × 100
where I c o r r i and I c o r r 0 are the corrosion current densities with and without the inhibitor, respectively.
The linear polarization resistance (LPR) R p was calculated through polarizing the test specimen from 25 to + 25 mV as compared to the corrosion potential ( E c o r r ) at a scanning frequency of 0.125 mV/s. From this computed value of polarization resistance, the I E   % was determined using the following equation:
I E   % = R p i R p 0 R p i × 100
where R p i and R p 0 are the polarization resistances in the presence and absence of the inhibitor, respectively.
Electrochemical impedance spectroscopy (EIS) calculations were carried out at an open circuit potential (OCP) with AC signals (10 mV amplitude with a frequency range (30 kHz to 10 mHz). The charge transfer resistance measurements were obtained from the semicircles diameter of the Nyquist plots. In the particular electrical equivalent circuit, R c t is the charge transfer resistance, R s is the solution resistance, and C d l is the double-layer capacitance (Figure 2). The I E   % of the inhibitors were obtained from the charge transfer resistance ( R c t ) values using the following Equation (6):
I E   % = R c t i R c t 0 R c t i × 100
where R c t 0 and R c t i are the charge transfer resistances in the absence and presence of the inhibitor.

2.2.8. SEM and EDS Measurements

The MS specimens were immersed in 1.0 M HCl for 3 h with or without MAB concentration of 0.464 mM. Next, they were recovered, washed with acetone, and kept at 25 °C to dry completely. The surface morphology of the recovered samples was scanned utilizing a JEOL–JSM-6380LA Scanning Electron Microscope.

3. Results and Discussion

3.1. Screening of M. aurea Extracts for Their Corrosion Inhibitive Properties

In order to study corrosion inhibitive properties of M. aurea and identify its active compound, various crude extracts such as water, aqueous methanolic (AqMeOH), and methanolic (MeOH) of M. aurea were screened for their corrosion inhibitive activities for MS in 1.0 M HCl utilizing Tafel plots, EIS methods, and LPR measurements.
The detailed potentiodynamic polarization curve of MS (in 1.0 M HCl) with 600 ppm of crude extracts and without crude extracts (Figure S1) and their various corrosion kinetic parameters for example E c o r r , I c o r r , Tafel constants ( β a and β c ) and inhibition efficiency ( I E   % ) are provided in Table S1 (Supplementary Materials). Similarly, the EIS values (Figure S2) and the impedance parameters such as solution resistance ( R s ), R c t , C d l and I E   % achieved from the Nyquist plots are mentioned in Table S2 of the Supplementary Materials. The I E   % attained from Tafel plots, LPR measurements, and EIS methods were determined using Equations (4)–(6), respectively. From these results, MeOH extracts were found to be the most active extracts, and thus, it was proceeded further to identify its active ingredients. Accordingly, the MeOH extract was dissolved in DW and fractionated with non-polar to polar solvents such as n-hexane, CHCl3, EtOAc, and finally with n-BuOH. Due to poor solubility of n-hexane and CHCl3 fractions in test solution, we have only tested two fractions (the EtOAc and n-BuOH) in order to study their anticorrosive activities.
Results from Tafel plots and EIS values for both fractions are expressed in Figures S3 and S4, whilst their particular electrochemical parameters are shown in Tables S3 and S4 (Supplementary Materials). The results clearly indicate that the n-BuOH fraction was significantly more active than the EtOAc fraction. Thus, it was further exploited for the isolation and identification of active phytomolecules.
Column chromatography of n-BuOH fraction (75.0 g) on silica gel column employing different ratios of CHCl3 and MeOH as elutant, which yielded 97 fractions. Pooling of these fractions based on their TLC profile led to produce four major sub-fractions: Frs 11-13 (MA-1), Frs 15-19 (MA-2), Frs 28-34 (MA-3), and Frs 41-81 (MA-4) (Figure 1). These four sub-fractions were examined for their corrosion inhibitive properties. Results from potentiodynamic polarization and EIS methods are given in Figure S5, Table S5 and Figure S6, Table S6 respectively (Supplementary Materials). From the results, it was noticed that sub-fraction MA-3 eluted with CHCl3: MeOH (80:20) possessed the highest activity and showed one major compound along with some small impurities on the TLC. Therefore, it was further purified through crystallization in MeOH to get pure compound MAB.

3.2. Identification of the Compound MAB Isolated from M. aurea

Figure 3 shows the mass spectrum, HMBC correlations, and chemical structure of MAB. The chemical structure of MAB was characterized as apigetrin (Apigenin-7-O-β-d-glucoside) exploiting numerous spectroscopic data (Figure 3 and Figure 4, Supplementary Materials Figures S7a–S12c) and comparison of their spectroscopic data with literature values [26].

3.3. Detailed Study of Corrosion Inhibitive Properties of MAB

After isolation and complete chemical characterization of compound MAB, its corrosion inhibitive properties were assessed in detail through the weight loss, linear polarization, Tafel plots, and method like EIS, SEM, and EDS.

3.3.1. Weight Loss Study

The weight loss experiment for MAB was done at 298 ± 1 K for a 3 h immersion period in order to investigate the different concentrations effect on the MS inhibition efficiency in 1.0 M HCl. The percentage inhibition efficiency ( I E   % ), surface coverage ( θ ), and corrosion rate attained from this experiment are expressed in Table 1. The inhibitor concentrations effect on the I E of MS in 1.0 M HCl solution is shown in Figure 5.
In both Table 1 and Figure 4, it is clearly shown that the I E is directly proportional to the inhibitor concentration, which suggests the rate increase in the MAB molecules absorbed over the MS surface. Therefore, the inhibitor molecules cover the MS active sites area and shield it against corrosion [27]. It was found that the highest I E was achieved at 0.464 mM concentration, and further increase in the MAB concentration does not significantly alter the green inhibitor protective effect. (Figure 5). Thus, 0.464 mM concentration for this green inhibitor MAB was considered to be the optimal. Subsequently, the effect of various temperatures (298 ± 1-328 ± 1 K) with or without the optimal inhibitor concentration (0.464 mM) was examined for 3 h of immersion time in aggressive solution. Results are given in Table 2 and Figure 6.
From Table 2 and Figure 6, it is clearly shown that the inhibition efficiency of MAB (0.464 mM) is inversely proportional to the test solution temperature, which signifies that the physisorption may involve in the inhibitor adsorption mechanism rather than chemisorption. This is because of an electrostatic interaction in physisorption, which generally eludes its effect at raised temperatures [28].

3.3.2. Tafel Plots Measurements

The MAB inhibitive effect was also considered using potentiodynamic polarization experiments. Tafel plots of MS with or without different concentrations of MAB in 1.0 M HCl are presented in Figure 7.
Figure 7 manifestly demonstrates that the anodic and cathodic corrosion current density decreases when the green inhibitor MAB is used, and the decrease is more pronounced when compared with a blank solution, indicating corrosion mitigation of MS. Thus, this decrease triggers the increase in concentration of MAB, which clearly suggests that from enhancing the inhibitor concentration, the adsorption process of inhibitor constituents at the MS/acidic solution interface also increases. This affords enhanced shielding for the MS active sites to protect it from direct acid attack that results the corrosion mitigation [29]. The electrochemical factors acquired from the Tafel plots and LPR estimation are reported in Table 3.
The I E   % acquired from Tafel plots as well as LPR values were calculated through Equations (4) and (5), respectively. Table 3 evidently indicates that with enhancing the inhibitor quantity, the I c o r r values significantly falls because the obtained values are considerably less comparing to the uninhibited solutions. Conversely, due to the opposite trend concerning the I c o r r and the R p values, the polarization resistance ( R p ) tends to significantly escalate as the inhibitor concentration rises, which in turn upsurges the inhibition efficiency. This advocates that the inhibitor concentration increases with increase in the adsorption amount of phytomolecule on the MS surface. This generates a physical barrier between mass and charge transfer and ultimately shields the metal through occluding the active spots [30]. It is also cleared from Table 3 that by adding the green inhibitor, both the anodic ( β a ) and the cathodic Tafel constants ( β c ) changes slightly, which shows that the MAB adsorption does not effect on the mechanism of anodic and cathodic reactions. Thus, the MAB can be classified as a mixed-type inhibitor with moderately cathodic efficacy because the addition of MAB shifts the E c o r r values in the negative trend. However, this shift in E c o r r measurements is not prominent. The extreme displacement in E c o r r for MAB is only 29 mV in the direction of cathodic polarization, which suggest MAB as a mixed-type inhibitor with controlling cathodic efficacy [29]. In addition from the Figure 7, it is suggested that both anodic and cathodic mechanism are introverted in acidic solution, but the polarization in cathode is more diverged due to which the mixed-type inhibitor properties with dominant cathodic effect are revealed.

3.3.3. EIS Measurements

The MAB corrosion inhibitive action for MS was examined through EIS at 25 °C for an exposure duration of half an hour. The MS Nyquist plots attained at the interface with or without different concentrations of MAB are expressed in Figure 8.
It is clear from Figure 8 that MAB concentration has pronounced effects on the impedance behavior of MS, and it can be clearly seen that the Nyquist plots diameter rises with increasing the quantity of MAB in the inhibitive media. It is pertinent to mention that the adsorption of MAB involved in developing an active shielding film on the MS that was further strengthened due to enhancing the MAB concentration to provide extra safeguard to MS in a destructive medium. Additionally, a typical solid electrodes in the Nyquist plots which involve a low semi-circle inside the real X-axis is more often mentioned to frequency dispersion because of the unevenness and roughness of the solid surface [31]. The impedance parameters derived from the Nyquist plots are displayed in Table 4.
The I E   % were determined by Equation (6), while the double-layer capacitance ( C d l ) was expressed by the following equation:
C d l = 1 2 π f m a x R c t
where f m a x is the frequency at the Nyquist plots apex and R c t is defined as charge transfer resistance. It is clear from Table 4 that the R c t values increases with the increase in MAB concentration. This phenomenon of increment in R c t values can be arisen because of the creation of phytomolecules shielding layer on the MS surface, which in turn increases the I E values [32]. Furthermore, it is implied that the C d l values shows inverse effect with inhibitor concentration, which may be possible due to the increase in electrical double layer thickness and/or decrease in local dielectric constant [33]. This result advocates that this naturally occurring phytomolecule MAB functions through adsorption at the MS/solution interface [31]. It is also believed that due to this adsorption phenomenon of MAB on the MS surface and the water molecules progressive replacement, C d l decreases. This ultimately provides extra surface veil to the MS active site by MAB. As a result, it decreases the MS dissolution magnitude as well as the charge transfer [34]. Moreover, it is revealed that through the EIS measurements green inhibitor, MAB shows potent anticorrosive activity for MS with the maximum I E   (94%) at 0.464 mM of MAB. Thus, the data obtained through weight loss, EIS, and potentiodynamic polarization experiments are coherent with each other (Figure 9).

3.3.4. Adsorption Isotherm and Mechanism of Inhibition

The isotherm of adsorption provides elementary evidence regarding the surface of metal and corrosion inhibitors. In an aqueous solution, a compound can be regarded as a powerful corrosion inhibitor, when the interaction potency of the metals and the inhibitive compounds is more than that of the metal and H2O molecules [35].
Generally, Frumkin, Temkin, and Langmuir adsorption isotherms are known to be most important and useful isotherms. As stated by these isotherms the concentration of inhibitive compound and surface coverage, ( θ ) is associated as:
log   ( θ C ) = log K g θ   ( Tempkin   isotherm )
C θ = 1 K + C   ( Langmuir   isotherm )
log   { θ ( 1 θ ) C } = log K g θ   ( Frumkin   isotherm )
where K = adsorption-desorption equilibrium constant, C = inhibitor concentration, and g = adsorbate parameter.
Employing θ values that achieved with different concentrations of MAB at 25 °C, efforts were put through to fit the aforementioned isotherms where the Langmuir isotherm displayed the best result with r2 (coefficient of regression) value 0.9989 for MAB (Figure 10).
This result advocates that MAB develops a monolayer on the MS surface [36].
The Δ G a d s ° (free energy) values of adsorption process was measured through the following equation:
Δ G a d s ° = R T ln ( K × 55.5 )
where K = adsorption process equilibrium constant.
In this study, the calculated Δ G a d s °   value   is   19.66   kJ   mol 1   (Table 5). This value of Δ G a d s ° specifies that MAB is adsorbed on the MS surface by a physisorption process [28]. Moreover, similar results were confirmed from the weight loss experiment, where it was found that I E   decreased with an elevation of inhibitive solution temperature. Thus, this shows that MAB undergoes physisorption process with the MS surface [37]. Therefore, due to temperature elevation, I E   and the adsorbed MAB on the MS are decreased [38]. The important adsorption parameters such as entropy ( Δ S a d s ° ) and enthalpy ( Δ H a d s ° ) were computed employing the following equations:
Δ H a d s ° = E a R T
l n   C R   = l n   A E a R T
Δ G a d s ° = Δ H a d s ° T Δ S a d s °
The results in Table 5 suggests that MAB adsorption on MS surface is exothermic as acquired Δ H a d s °   values shows the negative sign [30].

3.3.5. EDS and SEM Analysis

The images obtained through a scanning electron microscope (SEM) techniques has been regarded as a vital tool to analyze the external quality of MS surface [30]. To understand the effects of MAB on the MS surface, SEM analysis were apprehended for MS specimens with or without the optimal MAB concentration. Results are displayed in Figure 11.
Figure 11a indicates the SEM picture of newly rubbed up MS specimen prior to any application. This image shows a very neat and fine MS surface, except for a few notable scratches that might have ascended during abrasion, whereas Figure 11b indicates the image of MS sample in a corrosive solution for 3 h. In this image, a highly corroded MS exterior could be seen due to the highly corrosive character of aggressive solution (1.0 M HCl). In contrast, the image of MS specimen in a corrosive solution with ideal concentration of MAB (Figure 11c) shows a conspicuously fine MS surface without scratches and is analogous with the freshly rubbed up MS specimen (cf. Figure 11a) which unveils that a shielding film developed by MAB on the surface of MS significantly prevents the corrosion of MS specimen [30].

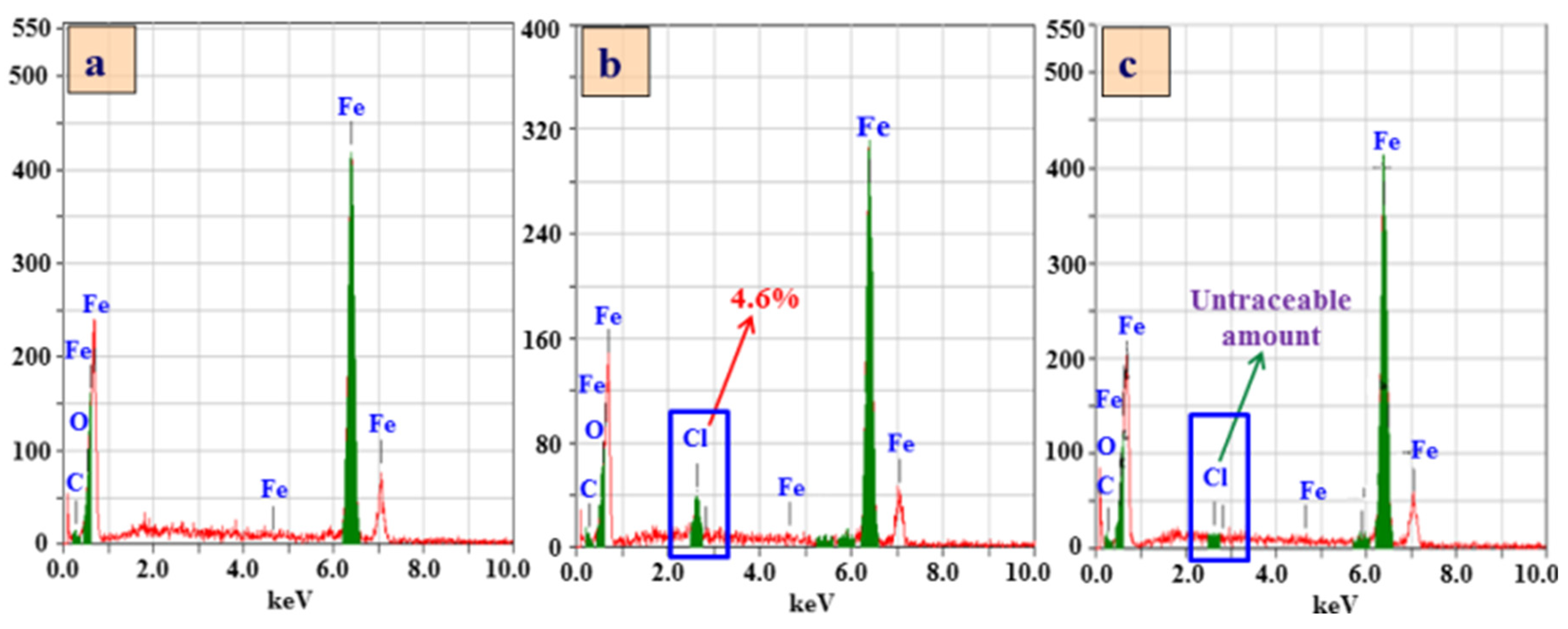

Moreover, results of EDS analysis to detect chloride content of freshly rubbed MS specimen untreated and treated with ideal MAB concentration in a corrosive solution MS specimen are shown in Figure 12.

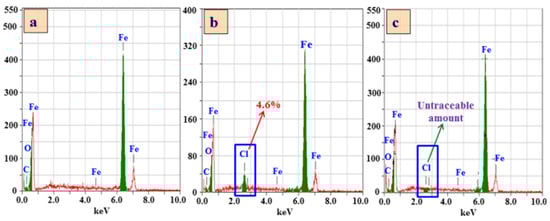

Figure 12a reveals the chlorine free EDS image of the polished mild-steel specimen, whereas Figure 12b indicates the presence of significant chlorine (4.6%) on the MS sample in aggressive media due to the corrosive nature of the aqueous hydrochloric acid solution. Figure 12c demonstrates the EDS outcomes for MS specimen treated with an optimum MAB concentration (0.464 mM) in corrosive media. This displays an insignificant quantity of chlorine content on the MS exterior when MAB was used in aggressive solution, suggesting this green inhibitor MAB is capable of providing excellent protection to MS specimen from aggressive solution [30].

4. Conclusions

In the present study, chemical investigation and anticorrosive evaluation of various M. aurea extracts for MS in acidic solution led to the identification of an efficient anticorrosive component MAB from the n-butanol extracts of M. aurea. Based on different spectroscopic (ESI-MS, UV,1D, and 2D-NMR) data and their literature values, the chemical structure of MAB was characterized as Apigetrin. Chemical investigation of this plant is very sporadic and this compound was identified for the first time from M. aurea. The comprehensive study on the corrosion inhibitive properties of MAB revealed the following outcomes:
  • The corrosion inhibitive capability of MAB increases with increasing the concentration of MAB, and highest IE (94.0%) was achieved at 0.464 mM.
  • Electrochemical studies demonstrated a mixed-type inhibitor for MAB with the inclining cathodic efficacy.
  • This novel green inhibitor MAB obeys Langmuir adsorption method isotherm, protects MS specimen through physical adsorption route, and process was exothermic and spontaneous.
  • EDS and SEM analysis showed highly improved surface of MS specimen with MAB in corrosive media.
  • Corrosion inhibitive properties evaluation of MAB using different methods such as weight loss, Tafel plots, EIS, SEM, and EDS analysis revealed that MAB has excellent inhibitive properties for MS sample in HCl corrosive environment.
  • Corrosion inhibitive properties of M. aurea extracts and its isolated compound MAB is being reported here for the first time.
  • The consistent results of the electrochemical and weight loss experiments is evident that this green inhibitor can be effectively utilized as a potent corrosion inhibitor for MS in aggressive solution (1.0 M HCl).

Supplementary Materials

The following are available online at https://www.mdpi.com/2071-1050/11/24/7174/s1.

Author Contributions

Conceptualization, M.K. and H.Z.A.; Methodology, M.K., M.M.S.A. and A.M.A.-M.; Software, M.M.S.A.; Validation, M.K., A.M.A.-M. and H.Z.A.; Formal Analysis, M.K. and M.M.S.A.; Investigation, M.K. and M.M.S.A.; Resources, H.Z.A.; Data Curation, M.K. and M.M.S.A.; Writing-Original Draft Preparation, M.K.; Writing-Review & Editing, H.Z.A., M.K. and A.M.A.-M.; Visualization, H.Z.A., M.K., A.M.; Supervision, H.Z.A. and M.K.; Project Administration, H.Z.A. and M.K.; Funding Acquisition, H.Z.A. and M.K.

Funding

This research received no external funding.

Acknowledgments

The authors extend their appreciation to the Deanship of Scientific Research at King Saud University for funding this work through the research group project No. RG-1438-077.

Conflicts of Interest

There are no conflicts of interest to declare.

References

  1. Raja, P.B.; Sethuraman, M.G. Natural products as corrosion inhibitor for metals in corrosive media—A review. Mater. Lett. 2008, 62, 113–116. [Google Scholar] [CrossRef]
  2. Verma, C.; Quraishi, M.; Ebenso, E.E.; Bahadur, I. A green and sustainable approach for mild steel acidic corrosion inhibition using leaves extract: experimental and DFT studies. J. Bio- Tribo-Corros. 2018, 4, 33. [Google Scholar] [CrossRef]
  3. Zaferani, S.H.; Sharifi, M.; Zaarei, D.; Shishesaz, M.R. Application of eco-friendly products as corrosion inhibitors for metals in acid pickling processes–A review. J. Environ. Chem. Eng. 2013, 1, 652–657. [Google Scholar] [CrossRef]
  4. Grassino, A.N.; Halambek, J.; Djaković, S.; Brnčić, S.R.; Dent, M.; Grabarić, Z. Utilization of tomato peel waste from canning factory as a potential source for pectin production and application as tin corrosion inhibitor. Food Hydrocoll. 2016, 52, 265–274. [Google Scholar] [CrossRef]
  5. Elgahawi, H.; Gobara, M.; Baraka, A.; Elthalabawy, W. Eco-friendly corrosion inhibition of AA2024 in 3.5% NaCl using the extract of Linum usitatissimum seeds. J. Bio- Tribo-Corros. 2017, 3, 55. [Google Scholar] [CrossRef]
  6. El-Etre, A.; Abdallah, M.; El-Tantawy, Z. Corrosion inhibition of some metals using lawsonia extract. Corros. Sci. 2005, 47, 385–395. [Google Scholar] [CrossRef]
  7. Finšgar, M.; Jackson, J. Application of corrosion inhibitors for steels in acidic media for the oil and gas industry: A review. Corros. Sci. 2014, 86, 17–41. [Google Scholar] [CrossRef] [Green Version]
  8. Prabakaran, M.; Kim, S.H.; Hemapriya, V.; Gopiraman, M.; Kim, I.S.; Chung, I.M. Rhus verniciflua as a green corrosion inhibitor for mild steel in 1 M H2SO4. RSC Adv. 2016, 6, 57144–57153. [Google Scholar] [CrossRef]
  9. Prabakaran, M.; Kim, S.H.; Sasireka, A.; Hemapriya, V.; Chung, I.M. β-Sitosterol isolated from rice hulls as an efficient corrosion inhibitor for mild steel in acidic environments. New J. Chem. 2017, 41, 3900–3907. [Google Scholar] [CrossRef]
  10. Marzorati, S.; Verotta, L.; Trasatti, S.P. Green corrosion inhibitors from natural sources and biomass wastes. Molecules 2019, 24, 48. [Google Scholar] [CrossRef] [Green Version]
  11. Qiang, Y.; Zhang, S.; Tan, B.; Chen, S. Evaluation of Ginkgo leaf extract as an eco-friendly corrosion inhibitor of X70 steel in HCl solution. Corros. Sci. 2018, 133, 6–16. [Google Scholar] [CrossRef]
  12. Umoren, S.A.; Solomon, M.M.; Obot, I.B.; Suleiman, R.K. Comparative studies on the corrosion inhibition efficacy of ethanolic extracts of date palm leaves and seeds on carbon steel corrosion in 15% HCl solution. J. Adhes. Sci. Technol. 2018, 32, 1934–1951. [Google Scholar] [CrossRef]
  13. Ehsani, A.; Mahjani, M.; Hosseini, M.; Safari, R.; Moshrefi, R.; Shiri, H.M. Evaluation of Thymus vulgaris plant extract as an eco-friendly corrosion inhibitor for stainless steel 304 in acidic solution by means of electrochemical impedance spectroscopy, electrochemical noise analysis and density functional theory. J. Colloid Interface Sci. 2017, 490, 444–451. [Google Scholar] [CrossRef] [PubMed]
  14. Deyab, M.; Osman, M.; Elkholy, A.; Heakal, F.E.T. Green approach towards corrosion inhibition of carbon steel in produced oilfield water using lemongrass extract. RSC Adv. 2017, 7, 45241–45251. [Google Scholar] [CrossRef] [Green Version]
  15. Anupama, K.; Ramya, K.; Shainy, K.; Joseph, A. Adsorption and electrochemical studies of Pimenta dioica leaf extracts as corrosion inhibitor for mild steel in hydrochloric acid. Mater. Chem. Phys. 2015, 167, 28–41. [Google Scholar] [CrossRef]
  16. Lecante, A.; Robert, F.; Blandinières, P.; Roos, C. Anti-corrosive properties of S. tinctoria and G. ouregou alkaloid extracts on low carbon steel. Curr. Appl. Phys. 2011, 11, 714–724. [Google Scholar] [CrossRef]
  17. Li, L.; Xu, W.; Lei, J.; Wang, J.; He, J.; Li, N.; Pan, F. Experimental and theoretical investigations of Michelia alba leaves extract as a green highly-effective corrosion inhibitor for different steel materials in acidic solution. RSC Adv. 2015, 5, 93724–93732. [Google Scholar] [CrossRef]
  18. Chaussemier, M.; Pourmohtasham, E.; Gelus, D.; Pécoul, N.; Perrot, H.; Lédion, J.; Cheap-Charpentier, H.; Horner, O. State of art of natural inhibitors of calcium carbonate scaling. A review article. Desalination 2015, 356, 47–55. [Google Scholar] [CrossRef]
  19. Rani, B.; Basu, B.B.J. Green inhibitors for corrosion protection of metals and alloys: an overview. Int. J. Corros. 2012, 2012, 1–15. [Google Scholar] [CrossRef]
  20. Alkhathlan, H.; Khan, M.; Abdullah, M.; AlMayouf, A.; Badjah-Hadj-Ahmed, A.Y.; AlOthman, Z.; Mousa, A. Anticorrosive assay-guided isolation of active phytoconstituents from Anthemis pseudocotula extracts and a detailed study of their effects on the corrosion of mild steel in acidic media. RSC Adv. 2015, 5, 54283–54292. [Google Scholar] [CrossRef]
  21. Khan, M.; Khan, S.T.; Khan, N.A.; Mahmood, A.; Al-Kedhairy, A.A.; Alkhathlan, H.Z. The composition of the essential oil and aqueous distillate of Origanum vulgare L. growing in Saudi Arabia and evaluation of their antibacterial activity. Arab. J. Chem. 2018, 11, 1189–1200. [Google Scholar] [CrossRef]
  22. Khan, M.; Garg, A.; Srivastava, S.; Darokar, M. A cytotoxic agent from Strychnos nux-vomica and biological evaluation of its modified analogues. Med. Chem. Res. 2012, 21, 2975–2980. [Google Scholar] [CrossRef]
  23. Alkhathlan, H.Z.; Khan, M.; Abdullah, M.M.; Al-Mayouf, A.M. Method of Protecting Metal From Corrosion Using Plant Derived Anti-Corrosion Agent. U.S. Patent No. 9,988,726, 5 June 2018. [Google Scholar]
  24. Hudaib, M.; Mohammad, M.; Bustanji, Y.; Tayyem, R.; Yousef, M.; Abuirjeie, M.; Aburjai, T. Ethnopharmacological survey of medicinal plants in Jordan, Mujib Nature Reserve and surrounding area. J. Ethnopharmacol. 2008, 120, 63–71. [Google Scholar] [CrossRef] [PubMed]
  25. Qnais, E. The analgesic effect of the ethanolic extract of Matricaria aurea. Turk. J. Biol. 2011, 35, 347–352. [Google Scholar]
  26. Moussaoui, F.; Zellagui, A.; Segueni, N.; Touil, A.; Rhouati, S. Flavonoid constituents from Algerian Launaea resedifolia (OK) and their antimicrobial activity. Rec. Nat. Prod. 2010, 4, 91–95. [Google Scholar]
  27. Bothi Raja, P.; Sethuraman, M. Strychnos nux-vomica an eco-friendly corrosion inhibitor for mild steel in 1 M sulfuric acid medium. Mater. Corros. 2009, 60, 22–28. [Google Scholar] [CrossRef]
  28. Yurt, A.; Ulutas, S.; Dal, H. Electrochemical and theoretical investigation on the corrosion of aluminium in acidic solution containing some Schiff bases. Appl. Surf. Sci. 2006, 253, 919–925. [Google Scholar] [CrossRef]
  29. Ahamad, I.; Prasad, R.; Quraishi, M. Adsorption and inhibitive properties of some new Mannich bases of Isatin derivatives on corrosion of mild steel in acidic media. Corros. Sci. 2010, 52, 1472–1481. [Google Scholar] [CrossRef]
  30. Gopiraman, M.; Sakunthala, P.; Kesavan, D.; Alexramani, V.; Kim, I.; Sulochana, N. An investigation of mild carbon steel corrosion inhibition in hydrochloric acid medium by environment friendly green inhibitors. J. Coat. Technol. Res. 2012, 9, 15–26. [Google Scholar] [CrossRef]
  31. Elayyachy, M.; El Idrissi, A.; Hammouti, B. New thio-compounds as corrosion inhibitor for steel in 1 M HCl. Corros. Sci. 2006, 48, 2470–2479. [Google Scholar] [CrossRef]
  32. Khaled, K.; Al-Qahtani, M. The inhibitive effect of some tetrazole derivatives towards Al corrosion in acid solution: Chemical, electrochemical and theoretical studies. Mater. Chem. Phys. 2009, 113, 150–158. [Google Scholar] [CrossRef]
  33. Quraishi, M.; Singh, A.; Singh, V.K.; Yadav, D.K.; Singh, A.K. Green approach to corrosion inhibition of mild steel in hydrochloric acid and sulphuric acid solutions by the extract of Murraya koenigii leaves. Mater. Chem. Phys. 2010, 122, 114–122. [Google Scholar] [CrossRef]
  34. Bentiss, F.; Lagrenée, M.; Elmehdi, B.; Mernari, B.; Traisnel, M.; Vezin, H. Electrochemical and quantum chemical studies of 3, 5-di (n-tolyl)-4-amino-1, 2, 4-triazole adsorption on mild steel in acidic media. Corrosion 2002, 58, 399–407. [Google Scholar] [CrossRef]
  35. Ghali, E.; Sastri, V.S.; Elboujdaini, M. Corrosion Prevention and Protection: Practical Solutions; John Wiley & Sons: West Sussex, UK, 2007. [Google Scholar]
  36. Cheng, S.; Chen, S.; Liu, T.; Chang, X.; Yin, Y. Carboxymenthylchitosan as an ecofriendly inhibitor for mild steel in 1 M HCl. Mater. Lett. 2007, 61, 3276–3280. [Google Scholar] [CrossRef]
  37. Özcan, M. AC impedance measurement of cystine adsorption at mild steel/sulfuric acid interface as corrosion inhibitor. J. Solid State Electrochem. 2008, 12, 1653–1661. [Google Scholar] [CrossRef]
  38. Hussin, M.H.; Kassim, M.J. The corrosion inhibition and adsorption behavior of Uncaria gambir extract on mild steel in 1 M HCl. Mater. Chem. Phys. 2011, 125, 461–468. [Google Scholar] [CrossRef]

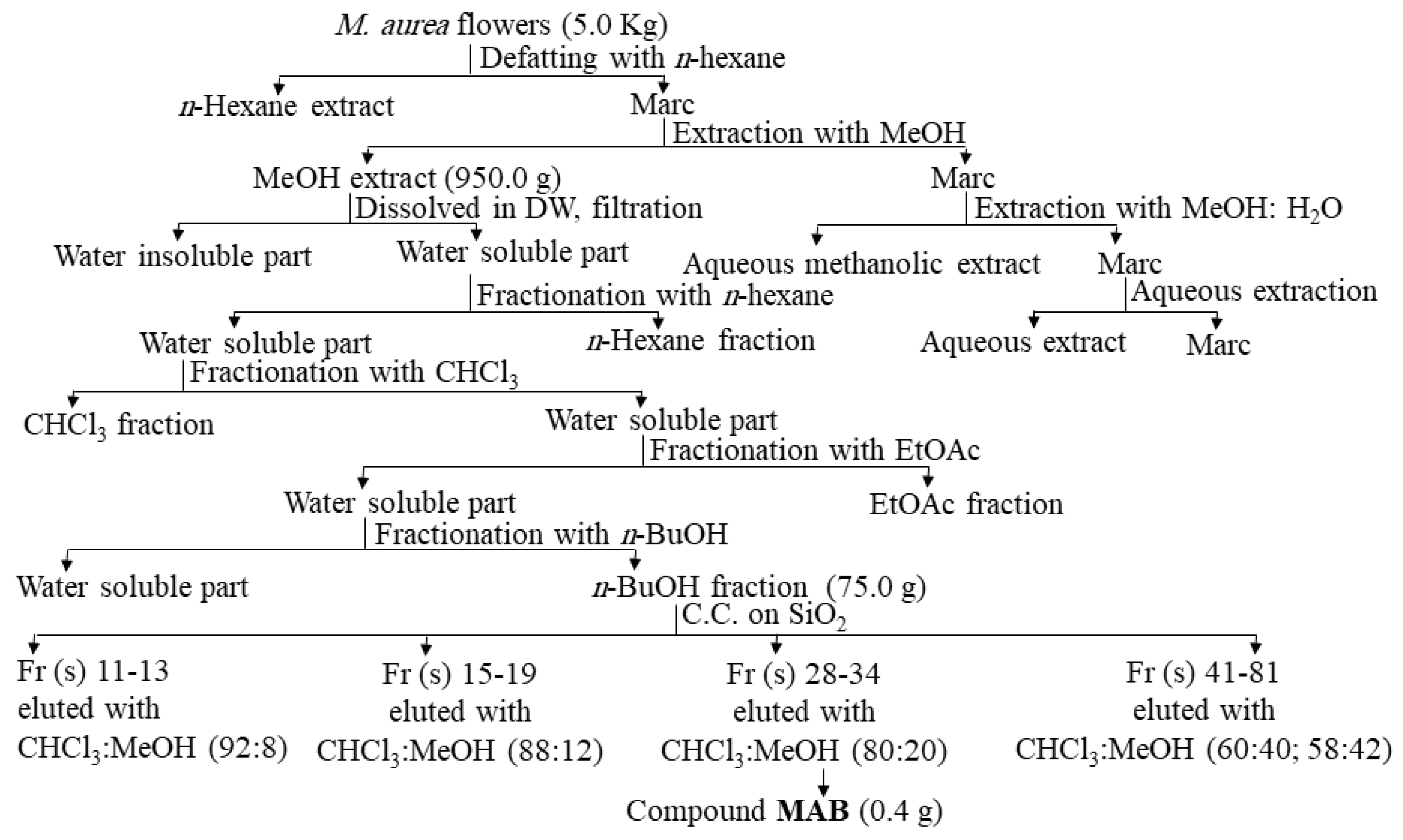

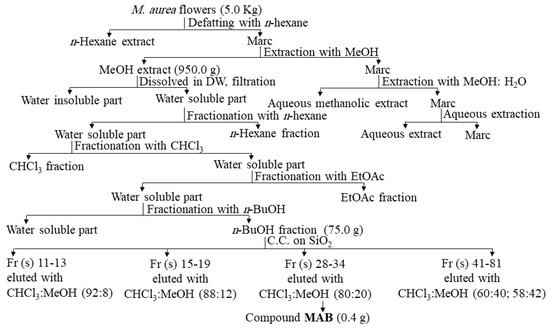

Figure 1. Activity-guided isolation of anticorrosive agent MAB.
Figure 1. Activity-guided isolation of anticorrosive agent MAB.
Sustainability 11 07174 g001

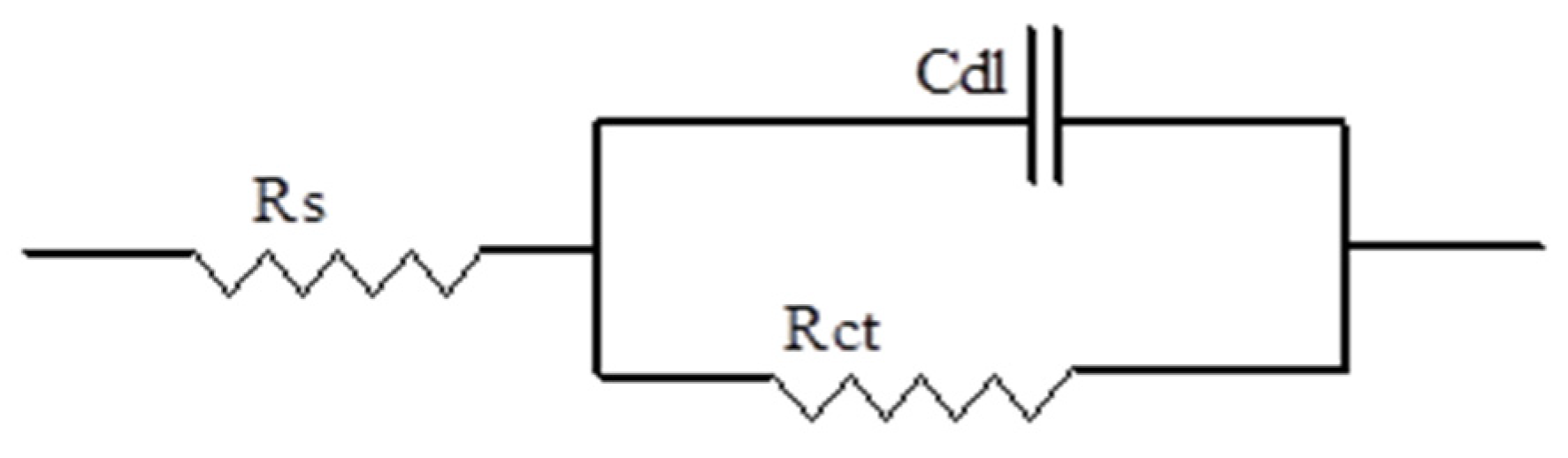

Figure 2. The circuit (electrical equivalent) for AC impedance calculation.
Figure 2. The circuit (electrical equivalent) for AC impedance calculation.
Sustainability 11 07174 g002

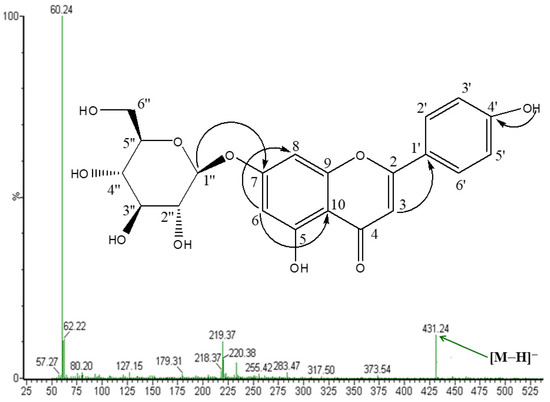

Figure 3. HMBC correlations, mass spectrum, and chemical structure of MAB.
Figure 3. HMBC correlations, mass spectrum, and chemical structure of MAB.
Sustainability 11 07174 g003

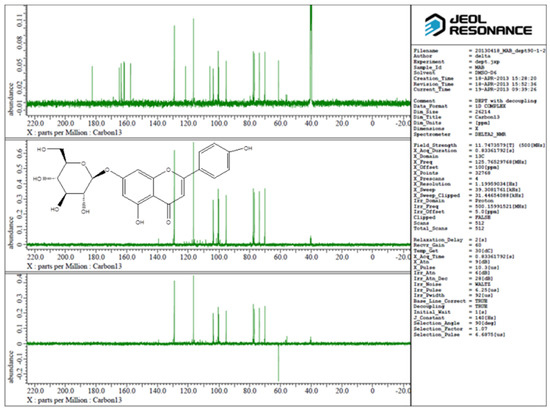

Figure 4. DEPT spectrum of MAB.
Figure 4. DEPT spectrum of MAB.
Sustainability 11 07174 g004

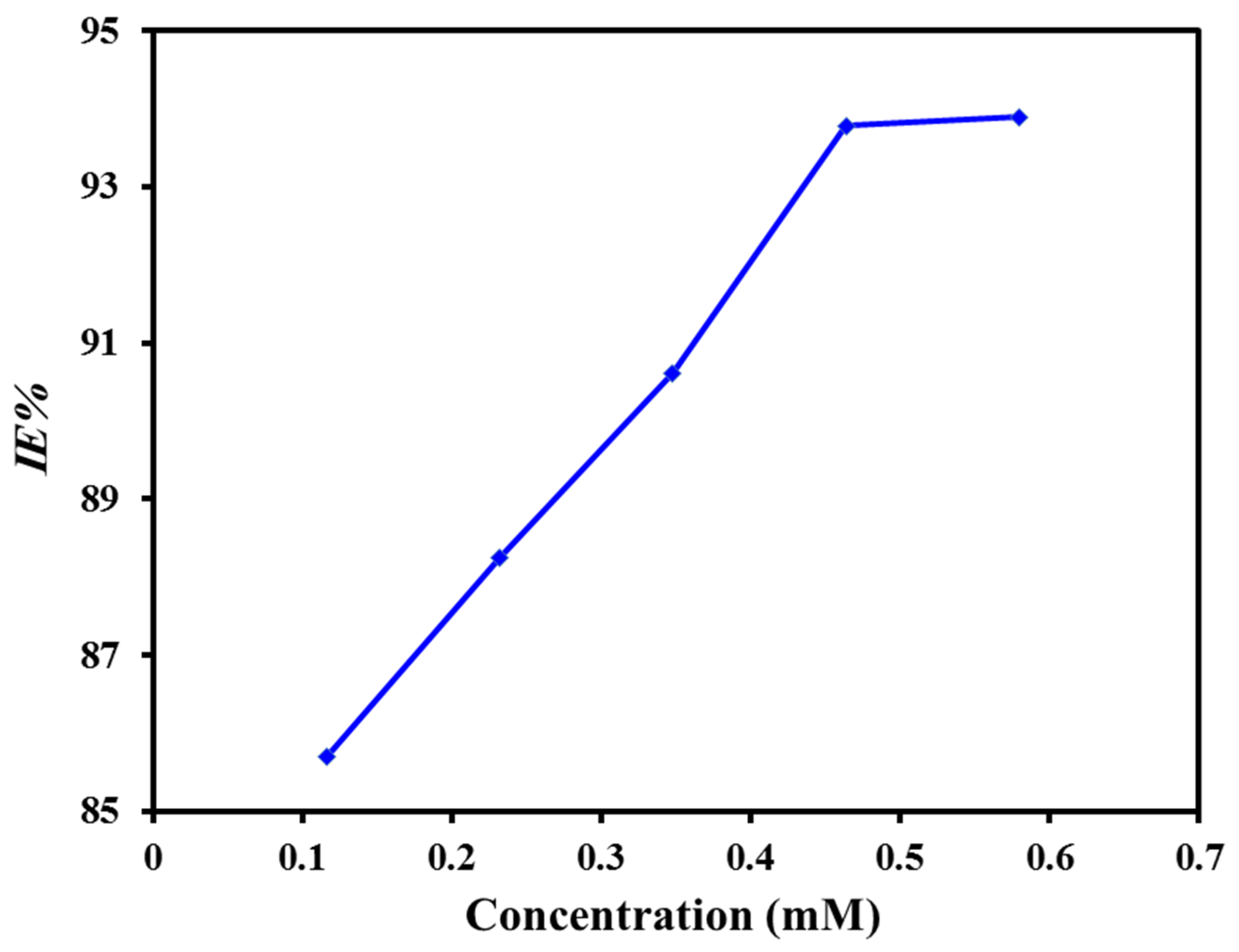

Figure 5. The inhibition efficiency variant vs. MAB concentration.
Figure 5. The inhibition efficiency variant vs. MAB concentration.
Sustainability 11 07174 g005

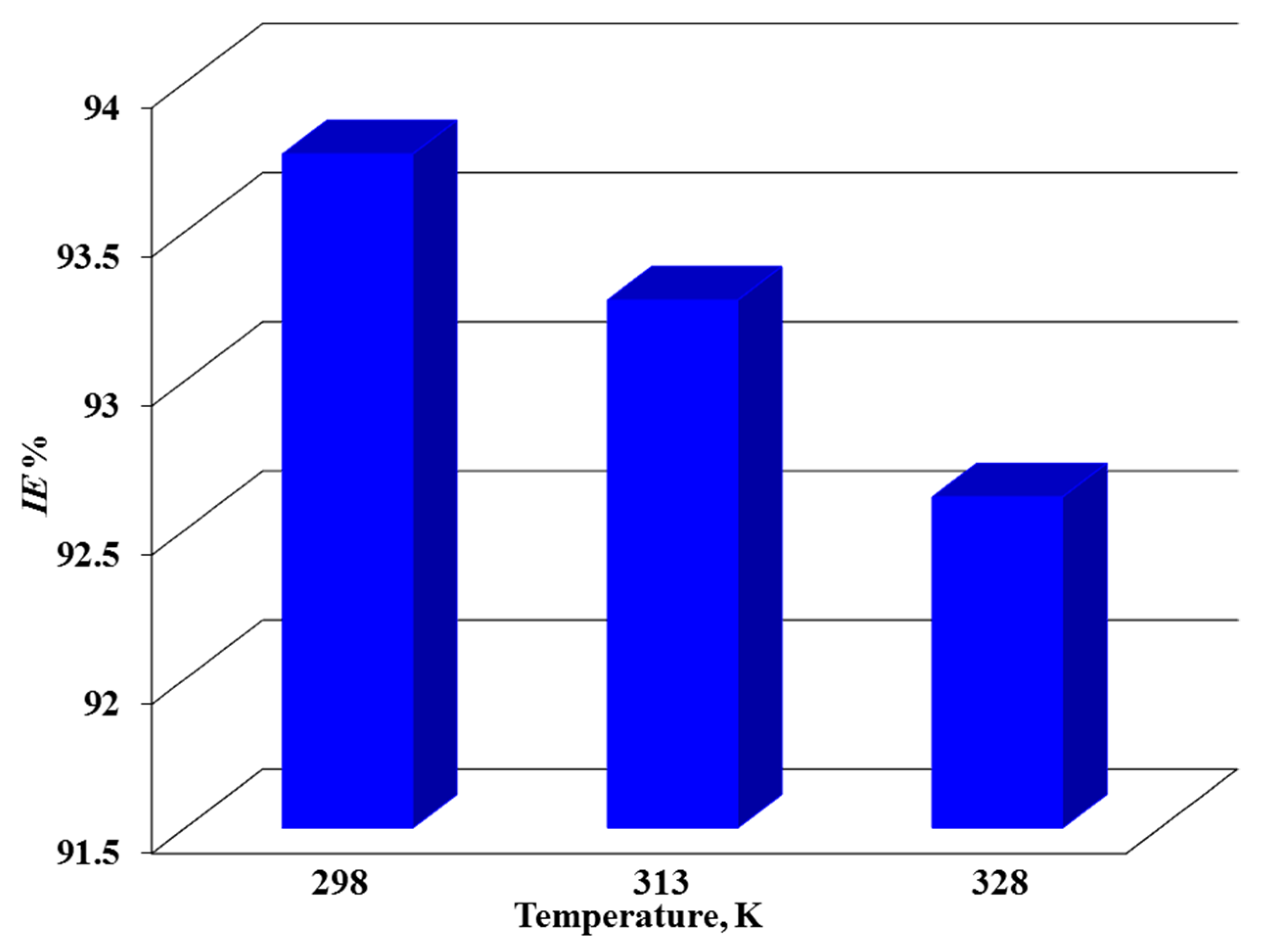

Figure 6. The inhibition efficiency variant vs. solution temperature of MAB (0.464 mM).
Figure 6. The inhibition efficiency variant vs. solution temperature of MAB (0.464 mM).
Sustainability 11 07174 g006

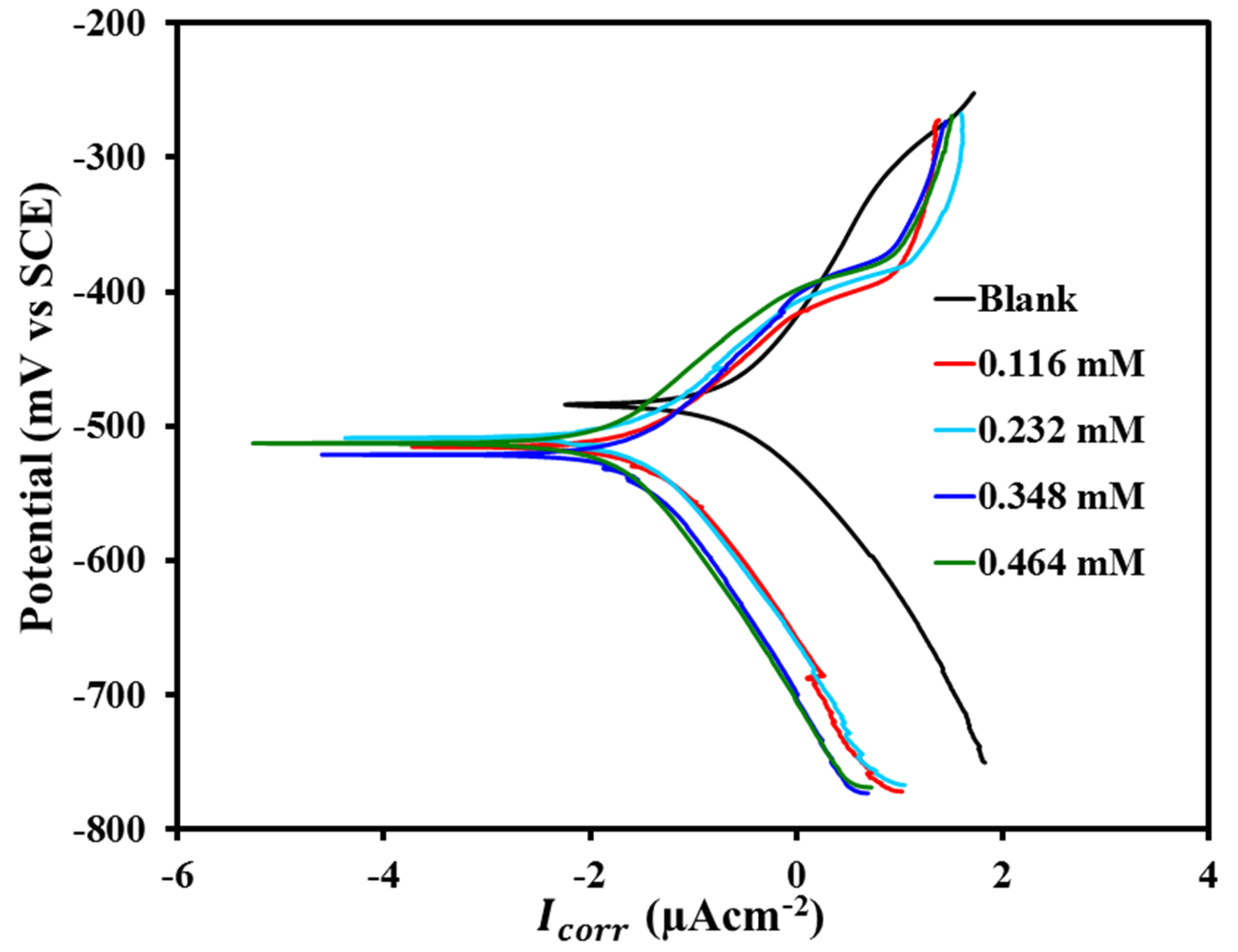

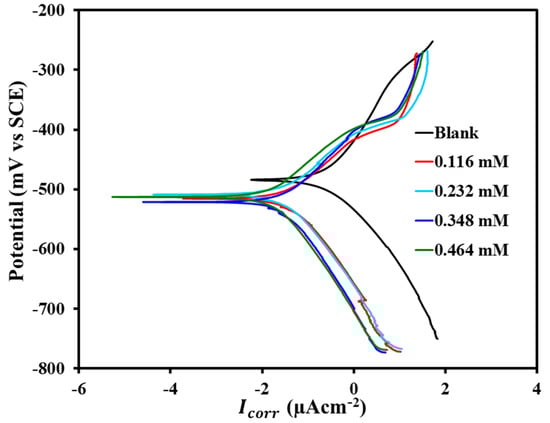

Figure 7. Tafel plots with or without various concentrations of MAB.
Figure 7. Tafel plots with or without various concentrations of MAB.
Sustainability 11 07174 g007

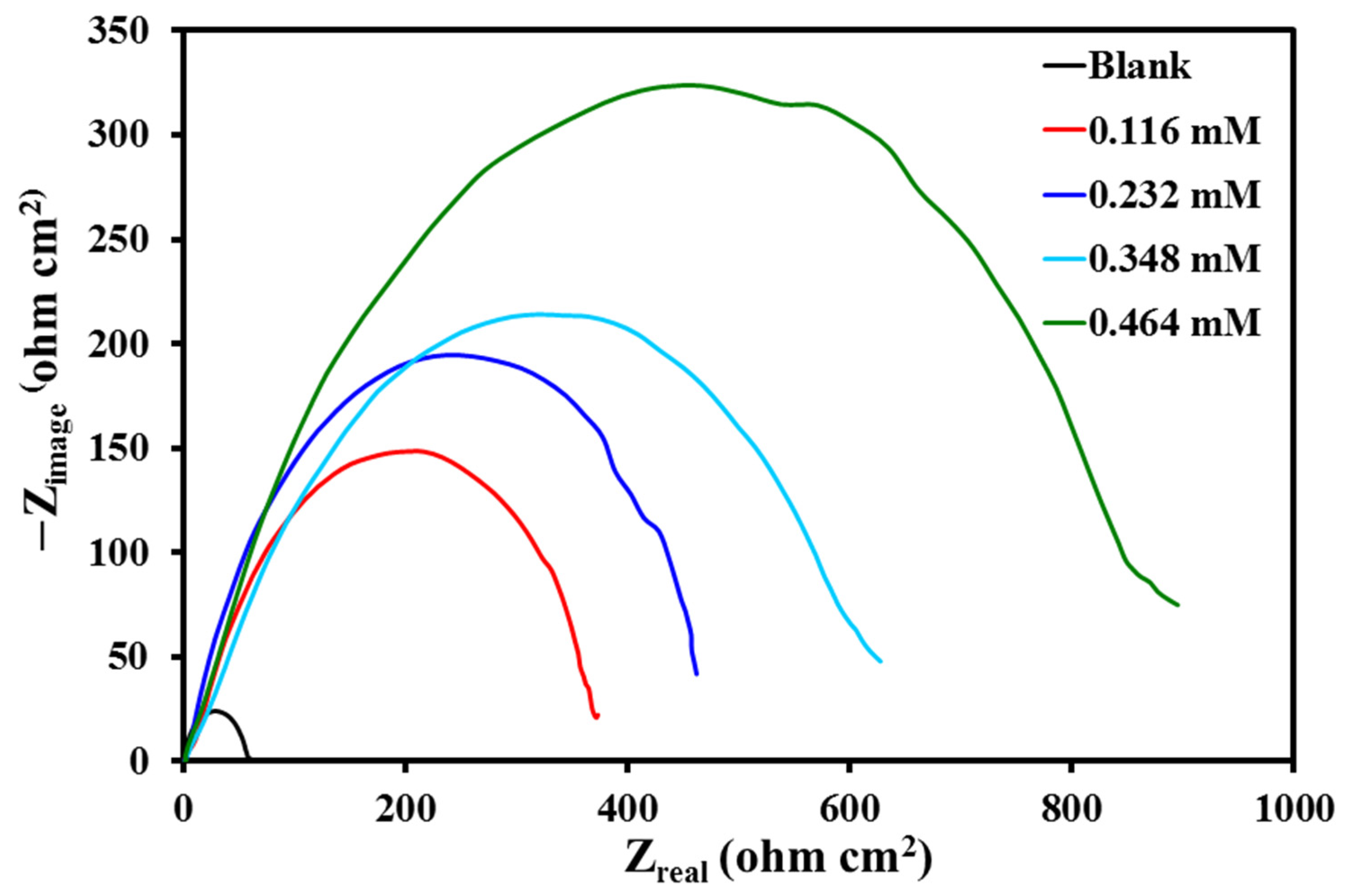

Figure 8. Nyquist plots in the absence and presence of different quantities of MAB.
Figure 8. Nyquist plots in the absence and presence of different quantities of MAB.
Sustainability 11 07174 g008

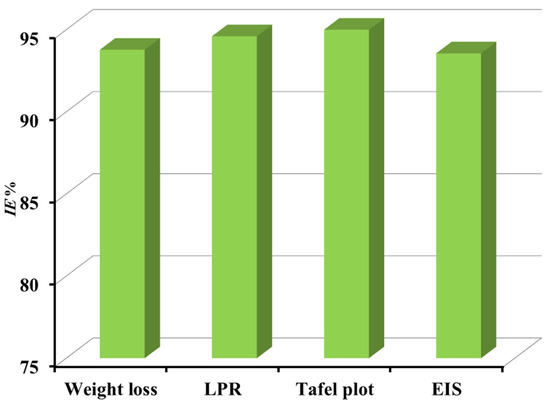

Figure 9. Comparison of I E achieved from numerous methods at optimal concentration of MAB.
Figure 9. Comparison of I E achieved from numerous methods at optimal concentration of MAB.
Sustainability 11 07174 g009

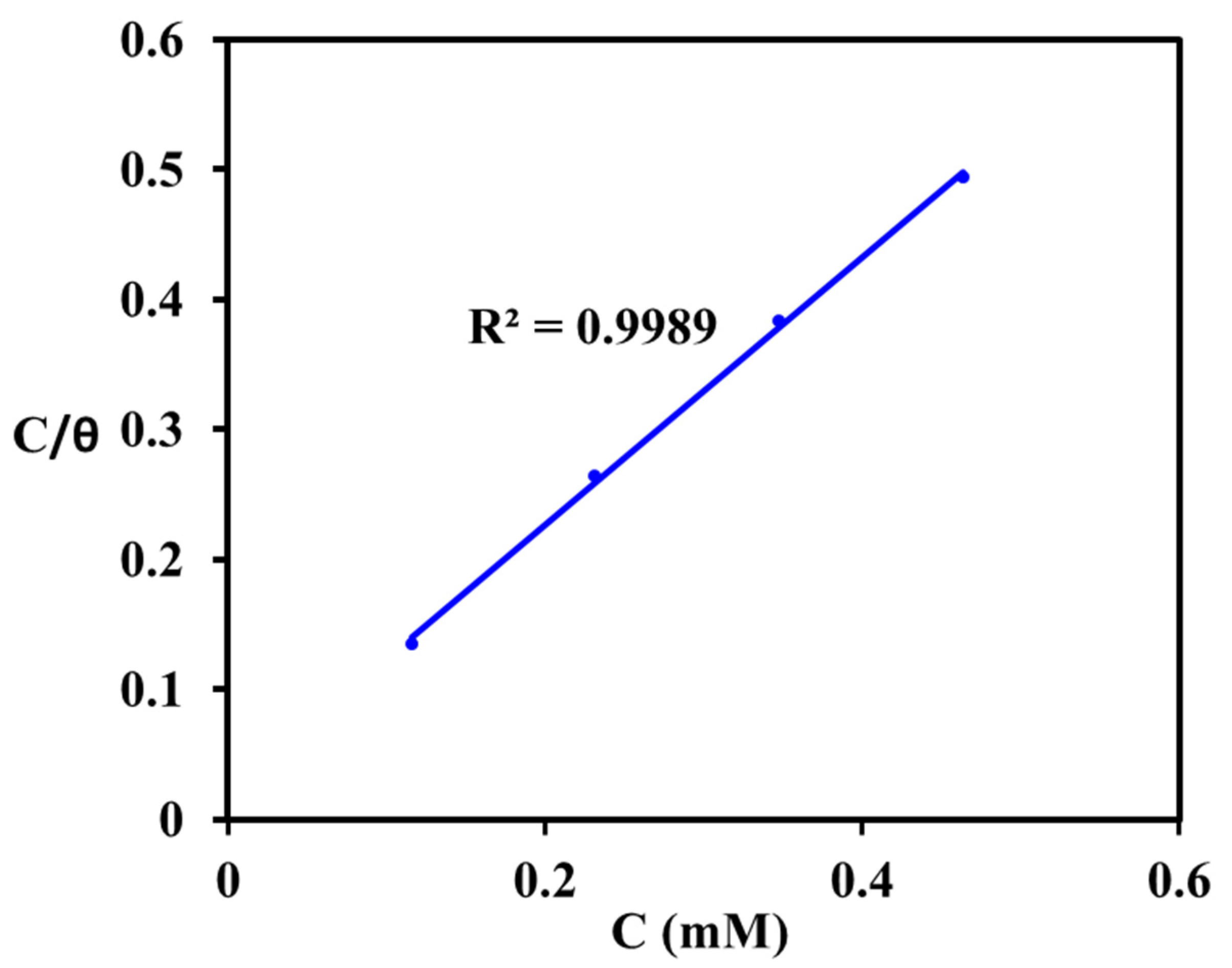

Figure 10. Langmuir isotherm with various MAB concentrations.
Figure 10. Langmuir isotherm with various MAB concentrations.
Sustainability 11 07174 g010
Figure 11. SEM images of (a) smoothed MS specimen, (b) MS specimen in corrosive solution, (c) MS specimen in corrosive solution with MAB (0.464 mM).
Figure 11. SEM images of (a) smoothed MS specimen, (b) MS specimen in corrosive solution, (c) MS specimen in corrosive solution with MAB (0.464 mM).
Sustainability 11 07174 g011
Figure 12. EDS of (a) smoothed MS specimen, (b) MS specimen in corrosive solution, (c) MS specimen in corrosive solution with MAB (0.464 mM).
Figure 12. EDS of (a) smoothed MS specimen, (b) MS specimen in corrosive solution, (c) MS specimen in corrosive solution with MAB (0.464 mM).
Sustainability 11 07174 g012
Table 1. The corrosive inhibitive properties of MAB for MS in 1.0 M HCl from weight loss measurements at 298 ± 1 K.
Table 1. The corrosive inhibitive properties of MAB for MS in 1.0 M HCl from weight loss measurements at 298 ± 1 K.
Concentration of Inhibitor (mM)Weight Loss (g)Surface Coverage ( θ ) Corrosion Rate C R ( mm   year 1 ) I E   %
0 (Blank)0.2587-0.1354-
0.1160.03700.860.019485.70 ± 0.84
0.2320.03040.880.015988.25 ± 0.98
0.3480.02430.910.012790.61 ± 0.83
0.4640.01610.940.008493.78 ± 0.91
0.5800.01580.940.008393.89 ± 0.95
Table 2. The corrosive inhibitive properties of MAB (0.464 mM) at different temperatures for the MS corrosion in 1.0 M HCl.
Table 2. The corrosive inhibitive properties of MAB (0.464 mM) at different temperatures for the MS corrosion in 1.0 M HCl.
Temperatures (K)Weight Loss (g)Surface Coverage ( θ ) Corrosion Rate C R ( mm   year 1 ) I E   %
298 ± 10.01610.940.008493.78 ± 0.91
313 ± 10.01740.930.009193.27 ± 0.85
328 ± 10.02580.930.013590.03 ± 1.02
Table 3. Potentiodynamic polarization parameters from Tafel plots with different concentrations of MAB.
Table 3. Potentiodynamic polarization parameters from Tafel plots with different concentrations of MAB.
MAB Concentration (mM) E c o r r (mV) I c o r r (µAcm) β a (mV/dec) β c (mV/dec) R p I E   % Tafel I E   % LPR
0 (Blank) 486.6213.099.85 110.7354.5--
0.116 515.529.057.31 73.42339.6486.3883.95
0.232 508.723.461.16 75.90499.1889.0189.08
0.348 521.819.859.25 80.71576.3990.7090.54
0.464 513.510.263.41 83.62907.0295.2194.00
Table 4. EIS parameters derived from the Nyquist plots for the MS corrosion in 1.0 M HCl with various concentrations of MAB.
Table 4. EIS parameters derived from the Nyquist plots for the MS corrosion in 1.0 M HCl with various concentrations of MAB.
Concentration (mM) R c t   (   cm 2 ) C d l   ( µ F   cm 2 ) θ I E %
0 (Blank)57.1533.0--
0.116385.0352.30.8585.17
0.232479.7348.20.8888.10
0.348634.0222.30.9191.00
0.464886.4118.40.9493.56
Table 5. Δ G a d s ° , Δ H a d s ° and Δ S a d s ° values for MS in 1.0 M HCl with MAB (0.464 mM).
Table 5. Δ G a d s ° , Δ H a d s ° and Δ S a d s ° values for MS in 1.0 M HCl with MAB (0.464 mM).
Compound Δ G a d s °   ( kJ   mol 1 ) Δ H a d s °   ( kJ   mol 1 ) Δ S a d s °   ( J   K 1 )
MAB 19.6610.23 31.64

Share and Cite

MDPI and ACS Style

Khan, M.; Abdullah, M.M.S.; Mahmood, A.; Al-Mayouf, A.M.; Alkhathlan, H.Z. Evaluation of Matricaria aurea Extracts as Effective Anti-Corrosive Agent for Mild Steel in 1.0 M HCl and Isolation of Their Active Ingredients. Sustainability 2019, 11, 7174. https://doi.org/10.3390/su11247174

AMA Style

Khan M, Abdullah MMS, Mahmood A, Al-Mayouf AM, Alkhathlan HZ. Evaluation of Matricaria aurea Extracts as Effective Anti-Corrosive Agent for Mild Steel in 1.0 M HCl and Isolation of Their Active Ingredients. Sustainability. 2019; 11(24):7174. https://doi.org/10.3390/su11247174

Chicago/Turabian Style

Khan, Merajuddin, Mahmood M. S. Abdullah, Adeem Mahmood, Abdullah M. Al-Mayouf, and Hamad Z. Alkhathlan. 2019. "Evaluation of Matricaria aurea Extracts as Effective Anti-Corrosive Agent for Mild Steel in 1.0 M HCl and Isolation of Their Active Ingredients" Sustainability 11, no. 24: 7174. https://doi.org/10.3390/su11247174

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
