Influencing Indicators and Quantitative Assessment of Water Resources Security in Karst Region Based on PSER Model—The Case of Guizhou

Abstract

An important basis to achieve a sustainable balance between water availability and demand is effectively identifying the factors affecting water resource security and evaluating the effectiveness of existing water resource management measures. To reasonably evaluate water resource security in Guizhou Province, this study combined the water resource security features, selected the indicator system based on the Press–Status–Effect–Response (PSER) framework, and used Technique for Order Preference by Similarity to an Ideal Solution (TOPSIS) and grey correlation analysis for the province from 2001 to 2015. This allowed us to identify the main driving factors affecting water resource security. The results showed that: (1) Water resource security in Guizhou Province showed an overall trend of improvement from 2001 to 2015 and reached a maximum index of 0.57 in 2015. This amelioration in water security was mainly due to the continuous improvement of the response and effect subgroup as a result of improvements in its existing subgroup factors (policies), such as water consumption per unit of gross domestic product (GDP), the proportion of water conservancy investment, and the proportion of the tertiary industry. Increased water stress due to rapid economic development, such as water supply for the reservoir, and the instability of the status subgroup, were the main factors negatively affecting water resource security. (2) Reduction of water consumption per USD of industrial value added, the control force of water and soil erosion being strengthened, and investment in water resources being increased, are the key factors for achieving water resource security in Guizhou during this period of rapid social and economic development. This indicates that the existing water resource management measures have been improving water resource security. The management measures need to be further improved in the future to protect water resource.

1. Introduction

Water is a basic resource, essential for the stability of ecological environment and the stable development of the social economy [1,2]. With the rapid development of human society and the economy, and the rapid growth of population, water resource security issues, such as rapid increases in the demand for water resources, and shortages and pollution of water resources, have become increasingly prominent and a global focus [3]. In the study of water security, water resource security is the most important theme [4]. The study of water resource security mainly includes: the scope of water security [5,6], water security measurement [7,8], water resource security assessment [9,10] and water resource management [11,12]. Of these, water resource security assessment is the key content of water resource security research. The water resource system is closely related to the social and economic systems, and is the foundation of sustainable development of the social and economic systems. For example, water scarcity often arises from deep-seated socioeconomic issues such as food security [13]. Water scarcity has triggered a series of socioeconomic problems: approximately 800 million people worldwide lack access to clean, fresh water and two billion people lack safe water [14]. Therefore, water resource security assessment as the foundation of water resource management has become the focus of over the world research.

At present, the study of water resource security assessment mainly focuses on arid climate areas in traditional understanding, while there are relatively few achievements in humid climate areas. The study of water resource security assessment is mainly through the establishment of evaluation indicators [10,15]. From the perspective of water security assessment, research is mainly focused on the balance of supply and demand of water resources [16,17], water resource carrying capacity in regions [18,19], and the water footprint of regional water security assessment [20,21]. The selection of water resource security evaluation indicators focuses on regional socioeconomic development, population growth, water resource quality, and other aspects, with a particular emphasis on water resource security state evaluation. Unfortunately, insufficient attention has been paid to human-related policy responses in water resource security assessment studies, leading to insufficient direct effects of relevant research results on improving regional water resource security, and even having a negative impact on water resource security. Water security in the 21st century needs to better connect science with policy, innovative, and cross-sectoral initiatives, adaptive management, and multi-central governance models that involve all stakeholders [3]. Water security issues will shift “beyond infrastructure” to more effective water management key strategies, including governance and social learning [22]. According to the traditional understanding, water resource security problems are mainly in arid and semi-arid areas. However, serious and more complicated water resource security problems exist in karst areas in southwest China, which are in a subtropical humid climate area. Water resource security is not only directly related to the rapid development of a regional social economy, but also affected by the special karst hydrogeological environment. At the same time, the geological environment factors have “amplified response” to unreasonable human behaviors in karst areas in southwest China, such as water resource pollution. There are significant differences between water resource security and water resource management in karst areas of southwest China, and arid and semi-arid areas. Therefore, it is of great significance to clarify the characteristics of water resource management in karst areas of southwest China as well as other karst areas in the world.

Guizhou is in the core of the karst area in southwest China, which is one of the three major distributed areas of karst in the world. In recent years, social and economic development has been rapid, with average annual gross domestic product (GDP) growth of 11.8% from 2001 to 2015, and water shortages and other problems have emerged. Therefore, this article selects Guizhou Province as a research case; carries out the study of water resource security evaluation; discusses the evolution of water resource security, its main influencing factors and its mechanism against the background of the rapid development of the special hydrogeological environment and social economy in karst in southwest China; and further evaluates the efficiency of human response measures. It has important practical value for improving water resource management. It is of great reference value to further understand water resource security in the karst region of southwest China and other karst regions in the world.

This paper is organized into six parts. Section 1 comprises the above introduction. Section 2 presents the study area, and Section 3 introduces the materials and methods. Section 4 presents the results, Section 5 presents the discussion, and finally, the conclusions and recommendations are provided in Section 6.

2. Study Area

Guizhou Province is in the hinterland of China’s southwest (24°~30° N, 103°~110° E), and has a subtropical humid monsoon climate with abundant rainfall. The average annual rainfall from 2001 to 2015 was 1096.69 mm/year and drainage density was 0.563 km/km². Guizhou is the district where the degree of relief is large; 61.7% is mountainous land, 30.8% is covered in hills, and 7.5% is covered by flatlands situated between the mountains. The area of Guizhou Province is 176 thousand square kilometers, and the total population of the province is 35.28 million. Due to the flat area is small and scattered, the population density of the actual residence is much larger than the average population density of Guizhou Province [23]. The proportions of forest land, grassland, water area, agricultural land and other land were 51.7%, 16.18%, 1.95%, 28.77% and 1.4%, respectively, in 2014 [23]. Moreover, the exploitation and utilization of water resources is difficult because the development of karst landforms is extensive (61.9%), and the forest coverage rate is low. At the same time, the strong karstification has formed a large number of above-ground karst landforms, such as dissolved furrows and dissolved gaps, and underground karst landforms, such as karst caves. Above-ground and underground karst landforms form a double-layer water storage structure, which leads to rapid ground water and surface water exchange, and in which the water culvert capacity is weak. However, due to insufficient investment in water conservancy, which leads to a small number of water conservancy facilities such as reservoirs, abundant precipitation cannot be effectively stored and used, resulting in “engineering” water shortage. Study area location in China and the existing water sources can be seen in Figure 1.

The average annual GDP growth rate was 12.5% from 2011 to 2015, and the GDP reached USD 168.615 billion (USD/CNY exchange rate 2015) in 2015. There are new opportunities for economic development in Guizhou Province due to the advancement of urbanization, industrialization, and agricultural modernization; the development of cultural tourism; and integration into the “Belt and Road” initiative and the Yangtze River Economic Belt. The amount of water required has increased substantially with the continuous growth of the economy. It is estimated that the demand for water in the province will reach 15.94 billion m³ in 2020, while the water supply capacity of the province’s water conservancy projects was expected to be only 11 billion m³ in 2015, with a per capita water supply of 264 m³ (only 58% of the national average). In addition, the engineering water shortage remains serious [24].

3. Materials and Methods

3.1. Materials

The data were obtained mainly from the following sources: The Guizhou Statistical Yearbook (2002–2016) published by the Guizhou Province Statistics Bureau [25]; the Water Resources Bulletin of Guizhou Province (2001–2015) published by the Guizhou Water Resource Bureau [26]; the Environmental Statistics Bulletin of Guizhou Province (2001–2015) published by the Guizhou Environmental Protection Bureau [27]; and the Statistical Communique of Guizhou’s National Economic and Social Development (2001–2015) published by the Guizhou Province Statistics Bureau [28].

3.2. Methods

The water resource system is an open multi-factor comprehensive system with many aspects, including resources, ecology, and the social economy. It is a grey system because the information for each factor is uncertain and incomplete [29,30]. Water resource security should select appropriate research methods based on regional resources, the ecology, socioeconomic data, and other characteristics. The PSER model was used because it includes four subgroups—pressure, status, effect, and response—from which the corresponding index system which can cover regional resources, the ecology, socioeconomic data, and other characteristics is constructed. This was combined with the Technique for Order Preference by Similarity to an Ideal Solution (TOPSIS) [31] and the grey relational comprehensive model to evaluate water resource security changes in Guizhou Province from 2001 to 2015 and to clarify the main influencing factors.

3.2.1. Construction of PSER Theoretical Framework

The press-status-response (PSR) model was jointly proposed by the United Nations Environment Program (UNEP) and Organization for Economic Co-operation and Development (OECD) [32]. It has been widely used in the field of environmental issues [33,34]. In the assessment of water resource security, the PSR model fairly reflects the interaction between human beings and the environment, but poorly portrays the effect of human responses to environmental pressure [35]. A special double-layer water storage structure exists in the southwest karst area, which leads to rapid ground water and surface water exchange. The karst water resource system is highly sensitive and vulnerable because of its special hydrological environment [36]. Thus, karst water systems vary significantly because of factors such as stress and human response activities. Therefore, it is of great value to clarify the effect of human response activities and other factors on water resource systems for timely adjustment of water resource management measures in karst areas.

The water resource system is a dynamic balance system. The regional natural environment is the foundation of the water resource system. Against a background in which external interference is minimal or absent, the status of the water resource system basically reflects the natural status of the water resource system. When the water resource system is subject to strong external interference, such as human activities, the status of the water resource system will change and show a certain response to the external interference. For example, river water pollution caused by discharge of pollutants affects human welfare, so humans will respond to river water pollution to improve the environment. In the process of increasing influence of human activities, the dynamic equilibrium status of water resources continues to change. When the influence exceeds the resilience threshold of the water resource system, the dynamic equilibrium will be broken, and a new equilibrium status will be formed in the system [37]. This framework provides an analysis tool to eliminate the adverse impact of human activities on water resources and improve water resource management measures because it better describes the water system in a process of dynamic change affected by human activities; specifically, it clearly considers what has happened (pressure), what has changed (status), what is the effect (effect), and the logic of human response (response) (Figure 2).

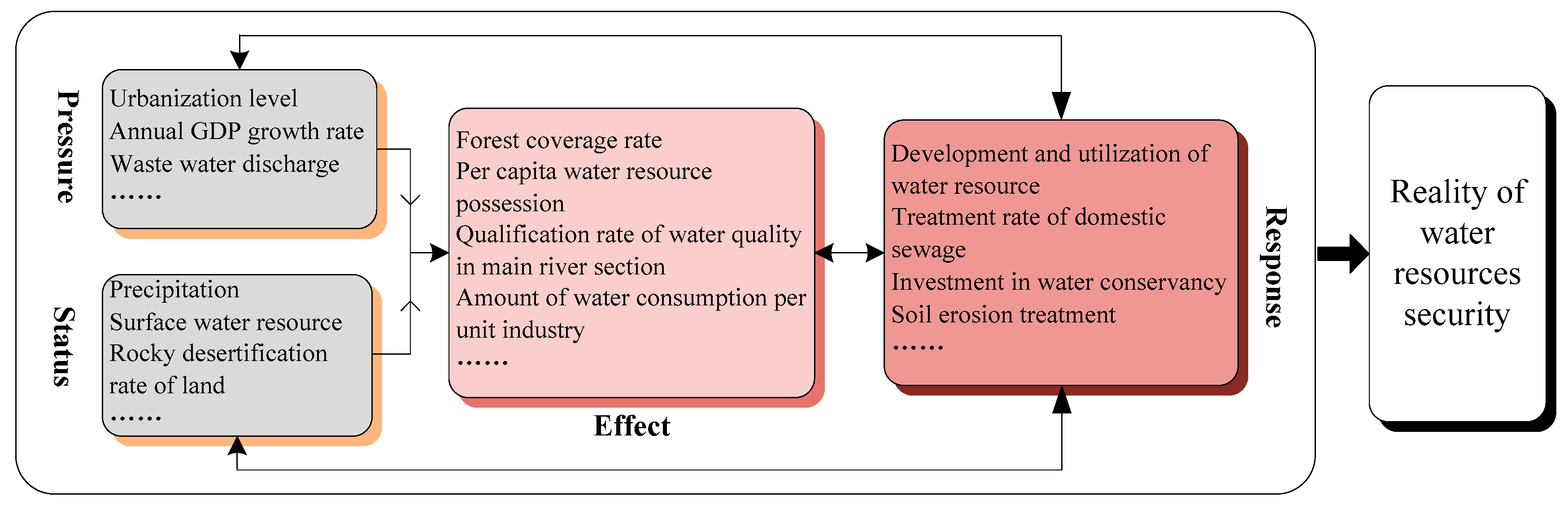

Thus, we expanded the PSR model to the PSER model to incorporate the effects of human activities on water resources, and divided the water resource system into four subgroups: pressure, status, effect, and response. PSER is widely used in research such as environmental assessment [38]. The pressure indicators characterize the load caused by human activities on the water resource system, such as wastewater discharge, population density, and amount of fertilizer used on arable land. The status indicators characterize the condition of water resource systems in terms of water supply quality, quantity and capacity, and include the rocky desertification rate of land, water supply for engineering, and ecological water consumption. The effect indicators characterize the implementation effects of management policies and measures at the present stage, such as forest coverage rate, supply for underground water, and per capita water resource possession. The response indicators characterize active regulation of human pressure, status and management of the water resource system, and include the treatment rate of domestic sewage, investment in water conservancy, and soil erosion treatment.

More influential factors that can reflect the contradiction between supply and demand of water resources, the quality of the water environment, and socioeconomic influences were determined after full consideration of the impact of natural, social, economic, and policy factors on water resource security in Guizhou. For reference, research has been studied of water resource security assessment in southwest karst areas [24,39,40]. According to the PSER framework, a multi-level water resource security evaluation indicator system is then established by further refining the four pressure, status, effect, and response subgroups and selecting the appropriate indicators (

Table 1. Evaluation indicator system of water resource security in Guizhou Province.

Target	Subgroup	Indicators		Weights	Meaning	Optimal Reference Set	Worst Reference Set
Evaluation of water resource security	Pressure	P1−	Urbanization level/%	0.0204	The pressure on water resource due to increasing urbanization and development	24	60
		P2−	Population density/p/km2	0.0267	The pressure of water resource demand on the water resource system due to population density changes	197.2	222.37
		P3−	Second output value accounts for the proportion of GDP/%	0.0230	The pressure on water resource due to increased water demand due to industrial development	37.74	41.63
		P4−	Wastewater discharge/billion m3	0.0311	The pressure of containing wastewater on water resource	2.08	3.08
		P5−	Economic density/104RMB/km2	0.0179	The pressure of water resource demand due to economic density changes	64.33	596.17
		P6−	Amount of fertilizer used on arable land/kg/hm2·year	0.0259	The effects of the amount of fertilizer used in land cultivation on water quality	39.71	58.86
		P7−	Annual GDP growth rate/%	0.0229	The pressure on water resource due to economic development	8.8	15
		P8−	Per capita income/RMB	0.0183	The impact of improving living standards on water resource demand	3000	29,847
	Status	S1+	Precipitation/billion m3	0.0154	Plump degree of water resource	224.31	144.56
		S2−	Seasonal variability of precipitation/*	0.0170	The effect of uneven precipitation on the occurrence of water resource	0.62	0.87
		S3+	Surface water resource/billion m3	0.0155	Efficient use of water resource	121.31	62.64
		S4+	Groundwater resources/billion m3	0.0171	Potential availability of water resource	29.44	21.67
		S5+	Water supply for engineering/billion m3	0.0185	Artificial enhancement of regional water resource by man-made water conservancy facilities	0.25	0.1
		S6−	Water consumption of agriculture/billion m3	0.0201	Demand for water resource from agricultural development	4.41	5.85
		S7−	Public water consumption in cities and towns/billion m3	0.0245	Demand for water resource from public facilities	0.06	0.58
		S8−	Ecological water consumption/billion m3	0.0300	Demand for water resource from ecological rehabilitation and construction	0.04	0.07
		S9−	Rocky desertification rate of land/%	0.0867	Influence of water resource circulation rate on the water resource system	0	18.79
		S10−	Surface runoff coefficient/*	0.0198	Influence of the water resource circulation rate on the water resource system	0.54	0.43
		S11+	Water storage capacity of large and medium-sized reservoirs per capita/m3	0.0372	Water storage capacity and the benefit of water conservancy projects	867.13	68.99
	Effect	E1+	Forest coverage rate/%	0.0291	The ability for the forest to conserve precipitation	30.83	50
		E2+	Per capita water resource possession/m3	0.0229	Water resource support for the survival and livelihood of the population	3458	1806
		E3+	Water supply for surface water/billion m3	0.0216	Support capacity of surface water resource for regional development	9.38	7.50
		E4+	Underground water supply water/billion m3	0.0438	Support capacity of groundwater resource for regional development	1.89	0.11
		E5+	Quality rate of water quality in main river section/%	0.0233	Qualified water reflects the ability of available water to support regional development	100	50
		E6−	Amount of water consumption per USD industry/m3/USA$	0.0205	The impact of existing industrial production levels on the water resource system	513	3296
		E7−	Industrial water consumption/billion m3	0.0170	Impact of existing industrial development on the water resource system	0.96	1.54
		E8−	Water consumption for residents/billion m3	0.0143	The impact of the amount of water required for the existing standard of living on water resource	2.01	4.01
	Response	R1+	Development and use of water resource/%	0.0363	Water resource redundancy in the current context of social and economic development	15.18	7.86
		R2+	Pollutant emission-reduction rate per unit of GDP/%	0.0325	Responsiveness to reducing the amount of water resource needed to accommodate economic development	36.6	1.47
		R3+	Treatment rate of domestic sewage/%	0.0444	Responsiveness to reducing the amount of water needed to accommodate domestic sewage	100	2.4
		R4−	Water consumption per unit of GDP/m3	0.0225	The response of the progress in production technology to water resource stress	103	769
		R5−	Water consumption of per unit farmland irrigation/m3/km2	0.0229	The response of water resource stress in agricultural production	376	626
		R6−	Water consumption of per capita/L/p·d	0.0096	The response of domestic use to water resource stress	67.4	121.2
		R7+	The proportion of the tertiary industry/%	0.0254	Industrial structure adjustment under the influence of water resource	80	37.53
		R8+	Investment in water conservancy/billion RMB	0.0668	Human management of water resource	0.93	22.0
		R9+	Soil erosion treatment/km2	0.0589	Conservation of surface water resource and improvement of water storage	2706.09	768.2

Note: +/− indicates the indicator is positive/negative, * indicates the indicator is dimensionless.

). In the selection of indicators, based on the limited availability of data, we focused on the indicators that can reflect the contradiction between water supply and demand, the quality of the water environment, and the degree of social and economic factors that have a great impact on the water resource system and can represent human response.

3.2.2. Date Standardization

The evaluation data include the water resource security status of Guizhou Province, including m evaluation indicators over n years. The raw data matrix is as follows:

$$X=\left[\begin{array}{cccc}{x}_{11}& x_{12}& \cdots & x_{1n}\\ x_{21}& x_{22}& \cdots & x_{2n}\\ ⋮& ⋮& ⋮& ⋮\\ x_{m1}& x_{m2}& \cdots & x_{mn}\end{array}\right]$$

(1)

The influence of the different dimensions between the indicators was eliminated and the original matrix was standardized yielding the matrix Y: $Y_i={({\mathrm{y}}_{ij})}_{m\times n}$.

The positive indicator (the higher the indicator value, the more positive the impact on water resource security) standardized formula is:

$$Y_i=\left({\mathrm{x}}_{ij}-\min x_j)/(\max x_j-\min x_j\right)$$

(2)

The negative indicator (the lower the indicator value, the more negative the impact on water resource security) standardized formula is:

$$Y_i=\left(\max {\mathrm{x}}_j-x_{ij})/(\max x_j-\min x_j\right)$$

(3)

where X_ij is the survey original value, $\min x_j$ is the survey minimum value, and $\max x_j$ is the survey maximum value, and i, j represent the value of the ith indicator in the jth year.

3.2.3. Determination of the Value Weight

The entropy weight method was used to determine the value weight according to the data, while avoiding the possible influence of subjective factors [30,39]. The accuracy was relatively high, and the evaluation results were relatively stable, allowing for a better explanation of the results.

The entropy value of the jth value is e_j:

$$\begin{array}{c}{e}_j=-k{\displaystyle {\displaystyle \sum }_{i=1}^n}{H}_{ij}•\ln H_{ij}, H_{ij}=y_{ij}/{\displaystyle {\displaystyle \sum }_{i=1}^n}{y}_{ij},k=1/\ln n(\mathrm{when}{H}_{ij}=0,\\ H_{ij}•\ln H_{ij}=0)\end{array}$$

(4)

The weight of the j value is w_j:

$$w_j=(1-e_j)/{\displaystyle {\displaystyle \sum }_{j=1}^m}\left(1-e_j\right),(w_j\in \left[0,1\right],{\displaystyle {{\displaystyle \sum }}_{j=1}^m}{w}_j=1)$$

(5)

3.2.4. Calculation of Grey Relational Index

Grey relational analysis accurately reflects the index of association and order for the index of a subgroup, and the evaluation process is relatively stable [41,42]. The TOPSIS model calculates the distance between the evaluation object and the optimal decision-making scheme to analyze the index of connection between water resource security and the optimal status [43,44]. This algorithm includes the following steps:

(1) Determination of the best and worst data vectors as the reference sequence. In addition to the worst values of P1 and the optimal values of R7 being decided by the National Eco-city Construction Standard, the optimal values of S9 were decided by Environmental Protection Regulations in Guizhou province, and the optimal values of E5 and R3 were decided by the Opinions on the Implementation of the Most Stringent Water Resources Management System in Guizhou province. The remaining best and worst values of the indexes depend on the real-life context of Guizhou Province.

The determination of fuzziness indicators was based on the standard value range, referring to the optimal and worst values for the evaluation period (Table 1). The matrix composed of the optimal and worst-case vectors and matrix Y was standardized again using the range method to obtain matrix $Y_i^{\prime }$. After standardization, it was transformed into a positive indicator. The optimal and worst-case reference sets are as follows:

The optimal reference set:

$$G^{*}=\left\{\max (1\le j\le n)y_{ij}^{\prime }|i=1,2,\dots ,n\right\}=\left\{ g^{*}{}_1,g^{*}{}_2,\dots ,g^{*}{}_n\right\}$$

(6)

The worst reference set:

$$G^o=\left\{\min (1\le j\le n)y_{ij}^{\prime }|i=1,2,\dots ,n\right\}=\left\{ g^o{}_1,g^o{}_2,\dots ,g^o{}_n\right\}$$

(7)

(2) Calculation of the grey correlation coefficient.

The grey correlation coefficients with optimal and worst reference sets are as follows:

Grey correlation coefficient with optimal reference set:

$${\delta }_j{(k)}^{*}=\frac{[\underset{i}{\min }\underset{j}{\min }|y_{ij}^{\prime }-g^{*}{}_i|+\rho \underset{i}{\max }\underset{j}{\max }|y_{ij}^{\prime }-g^{*}{}_i|]}{[|y_{ij}^{\prime }-g^{*}{}_i|+\rho \underset{i}{\max }\underset{j}{\max }|y_{ij}^{\prime }-g^{*}{}_i|]}$$

(8)

Grey correlation coefficient with worst reference set:

$${\delta }_j{(k)}^o=\frac{[\underset{i}{\min }\underset{j}{\min }|y_{ij}^{\prime }-g^o{}_i|+\rho \underset{i}{\max }\underset{j}{\max }|y_{ij}^{\prime }-g^o{}_i|]}{[|y_{ij}^{\prime }-g^o{}_i|+\rho \underset{i}{\max }\underset{j}{\max }|y_{ij}^{\prime }-g^o{}_i|]}$$

(9)

where $\underset{i}{\min }\underset{j}{\min }\left|y_{ij}^{\prime }-g^{*}{}_i\right|$ and $\underset{i}{\max }\underset{j}{\max }\left|y_{ij}^{\prime }-g^{*}{}_i\right|$ are respectively the two-level minimum differences and two-level maximum differences between the evaluation object and the optimal reference set; $\underset{i}{\min }\underset{j}{\min }\left|y_{ij}^{\prime }-g^o{}_i\right|$ and $\underset{i}{\max }\underset{j}{\max }\left|y_{ij}^{\prime }-g^o{}_i\right|$ are respectively the two-level minimum differences and two-level maximum differences for the evaluation object and the worst reference set; and $\rho$ is the resolution coefficient, and is an independent constant depending on the value the researcher needs to determine the value. The value is uncertain, such that 0 < $\rho$ < 1. The smaller the value of $\rho$, the stronger the resolution of the calculation result, and generally $\rho$ = 0.5 [45]. Therefore, the value of $\rho$ in the article is 0.5.

(3) Calculation of relatedness. The comprehensive grey correlations of water resource security with optimal and worst-case reference sets are as follows:

$$R_i{}^{*}={\displaystyle {\displaystyle \sum }_{i=1}^n}{R}_j{}^{*}$$

(10)

$$R_i{}^o={\displaystyle {\displaystyle \sum }_{i=1}^n}{R}_j{}^o$$

(11)

In the above formulae, $R_j{}^{*}$ and $R_j{}^o$ denote the index of grey correlation between each index and the optimal and worst reference sets; $R_j{}^{*}=w_j{\delta }_j{(k)}^{*}$, $R_j{}^o=w_j{\delta }_j{(k)}^o$.

3.2.5. Calculation of Water Resource Security

The relative closeness of the grey relation between water resource security and the optimal reference set of the evaluation time series is T. A larger T shows that it is closer to the optimal reference set, and thus indicates that the situation is better. In this paper, the T value is used to indicate the water resource security.

$$T_i=\frac{R_i{}^{*}}{R_i{}^{*}+R_i{}^o}$$

(12)

4. Results

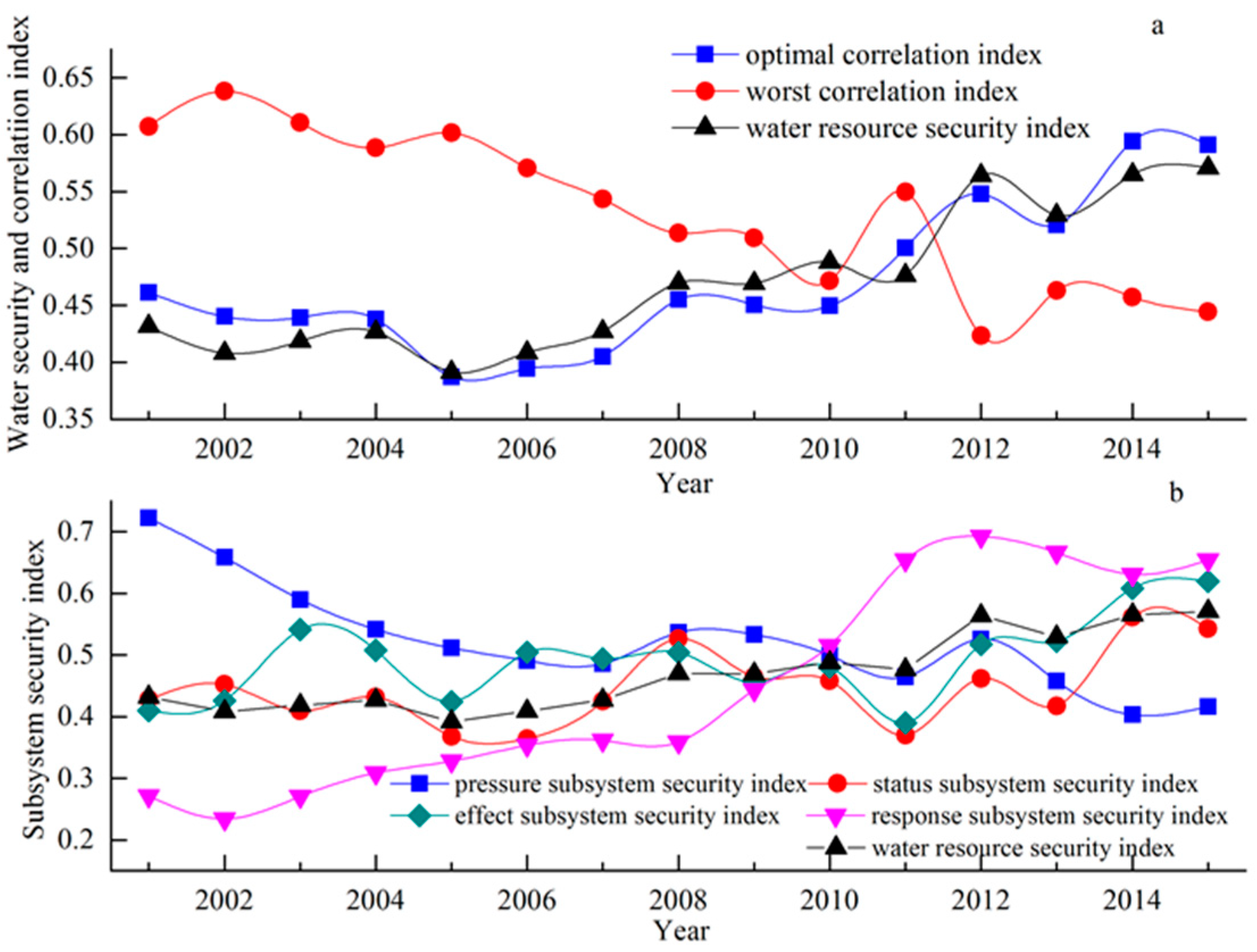

Results indicate a strong interannual variability in water security, but overall (from 2001 to 2015) the water security index presented an increased trend (Figure 3a) in Guizhou. Within the studied period, the water security index decreased from 2001 to 2005 and water resource security continuously improved from 2006 to 2015 (Figure 3). From the perspective of the various subgroups of water resource security, the effect and response subgroups of water resource security continued to improve, while the pressure subgroup continued to increase and the status subgroup was also in a status of fluctuation and instability from 2001 to 2015. Other results are as follows:

(1) Water resource pressure subgroup. From 2001 to 2015, the security of the water pressure subgroup showed a fluctuating decline (Figure 3b), indicating that the pressure on water resource security continued to increase. From the highest index of 0.72 in 2001 to the minimum index of 0.4 in 2014, a decrease of 44.17%, the downward trend is striking.

(2) Water resource status subgroup. The status of water resources from 2001 to 2015 showed a clearly fluctuating trend (Figure 3b). From 2001 to 2006, the volatility declined from 0.43 to a minimum of 0.36; from 2006 to 2008, it rose to 0.53; from 2008 to 2011, it decreased to 0.37; and from 2011 to 2015, it rose to 0.54 again. Thus, a fluctuating trend was apparent.

(3) Water resource effect subgroup. From 2001 to 2015, the overall effect of the subgroup on water security increased in volatility (Figure 3b). From 2001 to 2011, increased within a little scale. From 2011 to 2015, the value of index jumped, rising from 0.3899 to 0.6193.

(4) Water resource response subgroup. In the 2001–2015 period, the security value of the response subgroup showed a trend of increasing volatility (Figure 3b). From 2001 to 2012, the fluctuation trend increased from its lowest value of 0.2715 in 2002 to a maximum value of 0.69 in 2012, an increase of 154.92%. A trend of weak growth was observed between 2012 and 2015.

5. Discussion

5.1. Analysis of Changes in Water Resource Pressure Subgroup

The pressure on water resource security in Guizhou Province increased from 2001 to 2015. According to the pressure subgroup indicators (Figure 4a), the indicators that increased include wastewater discharge (P4), economic density (P5), annual average GDP growth rate (P7), fertilizer used on arable land (P6), and per capita income (P8). Economic density increased from 64.3 thousand/km² to 59.62 million/km² between 2001 and 2015, an increase of nine times. Moreover, the average annual GDP growth rate increased from 8.8% to 10.7% during the same period, reaching its highest point at 15% in 2011, and between 2003 and 2015 it was maintained at more than 10%. Economic development increases the demand for water resources, impacts water quality and poses marked pressure on resource security [7,46]. The pollution of water resources caused by a continuous increase in farmland fertilizer use and wastewater emissions constitutes the main environmental pressure on water resource security (Figure 4a) [47]. In the 2001–2015 period, the amount of fertilizer used in cultivated land rose from 39.71 kg/hm²·year to 58.86 kg/hm²·year, an increase of 48.22%. The increase in consumption levels and changes in consumption type caused by socioeconomic development has led to the continuously increasing impact of domestic sewage and other factors on water resources [37]. In general, the sustained increase in economic development and pressures of social living standards in the pressure subgroup increased the pressure on water resource security.

5.2. Analysis of the Changes in the Water Resource Status Subgroup

The status of water resources from 2001 to 2015 showed a clear fluctuating trend (Figure 3b). According to the pressure status indicators (Figure 4b), except for the continuous improvement of the rocky land desertification indicators, other indicators have shown significant fluctuations, which has led to fluctuations in the status subgroup. The continuous improvement of rocky land desertification is mainly due to the sustained promotion of ecological restoration [48]. Precipitation fluctuation and land cover change have a conclusive effect on land surface runoff and the regional water resource [49]. The fluctuations in surface water resource (S3), groundwater resource (S4), and surface runoff coefficient (S10) are affected by precipitation fluctuations and surface cover changes. Findings in relation to water supply and use are as follows.

(1) Water supply. The water storage capacity of large and medium-sized reservoirs per capita (S11) showed continuous improvement, with S11 rising from 68.99 m³/person to 867.13 m³/person, an increase of 12 times, from 2001 to 2015. The construction and improvement of large and medium water conservancy infrastructure facilities of the water conservancy project in central Guizhou increased the water supply.

(2) Water use. The optimal correlation index of agricultural water (S6) fluctuated, and the optimal correlation index of urban public (S7) and ecological environment (S8) consumption of water decreased, indicating that water consumption by agriculture was decreasing, while ecological restoration and urban public demand for water recourses was increasing. With the development of the economy, the scale of traditional industries such as agriculture has reduced, and the efficiency of water resource use has increased [50,51], but together with a sharp increase in industrial water demand. The implementation of the Guizhou ecological province strategy also caused a distinct increase in ecological water consumption [52].

In general, the status subgroup showed volatility, which was a result of the precipitation fluctuations and the special “bivariate” hydrogeological environment of the surface and underground areas, and was mainly affected by precipitation.

5.3. Analysis of Changes in the Water Resource Effect Subgroup

The improvement of the effect subgroup was unstable from 2001 to 2015. The change in the optimal relevance value of the effect subgroup index (Figure 4c) shows that the forest coverage rate (E1) continued to improve with an increase of 19.17% from 2001 to 2015. The increase of forest coverage effectively reduced soil erosion and improved water conservation in the region [53,54]. The continuous reduction per added value of industry (E6) dropped by 68.78% from 2001 to 2015, a significant decrease, and the efficiency of water resource use continued to increase.

The marked increase in the use efficiency of industrial water resources also offsets the increase in demand for water resources caused by industrial growth [55]. The total amount of industrial water consumption in the 2011–2015 period showed a slow decline. The water quality (R5) of the main river section from 2001 to 2015 showed a staggered fluctuation; the qualified rate rose from 69% to 92.3% from 2001 to 2006, decreased to 50% from 2006 to 2011, and presented an upward trend from 2011 to 2015, reaching 81.4% in 2015. The changes in water quality for major river sections were mainly affected by economic development and surveillance of the water environment; that is to say, water quality was influenced by regional development [56]. From 2006 to 2011, after the implementation of the Guizhou industrial development strategy, pollution increased. As a result, green development was encouraged in the 2011–2015 period and by the development of ecological civilization. “Big data” and other low-pollution industries were emphasized. More attention was given to sewage treatment, supervision of environmental water quality, and urban living wastewater treatment, which resulted in improved water quality.

As a whole, the improvement of the effect subgroup was mainly due to factors such as the increased rate in forest coverage, the reduction in water consumption per added value of industry, and the transformation of the industrial structure.

5.4. Analysis of Changes in the Water Resource Response Subgroup

The water resource security response subgroup has been successful in improving the water resource security. From the perspective of the response subgroup indicators (Figure 4d):

(1)

Water conservancy investment (R8) and soil erosion management (R9) contributed significantly to water resource security (the rising trend in optimal correlation index is apparent): the investment in water conservancy construction and soil erosion control increased; the investment in water conservancy infrastructure construction was USD 3.08 billion in 2015; and, the total area of water and soil erosion in the 2001–2015 period covered 11,700 km², accounting for 6.64% of the total land area of the province. Previous studies have shown that continuous investment in resources significantly improved the water resource security [37].

(2)

The improvement of industrial production technology and basic water conservancy facilities significantly improved the use efficiency of water resources [57]. The water consumption per unit of GDP (R4) and the water consumption for irrigation per unit farmland (R5) significantly decreased, indicating that the use efficiency of water resource increased significantly. The tertiary industry has a relatively low consumption of water resources [58]. The significant increase in the proportion of the tertiary industry (R7) has further reduced water consumption per unit of GDP.

(3)

Regarding sewage treatment, the domestic sewage treatment rate (R3) increased significantly, reaching 90% in 2015; the per unit of GDP pollutant reduction rate (R2) did not change much from 2001 to 2013 and continued to increase from 2013 to 2015.

Guizhou Province has advocated green development, and continued to strengthen emission-reduction measures, eliminate obsolete production capacity, and improve production processes, which have all significantly increased the emission-reduction rate per unit of GDP from pollutants [56,59].

The response subgroup has significantly improved water resource security. There is still much room for improvement in such influential factors as investment in water conservancy, area control of soil erosion, sewage treatment rate, and pollutant reduction rate per unit of GDP. It is necessary to strengthen guidance in policy and further increase the effectiveness of response measures to achieve and maintain a high standard of water security [7].

6. Conclusions

This study based on the PSER conceptual model, applied the entropy weight and TOPSIS-grey correlation model to evaluate water resource security in Guizhou Province from 2001 to 2015. The following main conclusions were drawn:

(1)

In the 2001–2015 period, the security of the water resource in Guizhou improved. The sustainable improvements in the effect and the response subgroups were the main influencing factors for water resource security improvement. Specifically, the most significant factors included the forest coverage rate, the water consumption per USD of industrial added value, the proportion of the tertiary industry, the investment in water conservancy, and the management of water and soil erosion. The increased pressure on water resource security and the instability of water resource security are the main factors negatively impacting water resource security, which has been largely due to the use of chemical fertilizers, economic density, annual average GDP growth rate, waste water discharge, and surface runoff.

(2)

The water resource subgroup indicators show that the reduction in waste water discharge, the use of chemical fertilizers, the improvement of domestic sewage treatment, the reduction in pollutants per unit of GDP, and the water quality of the main river will greatly improve water resource security, and thus they need to be further strengthened. Within the scope of the water resource carrying capacity, an increase in the underground water supply, a reduction in water consumption per unit industrial added value, strengthened soil erosion management, and improved desertification treatment and higher forest coverage rates have greatly contributed to improved water security. In addition, industrial restructuring, investment in water conservancy, construction of large and medium-sized reservoirs, and other water conservancy facilities have contributed to promoting the security of water resources.

Overall, the water resource security assessment based on the PSER model can objectively reflect the source of pressure on the water resource security system, the efficiency of existing response measures in decreasing water resource system stress, and the effect of natural factors such as precipitation on water resource security. It has important scientific reference value for the government to perfect water resource management with the most economical and effective measures under the constraint of limited resources. However, the assessment of water resource security presented in this article did not consider the cyclical process of water resource in the natural–social binary system, i.e., natural water-use facilities–actual economic and social ecological environment and other actual water departments–actual consumption or infiltration and emissions return to nature. In the future, the cyclical process of water resource in nature–society systems need to be further considered to provide support for developing better water resource management measures.
