Removal of Pb(II) from Acid Mine Drainage with Bentonite-Steel Slag Composite Particles

Abstract

Abandoned lead and zinc (Pb-Zn) mines around the world produce large amounts of acid mine drainage (AMD) containing Pb(II), which is toxic and accumulates in the environment and in living organisms. Bentonite-steel slag composite particles (BSC) are a new type of acid mine drainage (AMD) treatment material that can remove heavy metal ions and reduce acidity. To date, there have been no reports on the treatment of Pb(II)-containing AMD using BSC. Therefore, the effects of pH, reaction time, temperature, and Pb(II) concentration on the adsorption of Pb(II) onto BSC were studied. Moreover, the BSC before and after the reaction, as well as the precipitation after the reaction, were characterized by scanning electron microscopy and X-ray diffraction analyses. The effect of pH on the adsorption process is similar to that of the formation of soluble and insoluble hydrolysates of Pb(II) on pH. The adsorption mechanism includes ion exchange, complexation, precipitation, and synergistic adsorption–coagulation effect. Adsorption kinetics are best-fit with the pseudo-second order kinetics model ($R^2$ > 0.98). Furthermore, the total adsorption rate is controlled by liquid film diffusion and in-particle diffusion, the liquid film diffusion rate being higher than the in-particle diffusion rate. The isothermal adsorption of Pb(II) onto BSC fit well with Langmuir and Brunauer Emmett Teller (BET) isotherms ($R^2$ > 0.995), and both single layer adsorption and local multilayer adsorption were observed. Thermodynamic analysis revealed that the adsorption process is spontaneous and endothermic, and that the degree of freedom increases with time. In summary, this study provides a theoretical basis for the use of BSC in treating AMD containing Pb(II).

1. Introduction

Acid mine drainage (AMD) is an inevitable by-product of mining production in the case of the occurrence of sulfide minerals [1,2]. AMD is highly acidic and contains high concentrations of toxic substances, including heavy metal ions [3,4]. Consequently, the discharge of untreated AMD into natural water receivers can cause significant damage to aquatic flora and fauna [5,6]. In addition, groundwater pollution due to AMD is a serious problem too. To mitigate the negative effects of AMD on ecosystems and human health, several treatment approaches have been developed, including neutralization precipitation [7], electrochemical [8], membrane separation [9,10], microbial treatment [11,12], constructed wetland [13], and adsorption [14] methods. Among these, the neutralization precipitation and adsorption methods [15,16] are widely used.

Traditionally, AMD is neutralized using lime. However, when lime neutralizes wastewater, the generated metal hydroxide has a low specific gravity and can be easily broken into small particles when strongly stirred or transported. Therefore, its sedimentation rate is very low and solid-liquid separation is difficult. The treatment process is complex and involves several stages including the use of flocculant, adsorbent, and a filtration process, whereas on the same time the neutralized sludge produced is voluminous and difficult to dispose. Activated carbon [17,18] is commonly used for adsorption and has become a standard adsorbent for urban and industrial wastewater recycling; however, owing to its high cost, the production of low-cost substitutes for activated charcoal has become a hot topic for research. These low-cost adsorbent substitutes for heavy metal adsorption range from natural materials to industrial and agricultural by-products such as red mud [19], coffee grounds [20], bentonite [21], silicate [22], zeolite [23], fly ash [24], moss [25], tea residue [26], and peanut shells [27].

Bentonite is a good substitute for activated carbon. It is a clay with montmorillonite as its primary component [28,29]. Montmorillonite is a type of 2:1 layered silicate composed of a layer of alumino-oxygen octahedra sandwiched between two layers of silica-oxygen tetrahedra. Because of lattice displacement, electronegativity, and ion exchange in montmorillonite as well as its large surface area, bentonite has a strong ability to adsorb metal cations [30]. Moreover, bentonite is an inexpensive and excellent mineral with abundant reserves in China and can be used to remove metal cations in AMD. However, it cannot neutralize acid. Steel slag is a type of metallurgical by-product, whose main phase is calcium glass. As a solid waste, steel slag recycling and utilization contributes to environmental pollution. Due to mineral compositions such as calcium glass, steel slag can release alkalinity in aqueous solution [31,32,33], which can be used to neutralize AMD acidity.

Our research group developed a new adsorbent named bentonite–steel slag composite particles (BSC) [34]. These particles benefit from the excellent adsorption potential of bentonite for heavy metal cations and the ability of steel slag to release alkalinity, which neutralizes acid, thereby precipitating heavy metal ions. In addition, these composite particles induce a synergistic adsorption–coagulation effect that aids the removal of heavy metal ions. Thus, BSC can be used as a viable adsorbent alternative to the combination of expensive activated carbon or ion exchange resins and lime. In particular, BSC particles utilize solid waste, significantly reduce the processing cost for AMD processing, and allow solids and liquids to be easily separated; in summary, BSC is a new, multifunctional mineral material that allows for neutralization, adsorption, coagulation, and filtration.

Lead and zinc (Pb-Zn) mines are quite common worldwide; while approximately 240 mines are active, the majority of these mines have been abandoned for decades [5]. Abandoned mining wastes represent a serious environmental hazard and can form AMD containing Pb(II) and Zn(II). The harm of AMD containing Pb(II) is much greater than that of AMD containing Fe(II), Mn(II), Cu(II), and Zn(II). Pb is toxic and accumulates in the environment and in organisms. When excessive Pb accumulates in the human body, it can severely damage the circulatory, nervous, gastrointestinal, and excretory systems as well as other tissue systems [35,36,37]. Development of novel low-cost adsorbents for heavy metals removal has attracted significant research attention. Liu et al. studied the adsorption performance of Pb(II) ions from aqueous solutions onto a novel complex of coffee grounds and attapulgite clay [20]. Li et al. studied the removal of Pb(II) and Cr(VI) ions by amino-modified nano-sized illite-smectite clay [21]. Sun et al. constructed nanostructured silicates on diatomite for Pb(II) and Cd(II) removal [22]. Yuan et al. prepared Fe2O3-ceramicite (FOC) by sintering bentonite, iron powder (IP), and activated carbon (AC) at 1073 K, which has a good adsorption properties for Pb(II) in AMD [36]. However, most of these reported adsorbents only have the function of removing Pb(II) and cannot neutralize AMD acidity. Thus far, there have been no studies on the treatment of AMD containing Pb(II) by using BSC. Thus, in this study, BSC was tested as an adsorbent to treat acidic wastewater containing Pb(II). In particular, the kinetic, isothermal adsorption, and thermodynamic properties between BSC and Pb(II), as well as the adsorption mechanism between them were studied. Furthermore, the BSC before and after the reaction, as well as the precipitation after the reaction were characterized by scanning electron microscopy (SEM) and X-ray diffraction (XRD) analyses. In addition, the effects of pH, reaction time, initial Pb(II) concentration, and temperature on BSC adsorption were discussed. Herein we studied in detail the removal behavior, influencing factors and removal mechanism of Pb(II) in AMD by a new adsorbent BSC, providing a theoretical basis for the treatment of Pb(II)-containing AMD by using BSC.

2. Materials and Methods

2.1. Materials

Na-bentonite (<74 μm, Jin Shi bentonite mining co., Ltd. in Fuxin City, Liaoning Province, China), steel slag (<74 μm, Zhong Tian Steel Plant in Fuxin City, Liaoning Province, China) and Na₂CO₃ (Xilong Chemical, Shenyang, China) were used as raw materials for BSC preparation. The chemical compositions of the bentonite sample and steel slag are listed in

Table 1. Chemical composition of the bentonite sample.

Constituent	Mass Percentage (%)
SiO2	71.39
Al2O3	14.4
Na2O	1.98
Fe2O3	1.71
MgO	1.52
CaO	1.20
K2O	0.44
TiO2	<0.1

and

Table 2. Chemical composition of the steel slag.

Constituent	Mass Percentage (%)
Fe2O3	38.83
CaO	32.73
SiO2	12.33
MgO	10
MnO	3.29
P2O5	1.12
Al2O3	0.18

, respectively. An appropriate amount of Pb(NO₃)₂ (Xilong Chemical, Shenyang, China) was dissolved in deionized water (DW) to obtain a 1 g L⁻¹ stock solutions of Pb(II), which was then diluted with more DW to obtain the desired concentration of Pb(II) in solution. The pH of the initial solution (pH₀) was maintained between 3.0–5.0 by adding 0.1 M HNO₃ or 0.1 M NaOH solution. Before use, all the conical flasks were immersed in 0.1 M HNO₃ solution for 24 h and then rinsed with DW three times. All the chemicals used in this study were of analytical grade.

2.2. Preparation of BSC

Bentonite and steel slag powder were mixed in a ratio of 1:1, and 5% of total mass Na₂CO₃ was added. After the mixture was evenly mixed, an appropriate amount of DW was added, and the mixture was stirred; then, composite particles with a particle size of 2 mm were prepared using an extrusion granulator. The particles were aged for 12 h in a dark, ventilated location; then, they were heated in a crucible in a preheated muffle furnace at temperatures of 523 K to 773 K for 60 min. After roasting, the particles were allowed to cool naturally to obtain the adsorbent. The chemical compositions and physical properties of BSC are listed in

Table 3. Chemical composition and physical properties of BSC.

Constituent	Mass Percentage (%)
SiO2	43.34
Al2O3	7.83
CaO	17.54
MgO	5.42
MnO	2.73
P2O5	0.69
Na2O	1.42
K2O	0.19
Fe2O3	18.98
Surface area (m2 g−1)	130.6
pHpzc	2.01

.

2.3. Effect of pH on Pb(II) Adsorption

A batch adsorption test was performed in a thermostated shaker (298.0 ± 0.5 K, 100 rpm). The BSC dosage was fixed as 10 g L⁻¹, while the initial solute concentration of Pb(II) was 100 mg L⁻¹. pH₀ was changed from 1 to 6.5 with increments of 0.5; in particular, pH₀ was adjusted by adding 0.1 M HNO₃ or 0.1 M NaOH solution. After allowing the reaction to continue for 24 h, the resulting equilibrium solution was filtered. The equilibrium concentration of the solution was determined using an atomic absorption spectrophotometer (AAS) (Hitachi Z-2000, Tokyo, Japan), while the equilibrium pH (pH_e) was determined using a glass electrode potentiometer.

2.4. Adsorption Kinetics

Kinetics experiments were conducted in a thermostated shaker (298 ± 0.5 K, 100 rpm). The BSC dosage was fixed at 10 g L⁻¹, while the initial solute concentrations of Pb(II) were 200 and 300 mg L⁻¹. The equilibration times were set between 5 to 540 min. Samples were extracted in a controlled temperature environment at different intervals and filtered. The concentration of Pb(II) in the filtrate was determined using the AAS.

2.5. Effects of Temperature and Solute Concentration

Batch tests were conducted to study Pb(II) adsorption at different temperatures and solution concentrations. The temperature range was from 278 to 318 K with increments of 10 K. The BSC dosage was fixed at 10 g L⁻¹ with initial solute concentrations of 100, 200, 400, 500, and 600 mg L⁻¹. All samples were equilibrated for 24 h in a thermostated shaker at 100 rpm; then, the equilibrium Pb(II) concentrations were measured using the AAS to calculate the amount of Pb(II) adsorbed on the sorbent.

In order to ensure the reliability of our test results, two groups of batch tests were conducted in parallel and mean values were recorded; in addition, blank sample tests were conducted to test the initial concentration of Pb(II).

The adsorption amount at equilibrium $q_e^{}$ (mg g⁻¹) and removal efficiency $R$ (%) of Pb(II) by BSC was calculated as follows:

$$q_e=\frac{(C_0-C_e)V}{m},$$

(1)

$$R=\frac{C_0-C_e}{C_0}\times 100\%,$$

(2)

where $C_0$ and $C_e$ are the initial and equilibrium solute concentration (mg L⁻¹), respectively, $V$ is the volume of solution (L), and $m$ is the quantity of BSC (g).

2.6. Microstructure Characterization

The surface microstructures of BSC before and after the reaction, as well as the precipitate after the reaction, were analyzed using a FEI Quanta 200 scanning electron microscope. The XRD-6100 X-ray diffractometer was used to conduct micro analysis of the pre-reaction BSC, post-reaction BSC, and mineral phase of the post-reaction precipitate. The diffraction angle ranged from 5° to 90°, and the scanning rate was 6°/min.

3. Results and Discussion

3.1. Effect of pH on Pb(II) Adsorption and Associated Mechanisms

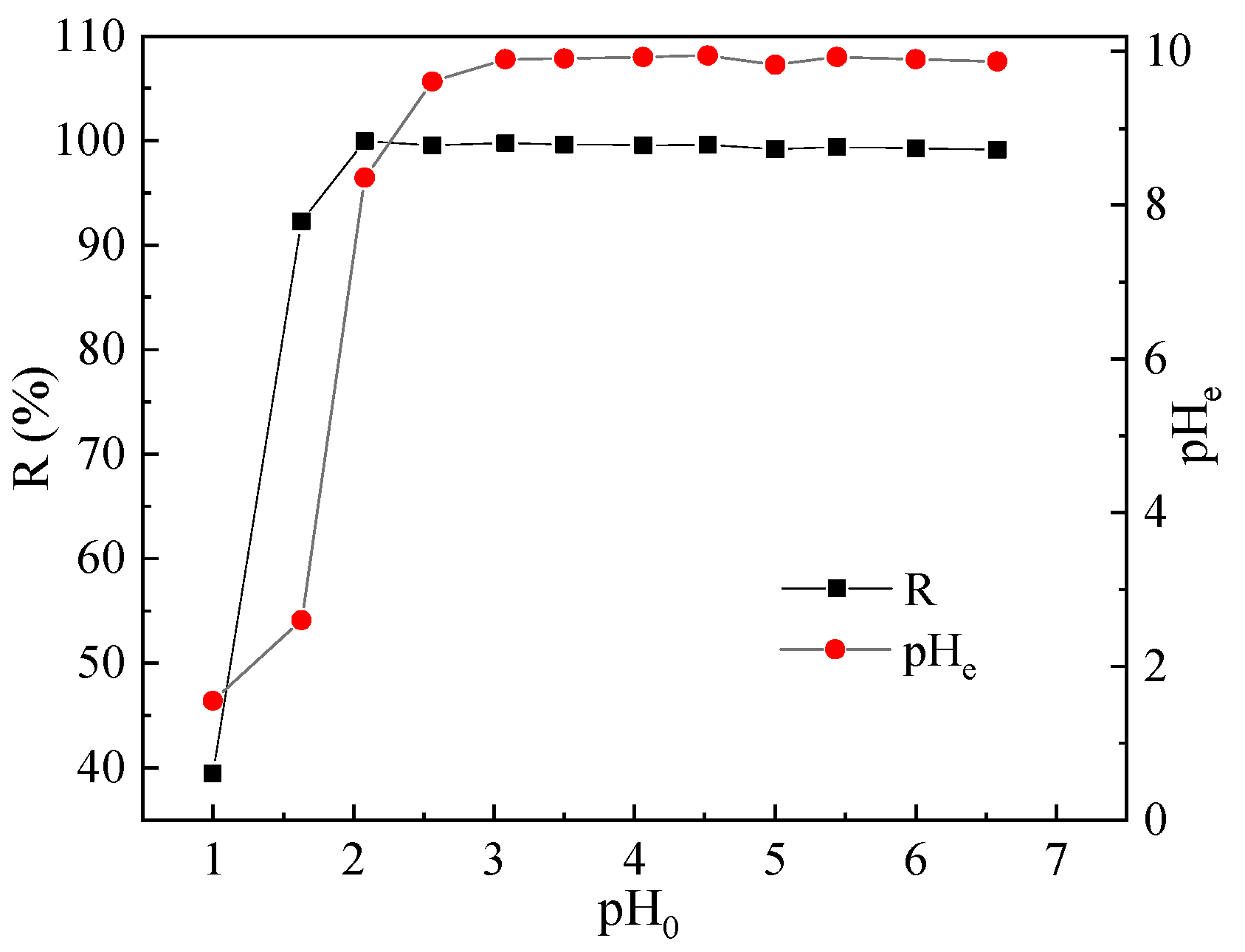

From Figure 1, it can be observed that when the initial pH (i.e., pH₀) increased from 1 to 2, the Pb(II) removal rate increased from 39.44% to 99.98%, and the equilibrium pH (i.e., pH_e) increased from 1.55 to 8.36. In addition, when pH₀ was between 2 to 6.5, the Pb(II) removal rate approached 100%, while pH_e remained between 9 and 10. Thus, it is clear that if pH₀ is controlled between 2 to 6.5, BSC could effectively remove Pb(II) from the solution.

The lower the pH₀ of solution containing Pb(II), the more the H⁺ ions in it. These H⁺ ions would have competed with Pb(II) for adsorption; in particular, the adsorption sites on BSC would be occupied by a large number of H⁺ ions, which would have impeded Pb(II) adsorption on BSC. Furthermore, because of the limited alkalinity release of BSC, the higher the number of H⁺ ions in the solution, the more the OH⁻ ions that will be consumed by them, leading to a reduction in the number of OH⁻ ions that could form hydroxides with Pb(II), consequently weakening the precipitation removal effect of BSC on Pb(II). Therefore, when pH₀ was low, the removal rate was low.

Because BSC released alkalinity to regulate the pH of the solution, the pH of the solution changed constantly. It was observed that the effect of pH on adsorption process was similar to that of the formation of soluble and insoluble lead hydrolysates on the pH value [38]. In particular, when pH < 7, Pb(II) in the solution existed in the form of Pb²⁺; therefore, the primary adsorption mechanism was ion exchange, i.e., H⁺, Na⁺, and Ca²⁺ ions on the exchangeable adsorption sites of BSC were replaced by Pb²⁺ ions. In contrast, when 7 < pH < 10, Pb(II) occurred in the form of Pb(OH)⁺ and Pb(OH)₂; thus, the removal of Pb(II) by BSC included Pb(OH)⁺ adsorption, complexation, and Pb(OH)₂ precipitation. Lastly, when pH > 10, Pb(OH)₂ and Pb(OH)³⁻ were the main forms in which Pb(II) existed, and thus, the removal of Pb(II) by BSC was primarily due to Pb(OH)₂ precipitation.

The interaction of Pb(II) in solution with minerals [39,40] present in BSC can be expressed as follows:

$$2(\equiv \mathrm{XNa}/\mathrm{H})+{\mathrm{Pb}}^{2+}\leftrightarrow {(\equiv \mathrm{X})}_2\mathrm{Pb}+2{\mathrm{Na}}^{+}/{\mathrm{H}}^{+},$$

(3)

$$\equiv \mathrm{S}-\mathrm{OH}+{\mathrm{Pb}}^{2+}\leftrightarrow \equiv {\mathrm{SOPb}}^{+}+{\mathrm{H}}^{+},$$

(4)

$$\equiv \mathrm{S}-\mathrm{OH}+{\mathrm{Pb}\left(\mathrm{OH}\right)}^{+}\leftrightarrow \equiv \mathrm{SOPb}(\mathrm{OH})+{\mathrm{H}}^{+},$$

(5)

$$\equiv {\mathrm{SO}}^{-}+{\mathrm{Pb}}^{2+}\to \equiv {\mathrm{SO}}^{-}\dots {\mathrm{Pb}}^{2+},$$

(6)

$$\equiv {\mathrm{SO}}^{-}+\mathrm{Pb}{(\mathrm{OH})}^{+}\to \equiv {\mathrm{SO}}^{-}\dots \mathrm{Pb}{(\mathrm{OH})}^{+},$$

(7)

where ≡S represents the adsorption site bonded with a hydroxyl group in BSC; $\equiv {\mathrm{S}-\mathrm{OH}}_2^{+}$, $\equiv \mathrm{S}-\mathrm{OH}$, and $\equiv {\mathrm{S}-\mathrm{O}}^{-}$ are protonated, neutral, and ionized hydroxyl groups, respectively; and ≡X represents the permanently charged site with a negative charge for cations.

Considering the nature of the steel slags in BSC, an exchange interaction of the slag glass [38] in solution can be expressed as follows:

$$=\mathrm{SiOCa}+2\mathrm{HOH}\to ={\mathrm{SiOH}}_2+{\mathrm{Ca}}^{2+}+2{\mathrm{OH}}^{-},$$

(8)

$${({\mathrm{Si}-\mathrm{O}}^{-})}_2{\mathrm{Ca}}^{2+}+{\mathrm{H}}_3{\mathrm{O}}^{+}\to 2(\mathrm{Si}-\mathrm{OH})+{\mathrm{Ca}}^{2+}+{\mathrm{OH}}^{-},$$

(9)

$${({\mathrm{Si}-\mathrm{O}}^{-})}_2{\mathrm{Ca}}^{2+}+2{\mathrm{PbOH}}^{+}\to 2\mathrm{Si}-\mathrm{O}-\mathrm{PbOH}+{\mathrm{Ca}}^{2+},$$

(10)

$${\mathrm{Si}-\mathrm{O}}^{-}\dots \mathrm{HOH}+{\mathrm{PbOH}}^{+}\to \mathrm{Si}-\mathrm{O}-\mathrm{PbOH}+{\mathrm{H}}_3{\mathrm{O}}^{+},$$

(11)

Furthermore, hydrolysis and precipitation could be expressed as follows:

$${\mathrm{Pb}}^{2+}+{\mathrm{H}}_2\mathrm{O}\leftrightarrow \mathrm{Pb}{(\mathrm{OH})}^{+}+{\mathrm{H}}^{+},$$

(12)

$$\mathrm{Pb}{(\mathrm{OH})}^{+}+{\mathrm{H}}_2\mathrm{O}\leftrightarrow \mathrm{Pb}{(\mathrm{OH})}_2(\mathrm{s})+{\mathrm{H}}^{+},$$

(13)

$${\mathrm{Pb}}^{2+}+2{\mathrm{OH}}^{-}\to \mathrm{Pb}{(\mathrm{OH})}_2(\mathrm{s}),$$

(14)

$$\mathrm{Pb}{(\mathrm{OH})}^{+}+{\mathrm{OH}}^{-}\to \mathrm{Pb}{(\mathrm{OH})}_2(\mathrm{s}),$$

(15)

3.2. Effect of Contact Time and Adsorption Kinetics

Figure 2 shows the Pb(II) adsorption curve over time. It can be observed that a higher initial concentration of Pb(II) leads to a higher adsorption amount. This can be explained as follows: the higher the initial concentration of Pb(II), the greater the concentration gradient between BSC and water, the stronger the driving force experienced by ions to diffuse to the surface of the BSC particles, and more the number of ions removed via precipitation, leading to a larger adsorption amount. For further analysis, the experimental data were fitted using pseudo-first-order kinetic, pseudo-second-order kinetic, and intra-particle diffusion models.

The pseudo-first order kinetic equation [41] is expressed as follows:

$$\log (q_e-q_t)=\log q_e-\frac{k_1}{2.303}t,$$

(16)

where $q_e$ and $q_t$ are the amounts of solute adsorbed per unit adsorbent at equilibrium and at any time, respectively (mg g⁻¹), and $k_1$ is the pseudo-first order rate constant of the adsorption process (min⁻¹).

The pseudo-second order kinetic equation is expressed as follows:

$$\frac{t}{q_t}=\frac{1}{k_2{q}_e^2}+\frac{1}{q_e}t,$$

(17)

where $k_2$ is the pseudo-second order rate constant of the adsorption process (g mg⁻¹min⁻¹).

The equation for the intra-particle diffusion model is expressed as follows:

$$q_t=k_i{t}^{1/2}+C,$$

(18)

where $k_i$ is the intra-particle diffusion constant (mg g⁻¹ min^−1/2) and $C$ is the intercept.

The kinetic model parameters of Pb(II) adsorption on BSC are listed in

Table 4. Kinetic parameters for adsorption of Pb(II) on BSC.

	C0 (mg L−1)
	200	300
Pseudo-first order kinetics
$q_e$ (mg g−1)	10.26	24.36
$k_1$ (×10−3 min−1)	8.75	9.28
$R^2$	0.96	0.97
Pseudo-second order kinetics
$q_e$ (mg g−1)	20.60	31.54
$k_2$ (×10−3g mg−1 min−1)	2.40	0.83
$R^2$	0.99	0.98
Intra-particle diffusion model
$k_i{}_1$ (mg g−1 min−1/2)	1.56	1.46
$C_1$	2.58	6.24
R12	0.99	0.95
$k_i{}_2$ (mg g−1 min−1/2)	0.46	1.24
$C_2$	11.74	7.05
R22	0.94	0.99

. The pseudo-second-order kinetic fitting appears to be the best, with correlation coefficients ($R^2$) of 0.99 and 0.98 for the initial Pb(II) concentrations of 200 mg L⁻¹ and 300 mg L⁻¹, respectively. The equilibrium adsorption amounts of Pb(II) calculated using the pseudo-second-order kinetic equation were 20.60 mg g⁻¹ and 31.54 mg g⁻¹, respectively, which were consistent with the corresponding experimental results of 19.87 mg g⁻¹ and 29.86 mg g⁻¹.

Furthermore, Figure 3c shows multi-line fitting, indicating that the total rate of adsorption is determined by two stages, namely liquid film diffusion and in-particle diffusion because BSC is a porous medium. In particular, Pb(II) is adsorbed from the liquid phase to BSC through three consecutive steps: First, in the membrane diffusion stage, Pb(II) diffuses to the outer surface of BSC through an imaginary fluid dielectric film. Second, Pb(II) diffuses from the outer surface of BSC to the inner pore of the particle, thus diffusing to the inner surface. Third, in the equilibrium stage, the adsorption reaction is balanced. As can be inferred from the data in Table 3, the diffusion boundary layer thickness in particles ($C_2$) was greater than that in the liquid film ($C_1$); therefore, the diffusion rate of the liquid film ($k_i{}_1$) was significantly higher than that in the particles ($k_i{}_2$).

3.3. Adsorption Isotherms

Figure 4 shows the isothermal adsorption curves of Pb(II) onto BSC at different temperatures. According to the classification of isothermal adsorption curves by Giles et al. [42], the isothermal adsorption curves showed an “L” shape at reaction temperatures of 278, 288, and 298 K, and an “H” shape at reaction temperatures of 308 and 318 K. The adsorption amount of Pb(II) onto BSC increased with an increase in the concentration of Pb(II). Within the range of the Pb(II) concentrations that we tested for (i.e., 100–600 mg L⁻¹), the adsorption capacity of BSC for Pb(II) did not reach saturation. The Langmuir, Freundlich, D-R, and Brunauer Emmett Teller(BET) models were used to analyze the experimental data to explain the adsorption mechanism of Pb(II) on BSC. The linear plots are shown in Figure 5.

The Langmuir isotherm model [41] can be expressed as follows:

$$\frac{C_e}{q_e}=\frac{1}{b{q}_m}+\frac{C_e}{q_m},$$

(19)

where $C_e$ is the equilibrium solute concentration (mg L⁻¹), $q_e$ is the adsorption amount at equilibrium (mg g⁻¹), q_m is the monolayer saturation capacity (mg g⁻¹), and b is the Langmuir constant (L mg⁻¹).

The Freundlich isotherm model can be expressed as follows:

$$\ln q_e=\ln K_{\mathrm{F}}+\frac{1}{n}\ln C_e,$$

(20)

where $C_e$ and $q_e$ are defined in the same manner as in Equation (19), $K_{\mathrm{F}}$ is the Freundlich constant (L g⁻¹) indicating the adsorption capacity, and $n$ is the isotherm constant indicating the adsorption intensity.

The D-R model can be expressed as follows:

$$\ln q_e=\ln q_m-k{\epsilon }^2,$$

(21)

where $q_m$ is the monolayer saturation capacity (mol g⁻¹), $k$ is the model constant of adsorption energy (mol² kJ⁻²), and $\epsilon$ is the Polanyi potential, which is given by:

$$\epsilon =RT\ln (1+\frac{1}{C_e}),$$

(22)

where the unit for $E$ should in mol L⁻¹.

The mean free energy of adsorption $E$ is:

$$E=-\frac{1}{\sqrt{2k}},$$

(23)

In general, adsorption is attributed to surface adsorption by means of ion exchange when |E| is between 8.0 and 16.0 kJ mol⁻¹, while to physical adsorption when |E| is between 1.0 and 8.0 kJ mol⁻¹.

The BET model can be expressed as follows

$$\frac{{\mathrm{C}}_e}{(C_s-C_e)q_e}=\frac{1}{B{q}_{{}_0}}+\frac{B-1}{B{q}_{{}_0}}\frac{C_e}{C_s},$$

(24)

where $C_e$ and $q_e$ are defined in the same manner as in Equation (19), $q_0$ is the monolayer saturation capacity (g g⁻¹), $C_s$ is the saturated concentration of the adsorbate (g L⁻¹), and $B$ is the BET constant.

It can be seen from

Table 5. Isothermal constants for the adsorption of Pb(II) onto BSC at different temperatures.

	278 K	288 K	298 K	308 K	318 K
Langmuir isotherm
$q_m$ (mg g−1)	43.63	45.99	53.53	56.79	70.18
$b$ (L mg−1)	0.0047	0.0083	0.0105	0.0303	0.0856
$R^2$	0.999	0.999	0.997	0.995	0.996
Freundlich isotherm
$K_{\mathrm{F}}$ (L g−1)	0.76	1.32	1.68	4.19	8.33
$n$	1.39	1.59	1.69	2.27	3.06
$R^2$	0.992	0.987	0.986	0.971	0.955
D–R isotherm
$q_m$ (mg g−1)	107.06	146.99	214.69	238.96	310.42
$k$ (mol2 kJ−2)	0.0085	0.0068	0.0059	0.0039	0.0025
$E$ (kJ mol−1)	−7.64	−8.56	−9.19	−11.27	−13.99
$R^2$	0.997	0.995	0.995	0.986	0.977
BET isotherm
$q_0$ (mg g−1)	43.61	45.97	53.46	56.69	70.00
$R^2$	0.999	0.999	0.997	0.995	0.996

that the fitting effect of the four isothermal models is good, and the correlation coefficients of Langmuir and BET models are relatively high, indicating that Langmuir and BET models are more suitable to describe the isothermal adsorption process of Pb(II) onto BSC than the other models. It should be noted that the adsorption of Pb(II) by bentonite satisfied the Langmuir model. In addition, the alkalinity released by BSC reacts with Pb(II) to form a hydroxide, which accumulates layer by layer on BSC, which continues to adsorb Pb(II). A synergistic adsorption–coagulation effect occurs, leading to the appearance of multiple layers locally on the surface of BSC, which satisfies the BET model.

When the temperature was increased from 278 to 318 K in increments of 10 K, the monolayer saturated adsorption capacities calculated via the Langmuir isothermal model were 43.63, 45.99, 53.53, 56.79 and 70.18 mg g⁻¹, respectively, which was, in essence, the same as that calculated using the BET model. Thus, it was verified that the adsorption of Pb(II) on BSC satisfied the Langmuir and BET models.

Using the Freundlich model, n was calculated to be greater than 1, indicating that the adsorption process was spontaneous. However, when the temperature was 308 K and 318 K, n was greater than 2, indicating that adsorption was spontaneous and easier. These results proved that the adsorption of Pb(II) by BSC was an endothermic process, and the increase of temperature was beneficial to the adsorption of Pb(II) by BSC. For the same set of temperatures as above, the saturated adsorption capacities calculated using the D-R model were 107.06, 146.99, 214.69, 238.96, and 310.42 mg g⁻¹, respectively. It can be observed that, at the same temperature, the saturated adsorption capacity obtained using the D-R model was larger than that obtained using the Langmuir model; this is because the D-R model assumed an ideal state in which all micropores were filled with Pb(II), which was difficult to achieve in practice. Furthermore, when the temperature was increased from 278 to 318 K in increments of 10 K, the average free energy of adsorption (E) was −7.64, −8.56, −9.19, −11.27, and −13.99, respectively, indicating that the adsorption process at the four temperatures other than 278 K was dominated by ion exchange, compared with physical adsorption at 278 K.

3.4. Adsorption Thermodynamics

The thermodynamic [43] behavior of Pb(II) adsorption on BSC was evaluated using the following equations:

$$\Delta G^0=-RT\ln K_c,$$

(25)

$$\Delta G^0=\Delta H^0-T\Delta S^0,$$

(26)

where $K_c$ is the distribution coefficient of the solute between adsorbent and solution in equilibrium ($q_e$/$C_e$), $R$ the air constant, $T$ is the temperature (K), $\Delta H^0$ is the change of enthalpy, $\Delta S^0$ is the change of entropy, and $\Delta G^0$ the standard Gibb’s free energy.

Equations (25) and (26) can be written in a linearized form between $\ln (K_c)$ and 1/T as follows:

$$\ln (K_c)=\frac{\Delta S^0}{R}-\frac{\Delta H^0}{RT},$$

(27)

Figure 6 is the line fitted according to the linear equation between ln Kc and 1/T, the values of $\Delta H^0$ and $\Delta S^0$ can be calculated from the intercept and slope of the plots.

Table 6. Thermodynamic parameters for the adsorption of Pb(II) on BSC.

C0 (mg L−1)	T (K)	ΔG0 (kJ mol−1)	ΔH0 (kJ mol−1)	ΔS0 (J mol−1K−1)	R
100	278	−5.41	34.02	141.84	0.997
	288	−6.83
	298	−8.25
	308	−9.67
	318	−11.09
200	278	−5.34	29.27	124.51	0.988
	288	−6.59
	298	−7.83
	308	−9.08
	318	−10.32
400	278	−4.43	10.82	54.84	0.951
	288	−4.98
	298	−5.53
	308	−6.08
	318	−6.62
500	278	−2.50	4.75	26.07	0.905
	288	−2.76
	298	−3.02
	308	−3.28
	318	−3.54
600	278	−1.46	1.31	9.94	0.937
	288	−1.56
	298	−1.65
	308	−1.76
	318	−1.85

lists the thermodynamic parameters of Pb(II) adsorption on BSC. When the concentration of Pb(II) is unchanged, the Gibb’s free energy decreased with an increase of temperature and is all negative, indicating that the adsorption reaction of BSC to Pb(II) is spontaneous; it should be noted that the higher the temperature, the stronger the spontaneity. In contrast, with an increase in the concentration of Pb(II), $\Delta H^0$ decreases and is all positive, indicating that adsorption reaction is an endothermic process. Furthermore, when the concentration of Pb(II) was increased from 100 mg L⁻¹ to 600 mg L⁻¹, all $\Delta S^0$ values were positive, but decreased from 141.84 J mol⁻¹K⁻¹ to 9.94 J mol⁻¹K⁻¹, indicating that the degree of freedom of the Pb(II)-BSC system increased with the adsorption reaction; in particular, the higher the initial concentration of Pb(II), the greater the disorder degree of the system.

3.5. Microstructure Characterization Results

Figure 7 shows the SEM images of the BSC before the reaction, BSC after the reaction, and precipitate generated after the reaction. BSC before the reaction exhibits an uneven surface and large pores, which are conducive to ion absorption, alkalinity release, and sediment accumulation. On the surface of the BSC after the reaction, there are dense clusters of aggregates, and many small pores have generated, possibly due to the continuous accumulation of sediments. These small pores can continue to facilitate adsorption. The sediment formed after the reaction is larger than the particles of the BSC after the reaction, in the form of loose large flakes or needles.

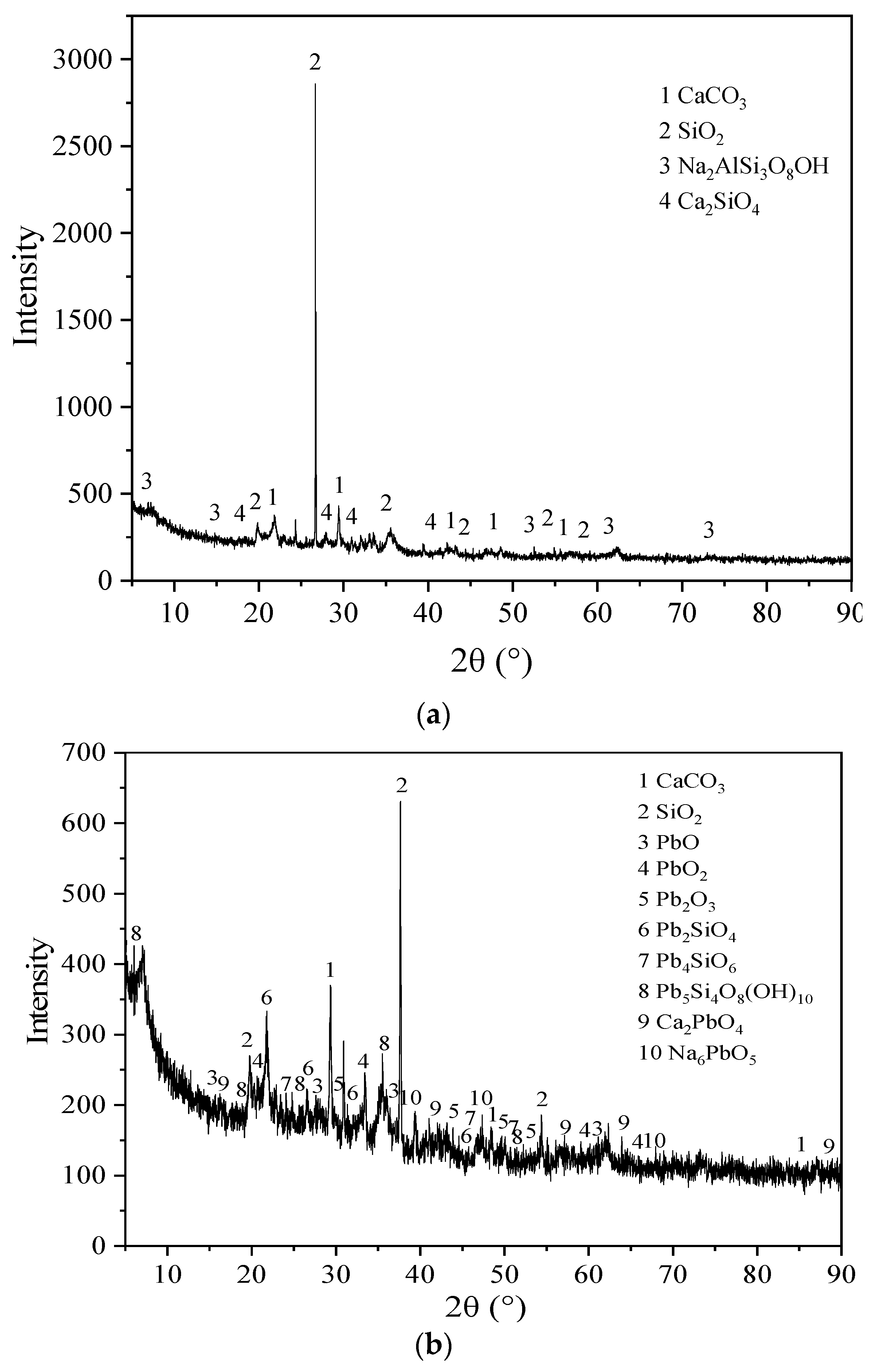

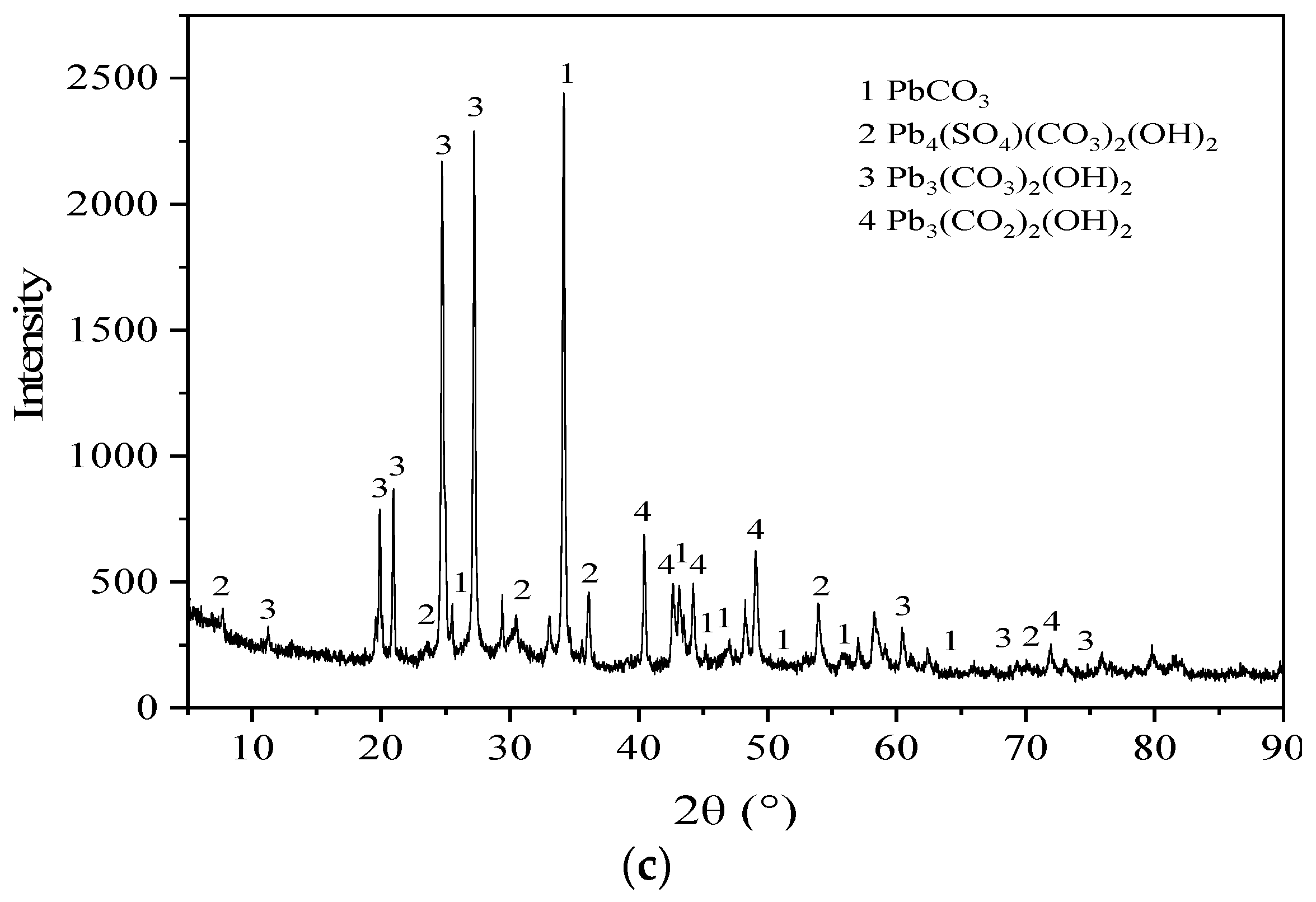

Figure 8 shows the XRD patterns of the BSC before the reaction, BSC after the reaction, and the precipitate generated after the reaction. According to (a), the mineral phases of BSC before the reaction are mainly CaCO₃, SiO₂, Na₂AlSi₃O₈OH, and Ca₂SiO₄, which are the main components of calcite, quartz, bentonite, and steel slag respectively. According to (b), the main mineral phases of BSC after the reaction are CaCO₃, SiO₂, PbO, PbO₂, Pb₂O₃, Pb₂SiO₄, Pb₄SiO₆, Pb₅Si₄O₈(OH)₁₀, Ca₂PbO₄, and Na₆PbO₅. This indicates that CaCO₃ and SiO₂ do not change during the reaction, while the other phases are new minerals generated during Pb removal. BSC releases Ca²⁺, Na⁺, and OH⁻ ions in solution. PbO, PbO₂, and Pb₂O₃ are generated by the thermal decomposition of Pb(OH)₂ generated by the reaction of Pb²⁺ and OH⁻ ions; Pb₂SiO₄ and Pb₄SiO₆ are generated by the electrostatic adsorption of Pb²⁺ and silicate on BSC; Pb₅Si₄O₈(OH)₁₀ is generated by Pb²⁺, OH⁻, and silicate ions; and Ca₂PbO₄ and Na₆PbO₅ are generated by the thermal decomposition of compounds generated by Ca²⁺, Na⁺, Pb²⁺, and OH⁻ reactions. According to (c), the reaction precipitates are mainly PbCO₃, Pb₄(SO₄)(CO₃)₂(OH)₂, Pb₃(CO₃)₂(OH)₂, and Pb₃(CO₂)₂(OH)₂. When in contact with water, BSC will release CO₃²⁻, SO₄²⁻, and OH⁻ ions into the solution, where PbCO₃ is generated by the electrostatic adsorption of Pb²⁺ and CO₃²⁻. Pb₄(SO₄)(CO₃)₂(OH)₂, Pb₃(CO₃)₂(OH)₂, and Pb₃(CO₂)₂(OH)₂ are complexes formed by coordination between Pb²⁺, CO₃²⁻, SO₄²⁻, and OH⁻.

4. Conclusions

In this study, the adsorption behavior of Pb(II) onto BSC was studied, thus providing a theoretical basis for AMD treatment containing Pb(II). First, we observed that the dependence of the adsorption process on pH was similar to that of the formation of soluble and insoluble hydrolysates of Pb(II) on the pH value. The adsorption mechanism included ion exchange, complexation, precipitation, and a synergistic adsorption–coagulation effect. Hydrolysis and precipitation of Pb(II), as well as the interactions between Pb(II) and minerals and slag glass in BSC, were expressed by equations. Second, the pseudo-first-order kinetic, pseudo-second-order kinetic, and intra-particle diffusion models were used to fit the kinetic data. The pseudo-second-order kinetic model was the most suitable to describe the adsorption kinetics of Pb(II) onto BSC. In addition, it was observed that the total adsorption rate was controlled by liquid film diffusion and intra-particle diffusion. Third, the isothermal adsorption data were analyzed using the Langmuir, Freundlich, D-R, and BET models. The Langmuir and BET models led to the best isotherms. Fourth, thermodynamic analysis revealed that the adsorption process was spontaneous and endothermic, and that the degree of freedom of the Pb(II)-BSC system increased with time. Lastly, the BSC before and after the reaction, as well as the precipitation after the reaction, were characterized by SEM and XRD. In this study, the kinetic, isothermal adsorption, thermodynamic properties, mechanism, and microscopic characterization of Pb(II) adsorption on BSC were studied. The results offer further scope to study the desorption behaviors and to perform dynamic experiments. Therefore, to conclude, BSC is a good adsorbent for treating Pb(II)- containing AMD. It is a new multifunctional mineral material that allows neutralization, adsorption, coagulation, and filtration.
