Measuring Effectiveness of Mobile Application in Learning Basic Mathematical Concepts Using Sign Language

Department of Computer Science, COMSATS University Islamabad, Islamabad 44000, Pakistan
Department of Engineering, National University of Modern Languages, Islamabad 44000, Pakistan
College of Computer Science and Engineering, University of Jeddah, Jeddah 23890, Saudi Arabia
Author to whom correspondence should be addressed.
Sustainability 2019, 11(11), 3064;
Submission received: 31 March 2019 / Revised: 28 April 2019 / Accepted: 16 May 2019 / Published: 30 May 2019
(This article belongs to the Special Issue Technology Enhanced Learning Research)


Technology plays an important role in our society, especially in the field of education. It is quite regrettable that people, particularly the deaf, still face a lot of challenges in acquiring an education. Their learning methods are different as compared to hearing people. They use Sign Language (SL) rather than natural language to communicate and learn. They are required to put a lot of effort into learning different concepts using conventional pedagogies. Therefore, there is a dire need for some assistive technology to improve their learn-ability and understandability. In the present study, 192 deaf participants aged 5–10 years were sampled from two special child institutes. The objective of the present study was to determine the effectiveness of a mobile interface through a developed mobile application for learning basic mathematical concepts using Pakistan Sign Language (PSL). The present study bridges the gap between the technology-based method and conventional teaching methods, which are used for teaching mathematical concepts using PSL. The participants were divided into two groups, that is, one group learned through conventional methods (flash cards and board) and the other group through the developed mobile application. The difference in the performance of both the groups was evaluated by conducting quizzes. The quiz results were analyzed by the Z-test and ANOVA. The findings revealed that the Experimental Group (EG) participants, who were instructed by our mobile application showed higher proficiency in the quizzes as compared to the Control Group (CG). EG participants performed better than CG by 12% in the quizzes. A gender based difference was also observed for the quiz scores. Male participants in category C (word problem learning) performed 2.7% better than females in the EG and 2.5% better in the CG. Moreover, a significant difference was also observed in the time taken by participants in both groups to complete the quizzes. CG participants took 20 min longer than EG participants to complete the quizzes. The results of the ANOVA showed that the quiz scores were directly affected by the mode of teaching used for participants in both groups.

1. Introduction

Deafness means the inability of a person to completely hear any type of sound [1]. According to the World Health Organization (WHO) report on childhood hearing loss, there are different degrees of hearing loss [2]. In case of mild loss, a person face difficulties in hearing soft and distant sounds. If the loss is profound, a person is unable to hear any sound. Genetics, diseases, ear infection, exposure to loud noise, and use of some medicine are the major causes of deafness [3]. In Pakistan, about 0.48% of the total population is comprised of disabled people, of which 7.43% are deaf [4,5]. In daily life, people interact with each other via language, which serves as a medium of communication. Usually, communication falls into two categories, namely verbal and non-verbal. Verbal communication has a well-defined vocabulary and grammatical structure for hearing persons. Non-verbal communication mainly consists of visual/hand gestures typically used by deaf people. The concept of non-verbal communication is strongly related to Sign Language (SL). SL is a well-known means of communication for the deaf and people with hearing difficulty. SL is expressed with hand gestures, facial expressions, body movements and signs [6]. It is worth noting that there is no universal SL and every country has its own SL. SL varies from one region to another. Until now, about 138 SLs are known [7]. Different countries have developed SLs, for example, American Sign Language (ASL), Malaysian Sign Language (MSL), and British Sign Language (BSL). Similarly, Pakistan Sign Language (PSL) was developed for deaf people living in Pakistan [8]. The combination of SL with spoken language results in different signs. For example, English spoken language combines with BSL to form English signs. Similarly, when Urdu language combines with PSL it forms Urdu signs. Initially, the development of PSL started at an individual level and was then further extended by various organizations. The first PSL dictionary provides 750 different words related to different topics [8]. Like any other language, PSL has its own syntax. Figure 1 represents some Urdu and English letters in PSL, which are presented differently as compared to other SLs. Using PSL, deaf people combine their hand gestures, arms and body movements to express their thoughts and feelings [9].
Students with hearing ability learn by listening to their instructors, verbally giving feedback and asking questions. The same learning process is different for deaf students [11]. They use SL for learning and performing their day to day activities. Sometimes, they feel it is difficult to express what they actually want to ask using SL. Over the last forty years, deaf students, as compared to their hearing peers, have shown poor performance in literacy skills, reading comprehension and academic achievements in general [12]. English literacy of deaf students has a positive correlation with their SL skills [13]. A deaf student has to develop different linguistic mechanisms to become a successful reader and writer. However, the relationship between poor English literacy and deafness depends upon various other factors that include language competency, family background (educated or uneducated), and academic achievements [14].

1.1. Motivation

Technology plays an important role in our society, especially in the field of education. Therefore, assistive technologies are widely used to teach deaf. As the use of mobile devices is rapidly growing in our society, the benefits of their usage for supporting the individual and collaborative learning of deaf students is also notable [15]. One of the main benefit of using assistive technology is that it helps to provide educational opportunities to the individuals who are struggling with conventional education methods, especially people with a hearing disability.

1.2. Research Challenges and Contribution

Deaf students confront many challenges in shaping up their linguistics, academics and social life. A study reports that the performance of deaf students in mathematics lags behind hearing students [16]. In learning an arithmetic Word Problem (WP), deaf students take more time than hearing students [17]. With increasing complexity of concepts, it becomes difficult for them to grasp the idea accurately using the conventional methods of teaching. Students with a hearing disability need different learning methods as compared to hearing students. In general, deaf students use (English and Urdu) SL to learn and communicate with their teachers and parents. It is easy for them to learn the signs of these languages at an early age using conventional methods. On the other hand, numbers are not commonly used in conversation. Moreover, in the context of Pakistan, there is limited work done to teach different subjects to deaf people particularly mathematics while using PSL. Thus, the support of any tool may help them to learn basic mathematical concepts and to practice them repeatedly.
The present study addresses the following research question:
“Can technology-based solutions facilitate deaf participants in learning basic mathematical concepts?”
The contributions of the present study are as follows:
  • To develop a cost effective mobile application for learning mathematical concepts.
  • To evaluate the effectiveness of a mobile interface in learning basic mathematical concepts using PSL.
  • To fill the gap between the technology-based solution and conventional teaching methods that are used for teaching mathematics based on PSL.
  • To assist deaf participants to learn the mathematical concepts in an interactive and enjoyable way.
The rest of the paper proceeds with related work discussed in Section 2. Section 3 explains the research methodology of the study. The evaluation of the developed solution and results are presented in Section 4. Results are discussed in Section 5. Finally, the limitations and future work are discussed in Section 6.

2. Related Work

Assistive technologies help to provide educational opportunities to deaf individuals who generally struggle with conventional education methods. The use of mobile devices has considerably grown in society and is contributing to the individual, as well as collaborative, learning of deaf students [15]. Some of the applications that were developed for teaching SL to deaf students are discussed in this section.
Deaf students are slow learners so there is a need to continuously repeat the concepts that they learn at school. An MSL-based mobile application was developed to assist the deaf respondent with learning the basic English alphabet in MSL at both school and home [18]. This application provided the signs, picture and video clips for learning. Sixty-six percent of respondents were satisfied with the visual content of the application. The memorization and learn-ability of deaf students can be enhanced by incorporating a feedback process into SL learning applications. Another mobile application was developed to learn and practice BSL by incorporating a feedback process [19]. In this application, different learning exercises were provided in which Hearing Impaired (HI) learners physically reproduced the signs and got the feedback of their gestures. Ten participants were selected, of which 60% had no knowledge of BSL and 40% had limited knowledge. Time to produce the gesture was also recorded. In the alphabet task, participants took an average of 7.8 seconds. In the number task they took 4.67 seconds. Another language learning IOS based application, “the Baobab,” was developed for early deaf and hard of hearing readers to enhance their reading skills in ASL. A focused group session was arranged in which students watch videos, who tell stories in ASL. After this session, students had to retold the story and explained the main idea in ASL [20].
The finger spelling and number signing system of Sinhala Sign Language (SSL) was implemented using a 3D avatar [21]. This system converted the Unicode Sinhala text into phonetic English and saved it in an animation system. These animations helped deaf people to practice and learn SSL. The system was tested by real users to recognized the sign shown in the sequence. Recognition rate of 85% was achieved for finger spelling number. A game-based E-learning application, “Sign My World," was created to helped deaf students to learn Auslan [22]. This application focused on the used of video game principles, context awareness and system personalisation to promoted the learning. During the game session, participants used laptops to play the game with developer and Auslan interpreter. Participants’ comments and reactions to different activities were recorded. All the participants enjoyed the bright color and cartoon like aspects on the interface.
Another game-based gesture recognition application was developed for children to learn in Lingua Gestual Portuguesa (LGP). The game presented the story to motivate and promote the learning of LGP. The story consisted of seven keywords, which were highlighted with different colors. The users had to interpreted the keywords to reach the end of the story. The application was evaluated by the users in different configurations; standing and sitting. The results indicted better recognition of keywords with the user in a sitting position [23]. Copycat, a video game-based ASL learning application was developed to make the character performed the actions [24]. In this video game, the children had to collect the items to solve the given problem. The children produced the sign to recuse the main character in the game. Pre and post-test analysis were performed to evaluated the application. The result of post-test analysis shown that the application was useful for improving learning ability.
In general, e-learning courseware provides an effective way of teaching. A courseware interface for HI children was designed [25]. Data was collected from teachers and children for designing a new interactive interface. Different exercises were provided for learning English, Jawi and numbers in SL. In Saudi Arabia, deaf students faced many challenges in learning Islamic principles and beliefs. An iOS based application was developed to assist deaf students for learning the basics of Islam in Arabic SL [26]. By using this application, deaf students learned about the rules of ablution and prayers. A desktop application was developed for HI children to learn PSL [27]. This application provided an opportunity to learn English and Urdu in PSL. It consisted of two learning modes; learning through an articulator and through SL. It provided the learning of the alphabet, words and sentences in PSL. Videos based on PSL and lip reading were provided in this application. In Reference [28], an architectural framework based on PSL was proposed using information technology. In this framework, all the standard gestures and grammatical rules of PSL were presented to convert English/Urdu text into PSL. This framework helped to identify the important components to develop an application for the deaf community of Pakistan. It also helped to fill the communication gap between hearing and deaf people. In Reference [29], a historical background was presented for the development of PSL. The contribution of different organizations to the development of PSL was also discussed in it.
WP in mathematics is an important activity to develop logical thinking in students. A descriptive study based on structured interviews and observation was conducted to elicit the WP solving method from students [30]. The study identified that counting strategies were used more than fact-based strategies for solving WPs. The phonological skills related to arithmetic were identified [31]. It became evident that deaf students relied more on language processes for solving multiplication-based questions. In Reference [32], a 3D virtual environment was provided to deaf students for learning basic mathematical concepts. Students put-on LCD active stereoscopic glasses. Students learned the counting from 1–20 and the basic four arithmetic operation concepts. A GeePerS Math game based mobile application was developed for deaf students to learn basic mathematics. From interviews, it was concluded that game-based applications were more helpful and appealing for deaf students to learn basic arithmetic operations [33].
Balanced Mathematics Instruction (BMI) is one of the notable approaches for deaf students learning in the classroom without using a mobile application. BMI is based upon the principle that considers mathematical knowledge as a whole and allows the study of it in various problem cases. It establishes a balance between the teaching of mathematical skills and the use of mathematics in real life [34]. In study [35], the origami technique was used by deaf students to learn different mathematical concepts in a classroom. Math origami activities involved both mental and physical skills in the learning process. Deaf students got involved and took more interest in the curriculum by using origami. Origami activities allow deaf students to develop their own experiential base for different mathematical skills and to identify geometrics while solving different problems.
A user study [36] was conducted to measure the usability of a game based mobile application for HI children. The developed application was evaluated based on different parameters that include ease of use, learn-ability, efficiency and user enjoyment. Usability study approaches such as observation, interview, and applied questionnaires were used based on acceptance test elements. The results showed that this application was useful and easy for HI children to learn jawi concepts. Another study [37] was performed to find out the usability of User Interface of mobile application for the deaf. A model was developed based on the usability evaluation model of a mobile application. This model consisted of six dimensions criteria and metrics to identify the usability issues in a mobile application. The results of this study showed that the developed model was suitable for evaluating the usability of mobile applications used by deaf people. Various usability evaluation methods were developed to improve the interface of mobile devices and applications. However, some of the classical methods did not perform better when used in the mobile application field. In Reference [38], some methodological variations of classical methods were presented that were used to performed the usability testing of mobile applications. The study argued for combining the traditional laboratory testing and evaluation methods to perform the usability testing of mobile devices and applications. A comparison of some developed applications is represented in Table 1.
In References [18,19], the learning of alphabet signs was provided in MSL and BSL. In References [25,27], applications were developed to assist deaf students to learn alphabets and numbers. Reference [21] only focused on helping deaf students to learn numbers. References [20,22,23] provided the assistance for improving reading skills and for learning the signs of objects of daily use. Except for References [19,25,27], no one took feedback from the deaf students. Most of the studies mentioned in this section replicated learning in ASL, LGP, BSL, and MSL that had signs/symbols different from that of PSL. Only Reference [27] worked on PSL. However, they only focussed on Urdu and English alphabet learning. Moreover, it is also observed that the approaches and techniques (conventional teaching methods) [34,35] that were generally used in classrooms to teach deaf students were not very effective. Therefore, there is a need to develop an application that provides basic mathematical concepts learning using PSL.

3. Methodology

This section describes the methodology adopted for the study. It includes the study design, application development, participants, and participants’ assessment.

3.1. Study Design

The study originated from the need to measure the effectiveness of the mobile interface of a developed mobile application for learning basic mathematical concepts by deaf participants. The present study was conducted over a period of four weeks. During the first week, deaf participants, their classrooms and teaching methodology were observed. The second and third weeks encompassed the participants sampling and their learning through the developed mobile application and via conventional teaching method(s). During the fourth week, all the selected participants were evaluated with specially designed quizzes. The present study was conducted during school time with five working days per week. Both groups learned the mathematical concepts for two hours daily in their classrooms.
When participants in Experimental Group (EG) started the application, the main homepage appeared. The participants selected the level (category) from the homepage according to their age group. After they selected the category, the option to learn by picture or videos popped-up. Meanwhile, during learning they were able to assess their learn-ability with an Instant Feedback Module (IFM). Participants responded to different questions related to the concepts learned using the mobile application in IFM. Instructors helped the participants to use the mobile application. They instructed the participants in SL about how to move forward, how to select the particular option, how to start and pause the videos, and how to play the next video. All the participants actively participated during the study. They followed the instructions of their instructors. After practicing for one day, all participants were able to operate the mobile application themselves.
Learning Mode (LM) is the way to learn any concept. In the present study, conventional and application-based learning modes were used for selected participants, which are described below.
Conventional learning mode: This learning mode was used for CG participants. The instructor used the board and flash cards to delivered the mathematical concepts.
Application-based learning mode: This learning mode was used for the EG participants. All the participants were given the mobile phone having installed mobile application. The instructors assisted the participants in using and learning from the mobile application.
In the present study, LM and Category Level (CL) were considered independent variables and the quiz score was considered a dependent variable. Some variables were considered a control variable for both the groups. These control variables are defined as follows:
  • Instructor: The same instructors were assigned to both the groups.
  • Learning time: The same time (four weeks) was allocated to both the groups.
  • Mobile phone resolution: The same resolution of mobile phones was used for the present study.
  • Learning content: The same content (basic mathematical concepts) was taught to all selected deaf participants.

3.2. Application Development

From the literature, the following requirements were identified for the application development:
  • The application should have a method to take instant feedback from the learner [19].
  • The interface should have bright colors and cartoon-like aspects to make the application more attractive [22].
  • The application should provide a suitable background, font, color, and animated pictures to motivate the deaf participants. Different practice questions must be provided to increase the understandability of different concepts [25].
  • The application should provide high quality videos and images [26].
  • The application should consider screen adaption (landscape and portrait) on different mobile phones [39].
In the present study, a mobile application was developed for deaf participants by incorporating the features identified above. The main aim of the developed mobile application was to support deaf participants with learning basic mathematical concepts [40,41]. The developed application was categorized into three levels (referred as category levels) based on the age of the selected participants. The level of complexity of mathematical concepts increased while moving from level 1 to level 3. This categorization later on helped us to compare and analyze the participants in the present study. It also helped us to find out whether the mobile application was effective for the participants of a specific age group or otherwise appropriate for all age groups.

3.2.1. Features of Application

The application was built using the Android studio as an integrated development environment. Mobile phones with Android 5.1.1 were used to debug the application. The application was divided into three levels based on the age group of participants. Each level consisted of pictures of basic concepts, IFM and learning videos. IFM provided deaf participants with the opportunity to assess their learning. Participants answered different questions related to the concepts learned using the application. A “✓” represented the correct answer and “X” represented the wrong answer. Figure 2 and Figure 3 represents a modal practicing question of IFM.
Our mobile application was developed by following the user interface principles [42]. All the related concepts were unified in one category to ensure a consistent and organized mobile application. The design of the application was simple and unnecessary information was not incorporated to keep the participants focused and quickly grasping the concepts. The interface of the mobile application was user friendly. Participants faced only a little operational difficulty on the first day; on subsequent days they were capable of handling the application on their own.

3.2.2. First Level (Category A)

At the first level (category A of age group 5–6 years), concepts of counting (1–100) and numbers were delivered to the participants. In the number concept, they learnt even, odd, natural and whole numbers using specially designed questions based on PSL, as shown in Figure 4.

3.2.3. Second Level (Category B)

At the second level (category B of age group 7–8 years), the participants learnt the multiplication chart [43] (ref. Figure 6) and arithmetic operations, that is, addition, subtraction, and multiplication. The concepts of arithmetic operations were delivered through numbers and objects as presented in Figure 5. The multiplication chart of three was shown in Figure 6.

3.2.4. Third Level (Category C)

At the third level (category C of age group 9–10 years), WP solving questions were provided along with some tips in PSL. These tips provided the highlighted objects and numbers in the WP statement to improve the understandability and scenario building skills of the deaf participants. The WP questions assisted the deaf participants with understanding and grasping the concepts of the WP.

3.3. Participants

In the present study, participants with profound hearing loss aged 5–10 years were selected. This age group was chosen based on the fact that mathematics is a fundamental part of childhood education and the basic mathematical skills and knowledge are applicable in all domains of education. Mathematical concepts that are learnt at an early age foster a natural curiosity for learning mathematics [44].
All participants in the present study belonged to two special child education institutes [45,46] located in Islamabad, Pakistan. Out of 192 participants, 106 were male and 86 were female. All the selected participants were divided into two groups; an Experimental Group (EG) and a Control Group (CG) by random sampling technique.
The selected age group of the participants included grades 1, 2 and 3. All the participants in grade 1 had no prior knowledge of mathematical concepts. They were beginners with counting numbers concepts. Grade 2 participants had the concept of counting and number. They learned the concept of table and arithmetic operations by using the developed mobile application. On the other hand, grade 3 participants had a basic understanding of numbers, arithmetic operations and tables. They learned the WP concepts through our mobile application. Participants in the EG were provided with the mobile devices with the application installed for the present study. The instructors assisted the participants in learning the concepts using the mobile application. On the other hand, for the CG, the instructors used the board and flash cards (conventional teaching methods) to deliver the same concepts. At the end of the fourth week, all the participants were evaluated with valid and reliable quizzes. The detailed demographics of participants are presented in Table 2.

3.4. Participants’ Assessment

After the passage of the stipulated period (four weeks), three different quizzes based on multiple choice questions for all three categories of both groups were designed to assess the performance of participants in both the groups (CG and EG). The structure of these quizzes was based on the guidelines given in Reference [47]. Each quiz consisted of 10 questions carrying the weight of 1 point for each question, so each quiz had a total of 10 marks. Kuder Richardson 20 (KR20) was used to assess the reliability and validity of the designed quizzes. The total time spent by each student on attempting the quiz was recorded.

4. Evaluation and Results

Establishing the criteria to measure the usefulness of the developed mobile application is important for the evaluation of its effectiveness. The developed mobile application is considered useful and effective if the “quiz mean score” value of the EG is greater than of the CG. Evaluation criteria and hypothesis are as follows:

Evaluation Criteria

The developed mobile application helped the EG participants to get better scores in the quiz. The Hypothesis (H1) is formulated as follows:
There is no significant difference in the quiz mean score between EG and CG.
There is a significant difference in the quiz mean score between EG and CG.
To determine the interaction effect (difference in quiz mean scores for different combinations of LM and CL), the Hypothesis (H2) is formulated as follows:
There is no interaction between LM and CL.
There is an interaction between LM and CL.
In the present study, a Z-test was applied to evaluate the performance of both groups (CG and EG) and the effectiveness of the interface of the mobile application. A significance level of 5% was considered.
Hypothesis 1 was tested, EG (M = 8.33), CG (M = 7.11), Z (192) = 1.05555 × 10 7 as presented in Table 3. The p-value was less than α , which showed that the results are statistically significant. Therefore, H1a was rejected at 5% significance level. So, it can be said that there is a significant difference in the quiz mean score between EG and CG.
A two-way ANOVA was applied to test Hypothesis 2. Three different assumptions, that are, normality, outliers, and homogeneity of variance were tested before applying ANOVA. The detailed results of the ANOVA are presented in Table 4 and Table 5. All the assumptions along with their results are tabulated in Table 6, Table 7 and Table 8, respectively.
The result of the ANOVA, for Hypothesis 2, F (2, 192) = 0.39, p-value = 0.67 are presented in Table 4. The p-value is greater than α . Therefore, H2a is not rejected at the 5 % significance level. So, it was concluded that there is no interaction effect between LM and CL. Moreover, in the simple main effect analysis, p- value = 0.000000 showed that the LM had a significant effect on quiz score as compared to CL. This showed that the quiz scores were directly affected by the LM that was used for teaching the participants.
The assumptions were tested using different methods. Shapiro wilk test was used to test normality. The result in Table 6 indicated that the dependent variable was not normally distributed across different combinations of independent variables. Regression was applied to test the outliers in the data. The results showed that there were no outliers in the collected data. Moreover, homogeneity of variance was tested using the levene’s test. In this test, the p-value showed that the population variances were equal across both the groups (EG, CG). Amongst these three assumptions, assumption 1 (i.e., Normality) failed. In the present study, the sample size was greater than 30. According to central limit theorem [48,49], as the size of the sample increases, the distributions of sample mean approach to normality. Based on these findings, it was worth considering that both the samples in the present study were normally distributed.
The average quiz mean score was calculated for all three categories of both groups (EG,CG) as represented in Figure 7. EG participants scored significantly higher in all three categories as compared to CG participants. This confirmed that the performance of participants was improved by learning through the mobile application.
It is worth mentioning that the performance of participants in the EG was also evaluated in different category levels wherein it was observed that category C participants performed better than category A and B participants as represented by Figure 8. The average quiz mean scores for both LM and all CLs (A, B, and C) are summarized in Table 9.
The quiz results were also evaluated on the basis of gender. As the findings shown in the Table 10, the quiz results of males and females in category A and B did not differ significantly. This might happen because the concepts like counting, tables and arithmetic operations were taught at home as well as in school at an early age, so that males and females both acquire these skills. On the other hand, male participants in both groups outperformed the females in category C as shown in Figure 9 and Figure 10. This indicated that male participants possessed greater problem solving abilities than the females.
The result of KR20 (R = 0.77) showed that all the designed quizzes were reliable and valid. The quiz for both groups started at the same time. The completion time for each participant was recorded. A statistically significant difference was observed in the quiz completion time by both groups. Figure 11 represents the time taken by each participant to complete the quizzes in both groups. In Figure 12, a swarm plot represents the average time taken by the participants of both groups to complete the quizzes. In the CG, on average, the participants took 50 min to complete the quizzes. On the other hand, the EG participants took an average of 30 min to complete the quizzes. The participants of the CG took more time to attempt the quizzes because they were unable to recognize and remember the signs learned through flash cards and board.

5. Discussion

The conclusion based upon the recorded observations and quiz results analysis shows that both groups of participants really enjoyed the study. The EG participants were especially fascinated by the features of the mobile application. They liked the background, foreground colors, font, arithmetic operation videos and pictures of different concepts. They easily navigated from one screen to another. They were satisfied with the visual content as signs were clear and easy to read. The participants responded that the mobile application provided the best medium to ensure the convenient, dynamic, and tacit learning of mathematical concepts. Moreover, the participants recommended adding more videos to the mobile application.
The findings of the present study authenticated that the use of the mobile application supported the learn-ability of deaf participants. They can effectively understand the concepts as validated by the results of quiz. It was observed that mobile application motivated the participants for learning as compared to the conventional methods. It was also observed during the present study that participants in the CG did not properly concentrate on the concepts delivered using the conventional methods which is why they experienced difficulty in remembering the concepts and recognizing the signs during quizzes.
Gender based comparison showed that male participants in both the groups possessed a higher ability for problem solving. These results are also supported by References [50,51], which concluded that males are more capable of problem solving and responding to numerical based questions.
An ANOVA was applied to identify the interaction effect of CL and LM on their quiz scores. The results confirmed that the interaction of two independent variables, that is, CL and LM, had no significant effect on the quiz scores. Quiz scores were only affected by the LM.
Classroom environment, SL pictures, body movements, teachers’ attention to the SL communication of participants, and deaf participants’ mood were important factors for improving the learn-ability of deaf participants [52]. It became evident that assistive technologies must be adopted to improve the academic performance of deaf participants in addition to the above-mentioned factors [53,54]. The present study also provided evidence that technology improved the learning of a particular class of participants.

6. Conclusions and Future work

The number of mobile devices and their use in educational and personal learning is growing tremendously. The integration of technology in education brings a positive change to the teaching and learning process. It has become quite easy for instructors to teach the deaf by using the mobile application. Moreover, it enhances the learning skills of the deaf.
The main objective of the present study was to evaluated the effectiveness of a mobile application interface in learning basic mathematical concepts using PSL. A user study was conducted on deaf participants of aged (5–10) years.
The results of the present study showed better performance of participants (Experimental Group) who used the mobile application for learning. The quiz mean score of these participants was 12% greater than that of the other participants (Control Group) who were taught using conventional methods. Moreover, a significant difference was observed in quiz results based on gender. In both groups, male participants performed better in category C as compared to females. A difference in time was also observed for both groups to complete the quizzes. CG participants took 20 min more to complete the quiz. It may be concluded that the learning of deaf participants was improved by the use of mobile applications.
However, there are still some measures to be considered for future purposes. In the future, we will work on the learn-ability of higher level complex mathematical concepts. The concepts of algebra and geometry will be undertaken by the mobile application. Moreover, the sample size will be increased to ensure external validity and generalizability of the present study.

Author Contributions

K.P. and M.K. designed and conducted the study. J.I. and M.T. contributed in the methodology. A.A., M.A. and A.A.A. were responsible for data analysis and visualization. K.P. wrote the initial draft. N.J. made great contribution in manuscript revision and editing. All the authors read and approved the paper.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Zeng, F.-G.; Djalilian, H. Hearing impairment. In Book Oxford Handbook of Auditory Science: Hearing; Oxford University Press: Oxford, UK, 2010; pp. 1–32. [Google Scholar]
  2. Krug, L.S.E.; Cieza, A.; Chadha, S. Childhood Hearing Strategies for Prevention and Care; World Health Organization Report; WHO: Geneva, Switzerland, 2016; pp. 1–30. [Google Scholar]
  3. World Health Organization. Deafness and Hearing Loss. Available online: (accessed on 19 February 2018).
  4. Disabled Constitute Just 0.48 Percent of Total Population. Available online: (accessed on 19 February 2018).
  5. Pakistan Bureau of Statistics. Disabled Population by the Nature of Disability. Available online: (accessed on 19 February 2018).
  6. Karpov, A.; Kipyatkova, I.; Zelezny, M. Automatic Technologies for Processing Spoken Sign Languages. Procedia Comput. Sci. 2016, 81, 201–207. [Google Scholar] [CrossRef] [Green Version]
  7. Ethnologue: Languages of the World. Available online: (accessed on 19 February 2018).
  8. Haseeb, A.A.; Ilyas, A. Speech Translation into Pakistan Sign Language. Master’s Thesis, School of Computing Blekinge Institute of Technology, Blekinge, Sweden, 2012. [Google Scholar]
  9. Dewani, A.; Bhatti, S.; Memon, M.A.; Arif, W.A.; Arain, Q.; Zehra, S.B. Sign Language e-Learning system for hearing-impaired community of Pakistan. Int. J. Inf. Technol. 2018, 10, 225–232. [Google Scholar] [CrossRef]
  10. PSL English and Urdu alphabets. Available online: (accessed on 2 July 2018).
  11. Gross, R. Psychology: The Science of Mind and Behaviour; Oxford University Press: Cary, NC, USA, 2010. [Google Scholar]
  12. Qi, S.; Mitchell, R.E. Large-scale academic achievement testing of deaf and hard-of-hearing students: Past, present, and future. J. Deaf. Stud. Deaf. Educ. 2012, 17, 1–18. [Google Scholar] [CrossRef]
  13. Hoffmeister, R.J. A piece of the puzzle: ASL and reading comprehension in deaf children. In Language Acquisition by Eye; Lawrence Erlbaum Associates: Mahwah, NJ, USA, 2000; pp. 143–163. [Google Scholar]
  14. Wilbur, R.B. The Use of ASL to Support the Development of English and Literacy. J. Deaf. Stud. Deaf. Educ. 2000, 5, 81–104. [Google Scholar] [CrossRef]
  15. Alvarez, C.; Alarcon, R.; Nussbaum, M. Collaborative learning activities in the classroom supported by one-to-one mobile computing A design-based process. J. Syst. Softw. 2011, 84, 1961–1976. [Google Scholar] [CrossRef]
  16. Pagliaro, C.M. Mathematics instruction and learning of deaf and hard-of-hearing students: What do we know? Where do we go? In Oxford Handbook of Deaf Studies and Language Education; Marschark, M., Spencer, P., Eds.; Oxford University Press: Oxford, UK, 2010; Volume 2, pp. 156–171. [Google Scholar]
  17. Zevenbergen, R.; Hyde, M.; Power, D. Language, arithmetic word problems, and deaf students: Linguistic strategies used to solve tasks. Math. Educ. Res. J. 2001, 13, 204–218. [Google Scholar] [CrossRef] [Green Version]
  18. Sahid, A.F.B.M.; Ismail, W.S.W.; Ghani, D.A. Malay Sign Language (MSL) for Beginner using android application. In Proceedings of the International Conference on Information Communication and Technology, Kuala Lumpur, Malaysia, 16–17 May 2017; pp. 189–193. [Google Scholar]
  19. Restituyo, C.A.; Loizides, F.; Yang, S.; Weir, K.; Worrallo, A.; Hartley, T.; Souleles, N.; Loizou, M. Presenting and Investigating the Efficacy of an Educational Interactive Mobile Application for British Sign Language Using Hand Gesture Detection Techniques. In Proceedings of the 16th World Conference on Mobile and Contextual Learning, Larnaca, Cyprus, 30 October–1 November 2017. [Google Scholar]
  20. Malzkuhn, M.; Herzig, M. Bilingual storybook app designed for deaf children based on research principles. In Proceedings of the 12th International Conference on Interaction Design and Children, New York, NY, USA, 24–27 June 2013; pp. 499–502. [Google Scholar]
  21. Punchimudiyanse, M. Animation of Fingerspelled Words and Number Signs of the Sinhala Sign Language. ACM Trans. Asian-Low-Resour. Lang. Inf. Process. 2017, 16, 24. [Google Scholar] [CrossRef]
  22. Korte, J.; Potter, L.E.; Nielsen, S. Designing a Mobile Video Game to Help Young Deaf Children Learn Auslan. In Proceedings of the BCS Human Computer Interaction Conference, Birmingham, UK, 10–14 September 2012; pp. 345–350. [Google Scholar]
  23. Soares, F.; Esteves, J.S.; Carvalho, V.; Lopes, G.; Barbosa, F.; Ribeiro, P. Development of a serious game for Portuguese Sign Language. In Proceedings of the International Congress on Ultra Modren Telecommunication and Control System Work, Brno, Czech Republic, 6–8 October 2016; pp. 226–230. [Google Scholar]
  24. Weaver, K.A.; Hamilton, H.; Zafrulla, Z.; Brashear, H.; Starner, T.; Presti, P. Improving the Language Ability of Deaf Signing Children through an Interactive American Sign Language-Based Video Game. In Proceedings of the International Conference on Learning Science, Chicago, IL, USA, 29 June–2 July 2010; Volume 2, pp. 306–307. [Google Scholar]
  25. Saud, S.F.; Nasruddin, Z.A. Design of e-learning courseware for hearing impaired (HI) students. In Proceedings of the International Conference on User Science and Engineering, Melaka, Malaysia, 23–25 August 2016; pp. 271–276. [Google Scholar]
  26. Alnafjan, A.; Aljumaah, A.; Alaskar, H.; Alshraihi, R. Designing ‘Najeeb’: Technology-Enhanced Learning for Children with Impaired Hearing Using Arabic Sign-Language ArSL Applications. In Proceedings of the International Conference on Computer and Application, Doha, UAE, 6–7 September 2017; pp. 238–243. [Google Scholar]
  27. Rauf, S.A.; Butt, A.J.; Zahid, A.; Jabeen, A.; Siddiqi, A.R.; Shafique, H. Urdu Language Learning Aid based on Lip Syncing and Sign Language for Hearing Impaired. Int. J. Comput. Sci. Inf. Secur. 2016, 14, 478–488. [Google Scholar]
  28. Khan, N.S.; Abid, A.; Abid, K.; Farooq, U.; Farooq, M.S.; Jameel, H. Speak Pakistan: Challenges in Developing Pakistan Sign Language using Information Technology. Int. J. South Asian Stud. 2015, 30, 367–379. [Google Scholar]
  29. Hassan, B.; Farooq, M.S.; Abid, A.; Sabir, N. Pakistan Sign Language: Computer Vision Analysis & Recommendations. VFAST Trans. Softw. Eng. 2015, 9, 1–6. [Google Scholar]
  30. Pagliaro, E.A.; Claudia, M. Deaf and hard of hearing students’ Problem-solving strategies with signed Arithmetic story problems. Am. Ann. Deaf 2012, 156, 438–458. [Google Scholar] [CrossRef] [PubMed]
  31. Andin, J.; Rönnberg, J.; Rudner, M. Deaf signers use phonology to do arithmetic. Learn. Individ. Differ. 2014, 32, 246–253. [Google Scholar] [CrossRef] [Green Version]
  32. Adamo-Villani, N.; Carpenter, E.; Arns, L. An immersive virtual environment for learning sign language mathematics. In Proceedings of the ACM SIGGRAPH Education Program, Boston, MA, USA, 30 July–3 August 2006; pp. 1–20. [Google Scholar]
  33. Shelton, B.E.; Parlin, M.A. Teaching Math to Deaf/Hard-of-Hearing (DHH) Children Using Mobile Games. Int. J. Mob. Blended Learn. 2016, 8, 1–17. [Google Scholar] [CrossRef]
  34. Tanridiler, A.; Uzuner, Y.; Girgin, U. Teaching and Learning Mathematics with Hearing Impaired Students. Anthropology 2015, 22, 237–248. [Google Scholar] [CrossRef]
  35. Chen, Ki. Math in motion: Origami math for students who are deaf and hard of hearing. J. Deaf Stud. Deaf Educ. 2005, 11, 262–266. [Google Scholar] [CrossRef]
  36. Hussain, A.; Mutalib, N.A. A Usability Testing On jFakih Learning Games for Hearing Impairment Children. J. Res. Technol. Educ. 2013, 45, 4–7. [Google Scholar]
  37. Nathan, S.S.; Hussain, A.; Hashim, N.L.; Omar, M.A.; Sivaji, A.; Chuan, N.K.; Soo, S.T. Empirical Validation and Evaluation Model for Deaf People on Mobile Applications. J. Telecommun. Comput. Eng. 2017, 9, 105–108. [Google Scholar]
  38. Bernhaupt, M.O.R.; Mihalic, K. Usability evaluation methods for mobile applications. In Handbook of Research on User Interface Design and Evaluation for Mobile Technology; Information Science Reference: Hershey, PA, USA, 2008; pp. 745–757. [Google Scholar]
  39. Wong, C.Y.; Khong, C.W.; Thwaites, H. Applying User Interface Design Process Model for a Mobile Community Project for the Deaf. Int. J. Innov. Manag. 2007, 2, 30–37. [Google Scholar]
  40. Clements, J.; Sarama, D.H. Learning Trajectories in Early Mathematics—Sequences of Acquisition and Teaching; Encyclopedia of Language and Literacy Development: New York, NY, USA, 2009; Volume 4, pp. 1–6. [Google Scholar]
  41. Schreiner, E. Basic Concepts in Mathematics. Available online: (accessed on 24 February 2018).
  42. Hashim, A.S.; Ahmad, W.F.W.; Rohiza, A. A study of design principles and requirements for the m-learning application development. In Proceedings of the 2010 International Conference on User Science and Engineering (i-USEr), Shah Alam, Malaysia, 13–15 December 2010; pp. 226–231. [Google Scholar]
  43. Multiplication Chart. Available online: (accessed on 29 May 2018).
  44. Linder, S.M.; Powers-Costello, B.; Stegelin, D.A. Mathematics in Early Childhood: Research-Based Rationale and Practical Strategies. Early Child. Educ. J. 2011, 39, 29–37. [Google Scholar] [CrossRef]
  45. Sultana Foundation Islamabad. Available online: http// (accessed on 19 February 2018).
  46. National Instutite of Special Education. Available online: (accessed on 19 February 2018).
  47. Vitova, J.; Zdražilová, T.; Ježková, A. Successes of students with hearing impairment in math and reading with comprehension. Procedia Soc. Behav. Sci. 2014, 112, 725–729. [Google Scholar] [CrossRef]
  48. Curran-everett, D. Explorations in statistics the assumption of normality. Am. Physiol. Soc. 2018, 41, 449–453. [Google Scholar] [CrossRef] [PubMed]
  49. Winner, L. Applied Statistical Methods; Elsevier: Amsterdam, The Netherlands, 2009. [Google Scholar]
  50. Arigbabu, A.A.; Mji, A.N.D.I.L.E. Brief Report: Is Gender a Factor in Mathematics Performance Among Nigerian Preservice Teachers? Sex Roles 2004, 51, 749–753. [Google Scholar] [CrossRef]
  51. Bassey, S.W.; Joshua, M.T.; Asim, A.E. Gender differences and mathematics achievement of rural senior secondary students in Cross River State, Nigeria. In Proceedings of the EpiSTEME 3 Conference, Mumbai, India, 5–9 January 2009; pp. 5–9. [Google Scholar]
  52. Shokrpour, N.; Bambaeeroo, F. The impact of the teachers’ non-verbal communication on success in teaching. J. Adv. Med Educ. Prof. 2017, 5, 51–59. [Google Scholar]
  53. Vesel, J.; Robillard, T. Teaching mathematics vocabulary with an interactive signing math dictionary. J. Res. Technol. Educ. 2013, 45, 361–389. [Google Scholar] [CrossRef]
  54. Lang, H.G.; Steely, D. Web-based science instruction for deaf students: What research says to the teacher. Instr. Sci. 2003, 31, 277–298. [Google Scholar] [CrossRef]
Figure 1. Few Letters of English and Urdu in Pakistan Sign Language [10].
Figure 1. Few Letters of English and Urdu in Pakistan Sign Language [10].
Sustainability 11 03064 g001

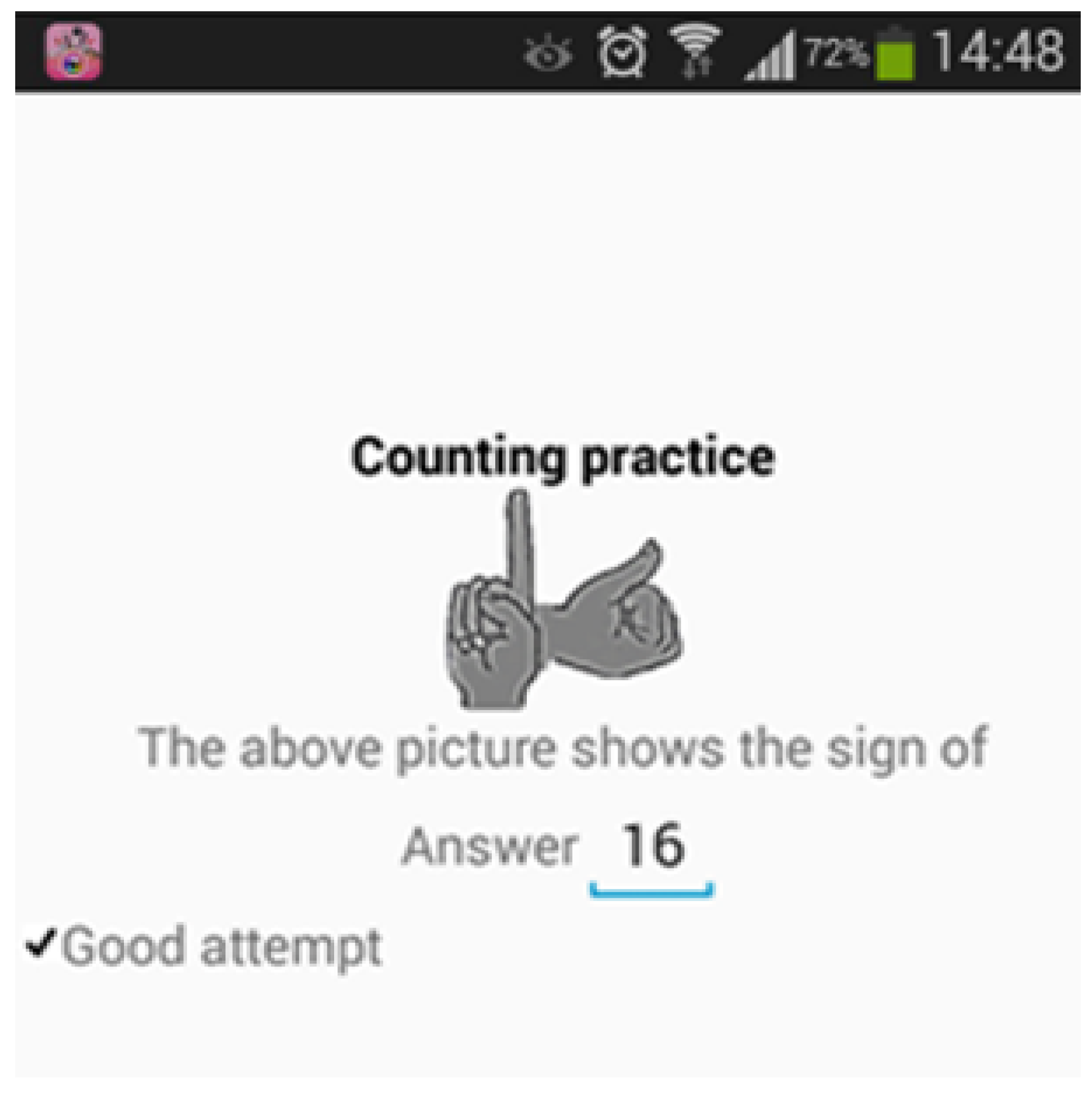

Figure 2. A Practice Question of Instant Feedback Module.
Figure 2. A Practice Question of Instant Feedback Module.
Sustainability 11 03064 g002
Figure 3. A Practice Question of Instant Feedback Module.
Figure 3. A Practice Question of Instant Feedback Module.
Sustainability 11 03064 g003
Figure 4. Even and Odd Numbers Concept in PSL.
Figure 4. Even and Odd Numbers Concept in PSL.
Sustainability 11 03064 g004
Figure 5. Learn Addition in PSL.
Figure 5. Learn Addition in PSL.
Sustainability 11 03064 g005
Figure 6. Multiplication chart of Three in PSL.
Figure 6. Multiplication chart of Three in PSL.
Sustainability 11 03064 g006
Figure 7. Comparison of Average Quiz Scores for EG and CG.
Figure 7. Comparison of Average Quiz Scores for EG and CG.
Sustainability 11 03064 g007
Figure 8. Comparison of Average Quiz Scores for EG participants.
Figure 8. Comparison of Average Quiz Scores for EG participants.
Sustainability 11 03064 g008
Figure 9. Gender Based Comparison in EG at Different Category Levels.
Figure 9. Gender Based Comparison in EG at Different Category Levels.
Sustainability 11 03064 g009
Figure 10. Gender Based Comparison in CG at Different Category Levels.
Figure 10. Gender Based Comparison in CG at Different Category Levels.
Sustainability 11 03064 g010
Figure 11. Time to Attempt the Quiz by Each Participants.
Figure 11. Time to Attempt the Quiz by Each Participants.
Sustainability 11 03064 g011
Figure 12. Average Quiz Completion Time.
Figure 12. Average Quiz Completion Time.
Sustainability 11 03064 g012
Table 1. Comparison of SL Learning Mobile Applications.
Table 1. Comparison of SL Learning Mobile Applications.
Targeted Age GroupNumber of ParticipantsSL UsedOperating SystemKey Features of ApplicationPurpose of StudyLimitation of Study
6–8 [18]30MSLAndroidStoryboarding techniqueSL learningThe application provides only the signs of English alphabets
For all age groups [19]10BSLAndroidImage recognitionSL learningApplication only limited to static gestures recognition
3–8 years [20]10ASLIOSGlossary section, storytelling, Read mode (book), watch mode (Videos)Improved reading skillsApplication size is 850 Mb, which is very large
5–10 years [21]10SSLWindowsFinger spelling animation, 3D Avatar based interpreterLearning fingerspelling and number signs of SSLsThe application does not provide the fingerspelling signs of conjunct
7 years [22]3AuslanAndroidFlash card images, personalization, Video gameLearn noun and verbs using SLGame play time is very short for the participants
6–10 years [23]7LGPWindowsNarrated story and keywordLearn signs of object of daily lifeOnly provides static gestures
6–11 years [24]12ASLAndroidSix games and SL recognition systemAssist deaf students to produce signs based on given scenarioResults are not generalizable
7–8 years [25]6MSLE-learning course-wareLearning exercises, pictures of SL and different objectsLearning numbers, jawi (alif, baa) and alphabetResults are not generalizable
7–12 years [26]-Arabic SLIOS3D animationLearn method of ablution (wudu),prayers and supplicationApplication is not evaluated
14–17 years [27]20PSLDesktop appShort quizzes, Lip syncing, Urdu, and English SL learning videosUrdu and English alphabets SL learningGoogle speech API limits user speech to 50 requests per day
Table 2. Participants’ Demographics.
Table 2. Participants’ Demographics.
Category LevelTotal ParticipantsAge Group (Years)Gender (Male and Female)
A645–6M = 37, F = 27
B647–8M = 35, F = 29
C649–10M = 34, F = 30
Table 3. Z-test Scores for Control and Experimental Group.
Table 3. Z-test Scores for Control and Experimental Group.
Z-Test ScoresExperimental GroupControl Group
N (sample size)9696
Z-critical two tail1.959
P(Z≤z) two-tail 1.05555 × 10 7
Table 4. ANOVA: Test of Between-Subjects Effects.
Table 4. ANOVA: Test of Between-Subjects Effects.
LM x CL1.5720.780.390.67
Table 5. Variables and Sample Size.
Table 5. Variables and Sample Size.
Variable/SampleVariable Type / Sample Size
Independent variableLearning Mode, Category level, Gender
Dependent variableQuiz scores
Sample size192
Table 6. Assumption 1: Test for Normality.
Table 6. Assumption 1: Test for Normality.
Test UsedShapiro-Wilk
AConventional, Application0.010, 0.004
BConventional, Application0.017, 0.009
CConventional, Application0.019, 0.008
ResultsCG and EG populations are not normally distributed.
Table 7. Assumption 2: Test for Outliers.
Table 7. Assumption 2: Test for Outliers.
Test UsedMahalanobis DistanceCritical ValueResults
RegressionMaximum: 2.480.47, 0.80, 0.47There are no outliers in collected data.
Table 8. Assumption 3: Homogeneity of Variance.
Table 8. Assumption 3: Homogeneity of Variance.
Test Usedp-ValueResults
Levene’s test0.255p-value > α , so population variances are equal
Table 9. Average Quiz Mean Score for Each Category.
Table 9. Average Quiz Mean Score for Each Category.
Table 10. Gender Based Comparison of Average Quiz Score in All Categories of Both EG and CG.
Table 10. Gender Based Comparison of Average Quiz Score in All Categories of Both EG and CG.
GroupsGenderCategoriesMean ValueStandard Deviation
EGMalesCategory A8.21±1.32
Category B8.35± 1.21
Category C8.53± 1.05
FemalesCategory A8.12± 1.31
Category B8.38± 1.37
Category C8.31± 1.37
CGMalesCategory A7.11± 1.65
Category B7.3± 1.41
Category C7.8± 1.65
FemalesCategory A7.06± 0.33
Category B7.26± 1.43
Category C7.64± 1.82

Share and Cite

MDPI and ACS Style

Parvez, K.; Khan, M.; Iqbal, J.; Tahir, M.; Alghamdi, A.; Alqarni, M.; Alzaidi, A.A.; Javaid, N. Measuring Effectiveness of Mobile Application in Learning Basic Mathematical Concepts Using Sign Language. Sustainability 2019, 11, 3064.

AMA Style

Parvez K, Khan M, Iqbal J, Tahir M, Alghamdi A, Alqarni M, Alzaidi AA, Javaid N. Measuring Effectiveness of Mobile Application in Learning Basic Mathematical Concepts Using Sign Language. Sustainability. 2019; 11(11):3064.

Chicago/Turabian Style

Parvez, Komal, Muzafar Khan, Javed Iqbal, Muhammad Tahir, Ahmed Alghamdi, Mohammed Alqarni, Amer Awad Alzaidi, and Nadeem Javaid. 2019. "Measuring Effectiveness of Mobile Application in Learning Basic Mathematical Concepts Using Sign Language" Sustainability 11, no. 11: 3064.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
