Sustainability 2018, 10(9), 3251;

Decomposition Analysis in Electricity Sector Output from Carbon Emissions in China
by Xue-Ting Jiang 1,2,3,*, Min Su 4 and Rongrong Li 4
State Key Laboratory of Desert and Oasis Ecology, Xinjiang Institute of Ecology and Geography, Chinese Academy of Sciences, Urumqi 830011, China
CAS Research Center for Ecology and Environment of Central Asia, Chinese Academy of Sciences, Urumqi 830011, China
College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100049, China
School of Economic & Management, China University of Petroleum (East China), No. 66 West Changjiang Road, Qingdao 266580, China
Author to whom correspondence should be addressed.
Received: 7 August 2018 / Accepted: 1 September 2018 / Published: 12 September 2018


Carbon emissions from China’s electricity sector account for about one-seventh of the global carbon dioxide emissions, or half of China’s carbon dioxide emissions. A better understanding of the relationship between CO2 emissions and electric output would help develop and adjust carbon emission mitigation strategies for China’s electricity sector. Thus, we applied the electricity elasticity of carbon emissions to a decoupling index that we combined with advanced multilevel Logarithmic Mean Divisia Index tools in order to test the carbon emission response to the electric output and the main drivers. Then, we proposed a comparative decoupling stability analysis method. The results show that the electric output effect played the most significant role in increasing CO2 emissions from China’s electric sector. Also, “relative decoupling” was the main state during the study period (1991–2012). Moreover, the electricity elasticity of CO2 emissions had a better performance regarding stability in the analysis of China’s electricity output.
CO2 emissions; electricity sector; decoupling; comparative stability analysis; China

1. Introduction

China, the biggest carbon emitter in the world, after realizing the importance and urgency of reducing carbon emissions [1,2], has taken relevant measures to cut emissions down [3,4]. The carbon dioxide (CO2) emissions from electricity accounted for over half of total CO2 emissions from fuel combustion in China, and about one-seventh of total CO2 emissions from fuel combustion in the world [5]. According to some future carbon emission scenarios, the electricity sector can be regarded as the biggest carbon emitter from the sector-level perspective [6]. Thus, a deeper understanding of the decoupling of carbon emission growth from electric output and the main drivers of the decoupling process in China is a matter of cardinal significance.
In previous decomposition literatures, structure decomposition analysis (SDA) and index decomposition analysis (IDA) were the most popular tools to figure out the effects when decomposing [7,8,9,10,11,12]. The IDA method has been widely used in previous studies, successfully quantifying the impact of different issues so far [13]. Tracking new developments, Ang discussed the method formulation using an index number framework [14], made a detailed review of various methods, and compared the advantages and disadvantages of various decomposition tools. He concluded that the Logarithmic Mean Divisia Index (LMDI) method was the preferred method, because of its perfect theoretical framework, adaptability, ease of use, and result interpretation, as well as other desirable properties in the context of decomposition analysis [15]. This is a complete decomposition method without residuals, which was generalized by Sun to analyze energy consumption in China [13]. Ang and Liu later modified the original model to handle negative values in the LMDI technique [16]. Many studies then applied this technique due to this advantage; for example, Cansino et al. analyzed the influencing factors of different sectors by using a multisector analysis approach [17]. Paul and Bhattacharya [18], Shahbaz, M. [19], Wang et al. [11,12], and Lise [20] also conducted comprehensive analyses of the carbon emission drivers in India, Portugal, China, and Turkey based on their regional characteristics, respectively. Xu et al. decomposed the changes of China’s energy-related air pollutant (NOx, PM2.5, and SO2) emissions into various factors by structural decomposition analysis (SDA) [21]. Hu et al. calculated the carbon emissions from each fuel and tested the contributions of each factor to carbon emissions in Chongqing after taking the sector differences into consideration [22]. Wang et al. uncovered the drivers of decoupling between economic growth and carbon emissions in Chinese industry [23]. Sumabat et al. carried out a decomposition analysis of CO2 emissions from electricity generation in the Philippines [24]. Wang et al. investigated the decoupling states between economic growth and water use in Beijing, Shanghai, and Tianjin, China [25], and identified the socioeconomic drivers of decoupling economic growth from energy consumption in China and India [26]. In general, most previous CO2 emission decomposition analysis focused on the social and economic factors, and primarily decomposed the emission changes into four main aspects: population, energy mix, energy intensity, and economic development. However, few studies have taken the sector characteristics into account when carrying out the carbon emission decomposition analysis, even though considering these properties can help policymakers develop more applicable strategies for the electricity sector. To fill this gap, we conducted our research from the perspective of electricity sector characteristics via the modified LMDI model on the basis of the extended Kaya identify [27], aiming to test the impacts of factors on carbon emissions, such as electric output, energy consumption, and conversion efficiency (instead of social and economic development), along with their contributions to decoupling.
For the decoupling research, Tapio proposed a decoupling analysis theoretical framework for the European Union (EU) to measure the relationship between CO2 emissions and transport output or economic growth [28]. Diakoulaki and Mandaraka assessed the decoupling process of CO2 emissions from the industrial development of the manufacturing sector in the EU [29]. Lin and Liu investigated the CO2 emissions of the heavy industry via decomposing the decoupling index model [30]. Hu et al. applied the Tapio decoupling model to identify the drivers of carbon emissions from China’s product sector [22]. Zhang et al. analyzed the decoupling state and determined the main factors that influenced the decoupling relationship by combining a decoupling model with the decomposition method [31]. However, previous studies were conducted primarily through the decoupling elasticity system or the decoupling index analysis method, and few studies compared the applicability and stability for a given region. We tried to perform a comparative stability test on the decoupling indices of the electricity sector to fill the gap. Also, the majority of the relevant literature concentrated on uncovering the decoupling relationship between carbon emissions and GDP (gross domestic product) or the added economic value of a sector. Nevertheless, few of them have focused on discussing the relationship of carbon emissions and sectoral output from the perspective of sector development rather than economic gains.
Since power generation is one of the major sources of CO2 emissions from fossil fuel combustion [32], the electricity sector is attracting more attention, which is also becoming an increasingly important topic for researchers. Shrestha and Timilsina analyzed the roles of generation mix and fuel intensity in the thermal power carbon intensity of 12 Asian countries [33]. Wang et al. identified the socioeconomic drivers of the electricity footprint of China’s industrial sectors from both the consumption side and supply side [34]. Malla discussed the contributions to electricity CO2 emissions from three factors: electricity production, electricity generation structure, and the energy intensity of electricity generation to carbon emissions [32]. Besides, although existing studies have identified the relationship between electricity consumption and economic growth in China [35,36], most of the previous research discussed the social and economic development factors that led to changes in electricity production and consumption. They aimed to investigate the relationship between the pollution of the power sector and the socioeconomic system. Most of them discussed the main drivers of electricity CO2 emissions without considering the characteristics of the electricity power sector. However, the policy implications aimed at this are more targeted and applicable than those of economic and social development when formulating corresponding carbon emission reduction policies in China. So, this paper chose the typical high carbon emission sector—the electricity sector—to measure the impact of electricity generation on carbon emissions.
The rest of the paper is organized as follows. Section 1 contains the literature review. Section 2 demonstrates the methods and data source. Section 3 reveals the results. Section 4 provides the conclusions and policy implications.

2. Materials and Methods

To better display the content and structure of the paper, we drew a proxy diagram to clarify the models applied in this paper (Figure 1). First, the carbon emissions from fossil fuel combustion in China’s electricity power sector are calculated. Furthermore, the decoupling elasticity model is applied to identify the decoupling states through preliminary calculations of carbon emissions and output from the power sector, and compare the possibilities of reducing or slowing the CO2 emissions of the electricity sector output. Then, the key drivers of electricity carbon emission changes from the view of the characteristics and development of the electricity sector are investigated by applying the multilevel index decomposition method (additive LMDI and multiplicative LMDI models). The decoupling index model is used to analyze the degree of decoupling (the response and synchronization degree of carbon emissions generated by the power sector to the development and output of the sector), and is then combined with the decomposition model to identify the contributions of various influencing effects. Finally, based on two different decoupling models, the electricity sector in China is used as a pilot issue in order to conduct a comparative stability test of the two widely used decoupling models.

2.1. Energy-Related CO2 Emissions Calculation

The Intergovernmental Panel on Climate Change (IPCC) guidelines [37] put forward a method for calculating CO2 emissions from fuels combustion, which is applied to calculate the corresponding CO2 emissions from electricity production in China in this paper:
C t = i C i = i E i C F i = i E i C V i O i m
C t and C i are the total carbon dioxide emissions from the electric power sector and the carbon emission from fuel i; and E i (million tonnes carbon equivalent, Mtce) is the amount of energy consumed for electricity production from fuel i. C F i (Kcal/Kg or Kcal/m3) denotes the carbon emission coefficient of fuel i; C V i (tC/TJ) and O i represent the carbon content of the calorific value and the oxidation rate of given fuel, respectively, and m is the conversion fraction. The category and emission factor information of each fuel is listed in Table 1.

2.2. Decoupling Elasticity Index

Using the decoupling elasticity, we established a decoupling model between CO2 emissions and the output of the electric sector, which is exhibited in Equation (2):
D E = % C / % E O = ( C C 0 ) / ( E O E O 0 ) = C t / C 0 1 E O t / E O 0 1
where DE denotes the electric output elasticity of carbon emissions; % C and % E O represent the growth rate of carbon emissions and electric output; C and E O are the changes of CO2 emissions and electricity generation from the base year to the year t; and C t , C 0 , E O t , and E O 0 stand for the CO2 emissions and the output of the electricity sector for the year t and the base year in China, respectively. After considering a 20% variation to avoid regarding a slight change as a significant one, Tapio defined three major decoupling states and eight sub-states. Decoupling can be further divided to three sub-categories: weak decoupling, when carbon emissions and electricity output both increase (0 < decoupling elasticity < 0.8); strong decoupling, when CO2 emissions grows and electricity output decreases (decoupling elasticity < 0); and recessive decoupling, when carbon emissions and electricity output both decrease (decoupling elasticity > 1.2). Negative decoupling contains three sub-categories: in expansive negative decoupling, CO2 emissions and electricity output both increase (decoupling elasticity > 1.2); in weak negative decoupling, both variables decrease (0 < elasticity < 0.8); and in strong negative decoupling, CO2 emissions decrease and electricity volume increases (elasticity < 0). Similarly, coupling is defined as a state that does not over-interpret the slight changes between decoupling and negative decoupling as significant changes, consisting of three sub-states (weak negative decoupling, expansive coupling, and recessive coupling) [28]. On this basis, the decoupling classification of carbon emissions and electricity output is shown in Table 2:

2.3. Decoupling Index from Multilevel Index Decomposition

Decoupling index analysis is also an important technique, which was originally advanced by Vehmas [39] and Diakoulaki [29]. We aimed to measure the synchronization of the changing trend between environmental deterioration and economic development in China’s electricity sector by calculating the decoupling index.
Firstly, the carbon emission changes from each influencing factor need to be quantified. In general, the CO2 emission changes from electricity generation can be evaluated by the Logarithmic Mean Divisia Index (LMDI) technique [11,40,41]. Especially, studies have revealed that the LMDI approach showed a relatively satisfying performance when decomposing CO2 emissions and energy consumption [15,42,43,44]. In this paper, both additive LMDI and multiplicative LMDI methods from an extended Kaya identity [45,46,47,48,49] were adopted to give a more accurate revelation of the carbon emission changes brought from each effect. Unlike most research on decomposing electricity carbon dioxide emissions, we analyzed the electricity carbon emission from the perspective of the socioeconomic system, discussed the factors such as population and gross domestic product (GDP) per capita, and more importantly, considered the electricity sector characteristics. To be more specific, we modified the original LMDI model to improve the pertinence and applicability when discussing the electricity CO2 emissions by focusing more on the power sector itself instead of the original factors such as population, GDP per capita, and energy intensity (energy consumption of per GDP added). Furthermore, we conducted the decomposition analysis by discussing factors such as the carbon emission factors, energy mix, gross coal consumption rate, electricity structure, and electricity production. Furthermore, a proxy diagram was drawn to give an easier understanding of the LMDI tools in Figure 2.
Where E 0 represents the total energy consumption amount from thermal power production; and T and T 0 denote the total electricity production and fire power production, respectively. Consequently, the five effects are: carbon emission factor effect, F i ); energy mix effect, M i ; conversion efficiency effect (measured by gross coal consumption rate), I; electricity structure effect, S; and electricity output effect (measured by electricity production), T. C T , C S , C I , C M , and C F are the carbon emission changes from the five stated effects; D is the ratio of the electricity CO2 emissions in the year t and the base year; D T ,   D S ,   D I ,   D M and D F are the multiplicative decomposition indices from each effect; g ( C i t , C i 0 ) denotes the estimated weights for the additive LMDI; and G ( C i t , C i 0 ) represents the estimated weights for multiplicative LMDI.
Due to rapid growth in China between 1995–2012, the CO2 emissions from electricity generation increased. In this case, the decoupling relationship and its influencing factors need to be identified. The novel decoupling index model combined with the decomposition technique can offer the possibility of measuring the contributions from technology improvement, the energy consumption mix adjustment, or the new electricity generation mode to carbon mitigation. We use f t and σ t to represent the inhibiting effect on CO2 emissions and the decoupling status of the electric power sector in China during the study period. The calculation method is shown as follows:
f t = C C T = C F + C M + C I + C S
δ t = f t C T = C F C T C M C T C I C T C S C T = δ F + δ M + δ I + δ S
where δ F ,   δ M ,   δ I , and δ S denote the contributions of the carbon emission factor effect, energy mix effect, conversion efficiency effect, electricity structure effect, and electricity output effect to the decoupling process, respectively.
It should note that if δ t ≥ 1, then a strong decoupling is defined, which means that the mitigation efforts grow faster than the growth of carbon emissions in the electricity generation process. Moreover, when 0 δ t < 1 , a relative decoupling state is defined.
In other words, adjustments to measures played a positive role in cutting the carbon emissions down, such as increasing the energy conversion efficiency, improving the technology, replacing traditional high-carbon fuels with new renewable fuels, and optimizing the electricity generation structure. However, the mitigation efforts might not increase as fast as the carbon emission gains from electricity production. In addition, δ t < 0 reveals a situation in which the electricity sector produced more and more carbon emissions, but the relevant policies adjustment or technology improvement may not have come along. What’s worse, other effects also contributed to CO2 emission gains when electricity generation increased the emissions. In this situation, the development of China’s electricity sector was mostly considered within the high-carbon combustion mode. The synchronization degree of the electricity generation and relevant environmental results can be measured.

2.4. Comparative Test of the Decoupling Elasticity and Index Stability

2.4.1. Graphic Stability Comparison of Decoupling Elasticity and Decoupling Index

The box plot was applied to compare the degree of stability from two different decoupling models. By analyzing the distribution interval, corresponding curve trajectory, and deviation points, the distribution information of the two decoupling indices in different years can be distinguished.

2.4.2. Decoupling Stability Coefficient

After the graphic scheme, a novel statistical tool was adopted to clarify the stability of each model. The calculation method was expressed in Equation (5):
S D j = 1 N 1 m = 1 N | x m + 1 x m x m |
In Equation (5), S D j denotes the stability coefficient of the decoupling tool j (j = D E or δ t ); it is a coefficient to uncover the stability degree of a given decoupling tool. N is the population of samples; in this paper, it represents the amount of the studied years, and x m and x m + 1 are the value of the decoupling indices in the year m and the year after. The smaller the S D j is, the more stable the tested index will be.

2.4.3. T-Test of Decoupling Elasticity and Decoupling Index

A Student’s t-test was employed to further test the stability differences of the decoupling elasticity and the decoupling index. Before performing the Student’s t-test, the prerequisites need to be checked. Firstly, the t-test was applied on the premise of approximately normal distribution. As a result, the normality test is first conducted by checking the normal PP plot, which is a tool to measure the relationship between the expected value and the calculated value. The test is designed to examine whether they were approximately distributed in the same line, in other words, whether a linear relationship exists between them.
The t-test technique is shown in the following equation:
t = X ¯ μ i S n
where t represents the t-statistic, X ¯ is the mean of the tested variables, μ i denotes the specific value mean of the tested decoupling elasticity or decoupling index, and S and n mean the variance and the population of the tested value, respectively. We first made the hypothesis H0: μ D E = 0 , and the electricity generation elasticity of carbon emissions was zero. The alternative hypothesis was Ha: μ D E > 0 . All of the hypothesis and tests were conducted with the confidence level of 95%. The results can be obtained by checking the standard normal distribution table or analyzing the p value. When P ( t > t α / 2 ) = α 2 or the p value is less than 0.05, the null hypothesis is rejected. Meanwhile, the alternative hypothesis can be accepted. If not, the null hypothesis cannot be rejected in this situation. In the decoupling elasticity test, the calculated elasticity also compared the values 0.8 and 1.2. Regarding the decoupling index test, we wanted to test the average performance of the delinking relationship measured by decoupling index, so the null hypothesis H0: μ δ = 1 . Also, the alternative μ δ < 1 is also given. Regarding China’s electricity decoupling index, a t-test is also conducted. What’s more, in order to figure out the specific state further, we tested whether the average electricity sector had gotten rid of the linking relationship with the highly reliant development pattern by checking whether the mean value was greater than zero. As a result, we made the null hypothesis that μ δ = 0 . Accordingly, the alternative hypothesis was proposed as μ δ > 0 . After comparing the corresponding value in the normal distribution table or the p value, the results could be attained.

2.5. Data Source and Processing

The data used in our study period (1991–2012) were mainly obtained from the General Principles for the Calculation of Comprehensive Energy Consumption [50] and China Energy Statistical Yearbook [51]. To be more specific, the total electricity production, thermal power generation, and other energy data such as the consumption amount can be found in the China Energy Statistical Yearbook [51]. In addition, various fuels are identified to calculate the corresponding carbon emissions. To add more practical meaning to the analysis and develop more feasible measures, after the separate carbon emission calculation, the fuels were merged into three main kinds: coal, oil, and gas. The detailed categories of fuels are listed in Table 1.

3. Results and Discussion

3.1. The CO2 Emissions from the Electricity Sector

The electricity carbon intensity is defined as the ratio of energy-related carbon emissions from electricity generation to electric output [52,53,54]. The changing trend in China between 1991–2012 is shown in Figure 3. As is demonstrated in the figure, the study period can be discussed from three separate spans: 1991–1997, 1998–2007, and 2008–2012. Carbon emissions increased in the first span; meanwhile, carbon emission intensity showed a downward trend.
The carbon dioxide emissions grew faster in the second phase while carbon emission intensity showed a decreasing trend in phase 2, with an average annual growth rate of −1.64%. In this period, CO2 emissions from electricity generation grew with an average annual growth rate of 6.68%; the aggregate carbon intensity also dropped, with an average annual growth rate of 2.59%. However, the overall annual rate of carbon dioxide emissions is 8.25%, and the carbon emission intensity increased at an annual rate of 1.56%.
The slowdown of CO2 emissions represents adjustments such as fuel-switching options and the improvement of the fire-powered technology, but after analyzing the whole period, the amount of the carbon dioxide emissions of the fire-powered electricity plants was still huge.

3.2. Decoupling Elasticity Analysis

As shown in Figure 4, the decoupling status varied within the specific timespan; however, the expansive coupling state and the weak decoupling state occurred with higher frequency. In fact, the decoupling state appeared only during 1993–1994, 1995–1996, 1997–2001, 2003–2004, 2007–2010, and 2011–2012. Moreover, the expected strong decoupling state only appeared in 1997–1998, 2007–2008, and 2011–2012. During these years, the link between electric output and corresponding carbon emissions showed a possibility of being broken. Also, since the decoupling elasticity can indicate how the environment responds to the electric output, after the calculation, we found that the decoupling elasticity in most years was around one, indicating that the environment response had a relatively synchronous response to China’s electricity generation in most of the observed years.

3.3. Drivers of Carbon Emission Identification

The contributions of the five determinants were shown in a bar graph, and corresponding electricity CO2 emissions were shown as the green line in Figure 5. The CO2 emissions increased during 1991–2012 in most years, except for 1998, 2008, and 2012. Besides, between 1991–1997, the changes of the carbon dioxide emissions increased faster than during the other phases at an annual rate of 10.34%. As shown in Table 3, in general, the electric power output effect contributed most to the increasing electricity carbon dioxide emissions; however, the influence of the other factors varied from year to year. The electricity intensity effect helped to curb the corresponding CO2 emissions; the CO2 emission mitigation mainly came from the technology development in electricity generation, which is consistent with the research before [55,56]. In addition, energy mix can pose a positive effect on the carbon emission decrease except during the years 1993, 1995, 1997, 2003, and 2004. A switch to fuels with a better generating efficiency also contributed to an efficiency improvement [55]. Even though the emission factor effect had a relative minor impact, it is closely related to decarbonization of the energy system, and should not be ignored.

3.4. Decoupling Index Analysis

The decoupling index analysis was carried out after measuring the carbon emissions from each effect. The degree of synchronization and the contributions of each effect to the decoupling process can further be uncovered. The decoupling status and the contributions of every influencing factor are shown in Table 4.
As indicated in the results of the decoupling index analysis, three decoupling states were identified: strong decoupling, no decoupling, and relative decoupling. Strong decoupling offered a possible situation in which the electricity sector developed while the relevant carbon emissions dropped. The strong decoupling state was mainly brought from technological improvement, the upgrading of equipment, or a massive switch to low-carbon content fuels, especially renewables. However, strong decoupling only appeared between 1997–1998, 2007–2008, and 2011–2012. Also, a negative decoupling state occurred between 1994–1995, 1996–1997, 2001–2003 and 2010–2011. The power of factors that hindered the decoupling was stronger than the positive effects of accelerating the decoupling process. Nevertheless, in the rest of the years, the relative decoupling state was detected, indicating that even though some efforts had been made to cut down the carbon emissions, they still did not grow as fast as the electricity product gains. Due to the limitations of equipment and unsettled technology issues, the electricity generation from renewable fuels was not widely used to accelerate the decoupling process.
For the decoupling process, since relative decoupling was the main state during the study period in China’s electricity sector, which reveals the possibility of reducing CO2 emissions with no downward trend of electricity output and development. Zhang et al. concluded that the electricity generation efficiency effect plays the dominant role in decreasing CO2 emissions [55], which is closely connected with technological improvements in electricity generation, indicating that technological innovation and the improvement of facilities usage accelerated the decoupling process of CO2 emissions and electricity output gains.
Besides, δ I revealed the share of the electricity intensity effect of the decoupling devotion. In most research years, it exerted a positive impact on carbon emission decoupling from electric output. Also, the electricity generation structure accelerated the decoupling in most of the observed years, which is primarily brought from the carbon emissions that had been cut by electricity generation structure changes in recent years in China [32]. It should be noted that the electric output in 2012 was 4987.55 GW·h, of which 78.05% was from thermal power. Even though it had already dropped from 81.54% in 1991, the fire-powered electricity generation was still in the dominant position throughout the whole electricity generation process. The energy mix effect ( δ M ) had made decoupling efforts in most of the years during the study period, while in the rest of the years, such as 1992, 1994, 1996, 2002, and 2001, it mainly acted as a block to the CO2 emissions decoupling from electric output. Since energy mix effects have positive effects on CO2 emissions reduction [57], especially since the energy-efficiency targets of the 11th Five-Year Plan (approved by the Fifth Plenary, Session of the 16th Communist Party of China; it is a binding energy conservation target for governments), the switch from massive coal consumption to other fuels such as natural gas also benefited from electricity generation [58], exerting a great impact on the whole decoupling process.
Although the emission factor effect ( δ F ) did not appear to be as important as the other factors in accelerating decoupling for the moment, it may become more powerful, because decarbonization could be a momentous and radical sustainability goal in the future.

3.5. Comparative Stability Test Results

3.5.1. Decoupling Stability Coefficient Analysis

After the calculation via the method in Equation (10), the results showed the difference in stability between the electricity elasticity of carbon emissions and the decoupling index.
The stability coefficient of the elasticity was 0.91, while the coefficient of the decoupling index was 2.26, revealing that for the stability, the electricity elasticity of CO2 emissions had a better performance. Since S D δ t > 1 , the expected strong decoupling was still not adequate; also, the existing relationship between the development of the electricity sector and relevant carbon emissions needed to be improved in China. The elasticity and decoupling index showed consistent results. For example, after the coupling status occurred between 2001–2003, the relative decoupling state appeared, which was attributed to the efforts made by the government, such as the electricity generation structure adjustment and the energy structure improvement. To sum up, the elasticity tool has a more stable manifestation than the decoupling index, while the decoupling index can measure the decoupling status more systematically.

3.5.2. Graphical Results of the Decoupling Indictor’s Stability

As shown in Figure 6, the outlier data of the decoupling index appeared in 1996–1998, 2007–2008, and 2011–2012. Three of the abnormal points turned out to be in the state of “strong decoupling”, and the abnormal points left showed the status of “no decoupling”, which is consistent with the conclusion that most of the research years showed a relative decoupling state. When it comes to the decoupling elasticity, the abnormal points appeared in same period with the decoupling index; similarly, three points were demonstrated in the state of “strong decoupling”, and one abnormal point presented the “no decoupling” state. In addition, the median of decoupling is between zero and one, implying that the distribution is around the relative decoupling state. What’s more, by analyzing the upper quartile, the lower quartile, and the interquartile range, we figured out that the decoupling index is mostly distributed in an area that is less than one, representing the “relative decoupling” state or the “no decoupling” state. Overall, the decoupling process is not enough, suggesting that effective and promising measures and plans should be put into practice.

3.5.3. T-Test Analysis of the Decoupling Indices

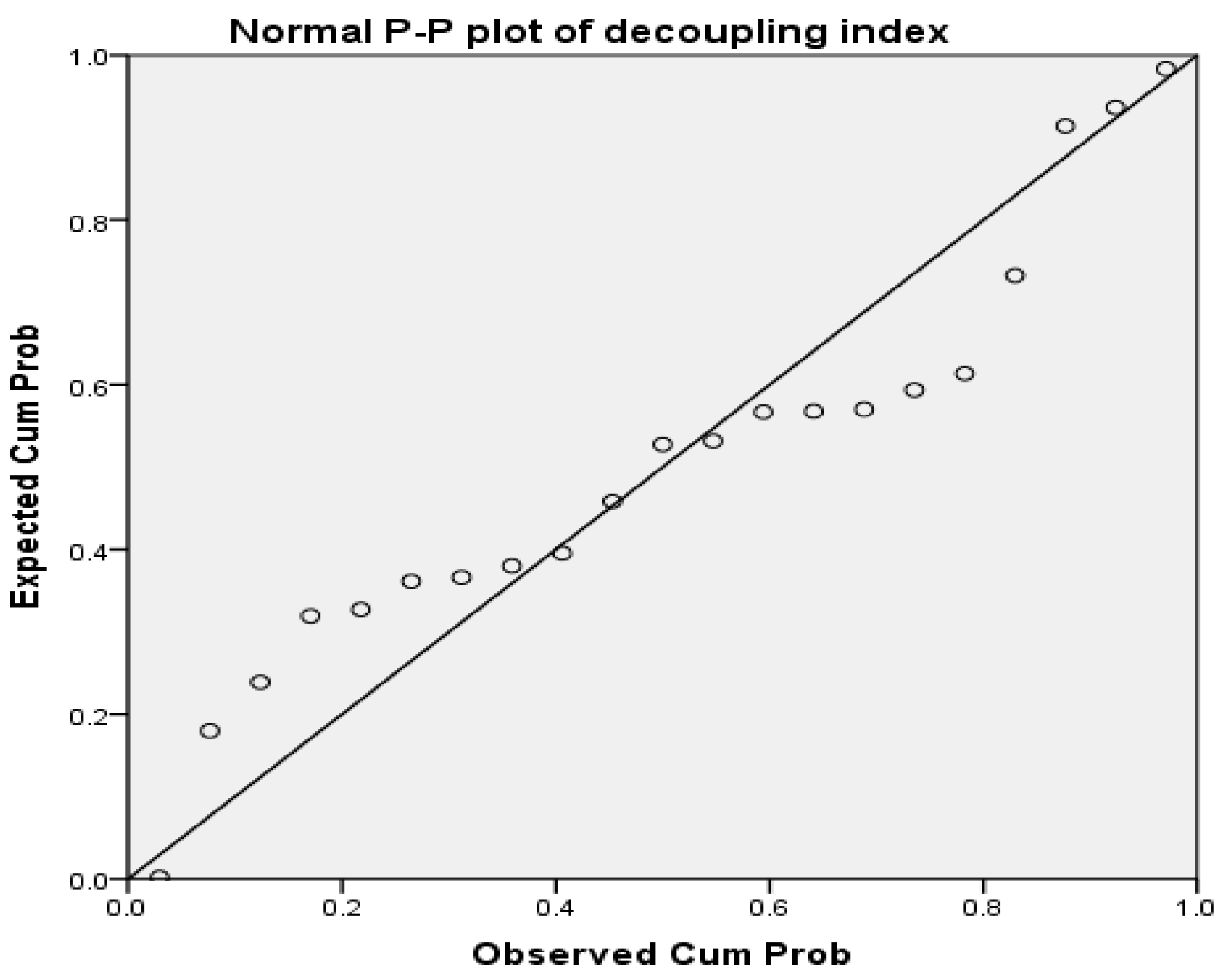

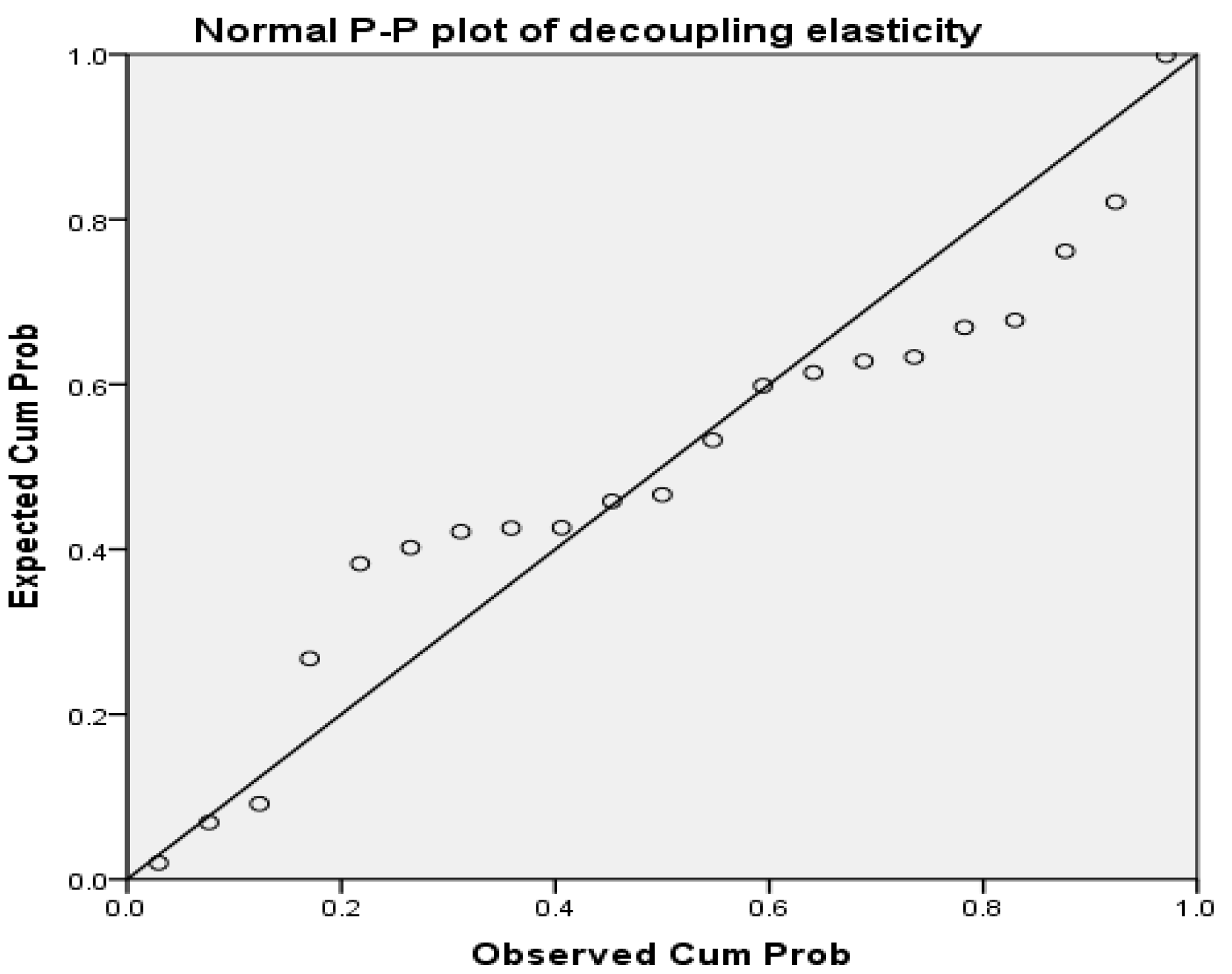

By analyzing the results of the PP plot in Figure 7 and Figure 8, the two indicators can approximately be considered as the normal distribution.
After comparing the p value with the significance level (0.05), we found that for the elasticity value, the null hypothesis was rejected, and the alternative hypothesis was adopted instead (shown in Table 5). This means that in most of the studied years, it could not get to the strong decoupling state.
Moreover, Table 6 and Table 7 show the test results for testing the decoupling index with one and zero, in which the p values (0.0000 and 0.0448, respectively) were all smaller than the significance level (0.05). The alternative hypotheses were accepted at this significance level. This indicates that relative decoupling occurred more frequently, which was due to some technological improvement and the effect of the energy policies; there is still a long way to go to achieve the “perfect decoupling state”. In a nutshell, more relevant policies should be developed in the future in consideration of the present situation to realize the goal of increasing the electricity production while also cutting the carbon emissions down.
However, several questions remain that we cannot currently thoroughly investigate. To be more specific, not all of the influencing factors can be analyzed due to the limitation of Kaya identity (must be divided into several multiplications). In this case, we can only select the key factors to carry out our study after a detailed review of the previous research that is related to similar topics. In future research, we will try to further our research by taking more spatial issues such as the spatial stratified heterogeneity phenomenon and spatial autocorrelation into consideration. Also, we will try to focus more on the provincial differences, the carbon emission mitigation performance, and responsibility allocation in future work.

4. Conclusions and Policy Implications

4.1. Conclusions

We analyzed the changes of five aspects of carbon dioxide emissions and decoupling status based on a historical trajectory of CO2 emissions. Then, we carried out the decoupling index analysis deduced from the LMDI method to test whether the development of the electricity sector synchronized with the protection of the environment, and the degree to which the environment responded to the electricity sector output. Then, we compared the stability of the two indictors. Basically, the changes of the decoupling indicators are divided into five factors based on the LMDI approach to investigate the factors affecting the decoupling progress, and we arrived at some conclusions:
The total CO2 emissions from electricity generation increased while carbon intensity dropped in the study period; even some minor fluctuations were observed.
In general, the electric output effect proved to be the dominant factor of CO2 emission gains. In addition, the electricity intensity factor effect played a negative role in the decrease of carbon dioxide emissions. The improvement of the energy conversion efficiency in electricity generation is beneficial for CO2 emission reduction.
Relative decoupling was the main state in the examined period; the expected strong decoupling was still not adequate. To be more specific, the strong decoupling state only occurred during 1997–1998, 2007–2008, and 2011–2012. However, no decoupling ruled the periods between 1994–1995, 1996–1997, 2001–2003, and 2010–2011. The electricity intensity effect and energy mix effect had positive impacts on accelerating the decoupling process in most of the observing years. Although the mission-factor effect did not show a relatively significant influence on decoupling, the decarbonization technology should not be ignored in the future.
The elasticity tool had a more stable manifestation than the decoupling index, while the decoupling index identified and defined the decoupling status more systematically in China’s electricity analysis.

4.2. Policy Implications

The emission reduction target of reducing the carbon intensity (carbon dioxide emissions per unit of GDP) to 40–45% of the value in 2005 was proposed at the Conference of the Parties held in Copenhagen in 2009 (COP15). In view of the actual situation, some recommendations are put forward to provide more information regarding policy development:
Alongside rapid economic growth, the total demand for electricity is on the rise, since carbon emissions are generally considered to have a close relationship with thermal power plants. Measures that limit the thermal power plants increasing, and encourage them to improve their energy conversion technology should be encouraged. In consideration of the present situation, measures such as shutting down small thermal power units is an effective method. As is proposed by the National Development and Reform Commission (NDRC), if small thermal power units are all replaced by large units, the annual energy consumption of China can achieve a tangible saving of 90 million tons of standard coal. As a consequence, shutting down small thermal power units is of vital importance [59].
Most of the thermal power plants in China generate energy by burning coal with high carbon content and low combustion efficiency, resulting in more CO2 emissions. However, as far as the current situation is concerned, thermal power is still in the dominant position. Thus, the improvement of energy efficiency is treated as a key issue in reducing carbon emissions. Correspondingly, policies to improve energy conversion technologies and the renewable fuels should be valued. Moreover, developing a low-carbon economy and adjusting the industry structure are also sensible choices.
Although the electricity power generation structure didn’t seem to be the fundamental element affecting CO2 emissions, upgrading the power generation structure can be a beneficial way to limit the growth of CO2 emissions and diminish the harm to the environment. There is no doubt that fossil fuels consumed a large amount of energy in electricity generation; consequently, it is urgent to put measures that optimize the energy mix into practice. On the other hand, the proportion of coal-fired electricity generation still could not be brought under adequate control. Therefore, conventional power stations require more technology during the construction, which may make it possible to achieve the efficiency target of generating more electricity from less coal.
In sum, for China, it is more effective to shut down small thermal power units in the short term, but in the long run, focusing more on the technical improvements in fuel efficiency and adjusting the electricity production structure can bring considerable benefits to the electricity sector as well as the whole society.

Author Contributions

X.-T.J. conceived and designed the experiments, performed the experiments, analyzed the data and wrote the paper; M.S. and R.L. contributed reagents/materials/analysis tools. All authors read and approved the final manuscript.


The current work is supported by fund from CAS Research Center for Ecology and Environment of Central Asia (1100002436).


The current work is supported by fund from CAS Research Center for Ecology and Environment of Central Asia (1100002436).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Green, F.; Stern, N. China’s changing economy: Implications for its carbon dioxide emissions. Clim. Policy 2017, 17, 423–442. [Google Scholar] [CrossRef][Green Version]
  2. Mi, Z.; Meng, J.; Guan, D.; Shan, Y.; Song, M.; Wei, Y.; Liu, Z.; Hubacek, K. Chinese CO2 emission flows have reversed since the global financial crisis. Nat. Commun. 2017, 8, 1712. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, Q.; Chen, X. Energy policies for managing China’s carbon emission. Renew. Sustain. Energy Rev. 2015, 50, 470–479. [Google Scholar] [CrossRef]
  4. Wang, Q. China has the capacity to lead in carbon trading. Nature 2013, 493, 273. [Google Scholar] [CrossRef] [PubMed]
  5. IEA Electricity Statistics. Available online: (accessed on 8 March 2018).
  6. Sims, R.E.; Rogner, H.-H.; Gregory, K. Carbon emission and mitigation cost comparisons between fossil fuel, nuclear and renewable energy resources for electricity generation. Energy Policy 2003, 31, 1315–1326. [Google Scholar] [CrossRef][Green Version]
  7. Choi, K.-H.; Ang, B.W. Attribution of changes in Divisia real energy intensity index—An extension to index decomposition analysis. Energy Econ. 2012, 34, 171–176. [Google Scholar] [CrossRef]
  8. Hatzigeorgiou, E.; Polatidis, H.; Haralambopoulos, D. CO2 emissions in Greece for 1990–2002: A decomposition analysis and comparison of results using the Arithmetic Mean Divisia Index and Logarithmic Mean Divisia Index techniques. Energy 2008, 33, 492–499. [Google Scholar] [CrossRef]
  9. Hoekstra, R.; van den Bergh, J.C.J.M. Comparing structural decomposition analysis and index. Energy Econ. 2003, 25, 39–64. [Google Scholar] [CrossRef]
  10. Su, B.; Ang, B.W. Structural decomposition analysis applied to energy and emissions: Some methodological developments. Energy Econ. 2012, 34, 177–188. [Google Scholar] [CrossRef]
  11. Wang, Q.; Li, R. Journey to burning half of global coal: Trajectory and drivers of China’s coal use. Renew. Sustain. Energy Rev. 2016, 58, 341–346. [Google Scholar] [CrossRef]
  12. Wang, Q.; Li, R. Drivers for energy consumption: A comparative analysis of China and India. Renew. Sustain. Energy Rev. 2016, 62, 954–962. [Google Scholar] [CrossRef]
  13. Sun, J.W. Accounting for energy use in China, 1980–1994. Energy 1998, 23, 835–849. [Google Scholar] [CrossRef]
  14. Ang, B.W.; Zhang, F.Q. A survey of index decomposition analysis in energy and environmental studies. Energy 2000, 25, 1149–1176. [Google Scholar] [CrossRef]
  15. Ang, B.W. Decomposition analysis for policymaking in energy: Which is the preferred method? Energy Policy 2004, 32, 1131–1139. [Google Scholar] [CrossRef]
  16. Ang, B.W.; Liu, N. Negative-value problems of the logarithmic mean Divisia index decomposition approach. Energy Policy 2007, 35, 739–742. [Google Scholar] [CrossRef]
  17. Cansino, J.M.; Sánchez-Braza, A.; Rodríguez-Arévalo, M.L. Driving forces of Spain’s CO2 emissions: A LMDI decomposition approach. Renew. Sustain. Energy Rev. 2015, 48, 749–759. [Google Scholar] [CrossRef]
  18. Paul, S.; Bhattacharya, R.N. CO2 emission from energy use in India: A decomposition analysis. Energy Policy 2004, 32, 585–593. [Google Scholar] [CrossRef]
  19. Shahbaz, M.; Leitão, N.C. Portuguese carbon dioxide emissions and economic growth: A time series analysis. Bull. Energy Econ. 2014, 1, 1–7. [Google Scholar]
  20. Lise, W. Decomposition of CO2 emissions over 1980–2003 in Turkey. Energy Policy 2006, 34, 1841–1852. [Google Scholar] [CrossRef]
  21. Xu, S.; Zhang, W.; Li, Q.; Zhao, B.; Wang, S.; Long, R. Decomposition Analysis of the Factors that Influence Energy Related Air Pollutant Emission Changes in China Using the SDA Method. Sustainability 2017, 9, 1742. [Google Scholar] [CrossRef]
  22. Hu, J.; Gui, S.; Zhang, W. Decoupling Analysis of China’s Product Sector Output and Its Embodied Carbon Emissions—An Empirical Study Based on Non-Competitive I-O and Tapio Decoupling Model. Sustainability 2017, 9, 815. [Google Scholar] [CrossRef]
  23. Wang, Q.; Li, R.; Jiang, R. Decoupling and Decomposition Analysis of Carbon Emissions from Industry: A Case Study from China. Sustainability 2016, 8, 1059. [Google Scholar] [CrossRef]
  24. Sumabat, A.K.; Lopez, N.S.; Yu, K.D.; Hao, H.; Li, R.; Geng, Y.; Chiu, A.S.F. Decomposition analysis of Philippine CO2 emissions from fuel combustion and electricity generation. Appl. Energy 2016, 164, 795–804. [Google Scholar] [CrossRef]
  25. Wang, Q.; Jiang, R.; Li, R. Decoupling analysis of economic growth from water use in City: A case study of Beijing, Shanghai, and Guangzhou of China. Sustain. Cities Soc. 2018, 41, 86–94. [Google Scholar] [CrossRef]
  26. Wang, Q.; Zhao, M.; Li, R.; Su, M. Decomposition and decoupling analysis of carbon emissions from economic growth: A comparative study of China and the United States of America. J. Clean. Prod. 2018, 197, 178–184. [Google Scholar] [CrossRef]
  27. Kaya, Y.; Yokobori, K. Environment, Energy, and Economy: Strategies for Sustainability; United Nations University Press: Tokyo, Japan, 1997. [Google Scholar]
  28. Tapio, P. Towards a theory of decoupling: Degrees of decoupling in the EU and the case of road traffic in Finland between 1970 and 2001. Transp. Policy 2005, 12, 137–151. [Google Scholar] [CrossRef]
  29. Diakoulaki, D.; Mandaraka, M. Decomposition analysis for assessing the progress in decoupling industrial growth from CO2 emissions in the EU manufacturing sector. Energy Econ. 2007, 29, 636–664. [Google Scholar] [CrossRef]
  30. Boqiang, L.; Liu, K. Using LMDI to Analyze the Decoupling of Carbon Dioxide Emissions from China’s Heavy Industry. Sustainability 2017, 9, 1198. [Google Scholar] [CrossRef]
  31. Zhang, S.; Wang, J.; Zheng, W. Decomposition Analysis of Energy-Related CO2 Emissions and Decoupling Status in China’s Logistics Industry. Sustainability 2018, 10, 1340. [Google Scholar] [CrossRef]
  32. Malla, S. CO2 emissions from electricity generation in seven Asia-Pacific and North American countries: A decomposition analysis. Energy Policy 2009, 37, 1–9. [Google Scholar] [CrossRef]
  33. Shrestha, R.M.; Timilsina, G.R. Factors affecting CO2 intensities of power sector in Asia: A Divisia decomposition analysis. Energy Econ. 1996, 18, 283–293. [Google Scholar] [CrossRef]
  34. Wang, H.; Zhang, J.; Fang, H. Electricity footprint of China’s industrial sectors and its socioeconomic drivers. Resour. Conserv. Recycl. 2017, 124, 98–106. [Google Scholar] [CrossRef]
  35. Zhang, C.; Zhou, K.; Yang, S.; Shao, Z. On electricity consumption and economic growth in China. Renew. Sustain. Energy Rev. 2017, 76, 353–368. [Google Scholar] [CrossRef]
  36. Lin, B.; Liu, C. Why is electricity consumption inconsistent with economic growth in China? Energy Policy 2016, 88, 310–316. [Google Scholar] [CrossRef]
  37. IPCC. Greenhouse Gas Inventory: IPCC Guidelines for National Greenhouse Gas Inventories; IPCC: Bracknell, UK, 2006. [Google Scholar]
  38. United States Agency for International Development GHG Protocol Tool for Energy Consumption in China. Available online: (accessed on 8 March 2018).
  39. Vehmas, J.L.J.; Kaivo-oja, J. Linking analyses and environmental Kuznets curves for material flows in the European Union 1980–2000. J. Clean. Prod. 2007, 15, 1662–1673. [Google Scholar] [CrossRef]
  40. Moutinho, V.; Moreira, A.C.; Silva, P.M. The driving forces of change in energy-related CO2 emissions in Eastern, Western, Northern and Southern Europe: The LMDI approach to decomposition analysis. Renew. Sustain. Energy Rev. 2015, 50, 1485–1499. [Google Scholar] [CrossRef]
  41. Wang, Q.; Li, R. Natural gas from shale formation: A research profile. Renew. Sustain. Energy Rev. 2016, 57, 1–6. [Google Scholar] [CrossRef]
  42. Ang, B.W. LMDI decomposition approach: A guide for implementation. Energy Policy 2015, 86, 233–238. [Google Scholar] [CrossRef]
  43. Ang, B.W. The LMDI approach to decomposition analysis: A practical guide. Energy Policy 2005, 33, 867–871. [Google Scholar] [CrossRef]
  44. Wang, Q.; Li, S.; Li, R. Forecasting energy demand in China and India: Using single-linear, hybrid-linear, and non-linear time series forecast techniques. Energy 2018, 161, 821–831. [Google Scholar] [CrossRef]
  45. Mavromatidis, G.; Orehounig, K.; Richner, P.; Carmeliet, J. A strategy for reducing CO2 emissions from buildings with the Kaya identity—A Swiss energy system analysis and a case study. Energy Policy 2016, 88, 343–354. [Google Scholar] [CrossRef]
  46. Remuzgo, L.; Sarabia, J.M. International inequality in CO2 emissions: A new factorial decomposition based on Kaya factors. Environ. Sci. Policy 2015, 54, 15–24. [Google Scholar] [CrossRef]
  47. Wu, Y.; Shen, J.; Zhang, X.; Skitmore, M.; Lu, W. The impact of urbanization on carbon emissions in developing countries: A Chinese study based on the U-Kaya method. J. Clean. Prod. 2016, 135, 589–603. [Google Scholar] [CrossRef]
  48. Wang, Q.; Li, S.; Li, R.; Ma, M. Forecasting U.S. shale gas monthly production using a hybrid ARIMA and metabolic nonlinear grey model. Energy 2018, 160, 378–387. [Google Scholar] [CrossRef]
  49. Wang, Q.; Li, S.; Li, R. China’s dependency on foreign oil will exceed 80% by 2030: Developing a novel NMGM-ARIMA to forecast China’s foreign oil dependence from two dimensions. Energy 2018, 163, 151–167. [Google Scholar] [CrossRef]
  50. GB/T2589-1990 General Principles for Calculation of Total Production Energy Consumption. Available online: (accessed on 8 March 2018).
  51. National Bureau of Statistics of China. Chinese Energy Statistics Yearbook; China Statistics: Beijing, China, 2015. [Google Scholar]
  52. Ang, B.W.; Su, B. Carbon emission intensity in electricity production: A global analysis. Energy Policy 2016, 94, 56–63. [Google Scholar] [CrossRef]
  53. UNIDO Carbon Intensity of Electricity Production. Available online: (accessed on 8 March 2018).
  54. Wang, Q. China should aim for a total cap on emissions. Nature 2014, 512, 115. [Google Scholar] [CrossRef] [PubMed]
  55. Zhang, M.; Liu, X.; Wang, W.; Zhou, M. Decomposition analysis of CO2 emissions from electricity generation in China. Energy Policy 2013, 52, 159–165. [Google Scholar] [CrossRef]
  56. Ma, C.; Stern, D.I. China’s changing energy intensity trend: A decomposition analysis. Soc. Sci. Electron. Publ. 2008, 30, 1037–1053. [Google Scholar] [CrossRef]
  57. Zhou, G.; Chung, W.; Zhang, Y. Carbon dioxide emissions and energy efficiency analysis of China’s regional thermal electricity generation. J. Clean. Prod. 2014, 83, 173–184. [Google Scholar] [CrossRef]
  58. Zhou, N.; Levine, M.D.; Price, L. Overview of current energy-efficiency policies in China. Energy Policy 2010, 38, 6439–6452. [Google Scholar] [CrossRef]
  59. NDRC Speed up the Process of Shutting down Small Thermal Power Units. Available online: (accessed on 8 March 2018).

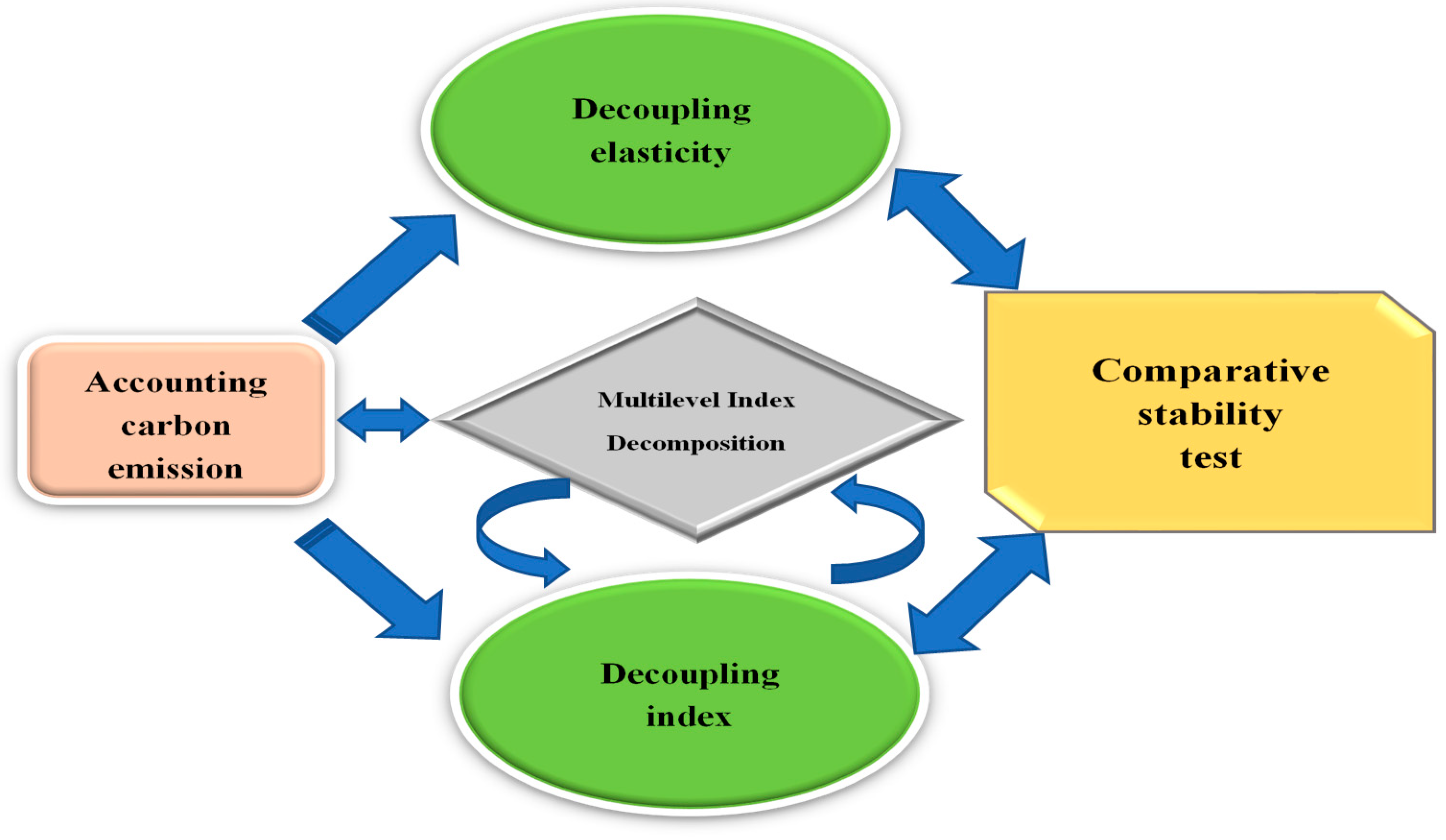

Figure 1. Flowchart of modeling concepts and methodologies.
Figure 1. Flowchart of modeling concepts and methodologies.
Sustainability 10 03251 g001

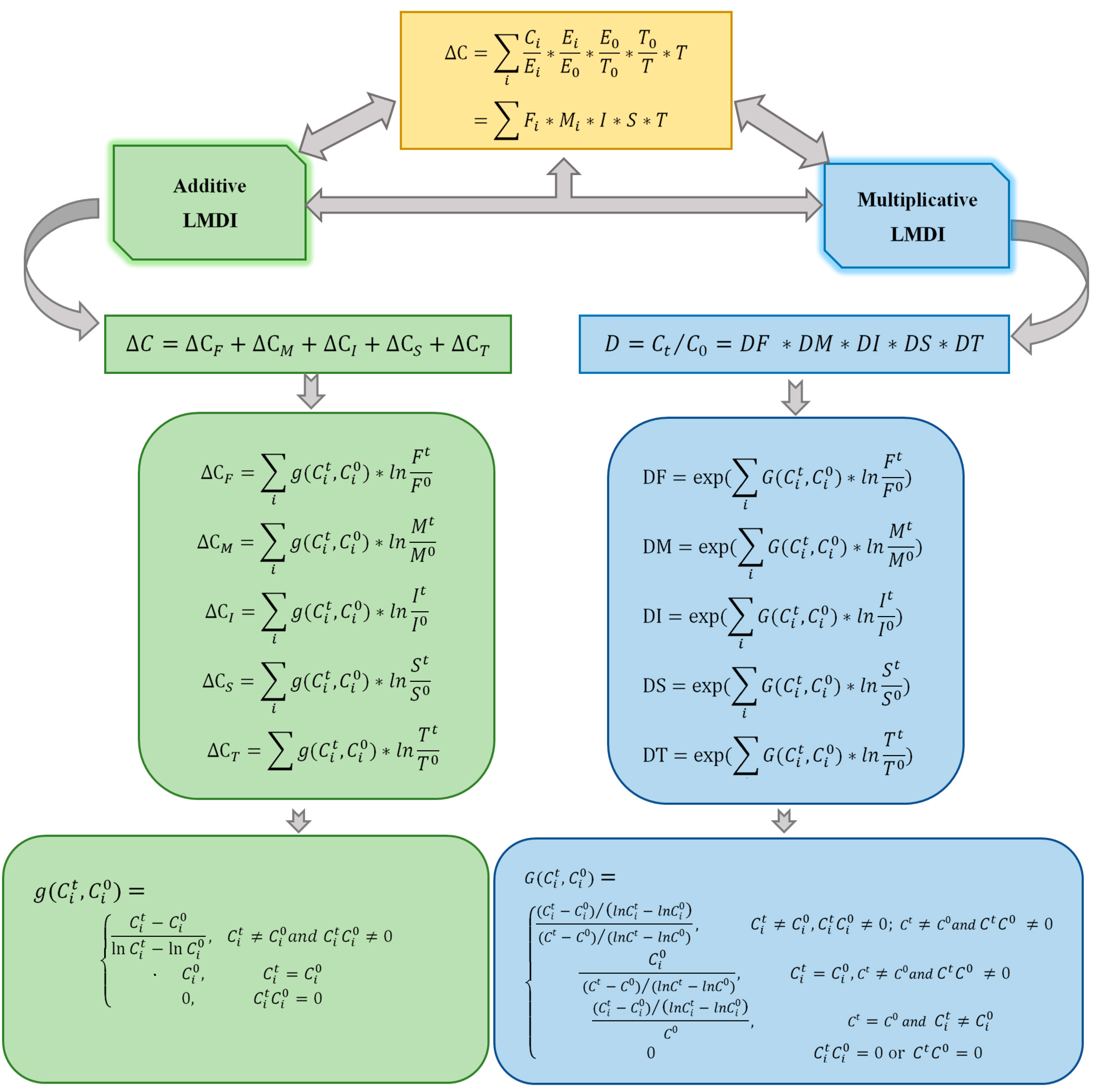

Figure 2. Diagram of additive and multiplicative Logarithmic Mean Divisia Index (LMDI) models.
Figure 2. Diagram of additive and multiplicative Logarithmic Mean Divisia Index (LMDI) models.
Sustainability 10 03251 g002

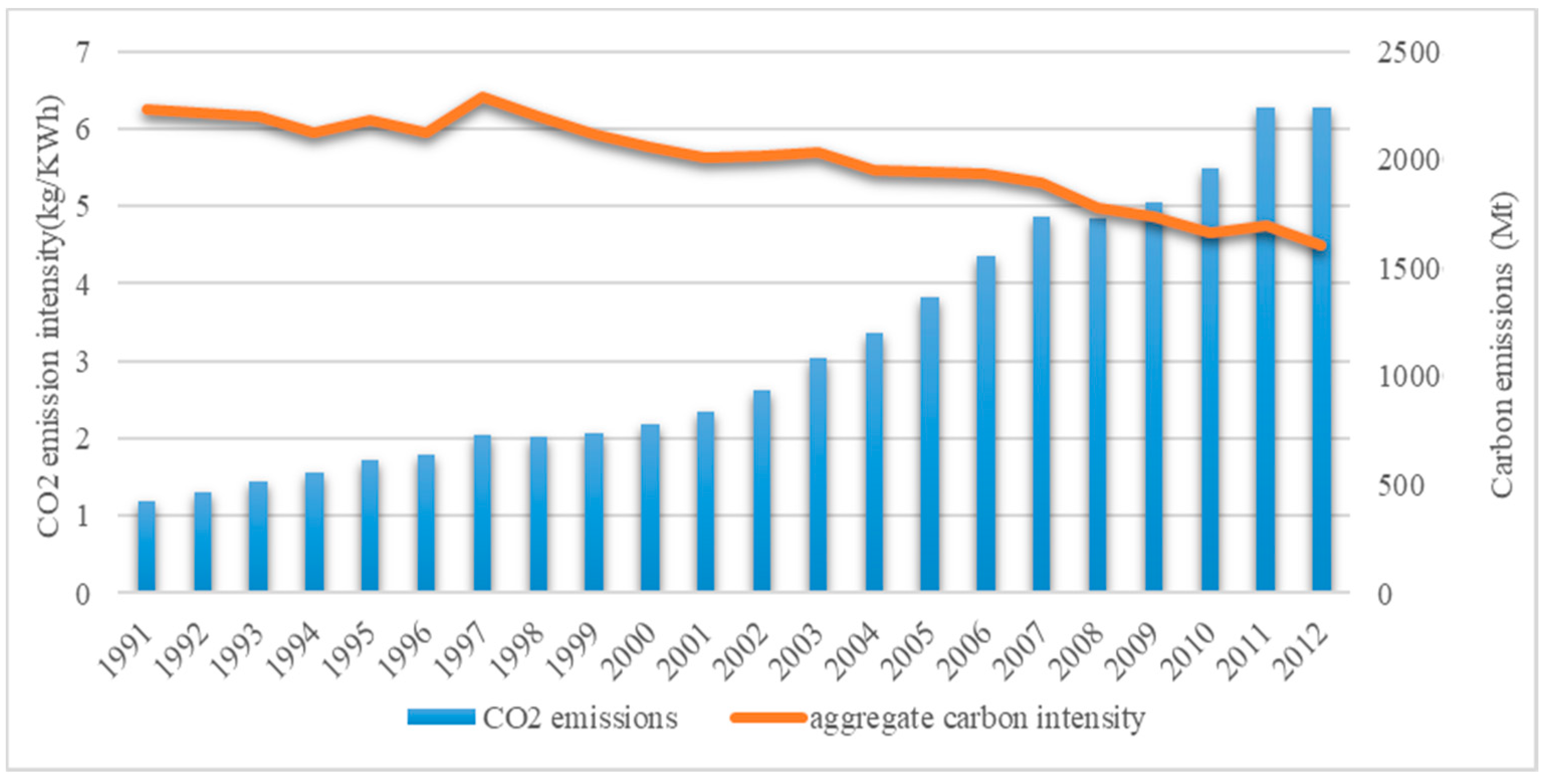

Figure 3. CO2 emissions and carbon emission intensity from the electricity sector.
Figure 3. CO2 emissions and carbon emission intensity from the electricity sector.
Sustainability 10 03251 g003

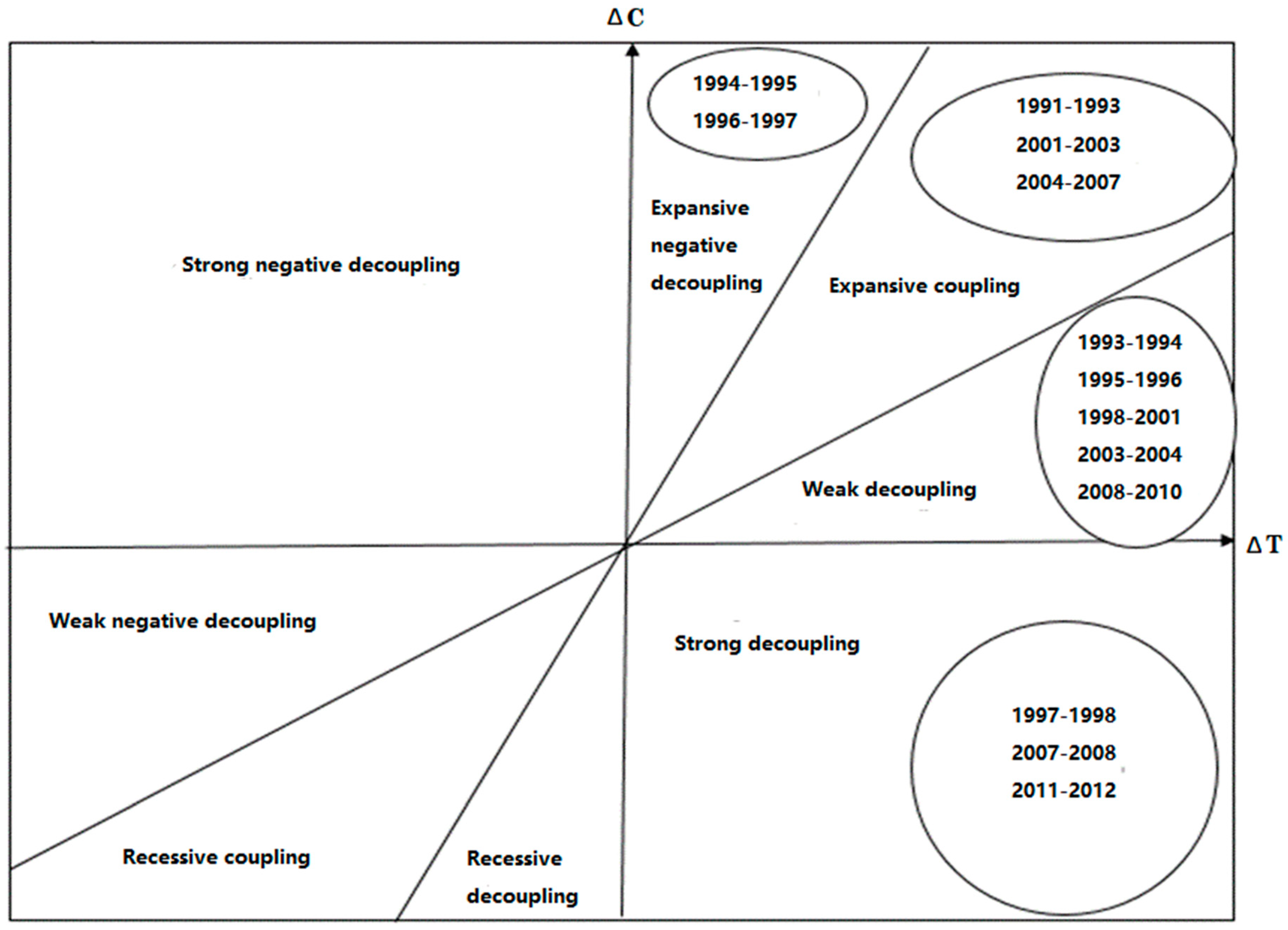

Figure 4. Results regarding the electric output elasticity of CO2 emission results.
Figure 4. Results regarding the electric output elasticity of CO2 emission results.
Sustainability 10 03251 g004

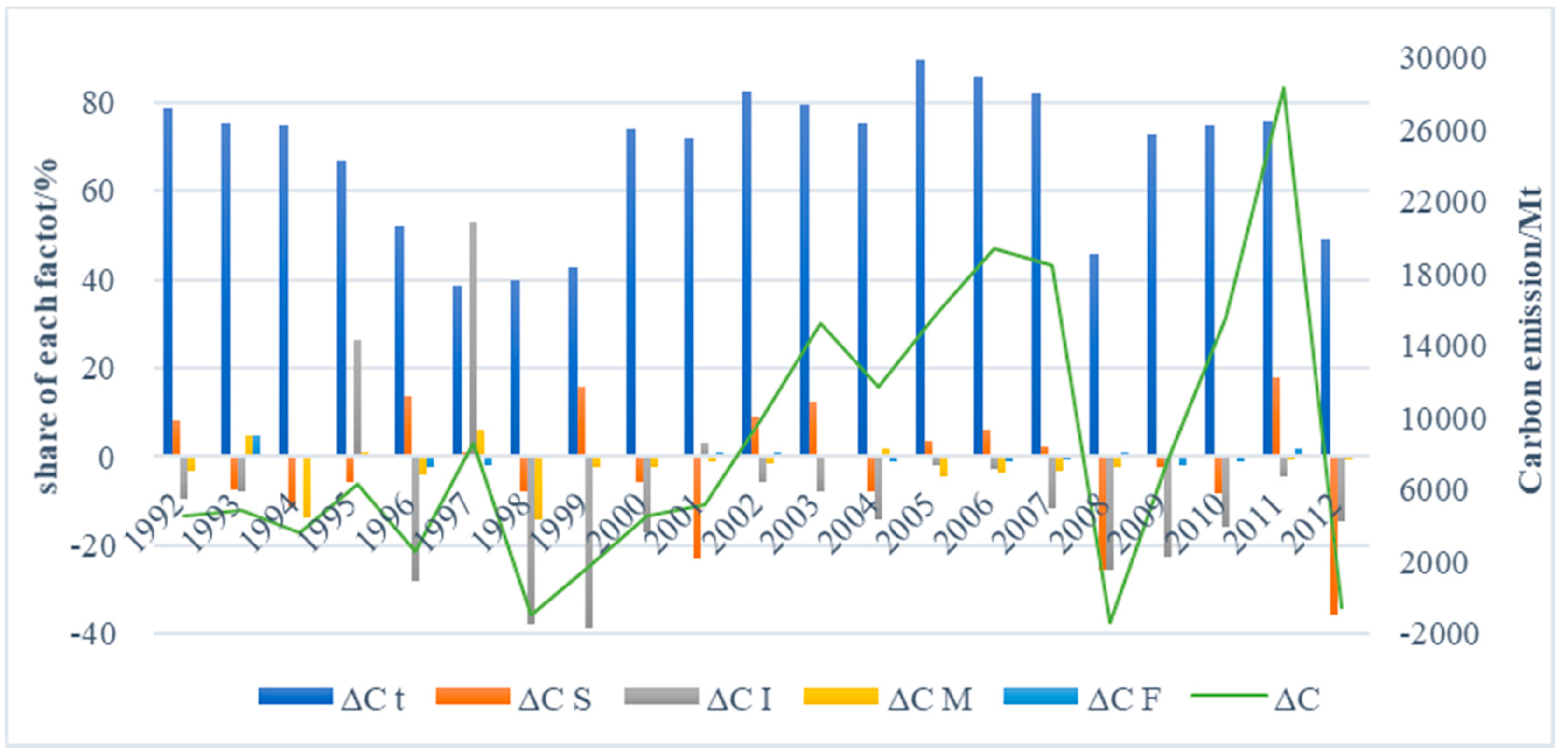

Figure 5. Decomposition of changes of electricity CO2 emissions in China.
Figure 5. Decomposition of changes of electricity CO2 emissions in China.
Sustainability 10 03251 g005

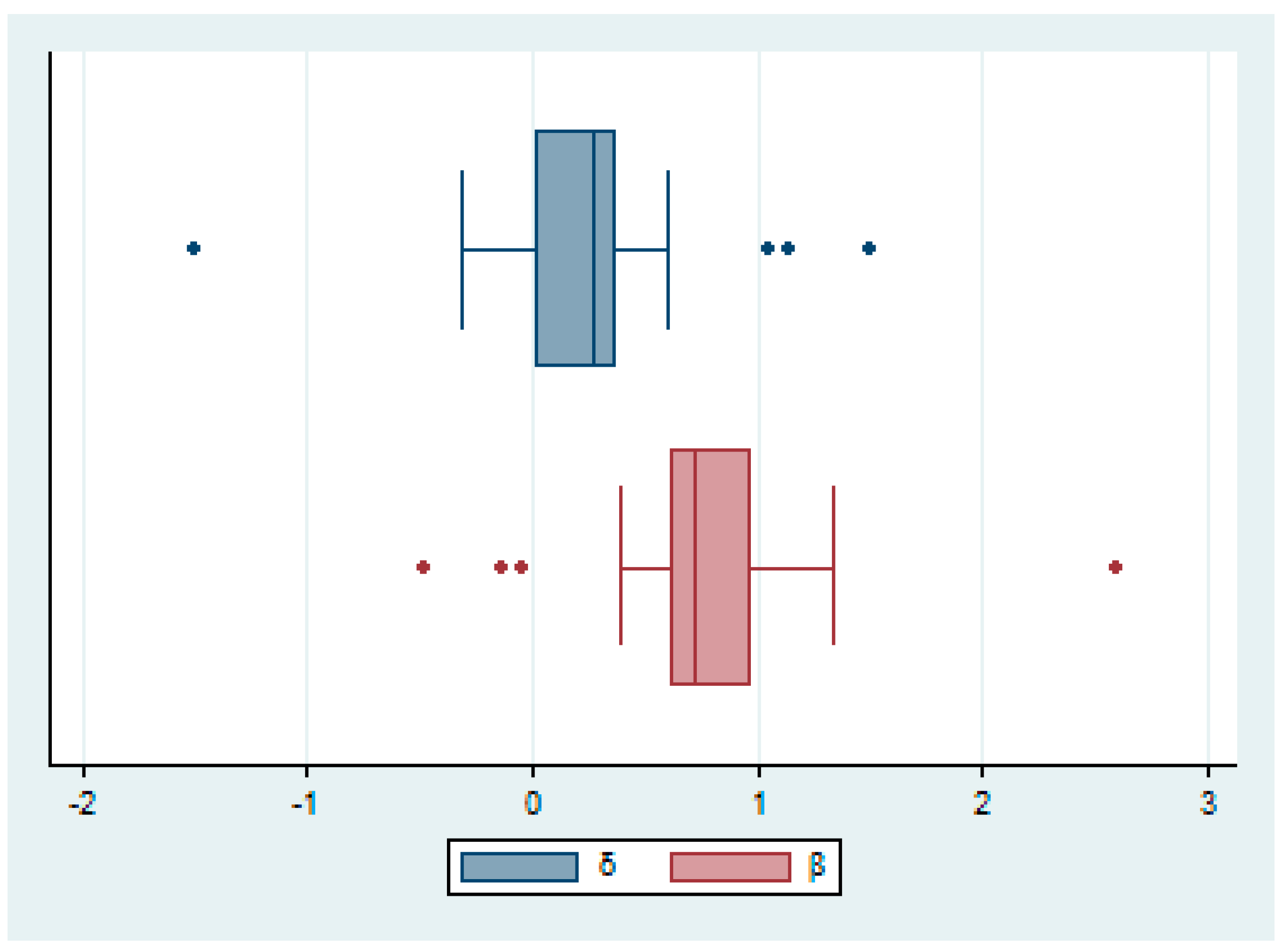

Figure 6. Box plot of the decoupling indices in China’s electricity sector.
Figure 6. Box plot of the decoupling indices in China’s electricity sector.
Sustainability 10 03251 g006
Figure 7. PP plot of China’s electricity elasticity of carbon emissions.
Figure 7. PP plot of China’s electricity elasticity of carbon emissions.
Sustainability 10 03251 g007
Figure 8. PP plot of China’s decoupling index.
Figure 8. PP plot of China’s decoupling index.
Sustainability 10 03251 g008
Table 1. Fuel category and emission factor.
Table 1. Fuel category and emission factor.
Energy CategoryEmission Factor (kgCO2/kg or kgCO2/m3)
Raw coal1.8801
Washed coal2.2791
Other washed0.7235
Coal gangue0.7358
Coke oven gas0.8048
Blast furnace gas0.9671
Converter gas1.3526
Other gas0.8956
Crude oil3.0202
Other coking products3.8326
Diesel oil3.0959
Fuel oil3.1705
Liquefied petroleum gas3.1013
Petroleum coke3.1569
Refinery gas3.0082
Other petroleum products2.5274
Natural gas2.1622
Data source: United States Agency for International Development [38].
Table 2. Classification standards of CO2 emission decoupling electric output.
Table 2. Classification standards of CO2 emission decoupling electric output.
Degree of DecouplingState∆T∆Cβ
DecouplingWeak decoupling>0>0β < 0.8
Strong decoupling>0<0β < 0
Recessive decoupling<0<0β > 1.2
Negative decouplingExpansive negative decoupling>0>0β > 1.2
Strong negative decoupling<0>0β < 0
Weak negative decoupling<0<00 < β < 0.8
CouplingExpansive coupling>0>00.8 < β < 1.2
Recessive coupling<0<00 < β < 0.8
Table 3. Multiplicative LMDI of electricity carbon emissions.
Table 3. Multiplicative LMDI of electricity carbon emissions.
Table 4. The decoupling index state and factor contribution.
Table 4. The decoupling index state and factor contribution.
Time δ s δ I δ M δ F δ t Decoupling State
1991–1992−0.10180.12070.0409−0.00980.0499relative decoupling
1992–19930.09740.1039−0.0636−0.06370.0740relative decoupling
1993–19940.1469−0.00030.18310.00200.3317relative decoupling
1994–19950.0845−0.3904−0.01280.0049−0.3138no decoupling
1995–1996−0.26040.54330.07600.04450.4035relative decoupling
1996–1997−0.0264−1.3679−0.15330.0462−1.5014no decoupling
1997–19980.19460.94840.35130.00371.4980strong decoupling
1998–1999−0.36360.90350.05050.01080.6012relative decoupling
1999–20000.07740.23260.0332−0.01010.3332relative decoupling
2000–20010.3175−0.04190.0125−0.01540.2727relative decoupling
2001–2002−0.11080.07090.0167−0.0120−0.0351no decoupling
2002–2003−0.15370.1007−0.00070.0058−0.0479no decoupling
2003–20040.10470.1867−0.02410.01190.2792relative decoupling
2004–2005−0.03820.01990.0521−0.00570.0281relative decoupling
2005–2006−0.07150.03490.04210.01500.0206relative decoupling
2006–2007−0.02580.14460.04090.00990.1696relative decoupling
2007–20080.55660.56080.0488−0.02581.1403strong decoupling
2008–20090.03250.31110.00430.02480.3727relative decoupling
2009–20100.11090.21270.00060.01250.3367relative decoupling
2010–2011−0.23550.05900.0074−0.0220−0.1910no decoupling
2011–20120.72970.29470.01210.00741.0440strong decoupling
Table 5. The t-test of decoupling elasticity with the test value of zero.
Table 5. The t-test of decoupling elasticity with the test value of zero.
VariabletpStd. Err.Std. Dev.[95% Conf. Interval]
Decoupling elasticity5.78670.00000.13310.61000.49261.0480
Table 6. The t-test of the decoupling index with the test value of one.
Table 6. The t-test of the decoupling index with the test value of one.
VariabletpStd. Err.Std. Dev.[95% Conf. Interval]
Decoupling index5.91440.00000.12990.5953−0.03920.5027
Table 7. The t-test of the decoupling index with the test value of zero.
Table 7. The t-test of the decoupling index with the test value of zero.
VariabletpStd. Err.Std. Dev.[95% Conf. Interval]
Decoupling index1.78380.04480.12990.5953−0.03920.5027

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (
Back to TopTop
