An Evaluation of Input–Output Value for Sustainability in a Chinese Steel Production System Based on Emergy Analysis

Abstract

The social investment, natural resource consumption, and pollutant emissions involved in steel production can be evaluated comprehensively using the emergy analysis. We explored the sustainability of the steel production system from four aspects: input index, output index, input–output index, and sustainability index. The results showed that the maximum inputs were the intermediate product/recyclable materials produced within the production line; energy sources were mainly non-renewable and the emergy value of pollutants discharged was rather low. The environmental load rate of the pelletizing and sintering processes were the highest and the proportion of recycled materials for puddling and steel-making were the highest. The emergy investment rate of rolling was the highest; the emergy value of the pollutants discharged in each process was very small, and the emergy yield ratio was highest in the rolling process. Pelletizing, sintering, and steel-making were input consuming processes, but the sustainability index of puddling and rolling processes was sound. The whole process line can be sustainable, considering the useful intermediate and recyclable products.

1. Introduction

Steel is widely used in construction, transportation, packaging, renewable energy, and other industries and the world’s crude steel output exceeded 1.6 billion tons in 2016 [1]. However, it is also an energy-intensive industry, whose carbon dioxide emissions account for 6% to 7% of global anthropogenic carbon dioxide emissions due to large amounts of fossil fuel consumption [2]. The treatment of solid waste such as steel slag, iron dust, and coal ash generated during production has caused a series of environmental problems [3]. Steel production relies on the natural ecosystem and human economic system feedback resources and the resulting waste flows into the natural ecosystem and could affect human health. A research framework that considers the human economic system, natural ecosystem, and the steel production system is required to evaluate the sustainable development of the steel industry. The ecological economics evaluation method that comprehensively considers economic development, resource consumption and environmental protection is an important tool for evaluating sustainable development. Its application to the steel industry is an important research topic for the sustainable management of the industry.

Among the existing eco-economic evaluation methods, the material flow analysis does not consider the contribution of the ecosystem to production [4,5]; the evaluation using life cycle assessment is based on human preferences [6]; economic analysis mainly depends on market and shadow prices, and its outcome is not objective enough; energy analysis usually does not consider the different effects provided by energy from different sources [7,8].

In contrast to other analytical methods, H.T. Odum considered the natural energy hierarchy of the universe in which many joules of one kind must be degraded to generate a few joules of another and propose the concept of “emergy” [9]. Odum measures, values, and aggregates energy of different types by their transformities. Transformities, defined as the emergy per unit energy, are calculated as the amount of one type of energy required to produce a heat equivalent of another type of energy. To account for the difference in quality of thermal equivalents among different energies, all energy costs are measured in solar emjoules (sej), the quantity of solar energy used to produce another type of energy. Fuels and materials with higher transformities require larger amounts of sunlight to produce and therefore are considered more economically useful [10]. The emergy analysis is an energy ecological method based on the principle of physical thermodynamics. The indicators of economic system and ecosystem can be uniformly converted into emergy values. By incorporating aspects of energy quality and ecological hierarchy to evaluate the contribution of the natural environment to the human-economic system, this methodology allows for balancing of the needs of both human and natural systems, expressing the socio-economic-environmental effects in common terms [11]. Emergy with corresponding indices and ratios has been proved to be an effective and robust tool to understand the resource flows supporting both the natural ecosystem and macro-economic system, and can be used to measure their overall performances and sometimes sustainability [12]. This method has been widely accepted as an effective ecological evaluation tool to assess comprehensive performances of all kinds of systems with different scales and functions [13,14,15,16].

In the field of industrial production, Brown and Ulgiati added ecological service indicators to the emergy production system to evaluate the power production system [17]. Geng et al. used emergy analysis to evaluate the environmental performance and sustainability of industrial parks [18] and Yuan et al. analyzed the recycling effects of different methods for construction waste through the emergy theory [19]. In the field of renewable energies industry, a comprehensive energy and economic assessment of biofuels was conducted by Ulgiati, based on economy, energy, and emergy and a proposal to integrate ethanol production with industrial activities with a “zero emission framework” was suggested [20]. Takahashi and Ortega made an emergy assessment of oleaginous crops cultivated in Brazil, available to produce biodiesel, to determine which crop is the most sustainable [21]. Zhou et al. analyzed a farm biogas based on emergy analysis and found that the farm biogas project has more reliant on the local renewable resources input, less environmental pressure and higher sustainability compared with other typical agricultural systems [22]. In the field of steel production, Zhang et al. used emergy analysis to assess the sustainability of Chinese steel production from 1998 to 2008, showing that its sustainability was very low and continued to decline [23]. Pan et al. evaluated the sustainability of Chinese steel eco-industrial parks based on the emergy theory and found that after the implementation of material recycling and energy cascade utilization, all indicators were superior to the traditional production chain [24].

In order to understand the energy efficiency, environmental impact, and sustainable development of steel industry, a systematic method to measure the comprehensive performances of steel enterprise is urgent. The emergy analysis can be an effective method for evaluating sustainable development, considering the social investment, natural resource consumption, and impacts of pollutant emission from the steel industry. However, the current application of emergy analysis to the steel industry has only focused on the sustainable development from a fixed resource type. A detailed inquiry into the various material resources for the steel production process is needed to analyze the productivity and sustainability of the steel industry. Therefore, we explored the detailed inputs of renewable and non-renewable resources from three aspects: natural ecosystem, human economic system, and steel production system. In addition, we analyzed each sub-link of the steel production line to explore the status and potential of energy consumption. Finally, the efficiency and sustainable development of steel production were examined in detail from the input-, output-, input–output- and comprehensive sustainability indexes of steel production. This will allow for the examination of the dependence of steel production on different systems as well as the role of recycling in the production process and identification of the sustainable development index that considers the environmental impacts and waste discharge.

2. Materials and Methodology

2.1. Evaluation Framework

Our research target was a steel production system (Figure 1), whose boundary is the area of steel production enterprise. Steel production consumes a lot of resources, and generates various wastes. Three categories of system are defined for emergy accounting and for the understanding of the system interactions. (1) The natural system represents the natural environment, which has not been substantially altered by human intervention. (2) The human economics system is dominated by human beings and deals with the production, distribution, and consumption of goods and services in a particular society. (3) The steel production system in this paper refers to an industrial system that contains pelletizing, sintering, puddling, steel-making, rolling, and other related auxiliary process. The resources are derived from natural and human economic systems; the products are sold to the human economic systems, the pollutants are returned to the natural ecosystem while affecting human health, and some wastes that could be reused (here defined as recyclable materials) are returned to the production line. Based on the emergy algorithm, we abbreviate the renewable resources from natural system as R, the non-renewable resources from natural system as N, the renewable resources from human economics system as F_R, the non-renewable resources from human economics system as F_N and the product for human economic system as Y. In addition, some products (such as sinter, pellet, etc.) are defined as intermediate products, because they can be sold on the market, but they are also used in other parts of the steel production system. However, the effect of pollutant emissions from the steel production plant on other systems is useless or even harmful. Here, we used dotted lines to describe their pathway (Figure 1). The production process could refer to the entire steel production line, but also to a sub-process, such as sintering process.

The inputs of different systems include renewable and non-renewable resources. The resource input from the human economic system is also needed, to be supported by the natural ecosystem. For example, the electricity supplied by the human economic system depends on coal or water resources supplied by the natural system. However, considering that the power system needs a large number of other production equipment, the proportion of natural resources input is relatively low, so the electricity is classified into the resource input of the human economic system. The natural resources, such as coal and lime, are direct supplies of the natural ecosystem.

2.2. Data Collection and Calculation of Emergy

2.2.1. Data Collection

This study explored the sustainable development of steel production system. The steel factory studied was a combined factory, consisting of sintering, pelletizing, puddling, steel making, steel rolling and power generation. It had an annual production capacity of 1.2 million tons of pellets, 9.15 million tons of sinter, 4.65 million tons of pig iron, 4.5 million tons of billets and 3.2 million tons of coils. Its production pathway is shown in Figure 2. The products of the factory can enter the market or the next production link of the factory directly.

Data Source: Considering the different conditions of production across years and the imperfection of some material flow monitoring, we used data from the environmental impact assessment report of a standard steel factory—the Yuhua Steel Co. Ltd. in Wuan City, China. We collected the report directly from the authors, who conducted field investigation and technical demonstration on the entire steel enterprise. Data were collected for natural renewable and non-renewable resources, human economic renewable and non-renewable resources, intermediate products and recycled materials as the input raw data; pollutants, products, intermediate products, and recycled materials were the output raw data.

Data processing methods: Various input–output indexes must be comparable to evaluate the efficiency and sustainability of the whole system. In this study, the emergy analysis method was used. The specific algorithm was firstly to convert different input and output elements into energy or mass data, followed by calculation of the emergy conversion rate. Finally, the original data were multiplied by the emergy conversion rate to obtain the solar emergy value (sej) of each index (

Table 1. Yearly emergy estimate of pollutants in the steel production process.

Production Process	Pollutant	Pollutant Discharge Mass/t	Discharge Volume of Waste Gas/m3	Acceptable Concentration/μg/m3 [27]	Mass of the Air Used to Dilute Pollutant/t	Emergy of the Air Used to Dilute Pollutant/sej	DALY/Kg of Emission	Emergy Loss of Emission/sej	Emergy of Total Impacts of Pollutants/sej
Pelletizing	SO2	295.26	3.11 × 109	20	1.82 × 1010	3.06 × 1016	5.46 × 10−5 [28]	2.13 × 1017	2.43 × 1017
	Dust	85.51	5.10 × 109	80	1.31 × 109	2.21 × 1015	3.75 × 10−4 [28]	4.23 × 1017	4.25 × 1017
	NOx	530.91	3.12 × 109	50	1.31 × 1010	2.20 × 1016	8.87 × 10−5 [29]	6.22 × 1017	6.44 × 1017
Sintering	SO2	2315.38	1.99 × 1010	20	1.42 × 1011	2.40 × 1017	5.46 × 10−5 [28]	1.67 × 1018	1.91 × 1018
	Dust	967.46	4.23 × 1010	80	1.48 × 1010	2.50 × 1016	3.75 × 10−4 [28]	4.79 × 1018	4.81 × 1018
	NOx	4503.19	2.02 × 1010	50	1.11 × 1011	1.87 × 1017	8.87 × 10−5 [29]	5.27 × 1018	5.46 × 1018
Puddling	SO2	178.81	3.85 × 109	20	1.10 × 1010	1.85 × 1016	5.46 × 10−5 [28]	1.29 × 1017	1.47 × 1017
	Dust	713.47	3.54 × 1010	80	1.09 × 1010	1.84 × 1016	3.75 × 10−4 [28]	3.53 × 1018	3.55 × 1018
	NOx	449.03	3.85 × 109	50	1.00 × 1010	1.86 × 1016	8.87 × 10−5 [29]	5.26 × 1017	5.44 × 1017
Steel-making	Dust	528.30	2.24 × 1010	80	8.11 × 109	1.37 × 1016	3.75 × 10−4 [28]	2.62 × 1018	2.63 × 1018
Rolling	SO2	84.33	2.00 × 109	20	5.18 × 109	8.75 × 1015	5.46 × 10−5 [28]	6.08 × 1016	6.95 × 1016
	Dust	37.85	2.00 × 109	80	5.80 × 108	9.78 × 1014	3.75 × 10−4 [28]	1.87 × 1017	1.88 × 1017
	NOx	170.97	2.00 × 109	50	4.20 × 109	7.09 × 1015	8.87 × 10−5 [29]	2.00 × 1017	2.07 × 1017
Power Plant	SO2	535.52	1.08 × 1010	20	3.29 × 1010	5.56 × 1016	5.46 × 10−5 [28]	3.86 × 1017	4.42 × 1017
	Dust	87.18	1.08 × 1010	80	1.33 × 109	2.24 × 1015	3.75 × 10−4 [28]	4.32 × 1017	4.34 × 1017
	NOx	424.64	1.08 × 1010	50	1.04 × 1010	1.76 × 1016	8.87 × 10−5 [29]	4.97 × 1017	5.15 × 1017

).

2.2.2. Impact Evaluation of Emissions

For the steel production process, although most input–output indexes could be calculated as the product of original data and emergy conversion rate, the pollutants produced in the process could not be simply multiplied by their emergy conversion rates. Because pollutants are harmful to people and environment rather than a useful resource, their emergy value should be calculated from their negative effects.

Even if the pollutants from the production process are within the national permissible limits after remediation, there are still some gaps between the emission concentration and the environmental quality standards suitable for human survival. These pollutants need a lot of air within the environment to dilute to the acceptable concentration. This environmental service is defined as services for diluting pollutants. However, these pollutants may cause ecological and economic losses (biodiversity loss, ecosystem degradation, damage to human health) before reaching the acceptable concentration. These losses contain certain emergy values. Therefore, the ecological impacts of effluent pollutants are in two parts: dilution of ecosystem services and emergy loss of emission.

The calculation of emergy for diluting ecological services was done according to Ulgiati and Brown [25]. However, the pollutants are regarded as by-products in the literature [25] and the service used for dilution is regarded as renewable resources provided by the environment. We considered the pollutants as harmful waste rather than by-products since they cannot be utilized under the current technical level of the research enterprise. As an effluent waste, pollutants can only be a harmful substance, whose disadvantages are expressed by the damage to natural and human resources. The value of this damage is essentially negative emergy.

①  Calculation of Emergy for Diluting Ecological Services

Firstly, the environmental quality of diluted pollutants was calculated. The pollutant studied in this paper was only exhaust gas. Therefore, the air quality of diluted exhaust gas was calculated as

$$M_{d,air}=d\times \frac{W}{c}-M_{e,air}$$

(1)

where M_d,air is the quality of the air used to dilute pollutants; M_e,air is the quality of the air emitted from the steel production process; d is the air density (1.23 kg/m³); W is the amount of pollutants discharged annually; c is the acceptable concentration of pollutants.

The mass of diluted air was converted to emergy by diluting the kinetic energy of air. By multiplying by the conversion rate of emergy, the emergy value of diluted air can be obtained.

$$E{m}_{d,air}=E_{d,air}\times T{r}_{air}=\frac{1}{2}\times M_{d,air}\times v^2\times T{r}_{air}$$

(2)

where Em_d,air is the emergy value of dilute air; E_d,air is the kinetic energy of dilute air; Tr_air is the transformity of wind, here it is 1.50 × 10³ sej/J; M_d,air is the quality of the air used to dilute pollutants; v is average annual wind speed, here it was chosen as 1.5 m/s.

②  Calculation of emergy loss of emission

Human resources were considered as a slow renewable resource, and the generation and use of pollutants would lead to irreversible losses. In this report, the DALY method proposed by WHO was used to quantitatively assess the damage of pollutants to human beings [22]. Emergy loss was calculated as

$$E{m}_{manpower}={\displaystyle \sum M_i}\times DAL{Y}_i\times {\tau }_H$$

(3)

where Em_manpower is the emergy of human resource loss, sej; i is the ith pollutant; M_i is the quality of the ith pollutant; DALY is the impact factor of the ith pollutant; τ_H is the emergy unit of human resources per year, which is equal to the annual total emergy use of a country or region divided by its population, and here τ_H equaled 1.32 × 10¹⁶ sej/person [24,26].

The specific indicators and results of the calculation are shown in Table 1.

2.2.3. Emergy Evaluation of the Steel Industry

From the material and energy flow diagram of the production process, the different sub-processes of the steel factory were systematically sorted out. The input and output indexes were converted into heat or mass data. The original data were multiplied by the corresponding emergy conversion rate to obtain the solar emjoule value (sej) of each index. Because of the large amount of data, the summary results are shown in

Table A1. Emergy input and output in the steel production sub-process.

Production Process	System	Resource Type	Indicator	Unit	Raw Data	Emergy Conversion Rate sej/unit	Emergy sej
Pelletizing	Input
	Natural system	Renewable resources (R)	Fresh water	t	60,000	6.64 × 1011 a	3.98 × 1016
		Non-renewable resources (N)	Bentonite	t	19,200	1.00 × 1015 a	1.92 × 1019
			Powdered iron	t	1,212,000	8.55 × 1014 a	1.04 × 1021
	Human economics system	Non-renewable resources (FN)	Electricity	J	1.17 × 1015	160,000 b	1.87 × 1020
	Steel production system	Recycled materials	Blast furnace gas	J	2.72 × 1014	66,000 a	1.79 × 1019
	Output
	Natural system	Pollutant	SO2				2.43 × 1017
			Dust				4.25 × 1017
			NOx				6.44 × 1017
	Human economics system	Products	Pellet	t	1,200,000	1.09 × 1015 a
		Recycled materials	Desulphurizing Slag	t	6200	1.00 × 1015 a	6.20 × 1018
			Pellet dust removal ash	t	48	8.30 × 1014 a	3.98 × 1016
Sintering	Input
	Natural system	Renewable resources (R)	Fresh water	t	87,000	6.64 × 1011 a	5.78 × 1016
		Non-renewable resources(N)	Domestic powdered iron	t	1,625,000	8.55 × 1014 a	1.39 × 1021
			Powdered iron abroad	t	6,025,000	8.55 × 1014 a	5.15 × 1021
			Limestone	t	1,464,000	1.00 × 1015 a	1.46 × 1021
			High magnesium powder	t	85,900	1.00 × 1015 a	8.59 × 1019
	Human economics system	Non-renewable resources (FN)	Electricity	J	1.17 × 1015	160,000 b	1.87 × 1020
			Coke powder	J	1.11 × 1016	10,600 a	1.18 × 1020
	Steel production system	Recycled materials	Dust removal ash	t	48,200	8.30 × 1014 a	4.00 × 1019
			Water treatment sludge	t	53,850	1.00 × 1015 a	5.39 × 1019
			Sinter reentry	t	184,400	1.09 × 1015 a	2.01 × 1020
			Pellet return	t	100,300	1.09 × 1015 a	1.09 × 1020
			Blast furnace gas	J	2.07 × 1015	66,000 a	1.37 × 1020
			Use of steam	J	8.64 × 1014	3090 a	2.67 × 1018
	Output
	Natural system	Pollutant	SO2				1.90 × 1018
			Dust				4.81 × 1018
			NOx				5.46 × 1018
	Human economics system	Products	Sinter	t	9,150,000	1.09 × 1015 a	9.98 × 1021
		Recycled materials	Desulphurized gypsum	t	23,600	1.00 × 1015 c	2.36 × 1019
			Desulphurization waste ash	t	16,560	8.30 × 1014 a	1.38 × 1019
			Sinter reentry	t	757,360	1.09 × 1015 a	8.26 × 1020
			Sintering dust	t	75,900	8.30 × 1014 a	6.30 × 1019
			Steam generation	J	6.66 × 1014	3090 a	2.06 × 1018
Puddling	Input
	Natural system	Renewable resources (R)	Compressed air	t	1,217,695.5	5.16 × 1013 a	6.29 × 1019
			Fresh water	t	1,260,000	6.64 × 1011 a	8.37 × 1017
		Non-renewable resources (N)	Iron block	t	101,700	8.55 × 1014 a	8.70 × 1019
			Coal	J	5.09 × 1015	39,801 a	2.02 × 1020
			Pulverized coal	J	6.59 × 1014	39,801 a	2.62 × 1019
	Human economics system	Non-renewable resources (FN)	Electricity	J	7.70 × 1014	160,000 b	1.23 × 1020
			Coke	J	4.45 × 1016	10,600 a	4.71 × 1020
			Nut coke	J	7.32 × 1014	10,600 a	7.76 × 1018
	Steel production system	Intermediate products	Sinter	t	6,630,000	1.09 × 1015 a	7.23 × 1021
			Pellet	t	1,200,000	1.09 × 1015 a	1.31 × 1021
		Recycled materials	Use of steam	J	1.73 × 1014	3090 a	5.34 × 1017
			Blast furnace gas	J	1.43 × 1016	66,000 a	9.43 × 1020
	Output
	Natural system	Pollutant	SO2				1.47 × 1017
			Dust				3.55 × 1018
			NOx				5.44 × 1017
	Human economics system	Products	Pig iron	t	4,650,000	2.71 × 1015 a	1.26 × 1022
		Recycled materials	Blast furnace slag	t	1,417,000	8.55 × 1014 a	1.21 × 1021
			Gas ash	t	57,500	8.30 × 1014 a	4.77 × 1019
			Blast furnace gas	J	1.79 × 1016	66,000 a	2.12 × 1021
			Hot blast stove flue gas	t	27,619,708.4	8.30 × 1014 a	2.29 × 1022
			Dust and ash	t	39,100	8.30 × 1014 a	3.25 × 1019
Steel-making	Input
	Natural system	Renewable resources (R)	Fresh water	t	1,176,000	6.64 × 1011 a	7.81 × 1017
			Nitrogen consumption	t	4,515,739.44	2.00 × 1014 d	9.03 × 1020
			Oxygen consumption	t	2,667,180.15	5.16 × 1013 b	1.38 × 1020
			Compressed air	t	1,178,415	5.16 × 1013	6.08 × 1019
		Non-renewable resources (N)	Iron block	t	110,000	8.55 × 1014	9.41 × 1019
			Ferroalloy	t	13,300	8.55 × 1014	1.14 × 1019
			Doomite	t	65,500	1.00 × 1015 a	6.55 × 1019
			Flour	t	600	1.00 × 1015 a	6.00 × 1017
	Human economics system	Non-renewable resources (FN)	Electricity	J	7.85 × 1014	160,000 b	1.26 × 1020
			White ash	t	468,000	2.16 × 1015 a	1.01 × 1021
	Steel production system	Intermediate products	Pig iron	t	4,650,000	2.17 × 1015 a	1.01 × 1022
		Recycled materials	Steel scrap	t	32,000	3.09 × 1015 a	9.89 × 1019
			Blast furnace gas	J	2.86 × 1014	66,000 a	1.89 × 1019
			Convertor gas	J	1.29 × 1015	66,000 a	8.52 × 1019
	Output
	Natural system	Pollutant	Dust				2.63 × 1018
	Human economics system	Products	Billet steel	t	4,500,000	3.09 × 1015 a
		Recycled materials	Steel slag	t	427,600	3.09 × 1015 a	1.32 × 1021
			Dust mud	t	53,800	1.00 × 1015 a	5.38 × 1019
			Dust	t	120	8.30 × 1014 a	9.96 × 1016
			Iron oxide skin	t	27,800	8.55 × 1014 a	2.38 × 1019
			Remainder residue	t	19,500	8.30 × 1014 a	1.62 × 1019
			Steam generation	J	1.01 × 1015	3090 a	3.13 × 1018
			Convertor gas	J	4.35 × 1015	66,000 a	2.87 × 1020
Rolling	Input
	Natural system	Renewable resources (R)	compressed air	t	104,472.48	5.16 × 1013 a	5.39 × 1018
			Fresh water	t	670,000	6.64 × 1011 a	4.45 × 1017
	Human economics system	Non-renewable resources (FN)	Electricity	J	1.44 × 1015	160,000 b	2.30 × 1020
	Steel production system	Intermediate products	Billet steel	t	3,243,700	3.09 × 1015 a	1.00 × 1022
		Recycled materials	Blast furnace gas	J	3.90 × 1015	66,000 a	2.58 × 1020
	Output
	Natural system	Pollutant	SO2				6.95 × 1016
			Dust				1.88 × 1017
			NOx				2.07 × 1017
	Human economics system	Products	Rolled steel	t	3,200,000	3.09 × 1015 a
		Recycled materials	Iron oxide sludge	t	21,900	1.00 × 1015 a	2.19 × 1019
			Steel scrap	t	28,300	3.09 × 1015 a	8.74 × 1019
			Steam generation	J	3.95× 1014	3090 a	1.22 × 1018
Oxygen production	Input
	Natural system	Renewable resources (R)	air	t	1,964,117.14	5.16 × 1013 a	1.01 × 1020
			Fresh water	t	286,651.81	6.64 × 1011 a	1.90 × 1017
	Human economics system	Non-renewable resources (FN)	Electricity	J	7.93× 1014	160,000 b	1.27 × 1020
Power plant	Input
	Steel production system	Recycled materials	Blast furnace gas	J	1.14 × 1016	65,999 a	7.50 × 1020
			Convertor gas	J	3.06 × 1015	66,000 a	2.02 × 1020
			Steam generation	J	1.67 × 1016	3090 a	5.15 × 1019
			Use of steam	J	1.67 × 1016	3090 a	5.15 × 1019
			Electricity	J	1.89 × 1015	160,000 b	3.03 × 1020
	Output
	Natural system	Pollutant	SO2				4.42 × 1017
			Dust				4.34 × 1017
			NOx				5.15 × 1017
Whole process	Input
	Human economics system	Renewable resources (R)	Labor	人	8500	3.10 × 1016 a	2.64 × 1020
			Investment in fixed assets	$	46,937,658.6	4.94 × 1012 e	2.32 × 1020
			Soil loss	g	4.43 × 1011	1.70 × 109 c	7.53 × 1020

Note: ① The calculation of the emergy of pollutants is detailed in the Section 3.2.2; ② Conversion parameters of some raw data: Compressed air mass: volume × 1.239 g/L; steam heat: mass × 2817.2381 J/g; oxygen mass: volume × 10,470 g/m³; nitrogen mass: volume × 9168.8 g/m³; coke heat: mass × 28,470 J/g; coal heat: mass × 8374 J/g; electric heat: kWh × 3.6 × 10⁶ J/kWh; blast furnace gas heat: volume × 3344 kJ/m³; Convertor gas heat: volume × 7527 kJ/m³; Lifetime of factory: 20 years. ③ Energy of soil loss = soil loss mass organic matter content × soil organic matter calorific value; soil organic matter calorific value is 106 kcal/t; surface soil thickness is 0.15 m; organic matter content is 5%; soil bulk density is 1.3 g/cm³. ④ Labor, fixed assets investment and soil loss are only counted in the total production process of factory for the three indicators are not easy to collected in subsystems. ⑤ Reference: ^a: [35]; ^b: [23]; ^c: [36]; ^d: [37]; ^e: [38].

at the end of this paper. The main body of this paper only gave the emergy input–output statistics of the steel production system (

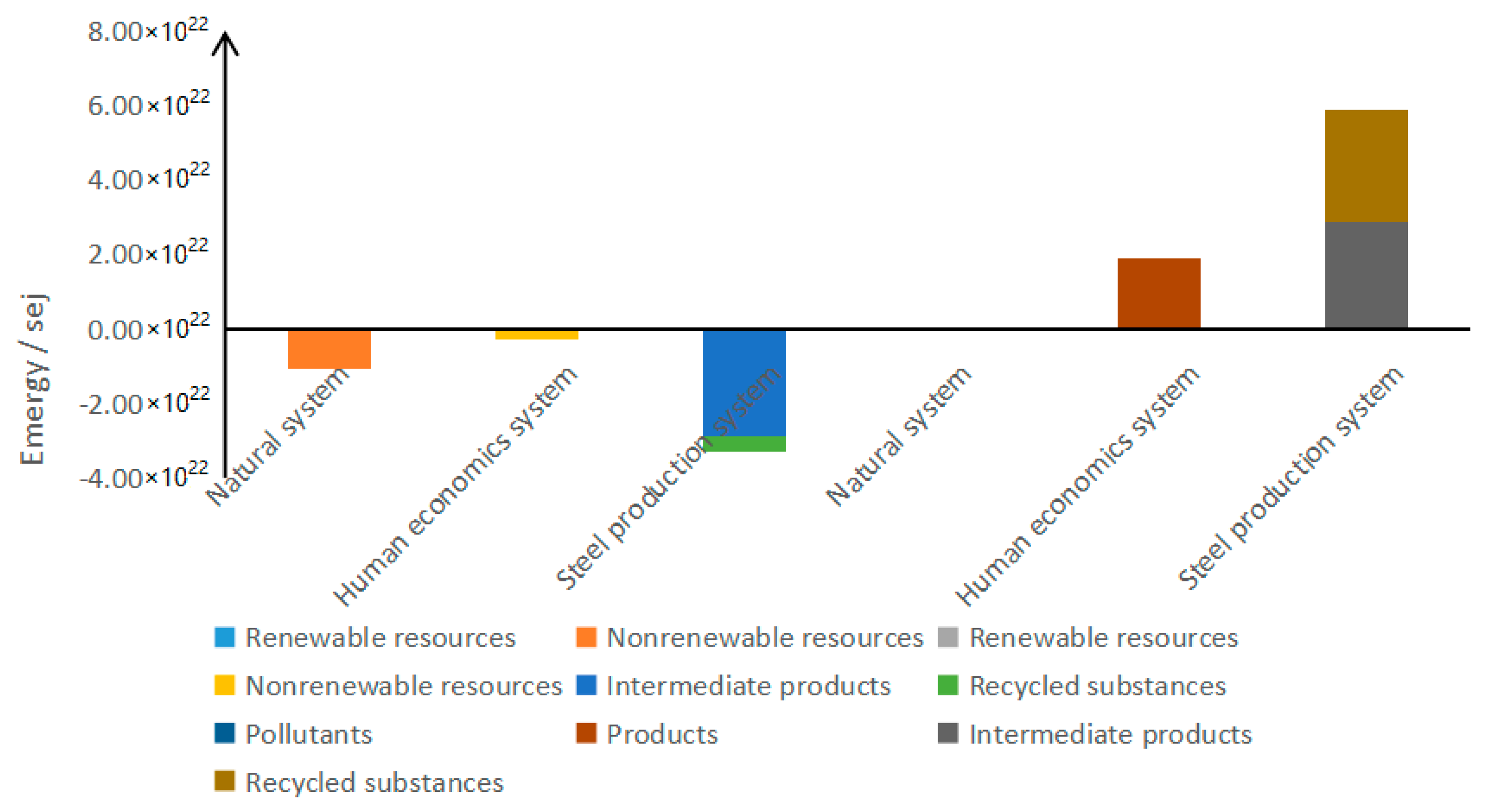

Table 2. Emergy input and output in the steel production system.

Items	Resource Type	Indexes	Emergy	Items	Resource Type	Indexes	Emergy
			sej				sej
Input				Output
Natural system	Renewable resources (R)	Fresh water	2.35 × 1018	Natural system	Pollutants	SO2	2.81 × 1018
		Air	2.30 × 1020			Dust	1.20 × 1019
	Non-renewable resources (N)	Bentonite	1.92 × 1019			NOx	7.37 × 1018
		Powdered iron	7.58 × 1021	Human economics system	Products (Y)	Sinter	2.75 × 1021
		Limestone	1.46 × 1021			Pig iron	2.51 × 1021
		High magnesium powder	8.59 × 1019			Billet steel	3.88 × 1021
		Iron ore	8.70 × 1019			Rolled steel	9.89 × 1021
		Coal	2.02 × 1020	Steel production system	Intermediate products	Pellet	1.31 × 1021
		Pulverized coal	2.62 × 1019			Sinter	7.23 × 1021
		Iron block	9.41 × 1019			Pig iron	1.01 × 1022
		Ferroalloy	1.14 × 1019			Billet steel	1.00 × 1022
		Doomite	6.55 × 1019		Recycled materials	Desulphurizing Slag	6.20 × 1018
		Flour	6.00 × 1017			Dust and ash	1.57 × 1020
		Soil loss	7.53 × 1020			Desulphurized gypsum	2.36 × 1019
Human economics system	Renewable resources (FR)	Labor	2.64 × 1020			Sinter reentry	8.26 × 1020
		Investment in fixed assets	2.32 × 1020			Blast furnace slag	1.21 × 1021
	Non-renewable resources (FN)	Thermal power electricity	6.78 × 1020			Blast furnace gas	2.12 × 1021
		Coke powder	4.15 × 109			Hot blast stove flue gas	2.29 × 1022
		Coke	4.71 × 1020			Steel slag	1.32 × 1021
		Nut coke	7.76 × 1018			Dust mud	5.38 × 1019
		White ash	1.01 × 1021			Iron oxide skin	2.38 × 1019
Steel production system	Intermediate products	Sinter	7.23 × 1021			Remainder residue	1.62 × 1019
		Pellet	1.31 × 1021			Steam production	5.58 × 1019
		Pig iron	1.01 × 1022			Converter gas production	2.87 × 1020
		Billet steel	1.001 × 1022			Iron oxide sludge	2.19 × 1019
	Recycled materials	Blast furnace gas	2.121 × 1021			Steel scrap	8.75 × 1019
		Convertor gas	2.87 × 1020			Electricity	3.03 × 1020
		Dust and ash	4.00 × 1019			Nitrogen	9.03 × 1020
		Water treatment sludge	5.39 × 1019			Oxygen	1.38 × 1020
		Sinter reentry	2.01 × 1020
		Pellet return	1.09 × 1020
		Steam consumption	5.74 × 1019
		Steel scrap	9.89 × 1019
		Electricity	3.03 × 1020
		Nitrogen	9.03 × 1020
		Oxygen	1.38 × 1020

).

2.2.4. Emergy Indexes Used in This Study

The emergy evaluation indexes were compiled according to the input–output system and resource utilization of the steel industry (

Table 3. Emergy indexes used in steel production system.

Items	Indexes	Formulation
Input index	Environment loading ratio (ELR)	Non-renewable resources (N + FN)/Renewable resources (R + FR)
	Proportion of recycled materials used (PRM)	Recycled materials used/Total input
	Emergy investment ratio (EIR)	Human economics system input/Natural system input
Output index	Environmental impact rate (EnIR)	Pollutants/Products
	Product rate (PR)	Products/Total output
Input–output index	Emergy yield ratio (EYR)	Products/Human economics system input
	Total emergy yield ratio (TEYR)	(Products + Intermediate products + Recycled materials)/(Human economics system input + Natural system input)
	Net emergy yield ratio (NEYR)	(Products + Intermediate products + Recycled materials-Pollutants)/(Human economics system input + Natural system input)
	Emergy input–output rate (EIOR)	Products/Total input
	Total emergy input–output ratio (TEIOR)	(Products + Intermediate products + Recycled materials)/Total input
	Net emergy input–output ratio (NEIOR)	(Products + Intermediate products + Recycled materials − Pollutants)/Total input
Sustainability index	Emergy sustainable development index (ESDI)	Emergy yield ratio (EYR)/Environment loading ratio (ELR)
	Total emergy sustainable development index (TESDI)	Total emergy yield ratio (TEYR)/Environment loading ratio (ELR)
	Net emergy sustainable development index (NESDI)	Net emergy yield ratio (NEYR)/Environment loading ratio (ELR)

).

3. Results and Discussion

3.1. Structure of Inputs and Outputs in the Steel Industry

The whole process of steel production was analyzed in terms of input and output. The beneficial effect of steel production on people was positive, and both its harmful effect on people and the use of human beneficial emergy were negative, as shown in Figure 3. There was little difference between input and output of the system; the emergy loss was minimal, and the emergy output rate was high.

Among the three systems, the steel production system had the highest overall input and output, which included intermediate and recyclable products. Apart from the intermediate products that could be sold and used directly, the proportion of recyclable materials in various input–output indicators was also the largest. In addition to gas and other resources, these materials were mostly solid wastes such as steel slag, dust particles, etc. After being treated and collected, they accounted for 43% of the emergy value of inputs. The harmless treatment of steel production process played an important role. If these materials were not properly recycled, more resources would need to be invested from the natural ecosystem and human economic system, and the impact of the associated direct emissions would be close to the beneficial emergy value derived from the product itself. Regardless of the input of steel production system, the input resources were mainly non-renewable resources, which was consistent with previous findings [23,24].

In the input and output of each system, both renewable resources of natural ecosystem and human economic system accounted for a very low proportion, suggesting that the environmental load of steel production was high. In addition, the emergy value of pollutants discharged into the natural ecosystem was very low. Although the steel industry is a typical high pollution enterprise, the proportion of its pollution impact on overall input and output was not particularly serious based on the emergy analysis. Under the pressure of environmental protection, the steel factories have fared better. The impact of pollutants was relatively small when the pollutants were treated and reusable resources/wastes recovered as much as possible. In addition, compared with other steel enterprises in China [23,24], this research enterprise does not discharge waste water and the amount of waste gas pollutants was also significantly less. This indicated that the environmental protection technology of this enterprise was at the forefront in China.

3.2. Variation in Emergy of Different Production Links

Input–output indexes were analyzed from four aspects: input indexes, output indexes, the relationship between input–output indexes, and comprehensive sustainability indexes, considering different types of superimposed effects. The emergy production efficiency of each sub-production process and the whole production process was also analyzed (

Table 4. Emergy indexes used in steel production system.

Items	Indexes	Pelletizing	Sintering	Puddling	Steel-Making	Rolling	Whole Process
Input index	Environment loading ratio (ELR)	31,191.381	145,338.975	14.418	21.239	39.481	17.242
	Proportion of recycled materials used (PRM)	0.014	0.061	0.090	0.098	0.024	0.093
	Emergy investment ratio (EIR)	0.177	0.038	1.588	4.876	39.481	0.251
Output index	Environmental impact rate (EnIR)	0.001	0.001	0.000	0.000	0.000	0.001
	Product rate (PR)	0.994	0.914	0.324	0.891	0.989	0.243
Input–output index	Emergy yield ratio (EYR)	6.987	32.669	20.920	12.234	42.917	8.777
	Total emergy yield ratio (TEYR)	7.020	35.708	64.647	13.735	43.397	21.992
	Net emergy yield ratio (NEYR)	7.013	35.668	64.640	13.732	43.395	21.982
	Emergy input–output rate (EIOR)	1.038	1.116	1.205	1.095	0.940	0.411
	Total emergy input–output ratio (TEIOR)	1.043	1.219	3.723	1.229	0.951	1.031
	Net emergy input–output ratio (NEIOR)	1.041	1.218	3.723	1.229	0.951	1.030
Sustainability index	Emergy sustainable development index (ESDI)	0.000	0.000	1.451	0.576	1.087	0.509
	Total emergy sustainable development index (TESDI)	0.000	587.384	4.484	0.647	1.099	1.276
	Net emergy sustainable development index (NESDI)	0.000	945.265	4.483	0.647	1.099	1.275

).

3.2.1. Input Indexes

By analyzing the relationship among different input indexes, the dependence of the production process on different systems and resource types could be understood. Environmental load rate (ELR) reflects the proportion of input of non-renewable and renewable resources. The ELR for pelletizing and sintering processes at the front end of production chain were much higher than other processes. Thus, the whole production process needed to invest a large amount of non-renewable resources to start production, then the demand for non-renewable resources was greatly reduced. The ELR of whole process was 17.242, which was lower than the values for other steel enterprises in China, but there was still some great environmental stress (ELR > 10) [23,24].

The proportion of recycled materials used (PRM) reflects the extent of waste disposal during steel production. If the waste materials cannot be recycled for further production, they can easily become an additional environmental burden. Therefore, the PRM index, acting much like the decomposer in the ecosystem, plays an important role in a sustainable industrial production system. Both puddling and steel-making processes have a high PRM, so that these processes can better absorb and digest the waste in the whole steel production process (Table 4).

Emergy investment ratio (EIR) is different from ELR and is used to explore the relationship between inputs from the human economic system and natural ecosystem. The EIR of the rolling process was higher because it had no input from the human economic system, except some electricity; so the proportion of natural resources input was significantly increased. In pelletizing, and sintering processes as well as the entire line, the input from the human economic system was much greater than that from the natural ecosystem, indicating that the dependence of steel production on human economic system was greater than on natural ecosystem. The EIR of the entire line was similar to other steel enterprises, though it varied with years [23].

3.2.2. Output Indexes

Environmental impact rate (EnIR) reflects the emergy of discharged pollutants per unit product, which can measure the negative environmental impact of products. The EnIR of each process was low, and the EnIR of puddling, steelmaking, and rolling, were less than 0.001 (Table 4). Thus, the environmental costs of production consistent with emission standards was relatively small, based on emergy analysis. In particular, this paper considered pollutants as emissions and were analyzed among the output emergy; however, some studies regarded pollution as the loss of input emergy [24,25].

Product rate (PR) refers to the proportion of target products relative to all other outputs. The very low PR for the whole process was due to the fact that only the final steel was used as the product in this analysis, excluding the huge intermediate products and recycling materials. The PR of the puddling process was much lower than that of other sub-processes. Many of the emergy invested in the puddling process was converted into recycled materials which are subject to further processing. The emergy efficiency of the production cycle could be greatly increased by increasing the PR of the puddling process.

3.2.3. Input–Output Indexes

The traditional Emergy yield ratio (EYR) reflects the emergy of the output (product) under a certain amount of purchased emergy. It can be seen from the Table 4 that the EYR of rolling processes was much higher than that of other processes. The main reason was that compared with pelletizing and sintering processes, the most important resource inputs for rolling were the intermediate products produced in the previous process, which needed not be purchased. The EYR of steelmaking was low due to the high input of natural resources such as oxygen and nitrogen. The EYR of whole process was 8.777, which was larger than other steel enterprises, meaning the research enterprise was more competitive [23,24,25]. Total emergy yield ratio (TEYR) represents the output of all products (including the sum of final products and recyclable materials) under a certain purchased emergy. The net emergy yield ratio (NEYR) represents the output of all products minus pollutants under a certain purchased emergy. Because the emergy value of pollutants was much lower than other outputs, there was little difference between the TEYR and the NEYR. The difference of TEYR and NEYR from each process was similar to the difference of the EYR. The TEYR and NEYR of puddling process were high, because it used less purchasable resources. Also, not only the pig iron products, but the recyclable materials were produced with a great deal of emergy value. So, the investment rate of puddling process was much higher than that of other processes.

The emergy input–output rate (EIOR) is developed to reflect the amount of emergy products produced by the system, considering all the input resources at the same time. The total emergy input–output ratio (TEIOR) explores the total output of products, intermediate products and recyclables that are produced after inputting resources. The net emergy input–output ratio (NEIOR) represents the total product mentioned above minus the pollutant emergy value after inputting resources. Compared with the EYR, the EIOR not only considers the input and output efficiency of purchased resources, but also comprehensively analyzes the conversion efficiency of all input resources in the process. As shown in Table 4, the EIOR differed little among the various processes and the input–output ratio of each process was almost slightly greater than 1, and the emergy efficiency of each process was high. The TEIOR and the NEIOR of the puddling process were greater than 3. The emergy production and conversion efficiency was rather high under the comprehensive consideration of various inputs and outputs.

3.2.4. Sustainability Indexes

The emergy sustainable development index (ESDI) reflects the sustainable development of the system. The relationship between the ESDI and sustainable development can be summed up as follows: when the ESDI is greater than 1 but less than 10, it indicates that the system is developing and relatively dynamic, and the emergy of sustainable development is in good condition; an ESDI greater than 10 indicates that the economy is underdeveloped; ESDI less than 1 indicates a consumption-oriented system and the development is unsustainable [30]. The ESDI of pelletizing, sintering, puddling, steel-making, and the whole process line were all less than 1, which meant that the production consumed a large amount of non-renewable resources, and the ELR was high. However, the ESDI of other steel enterprise were lower, being less than 0.1 [23,24]. The ESDI of the puddling and rolling processes were greater than 1 but less than 10, suggesting that the emergy sustainable development of puddling and rolling processes were in good condition. Considering all the useful outputs, such as intermediate and reusable products, emergy sustainability indexes (TESDI and NESDI) have been greatly improved. The TESDI and NESDI of puddling, rolling, and the whole process were within a reasonable range of 1 to 10. It could be seen that if the steel production line recycled the intermediate products of each process, it could achieve sustainable development; if not, the system has a high environmental load rate and cannot develop sustainably.

4. Conclusions and Recommendations

4.1. Conclusions

Based on the emergy of various input–output indicators, the total input and output emergy of the steel production line was not very different; the largest input was the intermediate products and recyclable materials produced in the production process; the recyclable materials accounted for 43% of the total input. The input emergy was mainly non-renewable resources, and the ELR was high; the emergy of pollutants discharged was very low, indicating that the environmental impact of steel production was small if the pollutants were discharged after treatment.

The ELR of pelletizing and sintering processes that occurs in the front-end production line was the highest; the proportions of recycled materials used for steel-making and puddling were the highest, and played the greatest role in ‘waste’ absorption. The EIR in rolling were the highest since its dependence on natural system was the greatest. The emergy value of pollutants from each process was very small, and the EnIR was close to or below 0.001. The PR was only 0.324 in the puddling process, and the emergy efficiency of production could greatly increase if the product rate of puddling was improved. The EYR of sintering and rolling processes were the highest. Both the TEYR and NEYR of puddling were the highest. There was little difference between the procedures in the EIOR, TEIOR, and NEIOR after considering all resource inputs simultaneously.

The ESDI of pelletizing, sintering and steel-making were less than 1, indicating an unsustainable production process but puddling and rolling processes were reasonable. Considering the intermediate products and recyclable materials, the TESDI and NESDI of puddling, rolling and the whole process were between 1 and 10, and the development was acceptable. Therefore, the steel production process could achieve sustainable development if various intermediate products could be recycled considerably.

4.2. Recommendations

This paper systematically analyzed the input and output of the steel production line, but the research process still needs to be improved and further explored. Pollutants discharged from the steel production process will have adverse effects on human and other biological health in the ecological environment. Due to absence of corresponding methods and data for assessing biological hazards, this part of the study was omitted for the time being. The pollutant could be evaluated more accurately once the biological hazards are considered in future studies. The type of pollutants from the steel production process were much more varied than the particulate matter, sulfur dioxide, and nitrogen oxides studied here. After determining the influence of other pollutants for inclusion in future evaluations, the results would be more comprehensive.

In addition to emergy analysis, other eco-economic assessments have also been tried to evaluate the sustainability of steel production. For example, the life cycle assessment method, which mainly concerns the environmental impact of goods and services, has been used at different scales [31,32,33,34]. Although each method has its own advantages and disadvantages, it may be more scientific and informative to combine several eco-economic assessments with emergy analysis.
