Forces Governing the Transport of Pathogenic and Nonpathogenic Escherichia coli in Nitrogen and Magnesium Doped Biochar Amended Sand Columns

Abstract

Background: Access to safe drinking water remains a global issue with fecal indicator bacteria being major pollutants. Biochars offer low-cost adsorbents for bacterial pathogens. A fundamental understanding of how biochars interact with bacterial pathogens is essential to designing effective biofilters. Methods: Water-saturated sand columns amended with Magnesium and Nitrogen-doped biochars produced by pyrolysis at 400, 500, 600, and 700 °C were used to Quantify the transport of pathogenic Escherichia coli O157:H7 and nonpathogenic E. coli k12 strains in porous media. Measured data were modeled using DLVO theory of colloidal stability. were explored. Results: (1) Biochar is hydrophobic while sand and bacteria are hydrophilic; (2) all Gibbs free energy values quantified between E. coli O157:H7 and biochar were negative except for biochar produced at 700 °C; (3) all types of forces investigated (van der Waals, electrostatic, and acid-base interactions) played a role in governing the interactions between bacteria and biochar. Conclusions: (1) Adding doped biochar to sand at a 2% weight ratio enhanced the retention of bacterial cells in the sand/biochar columns; (2) bacterial transport is strain-dependent and mediated by various types of forces resulting from interactions between the various functional groups displayed on bacteria and biochar/sand. Our findings emphasize the importance of monitoring biochar’s functionality to eliminate bacterial pollutants from contaminated water.

1. Introduction

Today, access to safe drinking water remains a significant issue around the globe. According to the United States Environmental Protection Agency (EPA), urban stormwater, which accounts for just 3% of US land, pollutes 13% of river systems, 18% of streams, and 32% of estuaries surveyed [1]. Many contaminants are present in urban stormwater, including suspended particles, nutrients, heavy metals, hydrocarbons, and, most significantly, bacterial pathogens. Waterborne pathogens in urban stormwater pose a substantial threat to public health worldwide because of the diseases they may cause. Animal waste and on-site waste management systems, such as septic tanks, are significant sources of fecal-derived bacteria found in this stormwater [2].

Fecal indicator bacteria (FIB) are thought to be the major pollutants inhibiting downstream drinking and stormwater usage and are associated with a higher risk of waterborne infections via recreational and dietary exposures. Because indicator microorganisms are effective predictors of pathogen prevalence, fecal soil, water pollution, and transport, investigations are often conducted using indicator species such as E. coli [3].

Biochars produced by pyrolysis are gaining popularity as low-cost adsorbents for environmental pollutants [4]. Although alternative materials may achieve better removal rates than char, the inexpensive cost, plentiful availability, and potential for land reuse have prompted research in char-based adsorbents [5,6]. Organic matter used in biochar production may originate from a diverse array of feedstock sources. The US has access to over 1.3 billion tons of biomass per year for bioenergy production, mainly maize, wheat, and forestry residues [7,8]. The original biomass structure will influence the subsequent biochar structure, physical properties, and future interactions with other constituents.

Applying biochar to natural porous media (like sand) improves pathogen’s retention [2,9,10,11]. Attachment to and detachment from sand (collector) surfaces and physical entrapment (straining) in confined pore spaces are mechanisms for controlling the retention of microbes and colloids in porous media. Such colloidal interactions with solid surfaces are explained in part by the Derjaguin–Landau–Verwey–Overbeek (DLVO) theory. According to the DLVO theory, interaction energy can be quantified as the sum of van der Waals and electrostatic double-layer interactions [12]. These interactions are affected by a variety of physical and chemical factors [12]. The size of biochar particles, their physical and chemical surface properties, as well as the micro-and macro-porous features of their surfaces are expected to influence bacterial retention in biochar-modified porous media [12]. Packed column experiments are commonly utilized to analyze porous media’s colloid breakthrough curves (BTCs) and retention characteristics [12].

Although some column studies were undertaken to explore bacterial’s mobility in porous biochar-modified media, little is known about the fundamental mechanisms that govern biochar’s efficacy in removing bacteria. Changes in biochar’s physical and chemical characteristics may alter bacterial removal capabilities [3,7,13,14]. As such, it is critical to quantify how biochar’s morphological and chemical qualities influence its interactions with bacteria and ultimately bacterial transport in sand [7,15].

This study aims at exploring the fundamental mechanisms through which biochar controls the retention of pathogenic bacteria in sand. To achieve this, the physiochemical characteristics of magnesium and nitrogen-doped biochars generated by pyrolysis at four different temperatures (400, 500, 600, and 700 °C), the properties of sand, pathogenic E. coli O157:H7, and nonpathogenic control E. coli k12, were investigated. After that, the forces that govern the interactions of these various biochars with the bacterial strains were quantified. A discussion of how such forces can inform the design of effective biofilters was included.

2. Materials and Methods

2.1. Model Bacterial Cultures

Pathogenic E. coli O157:H7, ATCC 35150 and nonpathogenic E. coli k12, ATCC 10798 were used as model bacteria. E. coli were activated and harvested as previously described [16]. For details, please refer to section S1 of the supporting information.

2.2. Biochar’s Preparation

Avicel cellulose biochars were produced and characterized according to details reported elsewhere [17,18,19]. Characteristics of biochars are briefly summarized in

Table 1. A summary of the physiochemical characteristics of biochar types pyrolyzed at different temperatures ^&.

	Pyrolysis Temperature (°C)
Physiochemical characteristic	400	500	600	700
Carbon content (wt. %) (dry basis)	64.0	63.6	67.9	63.6
Nitrogen content (wt. %) (dry basis)	8.3	7.7	7.7	11.0
Hydrogen content (wt. %) (dry basis)	4.6	3.2	1.9	1.2
Oxygen content (wt. %) (dry basis)	11.6	11.5	7.1	7.7
Fixed carbon content (wt. %) (dry basis)	54.7	60.2	65.7	64.6
Volatile matter content (wt. %) (dry basis)	33.8	25.8	18.8	18.9
Ash content (wt. %) (dry basis)	11.5	14.0	15.4	16.5
Moisture content (wt. %) ** (as received)	9.2	10.0	6.3	6.0
SA-CO2 (m2 g−1) *	202.7	299.8	400.9	493.8
Vmicro (cm3 g−1) &	0.081	0.120	0.161	0.198
Pcap (cm3g−1) #	24.2	26.6	26.9	26.5
Bulk density (g cm−3)	1.56	1.551	1.537	1.561
porosity (v/v)	0.69	0.60	0.67	0.63
pH (in H2O)	10.1	10.0	10.0	10.2
Mean particle diameter (µm)	51	32	26	29
Sphericity (%)	0.49	0.49	0.49	0.53

* SA-CO₂ is the surface obtained by adsorption of CO₂ to biochars, ^& V_micro: Volume of micro-sized pores within the biochar, and ^# P_cap: Total pore capacity. ** Moisture acquired from the air during storage. ^& Currently pending publication elsewhere.

. In our previous paper [16], we proved that the oxidation of biochar resulted in the reduction of the capacity of biochar to adsorb E. coli. We hypothesized that the negative charge of the oxidized biochar in the range of the pH investigated was responsible for enhancing the electrostatic repulsion between E. coli and the biochar leading to a reduced biochar’s efficacy. To test this hypothesis and to improve the biochar retention of E. coli, we decided to dope the biochar with N-Mg because these biochars are positively charged in a wide pH range and as such will attract E. coli, leading to higher retention. For brief descriptions of how biochar was prepared and characterized, please refer to Sections S2 and S3 of the Supporting Information.

2.3. Sand as a Model Porous Medium

Given the large pore size, sand was our choice of mineral to work with. Industrially manufactured fine quartz sand was used (J.t Backer VWR, Arlington Heights, IL, USA). To quantify the size of the sand particles, images of the sand particles were captured on a glass slide using an Invitrogen™ EVOS™ XL Core Imaging System (Thermo Fischer Scientific, Waltham, MA, USA) at 4X and 10X. Images were saved as a joint photographic group (Jpg). The ImageJ software was used to process the images to quantify the perimeter of individual sand particles. The average diameter of sand particles was 411 ± 66 μm (n = 52) and the sphericity was 0.7 ± 0.1. Represented images of the sand and biochar, along with selected characteristics of the sand, can be found in Supporting Information Section S4, Figure S1, and Table S1.

2.4. Quantification of Bacterial Transport in 2% Biochar/Sand Columns

Thirty-six experiments were conducted to quantify the transport of E. coli in biochar-amended sand columns. Three types of porous media were used: (1) the four types of biochar doped with magnesium and nitrogen, (2) sand alone, and (3) 2% of each of the four biochars mixed with 98% sand. Prior to use, the sand was cleaned by washing it with deionized water (DIW) five times to remove any residual fine particles. The sand was then allowed to boil to remove any air bubbles and any extra fine particles. An optical density at a 600 nm wavelength (OD600) of 0.0 of water soaking the sand was indicative of no turbidity. The clean sand was mixed with the biochar at a 98% sand to 2% biochar ratio and dry-packed in short columns. The mixture was saturated with DIW overnight and a cotton ball was placed on the mixture’s top to help contain the biochar. Packed columns were acclimated to DIW for at least 10 pore volumes (PVs) (1 PV = 3.6 ± 0.1 mL). Water was pumped into the column using a Fischer scientific GP1100 Precision Variable-Speed Peristaltic Pump (NH, USA). The absorbance of the effluent was measured to determine equilibrium. The bacterial suspension was then pumped upward to avoid channeling in the column at 3.2 mL/min for at least 10 PVs, followed by 5 PVs of bacterial-free medium to elute all cells that may not have been retained in the porous media. A total of 3.2 mL fractions of the effluent were collected using a fraction collector (GE Frac 920, Cytiva, MA, USA), and the absorbance of each fraction was measured. Bacterial outlet concentration (C) divided by the bacterial inlet concentration (C_o) was graphed vs. the PV to create the breakthrough curves (BTCs). Each column experiment was repeated 3 times.

2.5. Contact Angles Measurements and Modeling

Contact angles of sand, biochar, and bacteria were measured using the sessile drop method with a drop shape analyzer DSA100 (KRŰSS, Hamburg, Germany). For details on measurements and modeling, please refer to Section S5 and Table S2 of the Supporting Information.

2.6. Interfacial Net Gibbs Free Energy Calculations

The net free Gibbs free energy of adhesion (ΔG_Adh) for two interacting surfaces at equilibrium and in contact can be described as a function of apolar and polar free energies. Free energies are related to the surface tension components of the two surfaces estimated from contact angle measurements. The various surface tension components of the bacterial cell, sand, biochar, and solution can be calculated using Equations (S4)–(S12) described in Supporting Information Section S6.

Once all the surface tension components are computed, the Gibbs free energy of adhesion can be calculated using Equation (1). A negative Gibbs energy indicates favorable attachment.

$$\mathsf{\Delta }{G}_{Adh}\frac{mJ}{m^2}=\left[{\gamma }_{CS}-{\gamma }_{CW}-{\gamma }_{SW}\right]$$

(1)

2.7. Derjaguin, Landau, Verwey, and Overbeek (DLVO) Theory of Colloidal Stability

The initial adhesion of bacteria to a surface was suggested to be controlled by electrostatic and van der Waals interactions, as could be modeled by the classical Derjaguin–Landau–Verwey–Overbeek (DLVO) theory of colloidal stability. According to DLVO theory, the total nonspecific energies (E_DLVO) are the summation of the electrostatic energies (E_e) and Lifshitz–van der Waals energies (E_LW), as shown by Equation (2) [20].

$$E_{DLVO}=E_e+E_{LW}$$

(2)

To generate E_DLVO energy profiles, the bacterial cell, biochar, and sand were all considered as spherical particles. The average diameter of the biochar particles generated at different pyrolysis temperatures, as well as the diameter for sand as determined from images, are listed in Table S1. The bacterial diameter was taken as 1.16 × 10⁻⁶ m [16]. To calculate the electrostatic energies (E_e, J), a linearized version of the Poisson–Boltzmann expression, as described by Equations (S13)–(S15), was used. In addition, the van der Waals interaction energy (E_LW) between two dissimilar spheres can be calculated using a Hamaker expression, and corrected for retardation effects [20] as shown in Equation (S16) in Section S7 in the Supporting Information.

2.8. Statistics

Reported error bars indicate the standard deviation unless mentioned otherwise. Variations or similarities amongst different groups of data estimated for the biochars pyrolyzed at different temperatures were assessed via different means. First, a one-sample t-test was used to compare data points in a single group if the normality Shapiro–Wilk test was passed. The non-parametric group comparisons Mann–Whitney rank sum test was used to compare two groups. When multiple groups were compared, the Kruskal–Wallis one-way analysis of variance (ANOVA) was used. If pairs within a group were to be compared, the pair-wise multiple comparison procedure (the Tukey test) was used. In all tests, the power of the tests was taken with α as equal to or less than 0.05 or 95% confidence. Statistically different results indicate that the differences in medians of two groups are greater than would be expected by chance. All tests were done using Sigma Stat 11.1.0.102 (SYS stat Inc.). When data was fit to various models, the quality of the regression fit was judged based on the estimated values of the coefficient of determination (R²). The closer the R² value to 1, the better the fit.

3. Results and Discussion

3.1. Effects of Biochar Pyrolysis Temperature on Bacterial Transport in Porous Media

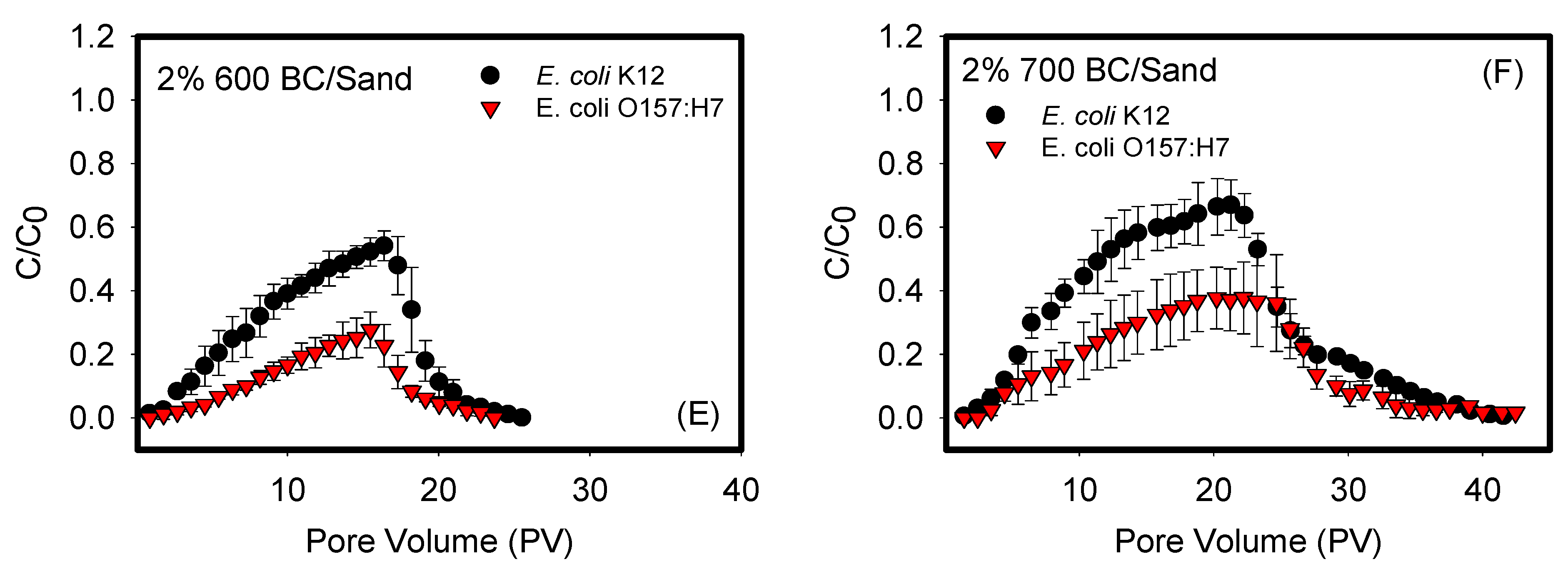

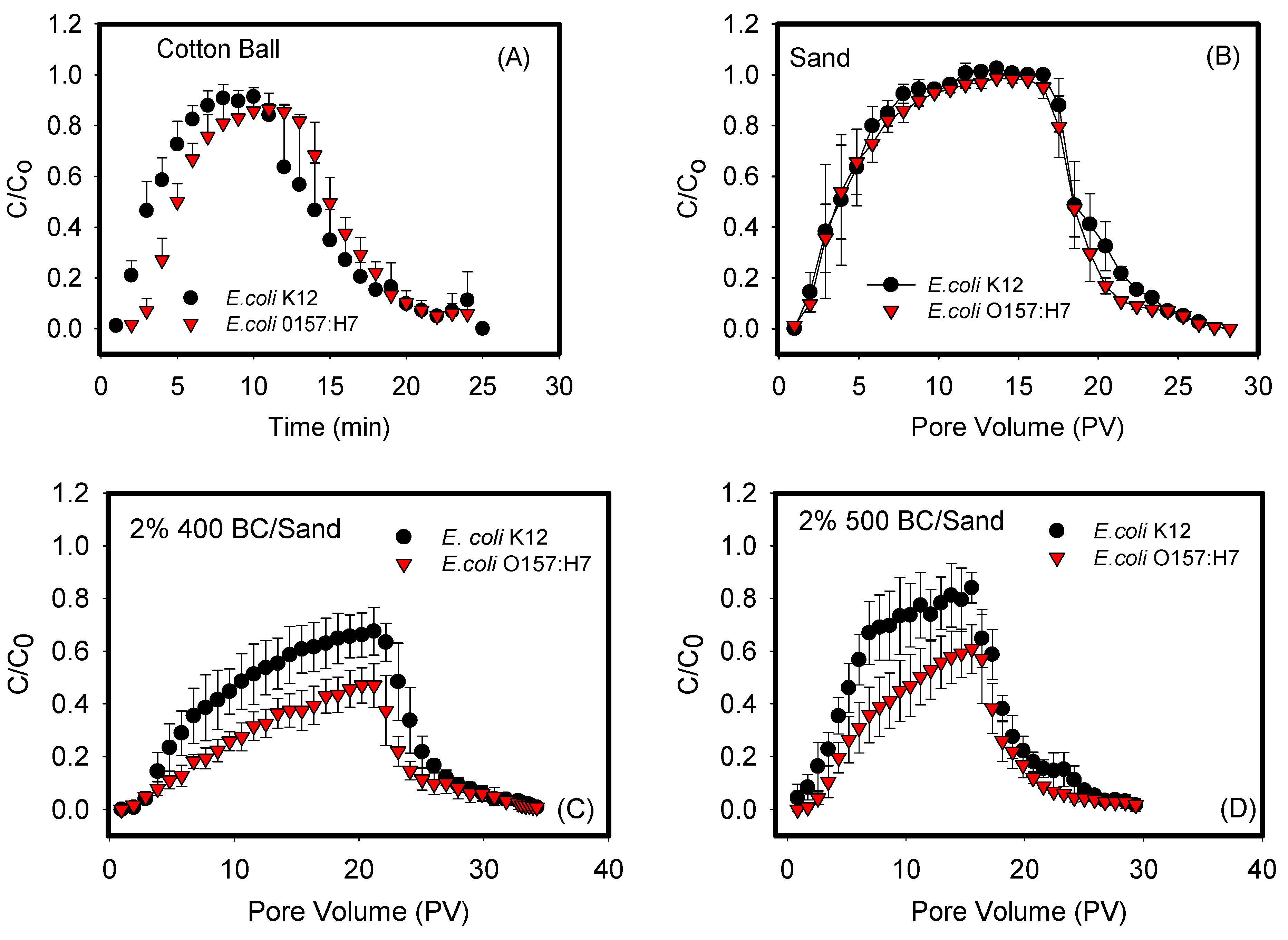

Figure 1 shows the BTCs of the transport of E. coli O157:H7 and E. coli k12 through sand mixed with biochars (400, 500, 600, and 700 °C) at a 2 wt. % ratio. The transport of both bacterial strains in negative controls of cotton balls and 100% sand columns were also quantified. The shapes of the BTCs differed depending on the biochar used and the bacterium examined. For example, Figure 1A,B demonstrated symmetrical BTCs with a reasonably sharp breakthrough front, sharp tailing, and a period of constant steady-state adsorption of bacteria to porous media, as indicated by the plateau between pore volumes 6–12 for cotton balls and 10–20 for sand. Such BTCs indicate that the rates of attachment and detachment of bacteria from the sand or cotton balls are similar. They also indicate that the attachment, if any, is irreversible and strongly bound to porous media. In comparison, Figure 1C–F represented asymmetrical BTCs that are exhibiting a degree of tailing in their front adsorption and desorption portions of data. They were also characterized by a continuous slope in the adsorption data that does not establish a steady state during the time of measurements.

3.2. Net Gibbs Free Energy Calculations

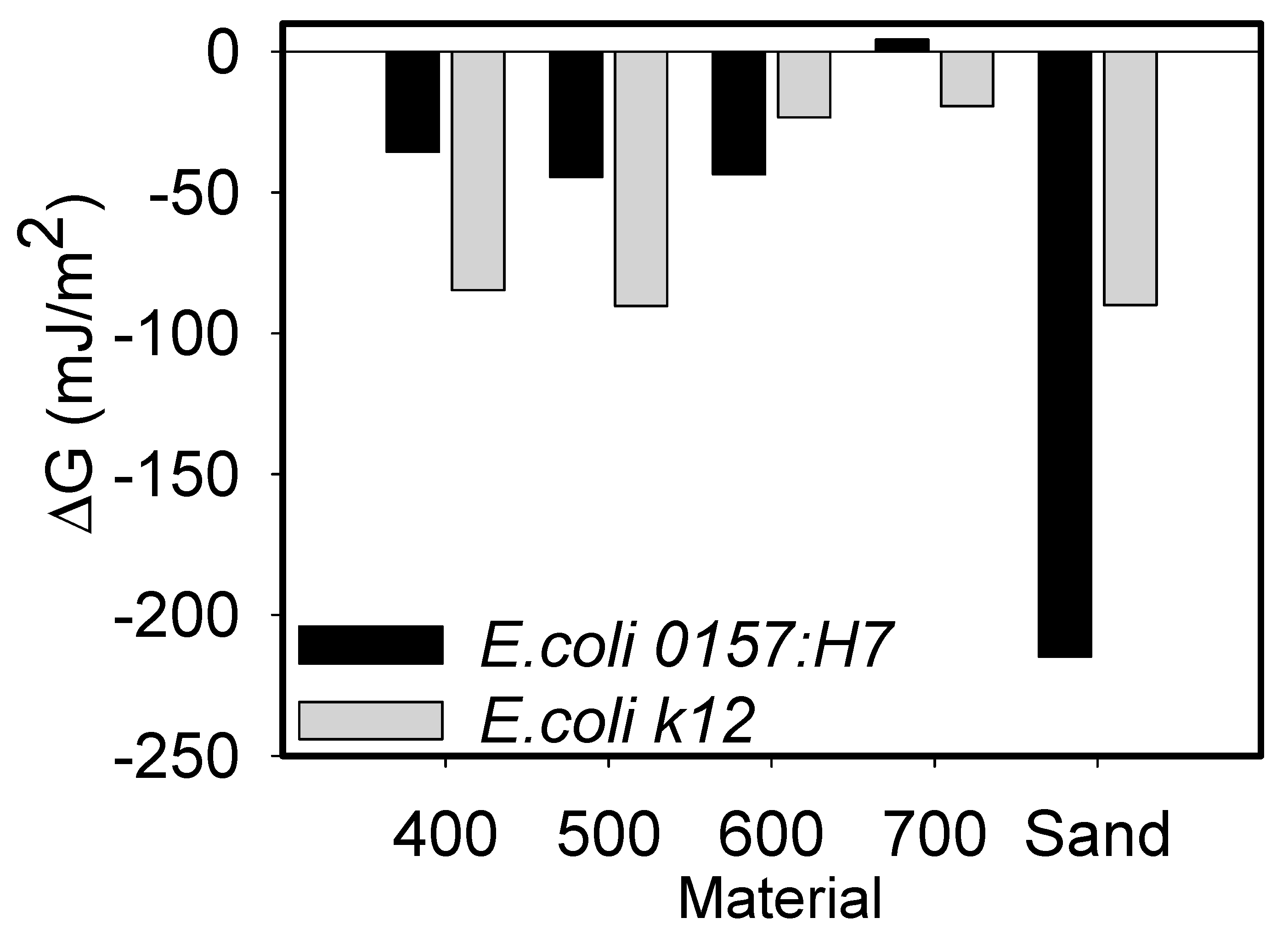

The surface tensions and Hamaker constant listed in Table S2, and the contact angles listed in Table S3 were used to quantify the Gibbs free energies acting between E. coli O157:H7 and k12 strains and sand/biochar in water (ΔG) (Figure 2). They were also used to quantify the DLVO energies reported in Section 3.3. A negative value of ΔG indicates a spontaneous favorable process [14]. Differences in system Gibb’s energy caused by bacterial adhesion are attributed to interfacial surface tensions. A bacterial strain is hydrophilic to the liquid from the viewpoint of surface thermodynamics if ΔG > 0 and hydrophobic if ΔG < 0 [21,22]. The hydrophilicity increases with the increase of ΔG for ΔG > 0 and the hydrophobicity increases with the decrease of ΔG for ΔG < 0. The explanations above also refer to silica sand [21]. The similarities in the hydrophilicities of sand and E. coli account for the favorable Gibbs free energy numbers as seen in Figure 2.

As can be seen from Figure 2, all quantified ΔG values were negative, except for those quantified between E. coli 0157:H7 and biochar 700 °C in DIW where the value was slightly positive (statistically similar, p = 0.082). Acid-base Lewis type Gibbs free energy magnitudes calculated between E. coli k12 and biochars 400, 500, and 700 °C were more negative compared to those calculated for E. coli O157:H7, indicating more favorable interactions for the former (statistically similar, p = 0.066). On the contrary, ΔG magnitudes were more negative between E. coli O157:H7 and biochar 600 °C and sand compared to E. coli k12. It has to be noted that Gibbs free energies account for only a subset of all possible forces that may bring bacteria and biochar or sand together. Other forces that may play a role include DLVO forces; these will be calculated in Section 3.3. Our results are similar to other studies [23].

3.3. Non-Specific, Long-Range DLVO Interactions

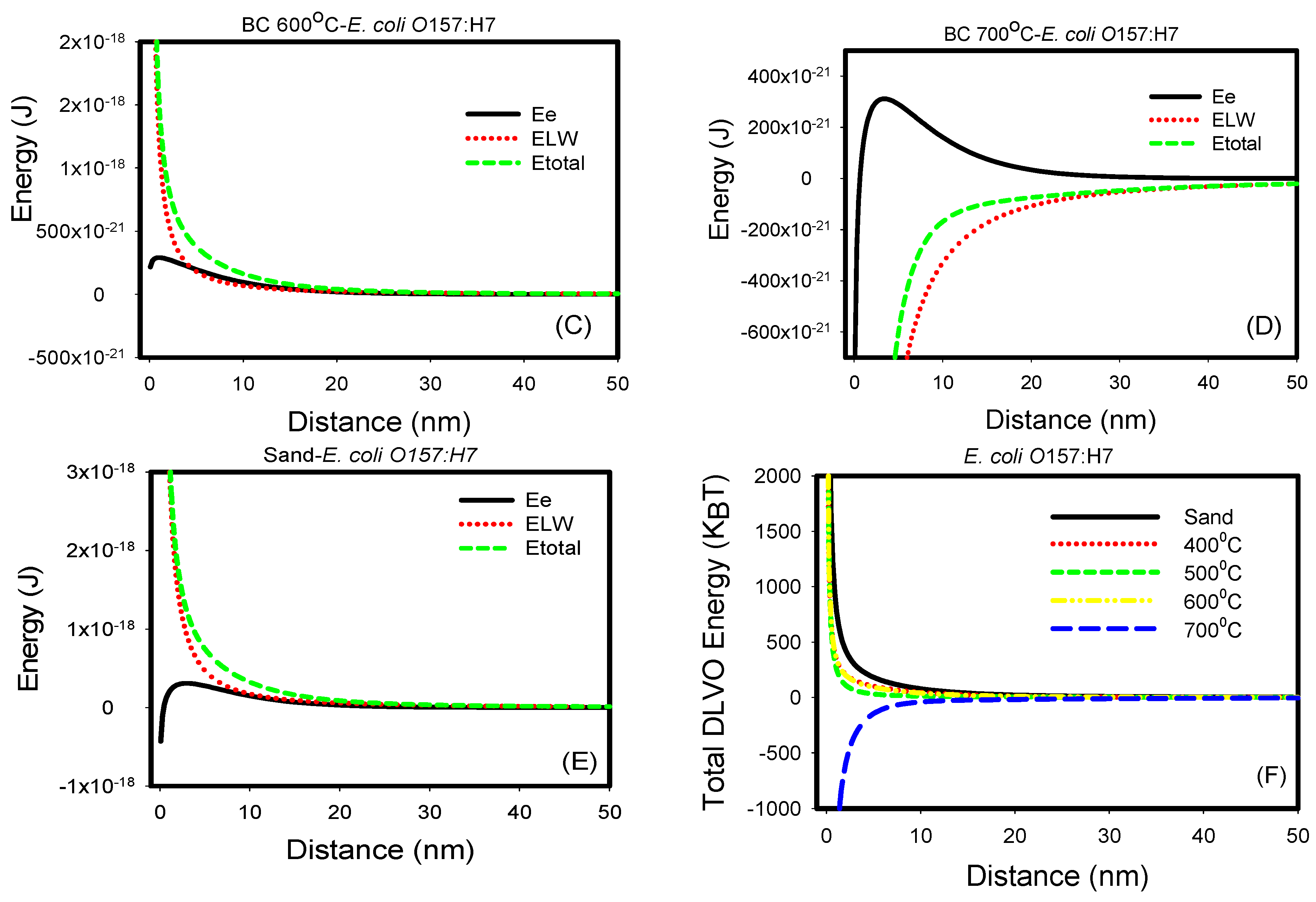

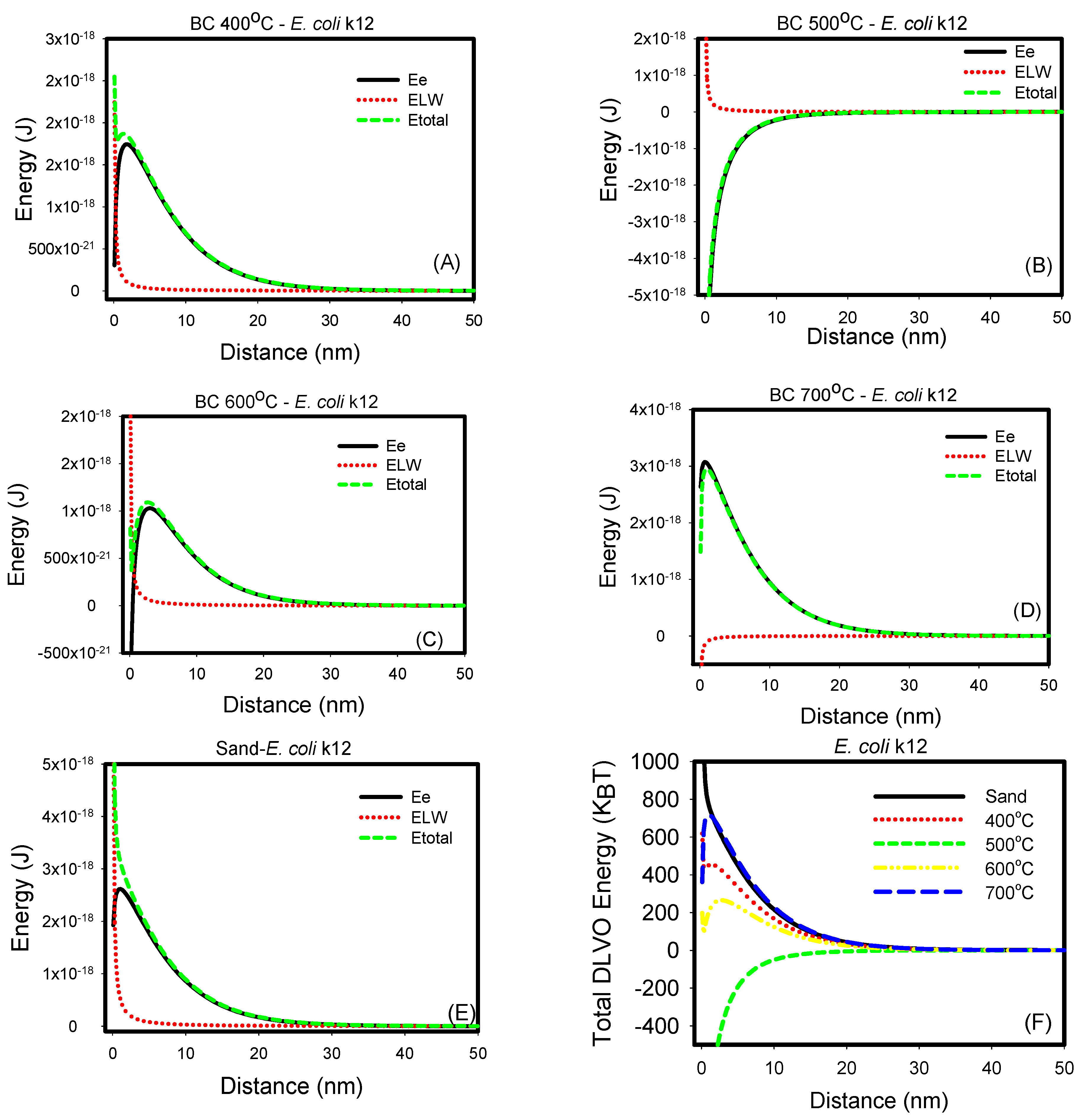

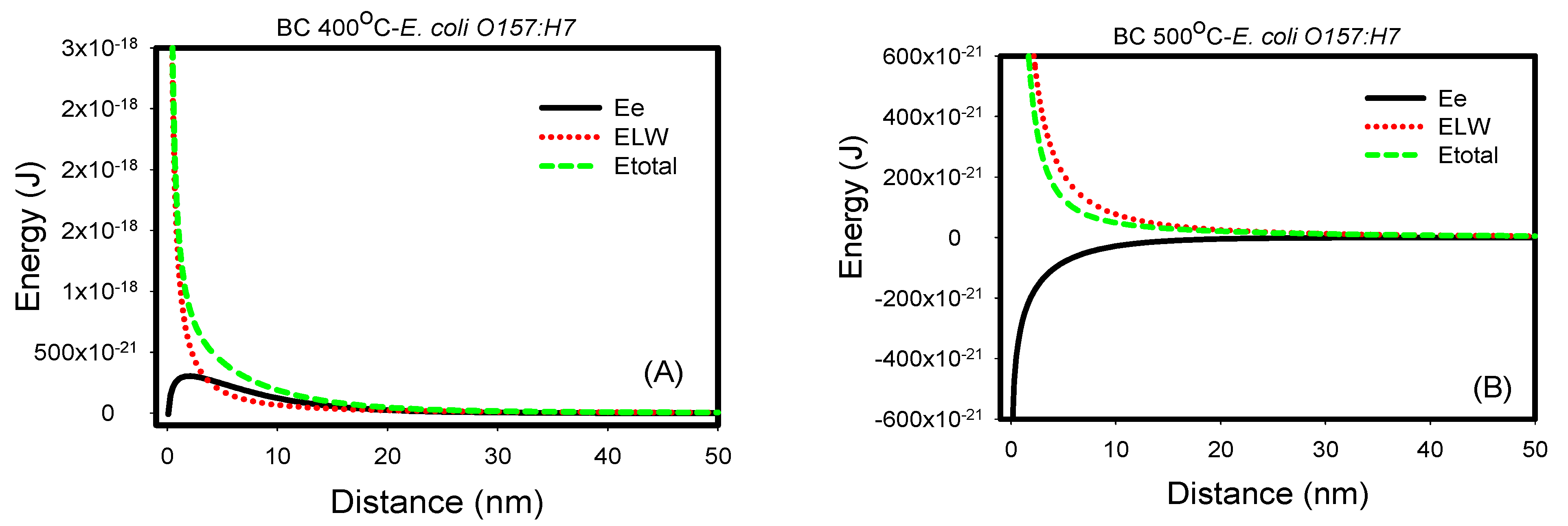

The non-specific long-range DLVO interaction energies expected between bacterial strains and biochar or sand in DIW were calculated. Figure 3 shows the electrostatic, van der Waals, and total energy profiles for E. coli k12, while Figure 4 shows these for E. coli O157:H7. When individually considered, the van der Waals energies acting between E. coli k12 and sand and biochars 400, 500, and 600 °C were all repulsive as indicated by the positive energy values. On the contrary, these interactions were attractive with biochar 700 °C as indicated by the negative energies. Similarly, when the electrostatic energies were considered, the interactions with E. coli k12 were all repulsive (sand and biochars 400, 600, and 700 °C). They were attractive with biochar 500 °C.

When the two energy components were compared to each other, it was shown that electrostatic energies dominate over van der Waals energies. Finally, when the total energy profiles were compared for sand and four types of biochar, it was shown that interactions with biochar 500 °C were attractive and thus favorable. Interactions to sand and biochars 400, 600, and 700 °C all showed an energy barrier to be overcome in order for interactions to occur. This energy barrier was beyond the primary minimum for the sand and could not be quantified, indicating that E. coli’s k12 attachment to sand is not favorable. Energy barriers between E. coli k12 and biochars 400, 600, and 700 °C were 619, 265, and 717 kBT, respectively.

Similarly, when individually considered, the van der Waals energies acting between E. coli O157:H7 and sand and biochars 400, 500, and 600 °C were all repulsive as indicated by the positive energy values. On the contrary, these interactions were attractive with biochar 700 °C as indicated by the negative energies. Correspondingly, when the electrostatic energies were considered, the interactions with E. coli k12 were all repulsive. When the two energy components were compared to each other, it was shown that van der Waals energies dominate over electrostatic energies, opposite to what we have seen with E. coli k12. This could be attributed to acid-base hydrophobic interaction forces, which could lead to specific forces [24]. Finally, when the total energy profiles were compared for sand and four types of biochar, it was shown that interactions with biochar 700 °C were attractive and thus favorable. Interactions to sand and biochars 400, 500, and 600 °C all showed an energy barrier beyond the primary minimum for interactions to occur, indicating that attachments between E. coli O157:H7 and these porous media are not favorable. Our results are similar to other studies [25,26].

Since the size of bacterial cells falls within the spectrum of colloidal particles, the DLVO theory of colloidal stability can be used to model the forces/energies involved in bacterial adhesion processes [24]. According to this theory, the overall interaction forces/energies acting between bacterial cells and a surface are made up of Liftshitz–van der Waals and electrostatic forces. The attraction of van der Waals forces is normally independent of the pH or the ionic strength of the encompassing solution. These interactions are primarily influenced by the Hamaker constant (H₁₃₂) as detailed earlier [24,27]. H₁₃₂ for biochar 700 °C was positive (7.498 × 10⁻²¹ J); it was negative for all other biochars. Similar to biochar 700, Xu et al. quantified positive Hamaker constants for their biochars [28]. Because living cells have a typical diameter of several microns and are surrounded by a plasmid membrane that generates electro-dynamic interactions, DLVO can help predict cellular adhesion, but it is not perfect. DLVO can explain both weak and strong adhesions, and cellular surfaces are mostly negatively charged; however, it lacks the effect of roughness as cells cannot be considered smooth surfaces. The precise distribution of charge in the cell is unknown and the molecules’ conformation is not accounted for [29].

The DLVO model cannot thoroughly describe bacterial adhesion. Because of this, van Oss proposed an “extension” of the DLVO theory where the hydrophobic/hydrophilic interactions (as illustrated by the polar ΔG_AB part of the surface energy) can be also accounted for. The total adhesion energy can be conveyed as: $E_{DLVO}=E_e+E_{LW}+E_{AB}$, where E_LW and E_e are the “classical” van der Waals and double layer interactions and E_AB is the acid-base interactions [22,30]. According to van Oss, the latter constituent represents the attractive hydrophobic interactions and repulsive hydration effects, which are typically 10–100 times stronger than the van der Waals interactions of surfaces in primary interactions [22]. The distance dependence is vital in the calculation of the total adhesion energy. The distance dependency is critical in determining overall adhesion energy. The classical DLVO model offers the distance dependency of the double layer and van der Waals interactions, and the surface energy variable E_AB decays exponentially from its value at close contact [26]. It should be mentioned that both the E_e and the E_AB decrease exponentially, but with varying lengths [27].

4. Conclusions

Amending sand with 2% biochar improved the attenuation of E. coli k12 and E. coli O157:H7 by an average of 33% and 55%, respectively. This improvement was heavily reliant on the physiochemical properties of biochar and the bacterial strain investigated. All the variations in the physiochemical properties made the transport of the bacterial strains in sand mixed with biochar and the interactions quantified between sand and biochar dependent on the biochar type.

Our DLVO analyses indicated that van der Waals energies dominated over electrostatic energies when E. coli O157:H7 was concerned, and the opposite was true when E. coli k12 was concerned. Our results also indicated that all Gibbs free energy values quantified between E. coli O157:H7 and biochar were negative except for those quantified with biochar 700 °C in DIW where the value was slightly positive. The Gibbs free energy magnitudes calculated between E. coli k12 and biochars 400, 500, and 700 °C were more negative compared to those calculated for E. coli O157:H7, indicating more favorable interactions for the former. On the contrary, ΔG magnitudes were more negative between E. coli O157:H7 and biochar 600 °C and sand compared to E. coli k12. Our findings indicate that various forces (van der Waals, electrostatic, and acid-base interactions) may contribute to the regulation of bacteria-biochar interactions. Thus, while designing efficient biochar filters, it is necessary to examine the effects of all of these forces on the transport of bacteria in biochar/sand columns.

Compared to previous research, doping biochar with positive charges from ammonium and magnesium significantly improved its ability to attenuate microorganisms. Our results suggested that combining 2% of positively charged biochar 600 °C with sand was sufficient to reduce E. coli k12 by 46% and E. coli O157:H7 by 72%. Previously, we demonstrated that equivalent effects require at least 10% biochar mixed with sand [16]. The improved attenuation is likely due to improved interaction forces between the positively charged biochar and the negatively charged bacteria as shown by our DLVO analyses.

Our results emphasize the need to effectively monitor biochar functional classes to eliminate bacterial pollutants from contaminated water sources. Additionally, our data show that bacterial transport is strain-dependent and is mediated by interactions between bacterial functional groups and biochar and sand particle functional groups. With this in mind, efficient biochar filters should be adapted to specific applications, porous media types, ambient water chemistry, temperature, and microbial contaminants to be controlled.
