Options for Increasing the Rate of Bioleaching of Arsenic Containing Copper Concentrate

by
Alena Artykova
1,
Yuliya Elkina
1,
Aleksandra Nechaeva
1,
Vitaliy Melamud
1,
Anna Boduen
2 and
Aleksandr Bulaev
1,*
1
Research Center of Biotechnology, Russian Academy of Sciences, 119071 Moscow, Russia
2
Faculty of Mineral Raw Material Processing, Saint-Petersburg Mining University, 21st Line, 2, 199106 Saint Petersburg, Russia
*
Author to whom correspondence should be addressed.
Microbiol. Res. 2022, 13(3), 466-479; https://doi.org/10.3390/microbiolres13030032
Submission received: 2 July 2022 / Revised: 23 July 2022 / Accepted: 26 July 2022 / Published: 28 July 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
In the present work the effect of alkaline sulfide leaching (ASL) on the extraction of copper and zinc from low-grade copper concentrate containing chalcopyrite, tennantite, sphalerite, and pyrite during batch and continuous bioleaching experiments was studied. It was demonstrated that ASL and further bioleaching may be a promising approach for treatment of copper–zinc concentrates containing tennantite as this approach allows increasing copper extraction degree in comparison to one-stage bioleaching by 1.6–2.3 times. Thus, ASL was shown to be effective for pretreatment of tennantite containing concentrates to improve bioleaching for copper extraction. At the same time, ASL led to decrease in zinc extraction by 1.4–1.5 times. Therefore, the development of combined hydrometallurgical processes including ASL and bioleaching for effective metal leaching requires further studies to avoid negative effect on zinc extraction.

1. Introduction

Arsenic is a toxic metalloid that is a widespread component of different mineral raw materials, as well as mining and metallurgical wastes. Its presence in ores, concentrates, and dressing wastes poses a problem due to harmful environmental effects [1,2,3,4,5]. There are various arsenic minerals, but the most common arsenic-bearing minerals important from the point of view of mineral processing and metallurgy are arsenopyrite (FeAsS), which is common in gold-bearing sulfide ores, as well as enargite (Cu3AsS4) and tennantite (Cu12As4S13), widespread at some copper deposits.
Processing of sulfide concentrates with a high arsenic content, including copper ones containing such minerals as enargite (Cu3AsS4) and tennantite (Cu12As4S13), requires the use of special gas purification systems to decrease the emission of highly toxic volatile arsenic oxides (As2O3 and As4O6), which makes their processing less cost effective [4,5]. In addition, some copper concentrates with a high arsenic content also contain fine-grained intergrowth of copper and zinc minerals with pyrite [5], which impedes the efficiency of their pyrometallurgical processing. Thus, the composition of some sulfide copper–zinc ores does not allow the production of concentrates conditioned for pyrometallurgical processing, and therefore, the development of novel technologies for processing polymetallic copper concentrates with different impurities (i.e., zinc, arsenic, antimony) are promising [4,5]. These methods include different hydrometallurgical process, for example, bioleaching based on activity of iron- and sulfur-oxidizing acidophilic microorganisms [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23] and other oxidative leaching processes [4,5,6,24,25,26,27,28,29,30,31].
Currently, biohydrometallurgical technologies (heap bioleaching) are widely applied in copper production for the processing of low-grade copper ores, and approximately 5% of the global copper production is provided by heap bioleaching [7,11]. Tank (reactor) bioleaching is not economically viable for the processing of low-grade ores; therefore, it is mainly used for processing gold-bearing concentrates [7,11].
In industrial practice, one of the main advantages of tank biooxidation over pyrometallurgy is possibility of effective and environmentally friendly treatment of gold-bearing concentrates containing arsenic, mainly in the form of arsenopyrite [1,7]. Biooxidation provides destruction of gold-bearing minerals without formation of toxic gas emissions containing arsenic. Despite gold-bearing concentrates being the main type of products treated using tank biooxidation, it has been shown that reactor bioleaching can also be successfully used for extraction of copper and zinc [8], as well as other non-ferrous metals [9,10], from sulfide concentrates. It has been shown that tank bioleaching may be successfully used for nickel and cobalt extraction form sulfide concentrate containing arsenic, making it possible to avoid arsenic emission into the atmosphere when processing this concentrate [10]. Thus, it has been shown that bioleaching may be used to process sulfide concentrates containing arsenic to avoid problems due to arsenic emission with gases.
It should be noted that tank bioleaching has been shown to be able to be successfully used to extract copper from concentrate containing an excess of zinc [8], which may decrease copper extraction during pyrometallurgical operation, increasing slug viscosity [32].
As it has been shown that bioleaching may be promising for the processing of sulfide concentrates with high arsenic content, including those containing copper and zinc, the goal of the present work was to study the process of reactor bioleaching of arsenic-containing copper–zinc concentrate in batch and continuous mode, as well as the effect of alkaline sulfide leaching (ASL) pretreatment on metal extraction during bioleaching.
In our previous works, we studied reactor bioleaching of similar copper concentrates [33,34,35,36,37]. It was shown that tennantite, which contained a significant fraction of copper in studied products, is refractory to bioleaching. Therefore, one-stage bioleaching under different conditions did not make it possible to reach high copper extraction degree. Additionally, we used ASL to remove arsenic from different tennantite concentrates in our previous study, which demonstrated high efficiency [36,37,38]. It is known that ASL transforms tennantite according to the following equation [4,38,39]:
Cu12As4S13 + 6NaHS + 6NaOH → 5Cu2S + 2CuS + 4Na3AsS3 + 6H2O
Thus, after ASL treatment, arsenic is removed from tennantite concentrates, while copper remains in solid phase in the form of copper sulfides. In our previous works [36,37], we demonstrated that ASL made it possible to increase copper extraction from tennantite concentrate in batch experiments. In the present work, we studied bioleaching of low-grade copper concentrate with higher tennantite content than in previous experiments in continuous mode as industrial bioleaching is performed in continuous mode, and only continuous laboratory-scale experiments can provide an indication of real bioleaching performance of different concentrates.

2. Materials and Methods

2.1. Flotation Concentrate

The concentrate sample was provided by Ural Mining Metallurgical Company (Verknaya Pyshma, Russia). The contents of the main elements (Fe, Cu, Zn, As, S) in the concentrate was determined using the phase analysis method [40] and are presented in Table 1.
Sulfur content was determined in the testing laboratory “Gintsvetmet-Analytics” (Moscow, Russia) according to the methods described in [41]. Sulfide sulfur content was determined by sample decomposition with mixture of concentrated nitric and hydrochloric acids and further gravimetric determination with barium chloride. Sulfate sulfur content was determined by sodium carbonate extraction and further gravimetric determination of sulfate content with barium chloride. S0 content was determined by carbon tetrachloride extraction and further spectrophotometric measurement.
Mineral composition of the concentrate was determined using a DRON-2 diffractometer (Burevestnik, St. Petersburg, Russia). Chalcopyrite (CuFeS2), tennantite (Cu12As4S13), sphalerite (ZnS) and pyrite (FeS2) were shown to be the main sulfide minerals of the concentrate (Figure 1). A similar concentrate sample obtained from the same ore was used in our previous study, but the main element contents in the concentrate samples differed slightly [35].

2.2. Microbial Population

We used a mixed population of iron- and sulfur-oxidizing acidophilic bacteria and archaea with a predominance of Acidithiobacillus caldus, Sulfobacillus benefaciens, Leptospirillum ferriphilum, Ferroplasma acidiphilum, Cuniculiplasma divulgatum, and Acidiplasma sp. as inoculum to perform bioleaching experiments. The population was used in our previous experiments to perform biooxidation of different sulfide concentrates [15,20,35]. Cells of the mixed population were separated from a mixed liquid phase sample of the pulp, which was obtained during biooxidation of copper–zinc concentrate under different conditions [35], by centrifugation in 500-mL tubes (9500 rpm, 15 min) using Sigma 4–15 centrifuge (Sigma, Osterode am Harz, Germany). Biomass resuspended in mineral medium was inoculated in the reactors in such a way that initial total cell number in the pulp was about 1 × 108 cells/mL.

2.3. Alkaline Sulfide Leaching

Alkaline sulfide leaching (ASL) for tennantite destruction was performed in 2.5 L laboratory titanium stirred tank reactor equipped with RW 20 overhead stirrer (IKA, Staufen, Germany) and ED-5 heating circulator (Julabo, Seelbach, Germany) with U-shaped titanium heat exchangers under the following conditions: 95 °C, pulp density (solid-to-liquid ratio, S:L) 1:5, residence time 6 h, NaOH concentration 3.5 M, Na2S concentration 1.5 M, stirring rate 500 rpm. ASL solid product was separated by filtration using N 840.3 FT. 18 vacuum pump (KNF, Witney, Germany) and dried at 70 °C using Binder FD53 thermostat (Binder GmbH, Tuttlingen, Germany). Content of the main elements in ASL residue was determined to evaluate arsenic leaching value, as well as possible losses of copper and zinc during ASL.

2.4. Experimental Setup and Biooxidation

To extract copper and zinc from the concentrate and ASL residue, batch and continuous bioleaching experiments were performed. Bioleaching was started in batch mode in 1 L laboratory reactors with a working volume of 1 L under the following conditions: stirring rate 500 rpm, aeration rate 5 L/min, temperature 40 °C, pulp density (solid to liquid ratio, S:L) 1:10, and duration of batch bioleaching 30 days. Then, both concentrate and ASL residue were leached in continuous mode in the same reactors and under the same conditions (pulp density, temperature, stirring rate, aeration). Residence time was 10 days, and the duration of continuous experiment was 45 days. TW-2.03 circulating water baths (Elmi, Riga, Latvia) and U-shaped titanium heat exchangers were used to maintain the temperature; RW20 overhead stirrers (IKA, Staufen, Germany) were used for stirring.
Mineral nutrient medium, containing the following salts (g/L): (NH4)2SO4—0.750, KCl—0.050, MgSO4 × 7H2O—0.125, K2HPO4—0.125, distilled water—1.0 L, was used for the bioleaching. This mineral medium has been successfully applied in bioleaching experiments [20,35,36]. Initial pH of the medium was 1.3.

2.5. Microbial Population Analysis

The compositions of the inoculum and microbial populations that formed during batch and continuous experiments were determined by the metabarcoding of the V3–V4 region of the 16S rRNA gene using the MiSeq system (Illumina, San Diego, CA, USA) as described in our previous works [15,20,35]. Samples for the analysis of microbial populations were collected at the end of batch experiments and twice at the end of continuous experiments. Thus, averaged results for the microbial population composition formed in continuous mode are shown.
Procedures for the biomass collection, DNA isolation, and sequencing and analysis of the data obtained were described in detail in our previous works [17,30,31].

2.6. Sampling and Analysis

In the samples in liquid phase, pH and redox potential (Eh) were determined using a pH-150MI pH meter (Izmeritelnaya tekhnika, Moscow, Russia), and ferrous and ferric iron were measured by trilonometric titration [41]. Quantitative assessment of microorganisms was carried out by direct counts using an Amplival (Carl Zeiss, Jena, Germany) microscope equipped with a phase-contrast device. Cu and Zn concentrations in pulp samples were measured using a Perkin Elmer 3100 flame atomic absorption spectrometer (Perkin Elmer, Waltham, MA, USA). The degrees of extraction of copper and zinc were calculated on the basis of the concentration of Cu and Zn ions in the liquid phase.

2.7. Data Processing

The results obtained were processed using MS 15.0.459.1506 Excel 2013 software (Microsoft, Redmond, WA, USA). Average values of the parameters are shown.

3. Results

3.1. Alkaline Sulfide Leaching

The chemical composition of the ASL product is shown in Table 2. ASL extracted about 88% of arsenic from the concentrate. At the same time, the content of the metals changed insignificantly. The Fe, Cu, and Zn concentrations were extremely low in the ASL pregnant solution (5, 6, and 1.2 mg/L, respectively), i.e., these elements were almost not leached at all, while the As concertation in the solution was 3.6 g/L. ASL residue yield was 89%.
XRD analysis demonstrated that tennantite was eliminated from the concentrate during ASL (Figure 1b). These results corresponded to Equation (1), according to which arsenic is dissolved during ASL, while copper and other metals remain in the solid phase in the form of CuS and Cu2S sulfides.
Thus, the results obtained in this section of the work are consistent with the data obtained previously in other works [4,37,38,39], and ASL products in which arsenic content was significantly lower than in the processed concentrates were obtained.

3.2. Bioleaching

The results of bioleaching experiments in batch mode are shown in Figure 2, Figure 3 and Figure 4. The results obtained demonstrate the differences in the dynamics of leaching parameters during experiments with concentrate and ASL residue.
Prior to inoculation, concentrate and ASL residue were incubated in the reactor for 5 days. During the first 5 days, the pH in both reactors increased, and sulfuric acid was added to the pulp to maintain the pH level. Sulfuric acid consumption was 45 and 126 kg/t of the product in the experiment with the concentrate and ASL residue, respectively. Despite higher acid consumption, the pH level in the reactor with ASL residue was higher than that with the concentrate on the 5th day (2.56 and 1.65, respectively) (Figure 2a and Figure 3a). This fact may be explained by the partial dissolution of copper and zinc minerals in the acid medium [7,11,21,42,43,44,45]. The larger pH increase in the reactor with the ASL residue might be due to the more active dissolution of CuS and Cu2S sulfides in the acid medium in comparison to tennantite, which was proved by the results for copper dissolution during the first 5 days of the leaching before the inoculation (Figure 2c and Figure 3c). Copper concentrations in the pulp of the reactors differed 2.6-fold, and reached 0.88 and 2.30 g/L in the reactor with concentrate and ASL residue, respectively. Zinc concentrates prior to the inoculation differed slightly, and reached 3.15 and 3.50 g/L in the reactor with concentrate and ASL residue, respectively. Iron ion concentrations were comparatively low in both reactors, and the fraction of dissolved iron was lower than those of copper and zinc (Figure 2b and Figure 3b). This may be explained by the fact that the rates of dissolution of the main iron-containing minerals in the concentrate (pyrite and chalcopyrite) in acid medium are insignificant [7,11,21,42,43,44,45].
Inoculation led to a sharp increase in iron ion concentrations (Figure 2b and Figure 3b), as the activity of iron-oxidizing microorganisms resulted in the destruction of iron-containing minerals. The concentration of ferrous iron ions in the pulp was low, and ferric ions prevailed in the solution, which showed the high oxidation activity of microorganisms. The Eh value also increased after inoculation, as this parameter in the solution depends on Fe3+/Fe2+ concentration ratio (Figure 2a and Figure 3a).
The dynamic of copper and zinc concentration differed between the reactors with concentrate and ASL residue (Figure 2c and Figure 3c). In the experiment with concentrate, copper concentration gradually increased, and was close to its maximum (1.97 g/L) after 20 days of bioleaching. In the experiment with the ASL residue, the copper concentrate reached its maximum concentration on the 12th day of bioleaching (4.13 g/L) and then decreased to 3.50 g/L. Thus, in the experiment with the ASL residue, the copper leaching rate was significantly higher than in that with concentrate. At the end of batch experiments, the degree of copper leaching reached 36 and 58% in the experiments with concentrate and ASL residue, respectively (Figure 4). In contrast to copper, zinc leaching was more active in the experiment with concentrate and was close to its maximum value after 5 days of bioleaching (5.15 g/L). In the batch experiment with ASL, zinc concentration slightly increased after inoculation and reached maximum after 8 days of bioleaching (4.12 g/L), but then decreased to 3.51 g/L at the end of the experiment. At the end of the batch experiments, the degree of zinc leaching reached 64 and 44% in the experiments with concentrate and ASL residue, respectively (Figure 4). Thus, the zinc leaching rate in the experiment with the ASL residue was lower than that in the experiment with concentrate. Additionally, zinc concentration in the experiment with ASL did not increase significantly, and the main fraction of zinc was leached before inoculation, while in the experiment with concentrate, the zinc concentration increased by 1.6 times after inoculation.
After the batch experiments, continuous bioleaching with a residence time of 10 days was started. The averaged parameters of the liquid phase of the reactors are shown in Table 3. The trends observed in the batch experiments were also revealed in continuous mode. Average copper concentration in the reactor with concentrate was 2.4 lower than that in the reactor with ASL residue, while the average zinc concentration was 1.4 times higher in the reactor with concentrate. In the experiments with concentrate, copper extraction was lower than in the batch mode, while zinc extraction was higher in the continuous mode (Figure 4). In the experiment with ASL residue, copper extraction levels were similar in batch and continuous modes, while zinc extraction in the continuous experiment was higher.

3.3. Microbial Population Analysis

The analysis of microbial population composition made it possible to evaluate the effect of the differences in mineral composition of oxidized product (concentrate or ASL residue) and in parameters of the liquid phase on certain various groups of acidophilic microorganisms (Figure 5).
Analysis of the populations formed during batch bioleaching demonstrated that the composition of the formed populations differed from that of the inoculum. Bacteria of the genera Leptospirillum and Acidithiobacillus, as well as archaea of the genus Cuniculiplasma, prevailed in the inoculum. After batch bioleaching, microbial population compositions changed significantly in both experiments. Despite some differences in the microbial populations of the reactors with concentrate and ASL residue were revealed, similar trends were observed in both cases. The abundance of Acidithiobacillus decreased to minor values (0.06 and 0.01% in the reactors with concentrate and ASL residue, respectively), while the proportion of the genus Leptospirillum decreased, but remained significant (88% in the inoculum, 51 and 44.8% in the reactors with concentrate and ASL residue, respectively). In both reactors, abundance of the genus Ferroplasma increased from 0.13% to 38 and 54% in the reactors with concentrate and ASL residue, respectively. In the same time, abundance of the archaea Cuniculiplasma decreased in both cases (from 5% to 0.3 and 0.7%). In the reactors with concentrate, uncultivated archaea A-plasma were of the main groups (10%), while in the inoculum and in the reactor with ASL residue, these archaea were not detected.
It should be noted that the total cell number in the batch experiments differed between the reactors, reaching 1.73 and 1.09 × 109 cell/mL in the reactor with concentrate and ASL residue, respectively.
The shift to continuous mode also led to a change in microbial population compositions. In both cases, the abundance of the bacteria Acidithiobacillus increased by two–three orders of magnitude and reached 31 and 20% in the reactor with concentrate and ASL residue, respectively. The abundance of the genus Leptospirillum increased (by 59 and 77%, respectively). Thus, in all samples analyzed, bacteria of the genus Leptospirillum were predominant. The abundance of the genus Ferroplasma in both reactors significantly decreased, while fractions of A-plasma archaea were similar in both reactors (2.5 and 2%, respectively). The abundance of the archaea Cuniculiplasma increased in the reactor with concentrate from 0.3 to 1.5% and decreased in the reactor with ASL residue from 0.7 to 0.19%. In the reactor with concentrate, bacteria of the genus Sulfobacillus were revealed, but were not detected in other samples.
Average total cell number in the continuous experiments differed in the reactors and reached 1.49 ± 0.34 and 1.72 ± 0.32 × 109 cell/mL in the reactor with concentrate and ASL residue, respectively.
Thus, crucial differences between microbial populations on the reactors with concentrate and ASL residue were not revealed, while the shift from batch to continuous mode led to similar changes in the composition of microbial populations. At the same time, some groups, which were presented in the population during continuous bioleaching of the concentrate, were eliminated during continuous bioleaching of ASL residue.

4. Discussion

The results obtained in this study demonstrated that ASL leaching made it possible to increase copper leaching rate both in batch and continuous experiments. At the same time, ASL treatment led to a decrease in zinc extraction rate. In experiments with concentrate, zinc leaching degree was 1.7–2.7 higher than copper extraction. Conversely, in the experiments with ASL residue, copper extraction degree was higher than zinc extraction by 10–14%. Copper and zinc extractions reached in the present work were comparable to those obtained in our previous work [35] in continuous bioleaching experiments at different temperatures (40–60 °C) with the concentrate similar in mineral and chemical compositions (10–27% of copper and 41–82% of zinc were leached). The higher zinc extraction in experiments with concentrate is explained by the well-known fact that the sphalerite contained in the concentrate is more easily leached than chalcopyrite and tennantite containing copper in the studied concentrate [7,11,15,21,33,35,42,43]. The increase in the degree of copper extraction is explained by the fact that copper sulfides formed during ASL are less refractory to bioleaching that chalcopyrite and tennantite [4,15,21,36,42,43,44,45].
The decrease in zinc extraction rate cannot be unambiguously explained on the basis of the results obtained, and require further studies on the speciation of different elements in the concentrate and the ASL residue. It should be noted that similar trends were observed in our previous works [36,37] on the batch bioleaching of tennantite containing copper–zinc concentrate in flasks and stirred tank reactors. It was determined that ASL treatment led to an increase in copper extraction; but in some cases, zinc extraction was lower than that from untreated concentrate. Thus, the decrease in zinc extraction degree may be due to the interactions of different components of concentrate and pregnant solutions during ASL, for example, precipitation of some components on the surface of sphalerite that led to its passivation.
The decrease in degree of zinc extraction may also be explained by the decrease of the activity of microbial population due to the change in mineral composition of the concentrate during ASL leaching and, in turn, in the composition of the leaching pregnant solution. For example, microbial population could be partially inhibited by higher copper concentrate in reactor pulp. This may be confirmed by the lower rate of iron leaching and cell number in the batch experiment with ASL in comparison to that with concentrate (Figure 2 and Figure 3).
An analysis of the microbial populations suggested that ASL treatment did not result in crucial changes in population composition, while the shift from batch to continuous mode led to similar changes in abundance of various microbial groups. Significant differences in average total cell number in the continuous experiments were also not observed. In both continuous experiments, the bacterial genera Acidithiobacillus and Leptospirillum were predominant groups in the populations, and probably played a key role in the bioleaching. At the same time, some groups that were presented in the population during continuous bioleaching of the concentrate were absent in the population during continuous bioleaching of ASL residues.
Bacteria of the genus Sulfobacillus, as well as archaea Ferroplasma, Cuniculiplasma, and A-plasma, were not observed in the population of the reactor in which the ASL residue was bioleached. The difference in the microbial population composition could also be a result of the change in zinc bioleaching rate. Previously, it has been shown that bacteria of the genus Sulfobacillus can actively oxidize sulfide minerals in bioleach reactor at a relatively low cell number (107 cells/mL) [46]. Therefore, the absence of sulfobacilli in the population could lead to a decrease in the rate of sphalerite oxidation.
Thus, it was shown that copper leaching from the concentrate may be improved using ASL pretreatment both in batch and continuous experiments. Despite this, ASL treatment might decrease zinc extraction and, therefore, have a different effect on the leaching of different components. The results obtained should be used in further work on the improvement of treatment for arsenic-containing copper–zinc concentrate, which may be aimed at the development of promising approaches to process this type of product. For example, a possible flowchart may be based on a multistage leaching process, including preliminary zinc bioleaching, ASL, and further copper bioleaching from the product obtained.

5. Conclusions

In the present work, the possibility of using two-stage hydrometallurgical treatment including stages of ASL and bioleaching for the treatment of copper–zinc concentrate with high arsenic content was studied. It was shown that the studied approach may be promising as it made it possible to increase the copper extraction rate in comparison to one-stage bioleaching. ASL was shown to be effective for pretreatment of tennantite containing concentrates to improve oxidative leaching processes for copper extraction including bioleaching. The increase in copper extraction rate using two-stage leaching may allow avoiding the main disadvantage of bioleaching in terms of treatment of studied product, low copper leaching rate. At the same time, the development of combined hydrometallurgical processes including ASL and bioleaching for effective metal leaching requires further studies, as in the present work, ASL led to a decrease in zinc extraction. Modification of the proposed method is needed to address the problem of the decrease in zinc extraction rate.

Author Contributions

Conceptualization, A.B. (Aleksandr Bulaev) and A.B. (Anna Boduen); investigation, A.A., Y.E., A.N., V.M.; writing—original draft preparation, A.B. (Aleksandr Bulaev); writing—review and editing, A.A., Y.E., A.N., V.M., A.B. (Anna Boduen) and A.B. (Aleksandr Bulaev); project administration, A.B. (Aleksandr Bulaev); funding acquisition, A.B. (Aleksandr Bulaev). All authors have read and agreed to the published version of the manuscript.

Funding

The reported study was funded by RFBR according to the research project 18-29-24103.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhao, Y.; Zhao, H.; Abashina, T.; Vainshtein, M. Review on arsenic removal from sulfide minerals: An emphasis on enargite and arsenopyrite. Min. Eng. 2021, 172, 107133. [Google Scholar] [CrossRef]
  2. Silva, R.A.; Park, I.; Ilyas, S.; Borja, D.; Zhao, H.; Urík, M.; Rastegar, S.O.; Kim, H. Biodegradation mechanism of arsenopyrite mine tailing with Acidithiobacillus ferrooxidans and influence of ferric supplements. Int. Biodeterior. Biodegrad. 2020, 153, 105042. [Google Scholar] [CrossRef]
  3. Seitkamal, K.N.; Zhappar, N.K.; Shaikhutdinov, V.M.; Shibayeva, A.K.; Ilyas, S.; Korolkov, I.V.; Kim, H. Bioleaching for the Removal of Arsenic from Mine Tailings by Psychrotolerant and Mesophilic Microbes at Markedly Continental Climate Temperatures. Minerals 2020, 10, 972. [Google Scholar] [CrossRef]
  4. Filippou, D.; St-Germain, P.; Grammatikopoulos, T. Recovery of metal values from copper—Arsenic minerals and other related resources. Miner. Process Extr. Metall. Rev. 2007, 28, 247–298. [Google Scholar] [CrossRef]
  5. Diaz, J.A.; Serrano, J.; Leiva, E. Bioleaching of Arsenic-Bearing Copper Ores. Minerals 2018, 8, 215. [Google Scholar] [CrossRef] [Green Version]
  6. Yagudin, R.A.; Yagudina, Y.R.; Zimin, A.V.; Nemchinova, L.A.; Yurlova, N.A. Improvement of quality of copper concentrate at “Uchalinsky Mining and Concentrating Plant”. Gorn. Zhurnal. 2010, 10, 52–56. [Google Scholar]
  7. Johnson, D.B. Biomining-biotechnologies for extracting and recovering metals from ores and waste materials. Curr. Opin. Biotechnol. 2014, 30, 24–31. [Google Scholar] [CrossRef]
  8. Gericke, M.; Neale, J.W.; van Staden, P.J. A Mintek perspective of the past 25 years in minerals bioleaching. J. South. Afr. Inst. Min. Metall. 2009, 109, 567–585. [Google Scholar]
  9. Morin, D.H.R.; d’Hugues, P. Bioleaching of a cobalt containing pyrite in stirred reactors: A case study from laboratory scale to industrial application. In Biomining; Rawlings, D.E., Johnson, B.D., Eds.; Springer: Berlin/Heidelberg, Germany, 2007; pp. 35–55. [Google Scholar]
  10. Neale, J.; Seppälä, J.; Laukka, A.; van Aswegen, P.; Barnett, S.; Gericke, M. The MONDO Minerals Nickel Sulfide Bioleach Project: From Test Work to Early Plant Operation. Solid State Phenom. 2017, 262, 28–32. [Google Scholar] [CrossRef]
  11. Johnson, D.B. The Evolution, Current Status, and Future Prospects of Using Biotechnologies in the Mineral Extraction and Metal Recovery Sectors. Minerals 2018, 8, 343. [Google Scholar] [CrossRef] [Green Version]
  12. Rawlings, D.E.; Coram, N.J.; Gardner, M.N.; Deane, S.M. Thiobacillus caldus and Leptospirillum ferrooxidans are widely distributed in continuous flow biooxidation tanks used to treat a variety of metal containing ores and concentrates. Process Metall. 1999, 9, 777–786. [Google Scholar]
  13. Okibe, N.; Gericke, M.; Hallberg, K.B.; Johnson, D.B. Enumeration and characterization of acidophilic microorganisms isolated from a pilot plant stirred tank bioleaching operation. Appl. Environ. Microbiol. 2003, 69, 1936–1943. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Dopson, M.; Lindstrom, E.B. Analysis of community composition during moderately thermophilic bioleaching of pyrite, arsenical pyrite, and chalcopyrite. Microb. Ecol. 2004, 48, 19–28. [Google Scholar] [CrossRef] [PubMed]
  15. Bulaev, A.; Melamud, V.; Boduen, A. Bioleaching of non-ferrous metals from arsenic-bearing sulfide concentrate. Solid State Phenom. 2020, 299, 1064–1068. [Google Scholar] [CrossRef]
  16. Vakylabad, A.B. A comparison of bioleaching ability of mesophilic and moderately thermophilic culture on copper bioleaching from flotation concentrate and smelter dust. Int. J. Miner. Process. 2011, 101, 94–99. [Google Scholar] [CrossRef]
  17. Liu, H.; Xia, J.; Nie, Z.; Liu, L.; Wang, L.; Ma, C.; Zheng, L.; Zhao, Y.; Wen, W. Comparative study of S, Fe and Cu speciation transformation during chalcopyrite bioleaching by mixed mesophiles and mixed thermophiles. Miner. Eng. 2017, 106, 22–32. [Google Scholar] [CrossRef]
  18. Elkina, Y.A.; Bulaev, A.G.; Melnikova, E.A.; Melamud, V.S. Bioleaching of enargite and tennantite by moderately thermophilic acidophilic microorganisms. Microbiology 2020, 89, 413–424. [Google Scholar] [CrossRef]
  19. Munoz, J.A.; Blazquez, M.L.; Gonzalez, F.; Ballester, A.; Acevedo, F.; Gentina, J.C.; Gonzalez, P. Electrochemical study of enargite bioleaching by mesophilic and thermophilic microorganisms. Hydrometallurgy 2006, 84, 175–186. [Google Scholar] [CrossRef]
  20. Bulaev, A.; Nechaeva, A.; Elkina, Y.; Melamud, V. Effect of carbon sources on pyrite-arsenopyrite concentrate bio-oxidation and growth of microbial population in stirred tank reactors. Microorganisms 2021, 9, 2350. [Google Scholar] [CrossRef]
  21. Watling, H.R. The bioleaching of sulphide minerals with emphasis on copper sulphides—A review. Hydrometallurgy 2006, 84, 81–108. [Google Scholar] [CrossRef]
  22. You, J.; Solongo, S.K.; Gomez-Flores, A.; Choi, S.; Zhao, H.; Urík, M.; Ilyas, S.; Kim, H. Intensified bioleaching of chalcopyrite concentrate using adapted mesophilic culture in continuous stirred tank reactors. Bioresour. Technol. 2020, 307, 123181. [Google Scholar] [CrossRef] [PubMed]
  23. Baba, A.A.; Ayinla, K.I.; Adekola, F.A.; Ghosh, M.K.; Ayanda, O.S.; Bale, R.B.; Sheik, A.R.; Pradhan, S.R. A Review on Novel Techniques for Chalcopyrite Ore Processing. Int. J. Min. Eng. Miner. Process. 2012, 1, 1–16. [Google Scholar] [CrossRef] [Green Version]
  24. Pietrzyk, S.; Tora, B. Trends in global copper mining—A review. IOP Conf. Ser. Mater. Sci. Eng. 2018, 427, 012002. [Google Scholar] [CrossRef]
  25. Conner, K.; Anderson, C. Enargite treatments and pressure oxidation of concentrates. J. Met. Eng. 2013, 10, 115–123. [Google Scholar]
  26. Salomon-De-Friedberg, H.; Robinson, T.; Lossin, A.; Omaynikova, V. Developing copper arsenic resources with CESL technology. In Proceedings of the COM 2014, 53rd Annual Conference of Metallurgists, Vancouver, BC, Canada, 28 September–1 October 2014. [Google Scholar]
  27. Tongamp, W.; Takasaki, Y.; Shibayama, A. Arsenic removal from copper ores and concentrates through alkaline leaching in NaHS media. Hydrometallurgy 2009, 98, 213–218. [Google Scholar] [CrossRef]
  28. Curreli, L.; Garbarino, C.; Ghiani, M.; Orru, G. Arsenic leaching from a gold bearing enargite flotation concentrate. Hydrometallurgy 2009, 96, 258–263. [Google Scholar] [CrossRef]
  29. Awe, S.A.; Sandstrom, A. Selective leaching of arsenic and antimony from a tetrahedrite rich complex sulphide concentrate using alkaline sulphide solution. Miner. Eng. 2010, 23, 1227–1236. [Google Scholar] [CrossRef]
  30. Li, T.; Zhang, Y.; Zhang, B.; Zhang, J.; Qin, W. Selective leaching of arsenic from enargite concentrate using alkaline leaching in the presence of pyrite. Hydrometallurgy 2018, 181, 143–147. [Google Scholar] [CrossRef]
  31. Safarzadeh, M.S.; Moats, M.S.; Miller, J.D. Recent Trends in the Processing of Enargite Concentrates. Miner. Process. Extr. Met. Rev. Int. J. 2014, 35, 283–367. [Google Scholar] [CrossRef]
  32. Fountain, C. The whys and wherefores of penalty elements in copper concentrates. In Proceedings of the MetPlant 2013, Australasian Institute of Mining and Metallurgy, Perth, WA, Australia, 15–17 July 2013. [Google Scholar]
  33. Elkina, Y.A.; Melamud, V.S.; Bulaev, A.G. Bioleaching of a Copper-Zinc Concentrate with High Arsenic Content. Microbiology 2021, 90, 78–86. [Google Scholar] [CrossRef]
  34. Bulaev, A.; Elkina, Y.; Melamud, V. Copper and zinc bioleaching from arsenic-containing polymetallic concentrate. In Proceedings of the 19th International Multidisciplinary Scientific GeoConference (SGEM 2019), Vienna, Austria, 9–11 December 2019. [Google Scholar] [CrossRef]
  35. Elkina, Y.; Nechaeva, A.; Artykova, A.; Kolosoff, A.; Bugubaeva, A.; Melamud, V.; Mardanov, A.; Bulaev, A. Continuous bioleaching of arsenic-containing copper-zinc concentrate and shift of microbial population under various conditions. Minerals 2022, 12, 592. [Google Scholar] [CrossRef]
  36. Artykova, A.V.; Melamud, V.S.; Boduen, A.Y.; Bulaev, A.G. Two-stage leaching of copper-zinc concentrate containing tennantite. IOP Conf. Ser. Earth Environ. Sci. 2020, 548, 062042. [Google Scholar] [CrossRef]
  37. Artykova, A.V.; Melamud, V.S.; Boduen, A.Y.; Bulaev, A.G. Possibility of environment-friendly hydrometallurgical treatment of copper-zinc concentrate containing arsenic. IOP Conf. Ser. Earth Environ. Sci. 2021, 666, 032062. [Google Scholar] [CrossRef]
  38. Boduen, A.Y.; Petrov, G.V.; Kobylyansky, A.A.; Bulaev, A.G. Sulfide leaching of high-grade arsenic copper concentrates. Obogashchenie Rudthis 2022, 1, 14–20. [Google Scholar] [CrossRef]
  39. Lane, D.J.; Cook, N.J.; Grano, S.R.; Ehrig, K. Selective leaching of penalty elements from copper concentrates: A review. Min. Eng. 2016, 98, 110–121. [Google Scholar] [CrossRef]
  40. Filippova, N.A. Fazovyi Analiz Rud i Produktov ikh Pererabotki (Phase Analysis of Ores and Products of Their Processing); Khimiya: Moscow, Russia, 1975; 280p. (In Russian) [Google Scholar]
  41. Reznikov, A.A.; Mulikovskaya, E.P.; Sokolov, I.Y. Metody Analiza Prirodnykh Vod (Methods for Analysis of Natural Waters); Nedra: Moscow, Russia, 1970; 140p. (In Russian) [Google Scholar]
  42. Rodriguez, Y.; Ballester, B.; Blazquez, M.L.; Gonzalez, F.; Munoz, J.A. New information on the chalcopyrite bioleaching mechanism at low and high temperature. Hydrometallurgy 2003, 71, 47–56. [Google Scholar] [CrossRef]
  43. Jyothi, N.; Sudha, K.N.; Natarajan, K.A. Electrochemical aspects of selective bioleaching of sphalerite and chalcopyrite from mixed sulphides. Int. J. Min. Process. 1989, 27, 189–203. [Google Scholar] [CrossRef]
  44. Schippers, A.; Sand, W. Bacterial leaching of metal sulfides proceeds by two indirect mechanisms via thiosulfate or via polysulfides and sulfur. Appl. Environ. Microbiol. 1999, 65, 319–321. [Google Scholar] [CrossRef] [Green Version]
  45. Mahmoud, A.; Cezac, P.; Hoadley, A.F.A.; Contaminea, F.; D’Hugues, P. A review of sulfide minerals microbially assisted leaching in stirred tank reactors. Int. Biodeterior. Biodegrad. 2017, 119, 118–146. [Google Scholar] [CrossRef]
  46. Melamud, V.S.; Pivovarova, T.A.; Kondrat’eva, T.F.; Karavaiko, G.I. Study of oxidation by bacteria of a difficult-to-dress gold-containing pyrite-arsenopyrite concentrate under moderately thermophilic conditions. Appl. Biochem. Microbiol. 1999, 35, 161–167. [Google Scholar]
Microbiolres 13 00032 g001 550

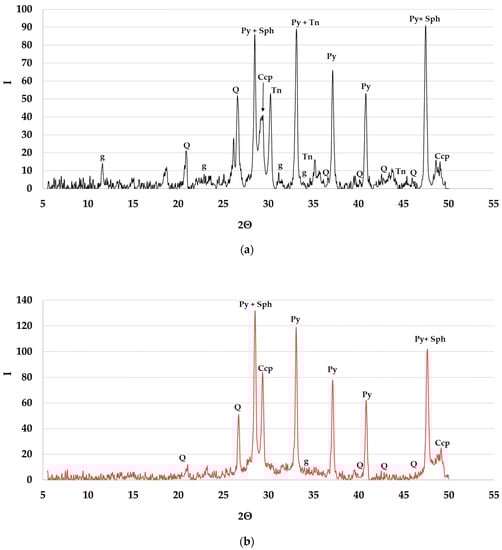

Figure 1. X-ray diffraction pattern of the samples: (a) concentrate, (b) sulfide leaching residue. Py: pyrite; Sph: sphalerite; Tn: tennantite; Ccp: chalcopyrite; g: gypsum; Q: quartz.
Figure 1. X-ray diffraction pattern of the samples: (a) concentrate, (b) sulfide leaching residue. Py: pyrite; Sph: sphalerite; Tn: tennantite; Ccp: chalcopyrite; g: gypsum; Q: quartz.
Microbiolres 13 00032 g001
Microbiolres 13 00032 g002 550

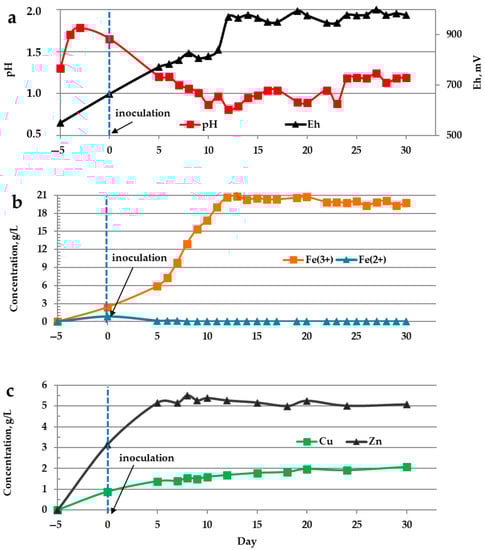

Figure 2. Changes in the liquid phase parameters during the bioleaching of the concentrate in batch mode: pH and Eh (mV) values (a), concentrations of Fe3+ and Fe2+ ions (g/L) (b), concentrations of copper and zinc (g/L) (c).
Figure 2. Changes in the liquid phase parameters during the bioleaching of the concentrate in batch mode: pH and Eh (mV) values (a), concentrations of Fe3+ and Fe2+ ions (g/L) (b), concentrations of copper and zinc (g/L) (c).
Microbiolres 13 00032 g002
Microbiolres 13 00032 g003 550

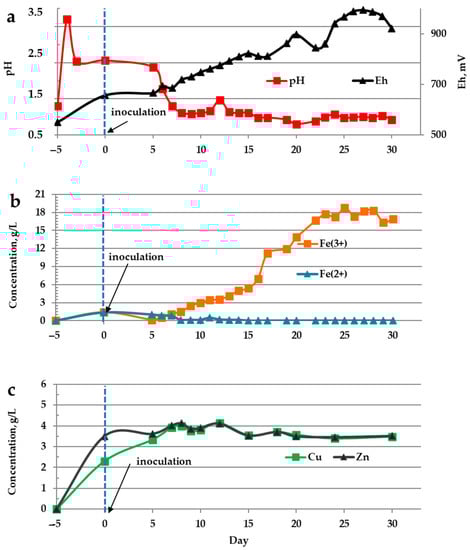

Figure 3. Changes in the liquid phase parameters during the bioleaching of ASL residue in batch mode: pH and Eh (mV) values (a), concentrations of Fe3+ and Fe2+ ions (g/L) (b), concentrations of copper and zinc (g/L) (c).
Figure 3. Changes in the liquid phase parameters during the bioleaching of ASL residue in batch mode: pH and Eh (mV) values (a), concentrations of Fe3+ and Fe2+ ions (g/L) (b), concentrations of copper and zinc (g/L) (c).
Microbiolres 13 00032 g003
Microbiolres 13 00032 g004 550

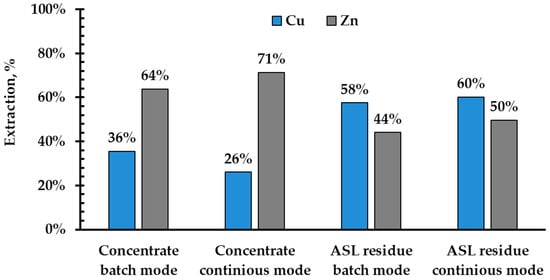

Figure 4. Cu and Zn extraction from concentrate and ASL residue in bioleaching experiments.
Figure 4. Cu and Zn extraction from concentrate and ASL residue in bioleaching experiments.
Microbiolres 13 00032 g004
Microbiolres 13 00032 g005 550

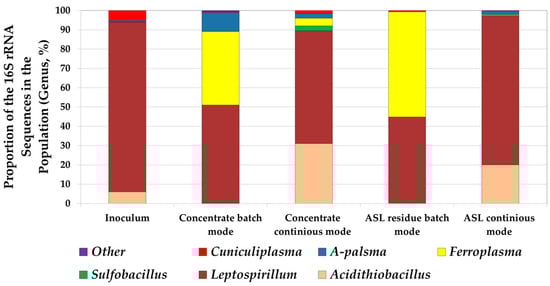

Figure 5. Analysis of microbial populations performing bioleaching under different conditions (proportion of the 16S rRNA gene fragment).
Figure 5. Analysis of microbial populations performing bioleaching under different conditions (proportion of the 16S rRNA gene fragment).
Microbiolres 13 00032 g005
Table
Table 1. Main element contents in the concentrate.
Table 1. Main element contents in the concentrate.
Content, %
AsFeCuZnStotalSsulfateS0Ssulfide
1.727.95.827.9535.83.10.632.1
Table
Table 2. Main element content in ASL residue.
Table 2. Main element content in ASL residue.
Content, %
AsFeCuZnStotalSsulfateS0Ssulfide
0.18528.96.057.9735.91.33.131.5
Table
Table 3. Parameters of the liquid phase of the pulp during continuous bioleaching (average value).
Table 3. Parameters of the liquid phase of the pulp during continuous bioleaching (average value).
ProductpHEh, mVConcentration, g/L
Fe3+Fe2+Cu2+Zn2+
Concentrate1.07 ± 0.09849 ± 1517.50 ± 1.070.02 ± 0.051.52 ± 0.145.67 ± 0.19
ASL residue1.12 ± 0.05854 ± 2318.33 ± 2.10.04 ± 0.103.64 ± 0.143.96 ± 0.24
