Evolution of Characteristic Parameters in Fuel Cell Dynamic Response Under Durability Testing

Abstract

The evolution of two key dynamic response parameters—undershoot voltage and stabilization time—was investigated throughout a 1000-h durability test on four distinct PEMFCs. Results demonstrate that cells with superior mass transport exhibited higher undershoot voltages, an effect amplified at higher current densities due to a more pronounced gas supply-demand imbalance. Notably, the undershoot voltage decreased during the initial cell activation phase. Conversely, stabilization time showed no clear correlation with load magnitude but increased systematically with performance degradation. These findings reveal a strong connection between dynamic response characteristics and performance decay, providing meaningful insights for the design, application, and health assessment of high-performance fuel cells.

1. Introduction

Proton exchange membrane fuel cells (PEMFCs) are highly efficient and clean energy conversion devices. Owing to their significant advantages, such as zero emissions, high power density, and low-temperature startup, they have demonstrated immense development potential and wide-ranging applications in various fields, including new energy vehicles, portable electronics, stationary power stations, and backup power systems [1]. However, in practical applications, fuel cell systems often need to cope with frequent and rapid load changes, such as vehicle acceleration and deceleration or fluctuations in power demand from portable devices. Such dynamic conditions pose severe challenges to the voltage stability, response speed, and long-term durability of the fuel cell. Therefore, understanding the dynamic response of PEMFCs is crucial for achieving longer fuel cell lifetimes and better performance [2].

During a step increase in current density, the output voltage of a fuel cell typically experiences a sharp drop (voltage undershoot), followed by a partial recovery, and then gradually stabilizes at a new operating point. The magnitude of this voltage recovery, i.e., the portion that rebounds from the lowest point, is defined as the “undershoot voltage.” The time required for the voltage to complete this characteristic recovery process is defined as “stabilization time.” These two parameters are key indicators for characterizing the dynamic response of a fuel cell, reflecting the complex coupled multiphysics processes within the cell, including electrochemical reactions, mass transport, and heat management. A schematic diagram is shown in Figure 1.

The undershoot voltage can be defined by Equation (1) below:

V_u = V_s − V_m

(1)

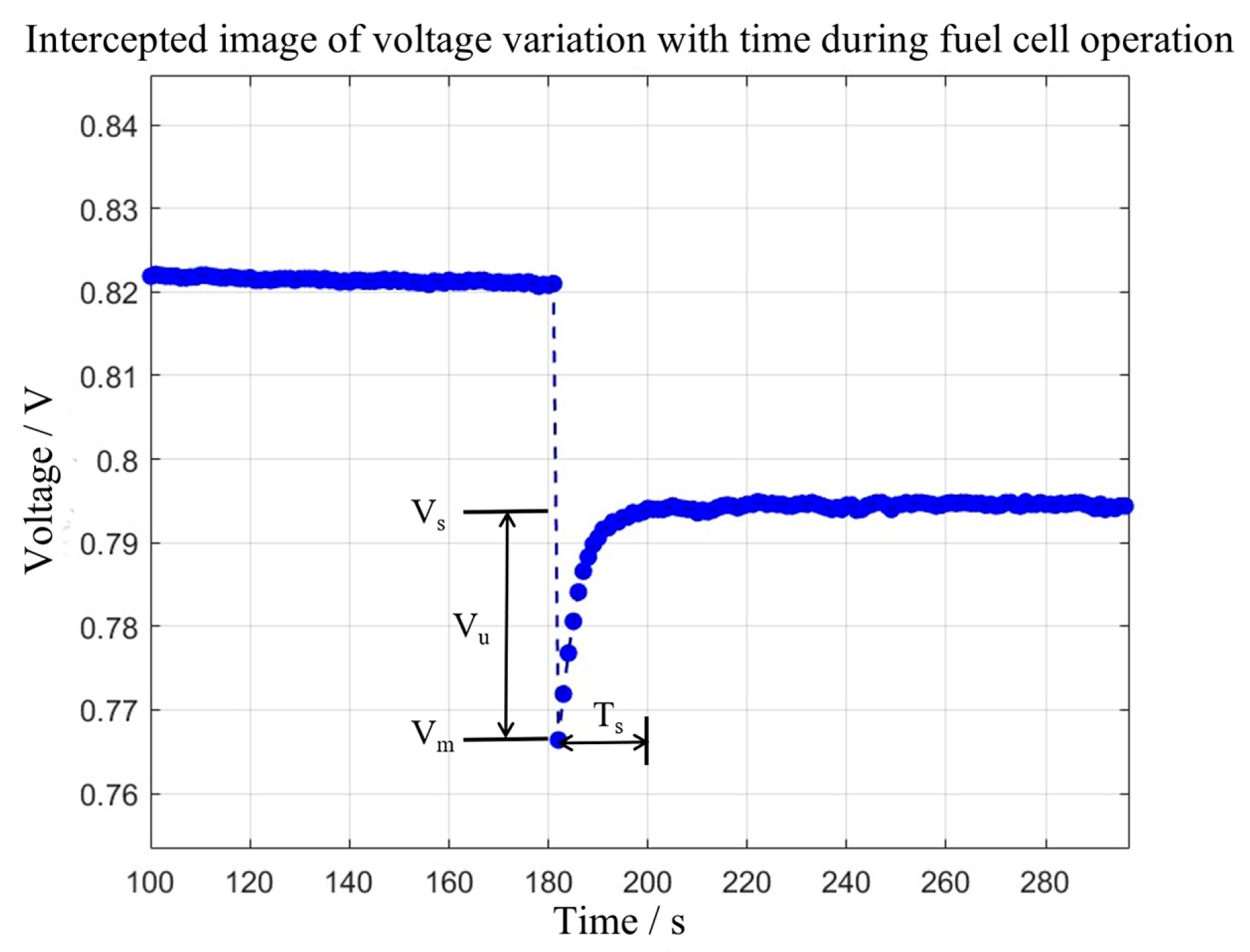

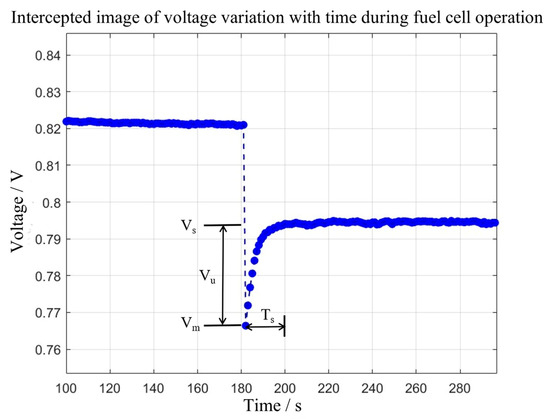

where V_u is the undershoot voltage, V_s is the stabilized value of the voltage after the current density step of the fuel cell, and V_m is the lowest value of the voltage after the current density step of the fuel cell. Stabilization time T_s is the time interval between when the cell is at its lowest voltage and when the voltage is stabilized.

Previous literature has extensively investigated the transient behavior of PEMFCs, particularly the phenomenon of voltage or current undershoot. Kim et al. [3] examined the effect of reactant gas stoichiometry on the dynamic response characteristics of a fuel cell under fixed reactant gas flow rates and proposed a second-order lead/lag (SO L/L) response system to describe the dynamic response process. Cho et al. [4] used large-area and transparent PEMFCs to study the dynamic response by varying reactant gas stoichiometry, operating temperature, humidity conditions, and the degree of cathode flooding. They found that the voltage undershoot behavior consists of two stages with different time delays: one of about 1 s and another of 10 s. Pei et al. [5] experimentally studied the effect of different operating conditions on the dynamic response of an air-cooled PEMFC stack and found that at higher ambient temperatures, the undershoot voltage after loading was smaller, and the time required for the fuel cell to return to a stable level was shorter. Chen et al. [6] used printed circuit board (PCB) technology to segment the fuel cell into 16 sections and analyzed the transient response of local currents, finding that the non-uniformity of in-plane gas distribution caused differences in mass transport capability, which affected the overall performance and degradation inconsistency. Yan et al. [7] found through experiments that the faster the load was applied, the larger the undershoot voltage during the dynamic response. Loo et al. [8] developed a one-dimensional, two-phase dynamic model of a PEMFC to explain its dynamic behavior.

Furthermore, recent advancements have focused on sophisticated real-time diagnostics and control strategies to enhance fuel cell longevity and performance. For instance, AI-based models are being developed to predict the state of health, and model predictive control is explored for optimizing performance while preventing reactant starvation. However, the accuracy and robustness of these advanced models heavily rely on a fundamental understanding of how key performance indicators evolve with cell degradation under dynamic conditions. Yang et al. [9] used PCB technology to study the dynamic response characteristics of segmented fuel cells and concluded that the dynamic response of the segmented currents inside the fuel cell during the current density step can provide a powerful guide for fuel cell fault diagnosis. Yu [10] studied the dynamic characteristics of the voltage and internal current distribution of the fuel cell during the cathode oxygen content reduction process and established a quasi-two-dimensional dynamic equivalent circuit model of the fuel cell hypoxia process based on the equivalent circuit modeling method by optimizing the identification of the model parameters through the cuckoo algorithm.

While existing research has thoroughly investigated the mechanisms of voltage undershoot during the dynamic response of PEMFCs, there is a lack of research on the relationship between PEMFC durability and its dynamic response capability. This study conducts a systematic experimental investigation and comparative analysis of the undershoot voltage and stabilization time of four different single cells under various current densities and long-term durability testing conditions. The aim is to deepen the understanding of the dynamic response characteristics of PEMFCs and provide a reference for the design and application of high-performance fuel cells.

2. Experimental Setup

This study utilized four different fuel cells, labeled A, B, C, and D, as test subjects. The single-cell test fixture mainly consisted of end plates, current collector plates, and flow field plates. The flow field plates were made of dense graphite with a triple-serpentine flow field, featuring a channel width of 0.8 mm, a depth of 1.1 mm, and a land width of 0.9 mm, using a surface sealing method. A Greenlight Innovation G60 test station was used for the durability tests. The relevant parameters of the fuel cells are shown in

Table 1. Key parameters of the tested fuel cells.

	Cell A	Cell B	Cell C	Cell D
Rated current density (A/cm2)	1.6	2.2	1.4	1.6
Active area (cm2)	25	25	25	25

.

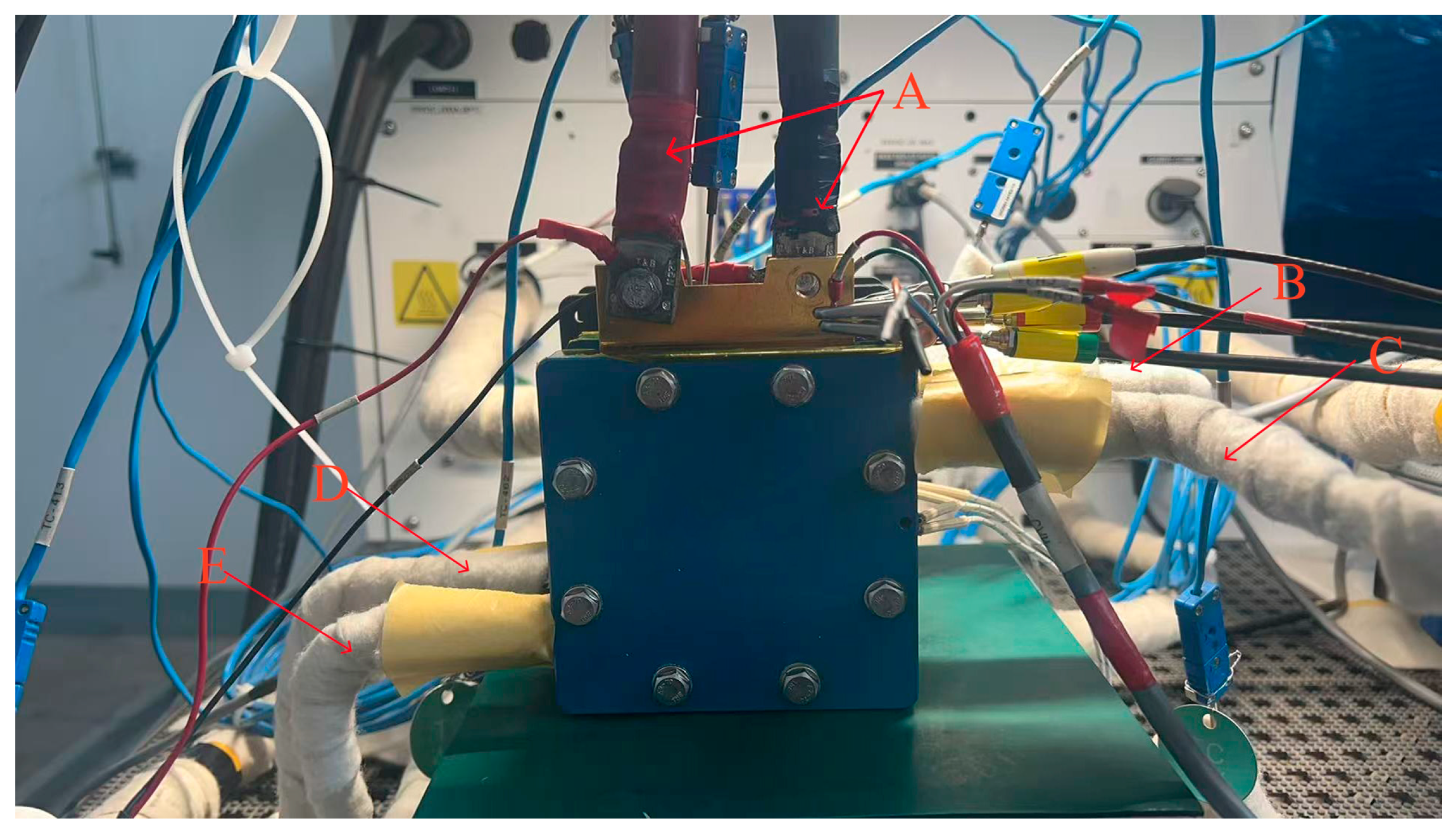

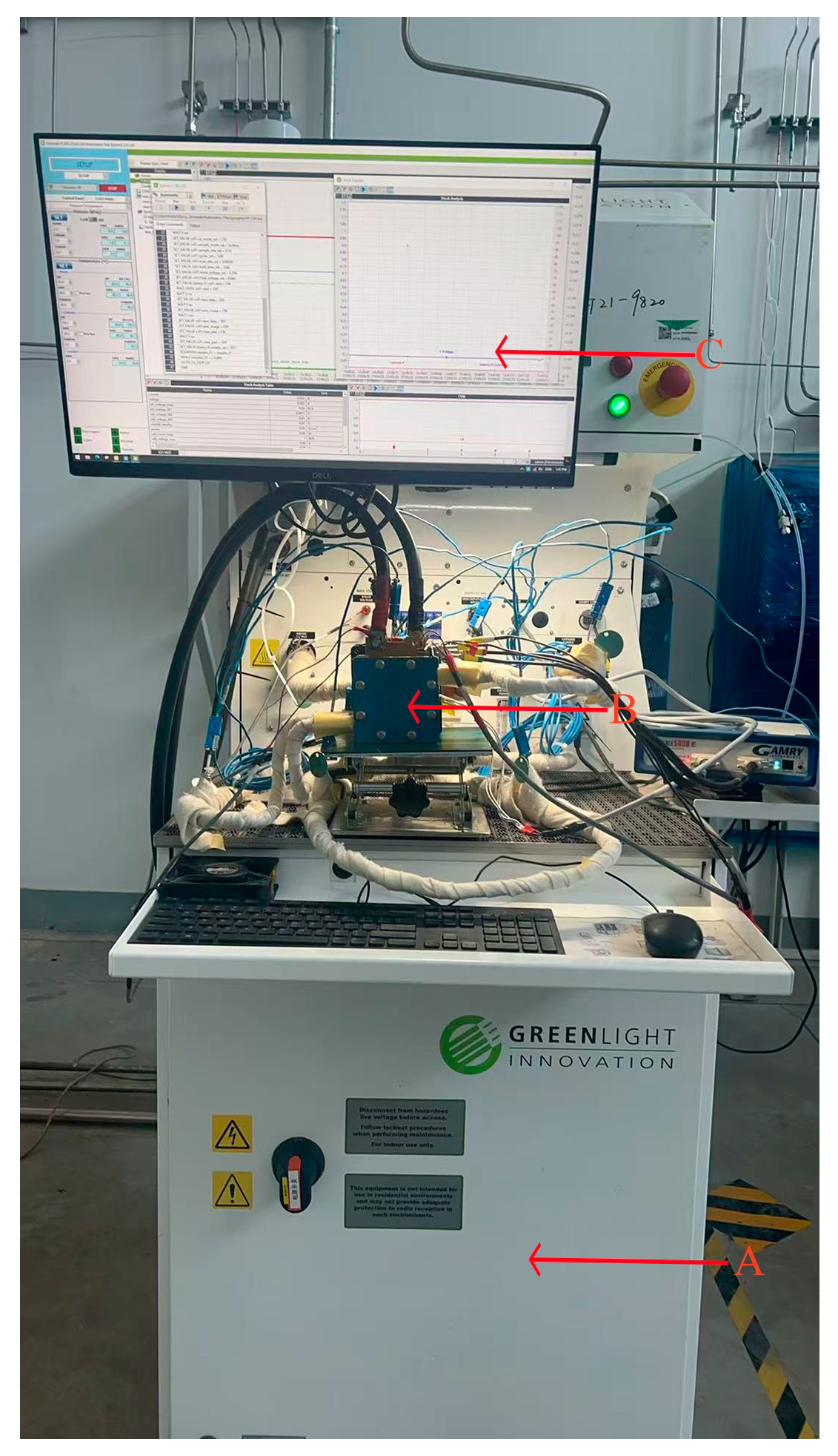

The experimental setup is shown in Figure 2, and the fuel cell used is shown in Figure 3.

Durability tests were conducted on cells A, B, C, and D according to the Chinese national standard GB/Z 44116-2024 [11]. Before the durability test and every 100 h during the test, polarization curve tests were performed on the four cells. Before each polarization curve test, the fuel cell was activated and conditioned at a current density of 0.6 A/cm² for 20 min, followed by a shutdown and purge until the voltage dropped below 0.1 V. The polarization curve test was performed in current-controlled mode with a step of 0.2 A/cm². The results were based on the load-increasing process, with data for each operating point averaged from 11 s to 70 s after the current step. The operating parameters of the test stand are listed in

Table 2. Operating parameters for the polarization curve tests.

	Activation	Purge	Polarization Curve Test
Anode gas	H2	H2	H2
Cathode gas	Air	N2	Air
Anode stoichiometry	≤1.8	--	≤1.8
Cathode stoichiometry	≤2.0	--	≤2.0
Anode flow rate (NLPM)	--	0.13	--
Cathode flow rate (NLPM)	--	0.35	--
Anode/Cathode Inlet Temp. (°C)	80	80	80
Anode/Cathode Relative Humidity (%)	30~100	30~100	30~100
Anode/Cathode Inlet Gauge Pressure (kPag)	150	150	150

[11].

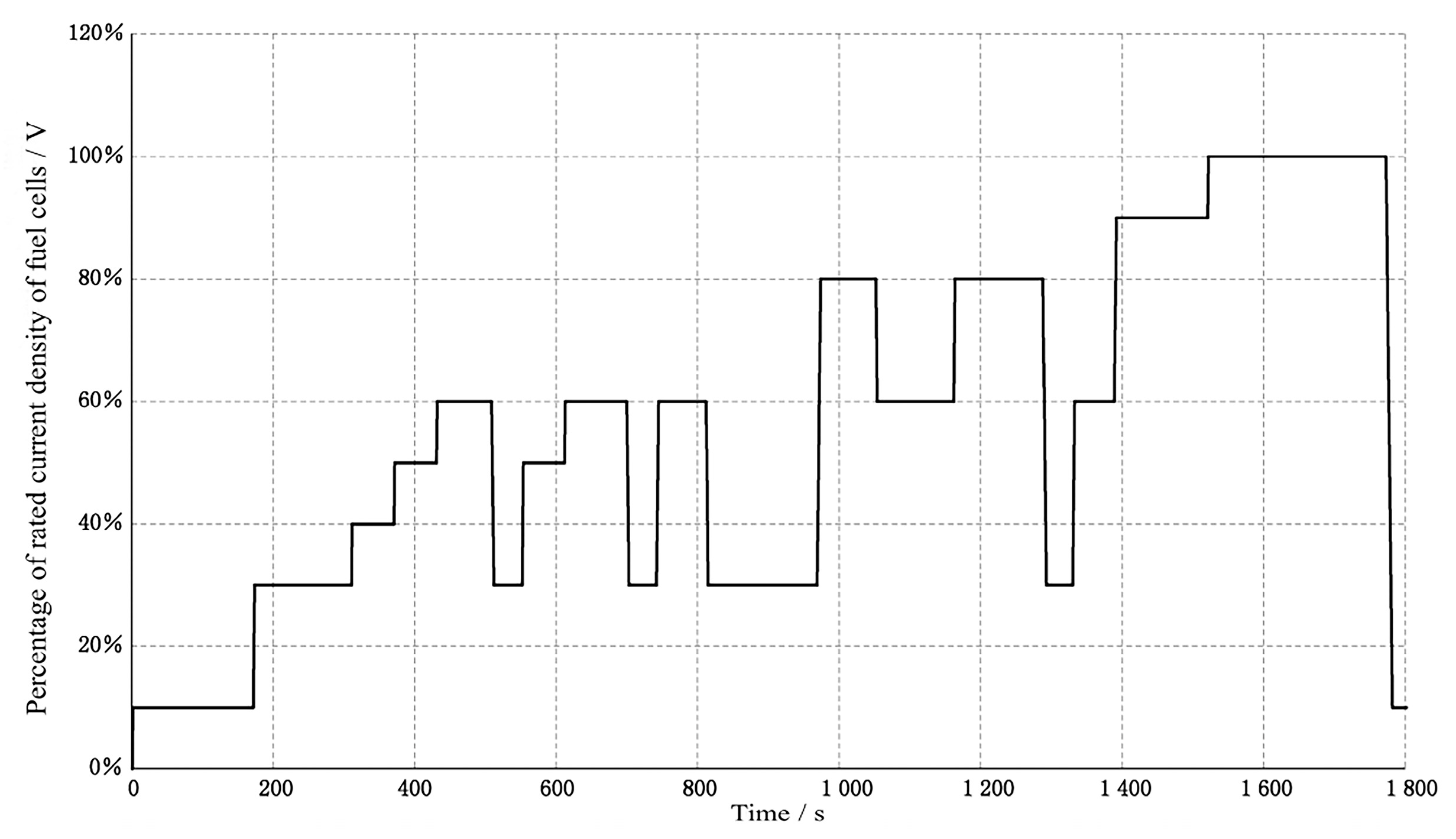

The durability cycle conditions used in the fuel cell durability test and the reversible recovery procedure, which was performed every 200 h of cumulative testing, followed Appendix E and Appendix F of GB/Z 44116-2024. The fuel cell durability cycle profile is shown in Figure 4. The reversible recovery procedure is detailed in

Table 3. Reversible recovery procedure from the Chinese national standard GB/Z 44116-2024.

	Procedure	Anode Gas (Flow)	Gas Flow Rate (L/min)	Cathode Gas (Flow)	Gas Flow Rate (L/min)	Duration (s)
1	N2 purge	N2	1	N2	2	240
2	Air purge	None	0	Air	4	900
3	N2 purge	N2	1	N2	2	240
4	H2 purge	H2	2	None	0	600
5	H2/Air purge	H2	2	Air	4	5

[11].

3. Results and Discussion

3.1. Overall Performance Degradation

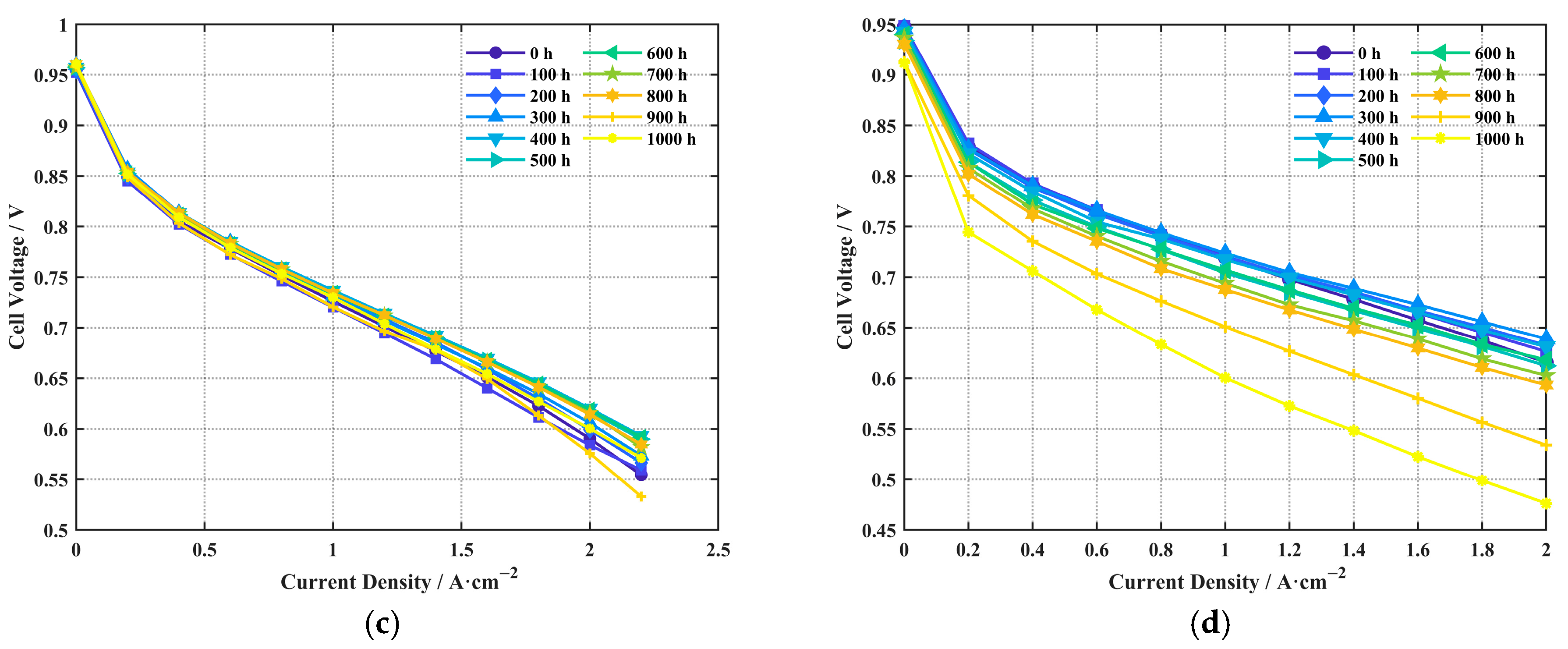

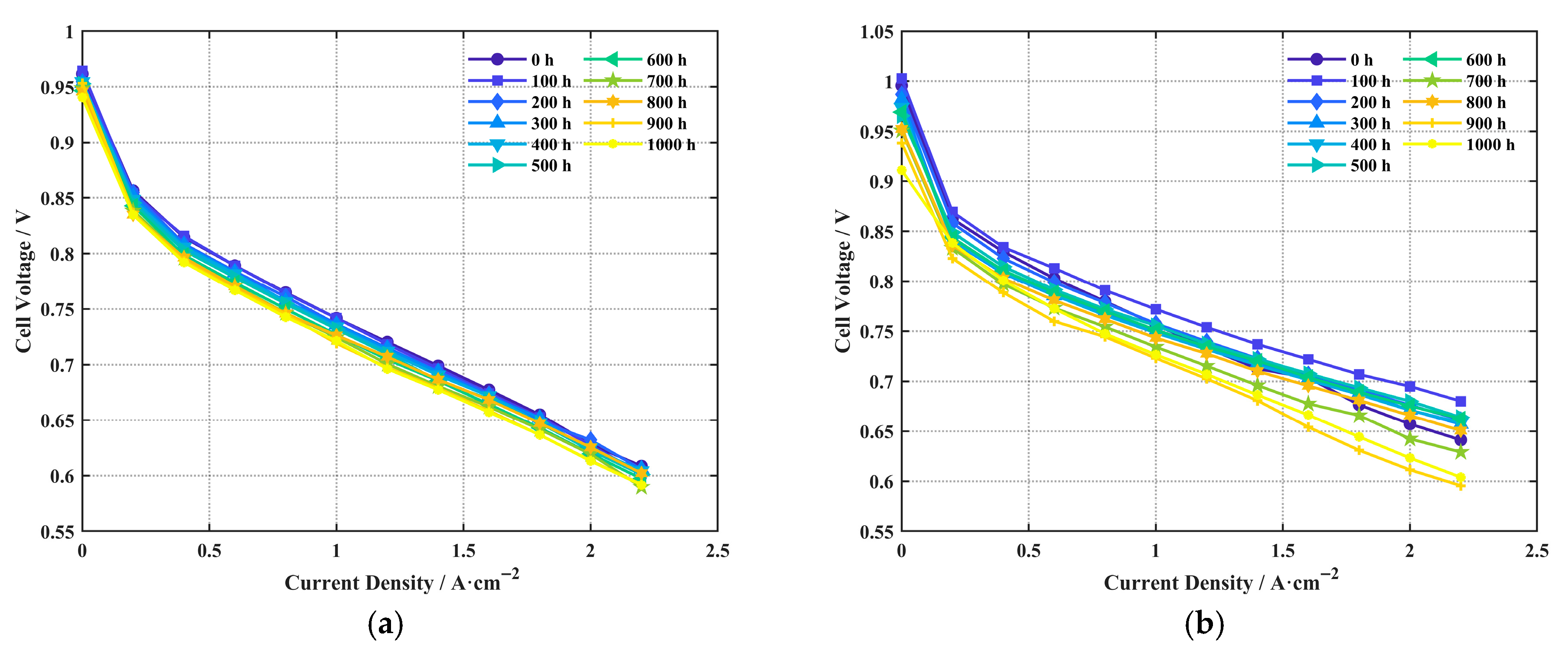

After 1000 h of durability testing, the polarization curves for cells A, B, C, and D at different durability test durations were obtained, as shown in Figure 5a–d, respectively.

As shown in Figure 5 after 1000 h of testing, Cell A exhibited the smallest performance change among the four cells, indicating its relatively superior durability. The open-circuit voltage and performance in the high current density region (concentration polarization) of Cell B showed a significant decline. After 1000 h durability test, the open-circuit voltage of cell B decreased by 0.0848 V, suggesting that after 1000 h, its proton exchange membrane had degraded more than the others, leading to increased hydrogen crossover and reduced mass transport performance at high current densities. Cell C also showed a noticeable performance drop at high current densities, indicating a significant decline in its mass transport performance. Cell D showed the worst durability, with significant performance degradation across the open-circuit voltage, activation, ohmic, and concentration polarization regions after 1000 h. After 1000 h of durability test, the voltage of cell D decreased by 0.1393 V at 2.0 A/cm².

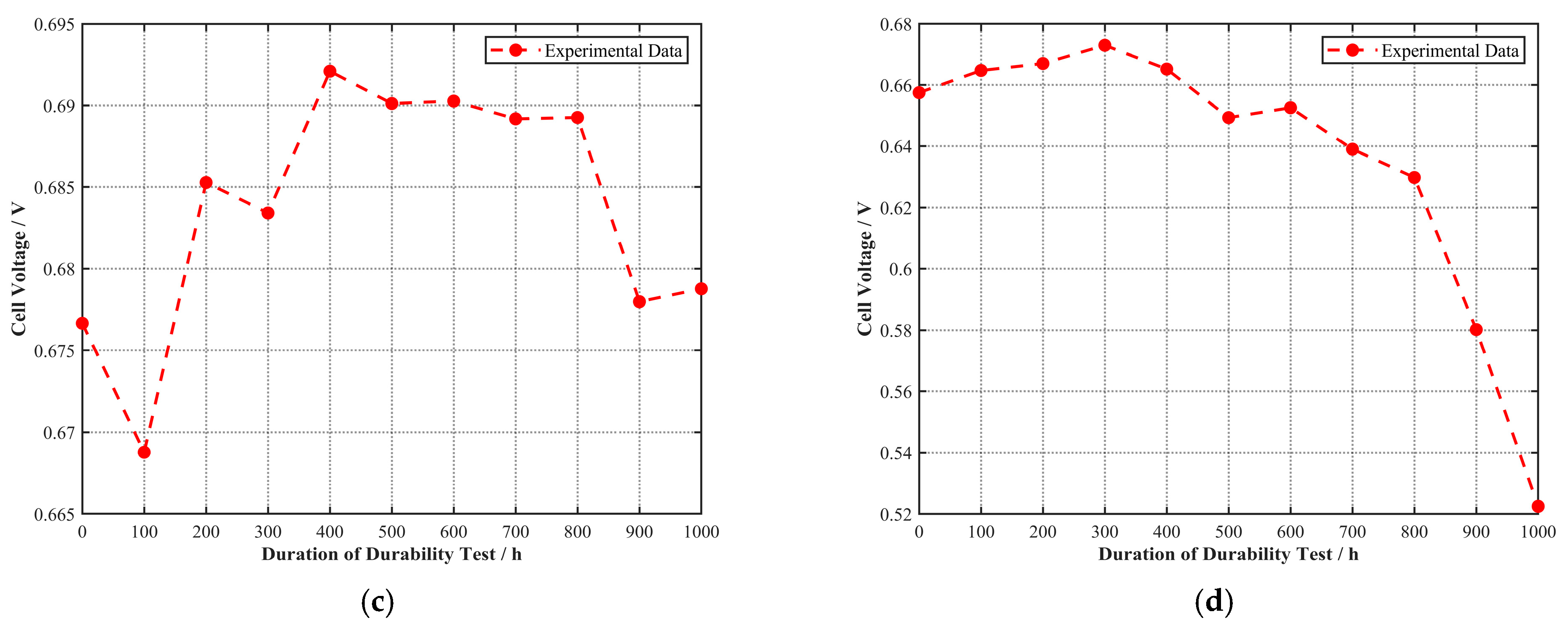

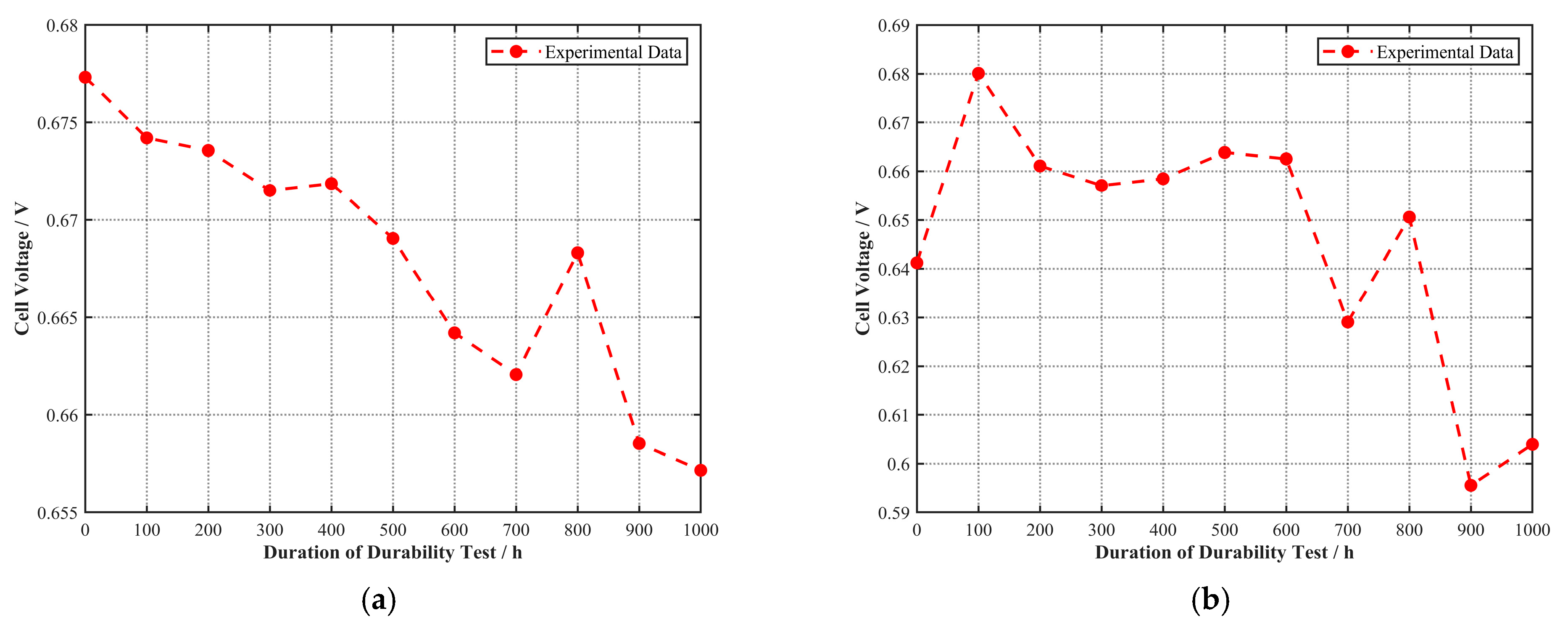

To further analyze the performance changes, the voltage of each cell at its rated current density was plotted against the durability test duration, as shown in Figure 6a–d.

As seen in Figure 6, the voltage of Cell A at its rated current density of 1.6 A/cm² showed a clear downward trend with increasing durability test duration. For Cells B, C, and D, the voltage at their respective rated current densities initially showed an upward trend, indicating that they were still in an activation process during the early stages of the durability test. Performance degradation began only after a certain duration. Therefore, Cell B was likely in an activation state for the first 100 h, Cell C for the first 400 h, and Cell D for the first 300 h.

It should be noted that for the purposes of this study, the ‘activation process’ is defined operationally as the initial period during which the cell voltage at its rated current density increased to a peak value before the onset of monotonic long-term degradation, as observed in Figure 6. While this performance-based observation is clear, no advanced in situ diagnostics, such as electrochemical impedance spectroscopy (EIS), were employed in this specific durability test to probe the underlying mechanistic changes (e.g., changes in charge transfer or ohmic resistances). Therefore, a definitive attribution of this initial performance improvement to specific phenomena like catalyst wetting or ion channel formation requires further investigation. Incorporating EIS into future long-term durability studies would be a valuable step to de-convolute these initial activation effects from subsequent degradation mechanisms.

3.2. Undershoot Voltage Analysis

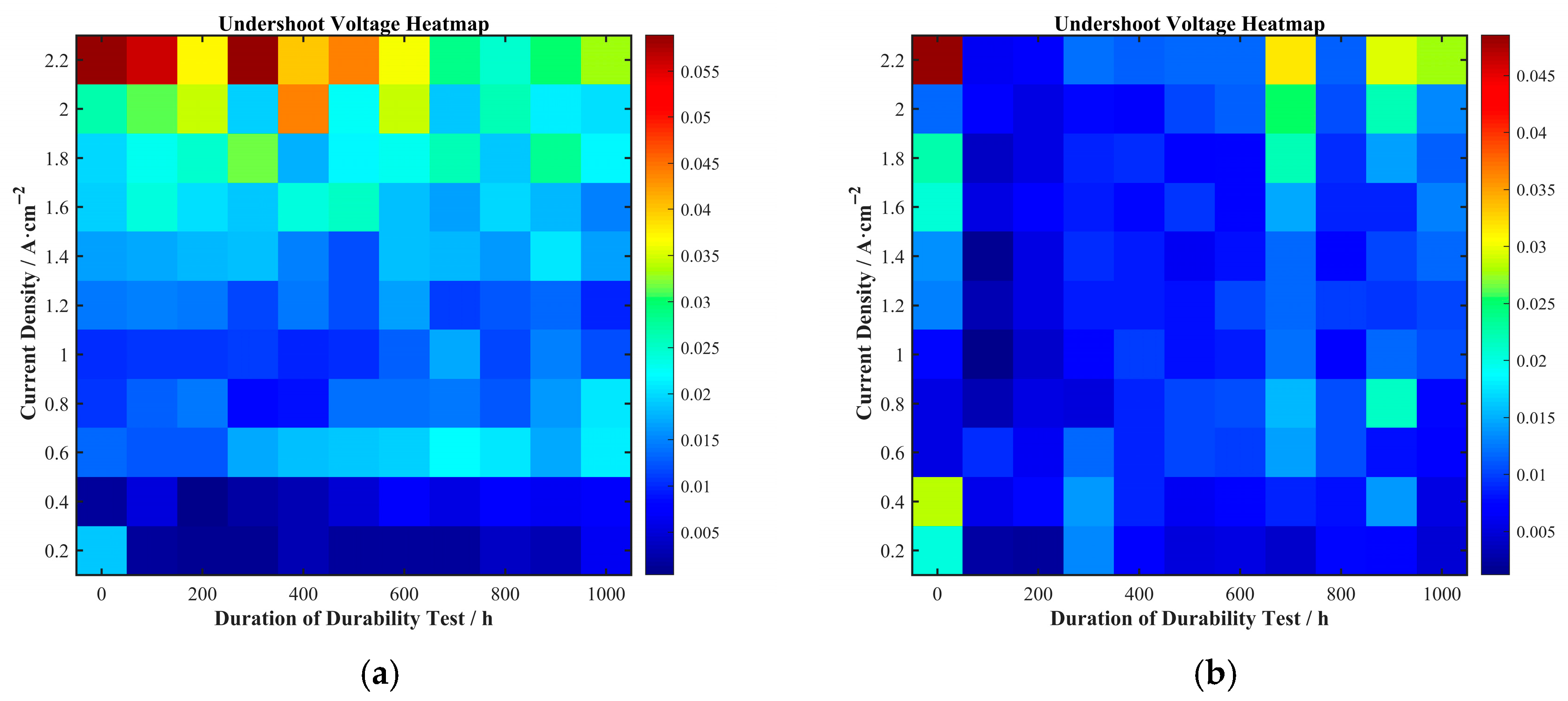

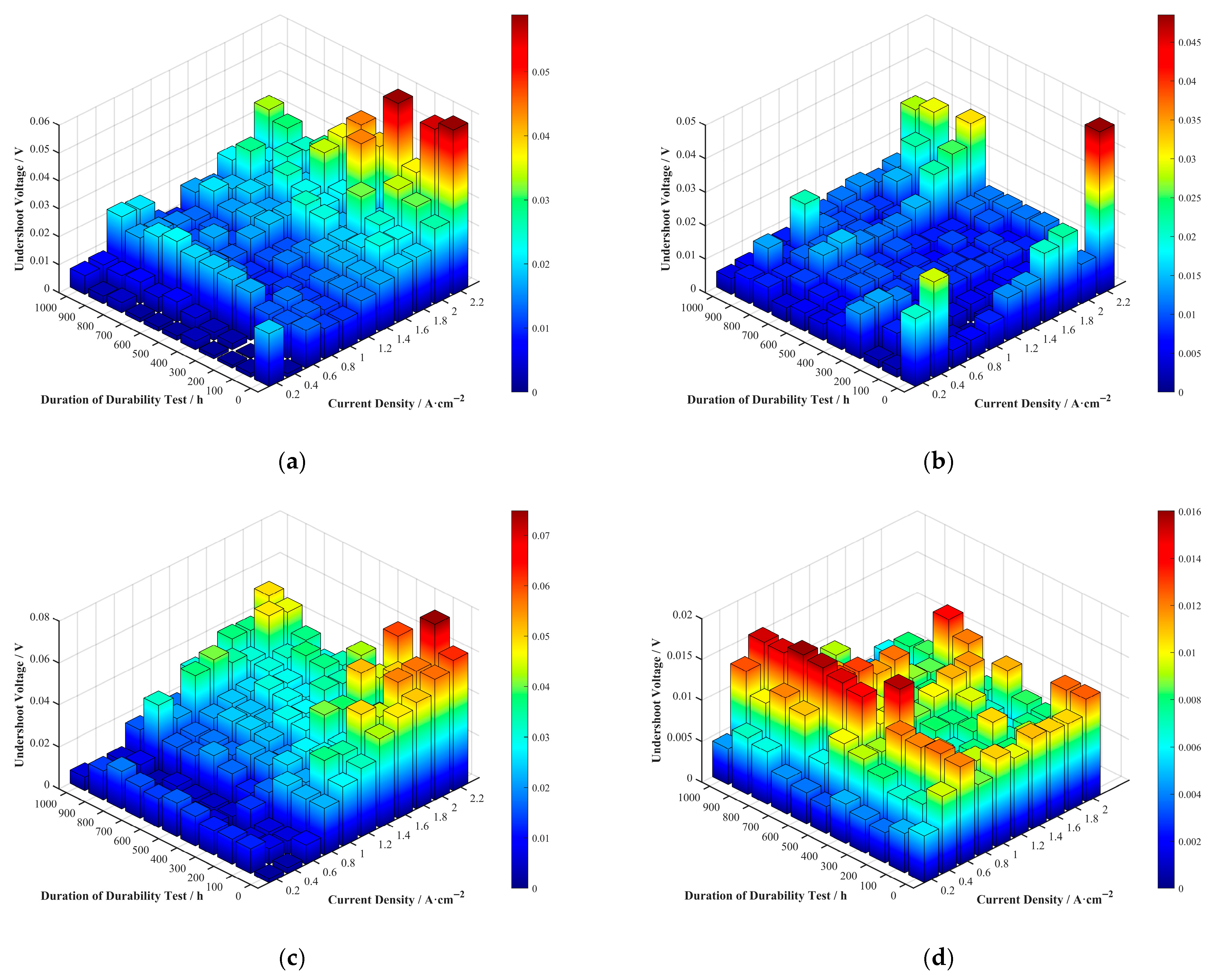

Undershoot voltage is a crucial indicator for evaluating the dynamic response characteristics of a fuel cell. A significant voltage undershoot phenomenon was observed at the current density step points in the raw data from the polarization curves measured after the durability tests. The undershoot voltages for the four cells at various current densities and durability test durations were extracted and are shown in Figure 7 and Figure 8.

Comparing the different cells, the undershoot voltage values for Cells A, B, and C at high current densities were larger than those for Cell D. The undershoot voltage of Cells A and C could even reach 0.06 V at high current densities, whereas that of Cell D was less than 0.015 V. This may be related to the better steady-state performance of Cells A, B, and C in the high current density region (concentration polarization). During a current density step at high current densities, Cells A, B, and C could deliver more reactant gas to the catalytic sites compared to Cell D, consuming more reactants in the upstream region of the flow field. This temporarily exacerbates reactant starvation downstream, making it more difficult for reactants to reach the catalytic active sites in a timely and uniform manner, thus resulting in a larger undershoot voltage.

This upstream–downstream imbalance mechanism is consistent with segmented current distribution diagram reported in Chen’s study [6], where local reactant depletion was directly observed in downstream regions under high load conditions.

Physically, the upstream–downstream reactant imbalance can be linked to the flow field geometry and channel pressure distribution. According to Darcy’s law for gas flow in porous media:

$$\mathrm{Q} \propto {\displaystyle \frac{\mathsf{\Delta }\mathrm{p}·\mathrm{k}}{\mathsf{\mu }·\mathrm{L}}}$$

(2)

where Q is the gas flow, k is permeability, μ is gas viscosity, and L is diffusion path length. Cells with higher mass transport properties (larger k) deliver more gas upstream but may induce stronger downstream starvation during transients, matching our observation that high-performance cells (A–C) show larger undershoot voltages than D.

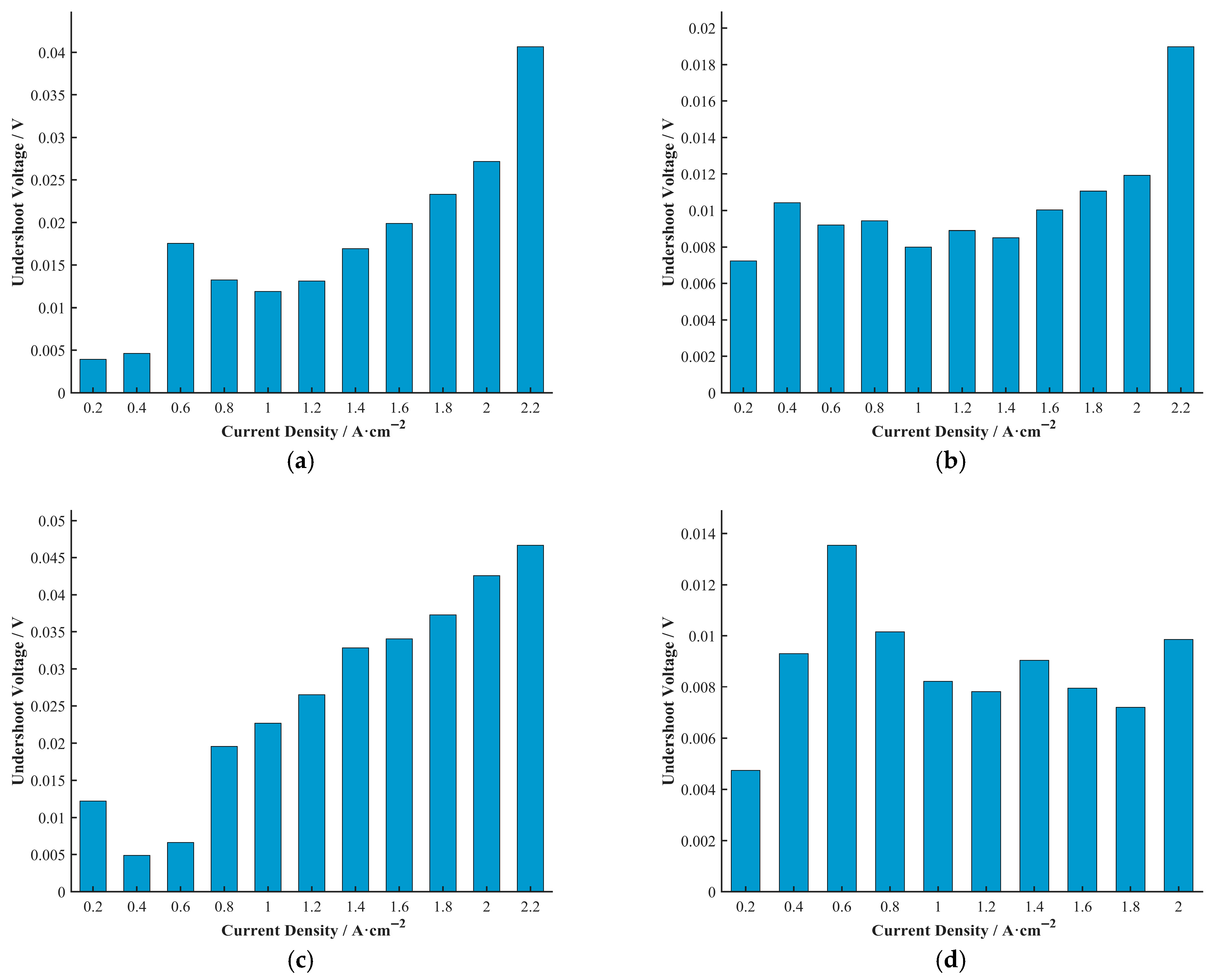

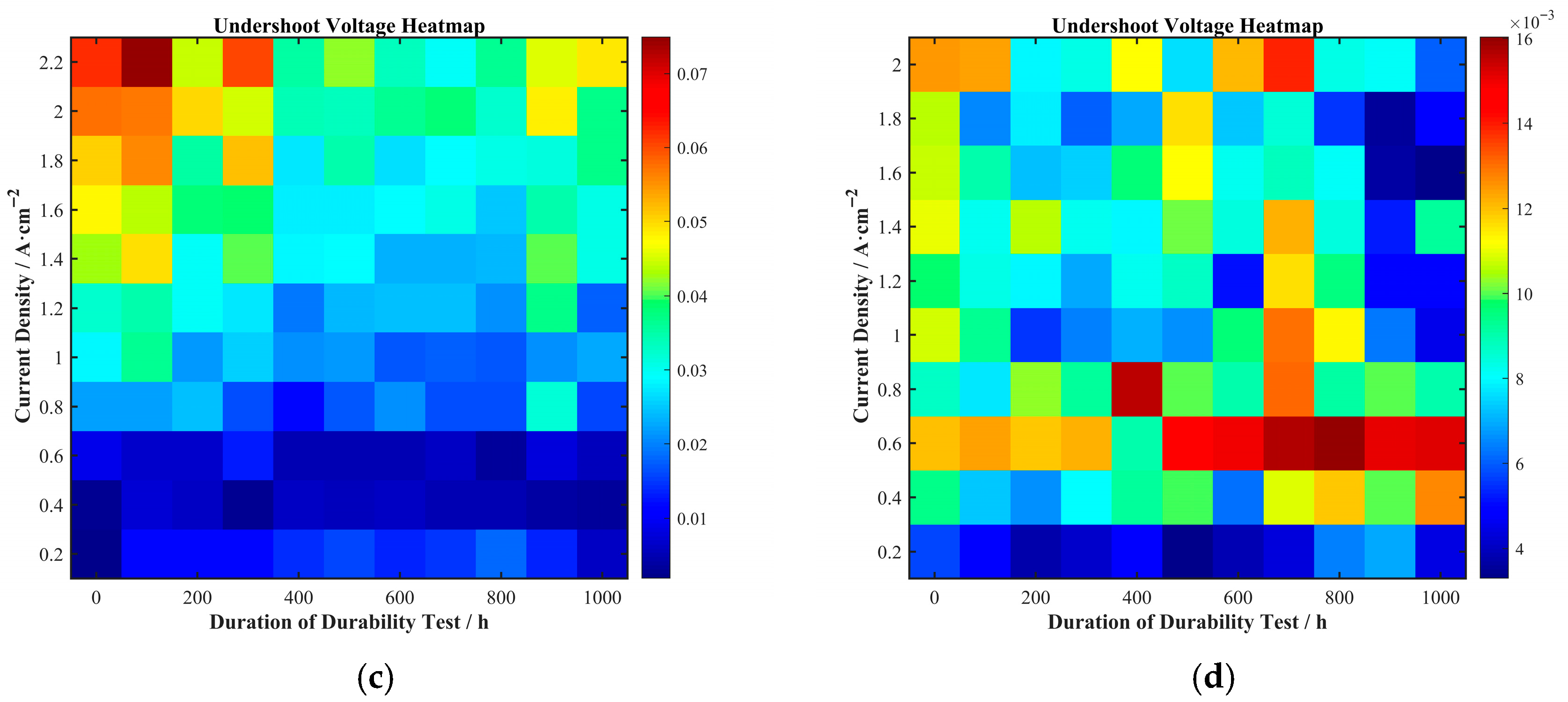

To more clearly represent the relationship between undershoot voltage and current density for the four cells, the average undershoot voltage at each current density across all durability test durations was calculated, as shown in Figure 9.

The results in Figure 9 show that, except for Cell D, the undershoot voltage of Cells A, B, and C generally tended to increase with increasing current density. The undershoot voltage of cell A increased the most, from 0.0039 V at 0 A/cm² to 0.0406 V at 2.2 A/cm². It is worth noting that this experiment was conducted under a constant stoichiometric ratio with an ample supply of reactant gas, which differs from many previous studies that used constant gas flow rates. For instance, Kim et al. [12] studied the current density undershoot phenomenon using a constant reactant gas flow rate, where higher cell output current densities led to more severe reactant starvation.

Under a constant stoichiometric ratio control strategy, when the load (current density) changes, the supply of reactant gases (air and hydrogen) must be adjusted accordingly to maintain the set stoichiometry. However, the regulation of gas flow and its stabilization within the flow channels take a certain amount of time. Therefore, at the moment of a current density step, a temporary gas supply shortage may still occur due to the delayed response of the gas flow, even under a constant stoichiometry control strategy. A larger current density implies a greater demand for reactants, and this temporary mismatch between gas supply and demand may be more significant during the transition, leading to an increase in the undershoot voltage.

This is similar to the conclusion reached in the study by Li et al. [13]. In their study, Li et al. found that during step loading of a fuel cell, even if the overall amount of reactant gas does not lead to starvation, there is still microscopic reactant gas starvation due to concentration and pressure differences at the anode/cathode reactant gas interface.

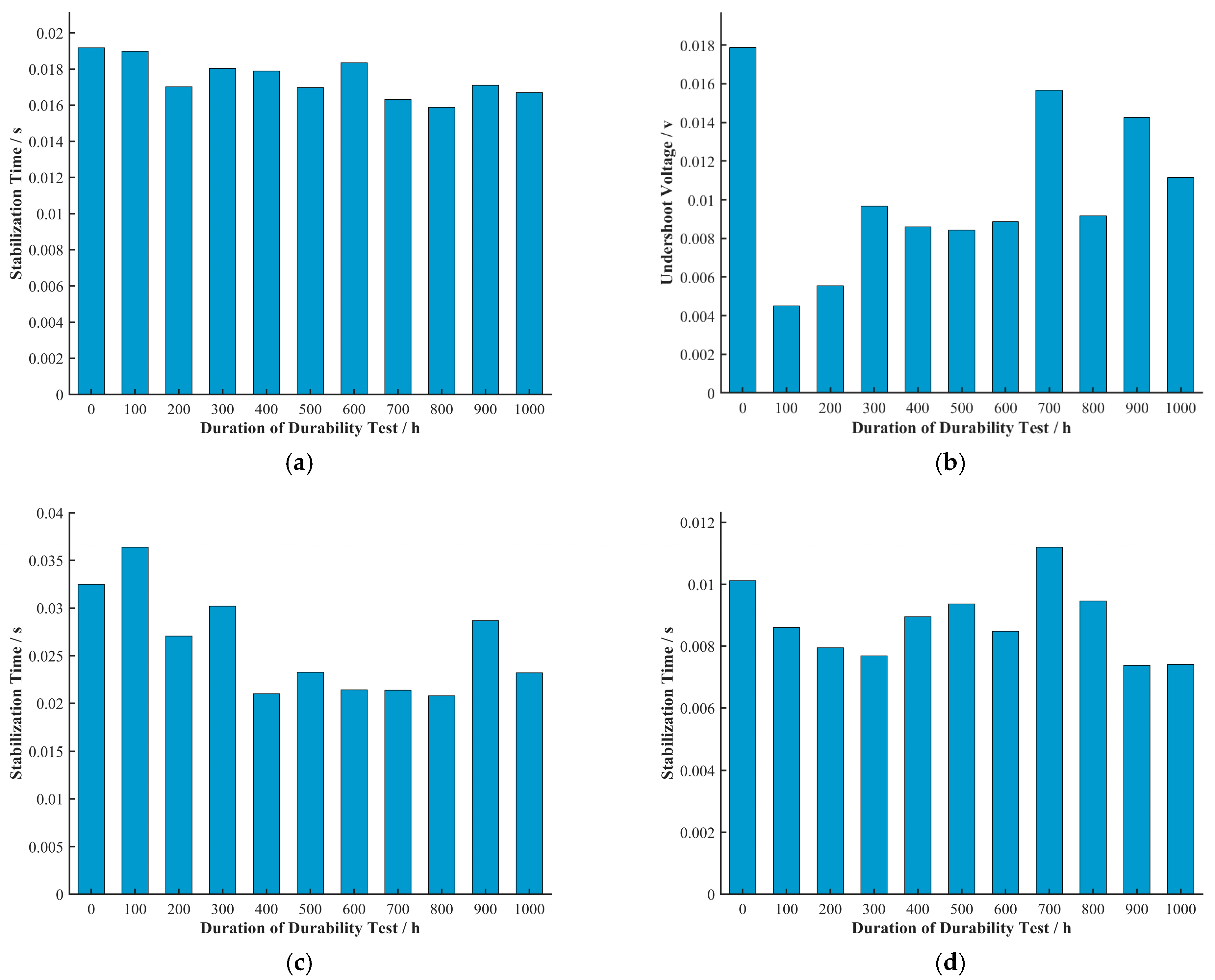

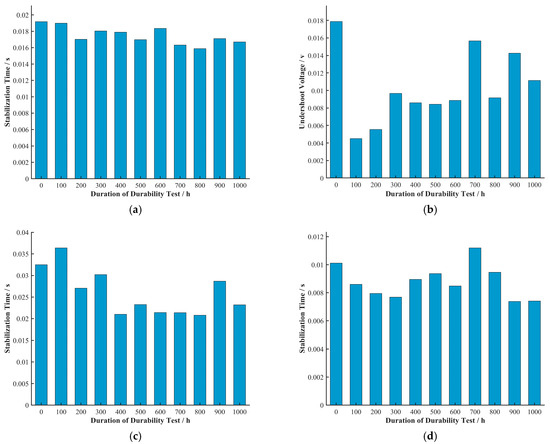

To more clearly represent the relationship between undershoot voltage and durability test duration, the average undershoot voltage at each durability test duration across all current densities was calculated, as shown in Figure 10.

As shown in Figure 10, the trend of undershoot voltage with durability test duration was not as uniform as its trend with current density. The undershoot voltage of Cell B generally showed a decreasing trend in the first 100 h of the durability test and an increasing trend from 100 h to 1000 h. The undershoot voltage of Cell C showed a decreasing trend in the first 400 h, while that of Cell D showed a decreasing trend in the first 300 h. As previously mentioned, Cells B, C, and D had activation periods of 100 h, 400 h, and 300 h, respectively, which correspond to the trends in their undershoot voltage with durability test duration. This suggests to some extent that an increase in undershoot voltage reflects a decline in cell durability. At the same time, these observations strongly indicate that certain changes occurring within the cell during the activation process (such as catalyst wetting, ion channel formation, etc.) are closely related to the changes in undershoot voltage. The activation process is usually accompanied by an improvement in electrochemical performance, which may help mitigate voltage fluctuations during current density steps.

The undershoot voltage of Cell A showed a decreasing trend with durability test duration, which contradicts the trend of its performance degradation. Further electrochemical characterization tests could be designed to investigate this anomalous trend for Cell A and the relationship between cell activation and undershoot voltage.

3.3. Stabilization Time Analysis

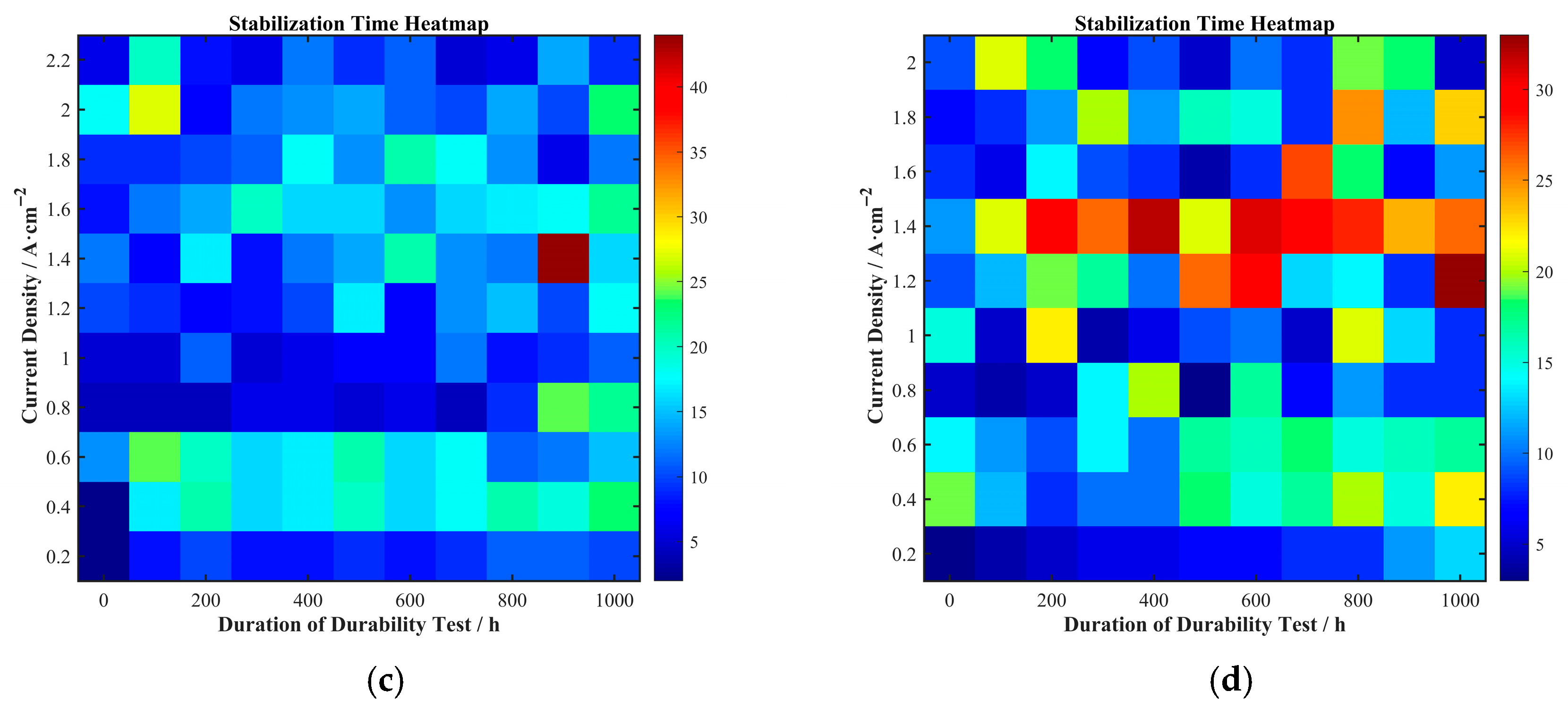

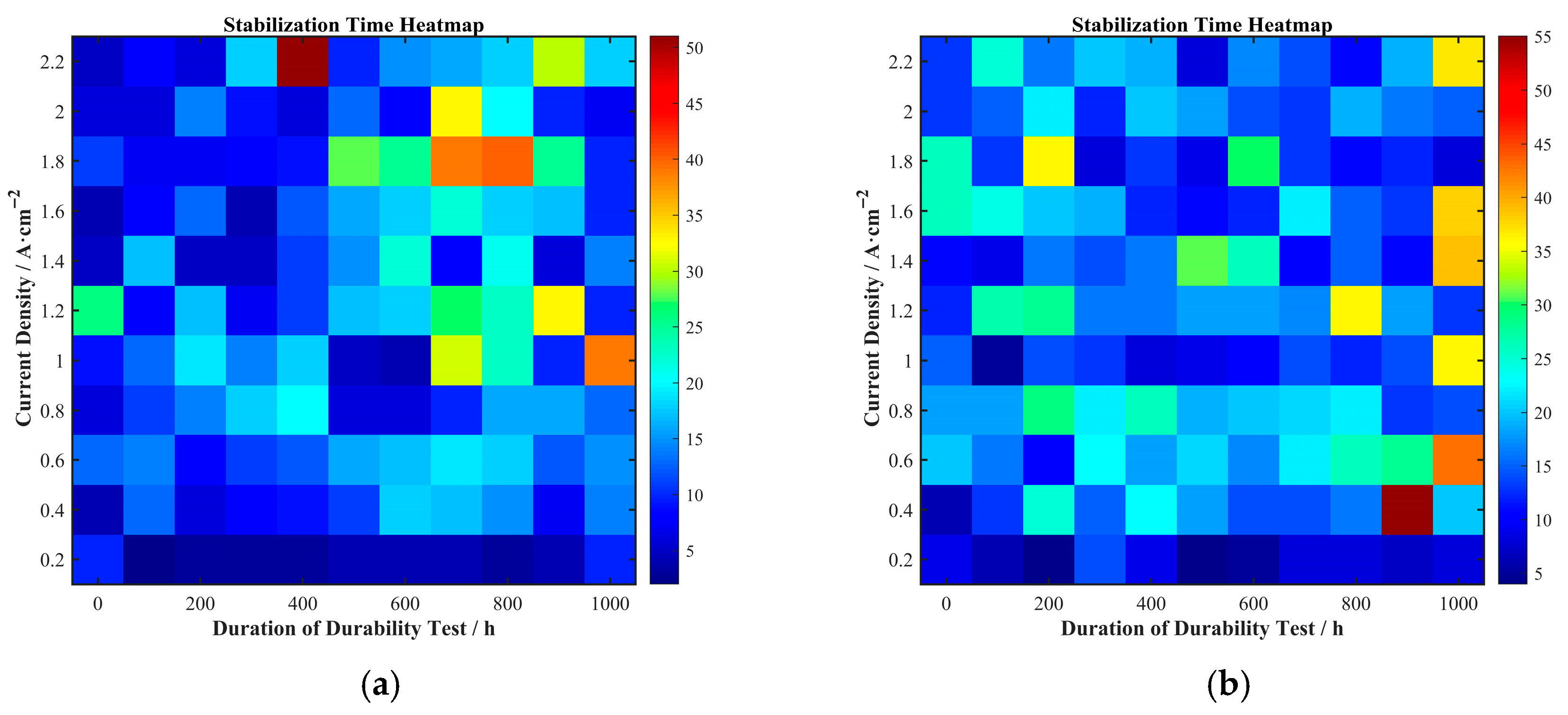

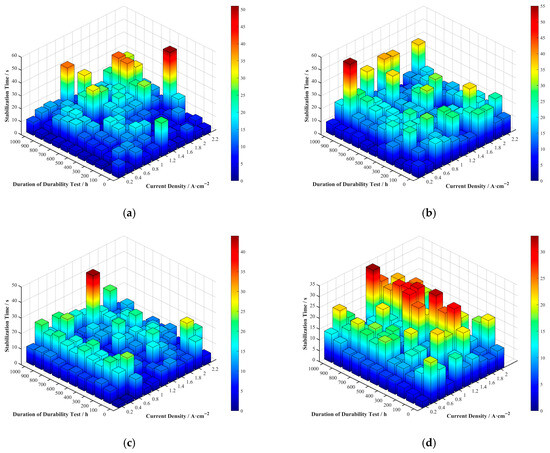

Stabilization time reflects the speed at which the fuel cell voltage recovers after a current density step and is an important parameter for measuring its dynamic response speed. The stabilization times for the four cells at various current densities and durability test durations were extracted and are shown in Figure 11 and Figure 12.

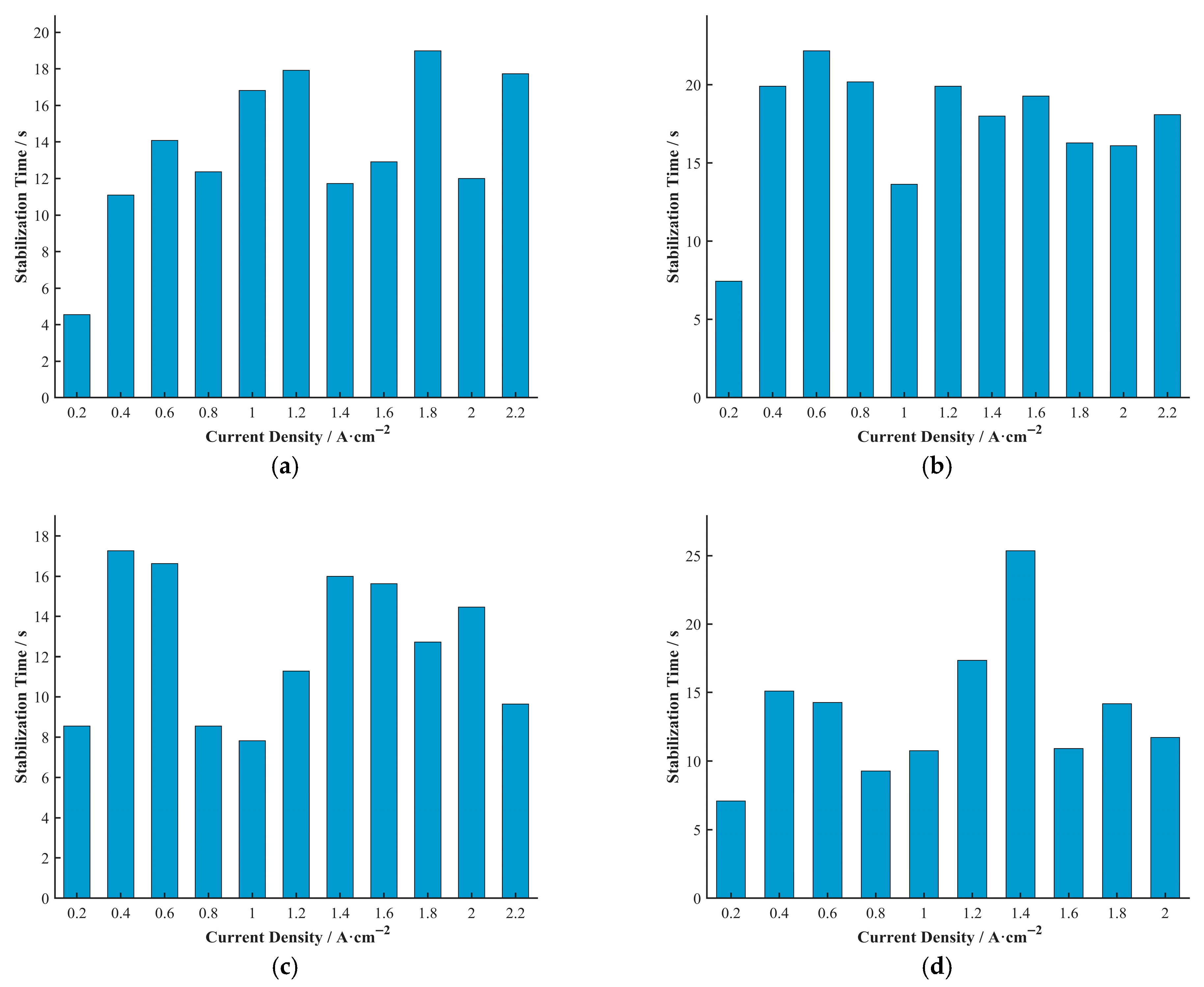

To more clearly represent the relationship between stabilization time and current density, the average stabilization time at each current density across all durability test durations was calculated, as shown in Figure 13.

Unlike the undershoot voltage, the trend of stabilization time with current density was not obvious in this study. To quantitatively substantiate this observation, a Pearson correlation analysis was performed between the stabilization time and current density for each cell. The analysis yielded low correlation coefficients (r) and high p-values for all conditions, confirming that there is no statistically significant correlation between the two variables. The calculation results are shown in

Table 4. Calculation results of Pearson correlation coefficients between stabilization time and current density for each cell.

	r-Value	p-Value
Cell A	0.584	0.059
Cell B	0.169	0.618
Cell C	0.041	0.906
Cell D	0.263	0.462

.

This may imply that within the tested current density range, the main factors affecting stabilization time are more related to the aging state and inherent mass transport characteristics of the fuel cell rather than being directly determined by the magnitude of the current density. To more clearly represent the relationship between stabilization time and durability test duration, the average stabilization time at each durability test duration across all current densities was calculated, as shown in Figure 14.

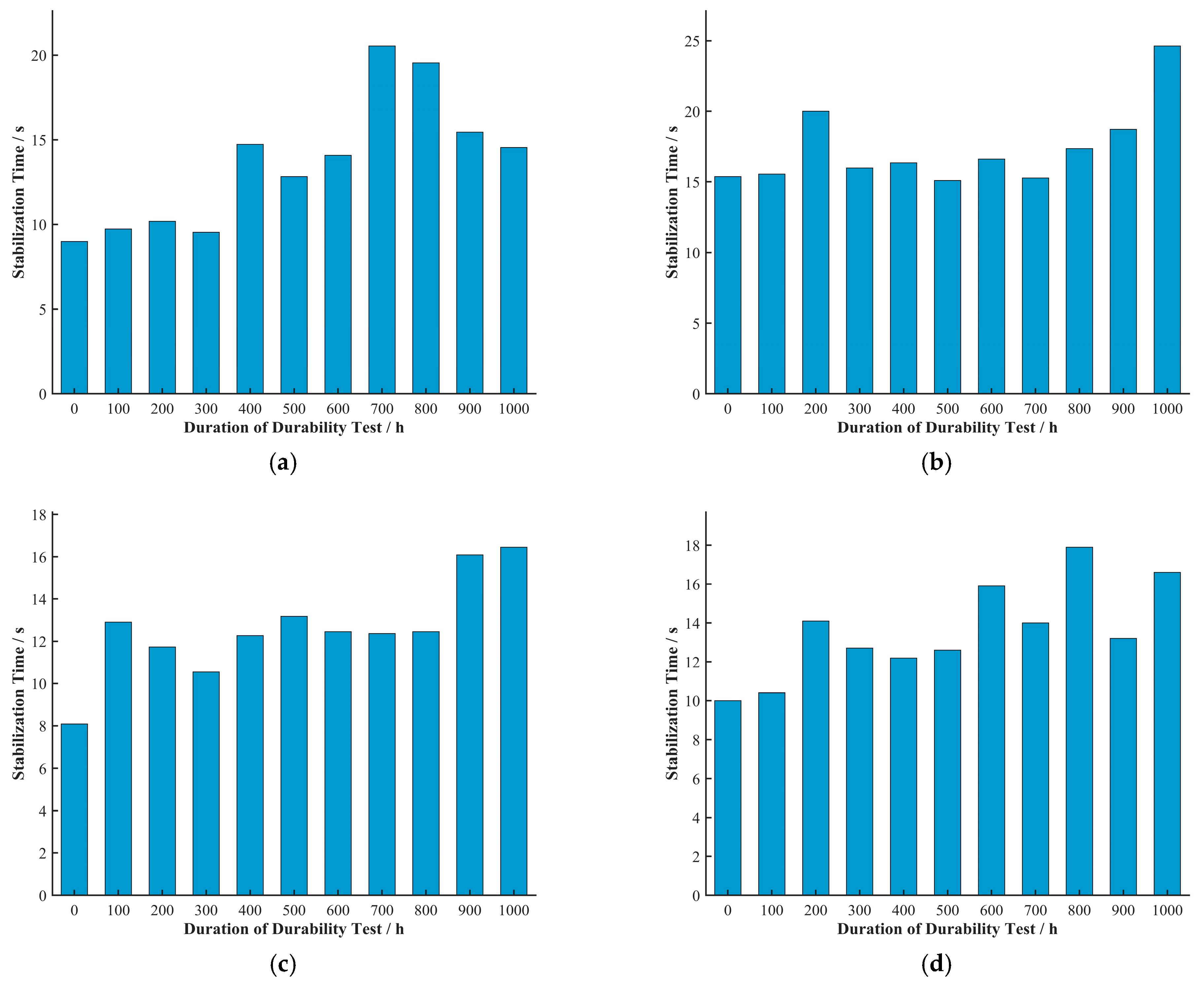

A comprehensive analysis of the data for Cells A, B, C, and D shows that the stabilization time generally tended to increase with increasing durability test duration. The largest increase in stabilization time was seen in cell C, from 8 s at the start of the durability test to 16 s after 1000 h of the durability test. This indicates that as the cells age, their voltage response speed tends to slow down during current density steps. This phenomenon can be explained by the cumulative changes that may occur inside the cell as the durability test proceeds, such as catalyst agglomeration or loss, degradation of the electrolyte membrane, or a decline in the water management capability of the gas diffusion layer and microporous layer. All of these changes can cause the speed at which reactant gases reach the catalyst active sites to lag behind the rapid changes in load demand. In particular, the deterioration of the cell’s internal water management capability can significantly hinder the rapid response and adjustment of the gas flow field during a current transition, causing the fuel and air to take longer to refill the entire flow channel and effectively penetrate to the catalyst active sites, thereby leading to an extension of the stabilization time.

The stabilization time T_s can be interpreted as the characteristic time for the system to restore reactant concentration equilibrium after a load change. If we consider a lumped gas channel–GDL–catalyst system, T_s can be approximated by:

T_s ≈ τ_g + τ_d

(3)

where τ_g is the gas delivery delay due to flow controller and channel volume, and τ_d is the effective diffusion time through the GDL and microporous layer. As durability testing progresses, degradation of the GDL (e.g., hydrophobicity loss and compression set) and catalyst layer flooding both increase τ_d, leading to longer T_s.

4. Conclusions

This study systematically analyzed the overall performance degradation of four groups of proton exchange membrane fuel cells through 1000-h durability tests, with a focus on revealing the evolution of key dynamic response parameters (undershoot voltage and stabilization time) with current density and operating time under current density step changes. The main conclusions are as follows:

(1)

Cells with stronger mass transport performance consume more reactant gases in the upstream region of the flow field during a current density step, exacerbating reactant starvation downstream and leading to a larger voltage undershoot.

(2)

Even under constant stoichiometric control with an ample supply of reactant gas, a fuel cell will experience a higher undershoot voltage during a current density step at high current densities. This is because the reactant gas supply cannot keep up with the rate of change in demand, and the supply-demand mismatch is exacerbated at higher current densities.

(3)

During the dynamic response of a fuel cell, the improvement in internal performance due to cell activation leads to a decreasing trend in the undershoot voltage.

(4)

Statistical analysis confirms that the magnitude of the current density is not a significant factor affecting the voltage stabilization time (p > 0.05 for all tested cells). Instead, the main factors are more related to the aging state and inherent mass transport characteristics of the fuel cell.

(5)

There is a correlation between the extension of the stabilization time during the dynamic response of a fuel cell and the degradation of its steady-state performance.

These findings are of significant theoretical and practical value for a deeper understanding of the dynamic behavior of fuel cells under actual operating conditions, for assessing their performance degradation, and for developing better cell management and control systems. In particular, the results provide direct guidance for the design and durability optimization of automotive proton exchange membrane fuel cells, where rapid load changes during acceleration and deceleration demand both fast dynamic response and long-term stability. The insights may also be extended to stationary backup power systems and other PEMFC applications requiring high reliability under dynamic load profiles.
