# Battery Capacity Estimation Based on Incremental Capacity Analysis Considering Charging Current Rate

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experiment Design and IC Curve Characteristic Analysis

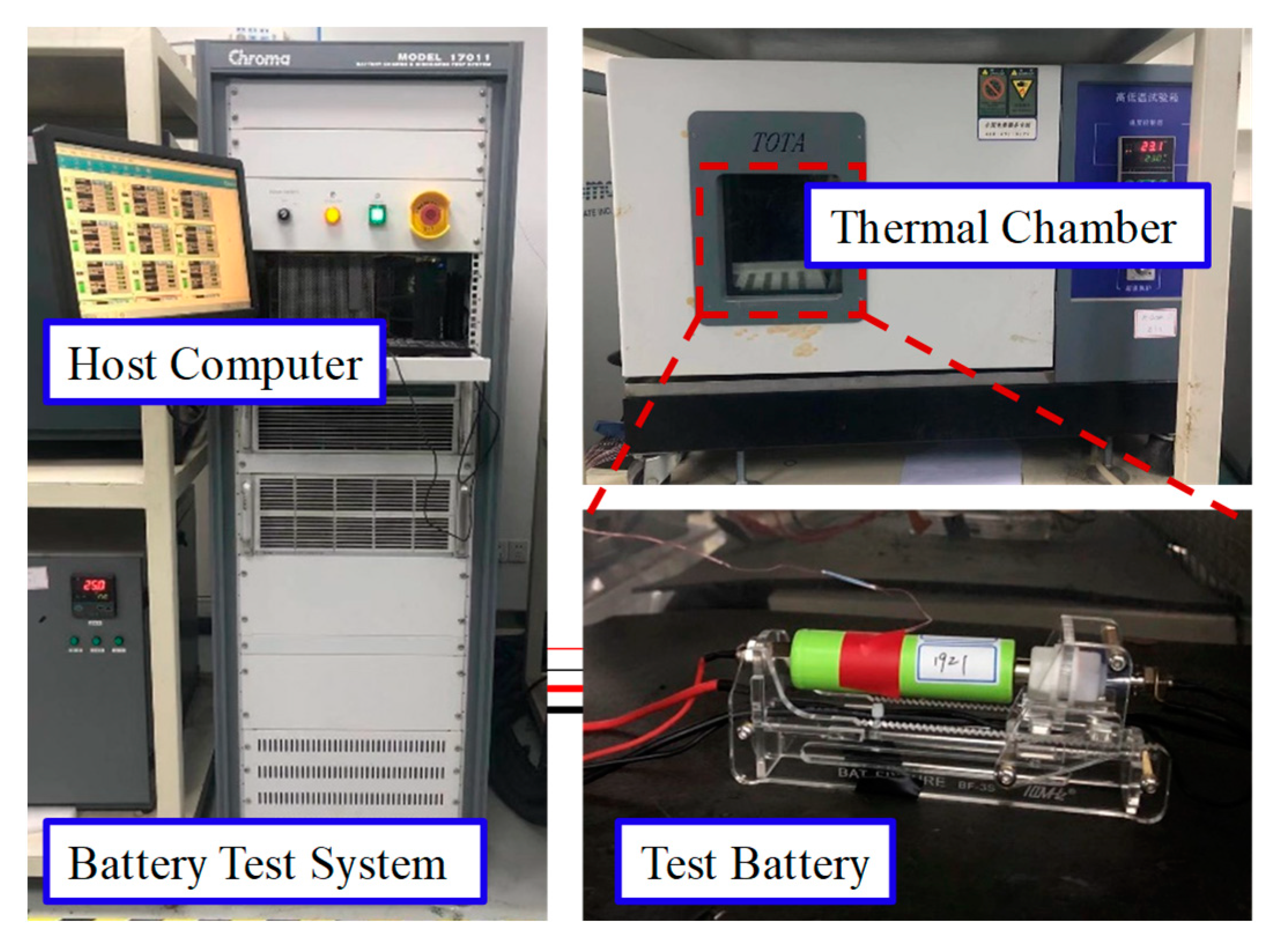

#### 2.1. Battery Experiments

#### 2.2. Battery IC Curve Characteristics with Different Current Rates

## 3. Development of Battery Capacity Estimation Considering Charging Current

#### 3.1. Capacity Estimation Based on the Fitting Method

^{2}of the coefficients of peak II and peak III are greater than 0.95, which indicates the high correlation between the coefficients and capacity. In addition, it can be found that for peak II, the value of ${\alpha}_{1}$ gradually drops as the charging current increases, while that of ${\beta}_{1}$ shows an increasing trend. The coefficients of peak III show a complete opposite change rule. From Figure 4 below, we can have a more intuitive understanding of the regular.

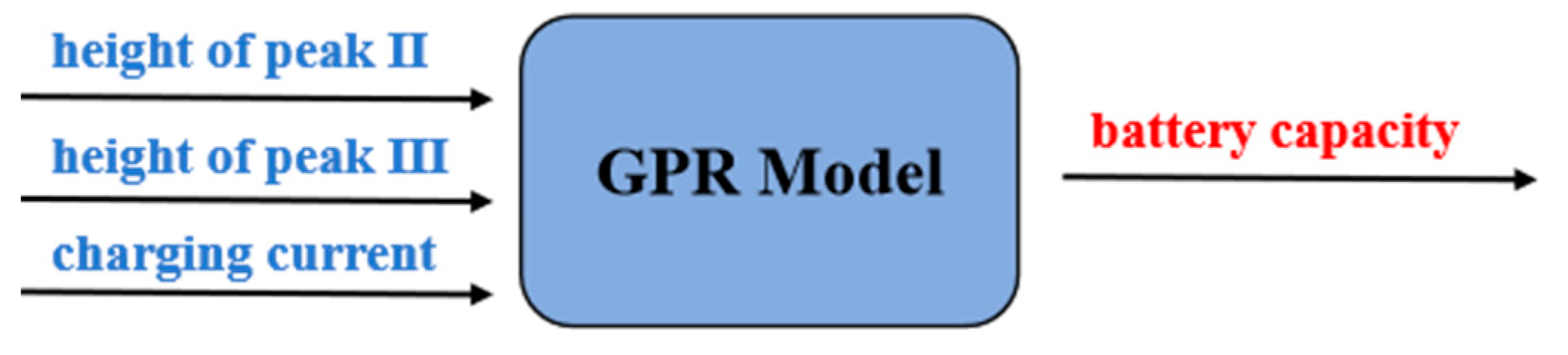

#### 3.2. Capacity Estimation Based on the Data-Driven Method

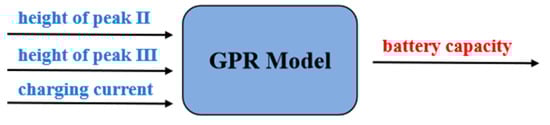

_{i}and y

_{i}represent the input and output data.

_{n}to output value y

_{n}, as written in Equation (6):

_{n}follows the Gaussian process ξ

_{n}~N(0, σ

_{n}

^{2}).

_{0}, l

_{1},… l

_{d}] denotes hyperparameter in the kernel function. Substituting Equation (7) into Equation (6), we can obtain Equation (8).

## 4. Verification Results and Discussion

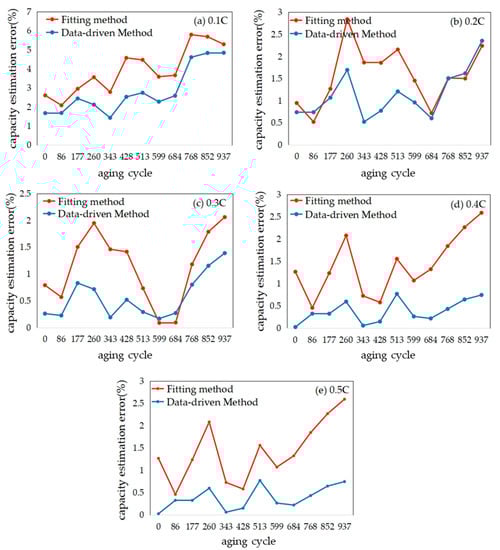

#### 4.1. Comparison of the Estimation Accuracy between the Fitting and Data-Driven Methods

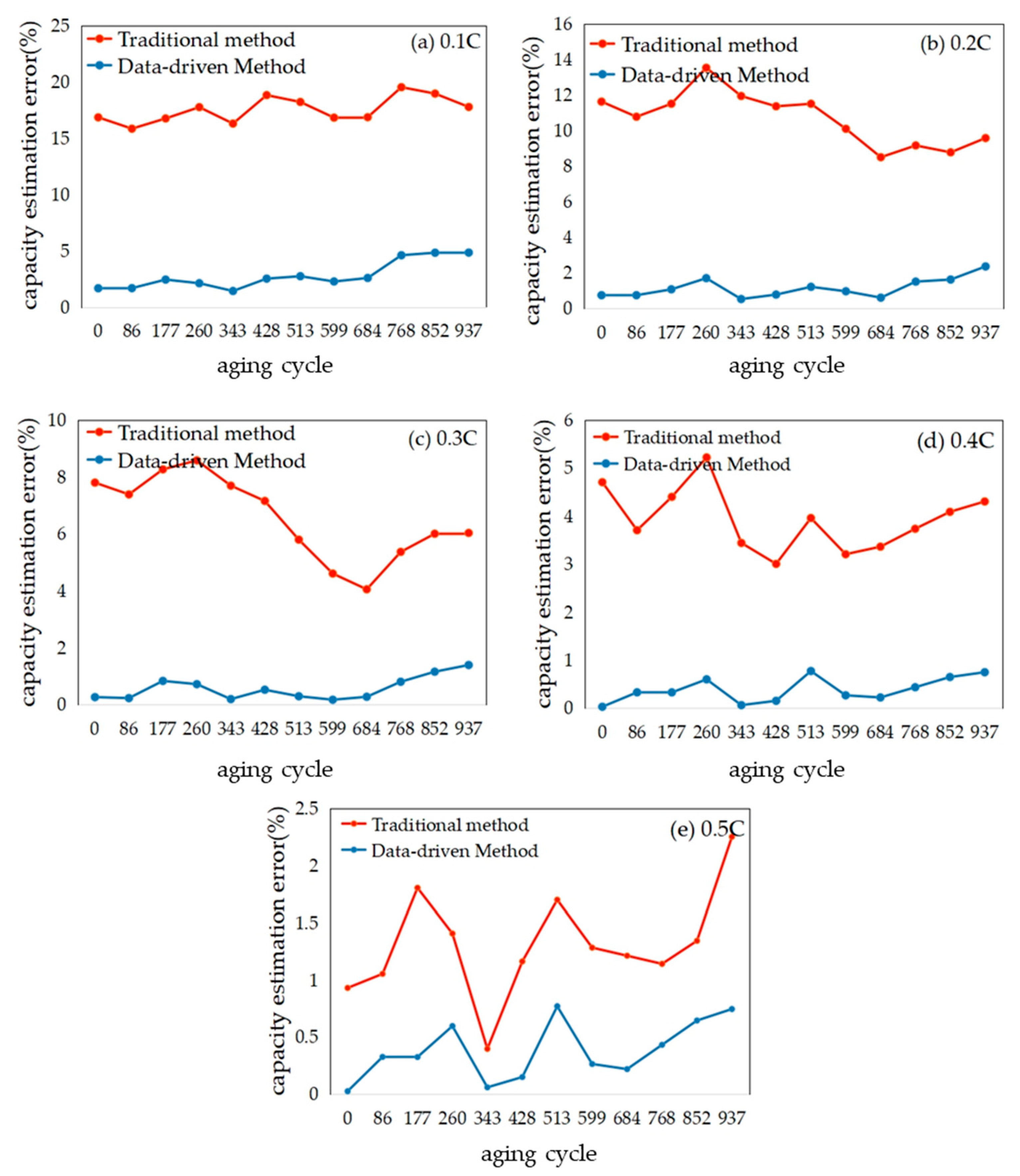

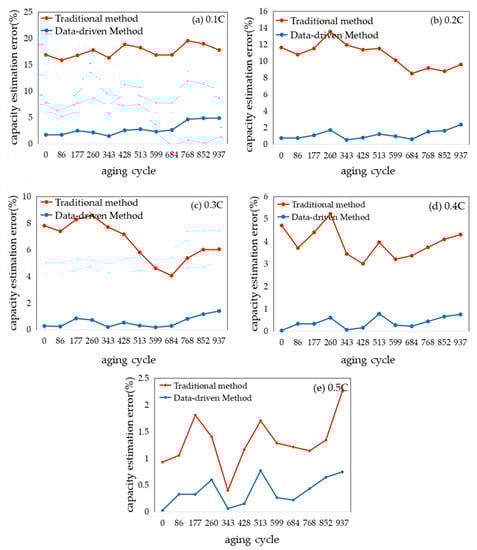

#### 4.2. Comparison of the Accuracy between the GPR Method and Traditional Method

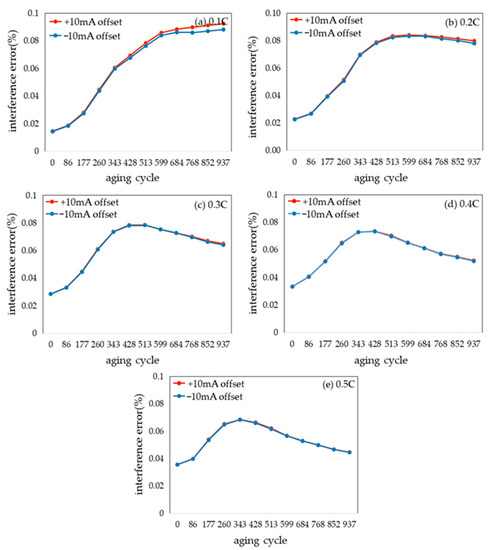

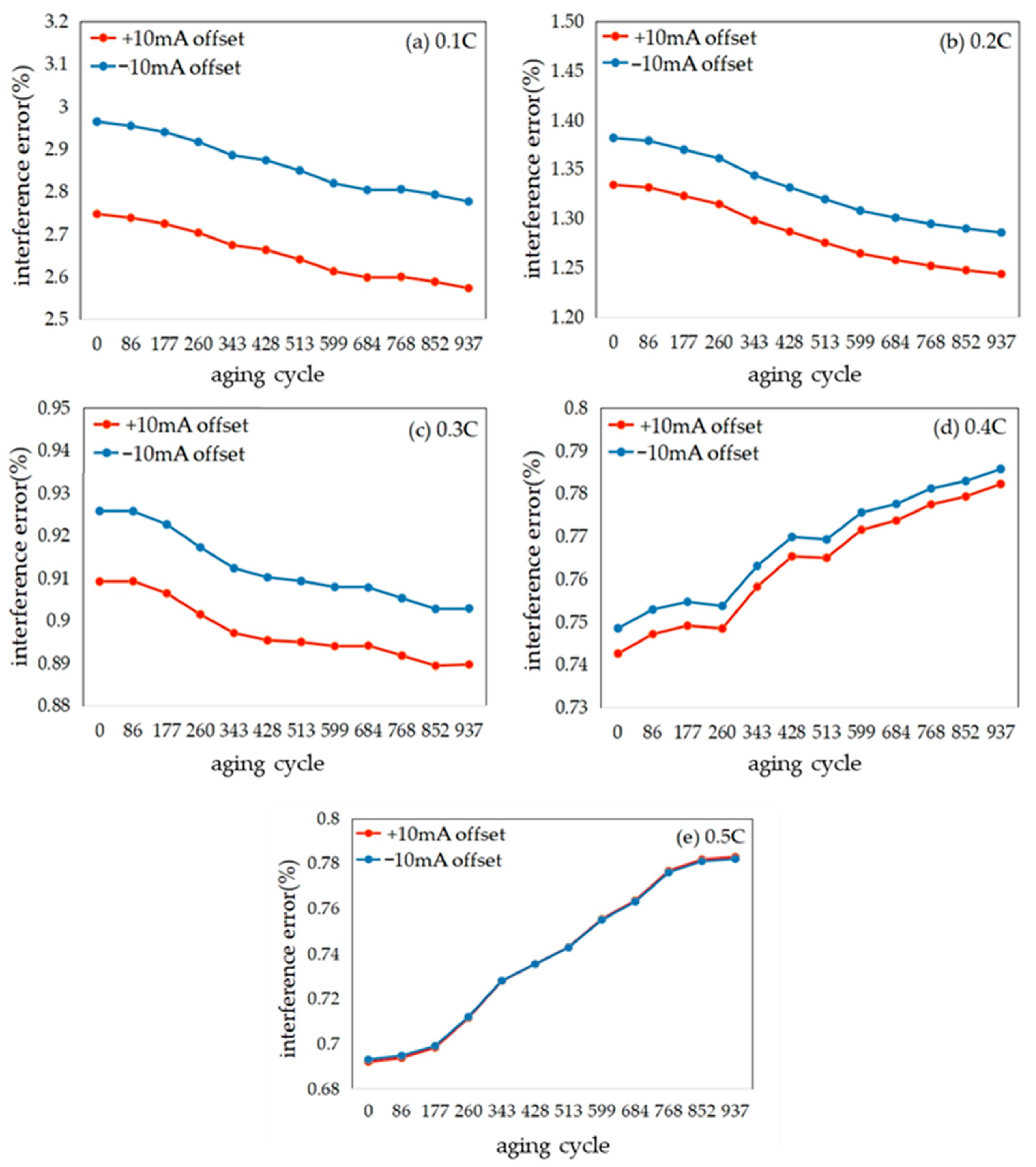

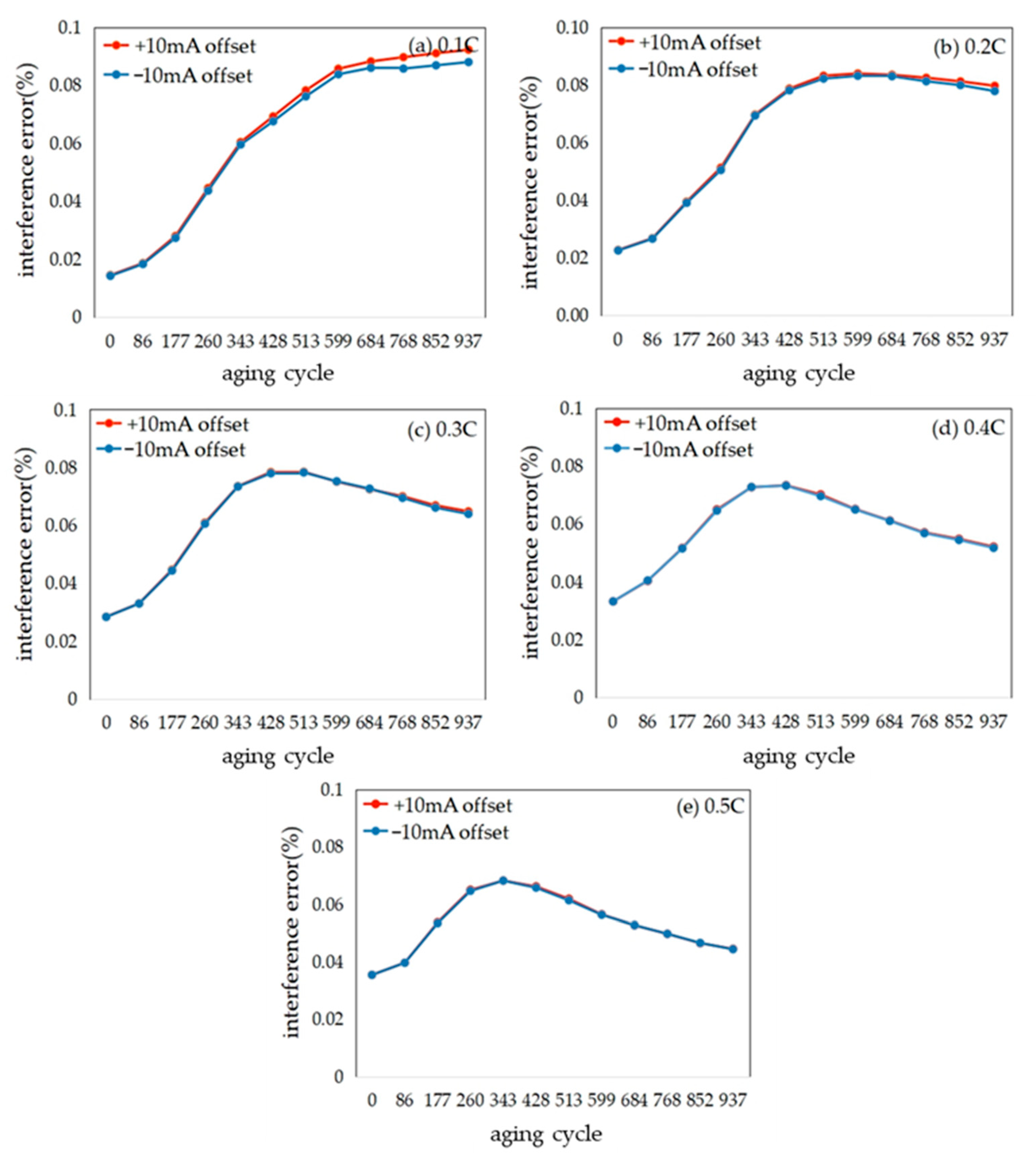

#### 4.3. The Influence of Charging Current Offset on Capacity Estimation

## 5. Conclusions

- Charging current has a significant impact on IC curves. With the decrease in the charging current, the IC curves have a moving trend to low voltage, and the height of all peaks increases, and the height of valleys decreases. In addition, the more serious the aging status of the battery, the more the IC curves of the battery will be affected by the charging current.
- The height of peak II, peak III has a strong linear relationship with the capacity degradation under all tested charging currents, which can be used in the fitting method or GPR model to build the capacity estimation model. Additionally, the data-driven method can solve the error generated from the fitting process well and is proved to have higher precision than the fitting method. The data-driven method has an accuracy improvement of up to 15.175% compared with the traditional method.
- Both methods have good robustness to the charging current interference under most working conditions. The data-driven method performs better compared with the fitting method, with an interference error under 0.1%, while that of the fitting method is up to 3%.

- In this paper, we did not consider the effect of charging temperature and initial charging SOC, which also have a severe influence on ICA. Future research work that takes these factors into consideration will be carried out to improve the accuracy on the basis of this study.
- Here, we simply use the average of the estimated results of two picked features as the final results in the fitting method, which may cause an increase in the capacity estimation error. Pearson correlation coefficient can be used to determine the weights of different features in order to optimize the estimation.
- Only the charging current smaller than 0.5 C is studied in this paper. However, fast charging is the research focus of the next-generation BMS. Hence, more work under the high charging current rate should be carried out to improve the applicability of this method.

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclature

BMS | battery management system |

ETI | equal time interval |

EVI | equal voltage interval |

GPR | Gaussian process regression |

IC | incremental capacity |

ICA | incremental capacity analysis |

KF | Kalman filter |

LAM | loss of active material |

LIBs | lithium-ion batteries |

LLI | loss of lithium inventory |

RMSE | root mean squared error |

SOC | state of charge |

SOH | state of health |

## References

- Waag, W.; Fleischer, C.; Sauer, D.U. Critical review of the methods for monitoring of lithium-ion batteries in electric and hybrid vehicles. J. Power Source
**2014**, 258, 321–339. [Google Scholar] [CrossRef] - Liu, K.; Li, K.; Peng, Q.; Zhang, C. A brief review on key technologies in the battery management system of electric vehicles. Front. Mech. Eng.
**2019**, 14, 47–64. [Google Scholar] [CrossRef] [Green Version] - Plett, G.L. Extended Kalman filtering for battery management systems of LiPB-based HEV battery packs: Part 3. State and parameter estimation. J. Power Source
**2004**, 134, 277–292. [Google Scholar] [CrossRef] - Dai, H.; Sun, Z.; Wei, X. Estimation of internal states of power lithium-ion batteries used on electric vehicles by dual extended Kalman filter. J. Mech. Eng.
**2009**, 45, 95–101. [Google Scholar] [CrossRef] - Hu, C.; Jain, G.; Zhang, P.; Schmidt, C.; Gomadam, P.; Gorka, T. Data-driven method based on particle swarm optimization and k-nearest neighbor regression for estimating capacity of lithium-ion battery. Appl. Energy
**2014**, 129, 49–55. [Google Scholar] [CrossRef] - Lai, X.; Qin, C.; Zheng, Y.; Han, X. An adaptive capacity estimation scheme for lithium-ion battery based on voltage characteristic points in constant-current charging curve. Automot. Eng.
**2019**, 41, 1–6. [Google Scholar] - Li, X.; Wang, Z.; Zhang, L.; Zou, C.; Dorrell, D.D. State-of-health estimation for Li-ion batteries by combing the incremental capacity analysis method with grey relational analysis. J. Power Source
**2019**, 410, 106–114. [Google Scholar] [CrossRef] - Jiang, B.; Dai, H.; Wei, X. Incremental capacity analysis based adaptive capacity estimation for lithium-ion battery considering charging condition. Appl. Energy
**2020**, 269, 115074. [Google Scholar] [CrossRef] - Bartlett, A.; Marcicki, J.; Onori, S.; Rizzoni, G.; Yang, X.G.; Miller, T. Electrochemical Model-Based State of Charge and Capacity Estimation for a Composite Electrode Lithium-Ion Battery. IEEE Trans. Control. Syst. Technol.
**2015**, 24, 1. [Google Scholar] [CrossRef] - Cheng, Z.; Yang, L.; Sun, X. State of charge and state of health estimation of li-on batteries based on adaptive square-root unscented kalman filter. Proc. CSEE
**2018**, 38, 2384–2393. [Google Scholar] - Deng, Z.; Yang, L.; Cai, Y.; Deng, H.; Sun, L. Online available capacity prediction and state of charge estimation based on advanced data-driven algorithms for lithium iron phosphate battery. Energy
**2016**, 112, 469–480. [Google Scholar] [CrossRef] - Wu, J.; Wang, Y.; Zhang, X.; Chen, Z. A novel state of health estimation method of Li-ion battery using group method of data handling. J. Power Source
**2016**, 327, 457–464. [Google Scholar] [CrossRef] - Shen, S.; Sadoughi, M.; Chen, X.; Hong, M.; Hu, C. A deep learning method for online capacity estimation of lithium-ion batteries. J. Energy Storage
**2019**, 25, 100817. [Google Scholar] [CrossRef] - Li, Y.; Abdel-Monem, M.; Gopalakrishnan, R.; Berecibar, M.; Nanini-Maury, E.; Omar, N.; Bossche, P.V.D.; Van Mierlo, J. A quick on-line state of health estimation method for Li-ion battery with incremental capacity curves processed by Gaussian filter. J. Power Source
**2018**, 373, 40–53. [Google Scholar] [CrossRef] - Li, X.; Jiang, J.; Wang, L.Y.; Chen, D.; Zhang, Y.; Zhang, C. A capacity model based on charging process for state of health estimation of lithium ion batteries. Appl. Energy
**2016**, 177, 537–543. [Google Scholar] [CrossRef] - Weng, C.; Feng, X.; Sun, J.; Peng, H. State-of-health monitoring of lithium-ion battery modules and packs via incremental capacity peak tracking. Appl. Energy
**2016**, 180, 360–368. [Google Scholar] [CrossRef] [Green Version] - Groot, J. State-of-Health Estimation of Li-ion Batteries: Cycle Life Test Methods. Master’s Thesis, Chalmers University of Technology, Göteborg, Sweden, 2012. [Google Scholar]
- Yazami, R.; Touzain, P. A reversible graphite-lithium negative electrode for electrochemical generators. J. Power Source
**1983**, 9, 365–371. [Google Scholar] [CrossRef] - Dubarry, M.; Liaw, B.Y. Identify capacity fading mechanism in a commercial LiFePO
_{4}cell. J. Power Source**2009**, 194, 541–549. [Google Scholar] [CrossRef] - Jia, J.; Liang, J.; Shi, Y.; Wen, J.; Pang, X.; Zeng, J. SOH and RUL Prediction of Lithium-Ion Batteries Based on Gaussian Process Regression with Indirect Health Indicators. Energies
**2020**, 13, 375. [Google Scholar] [CrossRef] [Green Version]

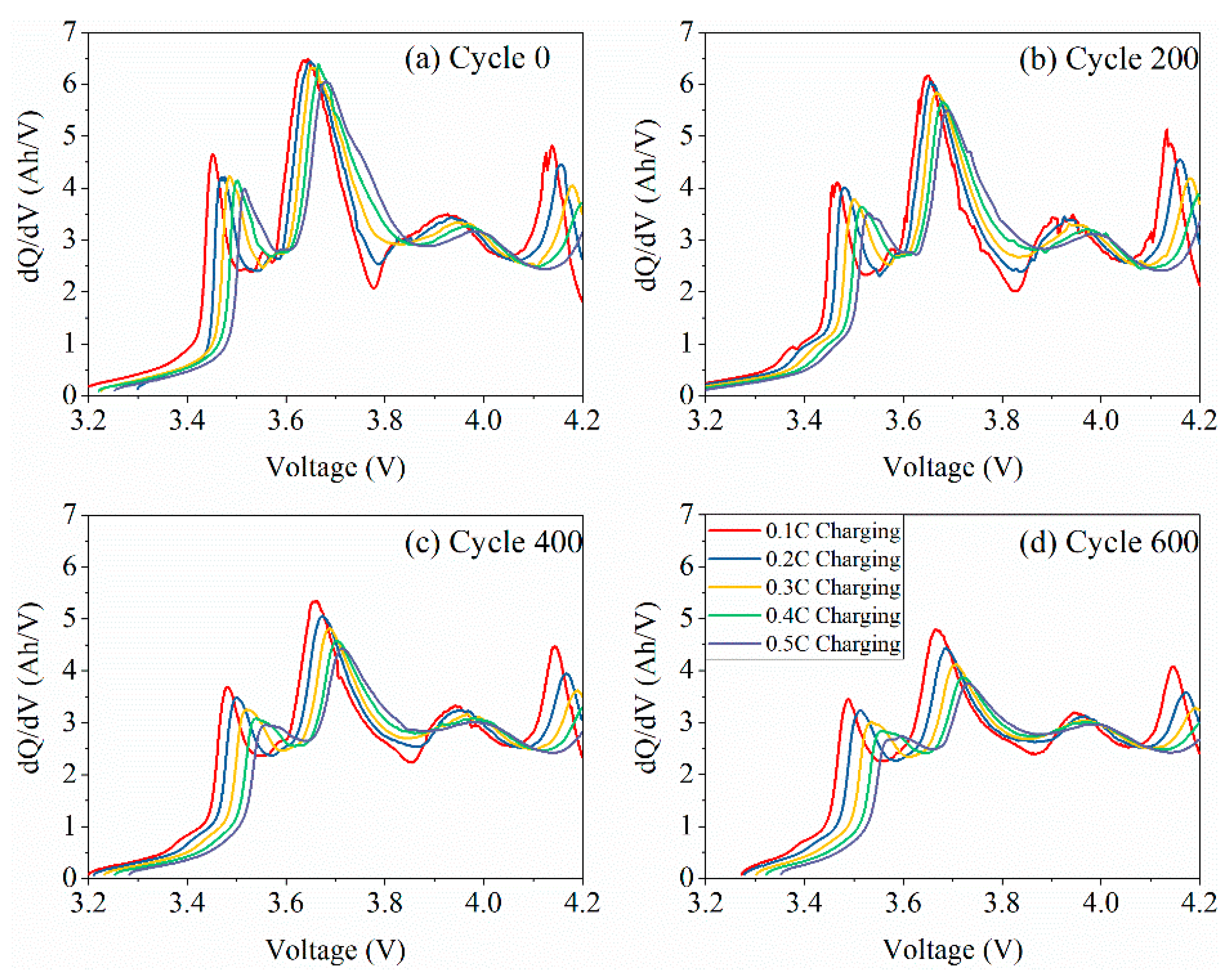

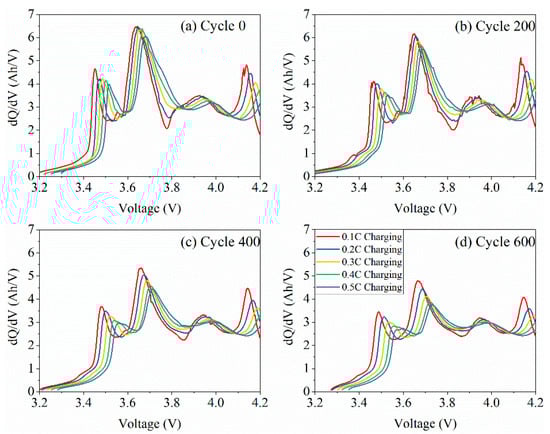

**Figure 2.**IC curves with different current rates under different aging cycles: (

**a**) cycle 0; (

**b**) cycle 200; (

**c**) cycle 400; (

**d**) cycle 600.

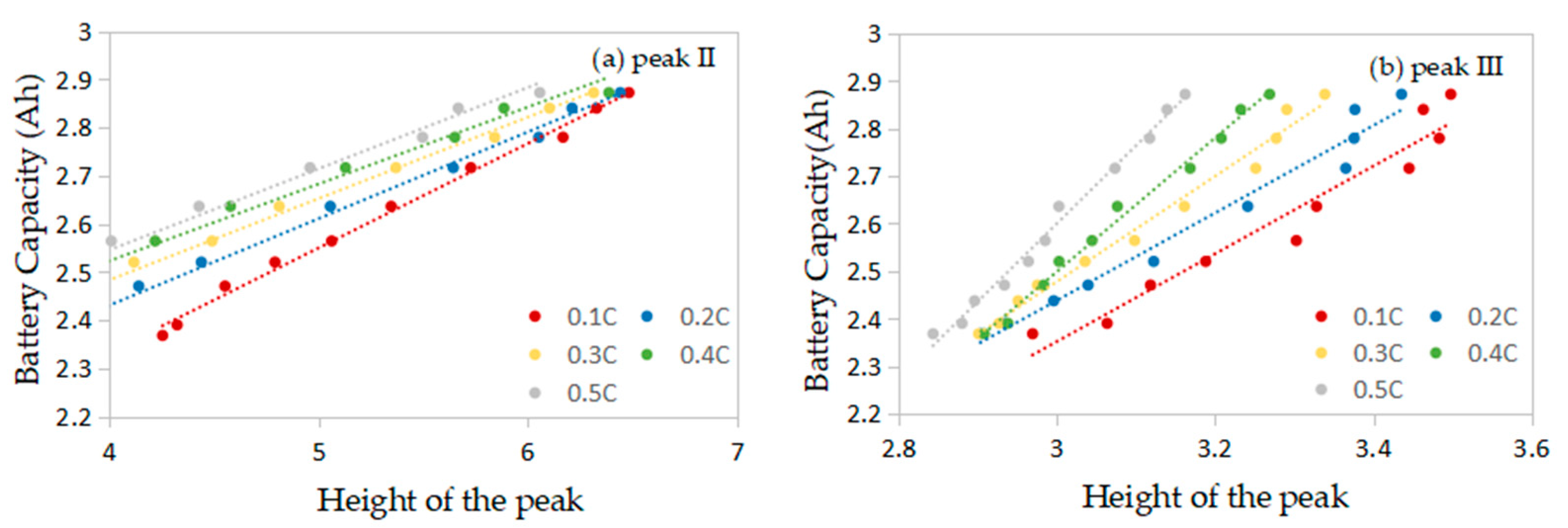

**Figure 3.**The correlation between the features of IC curves and battery capacity: (
