Polymeric Theranostics with Tetraphenylporphyrin for Effective Low-Dose Photodynamic Cancer Therapy

Abstract

Background/Objectives: Photodynamic therapy (PDT) relies on light activation of photosensitizers to generate reactive oxygen species for tumor ablation; however, limited tumor selectivity and systemic toxicity of free photosensitizers remain challenges. This study aimed to develop polymer-based nanotheranostics carrying tetraphenylporphyrin (TPPc) derivatives and to evaluate how linker structure impacts their performance. Methods: TPPc derivatives were covalently conjugated to N-(2-hydroxypropyl)methacrylamide (HPMA)-based polymers via either pH-sensitive hydrazone linkages (using aliphatic 5-hydroxy-2-pentanone or aromatic 1-(4-hydroxymethyl)phenyl)ethanone spacer) or stable amide bonds, forming amphiphilic polymer conjugates. The conjugates were characterized based on their physicochemical and in vitro and in vivo biological behavior. Results: Polymer conjugation reduced dark toxicity while preserving photodynamic activity. Linker structure influenced intracellular behavior and singlet oxygen production, with hydrazone systems showing faster activation-related responses under acidic conditions in vitro. All conjugates accumulated in tumors and induced significant tumor growth inhibition after irradiation at low doses (2.5 mg kg⁻¹ TPPc equivalent), while the amide-linked conjugate showed the strongest overall in vivo therapeutic effect, likely due to more favorable biodistribution and sustained delivery. Conclusions: The developed HPMA-based polymer–TPPc conjugates improve the therapeutic profile of photosensitizers by reducing toxicity and enabling effective PDT. These findings highlight the importance of linker design in balancing photosensitizer activation, circulation stability, and biodistribution, which together determine the overall therapeutic outcome.

1. Introduction

Photodynamic therapy (PDT) is an established treatment modality that combines a photosensitizer (PS), light, and oxygen to induce localized oxidative damage in tumor tissues. Despite its clinical potential, the broader application of PDT remains limited by the physicochemical properties of many PSs, particularly their poor water solubility, aggregation in biological media, and suboptimal pharmacokinetics. These factors reduce effective singlet oxygen generation and hinder efficient delivery to tumor tissue [1].

Porphyrins, such as derivatives of 5,10,15,20-tetraphenylporphyrin (TPP), are widely used as PSs in PDT, due to their photophysical properties, structural stability [2,3] and relatively easy synthesis [4,5]. Importantly, while some previously investigated PSs, such as zinc protoporphyrin IX or pyropheophorbide-a (PyFa), exhibit lower photocytotoxicity compared to clinically used agents like temoporfin (mTHPC), monosubstituted tetraphenylporphyrins have demonstrated comparable activity, highlighting the significant therapeutic potential of TPP-based systems in PDT [6,7,8]. These properties, together with their synthetic versatility, make TPP-based systems suitable platforms for investigating structure–activity relationships, particularly in the context of polymer-based delivery systems.

Upon light irradiation, the PS interacts with surrounding substrates or molecular oxygen generating reactive oxygen species (ROS)—such as singlet oxygen O₂(¹Δ_g)—responsible for oxidizing proteins, carbohydrates, DNA, lipids, and other biologically important molecules, causing oxidative stress and initiating biological cascades, subsequently leading to cell death [9,10,11,12]. The antitumor effect of PDT arises from a combination of direct tumor cell killing, damage to tumor vasculature, and activation of immune responses. Due to its localized activation by light, PDT enables controlled treatment of tumor tissue with limited damage to surrounding healthy structures [13,14,15]. Because these cytotoxic effects are mediated by short-lived reactive species, the therapeutic outcome of PDT critically depends on the effective delivery, availability, and activation of the photosensitizer at the target site, making its physicochemical properties and biodistribution critical factors for treatment efficacy. PDT is also limited by the hydrophobicity of many photosensitizers, their low solubility in aqueous environments, and their tendency to aggregate, which leads to self-quenching and reduced ROS generation [16,17].

Carrier platforms (with liposomes, lipid nanoparticles, oil dispersion, or polymeric nanoparticles having been reported [18]) have been widely explored to address these challenges by improving PS solubility and circulation behavior, often enhancing tumor accumulation via the enhanced permeability and retention (EPR) effect [19,20,21]. However, many reported systems rely on physical encapsulation or non-specific loading, which may lead to premature release, uncontrolled distribution, or reduced photodynamic efficiency due to aggregation. In contrast, covalent conjugation of PSs to polymer carriers offers greater control over stability and biodistribution, but introduces a new challenge: balancing sufficient stability during circulation with effective activation at the target site [22].

In this context, the design of the linker between the PS and the carrier represents a critical parameter. Linker chemistry can influence not only the release profile of the PS, but also its intracellular availability and photodynamic activity. In particular, pH-sensitive linkers such as hydrazones may enable controlled release in acidic tumor environments, whereas stable linkages such as amides can ensure prolonged retention of the PS within the carrier system. The relative contribution of these two design strategies to overall therapeutic efficacy, however, may depend on the balance between release, de-aggregation, biodistribution, and tumor accumulation.

In this work, a series of N-(2-hydroxypropyl)methacrylamide (HPMA)-based polymer–PS conjugates with systematically varied linker and spacer structures was biologically evaluated with the aim of studying the performance of developed nanomedicines during the PDT of solid tumors. Nanomedicines with TPP derivatives bearing different spacer moieties covalently attached to the polymer backbone via either pH-responsive hydrazone bonds (with aliphatic or aromatic character) or non-cleavable amide linkages were evaluated. The resulting amphiphilic conjugates formed self-assembled micellar nanosystems with high stability in aqueous environments. This design enables direct comparison between systems with distinct release behaviors, ranging from partial pH-triggered release under mildly acidic conditions to complete stability under physiological conditions. Through this approach, the influence of linker and spacer design on self-assembly, stability, release profile, and subsequent photodynamic activity was systematically evaluated. This work addresses how molecular design of the conjugate affects both PS activation and biodistribution, rather than focusing on a single determinant of efficacy. The results demonstrate that different conjugation strategies affect singlet oxygen generation and overall therapeutic outcome, with the prepared systems exhibiting significant antitumor efficacy even at low doses. These findings provide a basis for the rational design of polymer-based PDT nanomedicines. The overall concept of this work is graphically represented in Figure 1.

2. Materials and Methods

2.1. Chemicals

2,2′-azobisisobutyronitrile (AIBN), methacroyl chloride, 1-aminopropan-2-ol, 6-aminohexanoic acid, N-(3-dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (EDC), carbon disulfide, ethanthiol, sodium hydride (60% dispersion in mineral oil), 5-hydroxy-2-pentanone, 2-thiazoline-2-thiol (TT), 4,6-trinitrobenzene-1-sulfonic acid (TNBSA), 4-(dimethylamino)pyridine (DMAP), N,N-diisopropylethylamine (DIPEA), 4,4′-azobis(4-cyanovaleric acid) (ACVA), 4-(2-carboxyethylsulfanylcarbothioylsulfanyl)-4-cyanopentanoic acid (carboxyethyl-TTc-ACVA), tert-butanol (t-BuOH), N,N-dimethylacetamide (DMA), dimethyl sulfoxide (DMSO), dichloromethane (DCM), 1,4-dioxane, Tween-20, and lithium bromide (LiBr) were obtained from Merck (Prague, Czech Republic). 1-(4-hydroxymethyl)phenyl)ethanone was obtained from abcr GmbH (Karlsruhe, Germany). N-(3-Boc-aminopropyl)methacrylamide (Ma-AP-NH-Boc) was obtained from Polysciences, Inc. (Warrington, PA, USA). Methanol (MeOH), acetic acid, chloroform (CHCl₃), hydrochloric acid (HCl), N-hexane, and ethyl acetate were obtained from Lach: Ner (Neratovice, Czech Republic). Azoinitiator 2,2’-azobis(4-methoxy-2,4-dimethylvaleronitrile) (V-70) was obtained from Wako Pure Chemical Industries Ltd. (Osaka, Japan). Trifluoroacetic acid (TFA) was purchased from Iris Biotech GmbH (Marktredwitz, Germany). The spin-trapping agent, 2,2,6,6-tetramethyl-4-piperidone (TMP), was purchased from Tokyo Chemical Industry, Tokyo, Japan. Ethanol (EtOH), N,N-dimethylformamide (DMF), acetonitrile (ACN), as well as the solvent for the nuclear magnetic resonance (NMR) spectroscopy, DMSO-d₆ (99.80 atom% D), were obtained from VWR Chemicals (Leuven, Belgium). All solvents used were of analytical grade. Column chromatography was performed on silica gel (0.060–0.200 mm, 60 Å) purchased from Thermo Scientific (Brno, Czech Republic).

Acetate-TT was synthesized by means of carbodiimide chemistry from acetic acid by reaction with 2-thiazoline-2-thiol in the presence of EDC in DCM as described previously [23]. 5,10,15-triphenyl-20-(4-carboxyphenyl) porphyrin (TPPc) was synthesized using the statistic condensation method [24]. Detailed procedure describing the synthesis of initial chemicals can be found in the literature [23].

2.2. Synthesis of Monomers and CTA

HPMA was prepared as described in the literature [25]. N-(tert-butoxycarbonyl)-N′-(6-methacrylamidohexanoyl)hydrazine (Ma-Ahx-NHNH-Boc) was synthesized by two-step synthesis from Ma-Ahx-COOH, described elsewhere [26]. The trithiocarbonate chain transfer agent S-2-cyano-2-propyl-S′-ethyl trithiocarbonate (AIBN-TTc) was synthesized according to Ishitake et al. [27].

2.3. Synthesis of TPPc Derivatives (dTPPs)

Carbodiimide chemistry was used for the transformation of TPPc to its derivatives (dTPPs) for a subsequent formation of hydrazone or amide bonds with the polymer precursors P1 and P2, respectively. TPPc, EDC, DMAP, and either 5-hydroxy-2-pentanone or 1-(4-hydroxymethyl)phenyl)ethenone were mixed for the preparation of derivatives D1 with aliphatic spacer or D2 with aromatic spacer, respectively. For the preparation of derivative D3, the carboxylic group of TPPc was transformed into a more reactive 2-thiazoline-2-thiol amide by dissolving TPPc, along with EDC, 2-thiazoline-2-thiol, and DMAP. The preparation of derivatives D1–D3 was carried out in DCM under continuous stirring in the dark at room temperature. The synthesis was described in more detail previously [23]. The reactions were monitored using thin-layer chromatography (TLC) on TLC Silica gel 60 F₂₅₄ (Merck, Czech Republic) with hexane/ethyl acetate 2/1 (v/v) as a mobile phase, and silica gel (60 Å) column chromatography was used to purify the products with a gradient of hexane/ethyl acetate from 7/1 to 1/1 (v/v). Compounds D1–D3 were characterized by ¹H NMR and matrix-assisted light desorption/ionization (MALDI) analysis [23]. The dried droplet method was used to prepare samples in DCM for MALDI measurements. The spectra were acquired with an UltrafleXtreme TOF mass spectrometer (Bruker Daltonics, Bremen, Germany) equipped with a 2000 Hz smartbeam-II laser (355 nm) in a positive ion reflection mode. The detailed reaction schemes are shown in Figure 2A.

2.4. Synthesis of Polymer Precursors

Radical reversible addition–fragmentation chain transfer (RAFT) polymerization was used for the synthesis of both polymer precursors: P1 p(HPMA-co-Ma-Ahx-NHNH₂) with hydrazide groups and P2 p(HPMA-co-Ma-AP-NH₂) with amine groups alongside the main chain.

For P1, HPMA and Ma-Ahx-NHNH-Boc monomers were dissolved in 80/20 (v/v) t-BuOH/DMA mixture with 95/5 molar ratio, in the presence of V-70 initiator and AIBN-TTc CTA and left to polymerize for 72 h at 30 °C. The monomers/CTA/initiator molar ratio was set at 225/1/0.5. Polymer precursor P2 was prepared by dissolving HPMA and Ma-Ap-NH-Boc with ACVA initiator and carboxyethyl-TTc-ACVA CTA. The reaction was carried out in a distilled water/1,4-dioxane mixture (2/1) at 70 °C for 7 h. The ratio of monomers HPMA/Ma-Ap-NH-Boc was 96/4 and the monomers/CTA/initiator ratio was 225/1/0.5. CTA end-group removal was carried out by reaction of polymers with an excess of AIBN at 80 °C for 3 h [28]. Functional hydrazide (P1) or amine (P2) groups were thermally deprotected in Q-water [29]. Final polymer precursors P1 and P2 were obtained by lyophilization. Content of functional groups was determined using UV/VIS spectrophotometry. The characterization of both P1 and P2 polymer precursors is summarized in

Table 1. Physicochemical characterization of HPMA precursors.

Precursor	Mn (g mol−1) a	Mw (g mol−1) a	Рa	DH a ± SD (nm)	Functional Group	Content of Func. Group (mol.%)
P1	34,600	36,400	1.05	9.5 ± 0.3	Hydrazide	4.5
P2	36,120	39,300	1.09	7.4 ± 0.1	Amine	4.0

^a M_n is the number-average molecular weight; M_w is the weight-average molecular weight; Đ is the dispersity; D_H is the hydrodynamic diameter measured by DLS.

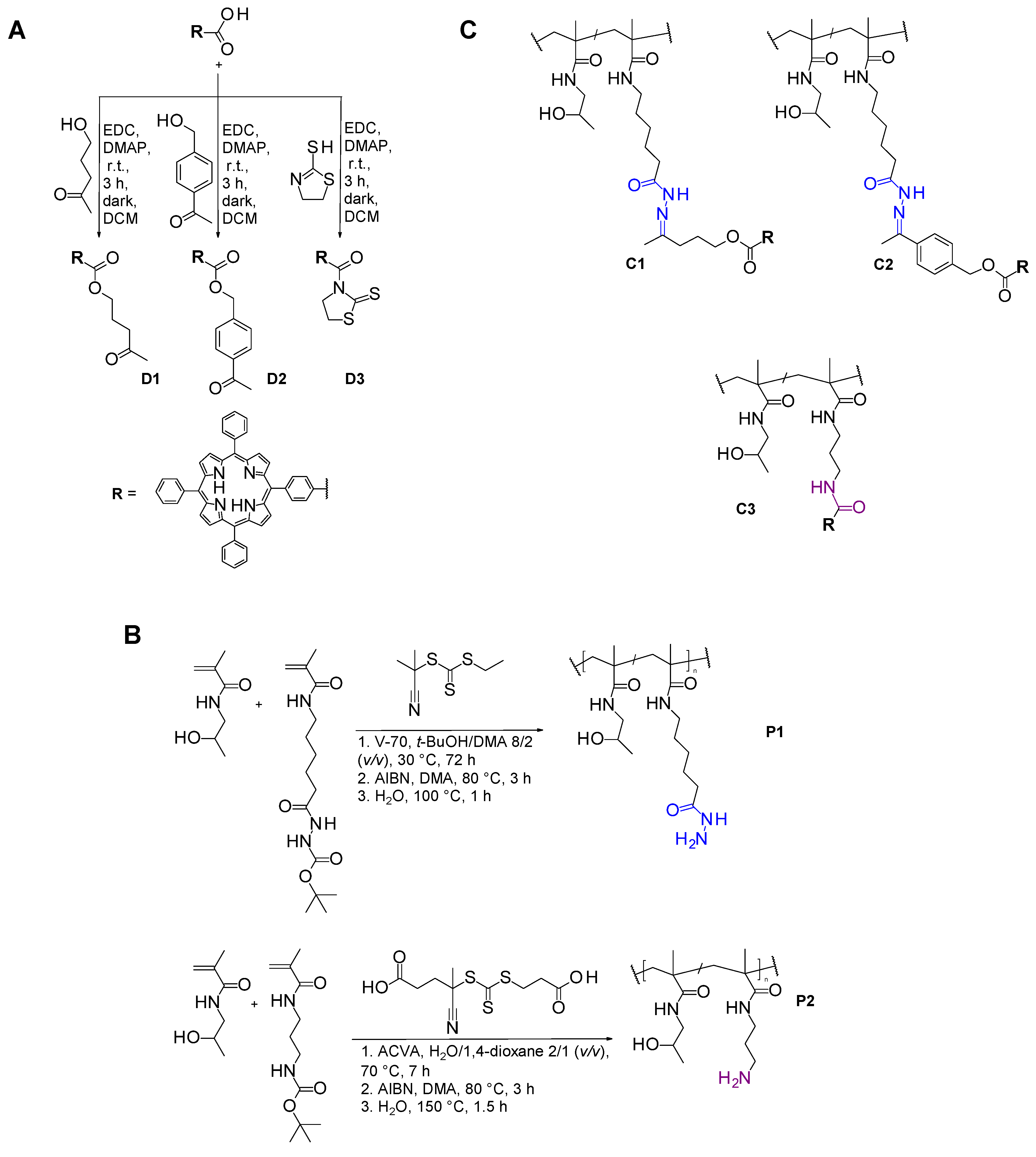

. The detailed synthetic scheme is depicted in Figure 2B. The detailed procedure of polymer precursor preparation and characterization are described elsewhere [23].

2.5. Synthesis of Polymer Conjugates

Polymer precursor P1 with -NHNH₂ groups was used for the attachment of D1 and D2, yielding polymer conjugates with degradable hydrazone bonds, C1 and C2, with an aliphatic and aromatic spacer, respectively. Polymer precursor P1 with either D1 or D2 derivative were dissolved in MeOH/DMA 8/2 (v/v) in the presence of acetic acid and the reaction mixture was left overnight in the dark at room temperature under continuous stirring. Detailed synthesis was described previously [23].

Polymer precursor P2 with -NH₂ groups was used for the attachment of D3, in the presence of DIPEA, resulting in a conjugate with a stable amide bond. Due to residual potentially cytotoxic -NH₂ groups, part of the stable conjugate was left as it was (C3WA, with residual amines) and the rest was reacted with an excess of acetate-TT for their effective protection. The resulting protected material is denoted as C3 [23]. The cytotoxicity caused by residual amine groups (C3WA vs. C3) was evaluated (Figure S2). All further experiments were carried out with C3 with protected amine groups.

The purification procedure, analogous for all conjugates, involved repeated precipitation into ethyl acetate/CHCl₃ 5/2 (v/v) mixture followed by filtration, washing of the precipitate with ethyl acetate/diethyl ether 1/1 (v/v) mixture, and drying under vacuum. Purity of the conjugates was evaluated by TLC using hexane/ethyl acetate 2/1 (v/v) as a mobile phase and by size exclusion chromatography. The structure of the conjugates and the reaction schemes are presented in Figure 2C.

2.6. Dynamic Light Scattering (DLS)

Dynamic light scattering (Zetasizer Ultra, Malvern Panalytical, Worcestershire, UK) was used for determination of hydrodynamic diameters (D_H) of polymer precursors P1 and P2 and polymer conjugates C1–C3 at λ = 632.8 nm and θ = 173°, with the refractive index set as 1.59. The Zetasizer “ZS XPLORER” 4.0.0 software was used for data evaluation. A fluorescence filter was applied during the measurement of the conjugates. Hydrodynamic diameters were measured in Q-water (refractive index 1.33) with a concentration of 3.0 mg mL⁻¹ for P1 and P2 and in phosphate buffer of pH 7.4 /EtOH 5% (v/v) (refractive index 1.22) with a concentration of 1.0 mg mL⁻¹ for C1–C3. DLS was also used to evaluate the changes in D_H of conjugates upon release of dTPPs. The measurement was performed in PB of pH5.0/DMSO (5% (v/v)) with a concentration of 2.0 mg mL⁻¹ using fluorescence filters.

2.7. Size Exclusion Chromatography (SEC)

Size exclusion chromatography was used for the determination of number-average molecular weight (M_n), weight-average molecular weight (M_w), and dispersity (Đ) of polymer precursors P1 and P2 as well as for the determination of the purity of C1–C3 conjugates. An HPLC Shimadzu system equipped with a refractometric detector (Optilab, Wyatt, Dernbach, Germany), a photodiode array UV-VIS detector (SPD-M40, Shimadzu, Kyoto, Japan) and an 8-angle light scattering detector (DAWN, Wyatt, Germany) was used. The analysis was performed with DMF + LiBr (10 mM) as a mobile phase on a series of PSS Gram columns (Agilent Technologies, Mainz, Germany) with a flow rate of 1.0 mL min⁻¹. Measured data were analyzed by ASTRA 8.1 (Wyatt) software and LabSolutions 5.106 (Shimadzu). The refractive index increment dn/dc was set at approximately 0.1 mL g⁻¹.

2.8. UV-VIS Spectrophotometry

UV/VIS spectrophotometry (JENWAY 7415 nano, P-Lab, Prague, Czech Republic) was used for the determination of the molar content of -NHNH₂ and -NH₂ groups alongside the polymer chain of P1 and P2 according to the 2,4,6-trinitrobenzene-1-sulfonic acid (TNBSA) assay method, described elsewhere [30]. The amount of bound porphyrin (wt. %) was determined in a MeOH/DMA (8/2) (v/v) mixture for C1 and C2, and DMSO for C3, by using the molar absorption coefficients at λ = 416 nm as follows: 393,900 M⁻¹ cm⁻¹ for D1, 426,300 M⁻¹ cm⁻¹ for D2, and 311,700 M⁻¹ cm⁻¹ for TPPc.

2.9. NMR

For the characterization of TPP derivatives, ¹H NMR spectra were recorded using a Bruker Avance Neo 400 spectrometer (Mannheim, Germany). The spectrometer frequency was set at 400 MHz or 600 MHz, with a 90° pulse width of 16.5 μs, a relaxation delay of 10 s, and an acquisition time of 3.28 s. The number of scans was set to 32. Samples (5.0 mg) were dissolved in the appropriate deuterated solvent (550 μL of DMSO-d6). Spectral evaluation was performed using TopSpin 4.1.3 software. D1: ¹H NMR (600 MHz, 295 K, DMSO-d6): δ = 9.02–7.65 (m, 27 H, Ar), 4.43 (t, 2 H, J = 6.3 Hz, -OCH₂CH₂-), 2.75 (t, 2 H, J = 7.0 Hz, -CH₂CH₂C(O)-), 2.18 (s, 3 H, -CH₃), 2.04 (p, 2 H, J = 6.7 Hz, -CH₂CH₂CH₂-), and −2.93 (s, 2 H, -NH-) ppm. D2: ¹H NMR (600 MHz, 295 K, DMSO-d6): δ = 9.03–7.63 (m, 31 H, Ar), 5.62 (s, 2 H, -CH₂-), 2.62 (s, 3 H, -CH₃), and −2.93 (s, 2 H, -NH-) ppm. D3: ¹H NMR (400 MHz, 300 K, DMSO-d6): δ = 9.12–7.61 (m, 27 H, Ar), 4.70 (t, 2 H, J = 7.1 Hz, -CH₂CH₂-), 3.73 (t, 2 H, J = 7.1 Hz, -CH₂CH₂-), and −2.92 (s, 2 H, -NH-) ppm.

2.10. Release of dTPP from the pH-Degradable Hydrazone Conjugates (C1 and C2)

The release of dTPP was carried out by incubating C1 and C2 containing pH-degradable hydrazone bonds in 0.1 M PB solutions of pH 5.0 and 7.4 at 37 °C. DMSO 5% (v/v) was added for better dissolution. At each chosen timepoint, an aliquot of the sample was rigorously shaken with CHCl₃ to extract the released dTPP. CHCl₃ was then evaporated, and dTPP was redissolved in DMF and analyzed by a HPLC LC10 system, equipped with an SPD-M20A detector (Shimadzu, Japan) and COSMOSIL 5C4-AR-300 column (Nacalai Tesque, INC. Kyoto, Japan). Water/ACN 95/5 with 0.1% TFA and DMF/ACN 50/50 with 0.1% TFA were used as an eluent with a 50–100% gradient at a flow rate of 2.5 mL min⁻¹.

Calibration curves using the relative area of peaks (absorption maximum at λ = 416 nm) corresponding to different concentrations of dTPPs were analyzed in triplicate, and used later for the calculation of the released amount of dTPPs. The release was expressed relatively to the total dTPP content in the particular conjugate. The theoretical maximal amount of dTPP, calculated based on the dTPP’s content and the calibration curve, agreed with released dTPP after 4 h incubation at pH 1.7.

2.11. Determination of Changes in Micellar Size

The effect of dTPP release from conjugates C1–C3 on the hydrodynamic diameter of micelles was evaluated by incubating the conjugates at 37 °C with a concentration of 2.0 mg mL⁻¹ in 0.1 M PB of pH 5.0. After 4 h, 24 h, and 48 h, the incubated samples were filtered with 0.22 μm PVDF filter and their D_H was measured by DLS. A fluorescence filter was used during the measurement.

2.12. Fluorescence Spectroscopy Measurements

The fluorescence emission spectra were recorded on a spectrofluorometer JASCO FP-6200 (Tokyo Japan) and processed with Spectra ManagerTM software. The conjugates were dissolved in PB of pH 7.4, containing 5% (v/v) of DMSO, and TPPc was measured in DMSO for comparison. To determine the effect of the dTPP release, conjugates were incubated at 37 °C for 24 h in PB of pH 5.0 (with 5% DMSO (v/v)), in the presence of 0.1% SDS (w/v). The solutions, prepared in concentrations equivalent to 5.0 μg mL⁻¹ of TPPc, were excited at 514 nm, and the emission spectra within the 550–800 nm region were recorded. More in depth evaluation can be found in our previous study [23].

2.13. In Vitro Cytotoxicity

The cytotoxicity of free TPPc and conjugates C1–C3 was evaluated on mouse colon cancer C26 cells. Cells were cultivated in RPMI-1640 with 10% fetal bovine serum in phosphate-buffered saline (PBS, Nichirei Biosciences INC., Tokyo, Japan) at 37 °C under 5% CO₂. Measurement was conducted in 96-well plates (each group consisted of 8 wells) with 5000 cells per well. After 24 h of incubation, TPPc or conjugates C1–C3 were added at different concentrations. After 24 h of treatment, the media were removed and cells were washed several times by PBS and poured over with fresh medium. Irradiation was carried out for 5 min with a blue light at 420 nm (TL-D; Philips, Eidhoven, The Netherlands) and 1.0 J cm⁻². After another 24 h, the viability of cells was quantified by MTT assay [31].

2.14. Intracellular Uptake

An intracellular uptake study was conducted on mouse colon cancer C26 cells. A total of 50,000 cells were cultivated in 16-well plates (each group consisted of 4 wells). After 12 h of incubation, conjugates C1–C3 in PBS or free TPPc dissolved in DMSO were added to the cells at a concentration equivalent to 25 µg mL⁻¹ TPPc. At predetermined timepoints, the drug-containing medium was removed, and cells were washed twice with PBS. Cells were then lysed using 1 mL of lysis buffer (4 N HCl in 70% EtOH) and heated at 70 °C for 15 min. The lysate was centrifuged at 15,000 rpm for 3 min, and the supernatant was collected for fluorescence measurement. Fluorescence emission was recorded at 650 nm with excitation at 416 nm using a multi-mode plate reader (Infinite M200 Pro, TECAN, Kawasaki, Japan).

2.15. Electron Spin Resonance Spectroscopy (ESR) for Singlet Oxygen Production

The generation of singlet oxygen, O₂(¹Δ_g), by conjugates C1–C3 upon light irradiation was analyzed by evaluating the ESR spectra of solutions containing the conjugates along with TMP, a spin trap selective for O₂(¹Δ_g). The data were collected on ESR spectrometer JES FA-100 (JEOL, Tokyo, Japan) at 25 °C. Sample solutions containing conjugates (equivalent to 40 μg mL⁻¹ of TPPc) were dissolved in 100 mM sodium PB with a pH of 5.0, with the addition of 0.1% Tween-20 or 50% DMSO and 20 mM of TMP. The samples were placed in flat quartz cells (Labotec, Tokyo, Japan) and irradiated using xenon light source MAX-303 (90 mW cm⁻², 400–700 nm) (Asahi Spectra, Tokyo, Japan) for 300 or 150 s. The ESR spectrometer was typically set to a microwave power of 1.0 mW, an amplitude of 100 kHz, and a field modulation width of 0.1 mT.

2.16. In Vivo Biodistribution and PDT of Polymer Conjugates

Six-week-old male ddY mice were obtained from SLC (Shisuoka, Japan). All animals were housed under controlled conditions at 22 ± 1 °C with 55 ± 5% relative humidity and a 12 h light/dark cycle. All experiments were approved by the animal ethics committees (approved on April 1, 2014, no. 2024-P-005) and conducted in accordance with the Laboratory Protocol for Animal Handling of Sojo University. The endpoint of the experiment was governed by the tumor volume (up to ~2000 mm³). The mice were sacrificed by euthanasia using isoflurane.

Mouse sarcoma S180 cells (2 × 10⁶), maintained through weekly passages in mouse ascites, were subcutaneously implanted into the dorsal skin of ddY mice to establish the S180 solid tumor model. For the body distribution study, when tumors reached a diameter of approximately 10–12 mm, the mice were randomly grouped, with each group consisting of 4 mice, which, based on our experience, was sufficient to obtain statistically significant data while minimizing animal use. Mice with tumor sizes smaller than 10 mm or larger than 12 mm were excluded from this study. To minimize potential confounders, all mouse cages were placed in the same position on the shelf, and the mice were numbered according to the order of injection.

The conjugates, dissolved in physiological saline, were injected via i.v. into the tail vein at a dose of 2.5 mg kg⁻¹ (equivalent to TPPc). After 24 h, the hair of mice around the tumor was shaved and, under anesthesia with isoflurane gas, the mice were subjected to in vivo fluorescence imaging using an IVIS XR (Caliper Life Science, Hopkinton, MA, USA) with excitation of 640 nm and emission of 695–770 nm. Then, the mice were sacrificed, tumors and other normal tissues were collected and subjected to ex vivo imaging, and the fluorescence intensity of each tissue/organ was quantified.

For the in vivo PDT study, when tumors reached a diameter of approximately 6–8 mm, the mice were randomly grouped, with each group consisting of 4 mice, to which different conjugates of indicated concentrations (1.25 or 2.5 mg kg⁻¹, equivalent to TPPc) were administered intravenously. Then, 24, 48 or 72 h after the injection, the tumors were exposed to a xenon light (400–700 nm, 90 mW cm⁻², MAX-303; Asahi Spectra, Tokyo, Japan) for 5 min at 24, 48, and 72 h post-injection. In some experiments, an additional irradiation 1 week after the drug administration was performed. Mice receiving i.v. injection of physiological saline were used as control. Tumor growth was monitored every 2 to 3 days by measuring the tumor size with a caliper. Tumor volume (V) was calculated using the formula V = (W² × L)/2, where L represents the longitudinal cross-section and W represents the transverse section.

2.17. Statistical Evaluation

All results were presented as mean ± SD. Student’s t-tests were conducted to evaluate differences between two groups. Analysis of variance was performed for significance testing. The difference was considered statistically significant when p < 0.05.

3. Results and Discussion

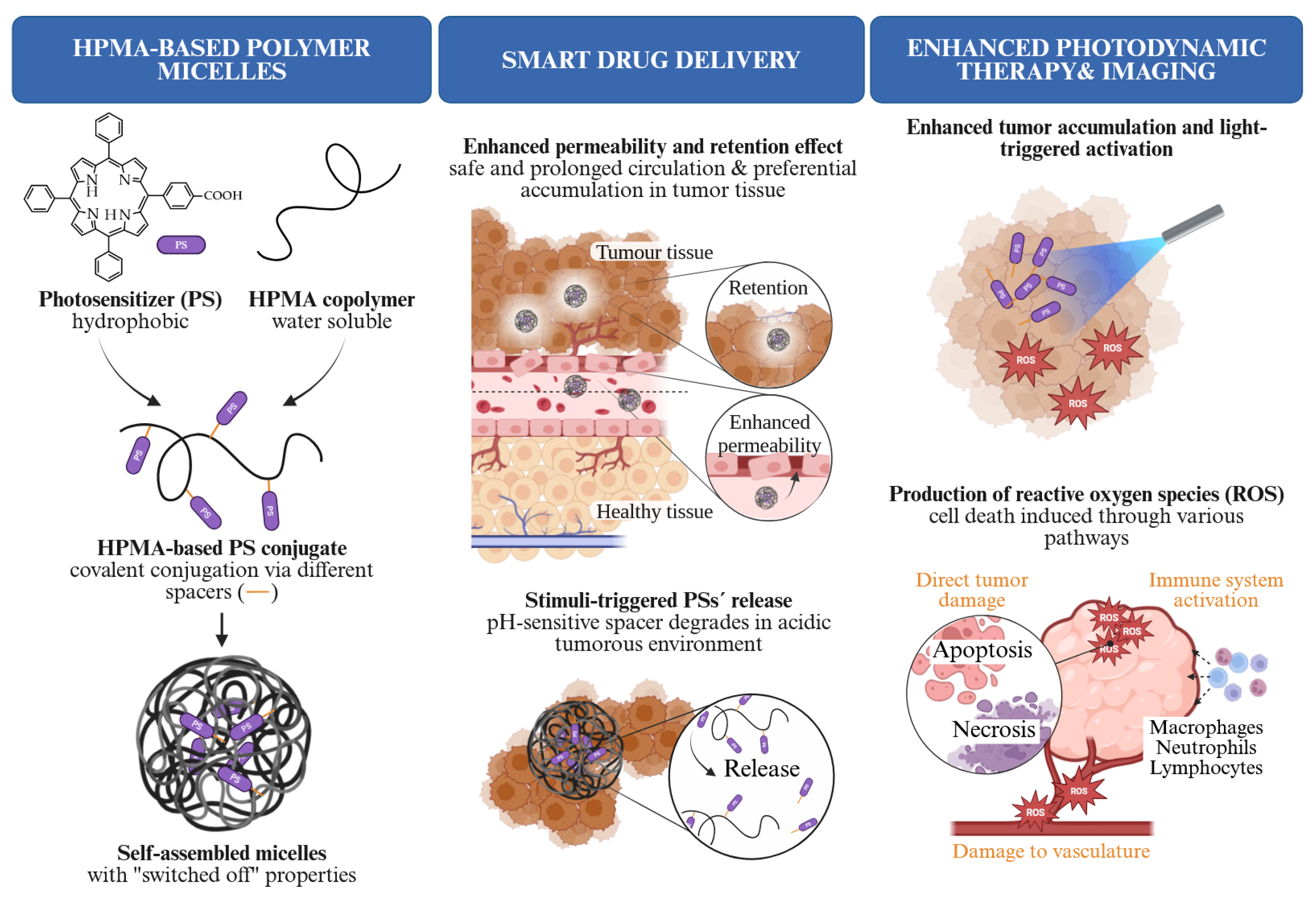

Polymer-based theranostic systems represent a multifunctional approach that combines cancer therapy with diagnostic imaging. In this study, we focused on deep evaluation of polymer-based nanocarriers designed to transport porphyrin-based PSs and to examine how linker chemistry influences their activation, release behavior, and therapeutic performance under tumor-relevant conditions. In particular, we compared pH-responsive hydrazone linkers (of an aliphatic and aromatic nature) with stable amide linkers to elucidate how the design influences self-assembly, release behavior and photodynamic performance. Together with our previous work, focusing primarily on the photophysical and physicochemical properties of these systems, the present study aims to extend this understanding toward their biological behavior. We seek to provide a better insight into the underlying mechanisms linking the polymer design, mode of photosensitizer attachment, and the resulting therapeutic performance.

3.1. Synthesis and Characterization of Polymer Precursors

Both linear precursors P1 and P2 were prepared by controlled RAFT polymerization, yielding polymers with narrow dispersity and molecular weights suitable for glomerular filtration [32] in high yields (>80%). The polymers contained reactive functional groups distributed along the backbone—hydrazide groups in P1 and amine groups in P2—which were successfully deprotected, as confirmed by the TNBSA assay described earlier. As a result, a sufficient amount of functional groups to enable subsequent conjugation of TPP derivatives was assured. Based on DLS measurement, both precursors formed random coils in aqueous solutions with hydrodynamic diameters (D_H) around 9.5 nm and 7.4 nm for P1 and P2, respectively, thus supporting their potential for renal elimination after fulfilling the role of PS carrier.

3.2. Synthesis and Characterization of Polymer Conjugates

Using carbodiimide chemistry, three TPP derivatives were successfully prepared, as confirmed by NMR and MALDI. Derivatives containing a keto group (D1 with an aliphatic spacer and D2 with an aromatic spacer) were subsequently reacted with hydrazide functionalities of the precursor P1, leading to the formation of hydrolytically degradable hydrazone bonds. In contrast, D3 was conjugated to amino groups in P2, resulting in the formation of stable amide bonds. Resulting conjugates C1–C3 contained comparable amounts of bound PS (see

Table 2. Physicochemical characterization of polymer conjugates ^a.

Polymer Conjugate	Spacer	Content of dTPP (wt.%)	DH ± SD (nm) a	CMC (µg mL−1) b
C1	5-hydroxy-2-pentanone	5.8 (D1)	16.4 ± 1.8	1.0
C2	1-(4-hydroxymethyl)phenyl)ethanone	5.8 (D2)	19.1 ± 0.5	4.5
C3	amide bond	6.2 (TPPc)	19.1 ± 2.0	>100

^a D_H is the hydrodynamic diameter measured by DLS in pH 7.4 /EtOH 5% (v/v) phosphate buffer with a concentration of 1.0 mg mL⁻¹ at 25 °C. CMC was measured in 10 mM PBS by UV/VIS spectrophotometry. ^b CMC was measured in 10 mM PBS by UV/VIS spectrophotometry. More detailed CMC evaluation can be found in our previous paper [23].

).

According to the SEC analysis, the conjugation did not lead to any significant shift of molecular weight or dispersity, as stated previously [23]. However, DLS measurements revealed the formation of micelles in aqueous conditions due to the introduction of hydrophobic dTPP into the hydrophilic polymer, which consequently resulted in an increase of hydrodynamic diameter compared to the polymer precursors (Table 2).

In our previous study [23], we also demonstrated that the nature of the spacer between TPPc moieties and the polymer backbone influences not only the size of formed micelles, but their stability in aqueous conditions as well. The longer and more flexible the spacer (C1 > C2 > C3) inserted, the easier and stronger the micellar self-assembly is, expressed by a lower critical micellar concentration (Table 2). Clearly, the long aliphatic spacer enables the rotation of large TPPc molecules, facilitating their stacking and forming the sandwich-like core of the micelle. In contrast, the more rigid aromatic spacer or the short amide bond restrict molecular rotation, preventing more efficient assembly of TPPc molecules inside the micelle core. As a result, these systems exhibit significantly lower kinetic stability. Overall, these findings indicate that C1 shows the strongest intermolecular organization of TPPc within the micellar core, followed by C2, while C3 exhibits the weakest organization among the proposed systems.

3.3. Release of dTPPs from the pH-Responsive Polymer Conjugates

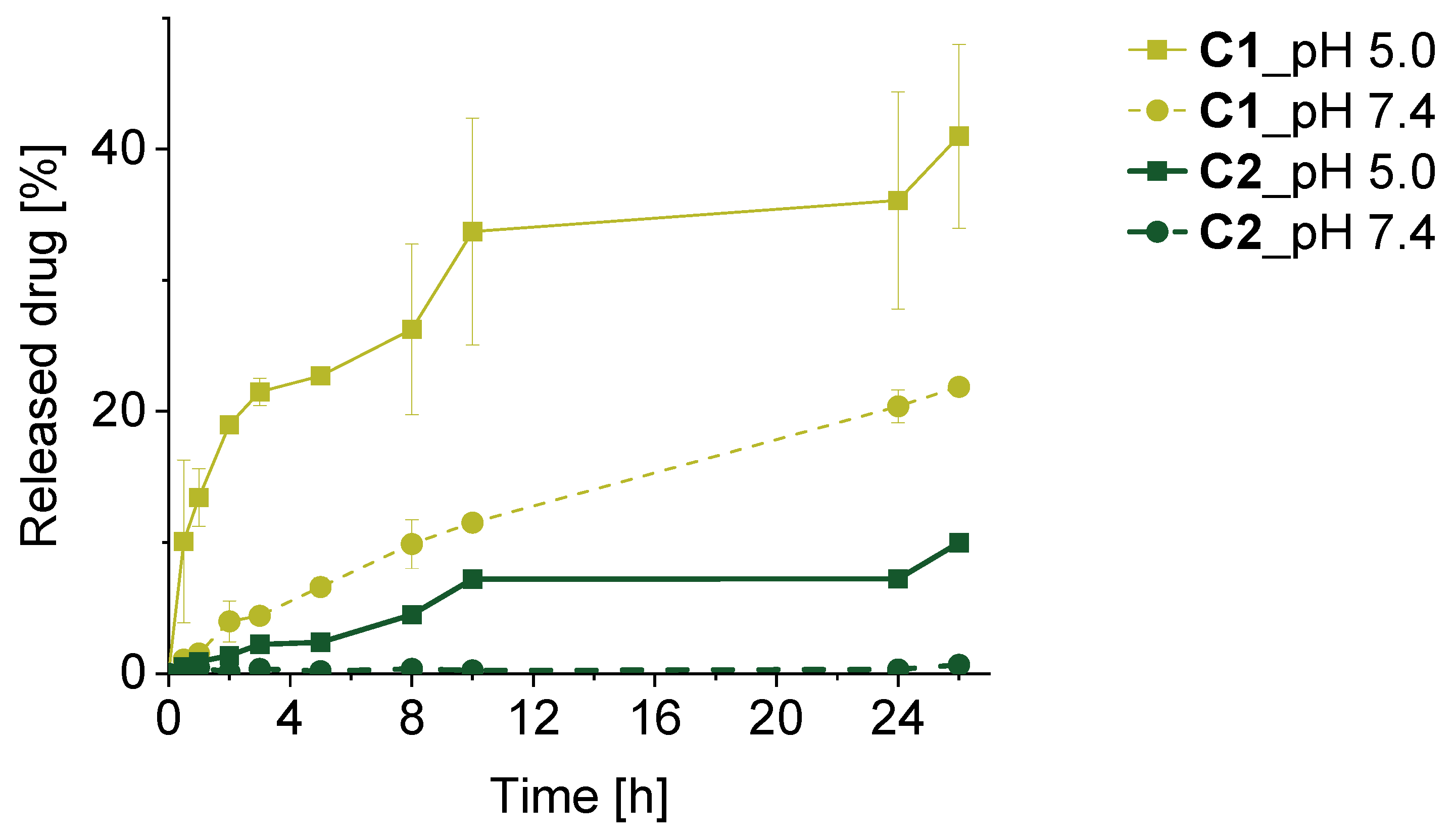

The release of dTPPs was evaluated in PB with a pH of 5.0, mimicking the acidic lysosome environment inside tumor cells, and a pH of 7.4, modeling the neutral blood conditions, at 37 °C with 5% DMSO (v/v). A pH-dependent release profile of dTPPs from conjugates containing pH-labile hydrazone bonds was observed, with significantly faster release in pH 5.0 when compared to pH 7.4. The spacer’s structure, aliphatic (C1) vs. aromatic (C2), considerably influenced the hydrolytic stability of the hydrazone bond and the dTPP release (Figure 3). These results indicate that the local chemical environment of the hydrazone bond plays a key role in modulating its hydrolytic stability and, consequently, dTPP availability.

Although micelles become diluted upon intravenous administration, many polymeric micelles exhibit sufficient kinetic stability to persist in circulation. However, the extent of micelle disassembly in the bloodstream versus the tumor microenvironment remains uncertain, and the following mechanism should therefore be considered as a plausible model. Under physiological conditions, release is likely governed by limited water accessibility to the hydrazone bond within the hydrophobic micellar core, together with its intrinsic hydrolysis rate. Core hydration and polymer packing density thus play key roles in modulating the slow release of dTPP in circulation. In the tumor environment, increased core hydration and mildly acidic conditions may enhance the accessibility and cleavage of hydrazone bonds, promoting dTPP release. The released hydrophobic dTPP can subsequently interact with cellular membranes and be internalized. Overall, dTPP activation is expected to result from a combination of extracellular and intracellular processes.

3.4. Changes in Micellar Size upon dTPP Release

The effect of the dTPP release on the hydrodynamic diameter of micelles was assessed under simulated release conditions by dissolving conjugates C1–C3 at a concentration of 2.0 mg mL⁻¹ in 0.1 M PB (pH 5.0) and incubating the samples at 37 °C for 48 h. It was hypothesized that gradual dTPP release would lead to a corresponding decrease in micelle size. For conjugate C1, which contains the aliphatic spacer between the TPP moiety and the polymer backbone, micelle disintegration was observed after just 4 h of incubation. This was accompanied by the appearance of a smaller-size population, corresponding to the polymer carrier (see Figure S1). In contrast, C2, which exhibits a slower dTPP release, showed no distinct smaller-size population; only a minor shift to the left in the peak position was noted. As expected, the stable, non-releasing conjugate C3 showed no observable changes in micellar size over the incubation period. These results confirm that the release of dTPP can trigger micelle disintegration, enabling the subsequent clearance of the polymer carrier from the body after it has fulfilled its role as a PS carrier.

3.5. Fluorescence Spectroscopy

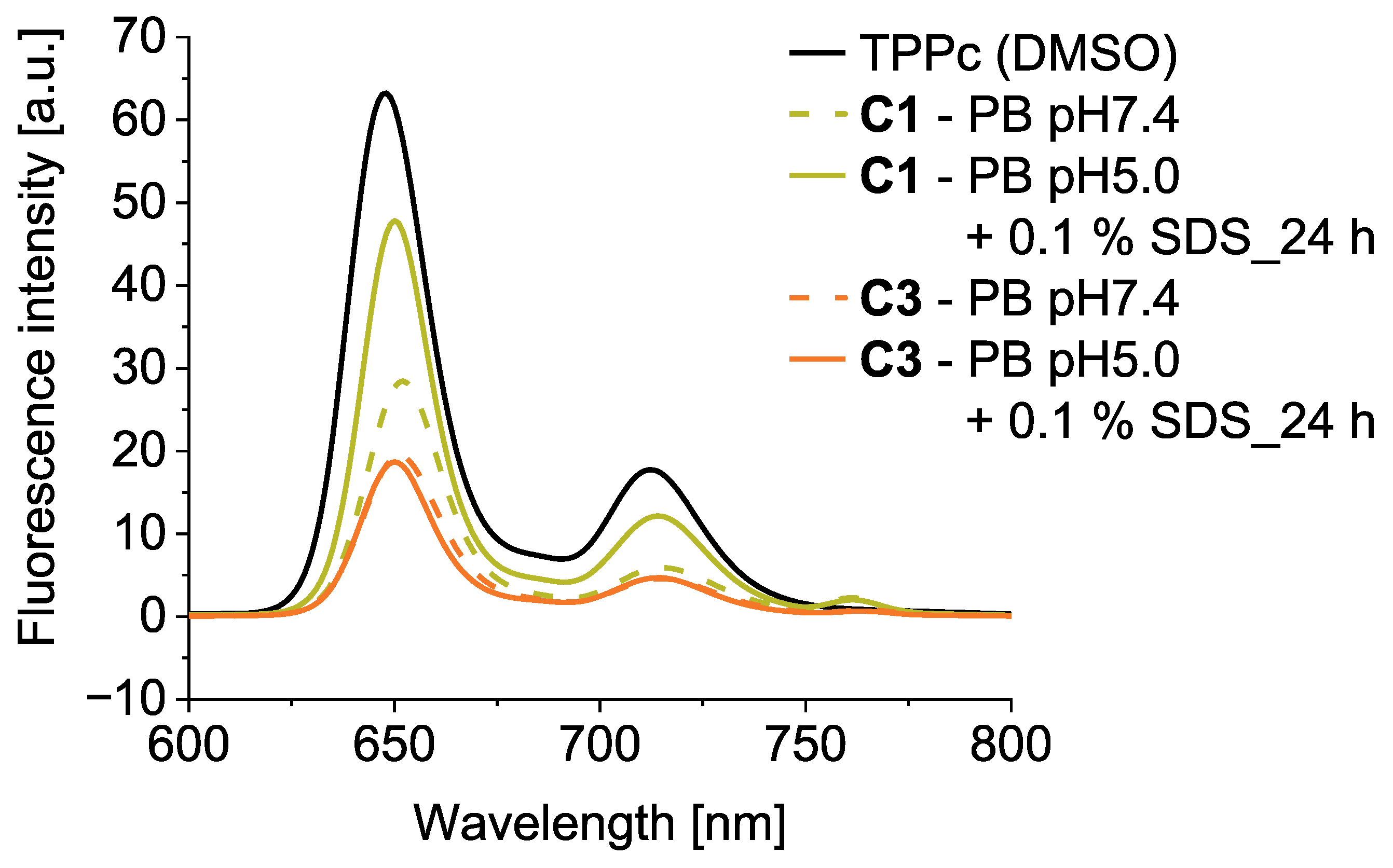

The micelle formation in PB (pH 7.4) with 5% (v/v) DMSO resulted in the assembly of the porphyrin units within the hydrophobic micellar core and partial fluorescence quenching (Figure 4). These quenching effects were comparable for both C1, with cleavable hydrazone bonds, and C3, with stable amide bonds. Unlike for C3, the C1 fluorescence intensity increased after incubation at 37 °C for 24 h in PB with a pH of 5.0 (with 5% (v/v) DMSO) and SDS to disrupt the micelles (Figure 4). This set up mimics the acidic environment of tumor tissues. The fluorescence increase for C1 could be ascribed to the porphyrin release from this conjugate. Conjugate C2 exhibited similar behavior to C1, showing a more pronounced increase in fluorescence compared to C3 as a result of dTPP release (for clarity, these data are not included in the figure). We propose that both conjugates can be used for the successful irradiation of the tumor tissue. The fluorescence intensity of C3 is not influenced by either the pH or micelle formation, making this conjugate a reliable probe for directly tracking the fate of the system.

3.6. In Vitro Cytotoxicity and PDT Effect of Polymer Conjugates

A previous study [23] demonstrated that conjugates C1–C3 exhibited substantial in vitro PDT activity while showing markedly lower dark cytotoxicity compared to free TPPc. Among them, the pH-sensitive conjugate C1 displayed the most promising in vitro PDT performance, characterized by a high phototoxicity index (PI). To further validate these findings, we repeated the in vitro cytotoxicity assays for the conjugates under both irradiation and dark conditions. The results are shown in Figure 5 and the IC₅₀ as well as phototoxicity index are summarized in

Table 3. IC₅₀ values and phototoxicity index for free TPP-COOH and conjugates C1–C3.

		TPP-COOH	C1	C2	C3
IC50 [μM] TPP-COOH eq.	Dark	1	>100	>100	>100
	Irradiation	0.003	0.04	0.18	0.30
Phototoxicity Index		333	>2500	>556	>333

.

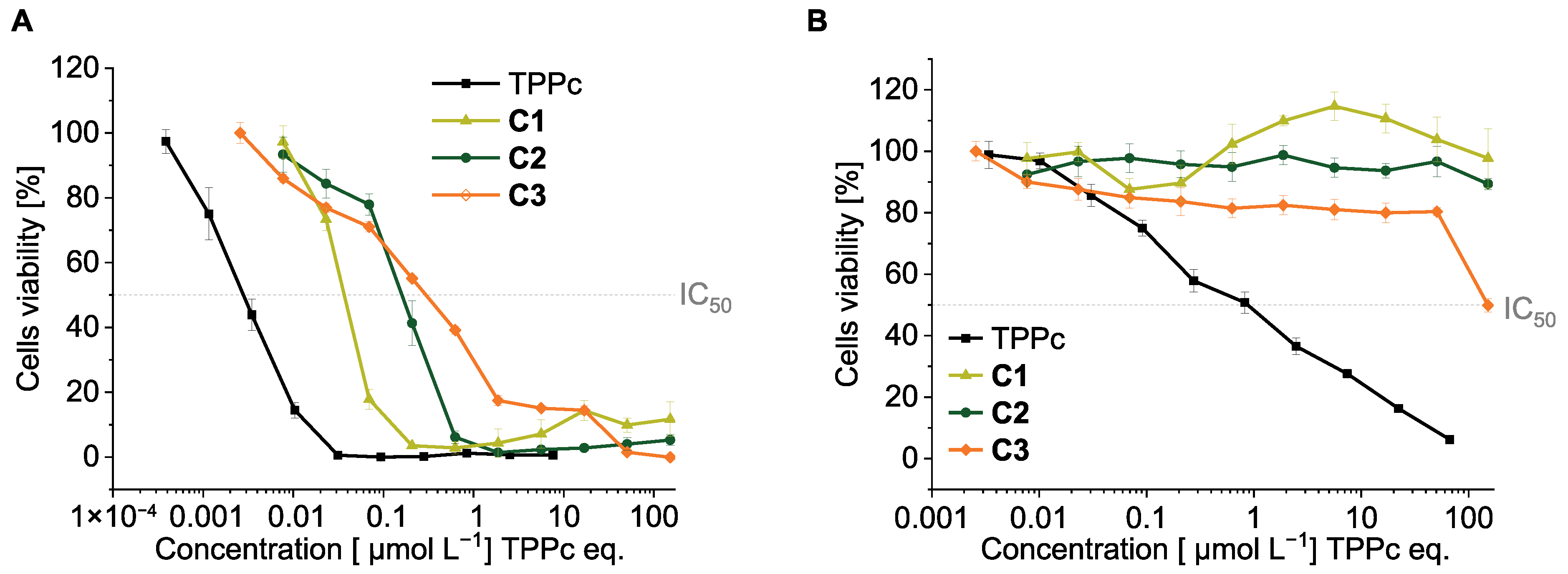

As shown in Figure 5A, all polymer conjugates, as well as TPPc, exhibited a dose-dependent PDT effect after irradiation. Compared to TPPc itself, the conjugates demonstrated a reduced PDT effect and associated cytotoxicity. This difference is likely due to the different cell-entering mechanisms of TPPc and its polymer conjugates. While free TPPc could easily enter the cells via the diffusion process, polymers must rely on a much slower process of endocytosis [33,34]. Notably, among the three conjugates, C1 showed a stronger PDT effect than C2, with C3 exhibiting the weakest cytotoxic response. This trend is in correspondence with the dTPP release experiments displayed in Figure 3. These in vitro findings support the assumption that the dTPP release rate plays a critical role in achieving a satisfactory PDT effect.

Importantly, free TPPc exhibited relatively high dark cytotoxicity, with an IC₅₀ of approximately 1 µM. In contrast, all polymer conjugates showed markedly reduced dark toxicity, remaining essentially non-toxic up to ~100 µM (TPPc equivalent) for C1, C2, and C3 (Figure 5B). Under irradiation, free TPPc displayed extremely potent phototoxicity, with an IC₅₀ of approximately 0.003 µM, resulting in a PI of ~333. Notably, the polymer conjugates exhibited even higher PI values due to their substantially suppressed dark toxicity. In particular, C1 showed a PI exceeding 2500, indicating a highly favorable therapeutic window. These results are consistent with our previous study [23] and further demonstrate that polymer conjugation effectively minimizes nonspecific dark toxicity while preserving strong light-triggered cytotoxicity. We hypothesize that they provide a safe drug delivery platform during circulation and distribution in the body, remaining non-cytotoxic until they accumulate in the tumor and are activated by light irradiation.

The cytotoxicity evaluation of stable amide conjugate post (C3) and prior (C3WA) blocking their amine groups by acetate-TT revealed an additional effect of residual amine groups. In C3WA, the IC₅₀ values are shifted to slightly lower values compared to C3. The structures of C3 and C3WA, as well as their dark/light cytotoxicity, are depicted in Figure S2.

3.7. Intracellular Uptake of Polymer Conjugates

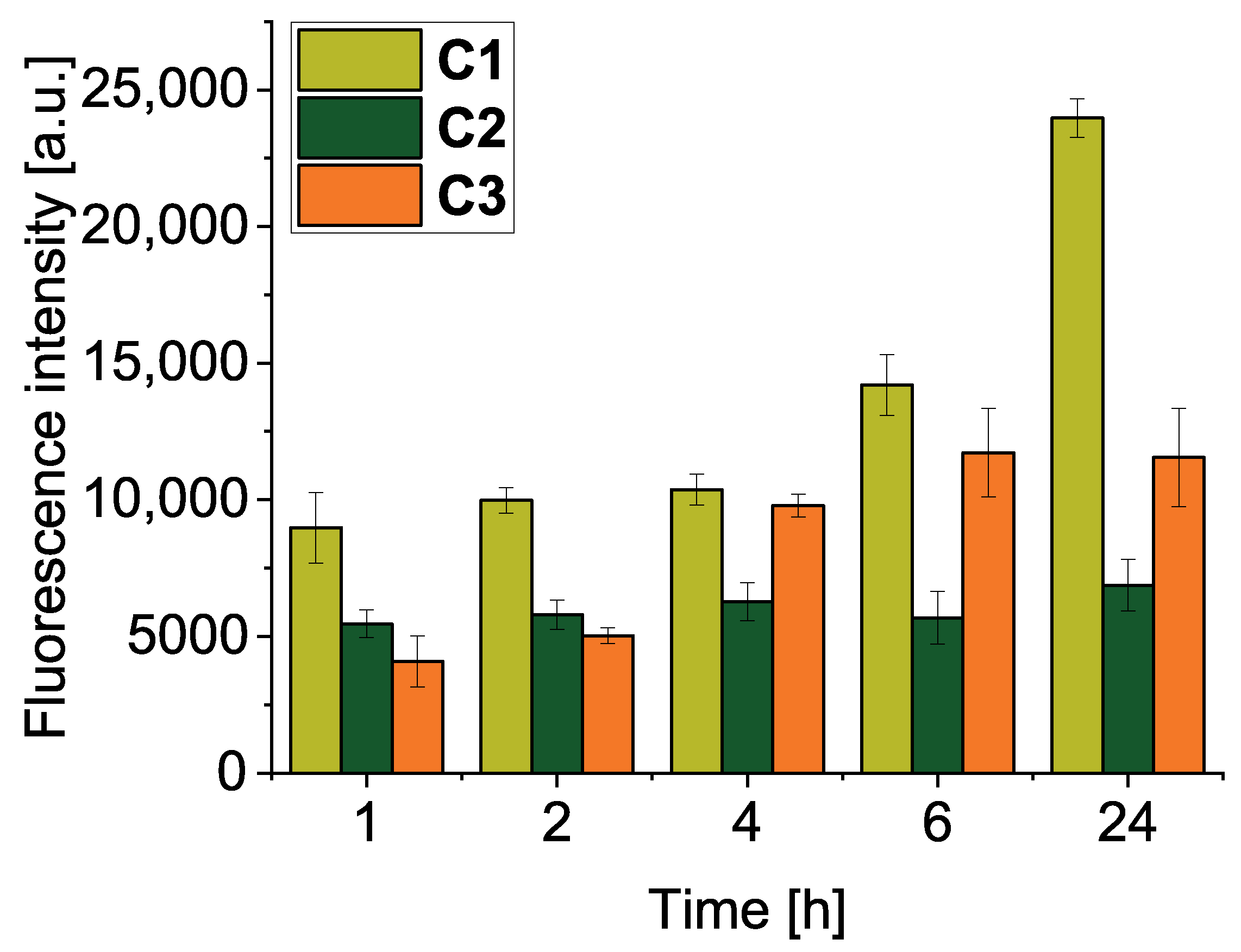

We further investigated the intracellular uptake of TPPc and its conjugates by cultured C26 cells (Figure 6). Conjugate C1, which exhibits a higher dTPP release rate, showed faster and more extensive cellular internalization compared to C2 and C3. This observation is consistent with the greater in vitro cytotoxicity of C1 under irradiation (Figure 5A). We hypothesize that more extensive internalization of C1 is caused by the combination of internalization of released D1 and that bound on the polymer conjugate C1. Both C2 and C3 showed a steadier increase in intracellular uptake, with slightly higher levels observed for the hydrolytically stable C3. Notably, the internalization of porphyrin TPPc is approximately tenfold higher than that of polymer conjugates.

3.8. Generation of O₂(¹Δ_g) by Conjugates upon Light Irradiation

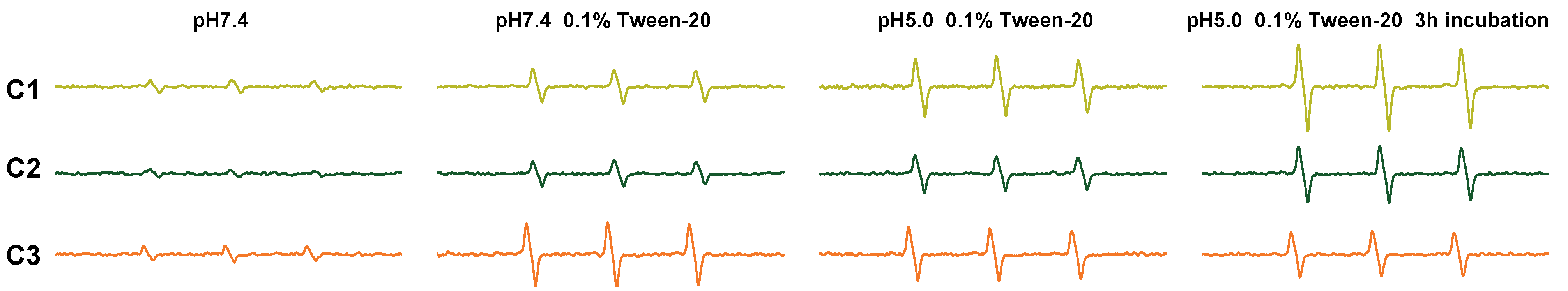

In agreement with our previous findings [23], all conjugates (C1–C3) showed negligible O₂(¹Δ_g) generation in aqueous solution due to micelle formation, indicating an “OFF state” caused by aggregation-induced quenching and limited oxygen accessibility (Figure 7 and Figure S3). Disruption of micelles by Tween-20 restored O₂(¹Δ_g) production in all cases, confirming that micellar integrity is the primary determinant of photodynamic activity.

To simplify comparison, the key results from Figure S3 are summarized in

Table 4. Summary of O₂(¹Δ_g) generation behavior of conjugates (C1–C3).

Polymer Conjugate	Linker Type	Micelle Intact (No Tween-20)	Micelle Disrupted (Tween-20)	pH Dependence	Overall In Vitro PDT Activity
C1	Hydrazone (fast)	Negligible (OFF)	High (ON)	Strong	Highest
C2	Hydrazone (slow)	Negligible (OFF)	Moderate–high (ON)	Moderate	Moderate
C3	Non-cleavable	Negligible (OFF)	Moderate (ON)	None	Lower

, highlighting the effects of linker type, pH, and micelle disruption.

Among the conjugates, C1 exhibited the highest O₂(¹Δ_g) generation under acidic and micelle-disrupted conditions, consistent with its faster hydrazone cleavage, enhanced cellular uptake, and superior in vitro PDT efficacy (Figure 3, Figure 5 and Figure 6). C2 showed similar but less pronounced behavior, while C3 was insensitive to pH and relied solely on micelle disassembly for activation.

Notably, under certain conditions (i.e., at a pH of 5.0 with Tween-20, incubating for 3 h), C1 showed reduced O₂(¹Δ_g) generation despite rapid release (Figure S4). This effect is attributed to aggregation of the released hydrophobic photosensitizer (D1), which suppresses ROS production. Consistently, improved solubilization in 50% (v/v) DMSO restored O₂(¹Δ_g) generation (Figure S4).

Overall, O₂(¹Δ_g) generation in this system is governed by micelle stability, linker cleavage, and photosensitizer dispersion. The conjugates remain inactive during circulation and are activated upon micelle disruption and/or acidic conditions.

3.9. In Vivo Biodistribution of Polymer Conjugates

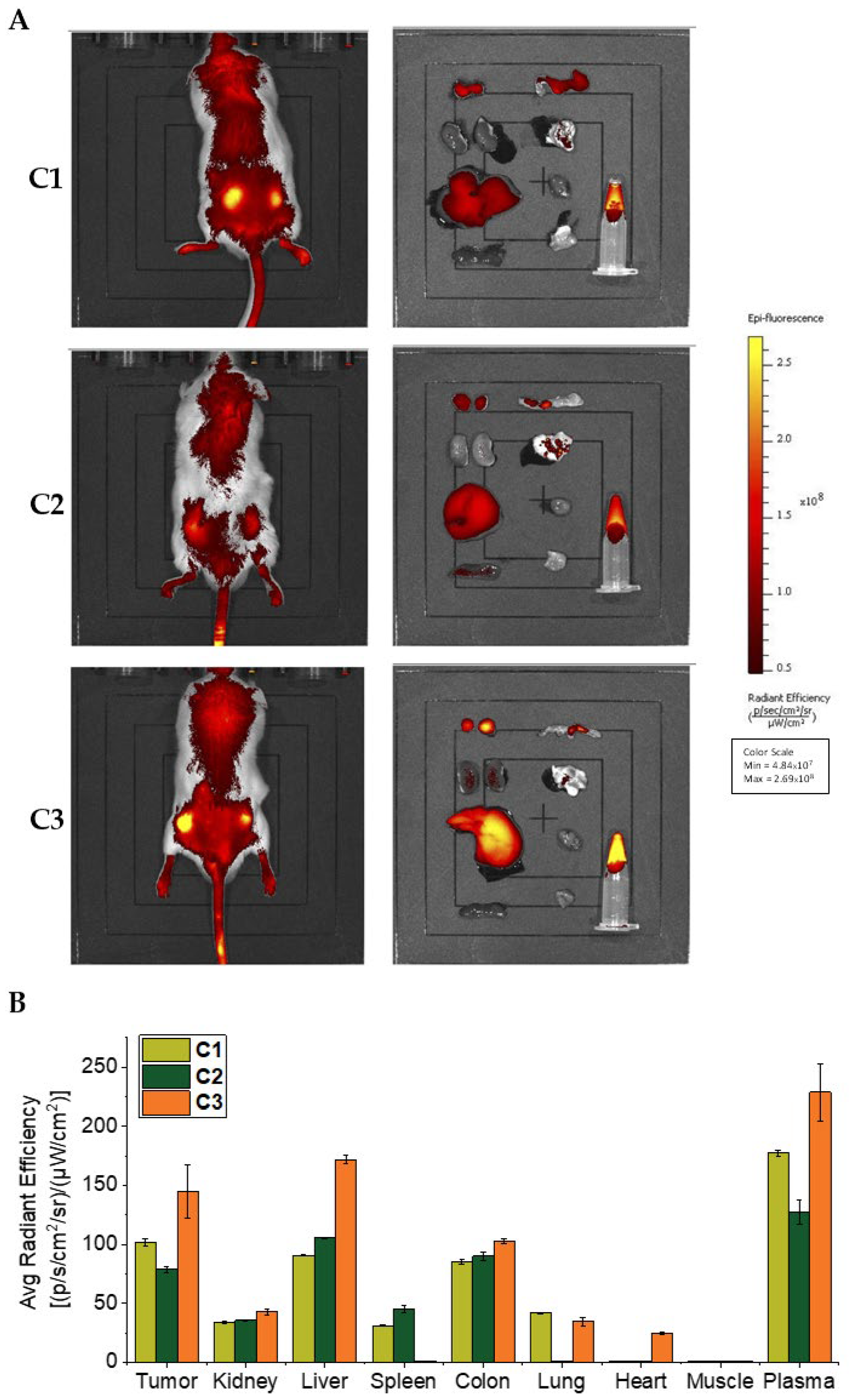

One of the major advantages of polymeric drugs is the prolonged circulation time and tumor targeted accumulation compared to native drugs with a small molecular weight. Therefore, we measured the distribution of the polymer conjugates in the body by using in vivo imaging. As shown in Figure 8A, the application of C1–C3 led to strong fluorescence of the tumor tissue 24 h after i.v. administration. The ex vivo imaging of each tissue revealed remarkable fluorescence intensities in the tumor and plasma, whereas very little fluorescence intensity was detected in most normal organs except for the liver, which is highly blood-prefaced and is the major organ to capture macromolecules (Figure 8A,B). When we compare the polymer conjugates, C1 provides stronger fluorescence of the tumor and plasma than C2. This finding is consistent with the above-described release profiles (Figure 3) and O₂(¹Δ_g) generation (Figure 7) studies, suggesting that tumor-responsive release may contribute to PDT performance. Notably, we observed that stable conjugate C3 exhibited higher fluorescence intensity than C1 and C2. Considering the low micellar stability of C3, it is likely present in the bloodstream as a random coil. We hypothesize that the enhanced accumulation of C3 in tumors and the liver, as well as its prolonged plasma retention, may result from interactions between the porphyrin moieties of C3 and hydrophobic domains on albumin. Such interactions could lead to the formation of larger conjugates, thereby promoting extended circulation and increased tumor accumulation. At the same time, the elevated liver signal indicates that this favorable tumor delivery is accompanied by less selective distribution.

3.10. In Vivo Antitumor PDT Effect of Polymer Conjugates

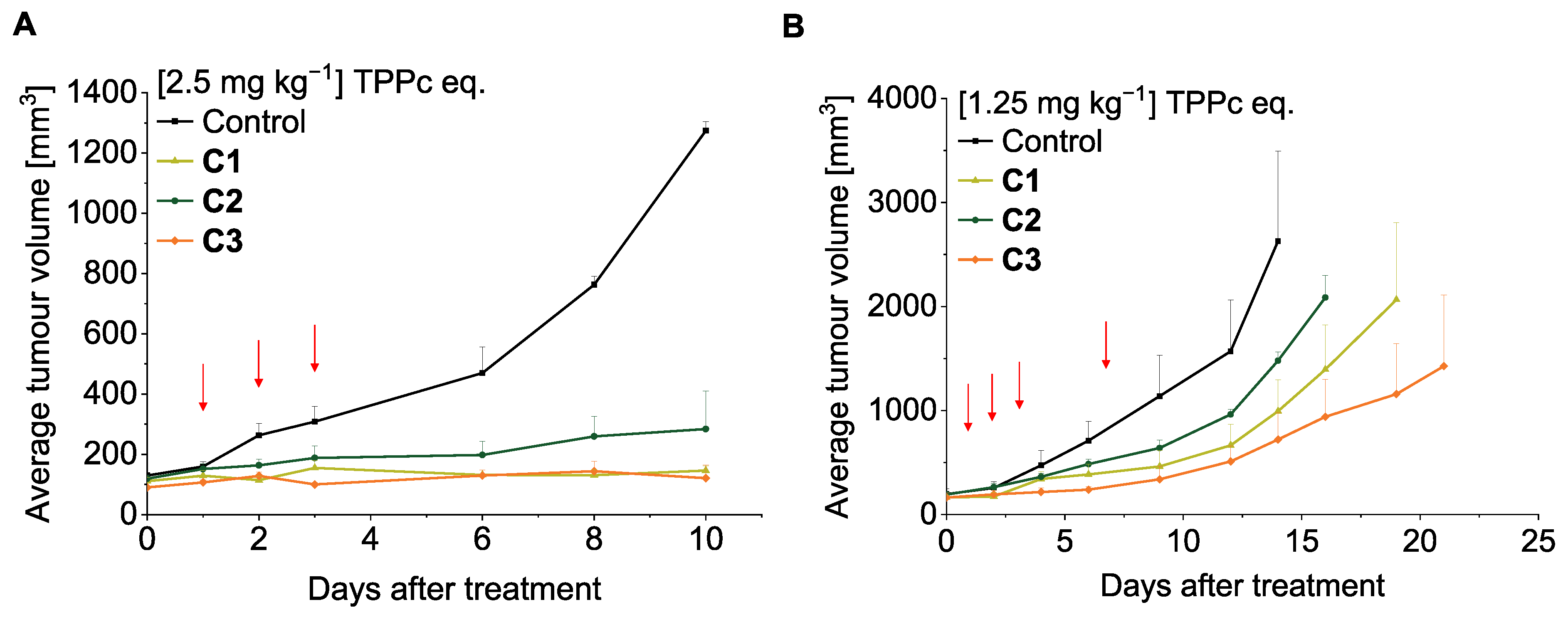

Based on the above results, we subsequently evaluated the in vivo PDT efficacy of polymer conjugates C1, C2, and C3 in a mouse sarcoma S180 solid tumor model. This study was designed to systematically compare pH-responsive and non-responsive systems, as well as to distinguish between release-controlled and accumulation-driven therapeutic efficacy.

Our previous work employing PyFa as a PS, covalently bound via a degradable pH-sensitive hydrazone bond with an aliphatic spacer, showed the potential of a polymer-PyFa conjugate as a theranostic agent with dual imaging and therapeutic functions. A dosage as low as 2.5 mg kg⁻¹ exhibited strong tumor-imaging capability and resulted in nearly complete photodynamic inhibition of tumors within 18 days post-treatment. Moreover, a reverse-dose dependency was observed, suggesting that effective PDT treatment relies on the balance between PS concentration and available molecular oxygen [8].

Based on this study, a dosage of 2.5 mg kg⁻¹ (TPPc equivalent) was selected as a starting point for in vivo evaluation. At this initial dosage, conjugate C1 exhibited a slightly higher therapeutic effect than C2, likely due to its faster dTPP release. Notably, both C1 and C3 showed unexpectedly high treatment potency, with tumor growth being almost completely suppressed following the treatment (Figure 9A). To further investigate differences in therapeutic efficacy, the dosage was reduced to 1.25 mg kg⁻¹ (TPPc equivalent) (Figure 9B). As anticipated from the in vitro results, conjugate C1 produced a stronger PDT effect compared to C2. However, the overall in vivo trend differed from the in vitro behavior, as the stable amide conjugate C3 yielded the most pronounced in vivo therapeutic effect. We attribute the superior treatment efficacy of C3 to its enhanced PS delivery capability, leading to greater porphyrin accumulation in the tumor, as corroborated by the biodistribution data. At the same time, C3 also showed stronger liver accumulation, indicating that improved efficacy was associated with a different distribution profile rather than with pH-responsive release alone. It is also noteworthy that the dose of 1.25 mg kg⁻¹ (TPPc equivalent) was relatively low. Even under such conditions, all conjugates showed a significant therapeutic effect, indicating that both pH-responsive and non-cleavable systems can be active at relatively low doses, although through partially different dominant mechanisms. No signs of systemic toxicity of the treatment were observed, as evidenced by the stable body weight of treated mice (Figure S5).

Overall, the in vivo results indicate that the stable amide-linked conjugate C3 achieved the strongest therapeutic effect under the tested conditions, likely due to its favorable tumor accumulation and sustained delivery. In contrast, the pH-responsive conjugates provided better control over release and activation-related behavior in vitro. Together, these findings show that therapeutic performance in this platform is determined by a balance between release properties, de-aggregation, and biodistribution, rather than by a single design parameter. The potential contribution of photothermal effects is an important consideration in PDT, particularly when infrared light is used. However, in this study, irradiation was performed using a light source in the 400–700 nm range, thereby excluding infrared wavelengths and minimizing possible photothermal contributions. We therefore attribute the observed therapeutic effects primarily to PDT-mediated mechanisms. Nevertheless, further studies are warranted to clarify this issue.

4. Conclusions

In this study, we report the deep evaluation of polymer-based nanomaterials as polymer-based nanomaterials for photodynamic therapy of sarcomas and related solid tumors. Tailored dTPP derivatives were covalently conjugated to highly biocompatible and water-soluble polymers via either pH-sensitive hydrazone bonds or stable amide linkages, resulting in self-assembled amphiphilic micellar structures with distinct biological behavior. All developed polymer constructs exhibited markedly reduced dark toxicity compared to free TPPc, confirming the advantage of polymer conjugation in minimizing non-specific toxicity during systemic delivery. At the same time, high phototoxicity indices were achieved, demonstrating efficient light-triggered activation. All systems accumulated in tumor tissue and showed significant antitumor activity even at low doses.

The hydrazone-linked conjugates showed clear pH-dependent behavior, including controlled release and enhanced singlet oxygen generation under acidic conditions, which was reflected in their favorable in vitro performance. However, in the in vivo tumor model, the amide-linked conjugate C3 consistently achieved the highest therapeutic efficacy. This effect is attributed primarily to its improved tumor accumulation and prolonged retention, despite the absence of a cleavable linker. These findings indicate that, within this system, efficient delivery and biodistribution represent more critical determinants of therapeutic outcome than controlled release of the photosensitizer. At the same time, the increased liver accumulation observed for C3 highlights an important limitation, suggesting that enhanced efficacy is accompanied by reduced distribution selectivity.

Taken together, this study shows that the design of polymer-based PDT systems cannot rely solely on stimulus-responsive activation strategies, but must instead consider the balance between stability, biodistribution, and photosensitizer availability. Under the conditions studied here, the non-cleavable amide-linked system proved to be the most effective, although further optimization of its distribution profile will be necessary. Further investigation of the underlying mechanisms, particularly the role of intracellular versus extracellular photosensitizer activity, may provide additional insight into how these systems can be rationally improved.
