Next Article in Journal
Development and Characterization of a Primary Ciliated Porcine Airway Model for the Evaluation of In Vitro Mucociliary Clearance and Mucosal Drug Delivery
Previous Article in Journal
Predictive Lung- and Spleen-Targeted mRNA Delivery with Biodegradable Ionizable Lipids in Four-Component LNPs


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Pharmaceutics
Volume 17
Issue 4
10.3390/pharmaceutics17040460
pharmaceutics-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Anti-Candida Activity of Cysteine-Modified Amidated Decoralin in the Presence of Engineered Nanomaterials

by
Vânia Rocha
1,
Helena Almeida
1,2,
Bruno Sarmento
1,3 and
José das Neves
1,3,*
1
i3S–Instituto de Investigação e Inovação em Saúde, Universidade do Porto, Rua Alfredo Allen 208, 4200-135 Porto, Portugal
2
ICBAS–Instituto de Ciências Biomédicas Abel Salazar, Universidade do Porto, Rua de Jorge Viterbo Ferreira 228, 4050-313 Porto, Portugal
3
Instituto Universitário de Ciências da Saúde, CESPU, Rua Central de Gandra 1317, 4585-116 Gandra, Portugal
*
Author to whom correspondence should be addressed.
Pharmaceutics 2025, 17(4), 460; https://doi.org/10.3390/pharmaceutics17040460
Submission received: 10 March 2025 / Revised: 26 March 2025 / Accepted: 27 March 2025 / Published: 2 April 2025
(This article belongs to the Section Nanomedicine and Nanotechnology)
Browse Figures
Versions Notes

Abstract

:
Background: Candidiasis remains a chief concern in global healthcare. Drug safety issues and increasing resistance make it urgent to develop alternative antifungal agents, namely antimicrobial peptides. Amidated decoralin (Dec-CONH2) possesses considerable anti-Candida activity, and its association with nanocarriers could help in enhancing efficacy while reducing intrinsic toxicity to the host. Methods: We studied an N-terminal cysteine-modified version of the peptide (Cys-Dec-CONH2) and screened the effects of different nanosystems (polymeric nanoparticles (NPs), liposomes and gold NPs) on its activity against azole-sensitive and azole-resistant Candida species using a clinically relevant in vitro assay. Results: The antifungal activity of Cys-Dec-CONH2 was maintained (minimum inhibitory concentration (MIC) = 16–64 µg/mL), but the presence of poly(d,l-lactic-co-glycolic acid) (PLGA)- and polycaprolactone-based NPs impaired the antifungal effect of the peptide (MIC > 256 µg/mL). This effect was milder for polystyrene-based NPs, liposomes, and gold NPs (MIC ≤ 128 µg/mL). Additionally, the covalent surface functionalization of PLGA-based NPs with Cys-Dec-CONH2 or the presence of relevant biomolecules (albumin and mucin) resulted in complete inhibition of antifungal activity. Conclusions: Our data suggest that Cys-Dec-CONH2 is able to establish strong interfacial interactions with different nanomaterials, which need to be considered when developing nanomedicines based on this peptide for the management of candidiasis.

Graphical Abstract

1. Introduction

Candidiasis includes all infections caused by fungi of the genus Candida. These can be generally divided into superficial candidiasis, which is typically mild and affects the skin or mucosal surfaces, or invasive (systemic) infections, which—despite being less common—are associated with greater morbidity and can lead to death [1]. Candida spp. are typically commensal yeasts in humans, being able to become opportunistic pathogens in various circumstances [2]. Onset of pathogenicity on the skin and mucosae involves adhesion to epithelia followed by tissue colonization. Some species are able to undergo dimorphic transition into hyphal form, which promotes epithelial invasion and causes deeper infection. This usually triggers an effective local host immune response, while, on some occasions, Candida can still escape and lead to colonization of the vascular system and candidemia. Invasive candidiasis can also be triggered by direct blood contact, namely in healthcare facilities [3].
C. albicans is the main pathogen involved in candidiasis, but the prevalence of other non-albicans species such as C. glabrata, C. tropicalis, and C. krusei, among others, is increasing. Current treatment options involve the use of several classes of antifungals, with azoles being considered as first choice [4,5]. Drugs from this class hinder ergosterol synthesis by inhibiting lanosterol 14-alpha-demethylase, thus impairing fungal cell membrane integrity. Others such as polyenes (binds to ergosterol and destabilizes the cell membrane), echinocandins (targets the synthase responsible for β-(1,3)-D-glucan production, thus disrupting the cell wall) and fluoropyrimidines (interferes with fungal RNA and protein synthesis after activation by cytosine deaminase) are of increasing importance, namely in cases of systemic infection or azole resistance [6,7]. However, there are several limitations regarding pharmacokinetics, drug interactions, and side effects of clinically available drugs that narrow their therapeutic efficacy and safety [5]. Moreover, the increase in the number of resistant cases of candidiasis is a major public health concern, which, by itself, justifies the need for developing alternative therapeutics [8,9].
The search for new antifungals has been ongoing, but only a few novel drugs have been introduced over the last decade. Honorable mentions include ibrexafungerp and oteseconazole (oral triterpenoid and oral azole, approved in 2021 and 2022 by the FDA, respectively, for managing vulvovaginal candidiasis) [10,11], and rezafungin (an intravenous echinocandin approved in 2023 by the FDA for the treatment of invasive candidiasis) [12]. Despite these additions, the currently available armamentarium would benefit tremendously from the development of antifungals with new mechanisms of action [13]. Antimicrobial peptides have generated considerable enthusiasm in the scientific community as an alternative drug class for fighting different types of infection [14]. In particular, these relatively small amino acid sequences seem to be promising candidates for managing candidiasis, presenting broad in vitro anti-Candida activity [15,16,17,18,19] and mechanisms of action different from those of approved antifungals (e.g., pore formation in the cell wall, membrane disruption, mitochondrial damage, induction of reactive oxygen species generation, DNA damage) [20]. One particularly promising molecule is decoralin (Dec), a linear cationic α-helical peptide containing 11 amino acids (Ser-Leu-Leu-Ser-Leu-Ile-Arg-Lys-Leu-Ile-Thr) that was first extracted from the venom of the potter wasp Oreumenes decorates [21]. It has been shown to possess broad-spectrum antimicrobial activity (including against C. albicans), which is enhanced upon amidation of the C-terminal (Dec-CONH2) [21,22]. The short size and linear structure of Dec and Dec-CONH2 facilitate chemical modification and conjugation with other moieties that could help in further enhancing its antimicrobial activity while reducing toxicity to mammal cells [23,24,25]. In particular, the combination of the peptide with a nanocarrier could provide an interesting strategy for enhancing delivery and ultimately the activity against Candida species. Such an approach has been successfully tested for other antimicrobial peptides. For example, loading octominin (Gly-Trp-Leu-Ile-Arg-Gly-Ala-Ile-His-Ala-Gly-Lys-Ala-Ile-His-Gly-Leu-Ile-His-Arg-Arg-Arg-His) into chitosan nanoparticles (NPs) enhanced its activity against C. albicans as compared to the free peptide [26]. Similarly, conjugation of indolicidin (Ile-Leu-Pro-Trp-Lys-Trp-Pro-Trp-Trp-Pro-Trp-Arg-Arg) to the surface of gold NPs (Au NPs) was shown to be useful in increasing roughly four- to six-fold the antifungal activity against azole-resistant clinical isolates of C. albicans [27].
The purpose of this work was to screen different engineered nanomaterials (polymeric NPs, gold NPs, and liposomes) for suitability as potential carriers of Dec-CONH2 modified with a cysteine on its N-terminal (Cys-Dec-CONH2). The addition of this amino acid containing a thiol group was conducted to allow specific terminal covalent bonding of the peptide to maleimide-modified molecules. In particular, we tested the effect of the presence of nanomaterials on the anti-Candida effect of Cys-Dec-CONH2, including upon physical or chemical association.

2. Materials and Methods

2.1. Materials

Dec-CONH2 (Ser-Leu-Leu-Ser-Leu-Ile-Arg-Lys-Leu-Ile-Thr-CONH2) and its N-terminal (Cys-Dec-CONH2; Cys-Ser-Leu-Leu-Ser-Leu-Ile-Arg-Lys-Leu-Ile-Thr-CONH2) and C-terminal (Dec-CONH2-Cys; Ser-Leu-Leu-Ser-Leu-Ile-Arg-Lys-Leu-Ile-(Thr-CONH2)-Cys) cysteine-modified derivatives were obtained from Pepmic (Suzhou, China). Carboxyl-terminated poly(d,l-lactic-co-glycolic acid) (PLGA; Purasorb PDLG 5002A, 50:50 d,l-lactide:glycolide, MW = 17 kDa) was kindly provided by Corbion (Amsterdam, The Netherlands). PLGA-poly(ethylene glycol)-maleimide (PLGA-PEG-Mal; MW = 30:5 kDa) and 2-distearoyl-sn-glycero-3-phosphoethanolamine-PEG-Mal (DSPE-PEG-Mal; PEG MW = 10 kDa) were obtained from Ruixibiotech (Xi’an City, China); PLGA-PEG (MW ≈ 45:5 kDa) from Polyscitech (West Lafayette, IN, USA); polycaprolactone (PCL; MW ≈ 14 kDa), cholesterol, 3-morpholinopropane-1-sulfonic acid (MOPS), tris(2-carboxyethyl)phosphine (TCEP), albumin from human serum, mucin type II from porcine stomach, and Roswell Park Memorial Institute (RPMI) 1640 medium from Sigma-Aldrich (Saint Louis, MO, USA); poloxamer 407 from BASF (Ludwigshafen, Germany); Lipoid P 45 (lecithin fraction with 45% phosphatidylcholine) from Lipoid (Ludwigshafen, Germany); Fluconazole, clotrimazole, 200 nm carboxylate modified polystyrene NPs (PS NPs), Sabouraud dextrose agar (SDA), and McCoy’s 5A medium from Thermo Fisher Scientific (Waltham, MA, USA); heat-inactivated fetal bovine serum and penicillin/streptomycin from Biochrom GmbH (Berlin, Germany); and 50 nm Au NPs from Applied Nanoparticles (Barcelona, Spain). All other materials, reagents, and solvents were of analytical grade or equivalent.

2.2. Production of Nanosystems

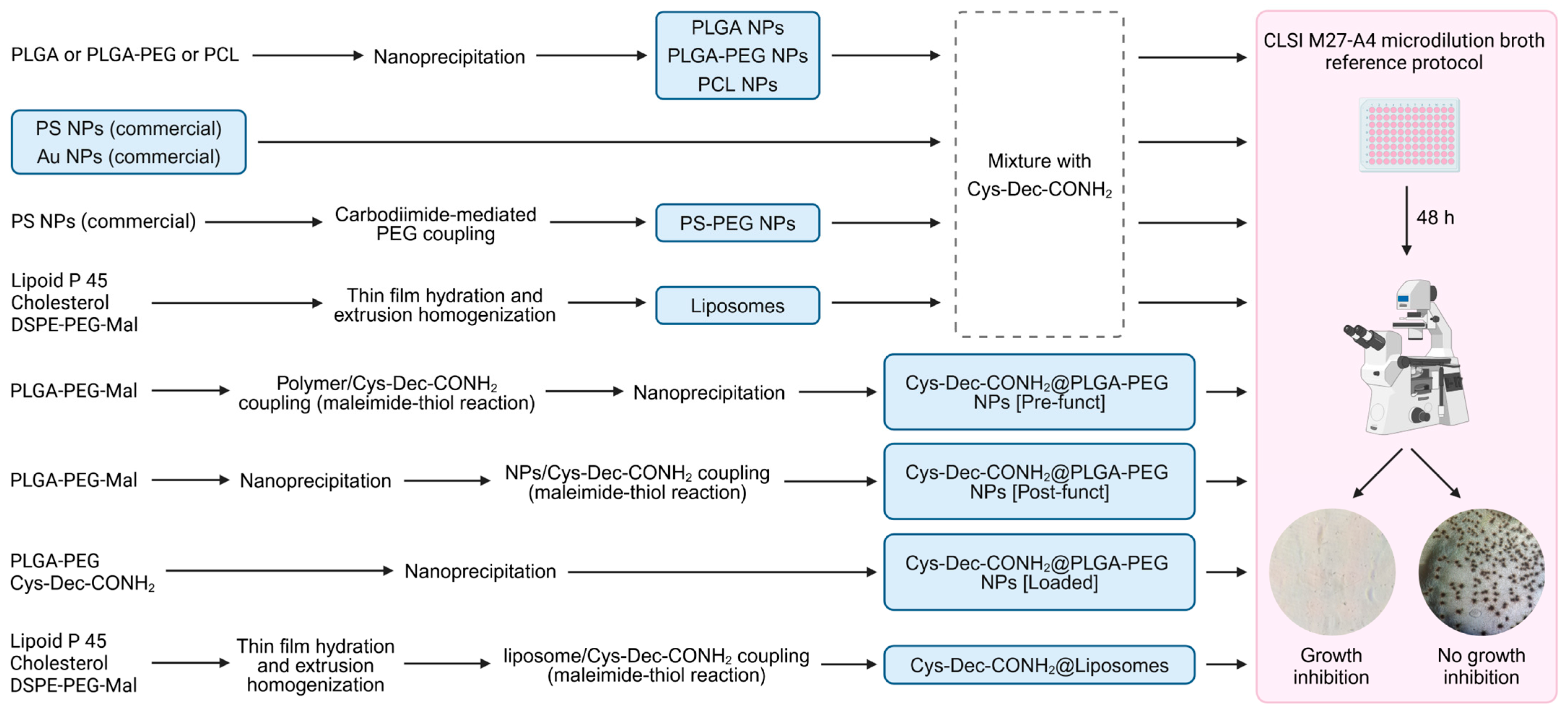

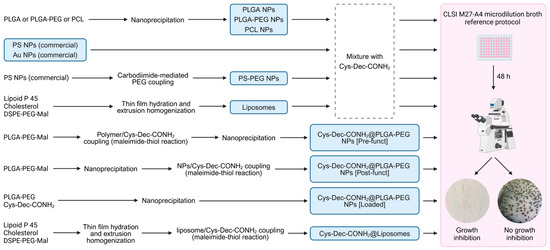

Different nanosystems were obtained as schematically shown in Figure 1. PLGA NPs and PCL NPs were produced by nanoprecipitation using protocols previously reported [28,29,30]. In brief, 20 mg of polymer was dissolved in 2 mL of acetone and injected into 10 mL of 1% (w/v) poloxamer 407 under stirring (300 rpm) at room temperature. After 2 h under stirring, NPs were washed twice with ultrapure water using centrifugal filters (Amicon Ultra-15, 100 kDa MWCO, Merck Millipore, Burlington, MA, USA) at 1500× g for 10 min to remove excess stabilizer. Finally, the colloidal dispersion volume was adjusted to 1 mL with ultrapure water and stored at 4 °C until further use. PLGA-PEG NPs and PLGA-PEG-Mal NPs were also prepared similarly by replacing 4 mL of PLGA with the respective co-polymer.
Large unilamellar liposomes were prepared by the tandem thin-film hydration method and extrusion homogenization [31,32]. Briefly, Lipoid P 45 (28.8 mg), cholesterol (3.2 mg), and DSPE-PEG-Mal (8 mg) were dissolved in 5 mL of chloroform and placed in a round-bottom flask. The organic solvent was evaporated under argon atmosphere at room temperature, and the obtained dry lipid film rehydrated with 4 mL of ultrapure water at approx. 75 °C (to achieve a final concentration of 10 mg/mL) and vortexed [33,34]. The vesicle dispersion was then homogenized by extrusion (3–4 cycles) using a polycarbonate membrane (0.2 μm pore size) mounted on a micro extruder (Avanti Polar Lipids, Alabaster, AL, USA) maintained at 75 °C. Finally, the extruded large unilamellar vesicles were concentrated to a final volume of 1 mL using Amicon Ultra-15 centrifugal filters (1500× g for 1 h at 20 °C). Samples were stored at 4 °C until use.

2.3. Association of Cys-Dec-CONH2 with Nanosystems

Cys-Dec-CONH2 was covalently linked to PLGA-PEG-Mal NPs or liposomes containing DSPE-PEG-Mal via maleimide-thiol reaction. In the case of PLGA-PEG-Mal NPs, two distinct approaches were used, namely (i) by conjugating the reactive co-polymer to Cys-Dec-CONH2 before the production of NPs (Cys-Dec-CONH2@PLGA-PEG NPs [Pre-funct]) or (ii) by surface functionalization of pre-prepared PLGA-PEG-Mal NPs with the peptide (Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct]). Liposomes bearing covalently linked Cys-Dec-CONH2 (Cys-Dec-CONH2@Lipossomes) were prepared according to the second strategy only.
The modification of PLGA-PEG-Mal with Cys-Dec-CONH2 was conducted by dissolving 15 mg of the co-polymer, 2.9 mg of the peptide, and 1.9 mg of TCEP in two milliliters of anhydrous DMF and incubating the mixture under stirring (200 rpm) for 24 h at 4 °C in a nitrogen atmosphere [35]. The functionalized copolymer was then diluted with 40 mL of ultrapure water, transferred to a dialysis membrane (Pierce SnakeSkin, MWCO 3.5–10 kDa, ThermoFisher Scientific, Waltham, MA, USA) and dialyzed against water overnight. Finally, PLGA-PEG-Cys-Dec-CONH2 was lyophilized and stored at −20 °C under a nitrogen atmosphere. Conjugation was confirmed by proton nuclear magnetic resonance spectroscopy (Supplementary Materials), and Cys-Dec-CONH2@PLGA-PEG NPs [Pre-funct] were further prepared as described for PLGA NPs by replacing 4 mg of PLGA by PLGA-PEG-Cys-Dec-CONH2.
Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct] were prepared by adding 0.5 mg of TCEP and 0.9 mg of the peptide (pre-mixed for 1 h at room temperature in 1 mL of 1.1 M MOPS buffer, pH 7) to a freshly prepared batch of PLGA-PEG-Mal NPs before washing (20 mg in 10 mL of 1% (w/v) poloxamer 407). The dispersion was left to react for 24 h at 4 °C under magnetic stirring (200 rpm). Functionalized NPs were then washed twice with ultrapure water and concentrated as described above. A similar procedure was used to modify liposomes with Cys-Dec-CONH2 (Cys-Dec-CONH2@Lipossomes). In this case, a freshly prepared batch of liposomes was diluted in 9 mL of 0.1 M MOPS buffer, pH 7 and further processed as described for PLGA-PEG-Mal NPs, except for the final washing step, which was performed as stated for plain liposomes.
Cys-Dec-CONH2 was also physically loaded into PLGA-PEG NPs (Cys-Dec-CONH2@PLGA-PEG NPs [Loaded]). Briefly, 16 mg of PLGA and 4 mg of PLGA-PEG were dissolved in 1 mL of acetone and mixed with 1 mL of DMF containing 1 mg of Cys-Dec-CONH2. The mixture was then used for producing NPs by nanoprecipitation as described above.

2.4. Physicochemical Characterization of Nanosystems

Average diameter and polydispersity index (PdI) were measured by dynamic light scattering (DLS) and zeta potential was determined by laser Doppler anemometry for all nanosystems using a Zetasizer Nano ZS (Malvern Panalytical, Malvern, UK). Measurements were performed at 20 °C after dilution of samples (1:100, v/v) in 10 mM sodium chloride aqueous solution.
The morphology of nanosystems was analyzed by transmission electron microscopy (TEM) using a JEOL JEM 1400 microscope (JEOL, Tokyo, Japan) at an acceleration voltage of 80 kV. Each colloidal dispersion (10 µL) was placed under a 300-mesh nickel grid, and excess liquid was removed. Staining with 1% uranyl acetate solution was also performed in the case of polymeric NPs and liposomes in order to increase image contrast.
The conjugation efficiency (CE%) of Cys-Dec-CONH2 to polymeric NPs was determined using the fluorescamine assay [29]. Briefly, a weighted sample of functionalized NPs or the co-polymer was dissolved in 150 µL of DMSO, mixed with 50 µL of fluorescamine solution in DMSO (0.3 mg/mL), and incubated for 15 min at room temperature. Fluorescence was then measured at 400/460 nm using a Synergy MX microplate reader (BioTek Instruments, Winooski, VT, USA), and recovered peptide determined from a calibration curve (5 µg/mL to 100 µg/mL of Cys-Dec-CONH2 dissolved in DMSO containing matching non-functionalized NPs/copolymer). CE% was calculated as the percentage of recovered peptide from the amount added during the conjugation process. In the case of Cys-Dec-CONH2@Lipossomes, CE% was determined indirectly (i.e., by assaying the amount of non-conjugated Cys-Dec-CONH2 from washing residues) using the Ellman’s assay [36]. Samples were diluted in 2.5 mL of reaction buffer (0.1 M sodium phosphate, pH 8.0, containing 1 mM EDTA) and mixed with 50 µL of 5,5-dithio-bis-(2-nitrobenzoic acid) (4 mg/mL) for 15 min. The absorbance was then measured at 412 nm, and the CE% was calculated similarly to polymeric NPs. Drug loading (DL%) of Cys-Dec-CONH2@PLGA-PEG NPs [Loaded] was also determined using the fluorescamine assay. DL% was calculated as the mass percentage of peptide relative to the total weight of NPs.

2.5. Antifungal Assays

The anti-Candida activity of peptides, nanosystems, and azoles was evaluated according to the CLSI M27-A4 microdilution broth reference protocol [37], as previously detailed [38,39]. Reference strains of Candida spp. used in this work were acquired from the American Type Culture Collection (ATCC, Manassas, VA, USA), and included C. albicans ATCC 90028, C. albicans ATCC 64550, C. krusei ATCC 6258, C. glabrata ATCC 2001, and C. tropicalis ATCC 750. These were maintained in SDA at 35 °C, 95% RH, and 5% CO2. Fresh cultures were prepared 24 h before antifungal experiments.
For the M27-A4 protocol, Candida spp. were dispersed in RPMI 1640 medium supplemented with 165 mM of MOPS (pH 7.0), plated in 96-well plates at a final concentration of 500 to 2500 cells/mL, and incubated with peptides, nanosystems, or azoles at 2-fold serial dilutions for 48 h at 35 °C, 95% RH, and 5% CO2. A positive control (RPMI 1640 + MOPS medium with cells) and a negative control (RPMI 1640 + MOPS medium without cells) were also included under the same conditions. The minimum inhibitory concentration (MIC) was then determined as the lowest concentration value of the interval at which no fungal growth was detected under microscopic observation. The minimum fungicidal concentration (MFC) was also assessed after plating 10 μL of the cell suspension from each well with no apparent fungal growth on SDA, and additional incubation for 24 h at 35 °C, 95% RH, and 5% CO2. The lowest concentration value of the interval at which no fungal growth was observed macroscopically was considered as the MFC value.

2.6. Cell Viability

The in vitro toxicity of Cys-Dec-CONH2 and Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct] to HEC-1-A human endometrial cells (ATCC HTB-112, Manassas, VA, USA) was determined using the resazurin reduction assay [40]. Cells were maintained in McCoy’s 5A medium supplemented with 10% (v/v) heat-inactivated fetal bovine serum, 100 U/mL penicillin, and 100 μg/mL streptomycin at 37 °C, 95% RH, and 5% CO2. Culture medium was refreshed every 2 to 3 days, and cells reaching 70–90% confluence were sub-cultured using 0.25% (w/v) trypsin-0.53 mM EDTA as dissociation reagent.
The resazurin reduction assay was conducted by incubating 5000 cells per well in 96-well plates for 24 h before adding Cys-Dec-CONH2 and Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct] at 2-fold serial dilutions and incubating for 48 h at 37 °C, 95% RH, and 5% CO2. Supplemented medium only and 1% (w/v) Triton X-100 in complete medium were also tested as 100% and 0% viability controls, respectively, under the same conditions. The cells were then washed twice with phosphate buffered saline (pH 7.4), and 20% (v/v) resazurin in supplemented McCoy’s 5A medium added and incubated for 3 h. Finally, individual supernatants were transferred to a new 96-well plate, and fluorescence was measured at 530/590 nm using a Synergy Mx microplate reader. Half-maximal cytotoxic concentration (CC50) values were calculated by log-logistic regression of viability percentage versus concentration plots using Prism 9 (GraphPad, San Diego, CA, USA).

2.7. Statistical Analysis

All experiments were performed in triplicate, and results are presented as mean ± standard deviation (SD), unless otherwise stated. MIC and MFC values are shown as single value or interval of concentrations at which no fungal growth was observed. Multiple comparisons were performed by one-way ANOVA with Tukey’s post hoc test using Prism (v. 8, GraphPad Software, La Jolla, CA, USA). Values of p < 0.05 were considered as denoting significance.

3. Results and Discussion

3.1. Colloidal Properties of Nanosystems

We obtained different types of NPs, either in-house or from commercial sources (PS NPs and Au NPs). Densely PEGylated PLGA and PS NPs were prepared by using copolymers (PLGA-PEG) or by modifying pre-prepared PS NPs via carbodiimide chemistry, as described previously by our team [41]. All NPs were evaluated for hydrodynamic diameter, size distribution, and charge (Table 1). Most nanomaterials featured hydrodynamic diameter values in the range of 150–250 nm, except for Au NPs, which were considerably smaller. All nanosystems generally exhibited fairly narrow and monomodal size distributions, as inferred by their PdI values and size distribution plots (Figure 2A). The zeta potential was near neutral not only for PEG-coated systems, but also for PCL NPs (Table 1). In this last case, the simple use of poloxamer 407 as stabilizer was able to shield the typically negatively charged surface of particles [42]. PLGA NPs showed mildly negative zeta potential, indicating a lesser shielding effect of poloxamer 407 in this case. Conversely, PS NPs and Au NPs featured markedly negative zeta potential, which is expected due to the presence of carboxylate groups in the polymeric system and the presence of citrate used as a stabilizer in the metallic particles. Such differences could be potentially relevant, as previous work showed that surface charge may be important in defining the adhesion potential of NPs to C. albicans [43].

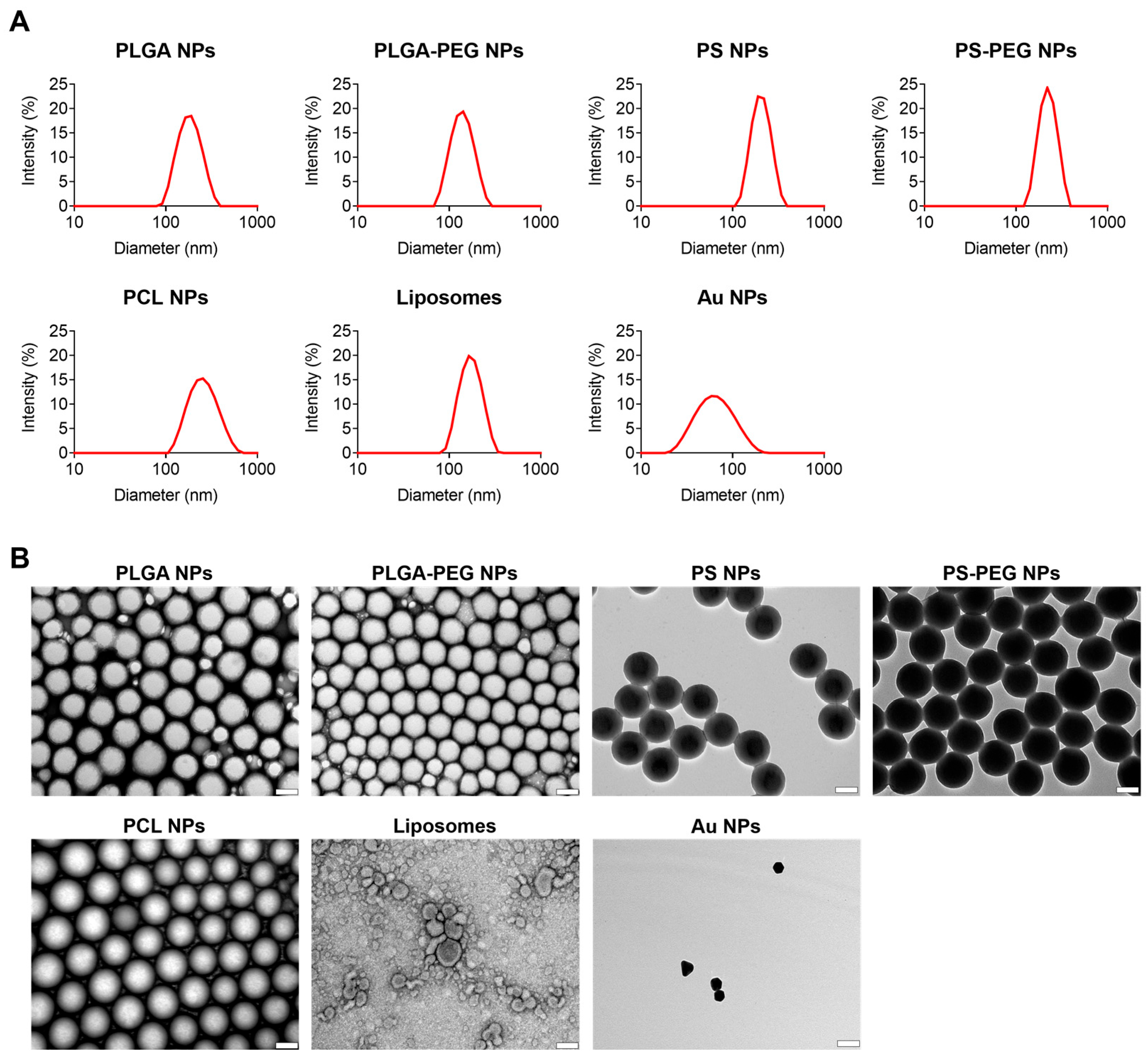

The morphology of nanosystems was further assessed by TEM imaging (Figure 2B). All polymeric NPs featured spherical shape and size ranges in line with those determined by DLS. Liposomes were generally roundish but slightly deformed in some cases, highlighting the typical flexibility of such vesicles. The presence of a single lipid bilayer could also be inferred, reinforcing their unilamellar structure. As for Au NPs, images showed nanosystems with well-defined but irregular shapes, presumably due to their crystalline organization. The diameter values determined by DLS for these metallic NPs were also confirmed.

3.2. Antifungal Activity of Dec-CONH2 and Cysteine-Modified Derivatives

The anti-Candida activity of Dec-CONH2 has been previously described [21,22], but the effects of adding a cysteine residue have not been assessed. We started by testing the antifungal activity of cysteine-modified Dec-CONH2 against a panel of reference strains of Candida spp. and compared it to the non-modified peptide (Table 2). Both N-terminal (Cys-Dec-CONH2) and C-terminal (Dec-CONH2-Cys) modified peptides were tested. Fluconazole and clotrimazole were also included for reference to azole resistance of the different strains. The values of MIC and MFC for these two azoles against susceptible Candida spp. strains agreed with their known potency and data obtained using the CLSI M27 reference protocol [44,45,46,47]. Values of MIC and MFC for Dec-CONH2 against C. albicans were also in line with reported IC50 values (~9–27 µg/mL) [21,22]. The addition of cysteine on the N-terminal did not change the activity of Dec-CONH2, with values remaining within one log2 range [37]. However, changes to the amidated terminal (C-terminal) typically led to a marked reduction in activity (four-fold increase or higher in MIC or MFC). Dec-CONH2 and its derivatives did not seem to feature reduced activity against azole-resistant albicans (ATCC 64550) and non-albicans (C. krusei ATCC 6258) strains.

3.3. Antifungal Activity of Cys-Dec-CONH2 in the Presence of Nanosystems

For the purpose of screening the activity of Cys-Dec-CONH2 in the presence of nanosystems, we selected two strains: C. albicans ATCC 90028 representing more prevalent, azole-sensitive organisms, and C. krusei ATCC 6258 as illustrative of more virulent and intrinsically azole-resistant non-albicans yeasts [6,48]. All bare NPs were firstly tested as controls in order to discard the possibility of any intrinsic anti-Candida activity. For instance, some studies reported that Au NPs may possess antifungal activity [49,50,51]. However, none of the nanosystems considered in the present work featured intrinsic activity against either C. albicans or C. krusei (MIC and MFC values above concentrations of nanosystems equivalent to >256 µg/mL of Cys-Dec-CONH2 in ratios considered for physical mixtures). The absence of activity for Au NPs for the NPs used in our work as compared to other reports may be explained by different colloidal properties (size, shape, or surface chemistry) or simply by the use of a more sensitive, clinically relevant antifungal testing protocols such as CLSI M27-A4.
We continued the study by assessing the anti-Candida activity of physical mixtures of Cys-Dec-CONH2 with different nanosystems (Table 3), before considering any association between peptide and nanosystems. Changes in activity were noticeable, particularly in the case of PLGA NPs, PLGA-PEG NPs, and PCL NPs. The simple presence of such nanosystems rendered the peptide inactive against Candida, as noted before for other peptide–nanosystem conjugates [25]. Such effect was even observed when the fungus was left in contact with the peptide for up to 36 h, and PLGA NPs or PLGA-PEG NPs were added only during the last 12 h of the incubation period. These data suggest that Cys-Dec-CONH2 requires considerable contact time with Candida in order to fully exert its antifungal action, but its inactivation by nanosystems occurs rapidly and extensively, as similarly reported for other antimicrobial peptides adsorbed onto various materials [52,53]. One common feature of PLGA NPs, PLGA-PEG NPs, and PCL NPs is the use of poloxamer 407 during production. Even if this particle stabilizer is extensively removed during washing steps, it can still adsorb in substantial amounts at the surface of NPs [42,54]. Such an effect was evidenced by the near-neutral zeta potential values obtained for most NPs. In order to discard the possibility that residual poloxamer 407 interferes with the anti-Candida activity, we tested the ability of Cys-Dec-CONH2 in the presence of 1% (concentration used during production) and 5% of the particle stabilizer. While the highest concentration inhibited the activity of the peptide (MIC and MFC values over 256 µg/mL), the lowest level resulted in no substantial changes (MIC and MFC values of 64 µg/mL for C. albicans ATCC 90028 and 16 µg/mL for C. krusei ATCC 6258). These results suggest that poloxamer 407 was not implicated in the decrease in peptide activity when mixed with PLGA NPs, PLGA-PEG NPs, and PCL NPs.
Mixtures of the peptide with other nanosystems appeared to have little to no effect (Table 3), with only negligible differences (MIC and MFC values within one log2 range) being observed for PS NPs, PS-PEG NPs, Au NPs, and liposomes in the case of C. albicans. Results for C. krusei were similar, although a mild reduction in activity was observed for PS NPs and liposomes (MIC and MFC values were four-fold higher). Overall, it seems that Cys-Dec-CONH2 has a high tendency to interact with polymeric NPs, which could reduce the availability of the peptide to interact with fungi [24]. PS NPs were the most hydrophobic type of polymeric nanosystem tested in this study [55,56], and this fact alone may have contributed to less affinity of hydrophilic Cys-Dec-CONH2 to adsorb at the surface of the PS NPs, thus leading to only a minor effect on activity. The explanation seems to be less clear in the case of liposomes, but the amphiphilic nature of these vesicles may contribute to only mild adsorption of Cys-Dec-CONH2 at their surface [57,58].
The anti-Candida activity data suggest that different nanosystems are able to interact to a different extent with Cys-Dec-CONH2. In order to further discard if any changes were induced to the native structure of the peptide, we incubated it overnight with PLGA-PEG NPs and tested the activity after recovery. Results were similar to those for native Cys-Dec-CONH2 (MIC = 64 µg/mL and MFC = 128 µg/mL for C. albicans; MIC = 32 µg/mL and MFC = 32 µg/mL for C. krusei), thus suggesting that the peptide structure was fairly maintained. This points to an alternative mechanism of interference related with interfacial interactions between the peptide and nanosystems. The cationic nature of Cys-Dec-CONH2 is likely to promote its tight adsorption onto mildly negatively charged PLGA-PEG NPs [59,60].

3.4. Antifungal Activity of Nanosystems Incorporating Cys-Dec-CONH2

We wanted to understand if the puzzling results obtained for the physical mixtures could be reversed by associating the peptide with NPs in a more controlled fashion, or if the close proximity with nanosystems could in fact inactivate Cys-Dec-CONH2. For example, previous work by Pal et al. showed that covalent conjugation of odorranain-A-OA1, an antimicrobial cationic peptide, to silver NPs was able to enhance activity against the bacterium E. coli, contrasting with the inhibition of the peptide when simply mixed with NPs [24]. This effect was explained by the strong electrostatic interaction between peptide and NPs that rendered odorranain-A-OA1 partially inactivated. We selected PLGA-PEG-based carriers for further experiments due to their biodegradability and PEG shielding, which is able to provide prolonged blood circulation upon intravenous injection [61,62] and mucus-diffusive properties when administered at mucosal sites [63,64]. The covalent bonding of Cys-Dec-CONH2 to the co-polymer was performed before (Cys-Dec-CONH2@PLGA-PEG NPs [Pre-funct]) or after (Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct]) producing NPs. The cysteine residue of the peptide was used for site-oriented covalent bonding to the copolymer featuring a terminal maleimide group at the PEG arm. Both types of functionalized NPs presented colloidal properties similar to plain PLGA-PEG NPs (Table 4). We also considered the physical entrapment of the peptide in the polymeric matrix of NPs, as well as surface functionalized liposomes with the peptide for comparison purposes. In all cases, the cationic nature of the peptide was not able to substantially change the zeta potential of the nanosystems.
Results from anti-Candida activity showed that, irrespective of the strategy used, all nanosystems rendered Cys-Dec-CONH2 inactive (Table 5). This was particularly striking for liposomes. Although the physical mixture resulted only in partial impairment of activity (Table 3), surface immobilization of the peptide rendered its complete inactivation, suggesting that the close proximity of nanosystems and the peptide is able to interfere with its ability to interact with the fungus. In the case of PLGA-PEG NPs, neither oriented surface functionalization (which promoted maximum exposure of the amidated C-terminal of the peptide) nor non-covalent encapsulation (which could help protect the peptide and promote sustained release) were able to counteract interference with antifungal activity. Similar results were reported by Wu et al. for cecropin P1 covalently immobilized onto PEGylated silica NPs when tested for antimicrobial activity against E. coli [65]. Ramôa et al. also noted that immobilizing the MSI-78(4–20) peptide onto PLGA-PEG NPs led to a reduction in the activity against bacteria such as S. aureus and P. aeruginosa [29]. Such an effect seems to be particularly common and challenging when considering antimicrobial peptide immobilization onto coatings of medical devices and implants [66,67].

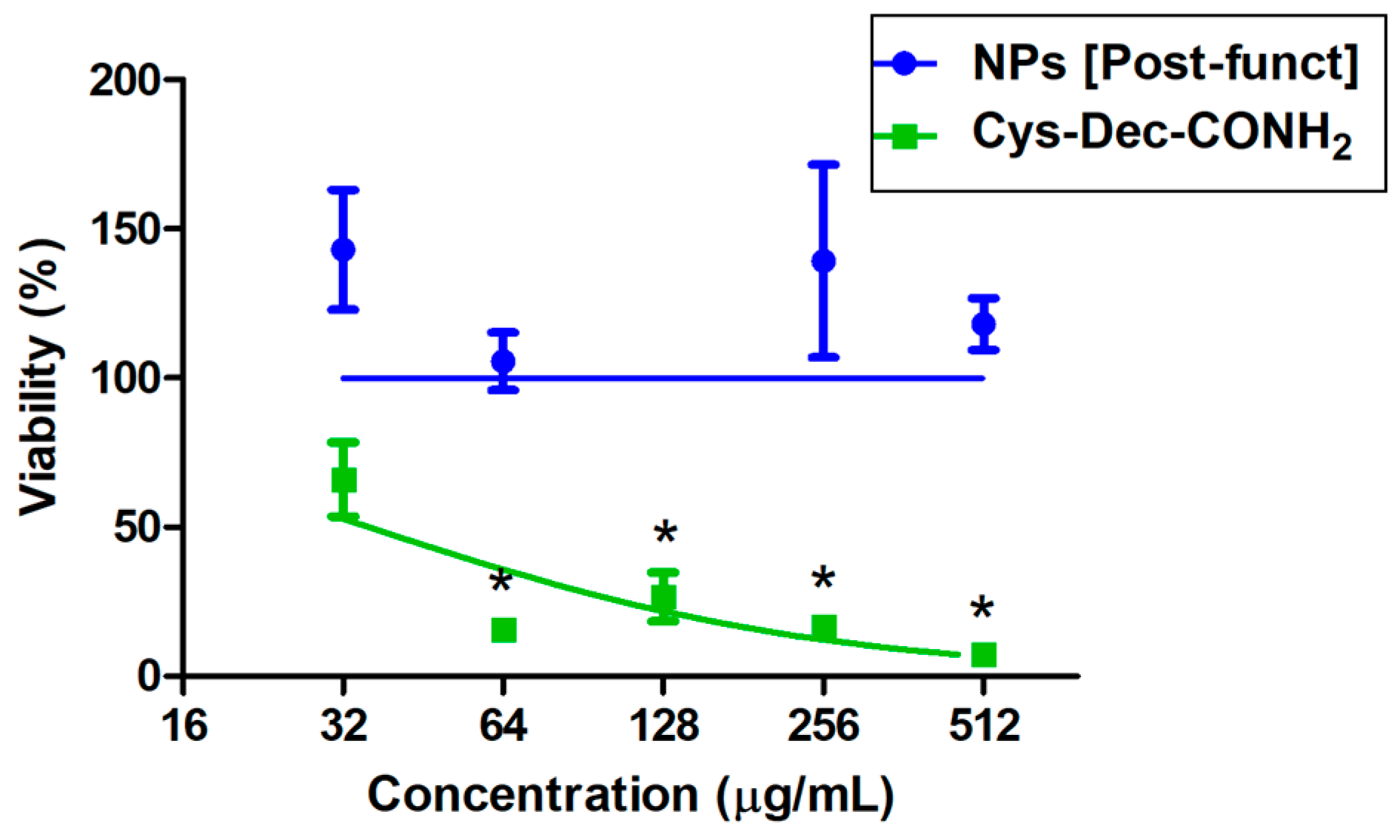

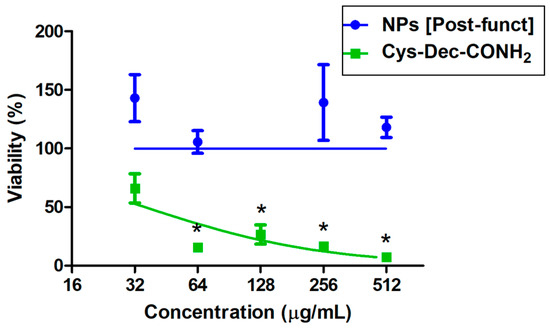

The cytotoxicit0079 of Cys-Dec-CONH2 to HEC-1-A human endometrial cells was also studied, in order to understand if the interaction with nanosystems was also able to inhibit other biological effects of the peptide, as observed in various other studies [25]. For that, we tested Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct], and results (Figure 3) showed a substantial shift in the toxicity concentration threshold (CC50 > 512 µg/mL in total peptide) as compared to the peptide alone (CC50 = 36 µg/mL). These data appear to confirm that surface immobilization of Cys-Dec-CONH2 at the surface of PLGA-PEG NPs is able to inhibit the establishment of interactions between peptide and HEC-1-A human cells.

3.5. Antifungal Activity of Cys-Dec-CONH2 in the Presence of Biomolecules

The data presented above suggest that the antifungal activity of Cys-Dec-CONH2 can easily be partially or completely disrupted, likely by direct interfacial interaction with nanosystems. Thus, we pondered whether this inactivation could also occur in the presence of biologically relevant macromolecules. We mixed Cys-Dec-CONH2 with either mucin or albumin at different concentrations and tested their anti-Candida activity (Table 6). Again, interference was observed for both macromolecules. Mucin is the main component of fluids present at mucosal sites, with concentrations ranging from as little as 0.01% in the eye to nearly 5% in the stomach [68,69,70]. While reduction of the antifungal activity of Cys-Dec-CONH2 was negligible at 0.1% mucin, extensive inhibition was noted at 1% mucin. Felgentreff et al. [71] and Huang et al. [72] found similar consequences for the antibacterial activity of polymyxins and cathelicidin, respectively, when mixed with mucin, thus suggesting that such effect should be screened early in the development of new antimicrobial peptides. Albumin was chosen as the most abundant protein in the blood, proxying the scenario of systemic distribution of Cys-Dec-CONH2. Reduction of the anti-Candida activity was observed even for concentrations much lower than the normal serum levels (3.5–5%) [73]. Similarly, Tang et al. observed that fetal bovine albumin was able to inhibit the activity of the peptide TP4 against C. albicans due to complexation between the two molecules [74].

4. Conclusions

Antifungal peptides and their association with nanocarriers offer great promise for advancing antifungal therapeutics, but their translation into tangible products remains challenging. In this work, we provide evidence that the mere presence of various nanosystems can impair, to different degrees, the ability of Cys-Dec-CONH2 to inhibit Candida spp. using a clinically relevant assay. The effect was particularly striking for PLGA NPs and PLGA-PEG NPs. Although the addition of the cysteine residue to the N-terminal of Dec-CONH2 did not substantially affect antifungal activity, functionalization of different nanosystems with Cys-Dec-CONH2 via covalent bonding or encapsulation led to complete loss of antifungal activity. This effect seems to be correlated with the strong interfacial electrostatic interactions between peptide and nanomaterial, as similarly described for antibacterial peptides. Additionally, two biorelevant macromolecules—albumin and mucin—were also able to inhibit the anti-Candida activity of Cys-Dec-CONH2 at levels close to those observed in biological fluids. This supports the need to test antifungal peptides under conditions mimicking biological settings relevant to their prospective clinical applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics17040460/s1, Characterization of PLGA-PEG-Cys-Dec-CONH2 by Nuclear Magnetic Resonance Spectroscopy; Figure S1: 1H NMR spectra for Cys-Dec-CONH2, PLGA-PEG-Cys-Dec-CONH2, and PLGA-PEG-Mal. Reference [75] is cited in the Supplementary Materials.

Author Contributions

Conceptualization, V.R., B.S. and J.d.N.; data curation, V.R.; formal analysis, V.R. and J.d.N.; funding acquisition, B.S. and J.d.N.; investigation, V.R. and H.A.; methodology, V.R., H.A. and J.d.N.; supervision, B.S. and J.d.N.; writing—original draft, V.R.; writing—review and editing, H.A., B.S. and J.d.N. All authors have read and agreed to the published version of the manuscript.

Funding

This work has received funding from the European Union’s Horizon 2020 research and innovation program under grant agreement No. 951723.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available from the corresponding author upon reasonable request.

Acknowledgments

H. Almeida and J. das Neves gratefully acknowledge Fundação para a Ciência e a Tecnologia, Portugal, for financial support (2020.06264.BD fellowship and CEECIND/01280/2018 contract under the Individual CEEC Program, respectively). The authors also acknowledge the support of the Advanced Biomaterials and Biointerfaces Characterization (ABC) platform at i3S, and L. Mesquita for preliminary work conducted with amidated decoralin. C. glabrata ATCC 2001 and C. tropicalis ATCC 750 used in this work were kindly provided by C. F. Rodrigues and M. Henriques from the collection of the Biofilm Research Group, Centre of Biological Engineering, University of Minho, Portugal. Graphical abstract and Figure 1 were created in https://BioRender.com (accessed on 25 February 2025).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
Au NPsGold nanoparticles
CC50Half-maximal cytotoxic concentration
CE%Conjugation efficiency percentage
Cys-Dec-CONH2N-terminal cysteine-modified Dec-CONH2
Cys-Dec-CONH2@LipossomesLiposomes post-functionalized with Cys-Dec-CONH2
Cys-Dec-CONH2@PLGA-PEG NPs [Loaded]Cys-Dec-CONH2-loaded PLGA-PEG NPs
Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct]PLGA-PEG NPs post-functionalized with Cys-Dec-CONH2
Cys-Dec-CONH2@PLGA-PEG NPs [Pre-funct]PLGA-PEG NPs pre-functionalized with Cys-Dec-CONH2
DecDecoralin
Dec-CONH2C-terminal amidated decoralin
Dec-CONH2-CysC-terminal cysteine-modified Dec-CONH2
DL%Drug loading percentage
MFCMinimum fungicidal concentration
MICMinimum inhibitory concentration
PCL NPsPolycaprolactone nanoparticles
PdIPolydispersity index
PLGA NPsPoly(d,l-lactic-co-glycolic acid) nanoparticles
PLGA-PEG NPsPoly(d,l-lactic-co-glycolic acid)-poly(ethylene glycol) nanoparticles
PLGA-PEG-Mal NPsPoly(d,l-lactic-co-glycolic acid)-poly(ethylene glycol)-maleimide
PS NPsPolystyrene nanoparticles
PS-PEG NPsPolystyrene-poly(ethylene glycol) nanoparticles

References

  1. Pappas, P.G.; Lionakis, M.S.; Arendrup, M.C.; Ostrosky-Zeichner, L.; Kullberg, B.J. Invasive candidiasis. Nat. Rev. Dis. Primers 2018, 4, 18026. [Google Scholar] [CrossRef] [PubMed]
  2. Netea, M.G.; Joosten, L.A.; van der Meer, J.W.; Kullberg, B.J.; van de Veerdonk, F.L. Immune defence against Candida fungal infections. Nat. Rev. Immunol. 2015, 15, 630–642. [Google Scholar] [PubMed]
  3. McCarty, T.P.; White, C.M.; Pappas, P.G. Candidemia and invasive candidiasis. Infect. Dis. Clin. N. Am. 2021, 35, 389–413. [Google Scholar]
  4. Pappas, P.G.; Kauffman, C.A.; Andes, D.R.; Clancy, C.J.; Marr, K.A.; Ostrosky-Zeichner, L.; Reboli, A.C.; Schuster, M.G.; Vazquez, J.A.; Walsh, T.J.; et al. Clinical practice guideline for the management of candidiasis: 2016 update by the Infectious Diseases Society of America. Clin. Infect. Dis. 2016, 62, e1–e50. [Google Scholar]
  5. Cornely, O.A.; Sprute, R.; Bassetti, M.; Chen, S.C.; Groll, A.H.; Kurzai, O.; Lass-Florl, C.; Ostrosky-Zeichner, L.; Rautemaa-Richardson, R.; Revathi, G.; et al. Global guideline for the diagnosis and management of candidiasis: An initiative of the ECMM in cooperation with ISHAM and ASM. Lancet Infect. Dis. 2025. [Google Scholar] [CrossRef]
  6. Whaley, S.G.; Berkow, E.L.; Rybak, J.M.; Nishimoto, A.T.; Barker, K.S.; Rogers, P.D. Azole antifungal resistance in Candida albicans and emerging non-albicans Candida species. Front. Microbiol. 2017, 7, 2173. [Google Scholar]
  7. Vitale, R.G. Role of antifungal combinations in difficult to treat Candida infections. J. Fungi 2021, 7, 731. [Google Scholar] [CrossRef]
  8. Astvad, K.M.T.; Johansen, H.K.; Roder, B.L.; Rosenvinge, F.S.; Knudsen, J.D.; Lemming, L.; Schonheyder, H.C.; Hare, R.K.; Kristensen, L.; Nielsen, L.; et al. Update from a 12-year nationwide fungemia surveillance: Increasing intrinsic and acquired resistance causes concern. J. Clin. Microbiol. 2018, 56, e01564-17. [Google Scholar]
  9. Pristov, K.E.; Ghannoum, M.A. Resistance of Candida to azoles and echinocandins worldwide. Clin. Microbiol. Infect. 2019, 25, 792–798. [Google Scholar]
  10. Lee, A. Ibrexafungerp: First approval. Drugs 2021, 81, 1445–1450. [Google Scholar]
  11. Hoy, S.M. Oteseconazole: First approval. Drugs 2022, 82, 1017–1023. [Google Scholar] [PubMed]
  12. Syed, Y.Y. Rezafungin: First approval. Drugs 2023, 83, 833–840. [Google Scholar] [PubMed]
  13. Perfect, J.R. The antifungal pipeline: A reality check. Nat. Rev. Drug Discov. 2017, 16, 603–616. [Google Scholar]
  14. Wan, F.; Wong, F.; Collins, J.J.; de la Fuente-Nunez, C. Machine learning for antimicrobial peptide identification and design. Nat. Rev. Bioeng. 2024, 2, 392–407. [Google Scholar]
  15. Freitas, C.G.; Felipe, M.S. Candida albicans and antifungal peptides. Infect. Dis. Ther. 2023, 12, 2631–2648. [Google Scholar]
  16. Brauner, A.; Alvendal, C.; Chromek, M.; Stopsack, K.H.; Ehrström, S.; Schröder, J.M.; Bohm-Starke, N. Psoriasin, a novel anti-Candida albicans adhesin. J. Mol. Med. 2018, 96, 537–545. [Google Scholar]
  17. Cheng, R.; Xu, Q.; Hu, F.; Li, H.; Yang, B.; Duan, Z.; Zhang, K.; Wu, J.; Li, W.; Luo, Z. Antifungal activity of MAF-1A peptide against Candida albicans. Int. J. Microbiol. 2021, 24, 233–242. [Google Scholar]
  18. Mancino, D.; Kharouf, N.; Scavello, F.; Hellé, S.; Salloum-Yared, F.; Mutschler, A.; Mathieu, E.; Lavalle, P.; Metz-Boutigue, M.H.; Haïkel, Y. The catestatin-derived peptides are new actors to fight the development of oral candidosis. Int. J. Mol. Sci. 2022, 23, 2066. [Google Scholar] [CrossRef]
  19. Rather, I.A.; Sabir, J.S.M.; Asseri, A.H.; Ali, S. Antifungal activity of human cathelicidin LL-37, a membrane disrupting peptide, by triggering oxidative stress and cell cycle arrest in Candida auris. J. Fungi 2022, 8, 204. [Google Scholar] [CrossRef]
  20. Perez-Rodriguez, A.; Eraso, E.; Quindós, G.; Mateo, E. Antimicrobial peptides with anti-Candida activity. Int. J. Mol. Sci. 2022, 23, 9264. [Google Scholar] [CrossRef]
  21. Konno, K.; Rangel, M.; Oliveira, J.S.; Dos Santos Cabrera, M.P.; Fontana, R.; Hirata, I.Y.; Hide, I.; Nakata, Y.; Mori, K.; Kawano, M.; et al. Decoralin, a novel linear cationic alpha-helical peptide from the venom of the solitary eumenine wasp Oreumenes decoratus. Peptides 2007, 28, 2320–2327. [Google Scholar] [PubMed]
  22. Ng, S.M.; Yap, Y.Y.; Cheong, J.W.; Ng, F.M.; Lau, Q.Y.; Barkham, T.; Teo, J.W.; Hill, J.; Chia, C.S. Antifungal peptides: A potential new class of antifungals for treating vulvovaginal candidiasis caused by fluconazole-resistant Candida albicans. J. Pept. Sci. 2017, 23, 215–221. [Google Scholar] [CrossRef] [PubMed]
  23. Pal, S.; Mitra, K.; Azmi, S.; Ghosh, J.K.; Chakraborty, T.K. Towards the synthesis of sugar amino acid containing antimicrobial noncytotoxic CAP conjugates with gold nanoparticles and a mechanistic study of cell disruption. Org. Biomol. Chem. 2011, 9, 4806–4810. [Google Scholar] [PubMed]
  24. Pal, I.; Brahmkhatri, V.P.; Bera, S.; Bhattacharyya, D.; Quirishi, Y.; Bhunia, A.; Atreya, H.S. Enhanced stability and activity of an antimicrobial peptide in conjugation with silver nanoparticle. J. Colloid Interface Sci. 2016, 483, 385–393. [Google Scholar]
  25. Cui, Z.; Luo, Q.; Bannon, M.S.; Gray, V.P.; Bloom, T.G.; Clore, M.F.; Hughes, M.A.; Crawford, M.A.; Letteri, R.A. Molecular engineering of antimicrobial peptide (AMP)-polymer conjugates. Biomater. Sci. 2021, 9, 5069–5091. [Google Scholar]
  26. Jayathilaka, E.; Nikapitiya, C.; De Zoysa, M.; Whang, I. Antimicrobial peptide octominin-encapsulated chitosan nanoparticles enhanced antifungal and antibacterial activities. Int. J. Mol. Sci. 2022, 23, 15882. [Google Scholar] [CrossRef]
  27. Rahimi, H.; Roudbarmohammadi, S.; Delavari, H.H.; Roudbary, M. Antifungal effects of indolicidin-conjugated gold nanoparticles against fluconazole-resistant strains of Candida albicans isolated from patients with burn infection. Int. J. Nanomed. 2019, 14, 5323–5338. [Google Scholar]
  28. Nunes, R.; Araújo, F.; Barreiros, L.; Bártolo, I.; Segundo, M.A.; Taveira, N.; Sarmento, B.; das Neves, J. Noncovalent PEG coating of nanoparticle drug carriers improves the local pharmacokinetics of rectal anti-HIV microbicides. ACS Appl. Mater. Interfaces 2018, 10, 34942–34953. [Google Scholar]
  29. Ramôa, A.M.; Campos, F.; Moreira, L.; Teixeira, C.; Leiro, V.; Gomes, P.; das Neves, J.; Martins, M.C.L.; Monteiro, C. Antimicrobial peptide-grafted PLGA-PEG nanoparticles to fight bacterial wound infections. Biomater. Sci. 2023, 11, 499–508. [Google Scholar]
  30. Garizo, A.R.; Castro, F.; Martins, C.; Almeida, A.; Dias, T.P.; Fernardes, F.; Barrias, C.C.; Bernardes, N.; Fialho, A.M.; Sarmento, B. p28-functionalized PLGA nanoparticles loaded with gefitinib reduce tumor burden and metastases formation on lung cancer. J. Control Release 2021, 337, 329–342. [Google Scholar]
  31. Maurelli, A.M.; Ferreira, B.; Dias, S.; Almeida, H.; De Leo, V.; Sarmento, B.; Catucci, L.; das Neves, J. Impact of polyethylene glycol and polydopamine coatings on the performance of camptothecin-loaded liposomes for localised treatment of colorectal cancer. Mater. Adv. 2024, 5, 4276–4285. [Google Scholar] [CrossRef]
  32. Faria, M.J.; Machado, R.; Ribeiro, A.; Goncalves, H.; Real Oliveira, M.E.C.D.; Viseu, T.; das Neves, J.; Lúcio, M. Rational development of liposomal hydrogels: A strategy for topical vaginal antiretroviral drug delivery in the context of HIV prevention. Pharmaceutics 2019, 11, 485. [Google Scholar] [CrossRef] [PubMed]
  33. Londoño, C.A.; Rojas, J.; Yarce, C.J.; Salamanca, C.H. Design of prototype formulations for in vitro dermal delivery of the natural antioxidant ferulic acid based on ethosomal colloidal systems. Cosmetics 2019, 6, 5. [Google Scholar] [CrossRef]
  34. Kastantin, M.; Ananthanarayanan, B.; Karmali, P.; Ruoslahti, E.; Tirrell, M. Effect of the lipid chain melting transition on the stability of DSPE-PEG(2000) micelles. Langmuir 2009, 25, 7279–7286. [Google Scholar] [CrossRef]
  35. Pinto, S.; Hosseini, M.; Buckley, S.T.; Yin, W.; Garousi, J.; Graslund, T.; van Ijzendoorn, S.; Santos, H.A.; Sarmento, B. Nanoparticles targeting the intestinal Fc receptor enhance intestinal cellular trafficking of semaglutide. J. Control Release 2024, 366, 621–636. [Google Scholar] [CrossRef]
  36. Shcherbatykh, A.A.; Chernov’yants, M.S.; Popov, L.D. Determination of low molecular thiols and protein sulfhydryl groups using heterocyclic disulfides. Amino Acids 2022, 54, 469–479. [Google Scholar] [CrossRef]
  37. Clinical and Laboratory Standards Institute. M27-A4: Reference Method for Broth Dilution Antifungal Susceptibility Testing of Yeasts, 4th ed.; Clinical and Laboratory Standards Institute: Berwyn, PA, USA, 2017. [Google Scholar]
  38. Facchinatto, W.M.; Galante, J.; Mesquita, L.; Silva, D.S.; dos Santos, D.M.; Moraes, T.B.; Campana-Filho, S.P.; Colnago, L.A.; Sarmento, B.; das Neves, J. Clotrimazole-loaded N-(2-hydroxy)-propyl-3-trimethylammonium, O-palmitoyl chitosan nanoparticles for topical treatment of vulvovaginal candidiasis. Acta Biomater. 2021, 125, 312–321. [Google Scholar] [CrossRef]
  39. Silva, A.M.; Rocha, B.; Moreira, M.M.; Delerue-Matos, C.; das Neves, J.; Rodrigues, F. Biological activity and chemical composition of propolis extracts with potential use in vulvovaginal candidiasis management. Int. J. Mol. Sci. 2024, 25, 2478. [Google Scholar] [CrossRef]
  40. Präbst, K.; Engelhardt, H.; Ringgeler, S.; Hübner, H. Basic colorimetric proliferation assays: MTT, WST, and resazurin. In Cell Viability Assays: Methods and Protocols; Humana Press: Totowa, NJ, USA, 2017; Volume 1601, pp. 1–17. [Google Scholar]
  41. Gabriel, L.; Almeida, H.; Avelar, M.; Sarmento, B.; das Neves, J. MPTHub: An open-source software for characterizing the transport of particles in biorelevant media. Nanomaterials 2022, 12, 1899. [Google Scholar] [CrossRef]
  42. Nunes, R.; Araújo, F.; Tavares, J.; Sarmento, B.; das Neves, J. Surface modification with polyethylene glycol enhances colorectal distribution and retention of nanoparticles. Eur. J. Pharm. Biopharm. 2018, 130, 200–206. [Google Scholar] [CrossRef]
  43. Lyden, A.; Lombardi, L.; Sire, W.; Li, P.; Simpson, J.C.; Butler, G.; Lee, G.U. Characterization of carboxylate nanoparticle adhesion with the fungal pathogen Candida albicans. Nanoscale 2017, 9, 15911–15922. [Google Scholar] [PubMed]
  44. Espinel-Ingroff, A.; Barchiesi, F.; Cuenca-Estrella, M.; Pfaller, M.A.; Rinaldi, M.; Rodriguez-Tudela, J.L.; Verweij, P.E. International and multicenter comparison of EUCAST and CLSI M27-A2 broth microdilution methods for testing susceptibilities of Candida spp. to fluconazole, itraconazole, posaconazole, and voriconazole. J. Clin. Microbiol. 2005, 43, 3884–3889. [Google Scholar] [PubMed]
  45. Choukri, F.; Benderdouche, M.; Sednaoui, P. In vitro susceptibility profile of 200 recent clinical isolates of Candida spp. to topical antifungal treatments of vulvovaginal candidiasis, the imidazoles and nystatin agents. J. Mycol. Med. 2014, 24, 303–307. [Google Scholar]
  46. Nagashima, M.; Yamagishi, Y.; Mikamo, H. Antifungal susceptibilities of Candida species isolated from the patients with vaginal candidiasis. J. Infect. Chemother. 2016, 22, 124–126. [Google Scholar]
  47. de Sousa, E.S.O.; Pinheiro, S.B.; Cortez, A.C.A.; Cruz, K.S.; de Souza, E.S.; Melhem, M.S.C.; Frickmann, H.; de Souza, J.V.B. Modifications of antifungal sensibility testing as suggested by CLSI document M27-A4: Proposal for using different culture medium and buffer. Diagn. Microbiol. Infect. Dis. 2021, 101, 115488. [Google Scholar]
  48. Parambath, S.; Dao, A.; Kim, H.Y.; Zawahir, S.; Izquierdo, A.A.; Tacconelli, E.; Govender, N.; Oladele, R.; Colombo, A.; Sorrell, T.; et al. Candida albicans-A systematic review to inform the World Health Organization Fungal Priority Pathogens List. Med. Mycol. 2024, 62, myae045. [Google Scholar]
  49. Jayaseelan, C.; Ramkumar, R.; Rahuman, A.A.; Perumal, P. Green synthesis of gold nanoparticles using seed aqueous extract of Abelmoschus esculentus and its antifungal activity. Ind. Crops Prod. 2013, 45, 423–429. [Google Scholar]
  50. Wani, I.A.; Ahmad, T.; Manzoor, N. Size and shape dependant antifungal activity of gold nanoparticles: A case study of Candida. Colloids Surf. B Biointerfaces 2013, 101, 162–170. [Google Scholar]
  51. Ahmad, T.; Wani, I.A.; Lone, I.H.; Ganguly, A.; Manzoor, N.; Ahmad, A.; Ahmed, J.; Al-Shihri, A.S. Antifungal activity of gold nanoparticles prepared by solvothermal method. Mater. Res. Bull. 2013, 48, 12–20. [Google Scholar]
  52. Williams, T.J.; Schneider, R.P.; Willcox, M.D. The effect of protein-coated contact lenses on the adhesion and viability of gram negative bacteria. Curr. Eye Res. 2003, 27, 227–235. [Google Scholar]
  53. Costa, F.M.; Maia, S.R.; Gomes, P.A.; Martins, M.C. Dhvar5 antimicrobial peptide (AMP) chemoselective covalent immobilization results on higher antiadherence effect than simple physical adsorption. Biomaterials 2015, 52, 531–538. [Google Scholar] [CrossRef] [PubMed]
  54. Yang, M.; Lai, S.K.; Wang, Y.Y.; Zhong, W.; Happe, C.; Zhang, M.; Fu, J.; Hanes, J. Biodegradable nanoparticles composed entirely of safe materials that rapidly penetrate human mucus. Angew. Chem. Int. Ed. Engl. 2011, 50, 2597–2600. [Google Scholar] [CrossRef] [PubMed]
  55. Ndumiso, M.; Buchtova, N.; Husselmann, L.; Mohamed, G.; Klein, A.; Aucamp, M.; Canevet, D.; D’Souza, S.; Maphasa, R.E.; Boury, F.; et al. Comparative whole corona fingerprinting and protein adsorption thermodynamics of PLGA and PCL nanoparticles in human serum. Colloids Surf. B Biointerfaces 2020, 188, 110816. [Google Scholar] [CrossRef] [PubMed]
  56. Ibrahim, S.; Rehim, M.A.; Turky, G. Dielectric study of polystyrene/polycaprolactone composites prepared by miniemulsion polymerization. J. Phys. Chem. Solids 2018, 119, 56–61. [Google Scholar] [CrossRef]
  57. Travkova, O.G.; Moehwald, H.; Brezesinski, G. The interaction of antimicrobial peptides with membranes. Adv. Colloid Interface Sci. 2017, 247, 521–532. [Google Scholar] [CrossRef]
  58. Ramamourthy, G.; Park, J.; Seo, C.J.; Vogel, H.; Park, Y. Antifungal and antibiofilm activities and the mechanism of action of repeating lysine-tryptophan peptides against Candida albicans. Microorganisms 2020, 8, 758. [Google Scholar] [CrossRef]
  59. Swiecicki, J.-M.; Tailhades, J.; Lepeltier, E.; Chassaing, G.; Lavielle, S.; Mansuy, C. Peptide-coated nanoparticles: Adsorption and desorption studies of cationic peptides on nanodiamonds. Colloids Surf. A Physicochem. Eng. Asp. 2013, 431, 73–79. [Google Scholar] [CrossRef]
  60. Conte, C.; Longobardi, G.; Barbieri, A.; Palma, G.; Luciano, A.; Dal Poggetto, G.; Avitabile, C.; Pecoraro, A.; Russo, A.; Russo, G.; et al. Non-covalent strategies to functionalize polymeric nanoparticles with NGR peptides for targeting breast cancer. Int. J. Pharm. 2023, 633, 122618. [Google Scholar] [CrossRef]
  61. Gref, R.; Minamitake, Y.; Peracchia, M.T.; Trubetskoy, V.; Torchilin, V.; Langer, R. Biodegradable long-circulating polymeric nanospheres. Science 1994, 263, 1600–1603. [Google Scholar] [CrossRef]
  62. Partikel, K.; Korte, R.; Stein, N.C.; Mulac, D.; Herrmann, F.C.; Humpf, H.U.; Langer, K. Effect of nanoparticle size and PEGylation on the protein corona of PLGA nanoparticles. Eur. J. Pharm. Biopharm. 2019, 141, 70–80. [Google Scholar] [CrossRef]
  63. Tang, B.C.; Dawson, M.; Lai, S.K.; Wang, Y.Y.; Suk, J.S.; Yang, M.; Zeitlin, P.; Boyle, M.P.; Fu, J.; Hanes, J. Biodegradable polymer nanoparticles that rapidly penetrate the human mucus barrier. Proc. Natl. Acad. Sci. USA 2009, 106, 19268–19273. [Google Scholar] [PubMed]
  64. Xu, Q.; Ensign, L.M.; Boylan, N.J.; Schon, A.; Gong, X.; Yang, J.C.; Lamb, N.W.; Cai, S.; Yu, T.; Freire, E.; et al. Impact of surface polyethylene glycol (PEG) density on biodegradable nanoparticle transport in mucus ex vivo and distribution in vivo. ACS Nano 2015, 9, 9217–9227. [Google Scholar] [PubMed]
  65. Wu, X.; Wei, P.H.; Zhu, X.; Wirth, M.J.; Bhunia, A.; Narsimhan, G. Effect of immobilization on the antimicrobial activity of a cysteine-terminated antimicrobial Peptide Cecropin P1 tethered to silica nanoparticle against E. coli O157:H7 EDL933. Colloids Surf. B Biointerfaces 2017, 156, 305–312. [Google Scholar] [PubMed]
  66. Onaizi, S.A.; Leong, S.S. Tethering antimicrobial peptides: Current status and potential challenges. Biotechnol. Adv. 2011, 29, 67–74. [Google Scholar]
  67. Skerlavaj, B.; Boix-Lemonche, G. The potential of surface-immobilized antimicrobial peptides for the enhancement of orthopaedic medical devices: A review. Antibiotics 2023, 12, 211. [Google Scholar] [CrossRef]
  68. Zhao, H.; Jumblatt, J.E.; Wood, T.O.; Jumblatt, M.M. Quantification of MUC5AC protein in human tears. Cornea 2001, 20, 873–877. [Google Scholar]
  69. Allen, A.; Garner, A. Mucus and bicarbonate secretion in the stomach and their possible role in mucosal protection. Gut 1980, 21, 249–262. [Google Scholar]
  70. Bansil, R.; Turner, B.S. The biology of mucus: Composition, synthesis and organization. Adv. Drug Deliv. Rev. 2018, 124, 3–15. [Google Scholar]
  71. Felgentreff, K.; Beisswenger, C.; Griese, M.; Gulder, T.; Bringmann, G.; Bals, R. The antimicrobial peptide cathelicidin interacts with airway mucus. Peptides 2006, 27, 3100–3106. [Google Scholar]
  72. Huang, J.X.; Blaskovich, M.A.; Pelingon, R.; Ramu, S.; Kavanagh, A.; Elliott, A.G.; Butler, M.S.; Montgomery, A.B.; Cooper, M.A. Mucin binding reduces colistin antimicrobial activity. Antimicrob. Agents Chemother. 2015, 59, 5925–5931. [Google Scholar] [CrossRef]
  73. Abedi, F.; Zarei, B.; Elyasi, S. Albumin: A comprehensive review and practical guideline for clinical use. Eur. J. Clin. Pharmacol. 2024, 80, 1151–1169. [Google Scholar] [PubMed]
  74. Tang, W.H.; Wang, C.F.; Liao, Y.D. Fetal bovine serum albumin inhibits antimicrobial peptide activity and binds drug only in complex with alpha1-antitrypsin. Sci. Rep. 2021, 11, 1267. [Google Scholar]
  75. Silveira, M.J.; Martins, C.; Cruz, T.; Castro, F.; Amorim-Costa, A.; Chester, K.; Oliveira, M.J.; Sarmento, B. scFv biofunctionalized nanoparticles to effective and safe targeting of CEA-expressing colorectal cancer cells. J. Nanobiotechnol. 2023, 21, 357. [Google Scholar]
Pharmaceutics 17 00460 g001
Figure 1. Schematic representation of the general methodology to obtain nanosystems (highlighted in blue boxes) and assess antifungal activity of Cys-Dec-CONH2. Representative microscopy images for Candida spp. growth and no growth inhibition are also included (40× magnification).
Figure 1. Schematic representation of the general methodology to obtain nanosystems (highlighted in blue boxes) and assess antifungal activity of Cys-Dec-CONH2. Representative microscopy images for Candida spp. growth and no growth inhibition are also included (40× magnification).
Pharmaceutics 17 00460 g001
Pharmaceutics 17 00460 g002
Figure 2. Size distribution and morphology of tested nanosystems. (A) Representative size distribution plots as determined by DLS; and (B) TEM images (scale bars = 100 nm).
Figure 2. Size distribution and morphology of tested nanosystems. (A) Representative size distribution plots as determined by DLS; and (B) TEM images (scale bars = 100 nm).
Pharmaceutics 17 00460 g002
Pharmaceutics 17 00460 g003
Figure 3. Viability of HEC-1-A human endometrial cells in the presence of Cys-Dec-CONH2 or Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct]. Results presented as mean ± standard error of the mean (concentrations expressed as total Cys-Dec-CONH2; n = 3). Lines represent log-logistic regression plots of data. (*) Indicates significant differences (p < 0.05) as compared to negative control (100% viability).
Figure 3. Viability of HEC-1-A human endometrial cells in the presence of Cys-Dec-CONH2 or Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct]. Results presented as mean ± standard error of the mean (concentrations expressed as total Cys-Dec-CONH2; n = 3). Lines represent log-logistic regression plots of data. (*) Indicates significant differences (p < 0.05) as compared to negative control (100% viability).
Pharmaceutics 17 00460 g003
Table 1. Colloidal properties of nanosystems. Results are presented as mean ± SD (n = 3).
Table 1. Colloidal properties of nanosystems. Results are presented as mean ± SD (n = 3).
NanosystemDiameter (nm)PdIZeta Potential (mV)
PLGA NPs174 ± 40.093 ± 0.021−11.7 ± 1.3
PLGA-PEG NPs142 ± 120.090 ± 0.010−7.6 ± 1.2
PCL NPs247 ± 60.147 ± 0.016−3.2 ± 0.5
PS NPs200 ± 20.025 ± 0.014−64.3 ± 2.0
PS-PEG NPs218 ± 30.024 ± 0.013−2.3 ± 2.3
Au NPs53 ± 00.249 ± 0.007−32.4 ± 1.5
Liposomes168 ± 70.118 ± 0.051−3.9 ± 1.2
Table 2. Antifungal activity of Dec-CONH2, Cys-Dec-CONH2, Dec-CONH2-Cys, and two azoles. Results are presented as MIC and MFC (values expressed in µg/mL; n = 3).
Table 2. Antifungal activity of Dec-CONH2, Cys-Dec-CONH2, Dec-CONH2-Cys, and two azoles. Results are presented as MIC and MFC (values expressed in µg/mL; n = 3).
C. albicans
ATCC 90028		C. albicans
ATCC 64550		C. krusei
ATCC 6258		C. glabrata
ATCC 2001		C. tropicalis
ATCC 750
MICMFCMICMFCMICMFCMICMFCMICMFC
Dec-CONH23232323232326464816
Cys-Dec-CONH264646464161632321616
Dec-CONH2-Cys128128128128646412825616–3232
Fluconazole0.5–1>256>256>2566412816–32>2562>256
Clotrimazole124>256<1128–16416
Table 3. Antifungal activity of Cys-Dec-CONH2 in the presence of different nanosystems (physical mixture). Results are presented as MIC and MFC (values expressed in µg/mL of Cys-Dec-CONH2; n = 3). Values for plain Cys-Dec-CONH2 are also included for reference.
Table 3. Antifungal activity of Cys-Dec-CONH2 in the presence of different nanosystems (physical mixture). Results are presented as MIC and MFC (values expressed in µg/mL of Cys-Dec-CONH2; n = 3). Values for plain Cys-Dec-CONH2 are also included for reference.
C. albicans ATCC 90028C. krusei ATCC 6258
MICMFCMICMFC
Cys-Dec-CONH264641616
Cys-Dec-CONH2 + PLGA NPs>256>256>256>256
Cys-Dec-CONH2 + PLGA-PEG NPs>256>256>256>256
Cys-Dec-CONH2 + PLGA NPs (12 h) (a)>256>256>256>256
Cys-Dec-CONH2 + PLGA-PEG NPs (12 h) (a)>256>256>256>256
Cys-Dec-CONH2 + PCL NPs>256>256>256>256
Cys-Dec-CONH2 + PS NPs64646464
Cys-Dec-CONH2 + PS-PEG NPs64643232
Cys-Dec-CONH2 + Au NPs1281283232
Cys-Dec-CONH2 + liposomes1281286464
(a) NPs were only added during the last 12 h of the 48 h incubation period.
Table 4. Colloidal properties of nanosystems modified with Cys-Dec-CONH2. Results are presented as mean ± SD (n = 3).
Table 4. Colloidal properties of nanosystems modified with Cys-Dec-CONH2. Results are presented as mean ± SD (n = 3).
Diameter (nm)PdIZeta Potential (mV)CE%DL%
Cys-Dec-CONH2@PLGA-PEG NPs [Pre-funct]162 ± 50.075 ± 0.010−3.0 ± 1.730 ± 124.1 ± 3.3
Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct]143 ± 60.105 ± 0.028−1.6 ± 0.933 ± 202.6 ± 1.6
Cys-Dec-CONH2@PLGA-PEG NPs [Loaded]168 ± 10.097 ± 0.029−4.7 ± 0.6N.A.1.1 ± 0.1
Cys-Dec-CONH2@Lipossomes169 ± 30.128 ± 0.023−2.5 ± 1.394 ± 02.2 ± 0.0
N.A.: not applicable.
Table 5. Antifungal activity of selected nanosystems after incorporation of Cys-Dec-CONH2. Results are presented as MIC and MFC (values expressed in µg/mL of Cys-Dec-CONH2; n = 3). Values for plain Cys-Dec-CONH2 are also included for reference.
Table 5. Antifungal activity of selected nanosystems after incorporation of Cys-Dec-CONH2. Results are presented as MIC and MFC (values expressed in µg/mL of Cys-Dec-CONH2; n = 3). Values for plain Cys-Dec-CONH2 are also included for reference.
C. albicans ATCC 90028C. krusei ATCC 6258
MICMFCMICMFC
Cys-Dec-CONH264641616
Cys-Dec-CONH2@PLGA-PEG NPs [Pre-funct]>256>256>256>256
Cys-Dec-CONH2@PLGA-PEG NPs [Post-funct]>256>256>256>256
Cys-Dec-CONH2@PLGA-PEG NPs [Loaded]>256>256>256>256
Cys-Dec-CONH2@Lipossomes>256>256>256>256
Table 6. Antifungal activity of Cys-Dec-CONH2 in the presence of mucin or albumin. Results are presented as MIC and MFC (values expressed in µg/mL of Cys-Dec-CONH2; n = 3). Values for plain Cys-Dec-CONH2 are also included for reference.
Table 6. Antifungal activity of Cys-Dec-CONH2 in the presence of mucin or albumin. Results are presented as MIC and MFC (values expressed in µg/mL of Cys-Dec-CONH2; n = 3). Values for plain Cys-Dec-CONH2 are also included for reference.
C. albicans ATCC 90028C. krusei ATCC 6258
MICMFCMICMFC
Cys-Dec-CONH264641616
Cys-Dec-CONH2 + mucin (0.1%)64643232
Cys-Dec-CONH2 + mucin (1%)>256>256>256>256
Cys-Dec-CONH2 + albumin (0.1%)1281283232
Cys-Dec-CONH2 + albumin (1%)>256>256>256>256
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Rocha, V.; Almeida, H.; Sarmento, B.; das Neves, J. Anti-Candida Activity of Cysteine-Modified Amidated Decoralin in the Presence of Engineered Nanomaterials. Pharmaceutics 2025, 17, 460. https://doi.org/10.3390/pharmaceutics17040460

AMA Style

Rocha V, Almeida H, Sarmento B, das Neves J. Anti-Candida Activity of Cysteine-Modified Amidated Decoralin in the Presence of Engineered Nanomaterials. Pharmaceutics. 2025; 17(4):460. https://doi.org/10.3390/pharmaceutics17040460

Chicago/Turabian Style

Rocha, Vânia, Helena Almeida, Bruno Sarmento, and José das Neves. 2025. "Anti-Candida Activity of Cysteine-Modified Amidated Decoralin in the Presence of Engineered Nanomaterials" Pharmaceutics 17, no. 4: 460. https://doi.org/10.3390/pharmaceutics17040460

APA Style

Rocha, V., Almeida, H., Sarmento, B., & das Neves, J. (2025). Anti-Candida Activity of Cysteine-Modified Amidated Decoralin in the Presence of Engineered Nanomaterials. Pharmaceutics, 17(4), 460. https://doi.org/10.3390/pharmaceutics17040460

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
