Article

Doxorubicin-Loaded Core–Shell [email protected]2 Metal–Organic Frameworks for Targeted Cellular Uptake and Cancer Treatment

1
Federal Research Center Crystallography and Photonics, Russian Academy of Sciences, 119991 Moscow, Russia
2
Department of Biomedical Engineering, Sechenov First State Medical University, 119991 Moscow, Russia
3
Center for Neurobiology and Brain Restoration (CNBR), Skolkovo Institute of Science and Technology, 143025 Moscow, Russia
4
The Smart Materials Research Institute, Southern Federal University, 344090 Rostov-on-Don, Russia
*
Author to whom correspondence should be addressed.
Academic Editor: Korbinian Löbmann
Pharmaceutics 2022, 14(7), 1325; https://doi.org/10.3390/pharmaceutics14071325
Received: 4 May 2022 / Revised: 30 May 2022 / Accepted: 18 June 2022 / Published: 23 June 2022

Abstract

Beneficial features of biocompatible high-capacity UiO-66 nanoparticles, mesoporous SiO2, and folate-conjugated pluronic F127 were combined to prepare the core–shell [email protected]2/F127-FA drug delivery carrier for targeted cellular uptake in cancer treatment. UiO-66 and UiO-66-NH2 nanoparticles with a narrow size and shape distribution were used to form a series of core–shell [email protected]2 structures. The duration of silanization was varied to change the thickness of the SiO2 shell, revealing a nonlinear dependence that was attributed to silicon penetration into the porous MOF structure. Doxorubicin encapsulation showed a similar final loading of 5.6 wt % for both uncoated and silica-coated particles, demonstrating the potential of the nanocomposite’s application in small molecule delivery. Silica coating improved the colloidal stability of the composites in a number of model physiological media, enabled grafting of target molecules to the surface, and prevented an uncontrolled release of their cargo, with the drawback of decreased overall porosity. Further modification of the particles with the conjugate of pluronic and folic acid was performed to improve the biocompatibility, prolong the blood circulation time, and target the encapsulated drug to the folate-expressing cancer cells. The final DOX-loaded [email protected]2/F127-FA nanoparticles were subjected to properties characterization and in vitro evaluation, including studies of internalization into cells and antitumor activity. Two cell lines were used: MCF-7 breast cancer cells, which have overexpressed folate receptors on the cell membranes, and RAW 264.7 macrophages without folate overexpression. These findings will provide a potential delivery system for DOX and increase the practical value of MOFs.
Keywords: nano-MOF; nanoparticles; UiO-66; MOF; silanization; silica shell; tumor targeting; folate receptors; chemotherapy; doxorubicin nano-MOF; nanoparticles; UiO-66; MOF; silanization; silica shell; tumor targeting; folate receptors; chemotherapy; doxorubicin

1. Introduction

Metal–organic frameworks (MOFs) are a class of porous crystalline polymers constructed by the self-assembly of metal–oxygen clusters and organic linkers, granting three-dimensional frameworks high surface area, exceptional periodically ordered and tunable pore size and topology, and easy access to functionalization [1,2]. Owing to the assembly of metal in different coordination forms with suitable organic ligands, MOFs have emerged as an enormous family with thousands of evolving members with tunable sizes and shapes of apertures that can be modified by design. Another unique advantage of MOFs lies in the fact that through in situ synthesis or post-synthetic modification, their structure can be functionalized with various chemical groups or metal ions, granting MOFs particular physical and chemical properties [1]. Initially, the main applications of MOFs were adsorption with influence in storage, separation, and purification. The list of applications includes acidic gas adsorption, toxic gas removal, gas storage, and water purification; the more advanced applications include different types of catalysis and doping processes, sensing, and biomedicine [1,3,4,5,6]. Porous MOFs have successfully been employed as drug delivery vehicles attributing to their enormous porosity, high surface area, and versatile framework compositions. Several studies have confirmed that MOFs exhibit exceptional biocompatibility and biodegradability [7,8].
Combining the high porosity and specific functionalities of MOFs (e.g., Lewis acid sites and the spatial and chemical control of the functional organic moieties) with the complementary properties of the other materials may enhance the properties of nanoparticles in the field of bioapplications. Multifunctional MOF composites can be made by growing or depositing a coating material around MOFs’ structure or mixing MOFs with other components. A series of composites are being developed, among them [email protected] or metal oxide, [email protected] dots, [email protected], [email protected], and [email protected] [7,9]. The surface modification of MOFs with a silica shell might offer several advantages such as improving their colloidal stability and ability to target specific cells or tissues; slowing down the biodegradation of MOFs, thus preventing an uncontrolled release of their cargo [10]. Synthesis of the [email protected] composite allows for combining the ordered mesoporosity of SiO2 and microporosity of MOFs in a core–shell composition. [email protected]2 composites can be further functionalized with groups other than those typically used in MOFs, e.g., with a fluorophore and a cell-targeting peptide, which allows for their delivery to cancer cells and MRI [11]. The [email protected] composite has silanol groups on their surface that can be employed for subsequent modification with molecules with siloxyl groups, which improves the targeting of certain types of cells. Thus, a small peptide sequence exhibiting a high binding affinity for many cancer cells was grafted to [email protected] Delivery of a platinum formulation using such a [email protected] composite into colon cancer cells in vitro was almost two times more efficient compared to a nontargeted [email protected] composite [12,13]. [email protected] composites are in high demand, as the polymer coatings impart additional functionality; in particular, they can strongly influence interactions with cells (for example, by PEGylation) [14]. Another example is the addition of pluronic F127 to the formulation, which is aimed at preventing the formation of a tightly bound hard corona layer, increasing the colloidal stability of the drug delivery system in the biological medium, and ensuring long-term circulation [15,16,17].
Zirconium-based MOFs of UiO-66 stand out from other nanoparticles due to the fact of their excellent thermal and chemical stabilities [8,18]. J. Winarta et al. gave a comprehensive review on the main properties and applications of UiO-66 MOFs including doped UiO-66 [4]. UiO-66 can be used without any chemical modifications such as for immobilizing enzymes to improve their storage stability and catalytic efficiency [6]. Zr possesses good biocompatible properties as well, due to the fact that humans consume approximately 3.5 mg per day. The in vivo toxicities of nanoscale MOFs, including UiO-66 and UiO-66-NH2, were studied [8]. For most of the MOFs, their respective cytotoxicity depended on the cell type and on the concentration. Interestingly, some MOFs, including UiO-66, showed little or no cytotoxicity, even at the highest dose of 200 µM [8]. None of the UiO MOFs exhibited substantial cytotoxicity at either incubation time, except for UiO-66-NH2; at a 200 µM dose and 24 h of incubation, this material showed moderate cytotoxicity to HepG2 cells. The good biocompatibility of UiO MOFs has been stated in [19,20,21].
Nanoparticles can be functionalized to impart new properties to MOF-based materials. In order to preserve the structure and size of the nanoparticles, post-synthetic functionalization of MOFs are of great interest. S. Nagarkar et al. functionalized UiO-66-NH2 nanoparticles with an azide group and showed fast and highly selective fluorescence turn-on response towards H2S under physiological conditions for the first time [22]. Low cytotoxicity and H2S detection in live cells, even in the presence of other relevant biomolecules, demonstrate the potential of MOFs towards monitoring H2S in the biological system. The imparting of highly hydrophobic properties to UiO-66-NH2 nanoparticles is shown by the microporous organic network surface coatings [23]. The obtained core–shell structures show excellent performance for adsorption of a model organic compound, toluene, in water, with potential use in detoxification.
UiO-66 shows a remarkable loading capacity for a wide range of compounds, along with other properties, and drug delivery by UiO-66 is one of the most attractive fields of application. It was evidenced that caffeine entrapping into UiO-66-NH2 reached payloads up to 22.4 wt % depending on the solvent choice, drug:MOF ratio, and ligand functionalization [24]. UiO-66 demonstrates an excellent ability to incorporate compounds with different molecular weights. The loading capacities of alendronate, 5-fluorouracil, calcein, ciprofloxacin, and cisplatin were 51, 27, 17, 84, and 12 wt %, respectively [14,25,26,27,28].
Until now, MOFs have been mainly proposed as anticancer delivery systems. In vitro and in vivo efficacy studies have focused on demonstrating the cytotoxic activity in cancer cell lines and in xenograft subcutaneous models. Photodynamic therapy in xenografted tumors in mice was successfully tested on photosensitizer-loaded UiO-66 nanoparticles, directly administered within the tumor [29]. X. Gao et al. demonstrated receptor-specific targeting of UiO-66-NH2 loaded with 5-fluorouracil and functionalized with folic acid in tumor-bearing mice [30]. Importantly, effectively targeted cancer treatment is realized by the sustained 5-fluorouracil release from UiO-66-NH2-folic acid-5-fluorouracil composites. After treatment with composite nanoparticles, the group showed inhibited tumor growth compared to the untreated group. UiO-66 was recently evaluated as a novel pulmonary drug delivery vehicle by investigating their aerodynamic properties upon aerosolization and degradability in extracellular- and intracellular-mimicking environments [31]. It was stated that UiO-66 exhibits high biocompatibility and low cytotoxicity in vitro and is well-tolerated in vivo in murine evaluations of orotracheally administered nanoparticles. Following pulmonary delivery, they remain intact, localized to the lungs before clearance over the course of seven days.
So far, it has been shown that along with Fe-based MOFs, UiO-66 can degrade rapidly in PBS pH 7.4 [24]. It was noted that the high water stability of UiO-66 dissapears very quickly in PBS, probably due to the strong affinity of Zr atoms for phosphate groups or the formation of zirconium oxide. Thus, the organic spacer or the number of complexing groups per spacer drastically influence the stability of the MOF in body fluid conditions. The most recent study of UiO-66 stability in buffers also suggests that the chemical nature of the buffer media played a decisive role in the stability, with a more pronounced leaching effect in the saline forms of these buffers [32]. The HEPES buffer was found to be the most benign, whereas MEM and PBS should be avoided at any concentration, as they were shown to degrade the UiO-66 framework rapidly. Low-concentration TRIS buffers are also recommended, although they offer a minimal buffer capacity to adjust pH. At the same time, there is evidence that UiO-66 could be stable in RPMI 1640 and DMEM cell culture media for 12 h [8,29]. Nevertheless, data collected to date are still very scarce, and more studies need to be performed. Nanoparticle degradation and aggregation as a result of structural changes in biological media will significantly alter the in vitro behavior (cellular uptake, cytotoxicity) as well as the in vivo fate (pharmacokinetics, toxicity, and biodistribution) of the nanoparticles [33]. As the in vivo studies show promising results in regard to the antitumor potential of MOFs, the issue of improving their stability in biological environments should be considered more carefully.
In this study, the objective was to fabricate a composite [email protected] nanoparticle system for drug delivery. We combined the beneficial features of biocompatible high-capacity UiO-66 nanoparticles, mesoporous SiO2, and folate-conjugated pluronic F127 to prepare the core–shell [email protected]2/F127-FA drug delivery carrier, and then we carried out a series of characterization work. The colloidal stability of composite nanoparticles was studied in a number of model physiological media, including the most commonly used cell cultural media. Doxorubicin (DOX) was loaded onto nanoparticles to demonstrate its potential application in small molecule delivery. The final DOX-loaded [email protected]2/F127-FA nanoparticles were subjected to property characterization and in vitro evaluation including studies of internalization into cells and antitumor activity. Two cell lines were used: MCF-7 breast cancer cells, which have overexpressed folate receptors on the cell membranes, and RAW 264.7 macrophages without folate overexpression. These findings will provide a potential delivery system for DOX and increase the practical value of MOFs.

2. Materials and Methods

2.1. Chemicals

Poly(vinylpyrrolidone) (PVP, 10 kDa); zirconium tetrachloride (ZrCl4); benzoic acid (BA); 1,4-benzenedicarboxylic acid (BDC); 2-aminoterephthalic acid (BDC-NH2); N,N-dimethylformamide (DMF); 2-propanol; ammonium hydroxide (NH3·H2O, 28 wt %); tetraethyl orthosilicate (TEOS, 98%); poly(ethylene oxide)-block-poly(propylene oxide)-block-poly(ethylene oxide) (pluronic F127); folic acid (FA); N,N’-dicyclohexylcarbodiimide (DCC); dimethylaminopyridine (DMAP); dimethyl sulfoxide (DMSO); Hoechst 33258; Calcein AM; 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT); dichloromethane; doxorubicin hydrochloride were purchased from Sigma-Aldrich (St. Louis, MO, USA). All chemicals were used as received without further purification.
Trypsin–EDTA solution (0.25% v/v); phosphate-buffered saline (PBS, pH 7.4), Versene solution, Dulbecco’s modified Eagle’s medium with phenol red (DMEM), Roswell Park Memorial Institute-1640 (RPMI1640) medium; fetal bovine serum (FBS), and MTT (thiazolyl blue tetrazolium bromide, 98%) were purchased from PAN-Biotech (Aidenbach, Germany). Deionized water from a three-stage Milli-Q Plus purification system was used in the experiments.

2.2. Synthesis of UiO-66 and UiO-66-NH2 Nanoparticles

UiO-66 and UiO-66-NH2 were obtained according to a previously reported technique [34,35]. In a typical synthesis, ZrCl4 was dissolved in DMF. After this, water was added to provide nuclei for UiO-66 formation. Then benzoic acid was added and the respective linker—terephthalic or amino-terephthalic acid. The molar ratio of the components ZrCl4:H2O:BA:Linker:DMF was 1:3:10:1:300. A clear reaction mixture was placed into a preheated oven at 120 °C for 24 h. After this period, the vessel was cooled down naturally. The precipitate was separated using centrifugation and washed two times with DMF and one time with 2-propanol. Obtained powders were dried at 60 °C for 12 h.

2.3. Synthesis of F127-FA Conjugate

The modification of pluronic F127 was performed by interactions of the hydroxyl groups of polyester and the carboxyl groups of folic acid (FA). Esterification reaction was conducted by the carbodiimide method using dicyclohexylcarbodiimide (DCC) as a condensing agent in the presence of catalytic amount of dimethylaminopyridine (DMAP) in dimethyl sulfoxide (DMSO) for 48 h at 4 °C. Namely, three solutions were prepared and mixed: 1.5 g F127 in 10 mL DMSO (1); 0.039 g FA, 0.011 g DMAP in 10 mL DMSO (2); 0.018 g DCC in 20 mL DMSO (3).
After completion of the reaction, unreacted FA was separated by washing twice with 5% sodium bicarbonate solution, and the resulting F127-FA conjugate was precipitated into hexane, filtered, and dried in a vacuum oven. Final purification of the reaction product from residues of FA, crosslinking agent, catalyst, and sodium bicarbonate was completed by dialysis (Servapor Dialysis Tubing, MWCO 10000, SERVAPOR, SERVA Electrophoresis GmbH, Heidelberg, Germany) from a chloroform–ethanol (1:9) mixture against water for 48 h, after which the solution was freeze-dried for 48 h.

2.4. Modification of the Surface of Nanoparticles with Silica Shells (Silanization of MOFs)

Generally, the [email protected]2 composites are prepared by firstly modifying MOFs with a polymer to keep the MOF particles well dispersed and then coating them in a silica precursor solution. For this, 140 mg of UiO-66 was dispersed in 7 mL of poly(vinylpyrrolidone) solution (1 mg/mL) under ultrasound treatment and placed on a shaker at room temperature for overnight stirring. After centrifugation and washing with ethanol, PVP-coated UiO-66 MOFs were dispersed in 50 mL of ethanol. The aqueous ammonia solution (2 mL, 28 wt %) was added dropwise into the above UiO-66-PVP-containing ethanol under continuous vigorous stirring. After, 0.45 mL of TEOS was injected rapidly into the above solution and stirred for 0.5, 1, 2, 4, and 24 h. The obtained [email protected]2 composite nanoparticles were collected by centrifugation, washed three times with deionized water, and then dried in a fume hood. The same procedure was carried out with UiO-66-NH2 nanoparticles to synthesize the UiO-66-NH2@SiO2 composite.

2.5. Loading Nanoparticles with Doxorubicin and Modification with Folic Acid Conjugate

In a typical experiment, loading of DOX into UiO-66 and [email protected]2 composites was accomplished by mixing 1 mL of DOX solution (1 mg/mL) with 16 mg of MOFs. The mixture was placed on a shaker for 6 h under dark conditions. Free DOX was removed by centrifugation and washing with deionized water several times. The obtained DOX-loaded MOFs were stored at 4 °C in the dark. The amount of free DOX in the supernatant and washing solutions was determined by absorbance spectrum at an absorbance maximum of 481 nm using a linear calibration curve (Figure S8a,b). The drug loading capacity (LC) was calculated according to the following formula:
LC (wt %) = (weight of loaded DOX/weight of UiO-66 or [email protected]2) × 100%.
To modify the particle surface with the F127-FA conjugate, UiO-66, [email protected]2, and DOX-loaded particles were mixed with the F127-FA solution (0.5 mg/mL) at room temperature for 1 h.
Samples were studied by transmission electron microscopy (TEM) in the bright-field (BF) mode, high-angle annular dark-field transmission scanning electron microscopy (HAADF-STEM), and energy-dispersive X-ray analysis using an electron microscope (Tecnai Osiris, FEI) operated at an accelerating voltage of 200 kV.
The samples in the powdered form were used for IR measurements. Measurements were performed on a Bruker Vertex 70 spectrometer equipped with a Bruker ATR-Platinum accessory and a liquid nitrogen-cooled MCT detector in ATR geometry (attenuated total reflection). Spectra were collected in the range 5000–30 cm–1 with a resolution of 1 cm–1 over 64 scans. Atmospheric compensation was used to eliminate CO2 and H2O’s influence. The reference background was recorded in an air atmosphere without a sample on the diamond crystal.
Powder X-ray diffraction data were collected on a Bruker Phaser D2 diffractometer using Cu Kα radiation (λ = 0.1541 nm).
UV–Visible (UV-vis) spectroscopy was performed with a PerkinElmer Lambda C650 spectrophotometer.
Dynamic light scattering (DLS) analysis was performed using a Zetasizer Nano ZS (Malvern, UK) at 25 °C.

2.6. Cell Cultures

Human breast adenocarcinoma MCF-7 cells and mouse macrophages RAW 264.7 were purchased from ATCC. Human breast adenocarcinoma MCF-7 cells were cultivated in DMEM supplemented with 10% FBS, 2 μM L-glutamine, 100 μg/mL streptomycin, and 100 U/mL penicillin in a 5% CO2 humidified atmosphere at 37 °C. The macrophage RAW 264.7 cell line was grown at 37 °C under 5% CO2 in RPMI 1640 culture medium containing 10% FBS and 1% antibiotics (i.e., 100 U/mL penicillin, 100 μg/mL streptomycin sulfate, and 0.25 U/mL L-glutamine). The cells were detached after treatment with a trypsin–EDTA solution (0.25% v/v), and the culture medium was replaced every 3–4 days.

2.6.1. Flow Cytometry

For flow cytometry analysis, a BD FACSCalibur fluorescent-activated flow cytometer and BD CellQuest software were used. Cells were seeded in a 24-well plate (50,000 cells/well) followed by overnight incubation. Then, the culture medium was removed, and free DOX or DOX-loaded MOFs (50 μM DOX) were added to the cells and placed in the CO2 incubator (37 °C) or fridge (4 °C) for 0.5 and 2 h of incubation. After treatment, to remove noninternalized MOFs, the plates were washed three times with PBS (pH 7.4). Cells were harvested with a trypsin–Versene (ethylenediaminetetraacetic acid (EDTA)) solution, pelleted by centrifugation at 300 g for 5 min, resuspended in 200 μL of PBS (pH 7.4), and analyzed by flow cytometry with at least 10,000 cells being measured in each sample. The data are expressed as the median fluorescent intensity ± SD divided by the background intensity of the control (nontreated cells).

2.6.2. Confocal Laser Scanning Microscopy

Cells were seeded on cover glasses (150,000 cells per glass) and incubated overnight. Then, the cells were incubated with the DOX-loaded MOFs ([email protected]2@F127-FA-DOX) resuspended in the culture medium (50 μM DOX) in a 5% CO2 humidified atmosphere at 37 °C. To visualize nuclei and cytoplasm, the cells were additionally stained with a Hoechst 33258 solution (50 μM, 10 min) and a Calcein AM solution (25 μM, 15 min), respectively. To remove noninternalized capsules, the plates were washed three times with PBS (pH 7.4). Then, the cells were mounted in a CC/Mount fluorophor protector and observed with a confocal laser scanning microscope (ZEISS LSM 880 Airyscan, Germany). The excitation wavelength values were 360, 488, and 543 nm for Hoechst 33258, Calcein AM, and DOX, respectively, while the fluorescence signals were collected at 380–460, 500–530, and 560–650 nm for Hoechst 33258, Calcein AM, and DOX, respectively. The images were processed in ZEN 2.3 pro blue edition software (Carl Zeiss, Oberkochen, Germany).

2.7. Cytotoxicity Study In Vitro

The cytotoxicity of the MOFs was studied by MTT assay. The cells were seeded in a 96-well plate (7500 cells/well) followed by incubation in CO2 incubator overnight. Free DOX or the DOX-loaded MOFs at various dilutions (0.5, 5, and 50 μM DOX) and blank MOFs (an amount equal to the DOX-loaded) were added to each well, and the cells were transferred to the CO2 incubator for 24 and 72 h. A monolayer culture (nontreated cells) was taken as a control (100%). After the treatment, the medium was replaced with an MTT solution in the culture medium (0.5 mg/mL) for 3 h. Then, the medium was replaced with DMSO (100 μL/well), and after complete dissolution of the formazan crystals, the absorbance was measured using a reader (Tecan Infinite® 200 PRO) at 570 nm. The half-maximal inhibitory concentration (IC50) was determined as the drug concentration which resulted in 50% inhibition of cell growth.

2.8. Statistical Analysis

Statistical analysis of the experimental data was performed with GraphPad Prism, and the collected data were accepted as significantly different when p < 0.05. All experiments were carried out with at least three repetitions.

3. Results and Discussion

3.1. Synthesis and Characterization of UiO-66 and UiO-66-NH2

Synthesized samples of UiO-66 and UiO-66-NH2 were comprehensively characterized in our previous paper [35]. Both samples had a UiO-66-type structure with cubic symmetry, a Fm-3m space group (Figure S1A). The morphology of the crystals was traced using TEM. Both samples were composed of octahedral crystals without significant aggregation Figure S1C,D and Figure 1a–d). The average sizes of the particles in the UiO-66 and UiO-66-NH2 samples were estimated as 50–80 and 20–40 nm, respectively (Figure S1B). The elemental analysis demonstrated a uniform distribution of carbon, zirconium, and oxygen over the UiO-66 particles (Figure 1e–h). As for the UiO-66-NH2 MOFs, the distribution of carbon, zirconium, oxygen, and nitrogen are almost uniform (Figure S2a–e). UiO-66 are perfectly dispersed in water and formed a stable suspension of nanoparticles with a hydrodynamic size of 163 ± 53 nm (PDI 0.127) (Figure 2i). The size distribution by number, shown in Figure 2j, had a peak at 113 ± 38 nm. As expected, the average size calculated from the DLS measurements was slightly higher than from the TEM due to the effect of the dispersant on the hydrodynamic diameter and aggregation of UiO-66. However, the DLS numbers were close to the TEM results, whereas the DLS intensity presented a large difference with the TEM. Since the particle size distribution was not narrow, the presence of larger particles could increase light scattering, shifting the measured particle sizes towards larger values.
The zeta potential of UiO-66 MOFs in water was +40 ± 1 mV. Since the particles are planned to be used for biological applications, they should remain stable in model environments such as saline solution and PBS. After placing the UiO-66 nanoparticles in 0.9% NaCl, MEM, DMEM, and RPMI cell culture media, their zeta potentials were −5 ± 3, −15 ± 1, −10 ± 1, and −21 ± 1 mV, respectively. A change in the sign of the zeta potential from positive to negative indicated that the particles adsorbed components of the dispersion medium—ions, amino acids, indicators, and others. This impairs their stability and promotes aggregation, which affects the size distribution: the average particle size exceeded 1 μm in all used cellular media (Figure S3a–d). It should be noted that only in the RPMI did a part of the particles (approximately 7%) maintain their size at the nanoscale. A similar trend was observed for the UiO-66-NH2 particles, for which the zeta potential changed from +23 ± 2 mV in water to +2 ± 1, −6 ± 1, −5 ± 1, and 0 ± 2 mV in 0.9% NaCl, MEM, DMEM, and RPMI media, respectively. Their surface was modified with a porous silica shell to improve the colloidal stability of the UiO-66 and UiO-66-NH2 particles in biological media.

3.2. Synthesis of Core-Shell Structures [email protected]2

A series of core–shell nanoparticles were synthesized to study the effect of the silanization’s duration. For this purpose, the MOF particles were incubated in TEOS for 0.5 to 24 h after their activation with PVP. As expected, even the shortest TEOS incubation led to the deposition of silica on the nanoparticles (Figure 2a,f).
The HAADF-STEM images and elemental maps, shown in Figure 2, reveal an unexpected trend of SiO2 shell formation. An increase in TEOS incubation time did not result in a linear increase in shell thinness. The SiO2 shell on [email protected]2 particles incubated in TEOS for 2 and 4 h (Figure 2c,d,h,i) could hardly be distinguished. Elemental maps for MOFs treated with TEOS for 2 and 4 h showed almost uniform Zr and Si distributions. A similar result was obtained for UiO-66-NH2 nanoparticles coated with silica shells (Figure S2f–o). The SiO2 shell’s thickness was determined by HAADF-STEM images analysis (Table 1).
At the same time, the results of the energy-dispersive X-ray spectroscopy during TEM (Figure 3) revealed that the amount of Si increased gradually with the increasing exposure time. This may mean that with rapid termination of the silicon deposition reaction (0.5–1 h), SiO2 has time to precipitate on the surface of nanoparticles, and with a further increase in the reaction duration (2–4 h), silicon penetrates into the highly porous structure of MOFs, impregnating them. Therefore, it was impossible to clearly distinguish a border between the MOF core and shell in the TEM images. The same process regarding silica formation inside the nanochannels of porous coordination polymers was previously described in [36,37]. A further increase in TEOS exposure up to 24 h led to the formation of a shell again on the surface of the silicon-impregnated MOFs.
Powder X-ray diffraction patterns (XRD) collected for intact UiO-66 nanoparticles and SiO2 nanoparticles (Sigma-Aldrich, nanopowder 5–15 nm, spherical, porous, 99.5%) were compared to those of the [email protected]2 and UiO-66-NH2@SiO2 samples treated with TEOS for different durations (Figure 4). The disappearance of the UiO-66 XRD pattern above 12° suggests a significant decrease in the crystallinity of [email protected]2 and UiO-66-NH2@SiO2 (a similar loss of crystallinity as a result of polymer modification was observed for another MOF [38]). However, the first two peaks at 7.4° (111) and 8.6° (002) could provide additional qualitative information about structural distortions. A shift in these peaks to higher degrees reveals the decrease of cell parameters in nanoparticles coated with a silica shell. Moreover, a higher intensity of these two peaks could be evidence of higher crystallinity in the UiO-66-NH2@SiO2 samples compared to [email protected]2.
Figure 5 represents nitrogen sorption isotherms of samples before and after coating. It can be observed that even after one hour, microporosity was significantly reduced. The specific surface areas of the samples were calculated according to BET modes. The values for samples UiO-66 and UiO-66-NH2 were estimated as 1354 and 1000 m2/g, respectively. The lower porosity of the UiO-66-NH2 sample could be assigned to amino groups located inside the pores, occupying part of the available volume. After coating for one hour, the specific surface area was reduced to 40 and 133 m2/g for [email protected]2 1 h and UiO-66-NH2@SiO2 1 h, respectively. Thus, a sample with amino groups preserved more available micropores than its analog UiO-66. We attribute this to the process of coating, which could lead, alternatively, to filling pores with silica or to the formation of the layer on the surface of the crystal. The former results in reduced microporosity, while the latter could add mesopores to microporous crystals. We suppose that UiO-66 during incubation with TEOS passes its molecules inside the pores, while amino groups of UiO-66-NH2 obstruct such a process. As a result, UiO-66-NH2@SiO2 1 h sample exhibited a higher microporous volume. The total pore volume at P/P0 = 0.97 for the [email protected]2 1 h sample was 55.5 mm3/g (Figure S4, Table S1). The micropore volume for this sample was 9.0 mm3/g, according to t-plot calculations. Therefore, micropores contributed to only 16% of all porosity. The same calculations for the UiO-66-NH2@SiO2 1 h sample resulted in 39% of the micropores. Pore size distribution was calculated according to the BJH model (Figure S5a) and using the DFT approach (Figure S5b). The main peaks at approximately 12 Å corresponded to octahedral pores of the UiO-66 framework. The UiO-66-NH2@SiO2 1 h sample exhibited a slight peak position shift towards smaller pores due to the amino groups in octahedral pores. However, the total micropore volume of the UiO-66-NH2@SiO2 1 h sample was higher. The UiO-66-NH2@SiO2 1 h sample contained mesopores in the region of 10–18 nm, while the [email protected]2 1 h sample comprised a silica shell with mesopores of 5–20 nm. The total volume of mesopores in the [email protected]2 1 h sample was more significant.
The shape of the hysteresis loop of nonmodified UiO-66 and UiO-66-NH2 samples corresponded to type H1 in IUPAC notification. This could be attributed to the capillary condensation of nitrogen in the space between uniform spherical nanoparticles. According to the TEM images, both samples were composed of octahedral nanoparticles with a narrow size distribution. Their agglomerates could form such interparticle cavities. However, after 4 h of treatment with TEOS, both isotherms changed their shape. We did not observe steps in the low-pressure region. This indicates that micropores were unavailable for nitrogen. It should be noticed that all presented isotherms contained hysteresis loops in the region of relative pressures of 0.8–1. Nitrogen adsorption isotherms of the samples with silica shells contained hysteresis loops, which could be assigned to type H3. This indicates slit-like mesopores [39]. We attribute this to the formation of a mesoporous silica layer on the surface of microporous crystals.
The Fourier transform infrared (FTIR) spectra measured in an attenuated total reflectance (ATR) regime for intact and TEOS-treated UiO-66 and UiO-66-NH2 nanoparticles are shown in Figure 6 (FTIR spectra in a range from 4000 to 500 cm−1 are shown in Figure S6). The spectra of intact UiO-66 and UiO-66-NH2 nanoparticles were consistent with those previously reported and showed intense bands in the region of 1700–1200 cm−1 associated with carboxylate groups and phenyl ring deformations. An intense broadband at approximately 1050 cm–1 in the FTIR spectra of the TEOS-treated samples occurred due to the Si–O–Si asymmetric stretching vibration mode, while the peak appeared at 800 cm−1 attributed to the symmetric vibration mode of SiO4.
Our study reveals that surface silanization of UiO-66 and its derivative can be rather complex, and during the sol-gel process, silica can either internalize into the pores or form a shell. Authors publishing research on [email protected] composites usually choose TEOS concentration and silanization duration arbitrarily starting from 2–3 h and ignore the study of the effect of the regime on the formation of the shell [11,12,13,40,41].
For another [email protected] composite, the shell synthesis conditions played an important role in the homogeneity and thickness of the SiO2 shell. There is a direct relationship between the duration of silanization and the thickness of the SiO2 layer for quantum [email protected] composites, which probably can be explained by the low porosity of quantum dots [42]. The shell thickness can be varied from 1 to 25 nm depending on the initial quantum dot size [43], and the typical duration for stable SiO2 shell condensation is no less than 20–24 h [42,44,45]. In the case of highly porous nanoparticles, the dependence may be nonlinear, as we demonstrated.
According to the EDX results, the Si/Zr ratio did not change within the error with an increasing duration of the silanization from 4 to 24 h for both [email protected]2 and UiO-66-NH2@SiO2 (Figure 3). Along with this, as can be seen from the TEM images, a distinct core–shell structure appeared after 24 h of silanization. To take full advantage of reproducible silica coating, including improved colloidal stability, ability to graft target molecules to the surface, and prevent an uncontrolled release of their cargo, further experiments were carried out with samples synthesized for 24 h.

3.3. Colloidal Stability Study in Model Biological Media

Treatment of bare UiO-66 MOFs with polyvinylpyrrolidone resulted in a change in the zeta potential value from a positive 39.7 ± 0.8 mV to a negative −14.9 ± 0.9 mV, which indicates successful surface grafting with PVP (Table 2). Since the zeta potential value was not very high, the formation of aggregates was noted—the DLS distribution of UiO-66/PVP was bimodal, and the PDI increased from 0.127 to 0.496 (Figure S7a,b). After silanization, the zeta potential value in water increased up to −33.3 ± 0.4 mV, confirming the growing dispersion stability. Indeed, the size distribution of [email protected]2 was unimodal with a DLS number maximum of 247 ± 84 nm and a PDI of 0.172 (Figure S7c,d). The shift in the distribution towards higher values was associated not only with the formed shell but, to a greater extent, with a change in the surface chemistry of nanoparticles and, most likely, with a thicker adsorption layer of ions.
When nanoparticles were placed into cell culture media, the absolute value of the zeta potential decreased but not as much as for uncoated UiO-66. [email protected]2 nanoparticles had the highest absolute value for the zeta potential in the PRMI medium, which correlated with the result for the uncoated UiO-66. Despite the similar values of zeta potentials, the DLS intensity distributions for UiO-66 and [email protected]2 dispersed in RPMI were completely different; only [email protected]2 particles had a peak in the nanoscale, which emphasizes the need to consider zeta potential values and size distributions together. The DLS intensity histograms of core–shell [email protected]2 reflects the fact that there were practically no aggregates in the samples dispersed in MEM, DMEM, and PRMI in contrast to uncoated UiO-66 (Figure S3e–h). The PDIs for [email protected]2 core–shell particles in DMEM and RPMI culture media were estimated as 0.23 and 0.17, respectively, which is considered to be of moderate polydispersity according to ISO standard document 13321:1996 and ISO 22412:2008. The distribution peak for [email protected]2 dispersed in all culture media was at 310–330 nm (and the entire distribution was located in a range of less than 1 μm), while peaks for uncoated UiO-66 in MEM, DMEM, or RPMI were in the micron range. The broadening and shift in the distributions for [email protected]2 in cell culture media towards higher values were associated with the formation of a so-called protein corona. The results for nanoparticle dispersions in DMEM and RPMI media are of particular interest, as they culture cancer cells and macrophages for subsequent uptake and toxicity studies. Thus, the DLS revealed the good colloidal stability of [email protected]2 in cellular media.

3.4. Loading of MOFs with DOX

To study the DOX encapsulation efficiency of intact UiO-66 and [email protected]2, two MOF batches loaded with DOX were prepared. The amount of DOX was calculated according to equation (1) from the absorption spectrum using the plotted calibration curve (Figure S8a,b). Firstly, for DOX impregnation, the particles were incubated in their solution for 1 h. The DOX loading capacity was 1.7 and 2.0 wt % for UiO-66 and [email protected]2 MOFs, respectively. Increasing the duration of incubation up to 6 h resulted in a more efficient loading: 6.2 and 5.8 wt % for UiO-66 and [email protected]2 MOFs, respectively. The high drug loading capacity of UiO-66 and [email protected]2 composite is probably attributed to the large surface area and porosity of the UiO-66 core and SiO2 shell. After loading, the particles were washed three times with deionized water to remove the excess drug. The final loading was 5.6 wt % for both uncoated and coated particles. Although the uncoated particles initially adsorbed more drug, it was easily released during the washings. This correlates with the fact that the porosity of uncoated particles was higher. Probably, the SiO2 shell retained the already adsorbed DOX from being washed out.
Further modification of the particles with the conjugate of pluronic and folic acid took 1 h, during which 3 and 12% of the encapsulated DOX was released from the UiO-66 and [email protected]2 particles, respectively (Figure S8c). A sufficient decrease in the intensity of cargo release after silica coating was highlighted for nanoparticles from the MIL family [12] and Tb-based coordination polymers [13]. This result emphasizes the advantages of SiO2 coatings in preventing the undesired release of encapsulated molecules. It was shown that DOX loading did not influence the particle size distributions of both uncoated and coated MOFs (Figure S9). After modification with pluronic F127–folic acid conjugate, zeta potentials were estimated as −8 ± 1, −11 ± 1, −10 ± 1, and −17 ± 1 mV in water, MEM, DMEM, and RPMI media, respectively. The DLS number distributions for DOX-loaded [email protected] nanoparticles (Figure S10) indicated that the investigated colloids in MEM and DMEM cell cultural media had approximately 80% nanoparticles with a diameter of 199 ± 45 and 172 ± 31 nm, respectively, while the other 20% refers to aggregates. The size distribution for DOX-loaded [email protected] in RPMI was unimodal with a peak at 152 ± 100 nm and a tail up to 1 µm. DLS distribution for [email protected] in all model media correlated well with the distribution for the intact particles in water, which may indicate that the steric repulsion effect produced by the extended PEO chains of pluronic F127 prevented protein adsorption and also improved colloidal stability [15].
This surface modification had two goals. Firstly, F127 was aimed at improving the biocompatibility, prolonging the blood circulation time, and sensitizing drug-resistant cancer cells by providing enhanced drug transport across cellular barriers [46,47]. Folic acid, in turn, should target the encapsulated drug to the folate-expressing cancer cells, which we studied in vitro.

3.5. Evaluation of Cellular Uptake and Cytotoxicity Study In Vitro

Folate receptor (FR) is overexpressed in various cancer cells, while its expression in normal cells is restricted. FR-positive cells were chosen to study the effectiveness of the synthesized folate-conjugated block copolymer of F127 and to demonstrate its contribution to specific cell uptake. MCF-7 breast cancer cells, which have overexpressed FR in cell membranes [48], were incubated with nanoparticles in the normal conditions of the incubator at 37 and 4 °C. The internalization efficiency was estimated using fluorescence of doxorubicin-loaded into MOFs. In the cold, mammalian cells do not proliferate, and endocytosis can occur only through receptor-mediated mechanisms. The low fluorescence level in MCF-7 cells after cultivation with DOX-loaded UiO-66, DOX-loaded UiO-66-NH2, and free DOX at 4 °C supports this fact (Figure 7a). An increase in the level of fluorescence in cells cultured with MOFs having an F127-FA conjugate on the surface proves the activation of the folate-mediated internalization mechanism. Notably, the results for 0.5 and 2 h coincided, which indicates a quick completion of the receptor-mediated uptake [49]. In contrast, internalization at 37 °C may occur without recognition by specific receptors (often referred to as unspecific binding and unspecific uptake), possibly triggered by the nanosized object itself, as one can see in Figure 7b. An increasing uptake with an increase in the duration of cultivation is a classic feature of an unspecific process. The unspecific targeting ability of DOX-loaded MOFs was also evaluated using macrophage RAW 264.7 as the low-folate-receptor control. The MOFs’ uptake by macrophages in an incubator condition (Figure 7d) was practically the same as the cancer cells for all samples, but the MOFs’ uptake at 4 °C was negligible (Figure 7c).
Comparison of cellular uptake in folate-expressing and nonexpressing cells confirms the significant contribution of the folic acid conjugate to interactions between cells and nanoparticles.
The uncoated UiO-66 containers were rather leaky compared to [email protected]2 (Figure S8c), and the presence of the released DOX in the cell culture medium may have contributed to the fluorescence intensity in Figure 7b,d. This, in addition to the specific endocytosis, is perhaps the reason why the fluorescence intensity in the case of the internalization of [email protected] nanoparticles was the highest in both cell lines.
Accumulation and localization of DOX-loaded [email protected] in cells were studied by confocal microscopy (Figure 8). As seen in Figure 8, for the case of the RAW 264.7 cells, the DOX-loaded [email protected] needed 2 h to go through the cytoplasm and partly accumulated at cell nuclei. However, some of the DOX-loaded MOFs continued presenting in the cytoplasm, confirming that DOX was released from the nanoparticles within the cells. In the case of specific targeting, the intensive fluorescence of the DOX-loaded [email protected] nanoparticles was observed at cell nuclei of MCF-7 cells. This could be explained by the differences in the DOX-loaded MOFs’ accumulation rates.
The steric repulsion effect produced by the extended PEO chains of pluronic F127 prevented protein adsorption and, thus, interactions with macrophages and cancer cells [15]. Despite this, DOX-loaded MOF nanoparticles effectively inhibit cell viability. Cytotoxicity values of free DOX and all samples of the DOX-loaded and blank MOFs were studied by MTT assay. As seen in Figure 9, no cytotoxic effect was revealed for the blank MOFs after 24 h; however, after 72 h, an insignificant effect on the viability of the cells was observed. After 24 and 72 h, the cytotoxicity levels of the DOX-loaded UiO-66 nanoparticles were higher than those of the DOX-loaded [email protected]2. These results could be explained by sustained DOX release from [email protected]2. As shown in [41], the drug release from Zn-based MOFs can be triggered by H+ cleavage of the coordination bond in an acidic environment, which is typical for lysosomes in a living cell. We can assume that the release of DOX from UiO-66 MOFs in cells occurred in this way.
Comparing the DOX-loaded [email protected]2 and [email protected]2@F127-FA toxicities, nanoparticles modified with SiO2 shell and F127-FA conjugate allowed more toxicity to be achieved for all DOX concentrations after 24 and 72 h due to the improved folate receptor-mediated cellular uptake. The maximum cytotoxicity was found for [email protected]2@F127-FA, which was in good agreement with the accumulation results (Figure 7). Therefore, it can be concluded that the cytotoxicity is in the function of the MOFs’ composition, accumulation efficiency, and DOX release profiles.
In general, the results demonstrate that the most specificity for targeting was achieved for the synthesized folate-conjugated block copolymer of F127. This effect was more pronounced for FR-positive cancer cells (MCF-7) compared to low-folate-receptor control- RAW 264.7 cells, even though the main function of macrophages is the uptake of foreign structures, specifically, various nanoparticles [50,51]. Normally, the expression of FR on the surface of most cells in the body is relatively low. The demand for folic acid increases during cell activation and proliferation. The expression of FR on the membrane of cancer cells is generally significantly higher than on normal cells [52]. Therefore, folate-modified targeted delivery systems have found application in cancer visualization and treatment as well as in the early detection of malignant neoplasms [53,54].

4. Conclusions

Our data demonstrate that silanization of highly porous MOFs may not occur in the same way as for low porous materials. Moreover, the concentration of reagents as well as the duration of the process play key roles in the silanization process. Particularly, 0.5 h silanization of UiO-66 nanoparticles showed formation of a thicker SiO2 shell (~9 nm), compared to those for UiO-66-NH2 (~5 nm). However, for longer silanization times (1 and 24 h), there were no significant differences (~5 and ~10 nm, respectively). The porosity of UiO-66 nanoparticles decreased dramatically (from 1354 to 40 m2/g) during the silica coating process. Interestingly, UiO-66-NH2 showed a moderate porosity decrease (from 1000 to 133 m2/g) after silanization. Core–shell [email protected]2 nanoparticles acquired colloidal stability in saline solution (~19 mV), MEM (~18 mV), DMEM (~−17 mV), and RPMI (~−21 mV) cell culture media, which is critical for its biomedical application. Together with improved stability, SiO2 shells provide the sustained release of the low molecular weight encapsulated doxorubicin compound. Further modification of the nanoparticles with the F127-FA conjugate was carried out to combine the improvement in their biocompatibility with active targeting of cancer cells.
Further, we evaluated [email protected]2/F127-FA nanoparticles loaded with doxorubicin with an efficiency of 5.6 wt % in vitro using folate-expressing MCF-7 breast cancer cells and RAW 264.7 macrophages without folate overexpression. The internalization studies show that the uptake of folic acid-coated MOFs occurs in a specific, receptor-mediated manner. Hence, F127-FA conjugate can be used for the active targeting of folate receptors, which are typically overexpressed in a variety of tumors. The MTT tests revealed the postponed onset of the toxic effect of the encapsulated DOX for MCF-7 cells. The two-component shell build-up from SiO2 and F127-FA provided a significant inhibitory effect of doxorubicin on cancer cells. We, therefore, highlight the potential application of core–shell [email protected]2@F127-FA nanoparticles in the field of drug delivery.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics14071325/s1, Figure S1: Powder XRD patterns of samples UiO-66 and UiO-66 NH2 (A) Profile UiO-66 calc was calculated according to crystallographic information from 10.1021/cm1022882. Particle-sized distribution according to TEM images from 200 particles (B). Representative TEM images of UiO-66 (C) and UiO-66-NH2 (D) samples; Figure S2: TEM images of UiO-66-NH2 MOFs with maps of C, O, Zr, and N (a–e). HAADF images and corresponding Zr-Si elemental maps for UiO-66-NH2@SiO2 samples obtained by incubation of nanoparticles in TEOS for 0.5 (f,k), 1 (g,l), 2 (h,m), 4 (i,n), and 24 h (j,o); Figure S3: DLS intensity results for UIO-66 and [email protected]2 MOFs dispersed in saline solution, MEM, DMEM, and RPMI cell culture media; Figure S4: ATR-FTIR spectra collected for intact UiO-66 and UiO-66-NH2 nanoparticles compared to [email protected]2 and UiO-66-NH2@SiO2 MOFs treated with TEOS for 1 and 4 h; Figure S5: DLS intensity and DLS number results for PVP-grafted UiO-66 and [email protected]2 water dispersions; Figure S6: Calibration curve for DOX (a) and absorption spectrum of the DOX solution and DOX in supernatants after loading into MOFs (b), DOX release profiles from UiO-66 and [email protected]2 (c); Figure S7: DLS intensity and DLS number distributions DOX-loaded UIO-66 and [email protected]2; Figure S8: DLS number distributions of DOX-loaded UiO-66/F127-FA in MEM (a), DMEM (b), RPMI (c) cultural media. Figure S9: DLS-intensity and DLS-number distributions DOX-loaded UIO-66 and [email protected]2. Figure S10: DLS-number distributions of DOX-loaded UiO-66/F127-FA in MEM (a), DMEM (b), RPMI (c) cultural media. Table S1. Details of porosity calculations. SSA stands for specific surface area, C is the BET constant.

Author Contributions

Conceptualization and methodology, M.A.S. and V.V.B.; F127-FA conjugate synthesis, T.N.B.; core–shell structures synthesis and characterization, D.B.T., O.A.B.; DLS measurements, D.B.T. and P.V.M.; cell culture, cell uptake, and toxicity tests, A.Y.S., visualization, D.N.K.; writing, all authors; funding acquisition, M.A.S. and V.V.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Russian Science Foundation (project no. 19-73-10069, Southern Federal University) as part of the synthesis of core–shell structures with the MOF cores, TEM characterization, and toxicity study. Size distributions of the particles and zeta potential values were measured using the equipment of the Shared Research Center FSRC “Crystallography and Photonics” RAS and supported by the Ministry of Science and Higher Education of the Russian Federation within the state assignment FSRC “Crystallography and Photonics” RAS. The study of the localization of nanoparticles in cells and cell cultivation were supported by the Russian Science Foundation (project no. 21-74-10058, Sechenov First State Medical University).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Safaei, M.; Foroughi, M.M.; Ebrahimpoor, N.; Jahani, S.; Omidi, A.; Khatami, M. A review on metal-organic frameworks: Synthesis and applications. TrAC Trends Anal. Chem. 2019, 118, 401–425. [Google Scholar] [CrossRef]
  2. Zou, D.; Liu, D. Understanding the modifications and applications of highly stable porous frameworks via UiO-66. Mater. Today Chem. 2019, 12, 139–165. [Google Scholar] [CrossRef]
  3. Delpiano, G.R.; Tocco, D.; Medda, L.; Magner, E.; Salis, A. Adsorption of Malachite Green and Alizarin Red S Dyes Using Fe-BTC Metal Organic Framework as Adsorbent. Int. J. Mol. Sci. 2021, 22, 788. [Google Scholar] [CrossRef]
  4. Winarta, J.; Shan, B.; McIntyre, S.M.; Ye, L.; Wang, C.; Liu, J.; Mu, B. A Decade of UiO-66 Research: A Historic Review of Dynamic Structure, Synthesis Mechanisms, and Characterization Techniques of an Archetypal Metal-Organic Framework. Cryst. Growth Des. 2020, 20, 1347–1362. [Google Scholar] [CrossRef]
  5. Anik, Ü.; Timur, S.; Dursun, Z. Metal organic frameworks in electrochemical and optical sensing platforms: A review. Microchim. Acta 2019, 186, 196. [Google Scholar] [CrossRef] [PubMed]
  6. Liang, S.; Wu, X.-L.; Xiong, J.; Zong, M.-H.; Lou, W.-Y. Metal-organic frameworks as novel matrices for efficient enzyme immobilization: An update review. Coord. Chem. Rev. 2020, 406, 213149. [Google Scholar] [CrossRef]
  7. Simon-Yarza, T.; Rojas, S.; Horcajada, P.; Serre, C. The Situation of Metal-Organic Frameworks in Biomedicine; 2017; Volume 4; ISBN 9780081006924. Available online: https://www.researchgate.net/publication/311996625_The_Situation_of_Metal-Organic_Frameworks_in_Biomedicine (accessed on 3 May 2022).
  8. Ruyra, A.; Yazdi, A.; Espín, J.; Carné-Sánchez, A.; Roher, N.; Lorenzo, J.; Imaz, I.; Maspoch, D. Synthesis, culture medium stability, and in vitro and in vivo zebrafish embryo toxicity of metal-organic framework nanoparticles. Chem.-A Eur. J. 2015, 21, 2508–2518. [Google Scholar] [CrossRef]
  9. Zhao, H.X.; Zou, Q.; Sun, S.K.; Yu, C.; Zhang, X.; Li, R.J.; Fu, Y.Y. Theranostic metal-organic framework core-shell composites for magnetic resonance imaging and drug delivery. Chem. Sci. 2016, 7, 5294–5301. [Google Scholar] [CrossRef]
  10. Della Rocca, J.; Liu, D.; Lin, W. Nanoscale Metal–Organic Frameworks for Biomedical Imaging and Drug Delivery. Acc. Chem. Res. 2011, 44, 957–968. [Google Scholar] [CrossRef]
  11. Taylor, K.M.L.; Rieter, W.J.; Lin, W. Manganese-based nanoscale metal-organic frameworks for magnetic resonance imaging. J. Am. Chem. Soc. 2008, 130, 14358–14359. [Google Scholar] [CrossRef]
  12. Taylor-Pashow, K.M.L.; Della Rocca, J.; Xie, Z.; Tran, S.; Lin, W. Postsynthetic modifications of iron-carboxylate nanoscale metal-organic frameworks for imaging and drug delivery. J. Am. Chem. Soc. 2009, 131, 14261–14263. [Google Scholar] [CrossRef] [PubMed]
  13. Rieter, W.J.; Pott, K.M.; Taylor, K.M.L.; Lin, W. Nanoscale coordination polymers for platinum-based anticancer drug delivery. J. Am. Chem. Soc. 2008, 130, 11584–11585. [Google Scholar] [CrossRef] [PubMed]
  14. Abánades Lázaro, I.; Haddad, S.; Sacca, S.; Orellana-Tavra, C.; Fairen-Jimenez, D.; Forgan, R.S. Selective Surface PEGylation of UiO-66 Nanoparticles for Enhanced Stability, Cell Uptake, and pH-Responsive Drug Delivery. Chem 2017, 2, 561–578. [Google Scholar] [CrossRef] [PubMed]
  15. Sánchez-Moreno, P.; Buzón, P.; Boulaiz, H.; Peula-García, J.M.; Ortega-Vinuesa, J.L.; Luque, I.; Salvati, A.; Marchal, J.A. Balancing the effect of corona on therapeutic efficacy and macrophage uptake of lipid nanocapsules. Biomaterials 2015, 61, 266–278. [Google Scholar] [CrossRef] [PubMed]
  16. Besheer, A.; Vogel, J.; Glanz, D.; Kressler, J.; Groth, T.; Mäder, K. Characterization of PLGA Nanospheres Stabilized with Amphiphilic Polymers: Hydrophobically Modified Hydroxyethyl Starch vs. Pluronics. Mol. Pharm. 2009, 6, 407–415. [Google Scholar] [CrossRef] [PubMed]
  17. Tilley, A.J.; Drummond, C.J.; Boyd, B.J. Disposition and association of the steric stabilizer Pluronic® F127 in lyotropic liquid crystalline nanostructured particle dispersions. J. Colloid Interface Sci. 2013, 392, 288–296. [Google Scholar] [CrossRef] [PubMed]
  18. Cavka, J.H.; Jakobsen, S.; Olsbye, U.; Guillou, N.; Lamberti, C.; Bordiga, S.; Lillerud, K.P. A new zirconium inorganic building brick forming metal organic frameworks with exceptional stability. J. Am. Chem. Soc. 2008, 130, 13850–13851. [Google Scholar] [CrossRef]
  19. Wang, Y.; Lin, W.; Yu, S.; Huang, X.; Lang, X.; He, Q.; Gao, L.; Zhu, H.; Chen, J. A biocompatible Zr-based metal-organic framework UiO-66-PDC as an oral drug carrier for pH-response release. J. Solid State Chem. 2021, 293, 121805. [Google Scholar] [CrossRef]
  20. Arcuri, C.; Monarca, L.; Ragonese, F.; Mecca, C.; Bruscoli, S.; Giovagnoli, S.; Donato, R.; Bereshchenko, O.; Fioretti, B.; Costantino, F. Probing Internalization Effects and Biocompatibility of Ultrasmall Zirconium Metal-Organic Frameworks UiO-66 NP in U251 Glioblastoma Cancer Cells. Nanomaterials 2018, 8, 867. [Google Scholar] [CrossRef]
  21. Xie, C.; Guo, B.; You, H.; Wang, Z.; Leng, Q.; Ding, L.; Wang, Q. Synthesis and surface modification of mesoporous metal-organic framework (UiO-66) for efficient pH-responsive drug delivery and lung cancer treatment. Nanotechnology 2021, 32, 295704. [Google Scholar] [CrossRef]
  22. Nagarkar, S.S.; Saha, T.; Desai, A.V.; Talukdar, P.; Ghosh, S.K. Metal-organic framework based highly selective fluorescence turn-on probe for hydrogen sulphide. Sci. Rep. 2015, 4, 1–6. [Google Scholar] [CrossRef] [PubMed]
  23. Chun, J.; Kang, S.; Park, N.; Park, E.J.; Jin, X.; Kim, K.-D.; Seo, H.O.; Lee, S.M.; Kim, H.J.; Kwon, W.H.; et al. Metal–Organic [email protected] Organic Network: Hydrophobic Adsorbents with a Crystalline Inner Porosity. J. Am. Chem. Soc. 2014, 136, 6786–6789. [Google Scholar] [CrossRef] [PubMed]
  24. Cunha, D.; Ben Yahia, M.; Hall, S.; Miller, S.R.; Chevreau, H.; Elkaïm, E.; Maurin, G.; Horcajada, P.; Serre, C. Rationale of drug encapsulation and release from biocompatible porous metal-organic frameworks. Chem. Mater. 2013, 25, 2767–2776. [Google Scholar] [CrossRef]
  25. Zhu, X.; Gu, J.; Wang, Y.; Li, B.; Li, Y.; Zhao, W.; Shi, J. Inherent anchorages in UiO-66 nanoparticles for efficient capture of alendronate and its mediated release. Chem. Commun. 2014, 50, 8779–8782. [Google Scholar] [CrossRef] [PubMed]
  26. Tai, S.; Zhang, W.; Zhang, J.; Luo, G.; Jia, Y.; Deng, M.; Ling, Y. Facile preparation of UiO-66 nanoparticles with tunable sizes in a continuous flow microreactor and its application in drug delivery. Microporous Mesoporous Mater. 2016, 220, 148–154. [Google Scholar] [CrossRef]
  27. Nasrabadi, M.; Ghasemzadeh, M.A.; Monfared, M.R.Z. The preparation and characterization of UiO-66 metal-organic frameworks for the delivery of the drug ciprofloxacin and an evaluation of their antibacterial activities. New J. Chem. 2019, 43, 16033–16040. [Google Scholar] [CrossRef]
  28. He, C.; Lu, K.; Liu, D.; Lin, W. Nanoscale metal-organic frameworks for the co-delivery of cisplatin and pooled siRNAs to enhance therapeutic efficacy in drug-resistant ovarian cancer cells. J. Am. Chem. Soc. 2014, 136, 5181–5184. [Google Scholar] [CrossRef]
  29. Lu, K.; He, C.; Lin, W. Nanoscale Metal–Organic Framework for Highly Effective Photodynamic Therapy of Resistant Head and Neck Cancer. J. Am. Chem. Soc. 2014, 136, 16712–16715. [Google Scholar] [CrossRef]
  30. Gao, X.; Cui, R.; Ji, G.; Liu, Z. Size and surface controllable metal-organic frameworks (MOFs) for fluorescence imaging and cancer therapy. Nanoscale 2018, 10, 6205–6211. [Google Scholar] [CrossRef]
  31. Jarai, B.M.; Stillman, Z.; Attia, L.; Decker, G.E.; Bloch, E.D.; Fromen, C.A. Evaluating UiO-66 Metal-Organic Framework Nanoparticles as Acid-Sensitive Carriers for Pulmonary Drug Delivery Applications. ACS Appl. Mater. Interfaces 2020, 12, 38989–39004. [Google Scholar] [CrossRef]
  32. Bůžek, D.; Adamec, S.; Lang, K.; Demel, J. Metal–organic frameworks vs. buffers: Case study of UiO-66 stability. Inorg. Chem. Front. 2021, 8, 720–734. [Google Scholar] [CrossRef]
  33. Moore, T.L.; Rodriguez-Lorenzo, L.; Hirsch, V.; Balog, S.; Urban, D.; Jud, C.; Rothen-Rutishauser, B.; Lattuada, M.; Petri-Fink, A. Nanoparticle colloidal stability in cell culture media and impact on cellular interactions. Chem. Soc. Rev. 2015, 44, 6287–6305. [Google Scholar] [CrossRef] [PubMed]
  34. Butova, V.V.; Burachevskaya, O.A.; Ozhogin, I.V.; Borodkin, G.S.; Starikov, A.G.; Bordiga, S.; Damin, A.; Lillerud, K.P.; Soldatov, A.V. UiO-66 type MOFs with mixed-linkers-1,4-Benzenedicarboxylate and 1,4-naphthalenedicarboxylate: Effect of the modulator and post-synthetic exchange. Microporous Mesoporous Mater. 2020, 305, 110324. [Google Scholar] [CrossRef]
  35. Butova, V.V.; Burachevskaya, O.A.; Muratidi, M.A.; Surzhikova, I.I.; Zolotukhin, P.V.; Medvedev, P.V.; Gorban, I.E.; Kuzharov, A.A.; Soldatov, M.A. Loading of the Model Amino Acid Leucine in UiO-66 and UiO-66-NH2 :Optimization of Metal–Organic Framework Carriers and Evaluation of Host–Guest Interactions. Inorg. Chem. 2021, 60, 5694–5703. [Google Scholar] [CrossRef] [PubMed]
  36. Uemura, T.; Hiramatsu, D.; Yoshida, K.; Isoda, S.; Kitagawa, S. Sol−Gel Synthesis of Low-Dimensional Silica within Coordination Nanochannels. J. Am. Chem. Soc. 2008, 130, 9216–9217. [Google Scholar] [CrossRef] [PubMed]
  37. Uemura, T.; Kadowaki, Y.; Kim, C.R.; Fukushima, T.; Hiramatsu, D.; Kitagawa, S. Incarceration of Nanosized Silica into Porous Coordination Polymers: Preparation, Characterization, and Adsorption Property. Chem. Mater. 2011, 23, 1736–1741. [Google Scholar] [CrossRef]
  38. Xie, R.; Yang, P.; Peng, S.; Cao, Y.; Yao, X.; Guo, S.; Yang, W. A phosphorylcholine-based zwitterionic copolymer coated ZIF-8 nanodrug with a long circulation time and charged conversion for enhanced chemotherapy. J. Mater. Chem. B 2020, 8, 6128–6138. [Google Scholar] [CrossRef]
  39. Thommes, M. Physical Adsorption Characterization of Nanoporous Materials. Chem. Ing. Tech. 2010, 82, 1059–1073. [Google Scholar] [CrossRef]
  40. Sorribas, S.; Zornoza, B.; Téllez, C.; Coronas, J. Ordered mesoporous silica–(ZIF-8) core–shell spheres. Chem. Commun. 2012, 48, 9388. [Google Scholar] [CrossRef]
  41. Xing, L.; Zheng, H.; Cao, Y.; Che, S. Coordination polymer coated mesoporous silica nanoparticles for ph-responsive drug release. Adv. Mater. 2012, 24, 6433–6437. [Google Scholar] [CrossRef]
  42. Tang, X.; Kröger, E.; Nielsen, A.; Strelow, C.; Mews, A.; Kipp, T. Ultrathin and Highly Passivating Silica Shells for Luminescent and Water-Soluble CdSe/CdS Nanorods. Langmuir 2017, 33, 5253–5260. [Google Scholar] [CrossRef] [PubMed]
  43. Yang, P.; Ando, M.; Murase, N. Highly Luminescent CdSe/CdxZn1–xS Quantum Dots Coated with Thickness-Controlled SiO2 Shell through Silanization. Langmuir 2011, 27, 9535–9540. [Google Scholar] [CrossRef] [PubMed]
  44. Du, Y.; Yang, P.; Matras-Postolek, K.; Wang, J.; Che, Q.; Cao, Y.; Ma, Q. Low toxic and highly luminescent CdSe/CdxZn1−xS quantum dots with thin organic SiO2 coating for application in cell imaging. J. Nanoparticle Res. 2016, 18, 1–11. [Google Scholar] [CrossRef]
  45. Ovchinnikov, O.; Aslanov, S.; Smirnov, M.; Perepelitsa, A.; Kondratenko, T.; Selyukov, A.; Grevtseva, I. Colloidal Ag2S/SiO2 core/shell quantum dots with IR luminescence. Opt. Mater. Express 2021, 11, 89. [Google Scholar] [CrossRef]
  46. Cagel, M.; Grotz, E.; Bernabeu, E.; Moretton, M.A.; Chiappetta, D.A. Doxorubicin: Nanotechnological overviews from bench to bedside. Drug Discov. Today 2017, 22, 270–281. [Google Scholar] [CrossRef]
  47. Batrakova, E.V.; Kabanov, A.V. Pluronic block copolymers: Evolution of drug delivery concept from inert nanocarriers to biological response modifiers. J. Control. Release 2008, 130, 98–106. [Google Scholar] [CrossRef]
  48. Sonvico, F.; Dubernet, C.; Marsaud, V.; Appel, M.; Chacun, H.; Stella, B.; Renoir, M.; Colombo, P.; Couvreur, P. Establishment of an in vitro model expressing the folate receptor for the investigation of targeted delivery systems. J. Drug Deliv. Sci. Technol. 2005, 15, 407–410. [Google Scholar] [CrossRef]
  49. Sousa de Almeida, M.; Susnik, E.; Drasler, B.; Taladriz-Blanco, P.; Petri-Fink, A.; Rothen-Rutishauser, B. Understanding nanoparticle endocytosis to improve targeting strategies in nanomedicine. Chem. Soc. Rev. 2021, 50, 5397–5434. [Google Scholar] [CrossRef]
  50. Colino, C.I.; Lanao, J.M.; Gutierrez-Millan, C. Targeting of Hepatic Macrophages by Therapeutic Nanoparticles. Front. Immunol. 2020, 11. [Google Scholar] [CrossRef]
  51. Demina, P.A.; Sindeeva, O.A.; Abramova, A.M.; Prikhozhdenko, E.S.; Verkhovskii, R.A.; Lengert, E.V.; Sapelkin, A.V.; Goryacheva, I.Y.; Sukhorukov, G.B. Fluorescent Convertible Capsule Coding Systems for Individual Cell Labeling and Tracking. ACS Appl. Mater. Interfaces 2021, 13, 19701–19709. [Google Scholar] [CrossRef]
  52. Chen, C.; Ke, J.; Zhou, X.E.; Yi, W.; Brunzelle, J.S.; Li, J.; Yong, E.-L.; Xu, H.E.; Melcher, K. Structural basis for molecular recognition of folic acid by folate receptors. Nature 2013, 500, 486–489. [Google Scholar] [CrossRef] [PubMed]
  53. Tsyupka, D.V.; Mordovina, E.A.; Sindeeva, O.A.; Sapelkin, A.V.; Sukhorukov, G.B.; Goryacheva, I.Y. High-fluorescent product of folic acid photodegradation: Optical properties and cell effect. J. Photochem. Photobiol. A Chem. 2021, 407, 113045. [Google Scholar] [CrossRef]
  54. Low, P.S.; Henne, W.A.; Doorneweerd, D.D. Discovery and Development of Folic-Acid-Based Receptor Targeting for Imaging and Therapy of Cancer and Inflammatory Diseases. Acc. Chem. Res. 2008, 41, 120–129. [Google Scholar] [CrossRef] [PubMed]

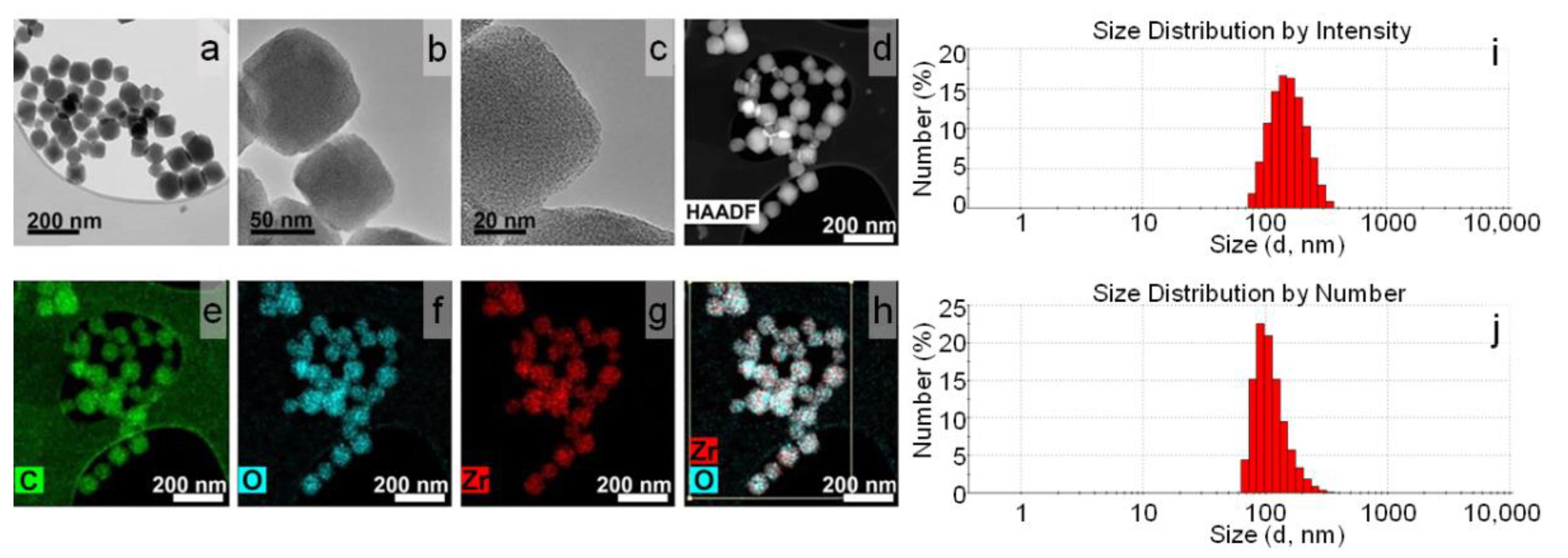

Figure 1. TEM/STEM images of intact UiO-66 MOFs and elemental mapping (ah); DLS intensity (i); DLS number (j) distributions.
Figure 1. TEM/STEM images of intact UiO-66 MOFs and elemental mapping (ah); DLS intensity (i); DLS number (j) distributions.
Pharmaceutics 14 01325 g001
Figure 2. HAADF-STEM images and corresponding Zr-Si elemental maps for [email protected]2 samples obtained by incubation of PVP-grafted UiO-66 MOFs in TEOS for 0.5 (a,f); 1 (b,g); 2 (c,h); 4 (d,i); 24 h (e,j).
Figure 2. HAADF-STEM images and corresponding Zr-Si elemental maps for [email protected]2 samples obtained by incubation of PVP-grafted UiO-66 MOFs in TEOS for 0.5 (a,f); 1 (b,g); 2 (c,h); 4 (d,i); 24 h (e,j).
Pharmaceutics 14 01325 g002

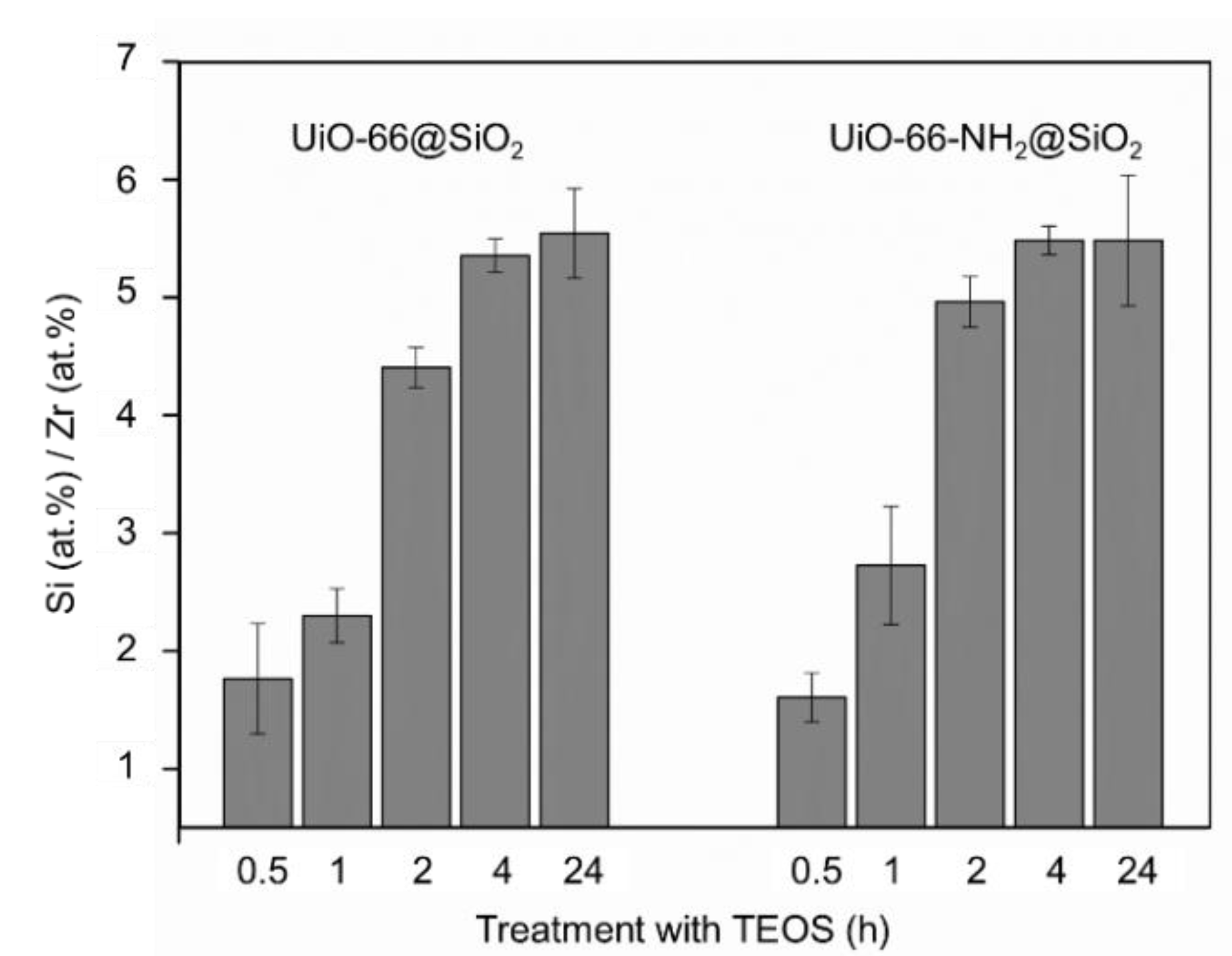

Figure 3. Si/Zr ratio in [email protected]2 and UiO-66-NH2@SiO2 MOFs treated with TEOS for different durations.
Figure 3. Si/Zr ratio in [email protected]2 and UiO-66-NH2@SiO2 MOFs treated with TEOS for different durations.
Pharmaceutics 14 01325 g003

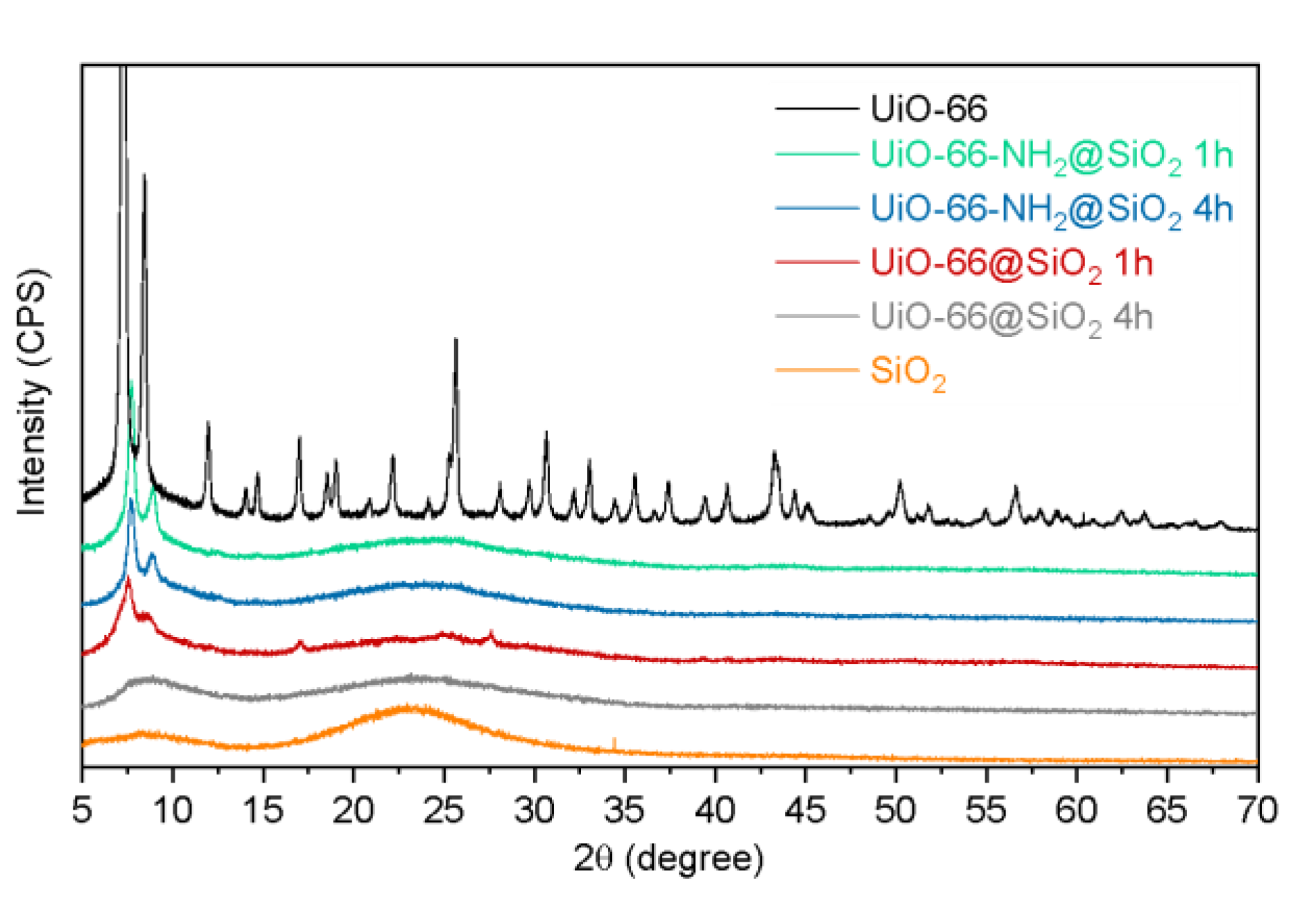

Figure 4. XRD patterns collected for intact UiO-66 nanoparticles, SiO2 nanoparticles, and TEOS-treated [email protected]2 and UiO-66-NH2@SiO2 samples.
Figure 4. XRD patterns collected for intact UiO-66 nanoparticles, SiO2 nanoparticles, and TEOS-treated [email protected]2 and UiO-66-NH2@SiO2 samples.
Pharmaceutics 14 01325 g004

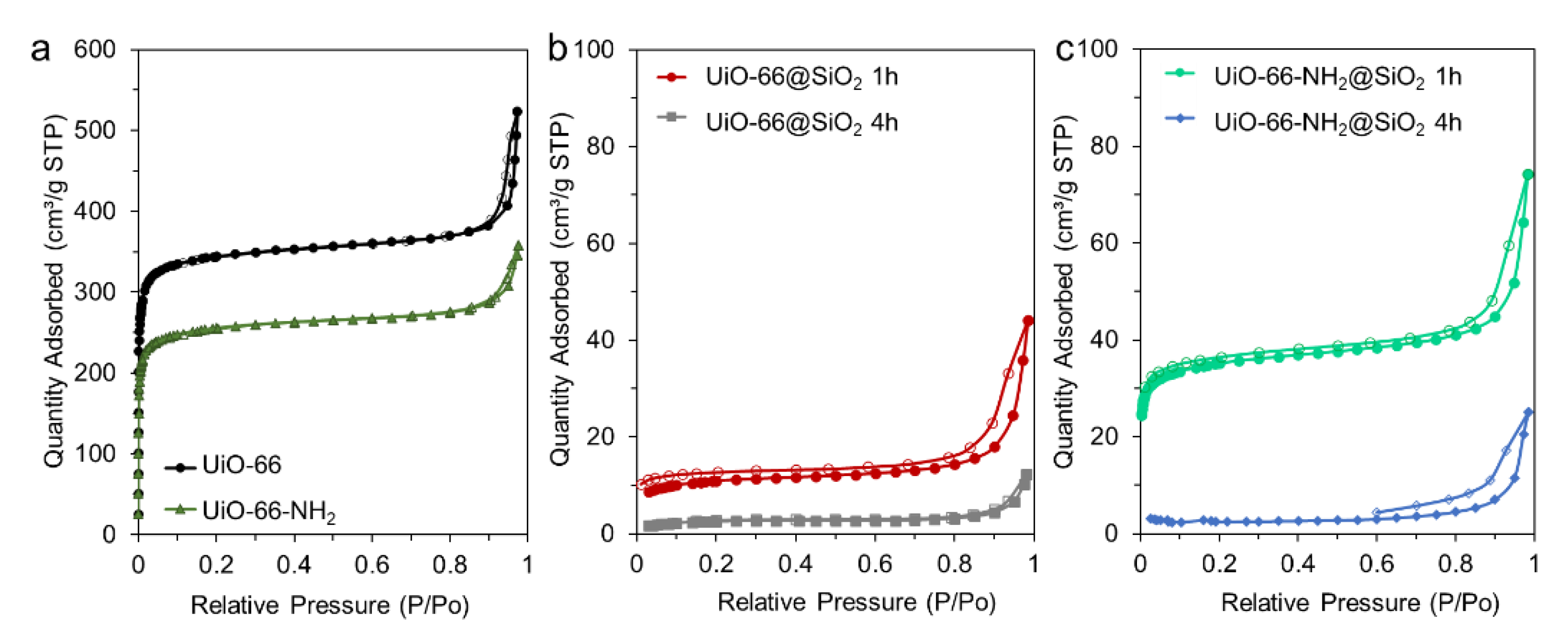

Figure 5. Nitrogen adsorption–desorption isotherms measured for UiO-66 and UiO-66-NH2 (a); [email protected]2 1 h and [email protected]2 4 h (b); UiO-66-NH2@SiO2 1 h and UiO-66-NH2@SiO2 4 h (c). Filled markers represent adsorption branches of isotherms, while empty ones designate desorption branches.
Figure 5. Nitrogen adsorption–desorption isotherms measured for UiO-66 and UiO-66-NH2 (a); [email protected]2 1 h and [email protected]2 4 h (b); UiO-66-NH2@SiO2 1 h and UiO-66-NH2@SiO2 4 h (c). Filled markers represent adsorption branches of isotherms, while empty ones designate desorption branches.
Pharmaceutics 14 01325 g005

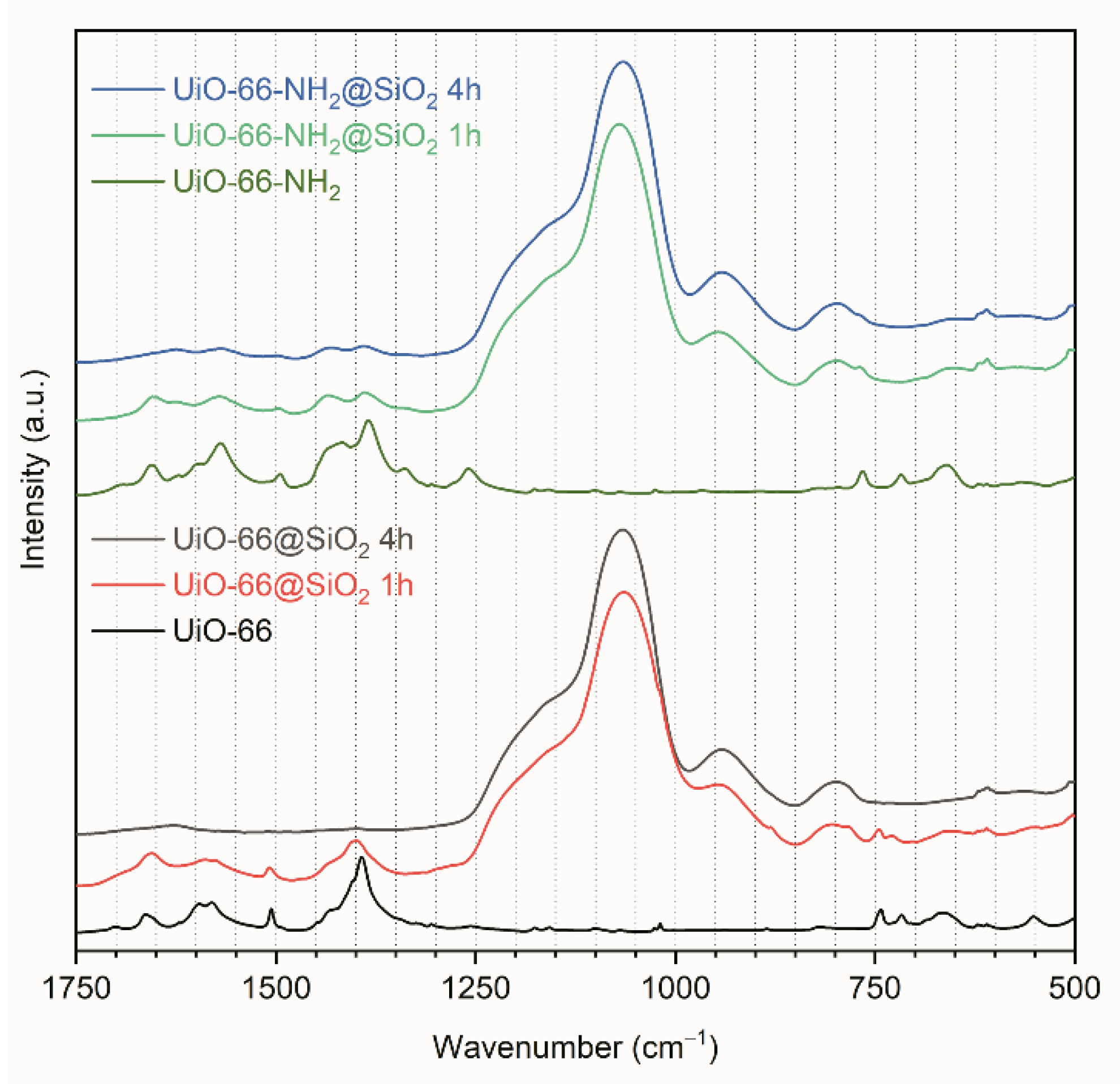

Figure 6. ATR-FTIR spectra collected for intact UiO-66 and UiO-66-NH2 nanoparticles compared to [email protected]2 and [email protected]2 MOFs treated with TEOS for different durations.
Figure 6. ATR-FTIR spectra collected for intact UiO-66 and UiO-66-NH2 nanoparticles compared to [email protected]2 and [email protected]2 MOFs treated with TEOS for different durations.
Pharmaceutics 14 01325 g006

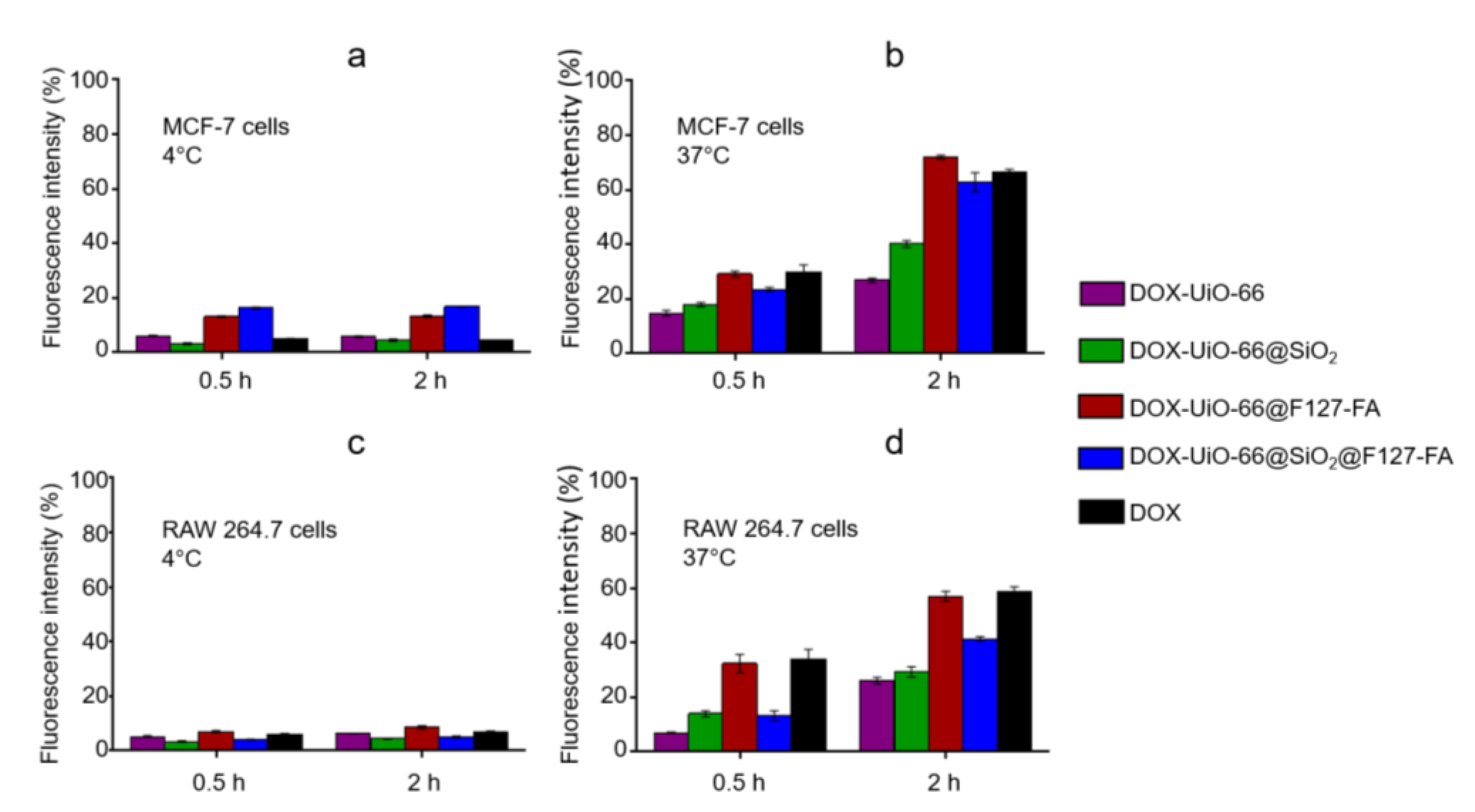

Figure 7. Uptake of the DOX-loaded MOFs and free DOX by MCF-7 cells at (a) at 4 °C and (b) 37 °C; and for RAW 264.7 w cells (c) at 4 °C; (d) at 37 °C after 0.5 and 2 h incubation durations.
Figure 7. Uptake of the DOX-loaded MOFs and free DOX by MCF-7 cells at (a) at 4 °C and (b) 37 °C; and for RAW 264.7 w cells (c) at 4 °C; (d) at 37 °C after 0.5 and 2 h incubation durations.
Pharmaceutics 14 01325 g007
Figure 8. Intracellular distribution of the DOX-loaded MOF in MCF-7 and RAW 264.7 cells after 2 h. Cell nuclei are in blue (Hoechst 33258), cell cytoplasm in green (Calcein AM), and MOFs in red (DOX). Scale bar is 50 μm.
Figure 8. Intracellular distribution of the DOX-loaded MOF in MCF-7 and RAW 264.7 cells after 2 h. Cell nuclei are in blue (Hoechst 33258), cell cytoplasm in green (Calcein AM), and MOFs in red (DOX). Scale bar is 50 μm.
Pharmaceutics 14 01325 g008

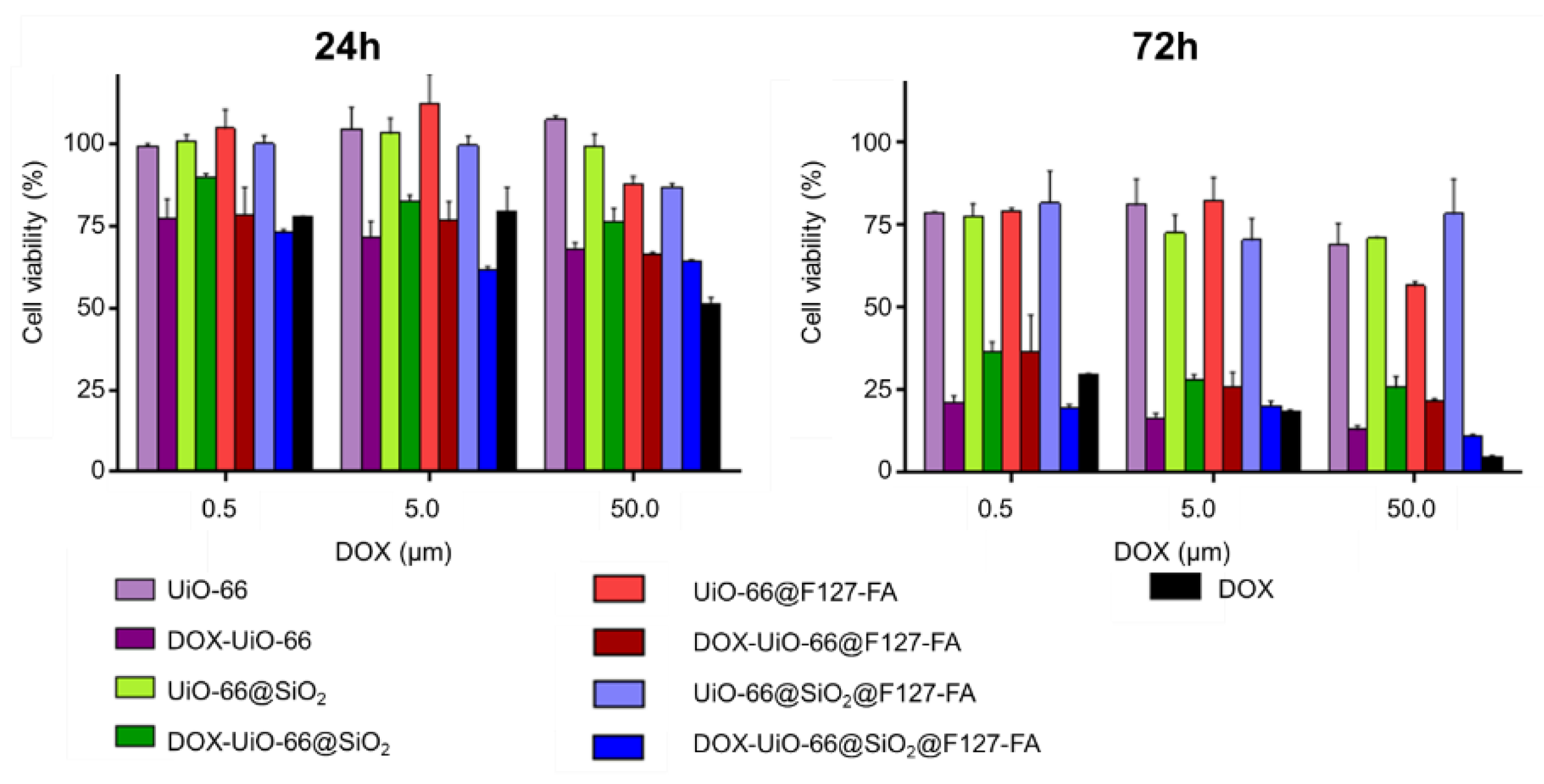

Figure 9. Cytotoxicity of the blank MOFs, DOX-loaded MOFs, and free DOX for MCF-7 cells after 24 and 72 h via MTT tests. A monolayer culture (nontreated cells) was used as a control (100%).
Figure 9. Cytotoxicity of the blank MOFs, DOX-loaded MOFs, and free DOX for MCF-7 cells after 24 and 72 h via MTT tests. A monolayer culture (nontreated cells) was used as a control (100%).
Pharmaceutics 14 01325 g009
Table 1. Shell thickness in [email protected]2 and UiO-66-NH2@SiO2 MOFs depending on the duration of incubation in TEOS. n.a.—not available.
Table 1. Shell thickness in [email protected]2 and UiO-66-NH2@SiO2 MOFs depending on the duration of incubation in TEOS. n.a.—not available.
MOF SamplesThe Thickness of SiO2 Shell after a Specific Duration of
Silanization Process, nm
0.5 h1 h2 h4 h24 h
[email protected]28.5 ± 1.64.5 ± 0.9n.a.n.a.9.9 ± 1.2
UiO-66-NH2@SiO24.5 ± 1.14.8 ± 1.1n.a.n.a.9.9 ± 1.9
Table 2. Zeta potential of UiO-66, PVP-grafted UiO-66, and core–shell [email protected]2 in model media.
Table 2. Zeta potential of UiO-66, PVP-grafted UiO-66, and core–shell [email protected]2 in model media.
Sampleξ of Nanoparticles in a Different Medium, mV
DI WaterSaline SolutionMEMDMEMRPMI
UiO-6639.7 ± 0.8−5.3 ± 3.1−15.3 ± 0.9−10.2 ± 0.6−21.4 ± 0.9
UiO-66/PVP−14.9 ± 0.9−12.2 ± 1.3−9.2 ± 0.3−10.1 ± 0.7−17.8 ± 0.9
[email protected]2
24 h
−33.3 ± 0.4+19.1 ± 1.2−18.0 ± 0.5−17.1 ± 0.9−21.0 ± 1.5
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
