The Role of Cryotherapy in Vitreous Concentrations of Topotecan Delivered by Episcleral Hydrogel Implant

Department of Ophthalmology, 2nd Faculty of Medicine, Charles University and Motol University Hospital, 150 06 Prague, Czech Republic
Institute of Macromolecular Chemistry, Academy of Sciences of the Czech Republic, 162 06 Prague, Czech Republic
Department of Histology and Embryology, 2nd Faculty of Medicine, Charles University, 150 06 Prague, Czech Republic
Department of Medical Chemistry and Clinical Biochemistry, 2nd Faculty of Medicine, Charles University and Motol University Hospital, 150 06 Prague, Czech Republic
Department of Pediatric Hematology and Oncology, 2nd Faculty of Medicine, Charles University and Motol University Hospital, 150 06 Prague, Czech Republic
Clinical and Transplant Pathology Centre, Institute for Clinical and Experimental Medicine, 140 21 Prague, Czech Republic
Department of Pharmacology, First Faculty of Medicine, Charles University and General University Hospital in Prague, 128 00 Prague, Czech Republic
Moorfields Eye Hospital, Abu Dhabi P.O. Box 62807, United Arab Emirates
Author to whom correspondence should be addressed.
Pharmaceutics 2022, 14(5), 903;
Submission received: 28 February 2022 / Revised: 13 April 2022 / Accepted: 18 April 2022 / Published: 20 April 2022
(This article belongs to the Special Issue Drug Delivery in Ophthalmology)


Transscleral diffusion delivery of chemotherapy is a promising way to reach the vitreal seeds of retinoblastoma, the most common intraocular malignancy in childhood. In this in vivo study, the delivery of topotecan via lens-shaped, bi-layered hydrogel implants was combined with transconjunctival cryotherapy to assess whether cryotherapy leads to higher concentrations of topotecan in the vitreous. The study included 18 New Zealand albino rabbits; nine rabbits received a topotecan-loaded implant episclerally and another nine rabbits received transconjunctival cryotherapy superotemporally 2 weeks before implant administration. Median vitreous total topotecan exposures (area under the curve, AUC) were 455 ng·h/mL for the cryotherapy group and 281 ng·h/mL for the non-cryotherapy group, and were significantly higher in the cryotherapy group, similar to maximum levels. Median plasma AUC were 50 ng·h/mL and 34 ng·h/mL for the cryotherapy and non-cryotherapy groups, respectively, with no statistically significant differences between them. In both groups, AUC values in the vitreous were significantly higher than in plasma, with plasma exposure at only approximately 11–12% of the level of vitreous exposure. The results confirmed the important role of the choroidal vessels in the pharmacokinetics of topotecan during transscleral administration and showed a positive effect of cryotherapy on intravitreal penetration, resulting in a significantly higher total exposure in the vitreous.

Graphical Abstract

1. Introduction

Retinoblastoma (Rb) is the most common intraocular tumor in children [1]. Advanced intraocular Rb is typically followed by cancer seeding, a type of cell dispersion into an adjacent liquid or semi-liquid compartment. Unfortunately, the presence of seeding is mostly incompatible with successful conservative treatment [2]. Intravitreal chemotherapy has allowed the salvaging of eyes that, until recent years, would have been enucleated. The safety-enhanced technique of intravitreal injection through a tumor-free pars plana site using anti-reflux measures and needle tract sterilization was described in 2012 [3]. The most frequently used drugs for intravitreal injection in the treatment of Rb are melphalan and topotecan (TPT), often administered concomitantly [4,5,6,7]. However, intravitreal chemotherapy with melphalan is associated with retinal toxicity, and therefore loss of retinal function is common [4,8,9]. Compared to melphalan, TPT has a longer intra-ocular half-life [10], and it has been reported that intravitreal monotherapy with TPT shows retinal non-toxicity in a rabbit model [11], even in high doses (up to 50 µg administered weekly) [12]. Recently, the successful control of vitreous disease was achieved with intravitreal TPT applied as a drug solution [13,14,15] or using injectable TPT delivery systems such as hydrogels [16,17] or nanoparticles [18]. Despite these achievements, intravitreal therapy cannot be used in all patients with seeding, and it is even contraindicated in case of uveal or anterior chamber involvement [9,15]. In addition, side effects after intravitreal injections, such as reflux of vitreous at the injection site, retinopathy, vitreous hemorrhage, endophthalmitis, and retinal detachment have been reported [1,19].
Another way to deliver drugs into the posterior eye segment is the periocular approach. Several types of episcleral implants for transscleral diffusion drug administration have been described [20,21,22]. The results of a number of pharmacokinetic studies suggest that conjunctival lymphatic/blood vessels are an important barrier in the delivery of drugs to the vitreous by periocular administration, as the majority of the drug is eliminated before it penetrates the sclera [21,23,24]. Another important barrier to episcleral drug administration that lowers drug levels in the vitreous is the choroidal vasculature [25,26]. Some authors have used cryotherapy to reduce the choroidal blood flow and suppress drug clearance via the choroidal circulation [27,28]. The effects of cryotherapy on ocular tissues have been well described in histological studies [29,30]. The first reports about the role of cryotherapy in the management of Rb were published as early as 1980’ [31,32]. Currently, cryotherapy represents a standard focal treatment modality with few adverse effects [1,33,34]. This treatment destroys small tumors by freezing them at −80 °C and is performed transconjunctivally with a cryoprobe at the tumor site using a triple freeze/thaw technique. Cryotherapy results in a formation of a chorioretinal scar [35]. Additionally, cryoprobes are commonly used in the safety-enhanced technique of intravitreal injection [36,37].
We have previously presented a new bi-layered hydrogel implant for transscleral diffusion delivery for adjunctive therapy in some types of Rb with intravitreal seeding. Our implant is composed of two methacrylate-based layers: an inner hydrophilic drug reservoir made from poly(2-hydroxyethyl methacrylate) (pHEMA), which delivers low molecular weight hydrophilic drugs such as TPT, and an outer hydrophobic layer of poly(2-ethoxyethyl methacrylate) (pEOEMA), which is impermeable and thus suppresses the release of the drug into the surrounding vascularized tissue; the drug is almost exclusively released towards the sclera. In vitro properties and in vivo proof of concept in a rabbit eye model have been reported [38,39,40].
However, choroidal vessels can still represent a barrier to more effective drug delivery into the Rb-seeded vitreous humor. We hypothesize that an abrogation of choroidal vessels by cryotherapy will lead to higher vitreous TPT levels and lower systemic TPT exposure. In the present study, we used rabbits as an in vivo model to study the intravitreal concentration of TPT delivered via the transscleral route by bi-layered hydrogel implants upon co-administration of cryotherapy.

2. Materials and Methods

2.1. Materials

TPT hydrochloride (≥98%), 2-hydroxyethyl methacrylate (HEMA, ≥99%), ethylene glycol dimethacrylate (EDMA, ≥98%), 2-ethoxyethyl methacrylate (EOEMA, ≥99%), and 2,2´-azobis(2-methylpropionitrile) (AIBN, ≥98) were obtained from Sigma-Aldrich (Prague, Czech Republic). Polypropylene (PP) bars for mold manufacturing were provided by Titan-Multiplast (Smrzovka, Czech Republic). LC-MS-grade methanol, water, and formic acid were obtained from Honeywell (LC-MS grade, Labicom, Czech Republic). The deuterated-labeled internal standards of TPT and TPT hydrochloride were purchased from Toronto Research Chemicals Inc. (North York, ON, Canada).

2.2. Hydrogel Implant Preparation and Drug Loading

Preparation: The hydrogel implant is composed of two parts, an inner part made from pHEMA material and outer part of pEOEMA material, which were prepared separately and coupled together before implantation. Preparation of the individual implant parts and their characterization has previously been described in detail [40]. Briefly, the hydrogels were prepared by thermal radical crosslinking polymerization of a mixture of monomers of HEMA or EOEMA, the crosslinker EDMA (0.5 wt% relative to monomer), and initiator the AIBN (0.5 wt% relative to monomer and crosslinker). The polymerization was carried out in molds, which were fabricated by lathe-cutting from polypropylene bars into the shape and dimension that provide lens-shaped hydrogel implants corresponding to the curvature of the rabbit eye. After polymerization, the implants were washed to remove all unreacted low molecular weight and potentially toxic residues from the polymerization. Both the washed and equilibrium-swollen implants were sterilized using a steam sterilizer at 120 °C for 30 min before being used for in vivo experiments.
Drug loading: The pHEMA part of the implant was loaded with TPT using the soaking method as follows: equilibrium-swollen pHEMA samples (0.22 g ± 0.08 g) were immersed in 3 mL of 2 mg/mL TPT solution in water and gently stirred at 4 °C for 24 h in the dark. After 24 h, pHEMA samples were removed from the TPT solution, washed three times for 5 s in an excess of water (100 mL) to remove the drops of drug solution from the surface, and then coupled with a sterile pEOEMA cover to prepare the implant for administration onto the rabbit eye.

2.3. In Vivo Studies and Sampling Procedures

Eighteen male New Zealand White specified-pathogen-free (SPF) rabbits (Velaz, Prague, Czech Republic) were handled in this study, according to the regulation Nr. 419/2012 of the Ministry of Agriculture of the Czech Republic regarding the use of animals in experiments. Rabbits (weighing 1.7 to 2.2 kg) were anesthetized using intramuscular ketamine hydrochloride (50 mg/kg, Narkamon 100 mg/mL a.u.v. inj., Bioveta Ltd., Ivanovice na Hané, Czech Republic) and xylazine hydrochloride (5 mg/kg, Rometar 20 mg/mL a.u.v. inj., Bioveta Ltd., Ivanovice na Hané, Czech Republic). Half-doses of the same anesthetics were given every hour if prolonged anesthesia was required. Conjunctival sacks were anesthetized by topical oxybuprocaine eye drops (Benoxi 0.4% oph.gtt.sol., Unimed Pharma Ltd., Bratislava, Slovakia) and disinfected with 3 mL of 1% povidone-iodine solution (EGIS Pharmaceuticals Ltd., Budapest, Hungary) before the treatment and sampling.
The rabbits were divided into two groups: a non-cryotherapy (non-cryo) and a cryotherapy (cryo) group. Each animal in the non-cryo group (n = 9) received a hydrogel implant episclerally to the right eye, without previous treatment. The animals from the cryo group (n = 9) received transconjunctival cryotherapy 14 days before administering the implant to the right eye. Transconjunctival cryotherapy was performed in the superior temporal quadrant at the intended implantation site at 5–6 points for 10–13 s (Erbokryo AE, Erbe Elektromedizin GmbH, Tübingen, Germany). The contralateral eyes were used as controls.
The coupled bi-layered pHEMA/pEOEMA implant was inserted through a conjunctival incision in the superior temporal episcleral zone with the pHEMA part facing the sclera and fixed to the sclera with two Vicryl 6/0 sutures. The implant was placed approximately 1.0–1.5 mm from the limbus and the conjunctiva was sutured again with Vicryl 6/0. The course of the operation was documented by photos, which are presented in Figure 1. Vitreous humor samples (100–200 µL) were obtained from the right eyes using a 25 G needle inserted into the inferior nasal region of the sclera, approximately 3 mm from the limbus at 2, 8, 24 and 48 h, as well as at 7 and 14 days after implant insertion. The vitreous samples from the left eyes were aspirated using a 25 G needle inserted into the superior temporal region of the sclera at 8 h, as a control. These samples were placed in plastic cryotubes, snap frozen in liquid nitrogen, and kept at −80 °C until analysis. Venous blood samples were collected from the marginal ear vein into tubes with ammonium heparinate at 0.5, 1, 2, 8, 24 and 48 h, as well as at 7 and 14 days after hydrogel implant administration. The blood was centrifuged at 1000× g and 4 °C for 10 min (Z326K, Hemle Labortechnik, Wehingen, Germany) to isolate the blood plasma. Plasma samples were immediately snap frozen in liquid nitrogen and kept at −80 °C until analysis. Total TPT concentrations were determined by the HPLC-MS/MS method using an Agilent technologies 1290 Infinity II system, including an autosampler, binary pumps, and a thermostated column compartment with 6470 Triple Quad (Agilent technologies, Santa Clara, CA, USA). Processing of plasma and vitreous samples for HPLC-MS/MS analysis and details of the HPLC-MS/MS method are described elsewhere [40].
At each sampling timepoint, the rabbits underwent microscopic and indirect fundoscopic examinations, which were photographically documented. After 14 days of sampling, the animals were euthanatized with an overdose of general anesthesia, and their eyes and retrobulbar tissues were enucleated and fixed with 4% formaldehyde for histopathologic examination. Then, each eyeball was sectioned sagitally, dehydrated using a graded series of ethanol concentrations, cleared using xylene, and embedded in paraffin. Sections of 3 µm thickness were taken and then stained using hematoxylin and eosin. Histopathology findings were evaluated under an Olympus BX43 light microscope (Olympus, Tokyo, Japan), recorded using a DFK 33UX250 camera (Imaging Source, Bremen, Germany), and processed using a NIS Elements AR 5.20.01 image processing software (Laboratory Imaging, Prague, Czech Republic).

2.4. Pharmacokinetic and Statistical Analysis

Measured TPT vitreous concentrations were normalized to eyeball volume, while TPT plasma levels were normalized to body weight. Non-detectable TPT levels (levels under the detection limit of 0.5 ng/mL [40]) were treated in the analysis as zero levels. The area under the TPT concentration–time curve from zero to infinity (AUC0–∞) was calculated as AUC0-last (up to the last measurable concentration) + AUClast–∞ (estimation from the last measured concentration to infinity). AUC0-last was then calculated using the trapezoidal rule, while extrapolation to infinity was estimated as AUClast–∞ = Clast/Ke, where Clast is the last observed quantifiable concentration and Ke is the terminal phase elimination rate constant. Ke was calculated as the slope of the semi-logarithmic concentration–time profile using linear regression models. Only the last three quantifiable concentrations were used for this purpose.
Descriptive pharmacokinetic parameters were reported as median (interquartile range, IQR) or mean ± standard error of the mean (SEM). The potential difference in parameters between the cryo and non-cryo groups was calculated using the Mann–Whitney test. For comparison of detectable TPT vitreous level up to 48 h after implant administration between the cryo and non-cryo groups, Fisher´s exact test was used. The threshold of statistical significance was considered at p ≤ 0.05. All statistical analyses were performed using GraphPad Prism version 8.2.1 (GraphPad Software, Inc., La Jolla, CA, USA).

3. Results

3.1. Ophthalmic Surgery and Clinical Observations

All cryotherapy procedures were uneventful. Chorioretinal atrophy was seen after 14 days before implant administration by fundoscopic examination, and it was also apparent on histological examination (see Figures below, in Section 3.2).
The lens-shaped pHEMA and pEOEMA layers of the hydrogel implant were characterized by equilibrium swelling in water (38% for pHEMA and 2% for pEOEMA), weight in the swollen state (220 and 200 mg), and central thickness in the swollen state (1.8 and 0.8 mm). The details of these results are described elsewhere [40].
Prior to implantation, the pHEMA layer was loaded with TPT and then glued to the pEOEMA cover layer. The surgical procedure was successful and without any complications, mainly due to the soft and flexible nature of the implant. Throughout the experiment (14 days), rabbits did not display any treatment-induced adverse effects indicating general TPT toxicity, such as weight change or hair loss. Figure 2 shows an example of an eye following implantation and subsequent implant removal. In cryo and non-cryo groups, similar changes in the anterior segment such as conjunctival hyperemia, chemosis, and suffusion due to the surgical manipulation and repeated vitreous samplings were found. Additional ocular changes were assessed 7 and 14 days after implantation and scaled in grades 1 to 4; results obtained together with the description of the grades are presented in Table 1 and Table 2.

3.2. Histopathology Findings

The right eyes of rabbits from the cryo group showed the following changes at the cryotherapy site: the sclera was intact, the choroid was thinned, and the retina was partially replaced by choroidal tissue that penetrated the disrupted pigment epithelium (Figure 3A). Only a thin limiting membrane with a small number of cells was found on the inner surface of the defect (Figure 3B). The transitional zone between normal retina/choroid and a chorioretinal scar was observed (Figure 3C). Intact retina and choroid were found outside the cryotherapy site (Figure 3D) and the choroid revealed vascular dilatation in some cases. The ciliary body was usually edematous or showed bleeding into the tissue due to a needle injury or a drop in intraocular pressure during vitreous sampling. Edematous or inflammatory changes of various extents were observed in the conjunctiva. The right eyes from the non-cryo group showed intact eyeball layers (Figure 3E,F). Only one eye revealed corneal vascularization at the limbus and edematous or inflammatory changes were again found in the conjunctiva (Figure 3G,H). The left control eyes did not show any considerable pathological changes in either group.

3.3. Pharmacokinetics of TPT

Two rabbits in the cryo group were excluded from the study due to laboratory error (damage of the vitreous samples during processing for HPLC analysis). TPT pharmacokinetic parameters calculated from the vitreous and plasma compartment in both cryo and non-cryo groups are summarized in Table 3. Very low TPT levels (0–1.1 ng/mL) were detected in the vitreous humor of the contralateral eye in both groups (i.e., lower concentrations than those found in the plasma). Detectable vitreous TPT levels up to 48 h after implant administration were observed in 71.4% and 44.4% of subjects in the cryo and non-cryo groups, respectively. The concentration–time profiles showed significantly higher concentration of TPT in vitreous in the cryo group compared to non-cryo group (Figure 4). The concentration in plasma was not significantly different except for Cmax, which was higher for the cryo group at 2 h. In the cryo group, significantly higher total TPT vitreous exposure and TPT maximal vitreous levels were observed (see Table 3). In both groups, AUC0–∞ levels were significantly higher in the vitreous than in plasma (p = 0.0006 and p = 0.0051 in the cryo and non-cryo groups, respectively). Plasma exposure is at only approximately 11–12% of the level of vitreous exposure.

4. Discussion

Intravitreal drug delivery using periocular implantation with subsequent transscleral drug diffusion is limited by three main physiological barriers [25,26,41]. The first is the diffusion of the drug molecules through the sclera. The drug diffusion proceeds against the pressure gradient and is driven by the concentration gradient. In the case of sufficient drug concentration provided by the proper drug release kinetics, it is relatively easy to pass. Several papers have demonstrated high transscleral permeability for various molecules [42,43]. This can be even facilitated by selection of a low molecular weight hydrophilic drug such as TPT [38]. The second barrier is the conjunctival blood and lymphatic vasculature. The highly vascularized tissue surrounding the eyeball represents a dynamic barrier that eliminates the drug applied by periocular injection [44,45,46] or released from the administered device [47,48]. The activity of this barrier can be suppressed by using drug-loaded device which is tightly attached to the eyeball and releases the drug entirely towards the side of the sclera [21,39]. The third barrier is the choroidal blood vasculature. It represents a second dynamic barrier that decreases the drug concentration after its penetration through the sclera. This barrier can be suppressed by use of vasoconstrictors to temporarily limit the blood flow [20,49] or by physical treatment such as cryotherapy, which necrotizes the choroid, minimizes blood and lymph transport, and consequently suppresses drug clearance [27,28].
In the present work, we have combined two strategies to enhance the intravitreal TPT penetration. We used a lens-shaped, bi-layered hydrogel implant that releases TPT entirely towards the sclera together with transconjunctival cryotherapy to eliminate TPT clearance via the choroidal blood vessels.
Macroscopic ophthalmological observations revealed no difference between the cryo and non-cryo groups of rabbits. In both groups, similar post-surgical changes were found in both the anterior and posterior segments, apparently caused by the surgical manipulation and vitreous sampling. Defects in the conjunctiva covering the implant and implant dislocation on the surface of the cornea were observed in both groups, which was probably due to the loosening of the absorbable suture. In the cryo group, the implant dislocated earlier and more frequently. The hypothesis that the conjunctiva can be more fragile shortly after cryotherapy has not been histologically confirmed. Dislocation of the implant, however, did not caused any irreversible impact on the ocular tissues. Moreover, it occurred at a time when no TPT has already being delivered. Shorter implantation times may be considered to avoid this dislocation in the future.
Histological findings confirmed the expected chorioretinal atrophy following cryotherapy. Outside the cryotherapy site, the choroid and retina remained intact. The extent of edematous and inflammatory changes in the conjunctiva was found to be similar in both groups. Two weeks after cryotherapy, a chorioretinal scar was observed, which is in accordance with other reports. Steel et al. observed clinical evidence of a chorioretinal scar within 1–4 weeks following cryotherapy [30]. Robinson et al. suggested a minimum of 1 month to form a mature chorioretinal scar [27]. Our experiments showed that a 2-week period between cryotherapy and implant administration is sufficient to achieve the intended cryotherapy effect.
The results of the pharmacokinetic evaluation suggest the following conclusions. The plasma levels with Cmax values at 2 h 6.0 ng/mL and total TPT plasma exposure (AUC0–∞) with median values of 50.3 for the cryo group and 33.8 ng·h/mL for non-cryo group, suggest that the pEOEMA coating prevents the TPT release into the surrounding tissue and therefore the drug clearance to the blood circulation prior to sclera penetration does not occur. Although the Cmax in plasma was determined to be significantly higher for the cryo group than for the non-cryo group, it was just a concentration determined in one time interval, in other time intervals the difference was not significant. Similarly, the AUC levels did not differ significantly. The total TPT vitreous exposure was approximately 1.6 times higher in the cryo group versus the non-cryo group.
This statistically significant difference together with the significantly higher TPT maximal vitreous levels observed suggest that the cryo group is likely to have slower drug elimination from the vitreous compartment. This supports the positive effect of cryotherapy on increased drug delivery to the vitreous.
We acknowledge a relatively low number of experimental animals as a limitation. Together with multiple vitreous samplings, this provides a relatively high level of variability in the pharmacokinetic data. Experimental arrangements with collection of one sample from each eye can improve this variability, bring more accurate results of pharmacokinetic parameters [11], and will be the subject of further studies.
It is important to note that our rabbit model does not completely resemble the human situation. Besides the anatomical differences between the rabbit and human eyes, in non-tumor bearing animals, the blood–retinal barrier is intact, while in the Rb-affected eye, this barrier is altered [50]. This may have an effect on the penetration of episclerally delivered chemotherapy into the vitreous. Therefore, our further work will focus on an Rb animal model that resembles the situation in childhood Rb more closely.

5. Conclusions

The presented work assesses the contribution of the transconjunctival cryotherapy on the pharmacokinetics of the TPT delivered via bi-layered hydrogel episcleral implants. The results demonstrate low plasma exposures when compared to vitreal exposures and significantly higher total TPT exposures in vitreous in rabbit group with prior cryotherapy. The observations confirm the important role of the choroidal vessels in the pharmacokinetics of TPT during transscleral administration and show an enhanced effect of following cryodestruction of the choroidal vessels leading to significantly higher TPT concentrations in the vitreous. For our future experiments, we will use cryotherapy prior to transscleral administration of chemotherapy as the standard of care.

Author Contributions

Conceptualization, J.S., K.S. and P.P.; data curation, M.K., A.F., K.D., M.S. and A.-I.C.; formal analysis, O.S. and M.S.; funding acquisition, M.K., J.S., J.U. and K.S.; investigation, M.K., R.H., K.D., A.-I.C. and A.F.; methodology, R.H., J.S., J.U., O.S. and P.P.; project administration, J.S., K.S., P.P. and J.U.; resources, J.S., K.D., J.U. and P.P.; supervision, J.S., K.S., O.S. and I.K.; validation, R.H., O.S., J.U. and I.K.; visualization, M.K., J.U., A.F., A.-I.C. and M.S.; writing—original draft, M.K. and R.H.; writing—review and editing, J.S., K.S., J.U., I.K., M.S. and P.P. All authors have read and agreed to the published version of the manuscript.


This work was supported by Charles University (Project GA UK No. 907019 and Cooperatio Program-research area PHAR), Ministry of Health of the Czech Republic by the project for conceptual development of research organization (University Hospital Motol, Prague, Czech Republic No. 00064203) and the AV21 Strategy (Czech Academy of Sciences).

Institutional Review Board Statement

The animal study protocol was approved by the Animal Protection Expert Commission of the Ministry of Education, Youth and Sports, Czech Republic, and the Ethics Committee for Animal Welfare of Charles University, 2nd Faculty of Medicine.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data related to this work are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Munier, F.L.; Beck-Popovic, M.; Chantada, G.L.; Cobrinik, D.; Kivelä, T.T.; Lohmann, D.; Maeder, P.; Moll, A.C.; Carcaboso, A.M.; Moulin, A.; et al. Conservative management of retinoblastoma: Challenging orthodoxy without compromising the state of metastatic grace. “Alive, with good vision and no comorbidity”. Prog. Retin. Eye Res. 2019, 73, 100764. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Munier, F.L. Classification and Management of Seeds in Retinoblastoma. Ellsworth Lecture Ghent August 24th 2013. Ophthalmic Genet. 2014, 35, 193–207. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Munier, F.L.; Soliman, S.; Moulin, A.P.; Gaillard, M.-C.; Balmer, A.; Beck-Popovic, M. Profiling safety of intravitreal injections for retinoblastoma using an anti-reflux procedure and sterilisation of the needle track. Br. J. Ophthalmol. 2012, 96, 1084–1087. [Google Scholar] [CrossRef] [PubMed]
  4. Francis, J.H.; Brodie, S.E.; Marr, B.; Zabor, E.C.; Mondesire-Crump, I.; Abramson, D.H. Efficacy and Toxicity of Intravitreous Chemotherapy for Retinoblastoma: Four-Year Experience. Ophthalmology 2017, 124, 488–495. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Ghassemi, F.; Shields, C.L.; Ghadimi, H.; Khodabandeh, A.; Roohipoor, R. Combined Intravitreal Melphalan and Topotecan for Refractory or Recurrent Vitreous Seeding From Retinoblastoma. JAMA Ophthalmol. 2014, 132, 936. [Google Scholar] [CrossRef] [Green Version]
  6. Shields, C.L.; Douglass, A.M.; Beggache, M.; Say, E.A.T.; Shields, J.A. Intravitreous Chemotherapy for Active Vitreous Seeding from Retinoblastoma. Retina 2016, 36, 1184–1190. [Google Scholar] [CrossRef] [PubMed]
  7. Koç, I.; Kiratli, H.; Chawla, B. Update on Intravitreal Chemotherapy for Retinoblastoma. Adv. Ophthalmol. Optom. 2021, 6, 101–118. [Google Scholar] [CrossRef]
  8. Francis, J.H.; Schaiquevich, P.; Buitrago, E.; Del Sole, M.J.; Zapata, G.; Croxatto, J.O.; Marr, B.P.; Brodie, S.E.; Berra, A.; Chantada, G.L.; et al. Local and Systemic Toxicity of Intravitreal Melphalan for Vitreous Seeding in Retinoblastoma. Ophthalmology 2014, 121, 1810–1817. [Google Scholar] [CrossRef]
  9. Munier, F.L.; Gaillard, M.-C.; Balmer, A.; Soliman, S.; Podilsky, G.; Moulin, A.P.; Beck-Popovic, M. Intravitreal chemotherapy for vitreous disease in retinoblastoma revisited: From prohibition to conditional indications. Br. J. Ophthalmol. 2012, 96, 1078–1083. [Google Scholar] [CrossRef]
  10. Schaiquevich, P.; Fabius, A.W.; Francis, J.H.; Chantada, G.L.; Abramson, D.H. Ocular pharmacology of chemotherapy for retinoblastoma. Retina 2017, 37, 1–10. [Google Scholar] [CrossRef]
  11. Buitrago, E.; Del Sole, M.J.; Torbidoni, A.; Fandino, A.; Asprea, M.; Croxatto, J.O.; Chantada, G.L.; Bramuglia, G.F.; Schaiquevich, P. Ocular and systemic toxicity of intravitreal topotecan in rabbits for potential treatment of retinoblastoma. Exp. Eye Res. 2013, 108, 103–109. [Google Scholar] [CrossRef] [PubMed]
  12. Del Sole, M.J.; Clausse, M.; Nejamkin, P.; Cancela, B.; Del Río, M.; Lamas, G.; Lubieniecki, F.; Francis, J.H.; Abramson, D.H.; Chantada, G.; et al. Ocular and systemic toxicity of high-dose intravitreal topotecan in rabbits: Implications for retinoblastoma treatment. Exp. Eye Res. 2022, 218, 109026. [Google Scholar] [CrossRef] [PubMed]
  13. Rao, R.; Honavar, S.G.; Mulay, K.; Reddy, V.A.P. Eye salvage in diffuse anterior retinoblastoma using systemic chemotherapy with periocular and intravitreal topotecan. J. Am. Assoc. Pediatr. Ophthalmol. Strabismus 2018, 22, 235–237.e2. [Google Scholar] [CrossRef] [PubMed]
  14. Bogan, C.M.; Kaczmarek, J.V.; Pierce, J.M.; Chen, S.; Boyd, K.L.; Calcutt, M.W.; Bridges, T.M.; Lindsley, C.W.; Nadelmann, J.B.; Liao, A.; et al. Evaluation of intravitreal topotecan dose levels, toxicity and efficacy for retinoblastoma vitreous seeds: A preclinical and clinical study. Br. J. Ophthalmol. 2022, 106, 288–296. [Google Scholar] [CrossRef] [PubMed]
  15. Pascual-Pasto, G.; Olaciregui, N.G.; Opezzo, J.A.W.; Castillo-Ecija, H.; Cuadrado-Vilanova, M.; Paco, S.; Rivero, E.M.; Vila-Ubach, M.; Restrepo-Perdomo, C.A.; Torrebadell, M.; et al. Increased delivery of chemotherapy to the vitreous by inhibition of the blood-retinal barrier. J. Control. Release 2017, 264, 34–44. [Google Scholar] [CrossRef] [PubMed]
  16. Taich, P.; Moretton, M.A.; Del Sole, M.J.; Winter, U.; Bernabeu, E.; Croxatto, J.O.; Oppezzo, J.; Williams, G.; Chantada, G.L.; Chiappetta, D.A.; et al. Sustained-release hydrogels of topotecan for retinoblastoma. Colloids Surf. B Biointerfaces 2016, 146, 624–631. [Google Scholar] [CrossRef]
  17. Huo, Y.; Wang, Q.; Liu, Y.; Wang, J.; Li, Q.; Li, Z.; Dong, Y.; Huang, Y.; Wang, L. A temperature-sensitive phase-change hydrogel of topotecan achieves a long-term sustained antitumor effect on retinoblastoma cells. Onco. Targets. Ther. 2019, 12, 6069–6082. [Google Scholar] [CrossRef] [Green Version]
  18. Delrish, E.; Jabbarvand, M.; Ghassemi, F.; Amoli, F.A.; Atyabi, F.; Lashay, A.; Soleimani, M.; Aghajanpour, L.; Dinarvand, R. Efficacy of topotecan nanoparticles for intravitreal chemotherapy of retinoblastoma. Exp. Eye Res. 2021, 204, 108423. [Google Scholar] [CrossRef]
  19. Francis, J.H.; Abramson, D.H.; Ji, X.; Shields, C.L.; Teixeira, L.F.; Schefler, A.C.; Cassoux, N.; Hadjistilianou, D.; Berry, J.L.; Frenkel, S.; et al. Risk of Extraocular Extension in Eyes With Retinoblastoma Receiving Intravitreous Chemotherapy. JAMA Ophthalmol. 2017, 135, 1426. [Google Scholar] [CrossRef]
  20. Carcaboso, A.M.; Chiappetta, D.A.; Opezzo, J.A.W.W.; Höcht, C.; Fandiño, A.C.; Croxatto, J.O.; Rubio, M.C.; Sosnik, A.; Abramson, D.H.; Bramuglia, G.F.; et al. Episcleral Implants for Topotecan Delivery to the Posterior Segment of the Eye. Investig. Opthalmology Vis. Sci. 2010, 51, 2126. [Google Scholar] [CrossRef]
  21. Pontes de Carvalho, R.A.; Krausse, M.L.; Murphree, A.L.; Schmitt, E.E.; Campochiaro, P.A.; Maumenee, I.H. Delivery from Episcleral Exoplants. Investig. Opthalmology Vis. Sci. 2006, 47, 4532. [Google Scholar] [CrossRef] [PubMed]
  22. Meng, Y.; Sun, S.; Li, J.; Nan, K.; Lan, B.; Jin, Y.; Chen, H.; Cheng, L. Sustained release of triamcinolone acetonide from an episcleral plaque of multilayered poly-ε-caprolactone matrix. Acta Biomater. 2014, 10, 126–133. [Google Scholar] [CrossRef] [PubMed]
  23. Huang, D.; Chen, Y.-S.; Rupenthal, I.D. Overcoming ocular drug delivery barriers through the use of physical forces. Adv. Drug Deliv. Rev. 2018, 126, 96–112. [Google Scholar] [CrossRef] [PubMed]
  24. Edelhauser, H.F.; Rowe-Rendleman, C.L.; Robinson, M.R.; Dawson, D.G.; Chader, G.J.; Grossniklaus, H.E.; Rittenhouse, K.D.; Wilson, C.G.; Weber, D.A.; Kuppermann, B.D.; et al. Ophthalmic drug delivery systems for the treatment of retinal diseases: Basic research to clinical applications. Investig. Ophthalmol. Vis. Sci. 2010, 51, 5403–5420. [Google Scholar] [CrossRef]
  25. Agban, Y.; Thakur, S.S.; Mugisho, O.O.; Rupenthal, I.D. Depot formulations to sustain periocular drug delivery to the posterior eye segment. Drug Discov. Today 2019, 24, 1458–1469. [Google Scholar] [CrossRef] [PubMed]
  26. Kim, S.H.; Lutz, R.J.; Wang, N.S.; Robinson, M.R. Transport barriers in transscleral drug delivery for retinal diseases. Ophthalmic Res. 2007, 39, 244–254. [Google Scholar] [CrossRef] [PubMed]
  27. Robinson, M.R.; Lee, S.S.; Kim, H.; Kim, S.; Lutz, R.J.; Galban, C.; Bungay, P.M.; Yuan, P.; Wang, N.S.; Kim, J.; et al. A rabbit model for assessing the ocular barriers to the transscleral delivery of triamcinolone acetonide. Exp. Eye Res. 2006, 82, 479–487. [Google Scholar] [CrossRef] [PubMed]
  28. Wilson, T.W. Penetration of Chemotherapy Into Vitreous Is Increased by Cryotherapy and Cyclosporine in Rabbits. Arch. Ophthalmol. 1996, 114, 1390. [Google Scholar] [CrossRef]
  29. Dunker, S.; Faulborn, J.; Haller, E.-M.; Reich, M.-E. The effect of retinal cryoapplication on the vitreous. Retina 1997, 17, 338–343. [Google Scholar] [CrossRef]
  30. Steel, D.H.W.; West, J.; Cambell, W.G. A randomized controlled study of the use of the transscleral diode laser and cryotherapy in the management of rhegmatogenous retinal detachment. Retin. Jiurnal Retin. Vitr. Dis. 2000, 20, 346–357. [Google Scholar] [CrossRef]
  31. Abramson, D.; Ellsworth, R.; Rozakis, G. Cryotherapy for retinoblastoma. Arch. Ophthalmol. 1982, 100, 1253–1256. [Google Scholar] [CrossRef] [PubMed]
  32. Shields, J.A.; Parsons, H.; Shields, C.L.; Giblin, M.E. The role of cryotherapy in the management of retinoblastoma. Am. J. Ophthalmol. 1989, 108, 260–264. [Google Scholar] [CrossRef]
  33. Anagnoste, S.R.; Scott, I.U.; Murray, T.G.; Kramer, D.; Toledano, S. Rhegmatogenous retinal detachment in retinoblastoma patients undergoing chemoreduction and cryotherapy. Am. J. Ophthalmol. 2000, 129, 817–819. [Google Scholar] [CrossRef]
  34. Hamel, P.; Heon, E.; Gallie, B.L.; Budning, A.S. Focal therapy in the management of retinoblastoma: When to start and when to stop. J. Am. Assoc. Pediatr. Ophthalmol. Strabismus 2000, 4, 334–337. [Google Scholar] [CrossRef]
  35. Abramson, D.H.; Schefler, A.C. Transpupillary thermotherapy as initial treatment for small intraocular retinoblastoma. Ophthalmology 2004, 111, 984–991. [Google Scholar] [CrossRef]
  36. Ancona-Lezama, D.; Dalvin, L.; Shields, C. Modern treatment of retinoblastoma: A 2020 review. Indian J. Ophthalmol. 2020, 68, 2356. [Google Scholar] [CrossRef]
  37. Khaqan, H.A.; Imtiaz, U.; Buksh, H.M.; Ur Rehman, H.A.; Naz, R. Outcomes of intravitreal melphalan for vitreous seedings in retinoblastoma resistant to systemic chemotherapy. Pediatr. Hematol. Oncol. J. 2021, 6, 22–25. [Google Scholar] [CrossRef]
  38. Cocarta, A.-I.; Hobzova, R.; Sirc, J.; Cerna, T.; Hrabeta, J.; Svojgr, K.; Pochop, P.; Kodetova, M.; Jedelska, J.; Bakowsky, U.; et al. Hydrogel implants for transscleral drug delivery for retinoblastoma treatment. Mater. Sci. Eng. C 2019, 103, 109799. [Google Scholar] [CrossRef]
  39. Cocarta, A.I.; Hobzova, R.; Trchova, M.; Svojgr, K.; Kodetova, M.; Pochop, P.; Uhlik, J.; Sirc, J. 2-Hydroxyethyl Methacrylate Hydrogels for Local Drug Delivery: Study of Topotecan and Vincristine Sorption/Desorption Kinetics and Polymer-Drug Interaction by ATR-FTIR Spectroscopy. Macromol. Chem. Phys. 2021, 2100086, 1–11. [Google Scholar] [CrossRef]
  40. Hobzova, R.; Kodetova, M.; Pochop, P.; Uhlik, J.; Dunovska, K.; Svojgr, K.; Hrabeta, J.; Feriancikova, B.; Cocarta, A.I.; Sirc, J. Hydrogel implants for transscleral diffusion delivery of topotecan: In vivo proof of concept in a rabbit eye model. Int. J. Pharm. 2021, 606, 120832. [Google Scholar] [CrossRef]
  41. Thrimawithana, T.R.; Young, S.; Bunt, C.R.; Green, C.; Alany, R.G. Drug delivery to the posterior segment of the eye. Drug Discov. Today 2011, 16, 270–277. [Google Scholar] [CrossRef] [PubMed]
  42. Pescina, S.; Govoni, P.; Antopolsky, M.; Murtomaki, L.; Padula, C.; Santi, P.; Nicoli, S. Permeation of Proteins, Oligonucleotide and Dextrans Across Ocular Tissues: Experimental Studies and a Literature Update. J. Pharm. Sci. 2015, 104, 2190–2202. [Google Scholar] [CrossRef] [PubMed]
  43. Kim, E.S.; Durairaj, C.; Kadam, R.S.; Lee, S.J.; Mo, Y.; Geroski, D.H.; Kompella, U.B.; Edelhauser, H.F. Human Scleral Diffusion of Anticancer Drugs from Solution and Nanoparticle Formulation. Pharm. Res. 2009, 26, 1155–1161. [Google Scholar] [CrossRef] [PubMed]
  44. Ranta, V.-P.; Mannermaa, E.; Lummepuro, K.; Subrizi, A.; Laukkanen, A.; Antopolsky, M.; Murtomäki, L.; Hornof, M.; Urtti, A. Barrier analysis of periocular drug delivery to the posterior segment. J. Control. Release 2010, 148, 42–48. [Google Scholar] [CrossRef]
  45. Carcaboso, A.M.; Bramuglia, G.F.; Chantada, G.L.; Fandiño, A.C.; Chiappetta, D.A.; De Davila, M.T.G.; Rubio, M.C.; Abramson, D.H. Topotecan vitreous levels after periocular or intravenous delivery in rabbits: An alternative for retinoblastoma chemotherapy. Investig. Ophthalmol. Vis. Sci. 2007, 48, 3761–3767. [Google Scholar] [CrossRef] [Green Version]
  46. Ghate, D.; Brooks, W.; McCarey, B.E.; Edelhauser, H.F. Pharmacokinetics of Intraocular Drug Delivery by Periocular Injections Using Ocular Fluorophotometry. Investig. Opthalmology Vis. Sci. 2007, 48, 2230. [Google Scholar] [CrossRef]
  47. Tsui, J.Y.; Dalgard, C.; Van Quill, K.R.; Lee, L.; Grossniklaus, H.E.; Edelhauser, H.F.; O’Brien, J.M. Subconjunctival Topotecan in Fibrin Sealant in the Treatment of Transgenic Murine Retinoblastoma. Investig. Opthalmology Vis. Sci. 2008, 49, 490. [Google Scholar] [CrossRef] [Green Version]
  48. Mallipatna, A.C.; Dimaras, H.; Chan, H.S.L.; Héon, E.; Gallie, B.L. Periocular Topotecan for Intraocular Retinoblastoma. Arch. Ophthalmol. 2011, 129, 738. [Google Scholar] [CrossRef] [Green Version]
  49. Miller, D.J.; Li, S.K.; Tuitupou, A.L.; Kochambilli, R.P.; Papangkorn, K.; Mix, D.C., Jr.; Higuchi, W.I.; Higuchi, J.W. Passive and Oxymetazoline-Enhanced Delivery with a Lens Device: Pharmacokinetics and Efficacy Studies with Rabbits. J. Ocul. Pharmacol. Ther. 2008, 24, 385–391. [Google Scholar] [CrossRef] [Green Version]
  50. Wang, H.; Yang, J.; Pan, H.; Tai, M.C.; Maher, M.H.; Jia, R.; Ge, S.; Lu, L. Dinutuximab Synergistically Enhances the Cytotoxicity of Natural Killer Cells to Retinoblastoma Through the Perforin-Granzyme B Pathway. Onco. Targets. Ther. 2020, 13, 3903–3920. [Google Scholar] [CrossRef]
Figure 1. (a) Transconjunctival cryotherapy, (b) The appearance of the eye with the episclerally fixed implant before conjunctival closure.
Figure 1. (a) Transconjunctival cryotherapy, (b) The appearance of the eye with the episclerally fixed implant before conjunctival closure.
Pharmaceutics 14 00903 g001
Figure 2. The appearance of the eye in the non-cryo group: (a) immediately after the implant administration and (b) 2 weeks later, after the implant removal.
Figure 2. The appearance of the eye in the non-cryo group: (a) immediately after the implant administration and (b) 2 weeks later, after the implant removal.
Pharmaceutics 14 00903 g002
Figure 3. Histological findings: cryo group (AD) and non-cryo group (EH). Changes at the cryotherapy site: (A) intact sclera, thinned choroid, and retina partially replaced by choroidal tissue that has penetrated the disrupted pigment epithelium, (B) thin limiting membrane with few cells on the surface (arrows), (C) The transitional zone border between normal retina/choroid and a chorioretinal scar, (D) Intact retina and choroid outside the site of applied cryotherapy, (E,F) intact eyeball layers, and (G,H) edematous and inflammatory changes in the conjunctiva. Bars = 100 µm.
Figure 3. Histological findings: cryo group (AD) and non-cryo group (EH). Changes at the cryotherapy site: (A) intact sclera, thinned choroid, and retina partially replaced by choroidal tissue that has penetrated the disrupted pigment epithelium, (B) thin limiting membrane with few cells on the surface (arrows), (C) The transitional zone border between normal retina/choroid and a chorioretinal scar, (D) Intact retina and choroid outside the site of applied cryotherapy, (E,F) intact eyeball layers, and (G,H) edematous and inflammatory changes in the conjunctiva. Bars = 100 µm.
Pharmaceutics 14 00903 g003aPharmaceutics 14 00903 g003b

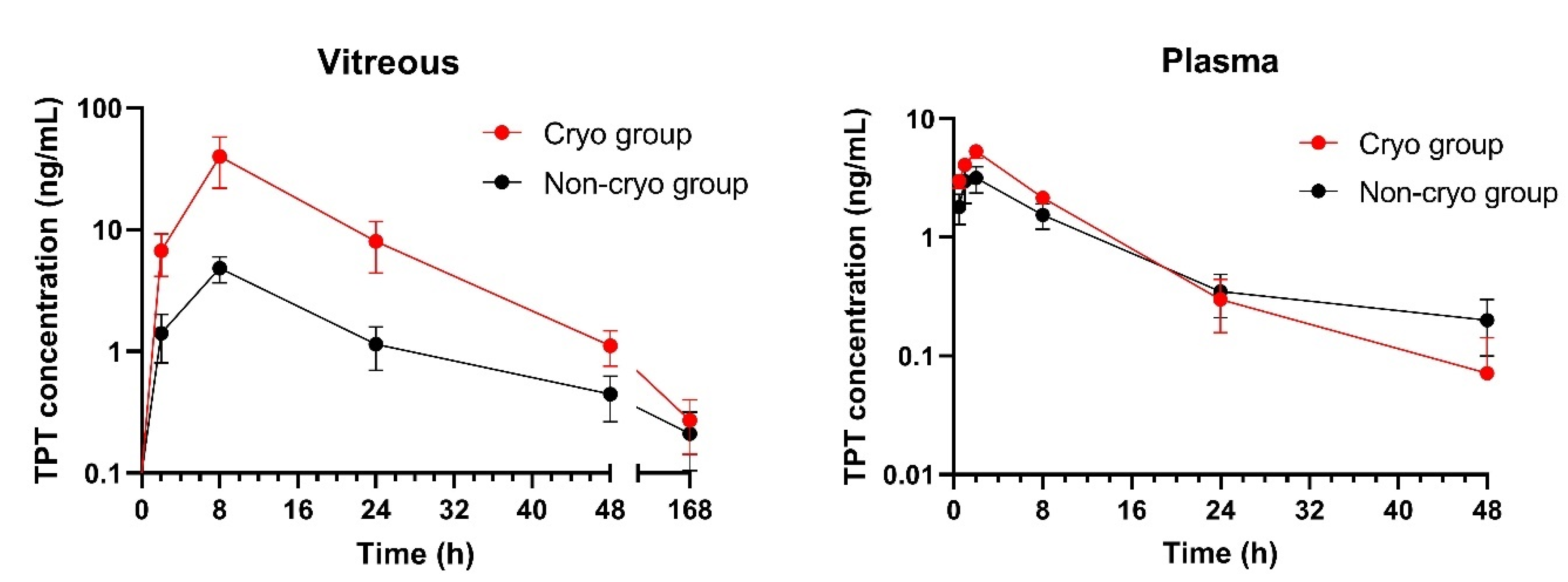

Figure 4. Vitreous and plasma TPT concentration–time profiles in the cryo and non-cryo group. Data are expressed as means ± SEM.
Figure 4. Vitreous and plasma TPT concentration–time profiles in the cryo and non-cryo group. Data are expressed as means ± SEM.
Pharmaceutics 14 00903 g004
Table 1. Clinical grading of findings observed 7 days after implantation.
Table 1. Clinical grading of findings observed 7 days after implantation.
Non-Cryo GroupCryo Group
Corneal haze a
Grade 11 (11%)-
Grade 2-1 (11%)
Grade 3-1 (11%)
Grade 4--
Corneal vascularization approximately 2 mm beyond the limbus in the upper quadrants1 (11%)-
Implant uncovered with conjunctiva b
Grade 1--
Grade 21 (11%)1 (11%)
Grade 3--
Implant dislocated on the surface of the cornea and covers the entire cornea-2 (22%)
Grading scales a Corneal haze: 1 Focal haze and the iris can be seen; 2 Diffuse haze and the iris can be seen; 3 Cloudy cornea, no iris details, and the pupil can be seen; 4 Opaque cornea, no iris details, and poor pupillary details. b Implant uncovered with conjunctiva: 1 Defect in conjunctiva <2 mm; 2 Defect in conjunctiva >2 mm; 3 Implant completely uncovered with conjunctiva.
Table 2. Clinical grading of findings observed 14 days after implantation (the day of enucleation).
Table 2. Clinical grading of findings observed 14 days after implantation (the day of enucleation).
Non-Cryo GroupCryo Group
Corneal haze a
Grade 12 (22%)-
Grade 2--
Grade 3-2 (22%)
Grade 4--
Corneal vascularization over the upper limbus b
Grade 12 (22%)1 (11%)
Grade 23 (33%)4 (44%)
Grade 3--
Vitreous hemorrhage c
Grade 11 (11%)-
Grade 21 (11%)-
Grade 32(22%)1 (11%)
Implant uncovered with conjunctiva d
Grade 1--
Grade 21 (11%)2 (22%)
Grade 3--
Implant dislocated on the surface of the cornea and covers the entire cornea4 (44%)5 (56%)
Grading scales a Corneal haze: 1 Focal haze and the iris can be seen; 2 Diffuse haze and the iris can be seen; 3 Cloudy cornea, no iris details, and the pupil can be seen; 4 Opaque cornea, no iris details, and poor pupillary details. b Corneal vascularization: 1 Clear cornea with peripheral corneal vascularization of <2 mm; 2 Peripheral corneal vascularization of >2 mm, sparing the central cornea; 3 Corneal vascularization involving the central cornea. c Vitreous hemorrhage: 1 Mild (not preventing detailed fundus examination); 2 Moderate (obscuring at least one or two quadrants of retinal detail); 3 Severe (too dense for optic disk visualization).d Implant uncovered with conjunctiva: 1 Defect in conjunctiva <2 mm; 2 Defect in conjunctiva >2 mm; 3 Implant completely uncovered with conjunctiva.
Table 3. TPT pharmacokinetic parameters calculated from vitreous and plasma compartment in the cryo and non-cryo groups.
Table 3. TPT pharmacokinetic parameters calculated from vitreous and plasma compartment in the cryo and non-cryo groups.
Pharmacokinetic ParameterCryo GroupNon-Cryo Groupp-Value
VitreousAUC0–∞ (ng·h/mL)454.6
Cmax (ng/mL)20.6 (6.1–63.5)2.8 (2.2–8.2)0.0073
Tmax (h)8 (8–8)8 (8–8)>0.9999
PlasmaAUC0–∞ (ng·h/mL)50.3
Cmax (ng/mL)6.0 (3.2–6.5)2.2 (1.4–4.8)0.0210
Tmax (h)2 (1.5–2)2 (2–2)0.1125
Vitreous/Plasma RatioAUC0–∞8.7 (4.7–30.7)7.9 (4.2–17.6)0.8763
Cmax4.3 (2.3–10.6)1.4 (0.9–3.1)0.0549
Data are expressed as median (IQR).
