Review

Cyclodextrin-Based Supramolecular Complexes of Osteoinductive Agents for Dental Tissue Regeneration

by
Masahiko Terauchi
1,
Atsushi Tamura
2,*,
Yoshinori Arisaka
2,
Hiroki Masuda
1,
Tetsuya Yoda
1 and
Nobuhiko Yui
2
1
Department of Maxillofacial Surgery, Graduate School of Medical and Dental Science, Tokyo Medical and Dental University (TMDU), 1-5-45 Yushima, Bunkyo, Tokyo 113-8549, Japan
2
Department of Organic Biomaterials, Institute of Biomaterials and Bioengineering, Tokyo Medical and Dental University (TMDU), 2-3-10 Kanda-Surugadai, Chiyoda, Tokyo 101-0062, Japan
*
Author to whom correspondence should be addressed.
Pharmaceutics 2021, 13(2), 136; https://doi.org/10.3390/pharmaceutics13020136
Submission received: 7 December 2020 / Revised: 13 January 2021 / Accepted: 18 January 2021 / Published: 21 January 2021
(This article belongs to the Special Issue Cyclodextrins in Drug Delivery)
Browse Figures
Versions Notes

Abstract

:
Oral tissue regeneration has received growing attention for improving the quality of life of patients. Regeneration of oral tissues such as alveolar bone and widely defected bone has been extensively investigated, including regenerative treatment of oral tissues using therapeutic cells and growth factors. Additionally, small-molecule drugs that promote bone formation have been identified and tested as new regenerative treatment. However, treatments need to progress to realize successful regeneration of oral functions. In this review, we describe recent progress in development of regenerative treatment of oral tissues. In particular, we focus on cyclodextrin (CD)-based pharmaceutics and polyelectrolyte complexation of growth factors to enhance their solubility, stability, and bioactivity. CDs can encapsulate hydrophobic small-molecule drugs into their cavities, resulting in inclusion complexes. The inclusion complexation of osteoinductive small-molecule drugs improves solubility of the drugs in aqueous solutions and increases in vitro osteogenic differentiation efficiency. Additionally, various anionic polymers such as heparin and its mimetic polymers have been developed to improve stability and bioactivity of growth factors. These polymers protect growth factors from deactivation and degradation by complex formation through electrostatic interaction, leading to potentiation of bone formation ability. These approaches using an inclusion complex and polyelectrolyte complexes have great potential in the regeneration of oral tissues.

1. Introduction

The oral cavity plays a pivotal role in the maintenance of life through ingestion, chewing, and swallowing of food, as well as speech and articulation. Therefore, dental care is crucial in protecting oral functions to maintain the quality of life [1]. To this end, therapeutic strategies for maintaining the functions of oral tissues are important. Dental pharmacology differs from medical pharmacology in terms of handling drugs related to clinical dentistry [2]. For example, medications used for endodontic treatment, periodontal treatment, and oral mucosal diseases are not usually handled in the medical science field. In addition, dental diseases occur mainly in calcified tissues, such as teeth, alveolar bone, and jawbone. Therefore, developing drugs for hard tissues, such as preventive agents for dental caries, drugs that promote bone formation, and drugs that suppress bone resorption, is important. Repairing the loss of dental tissues using various biomaterials or medicines has long been a major challenge in dentistry. Regenerative treatment of tissues and organs using therapeutic proteins and cells has received considerable attention in recent years [3,4]. In dentistry, regenerative medicines for dental tissues, such as dental pulp, dentin, periodontal tissue, alveolar bone, jawbone, and oral mucosa have been widely conducted [5,6]. Although alveolar bone regeneration and periodontal disease treatments have been established, the reconstruction of widely defective bone remains a challenge in the field of maxillofacial and plastic surgery. Therefore, research on regenerative treatment for dental tissues needs to progress further to realize successful regeneration of oral functions.
Regenerative medicines based on therapeutic cells (e.g., stem cells) and signaling proteins (e.g., growth factors) have received a lot of attention as potential ways of regenerating defective tissues [7]. Additionally, drugs that stimulate tissue regeneration have also been considered as potential candidates for dental tissue regeneration. However, these therapeutic cells and molecules sometimes show insufficient regenerative effects owing to insufficient engraftment, deactivation, degradation, rapid elimination from the site of injection, and excretion from the body. To solve these problems, the use of scaffolds and drug delivery systems (DDS) to prolong or promote the efficacy of therapeutic cells and molecules have been postulated in the field of dental tissue regeneration [8,9,10]. Some clinically approved therapeutic proteins are encapsulated in the biodegradable polymer matrix. These scaffolds and drug carriers can encapsulate therapeutic molecules to maintain their biological activities, while releasing encapsulated payloads through diffusion, matrix degradation, and other mechanisms [11,12]. These biomaterial-based approaches are crucial for successful treatment. In general, biodegradable polymers such as collagen, gelatin, and biodegradable synthetic polymers are utilized. Collagen, the main component of extracellular matrix, is a widely utilized scaffolds because of its excellent biocompatibility, degradation under physiological conditions, and preferential interaction with cells and tissues [13]. Similarly, poly(lactic acid) (PLA) and poly(lactic-co-glycolic acid) (PLGA) are representative biodegradable synthetic polymers used as scaffold [14]. Because PLA and PLGA have superior biocompatibility and biodegradability, they have been widely used in various clinical treatments. Likewise, numerous polymeric scaffolds have been developed as scaffolds for therapeutic molecules.
In this review, we summarize the general approaches for the regeneration of dental tissues using therapeutic molecules. Additionally, we describe recent approach for enhancing the bioactivity of therapeutic molecules through the formation of an inclusion complex with cyclodextrins (CDs) and complexation with CD-based supramolecular polymers.

2. Regenerative Treatment and Drugs

2.1. Regenerative Treatment Using Cells and Signaling Proteins

Therapeutic cells, including somatic stem cells have become an important source for tissue repair through the secretion of regenerative molecules such as growth factors, cytokines, and extracellular matrix [11,15,16,17]. Because these therapeutic cells have great potential in the regeneration of defective tissue, cell-based therapy has become a major approach for regenerative treatment [18]. The implantation of therapeutic cells has also been investigated for the regeneration of oral tissue. For example, clinical trials for the implantation of autologous periodontal ligament-derived cell sheets have been conducted for periodontal regeneration [19]. Cell-based regenerative therapy is a promising therapeutic approach in the regeneration of oral tissues. However, it is costly and involves complicated regulation.
As an alternative to cell-based therapy, signaling proteins, including recombinant growth factors and cytokines have received considerable attention in the regeneration of defective tissues [20]. Various signaling molecules have been tested to date for the regeneration of bone tissues such as the alveolar bone. Bone morphogenetic protein (BMP) is a major growth factor that promotes bone formation. BMP was first discovered in 1965 [21], and a total of 20 BMPs have been identified so far [22]. Among them, six types of BMPs, including BMP-2 through BMP-7, belong to the transforming growth factor-β (TGF-β) superfamily due to their high homology with TGF-β [23]. Of these, BMP-2 has long been a focus of attention because of its strong ability to induce bone differentiation in vitro and bone regeneration in vivo [24,25,26,27]. However, BMP-2 is unstable and readily deactivated under physiological conditions. Additionally, high doses of BMP-2 are required to maintain the long-term activity of BMP-2 in bone regeneration. However, it has been reported that high doses of BMP-2 induce various side effects such as inflammation and bone resorption [28,29,30]. For this reason, biodegradable scaffolds, such as collagen sponges [13,31], gelatin hydrogels [32], and poly(lactic acid) [33], have been used to protect BMP-2 from deactivation and degradation, while providing controlled release of BMP-2 under physiological conditions through the degradation of the scaffolds. Indeed, a clinically approved BMP-2 formulation (Infuse Bone Graft) comprising recombinant human BMP-2 encapsulated in the absorbable collagen sponge has been used in the surgical treatment of spine and orthopedic trauma [34]. In addition, the BMP-2 formulation has been shown to be effective in oral maxillofacial fields such as sinus augmentation and alveolar ridge augmentation [35,36,37].
Fibroblast growth factor (FGF), which was discovered in pituitary extracts in 1973, has also received attention for its role in tissue regeneration and a total of 22 members of the FGF family have been identified so far [38]. All FGFs are multifunctional proteins with a wide variety of therapeutic and regenerative effects on various cells [39,40,41,42,43]. FGF-2 (basic FGF) has been used extensively for tissue regeneration because it stimulates angiogenesis by promoting vascular endothelial growth factor (VEGF) secretion and has therefore been established as a potential therapeutic agent in various fields. In the regeneration of oral tissues, genetically modified recombinant FGF-2 has been approved for periodontal tissue regeneration in Japan (general name is Trafermin, and commercial names are Fiblast Spray and Regroth) [44]. Other growth factors, such as platelet-derived growth factor (PDGF), TGF-β, and VEGF have also been investigated for their potential to promote bone regeneration [45].
Enamel matrix protein derivative (Emdogain) is approved for the regeneration of the periodontal tissues such as alveolar bone and is widely employed in periodontal tissue regeneration [46]. The enamel matrix protein derivative is a mixture of various proteins, including amelogenins extracted from the enamel matrix. Amelogenins are active components of the enamel matrix derivative, which are involved in the formation of enamel and periodontal attachment during tooth development [47]. Therefore, the enamel matrix effectively regenerates periodontal tissue [48]. Emdogain Gel is an injectable gel formulation comprising a mixture of enamel matrix protein derivative and propylene glycol alginate (PGA). This formulation readily forms a hydrogel under physiological temperature and pH conditions. Gelation prevents the rapid excretion of therapeutic components at the site of injection and prolongs the therapeutic effects.
Recently, demineralized freeze-dried bone allograft, which is a bone graft material for promoting bone formation [49], has been used clinically to promote bone formation around the implant and to regenerate periodontal tissue. In the United States, materials obtained by demineralizing and freeze-drying human cadaver bone are sold as bone supplemental material.

2.2. Small-Molecule Osteoinductive Agents

As mentioned above, various bone regeneration strategies have been developed, such as cell-based regenerative therapy and treatment with signaling proteins [50,51]. Apart from cell-based therapy and therapeutic proteins, small-molecule weight drugs that can stimulate bone formation have attracted attention because they are inexpensive and chemically stable compared with recombinant proteins (Figure 1). Munday et al. tested more than 30,000 reagents to identify a compound that specifically upregulated BMP-2 gene expression [52]. They found that lovastatin and simvastatin (SV), inhibitors of 3-hydroxy-3-methylglutaryl coenzyme A reductase [53,54], specifically upregulated BMP-2 gene expression. These statins are generally utilized in the treatment of hyperlipidemia through the reduction of plasma cholesterol and low-density lipoprotein levels. In addition, these statins have anti-inflammatory, anti-oxidant, and immunomodulatory properties, and their pleiotropic effect has attracted attention in various fields [55]. The discovery of the osteoinductive effects of statins is unexpected and interesting. SV is currently regarded as a major drug for stimulating bone regeneration, and the controlled release of SV from biodegradable scaffolds such as hydrogels, nanofibers, and microparticles has been demonstrated to potentiate bone regeneration [56,57]. SV has also been tested for the regeneration of alveolar bone [58].
Additionally, various drugs for stimulating bone regeneration have also been identified (Figure 1). Melatonin (MLT) is a hormone produced by the pineal gland. It plays a key role in the regulation of various physiological and pathophysiological processes, such as hypothalamic control of circadian rhythm, sexual activity, development, and immunomodulation [59]. MLT promotes osteogenic differentiation and mineralization in osteoblastic cells, and the mechanism and feasibility of using MLT as a potential bone regenerative agent have been investigated [59,60,61,62]. Other osteoinductive drugs, such as phenamil, purmorphamine, and some synthetic statins (e.g., atorvastatin) have also been shown to promote bone formation [63,64].

3. Inclusion Complexes of β-Cyclodextrin with Osteoinductive Drugs

3.1. Cyclodextrins and Inclusion Complexes

Cyclodextrin (CD) is a cyclic oligosaccharide comprising multiple α-D-glucopyranosides linked through α-1,4-linkages. CDs comprising 6, 7, and 8 glucose units are called α-, β-, and γ-CD, respectively. The internal diameter and depth of the cavity of these CDs increases with the increase in the number of glucose units. CDs are water-soluble, but the interior cavity is believed to be hydrophobic. Therefore, various hydrophobic small molecules are encapsulated in the cavity of CDs, and the complexes are called inclusion complexes (or host-guest complexes). The formation of inclusion complexes with CDs improves the physicochemical properties of guest molecules, such as solubility and chemical stability [65,66]. In general, CD can encapsulate various guest molecules at 1:1 or 2:1 (host:guest) stoichiometric molar ratios, depending on the size or polarity of guest molecules. Inclusion complexes containing CDs have been utilized in many industries including the food, cosmetic, and pharmaceutical industries.
The pharmaceutical applications of CDs have received considerable attention because CDs can be used as excipients to encapsulate various hydrophobic drugs into their cavities. The inclusion complex formation of hydrophobic drugs with CDs results in improved aqueous solubility, chemical stability, and bioavailability of drugs. Numerous studies have been conducted on the applications of CDs in the pharmaceutical field [65,66]. For the pharmaceutical application of CD, 2, 3, and 6 positions of hydroxy groups are usually modified with functional groups to increase their solubility in aqueous media and modulate the binding affinity to target guest molecules. In the case of β-CDs, chemically modified β-CD derivatives are employed because the aqueous solubility of unmodified β-CD is limited to 18.5 mg/mL, which is remarkably lower than the aqueous solubility of α-CD (145 mg/mL) and γ-CD (232 mg/mL) [66]. Although various chemically modified CD derivatives have been reported, the widely used modifications particularly for pharmaceuticals are methyl, 2-hydroxypropyl (HP), and sulfobutyl groups (Figure 2). These chemical modifications improve the solubility of β-CD by more than 500 mg/mL [66].
CD-based pharmaceutics are considered valuable in pharmacological approaches to oral diseases and bone regeneration. For example, Liu et al. reported an osteotropic alendronate-β-CD conjugate (ALN-β-CD) as a drug delivery carrier for targeting bone tissues and improving therapeutic effects in skeletal diseases [67]. The ALN-β-CD conjugate showed strong binding to hydroxyapatite, the main component of the skeleton. In a bilateral rat mandible model, the inclusion complex between ALN-β-CD and prostaglandin E1 stimulated a strong local bone anabolic reaction. Interestingly, ALN-β-CD itself could promote new bone formation at the site of injection.

3.2. Inclusion Complex of Simvastatin

As mentioned above, SV is a potential drug for promoting bone regeneration. However, SV is a hydrophobic molecule, and its apparent 1-octanol-water partition coefficient (log Pow) is 2.06 at pH 7 [68]. This indicates that the solubility of SV in aqueous media is poor. Although bone regenerating drugs are generally used during surgery, especially for oral tissues, the solubility of drugs needs to be improved for bone regenerative therapy. Note that SV formed an inclusion complex with β-CDs to improve the solubility in aqueous solutions [69,70,71,72,73]. However, the osteoinductive ability of the inclusion complexes containing SV is unclear. The osteoinductive abilities of HP-β-CD/SV and RM-β-CD/SV inclusion complexes in MC3T3-E1 cells were recently investigated [74]. Both HP-β-CD and RM-β-CD form an inclusion complex at a 1:1 molar ratio, and the HP-β-CD shows a higher apparent stability constant with SV (K1:1 = 1.24 × 103 M−1) than it did with RM-β-CD (K1:1 = 1.01 × 103 M−1).
The osteoinductive abilities of the HP-β-CD/SV and RM-β-CD/SV complexes were evaluated in MC3T3-E1 cells. The treatment of MC3T3-E1 cells with SV promotes the production of osteogenic differentiation markers such as alkaline phosphatase (ALP), bone sialoprotein (BSP), and osteocalcin (OCN), and consequently leads to the formation of a mineralized matrix [75,76,77]. Treatment of MC3T3-E1 cells with free SV increased the production of ALP slightly at concentrations greater than 100 nM after 14 days (Figure 3A). It is interesting that the RM-β-CD/SV inclusion complexes containing 1 μM RM-β-CD and 100 nM SV significantly increased ALP production in MC3T3-E1 cells compared with that in the untreated and free SV-treated cells (Figure 3A). To confirm whether free HP-β-CD and RM-β-CD stimulated ALP production, MC3T3-E1 cells were treated with HP-β-CD and RM-β-CD for 14 days, and ALP production was evaluated in the same manner (Figure 3B). ALP production level of MC3T3-E1cells treated with free HP-β-CD and RM-β-CD was the same as that of the untreated cells. The mRNA expression of late-stage osteogenic marker proteins such as BSP and OCN was investigated using real-time RT-PCR to verify the effect of inclusion complexation of SV on the osteogenic differentiation of MC3T3-E1 cells. The mRNA expression of BSP and OCN significantly increased in the RM-β-CD/SV inclusion complexes group compared with that in the untreated and SV-treated groups [74]. Therefore, the SV-mediated osteogenic differentiation of MC3T3-E1 cells was significantly promoted by inclusion complexation with RM-β-CD, and the effect of free RM-β-CD on osteogenic differentiation was negligible.
Hydrophobic SV possesses good permeability and is easily taken into cells. The inclusion complexation between SV and β-CD derivatives improves solubility in water, but it leads to a reduction in membrane permeability because only the free form of the drug is capable of permeating lipophilic membranes [65,78]. Therefore, the inclusion complexes of SV with low stability constant might show higher uptake into cells and osteogenic differentiation activity. Consequently, inclusion complexation is a potential pharmaceutical approach for simultaneously improving the solubility and osteogenic differentiation activity of small-molecule osteoinductive drugs.

3.3. Inclusion Complexes of Other Osteoinductive Drugs

Similar to the inclusion complex of SV, the osteoinductive effects of other inclusion complexes containing MLT and phenamil have been demonstrated [79,80]. The preparation of inclusion complexes containing MLT has been reported using 2-hydroxypropyl β-CD (HP-β-CD) [81,82,83,84]. However, the effect of the inclusion complex of MLT with HP-β-CD on osteogenic differentiation is unknown. Recently, the osteogenic differentiation activity of HP-β-CD/MLT inclusion complexes in comparison to free MLT was investigated [79].
HP-β-CD forms an inclusion complex with MLT at a 1:1 molar ratio with an apparent stability constant of K1:1 = 1.25 × 102 M−1. The cellular uptake of MLT by MC3T3-E1 cells after 24 h treatment was studied using gas chromatography-mass spectrometry (Figure 4A). Although the treatment of MC3T3-E1 cells with MLT did not significantly increase the intracellular amounts of MLT, the inclusion complexation of MLT with HP-β-CD significantly increased the intracellular amounts of MLT compared with those of untreated cells. This result suggested that the inclusion complexation of MLT with HP-β-CD contributed to the increase in the cellular uptake efficiency of MLT.
To verify the osteogenic differentiation activity of the MLT inclusion complex, the relative ALP activity in MC3T3-E1 cells treated with free MLT (100 nM) and HP-β-CD/MLT inclusion complex (MLT: 100 nM, HP-β-CD: 100 nM) were investigated. After 3 days of treatment, MC3T3-E1 cells treated with free MLT showed higher ALP activity than the untreated cells (Figure 4B). However, the relative ALP activity in MLT-treated MC3T3-E1 cells decreased with increasing treatment time. In the case of MC3T3-E1 cells treated with HP-β-CD/MLT inclusion complex, the treated MC3T3-E1 cells showed significantly higher ALP activity than free MLT-treated cells at days 3, 6, and 9 of treatment. The mineralization of the treated MC3T3-E1 cells was assessed using alizarin red staining to further elucidate the enhanced osteogenic differentiation ability of HP-β-CD/MLT inclusion complex. The cells treated with HP-β-CD/MLT inclusion complexes exhibited approximately 4-fold greater deposition of mineralized matrix than the untreated cells after 28 days of treatment (Figure 4C). The inclusion complex of MLT promoted osteogenic differentiation efficiency in MC3T3-E1 cells, similar to the SV inclusion complex.
Jahed et al. reported on the use of inclusion complexes of phenamil, a small molecule that induces bone formation through upregulation of the TRB3 gene, to improve solubility [80]. To enhance the penetration of phenamil, a histidine-conjugated β-CD derivative (His-β-CD) was synthesized for intracellular delivery. Phenamil/His-β-CD complexes significantly promoted osteogenic differentiation compared with phenamil/HP-β-CD. Therefore, the chemical modification of β-CD plays an important role in enhancing the efficacy of osteoinductive drugs.

4. Enhanced Therapeutic Effects of Growth Factors Using Anionic Polymers

4.1. Heparin and Other Anionic Polymers

Various therapeutic and pharmacological molecules, such as growth factors, small interfering RNAs, and statins, have been shown to promote bone regeneration efficiency [85,86,87,88]. Among them, BMP-2 is the most widely investigated due to its strong osteoinductive activity. However, the stability and pharmacokinetics of BMP-2 need to be improved. One method involves the use of a scaffold and DDS as mentioned above. Another method to improve the stability and bioactivity of BMP-2 is by using anionic polymers, chemically-modified natural polymers, and synthetic anionic polymers. Because BMP-2, FGF-2, and other growth factors have a heparin-binding domain, which typically contains cationic lysine and arginine [89], anionic polymers can bind to these growth factors via electrostatic interactions and hydrogen bonding. Takeda et al. reported that heparin enhances the osteogenic differentiation activity of BMP-2 in cultured cells [90]. Heparin protects BMP-2 from deactivation and degradation, presumably through complexation with BMP-2 or binding to the heparin-binding domain in BMP-2 [90,91], because the isoelectric point of BMP-2 is 8.5 [92]. Additionally, heparin enhances the ectopic bone formation activity of BMP-2 in mice [91]. Therefore, heparin is currently used as a component of the scaffold to stably encapsulate growth factors [93,94,95,96], because there is no interaction between clinically utilized collagen sponges and growth factors. For example, heparin is conjugated to a matrix component or complexed with other components [93,94,95,96]. However, the clinical use of heparin for this purpose might be limited owing to its strong anti-coagulant effects [97,98].
For this reason, other sulfated, sulfonated, or anionic polymers, such as chemically-modified natural polymers, tissue-derived heparan sulfate, and synthetic anionic polymers, have been examined, either as alternatives to heparin or to further improve the effects of heparin [90,91,99,100,101,102,103,104,105,106,107]. Additionally, the design and synthesis of heparin-mimetic polymers containing sulfate, sulfonate, and carboxylate have long been a focus of attention [107]. To date, various anionic polysaccharides and synthetic polymers have been identified as promoting the bioactivity of BMP-2 and other growth factors. The major anionic polymers, including sulfated natural polymers and synthetic anionic polymers used to enhance the activity of growth factors are summarized in Table 1. Although the polyelectrolyte complexation ability of these sulfated natural polymers and anionic polymers with growth factors was not characterized in all studies, these anionic polymers are considered to potentially form a complex with growth factors, leading to modulation of the stability and bioactivity of growth factors.

4.2. Supramolecular Polyrotaxane for Polyelectrolyte Complexation with BMP-2

Polyrotaxanes (PRXs) are one of the representative supramolecular polymers comprising multiple cyclic molecules (e.g., α-CD) threaded onto a linear polymer axle (e.g., poly(ethylene glycol); PEG) capped with terminal bulky stopper molecules (Figure 5) [108,109,110,111]. The characteristic feature of PRXs is the molecular mobility of threaded α-CDs, and the threaded α-CDs in PRXs can be freely mobile along the polymer axle. However, PRXs show poor solubility in most solvents. Therefore, the chemical modification of hydroxy groups of threaded α-CDs with functional groups or hydrophilic ligands (e.g., peptides and saccharides) improves the solubility of PRXs in aqueous solutions [112,113,114,115,116]. This chemical modification enables the application of PRXs as biomaterials and drug carriers [117,118,119]. Interestingly, the molecular mobility in chemically modified PRXs contributes to improving steric hindrance in multivalent interactions or binding and complex formation with proteins. For example, the binding ability of maltose-conjugated PRXs to concanavalin A is greater than that of maltose-conjugated linear poly(acrylic acid). Because molecular mobility as predicted from the long spin-spin relaxation time of maltose moieties in PRXs is higher than those modified with conventional linear polymers, it is considered that the molecular mobility of threaded α-CDs facilitates binding with proteins [120]. Similarly, the association constant between mannose-conjugated PRXs and concanavalin A is approximately 200-fold higher than that of mannose-conjugated poly(acrylamide) [121]. Based on these results, the mobility of functional group-modified α-CDs in PRXs facilitates the interaction with proteins. Moreover, cationic or anionic functional group-modified PRXs can form polyelectrolyte complexes with oppositely charged proteins [122,123,124,125,126]. The movable features of α-CDs or rigid rod-like structures of PRXs can facilitate the formation of complexes with proteins and nucleic acids. Therefore, the supramolecular structure of PRXs might be a fascinating backbone for stable complex formation with BMP-2 compared with conventional linear polymers.
Based on this, a new modality for anionic polymers based on PRXs was designed for modulating the complexation with BMP-2 (Figure 5) [127,128]. Sulfonate groups are modified on the threaded α-CDs in PRXs, and the sulfonated PRX (S-PRX) has been tested to form complexes with BMP-2. Enzyme-linked immunosorbent assay (ELISA) and electron microscopic observation confirmed the formation of polyelectrolyte complexes between negatively charged S-PRX and positively charged BMP-2. The osteogenic differentiation ability of S-PRX/BMP-2 complexes (BMP-2: 100 ng/mL) in MC3T3-E1 cells was evaluated by measuring the secretion of ALP and comparing this with heparin/BMP-2 complex. The heparin/BMP-2 complexes showed higher ALP secretion than free BMP-2 (Figure 6A). Interestingly, the amount of ALP produced by treatment with S-PRX/BMP-2 complex was significantly higher than that of the treatment with heparin/BMP-2 complex. These results indicated that S-PRX has a superior ability to enhance BMP-2-induced osteogenic differentiation compared with heparin. Additionally, the mRNA expression levels of middle- to late-stage osteogenic differentiation markers, such as runt-related transcription factor 2 (Runx2), osterix, and OCN were evaluated. Cells treated with S-PRX/BMP-2 and heparin/BMP-2 complexes showed significantly higher mRNA expression of Runx2, osterix, and OCN than the free BMP-2-treated cells. To further investigate the osteogenic differentiation ability of S-PRX/BMP-2 complexes, the deposition of the mineralized matrix in MC3T3-E1 cells was demonstrated through alizarin red staining [129,130]. The untreated MC3T3-E1 cells showed negligible deposition of mineralized matrix even after 21 days (Figure 6B). In contrast, marked deposition of mineralized matrix was observed in MC3T3-E1 cells treated with free BMP-2 (100 ng/mL), heparin/BMP-2, and S-PRX/BMP-2 after 21 days of culture. Of these, the S-PRX/BMP-2-treated cells showed higher deposition of the mineralized matrix than the cells treated with free BMP-2 and heparin/BMP-2.
To clarify the bone regeneration ability of the S-PRX/BMP-2 complex [125], a mouse calvarial defect model which is widely utilized for evaluating the ability of bone regeneration, was employed [131]. The S-PRX/BMP-2 complexes were embedded in collagen sponges, which is the same as a clinically utilized BMP-2 formulation, and implanted in the region of the calvarial defect. In this experiment, the quantities of BMP-2 and S-PRXs implanted were 100 ng and 1000 μg, respectively. After the surgical implantation of the complexes, the area of newly formed bone was assessed using X-ray micro-computed tomography. Bone regeneration was not observed in any group 7 days post implantation, and the area of new bone was negligible (Figure 6C). However, new bone formation was observed in the BMP-2-implanted groups 14 days after implantation. Although the area of newly formed bone in mice implanted with free BMP-2 and heparin/BMP-2 complex increased after 21 and 28 days of implantation, the area of newly formed bone did not cover the entire area of the defect even 28 days post implantation. In sharp contrast, new bone formation in S-PRX/BMP-2 complex-implanted mice was remarkable and reached nearly complete bone regeneration at 28 days of implantation. These results confirmed that the S-PRXs exhibited more rapid and greater bone regeneration than any other treatment group.
Histological evaluation of the regenerated bone area confirmed the successful fusion of regenerated bone and original bone in mice implanted with the S-PRX/BMP-2 complex. In contrast, the fusion of regenerated bone and original bone was immature in mice implanted with the free BMP-2 and heparin/BMP-2 complex. Based on these results, S-PRX/BMP-2 complexes induced rapid and significant bone regeneration in comparison to widely utilized heparin, making S-PRX a promising candidate for enhancing BMP-2-mediated bone regeneration efficiency.

5. Conclusions

Alveolar bone regeneration and periodontal disease treatment have been established to improve the quality of life of patients. However, the reconstruction of widely defective bone to repair surgically removed and disease-related bone defects remains a challenge in the field of maxillofacial and plastic surgery. Therefore, research on regenerative treatments for dental tissues need to progress further to realize successful regeneration of oral functions. In this review, we described recent progress in the development of potential regenerative treatment for oral tissues. In particular, we focused on CD-based pharmaceutics and polyelectrolyte complexation of growth factors to enhance their bioactivity. Inclusion of osteoinductive small-molecule drugs by CDs improves solubility of the drugs in aqueous solutions and increases the in vitro osteogenic differentiation. The chemical modification of CD plays an important role in the complexation and osteogenic differentiation efficiency. To improve the bioactivity of growth factors, various anionic polymers such as heparin and its mimetic polymers have been developed. These polymers protect growth factors from deactivation and degradation, potentiating the activity of growth factors. Although these CD-based osteoinductive drugs and the complex of growth factors have a great potential to promote bone regeneration, the regeneration efficacy of oral tissues, including alveolar bone and widely defective bone, need to be clarified. As a future perspective, preclinical research and clinical trials of CD-based osteoinductive drugs and the complex of growth factors for the oral tissues are required for the development of novel dental regenerative treatments.

Author Contributions

Conceptualization, M.T. and A.T.; data curation, M.T. and A.T.; funding acquisition: M.T.; supervision, A.T., T.Y. and N.Y.; writing–original draft, M.T., A.T., Y.A. and H.M.; Writing–review & editing: A.T., T.Y. and N.Y. All authors have read and agreed to the published version of the manuscript.

Funding

The APC was funded by Grant-in-Aid for Young Scientists from the Japan Society for the Promotion of Science (JSPS) (JSPS KAKENHI Grant number JP19K19224 to M.T.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Petersen, P.E. The World Oral Health Report 2003: Continuous improvement of oral health in the 21st century—The approach of the WHO Global Oral Health Programme. Community Dent. Oral Epidemiol. 2003, 31, 3–24. [Google Scholar] [CrossRef] [PubMed]
  2. Yagiela, J.A.; Dowd, F.J.; Johnson, B.; Mariotti, A.; Neidle, E.A. (Eds.) Pharmacology and Therapeutics for Dentistry-E-Book; Elsevier Health Sciences: Amsterdam, The Netherlands, 2010. [Google Scholar]
  3. Madl, C.M.; Heilshorn, S.C.; Blau, H.M. Bioengineering strategies to accelerate stem cell therapeutics. Nat. Cell Biol. 2018, 557, 335–342. [Google Scholar] [CrossRef] [PubMed]
  4. Lee, K.; Silva, E.A.; Mooney, D.J. Growth factor delivery-based tissue engineering: General approaches and a review of recent developments. J. R. Soc. Interface 2010, 8, 153–170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Chen, F.-M.; Zhang, J.; Zhang, M.; An, Y.; Chen, F.; Wu, Z.-F. A review on endogenous regenerative technology in periodontal regenerative medicine. Biomaterials 2010, 31, 7892–7927. [Google Scholar] [CrossRef]
  6. Huang, G.T.-J.; Gronthos, S.; Shi, S. Mesenchymal Stem Cells Derived from Dental Tissuesvs. Those from Other Sources: Their Biology and Role in Regenerative Medicine. J. Dent. Res. 2009, 88, 792–806. [Google Scholar] [CrossRef]
  7. Mao, A.S.; Mooney, D.J. Regenerative medicine: Current therapies and future directions. Proc. Natl. Acad. Sci. USA 2015, 112, 14452–14459. [Google Scholar] [CrossRef] [Green Version]
  8. Ceccarelli, G.; Presta, R.; Benedetti, L.; De Angelis, M.G.C.; Lupi, S.M.; Baena, R.R.Y. Emerging Perspectives in Scaffold for Tissue Engineering in Oral Surgery. Stem Cells Int. 2017, 2017, 1–11. [Google Scholar] [CrossRef]
  9. Moioli, E.K.; Clark, P.A.; Xin, X.; Lal, S.; Mao, J.J. Matrices and scaffolds for drug delivery in dental, oral and craniofacial tissue engineering. Adv. Drug Deliv. Rev. 2007, 59, 308–324. [Google Scholar] [CrossRef] [Green Version]
  10. De Witte, T.-M.; E Fratila-Apachitei, L.; Zadpoor, A.A.; Peppas, N.A. Bone tissue engineering via growth factor delivery: From scaffolds to complex matrices. Regen. Biomater. 2018, 5, 197–211. [Google Scholar] [CrossRef] [Green Version]
  11. Sundelacruz, S.; Kaplan, D.L. Stem cell- and scaffold-based tissue engineering approaches to osteochondral regenerative medicine. Semin. Cell Dev. Biol. 2009, 20, 646–655. [Google Scholar] [CrossRef] [Green Version]
  12. Dawson, J.I.; Oreffo, R.O.C. Bridging the regeneration gap: Stem cells, biomaterials and clinical translation in bone tissue engineering. Arch. Biochem. Biophys. 2008, 473, 124–131. [Google Scholar] [CrossRef] [PubMed]
  13. Geiger, M.; Li, R.H.; Friess, W. Collagen sponges for bone regeneration with rhBMP-2. Adv. Drug Deliv. Rev. 2003, 55, 1613–1629. [Google Scholar] [CrossRef] [PubMed]
  14. Makadia, H.K.; Siegel, S.J. Poly lactic-co-glycolic acid (PLGA) as biodegradable controlled drug delivery carrier. Polymers 2011, 3, 1377–1397. [Google Scholar] [CrossRef] [PubMed]
  15. Stocum, D.L.; Zupanc, G.K. Stretching the limits: Stem cells in regeneration science. Dev. Dyn. 2008, 237, 3648–3671. [Google Scholar] [CrossRef]
  16. Togel, F.; Westenfelder, C. Adult bone marrow–derived stem cells for organ regeneration and repair. Dev. Dyn. 2007, 236, 3321–3331. [Google Scholar] [CrossRef]
  17. Tuan, R.S. Biology of Developmental and Regenerative Skeletogenesis. Clin. Orthop. Relat. Res. 2004, 427, S105–S117. [Google Scholar] [CrossRef] [PubMed]
  18. Satija, N.K.; Singh, V.K.; Verma, Y.K.; Gupta, P.; Sharma, S.; Afrin, F.; Sharma, M.; Sharma, P.; Tripathi, R.P.; Gurudutta, G.U. Mesenchymal stem cell-based therapy: A new paradigm in regenerative medicine. J. Cell. Mol. Med. 2009, 13, 4385–4402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Iwata, T.; Washio, K.; Yoshida, T.; Ishikawa, I.; Ando, T.; Yamato, M.; Okano, T. Cell sheet engineering and its application for periodontal regeneration. J. Tissue Eng. Regen. Med. 2015, 9, 343–356. [Google Scholar] [CrossRef]
  20. Babensee, J.E.; McIntire, L.V.; Mikos, A.G. Growth Factor Delivery for Tissue Engineering. Pharm. Res. 2000, 17, 497–504. [Google Scholar] [CrossRef]
  21. Urist, M.R. Bone: Formation by Autoinduction. Science 1965, 150, 893–899. [Google Scholar] [CrossRef]
  22. Bleuming, S.A.; He, X.C.; Kodach, L.L.; Hardwick, J.C.; Koopman, F.A.; Kate, F.J.T.; Van Deventer, S.J.; Hommes, D.W.; Peppelenbosch, M.P.; Offerhaus, G.J.; et al. Bone Morphogenetic Protein Signaling Suppresses Tumorigenesis at Gastric Epithelial Transition Zones in Mice. Cancer Res. 2007, 67, 8149–8155. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Even, J.; Eskander, M.; Kang, J. Bone Morphogenetic Protein in Spine Surgery: Current and Future Uses. J. Am. Acad. Orthop. Surg. 2012, 20, 547–552. [Google Scholar] [CrossRef] [PubMed]
  24. Rickard, D.; Sullivan, T.; Shenker, B.; Leboy, P.; Kazhdan, I. Induction of Rapid Osteoblast Differentiation in Rat Bone Marrow Stromal Cell Cultures by Dexamethasone and BMP-2. Dev. Biol. 1994, 161, 218–228. [Google Scholar] [CrossRef] [PubMed]
  25. Park, J.; Rieß, J.; Gelse, K.; Kloss, F.; Von Der Mark, K.; Wiltfang, J.; Neukam, F.W.; Schneider, H. Bone regeneration in critical size defects by cell-mediated BMP-2 gene transfer: A comparison of adenoviral vectors and liposomes. Gene Ther. 2003, 10, 1089–1098. [Google Scholar] [CrossRef] [Green Version]
  26. Rosen, V. BMP2 signaling in bone development and repair. Cytokine Growth Factor Rev. 2009, 20, 475–480. [Google Scholar] [CrossRef]
  27. Nakashima, M.; Reddi, A.H. The application of bone morphogenetic proteins to dental tissue engineering. Nat. Biotechnol. 2003, 21, 1025–1032. [Google Scholar] [CrossRef]
  28. Zara, J.N.; Siu, R.K.; Zhang, X.; Shen, J.; Ngo, R.; Lee, M.; Li, W.; Chiang, M.; Chung, J.; Kwak, J.; et al. High Doses of Bone Morphogenetic Protein 2 Induce Structurally Abnormal Bone and Inflammation In Vivo. Tissue Eng. Part A 2011, 17, 1389–1399. [Google Scholar] [CrossRef] [Green Version]
  29. Kanatani, M.; Sugimoto, T.; Kaji, H.; Kobayashi, T.; Nishiyama, K.; Fukase, M.; Kumegawa, M.; Chihara, K. Stimulatory effect of bone morphogenetic protein-2 on osteoclast-like cell formation and bone-resorbing activity. J. Bone Miner. Res. 2009, 10, 1681–1690. [Google Scholar] [CrossRef]
  30. Feldman, G.J.; Billings, P.C.; Patel, R.V.; Caron, R.J.; Guenther, C.; Kingsley, D.M.; Kaplan, F.S.; Shore, E.M. Over-expression ofBMP4 andBMP5 in a child with axial skeletal malformations and heterotopic ossification: A new syndrome. Am. J. Med. Genet. Part A 2007, 143, 699–706. [Google Scholar] [CrossRef]
  31. Glassman, S.D.; Carreon, L.; Djurasovic, M.; Campbell, M.J.; Puno, R.M.; Johnson, J.R.; Dimar, J.R. Posterolateral lumbar spine fusion with INFUSE bone graft. Spine J. 2007, 7, 44–49. [Google Scholar] [CrossRef]
  32. Yamamoto, M.; Takahashi, Y.; Tabata, Y. Controlled release by biodegradable hydrogels enhances the ectopic bone formation of bone morphogenetic protein. Biomaterials 2003, 24, 4375–4383. [Google Scholar] [CrossRef]
  33. Zhu, G.; Mallery, S.R.; Schwendeman, S.P. Stabilization of proteins encapsulated in injectable poly (lactide- co-glycolide). Nat. Biotechnol. 2000, 18, 52–57. [Google Scholar] [CrossRef] [PubMed]
  34. McKay, W.F.; Peckham, S.M.; Badura, J.M. A comprehensive clinical review of recombinant human bone morphogenetic protein-2 (INFUSE® Bone Graft). Int. Orthop. 2007, 31, 729–734. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Boyne, P.J.; Marx, R.E.; Nevins, M.; Triplett, G.; Lazaro, E.; Lilly, L.C.; Alder, M.; Nummikoski, P. A feasibility study evaluat-ing rhBMP-2/absorbable collagen sponge for maxillary sinus floor augmentation. Int. J. Periodontics Restor. Dent. 1997, 17, 11–25. [Google Scholar]
  36. Boyne, P.J.; Lilly, L.C.; Marx, R.E.; Moy, P.K.; Nevins, M.; Spagnoli, D.B.; Triplett, R.G. De Novo Bone Induction by Recombinant Human Bone Morphogenetic Protein-2 (rhBMP-2) in Maxillary Sinus Floor Augmentation. J. Oral Maxillofac. Surg. 2005, 63, 1693–1707. [Google Scholar] [CrossRef] [PubMed]
  37. Fiorellini, J.P.; Howell, T.H.; Cochran, D.; Malmquist, J.; Lilly, L.C.; Spagnoli, D.; Toljanic, J.; Jones, A.; Nevins, M. Randomized Study Evaluating Recombinant Human Bone Morphogenetic Protein-2 for Extraction Socket Augmentation. J. Periodontol. 2005, 76, 605–613. [Google Scholar] [CrossRef] [Green Version]
  38. Armelin, H.A. Pituitary Extracts and Steroid Hormones in the Control of 3T3 Cell Growth. Proc. Natl. Acad. Sci. USA 1973, 70, 2702–2706. [Google Scholar] [CrossRef] [Green Version]
  39. Finklestein, S.P.; Plomaritoglou, A. Growth factors. In Head Trauma: Basic, Preclinical, and Clinical Directions; Miller, L.P., Hayes, R.L., Newcomb, J.K., Eds.; Wiley: New York, NY, USA, 2001; pp. 165–187. [Google Scholar]
  40. Blaber, M.; Disalvo, J.; Thomas, K.A. X-ray Crystal Structure of Human Acidic Fibroblast Growth Factor. Biochemistry 1996, 35, 2086–2094. [Google Scholar] [CrossRef] [Green Version]
  41. Ornitz, D.M.; Itoh, N. Fibroblast growth factors. Genome Biol. 2001, 2, 1–12. [Google Scholar] [CrossRef] [Green Version]
  42. Vlodavsky, I.; Korner, G.; Ishai-Michaeli, R.; Bashkin, P.; Bar-Shavit, R.; Fuks, Z. Extracellular matrix-resident growth factors and enzymes: Possible involvement in tumor metastasis and angiogenesis. Cancer Metastasis Rev. 1990, 9, 203–226. [Google Scholar] [CrossRef]
  43. Green, P.J.; Walsh, F.S.; Doherty, P. Promiscuity of fibroblast growth factor receptors. BioEssays 1996, 18, 639–646. [Google Scholar] [CrossRef]
  44. Kitamura, M.; Nakashima, K.; Kowashi, Y.; Fujii, T.; Shimauchi, H.; Sasano, T.; Furuuchi, T.; Fukuda, M.; Noguchi, T.; Shibutani, T.; et al. Periodontal Tissue Regeneration Using Fibroblast Growth Factor -2: Randomized Controlled Phase II Clinical Trial. PLoS ONE 2008, 3, e2611. [Google Scholar] [CrossRef] [PubMed]
  45. Ho-Shui-Ling, A.; Bolander, J.; Rustom, L.E.; Johnson, A.W.; Luyten, F.P.; Picart, C. Bone regeneration strategies: Engineered scaffolds, bioactive molecules and stem cells current stage and future perspectives. Biomaterials 2018, 180, 143–162. [Google Scholar] [CrossRef] [PubMed]
  46. Heijl, L.; Heden, G.; Svardstrom, G.; Ostgren, A. Enamel matrix derivative (EMDOGAINR) in the treatment of intrabony periodontal defects. J. Clin. Periodontol. 1997, 24, 705–714. [Google Scholar] [CrossRef] [PubMed]
  47. Esposito, M.; Grusovin, M.G.; Papanikolaou, N.; Coulthard, P.; Worthington, H.V. Enamel matrix derivative (Emdogain) for periodontal tissue regeneration in intrabony defects. A Cochrane systematic review. Eur. J. Oral Implant. 2009, 2, 247–266. [Google Scholar]
  48. Hammarstrom, L. Enamel matrix, cementum development and regeneration. J. Clin. Periodontol. 1997, 24, 658–668. [Google Scholar] [CrossRef]
  49. Bowers, G.M.; Chadroff, B.; Carnevale, R.; Mellonig, J.; Corio, R.; Emerson, J.; Stevens, M.; Romberg, E. Histologic Evaluation of New Attachment Apparatus Formation in Humans. J. Periodontol. 1989, 60, 683–693. [Google Scholar] [CrossRef]
  50. Burg, K.J.; Porter, S.; Kellam, J.F. Biomaterial developments for bone tissue engineering. Biomaterials 2000, 21, 2347–2359. [Google Scholar] [CrossRef]
  51. Kimelman, N.; Pelled, G.; Helm, G.A.; Huard, J.; Schwarz, E.M.; Gazit, Z. Review: Gene- and Stem Cell–Based Therapeutics for Bone Regeneration and Repair. Tissue Eng. 2007, 13, 1135–1150. [Google Scholar] [CrossRef]
  52. Mundy, G.R.; Garrett, R.; Harris, S.; Chan, J.; Chen, D.; Rossini, G.; Boyce, B.; Zhao, M.; Gutierrez, G. Stimulation of Bone Formation in Vitro and in Rodents by Statins. Science 1999, 286, 1946–1949. [Google Scholar] [CrossRef]
  53. Endo, A. The discovery and development of HMG-CoA reductase inhibitors. J. Lipid Res. 1992, 33, 1569–1582. [Google Scholar] [CrossRef]
  54. Tobert, J.A. Lovastatin and beyond: The history of the HMG-CoA reductase inhibitors. Nat. Rev. Drug Discov. 2003, 2, 517–526. [Google Scholar] [CrossRef] [PubMed]
  55. Liao, J.K.; Laufs, U. Pleiotropic Effects of Statins. Annu. Rev. Pharmacol. Toxicol. 2005, 45, 89–118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Tanigo, T.; Takaoka, R.; Tabata, Y. Sustained release of water-insoluble simvastatin from biodegradable hydrogel augments bone regeneration. J. Control. Release 2010, 143, 201–206. [Google Scholar] [CrossRef]
  57. Nath, S.D.; Son, S.; Sadiasa, A.; Min, Y.K.; Lee, B.T. Preparation and characterization of PLGA microspheres by the electrospraying method for delivering simvastatin for bone regeneration. Int. J. Pharm. 2013, 443, 87–94. [Google Scholar] [CrossRef]
  58. Wu, Z.; Liu, C.; Zang, G.; Sun, H. The effect of simvastatin on remodelling of the alveolar bone following tooth extraction. Int. J. Oral Maxillofac. Surg. 2008, 37, 170–176. [Google Scholar] [CrossRef]
  59. Roth, J.A.; Kim, B.-G.; Lin, W.-L.; Cho, M.-I. Melatonin Promotes Osteoblast Differentiation and Bone Formation. J. Biol. Chem. 1999, 274, 22041–22047. [Google Scholar] [CrossRef] [Green Version]
  60. Koyama, H.; Nakade, O.; Takada, Y.; Kaku, T.; Lau, K.-H.W. Melatonin at Pharmacologic Doses Increases Bone Mass by Suppressing Resorption Through Down-Regulation of the RANKL-Mediated Osteoclast Formation and Activation. J. Bone Miner. Res. 2002, 17, 1219–1229. [Google Scholar] [CrossRef]
  61. Han, Y.; Kim, Y.-M.; Kim, H.S.; Lee, K.Y. Melatonin promotes osteoblast differentiation by regulating Osterix protein stability and expression. Sci. Rep. 2017, 7, 1–11. [Google Scholar] [CrossRef]
  62. Kim, C.H.; Yoo, Y.-M. Fluid shear stress and melatonin in combination activate anabolic proteins in MC3T3-E1 osteoblast cells. J. Pineal Res. 2013, 54, 453–461. [Google Scholar] [CrossRef]
  63. Balmayor, E. Targeted delivery as key for the success of small osteoinductive molecules. Adv. Drug Deliv. Rev. 2015, 94, 13–27. [Google Scholar] [CrossRef] [PubMed]
  64. Laurencin, C.T.; Ashe, K.M.; Henry, N.; Kan, H.M.; Lo, K.W.-H. Delivery of small molecules for bone regenerative engineering: Preclinical studies and potential clinical applications. Drug Discov. Today 2014, 19, 794–800. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Uekama, K.; Hirayama, F.; Irie, T. Cyclodextrin Drug Carrier Systems. Chem. Rev. 1998, 98, 2045–2076. [Google Scholar] [CrossRef]
  66. Brewster, M.E.; Loftsson, T. Cyclodextrins as pharmaceutical solubilizers. Adv. Drug Deliv. Rev. 2007, 59, 645–666. [Google Scholar] [CrossRef]
  67. Liu, X.-M.; Wiswall, A.T.; Rutledge, J.E.; Akhter, M.P.; Cullen, D.M.; Reinhardt, R.A.; Wang, D. Osteotropic β-cyclodextrin for local bone regeneration. Biomaterials 2008, 29, 1686–1692. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Joshi, H.; Fakes, M.; Serajuddin, A. Differentiation of 3-Hydroxy-3-methylglutaryl-coenzyme A Reductase Inhibitors by Their Relative Lipophilicity. Pharm. Pharmacol. Commun. 1999, 5, 269–271. [Google Scholar] [CrossRef]
  69. Ungaro, F.; Giovino, C.; Catanzano, O.; Miro, A.; Mele, A.; Quaglia, F.; La Rotonda, M.I. Use of cyclodextrins as solubilizing agents for simvastatin: Effect of hydroxypropyl-β-cyclodextrin on lactone/hydroxyacid aqueous equilibrium. Int. J. Pharm. 2011, 404, 49–56. [Google Scholar] [CrossRef]
  70. Jun, S.W.; Kim, M.-S.; Kim, J.-S.; Park, H.J.; Lee, S.; Woo, J.-S.; Hwang, S.-J. Preparation and characterization of simvastatin/hydroxypropyl-β-cyclodextrin inclusion complex using supercritical antisolvent (SAS) process. Eur. J. Pharm. Biopharm. 2007, 66, 413–421. [Google Scholar] [CrossRef]
  71. Süle, A.; Szente, L.; Csempesz, F. Enhancement of Drug Solubility in Supramolecular and Colloidal Systems. J. Pharm. Sci. 2009, 98, 484–494. [Google Scholar] [CrossRef]
  72. Csempesz, F.; Süle, A.; Puskás, I. Induced surface activity of supramolecular cyclodextrin–statin complexes: Relevance in drug delivery. Colloids. Surf. A Physicochem. Eng. Asp. 2010, 354, 308–313. [Google Scholar] [CrossRef]
  73. Yoshinari, M.; Matsuzaka, K.; Hashimoto, S.; Ishihara, K.; Inoue, T.; Oda, Y.; Ide, T.; Tanaka, T. Controlled release of simvastatin acid using cyclodextrin inclusion system. Dent. Mater. J. 2007, 26, 451–456. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Terauchi, M.; Inada, T.; Tonegawa, A.; Tamura, A.; Yamaguchi, S.; Harada, K.; Yui, N. Supramolecular inclusion complexation of simvastatin with methylated β-cyclodextrins for promoting osteogenic differentiation. Int. J. Biol. Macromol. 2016, 93, 1492–1498. [Google Scholar] [CrossRef] [PubMed]
  75. Sugiyama, M.; Kodama, T.; Konishi, K.; Abe, K.; Asami, S.; Oikawa, S. Compactin and Simvastatin, but Not Pravastatin, Induce Bone Morphogenetic Protein-2 in Human Osteosarcoma Cells. Biochem. Biophys. Res. Commun. 2000, 271, 688–692. [Google Scholar] [CrossRef] [PubMed]
  76. Maeda, T.; Matsunuma, A.; Kawane, T.; Horiuchi, N. Simvastatin Promotes Osteoblast Differentiation and Mineralization in MC3T3-E1 Cells. Biochem. Biophys. Res. Commun. 2001, 280, 874–877. [Google Scholar] [CrossRef] [PubMed]
  77. Maeda, T.; Matsunuma, A.; Kurahashi, I.; Yanagawa, T.; Yoshida, H.; Horiuchi, N. Induction of osteoblast differentiation indices by statins in MC3T3-E1 cells. J. Cell. Biochem. 2004, 92, 458–471. [Google Scholar] [CrossRef] [PubMed]
  78. Loftsson, T.; Masson, M. Cyclodextrins in topical drug formulation: Theory and practice. Int. J. Pharm. 2001, 225, 15–30. [Google Scholar] [CrossRef]
  79. Terauchi, M.; Tamura, A.; Yamaguchi, S.; Yui, N. Enhanced cellular uptake and osteogenic differentiation efficiency of melatonin by inclusion complexation with 2-hydroxypropyl β-cyclodextrin. Int. J. Pharm. 2018, 547, 53–60. [Google Scholar] [CrossRef]
  80. Jahed, V.; Vasheghani-Farahani, E.; Bagheri, F.; Zarrabi, A.; Fink, T.; Larsen, K.L. Enhanced Cellular Uptake Of Phenamil Through Inclusion Complex With Histidine Functionalized β-Cyclodextrin As Penetrative Osteoinductive Agent. Int. J. Nanomed. 2019, 14, 8221–8234. [Google Scholar] [CrossRef] [Green Version]
  81. Bongiorno, D.; Ceraulo, L.; Mele, A.; Panzeri, W.; Selva, A.; Liveri, V.T. Structural and physicochemical characterization of the inclusion complexes of cyclomaltooligosaccharides (cyclodextrins) with melatonin. Carbohydr. Res. 2002, 337, 743–754. [Google Scholar] [CrossRef]
  82. Babu, R.J.; Dayal, P.; Singh, M. Effect of cyclodextrins on the complexation and nasal permeation of melatonin. Drug Deliv. 2008, 15, 381–388. [Google Scholar] [CrossRef] [Green Version]
  83. Maeda, H.; Ogawa, Y.; Nakayama, H. Inclusion complexes of melatonin with modified cyclodextrins. J. Incl. Phenom. Macrocycl. Chem. 2013, 78, 217–224. [Google Scholar] [CrossRef]
  84. Vlachou, M.; Papamichael, M.; Siamidi, A.; Fragouli, I.; Afroudakis, P.A.; Kompogennitaki, R.; Dotsikas, Y. Comparative In Vitro Controlled Release Studies on the Chronobiotic Hormone Melatonin from Cyclodextrins-Containing Matrices and Cyclodextrin: Melatonin Complexes. Int. J. Mol. Sci. 2017, 18, 1641. [Google Scholar] [CrossRef] [Green Version]
  85. Arisaka, Y.; Yui, N. Tethered bone morphogenetic protein-2 onto sulfonated-polyrotaxane based surfaces promotes osteogenic differentiation of MC3T3-E1 cells. J. Biomater. Sci. Polym. Ed. 2017, 28, 974–985. [Google Scholar] [CrossRef] [PubMed]
  86. Lo, K.W.-H.; Ulery, B.D.; Ashe, K.M.; Laurencin, C.T. Studies of bone morphogenetic protein-based surgical repair. Adv. Drug Deliv. Rev. 2012, 64, 1277–1291. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  87. Wan, D.C.; Pomerantz, J.H.; Brunet, L.J.; Kim, J.-B.; Chou, Y.-F.; Wu, B.M.; Harland, R.; Blau, H.M.; Longaker, M.T. Noggin Suppression Enhancesin VitroOsteogenesis and Acceleratesin VivoBone Formation. J. Biol. Chem. 2007, 282, 26450–26459. [Google Scholar] [CrossRef] [Green Version]
  88. Cowan, C.M.; Shi, Y.-Y.; Aalami, O.O.; Chou, Y.-F.; Mari, C.; Thomas, R.; Quarto, N.; Contag, C.H.; Wu, B.; Longaker, M.T. Adipose-derived adult stromal cells heal critical-size mouse calvarial defects. Nat. Biotechnol. 2004, 22, 560–567. [Google Scholar] [CrossRef]
  89. Martino, M.M.; Briquez, P.S.; Ranga, A.; Lutolf, M.P.; Hubbell, J.A. Heparin-binding domain of fibrin(ogen) binds growth factors and promotes tissue repair when incorporated within a synthetic matrix. Proc. Natl. Acad. Sci. USA 2013, 110, 4563–4568. [Google Scholar] [CrossRef] [Green Version]
  90. Takada, T.; Katagiri, T.; Ifuku, M.; Morimura, N.; Kobayashi, M.; Hasegawa, K.; Ogamo, A.; Kamijo, R. Sulfated Polysaccharides Enhance the Biological Activities of Bone Morphogenetic Proteins. J. Biol. Chem. 2003, 278, 43229–43235. [Google Scholar] [CrossRef] [Green Version]
  91. Zhao, B.; Katagiri, T.; Toyoda, H.; Takada, T.; Yanai, T.; Fukuda, T.; Chung, U.-I.; Koike, T.; Takaoka, K.; Kamijo, R. Heparin Potentiates the in Vivo Ectopic Bone Formation Induced by Bone Morphogenetic Protein-2. J. Biol. Chem. 2006, 281, 23246–23253. [Google Scholar] [CrossRef] [Green Version]
  92. Macdonald, M.L.; Samuel, R.E.; Shah, N.J.; Padera, R.F.; Beben, Y.M.; Hammond, P.T. Tissue integration of growth factor-eluting layer-by-layer polyelectrolyte multilayer coated implants. Biomaterials 2011, 32, 1446–1453. [Google Scholar] [CrossRef] [Green Version]
  93. Bhakta, G.; Rai, B.; Lim, Z.X.; Hui, J.H.; Stein, G.S.; Van Wijnen, A.J.; Nurcombe, V.; Prestwich, G.D.; Cool, S.M. Hyaluronic acid-based hydrogels functionalized with heparin that support controlled release of bioactive BMP-2. Biomaterials 2012, 33, 6113–6122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Kim, H.J.; Yun, Y.-P.; Han, Y.-K.; Lee, D.-W.; Ohe, J.-Y.; Lee, B.-S.; Song, H.-R.; Park, K.; Choi, B.-J. Osteogenesis induction of periodontal ligament cells onto bone morphogenic protein-2 immobilized PCL fibers. Carbohydr. Polym. 2014, 99, 700–709. [Google Scholar] [CrossRef] [PubMed]
  95. Hettiaratchi, M.H.; Krishnan, L.; Rouse, T.; Chou, C.; McDevitt, T.C.; Guldberg, R.E. Heparin-mediated delivery of bone morphogenetic protein-2 improves spatial localization of bone regeneration. Sci. Adv. 2020, 6, eaay1240. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Kim, S.E.; Song, S.-H.; Yun, Y.P.; Choi, B.-J.; Kwon, I.K.; Bae, M.S.; Moon, H.-J.; Kwon, Y.-D. The effect of immobilization of heparin and bone morphogenic protein-2 (BMP-2) to titanium surfaces on inflammation and osteoblast function. Biomaterials 2011, 32, 366–373. [Google Scholar] [CrossRef]
  97. Damus, P.S.; Hicks, M.; Rosenberg, R.D. Anticoagulant Action of Heparin. Nat. Cell Biol. 1973, 246, 355–357. [Google Scholar] [CrossRef]
  98. Jin, L.; Abrahams, J.P.; Skinner, R.; Petitou, M.; Pike, R.N.; Carrell, R.W. The anticoagulant activation of antithrombin by heparin. Proc. Natl. Acad. Sci. USA 1997, 94, 14683–14688. [Google Scholar] [CrossRef] [Green Version]
  99. Kanzaki, S.; Ariyoshi, W.; Takahashi, T.; Okinaga, T.; Kaneuji, T.; Mitsugi, S.; Nakashima, K.; Tsujisawa, T.; Nishihara, T. Dual effects of heparin on BMP-2-induced osteogenic activity in MC3T3-E1 cells. Pharmacol. Rep. 2011, 63, 1222–1230. [Google Scholar] [CrossRef]
  100. Miyazaki, T.; Miyauchi, S.; Tawada, A.; Anada, T.; Matsuzaka, S.; Suzuki, O. Oversulfated chondroitin sulfate-E binds to BMP-4 and enhances osteoblast differentiation. J. Cell. Physiol. 2008, 217, 769–777. [Google Scholar] [CrossRef]
  101. Bramono, D.S.; Murali, S.; Rai, B.; Ling, L.; Poh, W.T.; Lim, Z.X.; Stein, G.S.; Nurcombe, V.; Van Wijnen, A.J.; Cool, S.M. Bone marrow-derived heparan sulfate potentiates the osteogenic activity of bone morphogenetic protein-2 (BMP-2). Bone 2012, 50, 954–964. [Google Scholar] [CrossRef] [Green Version]
  102. Kisiel, M.; Klar, A.S.; Ventura, M.; Buijs, J.; Mafina, M.-K.; Cool, S.M.; Hilborn, J. Complexation and Sequestration of BMP-2 from an ECM Mimetic Hyaluronan Gel for Improved Bone Formation. PLoS ONE 2013, 8, e78551. [Google Scholar] [CrossRef]
  103. Zhou, H.; Qian, J.; Wang, J.; Yao, W.; Liu, C.; Chen, J.; Cao, X. Enhanced bioactivity of bone morphogenetic protein-2 with low dose of 2-N, 6-O-sulfated chitosan in vitro and in vivo. Biomaterials 2009, 30, 1715–1724. [Google Scholar] [CrossRef] [PubMed]
  104. Peschel, D.; Zhang, K.; Fischer, S.; Groth, T. Modulation of osteogenic activity of BMP-2 by cellulose and chitosan derivatives. Acta Biomater. 2012, 8, 183–193. [Google Scholar] [CrossRef] [PubMed]
  105. Nguyen, T.H.; Paluck, S.J.; McGahran, A.J.; Maynard, H.D. Poly(vinyl sulfonate) Facilitates bFGF-Induced Cell Proliferation. Biomacromolecules 2015, 16, 2684–2692. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  106. Terauchi, M.; Tamura, A.; Tonegawa, A.; Yamaguchi, S.; Yoda, T.; Yui, N. Polyelectrolyte Complexes between Polycarboxylates and BMP-2 for Enhancing Osteogenic Differentiation: Effect of Chemical Structure of Polycarboxylates. Polymers 2019, 11, 1327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  107. Paluck, S.J.; Nguyen, T.H.; Maynard, H.D. Heparin-Mimicking Polymers: Synthesis and Biological Applications. Biomacromolecules 2016, 17, 3417–3440. [Google Scholar] [CrossRef]
  108. Harada, A.; Hashidzume, A.; Yamaguchi, H.; Takashima, Y. Polymeric Rotaxanes. Chem. Rev. 2009, 109, 5974–6023. [Google Scholar] [CrossRef]
  109. Wenz, G.; Han, A.B.-H.; Müller, A. Cyclodextrin Rotaxanes and Polyrotaxanes. Chem. Rev. 2006, 106, 782–817. [Google Scholar] [CrossRef]
  110. Huang, F.; Gibson, H.W. Polypseudorotaxanes and polyrotaxanes. Prog. Polym. Sci. 2005, 30, 982–1018. [Google Scholar] [CrossRef]
  111. Tamura, A.; Yui, N. Threaded macromolecules as a versatile framework for biomaterials. Chem. Commun. 2014, 50, 13433–13446. [Google Scholar] [CrossRef] [Green Version]
  112. Kidowaki, M.; Zhao, C.; Kataoka, T.; Ito, K. Thermoreversible sol-gel transition of an aqueous solution of polyrotaxane composed of highly methylated ?-cyclodextrin and polyethylene glycol. Chem. Commun. 2006, 21, 4102–4103. [Google Scholar] [CrossRef]
  113. Tonegawa, A.; Tamura, A.; Yui, N. Emerging Nanoassembly of Polyrotaxanes Comprising Acetylated α-Cyclodextrins and High-Molecular-Weight Axle Polymer. ACS Macro Lett. 2019, 8, 826–834. [Google Scholar] [CrossRef]
  114. Tamura, A.; Ohashi, M.; Yui, N. Oligo(ethylene glycol)-modified β-cyclodextrin-based polyrotaxanes for simultaneously modulating solubility and cellular internalization efficiency. J. Biomater. Sci. Polym. Ed. 2017, 28, 1124–1139. [Google Scholar] [CrossRef] [PubMed]
  115. Ooya, T.; Choi, H.S.; Yamashita, A.; Yui, N.; Sugaya, Y.; Kano, A.; Maruyama, A.; Akita, H.; Ito, R.; Kogure, A.K.; et al. Biocleavable Polyrotaxane−Plasmid DNA Polyplex for Enhanced Gene Delivery. J. Am. Chem. Soc. 2006, 128, 3852–3853. [Google Scholar] [CrossRef] [PubMed]
  116. Shibaguchi, K.; Tamura, A.; Terauchi, M.; Matsumura, M.; Miura, H.; Yui, N. Mannosylated Polyrotaxanes for Increasing Cellular Uptake Efficiency in Macrophages through Receptor-Mediated Endocytosis. Molecules 2019, 24, 439. [Google Scholar] [CrossRef] [Green Version]
  117. Tamura, A.; Yui, N. Polyrotaxane-based systemic delivery of β-cyclodextrins for potentiating therapeutic efficacy in a mouse model of Niemann-Pick type C disease. J. Control. Release 2018, 269, 148–158. [Google Scholar] [CrossRef]
  118. Nishida, K.; Tamura, A.; Yui, N. ER stress-mediated autophagic cell death induction through methylated β-cyclodextrins-threaded acid-labile polyrotaxanes. J. Control. Release 2018, 275, 20–31. [Google Scholar] [CrossRef]
  119. Arisaka, Y.; Yui, N. Polyrotaxane-based biointerfaces with dynamic biomaterial functions. J. Mater. Chem. B 2019, 7, 2123–2129. [Google Scholar] [CrossRef]
  120. Ooya, T.; Eguchi, M.; Yui, N. Supramolecular Design for Multivalent Interaction: Maltose Mobility along Polyrotaxane Enhanced Binding with Concanavalin A. J. Am. Chem. Soc. 2003, 125, 13016–13017. [Google Scholar] [CrossRef]
  121. Hyun, H.; Yui, N. Ligand Accessibility to Receptor Binding Sites Enhanced by Movable Polyrotaxanes. Macromol. Biosci. 2011, 11, 765–771. [Google Scholar] [CrossRef]
  122. Eguchi, M.; Ooya, T.; Yui, N. Controlling the mechanism of trypsin inhibition by the numbers of α-cyclodextrins and carboxyl groups in carboxyethylester-polyrotaxanes. J. Control. Release 2004, 96, 301–307. [Google Scholar] [CrossRef]
  123. Tamura, A.; Ikeda, G.; Seo, J.-H.; Tsuchiya, K.; Yajima, H.; Sasaki, Y.; Akiyoshi, K.; Yui, N. Molecular logistics using cytocleavable polyrotaxanes for the reactivation of enzymes delivered in living cells. Sci. Rep. 2013, 3, 2252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  124. Tamura, A.; Ikeda, G.; Nishida, K.; Yui, N. Cationic Polyrotaxanes as a Feasible Framework for the Intracellular Delivery and Sustainable Activity of Anionic Enzymes: A Comparison Study with Methacrylate-Based Polycations. Macromol. Biosci. 2015, 15, 1134–1145. [Google Scholar] [CrossRef] [PubMed]
  125. Tamura, A.; Yui, N. Cellular internalization and gene silencing of siRNA polyplexes by cytocleavable cationic polyrotaxanes with tailored rigid backbones. Biomaterials 2013, 34, 2480–2491. [Google Scholar] [CrossRef] [PubMed]
  126. Inada, T.; Tamura, A.; Terauchi, M.; Yamaguchi, S.; Yui, N. Silencing-mediated enhancement of osteogenic differentiation by supramolecular ternary siRNA polyplexes comprising biocleavable cationic polyrotaxanes and anionic fusogenic peptides. Biomater. Sci. 2018, 6, 440–450. [Google Scholar] [CrossRef]
  127. Terauchi, M.; Ikeda, G.; Nishida, K.; Tamura, A.; Yamaguchi, S.; Harada, K.; Yui, N. Supramolecular Polyelectrolyte Complexes of Bone Morphogenetic Protein-2 with Sulfonated Polyrotaxanes to Induce Enhanced Osteogenic Differentiation. Macromol. Biosci. 2015, 15, 953–964. [Google Scholar] [CrossRef]
  128. Terauchi, M.; Inada, T.; Kanemaru, T.; Ikeda, G.; Tonegawa, A.; Nishida, K.; Arisaka, Y.; Tamura, A.; Yamaguchi, S.; Yui, N. Potentiating bioactivity of BMP-2 by polyelectrolyte complexation with sulfonated polyrotaxanes to induce rapid bone regeneration in a mouse calvarial defect. J. Biomed. Mater. Res. Part A 2017, 105, 1355–1363. [Google Scholar] [CrossRef]
  129. Rawadi, G.; Vayssière, B.; Dunn, F.; Baron, R.; Roman-Roman, S. BMP-2 Controls Alkaline Phosphatase Expression and Osteoblast Mineralization by a Wnt Autocrine Loop. J. Bone Miner. Res. 2003, 18, 1842–1853. [Google Scholar] [CrossRef]
  130. Stein, G.S.; Lian, J.B. Molecular Mechanisms Mediating Proliferation/Differentiation Interrelationships during Progressive Development of the Osteoblast Phenotype. Endocr. Rev. 1993, 14, 424–442. [Google Scholar] [CrossRef]
  131. Hollinger, J.O.; Kleinschmidt, J.C. The Critical Size Defect as an Experimental Model to Test Bone Repair Materials. J. Craniofacial Surg. 1990, 1, 60–68. [Google Scholar] [CrossRef]
Pharmaceutics 13 00136 g001 550

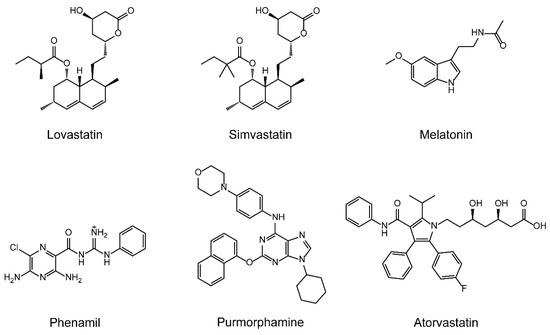

Figure 1. Chemical structure of small-molecule drugs that stimulate bone formation.
Figure 1. Chemical structure of small-molecule drugs that stimulate bone formation.
Pharmaceutics 13 00136 g001
Pharmaceutics 13 00136 g002 550

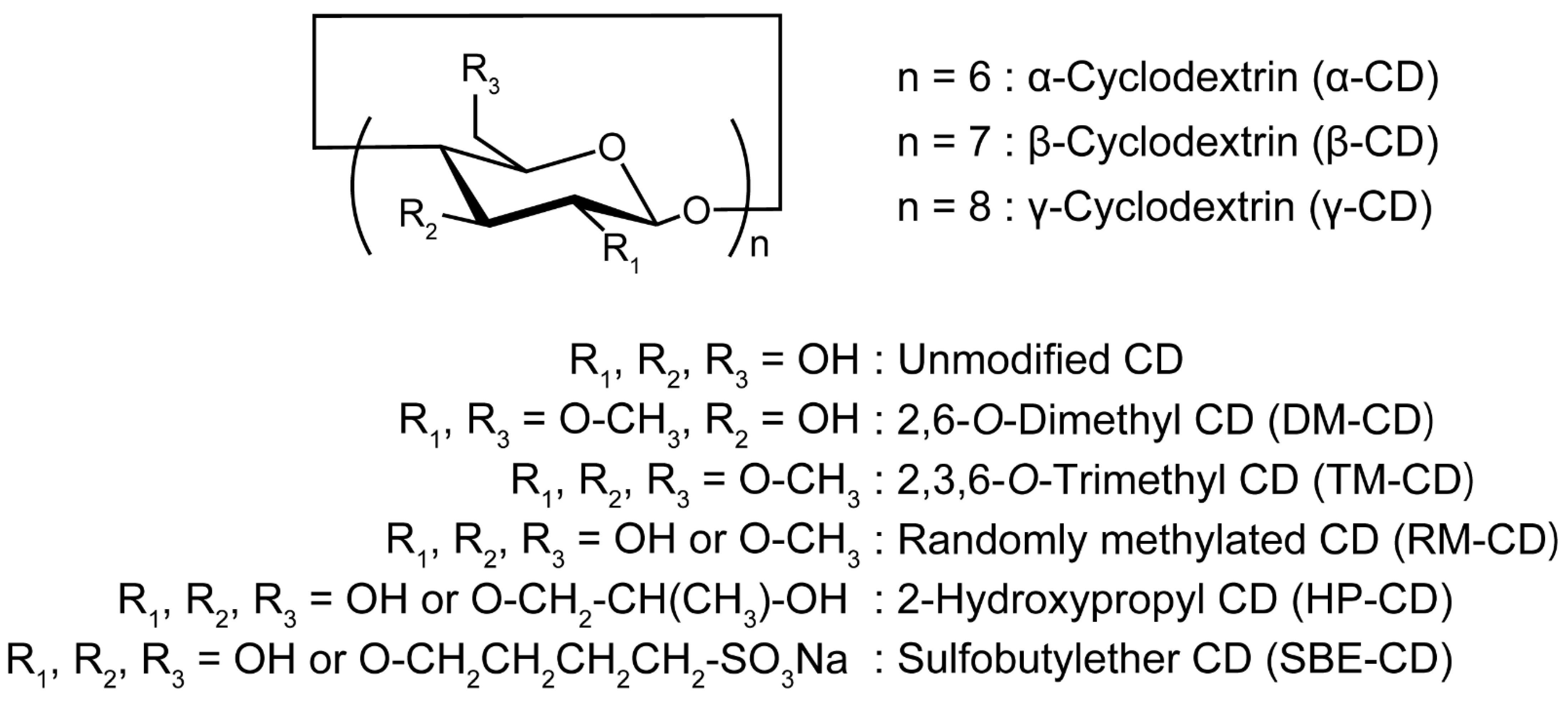

Figure 2. Chemical structures of cyclodextrins and representative chemically modified cyclodextrin derivatives.
Figure 2. Chemical structures of cyclodextrins and representative chemically modified cyclodextrin derivatives.
Pharmaceutics 13 00136 g002
Pharmaceutics 13 00136 g003 550

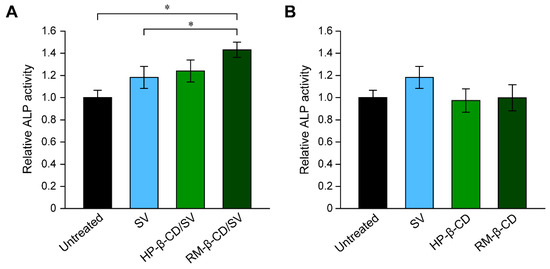

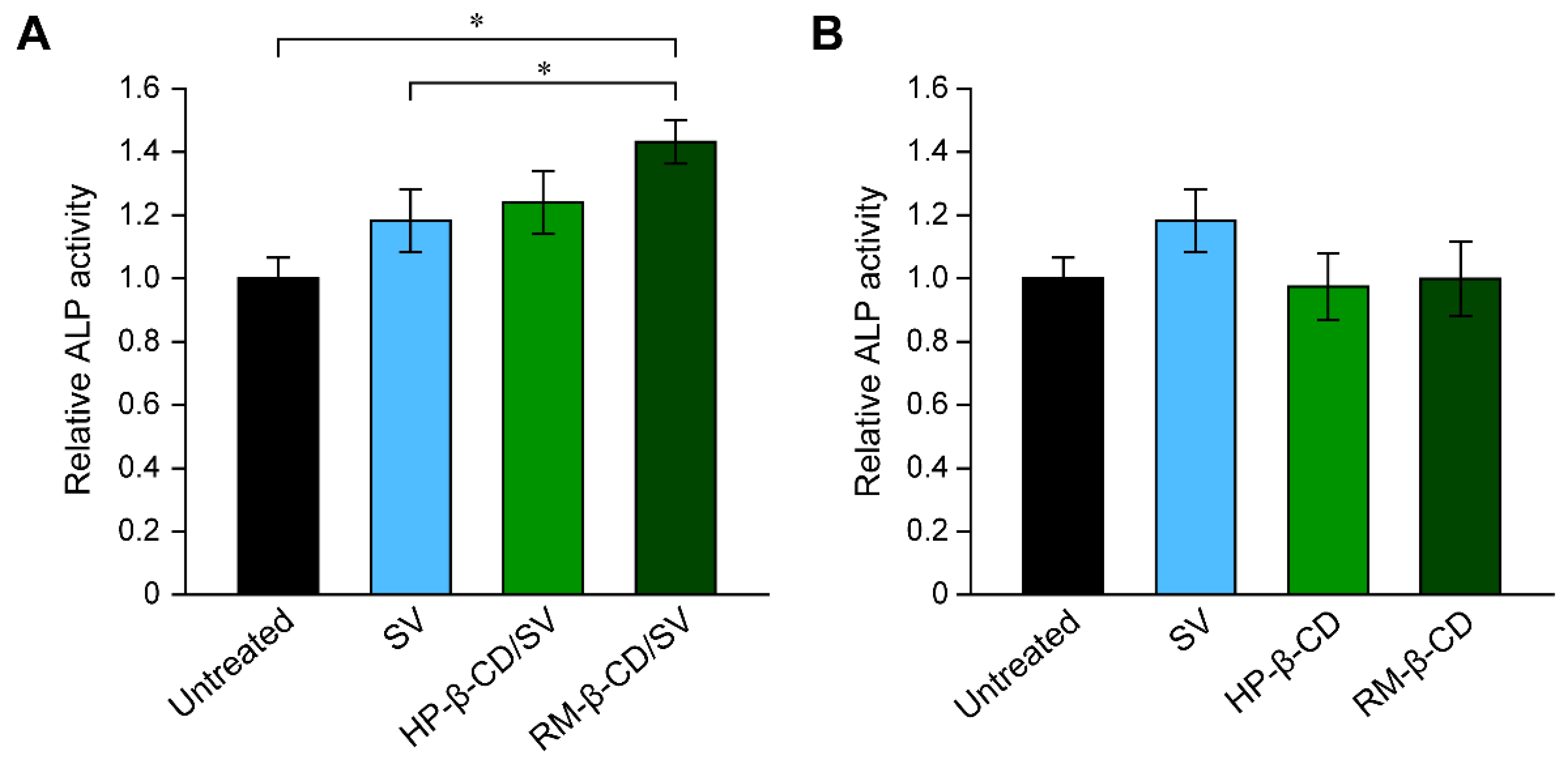

Figure 3. (A) Relative ALP activity in MC3T3-E1 cells after treatment with free SV (100 nM), HP-β-CD/SV inclusion complexes (SV: 100 nM, HP-β-CD: 1 μM), and RM-β-CD/SV inclusion complexes (SV: 100 nM, RM-β-CD: 1 μM) for 14 days. (B) Relative ALP activity in MC3T3-E1 cells after treatment with free SV (100 nM), HP-β-CD (1 μM), and RM-β-CD (1 μM) for 14 days. Data are expressed as the mean ± S.D. (n = 3, * p < 0.05). Reproduced with permission from [74] © 2016 Elsevier.
Figure 3. (A) Relative ALP activity in MC3T3-E1 cells after treatment with free SV (100 nM), HP-β-CD/SV inclusion complexes (SV: 100 nM, HP-β-CD: 1 μM), and RM-β-CD/SV inclusion complexes (SV: 100 nM, RM-β-CD: 1 μM) for 14 days. (B) Relative ALP activity in MC3T3-E1 cells after treatment with free SV (100 nM), HP-β-CD (1 μM), and RM-β-CD (1 μM) for 14 days. Data are expressed as the mean ± S.D. (n = 3, * p < 0.05). Reproduced with permission from [74] © 2016 Elsevier.
Pharmaceutics 13 00136 g003
Pharmaceutics 13 00136 g004 550

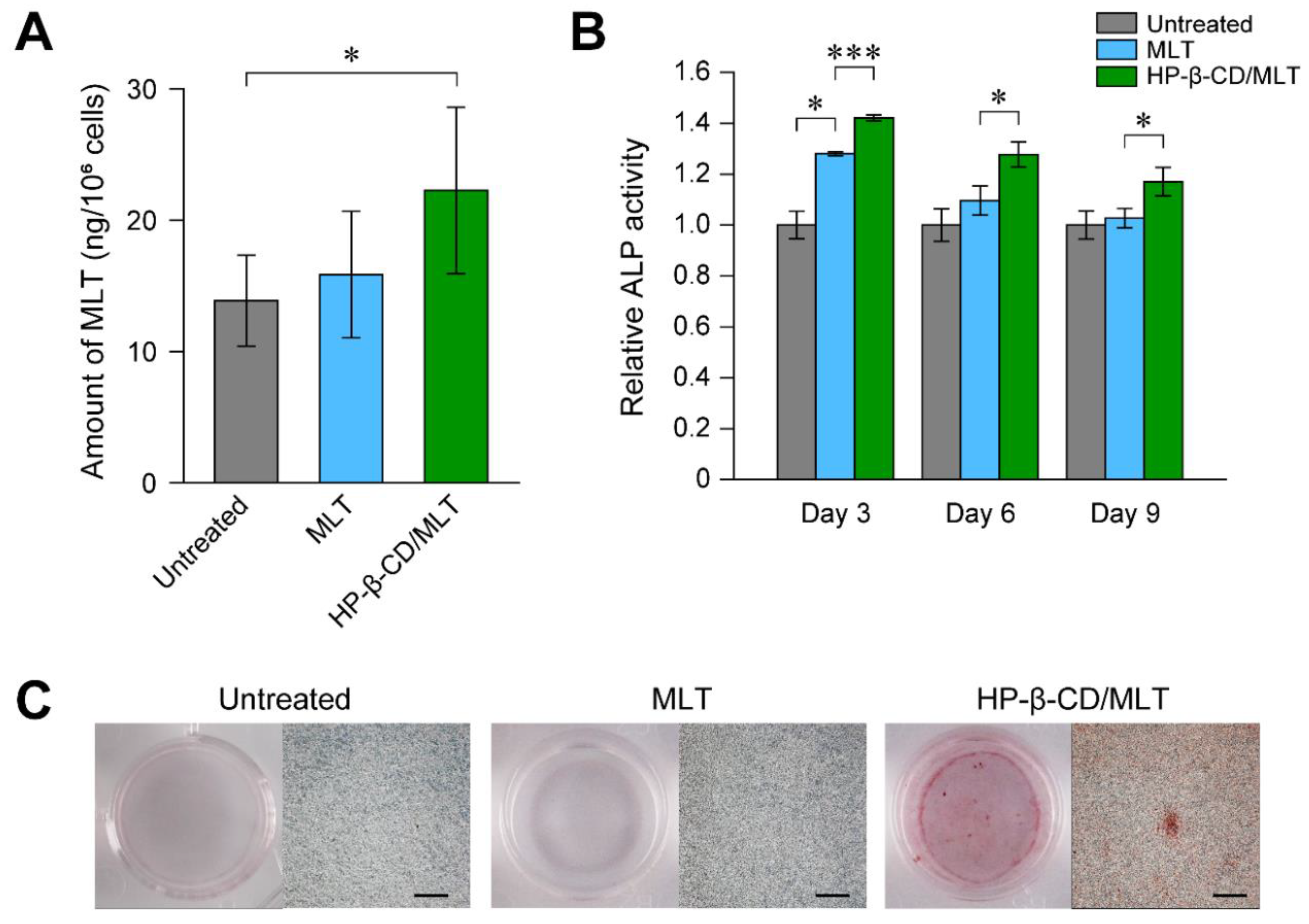

Figure 4. (A) Intracellular amount of melatonin (MLT) in MC3T3-E1 cells treated with free MLT (MLT: 1 μM) and HP-β-CD/MLT inclusion complexes (MLT: 1 μM, HP-β-CD: 1 μM) for 24 h. Data are expressed as the mean ± S.D. (n = 3, * p < 0.05). (B) Relative ALP activities in MC3T3-E1 cell treated with free MLT (100 nM) and HP-β-CD/MLT inclusion complexes (MLT: 100 nM, HP-β-CD: 100 nM) for 3, 6, and 9 days. Data are expressed as the mean ± S.D. (n = 3, * p < 0.05, *** p < 0.005). (C) Mineralized matrix formation of MC3T3-E1 cells as detected by staining with alizarin red. The cells were treated with free MLT (MLT: 100 nM) and HP-β-CD/MLT inclusion complexes (MLT: 100 nM, HP-β-CD: 100 nM) for 28 days (scale bars: 500 μm). Reproduced with permission from [79] © 2018 Elsevier.
Figure 4. (A) Intracellular amount of melatonin (MLT) in MC3T3-E1 cells treated with free MLT (MLT: 1 μM) and HP-β-CD/MLT inclusion complexes (MLT: 1 μM, HP-β-CD: 1 μM) for 24 h. Data are expressed as the mean ± S.D. (n = 3, * p < 0.05). (B) Relative ALP activities in MC3T3-E1 cell treated with free MLT (100 nM) and HP-β-CD/MLT inclusion complexes (MLT: 100 nM, HP-β-CD: 100 nM) for 3, 6, and 9 days. Data are expressed as the mean ± S.D. (n = 3, * p < 0.05, *** p < 0.005). (C) Mineralized matrix formation of MC3T3-E1 cells as detected by staining with alizarin red. The cells were treated with free MLT (MLT: 100 nM) and HP-β-CD/MLT inclusion complexes (MLT: 100 nM, HP-β-CD: 100 nM) for 28 days (scale bars: 500 μm). Reproduced with permission from [79] © 2018 Elsevier.
Pharmaceutics 13 00136 g004
Pharmaceutics 13 00136 g005 550

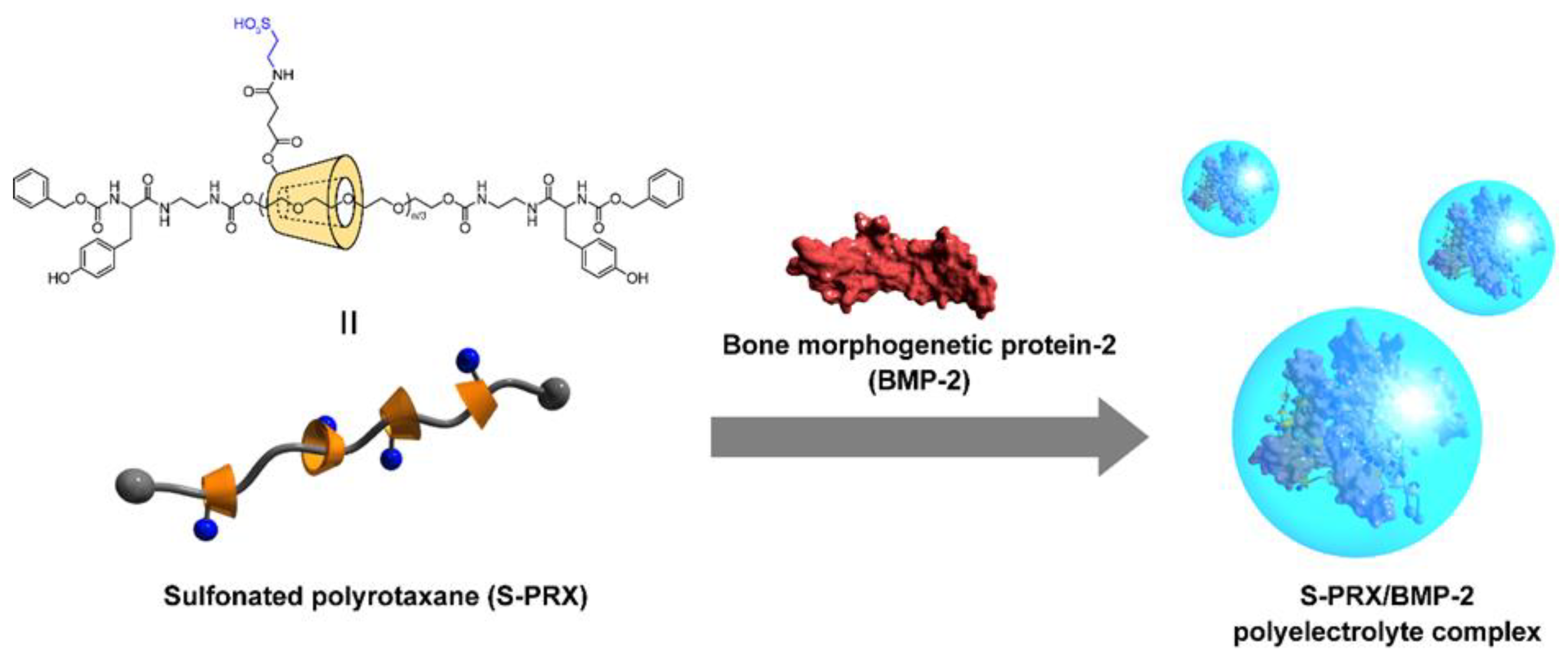

Figure 5. Chemical structure of sulfonated polyrotaxane (S-PRX), and the formation of a polyelectrolyte complex with BMP-2. Reproduced with permission from [127] © 2015 Wiley.
Figure 5. Chemical structure of sulfonated polyrotaxane (S-PRX), and the formation of a polyelectrolyte complex with BMP-2. Reproduced with permission from [127] © 2015 Wiley.
Pharmaceutics 13 00136 g005
Pharmaceutics 13 00136 g006 550

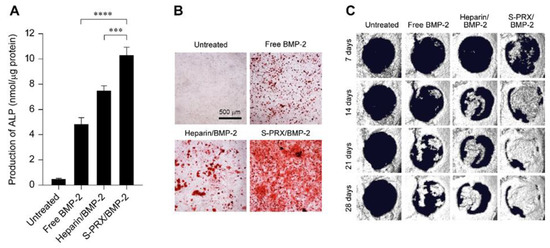

Figure 6. (A) Amount of ALP production in MC3T3-E1 cells after treatment with free BMP-2, heparin/BMP-2, and S-PRX/BMP-2 for 72 h. The concentrations of BMP-2 and the SPE-PRXs were 100 ng/mL and 1,000 μg/mL, respectively. The data are expressed as the mean ± S.D. (n = 3, *** p < 0.005, **** p < 0.001). (B) Alizarin red stained images for MC3T3-E1 cells after treatment with free BMP-2, heparin/BMP-2, and S-PRX/BMP-2 for 21 days. (C) X-ray μ-CT images of the mouse calvarial defect treated with free BMP-2, heparin/BMP-2, and S-PRX/BMP-2 complexes embedded into collagen sponges. The concentrations of BMP-2 and S-PRX were 100 ng/mouse and 1000 μg/mouse, respectively. The amount of implanted heparin was 100 μg/mouse. Reproduced with permission from [127] © 2015 Wiley and [128] © 2017 Wiley.
Figure 6. (A) Amount of ALP production in MC3T3-E1 cells after treatment with free BMP-2, heparin/BMP-2, and S-PRX/BMP-2 for 72 h. The concentrations of BMP-2 and the SPE-PRXs were 100 ng/mL and 1,000 μg/mL, respectively. The data are expressed as the mean ± S.D. (n = 3, *** p < 0.005, **** p < 0.001). (B) Alizarin red stained images for MC3T3-E1 cells after treatment with free BMP-2, heparin/BMP-2, and S-PRX/BMP-2 for 21 days. (C) X-ray μ-CT images of the mouse calvarial defect treated with free BMP-2, heparin/BMP-2, and S-PRX/BMP-2 complexes embedded into collagen sponges. The concentrations of BMP-2 and S-PRX were 100 ng/mouse and 1000 μg/mouse, respectively. The amount of implanted heparin was 100 μg/mouse. Reproduced with permission from [127] © 2015 Wiley and [128] © 2017 Wiley.
Pharmaceutics 13 00136 g006
Table
Table 1. Anionic polymers to enhance the activity of growth factors.
Table 1. Anionic polymers to enhance the activity of growth factors.
Anionic PolymerGrowth FactorReference
HeparinBMP-2[90,91]
Dextran sulfateBMP-2[90]
Dermatan sulfateBMP-2[102]
2-N,6-O-sulfated chitosanBMP-2[103]
Cellulose sulfateBMP-2[104]
Chitosan sulfateBMP-2[104]
Poly(vinyl sulfonate)FGF-2[105]
Poly(glutamic acid)BMP-2[106]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Terauchi, M.; Tamura, A.; Arisaka, Y.; Masuda, H.; Yoda, T.; Yui, N. Cyclodextrin-Based Supramolecular Complexes of Osteoinductive Agents for Dental Tissue Regeneration. Pharmaceutics 2021, 13, 136. https://doi.org/10.3390/pharmaceutics13020136

AMA Style

Terauchi M, Tamura A, Arisaka Y, Masuda H, Yoda T, Yui N. Cyclodextrin-Based Supramolecular Complexes of Osteoinductive Agents for Dental Tissue Regeneration. Pharmaceutics. 2021; 13(2):136. https://doi.org/10.3390/pharmaceutics13020136

Chicago/Turabian Style

Terauchi, Masahiko, Atsushi Tamura, Yoshinori Arisaka, Hiroki Masuda, Tetsuya Yoda, and Nobuhiko Yui. 2021. "Cyclodextrin-Based Supramolecular Complexes of Osteoinductive Agents for Dental Tissue Regeneration" Pharmaceutics 13, no. 2: 136. https://doi.org/10.3390/pharmaceutics13020136

APA Style

Terauchi, M., Tamura, A., Arisaka, Y., Masuda, H., Yoda, T., & Yui, N. (2021). Cyclodextrin-Based Supramolecular Complexes of Osteoinductive Agents for Dental Tissue Regeneration. Pharmaceutics, 13(2), 136. https://doi.org/10.3390/pharmaceutics13020136

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
