In Vitro Dissolution and in Silico Modeling Shortcuts in Bioequivalence Testing

by
Moawia M. Al-Tabakha
1,* and
Muaed J. Alomar
2
1
Department of Pharmaceutical Sciences, College of Pharmacy and Health Sciences, Ajman University, P.O. Box 346, Ajman, UAE
2
Department of Clinical Sciences, College of Pharmacy and Health Sciences, Ajman University, P.O. Box 346, Ajman, UAE
*
Author to whom correspondence should be addressed.
Pharmaceutics 2020, 12(1), 45; https://doi.org/10.3390/pharmaceutics12010045
Submission received: 6 December 2019 / Revised: 31 December 2019 / Accepted: 2 January 2020 / Published: 4 January 2020
(This article belongs to the Special Issue Mechanistic In Vitro and In Silico Modeling of Oral Drug Absorption)
Browse Figures
Versions Notes

Abstract

:
Purpose: To review in vitro testing and simulation platforms that are in current use to predict in vivo performances of generic products as well as other situations to provide evidence for biowaiver and support drug formulations development. Methods: Pubmed and Google Scholar databases were used to review published literature over the past 10 years. The terms used were “simulation AND bioequivalence” and “modeling AND bioequivalence” in the title field of databases, followed by screening, and then reviewing. Results: A total of 22 research papers were reviewed. Computer simulation using software such as GastroPlus™, PK-Sim® and SimCyp® find applications in drug modeling. Considering the wide use of optimization for in silico predictions to fit observed data, a careful review of publications is required to validate the reliability of these platforms. For immediate release (IR) drug products belonging to the Biopharmaceutics Classification System (BCS) classes I and III, difference factor (ƒ1) and similarity factor (ƒ2) are calculated from the in vitro dissolution data of drug formulations to support biowaiver; however, this method can be more discriminatory and may not be useful for all dissolution profiles. Conclusions: Computer simulation platforms need to improve their mechanistic physiologically based pharmacokinetic (PBPK) modeling, and if prospectively validated within a small percentage of error from the observed clinical data, they can be valuable tools in bioequivalence (BE) testing and formulation development.

1. Introduction

To classify drugs based on their aqueous solubility and intestinal permeability, the Biopharmaceutics Classification System (BCS) represents a cornerstone for four-category classification. The BCS categories are: class I (high solubility, high permeability), class II (low solubility, high permeability), class III (high solubility, low permeability), and class IV (low solubility, low permeability) [1]. BCS is of particular significance because it is required in any new drug application (NDA) and allows for biowaivers of classes I and III drugs when applying for abbreviated new drug application (ANDA) [2]. Therefore, this system has been widely used since its inception in 1995 by Amidon et al., with adoption by various regulatory agencies [3]. Normally, for establishing bioequivalence, the calculated 90% confidence interval of the ratios for area under the drug concentration-time curve (AUC) and maximum concentration (Cmax) of the test and reference products should fall within 80% to 125% of the point estimate [4,5].
Prior to 2015, the US Food and Drug Administration (FDA) only considered biowaivers for class I drugs. Thereafter, the FDA biowaiver to class III drugs was a convergence with other health legislative authorities, including the European Medicines Agency (EMA) and the World Health Organization (WHO) [6]. Thereby, by applying the most conservative guidelines for bioequivalence (BE) testing, it would be feasible to obtain marketing authorization in different jurisdictions, including emerging regulators.
Biowaivers avoid unnecessary use of human testing, facilitate access to different markets, save time, and effectively reduce development costs. The biowaiver is based on the idea that two drug formulations/products are bioequivalent when: (i) they are immediate-release (IR) and act as oral solutions within the gastrointestinal (GI) tract, (ii) there is no precipitation of the active pharmaceutical ingredient (API) once dissolved in the GI tract, and (iii) the formulations exhibit rapid or very rapid in vitro dissolution using the recommended test methods [6]. The FDA further requires that for class I drug formulations, excipients will not affect the rate or extent of drug absorption, while for class III drug formulations, the test product is qualitatively the same and quantitatively very similar to the reference [7].
Other than BE testing of generic drug products compared to a reference, a newly marketed product needs to be bioequivalent with the clinical-scale formulation undertaken in phase III trials. This also applies to post-approval changes in the commercialized product. Different scenarios exist for BE testing, such that potential for biowaivers exists. In class III drugs, if the excipients used in the formulations do not influence absorption and the dissolution is very rapid, then there is no reason for them not to be bioequivalent [6]. To provide evidence, the difference factor (ƒ1) and similarity factor (ƒ2) can be used. If the drug dissolution from the tested products is at least 85% within 15 min in different dissolution media, then these factors need not be calculated, as the products’ bioequivalence is self-evident, because the drug formulation will be in solution form once it reaches the duodenum [4]. There has been a debate as to whether the point estimate ƒ2 is reliable when there is a significant batch-to-batch variation, and bootstrap confidence intervals for ƒ2 have therefore been suggested [8].
In silico simulation programs have taken a significant role in NDAs and ANDAs in recent years based on physiologically-based pharmacokinetic models (PBPK) that provide a mechanistic framework for prediction of drug exposure in humans [9,10]. In silico simulations have been suggested to reduce time and effort in developing generic drug products (see Figure 1).
In silico platforms include SimCyp® (a Certara company, Sheffield, UK), which uses PBPK modeling and simulation capabilities for virtual BE. Specialized software such as nonlinear mixed-effects modeling (NONMEM®, ICON Plc., Dublin, Ireland), and the mechanistic oral absorption modeling and simulation PK-Sim® (Bayer Technology Services GmbH, Leverkusen, Germany) allow extrapolation of plasma concentration-time profiles from the in vitro data. These platforms will not only help to reduce time, but also support biowaiver application.
The aforementioned models have not been studied thoroughly against their claims. One study indicated that differences between observed and simulated Cmax and AUC which are typically used in BE study can be variable, and as large as 10 folds, which is much higher than the typically accepted difference [11]. Variability within twofold is commonly accepted; however, recommendations were to limit this to 1.25 folds [12].
Parameter fitting in PBPK modeling is an essential part of model refinement, provided that it can be justified. While having details of codes and data are essential for the reproducibility of published data, the complexity of databases and algorithms within commercial platforms do not allow for publishing all the details. However, if details of parameters in compound and population models are published, the study can be reproduced using the specific platform. On the other hand, there have been many publications using easy parameter fitting not substantiated by reliable evidence and falsely showing the fitted results as “prediction”. In addition, the model equations and physiological parameters have often not been completely disclosed, suggesting that many articles have been published without appropriate peer review.
Since these platforms are different and are continuously updated to tune and improve their prediction power [13], a careful review of these models is warranted to provide information regarding the extent to which they can be useful. Therefore, the aims of this work were to systematically review the in silico platforms for their reliability in providing bioavailability (BA) information about drug products and to evaluate the suitability of the point estimate ƒ2 in support of biowaiver applications.

2. Search Methodology

The preparation of this systematic review followed the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [14]. The databases used for the literature review were PubMed and Google Scholar. The timeline for the reviewed studies covered the past 10 y period. The terms used in searching PubMed and Google Scholar were required to be in the title of the manuscript. These terms were: “simulation AND bioequivalence” and “modeling AND bioequivalence” in the English language. Publications from the literature review were additionally screened in all databases used depending on the abstracts to exclude results not directly addressing BE in vitro, or not using simulation/modeling programs for bioequivalence testing such as statistical methods only. For the purpose of critically reviewing the resulting literature, the search was later extended to other publications.

3. Literature Reviewed

Searching the databases yielded a total of 22 results after removing duplications and screening the articles in accordance with the PRISMA flowchart. Figure 2 shows the outcomes of the literature search.
The review of the 22 articles showed that among simulation platforms, GastroPlus™ (Simulation Plus, Lancaster, CA, USA) was used most frequently followed by SimCyp®. Similarity and difference factors from the in vitro dissolution studies were also common (see Table 1 for more details).

4. Similarity and Difference Factors

The model-independent mathematical approach was introduced by Moore and Flanner in 1996 included the calculation of difference factor (ƒ1) and similarity factor (ƒ2) to compare the dissolution profiles of the different generics, and generics to branded drug products [36]. The relative difference between two curves ƒ1 values up to 15% indicates little difference between two dissolution curves, while drug products are considered similar when the calculated ƒ2 is between 50 to 100 [4]. In one study, ƒ1 and ƒ2 and PBPK simulations for atorvastatin formulations proved to be bioequivalent, supporting the argument for class II inclusion in biowaiver applications, ideally in silico modeling in conjunction with in vitro dissolution [37]. However, for class II drug products, the probability of BE after a similar dissolution profile was 61% with false positive results (similar dissolution but not bioequivalent (NBE)) was up to 90% [38,39].
In vitro dissolution studies are essential in BE testing; however, studies indicated that the lower limit in the ƒ2 (i.e., 50) should be further lowered to match observed in vivo BE results [4,16,22,24]. Moreover, the one-point estimate for ƒ2, together with the dissolution model-independent approach (i.e., not being mechanistic in nature) are considered drawbacks of this approach. Islam and Begum suggested the use of the conservative bootstrap confidence intervals for dissolution similarity because of the limitations of the point estimate ƒ2 [8]. They used non-parametric and parametric methods for the construction of confidence intervals and found them both to yield similar results. The point estimate ƒ2 can still be valid if the data variability is low, otherwise much more than 12 units would be necessary to run the dissolution experiment. Alternative model-dependent and independent methods can also be used to assess dissolution similarity when data variability is high, as when within-batch coefficient of variation (CV) is >15% [40]. These include the most commonly cited by regulatory agencies, the multivariate statistical distance (MSD). It can be determined using the raw dissolution data with or without time variables as parameters [41].

5. GastroPlus™

GastroPlus™ is available with different modules depending on the area of investigation, making it a versatile application software. Simulations using GastroPlus™ were claimed to support biowaiver for class III drugs such as cimetidine, atenolol, and amoxicillin, which could also be extended to other class III drugs [27]. For lesinurad, a class II drug, it was claimed that the FDA accepted the control strategy for the IR tablets based on product dissolution and particle size specifications using GastroPlus™ PBPK modeling without the need for BA study [9,28]. However, careful examination of the Pepin et al. study showed that the adjusted theoretical particle size distribution of lesinurad based on in vitro dissolution profiles was unlikely to be realistic [28]. In this respect, they nevertheless used the theoretical particle size as input into GastroPlus™. They justified the unusual theoretical particle size distribution as likely to be the impact of the granulation and disintegration process. Recent publications suggest that the FDA is more prudent regarding the use of modeling and simulation for a regulatory purpose, because of the need to establish the model’s “credibility” for its intended use [42].
In agreement with the review of Li et al., GastroPlus™ was the most widely used platform [43]. Their recent review of the predictive performance of PBPK models using different platforms (i.e., GastroPlus™, SimCyp®, and STELLA) for the effect of food on oral drug absorption showed that among the 48 food effect predictions, 50% were predicted within 1.25 fold of observed values, and 75% within 2 fold [43]. Even the more rigorous 1.25-fold variability with the observed values could falsely lead to BE or NBE conclusions (Figure 3). The rationale to use of 1.25 fold was to be in concordance with the accepted bioequivalence 80 to 125% range from the reference product. Furthermore, by careful examination of the graphic presentation of datasets for predicted versus observed values of AUC, Cmax and time to maximum concentration (tmax) ratios, in the Li et al. review, it was evident that there was little or no reliable prospective predictability. The authors concluded that the experience to draw any conclusion is still inadequate.
GastroPlus™ was employed to predict food effects on generic and reference class II drug formulations [23]. The predicted food effects were up to 10% prediction error and the virtual BE study confirmed that the products were bioequivalent. Although the authors used 1000 mL of media for their dissolution studies, they stated that sink conditions were not achieved. Nevertheless, they used the dissolution data for input into the GastroPlus™. Furthermore, because of the limited data available, they assumed the bioavailability to be 40%, and consequently had to lower clearance and volume of distribution in the PKPlus™ module.
Mitra et al. investigated the reliability of GastroPlus™ and the PKPlus™ module to simulate plasma concentration vs. time profiles for drugs of classes I and II [44]. The prediction for both classes closely matched the observed data, claiming that PK parameters were predicted accurately. Hence, the model was considered acceptable for predicting successes of BE based on dissolution data. However, they modified or used default values for absorption scale factor (ASF), effective permeability (Peff) and/or fluid in the gastrointestinal (GI) tract to fit observed data which makes the reliability of GastroPlus™ questionable. In this respect, Mitra et al. modified the ASF in the duodenum of human fasted physiological model from the default of 2.794 to 3.794 (136% increase) to better fit the observed data from absolute bioavailability using 120-mg oral dose and 25-mg IV dose [18]. They justified the change as within possible ranges for in vivo deviation of parameters merely relying on in vitro measurements.
The use of unreliable data is common in publications involving simulations. For example, to simulate plasma concentrations, input data was used from the different knowledgebase, including predictions from ADMET Predictor™, a module in the GastroPlus™, such as the Peff [24]. In this respect, fitting of the data was common [28,35,45,46] and could be unrealistic [46]. Model equations and physiological parameters were not given and only stated as “default” [46,47]. These inconsistencies in using GastroPlus™ for predicting BE profiles, coupled with the easy fitting of parameters as with other platforms may cause the results to be subjective in nature and unreliable. On the other hand, the use of default parameters within a commercially available platform is usually part of the advantage of using such platforms, with databases and parameters that have been extensively researched and validated. To validate GastroPlus™ properly, a prospective study is needed whereby results from the platform are subsequently verified by in vivo observations to be within acceptable difference, which is much less than commonly cited in the literature. This requirement is not fulfilled by the study of Basu et al., where the dissolution profile predictions from Dose Disintegration and Dissolution Plus (DDDPlus™), a piece of software that can be integrated with the GastroPlus™ platform, were retrospectively compared to the reported ANDA for metoprolol test and reference ER formulations [26].
One claimed benefit of GastroPlus™ is enabling mechanistic comprehension of IVIVC under different conditions [48]. For example, a rifampicin-loaded solidified self-nanoemulsifying drug delivery system demonstrated a good IVIVC level A with a predicted systemic absorption of 96.5% using IVIVCPlus™ module of GastroPlus™ [46]. For this, physicochemical input parameters were experimental, literature, or ADMET Predictor®-based and deconvolution and then convolution to generate predictions and reconstruct the plasma drug concentration curve was applied. IVIVCPlus® module in GastroPlus™ was also used for IVIVC modeling using deconvolution methods to obtain in vivo dissolution profiles. Although this method is traditionally used, it is subject to both mechanistic and statistical concerns. Deconvolution methods work better when the drugs completely follow first-order PK [49].
The PBPK simulation model GastroPlus™ was used to support FDA application to authorize lesinurad (class II drug) marketing as well as few other drugs without the need for bioavailability (BA) study [9]. However, the published literature and perhaps also the results from submissions to the FDA may be biased, because only the “good” results tend to be published or submitted, whereas the “true” picture may be lost. It is always important to consider the “publication bias” when interpreting the results, especially when the knowledgebase is still small.

6. SimCyp®

The population-based simulator of SimCyp® includes demographic, physiologic and genomic databases to account for patient variability. Typical simulation uses of SimCyp® are provided in the flowchart of Figure 4. The effect of drug-drug interactions (DDIs), mediated by cytochrome P450 isoenzymes modulators, were assessed using Simcyp® and was claimed to be capable of testing DDIs in untested scenarios [50]. However, default models were used in the software and applied selective distribution PBPK models depending on the drug. They accepted clearances and AUCs within two folds of the observed values. This can potentially lead to wrong conclusions in comparison to the more rigorous limit of 1.25 fold. Wagner et al. studied the effects of CYP3A inducers on substrate exposures based on FDA PBPK submissions between 2008 and 2014 [12]. They found that the only PBPK software used was the SimCyp® in all submissions and that the software’s default rifampicin model as strong inducer would need to be modified in order to improve AUC and Cmax ratios for predicted over-observed values.
Since some drugs’ bioavailability might be affected by coadministration with drugs that elevate stomach pH, Fan et al. studied the effect of proton pump inhibitor (PPI) on prasugrel HCl product bioequivalence using Simcyp® [32]. The platform was not able to distinguish between the drug salt and the base present in different proportions in the tested formulations and therefore not able to predict the whole Cmax based on one deconvoluted intrinsic base solubility. Hence, a series of relationships between Cmax and the base content was predicted based on the deconvoluted base solubilities of formulations containing different proportions of the base. Failure in BE testing was more probable when the base content in the formulations exceeded 20% (i.e., the salt is <80%). The authors used predicted values from ADMET predictor® in GastroPlus™ and fitted values based on the observed plasma concentration data. They assumed the gastric pH of the fasting stomach to be 1.2, the absorbed fraction is the same regardless of base proportion, and that no interaction occurs between the base and the salt. These can be black boxes in assessing the reliability of the platform.
The concentration-time profile of perampanel was also claimed to be adequately predicted in another study focusing on the CYP3A inhibitor ketoconazole effect as a case for DDI [51]. The authors, however, used SimCyp® to gain additional information in phase I clinical study. Additionally, they included the intrinsic clearance retrospectively from the observed clinical data to allow better AUC prediction.
The bioequivalence of levothyroxine and nifedipine formulations was studied utilizing Simcyp® based on PBPK modeling framework in achlorhydria conditions such as in the elderly [31]. In vitro dissolution profile in neutral pH was used as input into the model. Unlike levothyroxine (class III drug), good virtual IVIVC was obtained for nifedipine (class II drug), irrespective of pH. The IVIVCs were between in vitro dissolution at different pH and the deconvoluted in vivo dissolution obtained by the platform from plasma concentration profiles in fasted and fed state. It has been shown that deconvolution is an unstable process and associated with several statistical limitations [52]. The authors nevertheless concluded it is important to establish IVIVC and that after PBPK model verification from bioequivalence clinical data in healthy volunteers, it will be possible to use virtual bioequivalence study in specific patient populations. In their study, several drugs’ physicochemical values were either default or predicted in Simcyp®, which may reduce the reliability of the results.
Correlation coefficients between SimCyp®-predicted concentration profiles and the observed plasma concentrations of rusovastatin (BCS class III drug) after oral administration were described as good ranging between 0.85 and 0.87 [53]. However, the study involved searching for the best parameter values for Peff estimation that produce plasma concentration matching the observed values. It was also reported that SimCyp® is capable of predicting PK parameters of the elderly population for a variety of drugs [54]. While the defaults of the platform, such as liver volume and blood flows and enzyme status, are for the North European Caucasian population, it allows changes to parameters based on other populations. The authors provided equations for the calculation of PK parameters and the description of changes in the elderly population. However, to validate the SimCyp® predictions with the observed data for orally administered seven drugs, they claimed that clearances were predicted satisfactorily even though some drugs’ predicted clearances were within 1.5 folds of the observed values.
In silico platforms Simcyp®, GastroPlus™, and GI-Sim (AstraZeneca internal tool) were examined for performance by comparing the predicted plasma concentration-time profiles [55]. The prediction accuracy was based on the absolute average fold error (AAFE) for the PK parameters Cmax, time to maximum concentration (tmax), and AUC. For AUC, the AAFE values ranged from 1.7–2.2, 1.5–1.6, and 1.3–1.4 for Simcyp®, GastroPlus™, and GI-Sim, respectively with a tendency for underprediction of AUC and Cmax using Simcyp® and GastroPlus™. Despite the authors claiming that GastroPlus™ and GI-Sim performed better than Simcyp® several pitfalls were noted. These include the use of default drug parameters, issues with estimating pharmacokinetic (PK) parameters from fraction absorbed, and the operator bias in selecting input parameter values and in model options in the platforms [56].

7. NONMEM®

The nonlinear mixed-effects modeling (NONMEM®) was developed starting from the 1970s by Lewis Sheiner and Stuart Beal at the University of California. Initially, it was intended for the analysis of PK, but now has been extended to be a tool for population PK/pharmacodynamic (PD) analysis [57]. The virtual simulations of NONMEM® to study bioequivalence using single and multiple-dose administration to predict Cmax and steady-state concentrations (SSC), respectively showed that while single-dose administration resulted in significant differences, they might not be sensitive to predict failure in BE for steady-state concentrations [58]. These results were also supported by Kim et al. [35]. Kim et al. needed to use absorption lag time and fix the maximal nonlinear clearance in NONMEM® for the PK model to better fit the observed values.
Cuesta-Gragera et al. tested the validity of NONMEM® for an adapted semi-physiological model of acetylsalicylic acid [19]. They used pharmacokinetic parameters input from literature to validate concentration-time curves obtained and found them to be closely predicting the actual published experimental data. The results of Cmax ratios were more sensitive to the change in the in vivo dissolution rate constant than did the AUC ratios. Metformin (class III drug) was also examined for model fitting in NONMEM® and was found to be best described by two-compartment as it provides an adequate agreement between predicted and observed concentration values [34]. Their study simulation study results were compared retrospectively to clinical data available internally in their company Novartis to show that country drug source or race has a negligible effect on the PK parameters. This could benefit the company’s argument that there is no need for additional bioequivalence studies with multiple countries’ reference products if bioequivalence is established with one country. Metformin formulations were also assessed for their bioequivalence by developing a population PK model using NONMEM® based on comparative PK study of a single agent and a fixed-dose combination of metformin in 36 healthy Korean volunteers. It was found to be best described by a two-compartment model, first-order elimination with two absorption processes separated by a lag time [59]. The study, however, concluded that actual clinical trials should be conducted and that simulations would be useful only to identify possible differences in formulations.
NONMEM® was used to simulate concentration-time profiles of liposome-encapsulated doxorubicin and free doxorubicin based on observed concentrations after in vivo administration of the innovator product [60]. They were well characterized by a one- and two-compartment model, respectively. The purpose of the simulation study was to find the most discriminatory metric to the difference between doxorubicin release from the test and reference product. The platform was also used to generate Monte Carlo simulations of all bioequivalence studies to determine which analyte (whether parent drug or any of its active metabolites) is most sensitive to formulation changes and results from different scenarios demonstrated the analyte to be the parent drug [61]. Formulation changes were made through altering in vivo dissolution, which indicates that the platform can be subject to optimization by the operator. In another study, the simulated concentration-time profiles following formulation changes obtained by GastroPlus™ were used as pharmacokinetic input into NONMEM® to determine if pharmacokinetics changes would affect the metoprolol pharmacodynamics significantly [62]. However, it was found that no significant therapeutic effect differences were produced despite pharmacokinetic changes, but this was attributed to the insensitivity of the endpoint used. The study nevertheless demonstrates that predictions from one platform were used in another platform.
Because traditional IVIVCs based on deconvolution/convolution assume linearity in PK, they cannot be applied to drugs exhibiting non-linear PK. In this respect, Gaynor et al. suggested the use of a compartmental approach based on differential equations using NONMEM® to conveniently fit the nonlinearity with speed computer run-time [63]. They used a convolution approach which is superior to deconvolution; however, they simulated the data so that strong IVIVC would exist to serve their study purpose.

8. PK-Sim®

PK-Sim® is a tool for body PBPK modeling in humans and the common laboratory animals such as mouse, rat, minipig, dog, and monkey. The model considers dosage form dependent GI transit, disintegration, and dissolution processes of various IR and ER dosage forms [13].
In a study, PK-Sim® was used to assess the performances of seven generic products of 25 mg carvedilol (class II drug) tablets in the Uruguayan market [64]. The in vitro drug release was shown to affect carvedilol predicted Cmax, demonstrating the need for similar in vivo bioequivalence testing of other commonly used drugs. The authors, however, used the unorthodox dissolution USP-4 apparatus results as input into the platform, justifying this as a more biorelevant scenario for in vitro comparison. They also used physicochemical, PK, pharmacodynamic parameters reported in the literature and the platform defaults for anatomical and physiological parameters variability between subjects and for transit times across the GIT.
To estimate azithromycin (class I drug) Peff in PK-Sim®, the best values that would produce concentration-time profiles matching the observed was used [65]. While doing this, the authors claimed that there was a good fit between the observed and predicted concentration profiles. Although BE studies usually recruit a small number of healthy subjects, they are calculated to detect any difference in the BE metrics. The authors in their clinical study used only eight subjects without indicating its study power, while regulatory agencies require a minimum of 12 subjects [66]. PK-Sim® was claimed to be useful in separating the confounding factors of intestinal and first-pass metabolism that would affect the deconvoluted in vivo dissolution data traditionally used in IVIVC; however, little information was obtained regarding its use [67].

9. Other in Silico Platforms

Other simulation models exist, such as generic PBPK mode using MATLAB® software (MathWorks, Inc., München (Ismaning), Germany.). It was used for additional investigation of the output from NONMEM®, model simulations, and statistical and graphical analyses [68]. The GI-Sim model was used to investigate the absorption of 12 APIs chosen because of permeability/dissolution limitations [69]. The authors claimed that good predictions were obtained by GI-Sim for >95% of the drugs, as values of Cmax and AUC were within 2 folds of the observed clinical data. Not only could two folds be considered insipid for describing the GI-Sim as having “good” predictions, but two of the authors were also from the same GI-Sim-owned company.
Several other platforms have been discussed by other researchers [13,70,71,72]; however, they did not gain as much popularity as the platforms presented in the review. Regulatory agencies have shown interest in better understanding the simulation platforms’ reliability in dossier applications with consistency in reporting [73]. In 2012, the European Union (EU) initiated work packages under the project oral biopharmaceutics tools (OrBiTo) to improve oral absorption prediction tools based on formulation variables [74]. The FDA internal research initiatives included a potential grant for the development of a virtual bioequivalence trial simulation platform that integrates population pharmacokinetic modeling algorithms into PBPK models [75].

10. Conclusions

The BCS is well established as an approach for biowaivers, therefore not requiring in vivo BA and BE studies for class I and III IR solid oral dosage forms. GastroPlus™ appears to be the most widely used platform that may benefit drug development companies by reducing their time, efforts and associated costs. Nevertheless, publication biases and fitting methods prevent distinguishing the merits of one platform over others present in this review. Continuous development of in silico methods will ensure enhanced predictability in comparison to actual BE testing. This can be achieved by a more complexed mechanistic approach that is capable of accounting for a variety of confounding factors that are associated with the PBPK modeling and eliminating modeler bias in the selection of input parameter values. Validated platforms with prospective predictivity less than the recommended 1.25 fold of the observed values are needed. Publications tend to optimize the fitting of different parameters to match observed ones retrospectively and assume predictions within two folds to be satisfactory. These make the current in silico platforms black boxes. Regulatory agencies need to be assured of the validity of the simulation platforms and experiences in this field are still immature. The strict ƒ2 values used in biowaiver applications should be revised to reflect in vivo performances of drug products, while other mechanistic and model-independent approaches should be explored, especially when the in vitro dissolution data tend to vary considerably.

Author Contributions

Conceptualization, M.M.A.-T. and M.J.A.; Methodology, M.M.A.-T.; Formal Analysis, M.M.A.-T.; Investigation, M.J.A.; Writing—Original Draft Preparation, M.M.A.-T.; Writing—Review & Editing, M.J.A.; Project Administration, M.M.A.-T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AAFEAbsolute average fold error
ANDAAbbreviated new drug application
APIActive pharmaceutical ingredient
ASFAbsorption scale factor
AUCArea under drug concentration-time curve
BABioavailability
BEBioequivalence
BCSBiopharmaceutics Classification System
CmaxMaximum plasma drug concentration
CVCoefficient of variation
DDIsDrug-drug interactions
EMAEuropean Medicines Agency
ERExtended-release
EUEuropean Union
ƒ1Difference factor
ƒ2Similarity factor
FDAFood and Drug Administration
GIGastrointestinal
GITGastrointestinal tract
IRImmediate release
IVIntravenous
IVIVCIn vitro-in vivo correlation
MRModified release
MSDMultivariate statistical distance
NBENonbioequivalence
NDANew drug application
NONMEMNonlinear mixed effects modeling
OrBiToOral biopharmaceutics tool
PBPKPhysiologically based pharmacokinetic
PDPharmacodynamic
PeffEffective permeability
PKPharmacokinetic
PPIProton pump inhibitor
PRISMAPreferred Reporting Items for Systematic Reviews and Meta-Analyses
SSDSteady-state concentrations
USPUnited States Pharmacopeia
WHOWorld Health Organization

References

  1. Gatarić, B.; Parojčić, J. Application of data mining approach to identify drug subclasses based on solubility and permeability. Biopharm. Drug Dispos. 2019, 40, 51–61. [Google Scholar] [CrossRef] [PubMed]
  2. Cardot, J.-M.; Garcia Arieta, A.; Paixao, P.; Tasevska, I.; Davit, B. Implementing the Biopharmaceutics Classification System in Drug Development: Reconciling Similarities, Differences, and Shared Challenges in the EMA and US-FDA-Recommended Approaches. AAPS J. 2016, 18, 1039–1046. [Google Scholar] [CrossRef] [PubMed]
  3. Tsume, Y.; Mudie, D.M.; Langguth, P.; Amidon, G.E.; Amidon, G.L. The Biopharmaceutics Classification System: Subclasses for in vivo predictive dissolution (IPD) methodology and IVIVC. Eur. J. Pharm. Sci. 2014, 57, 152–163. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Al-Tabakha, M.; Fahelelbom, K.; Obaid, D.E.E.; Sayed, S. Quality Attributes and In Vitro Bioequivalence of Different Brands of Amoxicillin Trihydrate Tablets. Pharmaceutics 2017, 9, 18. [Google Scholar] [CrossRef] [Green Version]
  5. Leuratti, C.; Loprete, L.; Rossini, M.; Frangione, V.; Rovati, S.; Radicioni, M. Pharmacokinetics and Safety of a Diclofenac Sodium 75 mg/1 mL Solution (Akis®/Dicloin®) Administered as a Single Intravenous Bolus Injection in Healthy Men and Women. Eur. J. Drug Metab. Pharmacokinet. 2019, 44, 681–689. [Google Scholar] [CrossRef] [Green Version]
  6. Davit, B.M.; Kanfer, I.; Tsang, Y.C.; Cardot, J.-M. BCS Biowaivers: Similarities and Differences Among EMA, FDA, and WHO Requirements. AAPS J. 2016, 18, 612–618. [Google Scholar] [CrossRef] [Green Version]
  7. Center for Drug Evaluation and Research (CDER). Waiver of In Vivo Bioavailability and Bioequivalence Studies for Immediate-Release Solid Oral Dosage Forms Based on a Biopharmaceutics Classification System: Guidance for Industry. Available online: https://www.fda.gov/media/70963/download (accessed on 12 October 2019).
  8. Islam, M.M.; Begum, M. Bootstrap confidence intervals for dissolution similarity factor f2. Biom. Biostat. Int. J. 2018, 7, 397–403. [Google Scholar] [CrossRef] [Green Version]
  9. Shebley, M.; Sandhu, P.; Emami Riedmaier, A.; Jamei, M.; Narayanan, R.; Patel, A.; Peters, S.A.; Reddy, V.P.; Zheng, M.; de Zwart, L.; et al. Physiologically Based Pharmacokinetic Model Qualification and Reporting Procedures for Regulatory Submissions: A Consortium Perspective. Clin. Pharmacol. Ther. 2018, 104, 88–110. [Google Scholar] [CrossRef]
  10. Peters, S.A.; Dolgos, H. Requirements to Establishing Confidence in Physiologically Based Pharmacokinetic (PBPK) Models and Overcoming Some of the Challenges to Meeting Them. Clin. Pharmacokinet. 2019, 58, 1355–1371. [Google Scholar] [CrossRef] [Green Version]
  11. Zhang, F.; Bartels, M.; Clark, A.; Erskine, T.; Auernhammer, T.; Bhhatarai, B.; Wilson, D.; Marty, S. Performance evaluation of the GastroPlusTM software tool for prediction of the toxicokinetic parameters of chemicals. SAR QSAR Environ. Res. 2018, 29, 875–893. [Google Scholar] [CrossRef]
  12. Wagner, C.; Pan, Y.; Hsu, V.; Hsu, V.; Sinha, V.; Zhao, P. Predicting the Effect of CYP3A Inducers on the Pharmacokinetics of Substrate Drugs Using Physiologically Based Pharmacokinetic (PBPK) Modeling: An Analysis of PBPK Submissions to the US FDA. Clin. Pharmacokinet. 2016, 55, 475–483. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, X. Bioequivalence: Modeling and Simulation. In FDA Bioequivalence Standards; Yu, L.X., Li, B.V., Eds.; AAPS Advances in the Pharmaceutical Sciences Series; Springer and American Association of Pharmaceutical Scientists: New York, NY, USA, 2014; pp. 395–417. [Google Scholar]
  14. Pidgeon, T.E.; Wellstead, G.; Sagoo, H.; Jafree, D.J.; Fowler, A.J.; Agha, R.A. An assessment of the compliance of systematic review articles published in craniofacial surgery with the PRISMA statement guidelines: A systematic review. J. Cranio-Maxillofac. Surg. 2016, 44, 1522–1530. [Google Scholar] [CrossRef] [PubMed]
  15. Silva, N.E. Modeling and Simulation in Bioequivalence. Ph.D. Thesis, Universidade De Lisboa, Lisbon, Portugal, 2012. [Google Scholar]
  16. Xie, F.; Ji, S.; Cheng, Z. In vitro dissolution similarity factor (f2) and in vivo bioequivalence criteria, how and when do they match? Using a BCS class II drug as a simulation example. Eur. J. Pharm. Sci. 2015, 66, 163–172. [Google Scholar] [CrossRef] [PubMed]
  17. Hasin, F. Comparative Bioequivalence Study of Different Brands of Valsartan Tablets Marketed in Bangladesh by Dissolution Modeling and Quality Control Tests. World J. Pharm. Pharm. Sci. 2017, 6, 112–121. [Google Scholar] [CrossRef] [Green Version]
  18. Mitra, A.; Kesisoglou, F.; Dogterom, P. Application of absorption modeling to predict bioequivalence outcome of two batches of etoricoxib tablets. AAPS PharmSciTech 2015, 16, 76–84. [Google Scholar] [CrossRef] [Green Version]
  19. Cuesta-Gragera, A.; Navarro-Fontestad, C.; Mangas-Sanjuan, V.; González-Álvarez, I.; García-Arieta, A.; Trocóniz, I.F.; Casabó, V.G.; Bermejo, M. Semi-physiologic model validation and bioequivalence trials simulation to select the best analyte for acetylsalicylic acid. Eur. J. Pharm. Sci. 2015, 74, 86–94. [Google Scholar] [CrossRef]
  20. Purohit, H.S.; Trasi, N.S.; Sun, D.D.; Chow, E.C.Y.; Wen, H.; Zhang, X.; Gao, Y.; Taylor, L.S. Investigating the Impact of Drug Crystallinity in Amorphous Tacrolimus Capsules on Pharmacokinetics and Bioequivalence Using Discriminatory In Vitro Dissolution Testing and Physiologically Based Pharmacokinetic Modeling and Simulation. J. Pharm. Sci. 2018, 107, 1330–1341. [Google Scholar] [CrossRef]
  21. Zhang, S.; Fang, M.; Zhang, Q.; Li, X.; Zhang, T. Evaluating the bioequivalence of metronidazole tablets and analyzing the effect of in vitro dissolution on in vivo absorption based on PBPK modeling. Drug Dev. Ind. Pharm. 2019, 45, 1646–1653. [Google Scholar] [CrossRef]
  22. Sperry, D.C.; Thomas, S.J.; Lobo, E. Dissolution modeling of bead formulations and predictions of bioequivalence for a highly soluble, highly permeable drug. Mol. Pharm. 2010, 7, 1450–1457. [Google Scholar] [CrossRef]
  23. Rebeka, J.; Jerneja, O.; Igor, L.; Boštjan, P.; Aleksander, B.; Simon, Ž.; Albin, K. PBPK Absorption Modeling of Food Effect and Bioequivalence in Fed State for Two Formulations with Crystalline and Amorphous Forms of BCS 2 Class Drug in Generic Drug Development. AAPS PharmSciTech 2019, 20, 59. [Google Scholar] [CrossRef]
  24. Duque, M.D.; Silva, D.A.; Issa, M.G.; Porta, V.; Löbenberg, R.; Ferraz, H.G. In silico prediction of plasma concentrations of fluconazole capsules with different dissolution profiles and bioequivalence study using population simulation. Pharmaceutics 2019, 11, 215. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Zhang, X.; Wen, H.; Fan, J.; Vince, B.; Li, T.; Gao, W.; Kinjo, M.; Brown, J.; Sun, W.; Jiang, W.; et al. Integrating In Vitro, Modeling, and In Vivo Approaches to Investigate Warfarin Bioequivalence. CPT Pharmacomet. Syst. Pharmacol. 2017, 6, 523–531. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Basu, S.; Yang, H.; Fang, L.; Gonzalez-Sales, M.; Zhao, L.; Trame, M.N.; Lesko, L.; Schmidt, S. Physiologically Based Pharmacokinetic Modeling to Evaluate Formulation Factors Influencing Bioequivalence of Metoprolol Extended-Release Products. J. Clin. Pharmacol. 2019, 59, 1252–1263. [Google Scholar] [CrossRef] [PubMed]
  27. Tsume, Y.; Amidon, G.L. The biowaiver extension for BCS class III drugs: The effect of dissolution rate on the bioequivalence of BCS class III immediate-release drugs predicted by computer simulation. Mol. Pharm. 2010, 7, 1235–1243. [Google Scholar] [CrossRef] [PubMed]
  28. Pepin, X.J.H.; Flanagan, T.R.; Holt, D.J.; Eidelman, A.; Treacy, D.; Rowlings, C.E. Justification of Drug Product Dissolution Rate and Drug Substance Particle Size Specifications Based on Absorption PBPK Modeling for Lesinurad Immediate Release Tablets. Mol. Pharm. 2016, 13, 3256–3269. [Google Scholar] [CrossRef]
  29. Vaidhyanathan, S.; Wang, X.; Crison, J.; Varia, S.; Gao, J.Z.H.; Saxena, A.; Good, D. Bioequivalence Comparison of Pediatric Dasatinib Formulations and Elucidation of Absorption Mechanisms Through Integrated PBPK Modeling. J. Pharm. Sci. 2019, 108, 741–749. [Google Scholar] [CrossRef] [Green Version]
  30. Zhang, X.; Duan, J.; Kesisoglou, F.; Novakovic, J.; Amidon, G.L.; Jamei, M.; Lukacova, V.; Eissing, T.; Tsakalozou, E.; Zhao, L.; et al. Mechanistic oral absorption modeling and simulation for formulation development and bioequivalence evaluation: Report of an FDA public workshop. CPT Pharmacomet. Syst. Pharmacol. 2017, 6, 492–495. [Google Scholar] [CrossRef] [Green Version]
  31. Doki, K.; Darwich, A.S.; Patel, N.; Rostami-Hodjegan, A. Virtual bioequivalence for achlorhydric subjects: The use of PBPK modelling to assess the formulation-dependent effect of achlorhydria. Eur. J. Pharm. Sci. 2017, 109, 111–120. [Google Scholar] [CrossRef] [Green Version]
  32. Fan, J.; Zhang, X.; Zhao, L. Utility of Physiologically Based Pharmacokinetic Absorption Modeling to Predict the Impact of Salt-to-Base Conversion on Prasugrel HCl Product Bioequivalence in the Presence of Proton Pump Inhibitors. AAPS J. 2017, 19, 1479–1486. [Google Scholar] [CrossRef]
  33. Zhao, L.; Li, Q.; Li, X.; Yin, R.; Chen, X.; Geng, L.; Bi, K. Bioequivalence and population pharmacokinetic modeling of two forms of antibiotic, cefuroxime lysine and cefuroxime sodium, after intravenous infusion in beagle dogs. J. Biomed. Biotechnol. 2012, 2012, 1–9. [Google Scholar] [CrossRef] [Green Version]
  34. Chitnis, S.D.; Han, Y.; Yamaguchi, M.; Mita, S.; Zhao, R.; Sunkara, G.; Kulmatycki, K. Population pharmacokinetic modeling and noncompartmental analysis demonstrated bioequivalence between metformin component of metformin/vildagliptin fixed-dose combination products and metformin immediate-release tablet sourced from various countries. Clin. Pharmacol. Drug Dev. 2016, 5, 40–51. [Google Scholar] [CrossRef] [PubMed]
  35. Kim, H.; Fang, L.; Yu, J.; Meng, Z.; Trame, M.N.; Schmidt, S.; Lesko, L.J.; Zhao, L. Is Bioequivalence Established Based on the Reference-Scaled Average Bioequivalence Approach Relevant to Chronic Administration of Phenytoin? Perspectives Based on Population Pharmacokinetic Modeling and Simulations. J. Clin. Pharmacol. 2019, 59, 1061–1069. [Google Scholar] [CrossRef] [PubMed]
  36. Simionato, L.D.; Petrone, L.; Baldut, M.; Bonafede, S.L.; Segall, A.I. Comparison between the dissolution profiles of nine meloxicam tablet brands commercially available in Buenos Aires, Argentina. Saudi Pharm. J. 2018, 26, 578–584. [Google Scholar] [CrossRef] [PubMed]
  37. Dennison, T.J.; Smith, J.C.; Badhan, R.K.; Mohammed, A.R. Fixed-dose combination orally disintegrating tablets to treat cardiovascular disease: Formulation, in vitro characterization and physiologically based pharmacokinetic modeling to assess bioavailability. Drug Des. Dev. Ther. 2017, 11, 811. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Cristofoletti, R.; Chiann, C.; Dressman, J.B.; Storpirtis, S. A comparative analysis of biopharmaceutics classification system and biopharmaceutics drug disposition classification system: A cross-sectional survey with 500 bioequivalence studies. J. Pharm. Sci. 2013, 102, 3136–3144. [Google Scholar] [CrossRef] [PubMed]
  39. Ramirez, E.; Laosa, O.; Guerra, P.; Duque, B.; Mosquera, B.; Borobia, A.M.; Lei, S.H.; Carcas, A.J.; Frias, J. Acceptability and characteristics of 124 human bioequivalence studies with active substances classified according to the Biopharmaceutic Classification System. Br. J. Clin. Pharmacol. 2010, 70, 694–702. [Google Scholar] [CrossRef] [Green Version]
  40. Paixão, P.; Gouveia, L.F.; Silva, N.; Morais, J.A.G. Evaluation of dissolution profile similarity—Comparison between the f2, the multivariate statistical distance and the f2 bootstrapping methods. Eur. J. Pharm. Biopharm. 2017, 112, 67–74. [Google Scholar] [CrossRef]
  41. Cardot, J.M.; Roudier, B.; Schütz, H. Dissolution comparisons using a Multivariate Statistical Distance (MSD) test and a comparison of various approaches for calculating the measurements of dissolution profile comparison. AAPS J. 2017, 19, 1091–1101. [Google Scholar] [CrossRef]
  42. Kuemmel, C.; Yang, Y.; Zhang, X.; Florian, J.; Zhu, H.; Tegenge, M.; Huang, S.M.; Wang, Y.; Morrison, T.; Zineh, I. Consideration of a Credibility Assessment Framework in Model-Informed Drug Development: Potential Application to Physiologically-Based Pharmacokinetic Modeling and Simulation. CPT Pharmacomet. Syst. Pharmacol. 2019. Available online: https://ascpt.onlinelibrary.wiley.com/doi/abs/10.1002/psp4.12479 (accessed on 25 October 2019). [CrossRef] [Green Version]
  43. Li, M.; Zhao, P.; Pan, Y.; Wagner, C. Predictive Performance of Physiologically Based Pharmacokinetic Models for the Effect of Food on Oral Drug Absorption: Current Status. CPT Pharmacomet. Syst. Pharmacol. 2018, 7, 82–89. [Google Scholar] [CrossRef]
  44. Mitra, A.; Petek, B.; Bajc, A.; Velagapudi, R.; Legen, I. Physiologically based absorption modeling to predict bioequivalence of controlled release and immediate release oral products. Eur. J. Pharm. Biopharm. 2019, 134, 117–125. [Google Scholar] [CrossRef] [PubMed]
  45. Da Silva Honório, T.; Pinto, E.C.; Rocha, H.V.A.; Esteves, V.S.D.; dos Santos, T.C.; Castro, H.C.R.; Rodrigues, C.R.; de Sousa, V.P.; Cabral, L.M. In Vitro–In Vivo Correlation of Efavirenz Tablets Using GastroPlus®. AAPS PharmSciTech 2013, 14, 1244–1254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Hussain, A.; Shakeel, F.; Singh, S.K.; Alsarra, I.A.; Faruk, A.; Alanazi, F.K.; Peter Christoper, G.V. Solidified SNEDDS for the oral delivery of rifampicin: Evaluation, proof of concept, in vivo kinetics, and in silico GastroPlusTM simulation. Int. J. Pharm. 2019, 566, 203–217. [Google Scholar] [CrossRef] [PubMed]
  47. Kovačević, I.; Parojčić, J.; Homšek, I.; Tubić-Grozdanis, M.; Langguth, P. Justification of Biowaiver for Carbamazepine, a Low Soluble High Permeable Compound, in Solid Dosage Forms Based on IVIVC and Gastrointestinal Simulation. Mol. Pharm. 2009, 6, 40–47. [Google Scholar] [CrossRef]
  48. Pepin, X.J.H.; Moir, A.J.; Mann, J.C.; Sanderson, N.J.; Barker, R.; Meehan, E.; Plumb, A.P.; Bailey, G.R.; Murphy, D.S.; Krejsa, C.M.; et al. Bridging in vitro dissolution and in vivo exposure for acalabrutinib. Part II. A mechanistic PBPK model for IR formulation comparison, proton pump inhibitor drug interactions, and administration with acidic juices. Eur. J. Pharm. Biopharm. 2019, 142, 435–448. [Google Scholar] [CrossRef]
  49. Kesisoglou, F.; Xia, B.; Agrawal, N.G.B. Comparison of Deconvolution-Based and Absorption Modeling IVIVC for Extended Release Formulations of a BCS III Drug Development Candidate. AAPS J. 2015, 17, 1492–1500. [Google Scholar] [CrossRef] [Green Version]
  50. Marsousi, N.; Desmeules, J.A.; Rudaz, S.; Daali, Y. Prediction of drug-drug interactions using physiologically-based pharmacokinetic models of CYP450 modulators included in Simcyp software. Biopharm. Drug Dispos. 2018, 39, 3–17. [Google Scholar] [CrossRef]
  51. Gidal, B.E.; Maganti, R.; Laurenza, A.; Yang, H.; Verbel, D.A.; Schuck, E.; Ferry, J. Effect of enzyme inhibition on perampanel pharmacokinetics: Why study design matters. Epilepsy Res. 2017, 134, 41–48. [Google Scholar] [CrossRef]
  52. Costello, C.; Rossenu, S.; Vermeulen, A.; Cleton, A.; Dunne, A. A time scaling approach to develop an in vitro-in vivo correlation (IVIVC) model using a convolution-based technique. J. Pharmacokinet. Pharmacodyn. 2011, 38, 519–539. [Google Scholar] [CrossRef]
  53. Idkaidek, N.; Arafat, T. Saliva versus plasma bioequivalence of rusovastatin in humans: Validation of class III drugs of the salivary excretion classification system. Drugs R & D 2015, 15, 79–83. [Google Scholar]
  54. Chetty, M.; Johnson, T.N.; Polak, S.; Salem, F.; Doki, K.; Rostami-Hodjegan, A. Physiologically based pharmacokinetic modelling to guide drug delivery in older people. Adv. Drug Deliv. Rev. 2018, 135, 85–96. [Google Scholar] [CrossRef] [PubMed]
  55. Sjögren, E.; Thörn, H.; Tannergren, C. In Silico Modeling of Gastrointestinal Drug Absorption: Predictive Performance of Three Physiologically Based Absorption Models. Mol. Pharm. 2016, 13, 1763–1778. [Google Scholar] [CrossRef] [PubMed]
  56. Turner, D.B.; Liu, B.; Patel, N.; Pathak, S.M.; Polak, S.; Jamei, M.; Dressman, J.; Rostami-Hodjegan, A. Comment on in Silico Modeling of Gastrointestinal Drug Absorption: Predictive Performance of Three Physiologically-Based Absorption Models. Mol. Pharm. 2017, 14, 336–339. [Google Scholar] [CrossRef] [PubMed]
  57. Välitalo, P.; Ranta, V.-P.; Hooker, A.C.; Kokki, M.; Kokki, H. Population pharmacometrics in support of analgesics studies. Acta Anaesthesiol. Scand. 2014, 58, 143–156. [Google Scholar] [CrossRef]
  58. Fairman, K.; Chaturvedula, A.; Srinivasan, M. Evaluation of the Sensitivity of Concluding Bioequivalence Using Stochastic Simulation and Estimation. Available online: https://hdl.handle.net/20.500.12503/27885 (accessed on 3 September 2019).
  59. Choi, S.; Jeon, S.; Han, S. Population pharmacokinetic analysis of metformin administered as fixed-dose combination in Korean healthy adults. Transl. Clin. Pharmacol. 2018, 26, 25. [Google Scholar] [CrossRef] [Green Version]
  60. Hsu, L. Investigation of the Discriminatory Ability of Pharmacokinetic Metrics for the Bioequivalence Assessment of PEGylated Liposomal Doxorubicin. Pharm. Res. 2018, 35, 106. [Google Scholar] [CrossRef]
  61. Mangas-Sanjuan, V.; Navarro-Fontestad, C.; García-Arieta, A.; Trocóniz, I.F.; Bermejo, M. Computer simulations for bioequivalence trials: Selection of analyte in BCS class II and IV drugs with first-pass metabolism, two metabolic pathways and intestinal efflux transporter. Eur. J. Pharm. Sci. 2018, 117, 193–203. [Google Scholar] [CrossRef]
  62. Kim, S.; Sharma, V.D.; Lingineni, K.; Farhan, N.; Fang, L.; Zhao, L.; Brown, J.D.; Cristofoletti, R.; Vozmediano, V.; Ait-Oudhia, S.; et al. Evaluating the Clinical Impact of Formulation Variability: A Metoprolol Extended-Release Case Study. J. Clin. Pharmacol. 2019. [Google Scholar] [CrossRef]
  63. Gaynor, C.; Dunne, A.; Costello, C.; Davis, J. A population approach to in vitro-in vivo correlation modelling for compounds with nonlinear kinetics. J. Pharmacokinet. Pharmacodyn. 2011, 38, 317–332. [Google Scholar] [CrossRef]
  64. Ibarra, M.; Valiante, C.; Sopeña, P.; Schiavo, A.; Lorier, M.; Vázquez, M.; Fagiolino, P. Integration of in vitro biorelevant dissolution and in silico PBPK model of carvedilol to predict bioequivalence of oral drug products. Eur. J. Pharm. Sci. 2018, 118, 176–182. [Google Scholar] [CrossRef]
  65. Idkaidek, N.; Arafat, T.; Hamadi, H.; Hamadi, S.; Al-Adham, I. Saliva Versus Plasma Bioequivalence of Azithromycin in Humans: Validation of Class I Drugs of the Salivary Excretion Classification System. Drugs R & D 2017, 17, 219–224. [Google Scholar]
  66. Galgatte, U.C.; Jamdade, V.R.; Aute, P.P.; Chaudhari, P.D. Study on requirements of bioequivalence for registration of pharmaceutical products in USA, Europe and Canada. Saudi Pharm. J. 2014, 22, 391–402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Margolskee, A.; Darwich, A.S.; Galetin, A.; Rostami-Hodjegan, A.; Aarons, L. Deconvolution and IVIVC: Exploring the Role of Rate-Limiting Conditions. AAPS J. 2016, 18, 321–332. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Tsamandouras, N.; Dickinson, G.; Guo, Y.; Hall, S.; Rostami-Hodjegan, A.; Galetin, A.; Aarons, L. Development and application of a mechanistic pharmacokinetic model for simvastatin and its active metabolite simvastatin acid using an integrated population PBPK approach. Pharm. Res. 2015, 32, 1864–1883. [Google Scholar] [CrossRef] [PubMed]
  69. Sjögren, E.; Westergren, J.; Grant, I.; Hanisch, G.; Lindfors, L.; Lennernäs, H.; Abrahamsson, B.; Tannergren, C. In silico predictions of gastrointestinal drug absorption in pharmaceutical product development: Application of the mechanistic absorption model GI-Sim. Eur. J. Pharm. Sci. 2013, 49, 679–698. [Google Scholar] [CrossRef] [PubMed]
  70. Bouzom, F.; Ball, K.; Perdaems, N.; Walther, B. Physiologically based pharmacokinetic (PBPK) modelling tools: How to fit with our needs? Biopharm. Drug Dispos. 2012, 33, 55–71. [Google Scholar] [CrossRef]
  71. MacPherson, M.; Burgess, J.; McMillan, B.; Daviau, T.; Tipparaju, S.M. Artificial Neural Networks in Drug Transport Modeling and Simulation-I. In Artificial Neural Network for Drug Design, Delivery and Disposition; Elsevier Inc.: Amsterdam, The Netherlands, 2016; pp. 221–241. ISBN 9780128015599. [Google Scholar]
  72. Jones, H.M.; Dickins, M.; Youdim, K.; Gosset, J.R.; Attkins, N.J.; Hay, T.L.; Gurrell, I.K.; Logan, Y.R.; Bungay, P.J.; Jones, B.C.; et al. Application of PBPK modelling in drug discovery and development at Pfizer. Xenobiotica 2012, 42, 94–106. [Google Scholar] [CrossRef]
  73. Zhao, L.; Seo, P.; Lionberger, R. Current Scientific Considerations to Verify Physiologically-Based Pharmacokinetic Models and Their Implications for Locally Acting Products. CPT Pharmacomet. Syst. Pharmacol. 2019, 8, 347–351. [Google Scholar] [CrossRef] [Green Version]
  74. Andreas, C.J.; Rosenberger, J.; Butler, J.; Augustijns, P.; McAllister, M.; Abrahamsson, B.; Dressman, J. Introduction to the OrBiTo decision tree to select the most appropriate in vitro methodology for release testing of solid oral dosage forms during development. Eur. J. Pharm. Biopharm. 2018, 130, 207–213. [Google Scholar] [CrossRef]
  75. Zhang, L. FY2018 Generic Drug Regulatory Science Initiatives Public Workshop: FDA Research Update on the FY18 Initiatives. Available online: https://www.fda.gov/media/113597/download+&cd=6&hl=en&ct=clnk&gl=ae (accessed on 6 October 2019).
Pharmaceutics 12 00045 g001 550

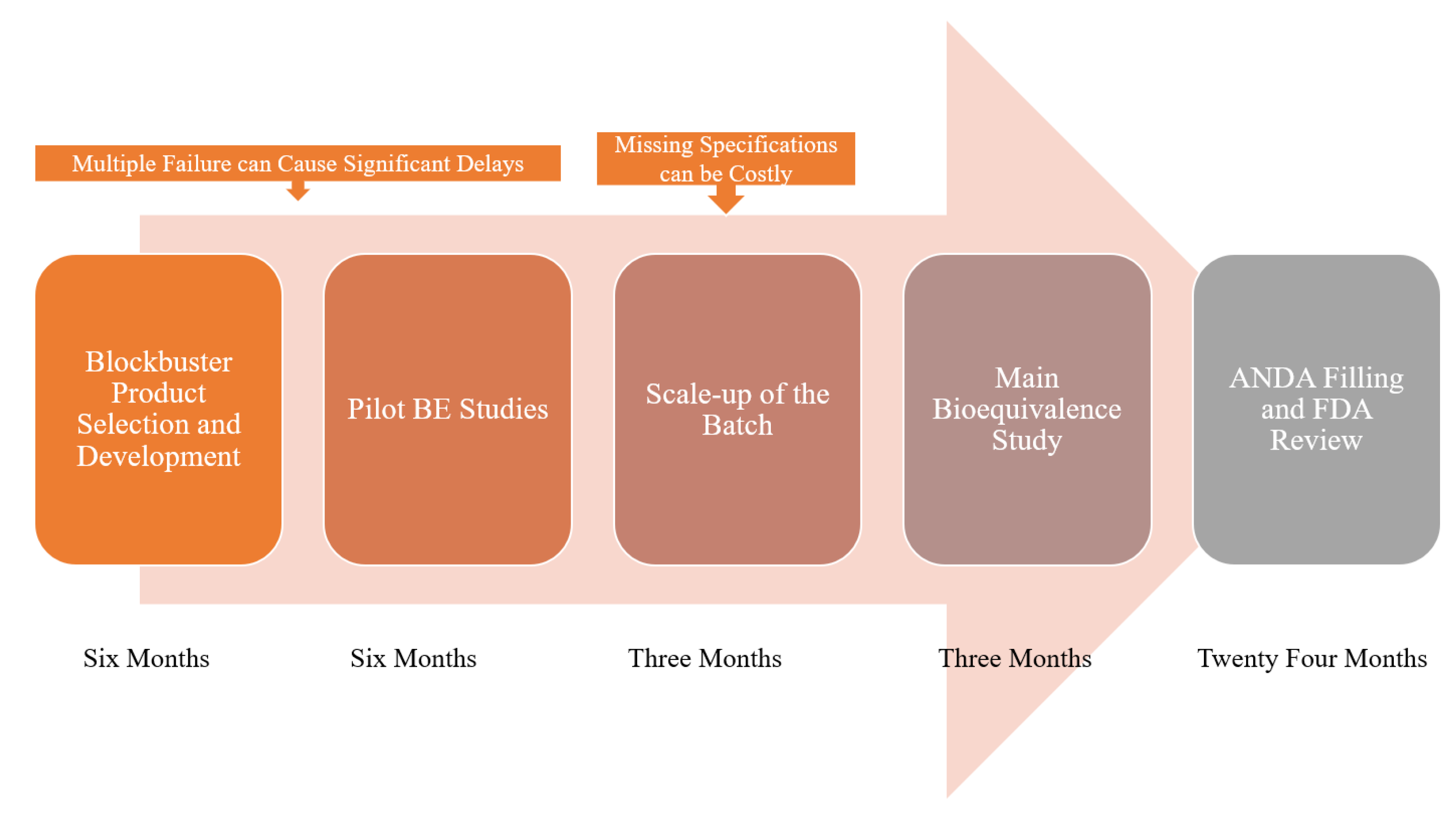

Figure 1. Scheme showing the development process of a generic product and where the delays can be circumvented using in silico platforms.
Figure 1. Scheme showing the development process of a generic product and where the delays can be circumvented using in silico platforms.
Pharmaceutics 12 00045 g001
Pharmaceutics 12 00045 g002 550
Figure 2. Results from literature review for the terms “modeling and bioequivalence” and “simulation and bioequivalence” using Pubmed and Google Scholar databases in accordance with PRISMA guidelines.
Figure 2. Results from literature review for the terms “modeling and bioequivalence” and “simulation and bioequivalence” using Pubmed and Google Scholar databases in accordance with PRISMA guidelines.
Pharmaceutics 12 00045 g002
Pharmaceutics 12 00045 g003 550

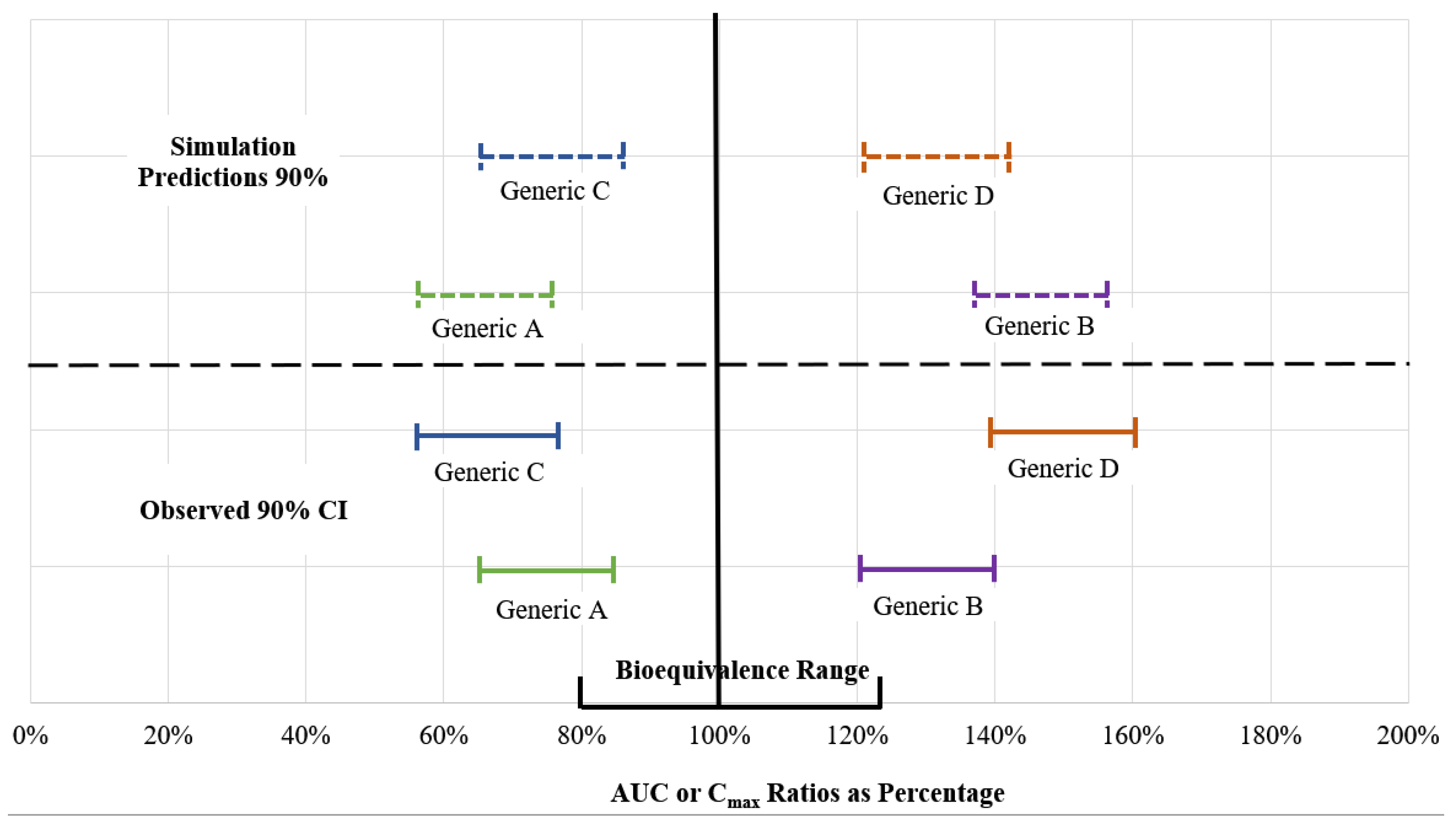

Figure 3. The false predictions of bioequivalence based on the simulation that accept up to 1.25-fold differences between predicted and observed AUC or Cmax ratios.
Figure 3. The false predictions of bioequivalence based on the simulation that accept up to 1.25-fold differences between predicted and observed AUC or Cmax ratios.
Pharmaceutics 12 00045 g003
Pharmaceutics 12 00045 g004 550
Figure 4. Typical workflow for virtual bioequivalence studies using the PBPK models.
Figure 4. Typical workflow for virtual bioequivalence studies using the PBPK models.
Pharmaceutics 12 00045 g004
Table
Table 1. Frequency of in vitro and in silico use of results to support of bioequivalency tests.
Table 1. Frequency of in vitro and in silico use of results to support of bioequivalency tests.
In Vitro/In SilicoNumber of Times Used in the Reviewed Literature
Similarity/Difference factors (ƒ1/ƒ2)5 [15,16,17,18,19]
GastroPlus™12 [13,18,20,21,22,23,24,25,26,27,28,29]
SimCyp®6 [13,15,23,30,31,32]
NONMEM®4 [19,33,34,35]
PK-Sim®2 [13,30]
The following in vitro and in silico tools for bioequivalence testing were reviewed.

Share and Cite

MDPI and ACS Style

Al-Tabakha, M.M.; Alomar, M.J. In Vitro Dissolution and in Silico Modeling Shortcuts in Bioequivalence Testing. Pharmaceutics 2020, 12, 45. https://doi.org/10.3390/pharmaceutics12010045

AMA Style

Al-Tabakha MM, Alomar MJ. In Vitro Dissolution and in Silico Modeling Shortcuts in Bioequivalence Testing. Pharmaceutics. 2020; 12(1):45. https://doi.org/10.3390/pharmaceutics12010045

Chicago/Turabian Style

Al-Tabakha, Moawia M., and Muaed J. Alomar. 2020. "In Vitro Dissolution and in Silico Modeling Shortcuts in Bioequivalence Testing" Pharmaceutics 12, no. 1: 45. https://doi.org/10.3390/pharmaceutics12010045

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
