Review

A Systematic Review and Critical Analysis of the Role of Graphene-Based Nanomaterials in Cancer Theranostics

by
Teresa Viseu
1,
Carla M. Lopes
2,
Eduarda Fernandes
1,
Maria Elisabete C.D. Real Oliveira
1 and
Marlene Lúcio
1,*
1
CF-UM-UP—Centre of Physics of Universities of Minho and Porto, Departament of Physics of University of Minho, Escola de Ciências, Campus de Gualtar, 4710-057 Braga, Portugal
2
FP-ENAS/CEBIMED—Fernando Pessoa Energy, Environment and Health Research Unit/Biomedical Research Centre, Faculty of Health Sciences, Fernando Pessoa University, 4249-004 Porto, Portugal
*
Author to whom correspondence should be addressed.
Pharmaceutics 2018, 10(4), 282; https://doi.org/10.3390/pharmaceutics10040282
Submission received: 19 November 2018 / Revised: 8 December 2018 / Accepted: 13 December 2018 / Published: 16 December 2018
(This article belongs to the Special Issue Nanotheranostics and Cancer: Where Are We Now?)

Abstract

:
Many graphene-based materials (GBNs) applied to therapy and diagnostics (theranostics) in cancer have been developed. Most of them are hybrid combinations of graphene with other components (e.g., drugs or other bioactives, polymers, and nanoparticles) aiming toward a synergic theranostic effect. However, the role of graphene in each of these hybrids is sometimes not clear enough and the synergic graphene effect is not proven. The objective of this review is to elaborate on the role of GBNs in the studies evaluated and to compare the nanoformulations in terms of some of their characteristics, such as therapeutic outcomes and toxicity, which are essential features for their potential use as bionanosystems. A systematic review was carried out using the following databases: PubMed, Scopus, and ISI Web of Science (2013–2018). Additional studies were identified manually by consulting the references list of relevant reviews. Only English papers presenting at least one strategy for cancer therapy and one strategy for cancer diagnostics, and that clearly show the role of graphene in theranostics, were included. Data extraction and quality assessment was made by reviewer pairings. Fifty-five studies met the inclusion criteria, but they were too heterogeneous to combine in statistical meta-analysis. Critical analysis and discussion of the selected papers are presented.

1. Introduction

Despite all the efforts invested in therapeutic developments, cancer remains a leading cause of death worldwide, with a reported mortality of 8.8 million people in 2015. Moreover, the World Health Organization (WHO) and International Agency for Research on Cancer (IARC) predict a raise of all cancer cases to 21.2 million by 2030 [1,2]. Current therapeutic regimes for cancer treatment face important challenges, such as: (i) the use of high doses of actives to ensure their distribution at the target tissues, (ii) the need to combine several actives to increase therapeutic efficiency and reduce multidrug resistance mechanisms (MDR), and (iii) damage of healthy tissues and severe toxicity because of (i) and (ii).

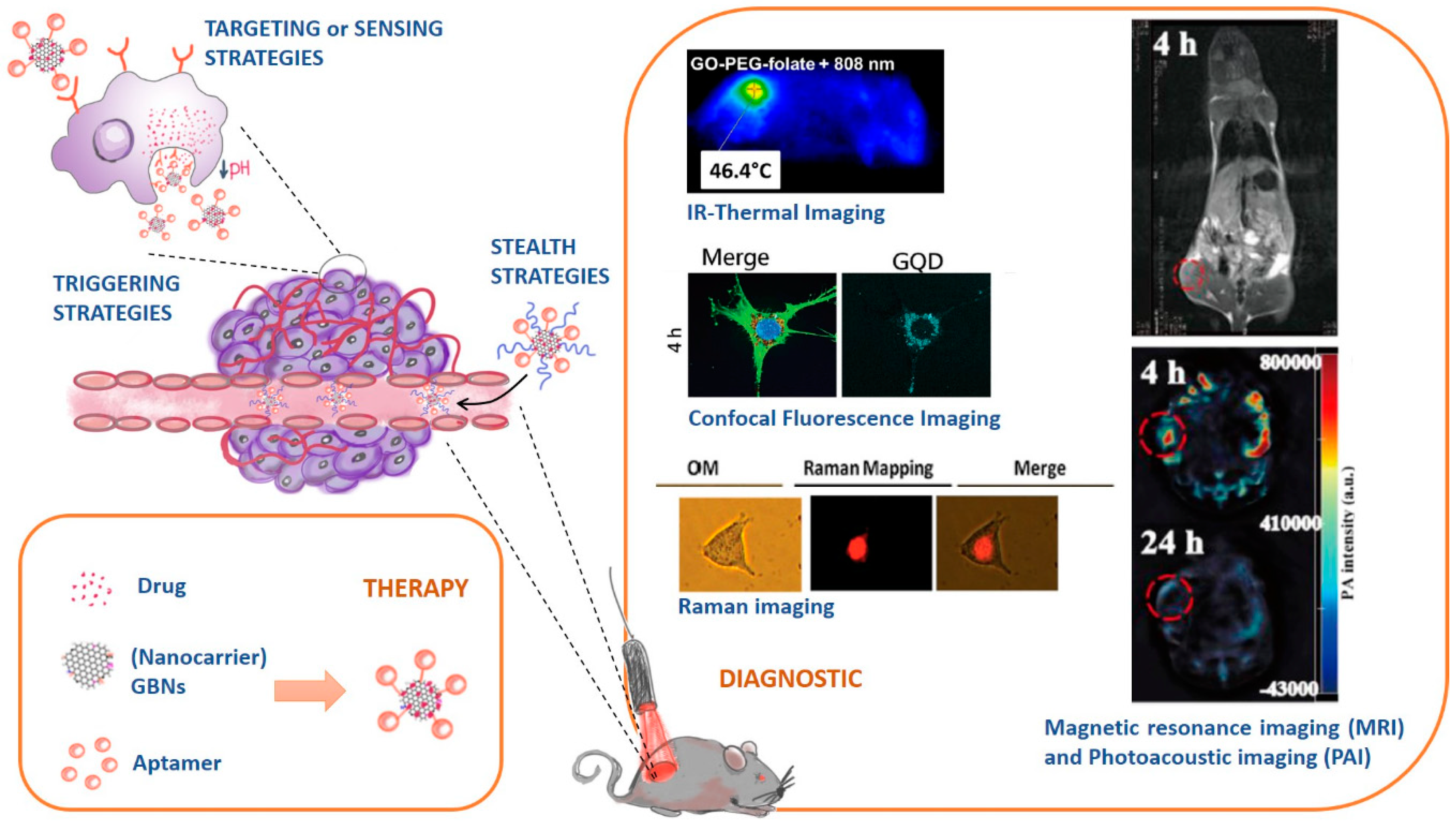

Nanomedicine is potentially one of the best strategies to deal with such challenges, as it provides breakthrough improvements over classical therapies. Indeed, nanocarrier systems possess extremely large surface areas convenient for loading multiple therapeutic actives and/or other elements with stealth, targeting, triggering, or imaging roles [3,4]. Additionally, the concept of a nanocarrier holds the promise of taking the actives to the target tissue, thereby reducing the exposure of healthy tissues to toxic effects. This assumption is further reinforced in cancer, as a preferential accumulation of nanocarriers in tumor sites has been observed due to the enhanced permeability and retention (EPR) effect [3,4]. Hence, nanocarriers for cancer therapy can be thoroughly tuned to integrate multiple strategies in one system (Figure 1):
  • Stealth strategies: nanocarriers can be coated with polymers (e.g. Polyethylene glycol, PEG) to keep them invisible to the immunity system and increase their circulation time;
  • Targeting or sensing strategies: nanocarriers can be functionalized with ligands that are recognized by receptors overexpressed in cancer cell tissues;
  • Triggering strategies: nanocarriers’ composition can be sensible to stimulus (e.g. pH, temperature changes) and releasing their cargo accordingly.
The multipurpose character of the nanocarrier systems has been further explored in the context of developing theranostic (therapeutic + diagnostic) tools for fighting cancer that combine several therapies with imaging strategies to monitor distribution of the therapeutic agents in the body (Figure 1). Currently, multiple combinations of different therapeutic and diagnostic strategies are being applied to achieve a theranostic effect. As each strategy has inherent advantages and limitations, the combination of complementary strategies can result in a synergic theranostic effect. Tables S1, S2 and S3 (Supplementary material) summarize some of the most important therapeutic strategies (drug and gene therapy, phototherapy (PTT), magnetic hyperthermia (MHT), and photodynamic therapy (PDT)), and diagnostic strategies (therapy guiding by fluorescence imaging (FI), two photon fluorescence imaging (2PFI), infrared thermal imaging (IR-TI), Raman imaging, X-ray imaging, magnetic resonance imaging (MRI), positron emission tomography (PET), single-photon emission computed tomography (SPECT), computed tomography (CT), photoacoustic imaging (PAI), and ultrasound imaging (USI)) that are being used in nanotheranostic systems [9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24].
After its ground breaking and surprising discovery in 2004 [25], graphene—a two-dimensional (2-D) nanomaterial made of single-layered carbon atoms packed in a honeycomb lattice—has been widely explored for a great number of applications including quantum physics, nanoelectronics, energy storage, and catalysis [26,27]. Since the first publication on the use of graphene as a nanocarrier system for anticancer drugs delivery in 2008 [28], graphene and graphene-based nanomaterials (GBNs) have also captivated the enthusiasm of researchers for its promising biomedical applications, translatable in an increasing number of publications [29].

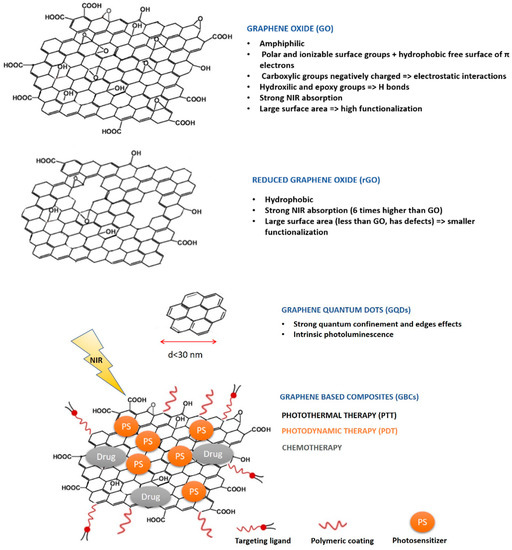

GBNs include graphene derivatives, such as graphene oxide (GO), nanographene oxide (NGO), reduced graphene oxide (rGO), and graphene quantum dots (GQDs), which are also designated as nano-reduced graphene oxide (nano-rGO) [30,31]. The appealing optical and physicochemical properties of GBNs are well recognized and have been explored in the development of theranostic nanosystems for the treatment and diagnostic of cancer [31,32,33]. In this context, researchers take advantage of the inherent properties of GBNs (e.g., fluorescence emission, NIR light absorption, photothermal properties, and typical Raman bands) to develop therapeutic (PTT) and diagnostic (FI, 2PFI, IR-TI, and Raman imaging) approaches [13,16,34]. Alternatively, researchers take advantage of GBNs’ easy functionalization (owed to the large surface-volume ratio and sp2 network that allows π–π stacking interactions) to add other components that are aimed to enhance or complement GBNs properties and to achieve synergic theranostic effects [30,32]. These hybrid nanostructures encompass graphene-based composites (GBCs) that result from GBNs functionalization with nanoparticles, polymers, imaging probes, radionuclides, drugs, nucleic acids (or other bioactives), photothermal (PT), and photosensitive (PS) compounds [30,32]. Figure 2 illustrates the different types of GBNs and provides an example of GBC, as well as some of GBNs most important properties and their main applications in cancer theranostics.
Despite the multitude of GBNs developed for theranostic purposes, and the increasing amount of published research articles and reviews on GBNs, it is important to address the question of the actual function of GO in the systems developed, as well as to evaluate the synergic value of the GBCs. Indeed, it is not always clear if the functionalized GBNs hybrid systems result in more effective theranostic strategies than the isolated components, as many studies fail to use appropriate controls to study the separate elements. Therefore, this lack of clarity drives the need for this systematic review. Accordingly, the objectives of our study are to systematically review the literature for qualitative and/or quantitative evidence of synergic effects of GBCs in cancer theranostics, as this is a determinant to understand the role of GO in the total system developed and to further develop other systems with improved characteristics. Our secondary aim is to provide an overview of the therapeutic anticancer efficiency of the nanosystems developed in vitro and/or in vivo. Moreover, the concerns raised with toxicity and biocompatibility of neat GO are still under extensive debate [35,36,37]. The toxicity of GO has been associated with several parameters, among which are included size and topological defects of GO flakes and their propensity to aggregate [38,39]. Bigger sizes, higher defects, and smaller colloidal stability may contribute to reactive oxygen species (ROS) generation and consequent cellular toxicity [38,39]. Furthermore, this type of reactivity is not desirable when, for instance, the objective is conjugating the GO material with metal-based nanoparticles or metal-based drugs [38]. These concerns invoked a critical analysis of the reported studies taking into consideration the characterization of GO in terms of size and colloidal stability and the toxicity evaluation performed in the selected studies. To the best of our knowledge there are no similar reported reviews emphasizing the role of GBNs in cancer theranostic and this is the first systematic effort to provide an in-depth critical analysis of the updated literature to serve as a guide for researchers working in this field.

2. Methods

This review followed PRISMA guidelines [40] and the correspondent checklist is presented in the supplementary material (Table S4)

2.1. Eligibility Criteria

In this review we analyzed studies proposing the development of GBNs (GO, NGO, rGO, GQDs) or GBCs for theranostic use in cancer.
Studies were included according to the following criteria: (1) studies were published in English with full text available; (2) cancer was the target disease; (3) at least one type of GBNs was present in the proposed nanosystem; (4) studies presented at least one strategy for therapy and one strategy for diagnostics, and GBNs had a role in at least one of these strategies; and (5) studies were evaluated in vitro using cellular lines and/or in vivo using animal models. Only research articles were considered, reviews, commentaries, letters, or editorials were excluded. The references in reviews were, however, manually consulted.
Of interest are interventions in studies addressing the role of GBNs in the overall therapeutic effect or diagnostic performance and the synergic effect obtained by GBNs conjugated with other components. In addition, we considered interventions that evaluate GBNs toxicity as this is also a relevant factor to obtain an efficient theranostic system. Only studies that evaluate GBNs as a stand-alone component of the hybrid GBCs and compare the efficiency of the hybrid GBCs with the isolated components were included.
Primary outcomes were the ones related with theranostic effects: types of strategies used in therapy and diagnostic and measures of therapeutic efficiency. Secondary outcomes were related with the characterization of the GBNs developed and with the toxicity of the systems.

2.2. Information Sources, Search Strategy, Study Selection, and Data Collection Process

The literature search strategy was conducted in electronic databases (PubMed, Scopus, and ISI Web of Science), which was complemented by hand searching in the reference lists of included studies or relevant reviews identified through the search. The search was based on a pre-determined series of keywords related with graphene-based materials and their application in theranostics. The following keywords were used in PubMed: (((graphene[Title/Abstract]) OR graphene oxide[Title/Abstract]) OR graphene quantum dots[Title/Abstract]) AND theranostic[Title/Abstract] and these were adapted to the syntax and subject headings of the other databases. No study design or language limits were imposed on the search. However, the time of publication was limited to the last 6 years (2013–2018). The last search was run on 15 October 2018.
To facilitate collaboration among reviewers during the study selection process, literature search results were uploaded to Endnote X7® software and included in a OneDrive shared folder. Endnote X7® allowed an automatic exclusion of duplicates from the three databases searched, and a manual search of duplicates was processed afterwards.
A two-stage process was used during the study selection. In the first stage, the review authors screened the title, abstract, and keywords against the eligibility criteria. Whenever there was uncertainty about the eligibility of the publication, the study was not excluded. From this stage full text of all the eligible and uncertain studies were included to be analyzed in the second stage. In stage two, review author pairs have screened the full text publications and decided whether these met the eligibility criteria. Neither of the review authors were blind to journal titles or to authors and institutions of the studies analyzed. For data collection from the selected studies, we developed a data extraction sheet, which was pilot tested and optimized accordingly. One review author extracted the data and the second reviewer author confirmed the extracted data. Any disagreement between reviewers was resolved after discussing and reaching a consensus.

2.3. Data Items and Quality Assessment

The information extracted from each study included: (1) characteristics of the GBNs developed in each study, including composition, components ratio, size, surface charge, colloidal stability analysis, and characterization techniques used; (2) in vitro and/or in vivo models used, detailing the concentration and doses of the complete system versus the separate components and controls, as well as the irradiation procedures (potency) power, wavelength, and duration; (3) theranostic outcome described in terms of diagnostic/therapeutic strategies used and therapeutic efficiency achieved (measured by hyperthermia effect, cellular viability and tumor volume reduction or evaluated by histological observations); (4) toxicity outcome (measured by cellular viability, animal weight variations, and animal survival rate, or evaluated using histological observations).
Following the full-text selection, the studies were assessed for methodological quality via pairs of reviewers working independently using criteria from QualSyst tool for quantitative/qualitative studies [41] adapted to meet the specific needs of this systematic review (Table S5 Supplementary material). All the studies selected met the minimum threshold for inclusion.

3. Results

A total of 55 studies were identified for inclusion in the current review. The search conducted in the databases retrieved a total of 659 citations (95 from PubMed, 184 from Scopus, and 380 from ISI Web of Science). A manual selection included 84 references found in updated and extensive reviews that contained studies on the use of GBNs for cancer theranostics [16,30,42,43]. After duplicate elimination, 490 studies remained.
Of these, 326 studies were rejected after title, abstract, and key words reviewing for not comprising the eligibility criteria. These rejected articles included: 1 study that was not published in English, 109 reviews, and 6 book chapters. The option to exclude reviews and book chapters was to analyze studies in their original published form, avoiding introducing bias from analyzing the studies after they have been analyzed by other authors. Three editorials and three proceedings/short communications were also excluded because the information contained in these publications was too scarce regarding the outcomes we wished to analyze. Another eligibility criterion was to include studies that developed nanosystems that possessed at least one type of GBN in their composition and the application of this criterion has rendered the exclusion of 189 studies. Finally, in the first screening phase, we also excluded studies for which cancer was not the target disease.
The full text of the remaining 164 studies was carefully examined. From this analysis, 109 studies were rejected for not fitting in the inclusion criteria. The first criterion defined that studies should possess at least one strategy for therapy and one strategy for diagnostics, otherwise we could not consider the nanosystem developed as adequate for theranostic applications. Many studies failed to accomplish this criterion, and the authors often designated their developed nanosystem as a theranostic system, only because they envisaged the possibility of such a system to be used in both therapy and diagnostics, but they do not present evidence for both applications. In other cases, authors claimed that their GBNs were developed for diagnostic purposes, but they had to label them with extrinsic probes to be able to guide its cellular uptake, which dismisses the purpose of using GBNs or GBCs because of their intrinsic diagnostic properties. The application of this criterion led to the exclusion of 65 studies. The second criterion defined that GBNs must have a role in the nanosystem developed contributing either to diagnostics or therapy. This role can be defined as synergic with other components in the system such that in the final system the graphene/components individual intrinsic properties are enhanced. Several authors classified the final effects of their nanosystems as resultant from a synergic contribution of GBNs and additives, but their study misses evidence of the individual capacities of GBNs or additives. This second criterion led to the exclusion of 41 studies. Finally, the third criterion determined the inclusion of studies a bit more advanced than fundamental research and excluded studies in which the developed nanosystems were neither tested in vitro nor in vivo.
From this screening and eligibility process 55 studies met the abovementioned inclusion criteria, being eligible to be included in this review (see flow chart diagram in Figure 3).
All 55 studies report the development of GBNs alone [44,45] or often functionalized with different additives [5,6,7,8,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94] for cancer theranostic applications. Each of these studies presented the assessment of the individual role of GBNs either in therapeutic or diagnostic applications. Within the complete set of studies, the therapeutic performance was evaluated in cellular [6,49,50,52,53,55,63,68,70,80,81,82,83,84,85,86,89,94], or animal models [46,71,77], or both [5,7,46,47,48,51,56,57,58,59,60,61,62,64,66,69,72,73,74,75,76,78,79,81,87,88,90,91,92,93]. In the case of cellular studies, GBNs were incubated at a defined concentration or in a range of concentrations and some studies involved the application of GBNs solely [46,53,54,55,63,68,71,78,82,91] or conjugated with the exposure to a laser source of a defined potency, wavelength, and time [5,6,7,8,44,45,47,48,49,50,51,52,56,57,58,59,60,61,62,64,65,66,67,69,70,72,73,74,75,76,77,79,80,81,83,84,85,86,87,88,89,90,92,93,94]. With the exception of few studies [45,47,87,94], the laser used is a near infrared light source (NIR) that has a trigger effect for drug or active release [5,50,51,62,79] or is the promotor of PTT effects [5,6,46,50,51,58,59,60,61,62,64,66,69,70,72,73,74,75,76,77,79,86,90,92,93] or PTT+PDT effects [7,48,49,52,56,57,67,81,83,85,88]. Cell viability was assessed by state-of-the-art methods, such as MTT [5,6,7,44,45,47,48,49,50,53,54,56,57,58,59,60,62,64,66,68,70,73,74,80,82,83,84,85,86,88,90,92,94], CCK-8 [51,52,63,65,67,69,72,79,87,89,91,93], SRB [75,76,78], trypan blue [61,82,83], alamar blue [8], or calcein AM [81]. In vivo studies used xenografted animals with cancer tumor cells, and the GBNs were injected intravenously alone [54,71,78,81,91], or in conjugation with laser exposition [5,7,8,45,46,47,48,51,56,57,58,59,60,61,62,64,65,66,67,69,72,73,74,75,76,77,79,87,88,89,90,92,93,94], after which, therapeutic efficiency was evaluated. Therapeutic effect was measured in terms of: tumor volume, survival rate, and tumor tissue damage evaluated histologically. In vivo toxicity was assessed via the effects in body weight or by histological damage of a non-therapeutic form of the nanosystem (e.g., without laser exposition). In vitro toxicity assessment is often done in the same cancer cell line used for therapeutic evaluation; however, some studies use a cell line representative of healthy tissues for this assessment [5,47,48,49,53,57,58,61,62,67,68,70,81,82,85]. The in vitro toxicity assessment is also called “dark cell viability” as it is always performed in the absence of laser light exposition to infer the cytotoxicity of a non-therapeutic form of the nanosystem.
Because physical–chemical factors greatly impact the resultant toxicity and biocompatibility of graphene, characterization features, such as evaluation of size (lateral dimension and thickness), charge, surface coating, and colloidal stability, should be also considered as an outcome of the studies [38,39]. However, in this regard, the great majority of the studies failed to provide complete information. From the 55 studies, only 3 studies have presented these parameters [56,87,91].
The summary of study characteristics for which data were extracted are presented in Table 1 (type of GBNs, characterization features, and GBNs’ role in therapy or diagnostic, including the reference of figures from each paper where this role is demonstrated), Table 2 (types of therapeutic strategies, trigger strategies, and diagnostic strategies), and Table 3 (cellular and animal models, therapeutic and toxic outcomes in vitro and in vivo, doses of GBNs and actives administrated, actives’ loading efficiency and laser characteristics).
From the observation of Table 1 it is possible to conclude that most studies used GO (17 studies), followed by the other types of GBNs: rGO (13 studies), GQDs (13 studies), and NGO (12 studies). This preference must relate to the enriched oxygen surface of GO (carboxylic, epoxy and hydroxyl groups) that favor a broad extent of interactions and functionalization opportunities [30,31].

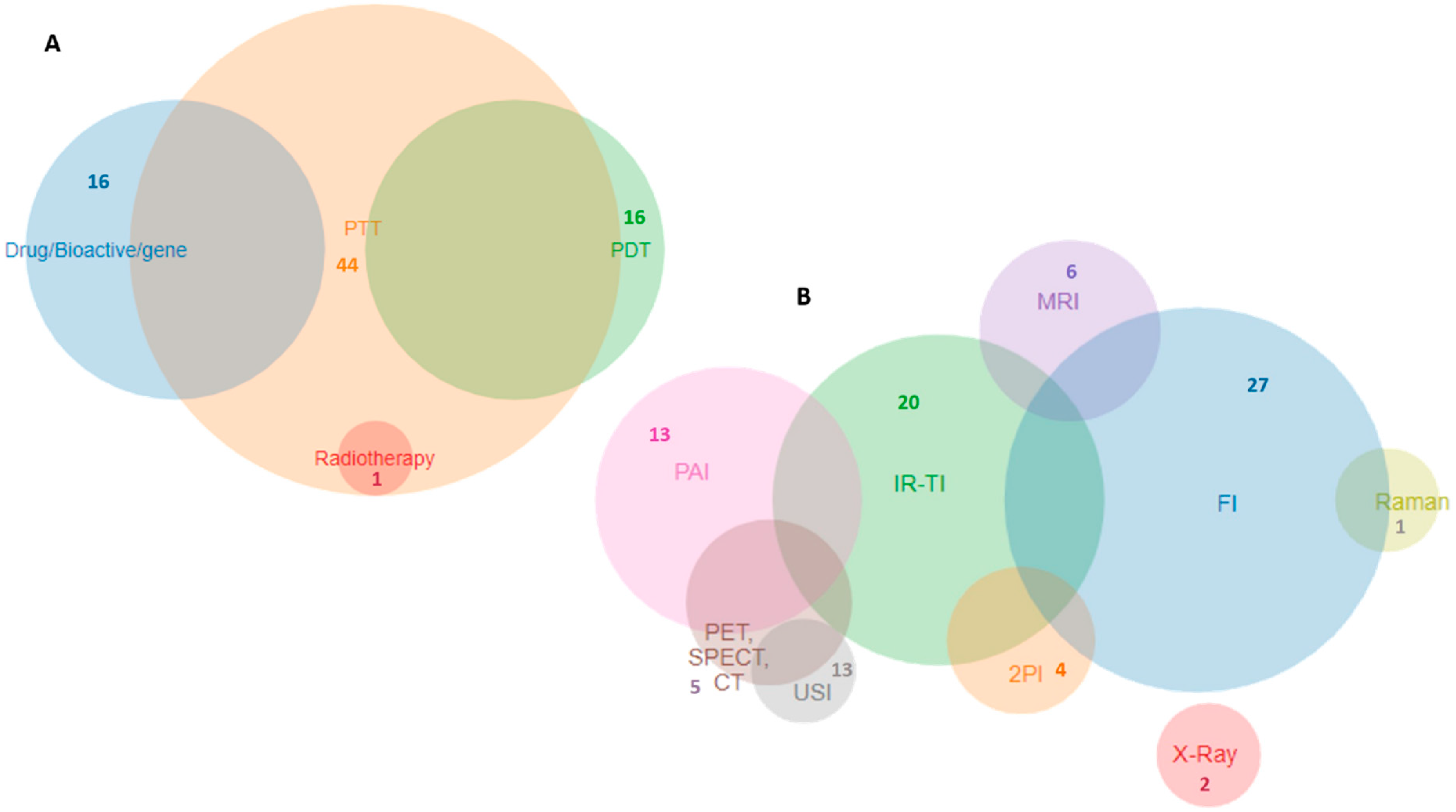

From the observation of Table 2 it is possible to conclude that the most explored therapy modality was PTT (44 studies), followed by PDT (16 studies), and chemotherapy (16 studies). The most explored synergic effect was the combination of PTT+PDT (14 studies), followed by chemotherapy+PTT (8 studies). Doxorubicin (DOX) was the anticancer drug used in most chemotherapy modalities (16 studies) and the drug release was often adjuvated by a trigger effect (10 studies), such as NIR and pH changes. The most explored diagnostic modality was FI (27 studies), followed by IRTI (20 studies) and PAI (13 studies). All studies presented the combination of at least one therapy strategy in combination with at least one diagnostic strategy, and the most complex system [48] combined two therapeutic strategies (PTT+PDT) with four diagnostic strategies (2PFI+MRI+CT+PAI). Figure 4 presents a Venn chart with the relative proportion of therapy and diagnostic strategies explored in the 55 studies analyzed.

4. Discussion

Because the study designs, interventions, and reported outcomes varied noticeably, we focused on the description of the studies for which we systematically organized their results in Table 1, Table 2 and Table 3. We will discuss their relevance, and their limitations, in a qualitative critical analysis instead of a meta-analysis.
The aim of this systematic review was to critically analyze the theranostic role of GBNs when it is the only component of the nanosystem or is instead incorporated in more complex nanosystems. First, the notion of theranostics presupposes the existence of a combined therapeutic and diagnostic strategy in the same system. However, not so uncommonly, studies present their developed nanosystems as a theranostic tool, even when they lack experimental evidence for both strategies. Though these studies may develop promising systems for theranostic applications, they should not be considered as such, only based in a theoretical assumption. Many of these studies have been introduced in previous reviews as theranostic nanosystems, but we have excluded them from the current review, as the inclusion criterion defined that only experimentally proved theranostic systems should be considered
The reason for the systematic scrutiny also came from the perception that the GBNs’ component of the system is not always analyzed for its individual effects either in therapy or in diagnostic, and without this analysis, its role in the entire system is compromised. It also compromised the assumption of a synergic effect of the entire system when the individual effects of each individual component are not evaluated.
Considering these aims, we will propose a discussion based on the role of GBNs in therapy, diagnostics, and toxicity of the overall theranostic systems, and we will also comment on the perspectives of a future clinical translation.

4.1. Role of Graphene-Based Nanomaterials in Therapy

4.1.1. Overview of the Different Therapeutic Strategies

GBNs intrinsic properties have converted these nanomaterials into a very attractive choice as drug and gene delivery systems. The combination of a 2-D structure with a large surface area and the existence of delocalized π electrons, as well as chemical polar groups that exist mainly on the GO surface, grants high drug loading ratios of lipophilic and hydrophilic actives [32]. Indeed, within the chemical surface moieties of GO, the epoxy and hydroxyl groups can establish hydrogen bonds with actives, while the carboxylic acid group offers negative surface charge for electrostatic interactions with positively charged molecules (Figure 2). Furthermore, actives can establish hydrophobic and π-π stacking interactions with GBNs [32]. Finally, active loading can be achieved via covalent and noncovalent surface functionalization of GBNs. Such a diverse range of possible interactions has given GBNs an important role in drug delivery, as it has been documented that drug loading ratios can achieve 200 wt%, which is exceptionally high compared to any other drug nanocarrier system [95].
Among the studies included in this review, DOX is the most used drug [5,8,50,53,54,62,63,68,74,75,76,79,89], as it can be efficiently loaded in GBNs via a simple π-π stacking interaction, or alternatively, it can be bonded to GBNs via ester linkages [62,76]. The drug loading achieved with the GBN systems can in fact be higher than that achieved with other nanocarrier systems. For instance, the commercial liposomal formulations of DOX, Caelyx®, and Doxil® have a drug loading of 16 wt%, while most GBNs formulations of this review (Table 3) are able to reach higher drug loading values, from 55 wt% to 133 wt% [5,50,54,71,75,76,79]. However, the drug loading capacity is not the only appealing feature of loading DOX in GBNs. The possibility of exploring triggering strategies that can release the drug under different stimuli is also attractive, as the idea is to carry the drug throughout the body with minimal release in the healthy tissues, and a higher release in the cancer target tissues. In the cases that DOX has been bonded to GBNs via ester linkage, this linkage can be broken by physiological esterases that are often overexpressed in cancer tissues or the drug release can be triggered externally using NIR radiation [62,76]. NIR radiation is a triggering strategy commonly used to release DOX from GBNs [5,8,62,76,79]. Moreover, DOX is positively charged at physiological pH, while the carboxylic groups of GBNs are negatively charged, which favors an electrostatic interaction. This was used as a triggering strategy for a pH-dependent release of DOX in several studies in the current review [5,53,63,71,79,80]. As in the tumor microenvironment, intracellular lysosomes and endosomes are acidic, the carboxylic groups of graphene become non-ionized and the electrostatic interaction between drug and GBNs ceases. Additionally, one study has used an alternative triggering strategy by functionalizing GBNs with a pH labile linker that, in the face of the acidic tumor environment, releases the drug [8]. Conjugation of GBNs with iron oxide nanoparticles confers superparamagnetic properties to the overall nanosystem, and this was another strategy explored for a pH-assisted magnetic triggering of DOX [50].
Besides the use of GBNs as carriers of DOX, one study has used GBNs loaded with paclitaxel (PTX), also with a very successful drug loading (90 wt%) [91] in comparison with the commercial PTX formulations Taxol® (1 wt%) and Abraxane® (11 wt%). In this study, PTX was non-covalently immobilized on the NGO surface via a π-π stacking interaction and hydrogen bonding, and PTX release was also triggered using pH. At acidic pH (5.0), characteristic of tumor tissues and intracellular lysosomes, PTX was released in 30% greater quantities than at blood and healthy tissues pH (7.4) [91]. However, the authors of this study do not present an explanation for such pH-triggered drug release, and this is not as evident as in the case of DOX, since PTX is neutral at all the pH values tested and NGO surface groups will be more protonated at acidic pH, favoring the hydrogen bonding with PTX.
Other than drugs, bioactives have also been used with a chemotherapy purpose. Natural compounds with anticancer effects have hampered pharmaceutical uses due to their small bioavailability and poor stability [96]. Nanocarriers have given these compounds new prospects for clinical application by improving bioavailability and protecting them from early metabolization or degradation [96]. GBNs offer the additional advantage of providing higher payloads than the conventional nanocarriers, and in this review, GBNs were used to load curcumin (Cur) [78], resveratrol (Res) [58], and berberine hydrochloride (BHC) [82] with loadings of ≈ 41 wt%, 70 wt%, and 88 wt%, respectively. In contrast to Cur and Res that were loaded in GBNs by π-π stacking interactions, BHC was functionalized on the surface of GQDs by means of a biocompatible linker (Cys-HCl). At acidic pH characteristic of tumor cell tissues, there was an increased release of the bioactive resulting from breaking of the bonds between BHC and GBNs, therefore pH was also used in this case as a triggering mechanism.
In an interesting approach to chemotherapy, Yu and coworkers have used the peptide H2N-Gly-Ala- Gly-4Hyp-Pro-Tyr-CONH2 (AAP10), which is a bioactive that has its mode of action based on a bystander effect [90]. The bystander effect refers to the ability of injured cells in transmitting cytotoxic signals to the nearby cells, which become more sensitive to chemotherapy and PTT damages. This effect is primarily controlled by a connexin-mediated gap-junction intercellular communication (GJIC). Sadly, most cancer cells possess deficient GJIC, and in addition, tumors are 3-D structures, which can restrain the efficacy of the bystander effect. Consequently, the inexistence of a bystander effect impairs the propagation of damage between cells and some cells become shaded to therapy. Thus, both chemotherapy and PTT fail to kill all tumor cells, which results in cancer recurrence. Therefore, enhancing the bystander effect in tumor cells is an encouraging strategy to increase PTT and chemotherapy efficacy. In this regard, AAP10 was loaded in rGO to elevate the protein activity of connexins, thereby promoting the transfer of toxic signals or toxics between adjacent cells in tumors via a bystander effect [90].
The large surface of GBNs is also attractive for the development of a multipotential nanosystems that comprise, not only the drug, but also other components to enhance therapeutic performance and reduce toxicity. This is the case of targeting or sensing ligands that are used to specifically bind to overexpressed receptors existent in cancer cells, reducing internalization by normal cells, thereby reducing off-target toxicity. The overall targeting strategies used in the studies reviewed are summarized in Table 4:
The same favorable properties of GBNs referred to above for drug and bioactive delivery applications can be extended to gene delivery applications. Indeed, even in the absence of cationic groups, GBNs have demonstrated the capacity to effectively condense genetic material through π-π stacking interactions, protecting the nucleic acids from endonucleases degradation. Many studies have emphasized the role of GBNs in gene delivery in vitro [30]; however, there is a need to establish their potential in vivo, paying special attention to its safety profile, transfection efficiency, and biodistribution. The only two studies included in this systematic review that are aimed at genetic therapy, although promising in vitro, also lack in vivo validation [84,94].
Besides chemotherapy, and contrastingly to a previous review that covered studies reported from 2012–2014 [97], we found that the most explored therapeutic strategy of GBNs is PTT [5,6,46,50,51,58,59,60,61,62,64,66,69,70,72,73,74,75,76,77,79,86,90,92,93]. In the time frame of that review, chemotherapy was the focus of using GBNs, while in the last 6 years, covered by this systematic review, researchers have shown the appealing role of GBNs in PTT.
By being 2-D materials, GBNs have a broad absorption in the NIR region (700–1100 nm) due to their narrow band gap that expands the light absorption to NIR region. Upon NIR radiation absorption, GBNs can convert it into thermal energy, which causes a temperature rise and cellular damage or death via hyperthermia (please see Table S1 of supplementary materials for a more detailed explanation of the PTT mechanism). Simultaneously, this process of temperature rise reduces GO and releases gases, creating a microcavitation environment from gas bubbles formation and collapse. The microcavitation environment, if created in a cellular media, is in turn responsible for cell death [98]. Most GBNs have been reported to have a good photothermal conversion efficiency that enables reaching a high PTT efficiency with a low power density of NIR light, and this potentiality was used in two studies herein reviewed, where PTT efficiency was exclusively obtained from GQDs NIR absorption capacity [44,45]. In other studies, the PTT efficiency of GBNs was further enhanced via conjugation with other narrow bandgap materials due to their increased NIR absorption, such as: Au based nanomaterials [6,61,66,68,70,79,87], Ag based nanomaterials [76]; cyanine and cysteamine based dyes (e.g., Cy5.5, Cy7, CysCOOH) [56,72,73,85]; IR780 iodide dye [65]; indocyanine green dye [59,69,86,93]; and Bi2Se3 nanoparticles. Another strategy to increase cell death by hyperthermia is to combine magnetic hyperthermia with PTT efficiency via the conjugation of GBNs with magnetic nanoparticles made of transition metals, such as: Fe, Ni, Co, Mn and its oxides (e.g., MnWO4, and IO-supermagnetic iron oxide nanoparticles) [5,60]. In comparison with GO, rGO has 6 times higher NIR absorption, and as such, rGO are more efficient GBNs for PTT applications (Figure 2). Therefore, another strategy used in these studies was coating GBNs with polydopamine (pDA), as it reduces GO to rGO, thereby increasing NIR absorption [59,90].
Although the studies selected in this systematic review demonstrate the important role of GBNs in the PTT therapeutic strategy, some limitations can be also pointed out. First, the photothermal conversion efficiency should be calculated and reported, since a high demonstrable photothermal conversion efficiency avoids the use of high power NIR laser density that can cause serious burn wounds and tissue shrinking [99]. In fact, some authors mentioned that upon NIR laser irradiation, a noticeable black round mark persisted on mice skin, which is direct evidence of the generation of excessive local heating [61]. Accordingly, there is a big discrepancy of power used from study to study, varying from small values of 6.5 mW/cm2 [44] to high values of 6.67 W/cm2 [61], and without the value of photothermal conversion efficiency, it is very difficult to analyze which GBNs or GBCs are more effective. Second, photostability of the overall GBCs should also be demonstrated.
Besides PTT, PAT is another therapeutic strategy in which photon energy is converted in an acoustic shockwave (PA wave) to kill cancer cells, being different from PTT where photon energy is converted to heat to damage or kill cancer cells [72]. Therefore, in PTT, there is an application of a continuous laser radiation, whereas in PAT the duration of the laser pulse is shorter than the thermal diffusion time [72]. This strategy was used by Qin and co-workers to conjugate a dye with GO, and the fluorescence quenching of this dye promoted by GO reduced the release of the absorbed energy via a radiative transition while increasing the non-radiative transition [72].
Recently, GBNs have also been used in PDT for its capacity of forming complexes with photosensitizers (PS) via π-π stacking and hydrophobic interactions. The different PS used in the studies reviewed can be identified in Table 2. The energy transfer from the laser NIR light source to PS will cause reactive oxygen species generation (ROS), which are ultimately responsible for cell damage and death (please see Table S1 of supplementary materials for a more detailed explanation of the PDT mechanism). This strategy was used in several studies of this review that generally took advantage of the synergistic effect of the combination of two therapy modalities: PTT + PDT [7,45,47,48,49,52,56,57,67,81,83,85,87,88]. These strategies can be a good alternative to drug delivery as they do not require the cellular internalization of GBNs. Given the wide ranges of lateral size dimensions and thickness of the materials reported herein (Table 1), it would be difficult for them all to succeed in a context of drug/gene delivery, where a control of sizes <100 nm is required to enter the cell and <40 nm to access the nucleus. However, the restricted depth reached by UV light debilitates the PDT effect. Accordingly, some studies have used the strategy of combining GBNs with UCNPs, which can convert the high depth penetration NIR light into high-energy photons (UV/vis) [48,57,85].

4.1.2. Critical Comparison of Therapeutic Outcomes

By analyzing Table 3, it is possible to conclude that all the studies reported were successful in killing cancer cells in vitro; however, when evaluating therapeutic outcomes in vivo, it is possible to find bigger differences in the sense that some formulations show much higher anti-tumor effects by ablating the tumor completely [5,7,44,46,51,56,58,59,64,65,66,67,69,73,77,79,87,88,90,91,92], while other formulations are not able to achieve a complete ablation of the tumor [45,47,48,54,57,60,61,62,71,72,75,76,78,93].
One immediate analysis is that GBNs made of rGO were more successful in achieving a tumor elimination (9 studies out of 10 were able to ablate tumor between 3 to 16 days), most probably because in all studies, PTT was the therapeutic strategy alone or in combination with other strategies and rGO presents a high NIR absorbance (6 times higher than GO or NGO), thereby possessing intrinsic higher photothermal conversion to kill cells via hyperthermia. Besides the PTT efficiency, the high tumor uptake might be the explanation for the success of these formulations in tumor ablation. Table S6 of the supplementary materials summarizes the biodistribution information of some of these formulations than can be correlated to the successful therapeutic outcomes obtained. In three other studies with rGO nanomaterials that were able to eradicate the tumor, there is no biodistribution information available to understand tumor uptake and accumulation [59,66,90]. However, some characteristics of these formulations might explain their success in tumor ablation. rGO-GSPs formulation was able to ablate tumors in 2 days with a survival rate ≥40 days using PTT as therapy strategy [66]. The reason for such a successful therapeutic outcome might be related to the synergic effect obtained by conjugating rGO (already a high thermal conversion nanomaterial) with gold superparticles (GSPs), which endowed the rGO-GSPs formulation with NIR absorption and enhanced photothermal conversion properties due to the strong plasmonic coupling effect [66]. Indeed, after administration of this formulation, the surface temperature of the tumor increased rapidly from ≈30 °C to ≈58 °C within 5 min of 808 nm laser irradiation at a power density of 0.8 W/cm2 [66]. AAP10-pDA/rGO formulation was also very effective at promoting tumor ablation in 7 days [90]. In this case the success of the formulation might be related with the bystander effect of the AAP10 peptide that, as already explained, allows for damage effects resulting from PTT to be effectively transferred from one cell to the adjacent cells [90]. Finally, two formulations containing both rGO and ICG were developed for a PTT strategy, but the therapeutic outcome obtained was quite different. ICG-PDA-rGO formulation was able to ablate tumors in 3 days with a survival rate ≥40 days [59], while rGO-mfHSA was only able to reduce tumor growth by 4-fold in 20 days [93]. Although biodistribution data is not available for comparison purposes, and although both formulations contain two synergic components for PTT (ICG + rGO), the most effective formulation contains pDA that has been described as able to increase NIR absorption, thereby being a third additional synergic component for PTT [59].
In GBNs formulations made of GO or NGO loaded with DOX for a chemotherapy strategy used as only strategy [71] or combined with PTT [62,75,76], the therapeutic outcomes are improved regarding the use of free DOX, but the tumors are not totally ablated. The only exception is observed for the formulation GO/MNWO4/PEG that was able to eliminate tumor in 12 days (and no remission observed until the end of the study after 16 days) [5]. In this formulation there is a synergic effect between chemotherapy (DOX) and PTT (GO+MnWO4) as the components alone were less effective than the combined system: (i) DOX alone was not able to ablate tumor, but the growth rate of tumor volume decreased about 1.5-fold in comparison to the control; (ii) PTT strategy alone (GO+MnWO4) had a lower effect than the entire synergic formulation, since it ablated the tumor in 12 days, but it then started to grow until the 16th day. Other GO or NGO based formulations have also used DOX chemotherapy combined with PTT [62,75,76]; however, it was less efficient than GO/MnWO4/PEG. A possible explanation for this fact is that in the later formulation, laser treatment was applied twice (6 and 24h post-injection), and the biodistribution assays that quantified Mn indicated that after 24 h post-administration, there was still significant intratumor concentration of the nanocarriers (7% ID/g), thus the second laser irradiation might have potentiated the PTT effect (Table S7 of the supplementary materials)).
The GO-DOX formulation was the only case of GO-based formulations where DOX was used in a single chemotherapy strategy, and GO was merely a nanocarrier for DOX [71]. GO-DOX formulation was also not able to ablate tumors, but after 14 days of administration, reduced the tumor by approximately 75% [71]. The treatment efficacy also improved 6.5-fold in comparison to free DOX, suggesting a high tumor uptake efficiency of this formulation whose dimensions indicate cell internalization (30 × 6 nm) [71]. Despite not presenting a synergic therapy and not being able to eliminate the tumor, GO-DOX presents the highest loading efficiency of DOX (133.32 wt%) in GBNs, which may account to the good therapeutic outcome reached. Furthermore, authors of this study have evaluated the effect of GO-DOX formulation in angiogenesis, as this is considered a parameter to predict metastasis and to evaluate chemotherapy effect. They concluded that the GO-DOX suppressed 3 times as much tumor angiogenesis when compared with DOX [71].
The chemotherapy effect of PTX loaded in NGO based formulation (NGO-PEG-ICG/PTX) was able to promote tumor ablation in 15 days [91]. In this case, PTX was also used as a single chemotherapy strategy, and GO was merely a nanocarrier. Despite not presenting a synergic therapy, this formulation had a small lateral size that assures good tumor cellular uptake, and this was confirmed through biodistribution studies that indicated a significant intratumor concentration of the nanonarriers (29.1% ID/g) 24 h after treatment (Table S7 of the supplementary materials).
Since PTT is not so efficient in GO-based nanosystems as it is in rGO based nanosystems, the success of therapeutic depends largely on combined PTT+PDT or multiple PTT strategies. Except for three studies [47,48,57], all the formulations based in NGO or GO and using a combined PTT+PDT strategy effectively ablated tumors in a short period of time (2 to 14 days) [7,56,67,87,88]. Besides the PTT+PDT synergic combination, the effective cellular uptake of the formulations might be the explanation for their success in tumor ablation. Table S7 of the supplementary materials summarizes the biodistribution information available for some of these formulations than can be correlated to the successful therapeutic outcomes obtained. Two studies that were effective in tumor eradication do not present biodistribution data, so we could not correlate tumor accumulation with the therapeutic outcome [7,88]. However, their efficiency in tumor ablation can be correlated with: (i) the use of synergic PTT+PDT strategy, (ii) their small lateral dimensions that might favor tumor cell uptake, and (iii) the use of two laser irradiation conditions that for sure potentiate the cellular damage via hyperthermia and ROS. Indeed, the formulation GO-PEG-DVDMS possesses a combination of PTT strategy (conferred by NGO) and PDT strategy (conferred by DVDMS) and therapy was achieved upon double irradiation of tumors with a laser of λ = 630 nm (for PDT treatment) and with a laser of λ = 808 nm (for PTT treatment) [88]. Whereas, the formulation NGO-PEG-FA possesses a combination of PTT+PDT strategy (both conferred by NGO) with a laser of λ = 630 nm (for PDT treatment) and with a laser of λ = 808 nm (for PTT treatment) and a laser of λ = 980 nm (for PDT+PTT treatment) [7]. Among the three studies that were not able to ablate tumors, two of them had better performance as the tumors did not grow during the entire time course of the experience (14 days) and at the end of the study the tumor volume in treated animals was 7× [48] or 8× [57] smaller than the tumor volume in the untreated animals (control). Both studies lack biodistribution evaluation and thus it is difficult to analyze the reasons why these formulations were not able to ablate tumors, but we can at least hypothesize that their similar effect of stabilizing tumor growth can be related to the fact of both possessing UCNPs, which, as previously referred, may increase PDT tissue penetration. The other case of a combined PTT and PDT strategy with GO (PheoA+GO:FA-BSA-c-PheoA) was the least successful of all, not being able to avoid tumor growth, although the rate of tumor growth in treated animals was 3× smaller after 14 days than the tumor growth of untreated animals (control) [47]. Authors of this study present biodistribution evaluation and showed that after injection, PheoA+GO:FA-BSA-c-PheoA preferentially accumulated at the tumor (around 2-fold at 3 h), but also accumulated in skin (less than Pheo alone) and the liver [47]. At 24 h post-injection, PheoA+GO:FA-BSA-c-PheoA is only located in the tumor while Pheo is still in the skin. Despite the successful tumor accumulation, there was not a successful tumor ablation as occurred in other studies, and we can hypothesize that this can be related not with the absence of tumor uptake, but with the laser irradiation used. The authors of this study [47] used a single laser for PDT and PTT purposes and this laser is out of the NIR range (λ = 670 nm instead of >800 nm), which is not so adequate to achieve a PTT-effective treatment. It is also worthwhile to mention that another formulation (GO/AuNS-PEG/Ce6) that was able to ablate tumors also used a single irradiation out of the NIR range (λ = 660 nm instead of >800 nm), but in this case, the PTT effect was not only dependent of GO but it was reinforced by the conjugation with AuNS that increases thermal conversion efficiency [87]. Notwithstanding this, the capacity to ablate the tumor using GO/AuNS-PEG/Ce6 took a longer time than the other studies (14 days compared with 2 to 6 days) [56,67]. Moreover, in the treatment with GO/AuNS-PEG/Ce6, the potency of the laser was significantly higher (3 W/cm2 for 10 min) and the doses administrated were also significantly higher (10 mg/kg) [87] compared with the treatment with PheoA+GO:FA-BSA-c-PheoA that used a low laser potency of the laser (0.13 W/cm2 for 10 min) and a lower dose (2 mg/kg).
Multiple PTT strategies, i.e. PTT effect resultant from the synergy of GO with other components, can be another way of achieving tumor ablation with NGO- or GO-based materials. GO and NGO formulations containing multiple PTT strategies were all able to eradicate tumors in 2 to 6 days [64,73,92]. Besides the PTT synergic combination, the effective cellular uptake of the formulations might be, as stated, the explanation for their success in tumor ablation. Table S7 of supplementary materials summarizes the biodistribution information available for two of these formulations [73,92], and can be correlated to the successful therapeutic outcomes obtained.
Only one formulation (Au@PLA-(PAH/GO)n) containing a multiple PTT strategy (conferred via GO and AuNPs) was not able to ablate tumors, although 9 days after treatment the tumor volume of treated animals was reduced by 80% in comparison with the tumor value of untreated animals (control) [61]. Despite lacking tumor uptake data, this formulation presented very big sizes (1.5 µm), which may explain a small tumor tissue penetration, also explaining the incomplete tumor eradication. It is also worthwhile saying that the efficiency obtained is only possible because: (i) PTT is a type of therapy where the system does not require entering the cell (although being more effective when the cellular uptake occurs); and (ii) the formulation was intratumorally injected instead of intravenously injected, thereby permitting that the big sized micromaterial assessed tumor. Moreover, this study presents a rather short time of evaluation compared with other studies (which always present more than 10 days of evaluation), and an extension of the period of evaluation would be required. Finally, intravenous injection is more applicable to therapy where most tumors are not assessible to intratumoral injection, and in the context of intravenous injection, the bigger sizes of the system administrated suggests some serious toxicity concerns (e.g., by hemolysis) that may shorten animals’ survival. Similarly, another formulation IO/GOCOOH was also intratumorally administrated, and this was for sure a strong reason for the efficient therapeutic outcome obtained (tumor ablation in 2 days) [60]. Thought, in this latter case, the formulation was based in NGO and the lateral dimensions would be adequate for an intravenous administration.
Regarding GQDs, it seems that there is still room for improving these formulations’ therapeutic efficiency since only two formulations demonstrated capacity to eradicate the tumor. One of these formulations (IR780/GQD-FA) was quite effective (tumor ablation in 6 days) given that it presented a synergic PTT strategy (conferred by GQDs and IR780) that provides the nanosystem with a high photothermal conversion (87.9%), assuring an effective hyperthermia required to kill the cancer cells [65]. The biodistribution studies also corroborate this efficiency by proving IR780/GQD-FA tumor accumulation (Table S7 of the supplementary materials). Another formulation (GQDs) presented a synergic PTT+PDT strategy (PTT conferred by GQDs and PDT conferred by PpIX) and was able to ablate the tumor after 20 days of treatment with two laser irradiations at day 1 and 7 [44]. It is thus assumed that this formulation reached tumor cells, although authors do not present biodistribution data.
A combined PTT+PDT strategy was also used in cGdots (both strategies conferred by GQDs) and biodistribution studies confirmed that 4 h after injection, GQDs were nonspecifically distributed in the body (liver, lung, and kidneys) and also distributed in the tumor [45]. Despite the observed tumor accumulation, there was no successful tumor ablation and the tumor has grown 1.5× larger in 21 days (though this growth was smaller than that observed in untreated animals). Thus, we can hypothesize that this can be related not with the absence of tumor uptake, but with the laser irradiation used. As stated before, these authors used a single laser for PDT and PTT purposes and this laser is out of the NIR range (λ = 670 nm instead of >800 nm), which is not so adequate to achieve a PTT effective treatment.
Finally, GQDs were also loaded with DOX in a formulation where DOX was used in a single chemotherapy strategy, and GO was merely a drug nanocarrier [54]. Also, in this case, the tumor is not ablated, and at 23 days after treatment, tumor has grown 6× in size (though this growth was smaller than that observed in untreated animals). No biodistribution studies are presented, thus it is difficult to understand the reason why this formulation is not efficient.

4.2. Role of Graphene-Based Nanomaterials in Diagnostic

NGO and GQDs possess appealing optical features that put GBNs in a central role of dye-free labelling diagnostics. Due to a quantum confinement effect that occurs because NGO and GQDs dimensions are smaller than their exciton Bohr radii, the nanosized material possess non-blinking photoluminescence (PL) and photostability [100]. Thus, GQDs fluorescence intensity remains strong under confocal laser illumination and can serve as a reporter guiding the therapeutic nanosystem delivery into cells. Accordingly, the studies reported in this review that were based in GQDs have taken advantage of the PL properties and used it as a diagnostic tool [44,45,49,54,55,63,65,80,82,84,94]. Of additional interest is the fluorescence quenching capability demonstrated by GBNs that result from fluorescence resonance energy transfer (FRET) or non-radiative dipole–dipole interactions between fluorescence species and GBNs. This is being used as an additional diagnostic feature that permits detecting the release of GBNs cargo. Indeed, when GBNs are interacting with the fluorescent cargo (drug or other active) it reduces its fluorescence emission, but the moment the cargo is released, the fluorescence emission is reset. This elegant strategy was used in two studies of this review [54,80].
GBNs photothermal conversion properties can also be applied as a therapy-guiding strategy under a non-labeling IR-TI technique. The application of the NIR laser to induce a PTT effect can be detected using a visible thermal field image (Table S2 of the supplementary materials), which is very interesting due to its non-invasive nature and because it provides real-time imaging. Given that PTT was the therapy modality mostly used by the studies herein revised, IR-TI is, as expected, also widely used in the studies reported [7,8,48,51,56,58,59,60,62,64,65,66,67,69,73,74,77,87,89,92,93] as both strategies are often used together.
The third diagnostic modality most described in the studies revised is PAI, which is also different from GBNs capacity as NIR absorbers or from its easy functionalization with other NIR absorbing materials, such as gold-based nanomaterials (please see Table S3 of the supplementary materials for a more detailed explanation of PAI mechanism). Among the GBNs, rGO has attracted attention as a PAI contrast agent because of its higher NIR absorbance properties. rGO based studies included in this review took advantage of these properties and have used PAI imaging as a diagnostic tool [59,63,74,79]. Notwithstanding the better intrinsic PAI properties of rGO, GO nanomaterials compensate their lower NIR absorption with the higher functionalization capacity. Hence, in some studies herein reviewed, GO nanomaterials were conjugated with other materials as a strategy to enhance NIR absorption and thereby achieved PAI diagnostic modality [56,71,72,73].
In some of the studies reviewed, the unique large surface area and easy functionalization of GBNs has also proved to be very favorable to carry MRI probes [5,48,50,60,80], extending the in vivo half-life of the MRI contrast agent [60]. Moreover, the large molecular weight of GBNs can decrease the rotational motion of the water proton, enhancing T1 and T2 relaxivity and leading to a better image. Similarly, once more due to its large surface area and easy functionalization, GBNs were also explored as a carrier of radionuclides [51].
Finally, GBNs can also take part in Raman imaging or more effectively in diagnostics based in surface enhanced Raman spectroscopy (SERS). Regardless of any treatment that have been used, GBNs normally reveal an appropriate Raman scattering intensity, showing typical bands of D, G, and 2-D characteristics of vibrational modes in the 1000–3000 cm−1 range. When functionalized with gold and silver nanoparticles, Raman signals of GBNs are effectively augmented by the surface enhanced Raman scattering. Taking advantage of this strategy, SERS was used to combine microscope cellular imaging with Raman spectroscopy, thereby mapping the presence of GBNs in the cellular tumor tissue [68].

4.3. Role of Graphene-Based Nanomaterials in Toxicity

If we can imagine the high surface of GBNs as an advantage for easy interaction with drugs, bioactives, genetic material, and other nanosystems, we can also perceive that the interaction of GBNs with biological structures can be as high, which can be a toxicity concern regarding these highly reactive nanostructures. It has been reported that the GBNs lateral size and thickness, surface charge, colloidal stability, and concentration can strongly impact its biological toxicity [39]. For example, lateral dimensions can dictate the cellular internalization of GBNs (<100 nm) or can promote blood brain barrier permeation (<35 nm), and some reports indicate liver and lung accumulation for larger-sized GBNs [39]. Therefore, the major criticism of the studies included in this study must be the scarce information about the overall nanomaterial size and thickness and surface charge (Table 1). The evaluation of the colloidal stability of the GBNs developed was even more uncommon in the studies reviewed. Additionally, other studies made unsatisfactory evaluations based on the short time stability assessment, such as 3 h, 4 h, 5 h, or 1 day stability [8,50,86]. However, the aggregation nature of less hydrophilic GBNs, such as GO, particularly under physiological conditions (e.g., in serum), can have several consequences and are toxic to different cells [39]. Hence, comprehensive physicochemical characterization is mandatory in future studies of GBNs toxicity.
Colloidal stability of GBNs can be improved by coating their surface with biocompatible materials that enhance aqueous solubility while assuring a better body distribution. PEG coating is one of the most used strategies to reach these aims, and was used as a coating and linker of target ligands in several studies included in this review [5,6,7,46,47,48,49,50,51,53,55,56,58,66,67,71,73,75,76,79,81,85,86,87,88,91] (see Table 1). Other strategies used in the revised studies include coating GBNs with OA [57,60,64], HA [62,69], pDA [59,90], HSA [93], BSA [74], and APGA [77]. OA is a fatty acid that has amphiphilic properties and can be useful to increase the solubility of GO-based nanosystems. HA is biocompatible, increases biodistribution, and can additionally serve to target cancer cells (Table 4). Surface modification with pDA can improve the stability and dispersity of rGOs. An HSA or BSA coating assures increased plasma circulation and wide body distribution. Finally, APGA is a bacteriomimetic coating that assures greater body distribution.
The in vitro toxicity evaluation made in the studies herein listed also requires some critical observations. Some studies have chosen a cell line representative of healthy tissues to evaluate cytotoxicity while choosing a cancer cell line to evaluate therapeutic outcomes [5,47,48,49,53,57,58,61,62,67,68,70,81,82,85]. Yet, most studies used the same cancer cell line to access toxicity and therapeutic value. However, cancer cell lines can be more resistant or more susceptible according to their genotype. Therefore, primary cell lines would be more advisable to evaluate cytotoxicity [39]. Furthermore, MTT was among the most used methods for cell viability evaluation [5,6,7,44,45,47,48,49,50,53,54,56,57,58,59,60,62,64,66,68,70,73,74,80,82,83,84,85,86,88,90,92,94]. However, MTT has been reported as inadequate for evaluating GBNs cytotoxicity due to a false positive signal. As a replacement to this widely used method, it would be recommended, for instance, to use the trypan blue test, which was only used in three studies [61,82,83].
In vivo toxicity evaluation was generally based on the histological observation of healthy tissues or observation of variations in animal weight after treatment has been applied and no toxicity concerns were presented in any of the studies where these evaluations were performed (Table 3). Although many studies have demonstrated bioaccumulation of GBNs in liver and kidneys, few studies have taken toxicity evaluation further by analyzing important liver and kidney function biochemical parameters. Liver function biochemical parameters include the serum quantification of hepatic enzymes such as: alanine aminotransferase (ALT), aspartate transaminase (AST), and alkaline phosphatase (ALP). Kidney function biochemical parameters include the serum quantification of blood urea nitrogen (BUN) and creatinine (CR). Only four studies within the 55 included in this review have made a serum biochemical examination of mice 1 day [77], 7 days [93], 15 days [65], or 50 days [51] after treatment with GBNs. No significant differences were observed in any of these cases in comparison with untreated animals and all the parameters were within the reference values.
Moreover, it is important to carry out the hematological evaluation of: white blood cells, red blood cells, neutrophilic granulocytes, hemoglobin, mean corpuscular hemoglobin concentration, hematocrit, and mean platelet volume and distribution. Once more, only three studies of the 55 included in this review have made this hematological evaluation in mice 15 days [65], 18 days [59], or 50 days [51] after treatment with GBNs. In all these cases, the parameters were within the reference values.
One good indicator of toxicity is the evaluation of inflammatory response after intravenous administration by the quantification of cytokines and tumor necrosis factor α (TNF-α). This evaluation was only made by one study of all the 55 studies included in this review, and the results have demonstrated an inflammatory response as both TNF-α and proinflammatory cytokines were increased after intravenous administrations of GBNs [72].
Finally, all the toxicity assessments performed were based on short-term periods, and a longer period evaluation is necessary.

4.4. Pharmaceutical Applications of Graphene-Based Nanomaterials and Clinical Translation Prospects

The potentiality of exploiting GBNs remarkable physical and optical properties for pharmaceutical applications has been pursued over the last few years with interesting scientific endeavors that have proved to be strong contributions in the fields of drug delivery, biosensing, and tissue engineering [101,102,103]. In the field of cancer theranostics, it is particularly important that all the successful research attempts use GBNs to load anticancer drugs, bioactives, or nucleic acids in synergic applications of chemotherapy, gene therapy, and photothermal/photodynamic therapy [101,102,103]. Moreover, in comparison with highly toxic inorganic quantum dots used for theranostic purposes, the ongoing studies indicate a general satisfactory biocompatibility of GBNs and even when harmful effects were detected there is a sturdy proof that GBNs toxicity can be modulated and is reliant on specific applications of this nanomaterial [104]. Notwithstanding these satisfactory signs that GBNs can be improved to safer forms, there is still a lack of standardization to assure this control [103,104]. Consequently, the European Scientific Committee on Emerging and Newly Identified Health Risks has included graphene in the classification of dangerous substances, stating that there are still many risk related knowledge gaps to be filled before considering this nanomaterial safe [105]. This is sadly what happens with most nanomaterials. Indeed, the toxicity grade for a material can be roughly controlled by three factors (composition, concentration, and exposure route), whereas for a nanomaterial the toxicity grade relies on over 10 factors, and it is much more difficult to control these factors or to report them in a standardized way, such that they can be compared and improved [106].
Therefore, despite the attention-grabbing results obtained to this point and the evident success, there are still several issues to unravel before a clinical translation is possible. The main issues include: (i) the dearth of standardization within the production of the different GBNs types; (ii) the lack of thorough characterization to control lateral size, aggregation state (single vs. few layers of graphene), colloidal stability, and oxidation grade; (iii) the presence of remnant contaminants resultant from production processes that may add toxicity to GBNs; (iv) the need to understand how dimensions and surface chemistry affect cellular uptake or physical adsorption to biomolecules like membranes and proteins; (v) the necessity to evaluate the generation of ROS and its consequences in healthy tissues; (vi) the scarce number of biodistribution studies; and (vii) the need to evaluate toxicity in a wider context that involves not only cytotoxicity studies but also genotoxicity, biodegradation, distribution, and accumulation into organs, metabolism, and evaluation upon long term exposure. If these main issues are not addressed, the GBNs developed will have trouble fulfilling the rigid criteria for translation of novel nanomaterials into significant clinical uses.
Efforts are being made by different scientists to establish important guidelines, tutorials, or to define challenges that must be pursued to develop low-toxicity and safer nanomaterials that can be accepted by regulatory authorities. Although being out of the scope of this review, these attempts of standardization deserve special attention by those that work with GBNs for pharmaceutical applications and wish to translate their studies into a clinical use as theranostics (for a more extensive discussion, please refer to good reviews on the subject [103,104,106]).
Although the translation of GBNs to a clinical context of pharmaceutical applications is still very far from being possible, it is worth mentioning that the enthusiasm of the scientific community with the GBNs breakthroughs is shared by the National Institutes of Health (NIH) and its National Institute of Biomedical Imaging and Bioengineering (NIBIB) program. Indeed, this program is focused on coordinating engineering and physical sciences with life sciences to propel fundamental research and medical care and has supported studies included in this review [66,71,88] through the Intramural Research Program, which indicates an interest in the innovative diagnosis and therapy strategies provided by GBNs.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4923/10/4/282/s1. Table S1: Therapeutic strategies of theranostic nanosystems. Table S2: Optical diagnostic strategies of theranostic nanosystems. Table S3: Non-optical diagnostic strategies of theranostic nanosystems. Table S4: PRISMA (Preferred Reporting Items for Systematic review and Meta-Analysis) checklist: recommended items to address in a systematic review. Table S5: Checklist for assessing the quality of the studies. Table S6: Biodistribution information and therapeutic outcomes obtained with rGO formulations. Table S7: Biodistribution information and therapeutic outcomes obtained with GO, NGO, and GQDs based formulations.

Author Contributions

Conceptualization, M.L.; Methodology, T.V., C.M.L., E.F., and M.L.; Validation, T.V., C.M.L., E.F., and M.L; Formal Analysis, M.L.; Data Curation, T.V., C.M.L., E.F., and M.L.; Writing—Original Draft Preparation, M.L.; Writing—Review and Editing, T.V. and M.L.; Visualization, M.L.; Supervision, M.L.; Project Administration, M.L.; Funding Acquisition, M.L. and M.E.C.D.R.O.

Funding

This research was funded by Fundação para a Ciência e Tecnologia (FCT) in the framework of the Strategic Funding UID/FIS/04650/2013 and in the ambit of the project POCI-01-0145-FEDER-032651. E.F. acknowledges the scholarship CFUM BI-10/2018 - UID/FIS/04650/2013.

Acknowledgments

The authors thank Telma B. Soares for collaboration in the initial stages of literature screening.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
