Article

Strong SARS-CoV-2 N-Specific CD8+ T Immunity Induced by Engineered Extracellular Vesicles Associates with Protection from Lethal Infection in Mice

1
National Center for Global Health, Istituto Superiore di Sanità, Viale Regina Elena 299, 00161 Rome, Italy
2
National Center for Animal Experimentation and Welfare, Istituto Superiore di Sanità, Viale Regina Elena 299, 00161 Rome, Italy
3
Core Facilities, Istituto Superiore di Sanità, Viale Regina Elena 299, 00161 Rome, Italy
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Viruses 2022, 14(2), 329; https://doi.org/10.3390/v14020329
Submission received: 12 January 2022 / Revised: 3 February 2022 / Accepted: 4 February 2022 / Published: 6 February 2022
(This article belongs to the Topic Infectious Diseases)

Abstract

:
SARS-CoV-2-specific CD8+ T cell immunity is expected to counteract viral variants in both efficient and durable ways. We recently described a way to induce a potent SARS-CoV-2 CD8+ T immune response through the generation of engineered extracellular vesicles (EVs) emerging from muscle cells. This method relies on intramuscular injection of DNA vectors expressing different SARS-CoV-2 antigens fused at their N-terminus with the Nefmut protein, i.e., a very efficient EV-anchoring protein. However, quality, tissue distribution, and efficacy of these SARS-CoV-2-specific CD8+ T cells remained uninvestigated. To fill the gaps, antigen-specific CD8+ T lymphocytes induced by the immunization through the Nefmut-based method were characterized in terms of their polyfunctionality and localization at lung airways, i.e., the primary targets of SARS-CoV-2 infection. We found that injection of vectors expressing Nefmut/S1 and Nefmut/N generated polyfunctional CD8+ T lymphocytes in both spleens and bronchoalveolar lavage fluids (BALFs). When immunized mice were infected with 4.4 lethal doses of 50% of SARS-CoV-2, all S1-immunized mice succumbed, whereas those developing the highest percentages of N-specific CD8+ T lymphocytes resisted the lethal challenge. We also provide evidence that the N-specific immunization coupled with the development of antigen-specific CD8+ T-resident memory cells in lungs, supporting the idea that the Nefmut-based immunization can confer a long-lasting, lung-specific immune memory. In view of the limitations of current anti-SARS-CoV-2 vaccines in terms of antibody waning and efficiency against variants, our CD8+ T cell-based platform could be considered for a new combination prophylactic strategy.

1. Introduction

The term “correlate of protection” refers to a laboratory parameter associated with protection from a clinical disease [1]. The immunological correlates of protection against SARS-CoV-2 infection have not been identified yet. A coordinated action of innate immunity, CD4+ T cells, CD8+ T cells, and neutralizing antibodies is most likely necessary for the natural control of SARS-CoV-2 infection. In this scenario, neutralizing antibodies certainly play a key role in protecting from infection, and, accordingly, vaccine strategies aimed at producing anti-SARS-CoV-2 neutralizing antibodies are now available. Those based on the administration of lipidic nanovesicle-complexed messenger (m)RNA molecules appear to be the most effective. However, their overall efficiency is challenged by the emergence of variants and antibody waning.
The role of CD8+ T cell immunity in the recovery from SARS-CoV-2 infection has been widely demonstrated. For instance, a seminal study on rhesus macaques demonstrated that the depletion of CD8+ T cells after a first virus challenge abolished the protective effect of natural immunity against a virus re-challenge applied after waning of neutralizing antibodies [2]. The authors concluded that the antiviral CD8+ T cell immunity could control viral spread in the context of suboptimal levels of neutralizing antibodies. In humans, the presence of virus-specific CD8+ T lymphocytes associates with a better recovery from the disease [3,4,5,6]. SARS-CoV-2-specific CD8+ T cells develop also in recovered individuals who did not produce anti-SARS-CoV-2 antibodies [7]. Of major relevance, SARS-CoV-2 specific CD8+ T cell immunity maintains its efficacy intact in the presence of the amino acid substitutions occurring in the spike (S) protein of emerging viral variants [8,9,10]. In addition, SARS-CoV survivors preserved N-specific CD8+ T lymphocytes for as many as 16 years after recovery [11].
Up until now, no vaccine strategy specifically devoted to the induction of CD8+ T immunity has been proposed for humans. To counteract SARS-CoV-2 infection, we applied an original CD8+ T cell-based vaccine platform previously proven to be effective against both HPV16- and HER2-induced cancers [12,13]. This method was conceived to induce antigen-specific cytotoxic CD8+ T lymphocyte (CTL) immunity, and is based on in vivo engineering of extracellular vesicles (EVs).
All cell types constitutively release different types of nanovesicles, which are collectively referred to as EVs [14]. Our vaccine platform is based on intramuscular (i.m.) injection of DNA vectors coding for Nefmut, i.e., a biologically inactive human immunodeficiency virus (HIV)-type 1 Nef protein. This protein mutant demonstrates an extraordinarily high efficiency of incorporation into EVs even when foreign polypeptides are fused to its C-terminus [15,16]. Intracellular expression of Nefmut-derivatives leads to their incorporation into EVs physiologically released by host cells. After IM injection of Nefmut-based vectors, these engineered nanovesicles are released by muscle cells and can freely circulate into the body and be internalized by antigen-presenting cells (APCs). EV-associated antigens are then cross-presented to prime antigen-specific CD8+ T-lymphocytes [17].
Injection of DNA vectors expressing the products of fusion between Nefmut and either SARS-CoV-2 S1 or N was shown to generate strong antigen-specific CD8+ T cell immunity in the spleen, as detected by IFN-γ EliSpot analysis [18]. Here, we expanded the investigations towards the functional characterization of virus-specific CD8+ T cells in both the spleen and lungs. In addition, their antiviral efficacy was tested by virus challenge experiments infecting immunized transgenic mice with a lethal dose of SARS-CoV-2. We found that the generation of high levels of nucleocapsid (N)-specific polyfunctional CD8+ T lymphocytes in both spleen and lungs was associated with resistance to the lethal effect of the challenging virus.

2. Materials and Methods

2.1. DNA Constructs

Open-reading frames coding for Nefmut fused with either S1, S2, or N SARS-CoV-2 proteins were cloned into pVAX1 plasmid (Thermo Fisher, Waltham, MA, USA), as previously described [18]. In these constructs, S1 spans from aa 19, i.e., downstream of the signal peptide, to aa 680, just upstream of the furin-like cleavage site; S2 included the extracellular portion of the subunit with the exclusion of the two fusion domains; and finally, the entire N protein (422 aa), except M1 amino acid, was fused to Nefmut. A GPGP linker was inserted between Nefmut and the downstream sequences. Stop codons of SARS-CoV-2-related sequences were preceded by sequences coding for a DYKDDDK epitope tag (flag-tag). SARS-CoV-2 sequences were optimized for expression in human cells through GenSmart™ Codon Optimization software from Genescript. All vectors were synthesized by Explora Biotech (Venice, Italy).

2.2. Animals and Authorizations

Six-week-old C57 Bl/6 and C57 Bl/6 K18-hACE-2 transgenic [19] female mice were purchased from Charles River and hosted at the Central and BSL3 Animal Facilities of the Istituto Superiore di Sanità, as approved by the Italian Ministry of Health, authorizations 565/2020 and 591/2021, and released on June 3rd 2020 and July 30th 2021, respectively. Before the first procedure, DATAMARS microchips were inserted SQ on the dorsal midline between the shoulder blades.

2.3. Mouse Immunization

Isoflurane-anesthetized mice were inoculated IM with 10 µg of DNA in 30 µL of sterile, 0.9% saline solution. DNA injection was immediately followed by electroporation at the site of inoculation, with an Agilpulse BTX device, using a 4-needle electrode array (4 mm gap, 5 mm needle length) and applying the following parameters: 1 pulse of 450 V for 50 µs; 0.2 ms interval; 1 pulse of 450 V for 50 µs; 50 ms interval; 8 pulses of 110 V for 10 ms with 20 ms intervals. Mice were immunized into both quadriceps, twice, 2 weeks apart. Fourteen days after the second immunization, mice were sacrificed by either cervical dislocation or CO2 inhalation.

2.4. Isolation of Cells from Blood, Bronchoalveolar Lavage Fluids (BALFs), Lungs, and Spleen

For pre-infection immunity assessment, mice were bled by retro orbital puncture under topical anesthesia. Peripheral blood mononuclear cells (PBMCs) were recovered from EDTA-blood samples after erythrocyte removal by treatment with ACK lysing buffer (Gibco, Thermo Fisher Scientific, Waltham, MA, USA) according to the manufacturer’s instructions.
To conduct bronchoalveolar lavages, CO2-sacrificed mice were laid on their back, neck skin was cut open along the median line, and muscles were open apart to expose the trachea. A piece of surgical thread was tied around the trachea and a 1-mm cut was performed between two cartilage rings, to insert a 22 G Exel Safelet catheter 0.5 cm down into the trachea. Before proceeding with lavage, the catheter was firmly tied into the trachea by the surgical thread. An insulin syringe was loaded with 1 mL of cold 1× PBS, attached to the catheter and used to gently inject the buffer into the lungs and back, twice, while massaging the mouse thorax. Bronchoalveolar lavage fluid (BALF) was placed on ice into a 15 mL conical tube, and the lavage was repeated two more times to recover a total lavage volume averaging 2.5 mL/mouse.
Mouse lungs were excised, extensively washed with 1× PBS, cut into small pieces and then digested for 30 min under gentle agitation at 37 °C with 7 mL of the following solution: type III collagenase (Worthington Biochemical, Lakewood, New Jersey, USA), 4 mg/mL, DNase I (Sigma, St. Louis, MI, USA), 0.05 mg/mL, resuspendend in 1× PBS. After digestion, an equal volume of medium was added, the extract was passed through a 70 µm cell strainer, washed, and recovered cells were resuspended in 1× PBS/ACK (1:1 v/v) for red blood cell lysis.
The spleens were explanted, placed into tubes containing 1 mL of RPMI 1640 and 50 µM 2-mercaptoethanol, then transferred into 60 mm Petri dishes with 2 mL of the same medium. The splenocytes were obtained by notching the spleen sac and pushing the cells out with the plunger seal of a 1 mL syringe. After the addition of 2 mL of medium, cells were transferred into a 15 mL conical tube, and the Petri plate was washed with 4 mL of medium to maximize cell recovery. Afterwards, cells were collected by centrifugation, resuspended in RPMI complete medium containing 50 µM 2-mercaptoethanol and 10% heat-inactivated fetal calf serum (FCS), and counted before being used in IFN-γ EliSpot and/or intracellular cytokine staining (ICS) assays.

2.5. IFN-γ EliSpot Assay

A total of 2.5 × 105 live cells were seeded in triplicate in microwells of 96-multiwell plates (Millipore) previously coated with the anti-mouse IFN-γ AN18 mAb (Mabtech, Nacka Strand, Sweden) in RPMI 1640, 10% FCS, and 50 µM 2-mercaptoethanol. Cell cultures were carried out for 16 h in the presence of 5 µg/mL of CD8-specific SARS-CoV-2 H2-b peptides S1: 539–546 VNFNFNGL [20], and N: 219–228 ALALLLLDRL [21]. As negative controls, 5 µg/mL of H2-b binding peptides were used. Peptide preparations were obtained from BEI resources. To check for cell responsiveness, 10 ng/mL phorbol 12-myristate 13-acetate (PMA, Sigma) plus 500 ng/mL of ionomycin (Sigma) were added to the cultures. After 16 h, the cells were discarded, and the plate was incubated for 2 h at room temperature with R4-6A2 biotinylated anti-IFN-γ antibody (Mabtech) at the concentration of 100 µg/mL. Wells were then washed and treated for 1 h at room temperature with 1:1,000 diluted streptavidin-ALP from Mabtech. Afterwards, 100 µL/well of SigmaFast BCIP/NBT were added to the wells to develop spots. Spot-forming cells were finally analyzed and counted using an AELVIS EliSpot reader.

2.6. Intracellular Cytokine Staining (ICS) and Flow Cytometry Analysis

Cells collected from BALFs, spleens, and lungs were cultured at 1 × 107/mL in RPMI medium, 10% FCS, 50 µM 2-mercaptoethanol (Sigma), 1 µg/mL brefeldin A (BD Biosciences, Franklin Lakes, NJ, USA), and in the presence of 5 µg/mL of either S1, N, or unrelated H2-b CD8-specific peptides. Positive controls were conducted by adding 10 ng/mL PMA (Sigma) plus 1 µg/mL ionomycin (Sigma). After 16 h, cells were stained with 1 µL of LIVE/DEAD Fixable FVD-eFluor506 Dead Cell reagent (Invitrogen Thermo Fisher, Waltham, MA, USA) in 1 mL of 1× PBS for 30 min at 4 °C, and excess dye was removed by 2 washes with 500 µL of 1× PBS. Non-specific staining was minimized by pre-incubating cells with 0.5 µg of Fc blocking mAbs (i.e., anti-CD16/CD32 antibodies, Invitrogen/eBioscience Thermo Fisher) in 100 µL of 1× PBS with 2% FCS for 15 min at 4 °C. Staining for cell surface markers was performed upon incubation for 1 h at 4 °C with 2 µL of the following anti-mouse Abs: FITC-conjugated anti-CD3, APC-Cy7-conjugated anti-CD8a, PerCP-conjugated anti-CD4, and BUV395-conjugated anti-CD44 (BD Biosciences). CD8+ T-resident memory (Trm) cells were identified by staining with BUV750-conjugated anti-CD49a, PECF594-conjugated anti-CD69, and BUV563-conjugated anti-CD103 (BD Biosciences). After washing, cells were fixed and permeabilized using the Cytofix/Cytoperm kit (BD Biosciences), according to the manufacturer’s recommendations. For intracellular cytokine staining (ICS), cells were labeled for 1 h at 4 °C with 2 µL of the following Abs: PE-Cy7-conjugated anti-IFN-γ, PE-conjugated anti-IL-2 (Invitrogen/eBioscience Thermo Fisher), and BV421 rat anti-TNF-α (BD Biosciences) in a total of 100 µL of 1× Perm/Wash Buffer (BD Biosciences). After two washes, cells were fixed in 200 µL of 1× PBS/formaldehyde (2% v/v). Samples were then analyzed by a CyotFLEX LX (Beckman Coulter, Brea, CA, USA) flow cytometer and analyzed using Kaluza software (Beckman Coulter, Brea, CA, USA). The gating strategy was as follows (Supplementary Figure S1): live cells as assessed by LIVE/DEAD Dye vs. FSC-A, singlet cells from FSC-A vs. FSC-H (singlet 1) and SSC-A vs. SSC-W (singlet 2), CD3+ cells from CD3-FITC vs. SSC-A, CD8+, or CD4+ cells from CD8-APC-Cy7 vs. CD4-PerCP. The CD8+ T cell population was gated against CD44+ cells, and the population of cells positive for both CD8 and CD44 was analyzed for APC-Cy7, PE, and BV421 to detect changes in IFN-γ, IL-2, and TNF-α production, respectively. Boolean gates were created to determine cytokine co-expression patterns.

2.7. SARS-CoV-2 Preparation and In Vitro Titration

VERO-E6 cells were grown in DMEM (Gibco) supplemented with 2% FCS, 100 units/mL penicillin, 100 μg/mL streptomycin, 2 mM L-glutamine, 1 mM sodium pyruvate, and 1× non-essential amino acids (Gibco). The ancestral viral isolate SARS-CoV-2/Italy INMI1#52284 (SARS-Related Coronavirus 2, isolate Italy-INMI1, NR-52284, deposited by Dr. Maria R. Capobianchi for distribution through BEI Resources, NIAID, and NIH) was propagated by inoculation of 70% confluent VERO-E6 cells in 175 cm2 cell culture flasks [22]. Infected cell culture supernatant was harvested at 72 h post infection, clarified, aliquoted, and stored at −80 °C. To determine SARS-CoV-2 stock TCID50 (tissue culture infectious doses 50%), 2.2 × 104 Vero E6 cells/well were added onto 96-well plates (Corning, Mediatech Inc, Glandale, AZ, USA) and, the next day, octuplicate cultures were inoculated with 10-fold serial dilutions of the virus (100 μL/well). Cells were incubated for 5–6 days and then checked daily for cytopathic effect.

2.8. Mouse Infection

Before experimental infection, mice were anesthetized with a combination of ketamine (50 mg/kg of body weight) and medetomidine (1 mg/kg of body weight) administered intraperitoneally (IP). After the virus challenge, intraperitoneal injection of atipamezole (1 mg/kg of body weight) was used as a reversal agent.
For in vivo titration of the SARS-CoV-2/Italy INMI1#52284 isolate, age-matched K18-hACE-2 mice were randomized by body weight into groups of 4, and challenged with 5-fold serial dilutions in 1× PBS of the virus preparation containing 2.2 × 105, 4.4 × 104, 8.8 × 103, or 1.8 × 103 TCID50. A volume of 30 µL of each dilution was administered intranasally, at 15 µL per nostril, by slowly pipetting at a depth of 1–2 mm. As a negative control, 4 mice were sedated and an equal volume of 1× PBS was administered. Animals were assessed daily for clinical signs of infection and weight loss over a 15-day follow-up.
Virus challenge was performed similarly in immunized mice, using a virus dose of 4.4 × 104 TCID50 corresponding to 4.4 lethal doses at 50% (LD50), and resulting in a 99.99% predicted probability of mortality.

2.9. Statistical Analysis

When appropriate, data are presented as mean + standard deviation (SD). Virus titer in vitro was determined as TCID50 with the Spearman–Karber method. For the in vivo titration, virus dilutions and number of deaths/group after challenge were used to calculate the LD50 (Quest Graph™ LD50 Calculator, AAT Bioquest, Inc., S. Francisco, CA, USA). The Kaplan–Meier curve was used to show survival rate differences among groups of animals challenged with different doses of SARS-CoV-2 virus, or immunized and infected with 4.4 LD50 of the same virus stock. The log-rank test was used to compare survival in different vaccination groups. When indicated, the Mann–Whitney U test was conducted. Linear regression analysis was performed to assess correlation between virus-specific CD8+ T cell responses and protection. p < 0.05 was considered statistically significant.

3. Results

3.1. Induction of Polyfunctional Antigen-Specific CD8+ T Lymphocytes after IM Injection of DNA Vectors Expressing Either SARS-CoV-2 S1 or N Fused with Nefmut

The IM injection of DNA vectors expressing Nefmut-based fusion products leads to their incorporation into EVs spontaneously released by muscle cells [16,23]. We previously demonstrated that SARS-CoV-2 S1 and N antigens can be uploaded in engineered EVs, and IM injection of respective DNA vectors led to the induction of antigen-specific CD8+ T cells, as revealed by IFN-γ EliSpot analysis [18]. However, quality, biodistribution, and effectiveness of such SARS-CoV-2-specific CD8+ T immunity remained essentially unexplored. To fill the gaps, we first analyzed the polyfunctionality of antigen-specific CD8+ T cells induced through the Nefmut-based method. To this aim, C57 Bl/6 mice were injected with DNA vectors expressing either Nefmut/S1, Nefmut/N (Figure 1) or, as a control, Nefmut alone. Fifteen days after the second inoculation, splenocytes were isolated and incubated overnight with either specific or MHC Class I-matched, unrelated peptides.
Through ICS/flow cytometry analysis we found 5–15% of antigen-specific cells expressing either IFN-γ, IL-2, or TNF-α within the CD8+/CD44+ subpopulations (Figure 2A,B, and Supplementary Figure S1). The analysis of the combined cytokine expression revealed the presence of as many as 25–30% triple positive cells within the activated cell populations (Figure 2C).
We concluded that the injection of vectors expressing SARS-CoV-2 S1- and N-based fusion products elicited high levels of antigen-specific polyfunctional CD8+ T lymphocytes.

3.2. Detection of Polyfunctional Antigen-Specific CD8+ T Lymphocytes in BALFs from Immunized Mice

Resident CD8+ T cells in lungs are essentially generated in an independent way, with respect to the pool of circulating CD8+ T cells, and are maintained by homeostatic proliferation to replenish the continuous loss of cells through intraepithelial migration towards lung airways [24]. Hence, a vaccine injected distally (e.g., into quadriceps), and conceived to elicit cell immunity against infectious respiratory diseases should be specifically tested for its ability to generate effective virus-specific CD8+ T cells in lungs. To assess the actual SARS-CoV-2-specific CD8+ T cell immune response in lungs after immunization with Nefmut-based products, cells from BALFs of at least three injected mice per group were pooled, cultivated in the presence of either specific or unrelated peptides, and analyzed for the expression of IFN-γ, IL-2, and TNF-α. Data from ICS/flow cytometry analysis showed the presence of substantial percentages of cells expressing each cytokine within CD8+/CD44+ cells isolated from BALFs (Figure 3A), including a remarkable fraction of polyfunctional CD8+ T lymphocytes (Figure 3B).
This finding supports the idea that Nefmut-based immunization generates effective antigen-specific CD8+ T cells in lungs.

3.3. Association of High Levels of Circulating N-Specific CD8+ T Cells with Resistance to Lethal SARS-CoV-2 Infection

The antiviral efficacy of CD8+ T cell immune responses elicited against S1 and N was tested in C57 Bl/6 K18-hACE-2 transgenic mice. In these animals, the human receptor of SARS-CoV-2 virus, i.e., human angiotensin-converting enzyme (hACE)-2, is expressed under the control of the cytokeratin-18 promoter [25]. First, we proved that K18-hACE-2 transgenic mice responded similarly to the parental C57 Bl/6 strain in terms of CD8+ T cell immune response after the injection of either Nefmut/S1 or Nefmut/N expressing vectors (Supplementary Figure S2). Next, before challenging the immunized animals, the SARS-CoV-2 preparation was titrated in terms of LD50. To this end, 5-fold dilutions of supernatants from infected cells, i.e., from 2.2 × 105 to 1.8 × 103 TCID50 (as measured by in vitro titration), were used to challenge groups of four animals (Supplementary Figure S3). We calculated that the LD50 corresponded to 1.0 × 104 TCID50.
Three days before the infection of vaccinated mice, CD8+ T cell immune responses were evaluated by IFN-γ EliSpot assay using PBMCs isolated from each mouse (Figure 4A). Then, mice were infected with 4.4 LD50 of SARS-CoV-2, and both weight/clinical signs of disease and survival were checked over time. In these experimental conditions, S1-immunized mice appeared as susceptible to the virus challenge as the controls (Figure 4B,C). On the other hand, mice developing the highest levels of N-specific CD8+ T cell immunity resisted the lethal effect of the infection. In two of these cases, neither weight loss nor other signs of the disease (e.g., reduced reactivity) became apparent. Differences in terms of anti-N CD8+ T cell response levels between high and low responders were statistically significant (p = 0.0286, one-tailed Mann–Whitney U test). Consistently, the highest levels of N-specific CD8+ T cells associated with protection in a group of mice contemporarily injected with vectors expressing Nefmut/S1, Nefmut/S2, and Nefmut/N (Supplementary Figure S4). Conversely, in both instances, mice with low counts of N-specific CD8+ T cells succumbed. A significant (p = 0.0011 and 0.0056) correlation was observed between anti-N SFU and protection, in terms of both mouse relative body weight at day 6/7 post-infection (R2 = 0.90) and survival (R2 = 0.81) (Supplementary Figure S5).
Taken together, these data indicated that adequate levels of CD8+ T cell immunization against SARS-CoV-2 N confer resistance against the lethal effect of SARS-CoV-2.

3.4. Detection of N-Specific CD8+ T-Resident Memory (Trm) Cells in Lungs of Immunized Mice

The overall quality of any vaccine strategy also relies on the duration of the protective effect. The kinetics of protection, in turn, strictly depends on the generation of antigen-specific memory cells. In the case of CD8+ T cell-based immunity against respiratory viruses, the induction of virus-specific CD8+ Trm cells in the lungs is mandatory to ensure a reliable duration of the immunity. We tried to assess whether the IM injection of the Nefmut/N expressing vector was sufficient to induce N-specific CD8+ Trm cells in lungs. To this end, immune cells were isolated from lungs of mice injected with either Nefmut/N or control vectors. After overnight treatment with either N-specific or unrelated peptides, the CD8+/CD44+ sub-populations were scored by ICS/flow cytometry analysis for the simultaneous expression of IFN-γ and Trm cell markers, i.e., CD49a, CD69, and CD103 (Figure 5A). Through Boolean-gating based analysis, we reproducibly identified an N-specific, CD8+ Trm cell sub-population in the lungs of mice injected with the Nefmut/N expressing vector (Figure 5B).
We concluded that the N-specific immunity conferred by the injection of Nefmut/N-expressing vector can lead, besides protection against lethal virus infection, to the establishment of CD8+ T memory cells at the lungs. This finding could be of outstanding relevance in the perspective of a translation into the clinic of the Nefmut-based vaccine platform.

4. Discussion

HIV-1 Nefmut is a protein mutant lacking the pathogenic effects induced by the wild-type counterpart [26]. It also incorporates into nascent EVs at quite elevated extents when heterologous proteins are fused at its C-terminus [16]. When DNA vectors expressing Nefmut-derivatives are IM-injected, EVs spontaneously released by muscle cells upload Nefmut-based products [22]. Engineered EVs can freely circulate into the body, and their internalization into APCs generates a CTL immunity against EV-uploaded antigens in the absence of the induction of specific antibodies [17]. The CTL immune response depends on both amounts and efficiency of DNA delivery, lasts several months in peripheral circulation and spleen, and protects mice from both HPV16- and HER2-related cancers [12,13]. The strength of CD8+ T immunity elicited by the expression of antigens fused with Nefmut largely exceeds that induced by the expression of foreign antigens alone [12,23]. These results highlighted the advantages of the Nefmut-based vaccine platform in terms of the induction of CD8+ T cell immunity over the classic DNA-based immunization strategy. In the present work, considering that we investigated the immunogenicity of EVs engineered with SARS-CoV-2 antigens, the most appropriate control conditions were represented by expectedly similar EVs deprived of either S1 or N, i.e., Nefmut EVs.
The Nefmut-based method of CD8+ T cell immunization was also found to be effective when applied on SARS-CoV-2 antigens [18]. However, the actual efficacy of this strategy strictly depends on the generation of effective cell immunity at lungs. In fact, in view of the documented compartmentalization of both B- and T-cell immunity in lungs [24,27], the appearance of antigen-specific CD8+ T cells in peripheral circulation/secondary lymphoid organs does not necessarily imply a contemporary induction of cell immunity in airway tissues. On this subject, the here described detection of SARS-CoV-2 specific polyfunctional CD8+ T cells in BALFs from injected mice demonstrated the effectiveness of the Nefmut-based method in establishing a CD8+ T cell immunity in lungs.
In view of the compartmentalization of lung cell immunity, how can it reconcile the prompt induction of lung cell immunity with the administration of the immunogen into a distal district, i.e., quadriceps? We hypothesize that the immunity we found in airways was a consequence of intra-tissue diffusion of engineered EVs. In support of this idea, data from several reports demonstrated that lungs, together with spleen, liver, and bone marrow, can be populated by fluorescently labeled EVs shortly after intravenous injection [28,29,30,31]. Similarly, Nefmut-engineered EVs emerging from muscle cells can access airway districts, where they can be internalized by resident APCs. Thereby, EV-uploaded products can be cross-presented, and CD8+ T lymphocyte selection and activation can be initiated in the context of local germinal centers and/or mediastinal lymph nodes. We assumed that the levels of antigen-specific CD8+ T lymphocytes in both peripheral circulation and lungs were directly proportional to the amounts of produced engineered EVs. In such a scenario, predicting the SARS-CoV-2-specific immunologic status in lungs by measuring the related CD8+ T cell immunity in spleen and peripheral circulation seems appropriate.
In our experiments, S1- and N-specific CD8+ T cell immunity seemed both quantitatively and qualitatively comparable. However, protection from the lethal SARS-CoV-2 challenge was observed only in mice developing the highest N-specific immune responses. The lack of protection in mice less efficiently immunized against N can be readily interpreted in terms of a quantitatively inadequate immune response. Conversely, the interpretation regarding the lack of virus containment by S1-specific CD8+ T cell immune response is not obvious. The apparently lower levels of S1 uploading in EVs compared to N [18] should not be a critical issue, as the S1-specific immune response appeared similar or even slightly stronger than that induced by N in nearly all tests we carried out. Conversely, the inefficacy of S1-specific immunity might be a consequence of the low accumulation of SARS-CoV-2 S in live infected cells, due to its spontaneous association with cell plasma membrane and shedding. On the other hand, higher intracellular accumulation of N can result in more molecules available for degradative pathways and MHC Class I peptide presentation. A more efficient exposition of N-derived peptides would in turn result in a quicker recruiting of specific CD8+ T lymphocytes at the site of the virus-infected cells, ultimately leading to a more efficient containment of viral spread.
Using a viral dose as high as 4.4 LD50, we observed protection in mice that had developed more robust N-specific CD8+ T cell immunity. The results in terms of protection from virus challenge seemed to be influenced by some variability in the levels of immunity reached after two injections, similarly to what was previously observed in mice immunized by EVs engineered by Nefmut fused with HPV16-E6 and -E7 [12]. In addition, the mice resisted the tumor implantation carried out before vaccination only in the presence of adequate E6- and E7-specific CD8+ T cell immune responses.
The induction of N-specific CD8+ Trm cells in lungs represents a relevant value added for the Nefmut-based vaccine strategy against SARS-CoV-2. The stringent selection we made in the flow cytometer analysis for the contemporary expression of CD44, CD49a, CD69, and CD103 markers among IFN-γ producing cells ensured that authentic N-specific CD8+ Trm sub-populations were identified, despite the possible presence of contaminating blood cells. In fact, it should be considered that the co-expression of CD69 and CD107 markers is a unique phenotypic signature not represented in blood [32,33]. Accordingly, the results we obtained from an experiment carried out on immunized mice IV-injected with APC-conjugated anti-CD45 mAb three minutes before sacrifices (Supplementary Figure S6) were consistent to those depicted in Figure 5. Considering that the expression of both CD49a and CD103 markers on CD8+ T lymphocytes has been associated with cytotoxic functions [34,35,36], our findings support the idea that the Nefmut-based immunization has the potential to generate a long lasting, effective antiviral immunity in lungs.
Our study presents limitations. The use of fluorescent tetramers in ICS/flow cytometry analyses would have identified SARS-CoV-2-specific CD8+ T cell sub-populations more accurately. In addition, challenging immunized mice with sub-lethal viral doses may have also revealed potentially protective effects induced by S1-specific CD8+ T cells. Furthermore, the lack of quantification of viral loads in lungs of protected mice precluded the evaluation of the effects of N-specific immunity on viral spread within airway tissues.
The emergence of variants against which anti-S neutralizing antibodies lose potency represents one of the most relevant shortcomings for current anti-SARS-CoV-2 vaccines. Notably, N-specific antiviral CD8+ T cell immunity is not expected to suffer from such a limitation. In fact, as reported in Figure 6, amino acid sequences of N protein from current variants of concern (VOCs) are well conserved, at least in part because mutations in this key viral component could have detrimental effects on optimal viral fitness. By consequence, the N-specific CD8+ T cell immune response against a single viral strain is anticipated to also be effective against other VOCs. In addition, based on the observations on patients recovered from SARS-CoV infection [11], SARS-CoV-2 N-specific CD8+ T cell immunity would wane with a kinetic much slower than that of anti-S neutralizing antibodies.

5. Conclusions

We here demonstrate that adequate levels of N-specific CD8+ T cell immunity correlate with protection against lethal SARS-CoV-2 infection. As recently outlined in a seminal paper, SARS-CoV-2-specific CD8+ T cell immunity can be fully protective in the context of inadequate levels of neutralizing antibodies [2]. On this basis, a combination mRNA-based vaccine strategy designed to contemporarily induce N-specific CD8+ T immunity through engineered EVs and anti-S neutralizing antibodies is expected to overcome the limitations of current vaccines in terms of diminished efficiency against VOCs [37] and immunity waning [38]. In addition, the data presented here open the way towards the exploitation of the Nefmut-based vaccine platform in the fight against additional respiratory viruses, such as influenza and respiratory syncytial viruses.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/v14020329/s1, Figure S1: Gating strategy carried out in ICS/flow cytometry analysis of splenocytes from injected mice. Figure S2: ICS/flow cytometry analysis for the expression of IFN-γ in splenocytes from either C57 Bl/ or K18-hACE-2 mice. Figure S3: Kaplan–Meier survival curve. Figure S4: Relative weight loss in mice injected with combination vectors. Figure S5: correlation between anti-N SFUs and protection in terms of both mouse relative body weight at day 6/7 post-infection and survival. Figure S6A: Gating strategy carried out in ICS/flow cytometry analysis of cells pooled from lungs of two mice injected with Nefmut/N expressing vector. Figure S6B: ICS/flow cytometry analysis on cells isolated from lungs of mice immunized with vectors expressing Nefmut/N and injected with anti-CD45 mAbs 3 min before sacrifice.

Author Contributions

Conceptualization, M.F.; methodology, M.S. (Massimo Spada), A.D.V., A.G., P.L., and Z.M.; investigation, F.F., C.C., and F.M.; resources, A.C. and M.F.; data curation, M.S. (Massimo Sanchez), C.C., and F.F.; writing—original draft preparation, M.F.; writing—review and editing, F.F., C.C., and F.M.; funding acquisition, M.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by an institutional grant n. R220 from Istituto Superiore di Sanità, Rome, Italy.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board of the Istituto Superiore di Sanità (protocol code n. 565/2020 PR, approved on June 6, 2020, and protocol code 591/2021 released on July 30th 2021).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to patent application.

Acknowledgments

Both SARS-Related Coronavirus 2, Isolate Italy-INMI1, NR-52284, and the peptide array of SARS-Related Coronavirus 2 Spike Glycoprotein, NR-52402, were obtained through BEI Resources, NIAID, NIH. We thank Michele Equestre, Istituto Superiore di Sanità, for deep sequencing the SARS-CoV-2 isolate. We also thank Pietro Arciero Istituto Superiore di Sanità, for technical support, and Federica Magnani and Rosangela Duranti Istituto Superiore di Sanità for secretarial assistance.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

References

  1. Plotkin, S.A. Vaccines: Correlates of Vaccine-Induced Immunity. Clin. Infect. Dis. 2008, 47, 401–409. [Google Scholar] [CrossRef] [Green Version]
  2. McMahan, K.; Yu, J.; Mercado, N.B.; Loos, C.; Tostanoski, L.H.; Chandrashekar, A.; Liu, J.; Peter, L.; Atyeo, C.; Zhu, A.; et al. Correlates of protection against SARS-CoV-2 in rhesus macaques. Nature 2021, 590, 630–634. [Google Scholar] [CrossRef] [PubMed]
  3. Moderbacher, C.R.; Ramirez, S.I.; Dan, J.M.; Grifoni, A.; Hastie, K.M.; Weiskopf, D.; Belanger, S.; Abbott, R.K.; Kim, C.; Choi, J.; et al. Antigen-Specific Adaptive Immunity to SARS-CoV-2 in Acute COVID-19 and Associations with Age and Disease Severity. Cell 2020, 183, 996–1012.e19. [Google Scholar] [CrossRef] [PubMed]
  4. Peng, Y.; Mentzer, A.J.; Liu, G.; Yao, X.; Yin, Z.; Dong, D.; Dejnirattisai, W.; Rostron, T.; Supasa, P.; Liu, C.; et al. Broad and strong memory CD4+ and CD8+ T cells induced by SARS-CoV-2 in UK convalescent individuals following COVID-19. Nat. Immunol. 2020, 21, 1336–1345. [Google Scholar] [CrossRef]
  5. Westmeier, J.; Paniskaki, K.; Karaköse, Z.; Werner, T.; Sutter, K.; Dolff, S.; Overbeck, M.; Limmer, A.; Liu, J.; Zheng, X.; et al. Impaired cytotoxic CD8+ T cell response in elderly COVID-19 patients. mBio 2020, 11, 11. [Google Scholar] [CrossRef] [PubMed]
  6. Tan, A.T.; Linster, M.; Tan, C.W.; Le Bert, N.; Ni Chia, W.; Kunasegaran, K.; Zhuang, Y.; Tham, C.Y.L.; Chia, A.; Smith, G.J.D.; et al. Early induction of functional SARS-CoV-2-specific T cells associates with rapid viral clearance and mild disease in COVID-19 patients. Cell Rep. 2021, 34, 108728. [Google Scholar] [CrossRef]
  7. Schulien, I.; Kemming, J.; Oberhardt, V.; Wild, K.; Seidel, L.M.; Killmer, S.; Daul, F.; Lago, M.S.; Decker, A.; Luxenburger, H.; et al. Characterization of pre-existing and induced SARS-CoV-2-specific CD8+ T cells. Nat. Med. 2020, 27, 78–85. [Google Scholar] [CrossRef]
  8. Redd, A.D.; Nardin, A.; Kared, H.; Bloch, E.M.; Pekosz, A.; Laeyendecker, O.; Abel, B.; Fehlings, M.; Quinn, T.C.; Tobian, A.A.R. CD8+ T-Cell Responses in COVID-19 Convalescent Individuals Target Conserved Epitopes from Multiple Prominent SARS-CoV-2 Circulating Variants. Open Forum Infect. Dis. 2021, 8, ofab143. [Google Scholar] [CrossRef]
  9. Tarke, A.; Sidney, J.; Methot, N.; Yu, E.D.; Zhang, Y.; Dan, J.M.; Goodwin, B.; Rubiro, P.; Sutherland, A.; Wang, E.; et al. Impact of SARS-CoV-2 variants on the total CD4+ and CD8+ T cell reactivity in infected or vaccinated individuals. Cell Rep. Med. 2021, 2, 100355. [Google Scholar] [CrossRef]
  10. Ferretti, A.P.; Kula, T.; Wang, Y.; Nguyen, D.M.; Weinheimer, A.; Dunlap, G.S.; Xu, Q.; Nabilsi, N.; Perullo, C.R.; Cristofaro, A.W.; et al. Unbiased Screens Show CD8+ T Cells of COVID-19 Patients Recognize Shared Epitopes in SARS-CoV-2 that Largely Reside outside the Spike Protein. Immunity 2020, 53, 1095–1107.e3. [Google Scholar] [CrossRef]
  11. Le Bert, N.; Tan, A.T.; Kunasegaran, K.; Tham, C.Y.L.; Hafezi, M.; Chia, A.; Chng, M.H.Y.; Lin, M.; Tan, N.; Linster, M.; et al. SARS-CoV-2-specific T cell immunity in cases of COVID-19 and SARS, and uninfected controls. Nature 2020, 584, 457–462. [Google Scholar] [CrossRef] [PubMed]
  12. Ferrantelli, F.; Manfredi, F.; Chiozzini, C.; Leone, P.; Giovannelli, A.; Olivetta, E.; Federico, M. Long-Term Antitumor CD8+ T Cell Immunity Induced by Endogenously Engineered Extracellular Vesicles. Cancers 2021, 13, 2263. [Google Scholar] [CrossRef] [PubMed]
  13. Anticoli, S.; Aricò, E.; Arenaccio, C.; Manfredi, F.; Chiozzini, C.; Olivetta, E.; Ferrantelli, F.; Lattanzi, L.; D’Urso, M.T.; Proietti, E.; et al. Engineered exosomes emerging from muscle cells break immune tolerance to HER2 in transgenic mice and induce antigen-specific CTLs upon challenge by human dendritic cells. Klin. Wochenschr. 2018, 96, 211–221. [Google Scholar] [CrossRef] [PubMed]
  14. Van Niel, G.; D’Angelo, G.; Raposo, G. Shedding light on the cell biology of extracellular vesicles. Nat. Rev. Mol. Cell Biol. 2018, 19, 213–228. [Google Scholar] [CrossRef]
  15. Lattanzi, L.; Federico, M. A strategy of antigen incorporation into exosomes: Comparing cross-presentation levels of antigens delivered by engineered exosomes and by lentiviral virus-like particles. Vaccine 2012, 30, 7229–7237. [Google Scholar] [CrossRef]
  16. Anticoli, S.; Manfredi, F.; Chiozzini, C.; Arenaccio, C.; Olivetta, E.; Ferrantelli, F.; Capocefalo, A.; Falcone, E.; Ruggieri, A.; Federico, M. An Exosome-Based Vaccine Platform Imparts Cytotoxic T Lymphocyte Immunity Against Viral Antigens. Biotechnol. J. 2018, 13, e1700443. [Google Scholar] [CrossRef]
  17. Federico, M. Virus-Induced CD8+ T-Cell Immunity and Its Exploitation to Contain the SARS-CoV-2 Pandemic. Vaccines 2021, 9, 922. [Google Scholar] [CrossRef]
  18. Ferrantelli, F.; Chiozzini, C.; Manfredi, F.; Giovannelli, A.; Leone, P.; Federico, M. Simultaneous CD8+ T-Cell Immune Response against SARS-Cov-2 S, M, and N Induced by Endogenously Engineered Extracellular Vesicles in Both Spleen and Lungs. Vaccines 2021, 9, 240. [Google Scholar] [CrossRef]
  19. McCray, P.B., Jr.; Pewe, L.; Wohlford-Lenane, C.; Hickey, M.; Manzel, L.; Shi, L.; Netland, J.; Jia, H.P.; Halabi, C.; Sigmund, C.D.; et al. Lethal Infection of K18-hACE2 Mice Infected with Severe Acute Respiratory Syndrome Coronavirus. J. Virol. 2007, 81, 813–821. [Google Scholar] [CrossRef] [Green Version]
  20. Zhi, Y.; Kobinger, G.P.; Jordan, H.; Suchma, K.; Weiss, S.R.; Shen, H.; Schumer, G.; Gao, G.; Boyer, J.L.; Crystal, R.G.; et al. Identification of murine CD8 T cell epitopes in codon-optimized SARS-associated coronavirus spike protein. Virology 2005, 335, 34–45. [Google Scholar] [CrossRef] [Green Version]
  21. Zhao, J.; Zhao, J.; Perlman, S. T Cell Responses Are Required for Protection from Clinical Disease and for Virus Clearance in Severe Acute Respiratory Syndrome Coronavirus-Infected Mice. J. Virol. 2010, 84, 9318–9325. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Michelini, Z.; Mazzei, C.; Magurano, F.; Baggieri, M.; Marchi, A.; Andreotti, M.; Cara, A.; Gaudino, A.; Mazzalupi, M.; Antonelli, F.; et al. UltraViolet SANitizing System for Sterilization of Ambulances Fleets and for Real-Time Monitoring of Their Sterilization Level. Int. J. Environ. Res. Public Health 2021, 19, 331. [Google Scholar] [CrossRef] [PubMed]
  23. Di Bonito, P.; Chiozzini, C.; Arenaccio, C.; Anticoli, S.; Manfredi, F.; Olivetta, E.; Ferrantelli, F.; Falcone, E.; Ruggieri, A.; Federico, M. Antitumor HPV E7-specific CTL activity elicited by in vivo engineered exosomes produced through DNA inoculation. Int. J. Nanomed. 2017, 12, 4579–4591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Takamura, S.; Kato, S.; Motozono, C.; Shimaoka, T.; Ueha, S.; Matsuo, K.; Miyauchi, K.; Masumoto, T.; Katsushima, A.; Nakayama, T.; et al. Interstitial-resident memory CD8+ T cells sustain frontline epithelial memory in the lung. J. Exp. Med. 2019, 216, 2736–2747. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Oladunni, F.S.; Park, J.-G.; Pino, P.A.; Gonzalez, O.; Akhter, A.; Allué-Guardia, A.; Olmo-Fontánez, A.; Gautam, S.; Garcia-Vilanova, A.; Ye, C.; et al. Lethality of SARS-CoV-2 infection in K18 human angiotensin-converting enzyme 2 transgenic mice. Nat. Commun. 2020, 11, 6122. [Google Scholar] [CrossRef]
  26. D’Aloja, P.; Santarcangelo, A.C.; Arold, S.T.; Baur, A.; Federico, M. Genetic and functional analysis of the human immunodeficiency virus (HIV) type 1-inhibiting F12-HIVnef allele. J. Gen. Virol. 2001, 82 Pt 11, 2735–2745. [Google Scholar] [CrossRef] [Green Version]
  27. Allie, S.R.; Bradley, J.E.; Mudunuru, U.; Schultz, M.D.; Graf, B.A.; Lund, F.E.; Randall, T.D. The establishment of resident memory B cells in the lung requires local antigen encounter. Nat. Immunol. 2019, 20, 97–108. [Google Scholar] [CrossRef] [PubMed]
  28. Gangadaran, P.; Li, X.J.; Lee, H.W.; Oh, J.M.; Kalimuthu, S.; Rajendran, R.L.; Son, S.H.; Baek, S.H.; Singh, T.D.; Zhu, L.; et al. A new bioluminescent reporter system to study the biodistribution of systematically injected tumor-derived bioluminescent extracellular vesicles in mice. Oncotarget 2017, 8, 109894–109914. [Google Scholar] [CrossRef] [Green Version]
  29. Lai, C.P.; Mardini, O.; Ericsson, M.; Prabhakar, S.; Maguire, C.A.; Chen, J.W.; Tannous, B.A.; Breakefield, X.O. Dynamic Biodistribution of Extracellular Vesicles in Vivo Using a Multimodal Imaging Reporter. ACS Nano 2014, 8, 483–494. [Google Scholar] [CrossRef] [Green Version]
  30. Wiklander, O.P.B.; Nordin, J.Z.; O’Loughlin, A.; Gustafsson, Y.; Corso, G.; Mäger, I.; Vader, P.; Lee, Y.; Sork, H.; Seow, Y.; et al. Extracellular vesicle in vivo biodistribution is determined by cell source, route of administration and targeting. J. Extracell. Vesicles 2015, 4, 26316. [Google Scholar] [CrossRef] [Green Version]
  31. Takahashi, Y.; Nishikawa, M.; Shinotsuka, H.; Matsui, Y.; Ohara, S.; Imai, T.; Takakura, Y. Visualization and in vivo tracking of the exosomes of murine melanoma B16-BL6 cells in mice after intravenous injection. J. Biotechnol. 2013, 165, 77–84. [Google Scholar] [CrossRef] [PubMed]
  32. Anderson, K.G.; Sung, H.; Skon, C.N.; Lefrancois, L.; Deisinger, A.; Vezys, V.; Masopust, D. Cutting Edge: Intravascular Staining Redefines Lung CD8 T Cell Responses. J. Immunol. 2012, 189, 2702–2706. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Park, S.; Gebhardt, T.; Mackay, L.K. Tissue-Resident Memory T Cells in Cancer Immunosurveillance. Trends Immunol. 2019, 40, 735–747. [Google Scholar] [CrossRef] [PubMed]
  34. Cheuk, S.; Schlums, H.; Sérézal, I.G.; Martini, E.; Chiang, S.C.; Marquardt, N.; Gibbs, A.; Detlofsson, E.; Introini, A.; Forkel, M.; et al. CD49a Expression Defines Tissue-Resident CD8+ T Cells Poised for Cytotoxic Function in Human Skin. Immunity 2017, 46, 287–300. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Franciszkiewicz, K.; Le Floc’H, A.; Boutet, M.; Vergnon, I.; Schmitt, A.; Mami-Chouaib, F. CD103 or LFA-1 Engagement at the Immune Synapse between Cytotoxic T Cells and Tumor Cells Promotes Maturation and Regulates T-cell Effector Functions. Cancer Res. 2013, 73, 617–628. [Google Scholar] [CrossRef] [Green Version]
  36. Le Floc’H, A.; Jalil, A.; Franciszkiewicz, K.; Validire, P.; Vergnon, I.; Mami-Chouaib, F.; Floc’H, A.L. Minimal Engagement of CD103 on Cytotoxic T Lymphocytes with an E-Cadherin-Fc Molecule Triggers Lytic Granule Polarization via a Phospholipase Cγ–Dependent Pathway. Cancer Res. 2011, 71, 328–338. [Google Scholar] [CrossRef] [Green Version]
  37. Tatsi, E.-B.; Filippatos, F.; Michos, A. SARS-CoV-2 variants and effectiveness of vaccines: A review of current evidence. Epidemiology Infect. 2021, 149, e237. [Google Scholar] [CrossRef]
  38. Wei, J.; Stoesser, N.; Matthews, P.C.; Ayoubkhani, D.; Studley, R.; Bell, I.; Bell, J.I.; Newton, J.N.; Farrar, J.; Diamond, I.; et al. Antibody responses to SARS-CoV-2 vaccines in 45,965 adults from the general population of the United Kingdom. Nat. Microbiol. 2021, 6, 1140–1149. [Google Scholar] [CrossRef]

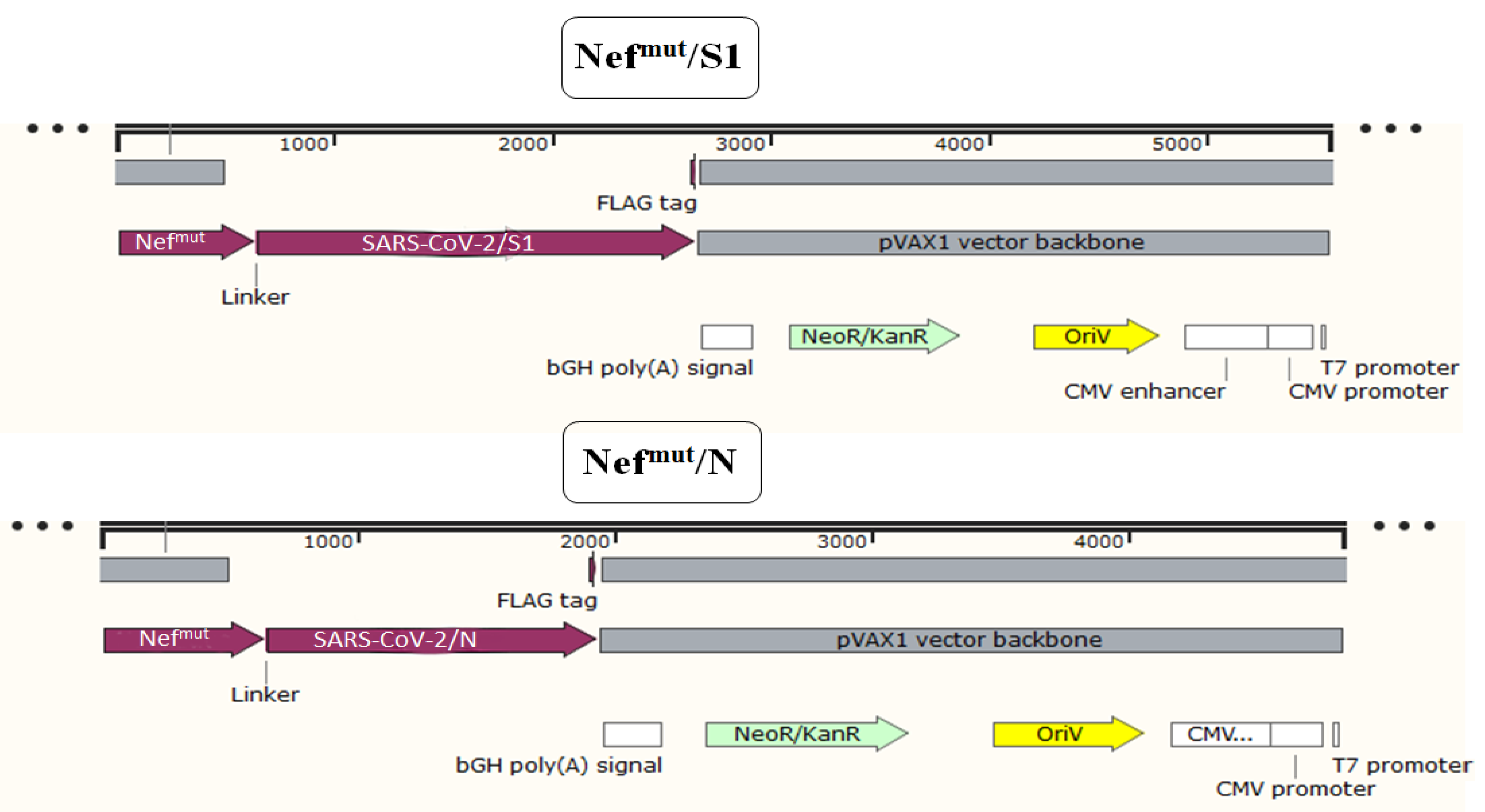

Figure 1. Linear maps of vectors expressing SARS-CoV-2-based fusion proteins. Shown are the structure of pVAX1 vectors expressing either S1 or N proteins fused with Nefmut. Positions of fusion products, functional regions of the vectors, as well as both GPGP linker and Flag-tag are indicated.
Figure 1. Linear maps of vectors expressing SARS-CoV-2-based fusion proteins. Shown are the structure of pVAX1 vectors expressing either S1 or N proteins fused with Nefmut. Positions of fusion products, functional regions of the vectors, as well as both GPGP linker and Flag-tag are indicated.
Viruses 14 00329 g001

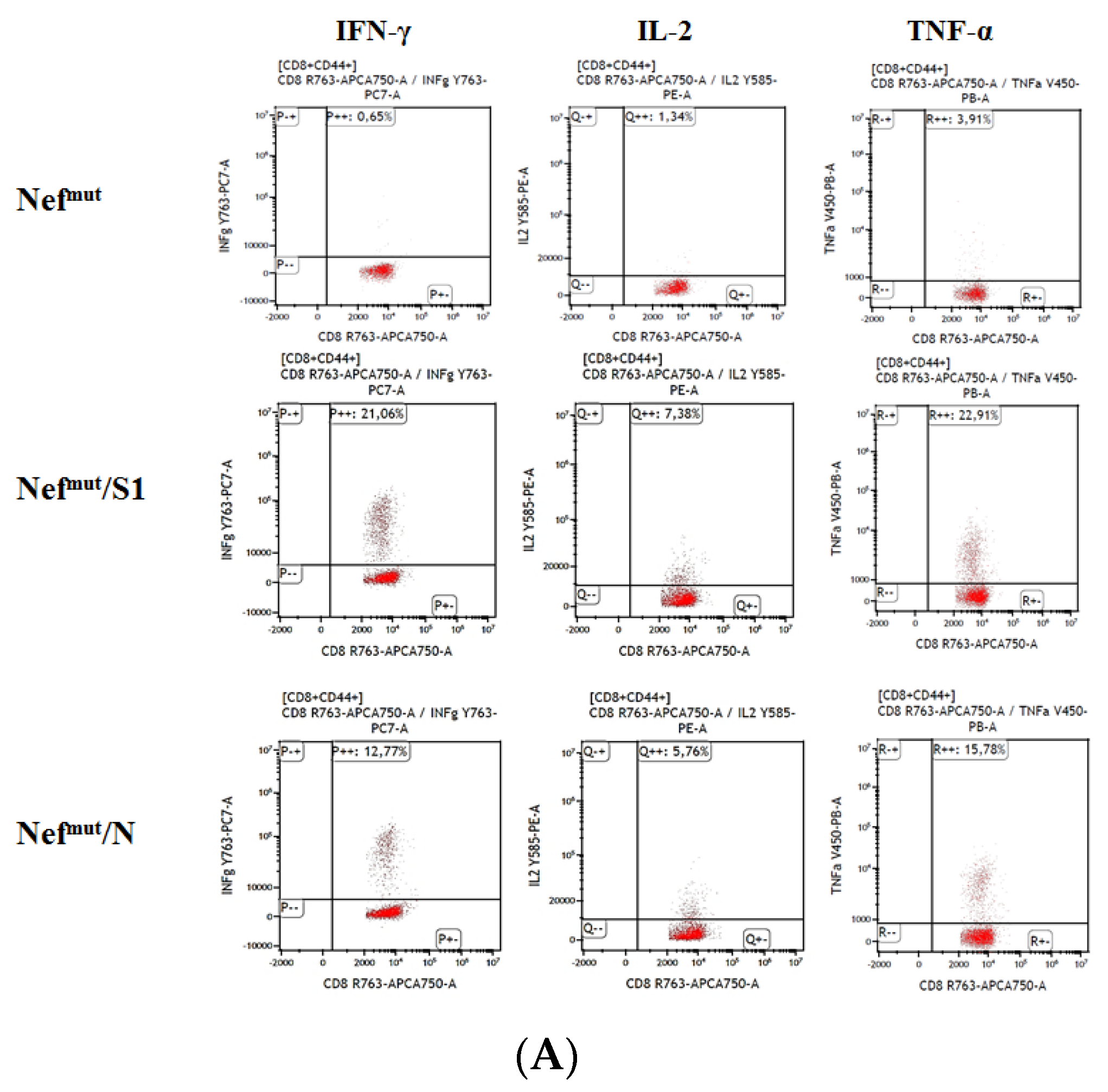

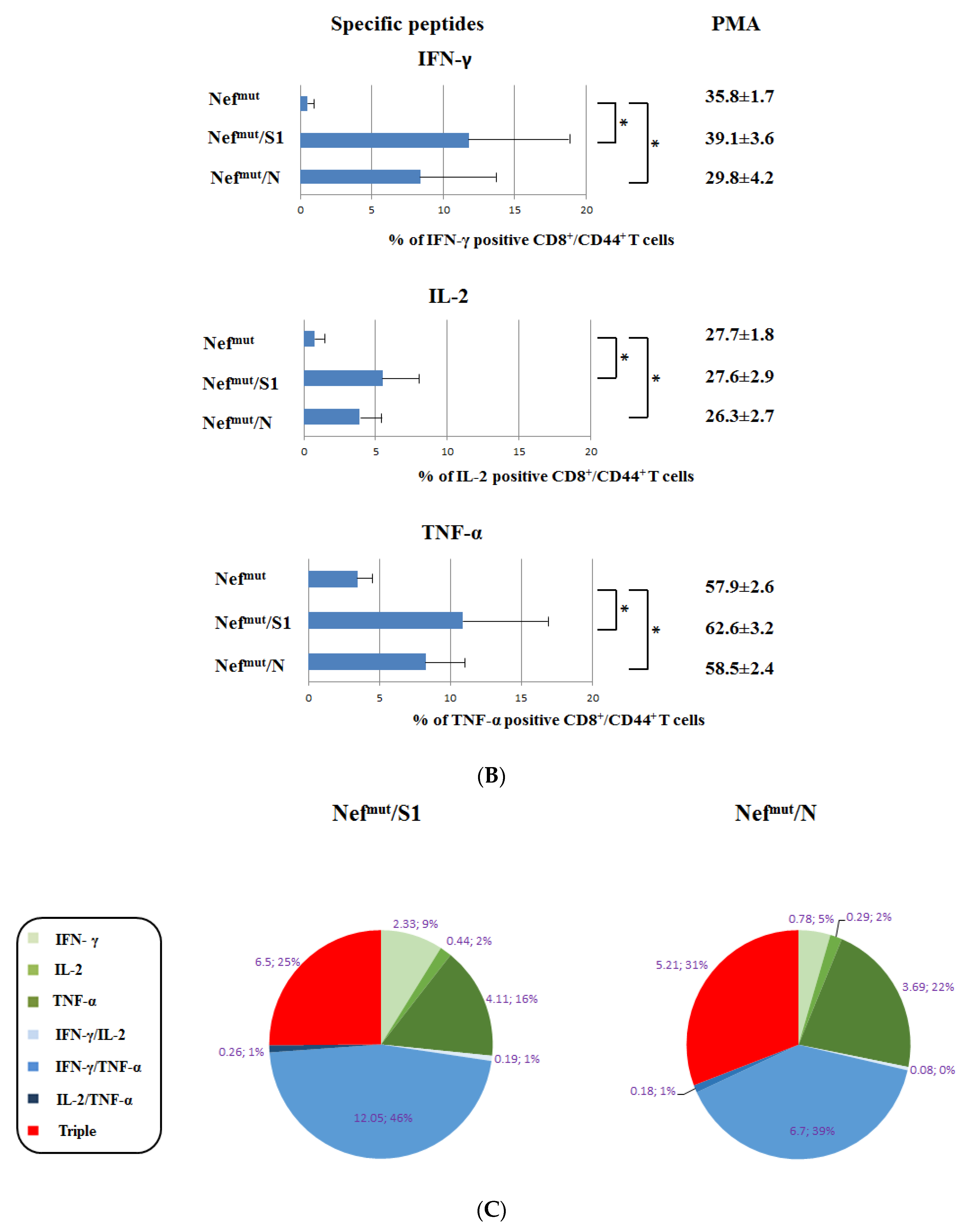

Figure 2. ICS/flow cytometry analysis of splenocytes from mice injected with vectors expressing either Nefmut/S1, Nefmut/N or, as control, Nefmut alone. (A) CD8+ T cell immune response in C57 Bl/6 mice inoculated IM twice 15-days apart with DNA vectors expressing Nefmut either alone (4 mice) or fused with the indicated SARS-CoV-2 antigens (7 mice per group). At the time of sacrifice, 2.5 × 105 splenocytes were incubated overnight with or without 5 µg/mL of either unrelated or SARS-CoV-2-specific peptides in triplicate IFN- EliSpot microwells. Rough data from the analysis of the expression of IFN-γ, IL-2, and TNF-α over CD8+/CD44+ cells in splenocyte cultures from a representative mouse per group. (B) Percentages of cells expressing IFN-γ, IL-2, and TNF-α over the total of CD8+/CD44+ T cells within splenocytes isolated from each mouse injected with the indicated DNA vectors. Shown are mean values +SD of the absolute percentages of cytokine expressing cells from cultures treated with specific peptides after subtraction of values measured in cells treated with an unrelated peptide. Shown on the right are the mean values + SD of percentages of cytokine expressing cells from cultures treated with PMA plus ionomycin, after the subtraction of values measured in cells treated with an unrelated peptide. The results were calculated from data obtained by the analysis of either four (for the Nefmut group) or seven immunized animals per group. * p < 0.05. (C) Pie charts reporting both absolute (i.e., over the total of analyzed CD8+/CD44+ T cells) and relative percentages of cells expressing each cytokine combination in splenocyte cultures from representative mice injected with the indicated vectors. Percentages were calculated after subtraction of values measured in homologous cultures treated with unrelated peptides.
Figure 2. ICS/flow cytometry analysis of splenocytes from mice injected with vectors expressing either Nefmut/S1, Nefmut/N or, as control, Nefmut alone. (A) CD8+ T cell immune response in C57 Bl/6 mice inoculated IM twice 15-days apart with DNA vectors expressing Nefmut either alone (4 mice) or fused with the indicated SARS-CoV-2 antigens (7 mice per group). At the time of sacrifice, 2.5 × 105 splenocytes were incubated overnight with or without 5 µg/mL of either unrelated or SARS-CoV-2-specific peptides in triplicate IFN- EliSpot microwells. Rough data from the analysis of the expression of IFN-γ, IL-2, and TNF-α over CD8+/CD44+ cells in splenocyte cultures from a representative mouse per group. (B) Percentages of cells expressing IFN-γ, IL-2, and TNF-α over the total of CD8+/CD44+ T cells within splenocytes isolated from each mouse injected with the indicated DNA vectors. Shown are mean values +SD of the absolute percentages of cytokine expressing cells from cultures treated with specific peptides after subtraction of values measured in cells treated with an unrelated peptide. Shown on the right are the mean values + SD of percentages of cytokine expressing cells from cultures treated with PMA plus ionomycin, after the subtraction of values measured in cells treated with an unrelated peptide. The results were calculated from data obtained by the analysis of either four (for the Nefmut group) or seven immunized animals per group. * p < 0.05. (C) Pie charts reporting both absolute (i.e., over the total of analyzed CD8+/CD44+ T cells) and relative percentages of cells expressing each cytokine combination in splenocyte cultures from representative mice injected with the indicated vectors. Percentages were calculated after subtraction of values measured in homologous cultures treated with unrelated peptides.
Viruses 14 00329 g002aViruses 14 00329 g002b
Figure 3. ICS/flow cytometry analysis of cells isolated from BALFs of mice injected with vectors expressing either Nefmut/S1, Nefmut/N or, as a control, Nefmut alone. (A) Percentages of cells expressing IFN-γ, IL-2, and TNF-α over the total of CD8+/CD44+ T cells within cells pooled from at least three mice injected with the indicated DNA vectors. Shown are mean values of the absolute percentages of cytokine expressing cells from cultures treated with specific peptides after subtraction of values detected in cells treated with an unrelated peptide. On the right, shown are the mean values of percentages of cytokine expressing cells from cultures treated with PMA plus ionomycin after subtraction of values measured in cells treated with an unrelated peptide. The results are from two independent experiments. (B) Pie charts indicating both absolute (i.e., over the total of CD8+/CD44+ T cells) and relative percentages of cells expressing each cytokine combination in cells from BALFs of mice injected with the indicated vectors. Percentages were calculated after subtraction of values detected in homologous cultures treated with unrelated peptides.
Figure 3. ICS/flow cytometry analysis of cells isolated from BALFs of mice injected with vectors expressing either Nefmut/S1, Nefmut/N or, as a control, Nefmut alone. (A) Percentages of cells expressing IFN-γ, IL-2, and TNF-α over the total of CD8+/CD44+ T cells within cells pooled from at least three mice injected with the indicated DNA vectors. Shown are mean values of the absolute percentages of cytokine expressing cells from cultures treated with specific peptides after subtraction of values detected in cells treated with an unrelated peptide. On the right, shown are the mean values of percentages of cytokine expressing cells from cultures treated with PMA plus ionomycin after subtraction of values measured in cells treated with an unrelated peptide. The results are from two independent experiments. (B) Pie charts indicating both absolute (i.e., over the total of CD8+/CD44+ T cells) and relative percentages of cells expressing each cytokine combination in cells from BALFs of mice injected with the indicated vectors. Percentages were calculated after subtraction of values detected in homologous cultures treated with unrelated peptides.
Viruses 14 00329 g003aViruses 14 00329 g003b
Figure 4. Antiviral effect induced by high levels of N-specific CD8+ T cell immunity. (A) CD8+ T cell immune response in C57 Bl/6 K18-hACE-2 mice injected with vectors expressing either Nefmut/S1 (8 mice), Nefmut/N (7 mice) or, as control, Nefmut alone (7 mice). PBMCs were isolated by retro orbital bleeding and, after erythrocyte lysis, were incubated o.n. with or without 5 μg/mL of either unrelated or SARS-CoV-2 related peptides in triplicate IFN-γ EliSpot microwells. Shown are the number of spot-forming units (SFUs)/105 PBMCs as mean values of triplicates after subtraction of values from wells treated with an unrelated peptide. Intragroup mean values + SD are reported. *: p < 0.05 (B) Kaplan–Meier survival curve calculated for groups of C57 Bl/6 K18-hACE-2 mice infected with 4.4 LD50 of SARS-CoV-2. Differences between Kaplan–Meier survival curves relative to S1- and N-immunized groups of mice were statistically significant (log-rank test, p = 0.01285). (C) Relative weight loss in each injected mice after SARS-CoV-2 challenge. Identification numbers of each mouse are reported on the right of each panel. SFUs/105 PBMCs for each low and high responder N-immunized mouse are also indicated together with intergroup mean values. Shown are cumulative data from two experiments. White/black symbols in panels A and C refer to each animal whose identification number is reported on the right of graphs in panel C.
Figure 4. Antiviral effect induced by high levels of N-specific CD8+ T cell immunity. (A) CD8+ T cell immune response in C57 Bl/6 K18-hACE-2 mice injected with vectors expressing either Nefmut/S1 (8 mice), Nefmut/N (7 mice) or, as control, Nefmut alone (7 mice). PBMCs were isolated by retro orbital bleeding and, after erythrocyte lysis, were incubated o.n. with or without 5 μg/mL of either unrelated or SARS-CoV-2 related peptides in triplicate IFN-γ EliSpot microwells. Shown are the number of spot-forming units (SFUs)/105 PBMCs as mean values of triplicates after subtraction of values from wells treated with an unrelated peptide. Intragroup mean values + SD are reported. *: p < 0.05 (B) Kaplan–Meier survival curve calculated for groups of C57 Bl/6 K18-hACE-2 mice infected with 4.4 LD50 of SARS-CoV-2. Differences between Kaplan–Meier survival curves relative to S1- and N-immunized groups of mice were statistically significant (log-rank test, p = 0.01285). (C) Relative weight loss in each injected mice after SARS-CoV-2 challenge. Identification numbers of each mouse are reported on the right of each panel. SFUs/105 PBMCs for each low and high responder N-immunized mouse are also indicated together with intergroup mean values. Shown are cumulative data from two experiments. White/black symbols in panels A and C refer to each animal whose identification number is reported on the right of graphs in panel C.
Viruses 14 00329 g004aViruses 14 00329 g004b

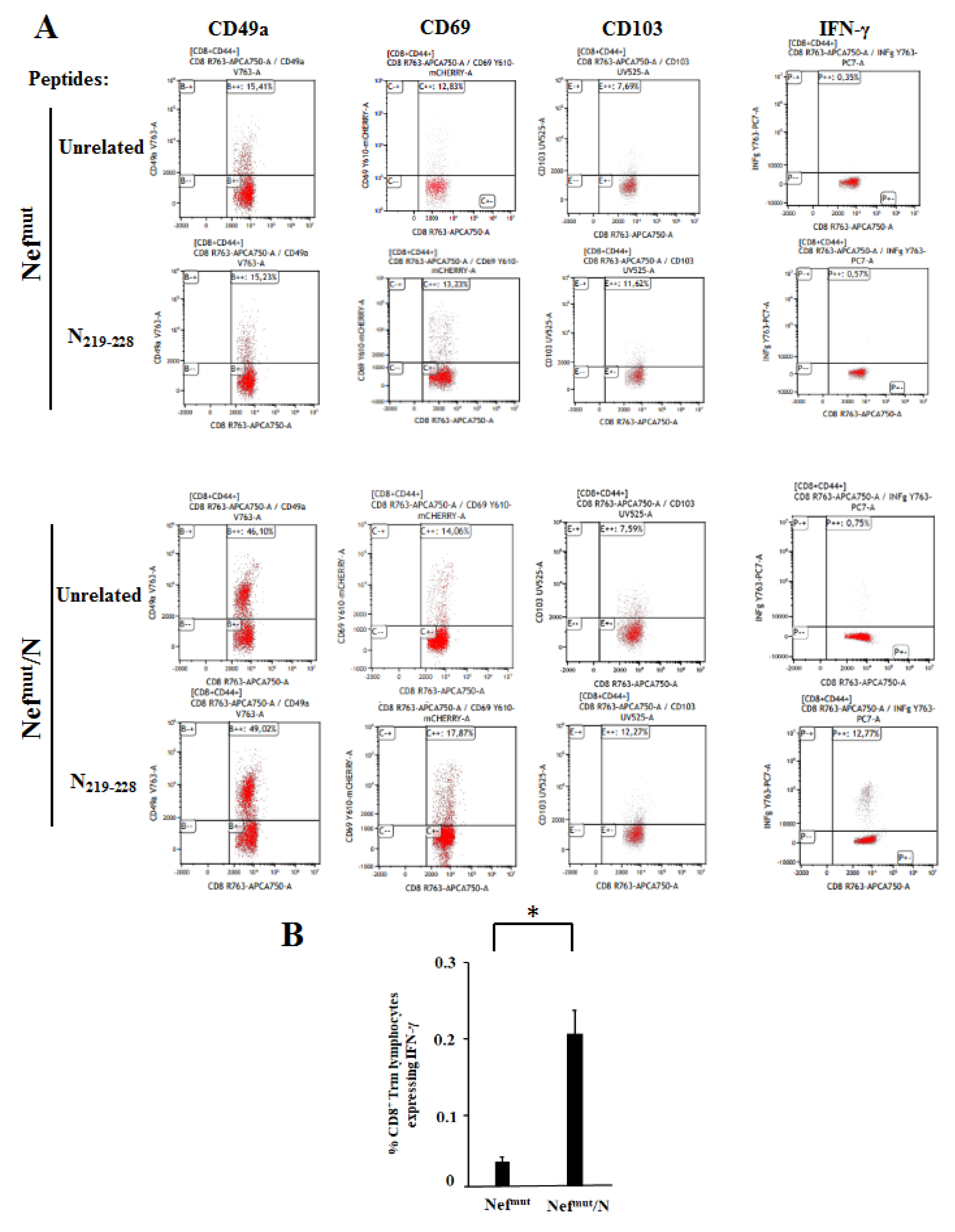

Figure 5. ICS/flow cytometry analysis on cells isolated from lungs of mice injected with vectors expressing either Nefmut/N or Nefmut alone. (A) Rough data obtained by analyzing cells pooled from lungs of two representative mice per group. (B) Percentages of CD8+ Trm cells expressing IFN-γ over the total of CD8+/CD44+ T lymphocytes. Shown are mean values + SD of the absolute percentages of positive cells from cultures treated with specific peptides after subtraction of values detected in cells treated with an unrelated peptide. The results are representative of three independent experiments, each one carried out on cells pooled from two mice per group. * p < 0.05.
Figure 5. ICS/flow cytometry analysis on cells isolated from lungs of mice injected with vectors expressing either Nefmut/N or Nefmut alone. (A) Rough data obtained by analyzing cells pooled from lungs of two representative mice per group. (B) Percentages of CD8+ Trm cells expressing IFN-γ over the total of CD8+/CD44+ T lymphocytes. Shown are mean values + SD of the absolute percentages of positive cells from cultures treated with specific peptides after subtraction of values detected in cells treated with an unrelated peptide. The results are representative of three independent experiments, each one carried out on cells pooled from two mice per group. * p < 0.05.
Viruses 14 00329 g005

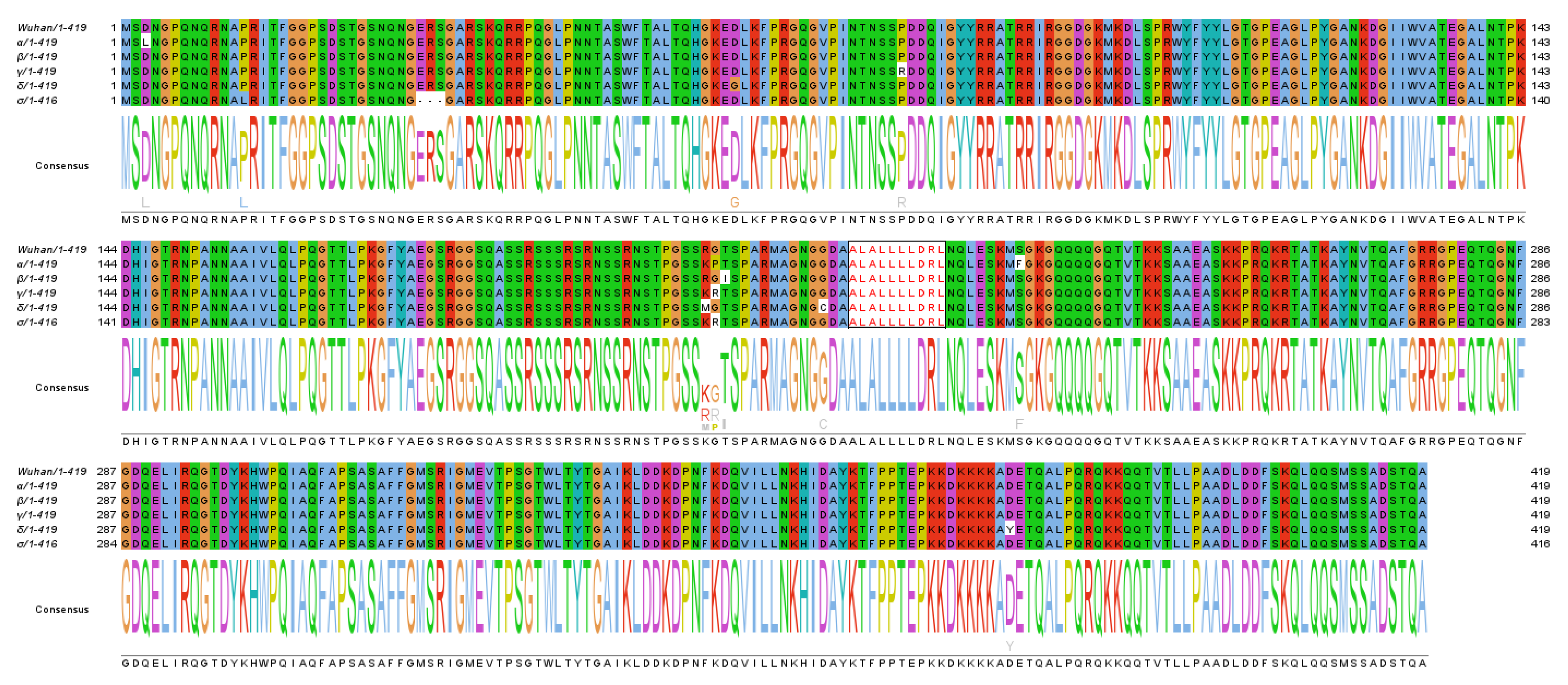

Figure 6. Line up of amino acid sequences of SARS-CoV-2 N protein from ancestral (Wuhan) and a number of variants of concern (VOCs). Sequences of the highly conserved H2-b immunodominant N219-228 epitope are highlighted.
Figure 6. Line up of amino acid sequences of SARS-CoV-2 N protein from ancestral (Wuhan) and a number of variants of concern (VOCs). Sequences of the highly conserved H2-b immunodominant N219-228 epitope are highlighted.
Viruses 14 00329 g006
