Old Drugs with New Tricks: Efficacy of Fluoroquinolones to Suppress Replication of Flaviviruses

by
Stacey L. P. Scroggs
1,2,*,
Christy C. Andrade
1,3,
Ramesh Chinnasamy
4,
Sasha R. Azar
5,
Erin E. Schirtzinger
1,6,
Erin I. Garcia
1,7,
Jeffrey B. Arterburn
4,
Kathryn A. Hanley
1 and
Shannan L. Rossi
8
1
Department of Biology, New Mexico State University, Las Cruces, NM 88003, USA
2
Biology of Vector-Borne Viruses Section, Laboratory of Virology, Rocky Mountain Laboratories, National Institute of Allergy and Infectious Diseases, National Institutes of Health, Hamilton, MT 59840, USA
3
Department of Biology, Gonzaga University, Spokane, WA 99258, USA
4
Department of Chemistry and Biochemistry, New Mexico State University, Las Cruces, NM 88003, USA
5
Institute for Translational Sciences, The University of University of Texas Medical Branch, Galveston, TX 77555, USA
6
Arthropod-borne Animal Diseases Research Unit, United States Department of Agriculture, Agricultural Research Service, Manhattan, KS 66506, USA
7
Science News, Washington, DC 20036, USA
8
Department of Pathology, The University of Texas Medical Branch, Galveston, TX 77555, USA
*
Author to whom correspondence should be addressed.
Viruses 2020, 12(9), 1022; https://doi.org/10.3390/v12091022
Submission received: 24 August 2020 / Revised: 10 September 2020 / Accepted: 11 September 2020 / Published: 13 September 2020
(This article belongs to the Special Issue Drug-Repositioning Opportunities for Antiviral Therapy)
Browse Figures
Versions Notes

Abstract

:
Repurposing FDA-approved compounds could provide the fastest route to alleviate the burden of disease caused by flaviviruses. In this study, three fluoroquinolones, enoxacin, difloxacin and ciprofloxacin, curtailed replication of flaviviruses Zika (ZIKV), dengue (DENV), Langat (LGTV) and Modoc (MODV) in HEK-293 cells at low micromolar concentrations. Time-of-addition assays suggested that enoxacin suppressed ZIKV replication at an intermediate step in the virus life cycle, whereas ciprofloxacin and difloxacin had a wider window of efficacy. A129 mice infected with 1 × 105 plaque-forming units (pfu) ZIKV FSS13025 (n = 20) or phosphate buffered saline (PBS) (n = 11) on day 0 and treated with enoxacin at 10 mg/kg or 15 mg/kg or diluent orally twice daily on days 1–5 did not differ in weight change or virus titer in serum or brain. However, mice treated with enoxacin showed a significant, five-fold decrease in ZIKV titer in testes relative to controls. Mice infected with 1 × 102 pfu ZIKV (n = 13) or PBS (n = 13) on day 0 and treated with 15 mg/kg oral enoxacin or diluent twice daily pre-treatment and days 1–5 post-treatment also did not differ in weight and viral load in the serum, brain, and liver, but mice treated with enoxacin showed a significant, 2.5-fold decrease in ZIKV titer in testes relative to controls. ZIKV can be sexually transmitted, so reduction of titer in the testes by enoxacin should be further investigated.

1. Introduction

Viruses of the genus Flavivirus (family Flaviviridae) are major causes of morbidity and mortality worldwide [1,2,3,4,5,6]. Moreover many flaviviruses, such as Zika (ZIKV), dengue (DENV), tick-borne encephalitis (TBEV), West Nile (WNV), and Japanese encephalitis (JEV) virus [7,8,9] are categorized as emerging pathogens due to rising incidence and expanding geographic range [10,11]. Effective antiviral drugs could abate flavivirus transmission and disease burden, but to date no drugs for treatment of flavivirus infections have been brought to market because efforts to develop anti-flaviviral drugs have been unsuccessful [12,13]. Most anti-flaviviral drug candidates have stalled at the point of hit-to-lead optimization due to poor drug-like properties [14,15,16]. This history of roadblocks in development of novel drugs suggests that repurposing clinically approved drugs offers the fastest track to clinical treatments of flavivirus infections [17].
The fluoroquinolones are not an immediately obvious choice as anti-flavivirals. The flavivirus genome comprises a single strand of positive-sense RNA, while fluoroquinolones are primarily known for inhibiting topoisomerases and gyrases in bacterial targets [18,19], neither of which play a role in genome synthesis in positive-sense RNA viruses [20,21]. However in the last several years, a multitude of previously unsuspected effects of fluoroquinolones on eukaryotic cell functions have been revealed, including enhancement of RNAi [22,23,24], inhibition of cellular helicases [25,26], attenuation of cytokines and pro-inflammatory reactive oxygen species [27,28,29], and modification of apoptosis [30] and autophagy [31]. Furthermore, fluoroquinolones have been shown to suppress hepatitis C virus (HCV, family Flaviviridae) replication in vitro, possibly by inhibiting the viral helicase [32], but this suppression has not translated into an effective treatment for patients with liver failure due to chronic HCV infection [33]. Additionally, fluoroquinolones suppress rhinovirus infection by reducing expression of the viral receptor on cells [34]. Recently, Xu et al. demonstrated that a high concentration of enoxacin administered to human neuronal progenitor cells (hNPC) and brain organoids prior to and after infection with ZIKV suppressed viral replication and restored normal cellular proliferation, possibly by enhancing RNAi [35].
Here we evaluated the utility of repurposing fluoroquinolones as anti-flavivirals by testing their ability to suppress flavivirus replication in cell culture and a mouse model. This study was initially motivated by our interest in the ability of fluoroquinolones to enhance RNAi, and thus we focused on three fluoroquinolones, enoxacin, ciprofloxacin and difloxacin, that have high, moderate and little impact on RNAi, respectively [23]. We found that all three drugs suppressed replication of six flaviviruses in HEK-293 cells at low micromolar concentrations. Enoxacin displayed the lowest Half-Maximal Effective Concentration (EC50) values in cell culture and was selected for evaluation in ZIKV-infected A129 mice. Although enoxacin did not mitigate weight loss in ZIKV-infected mice or suppress ZIKV replication in the serum, brain, or liver, the drug did suppress ZIKV replication in the testes.

2. Materials and Methods

2.1. Viruses

The seven flaviviruses utilized in this study are listed in Table 1. Working stocks of viruses were propagated in Vero cells and viral supernatants were collected either in 1× SPG (2.18 mM sucrose, 38 mM potassium phosphate (monobasic), 72 mM potassium phosphate (dibasic), 60 mM l-glutamic acid) (DENV-1,2 and 4, MODV, LGTV, ZIKV MEX 1–7) for studies in culture or 1× DMEM supplemented with 5% heat inactivated fetal bovine serum (FBS, Atlantica Biologicals, Flowery Branch, GA, USA) and 100 μg/mL penicillin/streptomycin (Gibco, Life Technologies, Grand Island, NY, USA) (ZIKV FSS13025) for studies in vivo. Supernatants were clarified by centrifugation, aliquoted and stored at −80 °C. Viral titers were determined via serial dilution onto HEK-293 cells followed by immunostaining using methods as previously described [36,37]. Briefly, each virus was subjected to serial tenfold dilution and inoculated onto confluent HEK-293 cells in 24-well plates. After two hours of incubation at 37 °C with occasional rocking, infected cells were overlaid with 1% methylcellulose in OptiMEM (Gibco, Life Technologies) that had been supplemented with 2% FBS (Gibco, Life Technologies), 2 mM L-glutamine (Gibco, Life Technologies), and 0.05 mg/mL gentamycin (Gibco, Life Technologies). Plates were incubated for five days under maintenance conditions, after which cells were fixed with ice cold methanol: acetone (1:1) for 30 min. Viral plaques were immunostained using species-specific antibodies and peroxidase-labeled goat anti-mouse secondary antibody (KPL, Gaithersburg, MD, USA) then developed with KPL True Blue Peroxidase Substrate (SeraCare, Milford, MA, USA) and counted to calculate viral titer.

2.2. Cells

HEK-293 and murine Sertoli cells were purchased from ATCC (CRL-1573 and CRL-2618, Manassas, VA, USA). Vero cells were obtained from the lab of Stephen Whitehead (NIAID, NIH, Bethesda, MD, USA). HEK-293 cells were maintained at 37 °C with 5% CO2 in DMEM/F12 medium (Gibco, Life Technologies) supplemented with 10% heat-inactivated FBS (Gibco), 2 mM L-glutamine (Gibco), and 0.5% antibiotic-antimycotic (penicillin, streptomycin, and amphotericin B; Gibco). Sertoli cells were maintained at 32 °C with 5% CO2 in DMEM/F12 (Gibco) supplemented with 10% heat-inactivated FBS, 2 mM L-glutamine, and penicillin/streptomycin (100 units/mL and 100 μg/mL, respectively; Gibco). Vero cells were maintained at 37 °C with 5% CO2 in DMEM (Gibco) supplemented with 10% heat-inactivated FBS (Gibco). All cell culture efficacy and toxicity experiments were conducted with HEK-293 cells, an interferon competent human cell line that supports flavivirus replication and is often used to evaluate potency and toxicity of potential antivirals [39,40,41,42,43,44,45].

2.3. Fluoroquinolone Compounds

For each experiment, a fresh working stock of enoxacin (Sigma-Aldrich, E3764, St. Louis, MO, USA), difloxacin (Sigma-Aldrich, D2819), or ciprofloxacin (Corning, 86393-32-0, Manassas, VA, USA) at a concentration of 1.5 mM was sonicated in nanopore water with 3 mM lactic acid (Sigma-Aldrich, L1750) and sterilized via passage through a 0.2 μm filter. The compounds were diluted to their final concentrations in cell culture media for assays in cell culture, or nanopore water for in vivo treatments.

2.4. Viral Replication Kinetics in Cell Culture

To quantify replication kinetics of particular viruses, triplicate 25-cm2 flasks of HEK-293 cells were grown to ~80% confluence, washed with 3 mL cell culture media, and infected with a specified virus at a multiplicity of infection (MOI) of 0.05 in 1 mL total volume. Cells were incubated at 37 °C for 2 h with occasional rocking. Virus inoculum was then removed and cells washed twice with 3 mL of 1× PBS to remove any unadsorbed virus. Six mL of cell culture media was then added to each flask. At time 0, 1 mL of cell culture supernatant was removed and SPG was added at a final concentration of 1×. Cell culture supernatants were clarified by centrifugation, aliquoted and stored at −80 °C. Samples were collected on days 1 through 8 by removing 1 mL of supernatant as described above and 1 mL of cell culture media was added back to the flask. Viral titers were determined in HEK-293 cells as described above. ZIKV was added to this project after the replication kinetics assays were completed, in response to the Public Health Emergency of International Concern declared on 1 February 2016; thus this assay was not conducted with ZIKV.

2.5. Determination of Half-Maximal Effective Concentration (EC50) against Select Flaviviruses

To determine the EC50 of enoxacin, difloxacin, and ciprofloxacin, monolayers of 80% confluent HEK-293 cells in 24-well plates were infected with either ZIKV, DENV-1, DENV-2, DENV-4, LGTV, or MODV in triplicate at a multiplicity of infection (MOI) of 1. The assay was repeated for all three fluoroquinolones with ZIKV at an MOI of 0.2. The virus was allowed to adsorb for 2 h at 37 °C after which cells were washed with 1 mL 1x phosphate buffered saline (PBS) to remove unadsorbed virus. Each drug was diluted in a two-fold dilution series in cell culture media, with final concentrations ranging from 150 μM to 4.7 μM and 0 μM, and one mL was added to triplicate treatment wells. Triplicate control wells were treated with cell culture media alone and another set of controls were treated with cell culture media containing 3 mM concentration lactic acid, the drug diluent. Infected cells were incubated for five days at normal conditions, after which viral supernatants were collected and viral titers were determined as described above.
As enoxacin was found to suppress ZIKV in the mouse testes, enoxacin potency was evaluated in one testicular cell line (murine Sertoli cells) and compared to the potency in HEK-293 cells. The EC50 methods described above were repeated for ZIKV MEX 1-7 in Sertoli cells and HEK-293 cells, both incubated at 32 °C to control for potential differences in enoxacin activity at the lower temperature required for Sertoli cell viability. For both cell types, two MOIs were tested, 0.1 and 1.0, and virus was collected at two time points, two days post infection (p.i.) and five days p.i. Viral titers were determined in HEK-293 cells as described above.

2.6. Determination of Half-Maximal Cytotoxic Concentration (CC50) of Fluoroquinolones

To determine the toxicity of enoxacin, difloxacin, and ciprofloxacin, HEK-293 cells were grown in 96-well plates until confluent at which time the media was removed. Each filter-sterilized fluoroquinolone was diluted two-fold, starting at 1000 μM, and added to wells in triplicate at a total volume of 100 μL. Control wells were treated with 100 μL of cell culture media containing 3 mM lactic acid. Plates were incubated at normal conditions for five days, after which the media was removed and 110 μL of 10% resazurin dye (Millipore Sigma, St. Louis, MO, USA) diluted in cell culture media was added to each well. After two hours incubation, absorbance was measured on a plate reader at 600 nm and normalized to the mean absorbance of the control wells.

2.7. Time-Of-Addition Assays

Time-of-addition assays were conducted to gain insight into the potential mechanism of action of each drug against ZIKV [46,47,48,49,50]. All assays were conducted in triplicate; MOI and drug concentration were varied in order to enhance statistical power to discern time-specific effects. First, the impact of enoxacin, ciprofloxacin and difloxacin were tested at 24.4 μM, 116.1 μM, and 35.9 μM, respectively, against ZIKV at an MOI of 0.2. These drug concentrations represent the EC50 values determined in HEK-293 cells infected with ZIKV at an MOI of 0.2. Next, the time-of-addition assays were conducted using 18.1 μM enoxacin, 56.8 μM ciprofloxacin and 25.4 μM difloxacin against ZIKV at an MOI of 1.0. These drug concentrations represent the EC50 values determined in HEK-293 cells with ZIKV at an MOI of 1.0. Finally, a third assay was conducted using 25.0 μM ciprofloxacin and 50.0 μM difloxacin against ZIKV at an MOI of 1.0. These concentrations were chosen to ameliorate suppression of ZIKV by ciprofloxacin and increase suppression by difloxacin.
Eight timepoints were evaluated during all time-of-addition assays: two hours prior to infection, at the time of infection (drug mixed with ZIKV), 2, 4, 6, 8, 12, and 18 h p.i. These time points capture flavivirus binding and entry (−2 and 0 h p.i.), translation (2 and 4 h p.i.), genome replication (6 and 8 h p.i.), and virion assembly and budding (12 and 18 h p.i.) [51]. At time zero, monolayers of 80% confluent HEK-293 cells in 24-well plates were infected with ZIKV MEX 1–7 at MOI 0.2 or 1. After two hours of incubation, the virus was removed from all wells, the cells were washed with 1 mL of 1x PBS, and 1 mL of media per well was replaced. At each time point, media was removed from designated triplicate wells, cells were washed with 1x PBS, and 1 mL of drug at the specified concentration was added. Dilution of fluoroquinolones to final concentration occurred at the time of treatment. For the wells treated at −2 h p.i., the drug was removed and replaced with virus at the time of infection (time 0); then, after 2 h incubation, the virus was removed, the wells were washed with 1xPBS, and media was added to the wells. For the wells treated at infection (0 h p.i.), the media was removed and replaced with ZIKV diluted in the drug at the time of infection. After 2 h incubation the virus and drug were both removed, the wells were washed, and media was added. For the post-infection time points, the drug was added to the wells at the specified time points and remained in the wells until 24 h p.i. It should be noted that the half-life of enoxacin is 1.75 h of ciprofloxacin and that of difloxacin is 3 h [52,53,54]. Control wells infected with ZIKV were washed two hours p.i. and treated with 1 mL of media per well. At 24 h p.i. all the viral supernatants were collected, clarified, and stored as described above.

2.8. Determination of In Vivo Efficacy of Enoxacin

The impact of enoxacin, the fluoroquinolone with the lowest EC50, on ZIKV infection of A129 mice was tested. Mice were infected at five weeks of age because our previous work showed that in this age group ZIKV infection caused sustained weight loss that did not require euthanasia until eight days p.i., ensuring that the majority of mice would survive a five-day trial [55]. Mice were housed in sterile caging in colonies at the University of Texas Medical Branch (UTMB), an American Association for Laboratory Animal Science (AALAS)-accredited facility, and research was conducted in accordance with UTMB policy under Institutional Animal Care and Use Committee (IACUC) Protocol #1708051.
The efficacy of enoxacin in suppressing ZIKV replication in vivo was tested in two separate experiments (Figure 1). An a priori power analysis was used to determine the minimum number of mice required to achieve 80% power, to detect a difference of 0.3 log (i.e., 50%) decrease in viral replication of the serum of five-week-old A129 mice. In experiment 1, we tested two concentrations of enoxacin at 10 mg/kg and at 15 mg/kg in A129 mice infected with 1 × 105 pfu ZIKV, the viral dose used to in our previous work to characterize ZIKV infection in five-week-old A129 mice [55]. The two concentrations, 10 mg/kg and 15 mg/kg, were selected because in an average sized mouse (20 g) these doses correspond to peak serum concentrations (6.2 μM and 9.4 μM) that are comparable to the peak serum concentrations achieved in humans receiving a typical clinical dose, wherein 200 mg and 400 mg oral dosages result in peak serum concentrations of 5.0 μM and 11.2 μM, respectively [56,57]. In experiment 2, we tested the impacts of a lower dose of virus (1 × 102 pfu) and a pre-infection treatment of enoxacin on ZIKV infection in mice. The experiment was limited to a single concentration of enoxacin, 15 mg/kg, in order to utilize the minimum number of mice.

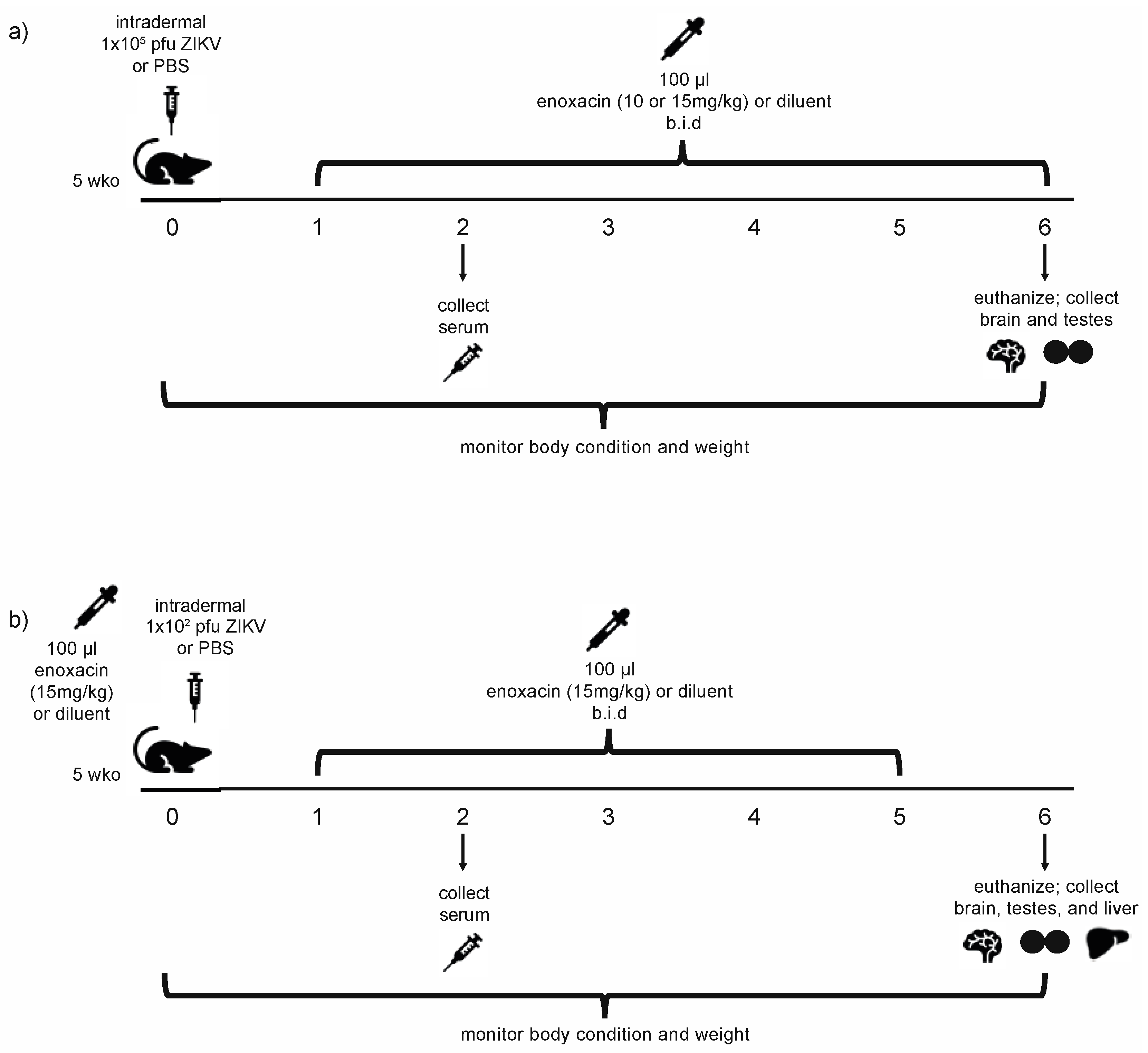

Experiment 1 (Figure 1a): Mice were intradermally injected on day 0 with 1 × 105 pfu ZIKV FSS13025 diluted in 1x PBS (n = 19) or with 1x PBS as a control (n = 11) in a total volume of 100 μL and subsets of infected and uninfected mice were treated with oral enoxacin or drug diluent (3 mM lactic acid) (Table 2) twice daily on days 1–6 p.i. Weight and body condition were recorded twice daily. Two days p.i., 70 μL of blood was collected from the retro-orbital sinus, clarified by centrifugation (5 min at 3380× g), and serum was stored at −80 °C. Six days p.i., mice were euthanized and brain and testes were collected. Each tissue, along with a sterile steel ball, were placed into a 2 mL Eppendorf tube containing 500 μL DMEM supplemented with 2% FBS and penicillin/streptomycin and homogenized in a Qiagen TissueLyser II shaking at 26 pulses/second for 5 min. Homogenates were clarified by centrifugation at 3380 × g for 5 min and stored at −80 °C. Viral titers from serum and tissues were determined in Vero cells in 12 well plates essentially as described above [55].
Experiment 2 (Figure 1b): Mice received a pre-treatment of 15 mg/kg enoxacin (n = 14) or drug diluent (n = 13) and were intradermally injected with 1 × 102 pfu ZIKV FSS13025 or 1x PBS 8 h later as specified in Table 2. Subsets of infected and uninfected mice were treated with oral enoxacin or lactic acid diluent twice daily on days 1–5. Weight and body condition were recorded daily. Serum, brain and liver were collected, and viral titers determined as described above.

2.9. Statistical Analysis

EC50 values were calculated using nonlinear regression of inhibition dose response for log drug concentration and viral titer and CC50 values were calculated using nonlinear regression of inhibition dose response for log drug concentration and cell viability in GraphPad Prism (version 5 for Mac OS X, GraphPad Software, La Jolla, CA, USA). The selectivity index for each fluoroquinolone and virus combination was calculated by dividing the CC50 by the EC50 values. Mean viral titers at each time point from the time-of-addition assays were tested for normality using the Shapiro-Wilk test then analyzed using ANOVAs. If the overall ANOVA was significant, pairwise t-tests with a Bonferroni correction were used to detect pairwise differences. Viral titers were first log-transformed then mean viral titers from mice were assessed for normality using the Shapiro-Wilk test and compared using ANOVAs or t-tests as appropriate, and differences in ZIKV replication in Sertoli cells and HEK-293 cells at 32 °C were evaluated using general linear models in R [58].

3. Results

3.1. Flavivirus Replication Curves in Cultured Human Cells

Replication curves for DENV-1, DENV-2, DENV-4, LGTV, and MODV in HEK-293 cells are shown in Figure S1. Following infection at MOI 0.05, DENV-1 and DENV-4 titer rose steadily through day 8 p.i., the last day of sampling, while DENV-2 peaked on day 7, LGTV peaked on day 3 and MODV plateaued around 4 days p.i. On day 5 p.i. the viral titer for all five viruses ranged from 5.3 to 6.7 log10 PFU/mL. In light of the variation in replication dynamics among the different viruses, subsequent evaluations of drug potency were conducted at a higher MOI (MOI:1) on day 5 post-infection to capture the plateau of viral titer.

3.2. Fluoroquinolones Suppress Flavivirus Replication in Cultured Human Cells

As shown in Table 3 and Figure S2, the EC50 values of enoxacin, ciprofloxacin and difloxacin against DENV, ZIKV, LGTV and MODV in HEK-293 cells at 37 °C were all in the range of 4.3–56.8 µM, except for the EC50 of difloxacin for MODV, for which the EC50 value was greater than the limit of detection in our assay (Table 3). CC50 values for enoxacin, ciprofloxacin, and difloxacin were all substantially higher than the EC50 values (Table 3).

3.3. Fluoroquinolone Suppression of Different Life Cycle Stages of ZIKV

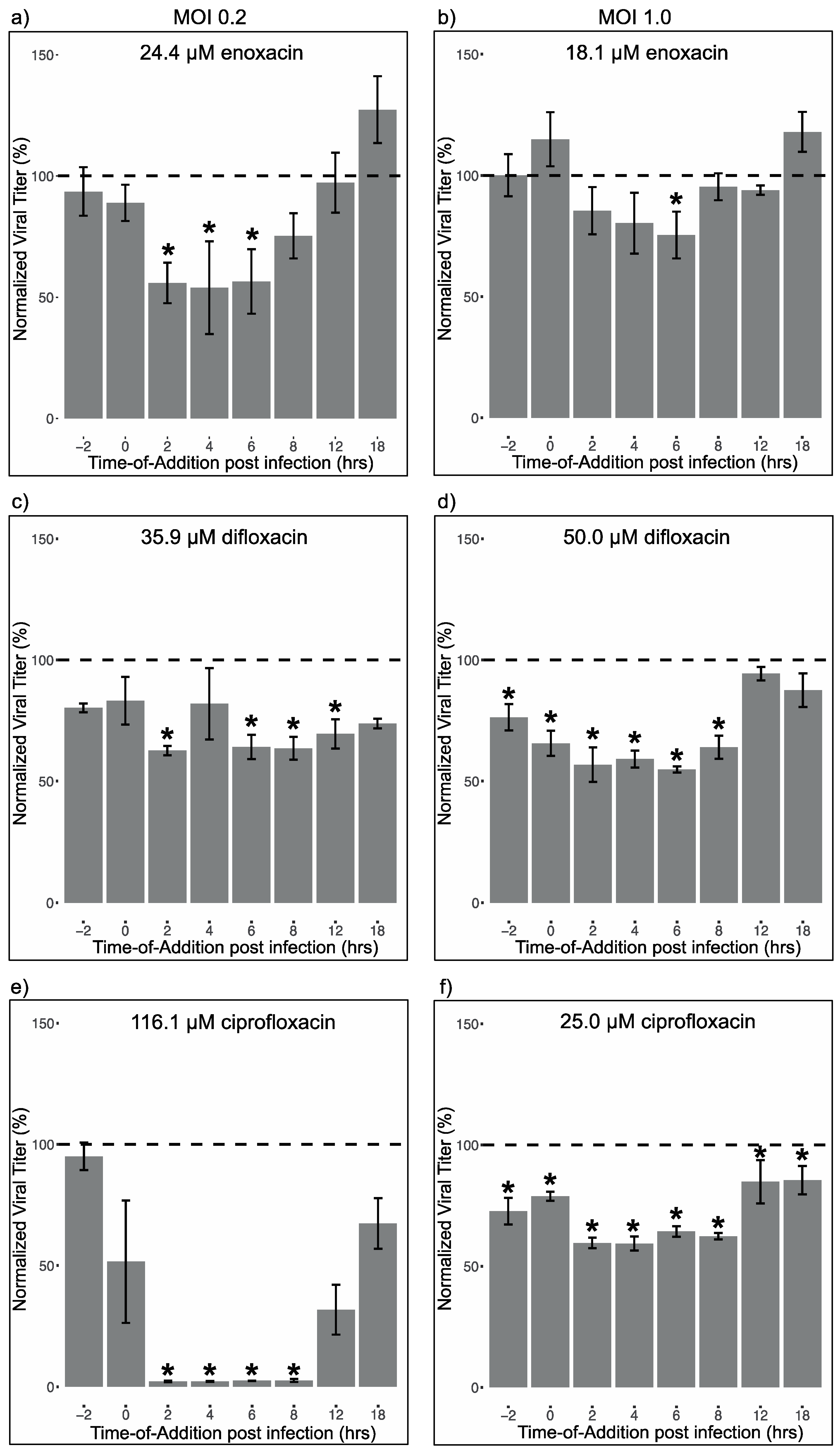

Three sets of time-of-addition assays were used to discern the viral life stage(s) inhibited by each of the three fluoroquinolones. First, monolayers of HEK-293 cells were infected at MOI 0.2 and treated with each of the three drugs at the EC50 value determined using MOI: 0.2. Next monolayers of HEK-293 cells were infected at MOI 1.0 and treated with each of the three drugs at the EC50 value determined using MOI: 1.0. In this second set of assays, ciprofloxacin suppressed virus replication below the level of detection and difloxacin had little effect (Figure S3), so these assays were run again with ciprofloxacin at half its EC50 and difloxacin at twice its EC50.
While significance varied somewhat among the assays, the overall patterns were consistent. As seen in Figure 2a,b, enoxacin suppressed virus replication most strongly when added at 2, 4 or 6 h p.i. Virus replication was suppressed by about 25% by 18.1 μM enoxacin and 50% by 24.4 μM enoxacin. At both concentrations, differences between viral titers by time of treatment were significant. Pairwise t-tests indicated that enoxacin treatment at 2, 4, and 6 h p.i. significantly reduced ZIKV titer compared to the media control (pairwise t-test p < 0.05; full statistics in Table S1, Data S1).
Difloxacin at 35.9 μM suppressed virus replication when added 2, 6, 8, 12, and 18 h p.i. (Figure 2c) while 50.0 μM difloxacin suppressed virus replication when added 2 h before infection, at the time of infection, 2, 4, 6, or 8 h p.i. (Figure 2d), as detected by pairwise t-tests (full statistics in Table S1). At most, ZIKV replication was suppressed 37% by 35.9 μM difloxacin and 50% by 50.0 μM difloxacin. At 25.4 μM difloxacin, the EC50 of this drug against ZIKV at MOI 0.2 (Table 3), no difference in viral titer was detected by time (Figure S3a, Table S1).
As seen in Figure 2e,f and Figure S3b, ciprofloxacin most strongly and consistently suppressed virus replication when added 2, 4, 6, or 8 h p.i. At these time points, virus was suppressed an average of 40% by 25.0 μM ciprofloxacin, 71% by 56.8 μM ciprofloxacin, and below the level of detection by 116.1 μM ciprofloxacin. The differences in viral titers by time of treatment were significant for all three concentrations of ciprofloxacin tested (Table S1). Pairwise comparisons revealed that 25.0 μM ciprofloxacin added 2 h before infection, at the time of infection, and up until 18 h p.i. significantly reduced ZIKV replication compared to the media control; 56.8 μM ciprofloxacin added 2, 4, and 6 h p.i. significantly reduced replication, and 116.1 μM ciprofloxacin added at 2, 4, 6, and 8 h p.i. significantly reduced replication (full statistics in Table S1).

3.4. Enoxacin Treatment of ZIKV-Infected Mice Did Not Alleviate or Exacerbate Weight Loss

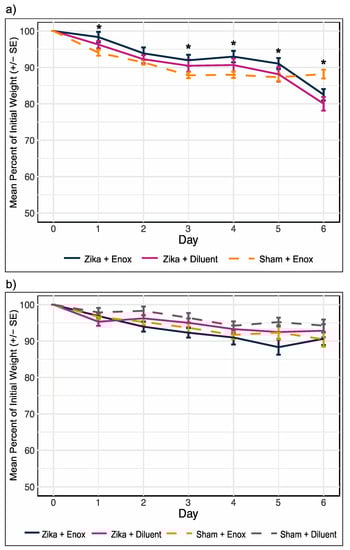

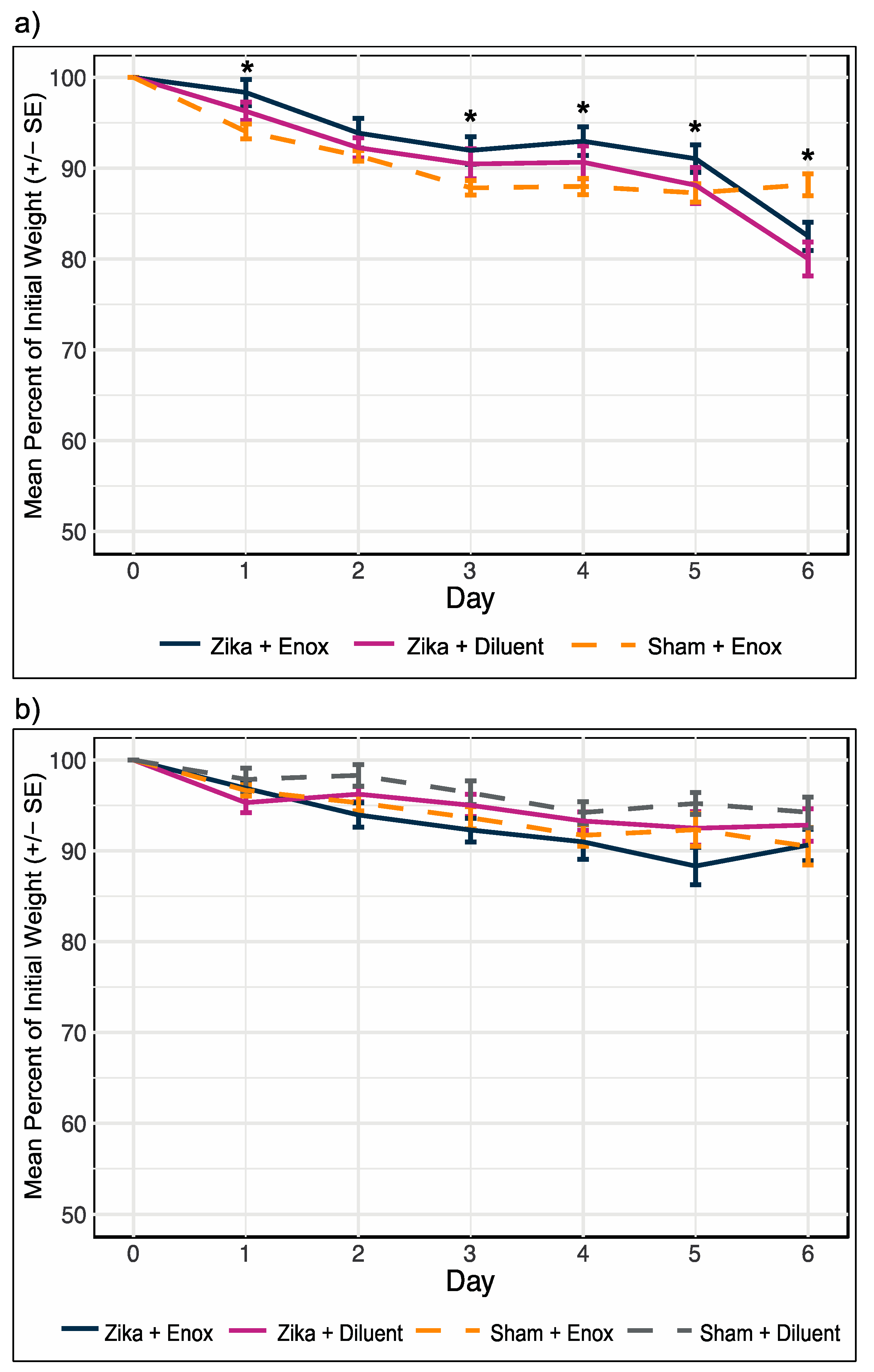

To evaluate the in vivo efficacy of enoxacin in suppressing ZIKV, A129 mice were infected with ZIKV and treated with enoxacin in two independent experiments described in Figure 1 and Table 2. In both experiments, all mice lost weight, irrespective of treatment (Figure 3). Loss of weight by control mice was unexpected, and likely resulted from the effects of dosing these small (average 19.3 g) animals twice daily with 100 μL volume of liquid. In experiment 1, weight loss, quantified as the percentage of initial weight, did not differ between ZIKV-infected mice treated with 10 mg/kg and 15 mg/kg (repeated measures ANOVA: F (5,55) = 0.7, p = 0.61) and mean percentage weight lost by uninfected mice treated with 10 mg/kg and 15 mg/kg also did not differ significantly different from each other (repeated measures ANOVA: F (6,54) = 0.6, p = 0.70); therefore, we pooled the weight data by enoxacin treatment regardless of dosage for the ZIKV-infected and uninfected mice. There was a significant interaction between group (ZIKV-infected and enoxacin treated, ZIKV-infected and diluent treated, or Sham-infected and enoxacin treated) and day post infection (repeated measures ANOVA: F (12, 194) = 3.1, p = 0.0006). Pairwise comparisons with t-tests identified differences in weight loss on days 1, 3, 4, 5, and 6 p.i. (p < 0.05). On days 1, 3, 4, and 5 p.i. the percentage of initial weight for the sham infected mice treated with enoxacin was lower compared to the ZIKV-infected mice treated with enoxacin (pairwise t-test p < 0.05; for full statistics see Table S2). On day 6 p.i. the mean percentage of initial weight of the uninfected mice treated with enoxacin was greater than that of the infected mice regardless of treatment (pairwise t-test p < 0.05; for full statistics see Table S2). Additionally, at no point during the experiment did weight loss differ between the ZIKV infected mice treated with enoxacin and the diluent control mice (Figure 3a, Table S2). In experiment 2, weight loss by day 6 was less drastic than, and significantly different from, experiment 1 (mean percentage of initial weight (SE): experiment 1 = 84.0 (1.0), experiment 2 = 93.0 (0.9); t = −5.7, df = 55, p = 2.6 × 10−7), likely due to improved technical facility in dosing these very small mice, and weight loss was not significantly different among treatments (Figure 3b, repeated measures ANOVA: F (18,132) = 1.4, p = 0.10).

3.5. Enoxacin Suppressed ZIKV Replication in Mouse Testes, but Not Serum, Brain, or Liver

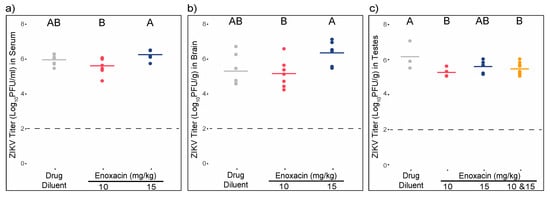

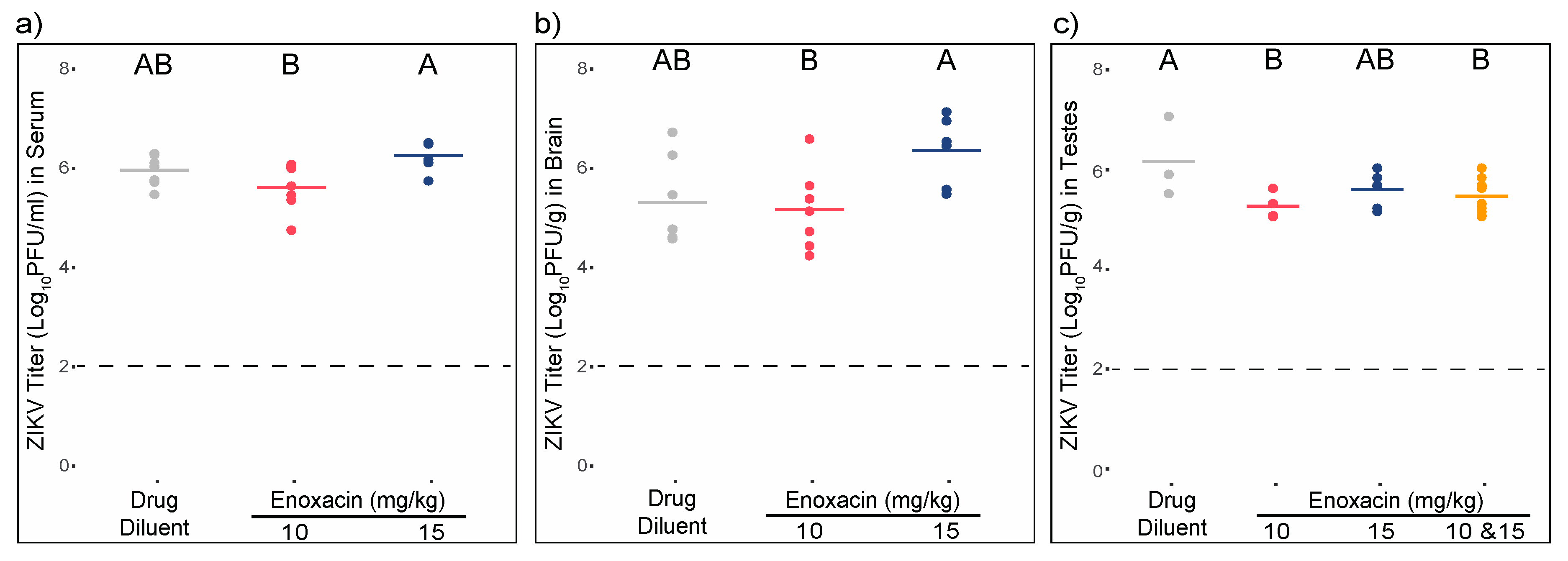

Experiment 1. In this experiment, mice were infected with 1 × 105 pfu ZIKV and subsequently treated with enoxacin. ZIKV titer in the serum of mice treated with 15 mg/kg enoxacin was 4.3-fold higher than those mice treated with 10 mg/kg enoxacin, a significant difference (Figure 4a; ANOVA F (2,17) = 4.7, p = 0.02; pairwise t-test p < 0.05). However, neither dose of enoxacin altered ZIKV titers in serum significantly relative to control mice (Figure 4a; pairwise t-test p = 0.22 for both). Similarly ZIKV titer in the brains of mice treated with 15 mg/kg enoxacin was approximately tenfold higher than that of mice treated with 10 mg/kg enoxacin (Figure 4b; ANOVA F(2,17) = 4.2, p = 0.03; pairwise t-test p < 0.05), but these titers did not differ from the virus titer in brains of control mice (pairwise t-test, p = 0.73 for 10 mg/kg enoxacin and p = 0.06 for 15 mg/kg enoxacin). Given the small sample sizes of this study, it is possible that this effect is due to random sampling. In contrast to serum and brain, mean ZIKV titers in the testes of mice treated with 10 mg/kg and 15 mg/kg were not significantly different from each other (Figure 4c; 5.4 log10 pfu/g (±0.1 SE) vs. 5.7 log10 pfu/g (±0.1 SE); t = −1.6, df = 8, p = 0.14), and were both lower than the control group (6.2 log10 pfu/g (±0.5 SE)), albeit only the decrease from 10 mg/kg treatment was significant (ANOVA F(3,19) = 3.0, p = 0.05; pairwise t-test p < 0.05). To compensate for the decrease in sample size inherent in analyzing only males, the data from the two enoxacin concentrations were pooled. The mean ZIKV titer in testes for mice treated with any dosage of enoxacin was 5.5 log10 pfu/g (±0.1 SE), which was significantly lower than 6.2 log10 pfu/g (±0.5 SE) in the control group (pairwise t-test p < 0.05).

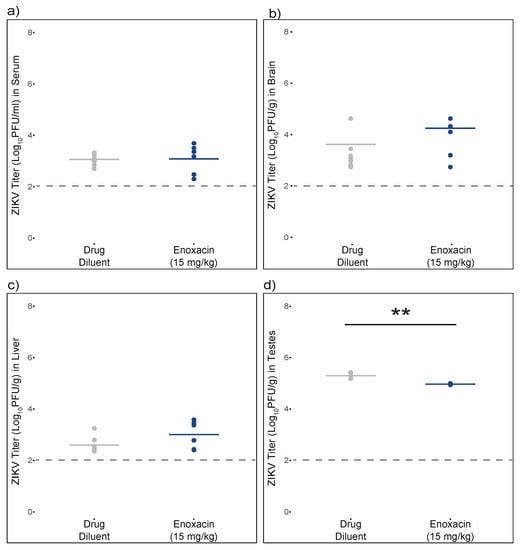

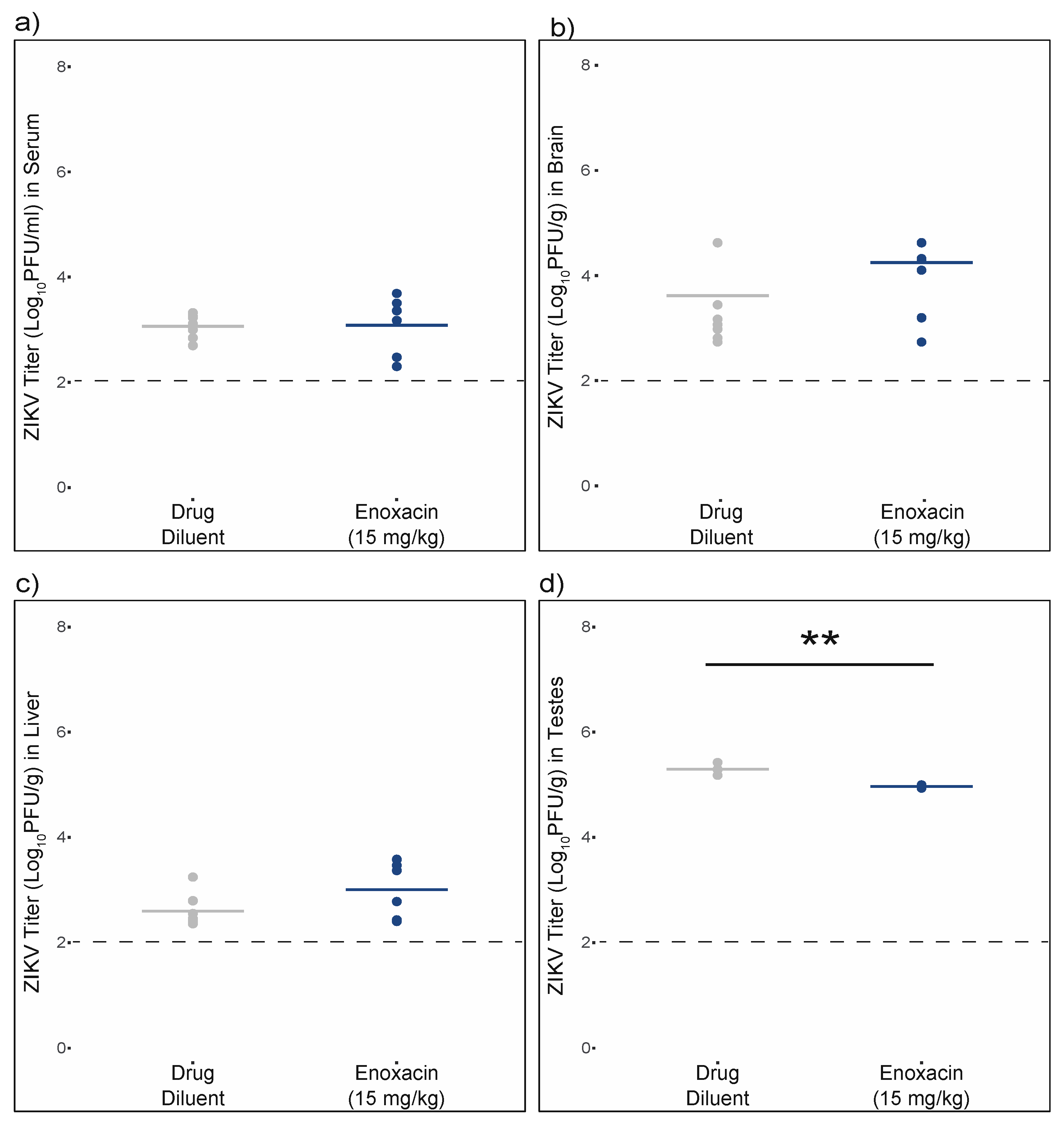

Experiment 2. In experiment 2 mice were pre-treated with enoxacin after which they were infected with 1 × 102 pfu ZIKV and subsequently dosed daily with enoxacin. As expected, ZIKV titers in serum and brain were two orders of magnitude lower than those in experiment 1; however, titers in the testes were similar between the two experiments. Consistent with experiment 1, ZIKV titers in sera, brains, and livers of enoxacin-treated mice were not different from control mice (Figure 5a–c, all p-values > 0.05), while ZIKV titer in testes of treated mice were two-fold lower than those of control mice, and this difference was significant (Figure 5d, pairwise t = −5.4, df = 5, p = 0.003).

3.6. Enoxacin Does Not Inhibit ZIKV Replication in Mouse Sertoli Cells

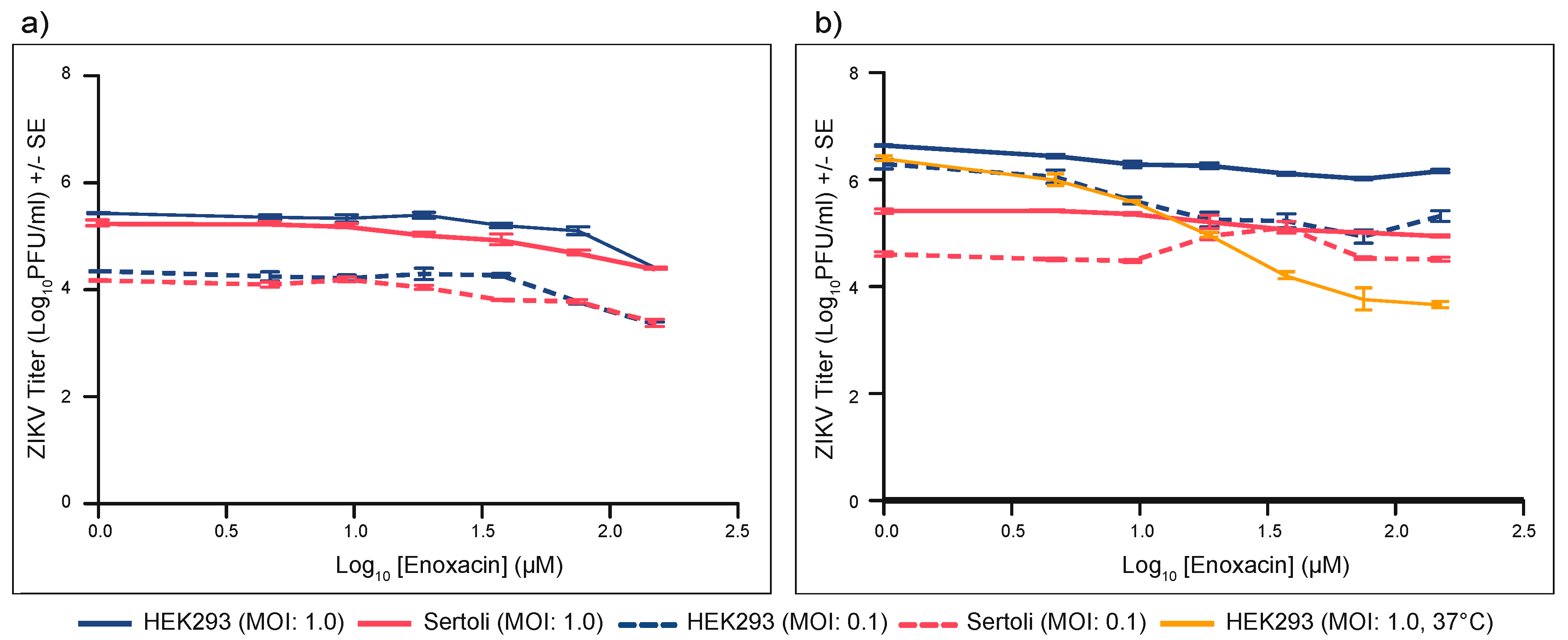

To investigate why the effect of enoxacin on ZIKV infection in mice was limited to the testes, the EC50 of this drug was quantified in both mouse Sertoli cells and HEK-293 cells at each of two MOI: 0.1 and 1.0. As expected, at 32 °C, higher initial MOI generally resulted in higher ZIKV titers, particularly at early timepoints p.i., in both cell lines. Sertoli cells must be cultured at 32 °C, so, for a fair comparison, the potency of enoxacin in HEK-293 cells was re-tested at 32 °C. Moreover, to extend the window for comparison, virus was harvested at both 2 days (Figure 6a) and at 5 days p.i. (Figure 6b).
As expected, at 32 °C, higher initial MOI generally resulted in higher ZIKV titers, particularly at early timepoints p.i., in both cell lines. Kumar et al., Siemann et al., and Mlera and Bloom have previously tested the replication of ZIKV in Sertoli cells and found them to be highly susceptible to ZIKV infection [59,60,61]. In our study, in the absence of enoxacin, there was no difference in ZIKV replication in HEK-293 and Sertoli cells 2 days p.i. (linear model, β = −0.2, P = 0.59), but at five days p.i. ZIKV titers in Sertoli cells were significantly lower than in HEK-293 cells (linear model, β = −1.4, p = 7.4 × 10−7).
Unlike the dose response curve in HEK-293 cells incubated at 37 °C, increasing concentration of enoxacin in both cell lines at 32 °C did not result in a sharp inflection in ZIKV titer, making it difficult to accurately quantify the EC50 via non-linear regression. Instead, general linear models were used to test the relative potency in the two cell types at 32 °C. Potency at 32 °C in either cell line was detectable at the higher concentrations of enoxacin on day 2, but not on day 5 (Figure 6a,b).
We tested two hypotheses for greater impact of the drug in testes: first that this effect may have been due to the lower temperature of the testes and second that it may have been due to a greater potency in testis cells. To test the first hypothesis, we compared enoxacin potency in HEK-293 cells infected with ZIKV at MOI 1 incubated at 32 °C or 37 °C and harvested on day 5 (data at 37 °C was collected as part of the initial EC50 analysis). Counter to the hypothesis, enoxacin potency was greater at 37 °C compared to 32 °C in this cell line (linear model, β = −0.2, p = 4.7 × 10−15).
We tested the second hypothesis by comparing the impact of enoxacin in HEK-293 and Sertoli cells at 32 °C. We used Sertoli cells as our model testis cell, while acknowledging that the testes are composed of many cell types and results from Sertoli cells cannot be generalized to the testes as a whole. In this analysis enoxacin concentration, cell type, and MOI and their interactions were all included in the model. On day 2 pi, interaction between enoxacin concentration and cell type was not significant (β = 0.01, p = 0.83), while on day 5 p.i. there was a significant interaction (β = 0.7, p = 0.0001). On both days, enoxacin concentration and Sertoli cells continue to negatively impact ZIKV replication (day 2 linear model, β = −0.4, p = 3.2 × 10−12; β = −0.2, p = 0.03, respectively; day 5 linear model, β = −0.8, p = 4.9 × 10−11; β = −1.4, p = 1.9 × 10−8, respectively) meaning that ZIKV titer decreased as enoxacin concentration increased and ZIKV infection of Sertoli cells resulted in lower titers overall compared to HEK-293 cells. However, on day 5 the interaction between enoxacin concentration and Sertoli cells had a positive impact on ZIKV titer, meaning that enoxacin was less effective in Sertoli cells than in HEK-293 cells.

4. Discussion

Flavivirus infections are acute, and treatment must be initiated rapidly to be effective [6,62,63]. However, individuals infected with different flaviviruses often present with similar symptoms [62,64], and in many places where flavivirus infections are common, diagnostic capacity is limited [62,65]. Thus, the ideal anti-flaviviral drug will have broad efficacy across different members of the genus [12,66,67]. We found that the three fluoroquinolones used in this study, enoxacin, ciprofloxacin and difloxacin, all suppressed replication of the six flaviviruses tested at low micromolar concentrations, with the exception that difloxacin lacked potency for MODV. These six flaviviruses, DENV-1, DENV-2, DENV-4, ZIKV, LGTV, and MODV, span the diversity of human pathogenic flaviviruses [68,69]. Enoxacin consistently demonstrated the lowest EC50 values. These findings suggest that fluoroquinolones could offer broad-spectrum anti-flaviviral activity, a very desirable property.
Though the anti-flaviviral mechanism of action of fluoroquinolones remains unknown, several possible mechanisms merit exploration. First, suppression of flaviviral replication by fluoroquinolones could be mediated by enhancement of RNAi [23,24]. The current study was motivated by the discovery of this effect, and the drugs we chose to evaluate span the range from high (enoxacin) to low (difloxacin) impact on RNAi [23]. Our finding that all three fluoroquinolones tested inhibited replication of the six flaviviruses tested, even though difloxacin has been found not to enhance RNAi [23], suggests that the antiviral action of fluoroquinolones cannot be attributed solely to enhancement of RNAi. However, it would be illuminating in the future to directly test the efficacy of RNAi in different mouse tissues following treatment with each of the fluoroquinolones studied here.
Second, fluoroquinolones could prevent endocytosis-mediated viral entry. Fluoroquinolones are derived from the original quinolone, nalidixic acid, which is a biproduct of synthesizing chloroquine, an antimalarial drug [70]. Consequently, fluoroquinolones and chloroquine share a 4-quinolone structure. As a weak base, chloroquine is known to inhibit viral entry by increasing the pH of vesicles required for endocytosis-mediated cellular entry [71,72,73,74,75,76,77,78,79,80]. Chloroquine has been shown to suppress ZIKV and DENV in cultured mammalian cells, including Vero, HuH-7, U937, human neural progenitor (hNPC), and human brain microvascular endothelial cells (hBMEC) cells, with a range of EC50 values from 1 μM to 14 μM against ZIKV [79,81,82,83,84] which is quite similar to the range of ciprofloxacin EC50 values against ZIKV (6.5–13.4 μM) determined in this study. Initial studies of chloroquine in mouse and monkey models were promising [82,85,86]; however, results from two human clinical trials with DENV found improvement in some dengue-associated symptoms, such as pain, but no reduction in viremia or infection duration [87,88]. We speculate that the structural similarities of fluoroquinolones and chloroquine could be the shared basis of their anti-flaviviral efficacy [18]. If chloroquine and fluoroquinolones share similar antiviral mechanisms of action, then results from studies of chloroquine could offer insight into what modifications could be made to the fluoroquinolones to increase their antiviral efficacy.
Third, fluoroquinolones could suppress the viral helicase as their mechanism of action. Khan et al. [32] demonstrated that many fluoroquinolones, including enoxacin and difloxacin, suppressed HCV replication and inhibited the viral helicase in vitro [32]. Further studies will be needed to assess the generality and in vivo relevance of this result.
To distinguish among some of these potential mechanisms of action, we conducted a time-of-addition study of all three drugs. This approach has previously been used to reveal that 50 μM chloroquine, which is approximately five times the EC50 value, reduces viral RNA 64-fold when added at the time of infection, likely reflecting inhibition of viral entry [79]. In our study, we found that difloxacin and ciprofloxacin suppression activity was wider, encompassing 2 to 8 h p.i. across assays, and in a subset of assays these drugs showed potency when cells were treated prior to infection, similar to chloroquine. In contrast, enoxacin suppression was restricted to 2 to 6 h p.i. These results indicate that difloxacin and ciprofloxacin may impact early and intermediate viral life cycle stages whereas enoxacin’s effect is limited to intermediate stages. Combined, these data suggest that ciprofloxacin and difloxacin may share a mechanism of action that is different than that of enoxacin.
In light of enoxacin’s low EC50, we tested the ability of this drug mitigate weight loss [55] and suppress serum viremia and virus titer in key tissues including liver, brain and testes [55] in ZIKV-infected A129 mice via two experiments. First, we infected A129 mice with a high titer of ZIKV and then treated immediately after infection with drug diluent or 10 or 15 mg/kg of enoxacin, which for the average weight of a five-week-old mouse corresponds to 6 or 10 μM enoxacin. These concentrations were selected because they are close to the EC50 value for enoxacin in HEK-293 cells (18.1 μM) and also within the range of peak human serum concentration after oral consumption of clinically available dosages of enoxacin, (5 to 11 μM) [56,57]. We administered the drug orally to mimic administration of enoxacin in the most inexpensive and tractable form [89]. Unexpectedly, all of the mice, including the sham-infected mice, lost weight in this experiment. Two non-exclusive explanations for the weight loss are that oral administration of 100 μL liquid twice a day caused satiety and prevented the mice from eating normally or that some component of the dose caused stomach discomfort which also prevented the mice from eating. Despite this, none of the mice lost more than 20% of their weight and therefore did not reach the cutoff for euthanasia. Enoxacin treatment had no impact on serum viremia or on virus titer in liver or brain. As fluoroquinolones readily cross the blood-brain barrier [90] and are metabolized in the liver [91], the absence of a drug effect in these tissues is unlikely to be due to lack of enoxacin availability [92]. The most intriguing result of this experiment, however, was that male mice treated with enoxacin showed a significant 50% decrease in ZIKV titer in the testes.
To assess the reproducibility of these findings under a different treatment regimen, we next tested the effect of pre-treating mice with enoxacin and then infecting them with ZIKV. As in the first experiment, all mice lost weight (though weight loss was less than in the first experiment) and ZIKV titers in serum, liver and brain did not differ between enoxacin-treated and control mice. Importantly, consistent with the first experiment, ZIKV was significantly suppressed in the testes of enoxacin-treated mice relative to controls.
We initially hypothesized that the restriction of enoxacin’s efficacy in testes in vivo was due to higher efficacy in specific cell types in the testes or the lower temperature of the testes. However, counter to these explanations, we found that enoxacin was less effective against ZIKV at 32 °C than 37 °C and less effective against ZIKV in Sertoli cells than in human kidney cells. However, Sertoli cells are one of many cell types in the testes, which also contain stem cells, spermatozoa and Leydig cells, which vary in their susceptibility to ZIKV [60,61,93,94,95], thus our findings in Sertoli cells do not reveal the action of enoxacin in the testes as a whole. Immunohistochemical staining of ZIKV-infected mouse testes 7 days p.i. has revealed the presence of viral antigen primarily in the stem cells of the seminiferous tubules and in the seminal fluid from the vas deferens [94]. Using in situ hybridization, viral RNA of a mouse-adapted strain of ZIKV was detected in the stem cells (spermatogonia and primary spermatocytes), Sertoli cells, and spermatozoa of ZIKV-infected mouse testes at 7 days p.i. [94]. ZIKV-infected germ cells were detected in the basal layer of the seminiferous tubules of ZIKV-infected olive baboons via immunofluorescence 11 days p.i. [96].
Recently, Xu et al. [35] reported that ZIKV infection of hNPCs activates the RNAi antiviral response and elicits the production of virus-derived small interfering RNAs (vsi-RNA), but infection of human neurons does not, indicating that cellular differentiation degrades the functionality of RNAi. Additionally, Xu et al. [35] demonstrated that treatment with enoxacin, a known enhancer of RNAi [23,24], significantly suppressed ZIKV replication in hNPCs. The HEK-293 cells in which we demonstrated enoxacin efficacy against ZIKV have stem-cell like properties [97]. Our time-of-addition assays indicate that enoxacin, ciprofloxacin, and difloxacin all suppress an intermediate life stage of ZIKV, which is consistent with enhancement of RNAi. Furthermore, we detected an impact of enoxacin in testes, which are rich in stem cells, but not in differentiated brain or liver cells. Thus, our results are generally consistent with those of Xu et al. [35], which implicate RNAi enhancement as an antiviral mechanism of enoxacin.
However, multiple alternative explanations for our in vivo findings must be considered. First and foremost, Xu et al. [35] used ten-fold more enoxacin (100 μM vs. 10 μM) in their study than we used in ours. Additionally, testicular ZIKV infection results in oxidative stress, and antioxidants such as ebselen have been shown to reduce oxidative stress, lessen testicular damage, and prevent sexual transmission in mice [98]. Like ebselen, fluoroquinolones are also known to act as antioxidants [27,28,29]. Fluoroquinolones may also damage the testes and thereby restrict flavivirus replication. More research on the in vivo testicular toxicity of fluoroquinolones is needed, especially since ZIKV infection itself damages testicular tissues [94,99,100,101] although damage to human Sertoli cells is minimal [60].
More generally, several caveats pertain to our study. First, although use of the A129 immunocompromised mouse model to initially test compounds for in vivo efficacy against ZIKV has become a standard practice [82,102,103], nonetheless these mice do lack an interferon response, and the interplay between interferon and ZIKV clearly shapes pathogenesis [104,105,106,107,108,109,110]. Thus, the reproducibility of our findings in other, immunocompetent animal models, such as the human STAT2 knock-in mouse model or C57B1/6 mice treated with the anti-type I IFN receptor antibody [110,111,112], should be tested. Second, as we only tested enoxacin across two concentrations in vivo, a wider range of fluoroquinolones and fluoroquinolone concentrations should be investigated in vivo for efficacy in suppressing ZIKV. Third, our investigation of the testes-specific efficacy of enoxacin focused only on Sertoli cells, but efficacy in other testicular cells should also be evaluated, particularly stem cells.
In summary, we found that three fluoroquinolones had reasonable potency against six flaviviruses in cultured cells and enoxacin suppressed ZIKV titer in mouse testes. These results offer a foundation for further attempts to optimize fluoroquinolones to increase potency. Limiting replication of the virus in the testes is important, as ZIKV is capable of sexual transmission [113,114,115,116]. The results from this study and that of Xu et al. [35] also suggest that testing the ability of fluoroquinolones to alleviate the teratogenic effects of ZIKV in relevant mouse models [111,117,118] should be a priority.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4915/12/9/1022/s1, Figure S1: Replication kinetics of DENV-1, DENV-2, DENV-4, LGTV, and MODV at MOI 0.05 in HEK-293 cells., Figure S2: Dose response curves and EC50 for ciprofloxacin (pink), difloxacin (yellow), and enoxacin (blue) inhibition of DENV-1, DENV-2, DENV-4, ZIKV, LGTV, and MODV, Figure S3: Impact on ZIKV replication by 25.4 μM difloxacin (a) and 56.8 μM ciprofloxacin (b) when added at designated timepoints, Table S1: ANOVA results and pairwise t-test comparisons for ZIKV titer after treatment with enoxacin, difloxacin and ciprofloxacin from the time-of-addition assays in Figure 2 and Figure S3, Table S2: Pairwise t-test comparisons of mean percent weight change from in vivo ZIKV infection in Figure 3a, Data S1: Excel spreadsheet containing the underlying data for Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6, Figures S1–S3, Table 3, Table S1 and S2.

Author Contributions

Conceptualization, S.L.P.S., C.C.A., K.A.H., S.L.R.; methodology, S.L.P.S., C.C.A., K.A.H., S.L.R.; formal analysis, S.L.P.S., C.C.A., K.A.H.; investigation, S.L.P.S., C.C.A., S.R.A., E.E.S., E.I.G., K.A.H., S.L.R.; resources, R.C., J.B.A., K.A.H., S.L.R.; data curation, S.L.P.S.; writing—original draft preparation, S.L.P.S., K.A.H., S.L.R.; writing—review and editing, S.L.P.S., C.C.A., R.C., S.R.A., E.E.S., E.I.G., J.B.A., K.A.H., S.L.R.; visualization, S.L.P.S., K.A.H.; supervision, K.A.H., S.L.R.; funding acquisition, J.B.A., K.A.H., S.L.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by a grant from the National Institute of Allergy and Infectious Disease, National Institutes of Health (1R21AI092041-02 to KAH and JBA and U01AI115577 to KAH and SLR), New Mexico State University Manasse award (KAH, 2017), and institutional funds at the University of Texas Medical Branch. SLPS is supported by a PEO Scholar Award from the International Chapter of the P.E.O. Sisterhood, and the Biology Department and College of Arts and Sciences at New Mexico State University. SLR is supported by NIH funding (5R01AI125902). SRA is funded by a McLaughlin Fellowship at the University of Texas Medical Branch.

Acknowledgments

We would like to thank Aswin Garimalla for assistance with the project.

Conflicts of Interest

The authors declare no conflict of interest.
