Genomic and Proteomic Characterization of Bacteriophage BH1 Spontaneously Released from Probiotic Lactobacillus rhamnosus Pen

Department of Biotechnology, Microbiology and Human Nutrition, University of Life Sciences in Lublin, 8 Skromna St., 20-704 Lublin, Poland
Process and Development Department, Al. Tysiąclecia Państwa Polskiego 13, Grupa Azoty Zakłady Azotowe “Puławy” S.A, 24-110 Puławy, Poland
Author to whom correspondence should be addressed.
Viruses 2019, 11(12), 1163;
Original submission received: 22 November 2019 / Revised: 10 December 2019 / Accepted: 13 December 2019 / Published: 16 December 2019
(This article belongs to the Section Bacterial Viruses)


Lactobacillus rhamnosus Pen is a human endogenous strain used for the production of probiotic formula, which is effective in the prevention of antibiotic-associated diarrhoea. Our study showed that this probiotic strain releases bacteriophage BH1 without the addition of any inducing agent. Our research revealed that phage BH1 has a circular genome with a length of 40721 nt and a GC content of 44.8%. The genome of phage BH1 possesses 57 open reading frames which could be divided into functional modules associated with DNA packaging, morphogenesis, lysis, integration, genetic switch, and replication. In spite of similarity in morphology and genomic organization, comparative analysis revealed substantial genetic diversity and mosaic genomic architecture among phages described for the Lactobacillus casei group. Additionally, qPCR and ddPCR analysis confirmed earlier microscopic observations indicating that L. rhamnosus Pen liberates bacteriophage particles during growth. This occurs spontaneously, and is not a result of external inducing factors. For samples collected after 4 and 24 h of L. rhamnosus Pen culture, the number of attB and attP copies increased 2.5 and 12 times, respectively. This phenomenon, by introducing resistance to other phages or enhancing the biofilm-forming capabilities, may increase the survivability of microorganisms in their natural ecological niche. Conversely, spontaneous phage induction may be an important virulence factor for bacteria, posing a potential threat for the human host.

1. Introduction

Human intestines form an ecosystem in which many species of bacteria reside. The presence of some species stabilizes the digestive system, in part by preventing various pathological conditions. Such strains of microbes with health-promoting characteristics are collectively called probiotics. This group of bacteria includes various strains of the genus Lactobacillus, which are used intensively in the dairy and pharmaceutical industries due to their health-promoting properties, which are increasingly supported by research [1,2]. One example of commercial health-promoting bacteria is Lactobacillus rhamnosus Pen, which is a component of a pharmaceutical used to alleviate diarrhoea associated with antibiotic therapy [3]. It is commonly believed that probiotic bacteria stabilize intestinal microflora, inhibit the growth of pathogenic microbes, eliminate or reduce symptoms of lactose intolerance, prevent or alleviate bacterial and viral diarrhoea, and normalize intestinal motility disorders. It has also been shown that enrichment of the human diet with probiotic bacteria may stimulate the immune system and positively influence the regulation of blood cholesterol levels [4,5].
However, it remains important to conduct further studies on the safety of using bacteria as dietary supplements, as there are also reports of negative features of some microorganisms considered to be probiotics [6,7]. Additionally, prophage sequences are widespread in genomes of Lactobacillus bacteria [8,9]. In general, the presence of sequences encoding bacteriophage proteins in the genome was considered a negative phenomenon. Often, their presence is connected with a high probability of induction and release of bacteriophage particles through cell lysis. Unsurprisingly, such processes result in large losses in the food industry, where bacteria of the genus Lactobacillus are very widely applied [10,11]. Interestingly, scientific studies indicate that the presence of prophage sequences in bacterial genomes not only increases the genetic variability, but may also have a positive effect on the bacterial host. Therefore, prophage sequences cannot be treated only as a potential threat to bacterial cells, which would undergo lysis at the time of activation of prophages and their transition to the lytic cycle. The presence of prophages in bacterial genomes requires further analysis, taking into account their positive effects, such as increasing the viability of bacterial cells and enabling them to gain an environmental advantage in a given ecological niche [12,13].
The analysis of genome sequences publicly available in bioinformatic databases indicates that, despite high affinity, the bacteria belonging to the L. casei group (L. casei, L. paracasei, and L. rhamnosus) possess substantially diversified sequences of phage origin in their genomes. Furthermore, results of studies also conducted by our research group suggest that bacteriophages associated with the above species of intestinal bacteria are characterized by various forms of existence in genomes of these microorganisms. A good example in this case may be the lytic phage Lc-Nu [14] or bacteriophage Lrm1, described by Durmaz et al. [15] which, due to the lack of lytic activity against different strains of L. rhamnosus, was classified as defective. We also demonstrated that BH1 phage has a diverse nature. The analysed probiotic strain — L. rhamnosus Pen-released high amounts of this bacteriophage during culture growth, and interestingly, this phenomenon did not result from the application of an external inducing agent [16]. There is a potential physiological importance of such a co-existence of the phage and the bacterium; some researchers suggest that the phage may bring potential benefits for the bacterial host, and could play an important role in bacterial virulence [17].
In this study, we carried out genomic and proteomic characterization of bacteriophage BH1 isolated from probiotic Lactobacillus rhamnosus Pen. Additionally, the process of spontaneous prophage induction (SPI) during bacterial growth was monitored using qPCR and droplet digital PCR method. Finally, the potential physiological significance of SPI for bacteria and their host was analysed and briefly discussed.

2. Materials and Methods

2.1. Bacterial Strains and Culture Conditions

Lactobacillus rhamnosus Pen obtained from Biomed Serum and Vaccine Production Plant Ltd. in Lublin (Poland) was routinely cultured anaerobically in a Man-Rogosa-Sharpe broth (Difco) at 37 °C. For prophage induction, 1 mL of an overnight culture was added to 100 mL of MRS with 10 mM CaCl2 and then when OD600 reached 0.2, mitomycin C was supplemented at a final concentration of 0.5 µg/mL. Next, the culture was incubated at 37 °C for 18 h, and afterwards lysate was centrifuged (5000× g, 10 min, 4 °C) and filtered using 0.45 pore diameter membranes. Phage particles were precipitated by the addition of 10% (w/v) PEG 8000 and 0.5 M NaCl (overnight, at 4 °C). After centrifugation (10,000× g, 1 h, 4 °C), the phages were resuspended in a 1 ml SM buffer. The residual PEG was removed by extraction with chloroform [18].

2.2. Electron Microscopy

Phage particles were fixed on formvar carbon-coated copper grids and stained negatively with 1% (w/v) phosphotungstic acid. Then, bacteriophages were imaged on LEO 912AB transmission electron microscope (LEO Electron Microscopy Inc., Thornwood, NY, USA).

2.3. Protein Identification

For electrophoresis (SDS-PAGE, 2DE), the protein samples were prepared with a 2D Clean-Up kit (GE Healthcare, Chicago, IL, USA) and separated on 7 cm linear IPG strips (pH 3–10) using Protean IEF (Bio-Rad, Hercules, CA, USA) and mini Protean Tetra cell (Bio-Rad) with 4%–20% precast polyacrylamide gels. Selected protein bands were excised from the gel and analysed by liquid chromatography coupled to the mass spectrometer in the Laboratory of Mass Spectrometry, Institute of Biochemistry and Biophysics, Polish Academy of Sciences (Warsaw, Poland). Samples were concentrated and desalted on a RP-C18 precolumn (Waters, Milford, MA, USA), and further peptide separation was achieved on a nano-ultra performance liquid chromatography (UPLC) RP-C18 column (Waters, BEH130 C18 column, 75 µm i.d., 250 mm long) of a nanoACQUITY UPLC system, using a 45 min linear acetonitrile gradient. Column outlet was directly coupled to the electrospray ionization (ESI) ion source of the Orbitrap Velos type mass spectrometer (Thermo, Waltham, MA, USA), working in the regime of data dependent MS to MS/MS switch with HCD type peptide fragmentation. An electrospray voltage of 1.5 kV was used. Raw data files were pre-processed with the Mascot Distiller software (version, MatrixScience, Boston, MA, USA). The obtained peptide masses and fragmentation spectra were matched to the National Center Biotechnology Information (NCBI) nonredundant database, with a bacteria filter using the Mascot search engine (Mascot Daemon v. 2.4.0, Mascot Server v. 2.4.1, MatrixScience, Boston, MA, USA). The following search parameters were applied: Enzyme specificity was set to trypsin, peptide mass tolerance to ± 20 ppm, and fragment mass tolerance to ± 0.1 Da. The protein mass was left as unrestricted, and mass values as monoisotopic, with one missed cleavage being allowed. Alkylation of cysteine by carbamidomethylation as fixed, oxidation of methionine was set as a variable modification.
Protein identification was performed using the Mascot search engine (MatrixScience, Boston, MA, USA), with the probability-based algorithm. The expected value threshold of 0.05 was used for analysis, which means that all peptide identifications had less than 1 in 20 chance of being a random match.

2.4. Genomic Analysis

Phage DNA was prepared using Virus Mini AX transfect kit (A&A Biotechnology, Gdansk, Poland) according to the manufacturer’s instructions. Genome sequencing was carried out at the Genomed using an Illumina MiSeq 250 bp paired-end run with a 300 bp insert library (Illumina, San Diego, CA, USA). The raw reads were trimmed and de novo assembled using CLC Genomics Workbench (Qiagen, Hilden, Germany). The assembly was verified by Sanger sequencing. The complete sequence was annotated by using Prokka tool v. 1.12 (Victorian Bioinformatics Consortium, Melbourne, Australia) and the identified ORFs were analysed by BLASTp (NCBI, Bethesda, MD, USA) and InterProScan (EMBL-EBI, Hinxton, UK). The following programs were used to analyse the obtained BH1 sequence: Easyfig version 2.2.3, PhagTerm version 1.0.12, Signal IP version 5.0, MegaBlast (NCBI, Bethesda, MD, USA) and CLC Sequence Viewer 8 (Qiagen, Hilden, Germany). The genome sequence of BH1 has been deposited in the GenBank database under accession number MH983004.1.

2.5. Analysis of Prophage Induction—Sample Preparation

In an experiment aiming to examine the BH1 phage induction using mitomycin C, L. rhamnosus Pen was cultured in a MRS medium (vol. 10 mL) at 37 °C, until OD600 reached the value of 0.5. The bacteria were then centrifuged (7000× g, 5 min) and suspended in fresh MRS medium. Subsequently, a specific amount of inducer was added to the culture (final concentration of mitomycin was 0.25, 0.5, 1 and 2 µg/mL). The control sample consisted of cultures not treated with an inducer. After 6 h of induction, OD600 was measured and 2 mL of each culture was collected. The samples were centrifuged for 5 min at 7000× g, after which the cell deposit was frozen at 20 °C. The experiment was performed in three biological replicates.
In the case of spontaneous prophage induction (SPI), 50 mL of MRS medium was inoculated with an initial culture at a ratio of 1:100. Then, every 4 h (after 4, 8, 12, 16, 20, and 24 h, respectively), the optical density was measured and samples for DNA isolation were collected. In this case, the control samples were those collected after 8 h. Samples were prepared as described above. The experiment was conducted in five biological replicates.
After thawing, bacterial deposits were used to isolate total DNA with the genomic mini AX bacteria+ kit from A&A Biotechnology. The isolation was performed in accordance with the maker’s recommendations, and the concentration of nucleic acids was estimated using the Nanodrop 2000c spectrophotometer (Thermo, Waltham, MA, USA). The obtained DNA samples were subsequently used for quantitative analysis of attP, attB, attL, and attR sequences by qPCR and droplet digital PCR methods.

2.6. Quantitative PCR and Droplet Digital PCR

The quantitative analysis of the excision of the prophage from L. rhamnosus Pen genome required designing four pairs of primers flanking the integration loci of the phage BH1 (attP, attB, attL, and attR) and one pair of primers (Lrh) that generated the reference product (total bacteria count) (Table 1) (Figure 3). Real-time PCRs were performed in 15 µL with the use of a SG qPCR master mix (Eurx, Gdansk, Poland) reagents on the CFX apparatus from Biorad (Hercules, CA, USA). In the reaction, primers with a final concentration of 0.3 µM and appropriately diluted DNA solutions were used. qPCR was conducted under conditions recommended by the reagent manufacturer (predenaturation at 95 °C, 3 min, denaturation at 94 °C, 15 s; annealing at 60 °C, 30 s; elongation at 72 °C, 30 s). At the end of the reaction, to confirm the specificity of amplification, the melting curves of the obtained PCR products were analysed. The results were analysed with the use of CFX Manager v. 3.1 software (Biorad, Hercules, CA, USA), taking into account the yield of reaction [19].
Reactions for droplet digital (ddPCR) were prepared in 20 µL volumes with 10 μL QX200 ddPCR EvaGreen Supermix, 2 μL of 1 μM forward and reverse primers, and 1 µL of 10 or 100× water-diluted DNA. As a no template control (NTC) 1 μL of water was used. The 20 μL droplet digital PCR reaction mixture was then loaded into the disposable droplet generator cartridge (DG8 cartridge, Biorad). 70 μL of droplet generation oil was loaded into the oil well for each sample. The cartridge was placed into the droplet generator (QX100 Droplet Generator, Biorad). The generated droplets were transferred to 96-well reaction plate (ddPCR plater 96-well, Semi-Skirted, Biorad). The plate was heat-sealed with a sealer (PX1 PCR Plate Sealer, Biorad). Then, the plate was placed on a thermal cycler (T100 Thermal Cycler, Biorad) and amplified to the endpoint. Thermal-cycling conditions were 95 °C × 10 min (1 cycle), 95 °C × 30 s (ramp rate 2 °C/s), and 55 °C × 60 s (ramp rate 2 °C/s) (40 cycles), 98 °C × 10 min (1 cycle), and a 12 °C hold. Following PCR amplification, the 96-well PCR plate was loaded on a droplet reader (QX200 Droplet Reader, Biorad), which reads the droplets from each well of the plate. Analysis of the ddPCR data was performed with the QuantaSoft analysis software version Results with droplets number >10,000 were analysed.

2.7. Statistical Analysis

The data from qPCR and ddPCR were analysed by the Microsoft Excel 2016 (Microsoft Corporation, Redmond, WA, USA) and the Statistica version 13.3 (StatSoft, Tulsa, OK, USA) using ANOVA procedure for analysis of variance. p < 0.05 was considered statistically significant.

3. Results and Discussion

3.1. Morphological and Proteomic Characterization of Bacteriophage BH1

The spontaneous releasing of bacteriophage particles by L. rhamnosus Pen has been observed in previous work. This phenomenon did not require any inducing agent, and did not significantly affect bacterial growth. Additionally, similar to phage Lrm1, the propagating host for BH1 was not identified in the standard experimental conditions [15,16]. In this work, we carried out a thorough characterization of BH1 bacteriophage. Phage particles were obtained using standard procedures, in which mitomycin C-induced cultures were concentrated using polyethylene glycol. The final samples were used to take photographs with a transmission electron microscope (Figure 1). Our observations confirmed that these methods successfully isolated complete phage particles. The measurements showed that the BH1 bacteriophage particles had tails approximately 287 nm long and isometric heads approximately 58 nm in diameter. As in the case of phage Lrm1, the morphology indicated that the bacteriophage BH1 can be classified in the Siphoviridae family [15,20].
Next, phage samples were concentrated and prepared for protein electrophoretic examination (SDS-PAGE and 2DE—Figure 2). The resultant electrophoretic profiles of the analysed protein sample showed numerous protein bands, which were excised from the gels. For protein identification, the samples were digested with trypsin and then peptide mixtures were analysed by nano-HPLC coupled to an ESI-orbitrap spectrometer.
Among the detected proteins were the following phage-derived structural polypeptides: Tail proteins, phage tail tape measure protein, capsid protein, portal protein, and head-tail adapter protein. Apart from typical structural proteins, peptides derived from proteins performing other functions were also identified, such as DNA-packaging protein, holin, transcriptional regulator, and peptidase U35 (Table 2). As well as proteins derived from phage, bacterial proteins were also detected. These proteins could represent impurities in the samples, as these contained bacteriophages, as well as bacterial host secreted proteins. However, in some cases, identified bacterial proteins may play an important role in the composition of mature phage particles. For example, the proteins GroEL and GroES, which belong to the chaperonin family, are essential for the correct assembly of bacteriophage tails and heads [21].

3.2. Bacteriophage BH1 Genome Analysis

Next, the bacteriophage particles were used for DNA isolation, and complete genomic sequence of BH1 was determined using an Illumina MiSeq system (a total of 147,084 reads with mean read length of 236.37 bp resulting in 848.73-fold average coverage of analysed genome). The obtained sequence was verified using Sanger sequencing. The final assembled consensus sequence revealed a circular, double stranded DNA genome with a size of 40,721 bp. The total length of the BH1 sequence was similar to previously described temperate phage Lrm1 isolated from industrial L. rhamnosus M1 (39,989 bp) [15]. Interestingly, the complete genome of the virulent phage Lc-Nu of probiotic L. rhamnosus strain Lc 1/3 was ~4.5 kb shorter. This difference was due to the lack of some lysogenic regions similar to integrase coding gene or parts of sequences such as attP and CI-like lytic cycle repressor, which are associated with virulence of Lc-Nu bacteriophage [14]. The G + C content of BH1 genome was 44.8%; very close to previously described bacteriophages for the Lactobacillus casei group: Lc-Nu (44.3%), ϕAT3 (44.6%), A2 (44.9%), Lca1 (44.8%), and Lrm1 (45.5%). The G + C content also corresponded to the overall GC-content determined for chromosomal DNA of bacterial host of BH1—L. rhamnosus Pen (46.8%), and for other previously reported L. rhamnosus strains (average value of 46.7%) [22,23,24].
The analysis of raw data from NGS sequencing using PhageTerm showed the presence of—5′-CGATCGACCT-3′ cos sequences similar to those previously determined for bacteriophages produced by other strains belong to the L. casei group. However, two mismatches within the cos sequence of BH1 were also detected [15]. The alignment of attP sequences showed that the BH1 phage attachment site is localized between ORF22 and ORF23, adjacent to integrase coding gene. The attachment site of BH1 consists of a 90-nucleotide sequence with 15-nt core (Figure 3), showing 87.5% similarity with phage Lrm1, and 96% similarity with Lc-Nu bacteriophage (with only 58% sequence coverage), seems to be characteristic of this phage.
In general, genome sequence of ϕBH1 showed the highest similarity with prophage sequences detected in genomes of several L. rhamnosus strains: CLS17, Lrh10, DS3, DS9, DS12, DS18, ASCC 3029, R0011, B9, ARJD, IBL027, Lr032, and ATCC 21052 (Dataset S2). A lower level of homology was revealed with two L. rhamnosus phages—Lrm1 (NC_011104.1, identity 94%, query coverage 59%) and Lc-Nu (NC_007501.1, identity 91%, query coverage 28%) (Figure 4) and other bacteriophages and prophages described for the L. casei group (Dataset S1, S3, S4). These findings, in conjunction with other reports, suggest a high diversity of L. rhamnosus phage genomic sequences, highlighting that sequences of a bacteriophage origin may be a very interesting source of information regarding bacteria phylogenetics [9,25]. Moreover, our results also confirm earlier works by Brandt and Allatosava [26] and Zago et al. [27], demonstrating that phage sequences have a high potential for the identification of bacteria of the genus Lactobacillus, even at the strain level. Interestingly, in genomes of many L. rhamnosus strains, short, approximately 30 nucleotide sequences were detected, which were either identical or very similar to the sequences observed in the BH1 genome. These sequences were located within the CRISPR (clustered regularly interspaced short palindromic repeat) modules, indicated by both flanking sequences and the proximity of genes encoding Cas endonuclease and type II-A CRISPR-associated Csn2 proteins. The presence of phage sequences within the CRISPR modules likely makes these bacterial strains resistant to infection caused by the BH1 bacteriophage. Previous studies have shown that this phenomenon is a highly specific, sequence-dependent defense system against phage infections [25,28].

3.3. Genome Organization of Bacteriophage BH1

Phage BH1 has a genome organization typical for other Lactobacillus bacteriophages with the following modules: Packaging, structural proteins, lysis, integration, genetic switch, and replication. Fifty-seven open reading frames (fifty genes on the positive strain and seven genes on the negative strand) were predicted, which harboured nearly 91.4% of the whole sequence determined. The ORF’s GC-content ranged from 35.2% (ORF24) to 50.8% (ORF7). Regarding the start codon, forty-four ORFs start with ATG, eight with GTG, and five genes had the TTG start codon. Among those revealed, most ORFs were preceded by atypical Shine-Delgarno sequence, complementary to the 3′ end of the 16S rRNA gene of Lactobacillus species (3′-UCCUCCAA-5′) [29]. The location of predicted ORFs and their putative functions are presented in Table 3.
Comparative studies revealed that ORF1 and ORF2 correspond to the terminase small and large subunits, respectively. Presumably, these two terminase subunits are responsible for specific DNA binding (HTH-domain), and cutting concatemeric DNA into genome lengths. Therefore, they most likely represent the bacteriophage DNA packaging module [30]. Similar to phage Lrm1 and L. casei phage A2, ORF57 encodes HNH endonuclease, which may be also involved in the DNA packaging system. Since Garcia et al. [31] showed that this HNH protein can be also classified as a phage terminase (small subunit), we speculated that the predicted protein products of BH1 ORF1 and ORF57 likely have redundant activity.
As in the case of phage Lrm1, ORF3 encodes a 63-amino-acid putative integral membrane protein, possessing two transmembrane-spanning domains. The next three ORFs (ORF4, ORF5, and ORF6) are involved in head morphogenesis. The products of these genes—portal protein, head maturation protease, and major head protein (with a CCCAAAA slippery sequence)—show an amino acid identity of about 90% with bacteriophage Lrm1 (91.9%, 94.3%, and 89.3%, respectively), and also high aa similarity with three other L. casei group phages—J-1, PL-1, and A2 [15,31,32]. ORFs 8 to 11 constitute a typical neck region consisting of DNA-packaging protein, phage head-tail adapter, head-tail joining protein, and phage-related head-to-tail joining protein. Interestingly, we observed an additional open reading frame (ORF7) between the head and neck module, not detected in the genome of Lrm1. This gene encodes a hypothetical protein containing putative Ig-like domain, which is found in a variety of bacterial and phage surface proteins involved in bacterial host-cell interaction [33]. The tail module of BH1 (ORF12 to ORF16) is highly related to the genome sequence generated for phage Lrm1. This cluster also bears resemblance in both gene organization and nucleotide sequences to the tail morphogenic region of J-1, PL-1, and A2 (Dataset S1). However, BH1 ORF15, encoding a phage tail component, shares high homology only with N-terminus of Lrm1 ORF14 (~310 aa). Interestingly, the second half of ORF15 exhibits high similarity with the C-terminus of the corresponding protein described for bacteriophage Lc-Nu (~385 aa). Such a mosaic structure was also observed in the next annotated gene (ORF16), which is probably associated with endopeptidase activity. Notably, another two genes (ORF17 and ORF18) with an unknown function are not present in the genome of Lrm1. However, they display a high level of nucleotide sequence identity (99.7% and 96.5%, respectively) with adequate genes of phage Lc-Nu. Additionally, ORF19 was not found either in the genome of Lrm1 and also Lc-Nu, but was nearly 100% identical with sequences determined for bacteriophage A2 and iLp84 (Dataset S1). These results suggest that BH1 has a chimeric character, and may be derived from different ancestors [34,35].
The lysis module consists of two genes, and resembles the structure reported for many prophages in the L. casei group (Dataset S2, S3, S4). ORF20 codes for holin, an enzyme which causes bacterial membrane lysis [36]. The next gene, which typically encodes lysin, is conserved between L. rhamnosus phages (>90% nt identity) (Dataset S1). Similar to other previously described bacteriophages of lactobacilli, this enzyme is endolysin. Endolysin exhibits 1,4-beta-N-acetylmuramidase activity, and by hydrolysis of the amide bond in peptidoglycan, participates in bacterial cell wall degradation [37]. Typically, lysins have two LysM domains on the C-terminus and Glyco-25 motif on N-terminus. It has also been shown that the analyzed protein contains a signal peptide. For BH1, the predicted cleavage site was identified between position 28 and 29 of the amino acid sequence (probability of 0.959).
The next coding region (ORF22) of BH1 encodes protein of unknown function, and was observed only for L. paracasei phage iLp84 (coverage 100%, identity 99%) and L. casei phage Lca1 (coverage 96%, identity 96%). Comparative analysis showed that the sequence between ORF22 and ORF23 contains the attachment region (attP) of 90 bp, with a putative core site 15 nucleotides in length. Based on the complete genome sequence of the bacterial host and results obtained using Sanger sequencing, the attB, attL, and attR regions were also determined (Figure 3). This allowed for accurate identification of the location of prophage sequence in the genome of L. rhamnosus Pen. BLASTn comparison of attB sequence generated for L. rhamnosus Pen with genome sequences of other L. rhamnosus isolates revealed that many bacterial strains possess an empty integration region, which is located between tRNAser and tRNAval genes. Additionally, similar attP sequence was also observed in the genomes of phage Lrm1 and Lc-Nu [14,15]. It was typical that the core of attB was located within the tRNA ser gene (close to 3′ end) and presumably phage integration does not affect on tRNA integrity [29,38]. It is also noteworthy that the location of prophage BH1 is slightly different in comparison to most of the prophages that possess a similar attachment site. In the case of BH1, we observed an additional ORF encoding bacterial integrase between the typical tRNAval gene and attL sequence. Interestingly, this gene appears in six copies in the genome of L. rhamnosus Pen.
Open reading frame (ORF 23)—localized adjacent to attP—codes for integrase, an enzyme which catalyses site-specific recombination between the integration site of bacteriophage, and those located in the bacterial genomes. Among all phages described for the L. casei group, a similar gene for integrase was only detected for Lrm1 (98.5% identity). Analysis of the amino acid sequence of BH1 integrase revealed the presence of several distinctive protein domains, which are likely to bind DNA and cause recombination. On this basis, this enzyme can be classified as tyrosine integrases, which, unlike serine recombinases, utilize tyrosine to mediate DNA cleavage, recognize definitely longer attP sequences, and require host cofactors [39].
For the sequences of the next four genes, from ORF24 to ORF27, we detected no similarity to the previously described phages for L. casei group. Nevertheless, similar or even identical sequences have been identified in many genome sequences of L. rhamnosus, L.casei, and L. paracasei, in presumably prophage regions. The analysis of amino acid sequences of proteins encoded by ORF24 and ORF25 did not indicate the presence of characteristic protein domains. As a result, it is difficult to make conclusions about the presumable functions of these proteins. The ORF24 sequence is usually located in the immediate vicinity of the gene encoding the phage integrase. Since the orientation of these two genes is also the same, we assume that the protein encoded by this gene is important for the integration of phage DNA within the bacterial chromosome. Furthermore, an integrase sequence similar to ORF23 of the phage BH1 has been identified in 81 strains of L. rhamnosus, and for most of these strains (74) an accompanying gene (similar to ORF24) has also been detected. The presence of a gene similar to ORF24 has not been observed when there was no sequence encoding the integrase (Dataset S2). The amino acid sequence of the protein encoded by ORF26 has conserved domains characteristic for restriction endonuclease subunit S. Interestingly, as well as the sequences located within the genomes of phages and prophages, a similar sequence was also observed within the genomes of many bacteria, not only of the genus Lactobacillus. In this case, these genes were part of the type I restriction-modification system, typically composed of three subunits: Restriction (HsdR) subunit, HsdM modification (M) subunit, and HsdS recognition (S for specificity) subunit [40,41]. Preliminary analysis of the ORF27 sequence did not indicate the function of this gene. However, using the conserved domains database (NCBI), in the amino acid sequence, protein domains characteristic for peptidase S24 LexA-like proteins were identified. These are involved in the SOS response, leading to the repair of single-stranded DNA [42]. It has also been shown that these proteins can indirectly influence the level of spontaneous prophage induction [17,43,44]. The next gene, similar to ORF27, is also transcribed leftward, and the protein encoded by this ORF presumably regulates the transcription of genes when there is cellular stress associated with DNA damage, which may be related to the genetic switch of phages from a lysogenic pathway to a lytic pathway [42,45]. A similar sequence has also been observed in the genomes of J-1 phages (coverage 69%, identity 87%) and phiAT3 (coverage 100%, identity 91%). Despite its function similar to that of ORF28, that is, to regulate the gene transcription (XRE family transcriptional regulator), ORF29 was homologous to two other bacteriophages, namely CL1 and CL2. This is another example of the immense variability of bacteriophages described for the L. casei group.
Identifying the function of the genes encoded in the next portion of the bacteriophage BH1 genome (ORF30–ORF40) proved challenging. For example, the next two genes (ORF30 and 31) encode short-chain proteins with an unknown function (hypothetical protein). Interestingly, similar genes were not observed in the L. casei group bacteriophages described so far (Dataset S1). Illustrating the mosaic nature of the bacteriophage genome, subsequent genes were identified in sequences of different phages, e.g., Lrm1 (ORF32–ORF41), phiAT3 (ORF32–ORF40), J-1 (ORF32–ORF35), PL-1 (ORF32–ORF35), Lc-Nu (ORF: 34, 35, 37, 38), CL2 (ORF: 33, 34, 37), A2 (ORF: 34, 37), CL1 (ORF33, ORF34), and Lca1 (ORF40). For bacteriophage Lrm1, a region very similar to the sequence located between ORF32 and ORF39 has been described as a DNA replication module [15]. However, since in most cases there are no characteristic protein domains, the molecular function of individual genes seems to be, at most, hypothetically determinable (Table 3).
Comparative analysis has shown that a sequence very similar to ORF34 is present in genomes of many phages and prophages. Based on the similarity to S. aureus and S. epidermidis, we suggest that the product of this gene may act as a transposase, however, is likely nonfunctional [22]. Interestingly, the protein encoded by ORF36 has the domain Sipho_Gp157 (pfam05565), the presence of which is associated with bacterial resistance to bacteriophages [46]. Another gene encodes a phage-derived protein with an unknown function, often found among phage proteins of Gram-positive bacteria. These proteins usually contain characteristic P-loop motifs (G/A-X-X-G-X-G-K-T), which are located at their N-termini. The amino acid sequences of proteins encoded by ORF37–ORF40 implies that the analysed region of phage BH1 is associated with DNA replication, recombination, and repair. This is supported by the identification of protein domains characteristic for phage nucleotide-binding protein (ORF37), single-stranded DNA-binding protein (ORF38), IstB-like ATP binding protein (ORF40), DNA replication protein DnaC (ORF40), and Holliday junction DNA helicase (ORF40).
The final portion of the phage BH1 was found to be even further differentiated. A few genes are characteristic only for the phage BH1, e.g., ORF50, ORF52, and ORF53, as well as ORF45 and ORF49 (excluding the phage Lc-Nu). Functional analysis has shown that some of the examined genes can encode protein components of restriction-modification systems, such as endonucleases of ORF43, ORF44, and ORF55, etc. or methylases of ORF45. In the case of ORF50–ORF54, based on existing domains, the protein products of these genes are likely to control the expression of viral genes as part of the lysogeny/lytic growth switch. Interestingly, ORF56 encodes a protein that contains domains specific to Glutaredoxin-like protein NrdH, which may serve as a hydrogen donor for the ribonucleotide reductase during deoxyribonucleotide biosynthesis [47].

3.4. Spontaneous Phage Induction Analysis Using QPCR and Digital PCR

The final purpose of our study was the quantitative analysis of spontaneous induction of bacteriophage BH1, using the qPCR and digital PCR droplet techniques. The designed testing system included the quantitative analysis of sequences of attB (level of re-established attB sites in bacterial genome), attP (level of extrachromosomal phage DNA), attL and attR (amount of integrated prophages in the bacterial chromosome), in comparison to the reference gene originating from the genome of L. rhamnosus bacteria. This method has been previously described by Lunde et al. and is particularly useful in cases where the plate tests aimed to quantify the bacteriophage do not give positive results (lack of suitable indicator strain) [48]. Based on the genome sequence of the phage BH1 and genome of the L. rhamnosus Pen, five pairs of primers were designed and used in qPCR and ddPCR.
Cells of L. rhamnosus Pen were exposed to mitomycin C for 6 h, and DNA isolated. The results showed a significant increase in the amount of a circular phage DNA, with an increase in the concentration of mitomycin (attP system) (Figure 5 and Figure S1A). Even at the lowest concentration (0.25 µg/mL), the attP/Lrh ratio increased more than 5-fold at 6 h after the induction. For the highest concentration of mitomycin, the attP/Lrh ratio increased more than 300-fold compared to the control sample. The ddPCR analysis of the attP absolute value has shown that it increased 12-fold and, in the other case, over 400-fold (for mitomycin concentrations of 0.25 and 2 µg/mL, respectively). The frequency of induction/excision of prophage BH1 was also observed using the attB/Lrh ratio, which corresponded to the proportion of bacteria with the re-established chromosome (after prophage excision). For this experimental system, the attB/Lrh ratio increased more than 8-fold for the mitomycin concentration of 0.25, and over 230-fold for its concentration of 2 µg/mL (Figure S1B). The results obtained in the ddPCR show a 25-fold and over 850-fold increase, respectively, in comparison to the control sample that was not induced. These results and previous studies suggest that the ddPCR method, compared to qPCR, has a significantly higher sensitivity, especially in experiments aiming to detect a small number of DNA matrix copies [49,50]. As in the case of studies by Lunde et al. [48], for experiments in which the amount of integrated prophages attL and attR was measured, no significant differences in the attL/Lrh and attP/Lrh ratio were obtained for samples treated with increasing concentrations of mitomycin (data not shown). Similar results were also obtained using the ddPCR method (Figure 5). Since the absolute number of lysogenic bacterial cells is similar to the total number of bacteria in the tested samples (even under induced conditions), primer systems designed for attL and attP have proven to be unsuitable for observing the induction of prophage sequences [48].
In summary, our results demonstrate that the designed primer sets for attP and attB allow the observation of the prophage BH1 induction. However, it should be stressed that the number of attP copies may be affected by the replication of circular phage particles, as well as by the gradual lysis and release of mature phage particles from induced cells. These processes can be monitored by analysing the changes in the attP/attB ratio. When evaluating the amount of cells that have been induced, the observation of the amount of copies of attB seems to be the most reliable approach. However, the lysis of cells, which occurs as a result of induction, may affect the results obtained. It is also worth noting that, especially in terms of monitoring the attB copy count, ddPCR has proven to be a much more sensitive method, enabling the precise detection of even a small number of copies of examined DNA molecules [49].
We also analysed the induction of the prophage BH1 during the growth of the bacterial host, expecting a significantly lower level of induction. ddPCR was used to monitor the number of copies of attP, attB, and the reference gene (bacterial chromosomal gene) during the culture of L. rhamnosus Pen. Measurements were taken every 4 h during a 24 h incubation at 37 °C. Analysis of the results showed a gradual increase in the number of copies of the attP and attB sequences during the bacterial culture, in the absence of any known inducer (Figure 6). In the case of attB, there was an almost 2.5-fold increase in the amount of the sequences resulting from the release of the prophage from the bacterial genome at the 4 and 24 h samples. For the attP sequence, the increase was almost 12-fold (similar results were obtained with the qPCR method—Figure S2). In both cases, a significant increase in induction was observed between 8 and 12 h of the culture, for the mid-exponential growth phase of tested bacteria. These results unambiguously confirmed previous microscopic observations of L. rhamnosus Pen releasing bacteriophage particles during growth. This release was spontaneous, and did not result from the use of inductive factors [16].
Mechanistically, the factors causing spontaneous induction, as well as the multi-faceted significance of this process, have been frequently analysed. Previous studies indicate that the phenomenon of spontaneous lysogen induction may be caused by extracellular stress related to UV radiation, reactive oxygen species (ROS), temperature, and pH changes. Intracellular factors may also cause a subpopulation of cells to start induction and release phage particles. These triggers include stalled replication forks, reactive oxygen species, and noise in gene expression [17]. From the perspective of technological processes using living microbes for the production of fermented food, spontaneous induction of prophages is unfavourable. When lysis takes place in starter strains used in fermentation processes, or for probiotic strains used in production of protective drugs, large financial losses occur. However, it should also be emphasized that many bacteriophages have a temperate nature, and for this reason, their induction does not have to lead to total lysis and the obstruction of fermentation. It is also worth noting that spontaneous phage induction is likely a natural process, which may take on a unique nature depending on the kind of bacteriophage and bacterial strain, giving unique characteristics to the products being fermented [11,15,51,52].
By analysing the spontaneous induction from the “perspective” of bacteria, it can be concluded from previous studies that this process may be important for a given strain and for the whole ecological niche [12]. Studies have shown that prophages that can be induced spontaneously have a positive effect on the general fitness of bacterial population under diverse environmental conditions [13]. It has been demonstrated that phage induction plays an important role in the formation of biofilm, superinfection exclusion, and in shaping the equilibrium of a specific bacterial community [12,17,53]. Furthermore, the spontaneous induction appears also to be important in building the genetic variability of bacteriophages and bacterial hosts. Baugher et al. have shown that SPI may lead to a horizontal gene transfer, thus giving microbes new characteristics that can give them an advantage in the competition for an ecological niche [54]. It is also worth considering the extreme variability present in the genetic material of the bacteriophages themselves [55]. Bacteriophages, prophages, and prophage-like elements are considered to be the so-called dark matter of biodiversity [34]. It appears that the reason for such an astounding variability of bacteriophages is the high virus mobility resulting from the spontaneous prophage induction, underestimated in its function. Compared to a very “spectacular” lytic cycle, only a small subpopulation of bacteria undergoes SPI, thereby releasing a relatively small number of phage particles. However, by scaling this process up to the level of an entire ecological niche, the importance of SPI in shaping biodiversity of microbial and phage communities appears to be substantial. It has also been demonstrated that many environmental factors can enhance the SPI, potentially contributing to an increase in the number of free bacteriophages in the natural environment, causing phages to have even a greater impact on the ecological niche [52,56].
Finally, SPI has an important role in bacterial virulence. Studies have demonstrated that prophage induction may indirectly contribute to the release of bacterial toxins, and increase the ability of bacteria to adhere to host cells [17,57,58]. It has also been shown that by facilitating binding to human platelets, SPI may lead to development of infective endocarditis [59,60]. It is therefore important to ask the question of whether spontaneous prophage activity promotes host virulence—not only in the case of bacteria commonly considered to be pathogenic—but also in the case of probiotic microorganisms, which are a rich reservoir of prophage sequences [25]. There are numerous cases of bacteremia and endocarditis caused by probiotic bacteria belonging to the species Lactobacillus rhamnosus in the literature [61,62,63]. An example is the L. rhamnosus Pen, which has many documented pro-health properties, but has also been associated with sepsis in a cardiosurgical patient [3,64]. Importantly, in relation to the resistance to many antibiotics, the treatment of infections caused by lactobacilli can be challenging [65]. Therefore, it is crucial that further research is conducted in order to identify potential determinants that may be essential for the development of bacteremia and infective endocarditis. Future research should cover not only typically pathogenic microbes, but also probiotic strains used for the production of protective medications and those used as food additives. We suggest that prophage sequences in their genomes and spontaneous prophage induction represent important factors promoting the virulence of these bacteria.

4. Conclusions

To sum up, a thorough insight into the genome phages and prophages of lactobacilli belonging to the L. casei group showed that these mobile elements are genetically extremely diverse. Moreover, spontaneous induction of ϕBH1 was also observed using qPCR and ddPCR, and interestingly, this phenomenon did not significantly affect the growth of bacterial culture. Despite the lack of direct evidence on the physiological significance of this process for the tested strain, it has been previously suggested that SPI may enhance biofilm formation and lead to horizontal gene transfer. On the other hand, by facilitating binding to human platelets, SPI may also play an important role in bacterial virulence. Nevertheless, further research is needed to confirm both the positive effects of SPI and the potential risks associated with prophages and their spontaneous induction. This will not only allow us to learn the biological significance of the spontaneous process of prophage induction, but can also contribute to a more conscious use of living microorganisms in the industry. Additionally, we hope that the obtained results and further research will also lead to the extension of knowledge regarding interactions between phages and bacteria, which—excluding the classical lytic cycle—seems to be still insufficient.

Supplementary Materials

Supplementary materials can be found at Figure S1: qPCR analysis of phage BH1 induction in the presence of different concentrations of mitomycin C. Induction was observed by measuring the relative amount of extrachromosomal phage DNA (attP) (A) and the level of reestablished attB sites in bacterial genome (B). * p < 0.05, ** p < 0.01, *** p < 0.001. Figure S2: Relative level of extrachromosomal phage DNA (attP) during growth of L. rhamnosus Pen monitored using Q-PCR method. * p < 0.05, ** p < 0.01, *** p < 0.001. Dataset S1: Comparison of coding sequences of bacteriophage BH1 with genome sequences of phages described for Lactobacillus casei group. Dataset S2: Comparison of coding sequences of bacteriophage BH1 with prophage sequences derived from Lactobacillus rhamnosus strains. Dataset S3: Comparison of coding sequences of bacteriophage BH1 with prophage sequences derived from Lactobacillus casei strains. Dataset S4: Comparison of coding sequences of bacteriophage BH1 with prophage sequences derived from Lactobacillus paracasei strains.

Author Contributions

Conceptualization, P.J.; Methodology, P.J., E.K.-J., and M.P. (Marcin Podleśny); Software, P.J. and O.K.; Investigation, P.J., E.K.-J., M.P. (Marcin Podleśny), O.K., and M.P. (Monika Pytka); Resources, P.J., E.K.-J., and M.P. (Marcin Podleśny); Data curation, P.J. and E.K-J.; Writing—original draft preparation, P.J; Writing—review and editing, E.K.-J., M.P. (Marcin Podleśny), M.P. (Monika Pytka), and M.K.-W.; Supervision, M.K.-W.; Funding acquisition, P.J. and M.P. (Monika Pytka).


Genetic and proteomic analysis of bacteriophage BH1 was financially supported by grant UMO-2013/09/N/NZ9/01617 from the National Science Centre, Poland. qPCR and ddPCR experiments were a part of the grant UMO-2016/23/D/NZ9/02661 (NCN, Poland).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Vijaya Kumar, B.; Vijayendra, S.V.N.; Reddy, O.V.S. Trends in dairy and non-dairy probiotic products - a review. J. Food Sci. Technol. 2015, 52, 6112–6124. [Google Scholar] [CrossRef][Green Version]
  2. Putta, S.; Yarla, N.S.; Lakkappa, D.B.; Imandi, S.B.; Malla, R.R.; Chaitanya, A.K.; Chari, B.P.V.; Saka, S.; Vechalapu, R.R.; Kamal, M.A.; et al. Probiotics: Supplements, food, pharmaceutical industry. In Therapeutic, Probiotic, and Unconventional Foods, 1st ed.; Grumezescu, A., Holban, A.M., Eds.; Academic Press, Elsevier: Cambridge, MA, USA, 2018; pp. 15–25. [Google Scholar]
  3. Ruszczyński, M.; Radzikowski, A.; Szajewska, H. Clinical trial: Effectiveness of Lactobacillus rhamnosus (strains E/N, Oxy and Pen) in the prevention of antibiotic-associated diarrhoea in children. Aliment. Pharmacol. Ther. 2008, 28, 154–161. [Google Scholar] [CrossRef] [PubMed]
  4. Bermudez-Brito, M.; Plaza-Diaz, J.; Munoz-Quezada, S.; Gomez-Llorente, C.; Gil, A. Probiotic Mechanisms of Action. Ann. Nutr. Metab. 2012, 61, 160–174. [Google Scholar] [CrossRef] [PubMed]
  5. Plaza-Diaz, J.; Ruiz-Ojeda, F.J.; Gil-Campos, M.; Gil, A. Mechanisms of action of probiotics. In Proceedings of the Advances in Nutrition; Oxford University Press: Oxford, UK, 2019; Volume 10, pp. S49–S185. [Google Scholar]
  6. Sanders, M.E.; Akkermans, L.M.A.; Haller, D.; Hammerman, C.; Heimbach, J.T.; Hörmannsperger, G.; Huys, G. Safety assessment of probiotics for human use. Gut Microbes 2010, 1, 164–185. [Google Scholar] [CrossRef] [PubMed]
  7. Daliri, E.B.-M.; Lee, B.H.; Oh, D.H. Safety of probiotics in health and disease. In The Role of Functional Food Security in Global Health, 1st ed.; Watson, W.R., Singh, R., Takahashi, T., Eds.; Academic Press, Elsevier: Cambridge, MA, USA, 2019; pp. 603–622. [Google Scholar]
  8. Zaburlin, D.; Mercanti, D.J.; Quiberoni, A. A fast PCR-based method for the characterization of prophage profiles in strains of the Lactobacillus casei group. J. Virol. Methods 2017, 248, 226–233. [Google Scholar] [CrossRef]
  9. Ceapa, C.; Davids, M.; Ritari, J.; Lambert, J.; Wels, M.; Douillard, F.P.; Smokvina, T.; de Vos, W.M.; Knol, J.; Kleerebezem, M. The variable regions of Lactobacillus rhamnosus genomes reveal the dynamic evolution of metabolic and host-adaptation repertoires. Genome Biol. Evol. 2016, 8, 1889–1905. [Google Scholar] [CrossRef][Green Version]
  10. Casjens, S. Prophages and bacterial genomics: What have we learned so far? Mol. Microbiol. 2003, 49, 277–300. [Google Scholar] [CrossRef]
  11. Garneau, J.E.; Moineau, S. Bacteriophages of lactic acid bacteria and their impact on milk fermentations. Microb. Cell Fact. 2011, 10 Suppl. 1, S20. [Google Scholar] [CrossRef][Green Version]
  12. Bondy-Denomy, J.; Davidson, A.R. When a virus is not a parasite: The beneficial effects of prophages on bacterial fitness. J. Microbiol. 2014, 52, 235–242. [Google Scholar] [CrossRef]
  13. Wang, X.; Kim, Y.; Ma, Q.; Hong, S.H.; Pokusaeva, K.; Sturino, J.M.; Wood, T.K. Cryptic prophages help bacteria cope with adverse environments. Nat. Commun. 2010, 1, 147. [Google Scholar] [CrossRef][Green Version]
  14. Tuohimaa, A.; Riipinen, K.A.; Brandt, K.; Alatossava, T. The genome of the virulent phage Lc-Nu of probiotic Lactobacillus rhamnosus, and comparative genomics with Lactobacillus casei phages. Arch. Virol. 2006, 151, 947–965. [Google Scholar] [CrossRef] [PubMed]
  15. Durmaz, E.; Miller, M.J.; Azcarate-Peril, M.A.; Toon, S.P.; Klaenhammer, T.R. Genome sequence and characteristics of Lrm1, a prophage from industrial Lactobacillus rhamnosus strain M1. Appl. Environ. Microbiol. 2008, 74, 4601–4609. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Jarocki, P.; Podleśny, M.; Pawelec, J.; Malinowska, A.; Kowalczyk, S.; Targoński, Z. Spontaneous release of bacteriophage particles by Lactobacillus rhamnosus Pen. J. Microbiol. Biotechnol. 2013, 23, 357–363. [Google Scholar] [CrossRef] [PubMed][Green Version]
  17. Nanda, A.M.; Thormann, K.; Frunzke, J. Impact of spontaneous prophage induction on the fitness of bacterial populations and host-microbe interactions. J. Bacteriol. 2015, 197, 410–419. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Sambrook, J.; Russell, D. Molecular Cloning: A Laboratory Manual, 3rd ed.; Cold Spring Harbor Laboratory Press: New York, NY, USA, 2001. [Google Scholar]
  19. Pfaffl, M.W. A new mathematical model for relative quantification in real-time RT-PCR. Nucleic Acids Res. 2001, 29, 45e. [Google Scholar] [CrossRef] [PubMed]
  20. Villion, M.; Moineau, S. Bacteriophages of Lactobacillus. Front. Biosci. 2009, 14, 1661–1683. [Google Scholar] [CrossRef] [PubMed][Green Version]
  21. Grimaud, R.; Toussaint, A. Assembly of both the head and tail of bacteriophage Mu is blocked in Escherichia coli groEL and groES mutants. J. Bacteriol. 1998, 180, 1148–1153. [Google Scholar]
  22. Mercanti, D.J.; Rousseau, G.M.; Capra, M.L.; Quiberoni, A.; Tremblay, D.M.; Labrie, S.J.; Moineau, S. Genomic diversity of phages infecting probiotic strains of Lactobacillus paracasei. Appl. Environ. Microbiol. 2016, 82, 95–105. [Google Scholar] [CrossRef][Green Version]
  23. Jarocki, P.; Podleśny, M.; Krawczyk, M.; Glibowska, A.; Pawelec, J.; Komoń-Janczara, E.; Kholiavskyi, O.; Dworniczak, M.; Targoński, Z. Complete genome sequence of Lactobacillus rhamnosus Pen, a probiotic component of a medicine used in prevention of antibiotic-associated diarrhoea in children. Gut Pathog. 2018, 10, 5. [Google Scholar] [CrossRef][Green Version]
  24. Wuyts, S.; Wittouck, S.; De Boeck, I.; Allonsius, C.N.; Pasolli, E.; Segata, N.; Lebeer, S. Large-scale phylogenomics of the Lactobacillus casei group highlights taxonomic inconsistencies and reveals novel clade-associated features. mSystems 2017, 2, e00061–17. [Google Scholar] [CrossRef][Green Version]
  25. Douillard, F.P.; Ribbera, A.; Kant, R.; Pietilä, T.E.; Järvinen, H.M.; Messing, M.; Randazzo, C.L.; Paulin, L.; Laine, P.; Ritari, J.; et al. Comparative genomic and functional analysis of 100 Lactobacillus rhamnosus strains and their comparison with strain GG. PLoS Genet. 2013, 9, e1003683. [Google Scholar] [CrossRef] [PubMed]
  26. Brandt, K.; Alatossava, T. Specific identification of certain probiotic Lactobacillus rhamnosus strains with PCR primers based on phage-related sequences. Int. J. Food Microbiol. 2003, 84, 189–196. [Google Scholar] [CrossRef]
  27. Zago, M.; Rossetti, L.; Reinheimer, J.; Carminati, D.; Giraffa, G. Detection and identification of Lactobacillus helveticus bacteriophages by PCR. J. Dairy Res. 2008, 75, 196–201. [Google Scholar] [CrossRef] [PubMed]
  28. Barrangou, R.; Fremaux, C.; Deveau, H.; Richards, M.; Boyaval, P.; Moineau, S.; Romero, D.A.; Horvath, P. CRISPR provides acquired resistance against viruses in prokaryotes. Science 2007, 315, 1709–1712. [Google Scholar] [CrossRef]
  29. Lo, T.C.; Shih, T.C.; Lin, C.F.; Chen, H.W.; Lin, T.H. Complete genomic sequence of the temperate bacteriophage ΦAT3 isolated from Lactobacillus casei ATCC 393. Virology 2005, 339, 42–55. [Google Scholar] [CrossRef]
  30. Kutter, E.; Sulakvelidze, A. Bacteriophages Biology and Applications, 1st ed.; CRC Press: Boca Raton, FL, USA, 2004. [Google Scholar]
  31. García, P.; Ladero, V.; Suárez, J.E. Analysis of the morphogenetic cluster and genome of the temperate Lactobacillus casei bacteriophage A2. Arch. Virol. 2003, 148, 1051–1070. [Google Scholar] [CrossRef]
  32. Dieterle, M.E.; Piuri, M.; Bowman, C.; Hatfull, G.; Batthyany, C.; Turjanski, A.; Lanzarotti, E. Exposing the secrets of two well-known Lactobacillus casei phages, J-1 and PL-1, by genomic and structural analysis. Appl. Environ. Microbiol. 2014, 80, 7107–7121. [Google Scholar] [CrossRef][Green Version]
  33. Kelly, G.; Prasannan, S.; Daniell, S.; Fleming, K.; Frankel, G.; Dougan, G.; Connerton, I.; Matthews, S. Structure of the cell-adhesion fragment of intimin from enteropathogenic Escherichia coli. Nat. Struct. Biol. 1999, 6, 313–318. [Google Scholar]
  34. Hatfull, G.F. Dark matter of the biosphere: the amazing world of bacteriophage diversity. J. Virol. 2015, 89, 8107–8110. [Google Scholar] [CrossRef][Green Version]
  35. Grose, J.H.; Casjens, S.R. Bacteriophage diversity. In Reference Module in Life Sciences; Elsevier: Amsterdam, The Netherlands, 2019. [Google Scholar]
  36. Gründling, A.; Manson, M.D.; Young, R. Holins kill without warning. Proc. Natl. Acad. Sci. USA 2001, 98, 9348–9352. [Google Scholar]
  37. Kashige, N.; Nakashima, Y.; Miake, F.; Watanabe, K. Cloning, sequence analysis, and expression of Lactobacillus casei phage PL-1 lysis genes. Arch. Virol. 2000, 145, 1521–1534. [Google Scholar] [CrossRef] [PubMed]
  38. Dieterle, M.E.; Fina Martin, J.; Durán, R.; Nemirovsky, S.I.; Sanchez Rivas, C.; Bowman, C.; Russell, D.; Hatfull, G.F.; Cambillau, C.; Piuri, M. Characterization of prophages containing “evolved” Dit/Tal modules in the genome of Lactobacillus casei BL23. Appl. Microbiol. Biotechnol. 2016, 100, 9201–9215. [Google Scholar] [CrossRef] [PubMed]
  39. Groth, A.C.; Calos, M.P. Phage integrases: biology and applications. J. Mol. Biol. 2004, 335, 667–678. [Google Scholar] [CrossRef] [PubMed]
  40. Williams, R.J. Restriction endonucleases: Classification, properties, and applications. Appl. Biochem. Biotechnol. Part B Mol. Biotechnol. 2003, 23, 225–243. [Google Scholar] [CrossRef]
  41. Obarska-Kosinska, A.; Taylor, J.E.; Callow, P.; Orlowski, J.; Bujnicki, J.M.; Kneale, G.G. HsdR subunit of the type I restriction-modification enzyme EcoR124I: biophysical characterisation and structural modelling. J. Mol. Biol. 2008, 376, 438–452. [Google Scholar] [CrossRef]
  42. Erill, I.; Campoy, S.; Barbé, J. Aeons of distress: An evolutionary perspective on the bacterial SOS response. FEMS Microbiol. Rev. 2007, 31, 637–656. [Google Scholar] [CrossRef][Green Version]
  43. Fornelos, N.; Browning, D.F.; Pavlin, A.; Podlesek, Z.; Hodnik, V.; Salas, M.; Butala, M. Lytic gene expression in the temperate bacteriophage GIL01 is activated by a phage-encoded LexA homologue. Nucleic Acids Res. 2018, 46, 9432–9443. [Google Scholar] [CrossRef]
  44. Nanda, A.M.; Heyer, A.; Krämer, C.; Grünberger, A.; Kohlheyer, D.; Frunzke, J. Analysis of SOS-induced spontaneous prophage induction in Corynebacterium glutamicum at the single-cell level. J. Bacteriol. 2014, 196, 180–188. [Google Scholar] [CrossRef][Green Version]
  45. Ndjonka, D.; Bell, C.E. Structure of a hyper-cleavable monomeric fragment of phage λ repressor containing the cleavage site region. J. Mol. Biol. 2006, 362, 479–489. [Google Scholar] [CrossRef][Green Version]
  46. Foley, S.; Lucchini, S.; Zwahlen, M.C.; Brüssow, H. A short noncoding viral DNA element showing characteristics of a replication origin confers bacteriophage resistance to Streptococcus thermophilus. Virology 1998, 250, 377–387. [Google Scholar] [CrossRef][Green Version]
  47. Gvakharia, B.O.; Hanson, E.; Koonin, E.K.; Mathews, C.K. Identification of a second functional glutaredoxin encoded by the bacteriophage T4 genome. J. Biol. Chem. 1996, 271, 15307–15310. [Google Scholar] [CrossRef] [PubMed][Green Version]
  48. Lunde, M.; Blatny, J.M.; Lillehaug, D.; Aastveit, A.H.; Nes, I.F. Use of real-time quantitative PCR for the analysis of φLC3 prophage stability in lactococci. Appl. Environ. Microbiol. 2003, 69, 41–48. [Google Scholar] [CrossRef] [PubMed][Green Version]
  49. Tang, H.; Cai, Q.; Li, H.; Hu, P. Comparison of droplet digital PCR to real-time PCR for quantification of hepatitis B virus DNA. Biosci. Biotechnol. Biochem. 2016, 80, 2159–2164. [Google Scholar] [CrossRef] [PubMed][Green Version]
  50. Maheshwari, Y.; Selvaraj, V.; Hajeri, S.; Yokomi, R. Application of droplet digital PCR for quantitative detection of Spiroplasma citri in comparison with real time PCR. PLoS One 2017, 12, e0184751. [Google Scholar] [CrossRef] [PubMed][Green Version]
  51. Alexeeva, S.; Guerra Martínez, J.A.; Spus, M.; Smid, E.J. Spontaneously induced prophages are abundant in a naturally evolved bacterial starter culture and deliver competitive advantage to the host. BMC Microbiol. 2018, 18, 16. [Google Scholar] [CrossRef] [PubMed]
  52. Ho, C.H.; Stanton-Cook, M.; Beatson, S.A.; Bansal, N.; Turner, M.S. Stability of active prophages in industrial Lactococcus lactis strains in the presence of heat, acid, osmotic, oxidative and antibiotic stressors. Int. J. Food Microbiol. 2016, 220, 26–32. [Google Scholar] [CrossRef][Green Version]
  53. Mahony, J.; Lugli, G.A.; van Sinderen, D.; Ventura, M. Impact of gut-associated bifidobacteria and their phages on health: Two sides of the same coin? Appl. Microbiol. Biotechnol. 2018, 102, 2091–2099. [Google Scholar] [CrossRef]
  54. Baugher, J.L.; Durmaz, E.; Klaenhammer, T.R. Spontaneously induced prophages in Lactobacillus gasseri contribute to horizontal gene transfer. Appl. Environ. Microbiol. 2014, 80, 3508–3517. [Google Scholar] [CrossRef][Green Version]
  55. Díaz-Muñoz, S.L.; Koskella, B. Bacteria-phage interactions in natural environments. Adv. Appl. Microbiol. 2014, 89, 135–183. [Google Scholar]
  56. Lunde, M.; Aastveit, A.H.; Blatny, J.M.; Nes, I.F. Effects of diverse environmental conditions on φLC3 prophage stability in Lactococcus lactis. Appl. Environ. Microbiol. 2005, 71, 721–727. [Google Scholar] [CrossRef][Green Version]
  57. Xu, X.; McAteer, S.P.; Tree, J.J.; Shaw, D.J.; Wolfson, E.B.K.; Beatson, S.A.; Roe, A.J.; Allison, L.J.; Chase-Topping, M.E.; Mahajan, A.; et al. Lysogeny with Shiga toxin 2-encoding bacteriophages represses type III secretion in enterohemorrhagic Escherichia coli. PLoS Pathog. 2012, 8, e1002672. [Google Scholar] [CrossRef] [PubMed][Green Version]
  58. Parsek, M.R.; Singh, P.K. Bacterial biofilms: an emerging link to disease pathogenesis. Annu. Rev. Microbiol. 2003, 57, 677–701. [Google Scholar] [CrossRef] [PubMed]
  59. Seo, H.S.; Xiong, Y.Q.; Mitchell, J.; Seepersaud, R.; Bayer, A.S.; Sullam, P.M. Bacteriophage lysin mediates the binding of Streptococcus mitis to human platelets through interaction with fibrinogen. PLoS Pathog. 2010, 6, e1001047. [Google Scholar] [CrossRef] [PubMed]
  60. Mitchell, J.; Siboo, I.R.; Takamatsu, D.; Chambers, H.F.; Sullam, P.M. Mechanism of cell surface expression of the Streptococcus mitis platelet binding proteins PblA and PblB. Mol. Microbiol. 2007, 64, 844–857. [Google Scholar] [CrossRef] [PubMed]
  61. Presterl, E.; Kneifel, W.; Mayer, H.K.; Zehetgruber, M.; Makristathis, A.; Graninger, W. Endocarditis by Lactobacillus rhamnosus due to yogurt ingestion? Scand. J. Infect. Dis. 2001, 33, 710–714. [Google Scholar] [PubMed]
  62. Boumis, E.; Capone, A.; Galati, V.; Venditti, C.; Petrosillo, N. Probiotics and infective endocarditis in patients with hereditary hemorrhagic telangiectasia: a clinical case and a review of the literature. BMC Infect. Dis. 2018, 18, 65. [Google Scholar] [CrossRef]
  63. Aaron, J.G.; Sobieszczyk, M.E.; Weiner, S.D.; Whittier, S.; Lowy, F.D. Lactobacillus rhamnosus endocarditis after upper endoscopy. Open Forum Infect. Dis. 2017, 4, ofx085. [Google Scholar] [CrossRef][Green Version]
  64. Kochan, P.; Chmielarczyk, A.; Szymaniak, L.; Brykczynski, M.; Galant, K.; Zych, A.; Pakosz, K.; Giedrys-Kalemba, S.; Lenouvel, E.; Heczko, P.B. Lactobacillus rhamnosus administration causes sepsis in a cardiosurgical patient-is the time right to revise probiotic safety guidelines? Clin. Microbiol. Infect. 2011, 17, 1589–1592. [Google Scholar] [CrossRef][Green Version]
  65. Naqvi, S.S.B.; Nagendra, V.; Hofmeyr, A. Probiotic related Lactobacillus rhamnosus endocarditis in a patient with liver cirrhosis. IDCases 2018, 13, e00439. [Google Scholar] [CrossRef]
Figure 1. Transmission electron microscope micrograph of bacteriophage BH1 released by the L. rhamnosus strain Pen.
Figure 1. Transmission electron microscope micrograph of bacteriophage BH1 released by the L. rhamnosus strain Pen.
Viruses 11 01163 g001

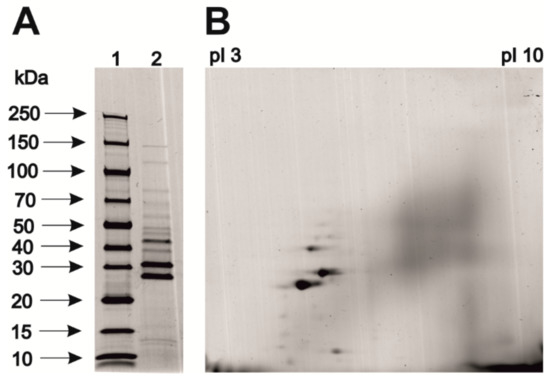

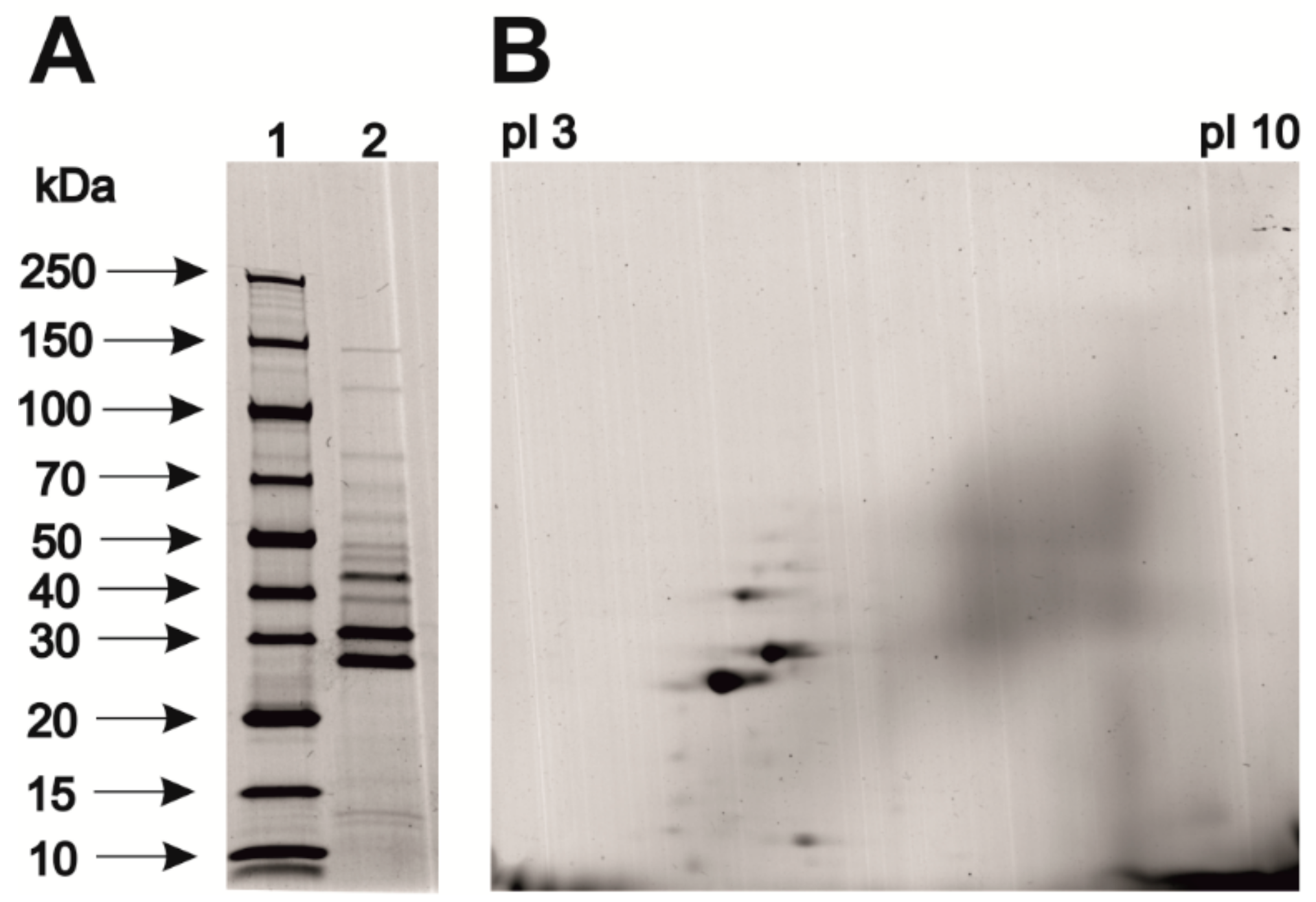

Figure 2. Electrophoretic separation of bacteriophage-derived proteins. Analysis was conducted using SDS-PAGE (A) and two-dimensional electrophoresis procedure (B).
Figure 2. Electrophoretic separation of bacteriophage-derived proteins. Analysis was conducted using SDS-PAGE (A) and two-dimensional electrophoresis procedure (B).
Viruses 11 01163 g002

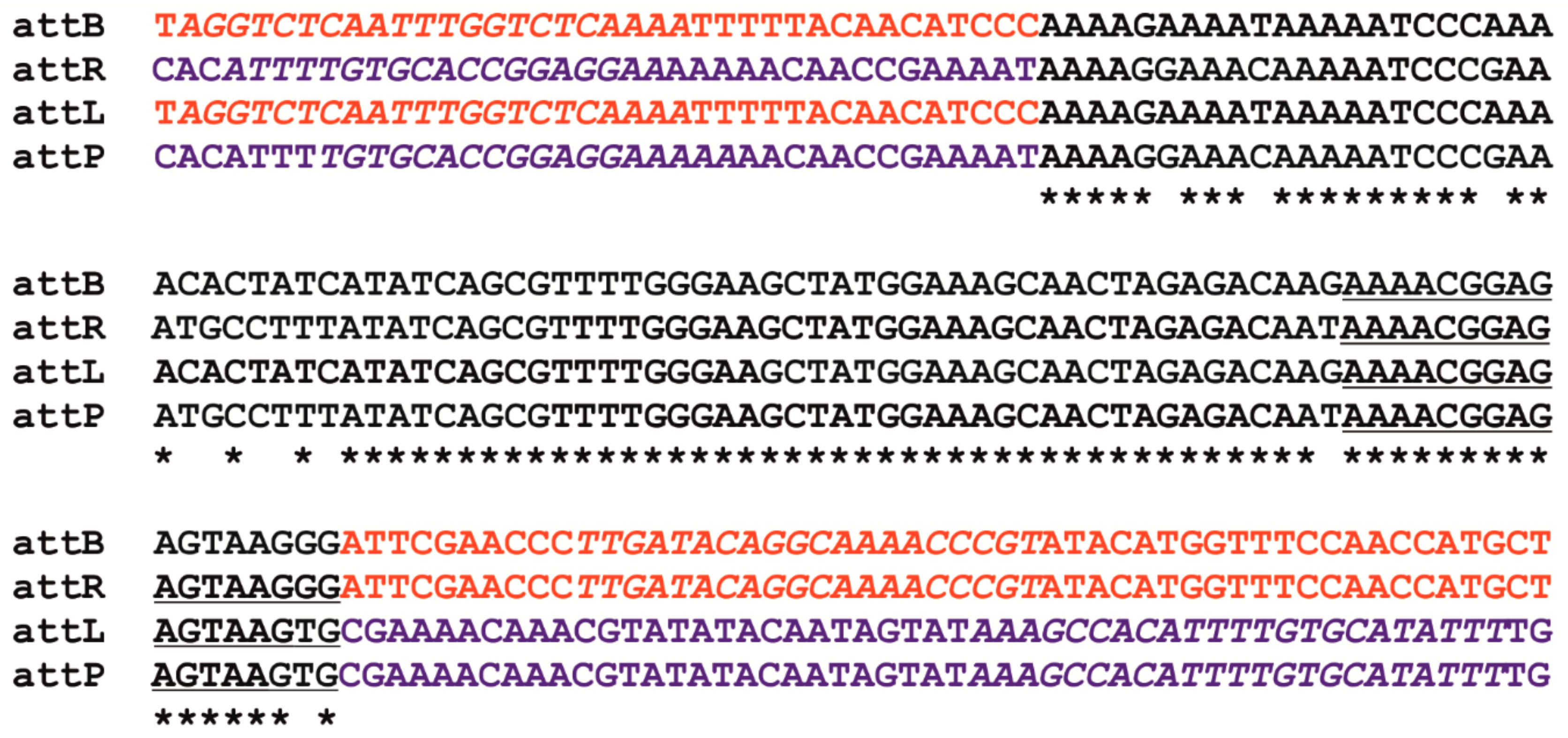

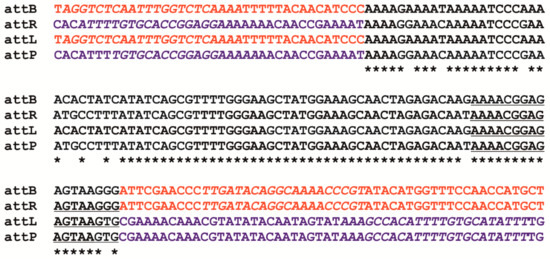

Figure 3. Alignment of phage attachment sites derived from phage BH1 and L. rhamnosus Pen genome. The genome sequence of L. rhamnosus was marked in red; the phage sequence/prophage sequence in blue; the core sequences are underlined; the motifs used to design the primers (Table 1) were highlighted in italics.
Figure 3. Alignment of phage attachment sites derived from phage BH1 and L. rhamnosus Pen genome. The genome sequence of L. rhamnosus was marked in red; the phage sequence/prophage sequence in blue; the core sequences are underlined; the motifs used to design the primers (Table 1) were highlighted in italics.
Viruses 11 01163 g003

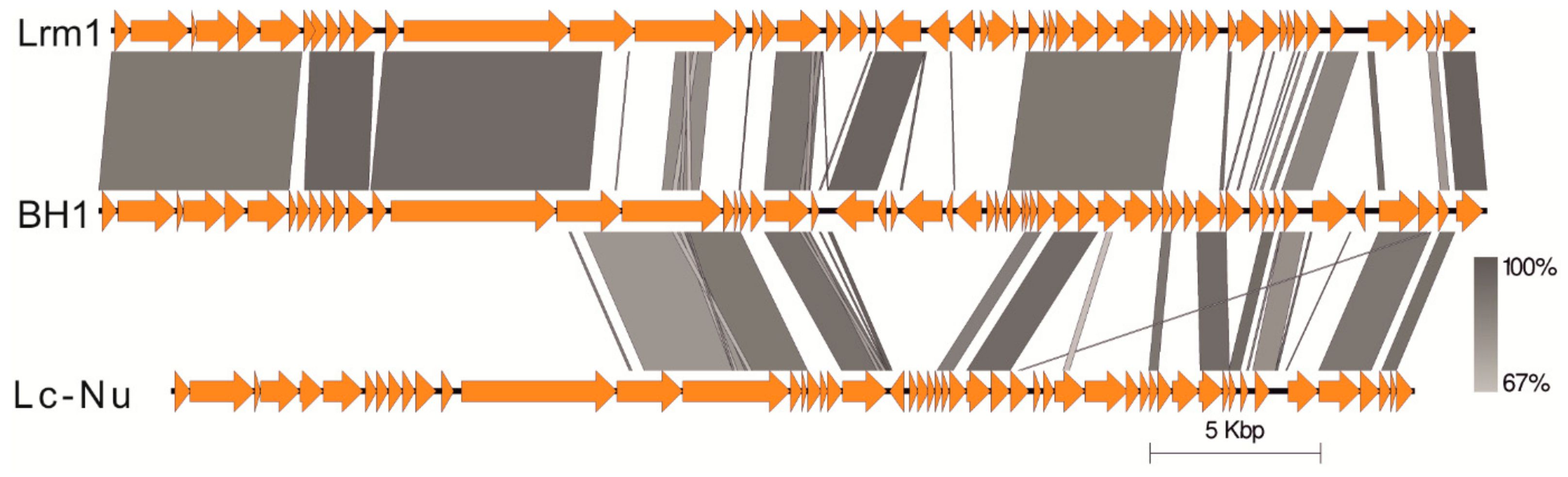

Figure 4. Visualization of genome maps alignment of three Lactobacillus rhamnosus bacteriophages—BH1, Lrm1, and Lc-Nu. Putative open frames are marked with arrows. Lines represent the level of homology between analyzed phage sequences (BLAST identity is presented in gray scale).
Figure 4. Visualization of genome maps alignment of three Lactobacillus rhamnosus bacteriophages—BH1, Lrm1, and Lc-Nu. Putative open frames are marked with arrows. Lines represent the level of homology between analyzed phage sequences (BLAST identity is presented in gray scale).
Viruses 11 01163 g004

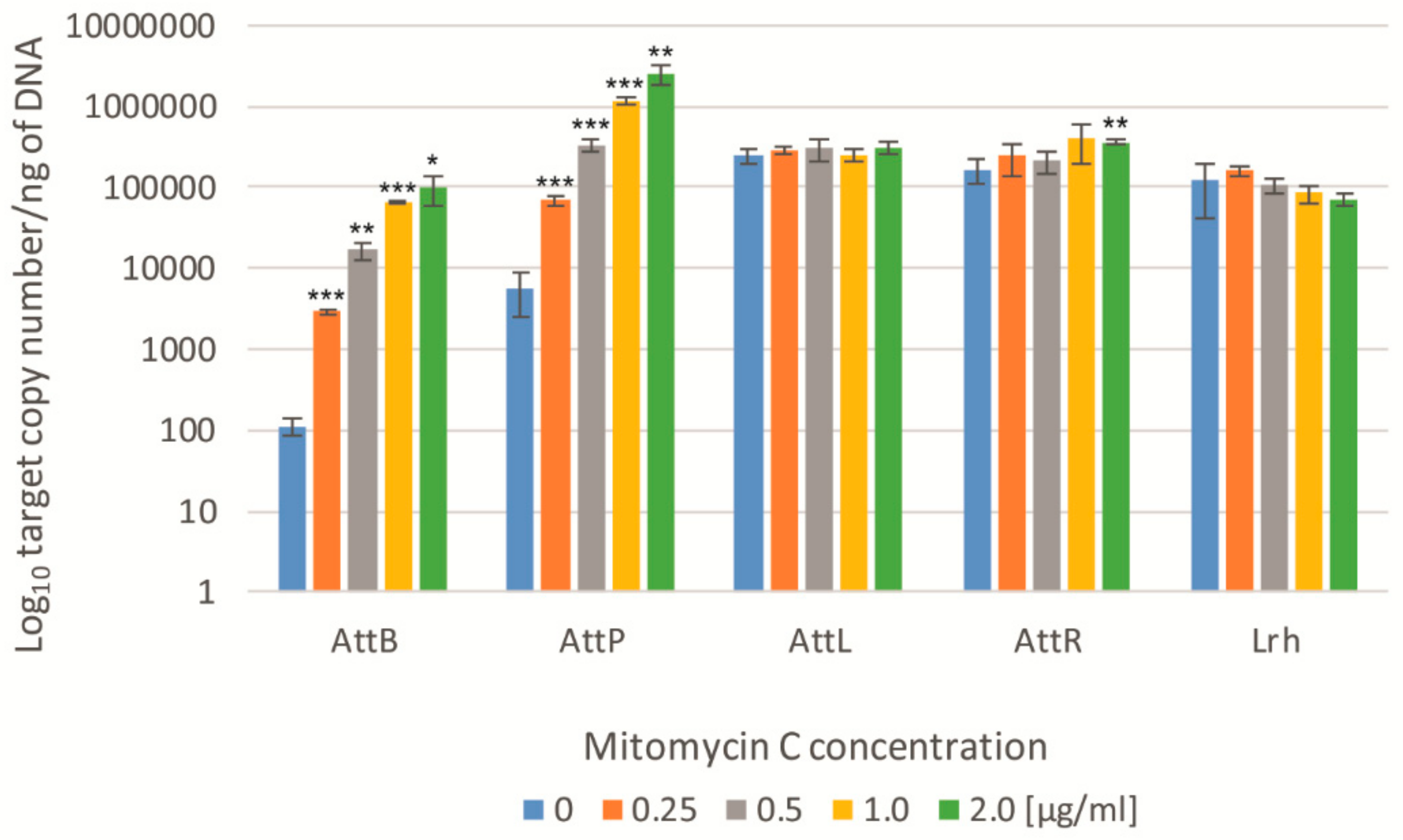

Figure 5. Droplet digital PCR analysis of phage BH1 induction in the presence of different concentrations of mitomycin C. Induction level was observed by measuring the amount of phage attachment sequences (attB, attP, attL, and attR). Additionally, the quantity of bacterial DNA (Lrh) was also monitored. The L. rhamnosus cultures were induced using increasing amounts of mitomycin C; 0.25 µg/mL—orange bars, 0.5 µg/mL—gray bars, 1 µg/mL—yellow bars, and 2 µg/mL—green bars. The obtained results were analyzed according to the control culture (without inducing agent—blue bars). Error bars show the standard deviations of the means. *p < 0.05, **p < 0.01, ***p < 0.001.
Figure 5. Droplet digital PCR analysis of phage BH1 induction in the presence of different concentrations of mitomycin C. Induction level was observed by measuring the amount of phage attachment sequences (attB, attP, attL, and attR). Additionally, the quantity of bacterial DNA (Lrh) was also monitored. The L. rhamnosus cultures were induced using increasing amounts of mitomycin C; 0.25 µg/mL—orange bars, 0.5 µg/mL—gray bars, 1 µg/mL—yellow bars, and 2 µg/mL—green bars. The obtained results were analyzed according to the control culture (without inducing agent—blue bars). Error bars show the standard deviations of the means. *p < 0.05, **p < 0.01, ***p < 0.001.
Viruses 11 01163 g005

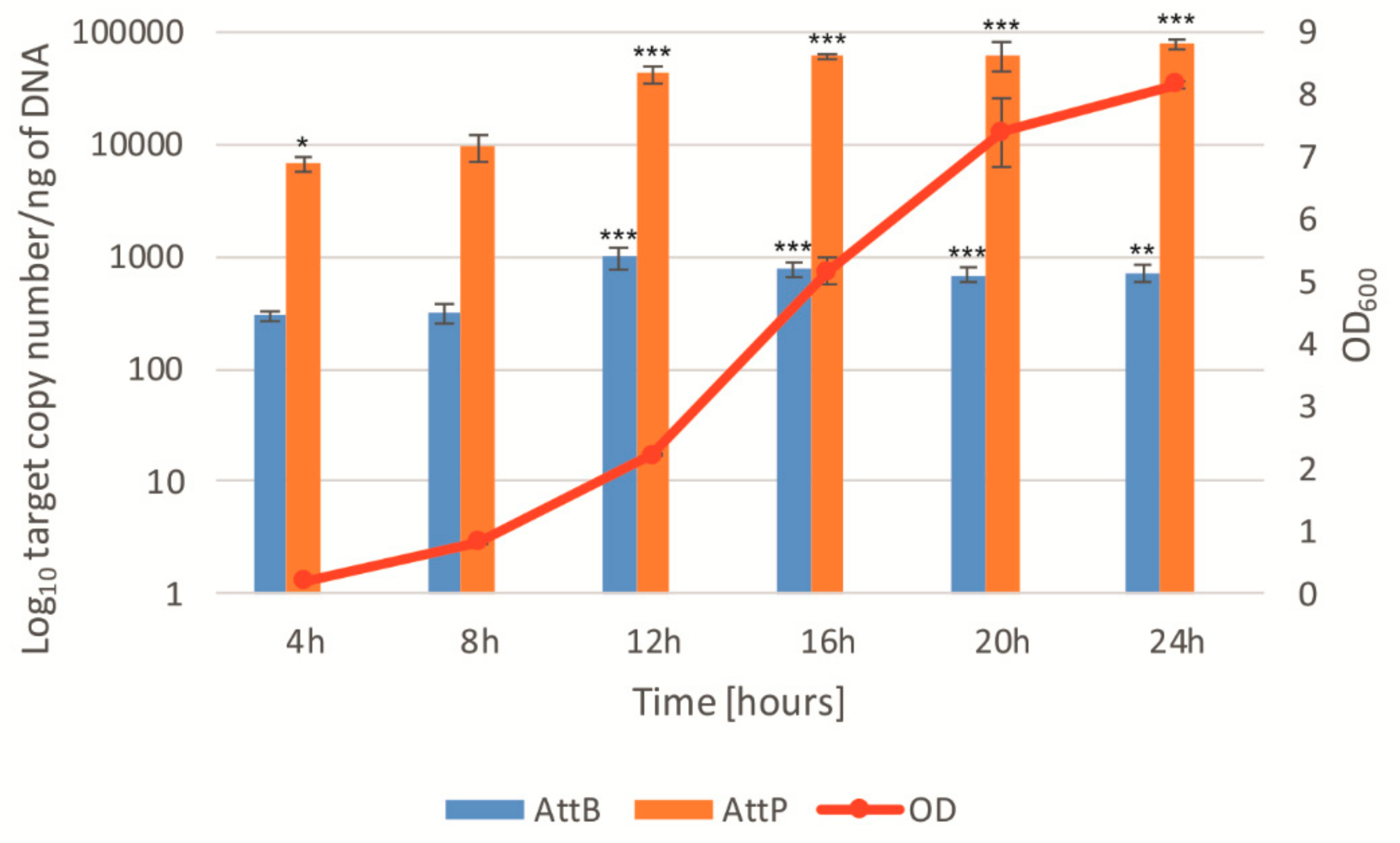

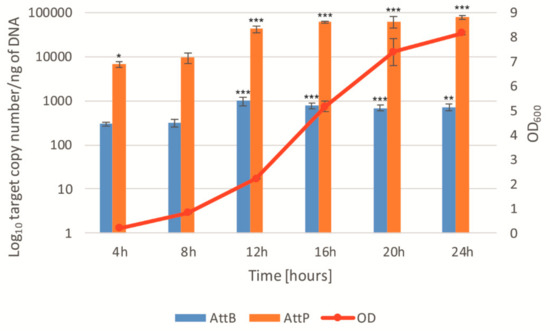

Figure 6. Analysis of spontaneous prophage induction during L. rhamnosus Pen growth using droplet digital PCR. SPI was monitored by measuring excision events (attB—blue bars) and level of extrachromosomal phage DNA (attP). Bacterial culture growth was observed based on OD600 measurements (red line). Error bars show the standard deviations of the means. * p < 0.05, ** p < 0.01, *** p < 0.001.
Figure 6. Analysis of spontaneous prophage induction during L. rhamnosus Pen growth using droplet digital PCR. SPI was monitored by measuring excision events (attB—blue bars) and level of extrachromosomal phage DNA (attP). Bacterial culture growth was observed based on OD600 measurements (red line). Error bars show the standard deviations of the means. * p < 0.05, ** p < 0.01, *** p < 0.001.
Viruses 11 01163 g006
Table 1. PCR primers used in qPCR and droplet digital (dd)PCR reactions.
Table 1. PCR primers used in qPCR and droplet digital (dd)PCR reactions.
Primer SetAmplified FragmentPrimer Sequences (5′–3′)PositionGenBank Accession Number
Table 2. Identification of bacteriophage-derived proteins using LC–MS/MS procedure.
Table 2. Identification of bacteriophage-derived proteins using LC–MS/MS procedure.
Protein DescriptionMascot Score aNo. of Unique Peptides Matched bProtein Coverage [% aa]Protein Molecular MassOrf
phage tail tape measure protein
[Lactobacillus rhamnosus]
phage tail protein
[Lactobacillus rhamnosus]
phage tail protein
[Lactobacillus rhamnosus]
phage portal protein
[Lactobacillus rhamnosus]
major capsid protein
[Lactobacillus rhamnosus]
hypothetical protein
[Lactobacillus rhamnosus]
phage tail protein
[Lactobacillus rhamnosus]
phage tail protein
[Lactobacillus rhamnosus]
phage head-tail adapter protein
[Lactobacillus rhamnosus]
DNA-packaging protein
[Lactobacillus rhamnosus]
hypothetical protein
[Lactobacillus rhamnosus]
phage holin
[Lactobacillus rhamnosus]
peptidase U35
[Lactobacillus rhamnosus]
hypothetical protein
[Lactobacillus rhamnosus]
transcriptional regulator
[Lactobacillus rhamnosus]
hypothetical protein
[Lactobacillus rhamnosus]
hypothetical protein
[Lactobacillus rhamnosus]
a Protein scores derived from individual ion scores of Mascot-identified tryptic peptides as a nonprobabilistic basis for ranking protein hits. b Total number of tryptic peptides which the Mascot program assigned to a database protein. To compute this number, multiple matches to lactobacillar peptides with the same primary sequence but representing different charge or modification states were counted as one.
Table 3. General features of putative ORFs of bacteriophage BH1 and nucleotide sequence homology with genome sequences of phages Lrm1 and Lc-Nu.
Table 3. General features of putative ORFs of bacteriophage BH1 and nucleotide sequence homology with genome sequences of phages Lrm1 and Lc-Nu.
Orf Order/StrandPredicted Start Stop SiteGC (%)Orf Length (aa)Predicted Molecular Mass (kDa)pIDescriptionRepresentative orf (% Coverage/% nt Identity)Biological Process/Molecular Function a
Lrm1 NC_011104.1Lc-Nu NC_007501.1
1F90–54541.0115117.068.85Terminase, small subunit100/99.340/0-
2F567–227943.9657065.105.15Terminase, large subunit100/93.350/0-
3F2291–248242.19636.669.31Hypothetical protein100/98.440/0-
4F2488–374146.6541746.325.07Portal protein100/81.640/0-
5F3695–432447.6220923.725.45Prohead protease100/87.780/0-
6F4366–556846.2240044.035.42Major capsid protein98.92/ 84.370/0-
7F5586–582550.837977.634.53Hypothetical protein0/00/0GO:0030246
8F5836–619541.9411913.524.24Putative DNA-packaging protein46.67/91.670/0-
9F6185–651447.5810912.619.57Head-tail adaptor100/98.480/0-
10F6514–690047.8012814.035.53Putative tail component100/96.120/0-
11F6900–728645.2212814.664.39Putative head-to-tail joining protein100/95.610/0-
12F7320–793744.8220522.074.56Major tail protein96.12/95.790/0-
13F8036–844942.5113715.246.30Hypothetical protein100/98.310/0-
14F8572–1343445.861620173.279.42Tail tape measure protein97.27/95.480/0-
15F13435–1535146.6963871.175.21Tail component protein47.99/89.6759.36/82.86-
16F15352–1830645.69984107.754.78Prophage tail endopeptidase36.75/82.6055.40/79.54-
17F18322–1865145.7610911.904.38Hypothetical protein0/0100/99.70-
18F18648–1879142.36475.294.86Uncharacterized protein, XkdX family0/0100/96.53-
19F18823–1912245.339911.306.63Hypothetical protein0/00/0-
21F19561–2085948.1143247.068.98Glycoside hydrolase, lysin100/90.87100/92.33GO:0009253 GO:0016998 GO:0003796
22F20904–2112845.78748.184.97Hypothetical protein0/00/0-
23R21592–2271942.5537543.289.71Site-specific integrase100/98.490/0GO:0006310 GO:0015074 GO:0003677
24R22827–2309035.238710.249.80Hypothetical protein0/00/0-
25F23229–2345042.34738.134.32Hypothetical protein0/00/0-
26R23560–2474140.7839344.339.00Restriction endonuclease, type I, HsdS0/00/0GO:0006304 GO:0003677
27R24832–2505047.03728.076.53LexA-like peptidase0/00/0-
28R25122–2589542.7725728.974.61Cro/CI-type transcriptional repressor0/00/0GO:0003677
29F26053–2630439.29839.4810.2XRE family transcriptional regulator0/00/0GO:0003677
30F26301–2645044.00495.456.12Hypothetical protein0/00/0-
31R26447–2664737.81667.305.33Hypothetical protein0/00/0-
32F26722–2707842.5811813.929.15DUF771 domain-containing protein100/1000/0-
33F27078–2717047.31303.365.96Hypothetical protein100/97.850/0-
34F27163–2731545.10505.699.52Hypothetical protein100/95.4298.69/96.69-
35F27320–2752345.59677.516.00Hypothetical protein100/86.27100/90.20-
36F27542–2802746.3016117.928.73Siphovirus-like Gp157 protein100/96.910/0-
37F28028–2873545.3423526.576.77Nucleotide-binding protein100/94.92100/92.95-
38F28739–2929643.3718520.925.50DUF669 domain-containing protein100/95.1797.13/96.13-
39F29311–3010843.8626531.139.36Putative replication protein41.73/85.290/0-
40F30095–3087746.8726029.739.68IstB-like ATP binding protein100/86.750/0GO:0005524
41F30874–3121843.7711413.094.51Hypothetical protein94.49/ 93.560/0-
42F31205–3145950.20849.429.75Hypothetical protein0/0100/90.59-
43F31456–3182143.7112114.396.92Holliday junction resolvase RusA-like0/00/0GO:0006281 GO:0006310 GO:0000287
44F31832–3217046.0211212.445.38Putative endonuclease0/00/0-
45F32182–3288345.4423327.115.01SAM-dependent DNA methyltransferase0/096.15/93.63GO:0006306 GO:0003677 GO:0008170
46F32880–3306241.53606.894.55Hypothetical protein55.19/94.06100/94.54-
47F33059–3360149.3518020.644.85DUF1642 domain-containing protein8.47/93.480/0-
48F33757–3413745.4112614.214.40Hypothetical protein10.24/97.440/0-
49F34134–3434340.95698.346.73Hypothetical protein0/0100/ 94.79-
50F34471–3469242.34738.429.52HTH-transcriptional regulator0/00/0GO:0003677
51F34762–3520547.9714716.857.88Transcriptional regulator, ArpU family55.86/ 97.9855.63/97.57-
52F35599–3667235.8535740.656.33Hypothetical protein0/00/0-
53R36834–3713342.009910.819.37Stress response protein CsbD0/00/0-
54F37552–3876945.0740546.646.07GcrA cell cycle regulator0/0100/95.81-
55F38717–3928644.9118921.449.28HNH endonuclease0/022.81/84.62GO:0016788
56F39290–3961346.9110712.699.01Ribonucleoside-diphosphate reductase81.48/78.7980.56/89.27-
57F39816–4061045.2826431.149.05Small terminase subunit/HNH endonuclease100/97.990/0GO:0003676 GO:0004519
a Biological process and molecular function of proteins was determined using InterProScan.

Share and Cite

MDPI and ACS Style

Jarocki, P.; Komoń-Janczara, E.; Podleśny, M.; Kholiavskyi, O.; Pytka, M.; Kordowska-Wiater, M. Genomic and Proteomic Characterization of Bacteriophage BH1 Spontaneously Released from Probiotic Lactobacillus rhamnosus Pen. Viruses 2019, 11, 1163.

AMA Style

Jarocki P, Komoń-Janczara E, Podleśny M, Kholiavskyi O, Pytka M, Kordowska-Wiater M. Genomic and Proteomic Characterization of Bacteriophage BH1 Spontaneously Released from Probiotic Lactobacillus rhamnosus Pen. Viruses. 2019; 11(12):1163.

Chicago/Turabian Style

Jarocki, Piotr, Elwira Komoń-Janczara, Marcin Podleśny, Oleksandr Kholiavskyi, Monika Pytka, and Monika Kordowska-Wiater. 2019. "Genomic and Proteomic Characterization of Bacteriophage BH1 Spontaneously Released from Probiotic Lactobacillus rhamnosus Pen" Viruses 11, no. 12: 1163.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
